State of the Art of Boron and Tin Complexes in Second- and Third-Order Nonlinear Optics ^§

Abstract

Boron and tin complexes have been a versatile and very interesting scaffold for the design of nonlinear optical (NLO) chromophores. In this paper we present a wide range of reports since the 1990s to date, which include second-order (e.g., second harmonic generation) and third-order (e.g., two-photon absorption) NLO properties. After a short introduction on the origin of the NLO response in molecules, the different features associated with the introduction of these inorganic motifs in the organic-based NLO materials are discussed: Their effect on the accepting/donating capabilities of the substituents, on the efficiency of the π-conjugated linkage, and on the topology of the chromophores which can be tuned from the first generation of “push-pull” chromophores to more sophisticated two- or three-dimensional architectures.

1. Introduction

Nonlinear optics is the multidisciplinary research domain which investigates the properties arising from the interactions of matter with intense electromagnetic fields, thus producing modified fields that are different from those of the input field in frequency, amplitude, phase or polarization [1]. Most nonlinear optical (NLO) responses were not observed before 1960 when Maiman built the first laser at the Hughes Research Laboratories of the Hughes Aircraft company in Malibu, California [2,3]. Since that time, the world of nonlinear optics is indeed intricately associated to the world of lasers.

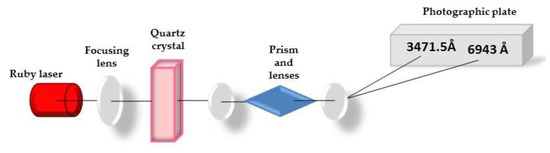

In the summer of 1961, Peter Franken and his group [4], at the University of Michigan, at Ann Arbor performed the first experiment of frequency doubling, or Second Harmonic Generation (SHG), on a crystal of quartz irradiated by a ruby laser operating at 694 nm [5]. This first historical experiment is illustrated in Figure 1.

1.1. Organic Molecules for Second-Order NLO Properties

The first observation of a second-order NLO property in an organic material, was made by Rentzepis and Pao, at Bell Telephone Laboratories in 1964 [6], when crystals of 3,4-benzopyrene, and 1,2-benzanthracene were irradiated with intense ruby laser light. Later on, in 1978, Buckingham and Clarke [7], studied the NLO processes in atoms and molecules.

Since this pioneering work, organic materials have acquired relevance as they were found to exhibit ultra-fast response times to optical excitation, low dielectric constants and a synthetic design flexibility which allows to perform structural modifications to modulate the NLO effect, by virtue of the tremendous capabilities of organic synthetic chemistry [8]. Other advantages are their high optical damage threshold and low cost [1].

At the most fundamental level, the molecular NLO response is expressed from the polarization (μ) of a molecule subjected to a laser light as follows:

μ(E) = μ₀ + αE + βE² + γE³ + …

(1)

An expression in which μ₀ is the permanent dipole moment, α the polarizability, β and γ respectively the first- and second-order hyperpolarizabilities (origin of the first- and second-order NLO properties) and E being the electric field component of the light. The most investigated NLO properties (e.g., SHG) are ultimately related to β which is expressed in cm⁵ × esu⁻¹, which will be called esu here for simplification.

Although organic molecules with second-order NLO properties are only a class of NLO materials, they have dominated the field as the most studied chromophores. Furthermore, the electronic features required to understand the origin of their NLO response can easily be transposed to more sophisticated systems to a large extent. Therefore, they are described here as the most useful benchmark model for providing an efficient guideline towards the most promising NLO molecules.

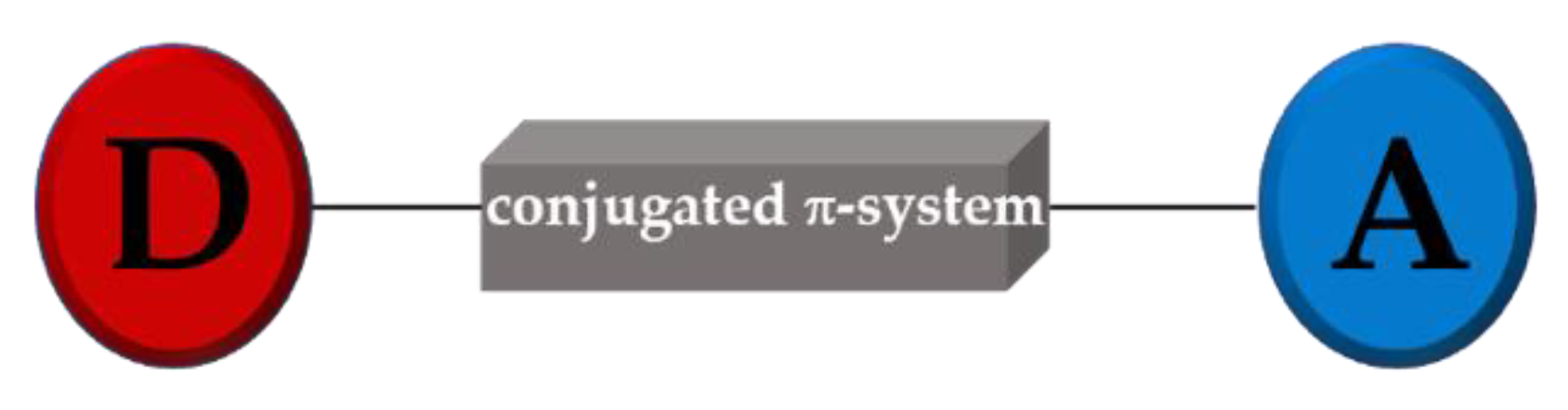

Most traditional organic NLO chromophores are planar molecules with a strong electron-donating group (D) and an electron-acceptor group (A), connected via a π-conjugated structure acting as an electronic bridge to facilitate charge transfer across the molecule. These donor-acceptor chromophores are known as the “push-pull” systems (Figure 2).

The electron donor groups often have electron lone pairs of high energy and are characterized by hybridization with predominantly p characters (sp³, 75% p), as in a disubstituted amine -NR₂. The electron acceptor groups (A) are characterized by the presence of unoccupied orbitals having low energy levels (as in three-coordinated boron compounds), with more s character bonding such as sp in nitrile, or sp² in nitrobenzene organic compounds.

In 1968, Kurtz and Perry [9] described a simple and quick experimental technique which permits the rapid classification of materials according to a magnitude of nonlinear optical coefficients relative to a crystalline quartz standard, and the existence or absence of phase matching direction(s) for second-harmonic generation. The technique only requires the material in powder form (readily available in most cases), unlike single crystals of reasonably good optical and dielectric quality which are difficult to obtain. This development was the first systematic investigation for detecting second- harmonic generation in crystalline powders. With a reasonably high reliability, the method enables one to classify a new material in one of five categories: Class A: Phase-matchable for second-harmonic generation; nonlinear coefficients large (substantially greater than crystalline quartz), Class B: Phase-matchable for second-harmonic generation; nonlinear coefficients small (same order of magnitude as crystalline quartz), Class C: Nonlinear coefficients greater than crystalline quartz; not phase-matchable for second-harmonic generation, Class D: Nonlinear coefficients equal to or less than crystalline quartz; not phase-matchable for second-harmonic generation, and Class E: Centrosymmetric (first-order nonlinearities vanish due to symmetry considerations).

Kurtz and Perry provided an initial survey of approximately 100 compounds, SHG was detected for the first time in 56 of these materials and 27 of them were assigned to the phase-matchable categories. Single-crystal measurements on four of these latter compounds verified the existence of phase-matching directions for second-harmonic generation. This powder technique provided a substantial increase in the number of new materials for use in nonlinear optics applications.

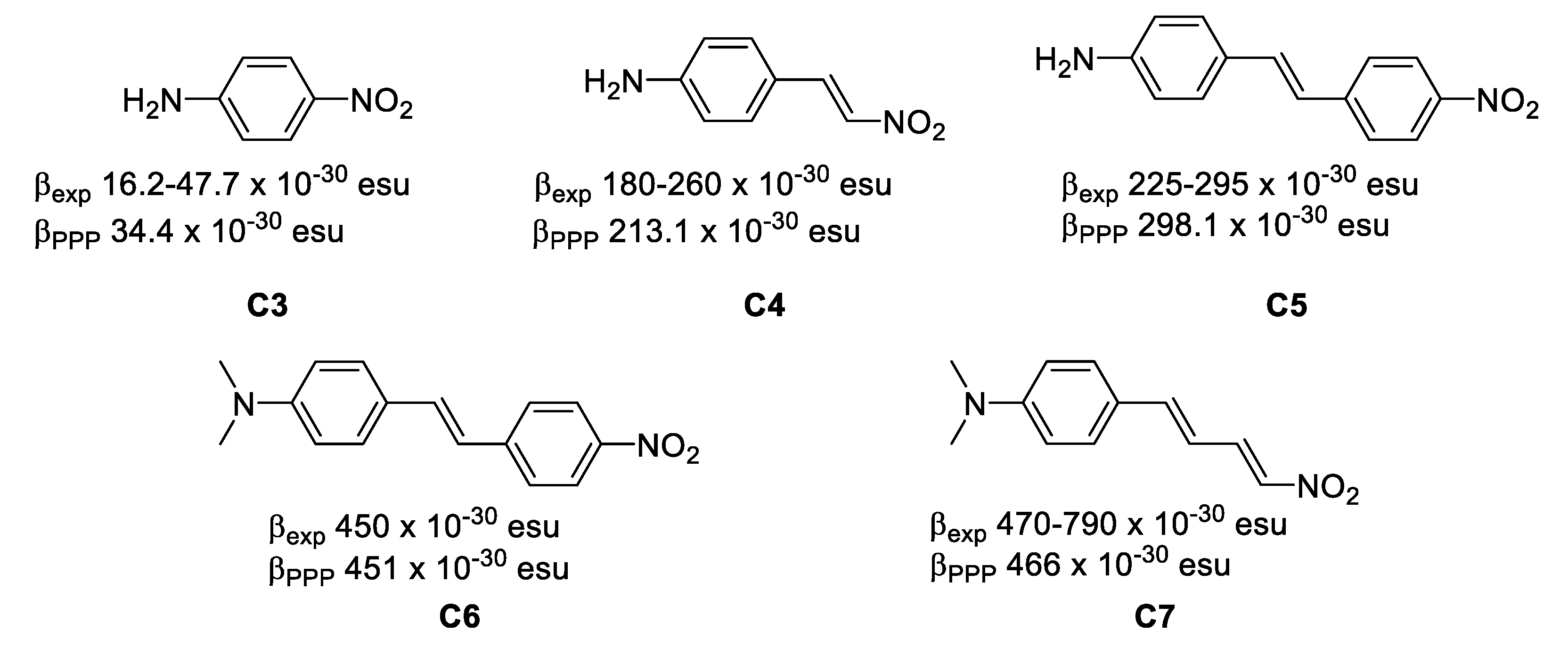

In 1977, Oudar [10] reported the influence of donor and acceptor groups on the second and third order hyperpolarizabilities of a series of π conjugated molecules such as styrene and stilbene derivatives with various substituents. These were measured by static-electric field induced second harmonic generation (DC-SHG) and tunable four-wave mixing both in liquids and solutions. These compounds showed nonlinearities 10 times larger than their benzene derivatives, this is due to a greater π conjugated system. In the case of the disubstituted molecules containing donor and acceptor groups at opposite ends, they possess strong intramolecular charge transfer that promotes a large enhancement of β.

Among the numerous factors that contribute to the increase of second-order NLO properties in organic compounds are:

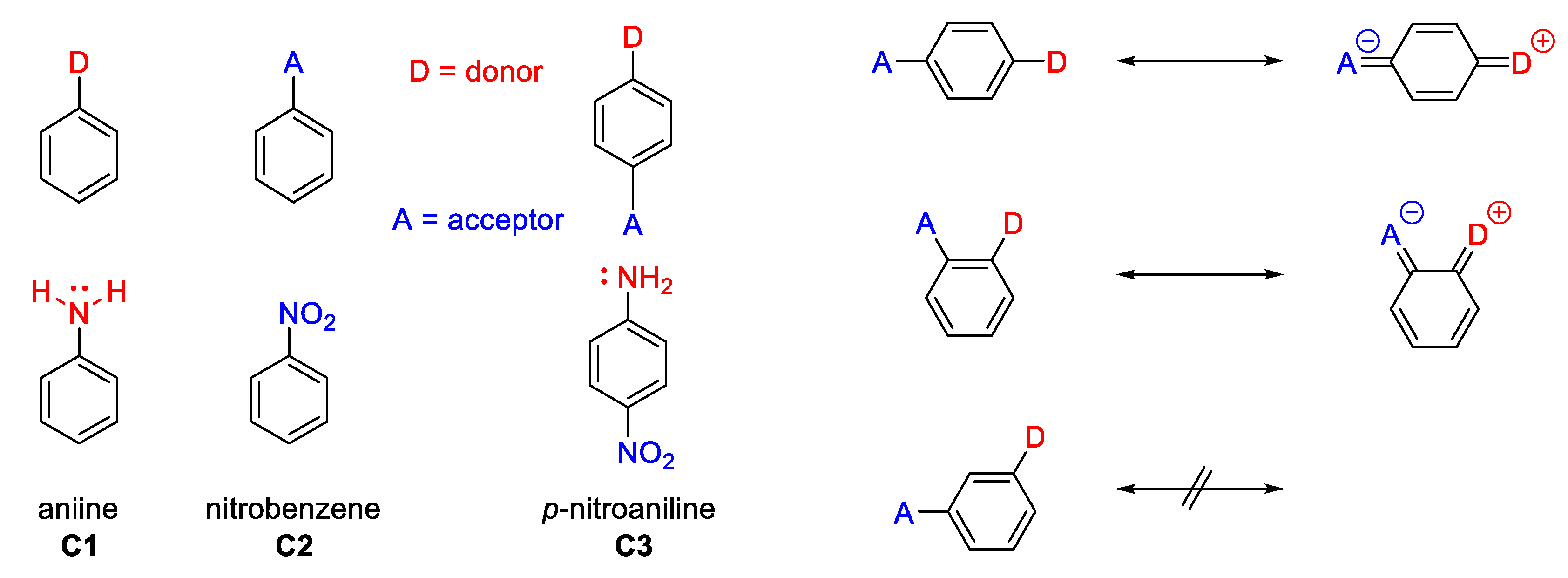

• The relative position of the donor-acceptor groups on a π-conjugated structure in order to benefit from the best path of delocalization. For instance, in the example of a D/A disubstituted phenyl (Figure 3), it has long been recognized that the para substituted isomer leads to the best charge transfer effect and hence to the largest β value.
• The length of the π system. Increasing the length of the π system increases the NLO properties of organic compounds, since the long range π-delocalization brings the main component to the molecular polarizability (Equation (1)). In high-β chromophores, computations based on the Pariser-Parr-Pople (PPP) model have proven useful and reliable when applied to different chromophores. Experimentally-determined β values and PPP-obtained show an excellent correlation (β_PPP ≤ 2.5 β_exp), the largest value has been achieved by C7 ${\mathsf{\beta }}_{\mathrm{vec}}^{\left(\mathrm{PPP}\right)}=466.8\times 10$ ⁻³⁰ esu and ${\mathsf{\beta }}_{\mathrm{vec}}^{\left(\exp \right)}=470-790\times 10$ ⁻³⁰ esu. (Figure 4) [11,12].
• Crystallization in non-centrosymmetric space groups in the case of second-order bulk effects. Equation (1) leads to the important symmetry requirement that, in order for β to be non-zero, the molecule must necessarily be non-centrosymmetric. This can be easily understood from the fact that μ(−E) = −μ(E) in centrosymmetric entities, therefore β(−E)(−E) = β(E)(E) and hence β = 0. The polarization (P) of a macroscopic material is again given by an expression analogous to Equation (1), expressed as follows:

  P(E) = χ⁽⁰⁾ + χ⁽¹⁾E + χ⁽²⁾E² + χ⁽³⁾E³ +…

  (2)

  where χ⁽²⁾ is the second-order susceptibility which is related to the underlying β. An important point to note is that the requirement for non-centrosymmetry is valid in the solid state as well, so the molecules must necessarily crystallize in non-centrosymmetric space groups. In that case, the bulk property is frequently approached semi-quantitatively through a solid state powder test which expresses the SHG efficiency of the materials versus that of a reference (e.g., urea [13]). Some examples of organic solids with SHG efficiencies are gathered in Figure 5 [14].

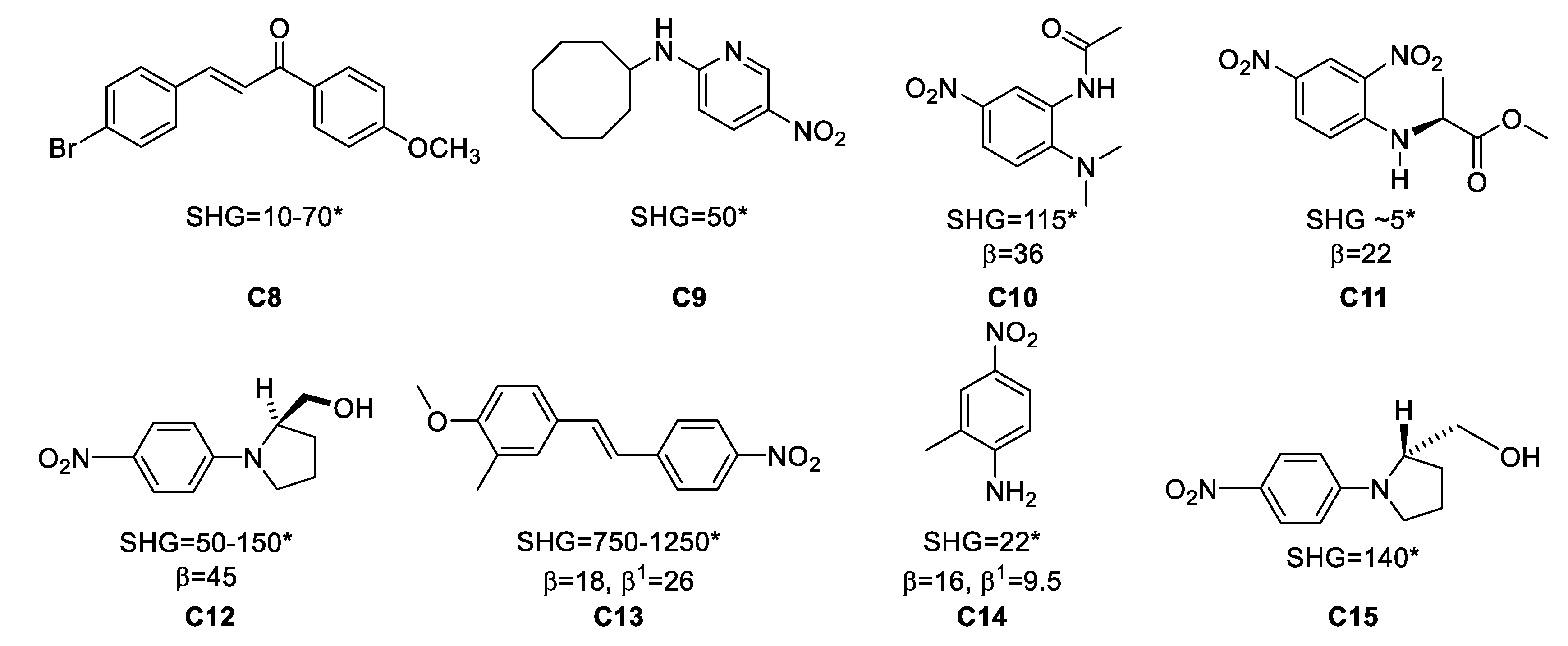

Thus, the reported powder SHG value for the series of compounds C8–C15 in Figure 5 are some noteworthy cases in terms of their SHG values. For instance, 4-bromo-4’-methoxychalcone, (C8), shows β values of 10–70 vs. urea, depending on the solvent from which the material was crystallized, for 2-N-cyclooctylamino-5-nitropyridine (C9) β = 50 vs. urea while 3-methyl-4-methoxy-4′-nitrostilbene (C13) has the highest reported β value, 1250 times vs. urea, and 2-methyl-4-nitroaniline (C14) shows a value of 22 vs. urea.

1.2. From Second-Order to Third-Order NLO Properties

At first, the key parameters at the origin of the third-order properties (γ in Equation (1)) seem to be closely related to those at the origin of β, making the third-order properties a simple extension of the second-order properties. On the other hand, γ is related to an odd term (∝E³) in the development of Equation (1), therefore it is subject to no symmetry requirement. Indeed, centrosymmetric molecules, which are silent in second-order nonlinear optics, can be strongly efficient in third-order applications. Moreover, it has been suggested by Marder [15] that the most promising strategy to optimize γ should be to focus the search on chromophores having a vanishing β. Along this line, the most efficient systems in third-order nonlinear optics should necessarily be centrosymmetric. Therefore, there are two classes of efficient third-order chromophores: The dipolar (“push-pull”) chromophores exhibiting both second- and third-order properties, and the quadrupolar (centrosymmetric) chromophores in which extremely large third-order NLO responses can be observed [15].

There are numerous optical properties associated to γ (e.g., third harmonic generation, Kerr effect) but the most widely investigated one is the capability for a molecule to absorb two photons simultaneously, known as two-photon absorption (TPA) [16]. While the capability of a molecule to absorb one photon is related to its extinction coefficient (ε), its capability to absorb two photons is quantified as the molecular cross-section (σTPA) expressed in Göppert-Mayer (GM). In the present review, most of the third-order reports will be on the cross-section (σTPA) rather than on the third-order hyperpolarizability γ however, they are related by the following expression:

$${\mathsf{\sigma }}_{TPA}=\frac{8{\pi }^2\hslash {\omega }^2}{n^2{c}^2}{L}^{4}Im\gamma$$

(3)

where ω is the laser frequency, n the refractive index, c the velocity of light in vacuum, L the local field factor, and Imγ the imaginary part of γ [16,17,18].

Finally, the choice to talk specifically about boron and tin complexes, from the myriad of inorganic NLO-responsive species, springs from three main points. First, as will be seen through the contents and as can be seen in the literature, there has been a perfectly traceable evolution in design and rational building of NLO-responsive chromophores that stems from the understanding of their electronic properties and synthetic accessibility. Therefore, it is possible to perform a historical tracing of the attempts to obtain better chromophores of this kind, that help to clarify fundamental phenomena and that can possess different applications. Secondly, in the recent years, there is no compendium about the species we will discuss further down in the present text. Due to the abundance of boron and tin complexes, review articles about modern architectures and applications are severely scarce and scattered in terms of the compounds they encompass. In the case of tin, this is even more evident since the available literature about tin complexes specifically as NLO-responsive species is not so abundant. So, our intention is to purse a comprehensive compendium which deals with the modern literature about this important chromophores.

2. NLO Properties in Organoboron Compounds and Boron Complexes

2.1. Second-Order NLO Properties

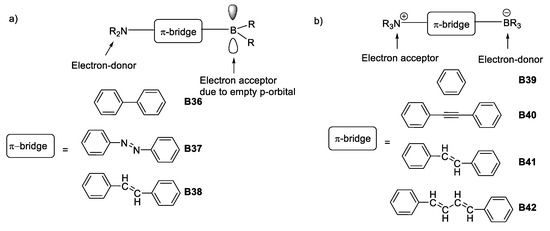

Boron compounds that exhibit nonlinear optical properties can generally be found in three forms:

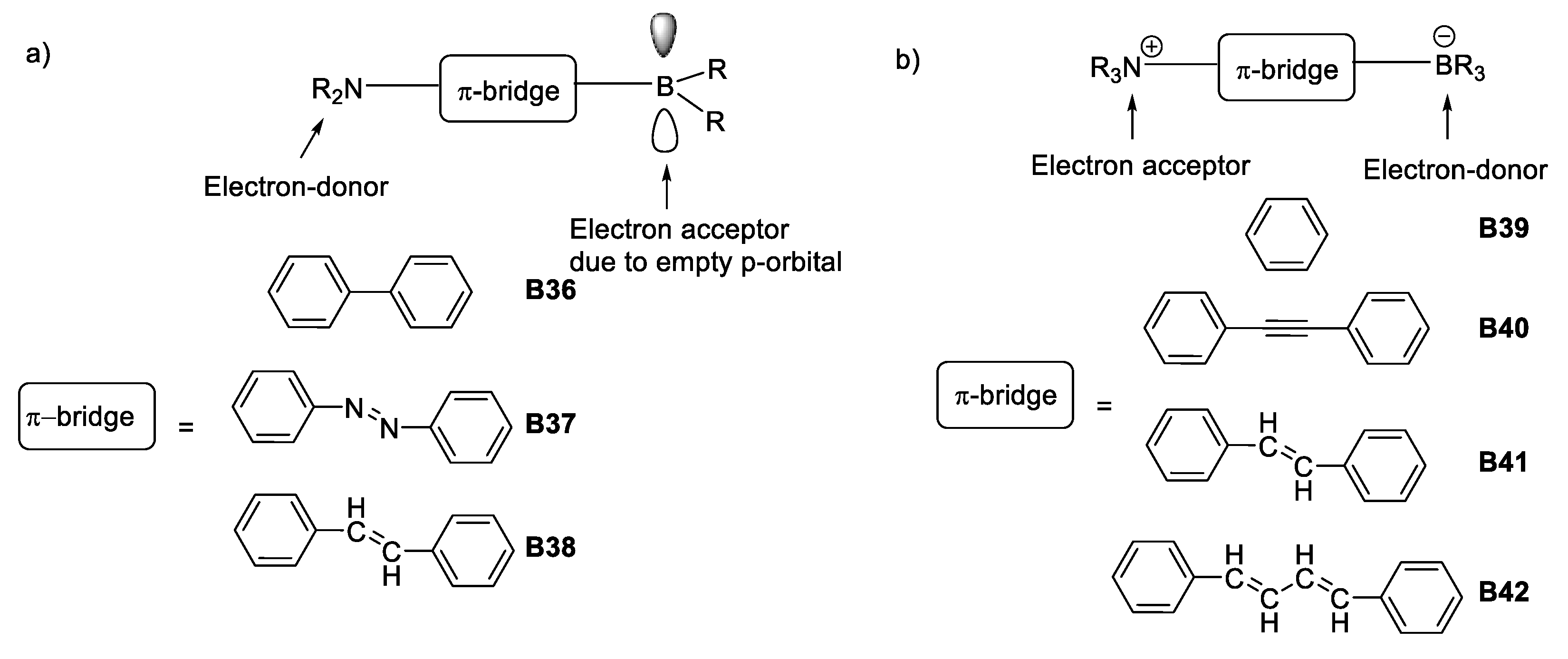

• Where boron is in neutral form, it acts as electron acceptor due its Lewis acid character. This is exemplified in Figure 6 for 5-(dimesitylboryl)-5′-(pyrrolidin-1-yl)-2,2′-dithienyl B1.
• Where boron is in ionic form, it acts as an electron donor, as observed in B2 (Figure 7).

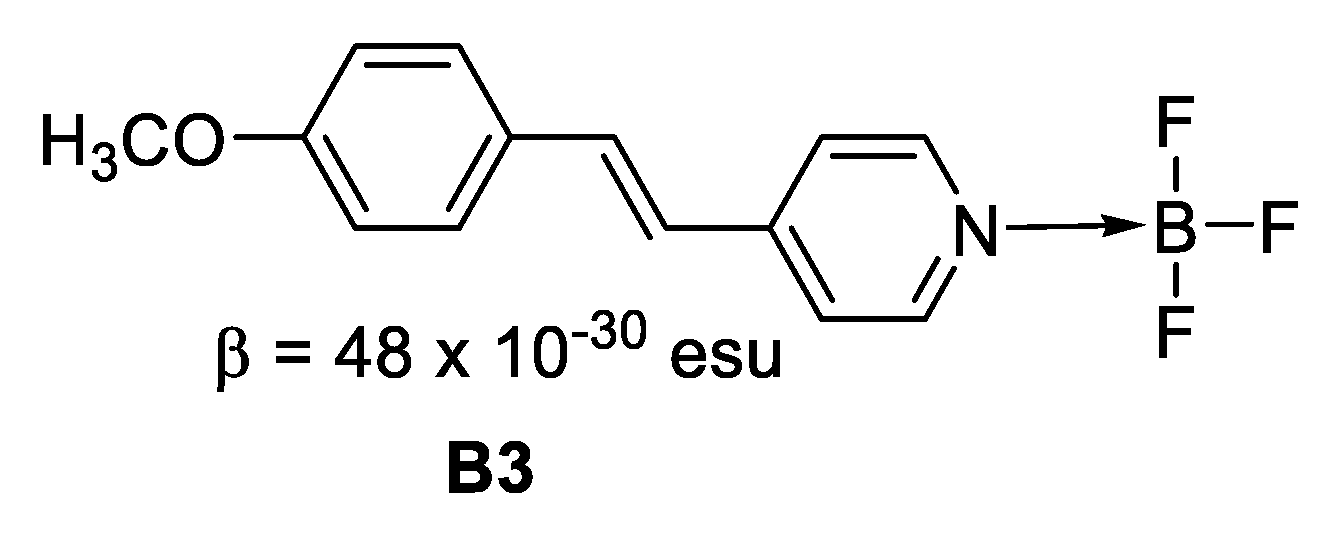

• Where the boron forms an adduct with nitrogen, for instance in a boronated pyridine (Figure 8), the creation of the B–N bond turns the pyridine from a weak withdrawing unit to a much stronger one, which leads to enhanced intramolecular charge transfer and hence, larger NLO response.

Various three-coordinated and tetracoordinated boron containing materials have been reported in relation to potential NLO properties.

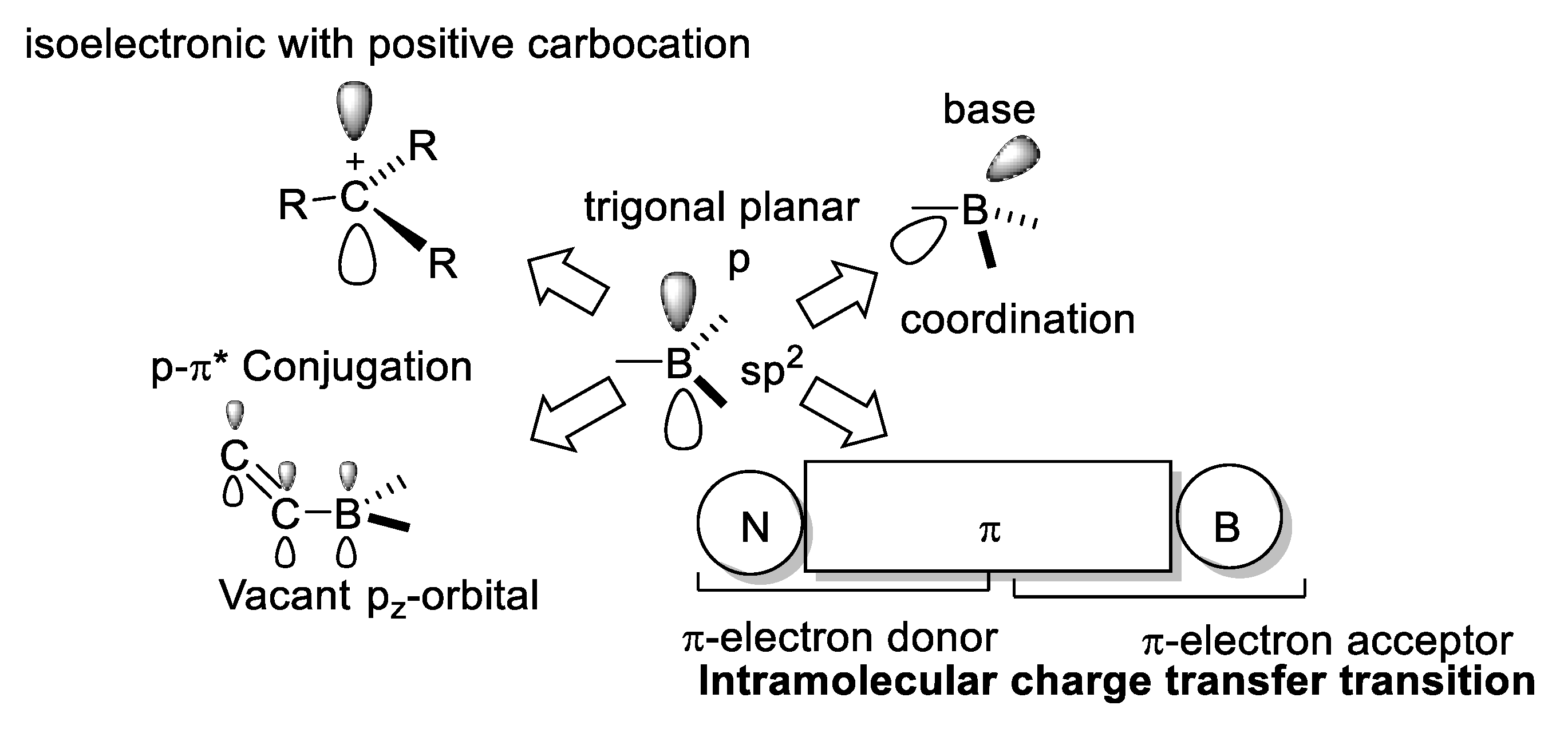

The most characteristic electronic properties of trivalent boron are related to its vacant p_z-orbital [19] (Figure 9).

Three-coordinated boron atom is an electron acceptor, it is a Lewis acid, and is isoelectronic to a carbocation; with a trigonal planar geometry, it is electron deficient, which allows an effective π-p conjugation with an adjacent organic π-system. The Lewis acid character of three-coordinated boron atom can be inhibited by steric hindrance.

Tetracoordinated boron acts as an electron-donating substituent and possesses a negative charge and an occupied p_z-orbital. Tetracoordinated boron compounds are more stable than the three-coordinated ones, and the modification of the electronic and hindrance effects allows the tuning of their nonlinear optical properties.

The development of functional materials which use boron as the main element started with the work of Williams from the Kodak group [20,21]. Kanis et al. [11] made the first theoretical calculations of the quadratic hyperpolarizabilities of organoboranes in stilbene chromophores, in 1991 using the semiempirical ZINDO calculations.

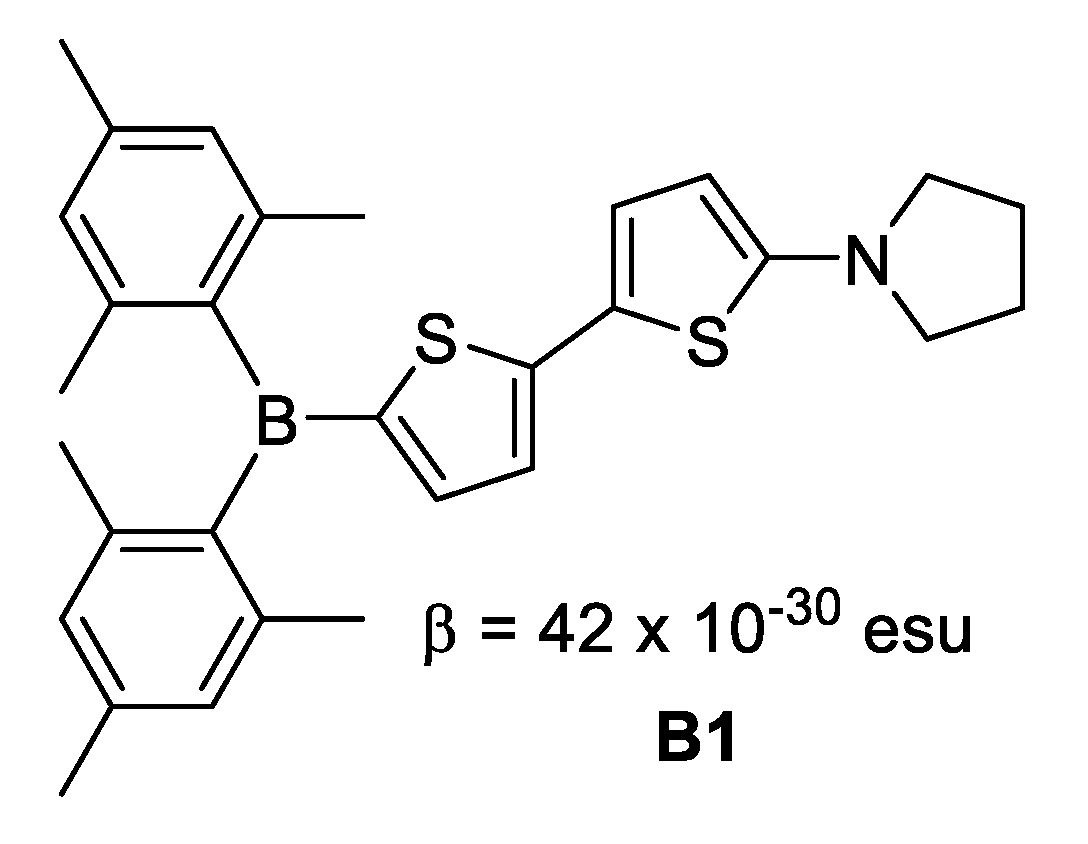

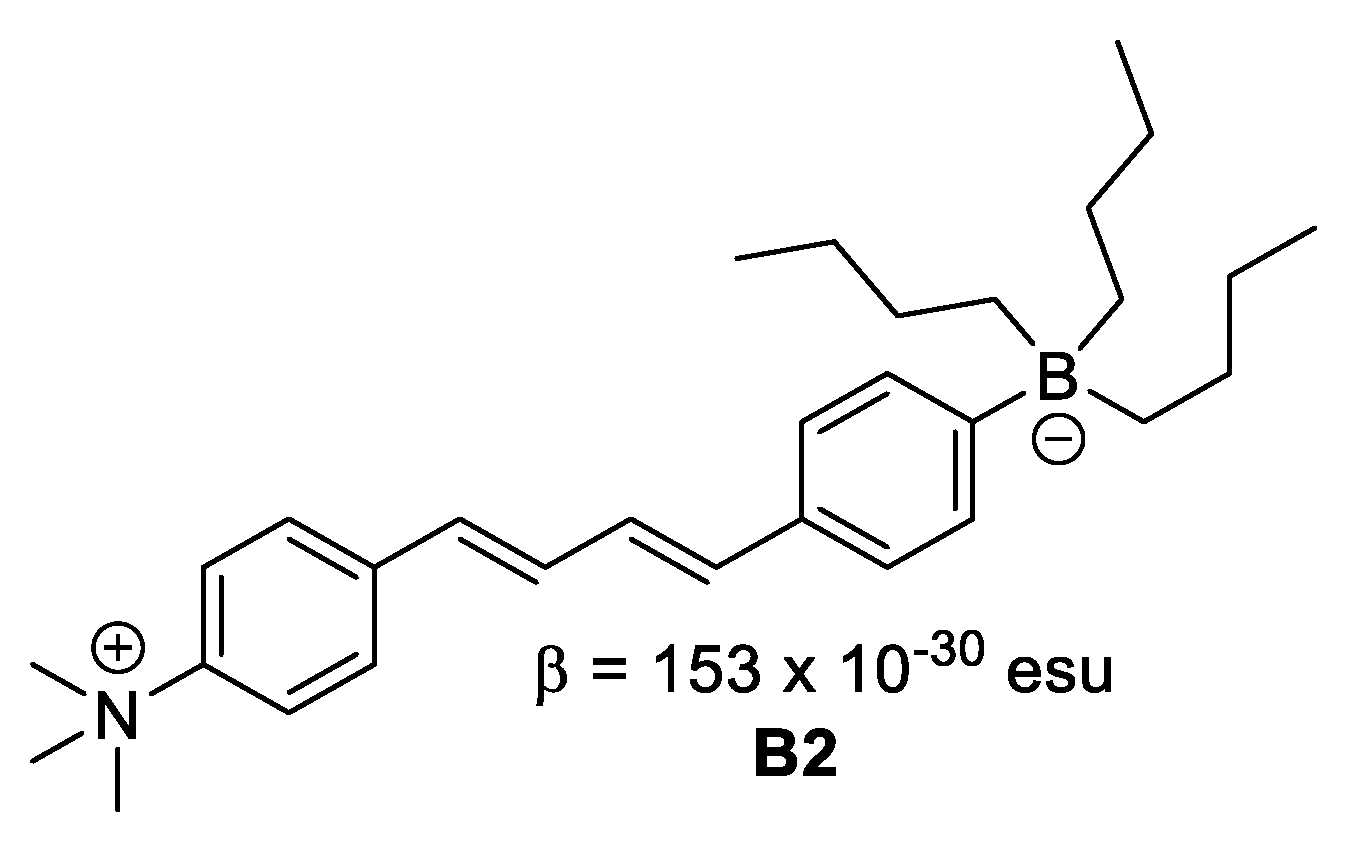

Yuan, Marder et al. [22] synthesized air-stable ”push-pull” E-alkenes of the form E-D–CH=CH–B(Mes)₂ by hydroboration of π-donor substituted alkynes with dimesitylborane as a π-electron acceptor, obtaining β values of 11 × 10⁻³⁰ esu for 4-Me₂N–C₆H₄–B(Mes)₂, and 9.2 × 10⁻³⁰ esu for 4-H₂N–C₆H₄–NO₂.

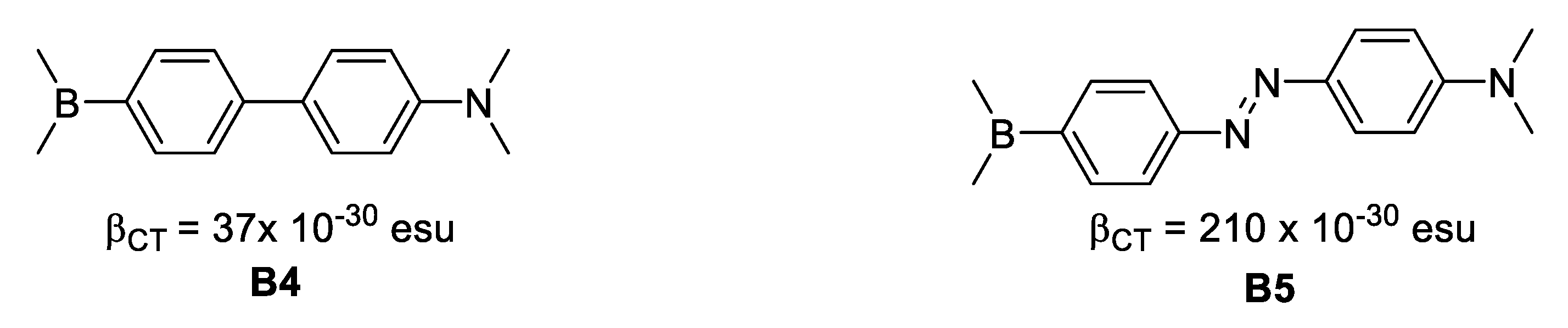

In 1991, Lequan et al. [23] evidenced large changes in dipole moment occurring upon charge transfer transitions through an investigation of the solvatochromic shift in the push-pull derivatives 4-(dimethylamino)biphenyl-4′-yl]dimesitylborane (B4) and [4-(dimethylamino)-phenylazophenyl-4′-yl]dimesitylborane (B5). Solvatochromism provides an approach towards β, based on a dominant charge transfer transition accounting for the entire NLO response of the molecule. Under this assumption, the so called resulting β_CT were found to be equal to 37 and 210 × 10⁻³⁰ esu. (Figure 10).

Later on, the β values of these two chromophores were estimated more accurately by use of the EFISH techniques [13,24] which allows to get the projection of β along the molecular dipole moment (μ₀) of the chromophores; assuming β parallel to μ₀ leads to the actual hyperpolarizability β value of 42 × 10⁻³⁰ for B4 and 72 × 10⁻³⁰ esu for B5 [14] were obtained. The sizeable NLO response indicates an excellent withdrawing capability of the dimethyl boron comparable to that of a nitro substituent.

In 1993, Yuan et al. [25] synthesized “push-pull” organoboranes (E)-Fc–CH=CH–B(Mes)₂ and (E)-Ph₂–P–CH=CH–B(Mes)₂, powder SHG signal was observed for the latter compound which crystallized in a non-centrosymetric space group. Evaluation of β by the EFISH technique, resulted in a value of −24 × 10⁻³⁰ esu, comparable to many classical organic donor-acceptor systems.

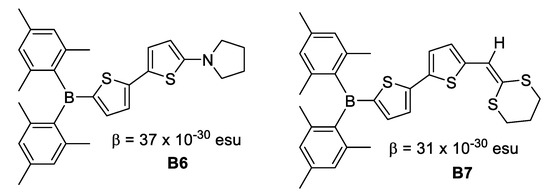

In 1996, Branger et al. [26] synthesized molecules with dimesitylboron as the acceptor group, bithiophene as the unsaturated chain and pyrrolidine-1-yl, dithianylidene and 3-thienyl as donor groups. EFISH measurements revealed β values of 37 × 10⁻³⁰ esu for B6 and 31 × 10⁻³⁰ esu for B7 derivatives. The replacement of the biphenyl unsaturated chain by bithiophene improved the dipole moment and the quadratic hyperpolarizabilities of the boron derivatives, despite a lack of planarity suggested at the computational level (Figure 11).

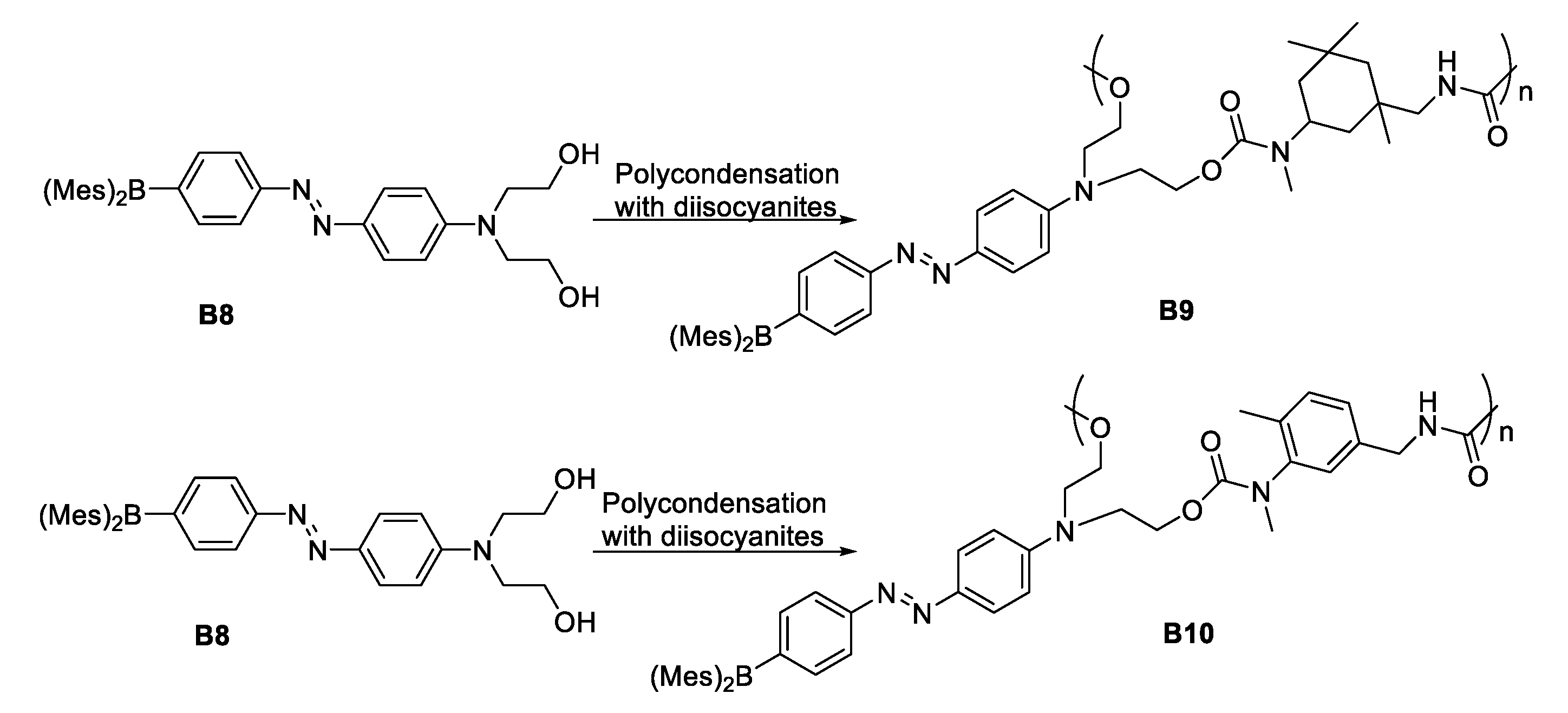

In 1997, Branger et al. [27] synthesized new polyurethanes with high glass transition temperature (T_g) containing azo-dyes with NLO properties in which dimesityl boron groups are used as electron acceptors (Figure 12). Having high T_g polymers leads to the expectation that once aligned at high temperature under strong electric fields, this will result in non-centrosymmetry, and therefore the NLO signal will be maintained at room temperature all over the life time of the device.

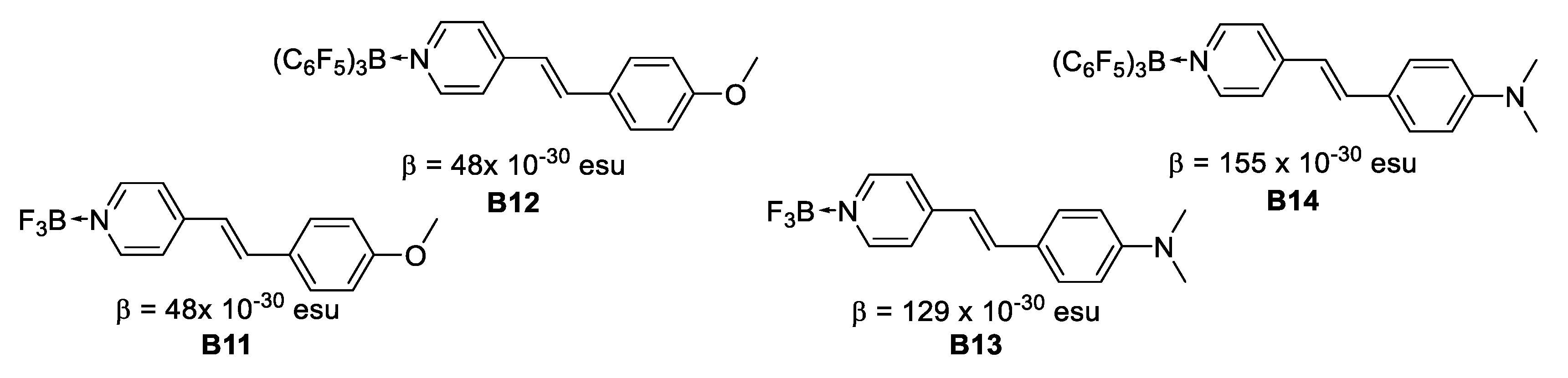

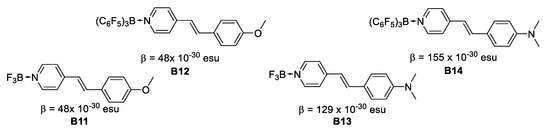

In 1998, Lesley et al. [28] reported on the second-order NLO properties determined by the EFISH technique in a series of neutral pyridyl adducts containing the strong Lewis acids BF₃ and B(C₆F₅)₃. This study indicates that there is a good communication in chromophores with coordinated Lewis-acidic boranes, BF₃ and B(C₆F₅)₃, acting as efficient electron acceptors. The β values range between 48 × 10⁻³⁰ esu for B11 and B12 to 155 × 10⁻³⁰ esu for B14. The β(0) values range between 30 × 10⁻³⁰ esu to 72.5 × 10⁻³⁰ esu for the pyridine/BF₃ and B(C₆F₅)₃ Lewis adducts. The β × μ product is doubled in most cases upon complexation with the strong Lewis acids, due to an increase of the molecular dipole moments (μ) and the second-order NLO coefficients (β), the largest values being realized for the (dimethylamino)stilbazole derivatives. Finally, the NLO response is increased by 50% as compared to the disperse red 1 (DR1) standard reference (Figure 13).

Further computational investigations by Su et al. in 2001 [29] using the quantum chemical AM1/Finite Field method on pyridine, styryl pyridine, and phenylethinyl pyridine/borane adducts were in good agreement with the experimental values determined by Lesley [28].

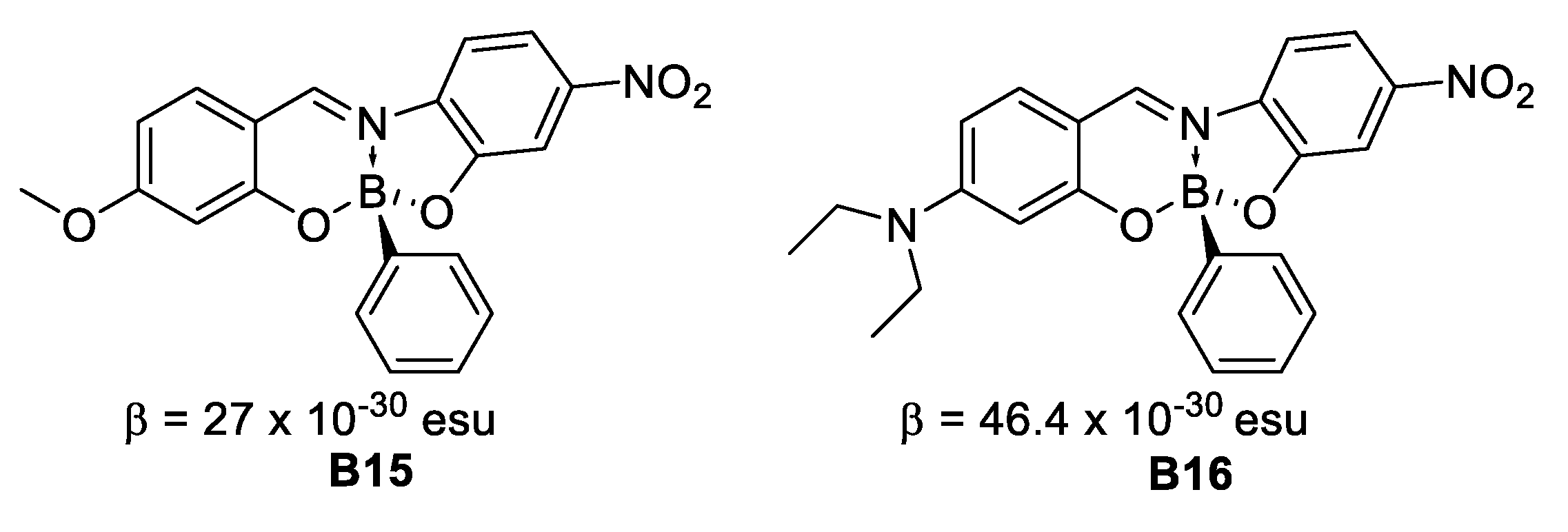

In 2002, Farfán, Santillan, Lacroix et al. [30] studied ”push-pull” boronates, in which the boron atom is attached in the π-conjugated bridge. They observed that β may be influenced by the molecular geometry in the vicinity of the boron atom. A computational investigation revealed that tuning the hyperpolarizability becomes possible by a controlled rotation of the phenylboronic fragment (Figure 14).

In 2002, Entwistle and Marder [31] reviewed the nonlinear optical properties of three and four-coordinate boron (which have been discussed before in this manuscript), and related compounds and polymers, highlighting the contributions of Williams, Glowgowski, Kaim, Lequan, and Marder groups.

In 2004, Entwistle and Marder [32] studied β by the EFISH technique for 4,4′(E)-(dimesitylboryl)(N,N-dimethylamino)stilbene, which was found to be 45 × 10⁻³⁰ esu at 1.907 μm.

In 2006, Yamaguchi and Wakamiya [33] discussed the characteristic features of the boron element that their group use as a basis of molecular design. This is based on three fundamental features of the boron element: (1) The existence of an empty p-orbital; (2) the Lewis acidity of boron; and (3) the geometric feature of boron.

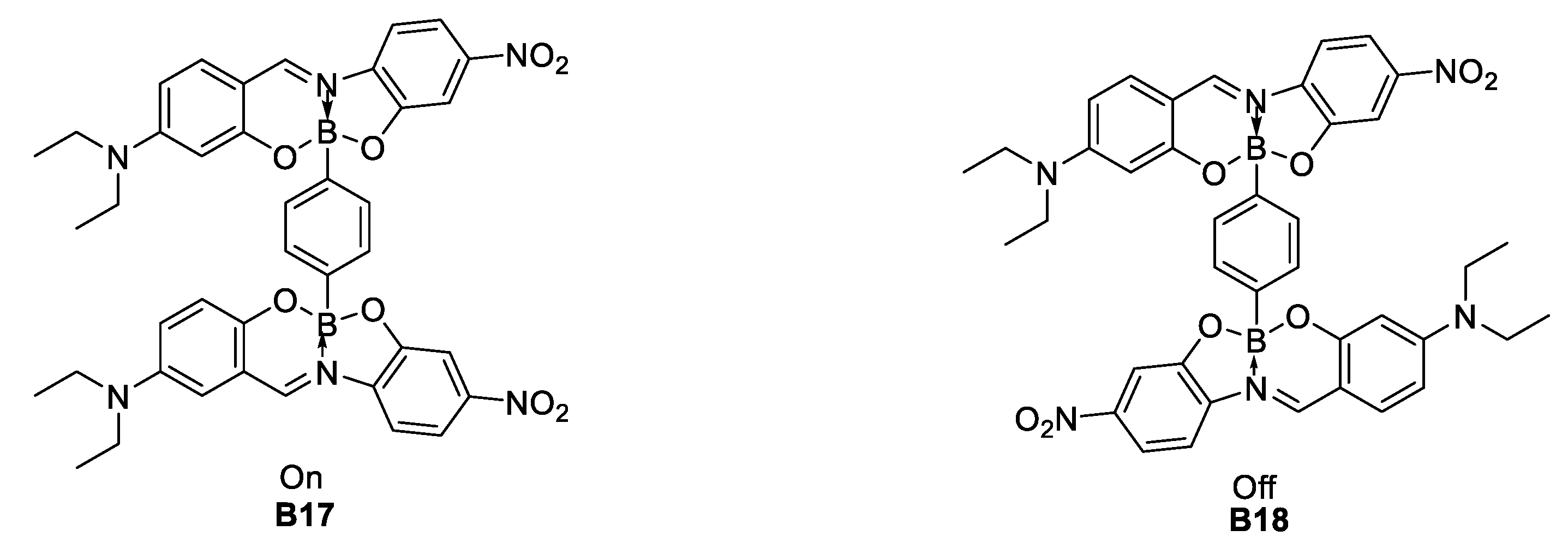

In 2006, Lamère, Farfán, Lacroix et al. [34] proposed a molecular switch induced by an electric field applied on a tetracoordinated boron compound, containing two “push-pull” units engineered with free rotation along the boron-carbon bond of a bisboronate structure (Figure 15). The NLO response was compared with that obtained for the monomeric derivative, by the EFISH technique. While the ground state conformation (the off state) is centrosymmetric and SHG silent, the application of an external electric field gradually aligned the subunits and increases the NLO response of the molecule. The EFISH signal is 1.95 times larger for bisboronate than for its monoborated analogue.

In 2008, Santillan et al. [35] found that boronates derived from Schiff bases present second (by EFISH technique) and third order NLO properties that could be tuned by modifying the conformations of the aryl fractions around the boron-carbon bonded to a naphthyl fragment (Figure 16).

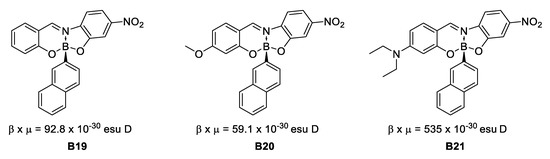

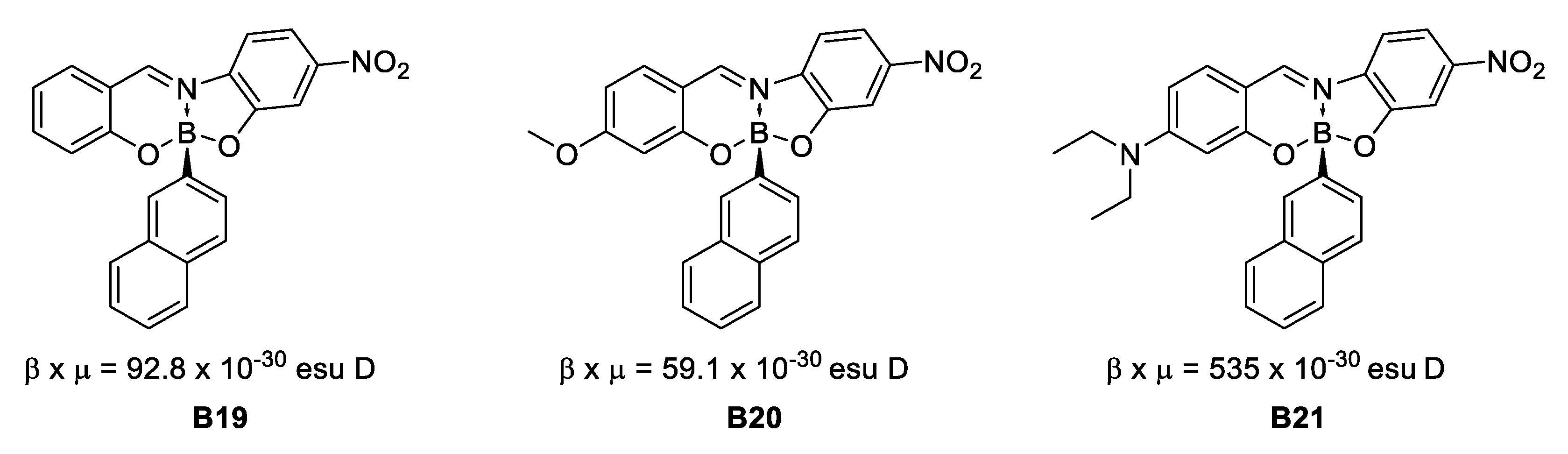

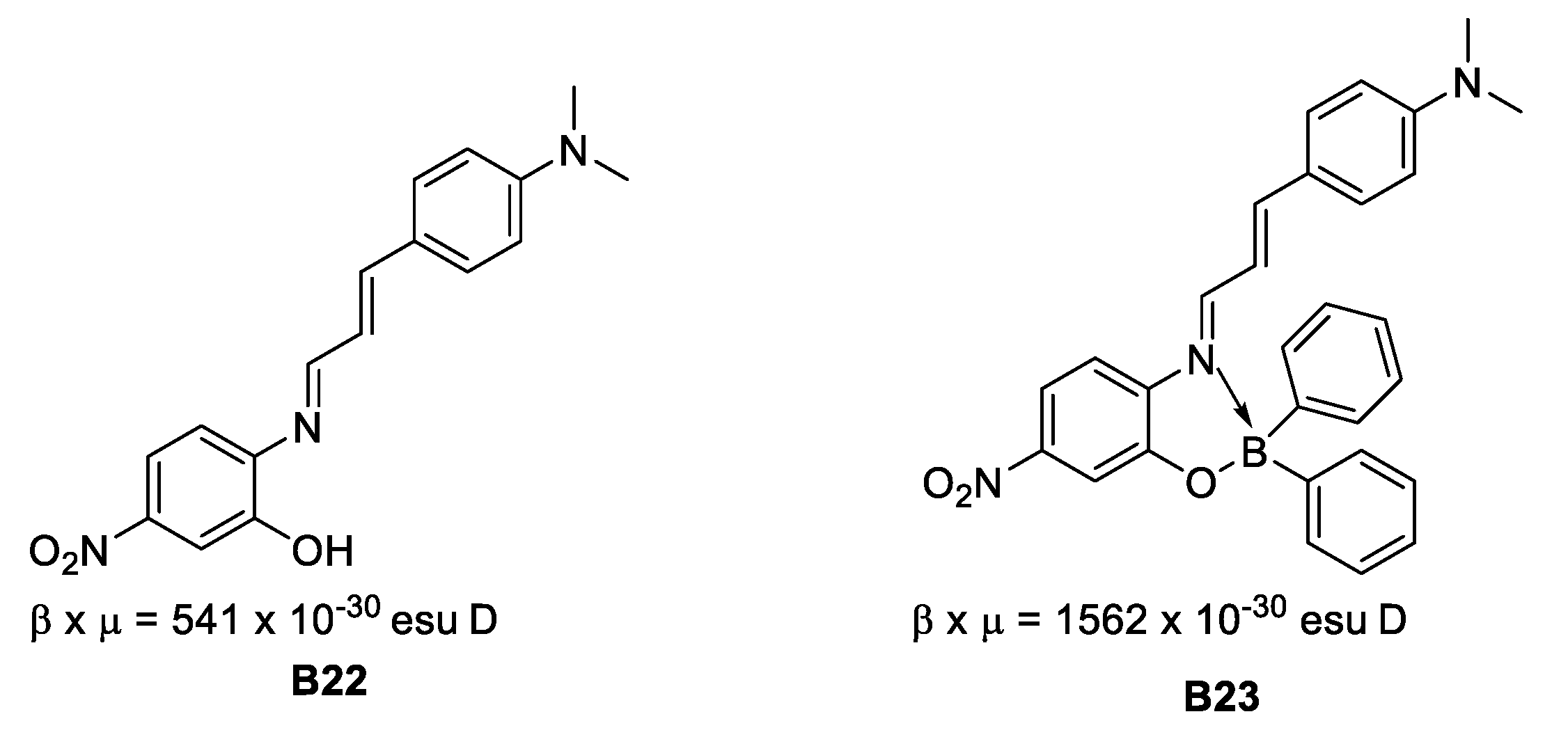

In 2009, Lacroix, Farfán, Santillan et al. [36] reported on the synthesis of three boronates derived from bidentate imine ligands. The β × μ product recorded by EFISH shows a trend for a general increase of the NLO response after boron complexation (Figure 17).

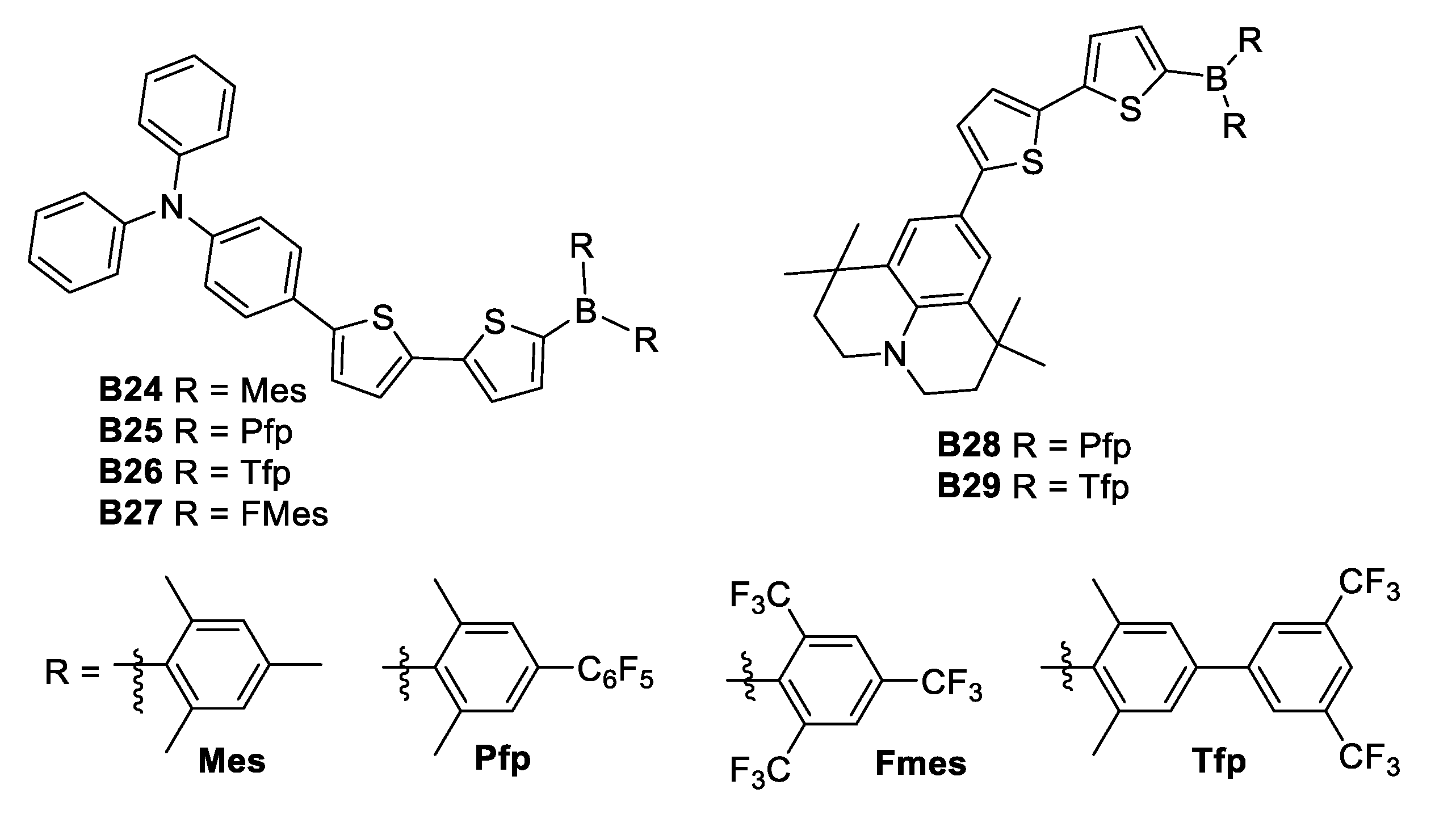

Another synthetic effort undergone during 2015, was the one by Zhang [37], whose team modified the (Mes)₂B (B24) group through substitution of the methyl groups of the boron atom by electron-withdrawing perfluorophenyl (B25) and 3,5-bis(trifluoromethyl)phenyl (B26) substituents, to produce the acceptor groups (2,6-Me₂-4-C₆F₅–C₆H₂)₂B ((Pfp)₂B) and (2,6-Me₂-4-(3,5(CF₃)₂–C₆H₃)–C₆H₂)₂B ((Tfp)₂B), respectively (Figure 18). Zhang found that tuning the donor strength by exchanging the triphenylamine donor for the stronger donor 1,1,7,7-tetramethyljulolidine (B28 and B29) gave further fine control over the optoelectronic properties. Even if the NLO properties of these compounds have not been recorded, they could be considered as good candidates due to their architecture.

In 2017, Ji, Griesbeck and Marder [38] highlighted recent contributions using BMes₂ moieties along with the development of alternative strong B-based π–acceptors, focusing on systems which retain or enhance the air-stability of such species, a property which is most desirable for ease of preparation and handling, and thus for use in electronic or optical devices, as well as other applications.

The above examples indicate that tri-coordinated and tetracoordinated boron compounds are promising materials for different NLO applications. The lack of stability presented by the three-coordinated compounds was surpassed by the introduction of bulky groups such as B(Mes)₂ groups.

In this revision we have not addressed the group of compounds based on boron clusters since a comprehensive analysis of their nonlinear properties are out of the scope of this review. The readers are referred to the work published by Gao and Hosmane [39] and Nuñez and co-workers [40] for excellent overviews on the topic. Instead we have selected two reports on metallacarboranes that describe the supramolecular structure and its relationship with NLO response.

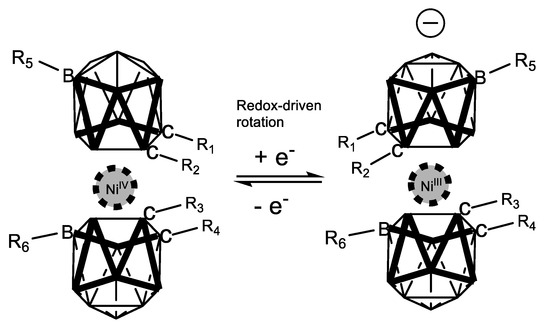

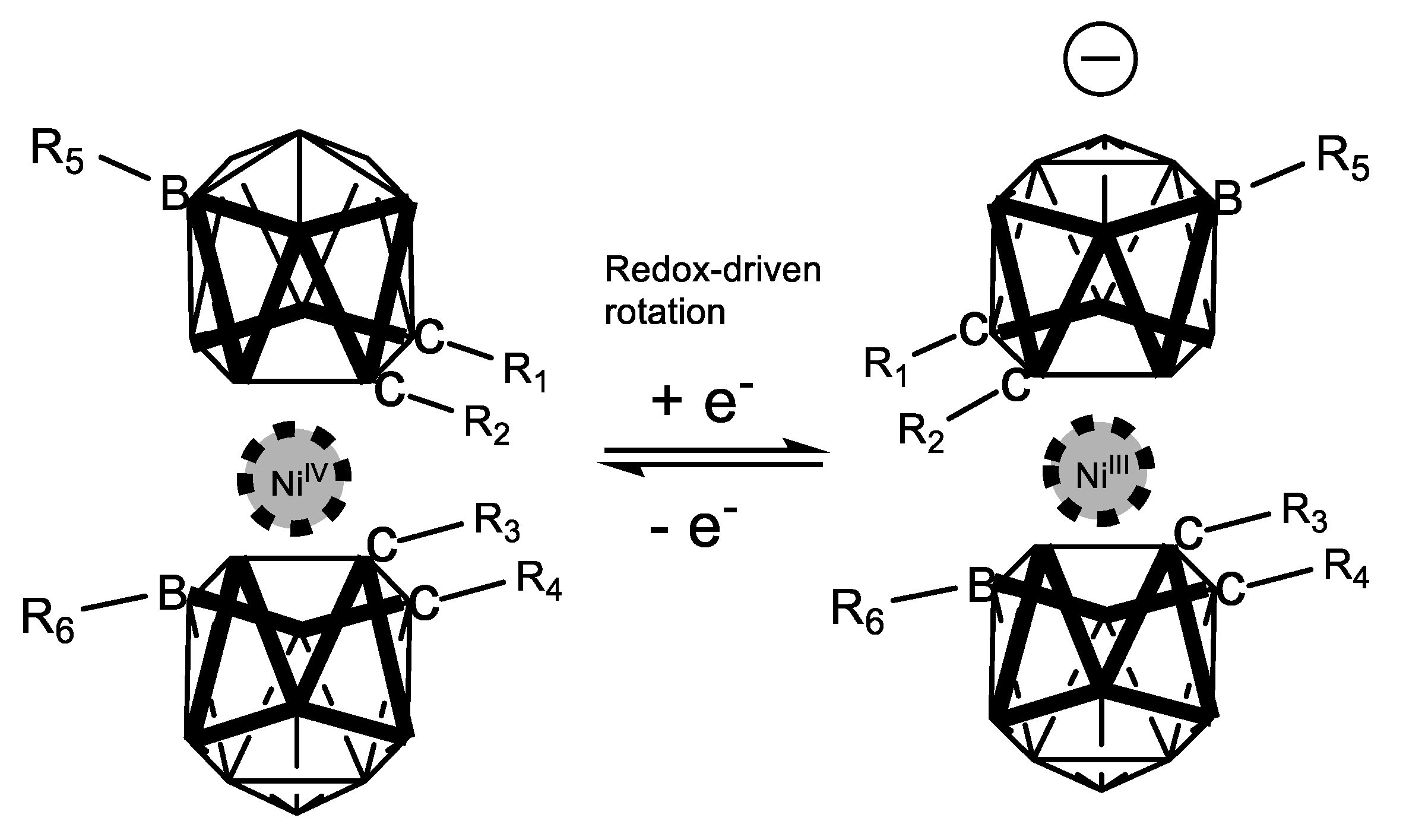

In 2014, Ma and co-workers [41] reported a DFT analysis of how the redox-driven, switchable, rotatory movement of a series of nickel metallacarboranes can be regulated through second-order nonlinear optical properties. Figure 19 depicts graphically that the computed properties (axial rotation energy, redox pair potential and second-order hyperpolarizability) are substituent dependent in such a way that when electron donation increases in the substituted boron vertexes, the energy required to rotate the metallacarborane portion decreases, the redox potential decreases also, and the second-order response increases (

Table 1. Measured second-harmonic signals at 1.064 μm and 1.907 μm wavelengths relative to urea.

#	R1	R2	R3	R4	R5	R6	ΔGrotation a	E°redox b	β (a.u) c
B30	H	H	H	H	H	H	−111.877	0.13	163
B31	Me	Me	Me	Me	Me	Me	−113.874	0.22	120
B32	H	Ph	H	Ph	H	H	−118.474	0.42	1880
B33	H	Ph-OMe	H	Ph-OMe	H	H	−115.713	0.30	6674
B34d	H	Ph-OMe	Ph-OMe	H	H	H	−112.701	0.17	4345
B35	H	H	H	H	Ph-OMe	Ph-OMe	−110.191	0.06	20998

^a in kcal/mol; ^b in V; ^c computed for Ni(IV); ^d β was also computed for Ni(III) and it is 2903 a.u.

). This result provides a strong rational design for tuning and enhancing NLO properties in these species.

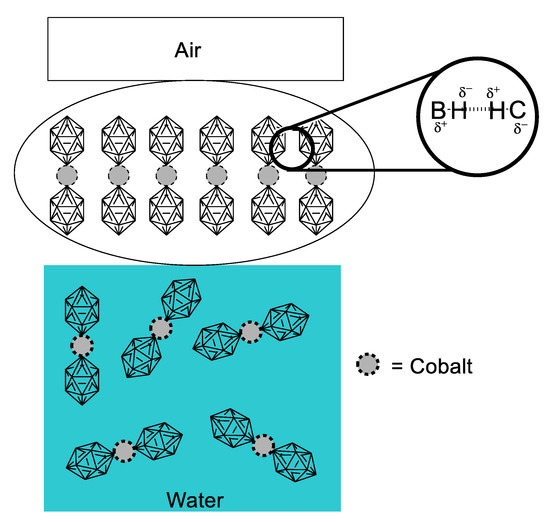

The interesting work by Gassin and collaborators [42] ponders on the close relationship between interfacial properties of dispersed systems and their potential NLO responsiveness. It is well known that a surfactant is an amphiphilic solute that at certain concentration stabilizes its content in solution by saturating the interphase between two media. Usually, when we refer to this kind of compound we talk about species with two clear portions differentiated by polarity (one portion being hydrophilic and polar, and the other portion of hydrophobic nature), although rare, there is the case of some cobalt metallacarboranes, which in neutral form possess no interfacial properties, but when deprotonated to the anionic form, they behave like surfactants. Knowing the surfactant-like behavior of the cobalt-coordinated dimetallacarborane (COSAN) anion (Figure 20), Gassin tested different solutions at concentrations of 0 mM, 0.06 M and 5.0 mM. SHG was measured in these solutions, varying the geometric dispositions of the fundamental frequency finding different second-order responses that depend on the orientation. This is indicative of a preferential supramolecular array, in which the COSAN anion molecules form a layer of axially arranged dimetallacarboranes. Adsorption isotherms determined for the COSAN solutions provided further insight on the interfacial arrangement, evidencing that certain axial anionic repulsion was taking place. With all these facts, it was proposed that the driving force for this supramolecular arrangement was the presence of dihydrogen bonds, as depicted in Figure 20. This study is an example of a somewhat overlooked application of NLO properties: The second-order response as means to elucidate structural problems of fundamental supramolecular chemistry.

2.2. Third-Order NLO Properties

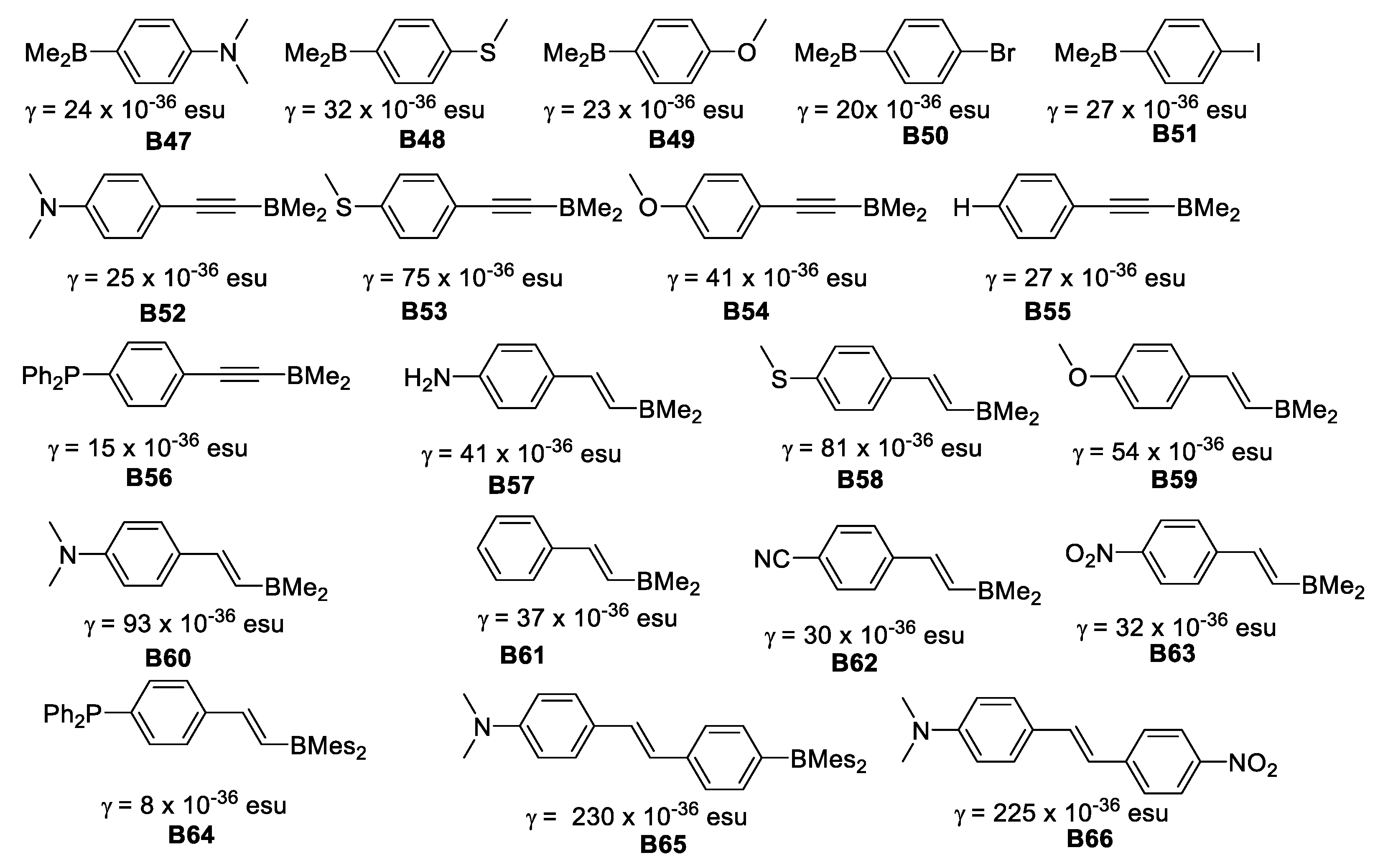

In the first half of 1990, boron compounds with NLO properties were studied carefully and systematically in terms of second-order hyperpolarizability (β), to understand the correlation between electronic and NLO properties.

Concise examples of these discoveries were the electron-acceptor character of trivalent boron due to the presence of an empty p-orbital which, combined with a π-bridged structure having an electron-donating group, such as an amine, formed a dipolar “push-pull” architecture with important electronic communication along the structure [23,43], as depicted in Figure 21.

The other main design used for boron nonlinear optics resulted in what could be called an electronic umpolung [44], since the character of boron was reversed to be used as an electron-donor, rendering it tetravalent by adding an electron-accepting group. The design maintained a π-bridge of varying length [45], as shown in Figure 21.

At the end of the 1990, TPA-responsive organic structures without boron were synthesized using two main designs: (1) A strong dipolar “push-pull” structure (as mentioned before) and (2) a quadrupolar structure to enhance TPA. Examples of these approaches can be found in the study reported by Reinhardt and co-workers [46] where both architectures were explored; using benzothiazole and substituted diphenylamines as electron-donor moieties, bi-thiophene and fluorene derivatives as π-bridges and a pyridine unit as the electron-acceptor (Figure 22). The only drawback is the modest σTPA values which barely surpass 115 GM in contrast with the synthetic difficulty.

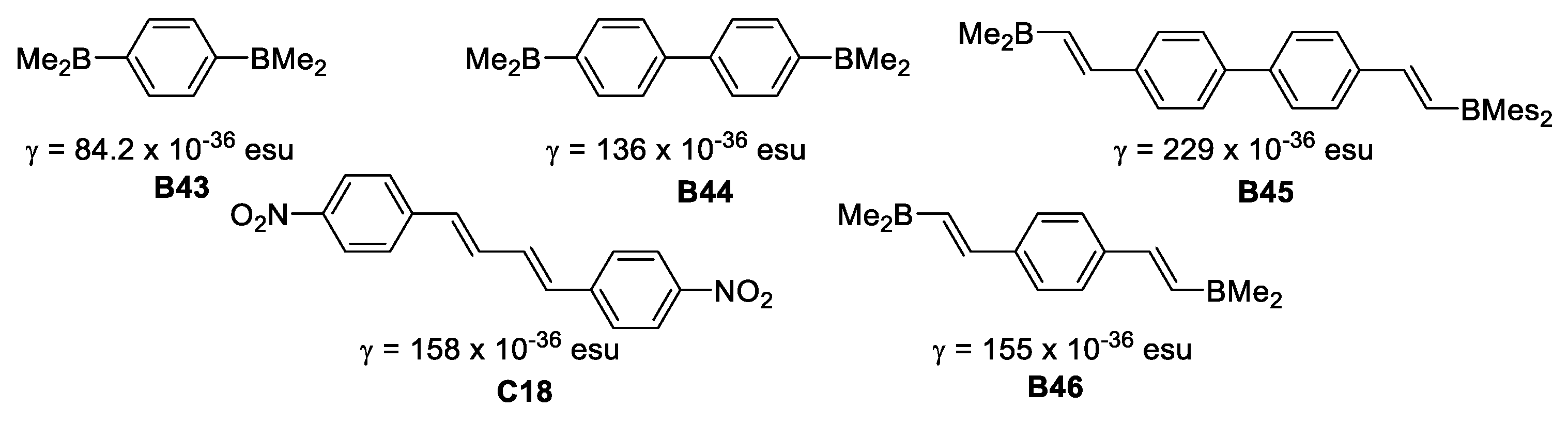

In 1996 Yuan et al. [47], reported the synthesis of a series of symmetric bis(dimesitylboryl) compounds and studied their second order hyperpolarizabilities (γ) by third harmonic generation (THG) at 1.907 μm.

Compound B45 provided a larger γ value (229 × 10⁻³⁶ esu) than C-18, which has a very similar architecture (Figure 23). This is attributed to enhancement of the π-conjugation pathway due to the empty p-orbital on boron.

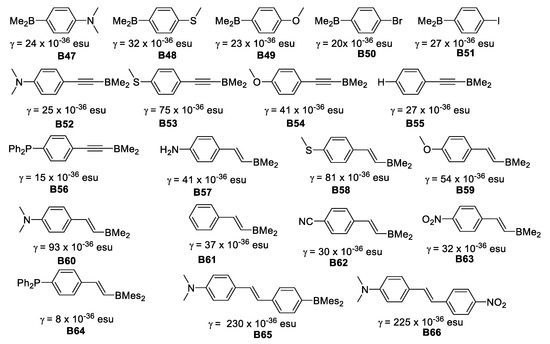

The enhancement of γ was achieved by increasing the length of the π-conjugation for both symmetric and unsymmetrical molecules. The MeS group was much more efficient than MeO for enhancing γ. Unsymmetrical “push-pull” organoboranes gave rise to large γ values (Figure 24).

The γ values in these boron compounds increase dramatically as the π-conjugation length increases. For unsymmetrical compounds, when comparing B47 γ = 24 × 10⁻³⁶ esu, B48 γ = 32 × 10⁻³⁶ esu, and B49 γ = 23 × 10⁻³⁶ esu with B60 γ = 93 × 10⁻³⁶ esu, B58 γ = 81 × 10⁻³⁶ esu and B59 γ = 54 × 10⁻³⁶ esu, the effect of the additional vinyl moiety is clearly greater for the strongest π-donor (NMe₂) group.

By enhancing the charge transfer capabilities within the quadrupole architectures, Albota et al. [48] targeted TPA-efficient compounds by synthesizing molecules having the two different D-π-A-π-D and A-π-D-π-A topologies. Following this strategy, they reached σTPA values in the range of 600–3700 GM (Figure 25).

Belfield et al. [49] synthesized “push-pull” molecules with different donating substituents, that exhibit σTPA of 650 and 1300 GM (Figure 26).

At the beginning of the century, there was renewed interest in the electron-acceptor character of trivalent boron, with a special focus on the dimesitylboron group.

Several organoboron compounds were investigated with the aim of designing new materials with potential application in two-photon excited fluorescence (TPEF). Sensors and imaging are the most targeted application for these materials, although applications in materials science were also envisioned during the early 2000s.

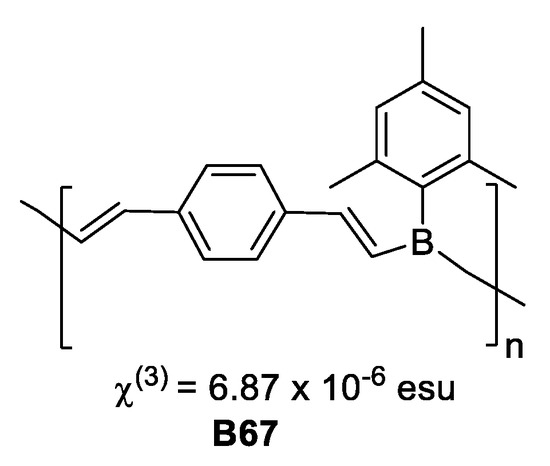

Chujo et al. [50], synthesized π-conjugated low molecular weight polymers, that exhibited strong photoluminescence. The compounds have a structure related to poly-p-phenylene vinylene with boron in the polymer chain and were prepared by hydroboration of aromatic and heteroaromatic diynes with mesitylborane. Compound B67 based on diethynylbenzene displayed third-order nonlinear optical susceptibility χ⁽³⁾ = 6.87 × 10⁻⁶ esu, more than a thousand times larger than that of all-trans-polyacetylene, as measure by four-wave mixing (Figure 27).

Liu et al. reported some of the most remarkable examples of these approaches both at the structural and synthetic level [51,52,53] between 2002 and 2004. These contributions illustrate the transition from the molecular architectures explored during the previous decade that worked to increase boron NLO second-order properties as well as from the general NLO design behind organic dipolar and quadrupolar topologies, all the way towards the fusion of both, to get to NLO, third-order, boron-including chemical structures with potential application due to their fluorescent properties.

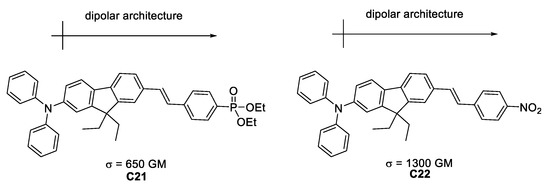

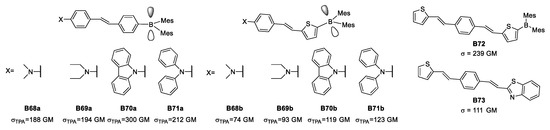

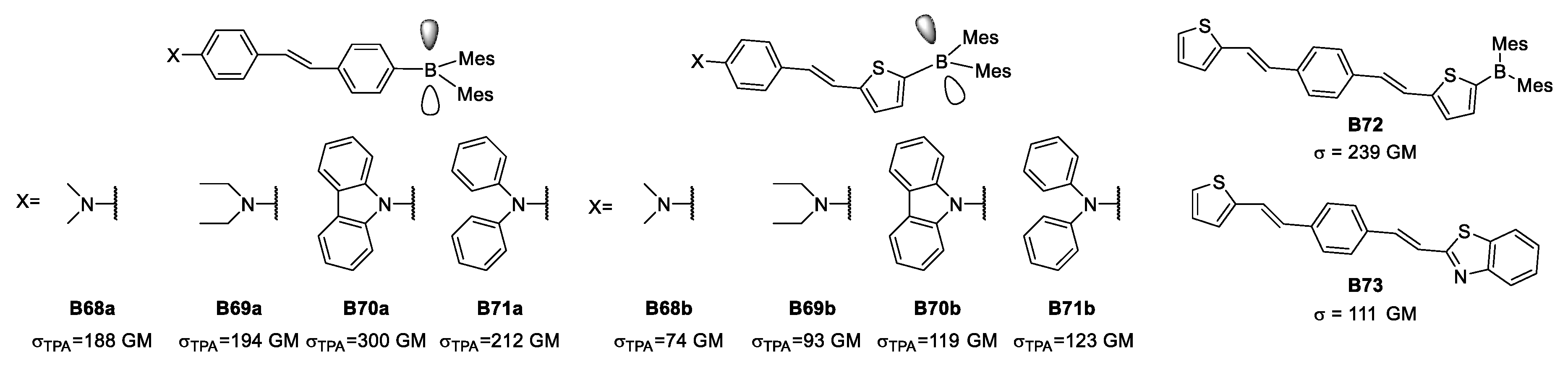

Beginning with the dipolar structure, Liu examined different donors, and concluded that dimethylamino and diethylamino share, to a degree, the same donor character while carbazolyl and diphenylamino groups are above in the series. Two different π-bridges were explored to determine whether phenyl or thienyl are capable of delocalizing and connecting in a better way the two ends of the dipolar groups. Interestingly, when there is a dipolar architecture of this kind containing a phenyl, it was possible to reach up to 300 GM of σTPA for TPA (Figure 28).

When considering thiophene as an extension of the π-conjugation, Liu reported that the value of σTPA reached 239 GM, surpassing the properties of carbazole as a donor. This phenomenon proved the weak-donor character of thiophene along with its usual role as π-bridge. Another aspect is that changing the organoboron portion for a somewhat weak donor as benzothiazole to form a quadrupolar structure leads to a larger decrease in σTPA compared to a dipolar architecture.

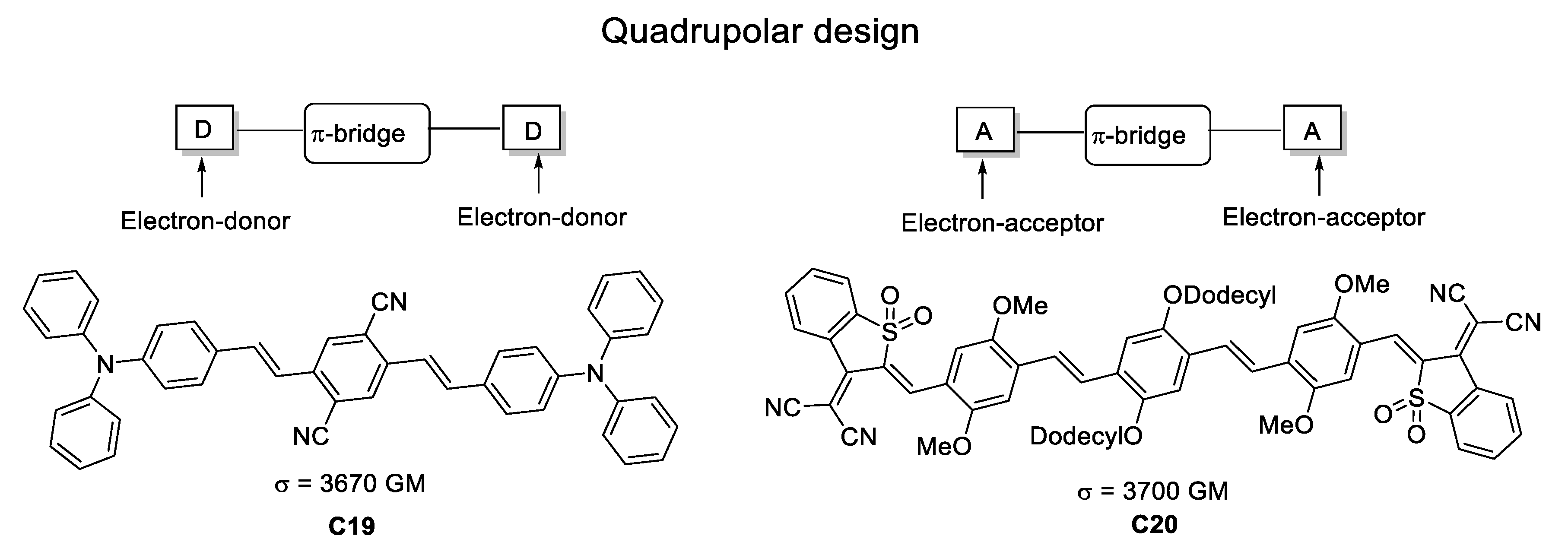

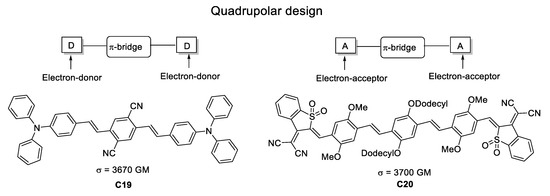

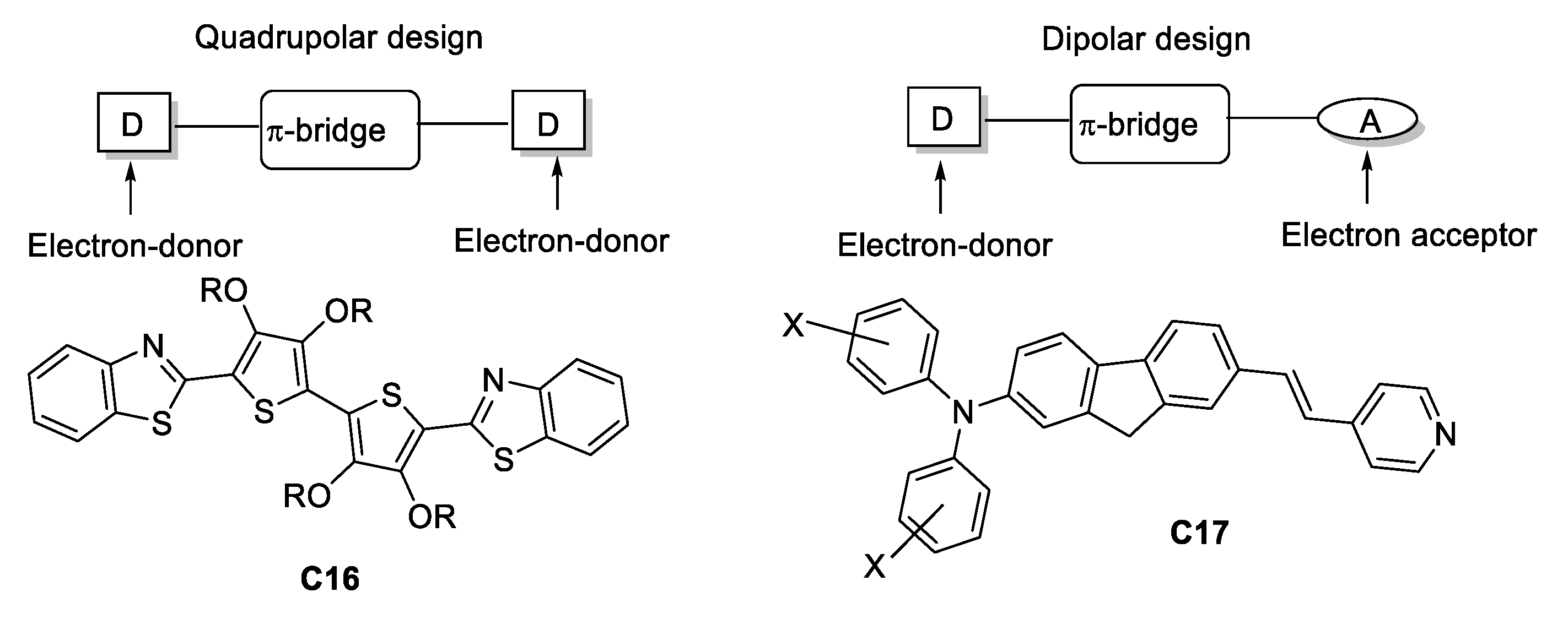

Nowadays it is considered that multipolar structures will present better σTPA, provided they have an adequate design that allows interaction of the dipoles that leads to a good charge transfer.

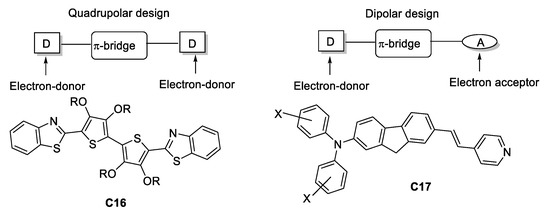

The quadrupolar structures depicted in Figure 29 were synthesized and their photophysical properties were measured to compare molecular architectures of the type Donor-π-Donor with systems of the kind Acceptor-π-Acceptor, containing trivalent boron species. Another factor studied was the length of the π-system with one and two styryl units as π-bridge. This study demonstrated that π -conjugation is a key factor for attaining better TPA. In the particular case of the studied molecules, lengthening the π-bridge had a tenfold increase of the σTPA. This reasoning paved the way to build the molecule depicted in Figure 29 which presented an enhancement of 30 times its σTPA, compared to the species with one styryl unit as π-bridge.

This architecture provides two somewhat strong dipoles at each end of the molecule (knowing that thiophene works as a weak donor), but the same thienyl portions have a second function to elongate the π-conjugation, combining in a remarkable manner both properties of that heterocycle.

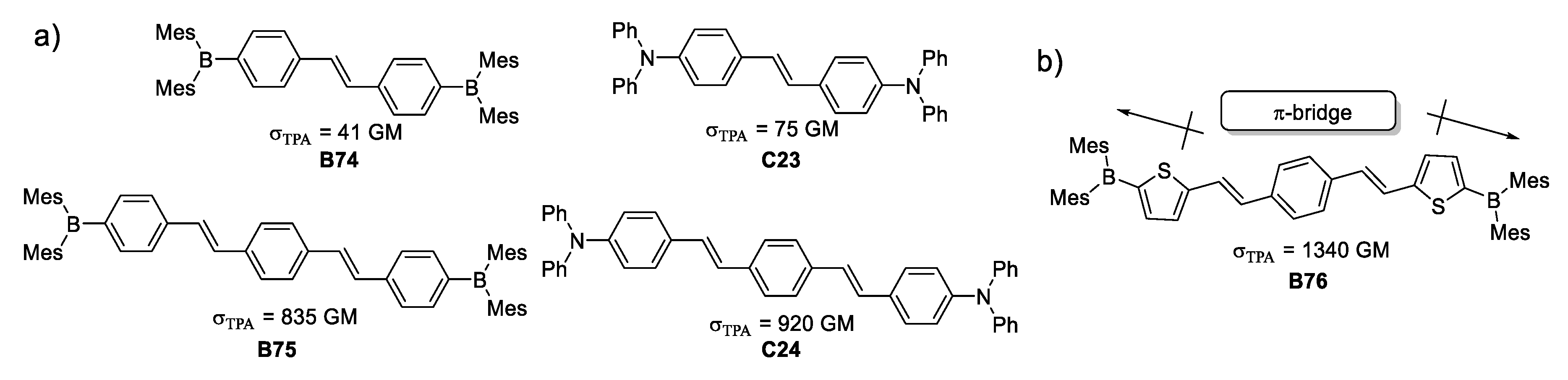

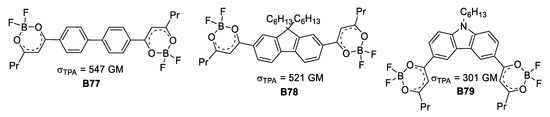

Theoretical studies on this kind of systems (D-π-D and A-π-A motifs) by Tao et al. [54] provided information on the influence of changing the direction of electron density in quadrupolar architectures, as well as the effect of increasing the length of the π-conjugated system, establishing it as a function of the difference in dipole moments for the two-photon transition alongside charge redistribution within the donor or acceptor portions of the molecules. Having a large difference in dipole moment from the ground state to the excited state leads to a huge contrast in the atomic charges in the diphenylamino or diarylboron portions of the molecules.

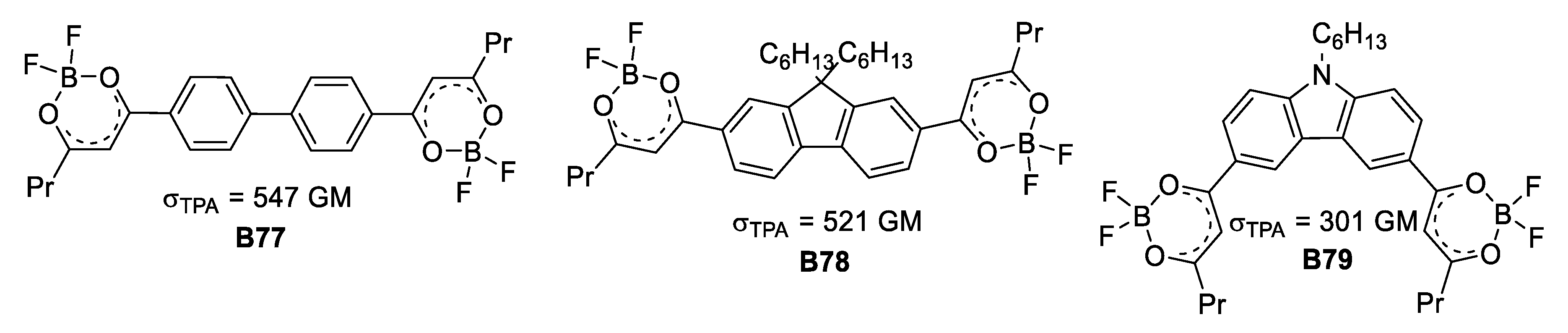

In the early 2000s two contributions on the same kind of boron-based ligands but with two different applications were reported. On the one hand, Halik et al. [55] made use of the 1,3-dioxo ligand as acceptor unit to absorb two photons and through this photophysical process reduce and carry out the deposition of silver. The species used for this purpose, depicted in Figure 30, showed acceptable σTPA values, reaching up to 547 GM.

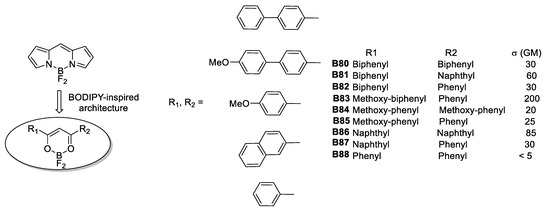

The second series of molecules synthesized through this kind of ligands is that of Cogné-Laage et al. [56]. Mimicking the structural motif of boron dipyrromethene (BODIPY), a series of diaroyl(methanato)boron complexes were synthesized and their TPA response was examined. According to the authors, the advantage of these complexes is the strength of the B–O bond which is less labile to hydrolysis than the B–N bond in BODIPYs.

The molecular architectures reported feature a quadrupolar design of the A-π-A type. Even though tetravalent boron is considered an electron-donor moiety, its coordination modes entail a strong electron density deficiency on the ligands, especially when connected through a π-bridge to a donor portion. This behavior distinguished organoboron from boron complexes from an electronic and structural standpoint. The molecular assortment proved having moderate NLO properties of 5–85 GM for σTPA values. Interestingly, one of the synthesized species reached 200 GM, this compound is depicted in Figure 31.

In 2006, Yuan et al., [57] synthesized and studied the nonlinear properties of a series of air-stable, conjugated dimesitylboranes (p-R-phenyl)dimesitylboranes substituted with various donor and acceptor groups: (E)-[2-(p-R-phenyl)ethenyl]dimesityl-boranes, (E)-[2-(2-thienyl)]dimesityl-borane and (E)-[2-(o-carboranyl)ethenyl]dimesitylborane. The first and second order molecular hyperpolarizabilities, determined by EFISH at 1.907 μm in CHCl₃ and THG measurements, revealed that compounds having strong R-substituent donors have the largest β. Hyperpolarizability values for these compounds were obtained from AM1 calculations with the exception of (E)-[2-(2-thienyl)]dimesityl-borane and (E)-[2-(o-carboranyl)ethenyl]dimesitylborane, and are in reasonable agreement with those determined experimentally, as well as with several hypothetical compounds containing multiple C=C bonds. The 2-(p-R-phenyl)ethenyl]- and (p-R-phenylethynyl)dimesitylboranes showed larger β values than the analogous (p-R-phenyl)dimesitylboranes. The authors conclude that the increases in β for (E)-[2-(p-R-phenyl)ethenyl]dimesitylboranes compared to (p-R-phenylethynyl)dimesitylboranes may be due to larger changes in dipole moment in going from the ground to the excited state for the ethenyl derivatives.

THG measurements of γ_exp at 1.907 μm showed again that (E)-[2-(p-R-phenyl)ethenyl]-dimesitylboranes and (p-R-phenylethynyl)dimesitylboranes have much larger γ_exp values than the analogous (p-R-phenyl)dimesitylboranes, as shown in Figure 32.

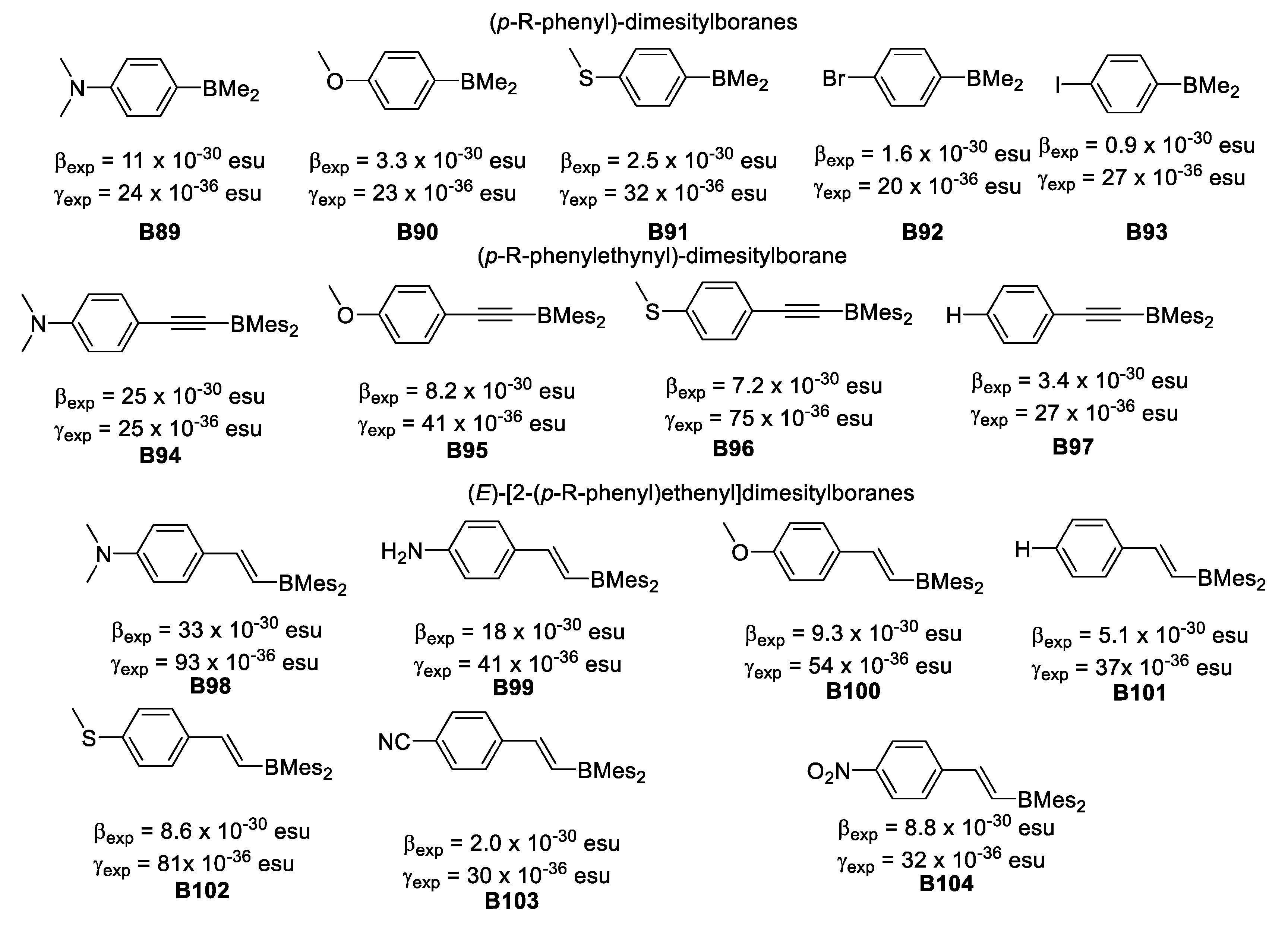

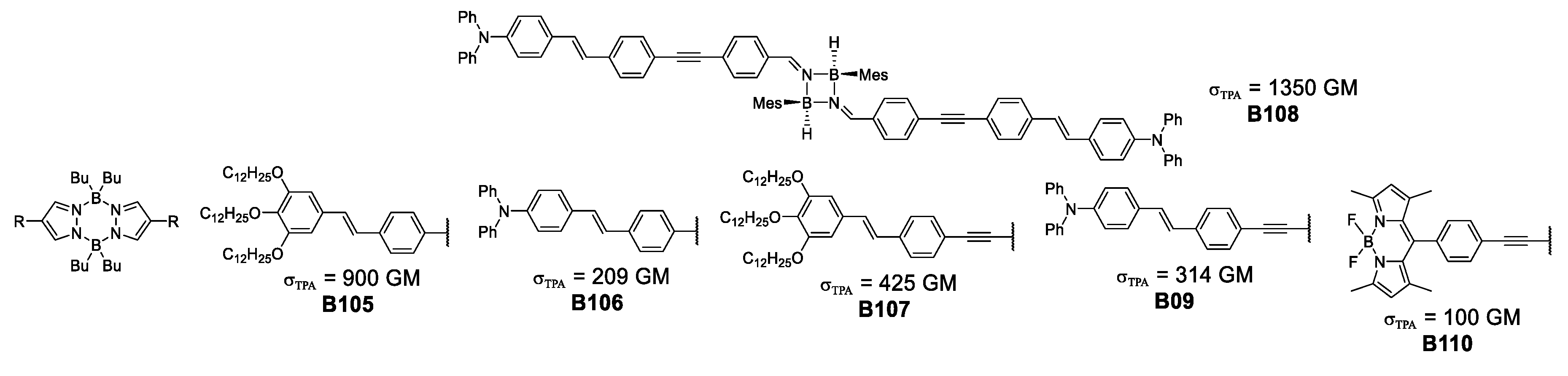

During the second part of the 2000s, Hayek et al. [58,59] and Nicoud et al. [60] introduced a new mode of delocalization of the type π–σ–π by using two boron and nitrogen containing heterocycles, alongside the now well established quadrupolar architecture. The systems used consisted of the 4-membered cyclodiborazane and the 6-membered pyrazabole. In both fragments, B–N sigma bonds are present and the cycles linked to the π-system, render the ring a delocalizing portion as well (as seen in Figure 33).

Analysis of the development of boron-based complexes to improve their photophysical properties, lead Hayek et al. to a pioneering, tandem theoretical-experimental approach where computational methods are used to explain atomistically the photophysical properties observed. By portraying the molecular orbitals involved in the main transitions that give origin to the absorption phenomenon, it is possible to visualize how the charge transfer increases in the NLO process for the 4-membered cyclodiborazane, in accordance with the σTPA value of 1350 GM shown by B108.

It is important to mention that the pyrazabole family of compounds has been used in bioimaging of HeLa cells using a concentration of 10⁻⁶ M in DMSO, showing clear fluorescent staining of vesicles in the cytoplasm using laser power values up to 15 mW.

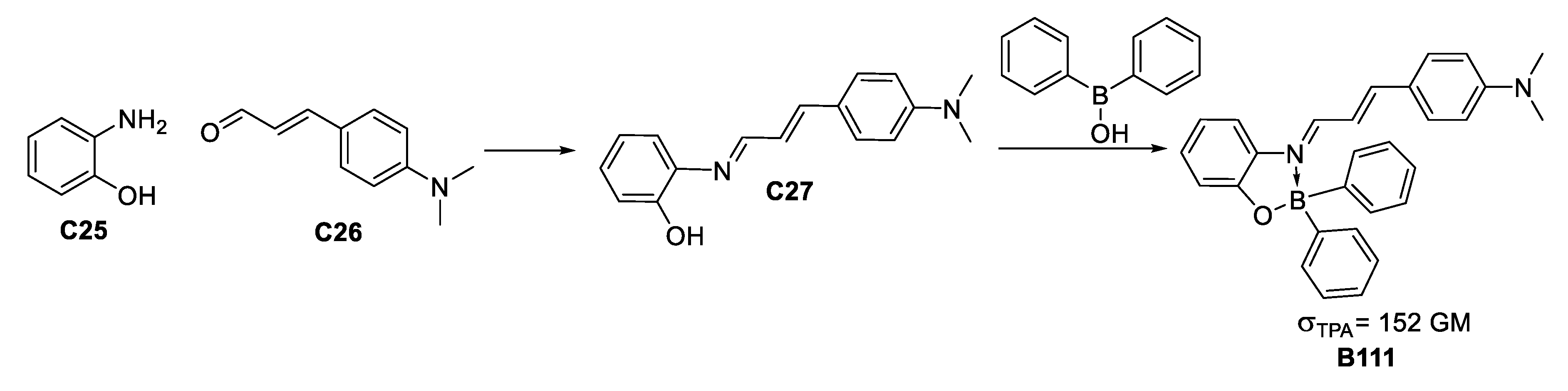

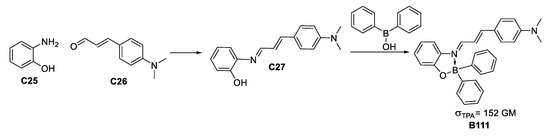

A study by Ramos-Ortiz et al. of the NLO response [61] of a boron-imine complex formed by condensation between aminophenol and dimethylamino cinnamaldehyde (Figure 34), along with a crystal structure analysis of the packing and supramolecular interactions gave a moderate σTPA value similar to other reported molecules, which are more structurally complex.

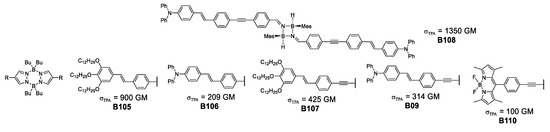

In the last years, the development of TPA responsive boron-based compounds became multidisciplinary, increasing the knowledge of photophysical properties of the synthesized compounds as well as their applications.

It should be pointed out that TPA literature on BODIPY species is not included in the present work since this family of compounds has been extensively studied through the last 20 years.

To focus on the contributions of these last years to the field of TPA-responsive boron-based complexes, we have selected only some advancements of organoboron species in the field of NLO. These compounds have recently been reviewed by Ji and co-workers [38] providing an excellent overview of the knowledge within the field of trivalent organoboron species in the last 20 years and covering in detail the different applications of this chemical family, including an NLO section.

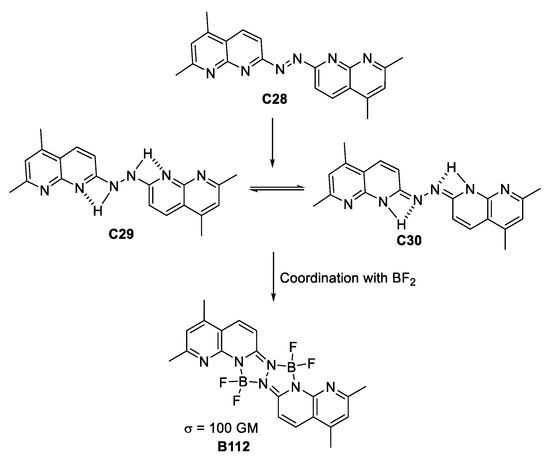

At the beginning of the decade, the tetravalent quadrupolar architectures were studied again by Li and co-workers [62] who synthesize a ligand based on a diazo dye. Reduction of the diazo group gave rise to a compound with tautomeric equilibrium, which is favored by the H-bonding present between the pyridine and the di-aza portion of the molecule. Coordination with BF₂ to form the boron complex, leads to the compounds depicted in Figure 35. Although having a moderate σTPA value of 100 GM, computational calculations revealed that charge transfer was suppressed by coordinating with BF₂ due to the fact that the HOMO–LUMO transition for the ligand shows better charge transfer from the pyridine portion to the H-bonded complementary subsystem. This is the main reason why the TPA measurements provide only a modest value for the photophysical property.

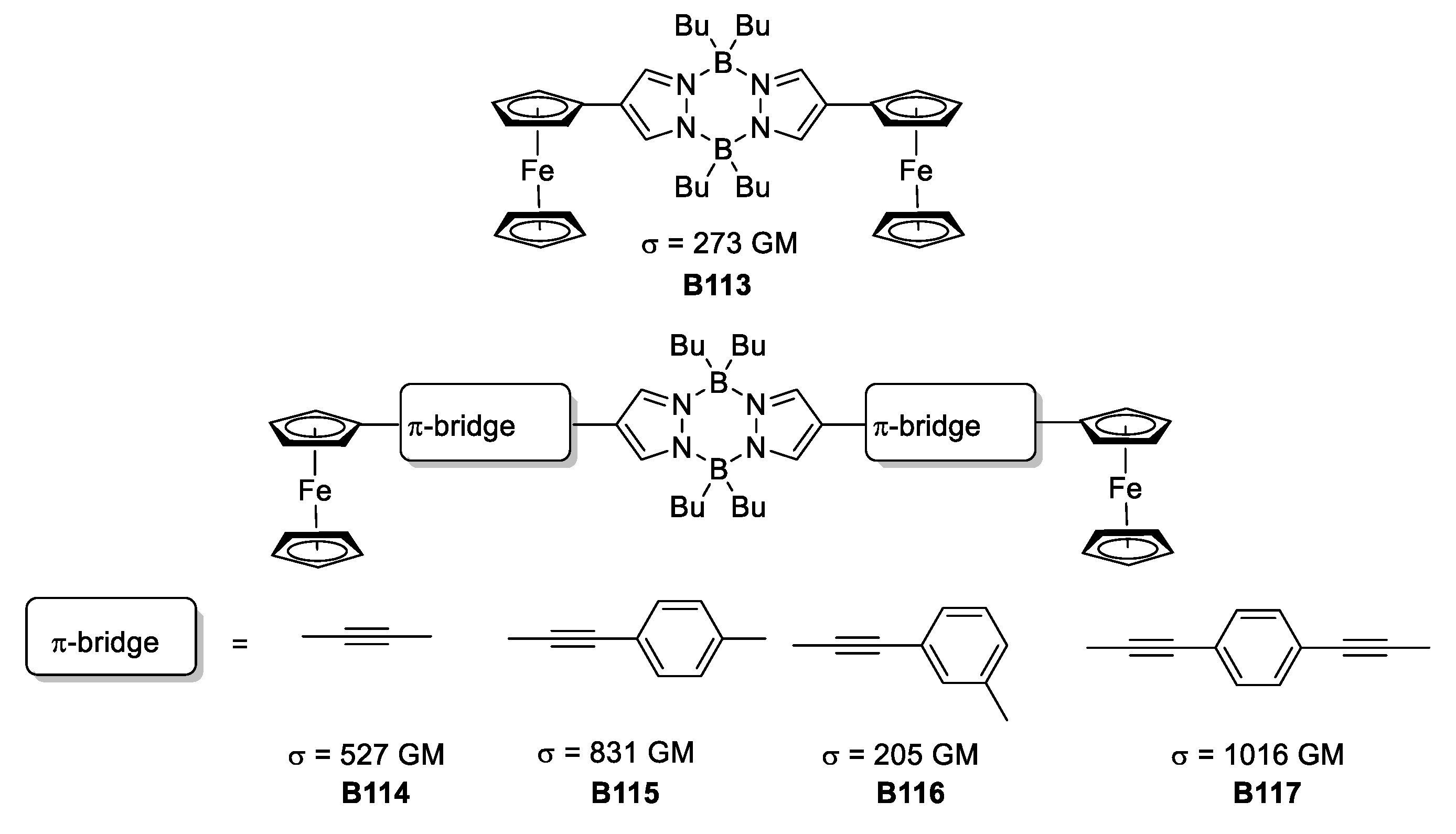

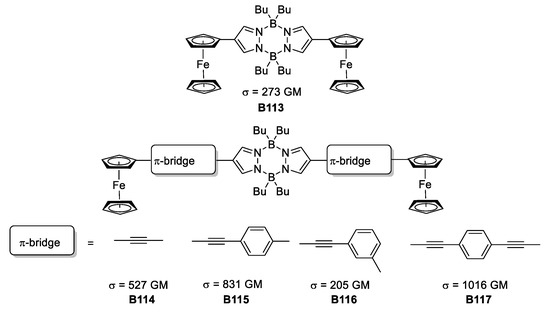

Jadhav et al. reinvestigated the pyrazabole core coupling this heterocycle to a series of π-spacers with ferrocene at the end to produce a number of molecules with the D-π-A-π-D architecture [63].

From the no-π-spacer species to a set of phenylene derivatives, the photophysical and electrochemical properties were assessed to evidence the potential applicability of the synthesized compounds (as depicted in Figure 36). The results showed that the compounds with ethinyl-phenyl and the one with diethinyl-phenylene as substituents connecting the pyrazabole and ferrocene portions, presented the best σTPA values when testing their TPA responsiveness, providing values of 831 and 1016 GM, respectively. This is in accordance with the delocalization pattern present in the molecules. As the π-conjugation increases, the TPA response increases too. In addition, changing the direction of the delocalization affects importantly the magnitude of the σTPA.

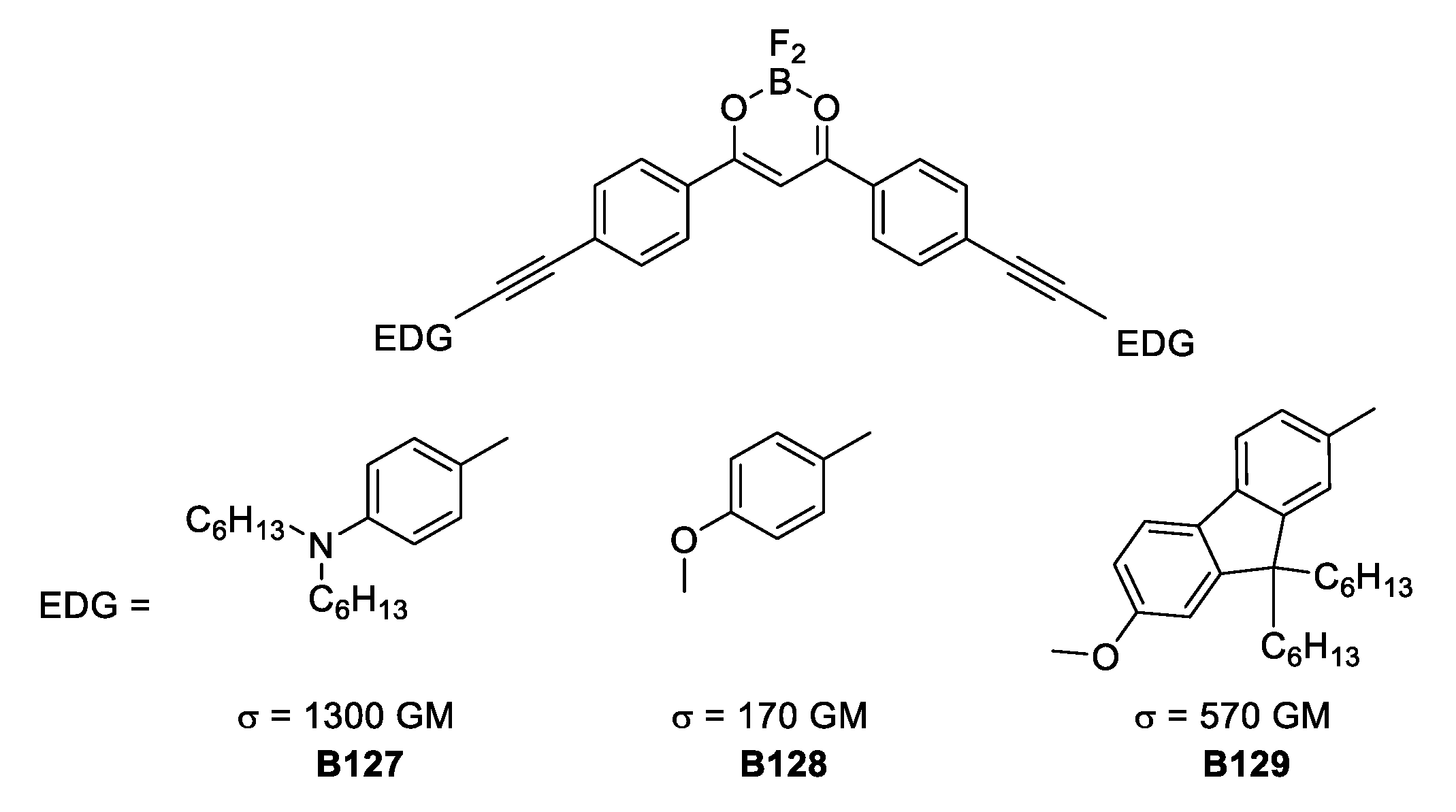

Finally, it is important to address the contribution of D’Aléo’s group revisiting the hydroxyketone functionality coordinated to a BF₂ moiety exploited during the early 2000s by Halik [55], Cogné-Laage [56], D’Aléo [64], Lanoë [65] and Kamada [66] in three separate studies.

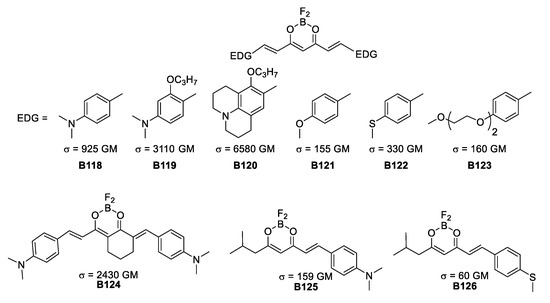

Using curcuminoid derivatives, D’Aleo was able to tune this substituents into pseudoquadropolar architectures and actual quadrupoles that exhibited a TPA response. Besides having these two electron-donating-substitution differences, the direction of electron density is changed by varying the angle of the two dipoles assembled within the molecules.

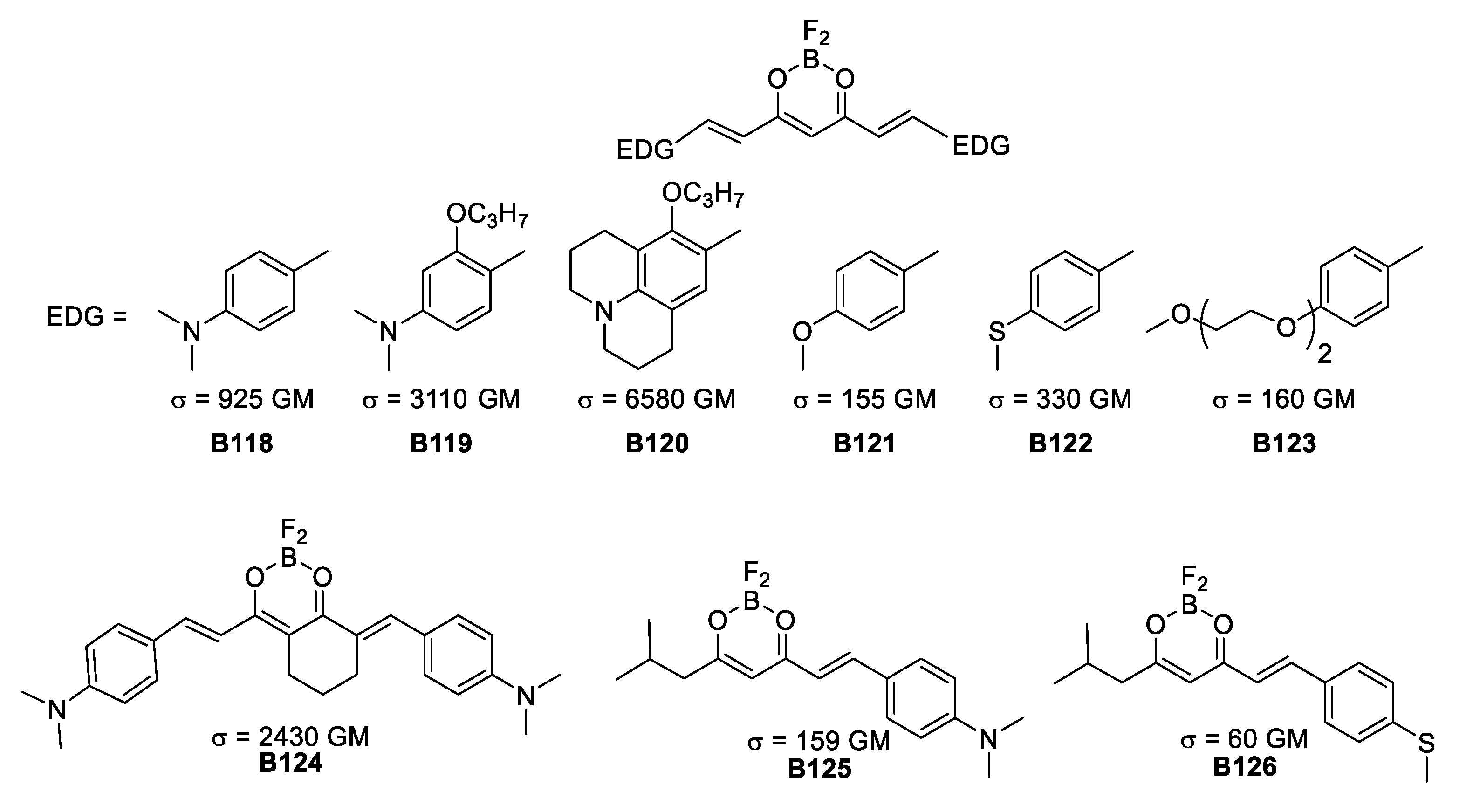

The molecules in Figure 37 evidence the effect of different electron-donating groups and how rigidity of the conjugation is the key to reach high σTPA values. The best results are obtained with nitrogen donors while the efficiency is reduced when using sulfur and finally oxygen. Additionally, a change in symmetry from quadrupolar to dipolar importantly reduces the TPA response.

Another way to affect the TPA response is to change the angle at the quadrupole. The three V-shaped quadrupolar boron complexes depicted in Figure 38, show decreased values of σTPA. This is important evidence to consider because when TPA response is the goal, then the quadrupolar and linear molecular architecture with good rigid donors should be chosen. Additionally, having V-shaped compounds with moderate σTPA values opened the possibility for different applications, for example, greater viability to obtain crystalline solids, which show fluorescent properties. This could lead to new developments in boron-based emitting solids.

These two studies approach the problem of how the electron density distributes, through quantum-level computations and allows to visualize the way charge transfer proceeds via HOMO–LUMO from the ligands to the tetravalent boron moiety of the molecules. They also highlight the importance of an atomistic and electronic point of view that provides a connection between the design, the synthesis, the way the molecules interact electronically and the applications they present.

3. NLO properties in Organotin Compounds and Tin Complexes

3.1. Second-Order NLO Properties

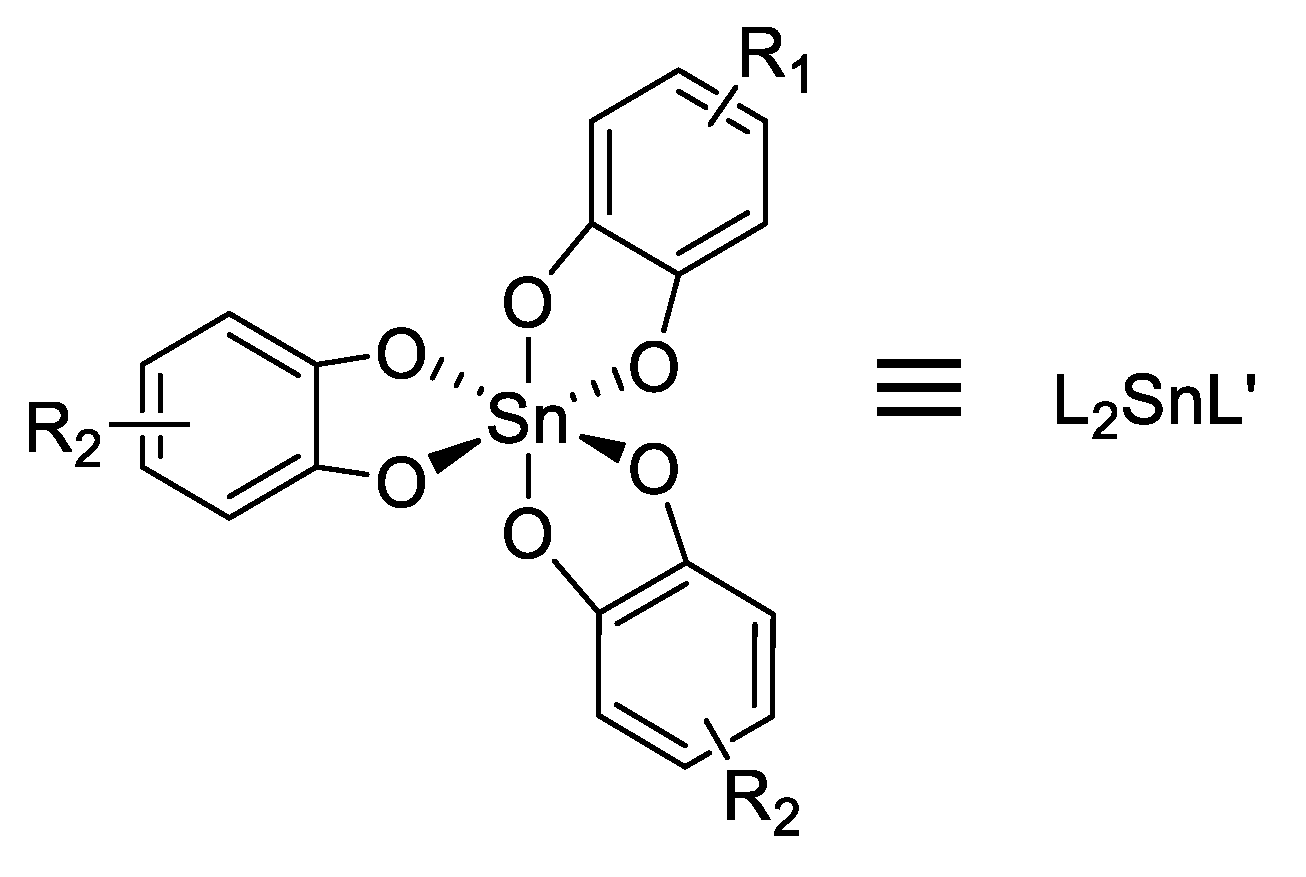

In 1991, Mingos et al. [67] reported the first examples of SHG in organotin compounds for 16 organotin(IV) derivatives with trisubstituted catecholato ligands (Figure 39), for which the SHG intensity in solid state was measured at 1.064 and 1.907 μm compared to urea (

Table 2. Measured second-harmonic signals at 1.064 and 1.907 μm wavelengths relative to urea.

#	R2	R1	1.064 μm	1.907 μm	#	R2	R1	1.064 μm	1.907 μm
Sn1	H	H	0.4	0	Sn9	3-MeO	3-MeO	0.01	0.03
Sn2	H	4-NO2	0.28	0.17	Sn10	3-MeO	H	0.08	0
Sn3	H	3-MeO	0.19	0.12	Sn11	3-MeO	4-NO2	0.14	0.32
Sn4	H	3,4,5,6,4-4Cl	0.07	0.05	Sn12	3-MeO	3,4,5,6,4-4Cl	0	0
Sn5	4-NO2	4-NO2	1.33	0.44	Sn13	3,4,5,6-4Cl	3,4,5,6,4-4Cl	0	0
Sn6	4-NO2	H	0.14	0.71	Sn14	3,4,5,6-4Cl	H	0	0
Sn7	4-NO2	3-MeO	0	0	Sn15	3,4,5,6-4Cl	4-NO2	0	0
Sn8	4-NO2	3,4,5,6,4-4Cl	0	0	Sn16	3,4,5,6-4Cl	3-MeO	0	0

).

These materials can be classified in three groups: The first group shows larger SHG efficiency at 1.064 μm than at 1.907 μm (Sn2 and Sn5) and it corresponds to a resonance effect when the double frequency gets close to the energy of the charge transfer transition; the second group shows larger SHG efficiency at 1.907 μm than at 1.064 μm (Sn6 and Sn11), this is due to residual absorption observed at 532 nm reducing the efficiency at 1064 nm; the third group in which the efficiencies observed at 1.064 and 1.907 μm (Sn3) are the same.

Although it is difficult to fully rationalize the data gathered in Table 2, there is a trend for enhanced efficiency when electron-acceptor groups are present. This is consistent with an overall donating capability associated to the “SnO₆” core.

In 1994, Lequan et al. [68,69] studied the effect of the length of the electronic conjugation pathway on the first hyperpolarizability (β) for four organotin compounds with octupolar geometry. Owing to the apolar character of the octupolar species, the EFISH technique commonly used for β measurements, had to be replaced by the alternative HRS (Hyper-Rayleigh Scattering). As shown in

Table 3. Nonlinear optical properties for the tetraorganotin derivatives.

#	Compound	βxzy × 10−30 esu
Sn17	Sn(C6H4NMe2)4	13.0
Sn18	Sn(C6H4C6H4NMe2)4	24
Sn19	Sn(C6H4N=NC6H4NMe2)4	159
Sn20	(C6H5)Sn(C6H4N=NC6H4NMe2)3	βzzz = 181

, β increases with an increase in the conjugation length.

In 2000, Fiorini et al. [70] studied an analog of compound Sn19. Using an all-optical orientation experimental setup, Fiorini studied dynamics and symmetry in PMMA (Poly(methyl methacrylate) rods; observing that under all-optical poling conditions, cis/trans isomerization of the azobenzene moieties proceeds to an efficient molecular reorientation that leads to a SHG response.

In 2004, Farfán and Lacroix et al. [71] published four diorganotin compounds with “push-pull” structures (Figure 40) for which β was measured and compared to its related diorganoborates [30].

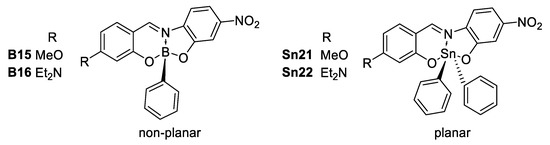

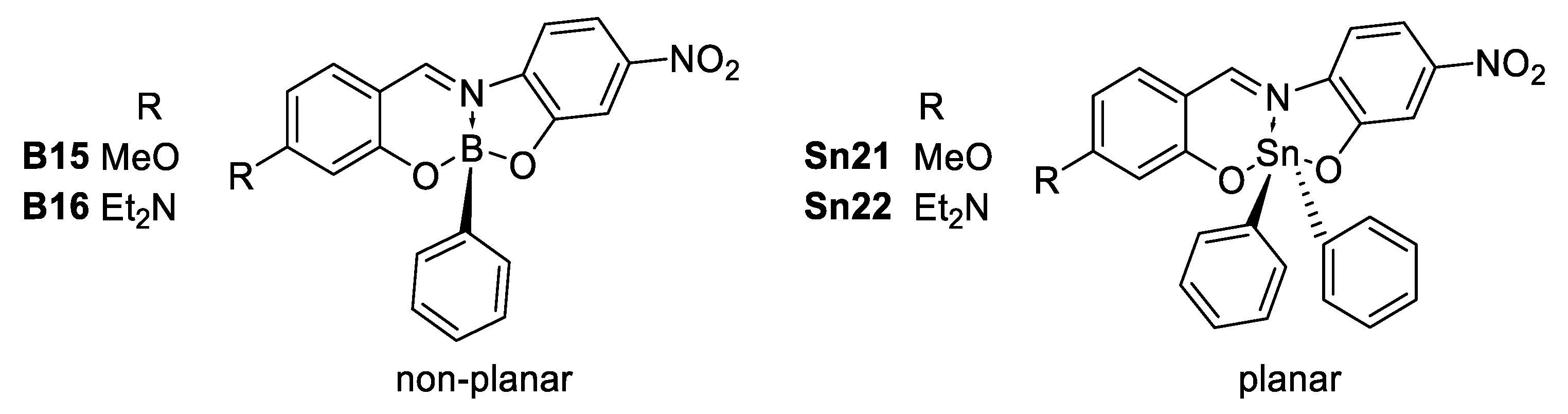

The X-ray diffraction study showed that the torsion angle between the methoxyphenyl and the nitrophenyl moieties is 8.1° in the diorganotin compound and 11.4° for the diethylamino and increases to 31.2° in the organoboron compound, additionally the structure reveals a planarity in the C–C=N–C connecting bridge, imposed by the diorganotin fragment. This increased planarity results in a better delocalization over the π-conjugated structure and an increase in the β value equal to 80% and 36% for the methoxy and dimethylamino derivatives (

Table 4. Second-order NLO properties for the diorganotin and diorganoborate compounds.

#	R	β × 10−30 esu	μ (D)
Sn21	OCH3	48.9	10.2
B15	OCH3	27.0	10.2
Sn22	NEt2	-	-
B16	NEt2	-	-

), respectively.

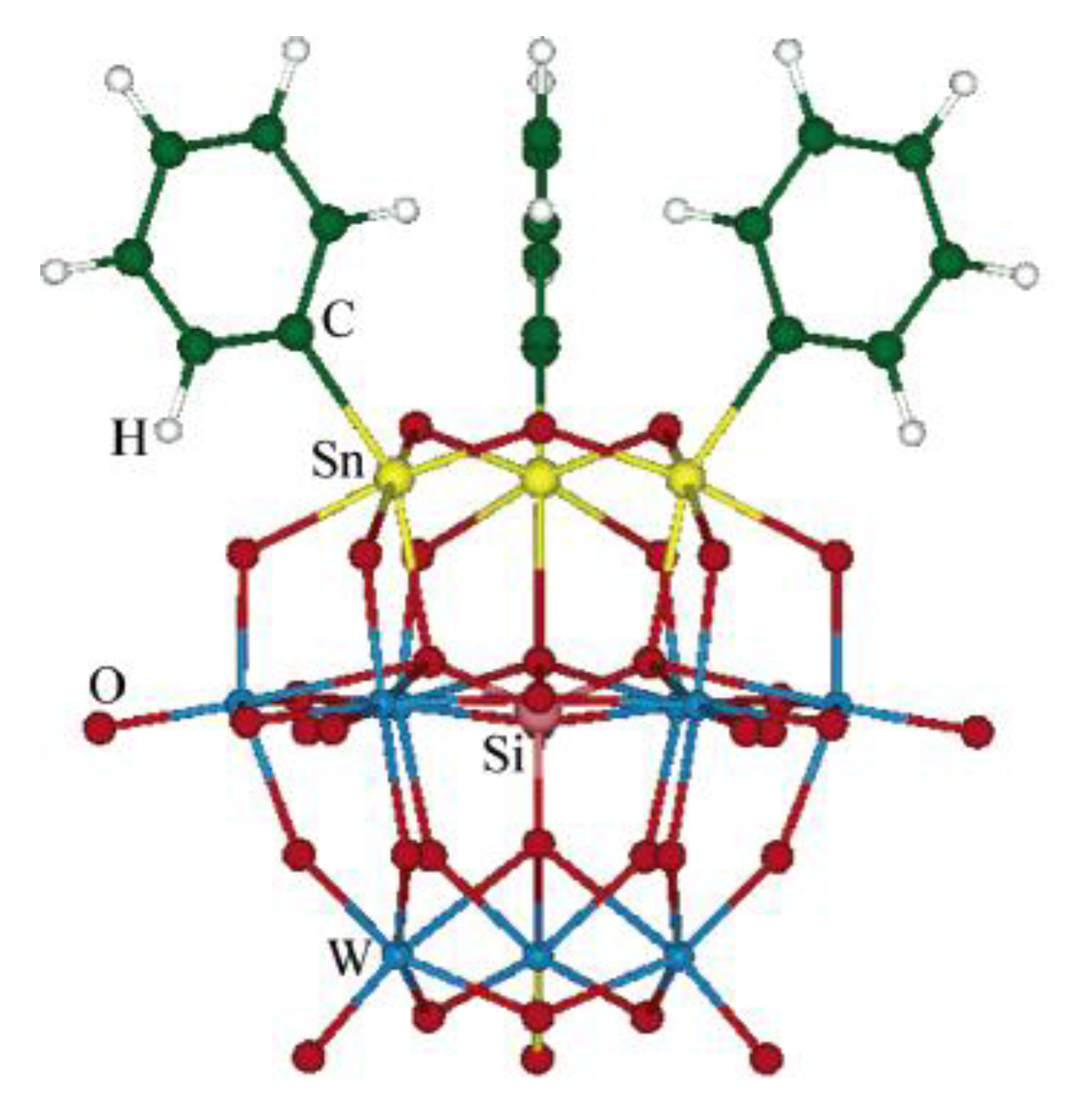

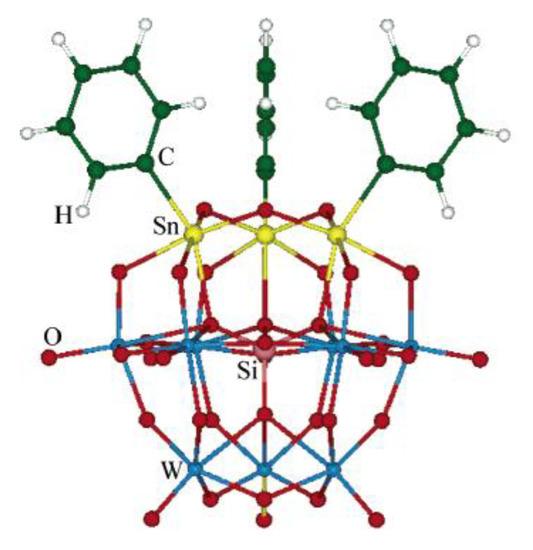

During 2006, two main contributions on NLO properties of diorganotin compounds were highlighted. On the one hand, analysis of a series of organotin coordination compounds of complex structure with a polyoxotungstate ligand carried out by Guand and co-workers [72] highlighted the relevance of theoretical studies (Figure 41).

Through quantum calculations, Guan was able to determine that the charge transfer along a preferred axis of the molecules is of chief importance for NLO response. This study points out three main factors in which NLO properties are tuned: (1) Size of a heavy heteroatom in the structure (Ge gives the best); (2) lengthening of the conjugation in the organotin portion; and (3) the presence of an electron–acceptor at the end of this same moiety to enhance the charge transfer capabilities, as determined by calculating dipole polarizabilities and analyzing the frontier orbital contour plots for the complexes.

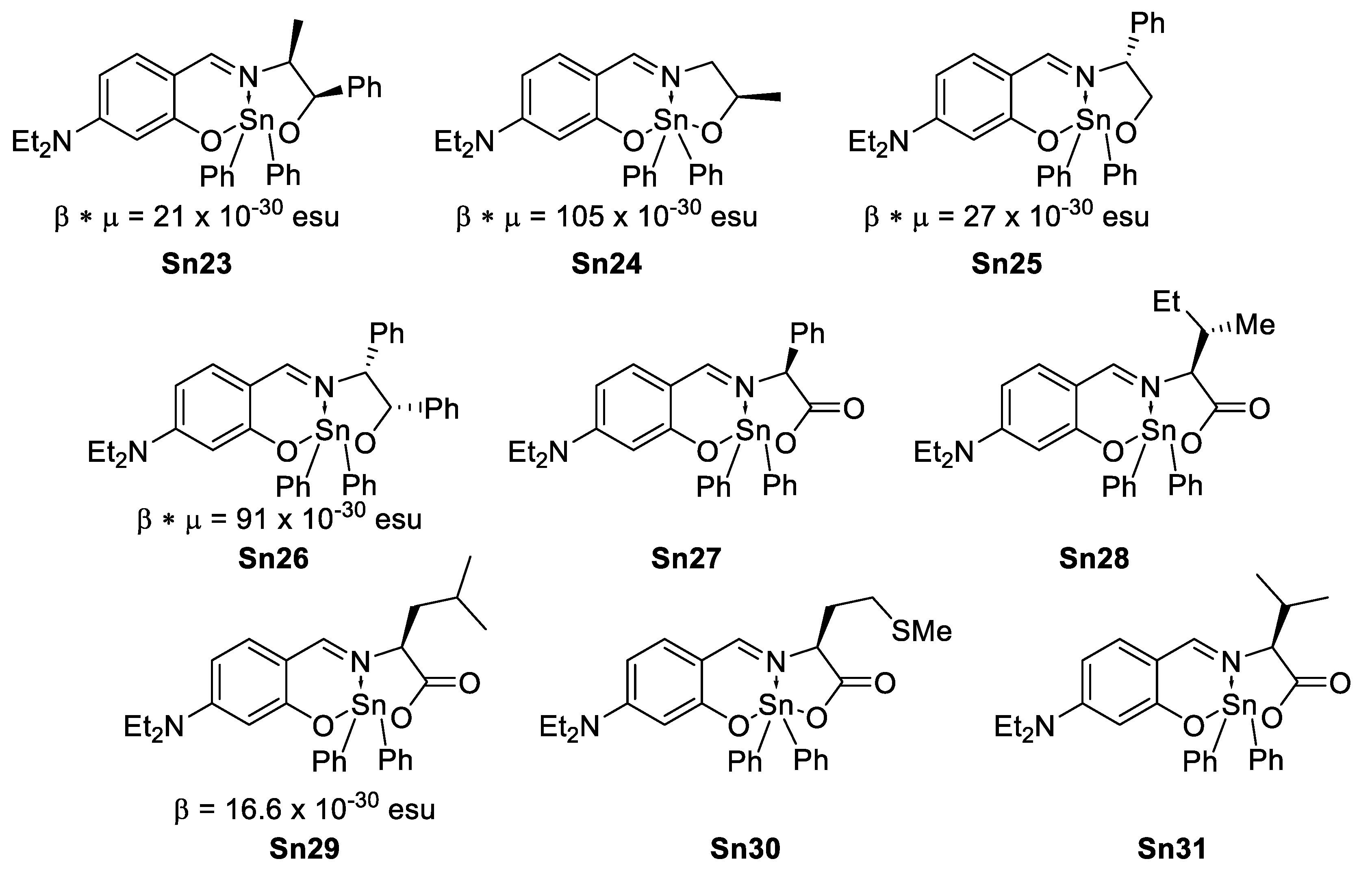

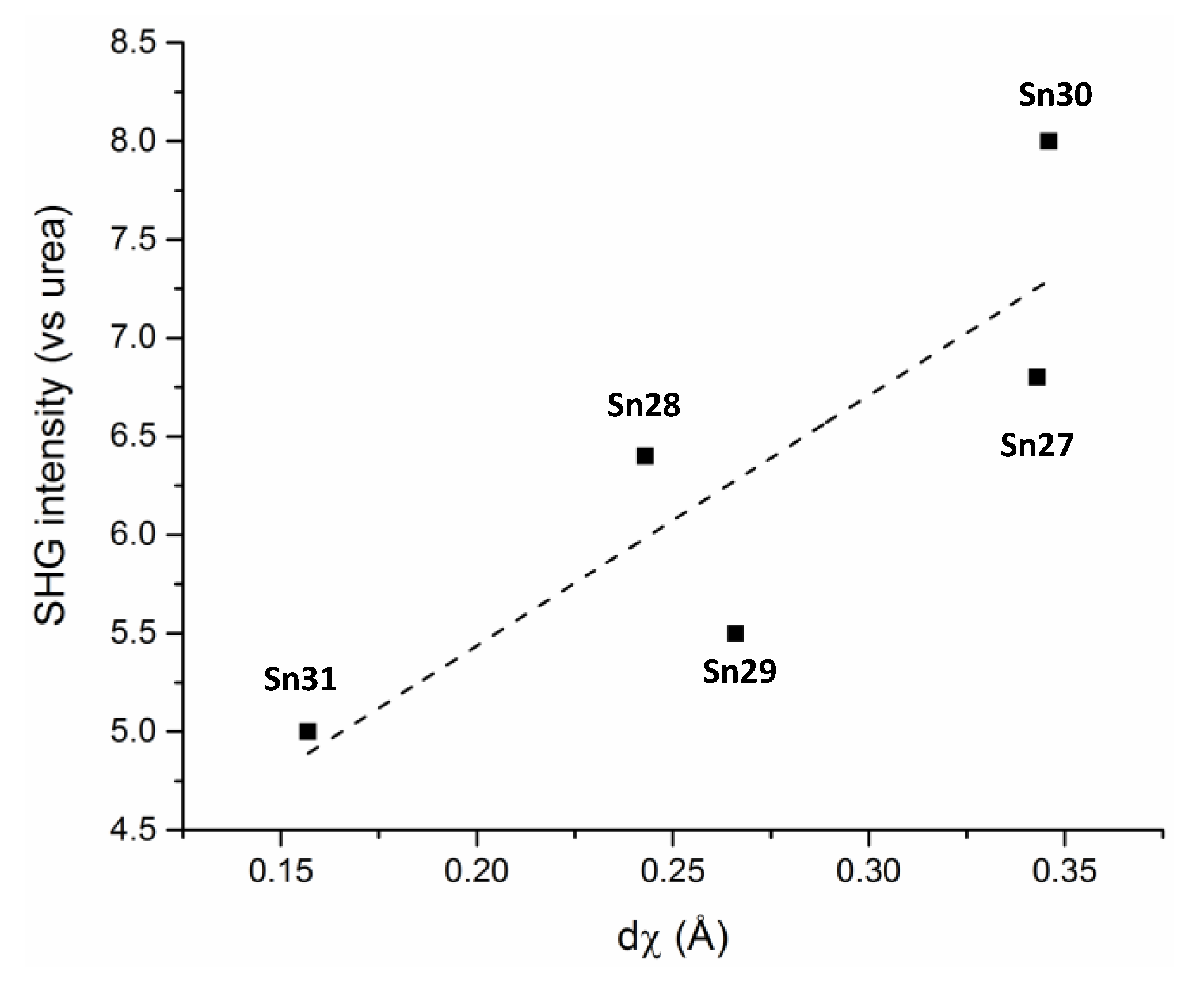

That same year, Farfán and Lacroix reported a series of tin-based complexes coordinated to chiral aminoalcohols [73] and chiral aminoacids [74] through the synthesis of Schiff bases (Figure 42). These synthetically accessible coordination compounds were studied through different aspects. First of all, the crystal structures proved the viability to obtain these complexes as non-centrosymmetric solids, which is a main factor to consider for second-order NLO applications in the solid state.

The introduction of a chiral moiety is the only strategy that guarantees a non-centrosymmetric space group in the solid state, which is one of the parameter required for χ⁽²⁾ (quadratic susceptibility in Equation (2)). This study provided a unique example of a series of molecules with the same NLO response arising from the Et₂N to C=N charge transfer unit present in all cases, that crystallize in the same chiral space group, and has the same asymmetric unit cell content. The results allowed to propose a correlation between the solid state SHG response and a molecular geometrical parameter defined as the “degree of chirality” dχ, in Figure 43.

At the end of the decade, Kumar and co-workers [75] obtained a pseudocage, oxygen-bridged organotin complex (Figure 44) and performed a thorough structural analysis of the crystalline solid obtained. A computational approach on this complex indicated a clear HOMO–LUMO-based charge transfer transition from the periphery of the ligands to the pseudocage formed by the tin and oxygen atoms. As a final part of this study, computational calculations of four analogues and prediction of their second-order NLO properties, revealed that changing the ligands to a multipolar architecture containing two strong electron donors would function as the best candidate to express NLO responsiveness.

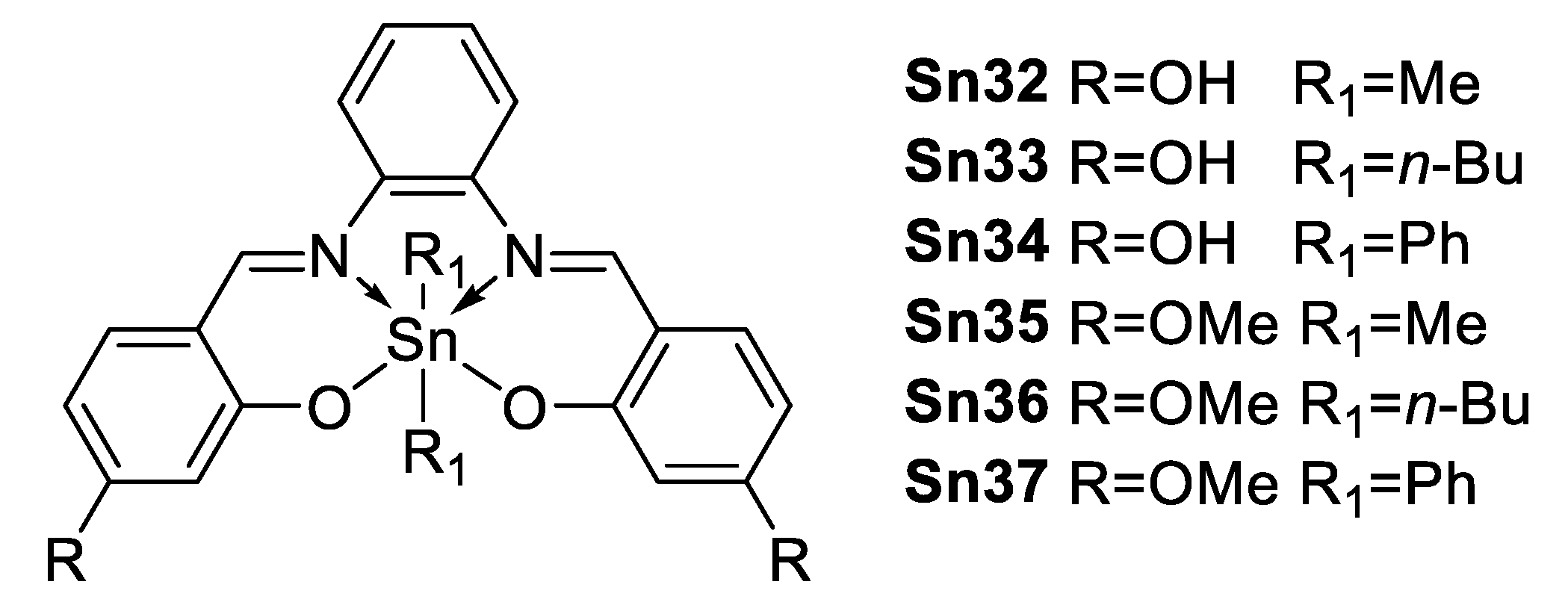

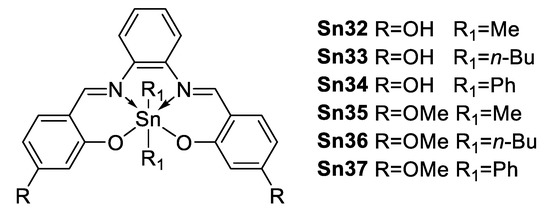

In 2014, Farfán and Santillan et al. [76] reported six hexacoordinated organotin compounds (Figure 45) with NLO properties;

Table 5. Nonlinear optical properties for the hexacoordinated tin compounds.

R1	β (calc.) a	μ (calc.) a,b	β × μ (calc.)	β × μ (exp.)
Sn33	19.0	2.07	25.7	-
Sn35	-	1.23	-	14.8
Sn36	19.0	1.35	12.0	48.2
Sn37	19.9	1.64	13.2	56.4

^a from DFT calculations in 10⁻³⁰ esu; ^b in D.

shows a trend for the β × μ product which decreases in the order: Sn(Ph)₂ (Sn37) > Sn(n-Bu)₂ (Sn36) > Sn(Me)₂ (Sn35).

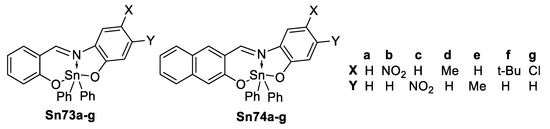

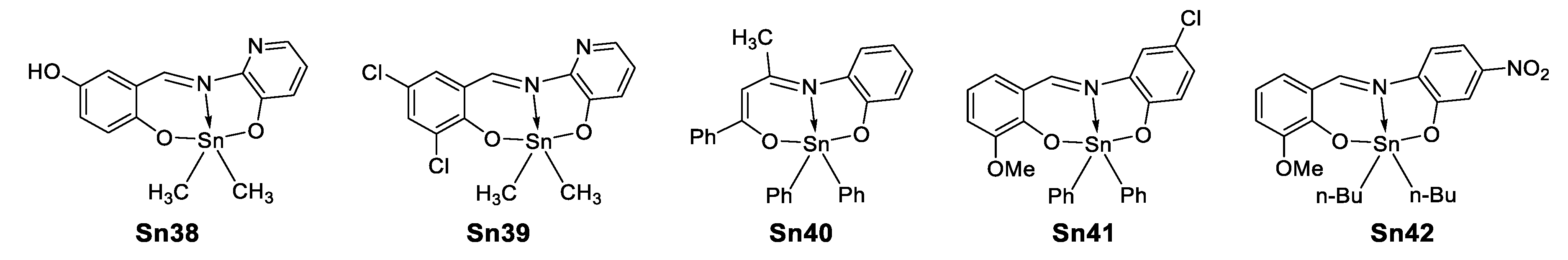

In 2015, Şirikci et al. [77] performed a theoretical study on five organotin(IV) compounds (Figure 46) previously reported [78,79,80,81], in which they computed several constants (HOMO–LUMO, polarizabilities, geometric parameters, ¹H and ¹³C-NMR chemical shifts, chemical reactivity descriptors) through DFT using seven different functionals. This investigation was carried out to examine which functional describes more adequately a certain parameter in this type of organotin complexes.

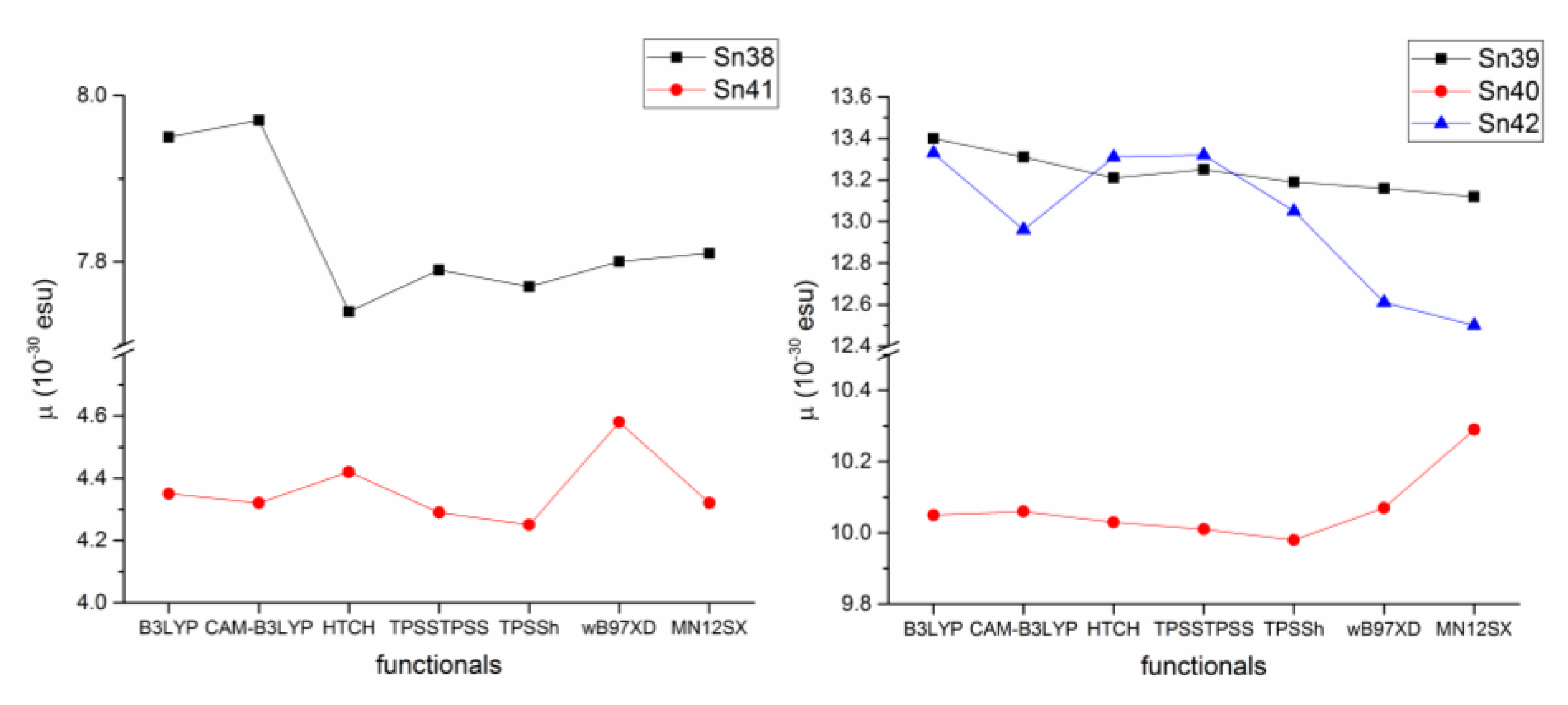

In their work, Şirikci determined the theoretical static second-order hyperpolarizability (β) in chloroform observing the same trend whatever the functional used, Sn41 < Sn38 < Sn40 < Sn42 < Sn39 and obtained values in the range of 4.25–13.40 × 10⁻³⁰ esu. However, when the non-hybrid functionals HTCH and TPSSTPSS were used the trend was reversed for Sn39 and Sn42, as shown in Figure 47.

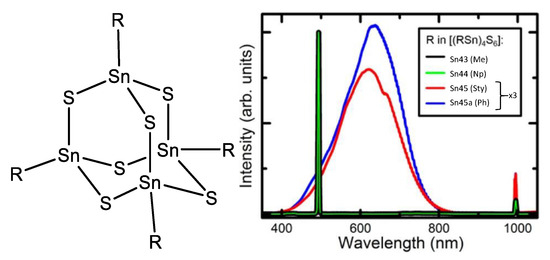

A series of chalcogenides was reported by Dehnen et al. [82,83] in 2016, where the organic ligand was interchanged by methyl (Sn43), 1-naphthyl (Sn44), p-styryl (Sn45) and phenyl (Sn45a) (Figure 48); to understand the role of the substituents in SHG.

In the solid state, a strong SHG signal was observed for the chalcogenides containing the methyl and 1-naphthyl substituents, while a strong white-light emission was observed for the p-styryl and phenyl substituents. From this, it was inferred that Sn43 and Sn44 must be highly ordered in the solid state as compared to Sn45 and Sn45a (due to the intrinsic requirements for SHG). Indeed, the small methyl group and its lack of flexibility could increase the ordering in the solid state for compound Sn43; for compound Sn44 the naphthyl ligand produces π–π stacking which apparently induces high ordering too.

For the chalcogenide with naphthyl as ligand, supramolecular stacking is favored, this order yields a crystalline phase which is non-centrosymmetric and SHG responsive. In the case of phenyl and styryl as substituents, the order decreases because dispersive interactions surpass π–π stacking. Losing the non-centrosymmetric arrangement but keeping the electron delocalization in the long π-system makes more plausible the bremsstrahlung effect [84,85] producing the white supercontinuum observed in the emission spectra, which corresponds not only to the remains of the second-order effect but also to the appearance of other nonlinear contributions due to the bremsstrahlung.

In 2016, Dang et al. [86] reported the NH(CH₃)₃SnX₃ (X = Cl, Br) orthorhombic hybrid perovskite single crystal. The distorted pyramidal structure of tin (SnX₃) generated asymmetry in the NH(CH₃)₃SnX₃ unit. The acentric crystal allowed to study its powder SHG for both compounds, which at 1064 nm shows a signal 1–2.5 times vs. KDP; further measurements proved that the SHG intensity depends on the particle size, when its size increases the SHG signal decreases, showing that they are not type-1 phase matchable materials [87]. With an increase of temperature, the SHG intensity decreases during the phase transition. The change of SHG was reversible showing overlapping curves in the cooling and heating runs.

3.2. Third-Order NLO Properties

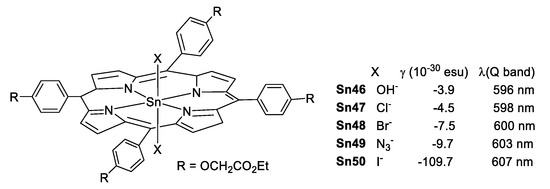

In 1999, Sing et al. [88] reported for the first time five tin(IV) porphyrins complexes with different axial ligands attached to the metallic center having third order NLO properties at 802 nm. In these compounds, the measured values of γ were negative indicating a self-defocusing character; and γ increases as the electron donating capacity of the axial ligand decreases (Figure 49).

The enhanced γ value for Sn50 (X = I⁻) is a result of the strong interaction between the soft acid Sn(IV) in the porphyrin and the soft base I⁻. This interaction increases the electron density in the porphyrin core which normally enhances the hyperpolarizability as confirmed by the UV–Vis Q band of the porphyrins that shows a bathochromic shift following the same trend as γ.

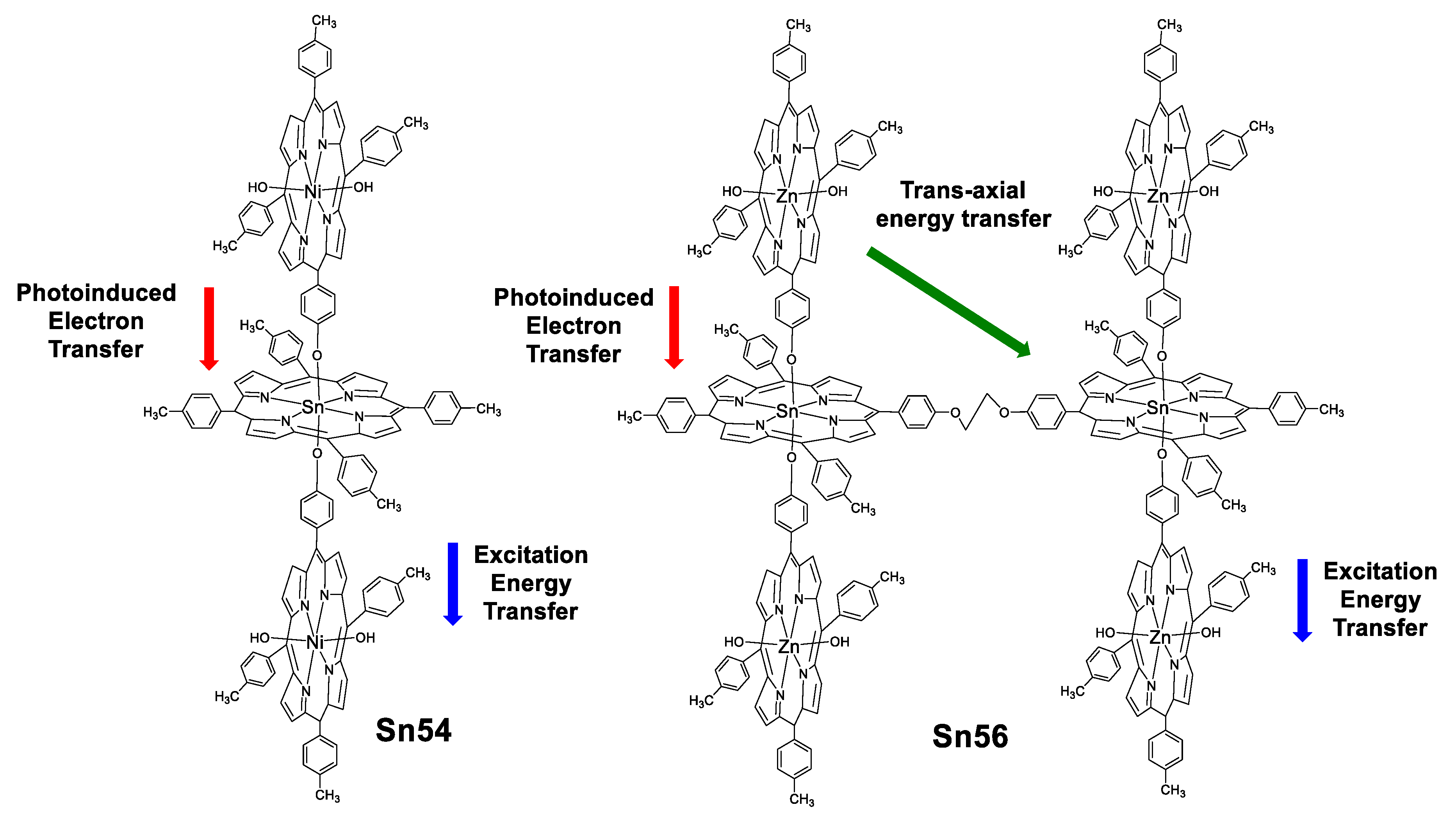

Rao and Kiram et al. [89,90] reported the non-linear absorption (NLA) properties for five oligomers of tin(IV) porphyrins (two are shown in Figure 50) and their correlation with TPA and excited state absorption (ESA). The results for these systems indicate that the ratio of the excited and ground state cross sections (σ_Ex/σ_g,

Table 6. Optical properties of the oligomers described by Rao and Kiram et al. [89,90].

#	Porphyrin	γ a	β b	σTPA c	σEx/σg	τS d	τISC d	τFl (Φ%) e
Sn51	Sn(TTP)	0.37	0.45	2.7	3.24	60	1000	0.56 (71), 1 (28)
Sn52	Sn–Sn(TTP)2	3000	1.50	13.6	21.53	7.5	180	0.57 (95), 4.94 (5)
Sn53	Sn–(H2)2(TTP)3	930	-	-	7.26	500	380	0.74 (71), 5.93 (28)
Sn54	Sn–Ni2(TTP)3	610	1.45	396	6.21	50	550	0.62 (70), 2.13 (29)
Sn55	Sn2–(H2)4(TTP)6	330	-	-	19.45	500	220	0.45 (28), 1.95 (23), 7.25 (47)
Sn56	Sn2–Zn4(TTP)6	380	0.90	15.7	6.73	15	600	0.66 (30), 1.73 (69)

^a γ in 10⁻³⁰ esu, ^b β in 10⁻⁹ cm·W⁻¹, ^c σTPA in 10⁴ GM, ^d τ_S and τ_ISC in ps, ^e τ_Fl in ns; obtained in CHCl₃.

) are large enough to promote ESA.

The lifetimes of the highest excited singlet state (τ_S) for these oligomers of porphyrins are far more rapid than intersystem crossing (τ_ISC), as expected, however because the lifetime of S₁ is close to the laser pulse width and the fluorescence quantum yield is low, some of the molecules seem to transfer to T₁. The σTPA obtained are in the range of 2.7–396 × 10⁻⁴ GM, the largest one is 396 × 10⁻⁴ GM for the trimer Sn54 which is 146 times larger than the monomer Sn51. This can be rationalized as a result of photoinduced electron transfer (PET), excitation energy transfer (EET) and trans-axial energy transfer processes which occur simultaneously in these oligomers, leading to a higher delocalized singlet excited state enhancing the TPA assisted by ESA (which is also improved by the resonance of the excitation wavelength with the Q band).

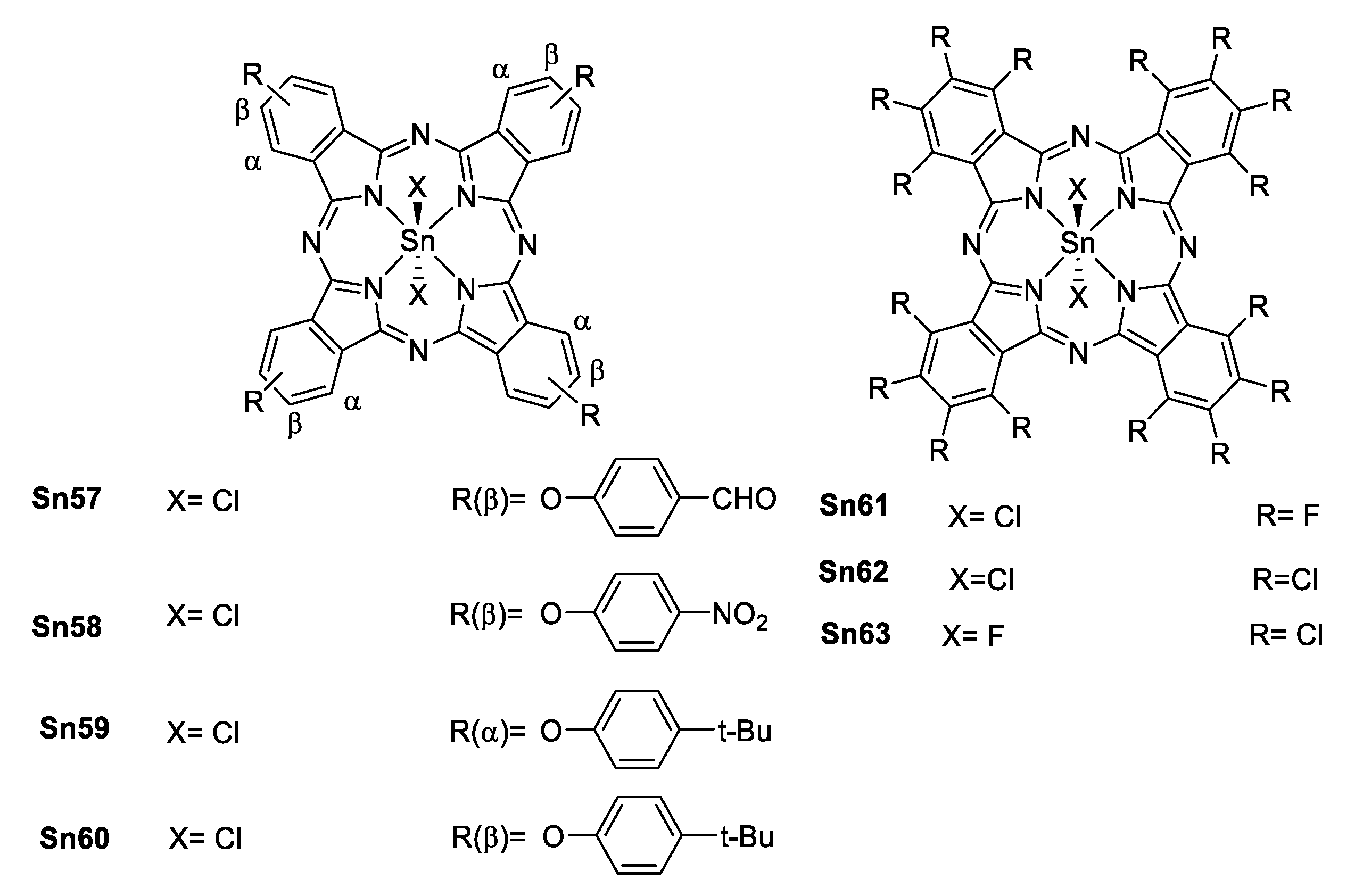

As in porphyrins, tin phthalocyanines (Figure 51) also shows NLA with a good ratio σ_Ex/σ_g making them able to promote ESA and enhance reverse saturation (RSA) which is suitable for optical limiting (OL).

Wöhrle et al. [91,92] reported a series of tin(IV) and Ge(IV) phthalocyanines that were studied both in solution and in thin films of polymers to enhance their OL properties (Figure 51). Comparing the free base with its respective germanium(IV) and tin(IV) phthalocyanine, β is larger when a metallic center is present, and it is even larger for the tin complexes. These results correlate with the size of the metallic center (heavy atom effect).

Comparison of the electronic effect of the substituents in different positions [93] of the phthalocyanine shows, that there is a considerable increase in β, σTPA and Im{χ⁽³⁾} (Im{χ⁽³⁾} is the imaginary part of the third order hyperpolarizability) for the α position compared to β position (

Table 7. β, Im{χ⁽³⁾} and the ratio σ_Ex/σ_g for some phthalocyanines.

#	β a	Im{χ(3)} b	σEx/σg		#	β a	Im{χ(3)} b	σEx/σg
H57c,d	1.3	n.d.	5.7		Sn60e	3.9	396	9.62
Sn57d	2.9	n.d.	16.9		Sn61d	4.0	130	7.3
H58c	2.3	7.8	4.3		Sn62f	2.6	8.8	4.5
Sn58d	3.0	10.0	10.2		Sn63g	1.5	6.6	6.0
Sn59e	0.9	154	5.14		-	-	-	-

^a β in 10⁻⁸ cm·W⁻¹, ^b Im{χ⁽³⁾} in 10⁻¹² esu ^c free base of Sn57 or Sn58, ^d in THF, ^e in toluene, ^f in DMF, ^g in 1-chloronaphthalene.

). This is attributed to a less polarizable electronic structure for the β isomer, also it is known that the substituents located at the α position have more influence in the electronic distribution of the phthalocyanine than those in the β position [94].

When comparing the different substituents there is not a considerable change in β in the case of the aldehyde or the nitro group, but for the t-butyl β is larger. This is explained by the increase of the polarization towards the metallic center in terms of a better electron-donating group (Table 7).

In the case of the fully halogenated phthalocyanines, there is a noticeable trend when the axial ligand changes from chlorine (Sn62) to fluorine (Sn63), as in the porphyrins reported by Sing [88], this is related to the electronegativity of the ligands and the interaction of an even harder acid (F⁻) with a soft base (Sn^IV). Not surprisingly, the best in this series is the perfluorinated phthalocyanine due to the well-known mesomeric effect of the fluorine in contrast to the inductive effect of the chlorine.

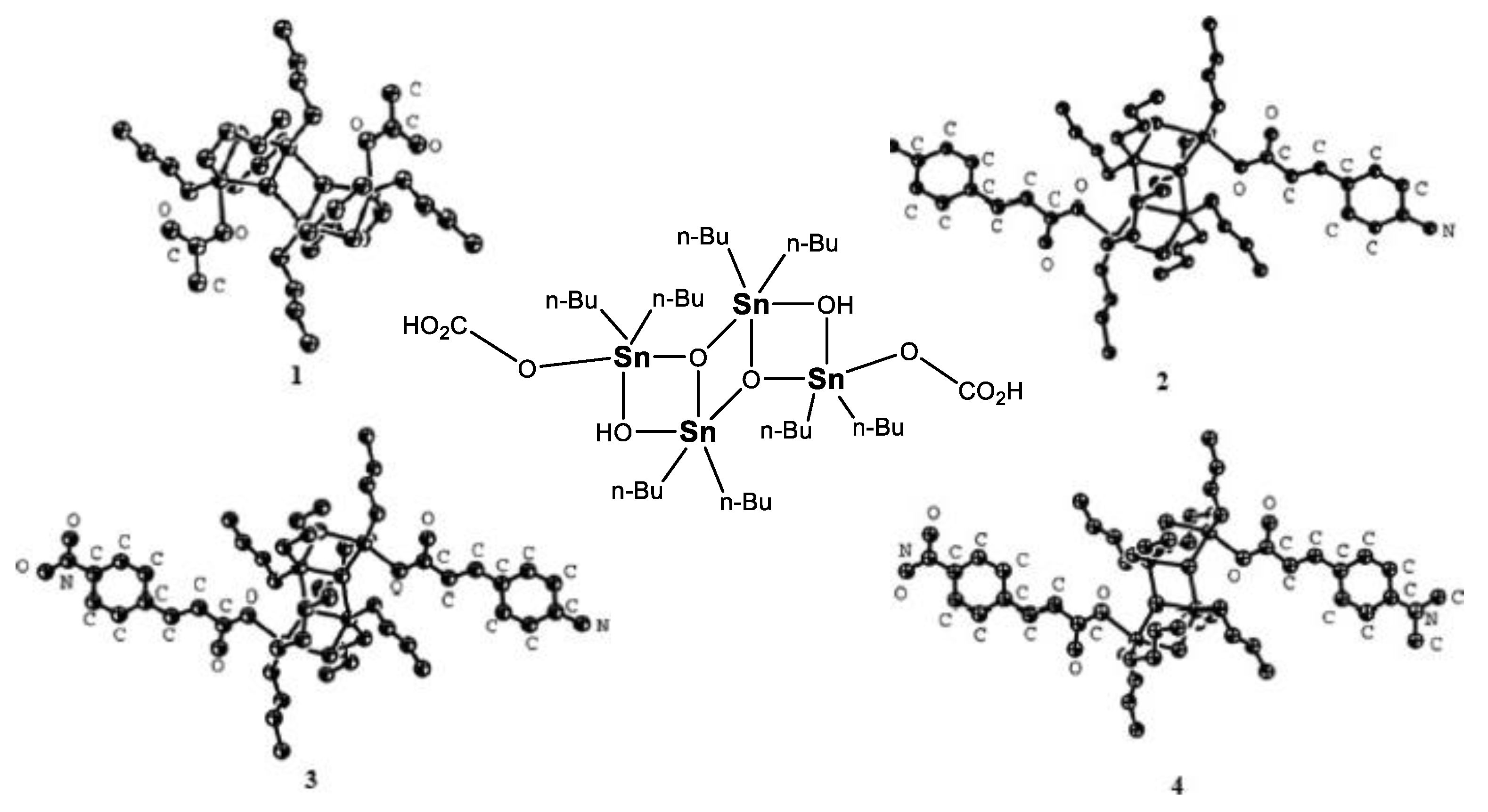

Organostannoxanes have also proved to be efficient for NLO. Tian et al. reported a series of organostannoxanes derived from phenothiazine [95], triphenylamine [96], coumarin [97] and cinnamic acid [98]. These compounds exhibit TPA values in the range of 680–850 nm, which are mostly part of the infrared region. In the solid state, the diphenyl tin derivatives usually remain as a discrete structure due to the bulky phenyl groups (Figure 52), however, for the dibutyl tin (Figure 53), it is very common to find them as dimeric [71,99], hexameric [100] or even 3D networks [101], as in the case of these organostannoxanes.

Two-photon microscopy (TPM) has become a promising technique for biomedical research [102,103,104,105], Kim and Cho suggested that chromophores suitable for TPA applications should have (1) two-photon brightness (σTPA × Φ) larger than 50 GM [103] or (2) σTPA/MW (GM g⁻¹·mol⁻¹) larger than 1 [106].

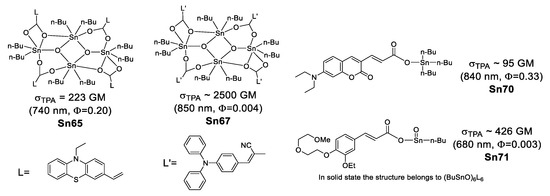

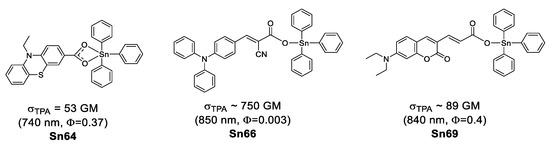

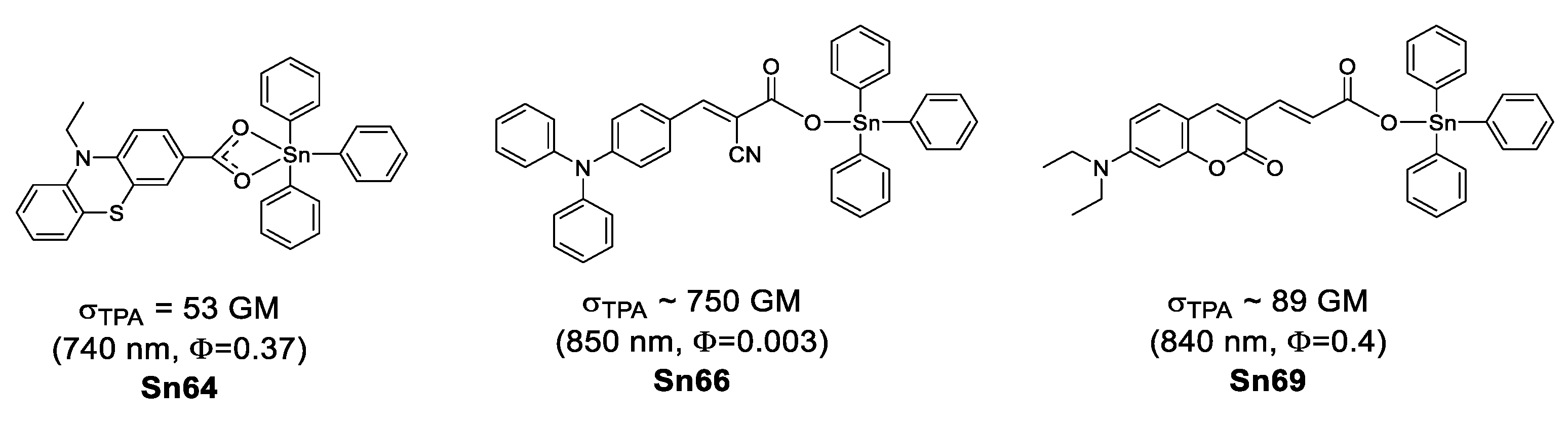

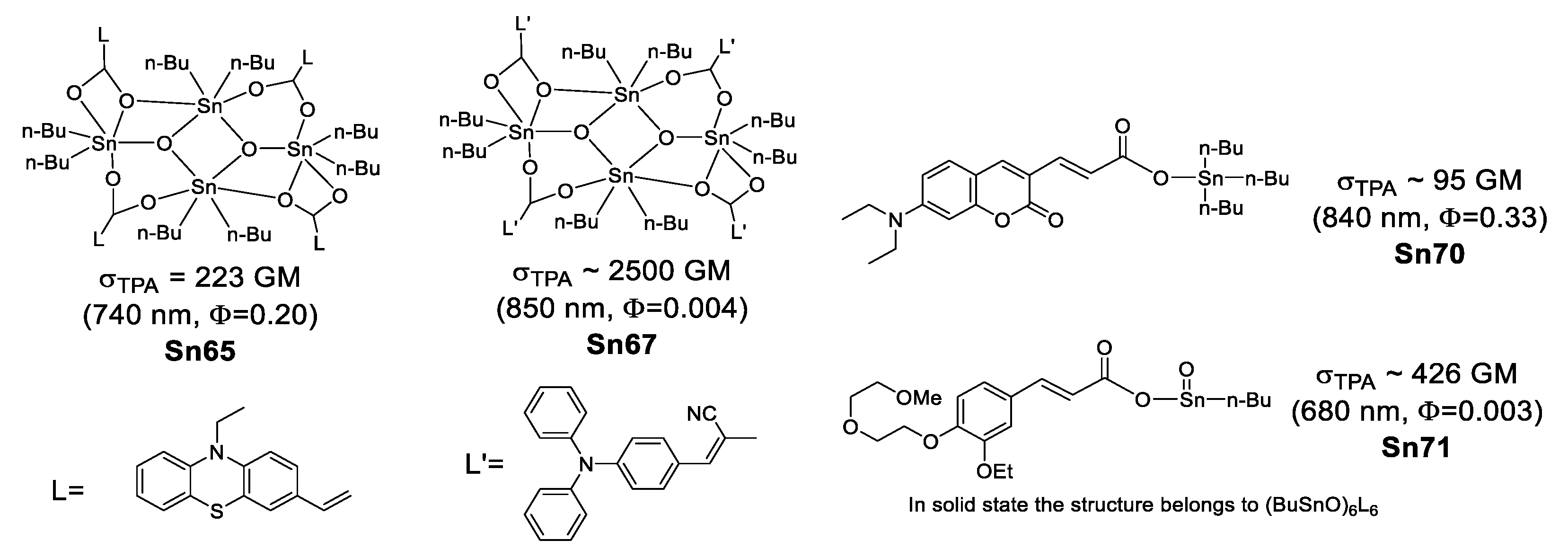

Considering the above, only Sn69 (61 ^a GM, 89 ^b GM) and Sn70 (69 ^b GM, 95 ^c GM) meet the first requirement; the second requirement is fulfilled only by Sn66 (1.06 ^b GM g⁻¹·mol⁻¹), Sn67 (1.93 ^b GM g⁻¹·mol⁻¹), Sn68 (2.64 ^b GM g⁻¹·mol⁻¹), Sn69 (3.83 ^c GM g⁻¹·mol⁻¹) and Sn70 (3.99 ^c GM g⁻¹·mol⁻¹) (

Table 8. Optical properties of the organostannoxanes.

Tin complex	Tin Source	#	λabs (nm)	λem (nm)	#	σTPA (GM)
Phenothiazine [95]	Ph3SnOH	Sn64	290, 363 a	537 a	0.37 a	53 a
	n-Bu2SnO	Sn65	302, 401 a	537 a	0.20 a	223a
Triphenylamine [96]	Ph3SnOH	Sn66	289, 414 a	565 a	0.003 a	780 a
	n-Bu2SnO	Sn67	289, 426 a	553 a	0.004 a	2500 a
	(n-Bu3Sn)2O	Sn68	291, 419 a	556 a	0.008 a	1600 a
Coumarin [97,107]	Ph3SnOH	Sn69	449 b, 424 c	545 b, 485 c	0.025 b, 0.40c	2440 b, 222 c
	(n-Bu3Sn)2O	Sn70	452 b, 431 c	547 b, 489 c	0.030 b, 0.33c	2300 b, 287 c
Cinnamic acid [98]	n-BuSnOH	Sn71	321 d	410 d	0.009 d	426 d
	(n-Bu3Sn)2O	Sn72	320 d	406 d	0.003 d	-

^a in CH₂Cl₂, ^b in phosphate buffered saline 0.02% triton X-100, ^c in DMF, ^d in DMSO.

). This could make them suitable for bioimaging.

These compounds, as in other tin derivatives, also present biological activity; the derivatives from triphenylamine [96] are cytotoxic against A549 (lung cancer) and MDA-MB-231 (breast cancer) cell lines; the derivatives from coumarin [97] are active against Hela (cervical cancer), HepG2 (liver cancer), A549 and they proved to be better than cisplatin, inducing apoptosis by reactive oxygen species. The coumarin [107] derivative showed higher antibacterial activity against Bacillus subtilis than Kanamycin.

Li et al. [108] reported the study of tetrachloro (1,10-phenanthroline-N,N’) tin(IV) listed in

Table 9. Optical properties of tetrachloro (1,10-phenanthroline-N,N’) tin(IV).

χ(3)	3.6 × 10−12 esu
Re{χ(3)} a	3.267 × 10−12 esu
Im{χ(3)}	1.512 × 10−12 esu
Γ	5.022 × 10−33 esu
Β	3.18 × 10−10 cm·W−1
η2 b	3.87 × 10−22 esu

^a Re{χ⁽³⁾} is the real part of the third order hyperpolarizability. ^b η₂ is the nonlinear refraction index.

and their NLO properties.

Diorganotin Schiff bases are another type of tin derivatives capable of third order NLO properties. Peon et al. [109] described a series of diphenyl tin(IV) Schiff bases (Figure 54), the fluorescence in these complexes are up to 50 times larger than the free base due to the rigidity imposed by the tin center.

Increasing the conjugation of the system, should lead to a bathochromic shift in the UV–Vis and an increase in σTPA. As evident from Equation (4), decreasing the energy of the main transition associated to the TPA (E_ge) normally should increase σTPA.

$${\sigma }_{TPA}\approx \frac{16{\pi }^{2}f{\left({\mu }_{ee}-{\mu }_{gg}\right)}^2}{5{\hslash }^2{c}^2{\mathsf{\Gamma }\mathrm{E}}_{ge}}$$

(4)

As expected, the naphthalene derivatives are red shifted in the UV–Vis spectra; also in both derivatives, large red shifts are observed when electron-donating groups are located at the meta position to the imino group, and with electron-withdrawing groups in the para position to the imino. On the other hand, when the electron-withdrawing group is meta to the imino a blue shift is observed.

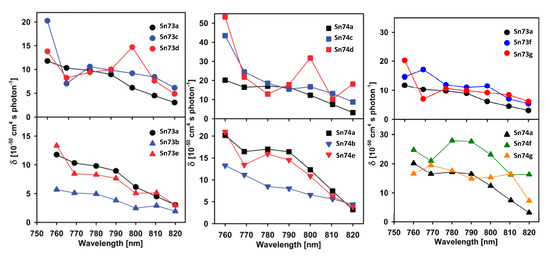

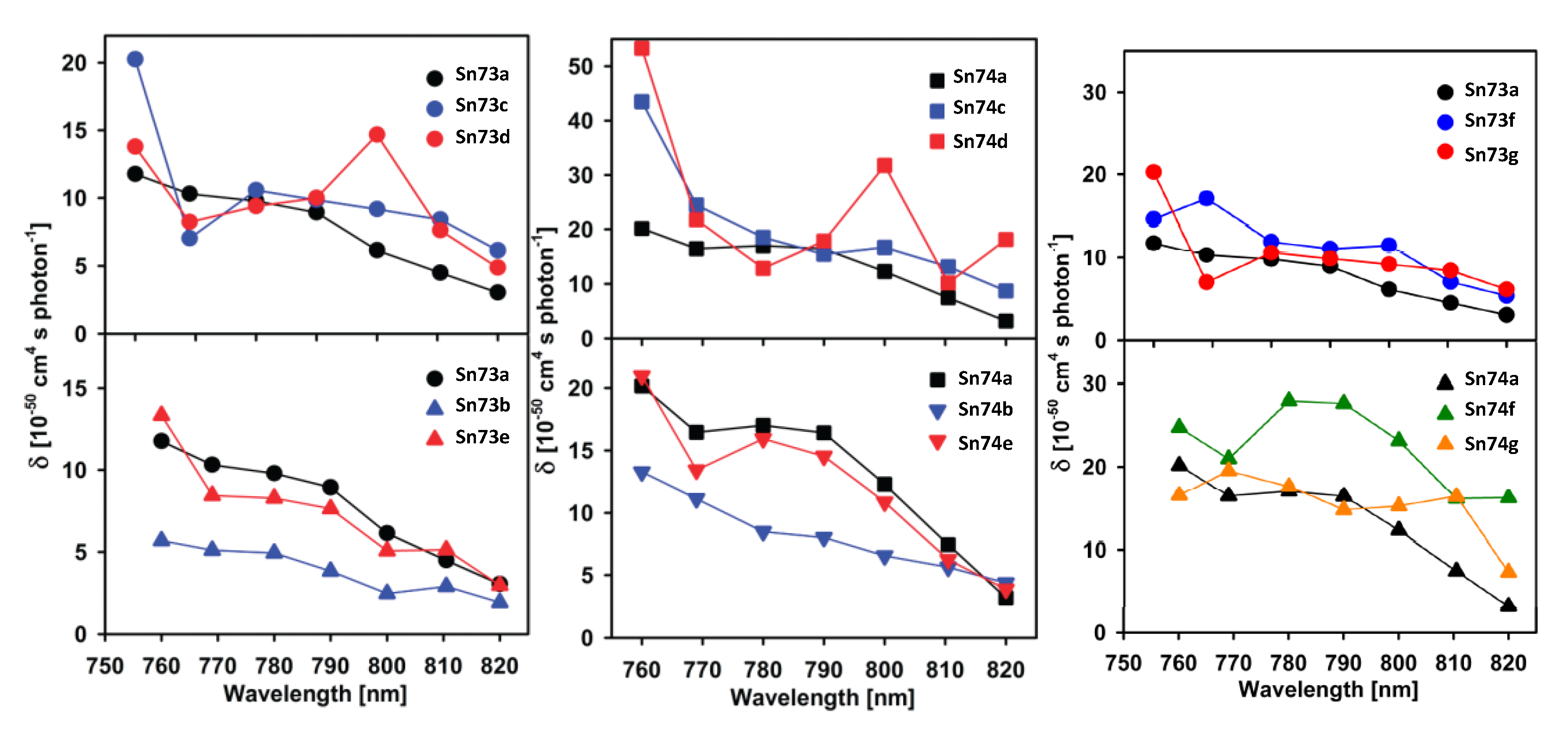

The two-photon absorption spectra for diphenyl tin(IV) complexes were recorded in ethanol (Figure 55). As expected the naphthalene series shows larger σTPA, indeed the largest in each series is observed for Sn73c and Sn74c (nitro group para to the imino) and Sn74d (methyl meta to the imino).

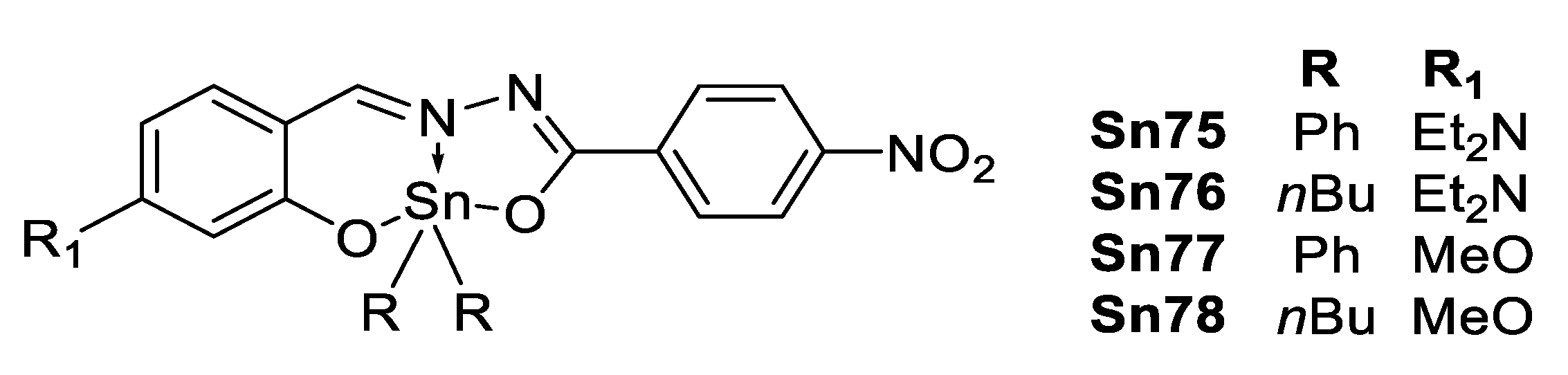

Muñoz-Flores et al. [110] reported four organotin Schiff compounds with “push-pull” architecture as depicted in Figure 56. The diphenyl tin complexes were thermally more stable than the dibutyl tin complexes, and their decomposition follows the order T_o: 227 °C (Sn75) > 171 °C (Sn 77) > 96 °C (Sn76) > 95 °C (Sn78). The optical properties were obtained for the different tin complexes in spin-coated polymer films; the UV–Vis spectra of the diethylamino derivatives show a bathochromic shift of about 30 nm with respect to the methoxy derivatives, in full agreement with a better electron-donating capability of the former group. The values observed for χ⁽³⁾ (

Table 10. Third order susceptibilities for Sn75–78.

#	χ(3) × 10−12 esu
Sn75	3.18
Sn76	3.02
Sn77	1.38
Sn78	1.43

) follow the same trend for the electron-donating capabilities and are in the same order of magnitude obtained for previous tin complexes.

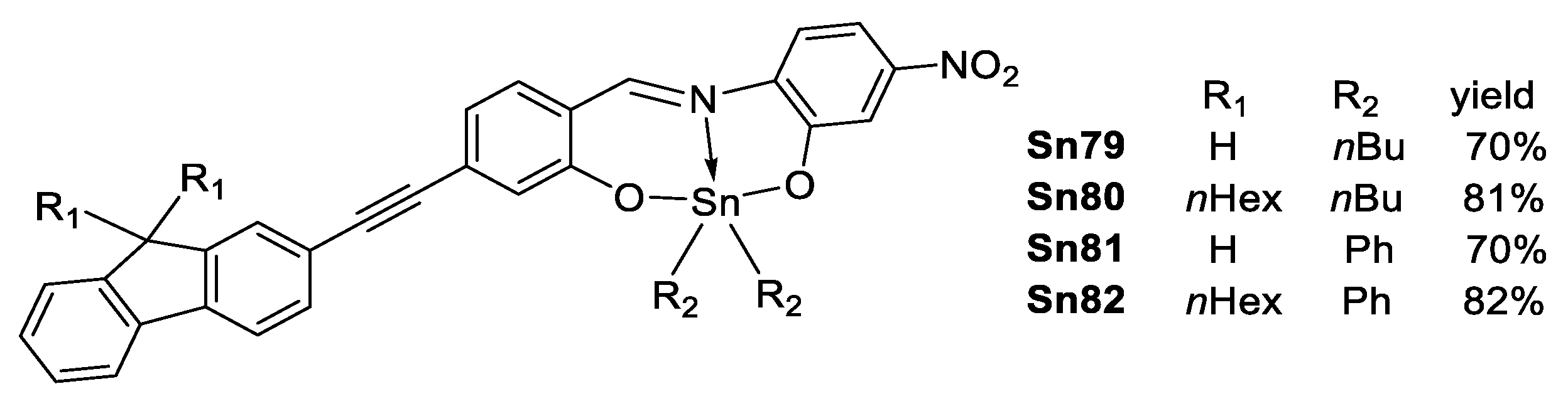

A series of diorganotin Schiff bases derived from fluorene (Figure 57) was reported by Farfán et al. [111], as in the case of other compounds, the fluorene was introduced to enhance the TPA response [112,113,114]. These complexes showed no response to the polarity of the solvent and moderate fluorescence quantum yields.

The TPA spectra for Sn80 was recorded in DMSO, THF and CHCl₃ (

Table 11. Largest TPA observed in chloroform for Sn79–Sn82.

#	σTPA (GM)
Sn79	440
Sn80	517
Sn81	355
Sn82	188

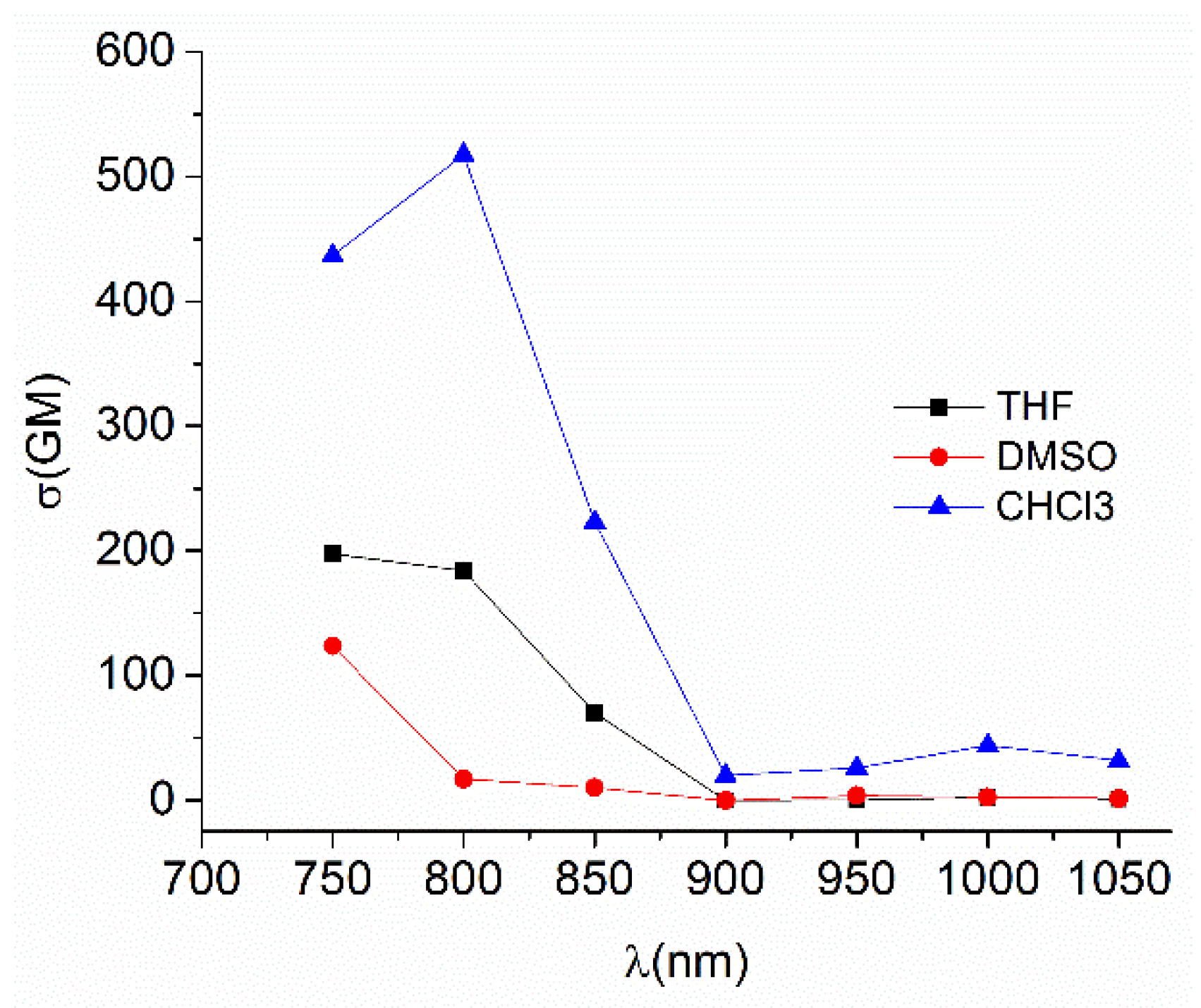

). Although the maximum was found at around 750 nm in the three solvents, in chloroform the TPA response is enhanced (Figure 58) and it is possible to observe a second absorption at 1000 nm that is roughly observed in DMSO and THF. This is explained because the two-photon excitation fluorescence comes from the lowest excited state S₁ [48] as reported by Peon for this type of complex [109]. In this case, the excited state is accessible through excitation at the bands located around 400 nm and 500 nm in the OPA spectra explaining the presence of the second band.

The complex Sn80 has the largest σTPA (517 GM) of the four derivatives, and of previously diorganotin Schiff bases. Furthermore, its two-photon brightness (σTPA × Φ) is of 150 GM which makes it the best organotin complex suitable for two-photon microscopy (excluding porphyrins or phthalocyanines tin complexes, which show exceptional TPA responses).
