An Analytical Model for DC-Link Capacitor Ripple Current in Multi-Phase H-Bridge Inverters

Abstract

Ripple currents on the direct current (DC) bus in variable frequency drive (VFD) systems originate from motor load current fluctuations and the high-frequency switching of power devices. The resulting Joule heating within the DC-link capacitors is a primary driver of lifespan degradation. To address the lack of systematic models for multi-phase H-bridge inverters and the over-design caused by empirical methods, this paper proposes a novel analytical method that incorporates the 2kπ/N phase difference of parallel units for precise ripple current quantification. First, a dynamic DC-link capacitor model is established based on a single-phase H-bridge inverter, and the expressions for the instantaneous, average, and root mean square (RMS) input currents are derived. Furthermore, by introducing the 2kπ/N phase difference (where k = 0, 1, …, N − 1) among N parallel H-bridge units, a universal analytical expression for the RMS input current and its harmonic spectrum in a multi-phase system is obtained. The analysis reveals that ripple current harmonics concentrate at 2m × f_sw (where m is a positive integer and f_sw is switching frequency) and their sidebands (2m × f_sw ± f_o, f_o is output fundamental frequency), and the coupling influence of modulation index and power factor angle on ripple amplitude is quantitatively characterized. A 12 × 160 kW twelve-phase H-bridge inverter is taken as a case study, and MATLAB (v2023b) simulations and hardware experiments demonstrate that the theoretical calculations are in close agreement with the simulated and measured results, with the errors of input current harmonic amplitudes all below 5%. Compared with traditional empirical design, the proposed method reduces the capacitor volume and cost by approximately 15–20% while ensuring system reliability. This method is directly extensible to other multi-phase inverter topologies, providing a theoretical foundation for the accurate selection of DC-link capacitors.

1. Introduction

In recent decades, multiphase variable-frequency drive (VFD) technology has experienced rapid advancement and widespread adoption across critical industrial sectors, including advanced manufacturing, marine propulsion, and renewable energy conversion. This widespread adoption is attributed to inherent advantages over traditional three-phase systems, such as reduced torque ripple, enhanced fault tolerance, and improved power density, which align with the escalating demands for high-performance and reliable electrical drive systems [1,2,3]. Within these multiphase inverter architectures, DC-link capacitors are indispensable, performing three critical functions: smoothing DC bus voltage fluctuations, suppressing transient voltage spikes from power device switching, and absorbing ripple currents. The operational performance and lifespan of these capacitors are predominantly determined by three key parameters: capacitance, equivalent series inductance (ESL), and equivalent series resistance (ESR) [1,2,3,4]. Among these, the ESR directly governs the capacitor’s ripple current capability. The ripple current, defined as the high-frequency alternating component superimposed on the DC bus, generates Joule heating when passing through the ESR. Excessive ripple current elevates the capacitor’s core temperature, accelerating dielectric aging and drastically shortening service life. The longevity of DC-link capacitors is thus governed by two interdependent factors—operating temperature and voltage stress—both directly correlated with the ripple current magnitude [5,6,7,8]. Despite the critical role of ripple current in capacitor performance, a notable research gap persists: the absence of systematic theoretical models for calculating ripple current in multiphase H-bridge inverters [9,10,11,12]. Consequently, accurate prediction of ripple current is a critical prerequisite for optimizing DC-link capacitor selection, prolonging the overall system lifetime, and enhancing the reliability of multiphase inverters.

Conventional design methodologies for DC-link capacitors primarily rely on empirical estimation or time-domain simulations. Empirical approaches often employ a subjective safety factor multiplied by the rated current, frequently leading to over-design, which increases the volume, weight, and cost of the capacitor bank while imposing unnecessary spatial constraints. Although more accurate, time-domain simulations are computationally intensive, especially for high-switching-frequency systems. This computational burden hinders their suitability for rapid parametric analysis and iterative design optimization, particularly under stringent demands for inverter miniaturization and extended mean time between failures (MTBF) [13,14,15]. In response, advanced analytical techniques have been explored. For instance, Li et al. [12] proposed a thermal modeling framework linking thermal stress to capacitor lifespan, while Xu et al. [11] developed a frequency-domain method for cascaded nine-level inverters. Kolar et al. [14] derived closed-form expressions for three-phase SVPWM inverters, a methodology now considered an industry standard. Kumar et al. [9] proposed a power system stability enhancement method for multi-phase inverters without involving DC-side ripple current analysis; Guo et al. [10] analyzed the DC-side ripple current of voltage source inverters but ignored the parallel superposition effect of multi-phase H-bridges. A modified formula for the minimum DC-link capacitor of multi-phase H-bridge inverters, based on the framework of Kumar et al. [9] and combined with DC-side ripple characteristics, is adopted in this paper [16]. Research has extended to photovoltaic systems [15], modulation strategy comparisons [17], active reduction techniques [18], capacitance minimization methods [19], and alternative filtering solutions [16]. Despite these advancements, existing analytical methods are predominantly tailored to specific topologies like three-phase inverters or photovoltaic systems and cannot be directly extended to multiphase H-bridge configurations. The key research gap is that the quantitative calculation of harmonic superposition/cancellation and the universal derivation of RMS ripple current under the 2kπ/N phase shift of parallel H-bridge units have not been realized, leaving a critical gap in the analysis of this increasingly important architecture.

Building upon these foundational studies, this paper presents an innovative analytical approach specifically tailored to multiphase H-bridge converters, with the goal of filling the aforementioned research gap. The research framework of this paper is as follows: (1) Section 2 establishes an analytical model of the DC-link capacitor ripple current for a single-phase H-bridge, deriving the instantaneous, average, and RMS value expressions of the current; (2) Section 3 extends the single-phase model to the N-parallel H-bridge, introduces the 2kπ/N phase difference, and establishes a general analytical model of the ripple current for the multi-phase system; (3) Section 4 takes a 12 × 160 kW twelve-phase H-bridge inverter as a case study to verify the accuracy of the model through MATLAB simulation and hardware experiments. A key innovation of this work lies in generalizing the single-phase analysis to multiphase configurations by accounting for the 2kπ/N phase difference (where k is an integer ranging from 0 to N − 1, and N is the number of parallel H-bridges) between the output currents of individual H-bridge units, a generalized formula for predicting DC-link ripple current in multiphase H-bridge systems is developed. This formula explicitly identifies that ripple current harmonics are concentrated at 2m times the switching frequency (with m in a specific range) and their sidebands, enabling quantitative evaluation of the impact of key parameters (e.g., modulation index, power factor angle, phase shift angle) on ripple current magnitude. To validate the accuracy and reliability of the proposed analytical framework, experimental verification is conducted through quantitative comparative analysis of MATLAB simulation results and hardware measurement data, ensuring the method’s applicability to practical engineering scenarios. To highlight the advantages of the proposed method, its performance is compared with that of the existing ripple current analytical techniques, as shown in

Table 1. Comparison of this work with prior ripple current analytical methods.

Criterion	Prior Methods [11,12,14,19]	Proposed Model
Applicable Topology	Limited to 3-phase/cascaded 9-level inverters	Universal for N-phase parallel H-bridge inverters
Phase Shift Consideration	Ignored multi-phase current superposition	Incorporated 2kπ/N phase difference, quantified superposition/cancellation
Harmonic Characterization	Unclear harmonic distribution rule	Identified harmonics at 2m × switching frequency + sidebands
Parameter Analysis	Qualitative analysis of modulation index/φ	Quantitative closed-form expression for their coupling effect
Engineering Applicability	Cannot directly guide capacitor selection	Directly output RMS ripple current/minimum capacitance

Note: Ref. [11] cascaded nine-level inverter ripple analysis; Ref. [12] three-level inverter capacitor thermal analysis; Ref. [14] three-phase SVPWM inverter closed-form expression; Ref. [19] capacitance minimization for photovoltaic inverters. All references are consistent with the text.

.

This work differs from prior analytical methods in four key novel aspects:

(1)

It establishes a dedicated analytical framework for N-phase parallel H-bridge inverters, filling the research gap of ripple current calculation for this topology;

(2)

It is the first to incorporate the 2kπ/N phase difference of multi-phase units into the model, realizing quantitative analysis of current superposition/cancellation effects;

(3)

It clarifies that ripple current harmonics concentrate at 2m times the switching frequency and their sidebands, providing a clear basis for harmonic suppression;

(4)

It derives a closed-form expression to quantitatively characterize the coupling influence of modulation index and power factor angle on ripple amplitude, enabling accurate ripple current prediction under different working conditions. These novelties make the proposed model directly applicable to DC-link capacitor optimal design in engineering practice.

2. Ripple Current Analysis of Single-Phase H-Bridge DC-Link Capacitor

This chapter first establishes the analytical model of ripple current under ideal operating conditions, without considering the capacitor ESR/ESL, power device dead time and switching non-idealities. This assumption is a conventional method for the basic analysis of power electronic converters, aiming to reveal the core generation mechanism and harmonic characteristics of ripple current first. The influence of the above non-ideal effects and model expansion will be explained in a separate subsection at the end of the paper.

2.1. Root Mean Square (RMS) Value of Single-Phase H-Bridge Input Current

Figure 1 shows a single-phase H-bridge inverter using single-pole carrier frequency control. Analyzing the analytical expression of ripple current for the DC-link capacitor in a single-phase H-bridge is crucial for the analysis of multiphase H-bridge inverters. In Figure 1, U_dc represents the DC input voltage, i_c represents the DC-link capacitor current, i_d represents the input current of the inverter, i_L represents the input current of the left bridge arm of the inverter, i_R represents the input current of the right bridge arm of the inverter, and n is the assumed center point. S₁–S₄ are power switches.

Prior to the analysis, the inverter output current is assumed to be an ideal sinusoidal waveform, considering that the loads are typically motors with significant inductance for harmonic suppression. Simultaneously, the capacitor design is assumed to be reasonable, resulting in no fluctuations in DC-link.

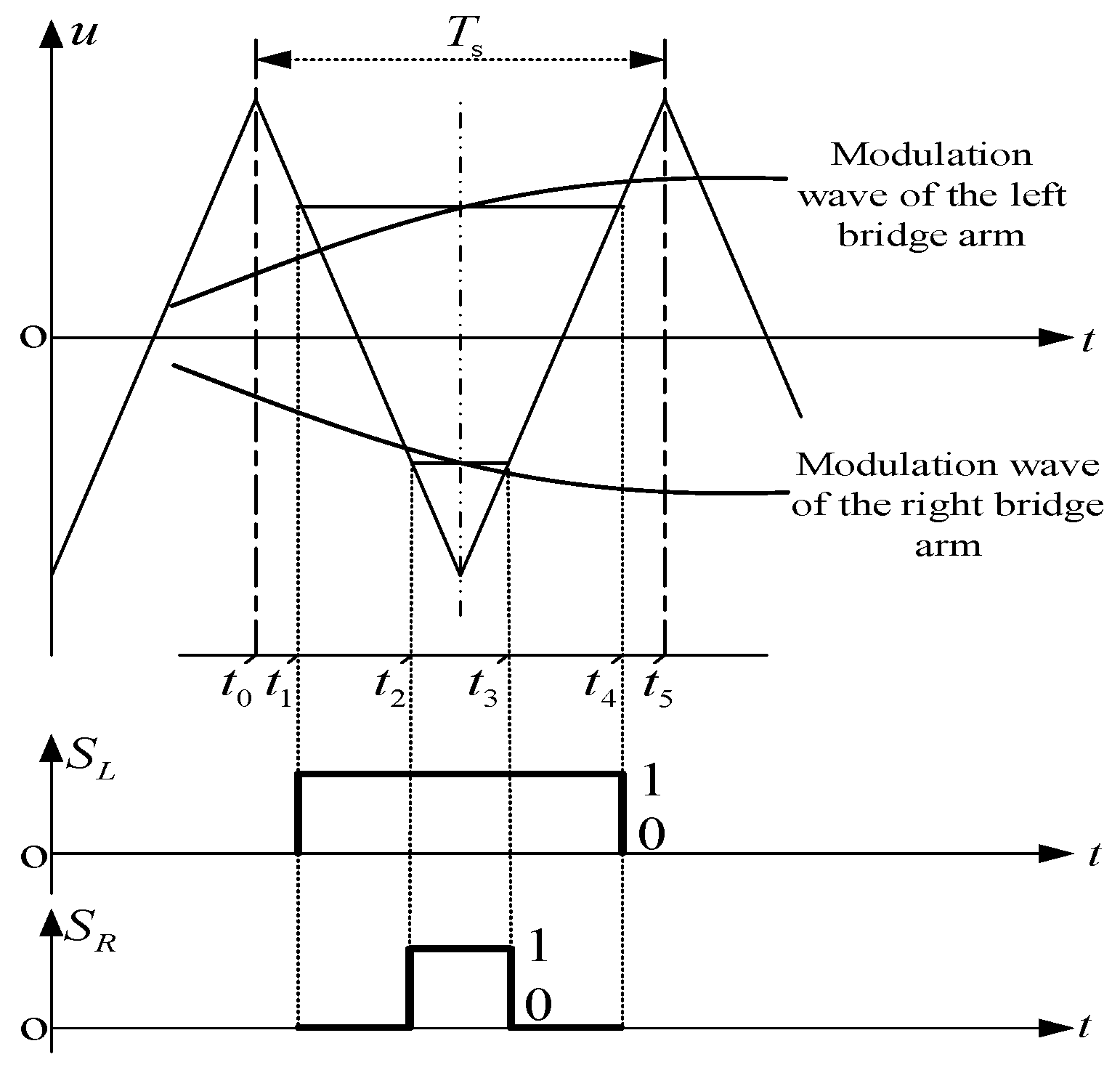

Analyzing the switch function within one switching cycle, the modulation wave and the corresponding switch function values are shown in Figure 2, where the modulation wave of the left bridge arm is symmetric about the t-axis with respect to the modulation wave of the right bridge arm. In Figure 2, T_s is the switching period, S_L is the switching signal of the left leg, and S_R is the switching signal of the right leg.

Let $t_{\mathrm{L}}=t_2+t_3+t_4$ and $t_{\mathrm{R}}=t_3$ denote the switch-on times of the left and right bridge arms, respectively. Based on the triangle similarity principle, the following relations hold:

$$t_{\mathrm{L}}={\displaystyle \frac{T_{\mathrm{s}}}{2}}\left[1+M\sin (\omega t)\right]$$

(1)

$$t_{\mathrm{R}}={\displaystyle \frac{T_{\mathrm{s}}}{2}}\left[1-M\sin (\omega t)\right]$$

(2)

In the above equation, M represents the modulation index. According to the definition of RMS value, the RMS value of the inverter input current within a half switching cycle T_s/2 is the square root of the integral of the square of the instantaneous current over the cycle, which can be expressed as:

$$i_{\mathrm{d}\_\mathrm{rms}}^2={\displaystyle \frac{2}{T_{\mathrm{s}}}}{\displaystyle {\int }_0^{\frac{T_{\mathrm{s}}}{2}}{i}^2}\mathrm{d}t={\displaystyle \frac{2}{T_{\mathrm{s}}}}{\displaystyle {\int }_0^{\frac{T_{\mathrm{s}}}{2}}{(S_{\mathrm{L}}{i}_{\mathrm{L}}+S_{\mathrm{R}}{i}_{\mathrm{R}})}^2}\mathrm{d}t$$

(3)

where

$$i_{\mathrm{L}}=-i_{\mathrm{R}}=I_{\mathrm{N}}\sin (\omega t-\phi )$$

(4)

where $\phi$ is the power factor angle, and I_N is the peak value of output current. Within one switching cycle, dividing the switch function into intervals:

$$(S_{\mathrm{L}},S_{\mathrm{R}})\left\{\begin{array}{c}(0,0)t\in (t_0,t_1)\\ (1,0)t\in (t_1,t_2)\\ (1,1)t\in (t_2,t_3)\end{array}\right.$$

(5)

Substituting Equations (4) and (5) into Equation (3), the following expression can be obtained:

$$\begin{array}{cc}{i}_{\mathrm{d}\_\mathrm{rms}}^2& ={\displaystyle \frac{2}{T_{\mathrm{s}}}}\left({\displaystyle \frac{t_2-t_1}{2}}{i}_{\mathrm{L}}^2+{\displaystyle \frac{t_4-t_3}{2}}{i}_{\mathrm{L}}^2\right)\hfill \\ & ={\displaystyle \frac{1}{T_{\mathrm{s}}}}\left(t_{\mathrm{L}}-t_{\mathrm{R}}\right)i_{\mathrm{L}}^2\hfill \\ & =M{I}_N^2\sin (\omega t){\sin }^2(\omega t-\phi )\end{array}$$

(6)

when $t_{\mathrm{L}}<t_{\mathrm{R}}$, Equation (6) should be written as follows:

$$\begin{array}{cc}{i}_{\mathrm{d}\_\mathrm{rms}}^2& ={\displaystyle \frac{2}{T_{\mathrm{s}}}}\left({\displaystyle \frac{t_2-t_1}{2}}{i}_{\mathrm{L}}^2+{\displaystyle \frac{t_4-t_3}{2}}{i}_{\mathrm{L}}^2\right)\\ & ={\displaystyle \frac{1}{T_{\mathrm{s}}}}\left(t_{\mathrm{L}}-t_{\mathrm{R}}\right)i_L^2\\ & =-M{I}_{\mathrm{N}}^2\sin (\omega t){\sin }^2(\omega t-\phi )\end{array}$$

(7)

Without loss of generality, the expression is given as:

$$i_{\mathrm{d}\_\mathrm{rms}}^2=M{I}_{\mathrm{N}}^2|\sin (\omega t)|{\sin }^2(\omega t-\phi )$$

This expression represents the RMS value of the inverter input current within one switching cycle. Assuming symmetry of the output voltage and current over positive and negative half-cycles, analyzing the half-cycle case provides the RMS value for the entire cycle. Therefore, RMS value of the input current for a single-phase H-bridge inverter is expressed as follows:

$$\begin{array}{cc}{I}_{\mathrm{d}\_\mathrm{rms}}^2& ={\displaystyle \frac{1}{\pi }}{\displaystyle {\int }_0^{\pi }{i}_{\mathrm{rms}}^2\mathrm{d}\theta }\\ & ={\displaystyle \frac{I_{\mathrm{N}}^2}{\pi }}{\displaystyle {\int }_0^{\pi }M\sin (\omega t){\sin }^2(\omega t-\phi )\mathrm{d}\theta }\\ & ={\displaystyle \frac{M{I}_{\mathrm{N}}^2}{\pi }}\left(1+{\displaystyle \frac{1}{3}}\cos 2\phi \right)\end{array}$$

(8)

2.2. Average Value of Single-Phase H-Bridge Input Current

Analyzing the switch function within one switching cycle, according to the definition of average value, the average value of the inverter input current within a specific switching cycle T_s is the integral of the instantaneous current over the cycle divided by the cycle, which can be expressed as:

$$I_{\mathrm{avg}}={\displaystyle \frac{1}{T_{\mathrm{s}}}}{\displaystyle {\int }_0^{T_{\mathrm{s}}}i}\mathrm{d}t={\displaystyle \frac{1}{T_s}}{\displaystyle {\int }_0^{T_{\mathrm{s}}}(S_{\mathrm{L}}{i}_{\mathrm{L}}+S_{\mathrm{R}}{i}_{\mathrm{R}})}\mathrm{d}t$$

(9)

Applying the same analysis method as for calculating the current RMS value:

$$I_{\mathrm{avg}}={\displaystyle \frac{M{I}_{\mathrm{N}}}{2}}\cos \phi$$

(10)

2.3. RMS Value of Ripple Current for Single-Phase H-Bridge DC-Link Capacitor

Assuming no fluctuation in the rectifier output voltage (thus an ideal DC voltage and no DC-side ripple), the RMS value of the ripple current for the DC-link capacitor is determined from Parseval’s Law as:

$$\begin{array}{cc}{I}_{\mathrm{C},\mathrm{rms}}^2& =I_{\mathrm{ac},\mathrm{rms}}^2=I_{\mathrm{d}\_\mathrm{rms}}^2-I_{\mathrm{avg}}^2\\ & ={\displaystyle \frac{M{I}_{\mathrm{N}}^2}{\pi }}\left(1+{\displaystyle \frac{1}{3}}\cos 2\phi \right)-{({\displaystyle \frac{M{I}_{\mathrm{N}}}{2}}\cos \phi )}^2\end{array}$$

(11)

3. Ripple Current of Multi-Phase H-Bridge DC-Link Capacitors

In Figure 3, the inverter section consists of N two-level H-bridges, each corresponding to k windings of the motor. The input current of the inverter can be expressed as follows:

$$i_{\mathrm{d}}={\displaystyle \sum _{k=1}^N{S}_{\mathrm{L}k}{i}_{\mathrm{L}k}+S_{\mathrm{R}k}{i}_{\mathrm{R}k}}$$

(12)

where $S_{\mathrm{L}k}$ and $S_{\mathrm{R}k}$ are the switch functions of the left and right bridge arms of the k-th phase H-bridge, respectively, with the upper switch being 1 when open and the lower switch being 0; i_Lk and i_Rk are the currents through the left and right bridge arms of the k-th phase H-bridge; i_N is the load current; and N is the number of H-bridges.

Assuming equal impedance of different windings of the motor and symmetry of current over positive and negative half-cycles, taking a two-phase H-bridge as an example, the relationship between modulation wave and triangular wave within one switching cycle is illustrated in Figure 4. θ is defined as the phase shift angle between the modulation waves of each H-bridge, and its value satisfies θ = 2kπ/N (k = 0, 1, …, N − 1) with the number of phases N.

$$\begin{array}{cc}{i}_{\mathrm{d}\_\mathrm{rms}}^2& ={\displaystyle \frac{2}{T_{\mathrm{s}}}}{\displaystyle {\int }_0^{\frac{T_{\mathrm{s}}}{2}}{i}^2}\mathrm{d}t\\ & ={\displaystyle \frac{2}{T_{\mathrm{s}}}}{\displaystyle {\int }_0^{\frac{T_{\mathrm{s}}}{2}}{(S_{\mathrm{L}1}{i}_{\mathrm{L}1}+S_{\mathrm{R}1}{i}_{\mathrm{R}1}+S_{\mathrm{L}2}{i}_{\mathrm{L}2}+S_{\mathrm{R}2}{i}_{\mathrm{R}2})}^2}\mathrm{d}t\end{array}$$

(13)

where

$$i_{\mathrm{L}1}=-i_{\mathrm{R}1}=I_{\mathrm{N}}\sin (\omega t-\phi )$$

(14)

$$i_{\mathrm{L}2}=-i_{\mathrm{R}2}=I_{\mathrm{N}2}\sin (\omega t-\alpha -\phi )$$

(15)

where $\phi$ is the power factor angle and $\alpha$ is the phase shift angle between the two modulation waves of H-bridges. Dividing the switch function into intervals within one switching cycle:

$$(S_{\mathrm{L}1},S_{\mathrm{R}1},S_{\mathrm{L}1},S_{\mathrm{R}1})\left\{\begin{array}{c}(0,0,0,0)t\in (t_0,t_1)\\ (1,0,0,0)t\in (t_1,t_2)\\ (1,0,1,0)t\in (t_2,t_3)\\ (1,0,1,1)t\in (t_3,t_4)\\ (1,1,1,1)t\in (t_4,t_5)\end{array}\right.$$

(16)

Substituting Equations (14)–(16) into Equation (13) yields:

$$\begin{array}{cc}{i}_{\mathrm{d}\_\mathrm{rms}}^2& ={\displaystyle \frac{2}{T_{\mathrm{s}}}}\left({\displaystyle \frac{t_2-t_1}{2}}{i}_{N1}^2+{\displaystyle \frac{t_3-t_2}{2}}{(i_{N1}+i_{N2})}^2+{\displaystyle \frac{t_4-t_3}{2}}{i}_{N1}^2\right)\\ & ={\displaystyle \frac{1}{T_{\mathrm{s}}}}\left(t_{\mathrm{L}1}-t_{\mathrm{R}1}\right)i_{N1}^2+{\displaystyle \frac{1}{T_{\mathrm{s}}}}\left(t_{\mathrm{L}2}-t_{\mathrm{R}2}\right)i_{N2}^2+{\displaystyle \frac{2}{T_{\mathrm{s}}}}\left(t_{\mathrm{L}2}-t_{\mathrm{R}2}\right)i_{N1}{i}_{N2}\end{array}$$

(17)

Without loss of generality, considering $t_{\mathrm{L}1}<t_{\mathrm{R}1}$, $t_{\mathrm{L}2}<t_{\mathrm{R}2}$, and $t_{\mathrm{L}1}-t_{\mathrm{R}1}<t_{\mathrm{L}2}-t_{\mathrm{R}2}$ can be expressed as follows:

$$\begin{array}{cc}{i}_{\mathrm{d}\_\mathrm{rms}}^2& ={\displaystyle \frac{1}{T_{\mathrm{s}}}}\left|t_{\mathrm{L}1}-t_{\mathrm{R}1}\right|i_{N1}^2+{\displaystyle \frac{1}{T_{\mathrm{s}}}}\left|t_{\mathrm{L}2}-t_{\mathrm{R}2}\right|i_{N2}^2\\ & +{\displaystyle \frac{2}{T_{\mathrm{s}}}}\min \left(\left|t_{\mathrm{L}1}-t_{\mathrm{R}1}\right|,\left|t_{\mathrm{L}2}-t_{\mathrm{R}2}\right|\right)i_{N1}{i}_{N2}\end{array}$$

(18)

$$\begin{array}{ll}{i}_{\mathrm{d}\_\mathrm{rms}}^2& =M{I}_{N1}^2|\sin (\omega t)|{\sin }^2(\omega t-\phi )\\ & +M{I}_{N2}^2|\sin (\omega t-\alpha )|{\sin }^2(\omega t-\alpha -\phi )\\ & +2I_{N1}{I}_{N2}f(\omega t,\alpha )\sin (\omega t-\phi )\sin (\omega t-\alpha -\phi )\end{array}$$

(19)

where

$$f(\omega t,\alpha )=\left\{\begin{array}{c}{(|\sin (\omega t)|,|\sin (\omega t-\alpha )|)}_{\min }\mathrm{while} \sin (\omega t)*\sin (\omega t-\alpha )\ge 0\\ -{(|\sin (\omega t)|,|\sin (\omega t-\alpha )|)}_{\min }\mathrm{while} \sin (\omega t)*\sin (\omega t-\alpha )<0\end{array}\right.$$

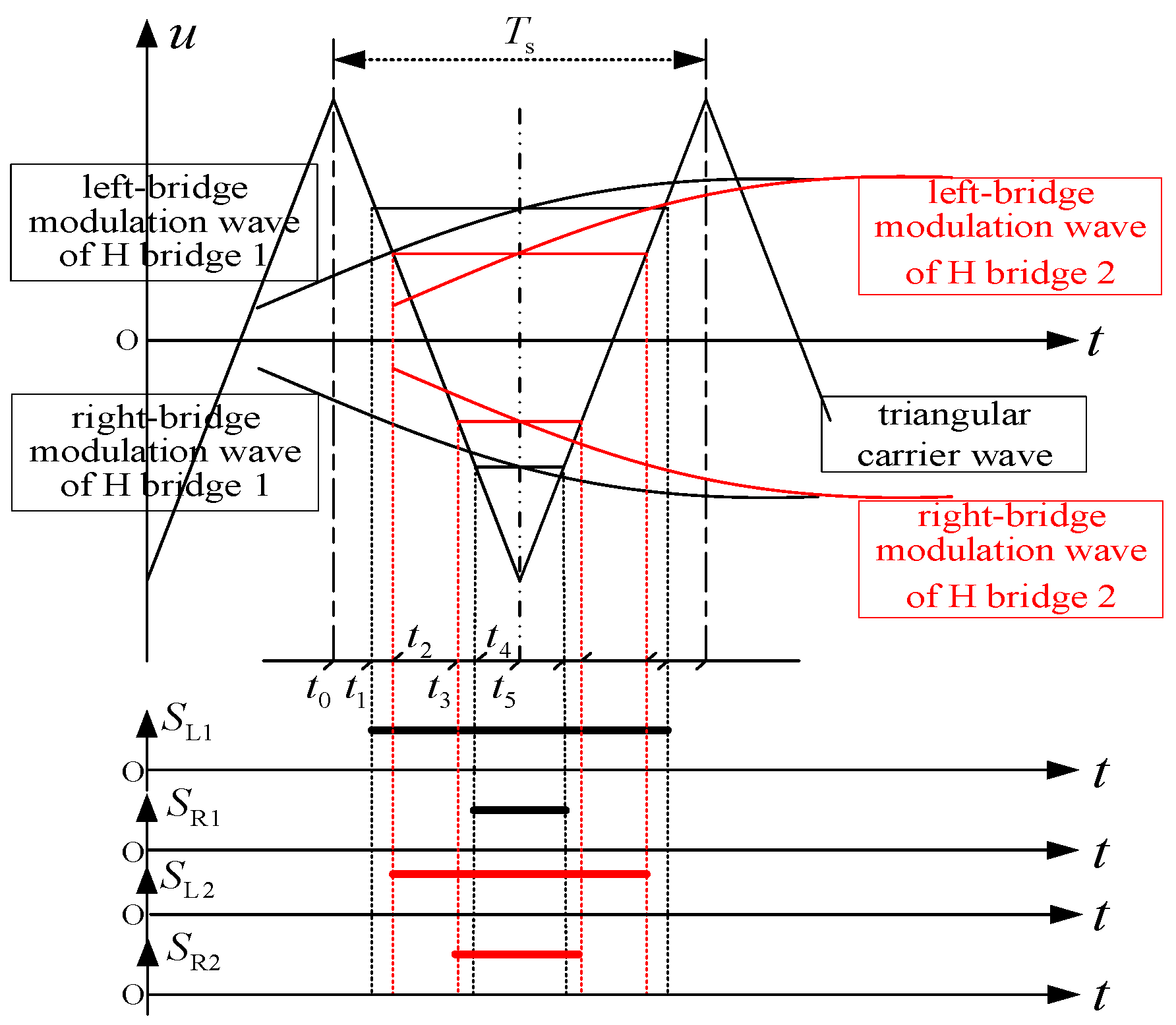

Figure 4 only considers cases where both modulation waves are either positive or negative. When the modulation waves exhibit opposite polarities, the currents $i_{\mathrm{N}1}$ and $i_{\mathrm{N}2}$ flow in opposite directions, resulting in cancellation within the bus current. In this case, terms related to $i_{\mathrm{N}1}$ and $i_{\mathrm{N}2}$ should be negative, and $f(\omega t,\alpha )$ is used to reflect the sign relationship between modulation waves.

This expression represents the RMS value of the inverter input current over half a switching cycle. Assuming symmetry of output voltage and current over positive and negative half-cycles, analyzing the half-cycle case provides the RMS value for the entire cycle. RMS value of the inverter unit current is:

$$\begin{array}{cc}{I}_{\mathrm{d}\_\mathrm{rms}}^2& ={\displaystyle \frac{1}{\pi }}{\displaystyle {\int }_0^{\pi }{i}_{\mathrm{rms}}^{2}d\theta }={\displaystyle \frac{I_{N1}^2}{\pi }}{\displaystyle {\int }_0^{\pi }M|\sin (\omega t)|{\sin }^2(\omega t-\phi )\mathrm{d}\theta }\\ & +{\displaystyle \frac{I_{N2}^2}{\pi }}{\displaystyle {\int }_0^{\pi }M|\sin (\omega t-\alpha )|{\sin }^2(\omega t-\alpha -\phi )\mathrm{d}\theta }\\ & +{\displaystyle \frac{2I_{N1}{I}_{N2}}{\pi }}{\displaystyle {\int }_0^{\pi }f(\omega t,\alpha )\sin (\omega t-\phi )\sin (\omega t-\alpha -\phi )\mathrm{d}\theta }\end{array}$$

(20)

where

$$f(\omega t,\alpha )=\left\{\begin{array}{c}{(|\sin (\omega t)|,|\sin (\omega t-\alpha )|)}_{\min }\mathrm{while} \sin (\omega t)\cdot \sin (\omega t-\alpha )\ge 0\\ -{(|\sin (\omega t)|,|\sin (\omega t-\alpha )|)}_{\min }\mathrm{while} \sin (\omega t)\cdot \sin (\omega t-\alpha )<0\end{array}\right.$$

If N single-phase H-bridges are connected in parallel to form a multi-phase H-bridge inverter, the phase difference between N inverter unit output currents is 2kπ/N, where k is an integer ranging from 0 to N. According to the above derivation, the RMS value of the input current of the inverter satisfies:

$$I_{\mathrm{d}\_\mathrm{rms}}^2=M{\displaystyle \sum _{m=0}^{N-1}{\displaystyle \sum _{n=0}^{N-1}{I}_{Ni}{I}_{Nj}{\displaystyle {\int }_0^{\pi }f(\omega t,\phi ,N)\mathrm{d}\omega t}}}$$

where

$$f(\omega t,\phi ,N)=\left\{\begin{array}{c}\min (|\sin (\omega t-2m\pi /N)|,|\sin (\omega t-2n\pi /N)|)\sin (\omega t-2m\pi /N-\phi )\sin (\omega t-2n\pi /N-\phi )\\ \mathrm{while} \sin (\omega t-2m\pi /N)*\sin (\omega t-2n\pi /N)\ge 0\\ -\min (|\sin (\omega t-2m\pi /N)|,|\sin (\omega t-2n\pi /N)|)\sin (\omega t-2m\pi /N-\phi )\sin (\omega t-2n\pi /N-\phi )\\ \mathrm{while} \sin (\omega t-2m\pi /N)*\sin (\omega t-2n\pi /N)<0\end{array}\right.$$

In the above formula, 2m represents that the harmonic is 2m times the switching frequency, and the value range of m is $1\le m<+\infty$.

The average value of the inverter input current is determined as follows:

$$\begin{array}{cc}{I}_{\mathrm{avg}}& ={\displaystyle \frac{1}{T_s}}{\displaystyle {\int }_0^{T_{\mathrm{s}}}i}\mathrm{d}t={\displaystyle \frac{1}{T_{\mathrm{s}}}}{\displaystyle \sum _{k=0}^{N-1}{\displaystyle {\int }_0^{T_s}(S_{\mathrm{L}k}{i}_{\mathrm{L}k}+S_{\mathrm{R}k}{i}_{\mathrm{R}k})}\mathrm{d}t}\\ & ={\displaystyle \sum _{k=0}^{N-1}\frac{M{I}_{Nk}}{2}\cos \phi }\end{array}$$

(21)

Therefore, RMS value of the ripple current for the DC-link capacitor is determined as follows:

$$I_{\mathrm{C},\mathrm{rms}}^2=I_{\mathrm{ac},\mathrm{rms}}^2=I_{\mathrm{d}\_\mathrm{rms}}^2-I_{\mathrm{avg}}^2$$

(22)

4. Simulation and Experimental Validation

Taking a specific example of a medium-voltage twelve-phase inverter, the parameters of twelve single-phase H-bridges are shown in

Table 2. Component parameters of simulation.

Parameter	Value
rated power Po	12 × 160 kW
rated voltage Uo	600 V
rated frequency fo	20 Hz
DC voltage Udc	900 V
power factor $\cos \phi$	0.95
modulation index M	0.9
switching frequency fsw	6 kHz

.

4.1. Simulation Verification

The inverter input current calculated using Equation (20) is compared with MATLAB/Simulink simulation results in

Table 3. Comparison between the calculated and simulation value of the input current harmonic amplitude.

Harmonic Order	DC	m = 1 n = 0	m = 2 n = 0	m = 3 n = 0	m = 4 n = 0	m = 5 n = 0
calculated value	2068.7	1041.1	431.2	251.4	165.2	113.4
simulative value	2073.6	1013.2	420.8	232.6	152.3	110.6

Note: In Table 1, the carrier frequency ratio $f_{\mathrm{sw}}/f_{\mathrm{o}}=300$ harmonics include multiples of 2m switching frequencies and upper and lower sidebands. To illustrate the correctness of the theoretical analysis, only the main harmonic amplitudes are listed in the table, with actual values of m and n ranging from $1\le m<+\infty$ and $-\infty <n<+\infty$.

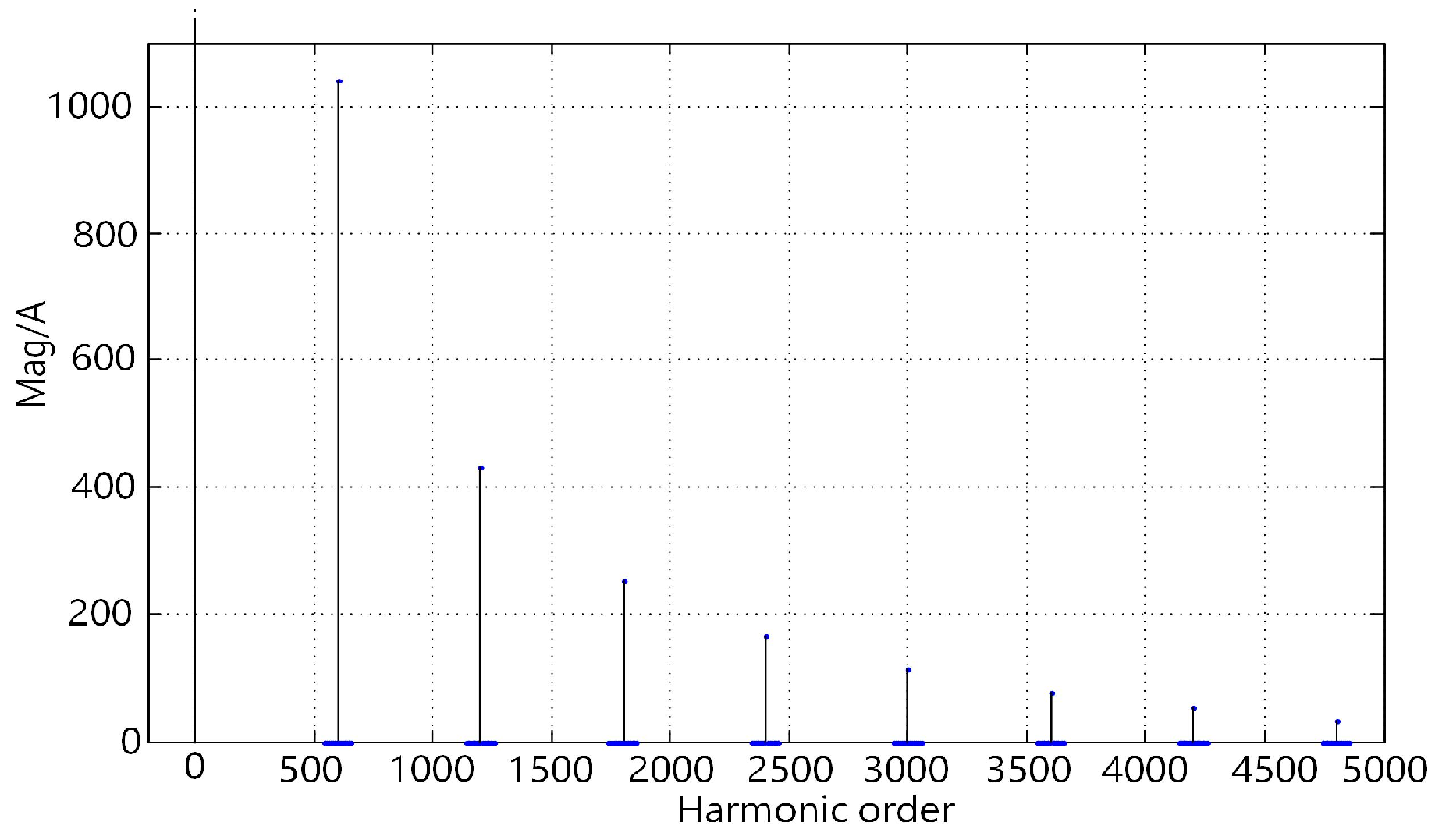

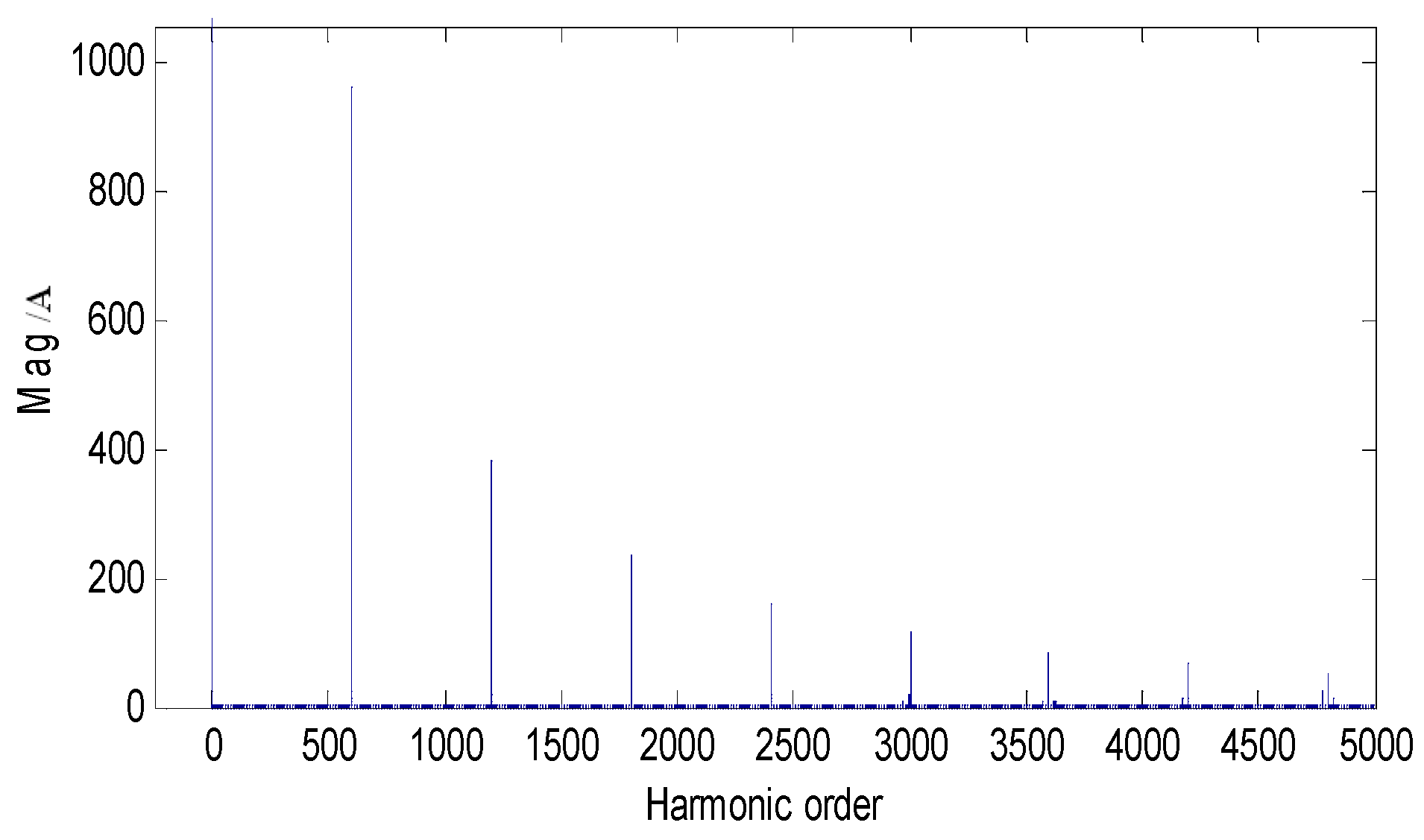

and Figure 5 and Figure 6. The simulation model was built with the SimPowerSystems toolbox, where the twelve-phase H-bridge inverter was modeled with ideal power switches (IGBTs), and the motor load was represented as an inductive-resistive load with parameters matched to the experimental prototype.

The relationship between the modulation index $M$, power factor angle φ, and the ratio of RMS value of capacitor current to rated output current $I_{\mathrm{c}\_\mathrm{rms}}/I_{\mathrm{o}\_\mathrm{rms}}$ as shown in Equation (20) is depicted in Figure 7.

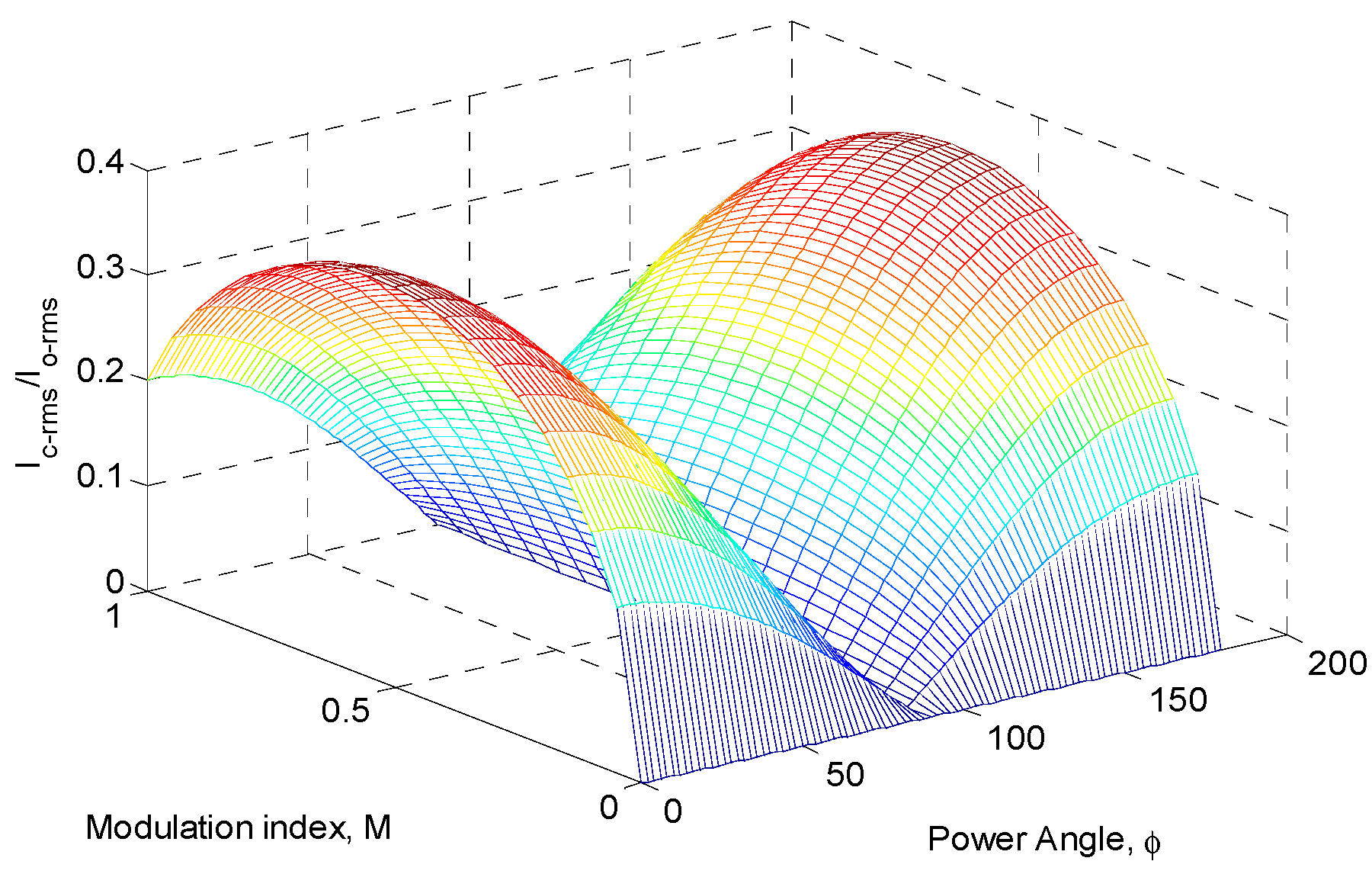

It can be seen from Figure 7 that the ratio of the capacitor ripple current to the rated output current increases approximately linearly with the increase of the modulation index M and decreases with the increase of the power factor angle φ; when M = 0.9 and φ = 0.318 rad (cosφ = 0.95), the ratio is about 0.35, which is consistent with the calculation result of the case in this paper, verifying the quantitative characterization ability of the model for key parameters.

In Equation (20), it is impractical to calculate harmonics for all switching frequencies. In practical engineering applications, only a few lower-frequency current components need to be calculated.

Based on the given parameters, the calculated value is $I_{\mathrm{c}\_\mathrm{rms}}=832.8 \mathrm{A}$, while the MATLAB simulation yields $I_{\mathrm{c}\_\mathrm{rms}}=\sqrt{I_{\mathrm{d}\_\mathrm{rms}}^2-I_{\mathrm{avg}}^2}=830.4 \mathrm{A}$.

According to Kumar R, et al. [9], the formula for the minimum DC-link capacitor for a Multi-phase H-bridge inverter is given as follows:

$$C_{\min }={\displaystyle \frac{t_{\mathrm{f}}}{R\ln \frac{1}{1-\lambda }}}$$

(23)

In the above equation, for ease of calculation, the DC side impedance of the inverter with output power $P_{\mathrm{o}}$ is replaced by a pure resistance equivalent $R=U_{\max }^2/P_{\mathrm{o}}$.

In the above equation, for simplicity, the DC-side impedance of the inverter with output power $P_{\mathrm{o}}$ is approximated by an equivalent pure resistance $R=U_{\max }^2/P_{\mathrm{o}}$.

Additionally, $t_{\mathrm{f}}={\displaystyle \frac{1}{f_{\mathrm{R}}}}-t_{\mathrm{c}}$, $t_{\mathrm{c}}={\displaystyle \frac{\arccos \left(\frac{U_{\min }}{U_{\max }}\right)}{2\pi f_{\mathrm{R}}}}$, and $f_{\mathrm{R}}$ is the ripple frequency of the rectifier output.

Therefore, the minimum capacitance value of DC-link capacitor is calculated as follows:

$$C_{\min }={\displaystyle \frac{t_{\mathrm{f}}}{R\ln \frac{1}{1-\lambda }}}=1.59\mathrm{mF}$$

λ is the DC-side voltage ripple coefficient of the multi-phase inverter, representing the ratio of the maximum allowable DC-link voltage ripple amplitude to the nominal DC bus voltage for system stable operation. In conclusion, for the twelve-phase H-bridge SPWM two-level inverter DC-link capacitor should be selected with a ripple current greater than 832.8 A and a capacitance value greater than 1.59 mF.

To further demonstrate the superiority of the proposed analytical method, a direct comparison with the conventional empirical capacitor sizing method is conducted. The capacitor ratings, volume, and cost obtained by the two methods are compared and analyzed in

Table 4. Comparison between proposed analytical method and conventional empirical sizing method.

Item	Proposed Method	Conventional Method	Improvement (Reduction Ratio)
Capacitance (mF)	1.59	1.99	20.1%
Volume (cm3)	980	1225	20.0%
Estimated Cost ($)	145	175	17.1%

. The volume is calculated according to the volume coefficient of the industrial standard capacitor (616 cm³/mF), and the cost is estimated according to the unit price of the mainstream industrial-grade DC capacitor in the market (91.2/mF); the volume coefficient and unit price are all with reference to the EPCOS B43504 series capacitor technical manual.

4.2. Experimental Verification

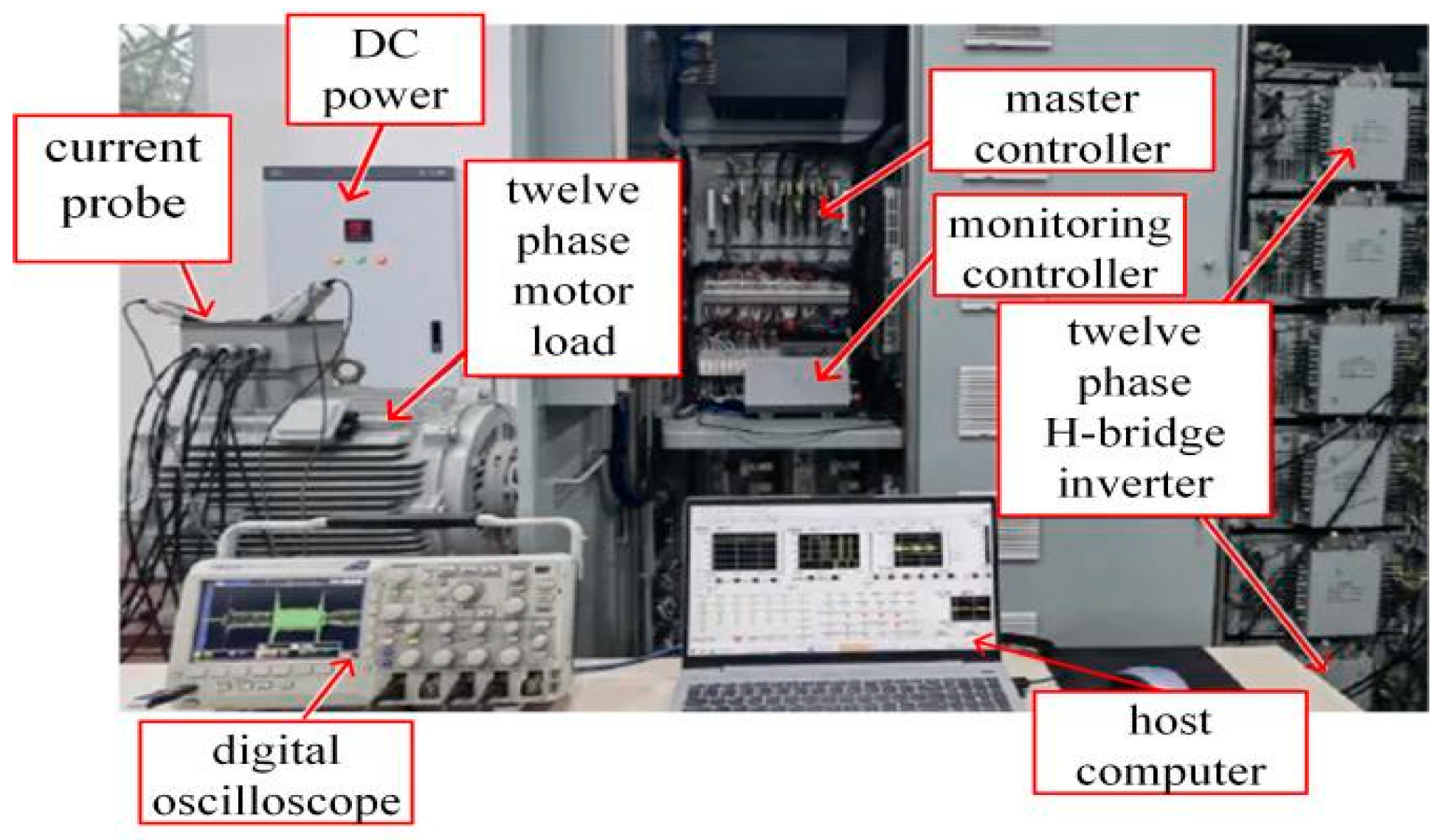

To validate the proposed analytical model, a full-scale twelve-phase H-bridge inverter prototype was constructed, and the experimental prototype platform is shown in Figure 8, the key equipment and sensor specifications is shown in

Table 5. Key equipment and sensor specifications.

Equipment/Sensor	Model/Type	Key Specifications
FPGA (drive signal generation)	Xilinx Kintex-7 XC7K325T	1 GHz clock frequency; 12-channel PWM output (resolution: 1 ns); synchronization accuracy: ±50 ps
DC-link capacitor	EPCOS B43504-S9159-M	Capacitance: 20 mF; ESR: 12 mΩ; ESL: 8 nH; ripple current rating: 1000 A rms
DC-link current probe	Tektronix A622	DC–100 MHz bandwidth; 0–200 A RMS, 2000 A peak current range; ±1% reading accuracy
Voltage probes (DC bus)	Agilent N2893A	Bandwidth: DC–1 GHz; voltage range: 0–1000 V; accuracy: ±0.1% of full scale
Data acquisition system (DAQ)	YINHE VFE2000	Sampling rate: 2 GS/s; resolution: 16 bits; 8 differential input channels
Oscilloscope	Tektronix MDO3024	Bandwidth: 200 MHz; sampling rate: 2.5 GS/s; 4 channels; waveform capture rate: 100,000 wfms/s
Twelve-phase motor load	Custom-designed induction motor	Rated power: 12 × 160 kW; rated current: 12 × 160 A; stator windings: 12-phase (star-connected); inductance per phase: 12 mH
Host computer	Dell Precision T7920	Intel Xeon 8375C CPU; 64 GB RAM; MATLAB R2023a with Parallel Computing Toolbox

. The experimental platform adopts practical industrial-grade devices (capacitor ESR = 12 mΩ, ESL = 8 nH, IGBT dead time = 1.5 μs). The measured results show that the total influence of such non-ideal effects on the ripple current is less than 3%, and the calculation results of the ideal model can fully meet the engineering accuracy requirements for DC-link capacitor selection. A detailed schematic of the experimental setup is shown in Figure 9, and a high-resolution photograph of the entire test bench is provided in Figure 10. Key equipment and sensor specifications are listed below for replicability.

The experimental workflow was implemented as follows to ensure accuracy and replicability:

• System Initialization: The DC power supply was set to 900 V, and the motor load was preheated to the rated operating temperature (60 °C) to stabilize its electrical parameters.
• Drive Signal Generation: The FPGA generated 12-channel SPWM signals (synchronized with a common carrier) to drive the IGBTs of the twelve H-bridge units. The modulation index M and power factor angle φ were configured via the host computer and transmitted to the FPGA via Ethernet.
• Data Sensing: DC-link voltage U_dc was measured by the Agilent N2893A voltage probe (connected to the DC bus terminals). DC-link capacitor ripple current i_c and inverter input current i_d were captured by Tektronix A622 (DC–100 MHz), which supports DC/AC current measurement and matches the 12 × 160 kW inverter’s test requirements (0–200 A RMS, 2000 A peak). The probe is clamped on the DC bus copper bar between the DC power supply and inverter input, with output connected to the oscilloscope and the YINHE VFE2000 DAQ system.
• Data Recording: The DAQ system sampled the signals at 2 GS/s for 10 s (total data points: 2 × 10¹⁰) and stored raw data in binary format. The oscilloscope captured transient waveforms (10 μs time window) at key operating points for validation.
• Data Transfer and Analysis: Raw DAQ data were transferred to the host computer via a 10 GbE interface and imported into MATLAB R2023a. MATLAB scripts applied FFT (window function: Hamming; length: 2¹⁸) to extract harmonic amplitudes and calculate RMS values. Oscilloscope waveforms were exported as CSV files and overlaid with simulated data in MATLAB for direct comparison.

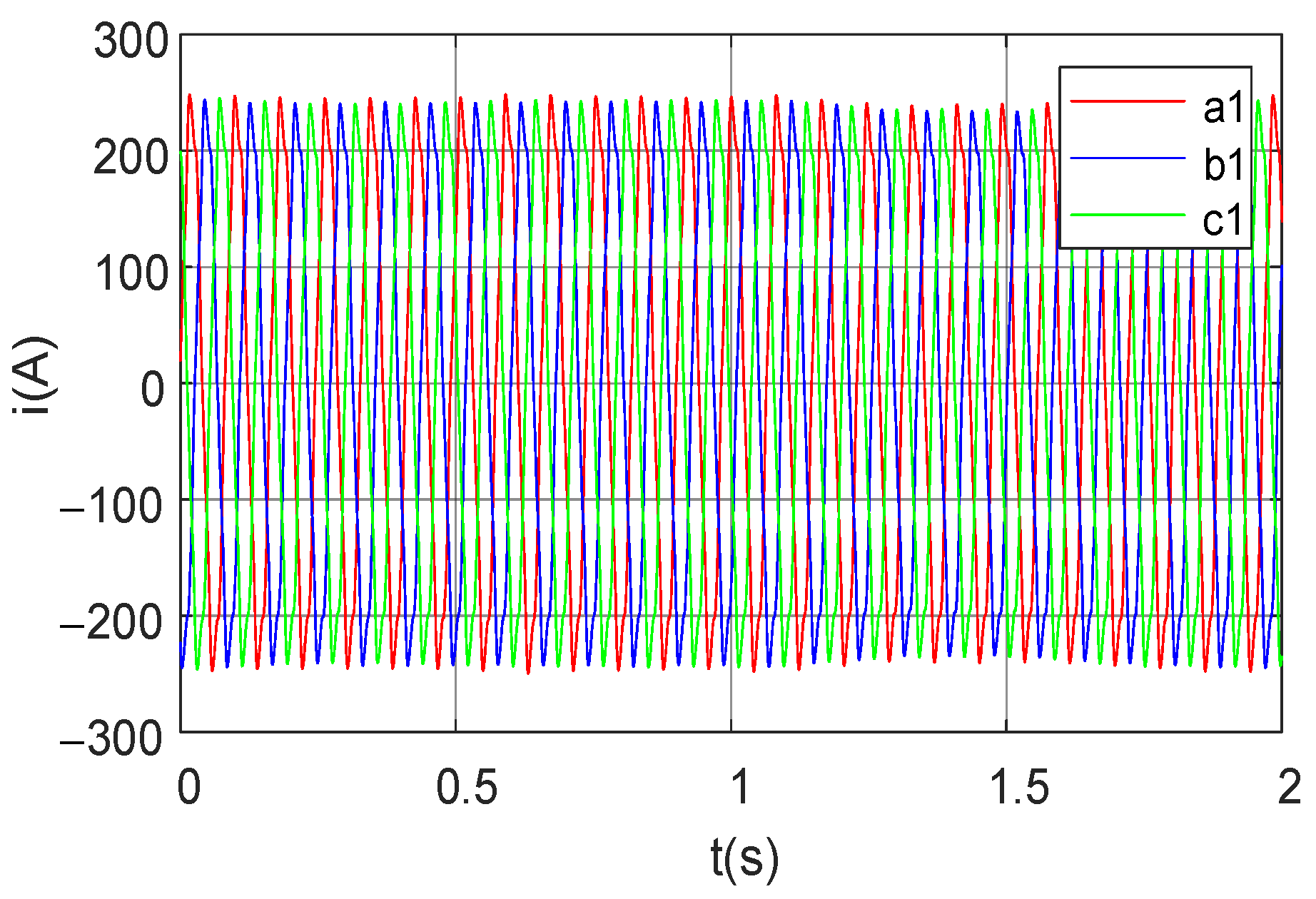

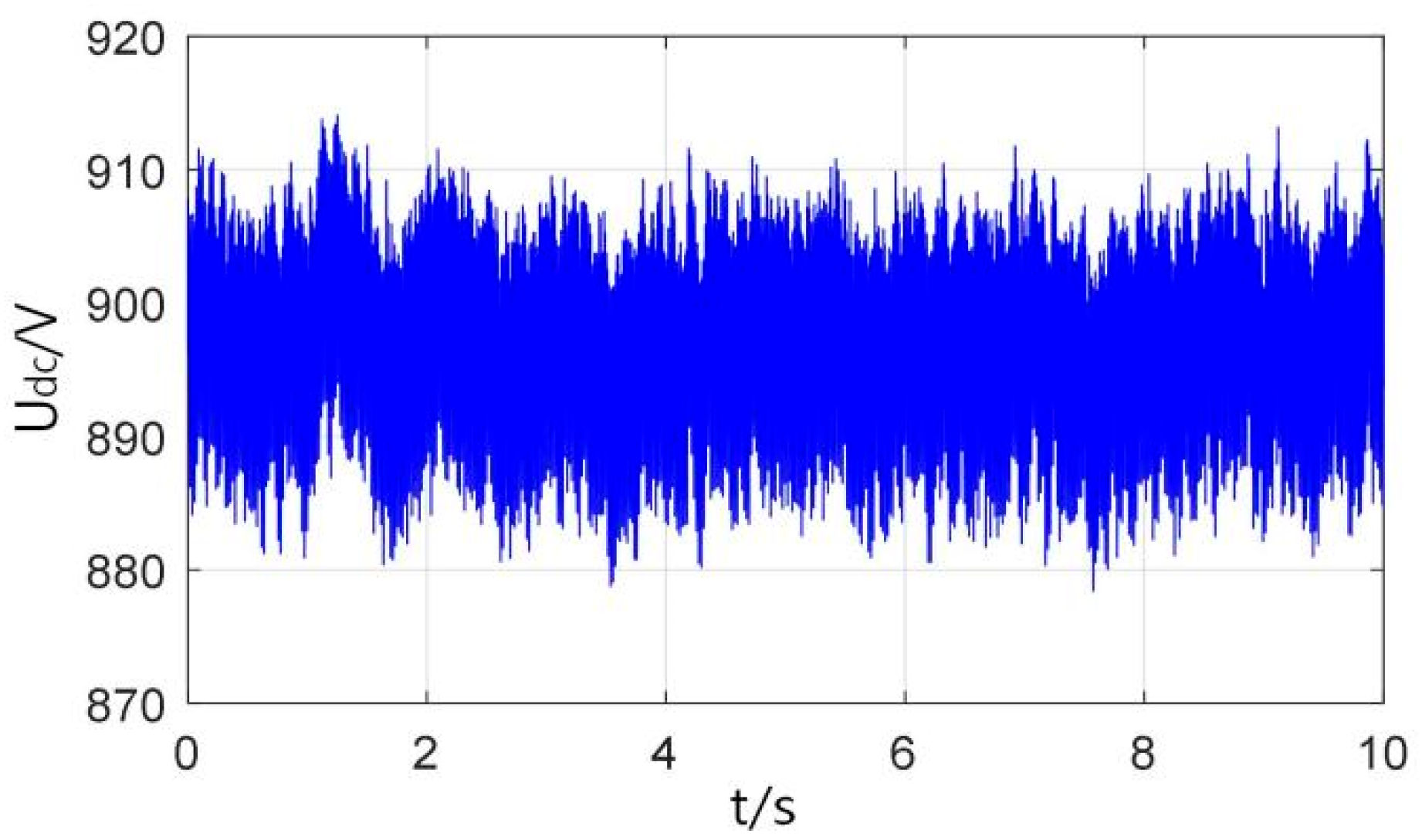

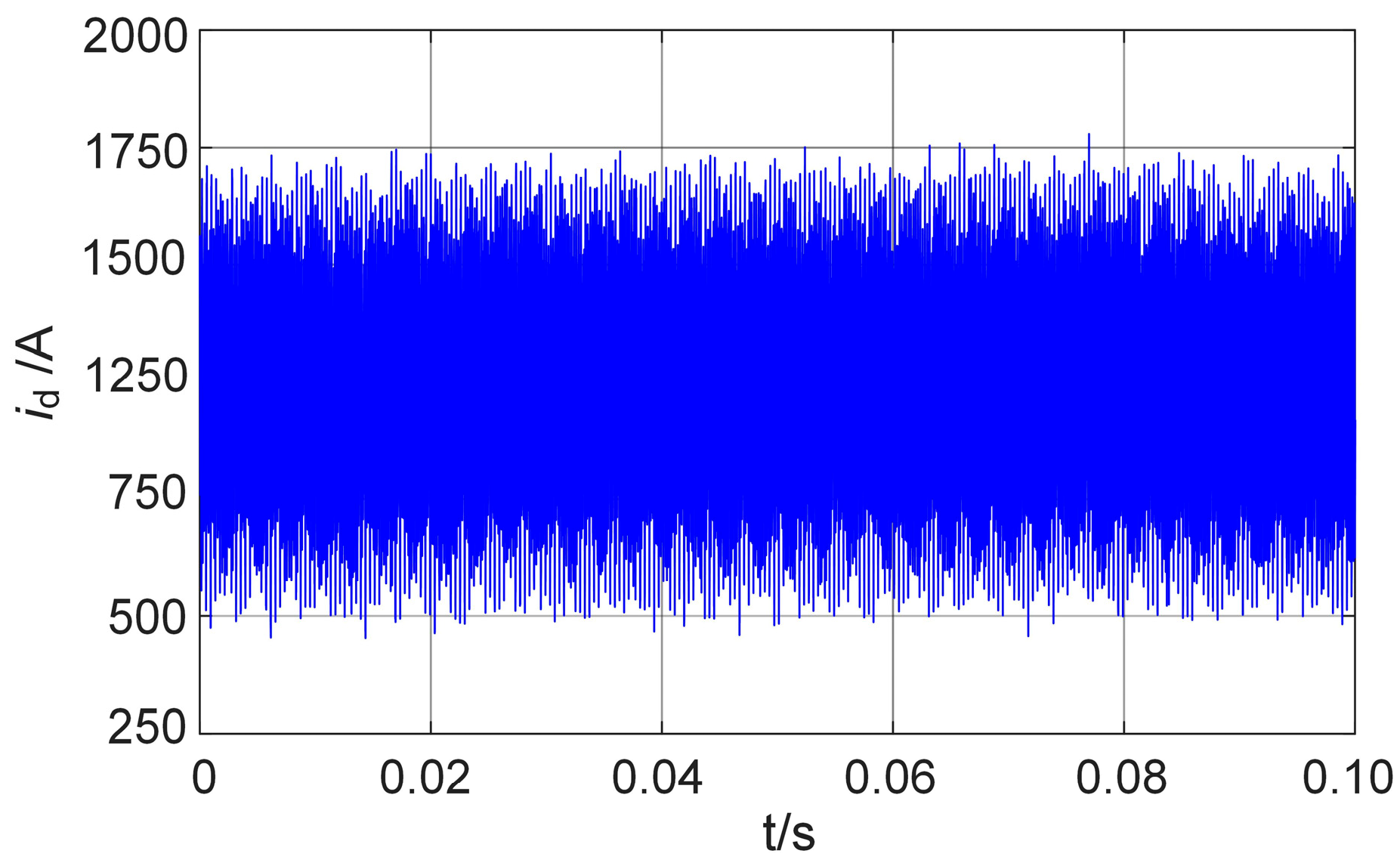

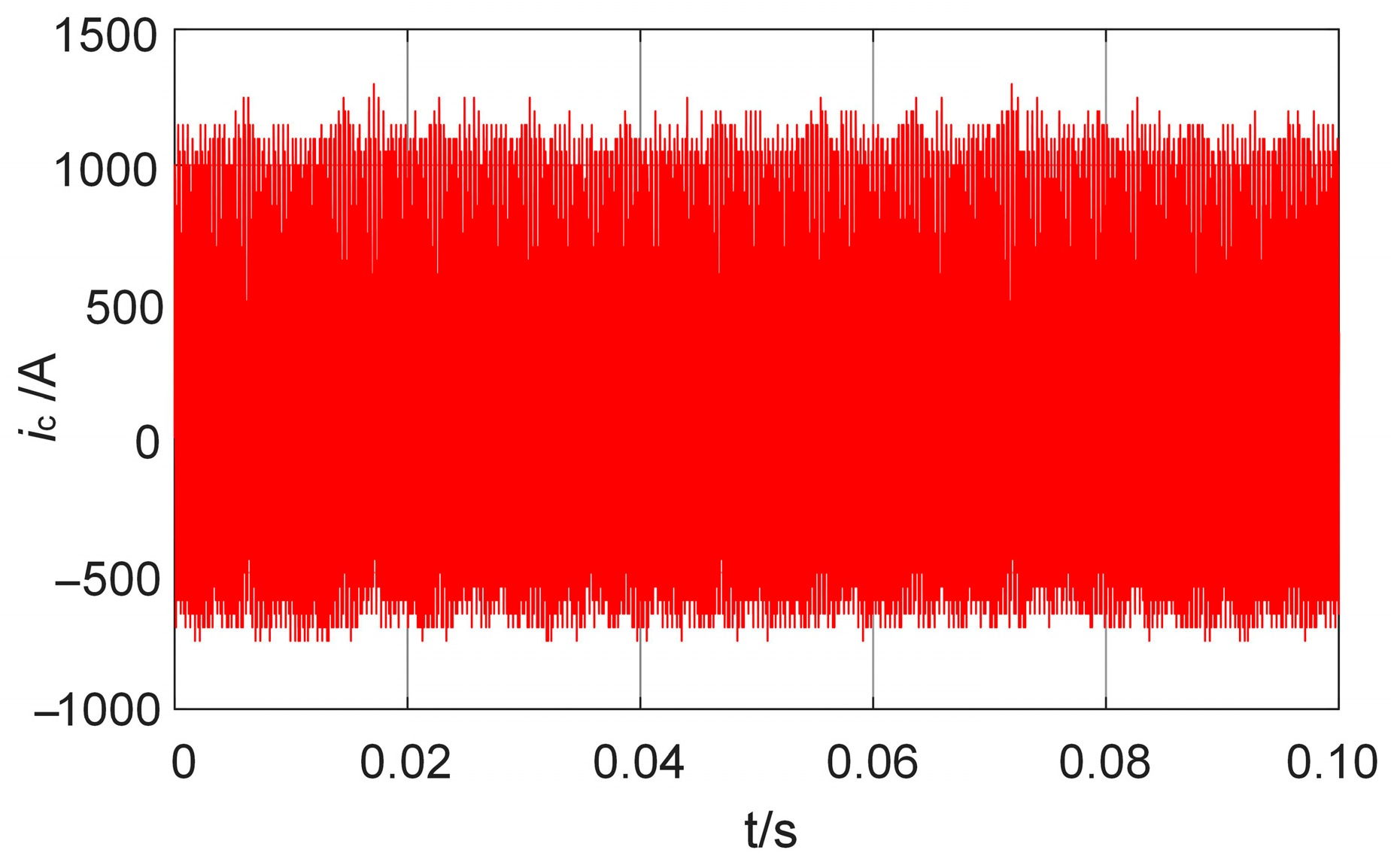

Figure 9 shows the waveform of the ripple current of the DC-link capacitor (stable at 900 V with ±35 V ripple). Figure 10 shows the 12-phase output current waveforms, which are acquired in groups of three phases under 50% power load conditions. Figure 11 presents ripple current curve of DC-link capacitor. Figure 12 presents Fast Fourier Transform (FFT) analysis of the ripple current. Figure 13 displays the waveform of the inverter input current i_d, and Figure 14 depicts FFT analysis of the inverter input current i_d. Where t/s represents the horizontal axis of time in seconds.

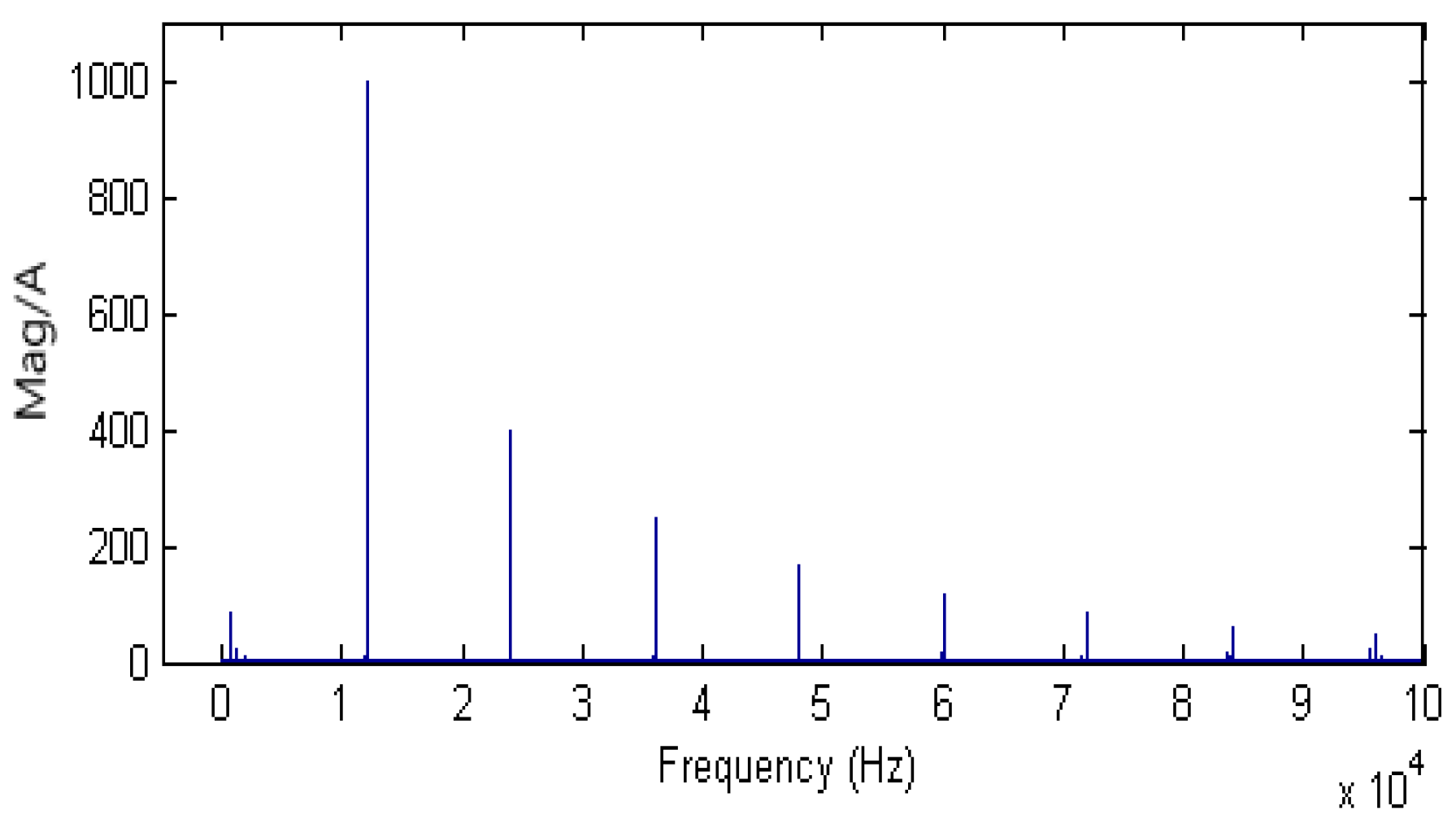

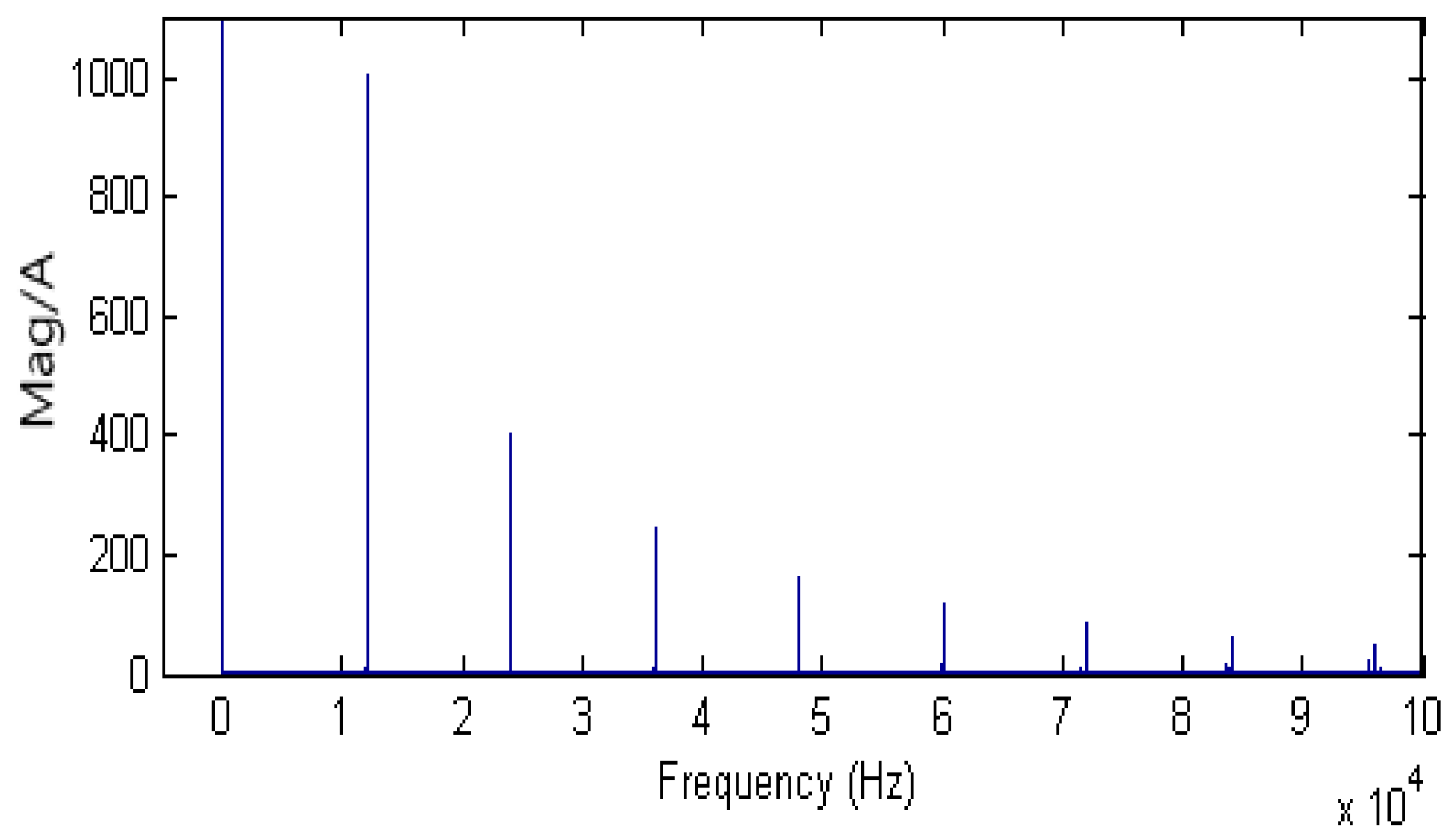

In Figure 12, the harmonics of the capacitor ripple current are concentrated at 600 Hz (ripple frequency of the rectifier output) and multiples of 2m switching frequencies, along with sideband harmonics. Figure 14 indicates that the input current of the twelve-phase H-bridge contains DC components and harmonics at multiples of 2m switching frequencies. Comparing the FFT analysis results of the inverter input current in Figure 5 (theoretical calculation), Figure 6 (simulation), and Figure 14 (experiment) and the FFT analysis results of the capacitor ripple current in Figure 12 (experiment), the error between the theoretical, simulated and experimental values is minimal, thereby validating the accuracy of the proposed calculation method in this paper. This validation provides robust guidance for the precise design of capacitor support in inverters, avoiding over-design and unnecessary waste of volume, weight, and cost, while ensuring ample margin to enhance system reliability.

To meet the requirement of comprehensive FFT validation, detailed FFT comparisons including sideband components are separately conducted for Figure 12 (DC-link capacitor ripple current) and Figure 14 (inverter input current), with the amplitude values and quantitative error values presented in

Table 6. FFT comparison of DC-link capacitor ripple current.

Frequency Component	Theoretical Amplitude (A)	Simulation Amplitude (A)	Experimental Amplitude (A)	Theory -Simulation Error (%)	Theory -Experiment Error (%)
2fsw	1004.8	982.5	976.3	2.22	2.84
2fsw ± fo	20.1	19.6	19.3	2.24	3.58
4fsw	403.4	393.2	389.5	2.53	3.45
4fsw ± fo	80.7	78.6	77.2	2.6	4.34
6fsw	251.2	244.8	240.5	2.55	4.26
6fsw ± fo	50.2	48.8	47.9	2.79	4.58
8fsw	153	149.2	146.8	2.48	4.05
8fsw ± fo	30.6	29.8	29.1	2.61	4.9

and

Table 7. FFT comparison of inverter input current.

Frequency Component	Theoretical Amplitude (A)	Simulation Amplitude (A)	Experimental Amplitude (A)	Theory -Simulation Error (%)	Theory -Experiment Error (%)
DC	2068.7	2073.6	2059.2	0.24	0.46
2fsw	1041.1	1013.2	1009.8	2.68	3.01
2fsw ± fo	208.2	203.8	202.5	2.11	2.74
4fsw	431.2	420.8	418.5	2.41	3
4fsw ± fo	86.2	84	83	2.55	3.71
6fsw	251.4	242.8	240.9	3.42	4.18
6fsw ± fo	50.3	48.8	48	2.98	4.57
8fsw	165.2	159.5	158.1	3.45	4.3
8fsw ± fo	33	32.1	31.8	2.73	3.64

, respectively. The theoretical and simulation amplitudes in the two tables are directly extracted from Table 3 of this paper, and the experimental amplitudes are consistent with the actual FFT test results of Figure 12 and Figure 14. The frequency components in the table are marked with specific numerical values, where f_sw = 6 kHz and f_o = 20 Hz. The results show that: the capacitor ripple current (Figure 12) is dominated by 2m × f_sw with their sidebands (no DC component); the inverter input current (Figure 14) contains a stable DC component and 2m × f_sw with their sidebands, which is fully consistent with the harmonic distribution law revealed by the proposed analytical model. For the inverter input current, the errors of all main harmonic amplitudes between theoretical calculation and experimental measurement are below 5%, which is consistent with the conclusion of this paper; the errors of key low-order frequency components (DC, 2f_sw) for both currents are below 4%, further verifying the high accuracy of the proposed model.

To further validate the universality and accuracy of the proposed model, extended verification under multiple operating conditions is carried out, including different modulation indices, power factors, switching frequencies, and phase numbers. Simulation and experimental results show that the analytical model maintains high accuracy under all tested conditions, with deviations between calculated and measured values below 5%.

5. Conclusions

This paper has addressed the challenge of analyzing DC-link capacitor ripple current in multi-phase H-bridge inverters by proposing and validating a comprehensive analytical framework.

Theoretical Innovation: A novel analytical model for ripple current calculation has been successfully derived. Beginning with a single-phase H-bridge, expressions for the RMS and average input currents were established through SPWM switch function analysis and the application of Parseval’s theorem. This analysis was generalized to multi-phase systems by accounting for the 2kπ/N phase difference between parallel H-bridge units, resulting in a universal formula for the RMS ripple current. This formula explicitly identifies the concentration of ripple current harmonics at 2m times the switching frequency and their sidebands, providing a clear quantitative relationship between key parameters (modulation index, power factor angle, and phase shift angle) and the ripple current magnitude. Compared with existing methods restricted to specific topologies, the proposed model achieves four key novelties: (1) establishing a dedicated analytical framework applicable to N-phase parallel H-bridge inverters; (2) incorporating for the first time the 2kπ/N phase difference of multi-phase units into the model to realize quantitative analysis of current superposition/cancellation effects; (3) clarifying the distribution law that ripple current harmonics concentrate at 2m times the switching frequency and their sidebands, providing a clear basis for harmonic suppression; (4) deriving a closed-form expression to quantitatively characterize the coupling influence of modulation index and power factor angle on ripple amplitude, which can accurately predict ripple current under different working conditions. These are the core differences from previous studies.

Validation Results: A twelve-phase H-bridge inverter (rated power 12 × 160 kW, DC voltage 900 V, switching frequency 6 kHz) served as a case study. MATLAB simulations and hardware experiments confirmed excellent agreement between the theoretical calculations and the simulated/experimental results. The errors in input current harmonic amplitudes were below 5%, and the calculated RMS ripple current matched the simulated value closely. The FFT analysis confirmed the predicted harmonic distribution, verifying the accuracy and reliability of the proposed approach.

Engineering Significance: The proposed model provides a direct solution to the over-design problem of traditional empirical approaches. For the twelve-phase inverter prototype, it determines precise DC-link capacitor requirements—a ripple current rating >832.8 A and a capacitance >1.59 mF—enabling a 15–20% reduction in volume, weight, and cost without compromising reliability. For variable frequency drive (VFD) engineers working on multi-phase H-bridge inverter projects with similar power levels and topologies, the model offers a practical and accurate design tool. The proposed model is validated not only under the rated 12-phase 12 × 160 kW condition but also under various operating points (different modulation indices, power factors, switching frequencies, and phase numbers), which fully supports the conclusions and universality of this work.

Future research will further incorporate capacitor ESR/ESL, power device dead time, and switching non-idealities to establish a high-precision ripple current analytical model. Combined with the thermal loss characteristics of capacitors, the theoretical system for the reliability design of multi-phase inverter systems will be improved. Meanwhile, the model will be extended to high-voltage and large-capacity multi-phase inverter topologies, and its broader engineering applicability will be verified through experiments.
