Review

Development of Green Storable Hybrid Rocket Propulsion Technology Using 98% Hydrogen Peroxide as Oxidizer

Lukasiewicz Research Network—Institute of Aviation, Al. Krakowska 110/114, 02-256 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Aerospace 2021, 8(9), 234; https://doi.org/10.3390/aerospace8090234
Submission received: 20 June 2021 / Revised: 9 August 2021 / Accepted: 10 August 2021 / Published: 24 August 2021
(This article belongs to the Special Issue Hybrid Rocket(Volume II))

Abstract

:
This paper presents the development of indigenous hybrid rocket technology, using 98% hydrogen peroxide as an oxidizer. Consecutive steps are presented, which started with interest in hydrogen peroxide and the development of technology to obtain High Test Peroxide, finally allowing concentrations of up to 99.99% to be obtained in-house. Hydrogen peroxide of 98% concentration (mass-wise) was selected as the workhorse for further space propulsion and space transportation developments. Over the course nearly 10 years of the technology’s evolution, the Lukasiewicz Research Network—Institute of Aviation completed hundreds of subscale hybrid rocket motor and component tests. In 2017, the Institute presented the first vehicle in the world to have demonstrated in-flight utilization for 98% hydrogen peroxide. This was achieved by the ILR-33 AMBER suborbital rocket, which utilizes a hybrid rocket propulsion as the main stage. Since then, three successful consecutive flights of the vehicle have been performed, and flights to the Von Karman Line are planned. The hybrid rocket technology developments are described. Advances in hybrid fuel technology are shown, including the testing of fuel grains. Theoretical studies and sizing of hybrid propulsion systems for spacecraft, sounding rockets and small launch vehicles have been performed, and planned further developments are discussed.

1. Introduction

While the development of hybrid rocket technology has a nearly 90-year history, it has led to a very limited number of operational systems [1,2]. This is due to challenges in hybrid propulsion modeling, system up-scaling and low Technology Readiness Levels when compared to parallel rapid advances in the field of solid and liquid rocket propulsion. Development challenges and advantages of hybrid rocket propulsion are discussed in [3,4]. Major work in the early decades was conducted in the Soviet Union, Germany, the United States, Sweden, India and France. More on the evolution of the technology in its early decades, when less knowledge on burn rate modeling and its enhancement was present, can be found in [5,6,7,8]. Recent advances led to increased interest in hybrid rocket systems [9,10,11]. In the 21st century, hybrid propulsion became an attractive solution for various technology applications, often not envisaged earlier. Its high performance, low complexity and acceptable cost, robustness and motor restartability make it an option considered in most early-phase chemical propulsion system trade-offs. Hybrid rocket motors are widely considered for inter alia suborbital flight [2], launch vehicles [12], kick-stages [13], exploration missions [14] (including ascent [15] and lander descent elements [16]) and for satellite platforms [17]. In the latter case, this technology may be applied to satellites of various sizes and missions—including apogee propulsion, space tugs, as well as deorbitation motors, which are discussed further within this paper. While experimental research in the field of hybrid propulsion has been undertaken in dozens of countries worldwide, a partial shift in development focus to motors using oxidizers requiring relatively simple operations can be seen.
While LOX remains an attractive solution for several hybrid rocket propulsion applications, the fact that it may complicate vehicle operation and increase the required ground infrastructure has limited its potential use mostly to systems where high performance is needed. This solution is not attractive for any long-duration missions, including spacecraft applications, due to the cryogenic properties of LOX and its limited in-space storability. Very high specific impulse systems using liquid fluorine in combination with LOX (FLOX) have been also historically tested in the United States [6] and Germany [18,19], but they have, thus far, not been investigated experimentally or discussed in the modern literature due to handling issues. Toxic storable oxidizers including N2O4 and HNO3 have been used for hybrid propulsion systems in the past [20], but they are not of significant interest nowadays due to environmental issues and safety challenges. An oxidizer of limited interest in the initial decades of hybrid rocket propulsion development was N2O. However, increased efforts can be seen in recent years due to its relative ease of handling and self-pressurization capability. It is, however, rarely considered for use in launch vehicles (despite some examples: [21]) due to low performance. It is mostly implemented in suborbital vehicles [2,22,23], commonly being used by student and hobbyist rocketry groups [24]. The limited heritage and thermal sensitivity make it a rare choice for satellite propulsion developments. Despite its common utilization by groups with a very wide range of experience, it requires specific efforts to ensure safe handling [25]. Another oxidizer solution considered for hybrid rocket motors is NYTROX—a mixture of N2O and GOX [26]. This allows for higher system-specific impulse and the minimum ignition energy can be increased in comparison to pure N2O systems, which increases the safety of its handling. To date, there is no information on flight-operational systems using NYTROX.
The research presented in this article considers hybrid rocket propulsion using hydrogen peroxide as an oxidizer. Focus is given to high concentrations of this oxidizer. Numerous advantages and disadvantages of hydrogen peroxide as oxidizer, as in the case of all technical solutions, are discussed in [27,28,29]. The importance of this field of development is due to the fact that such systems cannot be excluded from consideration for various types of space vehicles since new grades of hydrogen peroxide have very high purity and concentration, which makes them feasible for consideration even for long-duration in-space missions. This differs from the case of hydrogen peroxide, available a few decades earlier, which was much less stable.
Current research worldwide considers the use of hydrogen peroxide for propulsive application, using mostly concentrations in the range of 87.5–98%. It is utilized in monopropellant and bipropellant technology developments, and several more niche uses, such as solid propellants and gels, have been also considered. In the case of hybrid propulsion systems, its first applications date back to 1950, where 90% hydrogen peroxide was tested with polyethylene fuel by the General Electric Company. Over 500 firings took place, and thrust up to approximately 89 kN was demonstrated [30]. More on this propellant combination and the work of General Electric Company is discussed in [31], where advanced concepts, such as throttling, are also mentioned. Later developments between 1960 and 1970 considered work with HTP hybrids using mainly 90% and 96% concentrations and are summarized in [32]. Results of several research and development programs using HTP hybrids are presented in [33], where regression rate correlations for HTP with various fuels are collected, and rates exceeding 3 mm/s were historically demonstrated for HTP mass fluxes of over 260 kg/(s·m2) in a classic hybrid configuration (burning of inner surfaces of cylindrical fuel grains with axial oxidizer injection) [34]. This is notable due to historical issues concerning low fuel regression rates [3]. Work on HTP hybrid technology was continued in the 1990s [35]. Renewed increased interest in HTP hybrids can be seen in the 21st century and intense experimental research and development has been carried out in the last two decades in over a dozen countries worldwide, including: Australia [36], China [37], France [38], Germany [39], Italy [40], Israel [41], Japan [42], Norway [43], Poland [44], South Korea [45], Taiwan [46], the United Kingdom [47] and the United States [48]. The vacuum performance of a HTP hybrid rocket motor has been demonstrated experimentally with a combustion efficiency of approximately 98% [49]. Apart from the use of higher HTP grades and concentrations, increased interest in throttleable HTP hybrid rocket motors [2,50,51] and work on solid fuels hypergolic with HTP [41,52] can be seen. Another trend considers additive manufacturing of fuel grains. Recent tests of additively manufactured fuel grains with HTP are discussed in [44,45,53]. This includes hot-firing tests of additively manufactured grains with 98% HTP, where ABS, HDPE and PA6 were tested as fuel [44]. More on additive manufacturing of hybrid fuel grains and their use with various oxidizers can be found in [54].
Across over 70 years of research on HTP hybrid rocket propulsion, the literature mentions the use of hydrogen peroxide with various solid fuels including: HTPB, HDPE, LDPE, ABS, PLA, paraffin, dicyclopentadiene, ammonia borane, CTPB and numerous additives enabling performance or regression rate enhancement. Most commonly, laboratory test campaigns included fuel grains based on HTPB and PE. A survey of studies concerning HTP hybrids is presented in Table 1. Example regression rate data are provided, where the regression is assumed to follow the equation:
r ˙ = a   G o x n ,
as given in [28]. Gox is the oxidizer flow mass flux (kg/(s·m2)), a is a constant (mm/s) and n is the regression rate law exponent [ ]. Each regression rate formula is valid for a given range of oxidizer muss flux, which is discussed in the respective references provided in Table 1. As for motor performance, mainly combustion efficiency has been analyzed. In the case of classic hybrids, low combustion efficiency can occur [55]. This may happen if incomplete mixing is present. However, [32] suggests that high combustion efficiencies occur in the case of HTP hybrids and this is due to the fact that decomposition of hydrogen peroxide involves a significant portion of the total chemical kinetics required for complete combustion of the propellants. Characteristic velocity efficiencies between 85 and 98% for PE fuel and 88% HTP as oxidizer have been demonstrated by Wernimont [32]. However, higher c* efficiency may be expected for higher HTP concentrations and high oxidizer flow mass flux [56]. c* efficiency exceeding 97% is possible for non-metalized fuels. [57] provides data of tests of 90% HTP and PE fuel, where characteristic velocity was between 93.4% +/ 1.5% and 99.6% +/ 1.6% of its theoretical value, where the higher range was obtained for a 14-port grain design and a corresponding increase in the combustion chamber pressure and a decrease in oxidizer-to-fuel ratio. Values of 72–89% combustion efficiencies for 90% HTP and highly metalized fuels can be found in [58].
While several in-space and space transportation applications of hybrid rocket propulsion were mentioned in the first paragraph of this paper, HTP hybrid rocket motors in particular are also considered for several uses. This includes space tugs [59], active debris removal systems [60], apogee propulsion [61] and even exploration missions [14]. Unlike the case of N2O, HTP hybrids are not popular among hobbyist and student projects due to their lower accessibility than N2O, the oxidizer’s strong reactivity (requiring precautions regarding ensuring no contact of HTP with organics) and its poor reputation in some circles due to information in, inter alia, [28,62]. As for space transportation, HTP is gaining wider interest. Two recent suborbital rocket developments using HTP can be outlined: the Polish ILR-33 AMBER and the Norwegian Nucleus. ILR-33 AMBER, developed in-house by the Lukasiewicz Research Network—Institute of Aviation, utilizes 98% HTP with a Al2O3/MnxOy catalyst bed and HPDE fuel, and was first flown in 2017 [20,63]. To date, three successful flights of the rocket have taken place and AMBER became the world’s first vehicle to demonstrate the in-flight use of 98% HTP. The rocket’s most recent version, AMBER 2K, is to enable the launching of small payloads above the Von Karman Line. Nammo’s Nucleus utilizes 87.5% HTP with a silver catalyst bed and HTPB-based fuel and was flown in 2018. Its maiden flight reached an altitude of 107 km [43]. While these advances stimulated further work on small launch vehicles using hybrid HTP stages [43,64], such concepts were already proposed earlier [65,66,67,68] and thrust ranges tested in the United States in around 1950 also considered the use of HTP hybrids in large vehicles. As for nowadays, the Australian company Gilmour Space Technologies develops HTP hybrids [36] with thrust up to 91 kN—demonstrated during a single port motor firing in early 2021 [69]. Several other new-space companies are also looking into the potential of using HTP hybrid propulsion for either orbital or suborbital space transportation [47,70,71].

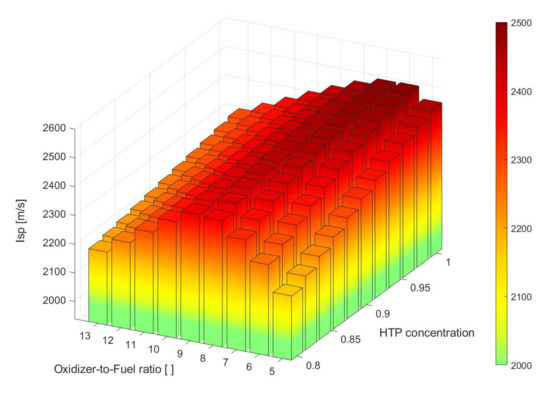

Theoretical performance calculations of HTP hybrid rocket motors using PE as fuel can be seen in Figure 1. Computations were done using NASA CEA [88] with Matlab in-house code utilized for results visualization, while the MatlabCEA tool [89] was used to connect Matlab with NASA CEA. A motor chamber pressure of 20 bar and a 20:1 nozzle expansion ratio were set assuming flow frozen at chamber. Data for various HTP concentrations are presented. The 98% HTP grade allows for reaching a 4.5% higher specific impulse than in the case of the 87.5% grade, which is popular in Europe. Additional system-level gain is available due to the increased density of 98% HTP (1431.0 kg/m3 vs. 1373.3 kg/m3 at 25 °C). Higher HTP concentrations have lower optimal oxidizer-to-fuel ratios but lead to an increase in volumetric performance. Use of 98% HTP provides a 3.5% increase in specific impulse in comparison to motors using N2O as oxidizer and the gain in terms of density-specific impulse is 70% [2]. Moreover, the high oxidizer-to-fuel ratio of HTP hybrids allows for efficient vehicle sizing and launch mass minimization. While work with hybrid rocket motors using 98% HTP has not been described in the literature until the 21st century, tests of 98% HTP within catalyst beds were mentioned in the literature in the early 1960s [90].
One essential property of propellants considered for in-space application is storability. Several promising results have been obtained for high HTP concentrations. Qualification of a storage and transportation container, made of HDPE, for propellant-grade hydrogen peroxide, was performed in Poland in 2017. Approximately 98–99% (by mass—concentrations varied due to originating from several manufacturing processes) HTP was stored in vented 5 liter PE containers located in a dark storage room for 6 months at 22 °C, at atmospheric pressure, with no evidence of concentration loss. Part of this propellant was transported to the Institute of Aviation, where it is still being stored in a refrigerated storage room in PE containers, at 10 °C (+/2 °C). The propellant concentration after 4 years of storage dropped to approximately 97.8% (by mass). Operational and ground long-term storability have been demonstrated in the United States in the past. Syncom II, Syncom III and Early Bird spacecraft used hydrogen peroxide monopropellant propulsion systems. The useful life of Early Bird was estimated at 5 years. A ground storage experiment performed by FMC Corporation confirmed that 90% hydrogen peroxide, stored for 17 years at 5 °C, essentially did not decompose [27]. More examples of promising HTP storability data and its comparison to hydrazine storability can be found in [91]. A comparison of the storage of 90% and 98% HTP is available in [92], which dates back to 1961. However, since that time, advances in HTP manufacturing technology and purity have been made, which influence its long-term storability. It is considered that 98% HTP and even higher-concentration technology may be a promising alternative for classic storable oxidizers used within today’s satellite platforms [91]. While, two decades ago, the use of 98% HTP in propulsion was still considered to be associated with development risks in comparison to the use of 90% HTP, [93,94] describe it as being much safer than storable oxides of nitrogen. The higher the concentration of HTP, the better storability and stability occur [27]. [27] shows that for a given concentration of HTP, its stability increased in the last few decades due to optimized manufacturing technologies and thus improved purity.
While key research in the field of HTP hybrids has been herein presented, focus shall be given to 98% HTP technology. The main aim of this work is to discuss the key steps taken to develop 98% hybrid rocket technology and present its performance, including data obtained during extensive ground and in-flight testing during the last decade. The significance of this paper is due to limited data regarding high-TRL hybrid systems using such high HTP concentrations.

2. Technology Development Initiation—The First Steps

Modern chemical rocket propulsion developments for space applications started in Poland, with feasibility studies led by Wolanski since 2005. They concerned potential liquid rocket propulsion developments [95]. However, the first mention of hybrid rocket propulsion was noted significantly earlier—in 1965, when Wolanski introduced the concept to the Polish aerospace community [96]. The first experimental concept verification of hybrid rocket propulsion was achieved via the cooperation of the Institute of Aviation and Warsaw University of Technology in 2007 and used gaseous oxygen as an oxidizer [97]. A metalized fuel was used and its grain included the addition of solid oxidizer particles to increase the grain regression rate. Further attention was given to using hydrogen peroxide as an oxidizer, and concepts of satellite propulsion systems were proposed [98]. Propellant-grade hydrogen peroxide was desired. However, it was unavailable in Poland at that time. High costs and complex procedures applied for import, e.g., from Germany. Experimental work in this field started at the Institute of Aviation in 2011, from obtaining samples of propellant-grade hydrogen peroxide. Here, 98% peroxide was obtained in situ by vacuum fractional distillation of commercially available 60% solution and purified with a vacuum rotary evaporator. Later, the two-stage method of preparation of 98% ultra-pure HP evolved to a single-stage technology, eventually patented in 2018. The HTP manufacturing technology is currently secured by patents in over 20 countries around the world.

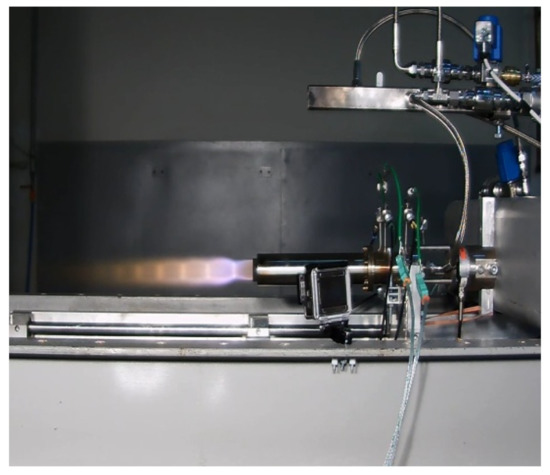

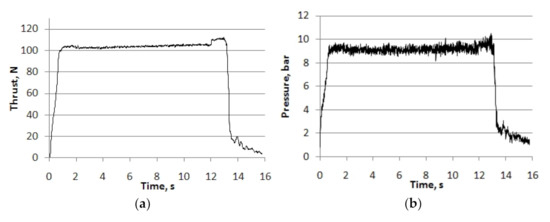

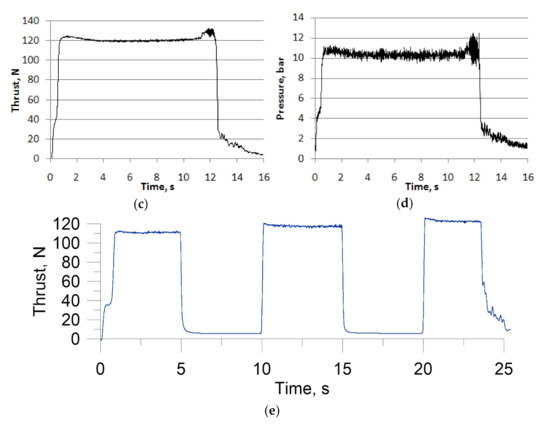

The first lab-scale, 100 N class, hybrid rocket motor was successfully fired in 2012. All hardware, including the feed system and the motor, were assembled at the Institute of Aviation. The decomposition catalyst was based on stainless steel–alumina wire mesh-supported platinum, packed in a 200 mm pile. The catalyst bed applied for further experiments was modified by means of length reduction and replacement of the catalyst with alumina-supported manganese oxides. The results of the first tests, performed with in-house made catalysts, are presented in Figure 2, and further data are available in [87]. These tests utilized a single circular port grain. Single firings (see Figure 2a–d) [87] were performed using a catalyst bed of 50 mm in length with different HTP feeding pressures (12 bar and 14 bar, respectively). Pulse-mode operation (see Figure 2e) was also successfully demonstrated. Catalyst preheating allowed for minimization of the time needed for reaching the nominal thrust level, and the monopropellant phase was eliminated (below 0.1 s was needed to obtain maximum thrust).
Small-scale testing led to validation of hybrid motor performance modeling. Experience was also gained with handling high concentrations of hydrogen peroxide, also due to the finalization of the first international projects connected to using hydrogen peroxide in various chemical propulsion systems. The demonstrated reliability of hybrid rocket motor ignition, firing stability and the Institute’s increased focus on space technology led to further development plans [100]. The decision to develop a small suborbital rocket was made. Experience from internal R&D actions and projects conducted within the programs of the European Space Agency and European Commission was to be used. Moreover, team expansion was planned, based mainly on the swift transition of technical university graduates to young professionals—this included using the outcome of the educational Polish Small Sounding Rocket Program run at Warsaw University of Technology [101,102]. The new rocket was to be fully developed at the Institute of Aviation and had the goal of demonstrating capabilities in the field of space transportation and advanced chemical rocket propulsion. As discussed in [103], the propulsion system trade-off led to the selection of hybrid rocket technology based on 98% hydrogen peroxide. The alternative was a green bipropellant system due to this technology being developed in parallel projects at the Institute of Aviation [104,105,106]. The vehicle was sized in order to allow the launch of small suborbital payloads to the Von Karman Line. Efforts dedicated to defining the configuration of the new hybrid rocket vehicle took place in late 2014, and in 2015, hardware developments were initiated. It was decided to use two solid rocket motor boosters along the main hybrid stage, which allowed vehicle mass minimization and overall mission thrust-curve optimization [2]. The rocket was named ILR-33 AMBER and was to present the world’s first in-flight use of 98% hydrogen peroxide.

3. Materials and Methods Relevant to Hybrid Rocket Motor Hot Fire Testing

While extensive test data were available from subscale hybrid rocket motor test campaigns [86,87,99], the new vehicle required a dedicated propellant trade-off taking into account performance, regression rate, grain manufacturing and potential scalability. Performance modeling was done using codes by Surmacz (subscale motor evaluation), Bartkowiak (flight motor design), Okninski and Matyszewski (sizing and optimization). Data acquisition was done using the in-house rocket propulsion test facility infrastructure. A PXI setup with in-house LabVIEW software by Sobczak and Mayer was used.

3.1. Development Steps and Relevant Methods

Since this article is focused on presenting an overview of nearly 10 years of development of hybrid rocket propulsion using 98% HTP, in-depth focus on methods is not presented. However, several references to applicable sources are given in Table 2.

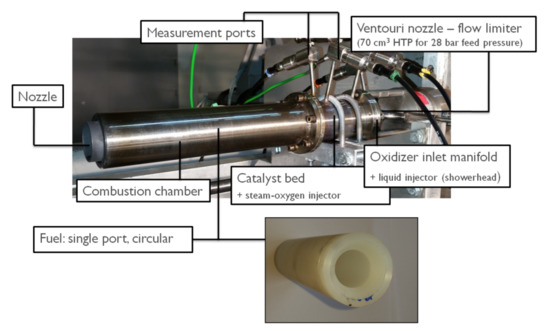

The test laboratory motor for hybrid fuel evaluation before the final trade-off concerning the fuel to be used by the ILR-33 AMBER is presented in Figure 3.

3.2. Overview of the Flight Hybrid Rocket Motor of the ILR-33 AMBER

The hybrid propulsion system utilizes a helium pressure-fed system. The oxidizer is held in an aluminum alloy-welded tank. The tank, as well as the main flow valve and most of the flow components, were developed in-house. The propellant tank and hybrid motor combustion chamber have an outer diameter of approximately 230 mm, thus also serving as the vehicle’s airframe. The hybrid rocket motor provides approximately 150 kNs of total impulse at sea level at its full burn duration. It uses a carbon fiber-reinforced plastic (CFRP) casing and a phenolic-based thermal insulation. Its nozzle utilizes a composite low-erosion throat insert. The HDPE grain has 8 ports in a wagon wheel configuration, ensuring a near-to-constant thrust level during the circa 40 s burn. While the first version of the motor (Mk2017) had an average sea-level thrust of 3800 N, further motor modifications aimed at increasing its performance. This was done inter alia via improvement of the ablative insert technology and limiting its erosion. First changes of the motor design considered optimization of the internal insulation and acceptable thermal loads. Thermovision was used during each firing to study which parts of the motor needed improvements and which ones may have overly high safety factors regarding thermal loads and the maximum operating temperature. The CFRP casing was a key part of the design, since its maximum temperature is limited by the glass transition temperature of the resin system used. While the HDPE fuel grain geometry restricts the access of combustion products to the thermal insultation along its length, the region between the catalyst bed and the fuel grain, as well as the region in proximity to the post-combustion chamber, were crucial in terms of heat reaching the CFRP motor casing. While many hybrid rocket motors using HTP as oxidizer utilize a catalyst bed mounted on top of the combustion chamber, the design of the motor by Bartkowiak incorporated a catalyst bed submerged into the CFRP casing. Further modifications allowed motor mass minimization and its elongation was slightly increased in order to increase the overall delivered total impulse. Most recent changes included modification of fin attachment points to the motor’s structure.

3.3. Overview of the ILR-33 AMBER Suborbital Rocket

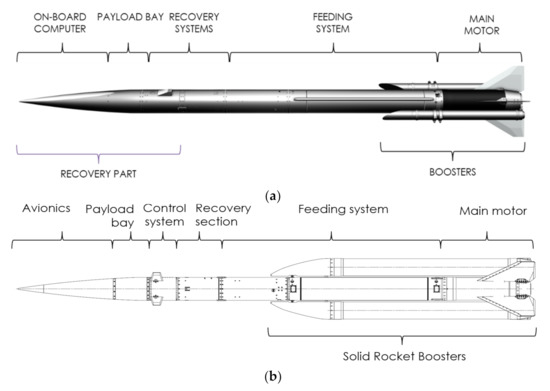

The ILR-33 AMBER is small suborbital rocket using a hybrid main stage. Two solid rocket boosters used along the hybrid stage burn only during the first few seconds of flight and are discarded after their burnout [110]. Figure 4 presents the ILR-33 AMBER flight configuration (a) and the planned AMBER 2K (b). The two vehicles are compared in Table 3.

4. Results

4.1. Subscale Testing of Fuels for Use with 98% Hydrogen Peroxide

Subscale testing allowed for the evaluation of fuels—performance and burn rate characteristics were obtained. Figure 5 shows an image from one of the motor firings. Figure 6 presents the operating parameters of the subscale motor gathered from four separate firings with HDPE fuel.
The following regression law was obtained for HDPE and has been used for designing the hybrid rocket motor for the ILR-33 AMBER rocket:
r ˙ = 0.04291   G o x 0.529
It has to be noted that for the flight motor of the vehicle, where the nominal thrust level is circa 20-fold higher than in the subscale motor, lower regression rates were measured. This is in-line with theory—scaling effects regarding grain regression rates are discussed in [77].

4.2. Full-Scale Testing of the ILR-33 AMBER Hybrid Propulsion System

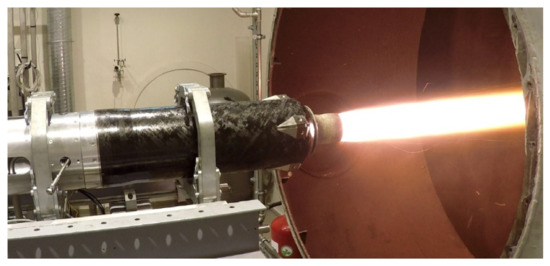

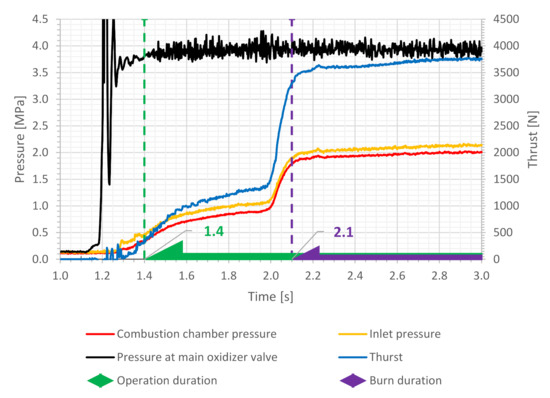

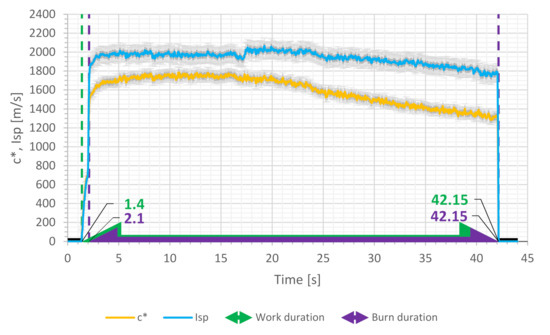

Full-scale hybrid rocket motor tests were conducted on several development models. Figure 7 presents one of the firings, where the Mk2018 motor was used. Since 2017, several advances have been made both in terms of modeling as well as regarding motor design features. The Mk2020 motor is the most advanced version, using a minimum erosion nozzle insert, thus maximizing the delivered performance. Its predecessor, the Mk2019+, is a lower-performance motor due to the use of a graphite throat insert, which shows erosion. Results of Mk2019+ firings are shown in Figure 8. Data presented include characteristic velocity and specific impulse values during a full burn duration firing. Their uncertainty is marked in Figure 8. Thrust, chamber pressure and oxidizer mass flow uncertainties were taken from manuals of the measurement instruments used. A 2% uncertainty of determination of the nozzle throat area was assumed a priori, while its linear erosion rate is considered to be constant in time and was calculated using the initial and post-firing nozzle diameters. Figure 9 shows the start-up phase of the Mk2019+ motor. The transition from monopropellant to hybrid mode is visible.
The 2017 maiden flight of the ILR-33 AMBER used the Mk2017 motor and the 2019 flight utilized the Mk2019 configuration. The Mk2019+ was only tested on-ground in order to demonstrate the full burn duration of the hybrid propulsion system.

4.3. In-Flight Test Campaigns

In-flight testing was conducted at Polish military test ranges. During the first three launches of the ILR-33 AMBER rocket during 2017–2019, the following altitudes were obtained: 15 km, 10.5 km and 23 km. While the vehicle’s configuration allowed few-fold higher performance even at these stages of development [2,103], the altitude was limited by only partial filling of the oxidizer tank with hydrogen peroxide. The test range size and atmospheric conditions (wind conditions before each launch were determined using balloon sounding [111] and influenced the final rocket launch tower’s elevation and oxidizer mass) did not allow higher apogees to be reached at the time of test site availability. During the maiden flight of the rocket, 28 liters of HTP were loaded; during the second one, 19 liters were loaded, and during the last one, 32.8 liters were loaded. It is, however, notable that the vehicle’s structure and subsystems varied between these flights (due to several mechanical iterations in order to test components at various development stages, not only propulsion). Maximum tank loading (approximately 52 liters in the vehicle tested in the third flight) would allow 60 km of altitude to be reached using the ILR-33 AMBER vehicle. Altitudes of up to 100 km would be possible after further improvement of the dry mass fraction [2,103], but this would require significant development effort, and new requirements considering potential payloads anyhow led to a new vehicle, the ILR-33 AMBER 2K; thus, final optimization of the first version of AMBER was not undertaken. The new version (AMBER 2K) shall use larger solid rocket booters and a hybrid rocket motor with a 4% increase in its total impulse (Table 3). As for further vehicle testing, initial flights of the ILR-33 AMBER 2K will take place in Poland. However, the limited size of Polish test ranges leads to the need for international cooperation regarding test ranges for further flights. Alternatively, reliable control systems could enable safe flights on national sites, which is analyzed in [112].

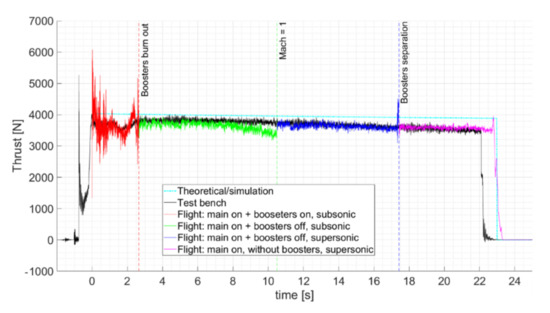

A comparison of the flight performance of the Mk2017 hybrid rocket motor with its initial performance simulation and data from its first ground firing was done. A different burn duration was used during flight via different oxidizer mass loading. Apart from this, the in-flight performance was close to that measured on the ground—while the first post-flight estimations can be seen in Figure 10 (when simplifications regarding base drag estimation were used), further analyses of data showed that in-flight performance was 1% above test-bench data in terms of thrust (recalculated to sea-level performance, but omitting the 2.6 s duration of booster stage burn, when less precise data are present due to high vibrations of the whole vehicle and higher acceleration measurement dispersions). Some difference in thrust can be seen around 10.5 s—it is, however, due to some inaccuracy regarding determination of the aerodynamic coefficients at Mach 1, which were used for recalculating the thrust curve from flight. This shall be discussed further in a dedicated paper. It can be seen that during the maiden flight of the ILR-33 AMBER rocket, booster separation occurred approximately 15 s after the end of burn. This was due to non-nominal performance—aerodynamic loads were used to ensure immediate separation of the booster stage at their burnout, as discussed in [103,113]. Further flights included booster separation systems using pyrotechnical devices apart from aerodynamic loads, which was found to be successful.

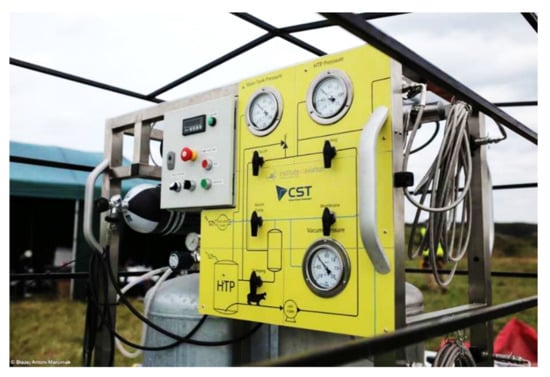

Typical ILR-33 AMBER operations include transporting 98% HTP to the launch site and use of a dedicated mobile setup for filling the oxidizer tank with 98% HTP. The oxidizer loading station was developed by Matyszewski and is shown in Figure 11. The launch sequence includes holding the rocket on the launch tower and ensuring that its hybrid motor undergoes its monopropellant mode duration (before fuel ignition) and reaches 3500 N of thrust. Only then, the two boosters are ignited and the launch control subsystem verifies the thrust level provided by the solid rocket motors. If the performance is as planned, the dedicated release mechanism moves away its two pivoted arms and allows lift-off. The Launch Management System (LMS) was developed by Kaniewski. Details on the LMS and the launch sequence are provided in [114]. While such subsystems on the launch tower are rare for small rockets, it was decided to use this approach in the case of the ILR-33 AMBER to enhance the reliability of the vehicle, since parallel staging is not common for modern vehicles of similar scale. Dynamics of the hybrid motor start-up phase with chamber pressure plots from flight testing can be seen in Figure 12. The pressure curve from the 2017 flight is different to the one from flights conducted in 2019. This is due to changes within the hybrid motor design (Mk2019). An image from the third flight of the ILR-33 AMBER rocket, where the maximum apogee to date was achieved, is presented in Figure 13. Notably, the launch was carried out at the seaside of the Baltic Sea and successful vehicle recovery was carried out from the sea surface [109].

4.4. Other Actions

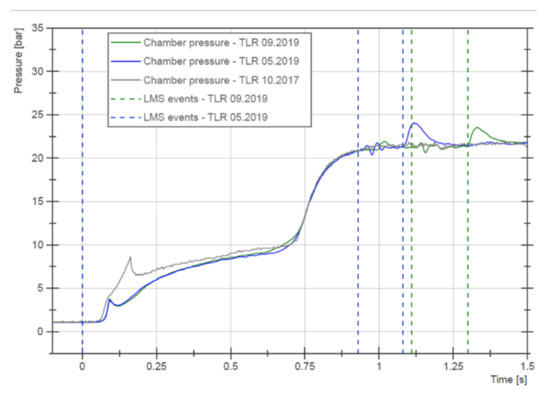

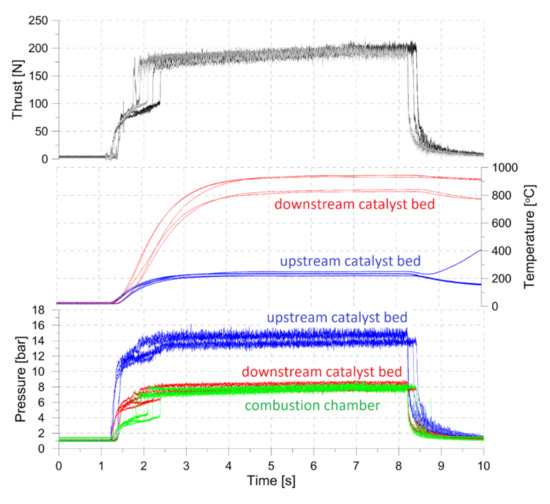

During AMBER propulsion system developments, small-scale tests of new technologies for future applications have been undertaken. Additive manufacturing of fuel grains was led by Mayer and allowed prototyping of ABS, HDPE and PA6 grains. Results from example firings can be found in [44]. Fused deposition modeling technology was used. Subscale grain testing was completed using 98% HTP and the same catalyst as in the ILR-33 AMBER main motor (Al2O3/MnxOy). Firings with PA6 fuel gave the most stable and predictable characteristics (the thrust curve during hybrid combustion mode was closest to the design assumptions and the steady-state hybrid-mode operation pressure roughness was below 2% of the mean chamber pressure). HTP combined with PA6 also provides the highest theoretical specific impulse when compared to using other fuels from the study, namely ABS and HDPE, and it has higher theoretical performance than paraffin [44], which is widely considered due to its high burn rates. However, PA6 additive manufacturing technology up-scaling has not been approached, due to the difficult printing process and low relative grain density (an average of 94% of grain theoretical ideal density was achieved). Tests of grains with aluminum powder were also conducted, but initial tests showed combustion chamber instabilities.

5. Discussion of Test Firing and Flight Testing Results

Efficiencies exceeding 90% have been demonstrated during full-scale motor firings, in comparison to the first tests of 100 Newton motors, when 80% efficiency was obtained [99]. Flights allowed a velocity equivalent to Mach 2.05 and 23 km of altitude to be reached [109], while the AMBER 2K will exceed Mach 5 and 100 km of altitude. Altitudes reached to date were limited due to the small volume of oxidizer loading, test site size and the potential range of the fully loaded vehicle. Numerous tests allowed technology optimization. Good repeatability was demonstrated between consecutive subscale firings and also regarding the flight motor, including comparison of data from ground and flight campaigns. This considers thrust levels (1% of relative difference in thrust during hybrid mode operation when recalculated to sea-level conditions), as well as the delay between HTP flow initiation and hybrid-mode motor operation, which was below 1 s. This delay is important regarding the vehicle’s launch sequence and the loss of total impulse due to propulsion system monopropellant operation before hybrid mode. The motor chamber pressure build-up plots from all three AMBER rocket flights, provided in Figure 12, show that the differences in hybrid mode initiation in terms of pressure dynamics are not visible to the naked eye (the slight difference in monopropellant mode between different motor generations is not important since the rocket is not released by the Launch Management System until the predefined thrust level is reached). Lessons learned include the following points:
  • Subscale tests cannot be directly used for full-scale design and analysis (they shall be compensated for scale differences).
  • Careful measurement and data analysis is a must for obtaining reliable results for making valuable conclusions and design decisions.
  • HTP of 98% concentration allows for safe handling; however, special measures must be taken in order to ensure that organics are not in contact with HTP.
  • Hybrid rocket propulsion using 98% HTP can allow for efficient use for space transportation due to its higher performance than in the case of utilizing lower HTP concentrations (performance was verified in flight and extensive system performance data were obtained during in-flight and ground testing; 6-degree-of-freedom flight numerical simulations confirm that for full oxidizer loading of the ILR-33 AMBER 2K vehicle, flights above the Von Karman line will be possible).
Since 2017, the performance of the hybrid motor of the AMBER rocket has been gradually increased. The test-stand firing of the Mk2019+ demonstrated over 40 s burn duration of the ILR-33 AMBER rocket motor, which is equivalent to the requirement for reaching the Von Karman line (although a newer motor design will be used to maximize performance). While the same catalyst technology used may be implemented in larger space transportation propulsion systems, possibly with burn durations exceeding 100 s, follow-on work will concentrate on enhancing the possible oxidizer mass flux and maintaining high decomposition efficiency for 98% HTP. Significantly longer burns (in the order of 1000 s) using a single catalyst bed have been demonstrated at the Institute for low bed loadings; however, advances are needed for the most demanding applications, where large HTP throughputs are required. Different catalyst technologies are optimal for different propulsion applications. While this paper focused on the space transportation applications of HTP hybrids, the discussed propulsion technology may also be an attractive solution for in-space missions due to the stability and storability of HTP. Use of hybrid rocket motors on satellite platforms is possible; however, in the case of utilizing 98% HTP, special attention has to be given to the catalyst bed lifetime in the case high burn durations, and high oxidizer throughputs are to be implemented. Further development may be needed for the most demanding applications.

6. Conclusions

The assumption that 98% HTP can be safely used as an oxidizer for hybrid rocket motors has been confirmed. Key advancements from nearly 10 years of work with hybrid rocket propulsion using 98% HTP have been shown. The Lukasiewicz Research Network—Institute of Aviation in Warsaw, Poland has been the first entity to achieve several milestones concerning the use of 98% HTP, including its first use in a test-bench hybrid rocket motor (2012) and its in-flight use within a hybrid rocket motor (2017). The ILR-33 AMBER became the first known vehicle to demonstrate the use of 98% HTP. Success led to a total of 20 projects from the European Space Agency in the field of chemical propulsion (as of 2021), most of them linked to 98% HTP. The findings of conducted research include scaling effects regarding transferring technology from subscale laboratory research to in-flight operations. Future plans involve launching the ILR-33 AMBER 2K rocket to higher altitudes, including missions above the Von Karman line, and optimizing its design concerning the effective integration of payloads and meeting potential customer needs. Further optimization of the hybrid rocket motor system is envisaged, although the burn duration of its Mk2019+ version already allows for reaching the 100 km altitude by the ILR-33 AMBER 2K rocket. Over a dozen patents have been obtained in the field of 98% HTP technology, hybrid rocket motor chamber technology and particular design features used in the AMBER design. The decade of advancements enabled Poland to be placed on the European map of space propulsion and space transportation developments, and green propulsion became the niche where the European Space Agency and commercial partners have seen the added value of Polish involvement. Several subsystems of the ILR-33 AMBER rocket, after adjustments, will be used with ESA, CNES and other French partners in the FROG vehicle (version FROG-H), which will demonstrate European capability in terms of vehicle vertical take-off and landing and Guidance Navigation and Control technology maturation. The propulsion system of FROG will use a throttleable monopropellant system [114]; however, its components shall be based on the hybrid propulsion system of AMBER.
