# The Life and Death of the Recent Global Surface Warming Hiatus Parsimoniously Explained

## Abstract

**:**

## 1. Introduction

## 2. Results

#### 2.1. Estimating the Long-Memory Exponent for the GMST-Response

#### 2.2. Instrumental GMST Explained

#### 2.3. The Recent Hiatus and Warming Trend

## 3. Discussion

## 4. Materials and Methods

#### 4.1. Data and Its Use

#### 4.2. Methods

## Funding

## Conflicts of Interest

## References

- Morice, C.P.; Kennedy, J.J.; Rayner, N.A.; Jones, P.D. Quantifying uncertainties in global and regional temperature change using an ensemble of observational estimates: The HadCRUT4 dataset. J. Geophys. Res.
**2012**, 117. [Google Scholar] [CrossRef] - Jones, P. The reliability of recent global and hemispheric temperature records. Adv. Atmos. Sci.
**2016**, 33, 269–282. [Google Scholar] [CrossRef] [Green Version] - Karl, T.R.; Arguez, A.; Huang, B.; Lawrimore, J.H.; McMahon, J.R.; Menne, M.M.J.; Peterson, T.C.; Vose, R.S.; Zhang, H.-M. Possible artifacts of data biases in the recent global surface warming hiatus. Science
**2015**, 348, 1469–1472. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hausfather, Z.; Cowtan, K.; Clarke, D.C.; Jacobs, P.; Richardson, M.; Rohde, R. Assessing recent warming using instrumentally homogeneneous sea surface temperature records. Sci. Adv.
**2017**, 3, e1601207. [Google Scholar] [CrossRef] [PubMed] - Foster, G.; Rahmstorf, S. Global temperature evolution 1979–2010. Environ. Res. Lett.
**2011**, 6, 044022. [Google Scholar] [CrossRef] [Green Version] - Lean, J.L.; Rind, D.H. How natural and anthropogenic influences alter global and regional surface temperatures: 1889 to 2006. Geophys. Res. Lett.
**2008**, 35. [Google Scholar] [CrossRef] [Green Version] - Zhou, J.; Tung, K.-K. Deducing multidecadal anthropogenic global warming trends using multiple linear regression analysis. J. Atmos. Sci.
**2012**, 70, 3–8. [Google Scholar] [CrossRef] - Canty, T.; Mascioli, N.R.; Smarte, M.D.; Salawitch, R.J. An empirical model of global climate—Part 1: A critical evaluation of volcanic cooling. Atmos. Chem. Phys.
**2013**, 13, 3997–4031. [Google Scholar] [CrossRef] - Folland, C.K.; Boucher, O.; Colman, A.; Parker, D.E. Causes of irregularities in trends of global mean surface temperature since the late 19th century. Sci. Adv.
**2018**, 4, eeao5297. [Google Scholar] [CrossRef] [PubMed] - Geoffroy, O.; Saint-Martin, D.; Olivié, D.J.L.; Voldoire, A.; Bellon, G.; Tytcá, S. Transient Climate Response in a Two-Layer Energy-Balance Model. Part I: Analytical Solution and Parameter Calibration Using CMIP5 AOGCM Experiments. J. Clim.
**2013**, 6, 1841–1857. [Google Scholar] [CrossRef] - Chylek, P.; Klett, J.D.; Lesins, G.; Dubey, M.K.; Hengartner, N. The Atlantic Multidecadal Oscillation as dominant factor of oceanic influence on climate. Geophys. Res. Lett.
**2014**, 41, 1689–1697. [Google Scholar] [CrossRef] - Rypdal, K. Attribution in the presence of a long-memory climate response. Earth Syst. Dyn.
**2015**, 6, 719–730. [Google Scholar] [CrossRef] [Green Version] - Hansen, J.; Sato, M.; Kharecha, P.; von Schuckmann, K. Earth’s energy imbalance and implications. Atmos. Chem. Phys.
**2011**, 11, 13421–13449. [Google Scholar] [CrossRef] [Green Version] - Rypdal, M.; Rypdal, K. Long-memory effects in linear-response models of Earth’s temperature and implications for future global warming. J. Clim.
**2014**, 27, 5240–5258. [Google Scholar] [CrossRef] - stvand, L.; Nilsen, T.; Rypdal, K.; Divine, D.; Rypdal, M. Long-range memory in internal and forced dynamics of millennium-long climate model simulation. Earth Syst. Dyn.
**2014**, 5, 295–308. [Google Scholar] [CrossRef] [Green Version] - Fredriksen, H.-B.; Rypdal, K. Spectral characteristics of instrumental and climate model surface temperatures. J. Clim.
**2016**, 29, 1253–1268. [Google Scholar] [CrossRef] - Rypdal, K.; Østvand, L.; Rypdal, M. Long-range memory in Earth’s surface temperature on time scales from months to centuries. J. Geophys. Res.
**2013**, 118, 7046–7062. [Google Scholar] [CrossRef] [Green Version] - Steinman, B.A.; Mann, M.E.; Miller, S.K. Atlantic and Pacfic multidecadal oscillations and Northern Hemisphere temperatures. Science
**2015**, 347, 988–991. [Google Scholar] [CrossRef] [PubMed] - Kaplan, A.; Cane, M.; Kushnir, Y.; Clement, A.; Blumenthal, M.; Rajagopalan, B. Analyses of global sea surface temperature 1856–1991. J. Geophys. Res.
**1998**, 103, 18567–18589. [Google Scholar] [CrossRef] - Trenberth, K.E. The Definition of El Niño. Bull. Am. Meteorol. Soc.
**1997**, 78, 2771–2777. [Google Scholar] [CrossRef] [Green Version] - Burnham, K.P.; Anderson, D.R. Multimodel inference: Understanding AIC and BIC in model selection. Sociol. Methods Res.
**2004**, 33, 261–304. [Google Scholar] [CrossRef]

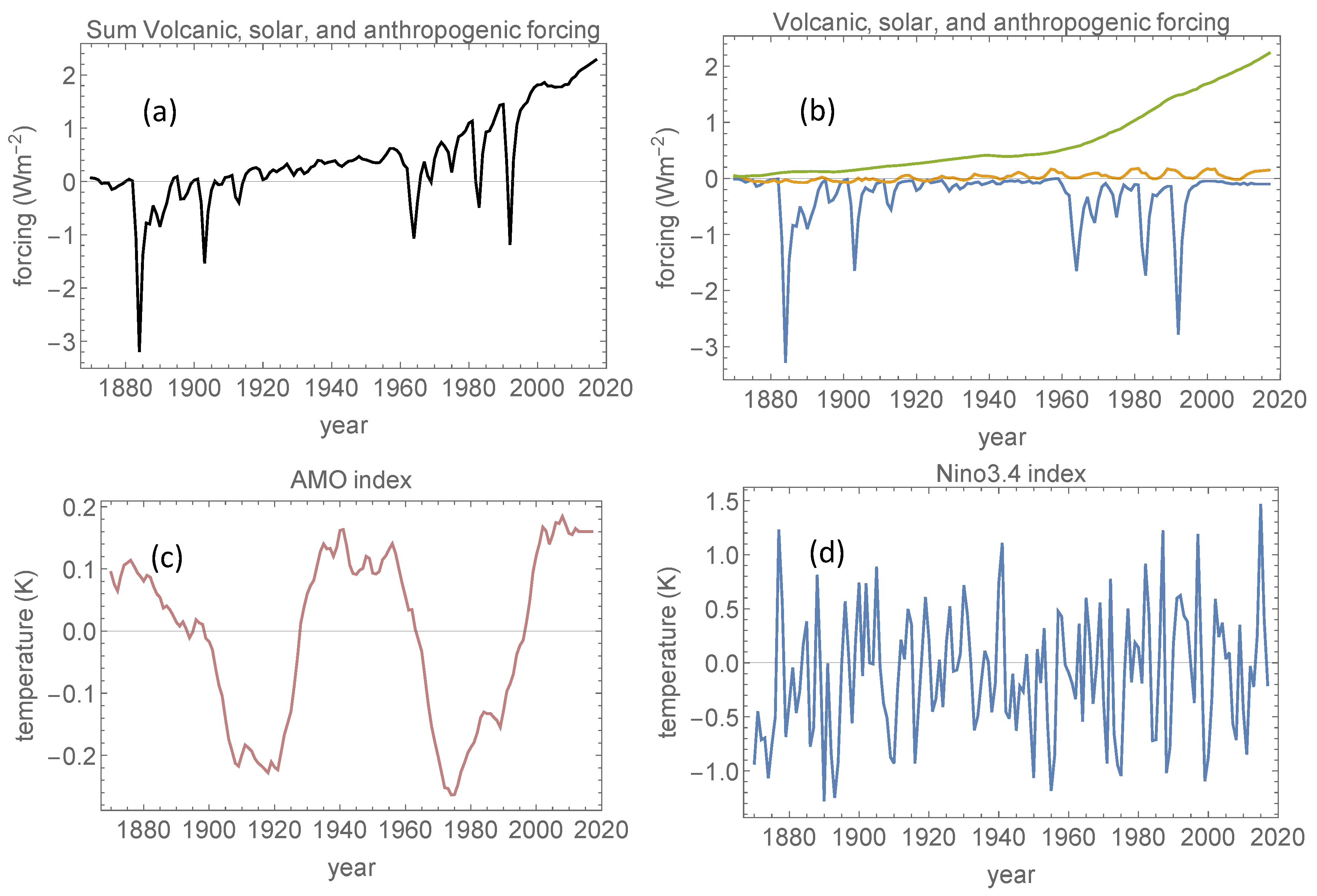

**Figure 1.**Forcing signals used in the regression analysis. (

**a**) The sum of volcanic, solar and anthropogenic forcing. (

**b**) The blue curve depicts the volcanic forcing, the yellow curve depicts the solar forcing and the green curve depicts the total anthropogenic forcing, including greenhouse gases, land use change and anthropogenic aerosols. (

**c**) The Atlantic Multidecadal Oscillation (AMO) index. (

**d**) the Niño3.4 index. These indices are not in units of forcing, but the corresponding forcing is assumed to be proportional to the indices.

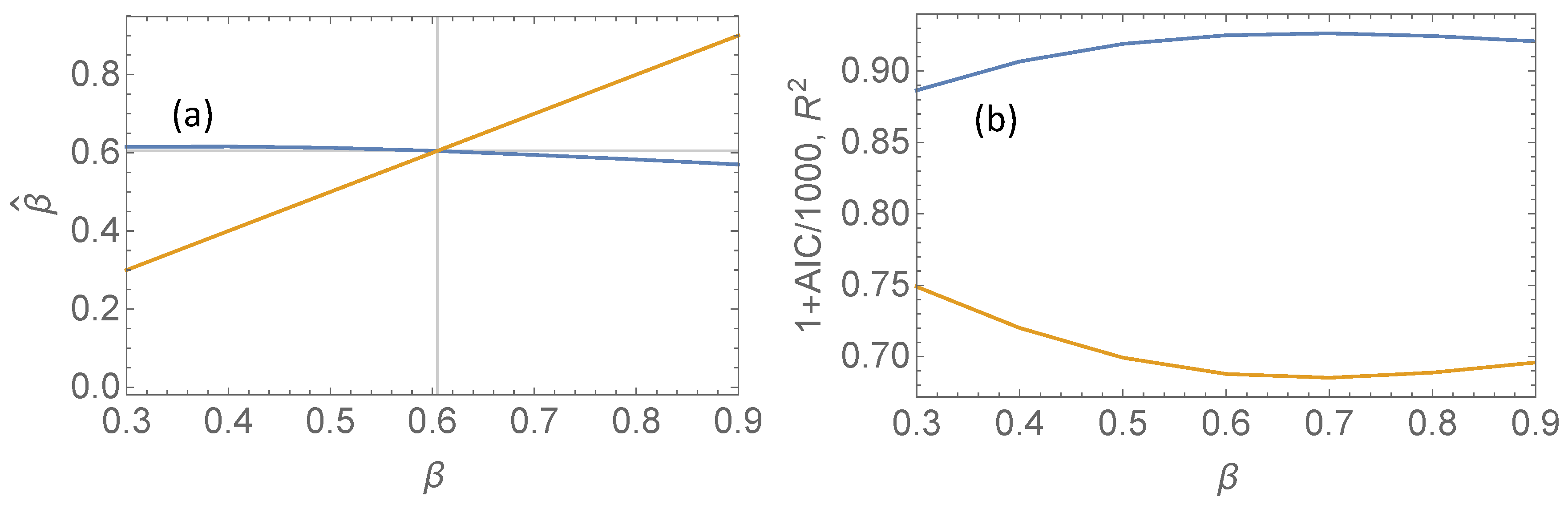

**Figure 2.**(

**a**) The blue curve is $\widehat{\beta}$ plotted against $\beta $ which was estimated from the variogram of the residual signal obtained after regression using fingerprints obtained from filtering forcing signals by the response function, $G\left(t\right)=c{t}^{\beta /2-1}$. The yellow curve is the straight line through the origin with unit slope. (

**b**) The blue curve is ${R}^{2}$ of the regression plotted against $\beta $ which was used in the response function. The yellow curve is $1+AIC/1000$ versus $\beta $, where $AIC$ is the Akaike information criterion.

**Figure 3.**In all four panels, the red curve is the total explained global mean surface temperature (GMST, or the total footprint) from the regression. (

**a**) The black, dashed curve is the HadCrut4 GMST signal. (

**b**) The brown curve is the signal obtained after the AMO footprint is subtracted from the total footprint. (

**c**) The blue curve is the signal obtained after the El Niño Southern Oscillation (ENSO) footprint is subtracted from the total footprint. (

**d**) The green curve is the signal obtained after the anthropogenic footprint issubtracted from the total footprint.

**Figure 5.**(

**a**) The red curve is the total explained GMST (or the total footprint) from the regression when the only predictor (fingerprint) is the unfiltered sum of solar, volcanic and anthropogenic forcing (the total forcing). The black, dashed curve is the HadCrut4 GMST signal. (

**b**) The same as (

**a**) with the long-memory filtered ($\beta =0.6$) forcing as a predictor.

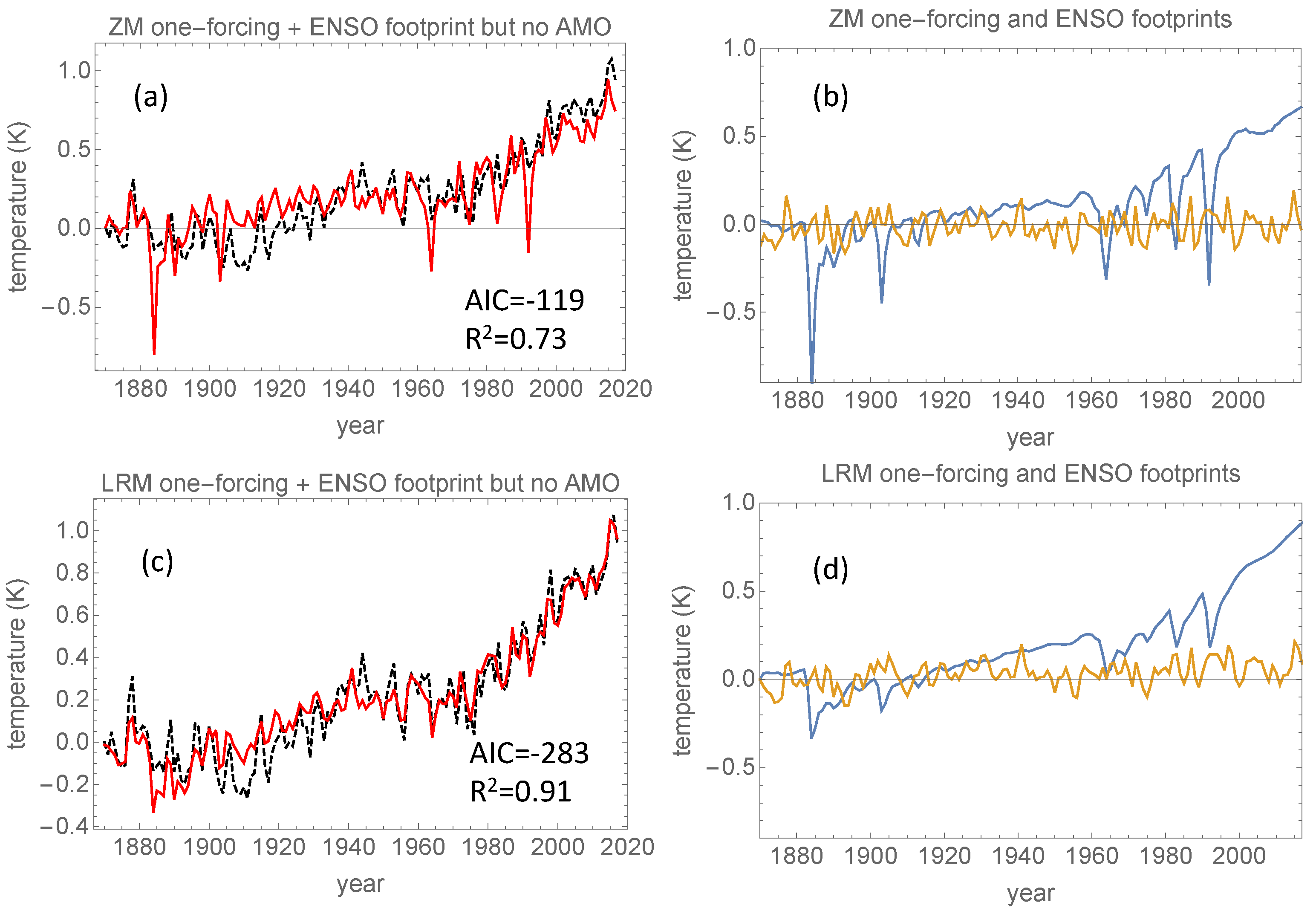

**Figure 6.**(

**a**) The red curve is the total explained GMST (or the total footprint) from the regression where the fingerprints are the unfiltered total forcing and ENSO index. The black, dashed curve is the HadCrut4 GMST signal. (

**b**) The individual footprints whose sum is the red curve in panel (

**a**). The blue curve is the total forcing and the yellow curve represents the ENSO footprints, respectively. Panels (

**c**,

**d**) show the results of the same analysis as panels (

**a**,

**b**), but with fingerprints filtered with $\beta =0.6$.

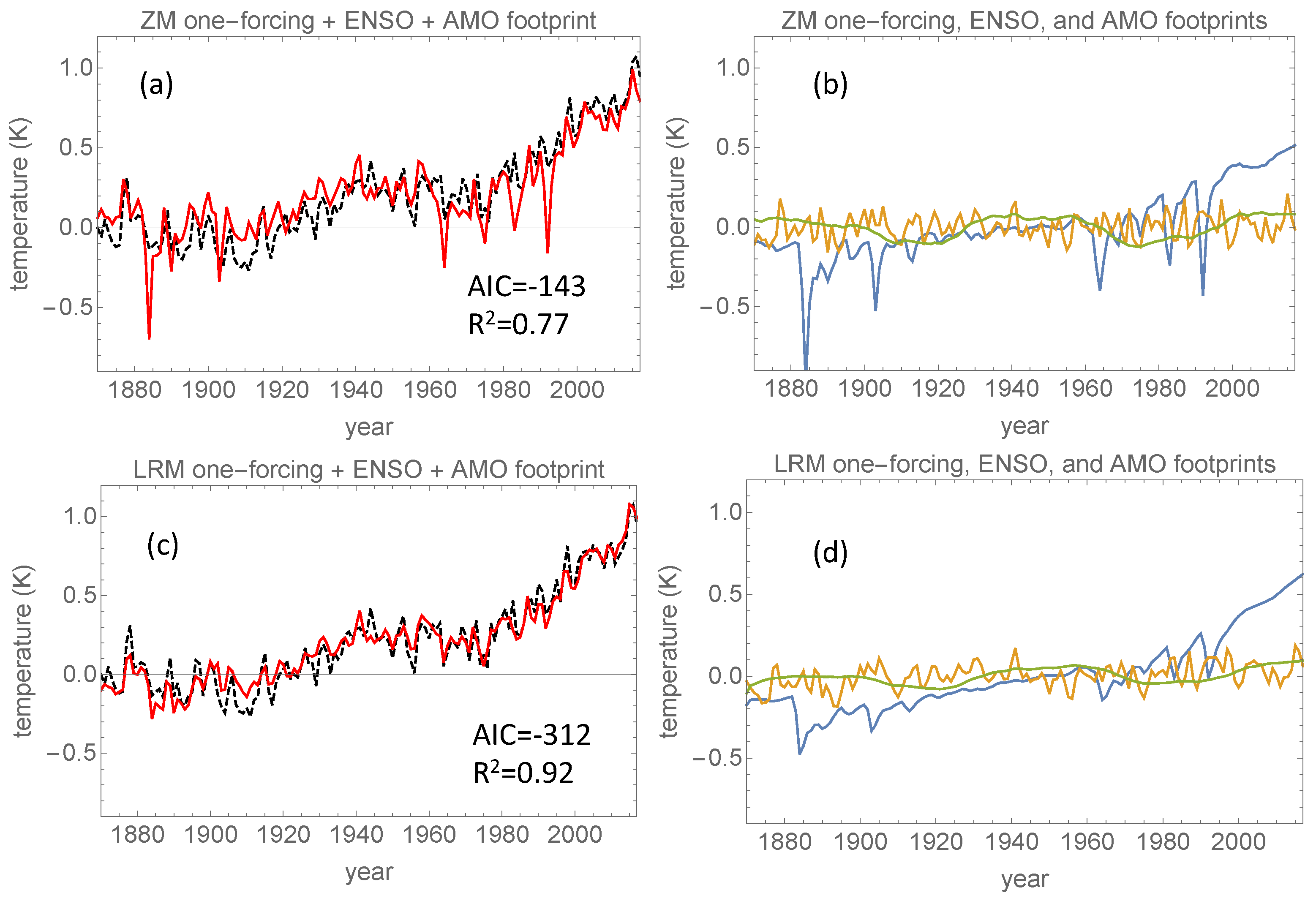

**Figure 7.**(

**a**) The red curve is the total explained GMST (or the total footprint) from the regression when the fingerprints are the unfiltered total forcing and the ENSO and AMO indices. The black, dashed curve is the HadCrut4 GMST signal. (

**b**) The individual footprints, whose sum is the red curve in panel (

**a**). The blue curve is the total forcing, the yellow curve is the ENSO, and the green curve is the AMO footprints, respectively. Panels (

**c**,

**d**) show the results of the same analysis as panels (

**a**,

**b**), but with fingerprints filtered with $\beta =0.6$.

**Figure 8.**(

**a**) The red curve is the total explained GMST (or the total footprint) from the regression when the fingerprints are the unfiltered solar and anthropogenic forcing, the unfiltered volcanic forcing, and the unfiltered ENSO and AMO indices. The black, dashed curve is the HadCrut4 GMST signal. (

**b**) The individual footprints, whose sum is the red curve in panel (

**a**). The blue curve is the total forcing, the yellow curve is the ENSO, and the green curve is the AMO footprints, respectively. Panels (

**c**,

**d**) show the results of the same analysis as panels (

**a**,

**b**), but with fingerprints filtered with $\beta =0.6$.
