Urban Ecological Corridor Network Construction: An Integration of the Least Cost Path Model and the InVEST Model

Department of Landscape Architecture, College of Horticulture and Forestry Sciences, Huazhong Agricultural University, No. 1, Shizishan Street, Hongshan District, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2020, 9(1), 33; https://doi.org/10.3390/ijgi9010033
Received: 19 November 2019 / Revised: 27 December 2019 / Accepted: 4 January 2020 / Published: 6 January 2020
(This article belongs to the Special Issue Application of GIS for Biodiversity Research)

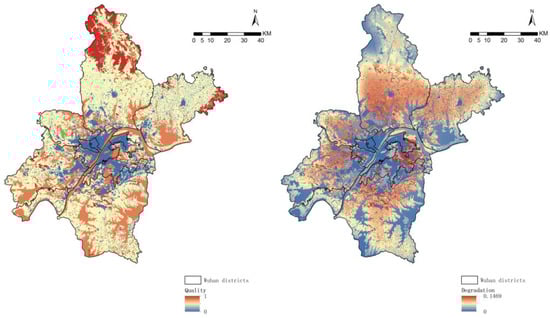

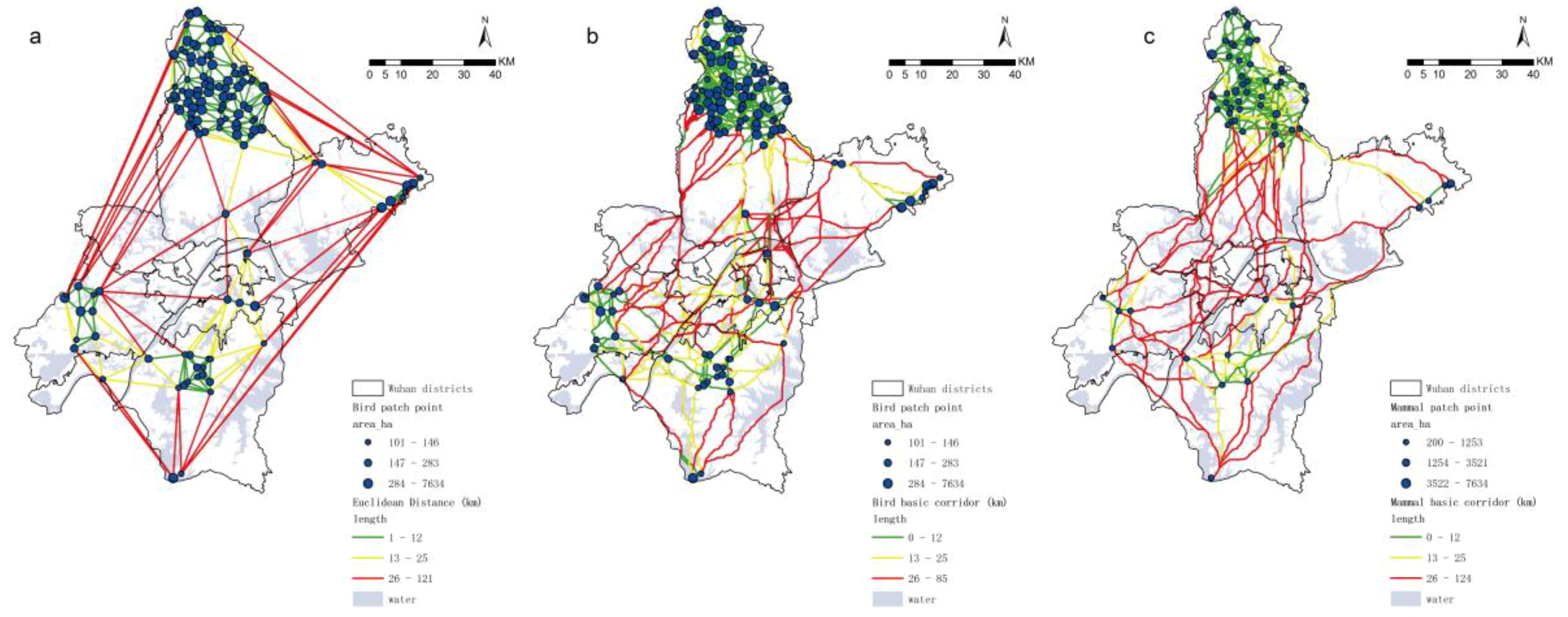

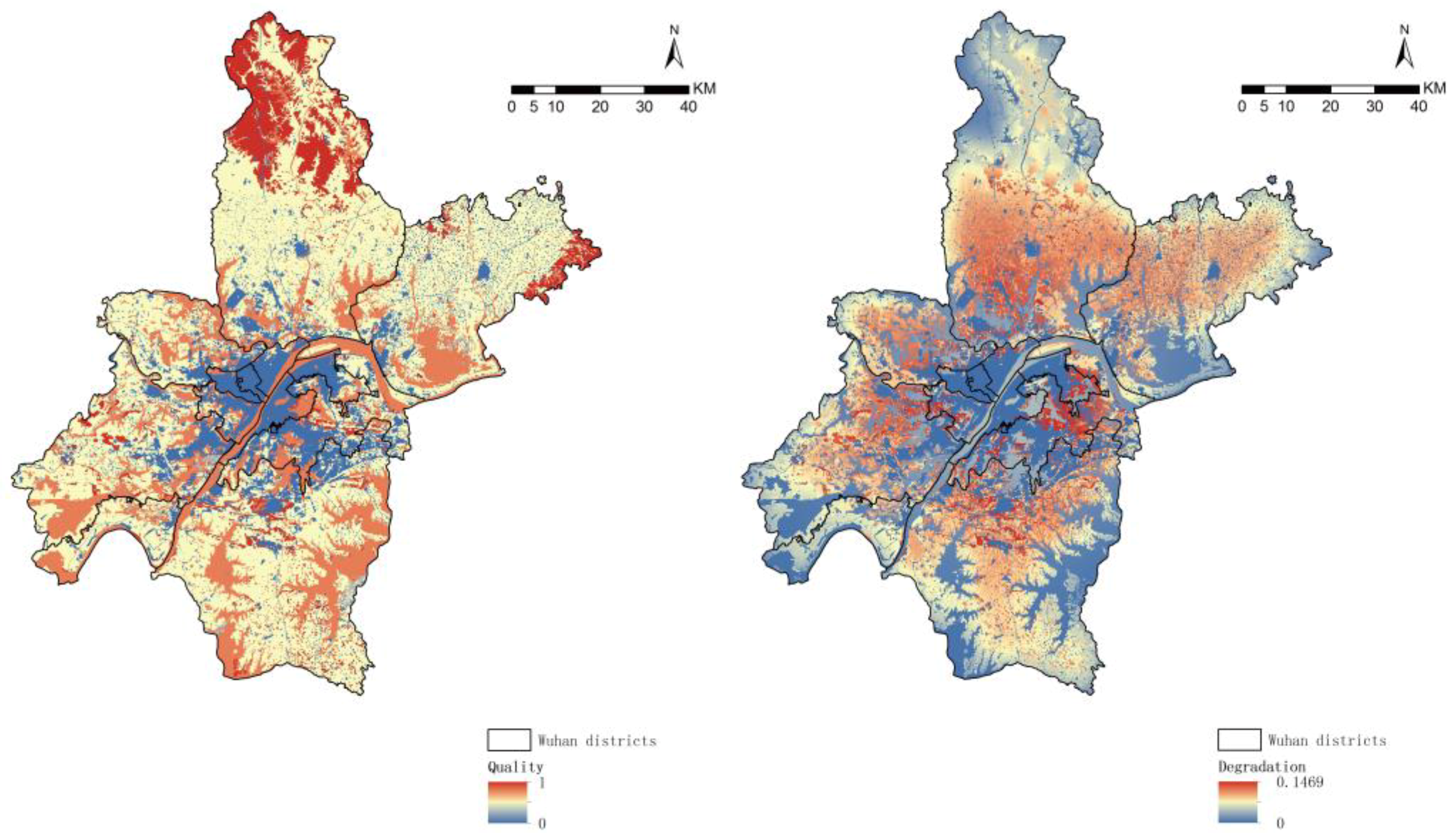

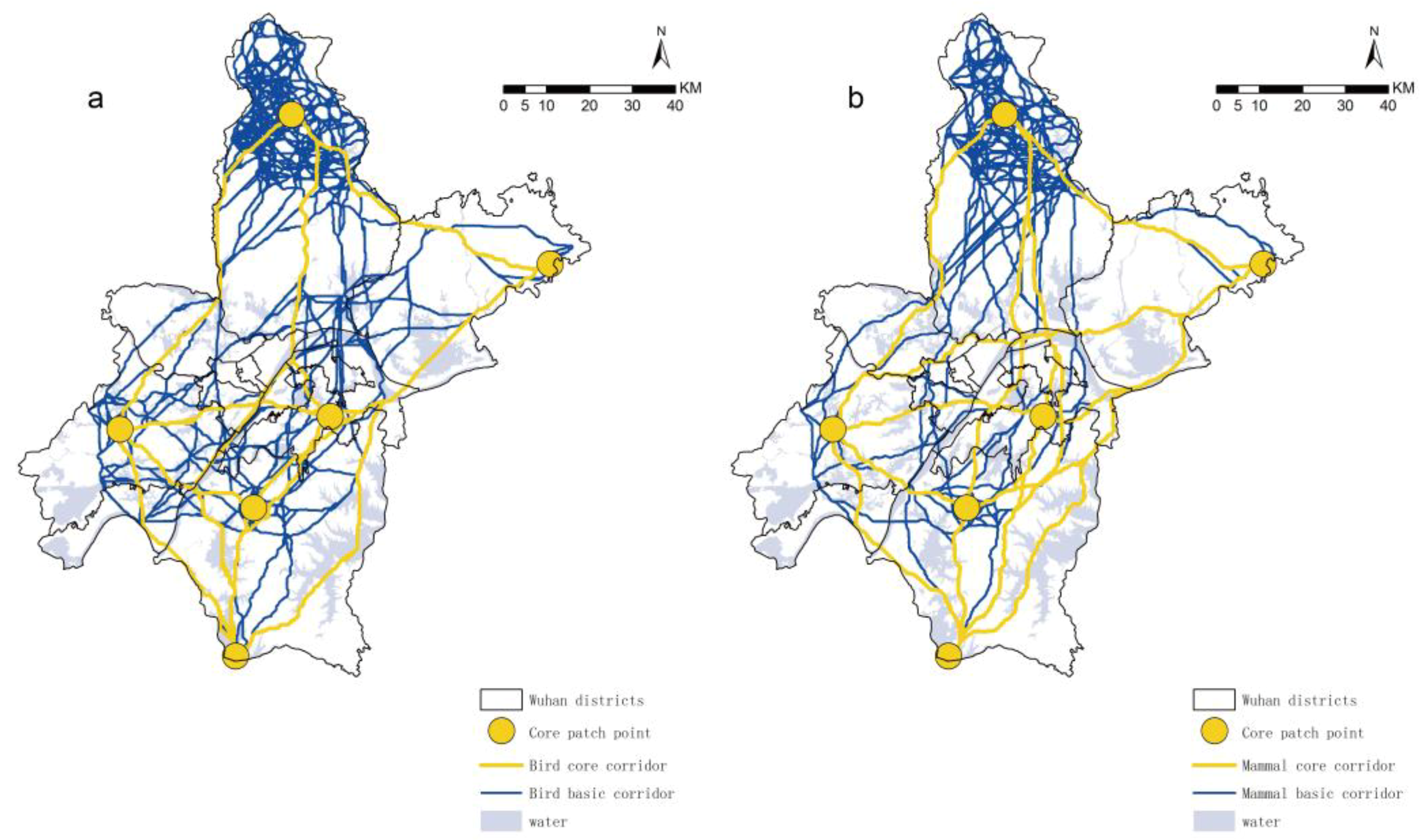

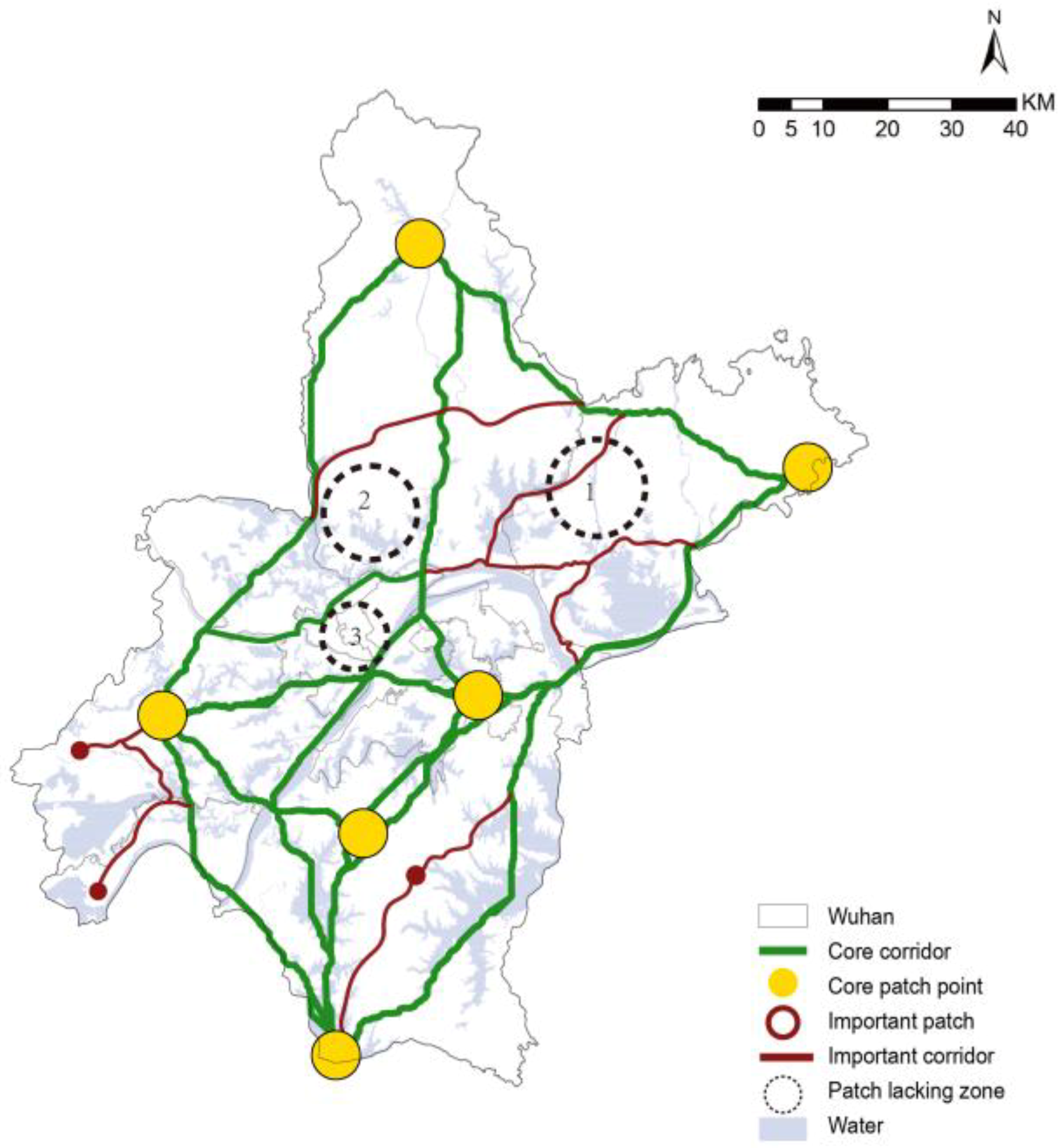

Under the background of urban expansion, ecological protection cannot be delayed. The construction of ecological networks is of considerable significance to ecosystem services. However, in the process of constructing a corridor network, there is no uniform standard for the selection of ecological sources and the determination of cost factors. The InVEST model is an effective complement to ecosystem service assessment for sensitively measuring external threats and their threat intensity. Therefore, taking Wuhan as an example, we combined InVEST and the least cost path model (LCP) to construct a multi-target corridor network with comprehensive cost factors for birds and small terrestrial mammals. The results showed that: 1) The InVEST model provided a reliable basis for ecological source screening by demonstrating the distribution of habitat quality. 2)  The corridor with a length of 12–25 km presented a “U” shape, and the impact of urbanization on small terrestrial mammals was more significant than that of birds. 3) The integrated network pattern proposed by the "point-line-plane" principle would provide a reference for urban ecological construction and sustainable development.
Keywords: biodiversity; landscape connectivity; habitat quality; integrated network pattern; sustainable development; analytic hierarchy process biodiversity; landscape connectivity; habitat quality; integrated network pattern; sustainable development; analytic hierarchy process
MDPI and ACS Style

Tang, Y.; Gao, C.; Wu, X. Urban Ecological Corridor Network Construction: An Integration of the Least Cost Path Model and the InVEST Model. ISPRS Int. J. Geo-Inf. 2020, 9, 33.
