ISPRS Int. J. Geo-Inf. 2019, 8(4), 176;

Hot Spot Analysis versus Cluster and Outlier Analysis: An Enquiry into the Grouping of Rural Accommodation in Extremadura (Spain)
Faculty of Business, Finance and Tourism, University of Extremadura, 10071 Caceres, Spain
Faculty of Letters, University of Extremadura, 10071 Caceres, Spain
Author to whom correspondence should be addressed.
Received: 13 February 2019 / Accepted: 1 April 2019 / Published: 4 April 2019


The importance of the distribution of accommodation businesses over a certain area has grown remarkably, especially if such distribution is mapped using tools and techniques that utilize the territory as a variable in the analysis. The purpose of this paper is to demonstrate, by means of a geographical information system (GIS) and spatial statistics, that it is possible to better define the groupings of rural accommodation available in Extremadura, Spain, especially if these are conceptualized by dint of their lodging capacity. To do so, two specific techniques have been used: hotspot analysis and outlier analysis, which yield results that prove the existence of homogeneous and heterogeneous groups of accommodation businesses, based not only on their spatial proximity but also on their lodging capacity. On the basis of this analysis, the regional administration can devise tourist policies and strategic plans in order to improve the management and efficiency of each business. Despite the applicability of the present results, this study also addresses the difficulties in using these techniques—Where establishing the spatial relationships and the boundary distance are key concepts. In the case study here, the ideal configuration utilizes a fixed distance of six miles.
hot spot analysis; cluster and outlier analysis; rural tourism; rural accommodation; Extremadura

1. Introduction

The number of accommodation businesses has experienced a significant rise in Extremadura, one of the landlocked regions of Spain, typically characterized by its peripheric, borderland status. In addition, transport infrastructure is based on roadways, whereas other means of transportation are limited and cannot structure the region efficiently [1,2]. Extremadura, a region that chose to implement expansive tourist plans—Sometimes incoherent and lacking in planning—Also paid no attention to its limitations. For example, its rich heritage has often been overrated, as it is very difficult to make it a profitable tourist resource by configuring it into a manageable product [3].
Despite the above, political leaders of the administration strive to point out the development of the tourist industry by highlighting the rise in the region’s lodging capacity. However, they fail to mention that the occupancy rate is very low, especially among rural accommodation businesses. Of course, they also overlook the fact that tourists and visitors have not grown at the same pace as available accommodation, which has resulted in a critical imbalance during the recent economic crisis. Also, it is not uncommon to see general analyses made about the whole region, thus neglecting the diverse situations that different towns may specifically have. Furthermore, there have been no geographical studies where the basic unit is the accommodation business; at best, previous analyses have been based on the municipality as a unit of measurement, which is enough to have a rough idea at the regional level, but obviously necessitates further investigation (Figure 1a). In this regard, it is worth mentioning that municipalities involve a high degree of variation, since they contain a varying number of accommodation businesses and, consequently, a varying lodging capacity. This is the justification of a territorial analysis that takes into consideration the location of the rural accommodation businesses, as well as their main features—among which the number of available beds (lodging capacity) is a significant parameter (Figure 1b).
In line with the above, it must be noted that the overall rural accommodation network in Extremadura has been growing steadily in its two basic modalities: rural hotels and rural lodgings, the latter also comprising the specific subdivision of rural apartment hotel/lodging. According to the data from the Survey on the Occupancy of Rural Tourist Lodgings (EOTR in its Spanish initials), published by the National Statistics Institute (INE), there were approximately 104 businesses of this type in 2001, and in total 939 beds available [4]. However, by 2018, according to the Registry of Tourist Activity of the Extremadura Regional Government, there exist 797 rural accommodation businesses and the lodging capacity amounts 8485 beds [5].
Rural accommodation occupies 841 direct employees [4] and indirect employees should also be added to this total. These values are very low if we take into account the numerous attractions of Extremadura and in particular if it is considered that in December 2018 there were 114,000 unemployed workers in the region [4]. This figure represents an unemployment rate of 23.1% but the situation is made worse by the fact that the rate for men is 18.6% while that for women is as high as 28.8%. For this reason it is necessary to encourage the development of rural tourism by offering tourist products adapted to the area, although in order to do so we must understand the problems faced by accommodation establishments and contrast it with the enormously rich heritage of the area.
Yet, this increase has been more intense in some areas, which makes it necessary to carry out a geographical analysis in order to get an approximate idea of the present situation. Admittedly, there have been interesting studies that have performed territorial analyses on a local level [6], but have failed to be precise enough to pinpoint each hotel/lodging.
The analysis area spans 4,163,400 ha—1,257,787.05 of which are protected because of their biodiversity, since they comprise ecosystems highly valuable for wildlife, especially in the case of birds. The area includes the Monfragüe National Park, one of the best preserved examples of Mediterranean forest in Europe [7], as well as several Special Zones for Birdlife Protection (ZEPA) and Special Protection Zones (ZEC). This wealth of wildlife is complemented by a diverse cultural heritage that is epitomized by symbolic tourist destinations like Cáceres, Mérida or Guadalupe—all of them United Nations Educational, Scientific and Cultural Organization (UNESCO) World Heritage Sites—Together with other towns that have been granted Historical Grouping status, such as Trujillo, Plasencia, Badajoz, Zafra, Hervás, and so on.
However, this rich and varied heritage is often hampered by certain limitations, as is the case with communication infrastructures, the loss of population and its aging, not to mention its marginal geographic location on the periphery. In a way, Extremadura seems to have been neglected by the state government for decades as regards the modernization and diversification of communications. As a result, its progress was slowed.
In light of this, the development of the tourist industry represented a significant achievement, and it was publicized as such by the regional administration—their political discourse focusing on the enlargement of the lodging capacity, as recorded in the official publications that have been favored as planning tools for the industry. The latest Extremadura Tourist Plan that is still in force [8], provides a general overview of the whole of the region, and is mostly quantitative; e.g., it highlights the growing trend of the lodging capacity. This is not in line with some studies that throw in relief the poor management of the data on the whole, especially when territorial heterogeneity is not factored in. Thus, even at the local level, important discrepancies in the lodging capacity are to be found [1].
The latter research trend is also present in other distant and diverse areas, where the analysis of the tourist offer, while focusing on the available accommodation, has been carried out scrupulously. This has corroborated how important the concept of distribution is—not only over time, but also across a territory. This research trend has been replicated on different geographical scales, whether they refer to specific areas of the planet [9,10] or specific countries [11,12]. At the same time, similar studies have also narrowed their scope to investigate individual segments of the industry, such as birdwatching tourism [13] or, in broader terms, ecotourism [14].
In the Spanish context, the analysis of the distribution of the accommodation offer is gaining ground among tourist analyses, as can be seen in the relevant literature from different periods—Whether they focus on large areas, generally speaking on a national level [15,16,17,18] or on smaller areas [6,19,20,21] like regions and other administrative divisions.
Despite the growing number of publications to do with the distribution of the accommodation offer, more often than not these studies are circumscribed to the temporal distribution of said accommodation or to a spatial analysis that only considers territorial areas above the local level (NUTS-1 to NUTS-3) for their statistical analysis. Nevertheless, there are also notable exceptions where the focus is placed on the municipality as the axis on which the analysis pivots—the analysis of the accommodation offer and the whole of the tourist system [3,22,23].
From a technical outlook, different types of analysis have been carried out in order to account for the distribution of the lodging capacity. Among these, some studies stand out because of their attempt to synthesize comparatively a particular methodology that is based on theoretical, empirical and operational models [24]. Other instances of related research choose to use genetic algorithms to account for the present distribution and subsequent inferential analyses [25]. Others have made use of spatial statistics such as geographically weighted regression (GWR) to account for the distribution [26,27] or some particular features, such as the price [28,29].
This brief literature overview shows how diverse the quantification techniques are, although it also points to a notable overlap in the use of a specific tool, the geographical information system (GIS), as a basic instrument to map and analyze the distribution of the accommodation offer.
Recent research tends to favor quantitative analyses, where it is not uncommon to find cluster analysis as a means to complement a factor analysis [22] so as to define homogeneous tourist areas. In addition, it is also utilized as a fundamental technique when it comes to ascertaining its impact on local development when it depends on sustainable tourism [30] or when multiple choice models are used in order to arrive at the tourist potential of a given destination [31].
Despite the diversity in topics and techniques, there exist few studies that make use of grouping techniques to analyze the distribution of the accommodation offer [2] or the degree of tourist development of an area [32]; although its use is quite common when the focus is placed on other aspects of tourism, such as economic and environmental efficiency [33] or the effects of the collaborative economy on urban tourism [34]. In all, although the role of the geographical territory in the distribution of the accommodation is universally acknowledged—While at the same time the use of a spatial tool such as GIS is common practice—It comes as a surprise that the most popular geostatistical tools have been overlooked for the most part. This is especially the case with those that are implemented in the most widespread GIS software, ArcGIS.
On this basis, and given the lack of studies analyzing the distribution patterns of the accommodation offer in areas, like Extremadura, where the tourist industry has bloomed in recent times, the authors believe that it is necessary to ascertain whether those patterns actually emerge. In this regard, the basic reference unit has to be the location of the accommodation business so as to determine whether they—and their derived lodging capacity—Cluster around certain areas.
The main innovation in this study is the application of spatial grouping techniques, not only to find out patterns at a level of disintegration not previously tackled in the analysis of tourist spaces but also to apply this knowledge in the planning and diversification of the rural accommodation available in Extremadura. For this reason the study proposes the use of two techniques with the aim of discovering spatial clusters and detecting anomalies. These are hot spot analysis and cluster and outlier analysis. The main objective of both techniques is the detection of territorial patterns of the distribution of a variable although their conceptions differ. The former seeks to locate accommodation clusters which have in common their capacity of lodging either a large or small number of people. This has been one of the most frequently used techniques for determining distribution patterns [35]. The latter enjoys widespread acceptance in the literature on spatial analysis [36,37,38] and will serve as a complement to indicate the places where rural lodging or hotels appear with a very different capacity to that of the surrounding area.
This type of mapping cluster techniques has been selected because it gives specific results for each of the accommodation establishments analysed.
The use of both techniques will give rise to different results as the conception of their formulation also varies. This will serve to determine which of the two is more useful for detecting clusters based on the accommodation capacity in rural areas, owing to which we decided to use the same criteria for distance and its configuration. The conception of the criteria for considering the neighbourhood takes up part of this research as there are multiple forms of using it.
Our main hypothesis here is that there is a conspicuous distribution of the offer among rural tourist accommodation, where some areas are favored over others. Still, it is also true that the accommodation businesses in some of these areas do not have a uniform distribution, unlike in the case of their lodging capacity. This is why, if possible, specific grouping patterns must be mapped; i.e., groups of businesses with a similar lodging capacity. If this hypothesis is proven true, the regional government would be able to devise tourist policies that would lead to an improvement in the management of the destinations involved and the services they provide, since the well-defined groupings would constitute mini-clusters with their own particular features and specific needs. This working hypothesis is grounded on the basic goal to establish rural accommodation areas with specific characteristics, which necessitates analytical methods that can synthesize statistical techniques and the geographical element. Therefore, two types of geostatistical techniques are used in this study: one of them focusing on establishing similarity patterns and the other on finding similarity patterns and anomalous values; namely, hot spot (Gi* de Getis-Ord) analysis and cluster and outlier (Anselin local Moran’s I) analysis, respectively. These two techniques will not only enable us to fulfil our research objective, but also to find potential discrepancies, thus corroborating our initial hypothesis as a result.

2. Materials and Methods

The materials that have served as the basis of the present study stem from two different official sources.
On the one hand, the cartography was retrieved from the official web portal of the National Geographical Institute [39], where these resources are freely available to researchers, in particular the National Topographic Database. The National Topographic Database for Extremadura at a 1:100,000 scale (BTN100) [40] has been downloaded and codified.
This cartography comprises a set of referenced geographical data that can be implemented on a GIS, thus allowing a general overview of several natural and human factors in the area. This is a continuous geographical database with a resolution of 20 m where the information is stored in geographical coordinates. It uses the European Terrestrial Reference System 1989 (ETRS89) as a geodetic reference system, which is also the official geodetic system in Spain for cartographic purposes both for the Iberian Peninsula and the Balearic Islands [41]. It brings together geographical information from different official sources and its structure is based on the geographical object classes that can be represented at the aforementioned scale. It employs simple geometry (points, lines, and areas) and it does not have explicit topology labels—although it does map precise spatial relationships between different geographical objects so that the topology can be directly derived. Data is classified into seven themes—Each comprising different geographical object classes and, in turn, each class stored in a different table [42].
On the other hand, the alphanumeric database of the accommodation offer in Extremadura was retrieved from the Extremadura Turismo official website, which is run by the regional government (last updated on 31 December 2018) [5]. The basic information was retrieved from this site, later to georeference each of the existing businesses that are officially recognized by the administration as specific entities.
Given the wide range of accommodation offer, it was later simplified according to the typology of each business. Thus, businesses were classified as providing hotel, extra-hotel, and rural accommodation—The latter being the relevant category for this study. Both databases enabled the authors to design and develop a GIS application through ArcGIS v. 10.5. This brings together geographical and tourist information (Table 1).
This GIS application allows for different techniques to be implemented in order to determine the groupings that can be found in the area under analysis. The use of these techniques has been widely documented in the relevant literature from the 1980s to the present day, often in studies that concentrate on finding synthetic [43,44,45,46,47,48] and local [49,50] indicators, as well as in comparative studies considering those geostatistical indicators [51,52].
There are also some relevant bibliographical references for the geographical context in this study [6,27,53], although they are circumscribed to the capital of different muninicipalities. This implies a higher aggregation level than in the present study, as their functionality is based on the use of a larger unit that comprises all the existing accommodation businesses within it.
According to the relevant literature, there are several specific techniques that would reveal groupings by using a spatial autocorrelation regression at the local level. The hotspot analysis (based on Gi* de Getis-Ord) and the cluster and outlier analysis (based on Anselin local Moran’s I) have been chosen to analyze the accommodation distribution patterns. These geostatistical techniques are complementary, although they are fundamentally different in their outlook, as established in previous research [51,52].
The hotspot analysis seeks to identify groupings within an area. These groupings may either represent high or low values of a given variable, which correspond to hot and cold spots, respectively. In order to identify these spots, a hot spot analysis (Getis-Ord Gi*) has been carried out, which can be implemented through the Mapping Clusters tool—available in the Spatial Statistics Tools suite of ArcGIS. This method is defined according to the following mathematical formula [54]:
G i * =   j = 1 n w i , j w j X ¯   j = 1 n w i , j S [ n j = 1 n w i , j 2     ( i , j n w i , j ) 2 ] n 1
where x j is the attribute value for feature j; w i , j is the spatial weight between feature i and j; n is equal to the total number of features and:
X ¯ =   j = 1 n x j n S =       j = 1 n x j 2 n ( X ¯ ) 2
Theorem 1.
Mathematical expresion used by ArcGIS to calculate the hot spot analysis.
Its use in ArcGIS, as in the case of spatial relationships, has been widely documented in the literature [55,56,57]. It consists in finding each entity within its surrounding area, and therefore the neighbourhood is one of the key elements to establish the groupings. In terms of the interpretation of the results, it is worth noting that whenever a spot reaches a high value it automatically becomes relevant from the point of view of the tourist offer, although it may not be a statistically significant hotspot; i.e., if it is isolated. Such a case makes it difficult to generate mini-cluster structures that would allow for holistic products or policies to be implemented. In order for a spot to be considered a statistically significant hotspot, it must have a high value and be surrounded by others that also have a high value. The local aggregate for an entity and its surroundings is compared to the proportional aggregate for all the entities. When the local aggregate deviates significantly from what is expected, and the deviation is too large to be due to a random occurrence, it is obtained, as a result, a statistically significant z score [58].
The cluster and outlier analysis, by contrast, identifies groupings or anomalous values according to the criterion of proximity. This analysis identifies five types of geographical class. On the one hand, this technique identifies spots that have either high or low values in concordance with their surroundings. On the other, the analysis identifies anomalous areas where a spot has a value that is very different from the neighbours, whether much higher or lower. There are also cases where no associations can be made.
The mathematical formula for this analysis, as used by ArcGIS [59], is as follows:
I i =   x i   X ¯ S i 2   j = 1 ,   j i n w i , j ( x j   X ¯ )
where x i is an attribute for feature i, X ¯ is the mean of the corresponding attribute, x i , j is the spatial weight between feature i and j, and:
S i 2   =   j = 1 ,   j i n   ( x j   X ¯ ) 2 n 1
With n equating to the total number of features.
Theorem 2.
Mathematical expression used by ArcGIS to calculate the cluster and outlier analysis.
Whereas the application and the theoretical framework of the techniques used is unproblematic, the same is not true for conceptualizing the spatial relationships or selecting a distance method. There are several options when using punctual geometry [60,61,62]. Under these circumstances, the three most plausible spatial relationships are the following:
inverse distance, which is based on the premise that the farther away an element is, the smaller the impact it has;
inverse distance squared, that only differs from the previous one in that the slope is sharper, so neighbour influences drop off more quickly;
fixed distance band, whereby the neighbouring features within a set distance of influence are weighted equally (1 in this case), whereas features outside the specified distance do not influence calculations (their weight is zero).
Among the three methods outlined above, the last is the most commonly used in the literature [46,59]—Even though it assumes that there is a similar relationship among all the spots within a set distance band, once beyond said distance, the relationship disappears altogether. In other words, there is no transition area, which may seem logical. By contrast, the use of the inverse distance and inverse distance squared methods does show clear transition areas (Figure 2). Due to the differences between the first two methods and the third, it seems logical to use any of the inverse distance methods to determine the criterion of proximity, instead of using a fixed ‘bandwidth’.

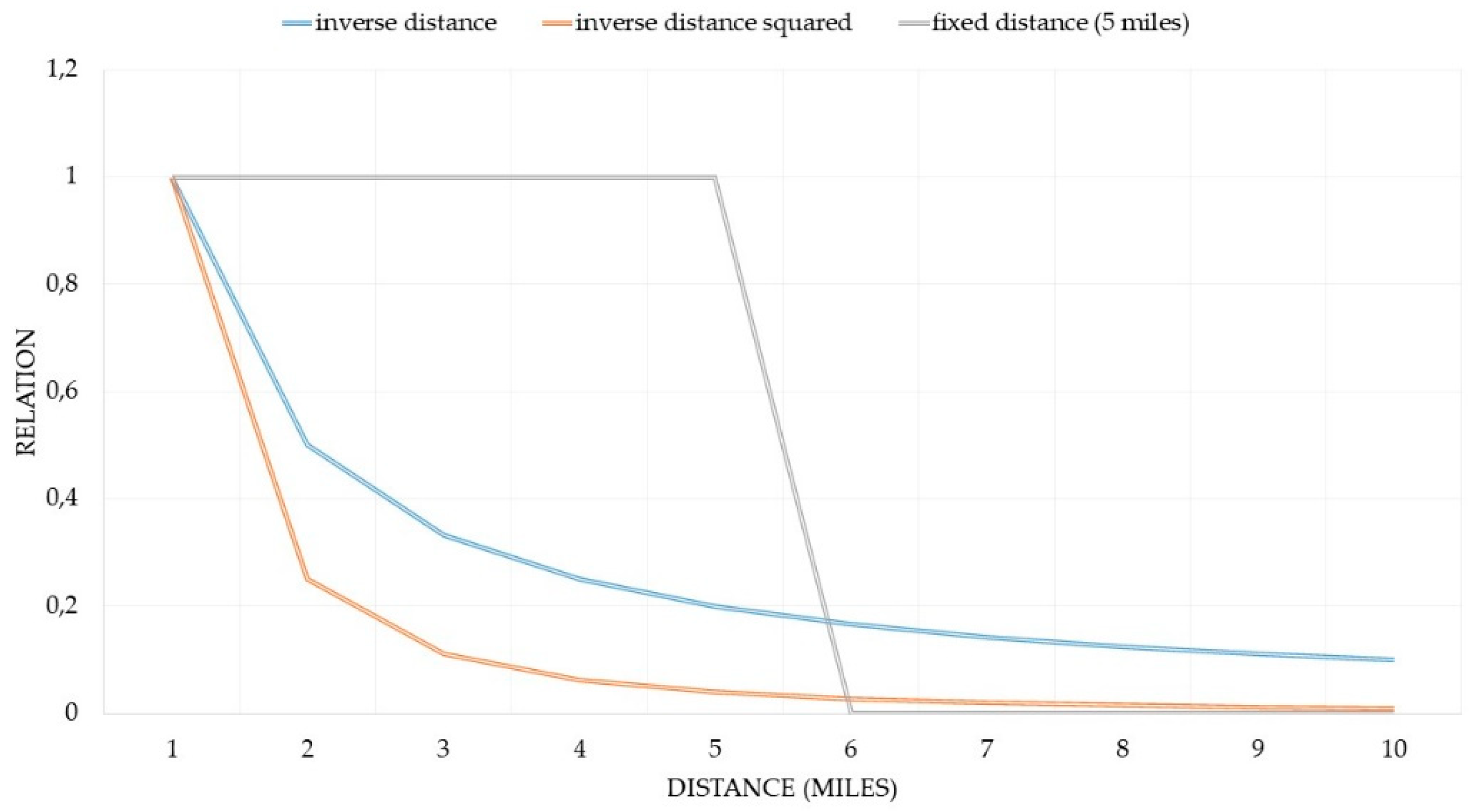

As can be observed, the criterion for considering distance reflects various possibilities. A fixed distance implies the total disappearance of the neighbourhood effect as from 6 miles. In the case of inverse distance there is a sharp drop from 2 miles which is particularly noticeable in the case of inverse distance squared. Albeit in a much reduced manner, in these last two conceptions of distance the neighbourhood effect persists even at a distance of more than 10 miles.
Given the uncertainty as to the convenience of each method, both types will be tested in order to establish which one is best suited for the study area.
By contrast, the calculation methods for the distances between neighbours has been widely discussed in the literature [63,64]:
Euclidean distance, which uses the straight-line distance between points A and B; i.e., the shortest possible distance.
Manhattan distance, when the distance between two points is measured along the x and y axes; i.e., it is the distance you must travel if you are restricted to north–south and east–west travel only.
If using a criterion for distance is not without its problems, much the same happens when it comes to choosing a calculation method for that distance, because in both cases the distances are estimates, not real, as the software does not allow for that possibility. Despite this, there is a noticeable trend in the literature to favor the use of the Euclidean distance instead of the Manhattan distance, and the implications this entails. If one chooses the shortest (Euclidean) distance, the margin of error in mountainous areas will be larger—The straight-line distance is considerably shorter than the road distance. However, if one opts for the Manhattan distance, errors will be larger in flat areas, given their typical road layout.

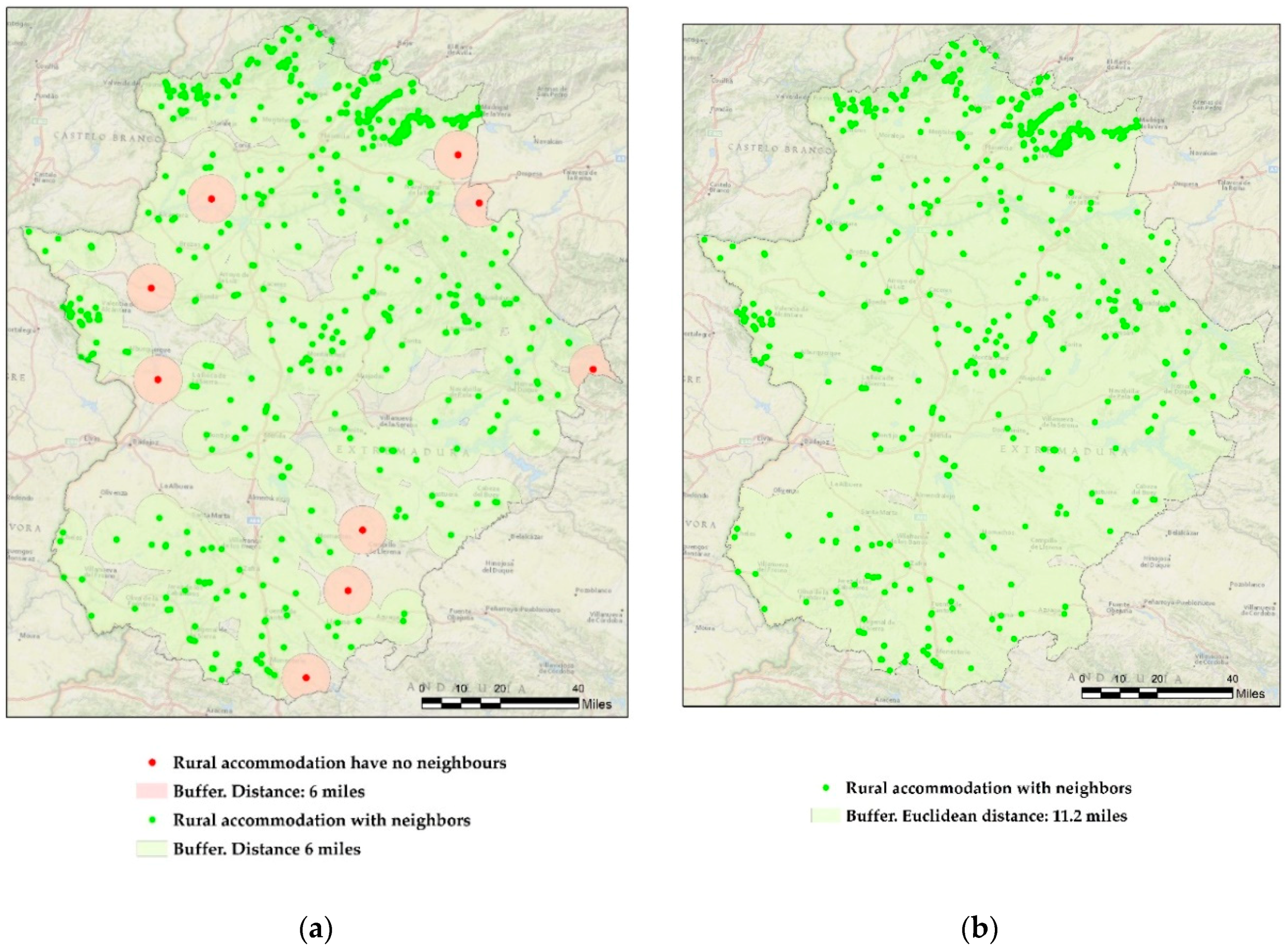

In addition to choosing the most convenient method, it is also necessary to establish the range that will be used as a boundary distance for these techniques. In view of the innumerable options available for this parameter, three critical distances have been used: the first one is a Euclidean distance of 11.2 miles, which ensures that all accommodation businesses have at least one neighbour; a Manhattan distance of 14.3 miles, which also ensures a neighbour and, finally, after several trial tests, a Euclidean distance of 6 miles (Figure 3a). This distance is noticeably shorter and there are only 9 rural accommodation businesses that do not have a neighbour within it. Obviously, if a longer distance is chosen, all of them will have at least a neighbour (Figure 3b).
The reason why the distance of 6 miles has been selected as a limit is because if we use bandwidth only 9 of the 797 rural accommodation establishments in the study area lack neighbours, which amounts to only 1.1% of the sample. Meanwhile, achieving the condition that all lodgings have a neighbour using the 11.2-mile criterion implies the increasing of the neighbourhood relationship in an artificial manner. It should, therefore, be emphasized that from 6 miles to 11.19 miles only 9 lodgings are omitted. For this reason the options used have been these two distances (6 and 11.2 miles), which mean the difference between including all the cases of the sample or omitting 9. To add to all this, as distance is increased the calculations consider a higher number of lodgings and the clusters are thus qualified by this parameter.
On the basis of what has been described thus far, the following options have been selected for the calculations. The suitability of each one for the actual characteristics of our object-study will be dealt with in the Discussion (Table 2).
In short, the method here begins with the compilation of data, its implementation in a GIS, and the application of the two techniques described above. The results and discussion thereof will be derived from them (Figure 4).

3. Results

3.1. Hot Spot Analysis

The results of the hot spot analysis, which considers the number of vacancies available at rural accommodation businesses as a variable, show some groupings in the study area.
There are very specific areas that constitute hot spots, such as La Vera or the Zafra-Bodión River, whereas there is a noticeable cold spot in the vicinity of the Sierra de Montánchez—in addition to others that are not so intense in the Sierra de Gata area. However, depending on the method used to establish the boundary distance, results vary significantly. Thus, noticeable variation occurs depending on the spatial configuration, with more compact groups appearing when a fixed distance is used (Figure 5a), whereas the use of the inverse distance (Figure 5b) and inverse distance squared (Figure 5c) methods yield quite similar results, making clusters with lower statistical significance.

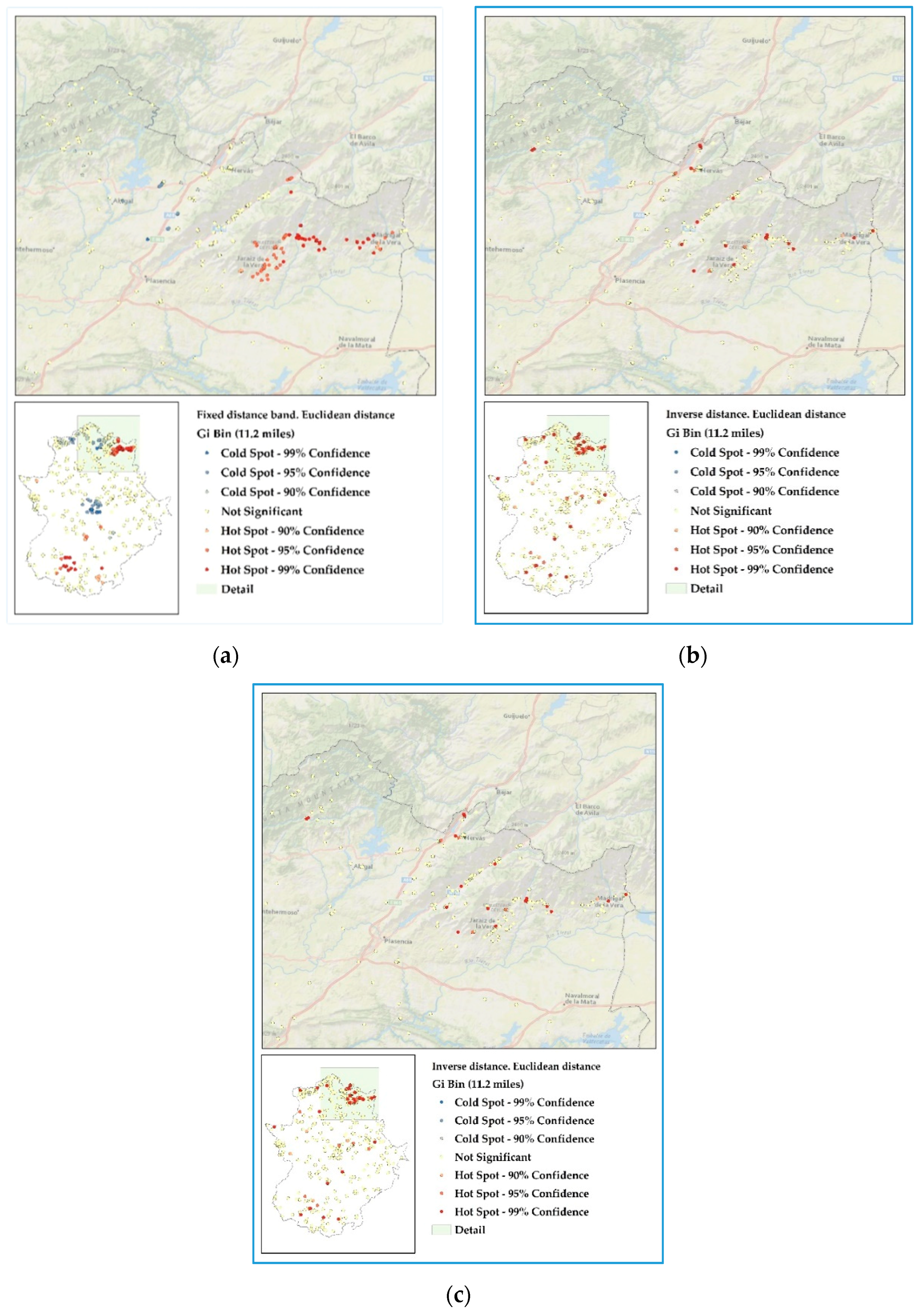

In order to illustrate the different spatial relationships, equal distance has been used, and it has only been ensured that each lodging business has a neighbour (11.2 miles).
In light of the above comparison, the best results are obtained when a fixed distance is used as a criterion to conceptualize spatial relationships.

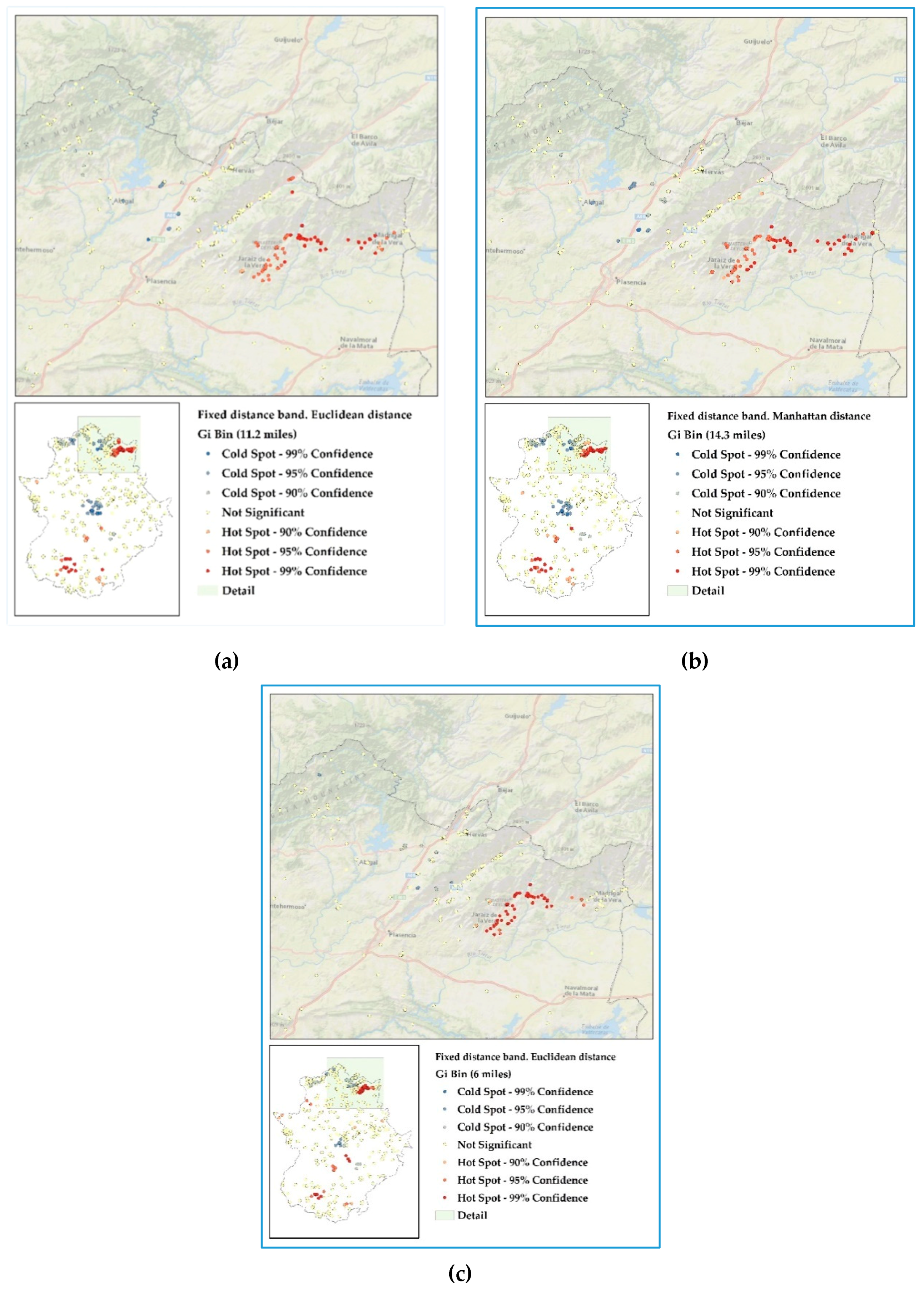

Also, when different methods are employed to calculate the distance, the results are also varied. Thus, for example, when the Euclidean distance is used, while making sure that every point has a neighbour the distance equals 11.2 miles (Figure 6a), whereas if the Manhattan method is chosen, the figure reaches 14.3 miles (Figure 6b). It can be observed, therefore, that the most suitable method is the Euclidean, given that it is not possible to use the real distance in our calculations. However, it may be argued that the distance used in order to ensure that each point has a neighbour is too high. This is why, after several trial tests, the boundary distance has been reduced to 6 miles (Figure 6c). Below this distance, the criterion of proximity would disappear and, as a consequence, groupings could not be detected.
Results show notable similarities, regardless of the method used to establish the boundary distance, which led us to choose the most restrictive one for this criterion.
As shown, the best results for this technique have been obtained by conceptualizing spatial relationships through a fixed bandwdith of 6 miles, where the hot spot in La Vera has a reliability of 99%.
Therefore, in order to carry out a hot spot analysis on the lodging capacity of the rural accommodation businesses in Extremadura, a fixed bandwidth with a Euclidean distance of 6 miles must be used (Figure 7).

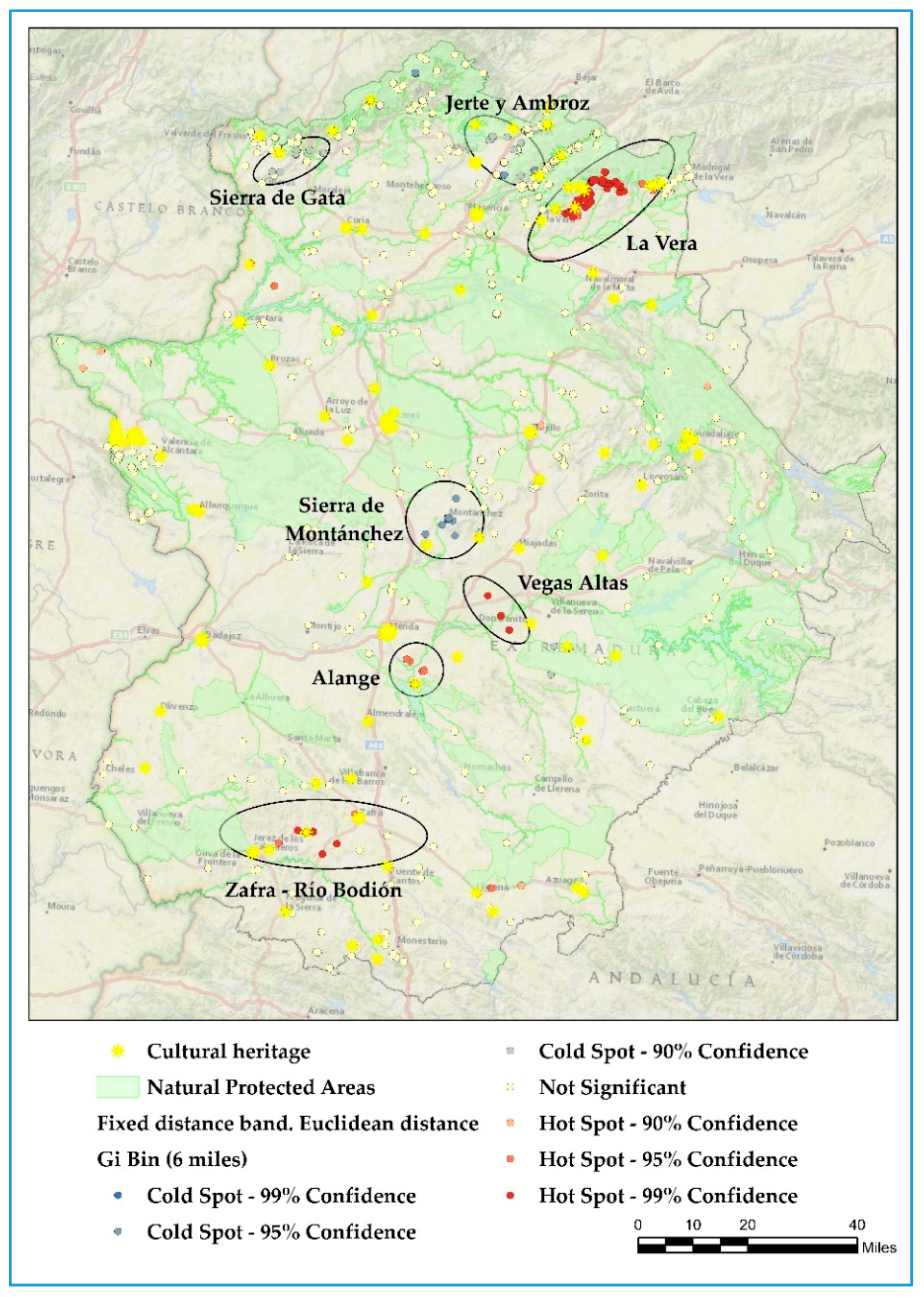

The results that have been obtained for the lodging capacity with the final configuration for the hot spot analysis show a series of hot spot groupings. These are located in very different areas in terms of tourist structure. The largest area (and the one that deserves the most attention) is La Vera; while other, smaller areas also emerge from the data, such as the Zafra-Río Bodión area, as well as the Vegas Altas del Guadiana and the surroundings of the Alange reservoir. Likewise, there exists a significant cold spot in the Sierra de Montánchez, together with weaker, scattered ones in the north of the province of Cáceres, in the Jerte and Ambroz Valleys or Gata.
It is also worthy of note that the areas that are not significant span a vast zone, due to the heterogeneous nature of the variable under analysis and, as a result, the difficulty of making homogeneous groupings. This lack of statistical significance stems from the absence of neighbours, which makes it difficult to implement tourist policies conducive to promote rural accommodation in a specific, customized manner. This is connected both to the characteristics of the businesses and to the area itself. These two factors reveal themselves as limiting because of the large discrepancies in the lodging capacity among neighbours.
The relevant results for each of the clusters have been summarized in the table shown below (Table 3).
To be precise, the hot spot analysis has detected 4 areas in which numerous rural accommodation establishments offering a large number of beds are concentrated (La Vera, Vegas Altas, Zafra-Río Bodión). As a consequence of this, the administration must carry out specific analyses on their viability, which is essential if we take into account that the average occupation of this kind of establishment is less than 20% for the year as a whole [5]. This low occupation rate is made worse by the existence of a marked seasonal variation in which the months of July and August account for over 50% of the overnight stays; next come two long weekends to coincide with Easter (March or April) and the Day of the Constitution (December) [3]. Given that the clusters share common characteristics and close proximity, it is possible to generate tourist products designed to exploit the enormous potential of the cultural and natural heritage of these spaces. It should be mentioned that the demand for the cluster detected in the district of La Vera is mainly that of the summer months as certain studies point out [58], since the tourists travelling to this area seek lower summer temperatures and bathing areas. Notwithstanding this, the area contains a significant cultural heritage and has been declared a Historical Ensemble owing to its villages of Villanueva de la Vera, Valverde de la Vera, Pasarón de la Vera, Garganta la Olla, and Cuacos de Yuste, together with a natural heritage in the form of Special Conservation Areas (Zonas de Especial Conservación, ZECs) such as that which connects the Sierra de Gredos, the Jerte Valley, and the Monasterio de Yuste. Both types of resource lack specific products focussing on well-organized tourist development which should be supervised by the administration. Given this lack of products, it is the tourists themselves who enjoy the area freely and without hindrance, which goes against the very sustainability of these fragile environments.
The situation described in this cluster is also to be found in the area of Alange. Despite this it is surrounded by the remains of an important Roman cultural heritage as is shown by its proximity to Mérida, which has been declared an Archaeological Historical Ensemble by UNESCO and is a World Heritage City. Moreover, the latter shares its history with Alange, the main attraction of which are its thermal baths of Roman origin together with the Alange Reservoir which is ideal for practising sailing and other water sports. As in the previous case, the activity generated in the surrounding area is limited and uncoordinated, which is no doubt conditioned by the lack of specific plans [58]. A very similar situation can be observed in the Vegas Altas areas where 3 accommodation establishments appear.
A vey different case can be appreciated in the Zafra-Río Bodión area, which boasts an outstanding cultural heritage consisting of Historical-Artistic Ensembles and also natural areas of interest including, in particular, the pasturelands known as dehesas which are underexploited from a tourist point of view. In this space a considerable number of accommodation establishments are concentrated which would allow specific tourist products to be designed centred on the dehesa and its most emblematic product, the Iberian pig.
The technique also describes three cold spots located in the Sierra de Montánchez, the Jerte Valley, and the Ambroz Valley, and also in the Sierra de Gata. These cold spots are characterized by containing lodgings with low accommodation capacities. This circumstance contrasts with their potential as the areas hold numerous natural and cultural resources to attract tourists. Nevertheless, the situation of these areas is similar to that detected in the hot spots where there is a deficiency of tourist products sponsored by the administration.
The results show that some lodgings are concentrated in very specific areas with a low accommodation capacity and that in other areas the situation is the opposite. Despite this it can be observed that numerous tourist resources are present in each of these areas. However, no tourist policies adapted to each of these situations exist. Far from implementing them, at best the administration puts its faith in generic advertising campaigns which are little suited to the diversity of Extremadura and the varied circumstances of the availability of tourist accommodation [27].
The results suggest that most areas contain rural accommodation businesses with a wide range of lodging capacities, except for some specific areas that have either very large or very small lodging capacities—thus becoming hot or cold spots, respectively. These areas may be the target of development plans, given that they share common characteristics. Also, it can be observed that the average lodging capacity varies noticeably among hot and cold spots.

3.2. Cluster and Outlier Analysis

The cluster and outlier analysis has been used to verify and complement the hot spot analysis, because it allows to detect both groupings and areas where anomalies exist. Therefore, its results show aspects that may have been overlooked in the hot spot analysis but are interesting highlights, especially in those areas where different types of groupings coexist.
The results of this analysis (with a fixed bandwidth with a Euclidean distance of 6 miles) are very significant, especially when considering that, for ease of reference and for comparative purposes, the criteria have been the same as in the hots spot analysis
First of all, there are several significant areas that overlap with those identified by means of the hot spot analysis, although minor differences also occur. Second, new areas emerge between which relevant relationships are established. Finally, some isolated accommodation businesses are also to be found in certain areas. Despite this, it must also be noted that there are many rural accommodation businesses that cannot be incorporated into a cluster (Figure 8).
The presence of clusters (HH or LL) or outliers (HL or LH) is most conspicuous in the areas where rural tourism is particularly popular; namely, the north of Extremadura, where groupings can be found in the areas of La Vera, Valle del Jerte, Valle del Ambroz, and Sierra de Gata.
In addition to these areas, others also stand out, although they do not rank as high in this tourist modality. To wit, Sierra de Montánchez, Vegas Altas del Guadiana or Alange, plus a very specific area in the south of Extremadura, which overlaps to a great extent with the administrative division Zafra-Río Bodión.
Whereas these are the zones that comprise the majority of businesses with shared characteristics, some others scattered across certain areas must also be taken into consideration, especially in areas like the Villuercas-Ibores-La Jara Geopark or the Tajo Internacional Natural Park.
High-High (HH) clusters can be seen in greater detail (Table 4) in the aforementioned areas of La Vera, Alange, as well as in Zafra-Río Bodión. This implies that these areas comprise accommodation businesses that have high lodging capacity, and so do their neighbours, at least to some extent. There are 47 businesses in this category, with an average of 18.06 beds. There also exist Low Outlier (LH) groupings, which indicates that two types of businesses coexist—Some with high lodging capacity and some with a much smaller one. The latter category consists of 47 businesses with an average of 8.21 beds.
By contrast, Low-Low (LL) clusters indicate that the areas they are in mostly contain accommodation businesses with little lodging capacity. Indeed, among the 39 in this category, the average is 6.9 beds. Meanwhile, the High-Low Outlier (HL) category consists of 22 businesses with an average of 15–50 beds.
As can be noted, this simple distinction allows to located specific areas where all rural accommodation businesses have a similar lodging capacity, although these groups cannot be detected in a large part of the territory due to the peculiarities of each establishment.
In a more specific manner, the territorial analysis which this technique permits corroborates the clusters detected by the analysis of hot spots, although it is much more illustrative and qualifies the clusters. The areas made up of La Vera, the Vegas Altas, Zafra-Río Bodión, and Alange (the hot spots) therefore bring together among the HH clusters some outliers of the LH type, which implies the coexistence of low-capacity lodgings mingled with other which are precisely the opposite.
Given the limitations of rural accommodation expounded by previous studies [3,5], the situation is even more delicate than that indicated by the analysis of hot spots, as the lower-capacity establishments have in principle more serious problems as their capacity to generate income is lower. The role of the administration in the promotion of products specifically orientated towards these areas is clearly a very passive one; it abandons to private enterprise the generation of tourist products that are poorly adapted to the circumstances of the area [3,27].
This disadvantage can also be appreciated in other key areas in the rural tourism sector in Extremadura, as is the case in the Jerte and Ambroz Valleys and the Sierra de Gata. These areas hold numerous Historical Ensembles such as those of San Martín de Trevejo, Trevejo, Hoyos, Gata, Robledillo de Gata, Hervás, Cabezuela del Valle, and Garganta la Olla. They are also complemented by ZECs in Granadilla, Las Hurdes, and the Sierra de Gata, which are also Special Bird Protection Areas (Zonas de Especial Protección para las Aves, ZEPAs). In these areas special tourist policies are needed so as to allow the sustainable and coherent exploitation of the delicate environment, although this is not generally done, or at least with continuity; again, the initiative lies in private hands and the products produced do not always respect the environment.

3.3. Comparison of Results

Both the analysis obtained by means of the Gi* and the LISA are capable of grouping rural establishments according to their accommodation capacity and depending on the distance specified (6 miles). Moreover there is a territorial coincidence in the groups identified. Nevertheless, when a standard deviation comparative analysis (Figure 9) is carried out of the detailed results obtained by each technique (Appendix A), certain differences can be observed.
As far as the analysis of the dispersal parameter is concerned (Z value), the Gi* of Getis-Ord is only capable of differentiating between hot spots and cold spots with a different level of confidence (90%, 95%, and 99%), whether owing to a concentration of lodging with a higher accommodation capacity or to the opposite. In other words, it establishes two groups with different confidence criteria. In contrast, the results of the local Anselin analysis I of Moran are more useful as it is capable of distinguishing 4 groups, which constitutes a significant improvement with regard to the first technique. These 4 accommodation clusters are the result of combining each point of lodging with its neighbours. This method determines the rural establishments which have low capacities and in their turn are surrounded by neighbours with the same characteristics (LL), which in principle would mean that the application of tourist policies common to them is viable. The situation is somewhat similar in the opposite case, i.e., when all the lodgings have a considerable number of beds (HH). However, two differentiated clusters exist in which some accommodation offers a lodging capacity that is very different to that of the neighbourhood (LH or HL).
The application of the Pearson index to the Z values of the Gi* and the LISA leaves no doubt as to their poor correlation since a value of −0.203 is obtained. This means that it is a case of two techniques providing different results, owing to which they may play a complementary role.

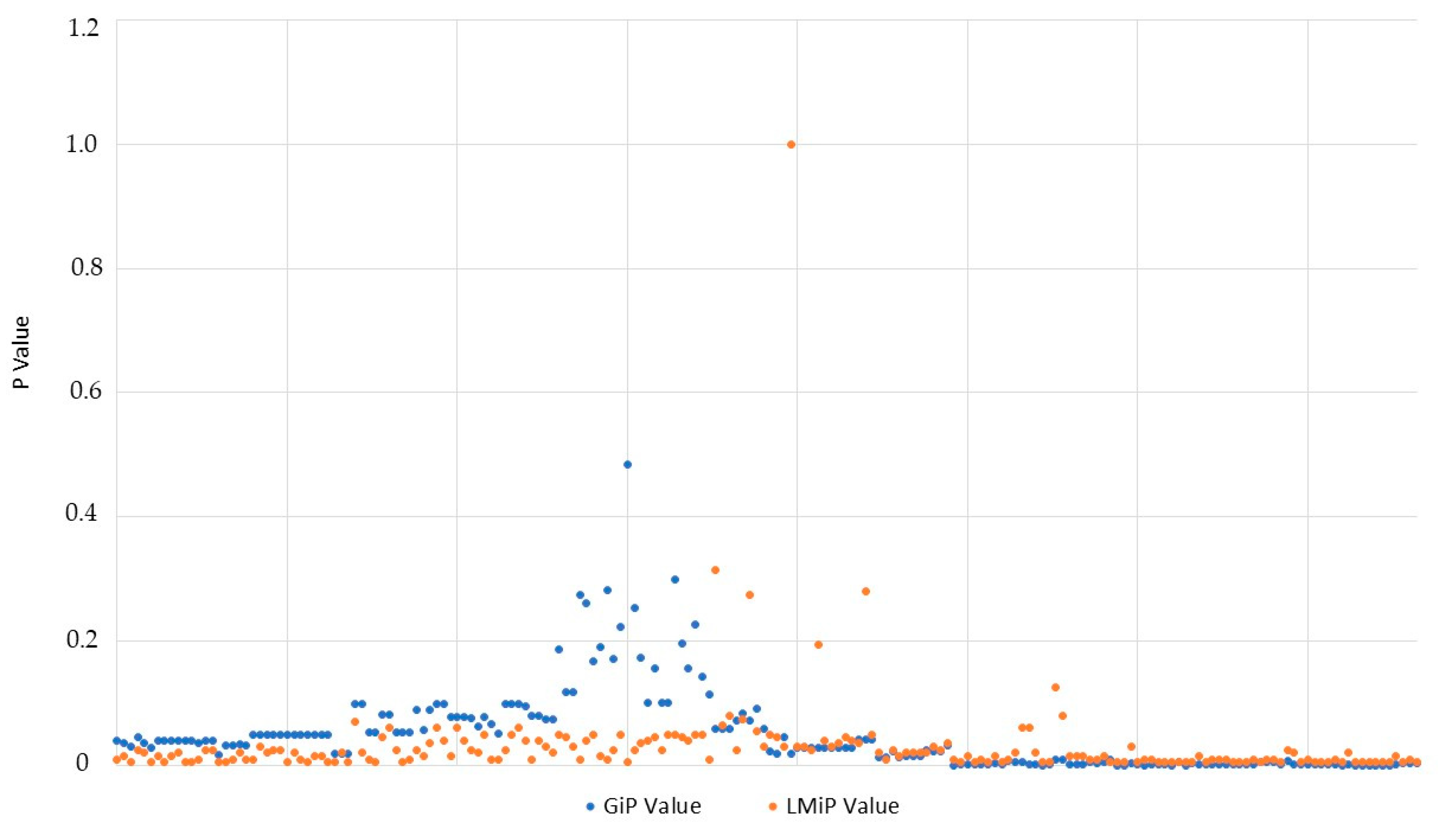

On the other hand, the analysis of the values measuring the probability that the randomness of the model (p value) obtained by each technique can be rejected reveals fewer differences (Figure 10), with values normally exceeding the critical value of 0.005. This probability and >1.65 or <−1.65 standard deviations imply that the null hypothesis on the randomness of the model can be rejected provided that it is taken into account that the accepted level of confidence is 90%. In other words, there is a marked crowding component.
Despite this, there are certain differences in the probability which affect above all the accommodation in the area which is more dispersed.
Once again the application of the Pearson index shows that the p values are not correlative as the index obtained is 0.049.
As can be observed in the two main parameters analysed by the techniques compared (z and p values), there are well defined clusters of rural establishments with common characteristics. Despite this and in view of the results, it is clear that the cluster and outlier analysis has more advantages than the hot spot analysis as it obtains mixed groups (outlier).

4. Discussion

Cluster mapping techniques have often been used to establish distribution patterns for a number of variables in areas like epidemiology [65], security [66,67], economics [68], etc. Tourist activity has also been part of this trend, which explains the growing interest in analyzing the distribution of different tourist elements through the use of cluster-mapping techniques. There are studies about the relationships of spatial dependency in tourist flows [69] or the distribution of the accommodation offer [20,70]; however, there are few relevant bibliographical references in the objects of this study [6,53,58,71].
Many of the studies that utilize geostatistics applied to tourism agree that geographical analyses must be carried out in order to complement the qualitative and quantitative variables. In contrast, in this study the spatial criterion has been analyzed in a different way.
However, choosing the right scale is certainly problematic, especially because the most common approaches are circumscribed to urban contexts and to a specific element within the tourist industry: the lodging capacity. The urban scale simplifies the analyses because it covers a restricted area, although the analysis becomes much more problematic when larger areas like provinces or regions are studied. This is due to two main factors. First, there is an intrinsic difficulty in georeferencing accommodation businesses because the data are grouped at larger scales such as the municipality level. Second, and the most complex of the two, there exists the tough challenge of establishing the type of spatial relationship and the boundary distance that will be used to find patterns. These two criteria are different in each area, and this means that they cannot be extrapolated to another one. Therefore this implies that multiple tests have to be run in order to arrive at a suitable combination for each specific case study.
In this regard, when the methodology that led to the study results has been described, the conceptualization of spatial relationships and the way to arrive at an ideal boundary distance have been decisive. The contrastive analysis of these elements has indeed allowed to ascertain the limitations of the cluster-mapping techniques; the hot spot analysis and the cluster and outlier analysis.
All the tests that have been run throw in relief that the best results are obtained when spatial relationships are established with a fixed bandwidth—even though this implies that there is no transition area as a result. In fact, it is assumed that up to the boundary distance, the relationship still exists and, once that threshold is passed, it is no more. Therefore, the notion of a transition area is discarded. Controversial as this option may seem, if the alternatives were applied, for example, using a inverse distance, it is easy to see that the relationship of proximity wanes very quickly and, as a result, the neighbourhood effect disappears. Consequently, and in line with the literature [46,55], the analyses conclude that the best method to conceptualize spatial relationships is the use of a fixed bandwidth with a Euclidean distance, as suggested by previous studies [57,63].
Choosing a boundary distance is always a challenging task, because it must be both coherent and long enough. Thus, if too long a radius is used, the concept of proximity weakens; but if it is too short, the resulting lack of neighbours makes the results all the less reliable. Therefore, three different distances have been tested: two Euclidean distances of 6 and 11.2 miles, which ensure the existence of at least one neighbour; and a Manhattan distance of 14.3 miles, which also ensures at least one neighbour. The final choice was made after contrasting the results of all the tests, where it was found that a smaller distance resulted in greater reliability, as it turns out that greater distances (although incorporating more neighbours into the equation) do not imply working with accommodation businesses that are far apart, even though the area of study is considerably larger.
The configuration for the application of the two techniques considered has been the same, in order to arrive at complementary results that would answer our main research question. In this regard, the results show that there is an obvious distribution of the accommodation offer and that it concentrates in some particular areas. However, when the lodging capacity is analyzed, certain areas stand out. This is sometimes the case because they constitute spatial mini-clusters, either hot/cold spots or HH or LL clusters. It may also be the case that these are anomalous groupings that do not match the characteristics of their surrounding area, thus becoming HL or LH outliers. All these areas with specific characteristics are in sharp contrast with a large area where there exist no significant results—regardless of the technique used. This may corroborate what previous studies about this area claim: the accommodation offer is not always located in the ideal place and, in some cases, it stems from a personal entrepreneurial venture that made use of LEADER, PRODER or FEADER aids in different years [6,71]. However, most often, the lack of statistical significance in this area derives from the heterogeneity of the lodging capacity, as the businesses that coexist in a restricted space are fundamentally different in this regard (high/low lodging capacity) [3].
The existence of subareas in which rural accommodation has both similar and divergent characteristics as to its capacity has been shown. These results reveal the need for analysing the tourist development potential of Extremadura, where cultural assets of acknowledged prestige and numerous protected natural spaces coincide and to which can be added specific features such as natural swimming pools which facilitate making full use of the territory. However, numerous references state the opposite and stress the use of the protected areas as destinations for excursions [7] from the main tourist centres of Extremadura which include Cáceres, Mérida, Trujillo, Plasencia, and Badajoz. This combination of factors has two negative implications for rural areas; firstly rural tourism accommodation does not have a sufficient level of occupation to ensure the continuity of rural establishments, and secondly non-sustainable use is made of the natural spaces which show a poor balance between the components of the ecosystem; this circumstance is aggravated by the proliferation of illegal building [72].
The configuration of the clusters obtained both with the Gi* and the LISA stresses the idea that in each of the areas the decision should be taken to make use of the heritage elements present in the territory in order to encourage tourist products adapted to the circumstances of each establishment. This is particularly relevant when the administration attempts to generate generic products which are on occasion insensitive to the problem of accommodation.
The detailed results (Table A1) are meant as a technical analysis that may help the regional administration to devise tourist policies that focus on improving the management of accommodation businesses that are integrated in a cluster, as they share a similar lodging capacity and spatial proximity. This also implies the notion that tailored strategic plans may be in order; not only catering to the areas where significant groupings exist, but also to those areas that are anomalous in any respect. These plans should target specific market niches as well as specific segments of the demand. So, they should consider the possibility of integrating the tourist potential of the heritage in the areas surrounding the accommodation.
In addition, the possibility of addressing the needs of specific businesses must not be ruled out. Indeed, much can be made of the results obtained for each of them (with both techniques utilized) if tourist policies target not only particular areas but also specific accommodation businesses. This would allow owners to create adapted mini-clusters in order to promote their businesses in coordination with others in the vicinity that share similar characteristics. This may constitute an important advantage to improve the competitiveness, as it is known that the low occupancy rate of rural tourist accommodations is one of their major threats to their success [3].
The limitations of the techniques and, therefore, the results obtained should be related to the conceptualization of the neighbourhood criterion which must be adapted to each study area. It is also necessary to take into account that the techniques used only allow the use of a variable to carry out the analysis, owing to which we decided to determine the clusters considering the accommodation capacity and not other parameters, which would have required other techniques such as GWR.
It must be noted that the present study is a baseline study along a research line that has been very active for years. The objective of the research team is to focus on using the real road distance as a basic criterion in order to conceptualize spatial relationships, which will hopefully further adjust the present results.

5. Conclusions

Carrying out this study has allowed the following conclusions to be drawn:
Firstly, it has been shown that there has been considerable growth in the availability of rural accommodation in Extremadura. The increase of the lodging capacity has not been accompanied by an increase in the number of overnight stays, which generates a low occupation rate. Moreover, this kind of establishment is characterized by a heterogeneous number of beds. All this implies that rural accommodation establishments, which are highly dispersed over the whole area, require actions to palliate these limitations; this is why we aim to determine whether accommodation clusters with similar lodging capacities exist and in this way encourage actions in these areas by the administration.
Secondly, the idea of the complexity of the use of the mapping cluster techniques is reinforced as this provides an important variety of ways of conceptualizing both the distance criteria and its extent. This difficulty has been resolved after numerous tests have pointed to the conclusion that the best results are obtained when a fixed distance is used to conceptualize spatial relations. The best results for analysing the accommodation capacity of the study area are obtained when this distance is 6 miles, despite the fact that 9 establishments have no neighbours. It is also shown that the Euclidean distance is more efficient than the Manhattan distance.
Thirdly, the application of the two cluster mapping techniques has been efficient when detecting accommodation clusters with equivalent lodging capacities, which has allowed the corroboration of the initial hypothesis which presumed that there were areas in which the available accommodation took the form of clusters, albeit not always with characteristics that can be assimilated.
Fourthly, when the results obtained by the two techniques used to determine the clusters are compared, it was found that the cluster and outlier analysis (LISA) provides greater possibilities than the hot spot analysis. This is based on the fact that the LISA detects the presence of accommodation with a lodging capacity differing from that of its neighbours, while the Gi* merely detects the areas where accommodation establishments provide a similar lodging capacity.
Finally, we corroborate that the administration must take measures designed to palliate the problems which characterize rural accommodation. The measures proposed include the creation of specific policies for implementing tourist products which exploit the extraordinary cultural and natural heritage of the rural areas of Extremadura. Such action should be adapted to the characteristics of the various clusters of establishments which have been detected by geostatistical analyses. This is a key aspect, in particular if the specific results of each of the rural accommodation establishments are known. In this way it would be possible to implement them directly in the designing and marketing of tourist products so as to encourage the appearance of small associations of entrepreneurs with a strongly defined link with the territory.

Author Contributions

Conceptualization, José-Manuel Sánchez-Martín, Juan-Ignacio Rengifo-Gallego and Rocío Blas-Morato; methodology, José-Manuel Sánchez-Martín; Rocío Blas-Morato and Juan-Ignacio Rengifo-Gallego; formal analysis, José-Manuel Sánchez-Martín; Juan-Ignacio Rengifo-Gallego and Rocío Blas-Morato; investigation, José-Manuel Sánchez-Martín; resources, Juan-Ignacio Rengifo-Gallego and Rocío Blas-Morato; data curation, Rocío Blas-Morato; writing—Original draft preparation, José-Manuel Sánchez-Martín and Juan-Ignacio Rengifo-Gallego; writing—Review and editing, José-Manuel Sánchez-Martín; Juan-Ignacio Rengifo-Gallego and Rocío Blas-Morato; supervision, José-Manuel Sánchez-Martín; project administration, José-Manuel Sánchez-Martín; funding acquisition, José-Manuel Sánchez-Martín.


This publication is part of the research carried out within the research project “Diseño y elaboración de productos estratégicos diferenciados para la potenciación del turismo rural en Extremadura. De la detección de problemas a la propuesta de soluciones basadas en criterios geoestadísticos” (Code IB 16040). This project is funded by the Consejería de Economía e Infraestructuras de la Junta de Extremadura (the branch of the regional government that covers economy and infrastructure) and by the European Regional Development Fund (ERDF).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

Table A1. This table shows the significant results obtained by the two techniques used.
Table A1. This table shows the significant results obtained by the two techniques used.
ID Rural Accommodation *Accommodation VacanciesHot Spot AnalysisCluster and Outlier Analysis
GiZ ScoreGiP ValueNumber NeighboursGi BinLmi IndexLMiZ ScoreLMiP ValueCO TypeNumber Neighbours
262−1.6490.09965−113.5831.5160.070 64
76321.8860.059311.0490.2440.315 2
81211.8910.059211.7661.5880.065 1
98282.7850.0058312.8031.8560.060 7
99443.1110.0027316.4861.5370.060 6
102282.3530.019120.0000.0001.000 0
137402.1890.0299210.0540.8740.195 8
1482−1.7420.0828−14.3611.3890.060 7
161322.6100.009436.6411.2210.125 3
162322.6100.009436.6411.5300.080 3
324121.8950.058610.8041.8590.080 5
341121.7290.084310.5081.9300.075 2
349321.7950.07321−1.035−0.4520.275 1
404322.0430.041321.8280.4040.280 2
44571.6840.092591−6.342−1.6750.055 58
5426−1.6490.09964−17.5901.4980.060 63
5823−1.7620.07839−110.0521.6130.060 38
6754−1.6490.09965−110.6871.6340.060 64
* The name and address of the establishment is governed by data confidentiality. The accommodations that do not appear in this table lack statistical significance. GiZ Score/LMiZ Score: Z-scores are standard deviations for the Gi* or LISA statistical analysis. GiP Value/LMip Value: The p-value is a probability for the Gi* or LISA statistical analysis. Gi Bin/CO Type: The features with statistically significant p-values are identified by the Gi_Bin or COType. Lmi Index: Local Moran index.


  1. Rengifo Gallego, J.I.; Sánchez Martín, J.M. El patrimonio en Extremadura: Un mecanismo para la cooperación transfronteriza. Polígonos Rev. Geogr. 2017, 29, 223–248. [Google Scholar] [CrossRef]
  2. Sánchez Martín, J.M.; Rengifo Gallego, J.I. Los espacios naturales protegidos y su capacidad de atracción turística: Referencias al Parque Nacional de Monfragüe (Extremadura-España). In Intellectual Capital and Regional Development: New Landscapes and Challenges for Planning the Space; APDR: Covilhâ, Portugal, 2017; pp. 1196–1206. [Google Scholar]
  3. Sánchez Martín, J.M.; Rengifo Gallego, J.I. Evolución del sector turístico en la Extremadura del siglo XXI: Auge, crisis y recuperación. Lurralde Investig. Espac. 2019, 42, 29–50. [Google Scholar]
  4. Instituto Nacional de Estadística (INE). Available online: (accessed on 2 January 2019).
  5. Junta de Extremadura (Extremadura Turismo). Available online: (accessed on 31 December 2018).
  6. Sánchez Martín, J.M.; Sánchez Rivero, M.; Rengifo Gallego, J.I. Patrones de distribución de la oferta turística mediante técnicas geoestadísticas en Extremadura (2004–2014). Bol. Asoc. Geogr. Esp. 2018, 76, 276–302. [Google Scholar] [CrossRef]
  7. Sánchez Martín, J.M.; Rengifo Gallego, J.I.; Martín Delgado, L.M. Tourist Mobility at the Destination toward Protected Areas: The Case-Study of Extremadura. Sustainability 2018, 10, 4853. [Google Scholar] [CrossRef]
  8. Junta de Extremadura. Plan Turístico de Extremadura 2017–2020; Junta de Extremadura: Mérida, Mexico, 2017. [Google Scholar]
  9. Timothy, D.J.; Wall, G. Tourist accommodation in an Asian historic city. J. Tour. Stud. 1995, 6, 63–73. [Google Scholar]
  10. Niewiadomski, P. Different Forms of Expansion of International Hotel Groups and the Processes of Regional Development in Central and Eastern Europe; Post-Graduate Symposium, Queen Mary University: London, UK, 2009. [Google Scholar]
  11. Ioannides, D.; Timothy, D.J. Tourism in the USA: A Spatial and Social Synthesis; Routledge: Abingdon, VA, USA, 2009; p. 240. [Google Scholar]
  12. Claveria, O.; Monte, E.; Torra, S. Modelling tourism demand to Spain with machine learning techniques. The impact of forecast horizon on model selection. Rev. Econ. Apl. 2016, 24, 109–132. [Google Scholar]
  13. Steven, R.; Morrison, C.; Castley, G. Birdwatching and avitourism: A global review of research into its participant markets, distribution and impacts, highlighting future research priorities to inform sustainable avitourism management. J. Sustain. Tour. 2014, 23, 1257–2176. [Google Scholar] [CrossRef]
  14. Clifton, J.; Benson, A. Planning for Sustainable Ecotourism: The Case for Research Ecotourism in Developing Country Destinations. J. Sustain. Tour. 2006, 14, 238–254. [Google Scholar] [CrossRef]
  15. López Palomeque, F. Geografía del turismo en España: Una aproximación a la distribución espacial de la demanda turística y de la oferta de alojamiento. Doc. D’anàlisi Geogr. 1988, 13, 35–64. [Google Scholar]
  16. Sancho, A. Introducción al Turismo; WTO: New York, NY, USA, 1998; p. 393. [Google Scholar]
  17. Vacas, C.; Landeta, M.-L. Aproximación al último medio siglo de turismo en España, 1959–2009. Rev. Estud. Tur. 2009, 180, 21–64. [Google Scholar]
  18. Walford, N. Patterns of development in tourist accommodation enterprises on farms in England and Wales. Appl. Geogr. 2001, 21, 331–345. [Google Scholar] [CrossRef]
  19. Millán Escriche, M. Turismo en la Región de Murcia: Evolución de la oferta turística de interior y su distribución espacial. Cuad. Tur. 2004, 13, 51–72. [Google Scholar]
  20. Sarrión-Gavilán, M.D.; Benítez-Márquez, M.D.; Mora-Rangel, E.O. Spatial distribution of tourism supply in Andalusia. Tour. Manag. Perspect. 2015, 15, 29–45. [Google Scholar] [CrossRef]
  21. Bégin, S. The geography of a tourist business: Hotel distribution and urban development in Xiamen, China. Tour. Geogr. 2010, 2, 448–471. [Google Scholar] [CrossRef]
  22. Merinero Rodríguez, R.; Pulido Fernández, J.I.; Navarro Yánez, C. Propuesta metodológica para la caracterización territorial del turismo a escala local. Bol. Asoc. Geogr. Esp. 2014, 66, 291–321. [Google Scholar] [CrossRef]
  23. Jurado Almonte, J.J.; Pazos-García, F.J. Población y turismo rural en territorios de baja densidad demográfica en España. Bol. Asoc. Geogr. Esp. 2016, 71, 247–272. [Google Scholar] [CrossRef]
  24. Yang, Y.; Luo, H.; Law, R. Theoretical, empirical, and operational models in hotel location research. Int. J. Hosp. Manag. 2014, 36, 209–220. [Google Scholar] [CrossRef]
  25. Godinho, P.; Phipllips, P.; Moutinho, L. Hotel location when competitors may react: A game-theoretic gravitational model. Tour. Manag. 2018, 69, 384–396. [Google Scholar] [CrossRef]
  26. Suárez-Vega, R.; Acosta-González, E.; Casimiro-Reina, L.; Hernández, J.M. Assessing the Spatial and Environmental Characteristics of Rural Tourism Lodging Units Using a Geographical Weighted Regression Model. In Quantitative Methods in Tourism Economics; Matias, Á., Nijkamp, P., Sarmento, M., Eds.; Physica: Heidelberg, Germany, 2013. [Google Scholar]
  27. Sánchez Martín, J.M.; Sánchez Rivero, M.; Rengifo Gallego, J.I. Análisis del equilibrio entre el potencial turístico y la oferta de alojamientos en turismo rural mediante técnicas de estadística espacial. Una aplicación a la provincia de Cáceres (España). Cuad. Tur. 2017, 39, 547–576. [Google Scholar] [CrossRef]
  28. Latinopoulos, D. Using a spatial hedonic analysis to evaluate the effect of sea view on hotel prices. Tour. Manag. 2018, 65, 87–99. [Google Scholar] [CrossRef]
  29. Kim, J.; Jang, S.; Kang, S.; Kim, S. Why are hotel room prices different? Exploring spatially varying relationships between room price and hotel attributes. J. Bus. Res. 2018. [Google Scholar] [CrossRef]
  30. Da Cunha, S.K.; Da Cunha, J.C. Tourism cluster competitiveness and sustainability: Proposal for a systemic model to measure the impact of tourism on local development. Braz. Adm. Rev. 2005, 2, 47–62. [Google Scholar] [CrossRef]
  31. Sánchez Rivero, M.; Sánchez Martín, J.M.; Rengifo Gallego, J.I. Methodological approach for assessing the potential of a rural tourism destination: An application in the province of Cáceres (Spain). Curr. Issues Tour. 2016, 19, 1084–1102. [Google Scholar] [CrossRef]
  32. Constantin, D.L.; Reveiu, A. A Spatial Analysis of Tourism Infrastructure in Romania: Spotlight on Accommodation and Food Service Companies. Reg. J. ERSA 2018, 5, 1–16. [Google Scholar] [CrossRef][Green Version]
  33. Xia, B.; Dong, S.; Zhao, M.; Li, Z.; Li, Y.; Cheng, H. Analysis of economic efficiency and eco-efficiency of Chinese star hotels based on SBM model. IOP Conf. Ser. Earth Environ. Sci. 2018, 190, 1–9. [Google Scholar] [CrossRef]
  34. Brauckmann, S. City tourism and the sharing economy—Potential effects of online peer-to-peer marketplaces on urban property markets. J. Tour. Futures 2017, 3, 114–126. [Google Scholar] [CrossRef]
  35. Cheng, K.-L.; Hsu, S.-C.; Li, W.-M.; Ma, H-W. Quantifying potential anthropogenic resources of buildings through hot spot analysis. Resour. Conserv. Recycl. 2018, 133, 10–20. [Google Scholar] [CrossRef]
  36. Anselin, L. Local Indicators of Spatial Association-LISA. Geogr. Anal. 1995, 27, 93–115. [Google Scholar] [CrossRef]
  37. Anselin, L.; Syabri, I.; Kho, Y. GeoDA: An Introduction to Spatial Data Analysis. Geogr. Anal. 2005, 38, 5–22. [Google Scholar] [CrossRef]
  38. Anselin, L. A Local Indicator of Multivariate Spatial Association: Extending Geary´s c. Geogr. Anal. 2018, 1–25. [Google Scholar] [CrossRef]
  39. Instituto Geográfico Nacional (IGN). Available online: (accessed on 19 March 2018).
  40. Instituto Geográfico Nacional (IGN). Base Topográfica Nacional (BTN100). Available online: (accessed on 19 March 2018).
  41. Gobierno de España. Ministerio de Fomento. Real Decreto 1071/2007 de 27 de Julio, por el que se Regula el Sistema Geodésico de Referencia Oficial en España; Gobierno de España: Madrid, Spain, 2007; pp. 35986–35989. [Google Scholar]
  42. Instituto Geográfico Nacional (IGN). Base Topográfica Nacional 1:100,000 (BTN100). Available online: (accessed on 19 March 2018).
  43. Anselin, L. Model Validation in Spatial Econometrics: A Review and Evaluation of Alternative Approaches. Int. Reg. Sci. Rev. 1988, 11, 279–316. [Google Scholar] [CrossRef]
  44. Anselin, L. A test for spatial autocorrelation in seemingly unrelated regressions. Econ. Lett. 1988, 28, 335–341. [Google Scholar] [CrossRef]
  45. Ullah, A.; Giles, D.E.A. (Eds.) Handbook of Applied Economic Statistics; Taylor & Francis Group: New York, NY, USA, 1998; p. 624. [Google Scholar]
  46. Anselin, L.; Bera, A.K.; Florax, R.; Yoon, M.J. Simple diagnostic tests for spatial dependence. Reg. Sci. Urban Econ. 1996, 26, 77–104. [Google Scholar] [CrossRef]
  47. Amaral, P.V.; Anselin, L. Finite sample properties of Moran’s I test for spatial autocorrelation in tobit models. Pap. Reg. Sci. 2014, 93, 773–781. [Google Scholar] [CrossRef]
  48. Kelejian, H.; Piras, G. Tests for Spatial Correlation. In Spatial Econometrics; Kelejian, H., Piras, G., Eds.; Elsevier: Amsterdam, The Netherlands, 2017; pp. 237–270. [Google Scholar]
  49. Ord, J.K.; Getis, A. Local Spatial Autocorrelation Statistics: Distributional Issues and an Application. Geogr. Anal. 1995, 27, 286–306. [Google Scholar] [CrossRef]
  50. Longley, P.; Batty, M. Spatial Analysis: Modelling in a GIS Environment; John Wiley & Sons: New York, NY, USA, 1996; p. 395. [Google Scholar]
  51. Fotheringham, A.S. “The Problem of Spatial Autocorrelation” and Local Spatial Statistics. Geogr. Anal. 2009, 41, 398–403. [Google Scholar] [CrossRef]
  52. Long, J.; Robertson, C. Comparing spatial patterns. Geogr. Compass 2017, 12, 27–41. [Google Scholar] [CrossRef]
  53. Sánchez Rivero, M. Análisis espacial de datos y turismo: Nuevas técnicas para el análisis turístico. Una aplicación al caso extremeño. Rev. Estud. Empresariales 2008, 2, 48–66. [Google Scholar]
  54. ESRI. Cómo Funciona Análisis de Puntos Calientes (Gi* de Getis-Ord). Available online: (accessed on 25 September 2018).
  55. ESRI. The ESRI Guide to GIS. Anlysis. Volume 1: Geographic Patterns & Relationships; ESRI Press: Redlands, CA, USA, 1999; p. 188. [Google Scholar]
  56. Mitchell, A. Guide to GIS Analysis. Volume 2: Spatial Measurements & Statistics: Spatial and Mearusements; ESRI Press: Redlands, CA, USA, 2005; p. 249. [Google Scholar]
  57. ESRI. The ESRI Guide to GIS Analysis. Volume 2: Spatial Measurements; ESRI Press: Redlands, CA, USA, 2009; p. 238. [Google Scholar]
  58. Sánchez Martín, J.M.; Sánchez Rivero, M.; Rengifo Gallego, J.I. La evaluación del potencial turístico para el desarrollo del turismo rural. Aplicación metodológica sobre la provincia de Cáceres. Geofocus. Int. Rev. Geogr. Inf. Sci. Technol. 2013, 13, 99–130. [Google Scholar]
  59. ESRI. Cómo Funciona Análisis de Cluster y de Valor Atípico (I Anselin Local de Moran). Available online: (accessed on 25 September 2018).
  60. Babak, O.; Deutsch, C.V. Statistical approach to inverse distance interpolation. Stoch. Environ. Res. Risk Assess. 2009, 23, 543–553. [Google Scholar] [CrossRef]
  61. Sánchez Cuervo, A.M.; Mitchell Aide, T. Identifying hotspots of deforestation and reforestation in Colombia (2001–2010): Implications for protected areas. Ecosphere 2013, 4, 1–21. [Google Scholar] [CrossRef]
  62. Fei, L.; Zhang, Q.; Deng, Y. Identifying influential nodes in complex networks based on the inverse-square law. Phys. A Stat. Mech. Its Appl. 2018, 512, 1044–1059. [Google Scholar] [CrossRef]
  63. Danielsson, P.E. Euclidean Distance Mapping. Comput. Graph. Image Process. 1980, 14, 227–248. [Google Scholar] [CrossRef]
  64. Ratliff, R.D.; Mori, S.R. Squared Euclidean Distance: A Statistical Test to Evaluate Plant Community Change; Department of Agriculture, Forest Service, Pacific Southwest Research Station: Albany, NY, USA, 1993; p. 4. [Google Scholar]
  65. Amin, R.; Bohnert, A.; Holmes, L.; Rajasekaran, A.; Assanasen, C. Epidemiologic mapping of Florida childhood cancer clusters. Pediatr. Blood Cancer 2010, 54, 511–518. [Google Scholar] [CrossRef] [PubMed]
  66. Kennedy, L.W.; Caplan, J.M.; Piza, E. Risk Clusters, Hotspots, and Spatial Intelligence: Risk Terrain Modeling as an Algorithm for Police Resource Allocation Strategies. J. Quant. Criminol. 2011, 27, 339–362. [Google Scholar] [CrossRef]
  67. Prasannakumar, V.; Vijith, H.; Charuta, R.; Geetha, N. Spatio-Temporal Clustering of Road Accidents: GIS Based Analysis and Assessment. Procedia Soc. Behav. Sci. 2011, 21, 317–325. [Google Scholar] [CrossRef][Green Version]
  68. Östh, J.; Reggiani, A.; Galiazzo, G. Spatial economic resilience and accessibility: A joint perspective. Comput. Environ. Urban Syst. 2015, 49, 148–159. [Google Scholar] [CrossRef]
  69. Zhang, Y.; Xu, J.-H.; Zhuang, P-J. The Spatial Relationship of Tourist Distribution in Chinese Cities. Tour. Geogr. 2011, 13, 75–90. [Google Scholar] [CrossRef]
  70. Gutiérrez, J.; García Palomares, J.C.; Romanillos, G.; Salas Olmedo, M.H. The eruption of Airbnb in tourist cities: Comparing spatial patterns of hotels and peer-to-peer accommodation in Barcelona. Tour. Manag. 2017, 62, 278–291. [Google Scholar] [CrossRef][Green Version]
  71. Sánchez Martín, J.M.; Rengifo Gallego, J.I.; Sánchez Rivero, M. Caracterización espacial del turismo en Extremadura mediante análisis de agrupamiento (Grouping Analysis). Un ensayo técnico. Geofocus. Int. Rev. Geogr. Inf. Sci. Technol. 2017, 19, 207–235. [Google Scholar] [CrossRef]
  72. Jiménez, V.; Sánchez, J.M.; Rengifo, J.I. A New Residential Role for the Rural Environment in Extremadura, Spain. Sustainability 2019, 11, 435. [Google Scholar] [CrossRef]
Figure 1. Study area and main roadways, represented in terms of the distribution of rural lodging capacity based on the municipality (a) and the number of accommodation businesses. (b) Data for 2018.
Figure 1. Study area and main roadways, represented in terms of the distribution of rural lodging capacity based on the municipality (a) and the number of accommodation businesses. (b) Data for 2018.
Ijgi 08 00176 g001
Figure 2. Relationships between entities according to the different types of spatial relationships.
Figure 2. Relationships between entities according to the different types of spatial relationships.
Ijgi 08 00176 g002
Figure 3. Optimal distance for the calculations. Euclidean distance: 6 miles (a); Euclidean distance: 11.2 miles (b).
Figure 3. Optimal distance for the calculations. Euclidean distance: 6 miles (a); Euclidean distance: 11.2 miles (b).
Ijgi 08 00176 g003
Figure 4. Methodological process.
Figure 4. Methodological process.
Ijgi 08 00176 g004
Figure 5. Hot spot analysis comparation (La Vera district details). Conceptualization of spatial relationships: fixed distance band (a), inverse distance (b) and inverse distance squared (c). Distance method: Euclidean distance.
Figure 5. Hot spot analysis comparation (La Vera district details). Conceptualization of spatial relationships: fixed distance band (a), inverse distance (b) and inverse distance squared (c). Distance method: Euclidean distance.
Ijgi 08 00176 g005
Figure 6. Hot spot analysis comparison (La Vera district details). Distance method: Euclidean distance (a), Manhattan distance (b) and Euclidean distance fixed band 6 miles (c). Conceptualization of spatial relationships: fixed distance band.
Figure 6. Hot spot analysis comparison (La Vera district details). Distance method: Euclidean distance (a), Manhattan distance (b) and Euclidean distance fixed band 6 miles (c). Conceptualization of spatial relationships: fixed distance band.
Ijgi 08 00176 g006
Figure 7. Hot spot analysis results.
Figure 7. Hot spot analysis results.
Ijgi 08 00176 g007
Figure 8. The results of the cluster and outlier analysis.
Figure 8. The results of the cluster and outlier analysis.
Ijgi 08 00176 g008
Figure 9. Results obtained with GiZ Score and LMiZ Score.
Figure 9. Results obtained with GiZ Score and LMiZ Score.
Ijgi 08 00176 g009
Figure 10. Results obtained with GiP Value and LMiP Value.
Figure 10. Results obtained with GiP Value and LMiP Value.
Ijgi 08 00176 g010
Table 1. Geographical information system (GIS) setup.
Table 1. Geographical information system (GIS) setup.
Data TypeSourceCartographic InformationAlphanumerical Information
CartographicIGN (3)Administrative unitsArea
Population centresType
Transport systemType
AlphanumericExtremadura Turismo (4)Georeferencing information on Google MapsType of accommodation Address
Accommodation places
Table 2. Option matrix.
Table 2. Option matrix.
Mapping Clusters AnalysisSpatial RelationshipsDistance MethodAccommodation Supply
Cluster and Outlier
Hot Spot
Inverse Distance
Inverse Distance Squared
Fixed Distance
Euclidean Distance
Manhattan Distance
Rural Accommodation
Table 3. Results of the hot spot analysis.
Table 3. Results of the hot spot analysis.
ResultsAreaRural AccommodationAccommodation PlacesAverage of Places
Hot Spot 99% ConfidenceLa Vera, Vegas Altas, Zafra-Río Bodión69103615.01
Hot Spot 95% ConfidenceLa Vera, Alange, Zafra-Río Bodión2739014.44
Hot Spot 90% ConfidenceLa Vera, dispersed geographic points813316.63
Not SignificantScattered628645210.27
Cold Spot 90% ConfidenceJerte and Ambroz Valleys, Gata302287.60
Cold Spot 95% ConfidenceSierra de Montánchez, Jerte and Ambroz Valleys352467.03
Table 4. Results of the cluster and outlier analysis.
Table 4. Results of the cluster and outlier analysis.
ResultsAreaRural AccommodationAccommodation PlacesAverage of Places
Not SignificantScattered623651810.46
Cluster High-HighLa Vera, Alange, Zafra-Río Bodión4784918.06
Outlier High-LowSierra de Gata and Montánchez, Jerte and Ambroz Valleys2234115.50
Outlier Low-HighLa Vera, Alange, Zafra-Río Bodión, Vegas Altas473868.21
Cluster Low-LowSierra de Gata and Montánchez, Jerte and Ambroz Valleys, La Serena392696.90

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (
Back to TopTop
