Comparison of GNSS-, TLS- and Different Altitude UAV-Generated Datasets on the Basis of Spatial Differences

Department of Surveying and Cadastre, Faculty of Forestry, Istanbul University—Cerrahpasa, Istanbul 34473, Turkey
ISPRS Int. J. Geo-Inf. 2019, 8(4), 175; https://doi.org/10.3390/ijgi8040175
Received: 8 March 2019 / Revised: 29 March 2019 / Accepted: 1 April 2019 / Published: 3 April 2019
  |
PDF [8287 KB, uploaded 19 April 2019]
  |

Abstract

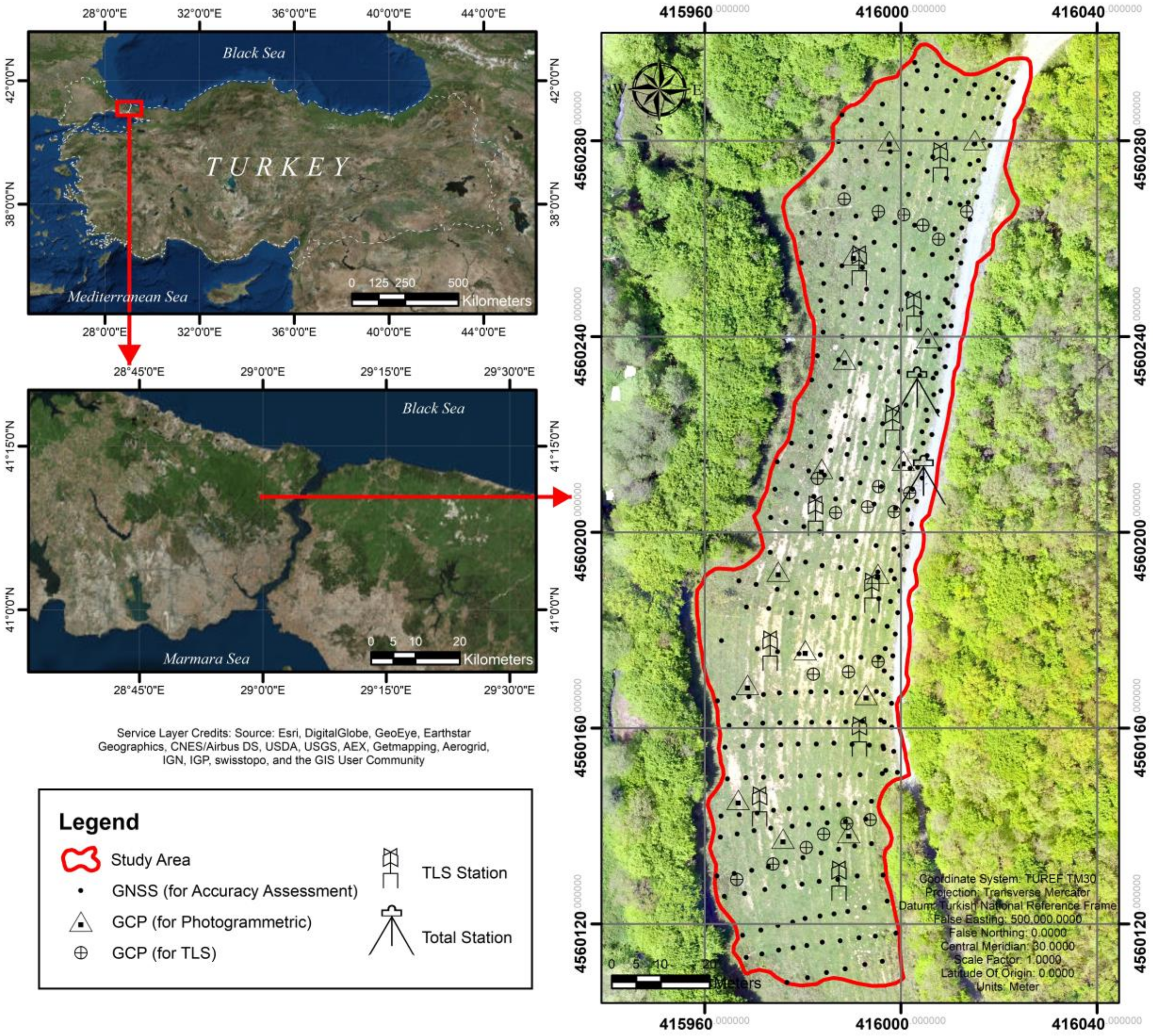

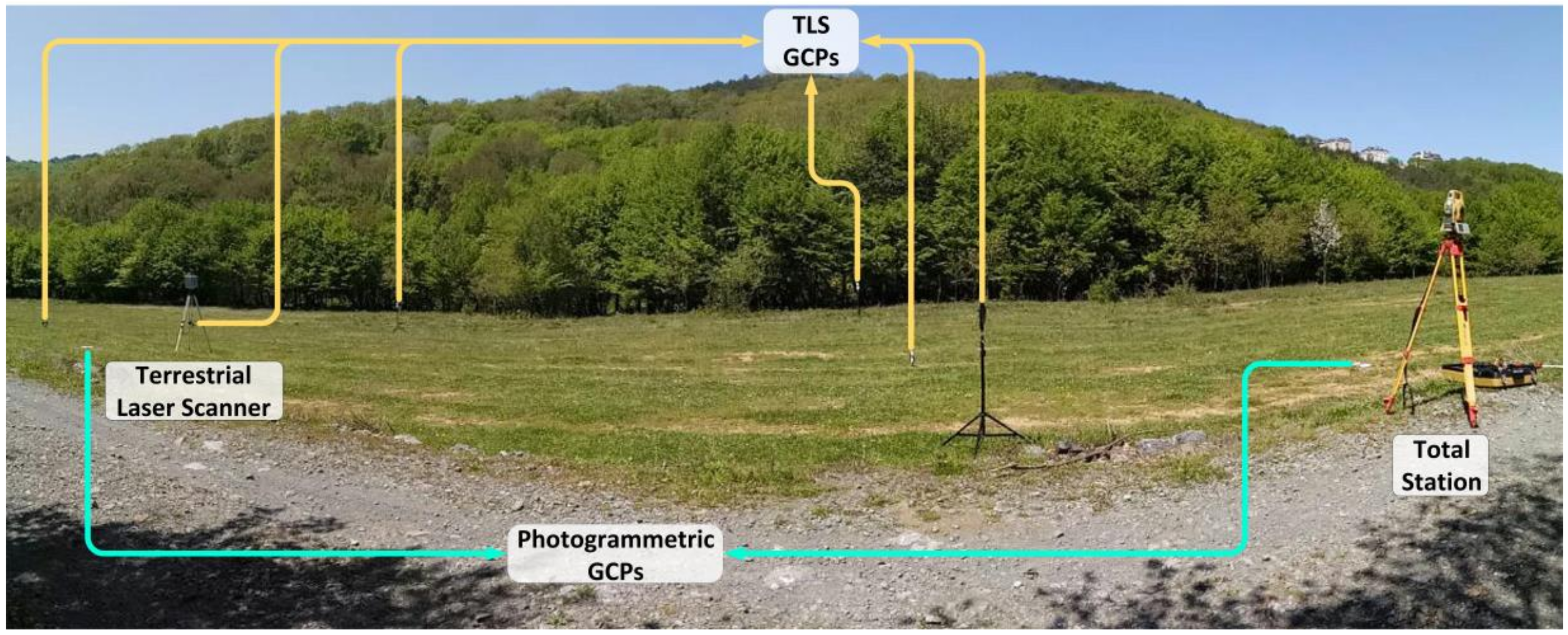

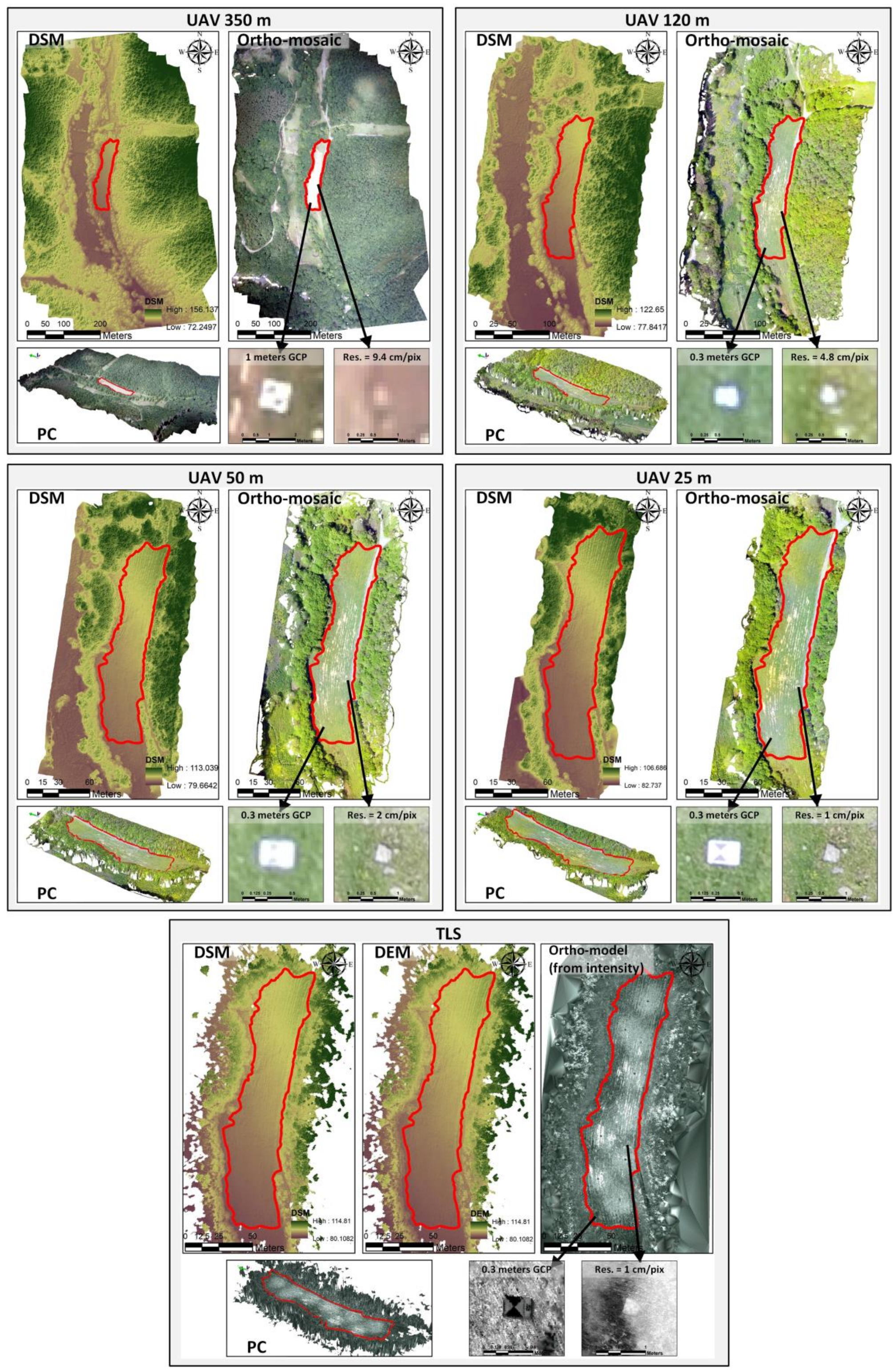

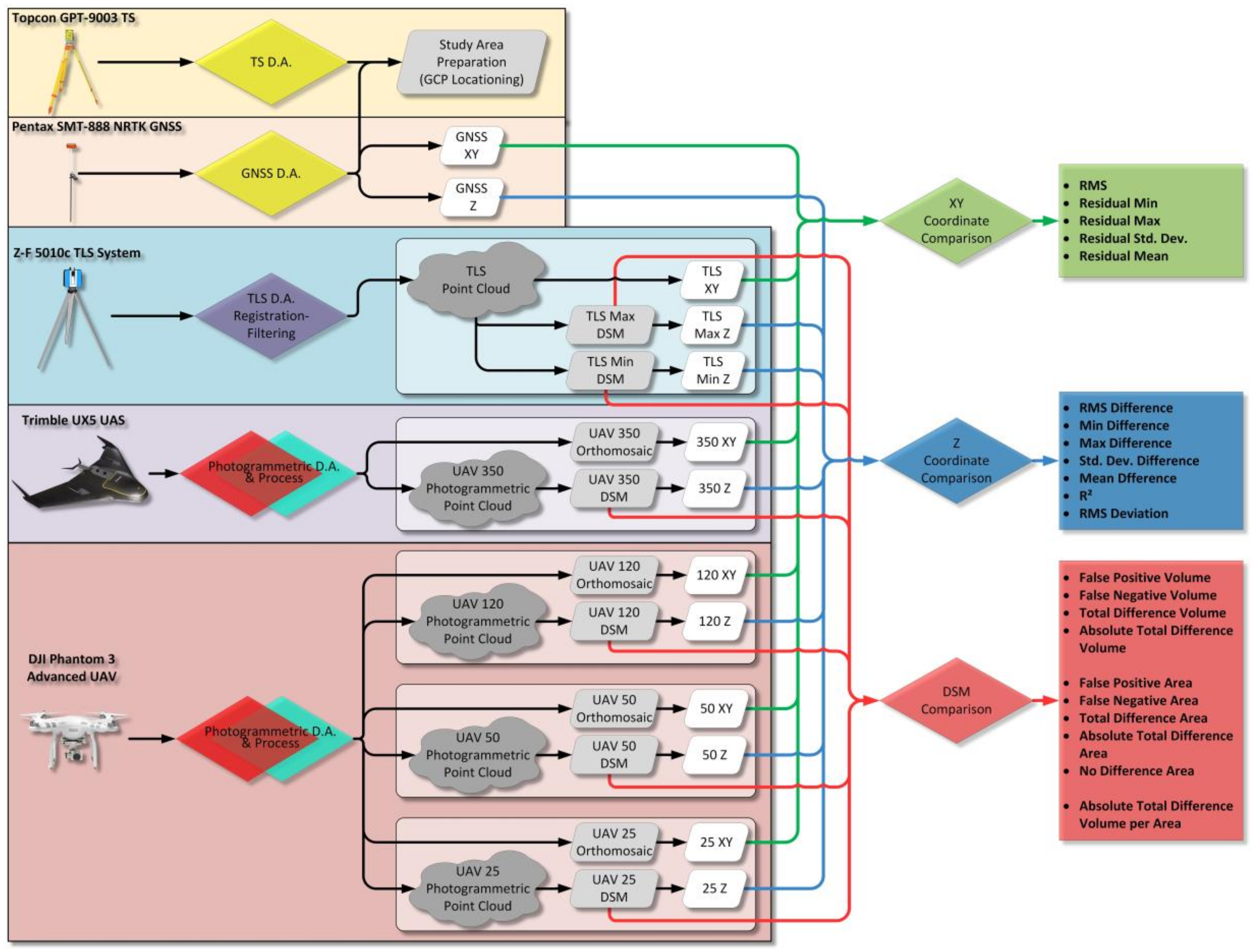

In this study, different in-situ and close-range sensing surveying techniques were compared based on the spatial differences of the resultant datasets. In this context, the DJI Phantom 3 Advanced and Trimble UX5 Unmanned Aerial Vehicle (UAV) platforms, Zoller + Fröhlich 5010C phase comparison for continuous wave-based Terrestrial Laser Scanning (TLS) system and Network Real Time Kinematic (NRTK) Global Navigation Satellite System (GNSS) receiver were used to obtain the horizontal and vertical information about the study area. All data were collected in a gently (mean slope angle 4%) inclined, flat vegetation-free, bare-earth valley bottom near Istanbul, Turkey (the size is approximately 0.7 ha). UAV data acquisitions were performed at 25-, 50-, 120-m (with DJI Phantom 3 Advanced) and 350-m (with Trimble UX5) flight altitudes (above ground level, AGL). The imagery was processed with the state-of-the-art SfM (Structure-from-Motion) photogrammetry software. The ortho-mosaics and digital elevation models were generated from UAV-based photogrammetric and TLS-based data. GNSS- and TLS-based data were used as reference to calculate the accuracy of the UAV-based geodata. The UAV-results were assessed in 1D (points), 2D (areas) and 3D (volumes) based on the horizontal (X- and Y-directions) and vertical (Z-direction) differences. Various error measures, including the RMSE (Root Mean Square Error), ME (Mean Error) or MAE (Mean Average Error), and simple descriptive statistics were used to calculate the residuals. The comparison of the results is simplified by applying a normalization procedure commonly used in multi-criteria-decision-making analysis or visualizing offset. According to the results, low-altitude (25 and 50 m AGL) flights feature higher accuracy in the horizontal dimension (e.g., mean errors of 0.085 and 0.064 m, respectively) but lower accuracy in the Z-dimension (e.g., false positive volumes of 2402 and 1160 m3, respectively) compared to the higher-altitude flights (i.e., 120 and 350 m AGL). The accuracy difference with regard to the observed terrain heights are particularly striking, depending on the compared error measure, up to a factor of 40 (i.e., false positive values for 120 vs. 50 m AGL). This error is attributed to the “doming-effect”—a broad-scale systematic deformation of the reconstructed terrain surface, which is commonly known in SfM photogrammetry and results from inaccuracies in modeling the radial distortion of the camera lens. Within the scope of the study, the “doming-effect” was modeled as a functional surface by using the spatial differences and the results were indicated that the “doming-effect” increases inversely proportional to the flight altitude. View Full-Text
Keywords: accuracy assessment; terrestrial laser scanning; unmanned aerial vehicle; digital surface model; “doming effect”; structure from motion accuracy assessment; terrestrial laser scanning; unmanned aerial vehicle; digital surface model; “doming effect”; structure from motion
Figures

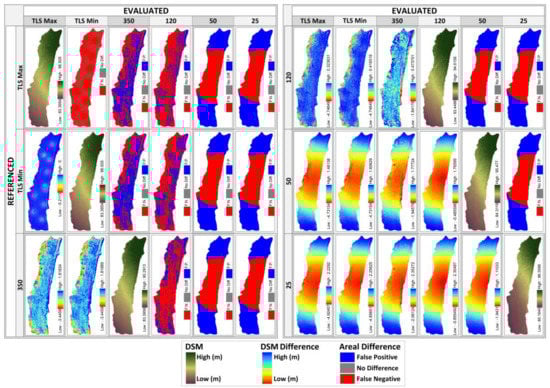

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material

SciFeed

Share & Cite This Article

MDPI and ACS Style

Yurtseven, H. Comparison of GNSS-, TLS- and Different Altitude UAV-Generated Datasets on the Basis of Spatial Differences. ISPRS Int. J. Geo-Inf. 2019, 8, 175.
