The Measurement of Mobility-Based Accessibility—The Impact of Floods on Trips of Various Length and Motivation
Faculty of Geographical Sciences, Institute of the Built Environment and Spatial Policy, University of Lodz, 90-142 Lodz, Poland
*
Author to whom correspondence should be addressed.
Received: 11 October 2019 / Accepted: 25 November 2019 / Published: 27 November 2019

Abstract

:
The main purpose of this article was to develop a method of researching accessibility in the event of a flood through the application of measurement based on mobility. In the course of the research, it has been proven that changes in mobility (and the related travel speed) are too significant to be ignored when studying accessibility in unusual circumstances. The vast majority of existing accessibility studies rely primarily on speed models, which – in the event of a flood – do not indicate the external effects of the natural disaster. On the basis of the conducted research it has been stated that the occurrence of a flood has a significant impact on changes in the spatial distribution of traffic and its related speeds. Such changes vary depending on the particular means of transport. With the most commonly applied methods of measuring accessibility, which are customarily based on speed models, the changes we observed would not be recorded. The application of mobility-based research in the analyses of accessibility – especially in the event of a flood – indicates the disaster’s influence on the capacity of the road network, and thus, it allows for more effective flood-risk management. Furthermore, this article also demonstrates the possibility of applying source materials available in most member states of the EU, i.e., flood-risk maps and digital terrain models (NMPT), for the purposes of analysing and identifying road section closures within the transport network after the occurrence of a flood.
Keywords:
accessibility; mobility; flood; indirect damages; external effects

1. Introduction

Floods belong to the group of the most commonly occurring natural disasters in the world [1], cause large amounts of damage [2] and are a major cause of weather-related disruptions in the transport industry, which particularly refers to so-called flash floods [3]. What is more, such phenomena are predicted to become even more frequent in years to come [4]. Therefore, the safety and resilience of infrastructural networks to natural disasters have recently become a vital research objective [5]. A flood on the roads may have numerous direct and indirect detrimental effects, which may include fatalities, vehicle and road infrastructure damages, including the resultant economic losses and traffic delays related, for example, to the necessity of taking a detour [6,7,8,9,10,11,12]. Disturbances within the transport network can be divided into typical and non-typical [13]. The former – caused by uneven distribution of transport demand in time and space – is of a cyclical nature within a specific time period. The latter, however, results from exceptional, temporary conditions and circumstances, including the effects of adverse events (e.g., failures of underground installations and devices, breakdowns within transport systems, etc.), construction and engineering works conducted within the highway network or in its immediate vicinity, and public events which may require an alternate traffic organisation to be implemented whenever the carriageway is occupied by masses of people gathering in one spot [14]. Other causes of non-typical disruptions include various types of road incidents (e.g., accidents and collisions, oil spills on the highway, etc.), unfavourable weather conditions (e.g., heavy snowfall, floods, rock and landslides, etc.), temporary deteriorations of the road surface, and even terrorist attacks. Such disturbances lead to unpredicted or non-recurring congestion [14,15]. The probability and the scope of such congestion differs depending on the type of network and its vulnerability to disruption and are strictly tied to the effectiveness of risk management policies in the area, appropriate planning of roadworks, and the efficiency with which obstacles are removed in order to restore free-flowing vehicle traffic [6]. Network disruptions related to natural disasters and human activity have an immense impact on the functioning of the road network. Transport agencies need well defined concepts and validated models and tools to test networks for their robustness and resilience to failure at different locations, as an integral part of network design and incident management planning, and indeed planning for emergencies [16].
‘Mobility’ is a divergence from ‘stability’, understood as a normal state [17]. In the geographical and sociological literature, mobility refers to multi-scale movement of people, goods, capital and information, and to local phenomena related to everyday trips and journeys within public spaces [18,19]. ‘Accessibility’ is the most fundamental concept applied in studies devoted to transport geography, and it is defined as the ‘ease of reaching opportunities for activities and services and can be used to assess the performance of a transportation and urban system’ ([20] p. 242).
The subject literature contains an approach related to traffic speed modelling, which is based on regulations of the Traffic Code [21] (in publications, results of this approach are often referred to as ‘theoretical accessibility’), information obtained by direct (and thus, somewhat subjective) observations made by a researcher who participates in the movement of traffic along a given road network [22], data reflecting speeds allowable by the Traffic Code, the topography of the land and the number of residents in the vicinity of the researched roads [23,24], and statistics of travel times collected by global corporations such as Google [25,26]. Obviously, none of the aforementioned data can provide a truly realistic picture of the phenomenon of vehicle movement within the road network, which supports the opinion stated in the introductory section herein. Even when accurate, such models only present representations of speeds under undisturbed circumstances.
In the literature there are numerous studies focusing on the impact of the transport industry on climate change and the influence of flooding on the capacity of the transport network. The papers by [1,27,28,29,30] analyse the issue of evacuation, while [6,7] analyse the impact of floods on accessibility and mobility (where the authors scrutinise changes in transport accessibility and network load, applying the scenario of a flood in the Mazovian Voivodeship in Eastern Poland). For the purpose of the research, the authors used methods of assessing accessibility, which relied on distance measurements, on isochronous and cumulative approaches, and on their own software tool for determining the scale and the spatial structure of changes in traffic density within the regional road network. In the aforementioned cases, however, the analyses focused exclusively on commuting to work. In the article compiled by [31], the authors also researched changes in accessibility within the Warta Water Region for ultrashort and short trips, as generated in the VISUM software. The impact of flooding on traffic flows and network performance, considered in ‘functional’ terms (i.e., travel time, flows, accessibility), were also scrutinised by Pregnolato [12], and yet the article only contained a review of the existing studies in the matter.
The existing literature about accessing the impact of flooding on transport disruptions do not take into account the complexity of interactions between the flood hazard and the transport system.
Typically, assumptions can include [32,33,34]:
  • traffic volumes and speeds are assumed to correspond to regional (or even national) average statistics,
  • a road is assumed to be completely closed when its crown is covered by water, regardless of depth,
  • traffic on open roads continues to flow smoothly, perhaps at a slightly reduced maximum speed,
  • traffic volumes do not exceed the design capacity of a road,
  • traffic conditions do not change over the course of the day, or seasonally; and,
  • diversion routes, and changes (or not) to driver behaviour as a result of the flood, are often assumed without any clear rationale [12].
Accessibility research is customarily based on speed models [35,36,37,38,39,40,41], which take into account the characteristics of the network when no disturbances or disruptions have been reported. Thus, their application in scenarios related to the occurrence of non-typical phenomena does not fully reflect the changes that take place if such circumstances happen to exist. The appearance of non-typical phenomena involves the occurrence of external effects which are observed, for instance, in connection to mobility, and which considerably influence traffic speeds within the road network. With this in mind, the main purpose of this article was to develop a method to research accessibility in the event of a flood with the simultaneous application of a mobility-based approach. Thus, the authors assumed that changes in mobility (and the related traffic speed) were too important for the research into accessibility in non-typical conditions not to be taken into consideration.

2. Materials and Methods

2.1. The Research Area

Nine catchment areas in Poland were selected namely, the drainage basins of the Vistula, the Oder, the Dniester, the Danube, the Banovka, the Elbe, the Neman, the Pregolya, and the Prokhladnaya. Next, the basin areas were divided into water regions, which were defined as ‘sections of the catchment area distinguished by the hydrological criterion for the purposes of water management and/or located in the territory of the Republic of Poland as part of the international catchment area’ ([42] Article 16, Item 33). The Warta Water Region was selected for further, more detailed research. It is one of the five water regions within the catchment area of the Oder, with the Warta being its main tributary. The Warta is the third longest river in Poland (808 km) and the rivers within its water region are characterised by a nival regime. As a result, high waters dominate in early spring, triggered by snowmelts and the release of water from frozen soil (snowmelt high waters), while any rises due to summer rainfall is of secondary importance (it appears irregularly, and yet it may occasionally cause higher water levels than those reported during early spring snowmelts). High water levels are most commonly noted between February and early May, and lower levels from June till September (although a summer bankfull flow may also occur in this period). Thaw floods are almost always observed across vast areas, whereas abrupt rainfall flooding is mainly reported on a local scale, as intense deluges rarely occur across the whole region.
Within the analysed territory, a ten-year flood area (the probability of occurrence p = 10%) covered the surface of 75,341 ha, a one-hundred-year flood area (1%) – 101,169 ha, and the areas at risk of flooding due to a complete destruction of stopbanks – 99,659 ha [43]. This is the second largest water region within the catchment area of the Oder for high-risk territories and those located outside stopbanks (in the least favourable scenario) (Table 1).
The total number of residents living in the flood hazard areas within the Warta Water Region amounted to 40,596 people, including 5341 residents within the areas with a particularly high flood hazard, with the areas in danger of flooding due to a total destruction of stopbanks being home to 35,255 people (Table 2).
In terms of administrative organisation, the Warta Water Region lies within the territory of seven voivodeships (Figure 1) (with 380 districts that are located wholly or partially within its borders). The largest cities and towns within the studied area included Łódź (690,422), Poznań (538,633), Częstochowa (224,376), Gorzów Wielkopolski (124,295), and Kalisz (101,625) [44].

2.2. Source Materials

The most significant source materials used in the study were: the official data obtained from the head office of Land Surveying and Cartography, containing the numerical digital terrain model (NMPT), the updated data retrieved from the Central Statistical Office (GUS) (which included the number of residents in individual counties); the data from the National Traffic Model from the General Directorate for National Roads and Motorways (GDDKiA) (Figure 2), and flood-risk maps created during the implementation of the directive on the assessment and management (by the National Water Management Authority) of flood risks in Poland [45].
The DTM is a database containing geographic coordinates and elevation points (metres above sea level) of the topographical surface, identified by means of Light Detection and Ranging technology (LIDAR). It is a digital (point-based) representation of the area’s surface, including such protruding objects such as buildings, trees, bridges, viaducts and other elements of the infrastructure. The database also contains information on geographic coordinates and altitude of points positioned every 0.5 m (Figure 3).
The data obtained from the Central Statistical Office provides information on the number of residents within individual units of the territorial division of Poland. With respect to our research, the data on the number of residents in each Polish county (as of 2018) were utilised.
The base for the national traffic model is a numerical model of the road network, which according to the official agency (GDDKiA) enables an accurate representation of the actual road structure and its real traffic conditions. It is a standard model, consisting of sections and points with assigned traffic parameters and geographic coordinates. The model of the network itself contains all national roads of strategic status (motorways, expressways and national roads) as well as regional roads (voivodeship-level status), complemented by the network of roads necessary to meet the requirements imposed for the construction of the National Traffic Model. Points within the network include: nodes which are road intersections, places where the size of the carriageway changes, and locations in which the surroundings of the road change (urban – extra urban). In total, the model of the network contained 49 types of road sections (Table 3).
Each unit of the secondary level of Poland’s administrative division (county) was represented within the model as an internal transport region. Regions where there was an attraction combined with traffic generation outside Poland had their representation at border crossings. In total, the model contained 335 internal and 85 external transport regions. The National Traffic Model was created in two fundamental stages, i.e., the development of an international and national model. The former was based on the results of surveys conducted at border crossings and seven traffic matrices, four of which were developed for different motivations of trips taken by cars, and one each for light commercial vehicles, trucks and articulated lorries. The national model was based on surveys, data from the Central Statistical Office, and measurements conducted under the framework of the General Traffic Measurement (GPR). Models for the generation and spatial distribution of traffic were developed independently for passenger and cargo traffic. At a later stage of model calibration, calculations were made for all vehicle classes in total. The model for the generation of passenger car traffic contained four trip motivations (home-workplace, business, tourism, and others). These reasons were characterised on the basis of information from surveys and sets of explanatory variables (numbers of residents, registered companies, accommodation facilities, and passenger cars). The model for cargo traffic was developed on the basis of three trip classes (arranged by vehicle type, i.e., light commercial vehicles, trucks and articulated lorries), the data retrieved from the Central Statistical Office, and results of traffic surveys. As a consequence, the National Traffic Model consisted of fourteen matrices (Table 4).
A gravity model was used in order to calculate the trip matrix for all classes (the number of trips between regions is a mathematical function of their potential and distances between them). In this model, the function of distance decay was calibrated for each class and based on surveys (and more precisely, on the equation of average results from surveys and average results from the model). The traffic model was also calibrated locally – traffic resilience was increased or decreased in selected network sections depending on the degree to which the model was adjusted to real-life measurements. In the analyses related to traffic distribution over the network, the costs were: travel time multiplied by ‘time value’, route length multiplied by ‘vehicle operating costs’ and motorway tolls, where the costs of ‘time value’ and ‘vehicle operating costs’ were applied separately for each trip motivation. Calibration of the spatial distribution of traffic was performed on the basis of cordon and screen measurements of traffic. Each of the 6848 road sections were calibrated, with the process involving individual calibration for both directions of traffic flow. It was assumed that 85% of sections (out of 6848) should have a GEH (Geoffrey E. Havers’ formula) less than 5. As a result, 99% of the sections in the network reached the value of GEH<5 for articulated lorries, 97% for trucks, 95% for light commercial vehicles, and 86% for passenger cars.
Polish water law defines flood-hazard areas as ‘locations determined by the initial flood-risk assessment to be at a significant risk of flooding or where such risk is likely to occur’ [42]. For such areas, flood-risk maps were prepared, which showed (the data included in this study has been bolded): (1) areas of a low probability of occurrence (0.2%), or areas where extreme events were probable; (2) areas of a significant flood hazard, i.e., areas of a medium probability of occurrence (1%), and areas of a high probability of occurrence (10%) – part of water terrain with the 1% probability of a flood; areas between the shoreline and the stopbank or a natural high bank into which a stopbank had been incorporated, including islands and alluviums, which were land lots or a service strip; (3) areas within territories at risk of flooding related to destruction or damage of a stopbank, a storm embankment, or a damming structure [42]. As well as the boundaries of the flood-hazard territories, the database also contained the high-water ordinate for the scenarios in which a flood was likely to occur once in ten or once in a hundred years. For the purpose of this study, the analyses of changes in accessibility were conducted for the scenario of a 1% probability of a flood. Since it is the most common practice to research territories of a one-hundred-year flood (Qp1%, i.e., discharge of probability of occurrence p = 1%) [47,48,49,50,51,52], the authors also decided to limit the scope of their scrutiny to this range.

2.3. The Research Methods

When the network applied to create the National Traffic Model was combined with flood-risk maps, it was possible to determine which parts of the network were at potential risk of flooding due to a one-hundred-year flood. Previously, we had limited our analyses exclusively to modifications of the network which were based on the said combination in order to research mobility [6] and accessibility [7,28]. At some scales, however, the returned results would be encumbered with considerable errors (related to the location of some network sections at overpasses and embarkments rising over the level of flood waters). In order to eliminate such erroneous results, this time another control network was incorporated into the road map, namely – its altitude. For this purpose, data from the digital terrain mode (NMPT) was used. The implementation of the additional vertical control network was conducted as follows. Firstly, one metre spaced points were marked along all edges (which symbolize bridge objects) of the network, and their geographic coordinates were determined. Next, the spatially generated points were aligned with elevation points from the NMPT. At the same time, the information on the surface elevation of flood water (retrieved from the flood risk map) was ‘spread’ over flood-hazard areas by means of Thiessen polygons [53,54,55]. Then, the results returned during the course of the analysis of Thiessen polygons were subtracted from elevations aligned from the NMPT for one metre spaced control points within the network. If the returned result represented a negative value, it meant that a given network section would be flooded in the event of the 1% risk flood. This rendered it possible to show not only the segments of the road network which ran within flood-hazard areas, but also specific sections over which flood waters would flow. This approach brought good results was verified when a series of macroscale maps (Figure 4) were generated, a procedure which was aimed at testing its validity (due to the accuracy and size of the applied database, the generation of a single map of the entire Warta Water Region could not be completed within an acceptable period of time, even if good-quality hardware was used).
In the analyses, it was assumed that any flooding would result in closure of the afflicted section of the network. This approach is commonly applied and well-grounded, for instance, by Gissing’s studies [56], where the authors proved the dangers of driving into road sections that seemed flooded by relatively shallow waters. Nevertheless, there are also studies which accept low levels of floodwater covering the roads [57,58,59].
Further analyses included traffic simulations, changes in vehicle speed within the network, and measurements of potential accessibility. These were conducted for normal conditions – with no floods – and for a scenario of a one-hundred-year flood in the Warta Water Region. Taking into account the nature of the data source related to the traffic model, we decided to apply one of the most popular approaches to traffic simulation, i.e., a simulation utilising the algorithms of the VISUM Software on the basis of the existing National Traffic Model. This tool is often used in studies on a national scale [60,61]. It was presumed that a flood in the researched area would not last long and had no considerable impact on the changes in trip motivation (at such short notice no changes in residence, workplaces, and headquarters of companies, factories and warehouses were reported). However, this approach imposed a certain limitation due to the fact that we did not evaluate the probability of the occurrence of restrictions related to a temporary decrease in transport demand, which could have been an effect of the flood (e.g., delayed holiday returns, employees taking days off to obviate the necessity to commute through or around the flooded areas, etc.). Therefore, the analysis of the no-flood scenario was introduced, and then the resultant travel matrix was reapplied to study traffic distribution over the network, which only contained floodwater-related road closures. As a result, it was possible to demonstrate the changes in the load of individual network sections, including speed changes therein.
The next step was to analyse potential accessibility in Poland and the changes resulting from flooding in the Warta Water Region.
In order to measure potential accessibility, the following formula was applied:
A i = j f 1 ( M j ) f 2 ( c i j )
where:
A i
–transport accessibility of a given transport region
f 1 ( M j )
–function of weight attractiveness (here: linear function)
M j
–weights available within a given transport region (here: the number of people)
f 2 ( c i j )
–distance decay (here: exponential function)
c i j
–the total temporal distance related to a trip from region i to region j (here: distance measured along the transport network).
The time distance for the base variant (no flood) was determined on the basis of traffic distribution within the National Traffic Model. For the variant with a one-hundred-year flood, distances were applied on the basis of the network with road shutdowns (sections to be flooded), and the analysis took into account modified travel speeds resulting from traffic redistribution of traffic over the network whose size had been reduced by flooded sections. As a consequence, it was assumed that potential accessibility would not only be impacted by the infrastructure itself, but also by load-related driving conditions.
The description of the formula above is self-explanatory, and yet, the function of distance decay applied in accessibility studies may require a commentary. For the purposes of this paper, three different functions of distance decay were used: for short (commuting to work), long (business trips and holidaying), and ultralong trips (commodity transport by truck and lorry). The function may take the form of a power [62], exponential [36,63], Gaussian [64], or logistic function [65].
For our research, we used an exponential function that took the following form:
f d d = exp ( β t i j )
where:
f d d
–distance decay
t i j
–travel time between transport regions
β
–beta parameter.
The difference between them lies in the value of the beta parameter. Here, we used the values applied by Rosik [36] on the basis of the detailed data on mobility in Poland, for short, long and ultralong trips. These were β = 0.0154, β = 0.0050 and β = 0.0030, respectively.
Having calculated the potential accessibility for the scenario with a flood (a one-hundred-year flood) and without a flood (base variant), we determined the difference in accessibility, which allowed us to present the vulnerability of the regional transport network to this natural disaster.

3. Results and Discussion

3.1. Traffic Distribution

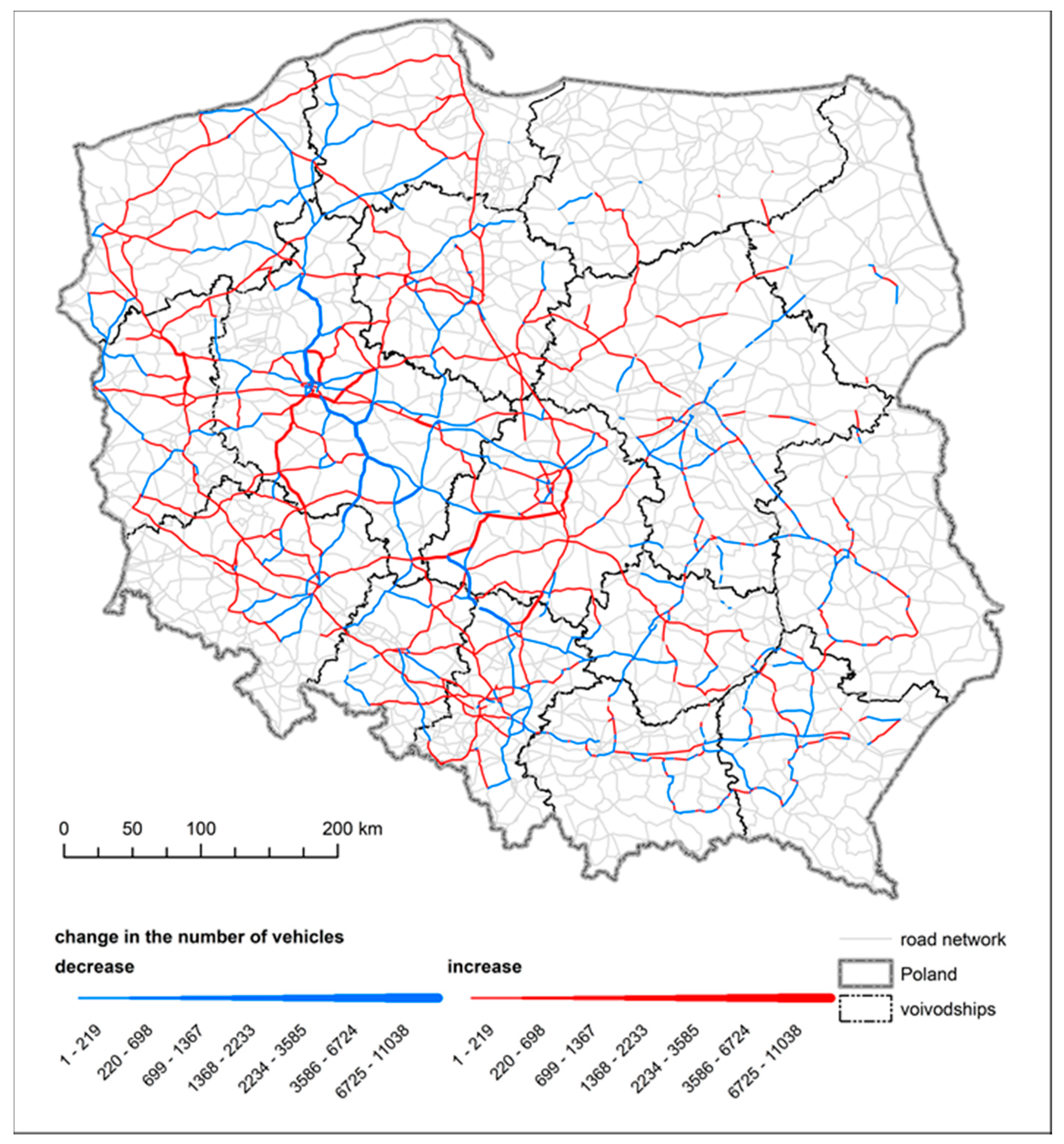

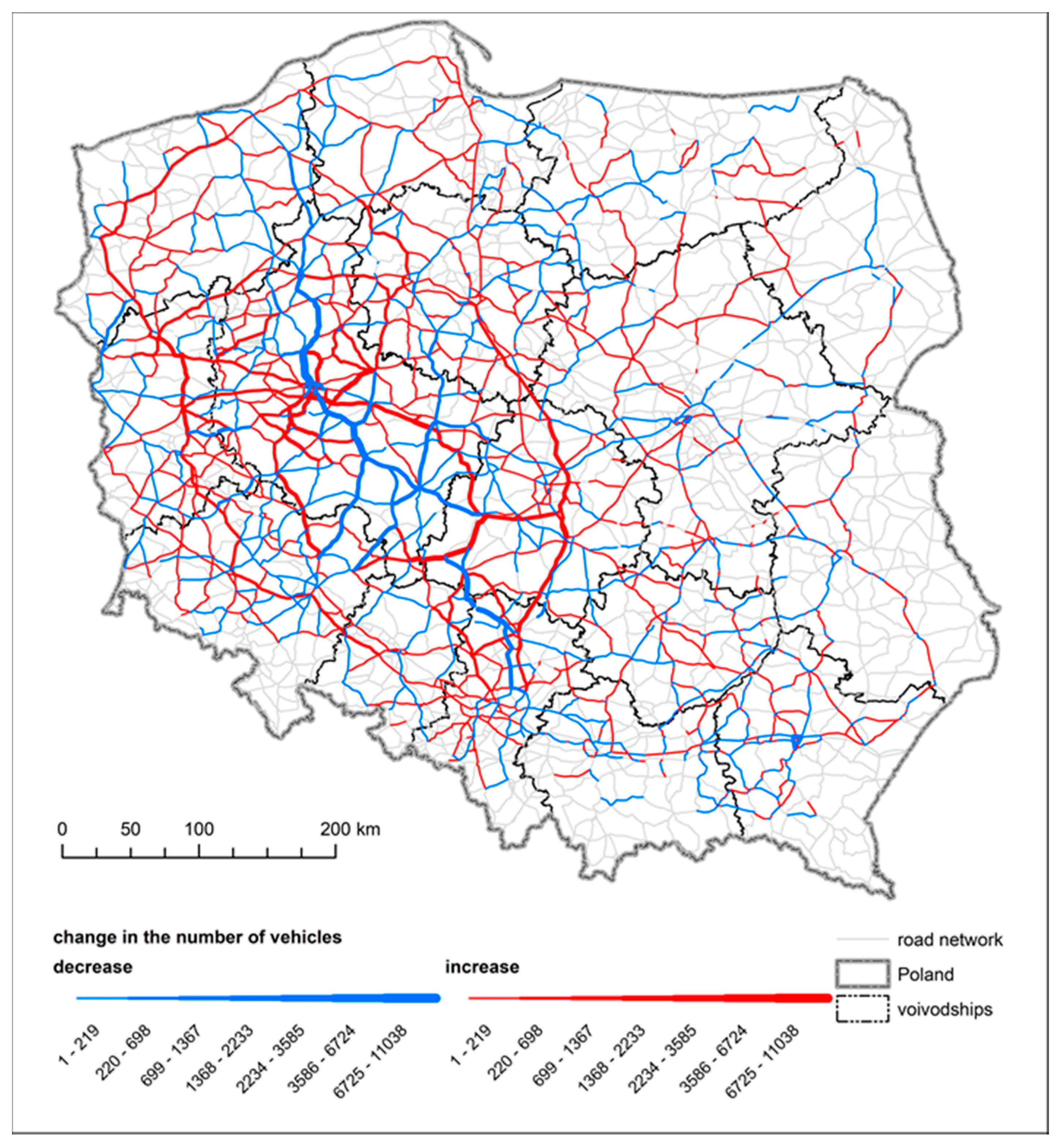

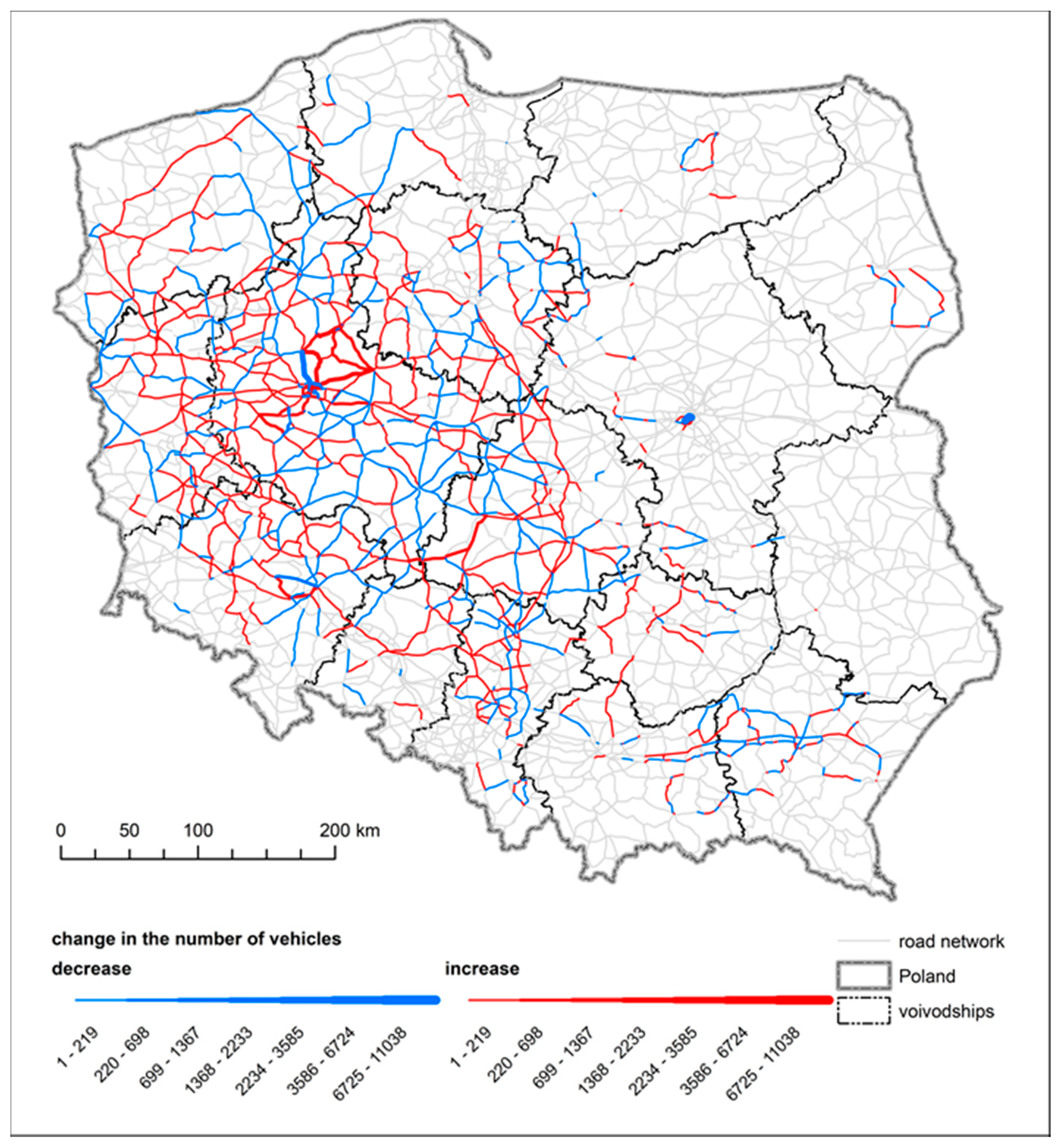

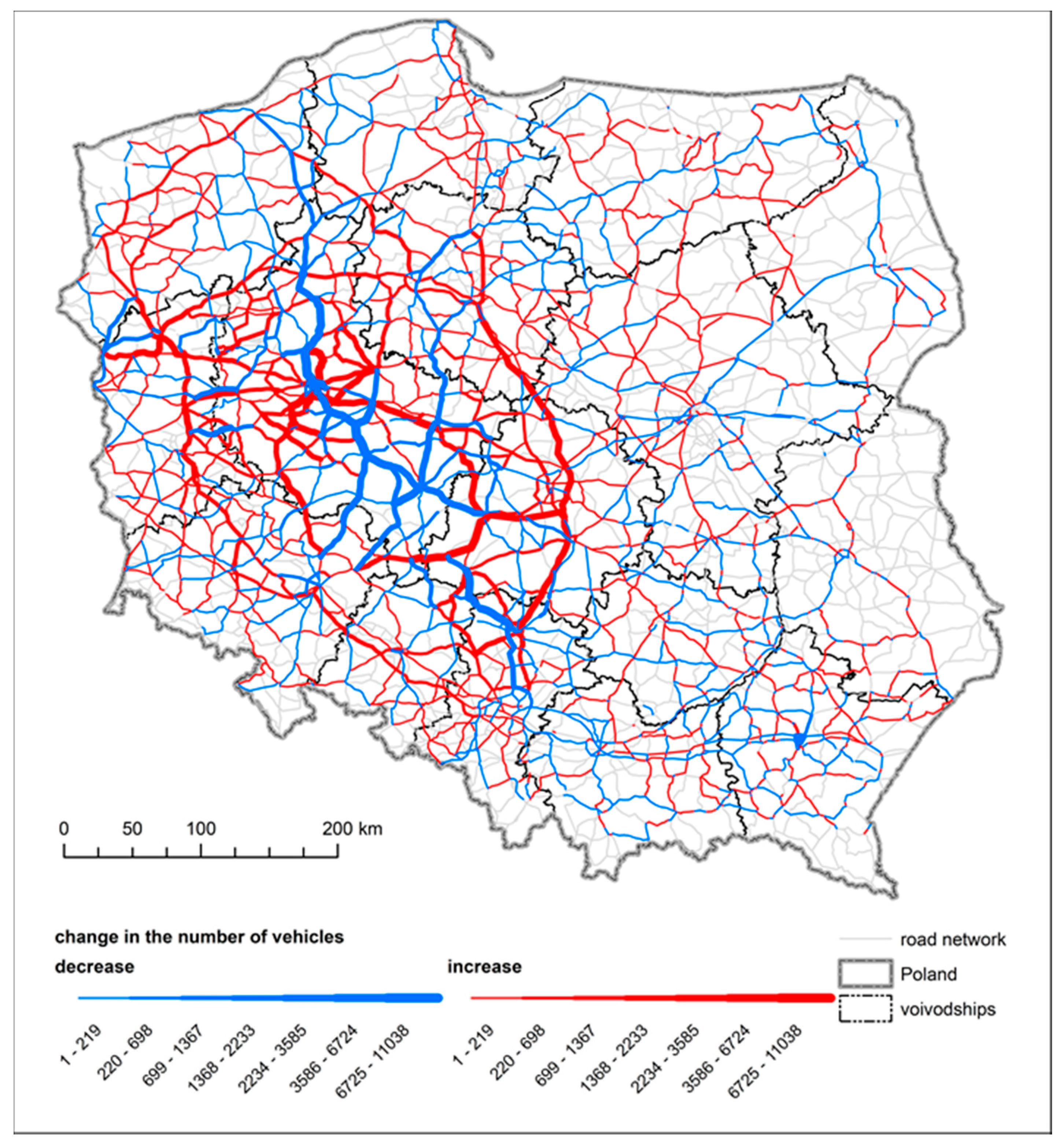

The 1% flood in the Warta Water Region will result in significant shifts of traffic distribution in the western part of Poland (the eastern boundary of considerable changes will almost completely correspond with the border of the first-order drainage divide between the river basins of the Oder and the Vistula). As for the changes of load on individual types of roads at the statistical level, no obvious regularities were found until the ribbon cartogram was applied, which made them significantly more visible (Figure 5, Figure 6, Figure 7, Figure 8 and Figure 9).
In the areas located within the analysed water region, section closures will result in a dramatic decrease in traffic on the following meridional network sections: national road No. 11 (which runs from the central coastal area via Poznań towards highly industrialised Silesia – drops in traffic density were reported several dozen kilometres north of the borders of the researched water region and along the whole course of this route within Greater Poland), national road No. 15 (between Wrocław and Poznań), national road No. 12 (between Kalisz and Sieradz), national road No. 25 (between Wrocław and the Tricity of Gdańsk, Gdynia and Sopot – a route of great importance for the Kalisz-Ostrów urban agglomeration), and national road No. 43 (including a short stretch of the A1 motorway along the route between Upper Silesia and Wieluń). As a result, traffic will be transferred onto the A2 motorway that runs latitudinally, and onto the roads leading to its interchanges, i.e., national roads No. 83 and 72 (the section between Turek and Sieradz, which will take the load of heavy traffic flowing from Upper Silesia), as well as national road No. 5 and the expressway No. S5 (which will take some traffic between Wrocław and Poznań), South-west of Poznań.
In the event of the analysed flood, an important role will be played by the constituents of the national framework transport system which can be found just outside the borders of the Warta Water Region (motorways A1 and A4, expressways S8 and S3, and national roads No. 10 and 22). The aforementioned roads will take the traffic connected to long journeys (business trips in particular, Figure 7).
From an infrastructural perspective, the largest traffic flows will be taken by narrow and single-carriageway sections of the voivodeship (the maximum increase in load of a single section will amount to over 4000 vehicles) and national roads (a rise of 3100 vehicles on one of the sections), as well as expressways (S8 and some sections of S5, with a maximum traffic growth on one section reaching over 6000 vehicles) and motorways (A2, where the greatest increase of nearly 8000 vehicles is expected on one of the sections). On the other hand, the greatest decrease in traffic density will be recorded on national roads, including both those characterised by wider (9–12 m) and lower (6–7 m) cross section (maximum load drop of 11,000 and 5500 vehicles, respectively).

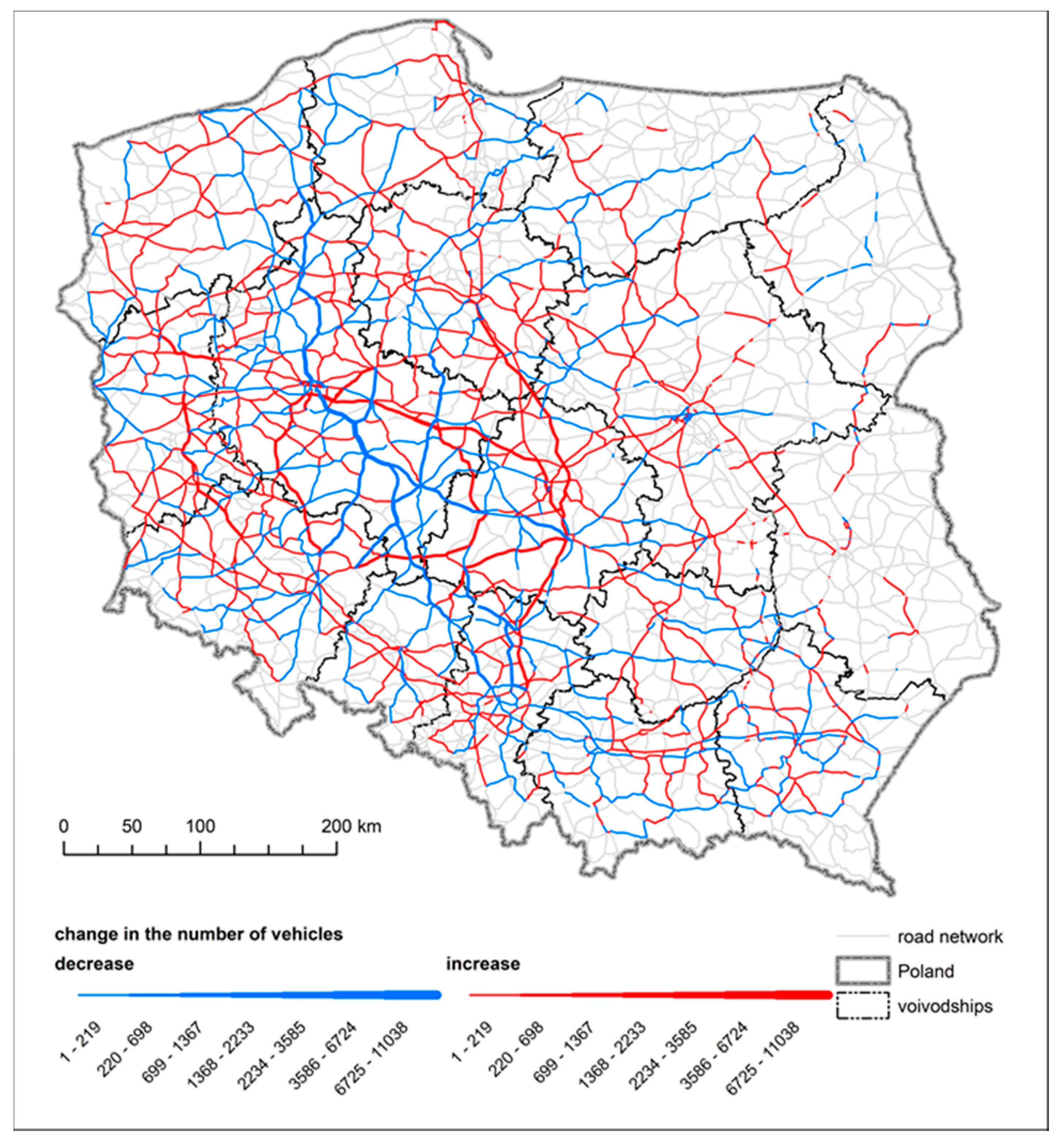

Studies of flood-related changes of the road network load in the Mazovian Voivodeship [6] also showed that the greatest changes in traffic density were recorded in the capital of the voivodeship (in our paper, it is the capital city of the Greater Poland Voivodeship, and in the earlier article, it was the capital city of the Mazovian Voivodeship, and thus, also the capital of Poland). First of all, this stems from the fact that it is large cities to which the greatest numbers of people usually commute. Secondly, in both cases, it is influenced by an unfavourable – in the event of a flood – composition of settlement network and hydrological conditions of the terrain, as the two cities are cut into left- and right-bank halves by rivers – Warsaw by the Vistula, and Poznań by the Oder. Due to the division, vast areas with high demographic potential will be excluded from the transport network, which – in the face of constant demand for transport and its limited supply from the flooded road network – will have far-reaching consequences for the spatial distribution of traffic flows. Naturally, the limited supply depends on a given location. In some cities, closures are a very important constituent of flood risk [66]. Thus, flooding in such areas may result in a significant decrease in traffic density, while the same natural disaster on the outskirts of the analysed voivodeships will cause the opposite effect.

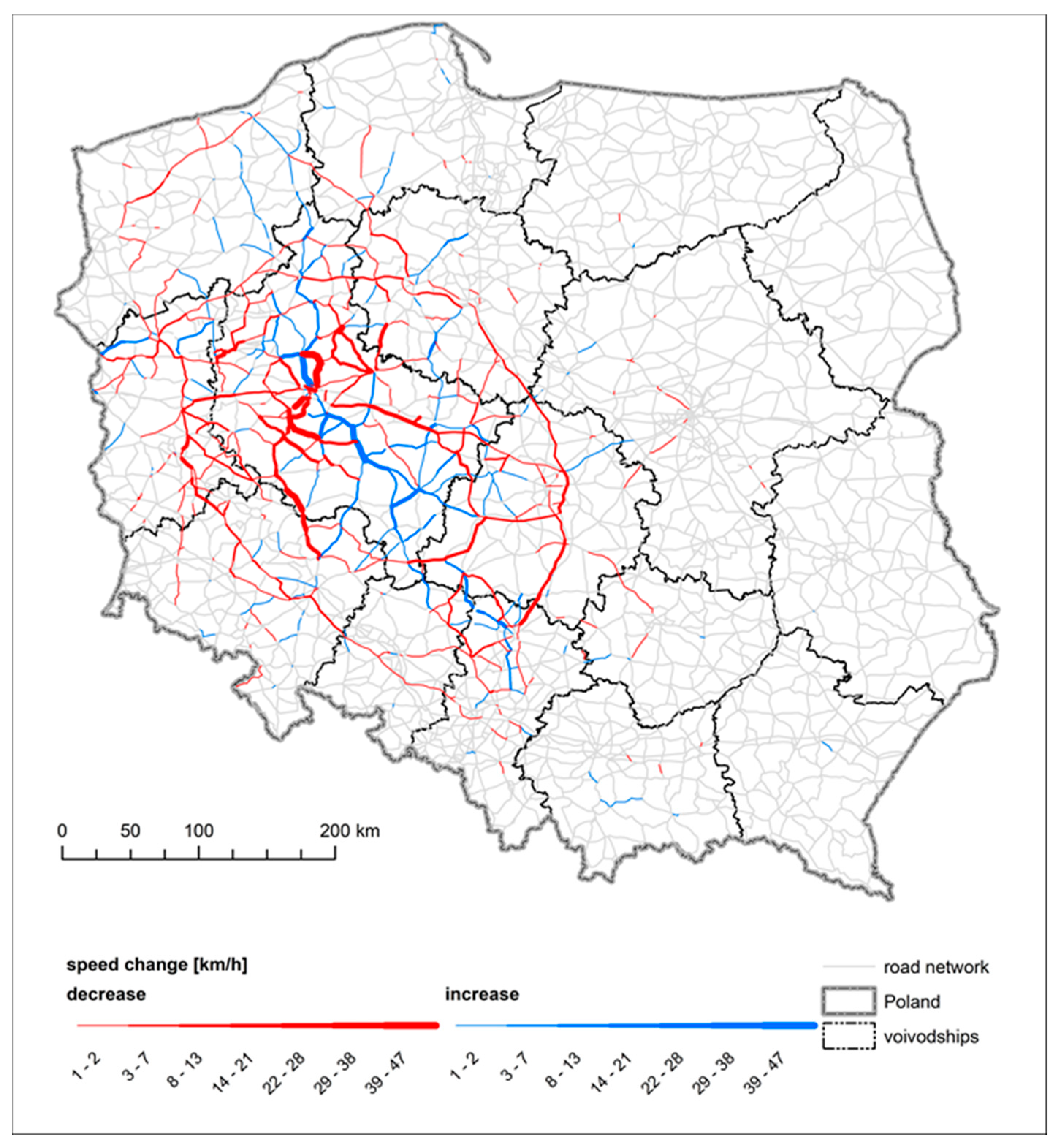

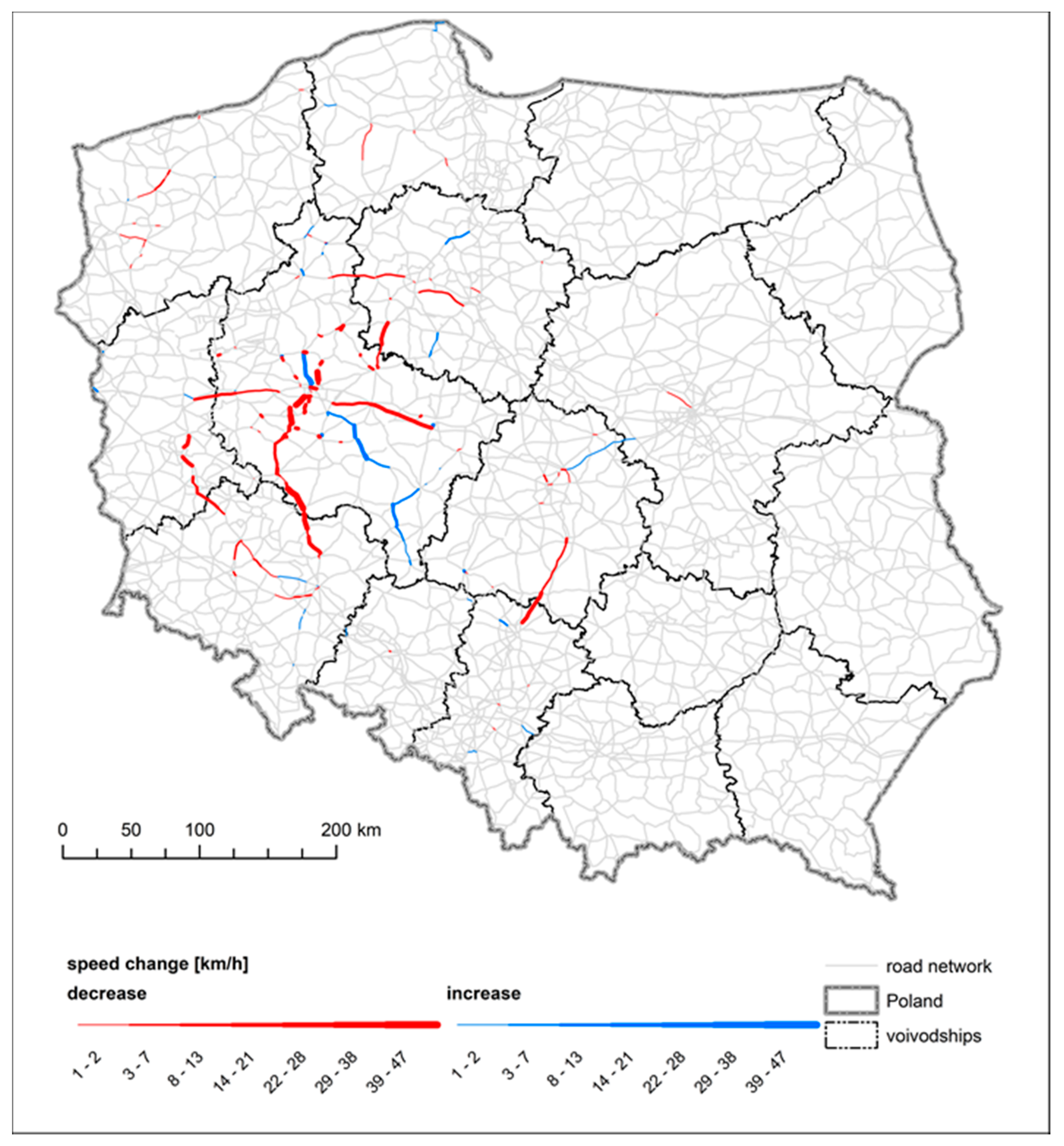

Changes in the spatial distribution of traffic were accompanied by alterations to its flow and speed (Figure 10 and Figure 11). There was a noticeable drop in travel speed on sections with a recorded increase in traffic density, and the scale of the drop depended on the technical parameters of the roads and their related capacities (Table 3, Table 5). The aforementioned cause-effect relationship was inverse on sections where load decreased, as it was accompanied by an increase in speed (Table 6). As far as speed increase is concerned, one must note its non-uniform nature, depending on the mode of transport. Due to specific traffic law regulations and technological limitations, trucks and articulated lorries move at a significantly slower pace in free-flow traffic. Therefore, less congestion on those roads, which are customarily burdened with a significant traffic load will not translate into a considerable increase in their speed.
The research results confirmed the expectations held after the analysis of other publications on the impact of weather (including flood) on traffic speeds [67]. Additionally, they expanded the issue related to speed reduction, not only to sections of slightly flooded road segments, but also to the external effects of a flood, which were observed across territories much vaster than those directly affected by flooding.
In the literature, little attention has been devoted to flood-related traffic disturbances. Comprehensive guidelines for flood effects recommend an analysis of traffic disruptions only if they are expected to be quite considerable, because otherwise, the cost of traffic disruption is negligible compared to direct or indirect tangible costs [68]. One must also bear in mind that the significance of the impact that a flood has on road traffic (in comparison with the other effects it has) is diverse for a given city (or a given extra-urban area), which stems from natural and non-natural conditions (it can be influenced by so many factors that simulations of traffic disruptions must be performed separately for each area, i.e., it is a very ‘individual’ matter). So far, the impact of flood on traffic has been analysed by means of simple mathematical [68] or macroscopic models of traffic [50,52]. Neither method, however, takes into consideration the dynamics of the transport system – how routes are changed when a given street is closed – and the dynamics of a flood. Since these approaches present a static system that use homogenous and aggregated traffic flows, their reliability is not high, especially when it comes to simulating decisions made in complex networks of urban traffic [58]. Due to a lack of data, however, these methods often remain the only available analytical tool, and from the perspective of the analysed area and the returned results, potential flood-related traffic disruptions pose a profound challenge. What could give a more realistic picture of congestion and bottlenecks is microsimulation, which mainly uses algorithms that take into account drivers’ reactions and intermodal transportation [69,70], which is our idea for future studies.

3.2. Changes in Accessibility

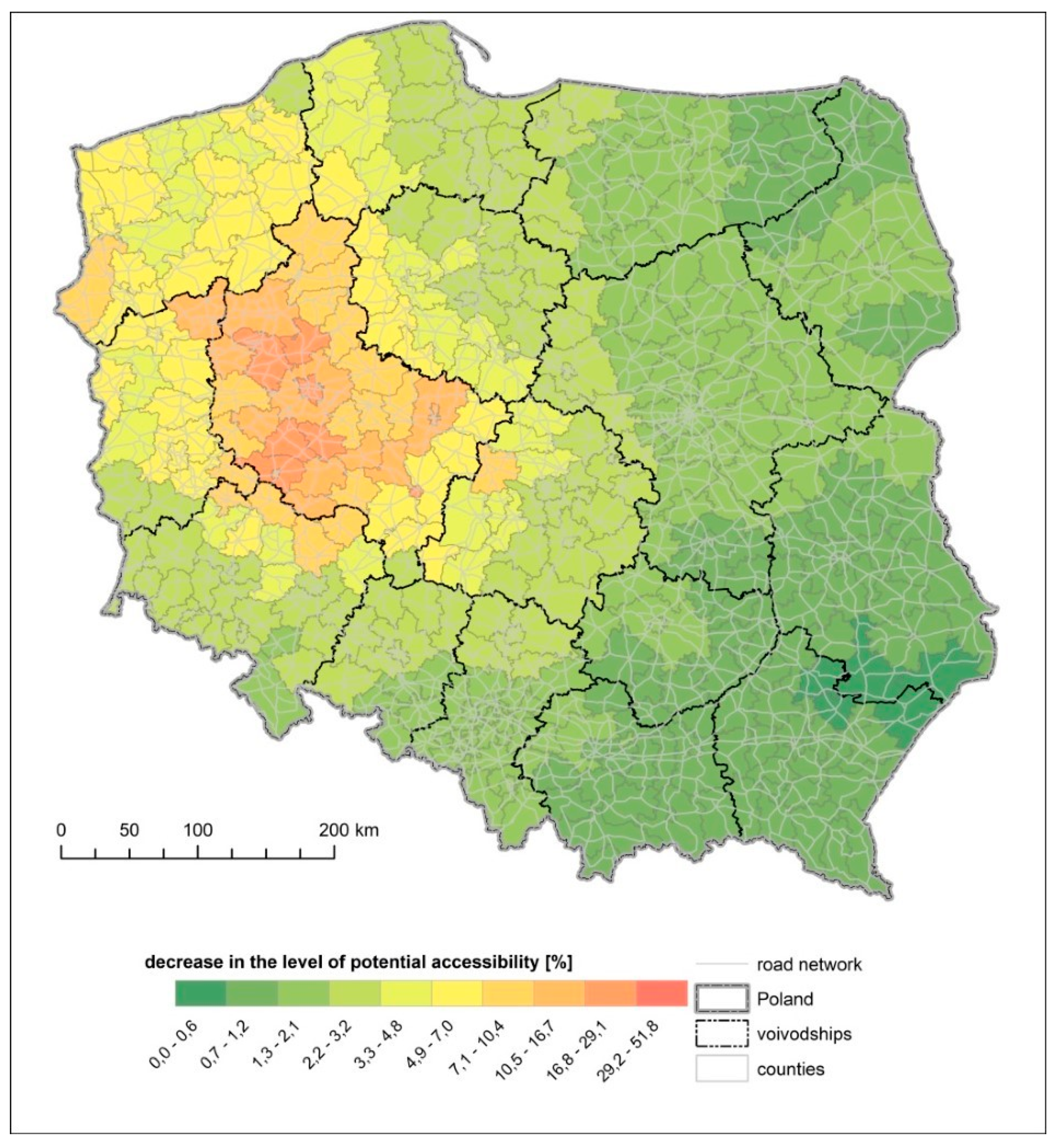

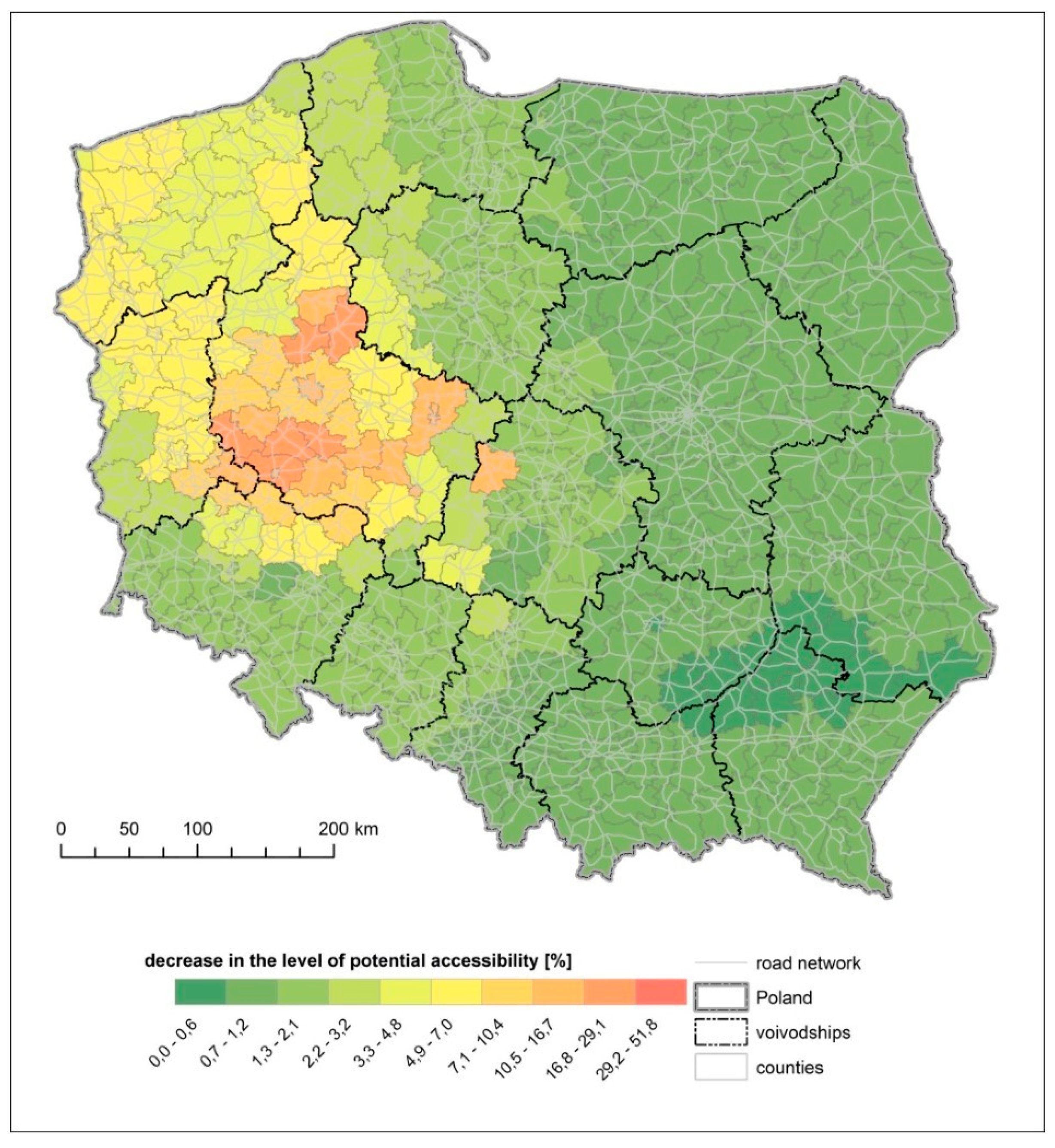

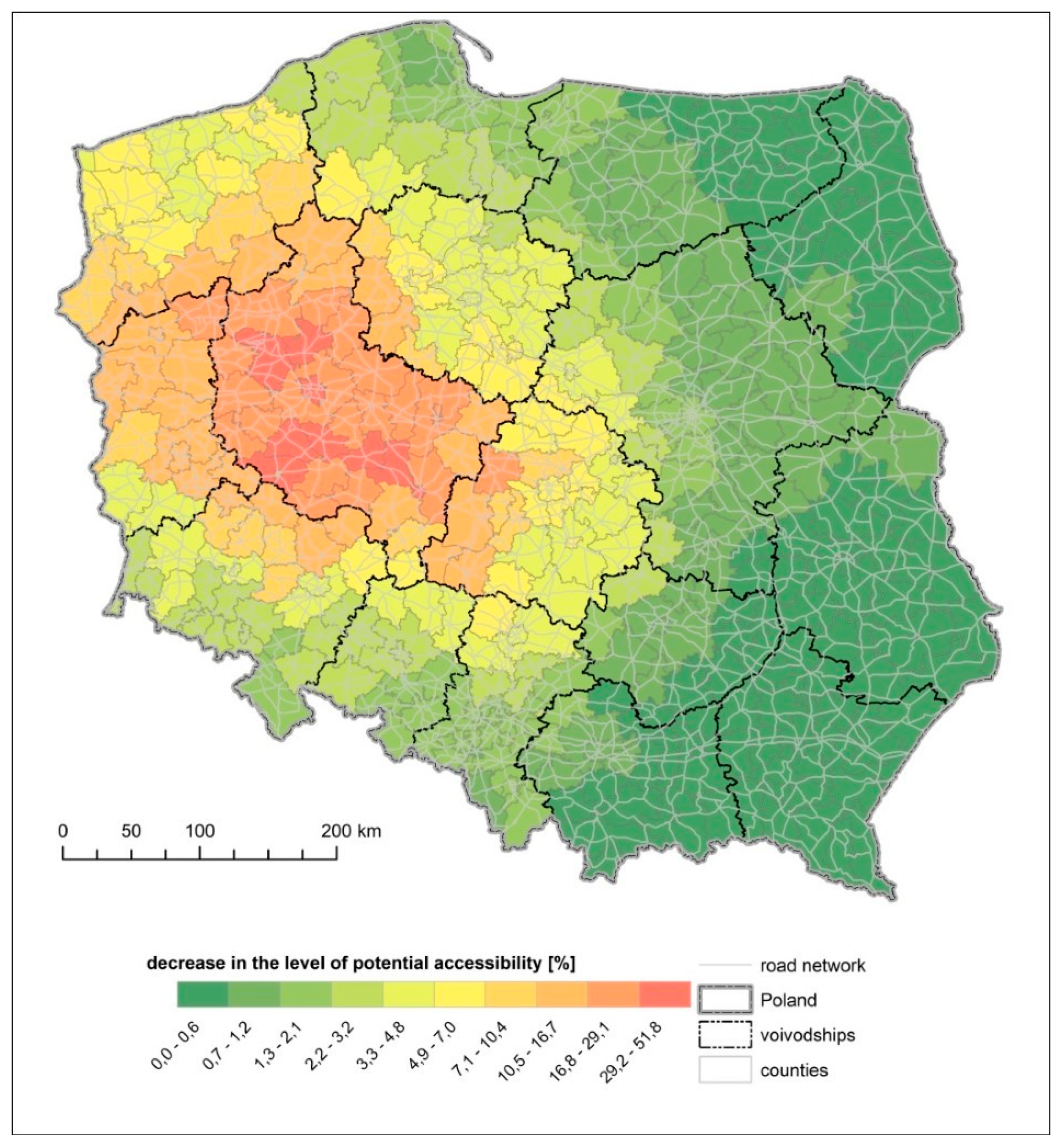

The greatest extrema of changes in potential accessibility can be observed for short trips (which is no rarity itself, since it stems from the function of distance decay applied in the study). As for the Water Warta Region, the most considerable flood-related drops in accessibility were recorded in Poznań (the capital of the Greater Poland Voivodeship) and in the majority of its counties (the smallest decrease was in the county of Kępno, even though most of its territories lay in the analysed water region). Significant constraints of accessibility would also be registered in the Lubusz and Łódź Voivodeships. Other counties whose short-trip transport accessibility would be considerably limited were areas in the south of the West Pomeranian Voivodeship and in the north of the Lower Silesian Voivodeship, regardless of the fact that they were located several dozen kilometres away from the Warta Water Region (Figure 12). The only regions where a flood in the Warta Water Region will have had no impact on accessibility would be the northern and north-eastern territories of Poland.
Although the differences between the observed changes in potential accessibility measured for short and long trips were rather insignificant (they appeared typical when the change of beta parameter in the function of distance decay was taken into account) (Figure 12 and Figure 13), they became considerably more visible with regard to long haul trips, for which the potential accessibility was far more limited in general, with a tendency for the limitation to increase in the eastbound direction. A relatively higher constraint of accessibility was recorded in the counties of Wągrowiec, Poddębice and Wolsztyn in comparison to other counties of significantly more limited accessibility measured for short and long trips. As a result, these areas were characterised by the greatest decrease in travel speed for trucks and lorries recorded on road sections crucial for their transport accessibility (Figure 14).
The analysis of flood-related changes in transport accessibility within the Mazovian Voivodeship conducted by Borowska-Stefańska and Wiśniewski [7] – using the isochronous approach – also showed that there was a clear distinction between the effects of a flood with regard to transport accessibility, even if it did not take into account mobility-dependent road conditions. For longer trips, increases in travel time related to flood-induced limitations became greater with each covered kilometre, and for short trips, the situation was the reverse. Their study, just like the analysis discussed in this paper, indicated that this fact must be taken into consideration, for instance, when preparing evacuation plans, which was also signalled by many researchers [71,72,73]. The network’s accessibility and vulnerability to flood-related damage is an important issue, confirmed by Brazilian studies that present areas of concurrent high accessibility and great flood risk, which was analogous to the Polish territories analysed in our study [74].
When indirect damage is evaluated – and more precisely, damage connected with traffic disruptions and the resulting flood-related changes in transport accessibility – great importance is attributed to concurrent high accessibility and great flood risk, which is analogous to the Polish territories and the spatial scale on which this phenomenon was analysed, and to the spatial range of the traffic model. The structure of local, regional, and national traffic models differs, and thus, the simulations performed using such models also return varied results. Even though studies conducted on a local scale [70,75] allow for precise modelling of changes in traffic flows, or even movements of individual vehicles, they do not offer information on what impact the analysed changes have on the stability of the transport system in a broader context [76]. Regional models seem to be the optimum solution, since they guarantee the precision typical for local-scale analysis and take into account the surrounding conditionings of the urban or metropolitan transport system [77]. However, they become somewhat useless when it comes to studies focusing on very long trips, where transit traffic gains great importance, and the scope of analysis is extended to the whole country, or even to transboundary sections of the road network [78]. Regardless of the applied modelling scale, however, it should be consistent with higher-order models, and thus, it should allow for results of various simulations to be compared. On the basis of the regional traffic model of Greater Poland, Borowska-Stefańska et al. [31] simulated a reaction of the regional transport system to flood. The spatial distribution of changes recorded in volumes of traffic flows and the scope of such changes were largely concordant with the results we obtained for the territories within the borders of Greater Poland. When it comes to changes in potential accessibility, both studies indicated a similar distribution of units where the greatest drops were recorded, and yet the volume of these changes was slightly divergent, which can probably be attributed to diverse types of transport regions and the different density of their road networks.

4. Conclusions

The main purpose of the article was to develop a method for researching accessibility in the event of a flood combined with the application of measurement based on mobility. It was assumed that changes in mobility (and the related travel speed) were so significant to accessibility in unusual circumstances that it was imperative to include them.
The application of research on mobility and accessibility – flooding scenarios in particular – indicates the impact that a flood can have on the capacity of the road network. In addition, it also allows for more efficient flood-risk management, which is vital for the analysis of indirect flood damage that is less frequently scrutinised in the literature due to difficulties in their assessment [79]. Our study showed that the occurrence of a flood may cause indirect damages by diminishing the level of potential accessibility (i.e., the type of accessibility that most aptly demonstrates relationships between spatial management and transport) over a relatively large area, which quite commonly extended beyond the territories of river valleys (and even lowland water regions).
On the basis of the conducted analyses, it can be stated that the occurrence of a flood has an important influence on changes to the spatial distribution of traffic and the related travel speed. Such changes vary with regard to a given means of transport. In this respect, changes in the direction of the traffic flows that cause a decrease in density on some road sections are bound to increase (accelerate) trips taken by passenger cars and, to a much lesser degree, by lorries. This was in relation to sections with greater speed limits for the latter. On the other hand, the deterioration of driving conditions caused by non-typical incidents has the same impact on the travel speed of vehicles, regardless of their type. The changes we recorded would not have been noticeable if accessibility was measured by means of the most commonly applied speed-model-based methods.
Another aspect that the article reveals is the applicability of source materials available in the vast majority of EU states, among which the most crucial are flood-risk maps and the NMPT. The maps illustrating flood risks and the data on road ordinates render it possible to conduct studies identifying closures and shutdowns of sections within the transport network should a flood occur. Moreover, they can greatly impact strategies of flood-risk management.

Author Contributions

Conceptualization, Szymon Wiśniewski; methodology, Szymon Wiśniewski; software, Szymon Wiśniewski; validation, Michał Kowalski, Marta Borowska-Stefańska; formal analysis, Michał Kowalski; investigation, Michał Kowalski and Szymon Wiśniewski; resources, Szymon Wiśniewski; data curation, Szymon Wiśniewski; writing – original draft preparation, Marta Borowska-Stefańska, Michał Kowalski, Szymon Wiśniewski; writing – review and editing, Marta Borowska-Stefańska, Michał Kowalski, Szymon Wiśniewski; visualization, Szymon Wiśniewski; supervision, M. Borowska-Stefańska; project administration, Szymon Wiśniewski; funding acquisition, Szymon Wiśniewski.

Funding

This research was funded by the National Science Centre in Poland, grant number 2018/29/B/HS4/01020.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Radosavljevic, V.; Belojevic, G.; Pavlovic, N. Tool for decision-making regarding general evacuation during a rapid river flood. Public Health 2017, 146, 134–139. [Google Scholar] [CrossRef] [PubMed]
  2. Zhou, Q.; Leng, G.; Peng, J. Recent changes in the occurrences and damages of floods and droughts in the United States. Water 2018, 10, 1109. [Google Scholar] [CrossRef]
  3. DfT, D.T. Transport Resilience Review. A Review of the Resilience of the Transport Network to Extreme Weather Events; Department for Transport: London, UK, 2014. [Google Scholar]
  4. Dawson, R.J.; Thompson, D.; Johns, D.; Gosling, S.; Chapman, L.; Darch, G.; Watson, G.; Powrie, W.; Bell, S.; Paulson, K.; et al. Infrastructure. In UK Climate Change Risk Assessment Evidence Report; Report Prepared for the Adaptation Sub-Committee of the Committee on Climate Change; Adaptation Sub-Committee of the Committee on Climate Change: London, UK, 2016. [Google Scholar]
  5. Pregnolato, M.; Ford, A.; Robson, C.; Glenis, V.; Barr, S.; Dawson, R. Assessing urban strategies for reducing the impacts of extreme weather on infrastructure networks. R. Soc. Open Sci. 2016, 3, 160023. [Google Scholar] [CrossRef] [PubMed]
  6. Borowska-Stefańska, M.; Domagalski, A.; Wiśniewski, S. Changes concerning commute traffic distribution on a road network following the occurrence of a natural disaster—The example of a flood in the Mazovian Voivodeship (Eastern Poland). Transp. Res. Part D Transp. Environ. 2018, 65, 116–137. [Google Scholar] [CrossRef]
  7. Borowska-Stefańska, M.; Wiśniewski, S. Changes in transport accessibility as a result of flooding: A case study of the Mazovia Province (Eastern Poland). Environ. Hazards 2018, 17, 56–83. [Google Scholar] [CrossRef]
  8. Petersen, M.S. Impacts of Flash Floods; Gruntfest, E., Handmer, J., Eds.; Springer: Dordrecht, The Netherlands, 2001; ISBN 978-0-7923-6826-7. [Google Scholar]
  9. Singh, P.; Sinha, V.S.P.; Vijhani, A.; Pahuja, N. Vulnerability assessment of urban road network from urban flood. Int. J. Disaster Risk Reduct. 2018, 28, 237–250. [Google Scholar] [CrossRef]
  10. Brown, S.; Dawson, R. Building network-level resilience to resource disruption from flooding: Case studies from the Shetland Islands and Hurricane Sandy. E3S Web Conf. 2016, 7, 04008. [Google Scholar] [CrossRef]
  11. Hammond, M.J.; Chen, A.S.; Djordjević, S.; Butler, D.; Mark, O. Urban flood impact assessment: A state-of-the-art review. Urban Water J. 2015, 12, 14–29. [Google Scholar] [CrossRef]
  12. Pregnolato, M.; Ford, A.; Wilkinson, S.M.; Dawson, R.J. The impact of flooding on road transport: A depth-disruption function. Transp. Res. Part D Transp. Environ. 2017, 55, 67–81. [Google Scholar] [CrossRef]
  13. Chen, Z.; Liu, X.C.; Zhang, G. Non-recurrent congestion analysis using data-driven spatiotemporal approach for information construction. Transp. Res. Part C Emerg. Technol. 2016, 71, 19–31. [Google Scholar] [CrossRef]
  14. Żochowska, R.; Karoń, G. Przegląd literatury na temat zjawiska kongestii i zakłóceń ruchu w systemie transportowym miasta w aspekcie modelowania podróży. Zeszyty Naukowo Techniczne Stowarzyszenia Inżynierów i Techników Komunikacji w Krakowie Seria Materiały Konferencyjne 2012, 98, 251–276. [Google Scholar]
  15. Skabardonis, A.; Varaiya, P.P.; Petty, K. Measuring recurrent and non-recurrent traffic congestion. Transp. Res. Rec. 2013, 1856, 118–124. [Google Scholar] [CrossRef]
  16. Taylor, M.A.P. Susilawati Remoteness and accessibility in the vulnerability analysis of regional road networks. Transp. Res. Part A Policy Pract. 2012, 46, 761–771. [Google Scholar] [CrossRef]
  17. Adey, P. If mobility is everything then it is nothing: Towards a relational politics of (im) mobilities. Mobilities 2006, 1, 75–94. [Google Scholar] [CrossRef]
  18. Hannam, K.; Sheller, M.; Urry, J. Editorial: Mobilities, immobilities and moorings. Mobilities 2006, 1, 1–22. [Google Scholar] [CrossRef]
  19. Komornicki, T. Przemiany Mobilności Codziennej Polaków na tle Rozwoju Motoryzacji; IGiPZ PAN: Warszawa, Poland, 2011; ISBN 9788361590170. [Google Scholar]
  20. Chen, A.; Yang, C.; Kongsomsaksakul, S.; Lee, M. Network-based accessibility measures for vulnerability analysis of degradable transportation networks. Netw. Spat. Econ. 2007, 7, 241–256. [Google Scholar] [CrossRef]
  21. Wiśniewski, S. Dostępność transportowa Uniejowa–ujęcie regionalne. Biuletyn Uniejowski 2014, 3, 67–84. [Google Scholar]
  22. Bartosiewicz, B.; Pielesiak, I. Powiązania transportowe w Łódzkim Obszarze Metropolitalnym. Studia KPZK PAN 2012, 147, 105–137. Available online: http://dspace.uni.lodz.pl/xmlui/bitstream/handle/11089/6050/Transport_Bartosz_Bartosiewicz_Iwona_Pielesiak.pdf?sequence=1&isAllowed=y (accessed on 26 November 2019). [Google Scholar]
  23. Rosik, P.; Śleszyński, P. Wpływ zaludnienia w otoczeniu drogi, ukształtowania powierzchni terenu oraz natężenia ruchu na średnią prędkość jazdy samochodem osobowym. Transport Miejski i Regionalny 2009, 10, 26–31. [Google Scholar]
  24. Komornicki, T.; Śleszyński, P.; Rosik, P.; Pomianowski, W. Dostępność Przestrzenna Jako Przesłanka Kształtowania Polskiej Polityki Transportowej; KPZK PAN: Warsaw, Poland, 2009. [Google Scholar]
  25. Wiśniewski, S. Teoretyczna i rzezcywista wewnętrzna dostępność transportowa Łodzi. Prace i Studia Geograficzne 2016, 61, 95–108. [Google Scholar]
  26. Borowska-Stefańska, M.; Kowalski, M.; Wiśniewski, S. Wewnętrzna samochodowa dostępność transportowa Łodzi w świetle pomiarów z inteligentnych systemów transportowych. Prace geograficzne. 2019, 159. in print. [Google Scholar]
  27. Church, R.L.; Cova, T.J. Mapping evacuation risk on transportation networks using a spatial optimization model. Transp. Res. Part C Emerg. Technol. 2000, 8, 321–336. [Google Scholar] [CrossRef]
  28. Borowska-Stefańska, M.; Wiśniewski, S.; Andrei, M.-T. Accessibility to places of evacuation for inhabitants of flood-prone areas in Mazovia province. Geomat. Environ. Eng. 2017, 11, 31. [Google Scholar] [CrossRef]
  29. Hsu, Y.T.; Peeta, S. Risk-based spatial zone determination problem for stage-based evacuation operations. Transp. Res. Part C Emerg. Technol. 2014, 41, 73–89. [Google Scholar] [CrossRef]
  30. Kongsomsaksakul, S.; Yang, C.; Chen, A. Shelter location-allocation model for flood evacuation planning. J. East. Asia Soc. Transp. Stud. 2005, 6, 4237–4252. [Google Scholar]
  31. Borowska-Stefańska, M.; Kowalski, M.; Wiśniewski, S. The impact of flood-related changes to mobility on potential accessibility in the region of Greater Poland. 2019; in review. [Google Scholar]
  32. TRB. HCM 2010: Highway Capacity Manual. National Research Council (U.S.); TRB: Washington, DC, USA, 2010. [Google Scholar]
  33. Shand, T.D.; Cox, R.J.; Blacka, M.J. Australian Rainfall and Runoff (AR&R). Revision Project 10: Appropriate Safety Criteria for Vehicles; Report Number: P10/S2/020; Water Research Laboratory, The University of New South Wales: Manly Vale, Australia, 2011. [Google Scholar]
  34. Penning-Rowsell, E.; Priest, S.; Parker, D.; Morris, J.; Tunstall, S.; Viavattene, C.; Chatteron, J.; Owen, D. Flood and Coastal Erosion Risk Management: A Manual for Economic Appraisal; Routledge: Abingdon, UK, 2013; ISBN 9780415815154. [Google Scholar]
  35. Śleszyński, P. Dostępność czasowa i jej zastosowania. Prz. Geogr. 2014, 86, 171–215. [Google Scholar] [CrossRef]
  36. Rosik, P. Dostępność Lądowa Przestrzeni Polski W Wymiarze Europejskim; IGiPZ PAN: Warsaw, Poland, 2012; ISBN 9788578110796. [Google Scholar]
  37. Stepniak, M.; Rosik, P. Accessibility improvement, territorial cohesion and spillovers: A multidimensional evaluation of two motorway sections in Poland. J. Transp. Geogr. 2013, 31, 154–163. [Google Scholar] [CrossRef]
  38. Nelson, A. Travel Time to Major Cities: A Global Map of Accessibility: Poster + Datasets; Office for Official Publications of the European Communities: Luxembourg, Luxembourg, 2008. [Google Scholar]
  39. Wegner, M. (Ed.) Overview of Land Use Transport Models: Handbook of Transport Geography and Spatial Systems; Elsevier: Oxford, UK, 2004. [Google Scholar]
  40. Hunt, J.D.; Kriger, D.S.; Miller, E.J. Current operational urban land-use-transport modelling frameworks: A review. Transp. Rev. 2005, 25, 329–376. [Google Scholar] [CrossRef]
  41. Hackney, J.K.; Bernard, M.; Bindra, S.; Axhausen, K.W. Predicting road system speeds using spatial structure variables and network characteristics. J. Geogr. Syst. 2007, 9, 397–417. [Google Scholar] [CrossRef]
  42. The Act of 20 July 2017 on Water Law. Dz.U. 2018 poz. 2268; Poland, 2018. Available online: http://prawo.sejm.gov.pl/isap.nsf/DocDetails.xsp?id=WDU20180002268 (accessed on 26 November 2019).
  43. PGWWP Państwowe Gospodarstwo Wodne Wody Polskie. 2019.
  44. GUS Główny Urząd Statystyczny. 2017. Available online: https://stat.gov.pl/ (accessed on 26 November 2019).
  45. Commission of the European Communities. Directive 2007/60/EC of the European parliament and of the council of 23 October 2007 on the assessment and management of flood risks. Off. J. Eur. Union 2007, 288, 27–34. [Google Scholar]
  46. GDDKiA Generalna Dyrekcja Dróg Krajowych i Autostrad. 2007.
  47. Borowska-Stefańska, M. Zagospodarowanie terenów zagrożonych powodziami w gminach województwa łódzkiego. Przegląd Geograficzny 2015, 87, 535–553. [Google Scholar]
  48. Borowska-Stefańska, M. Zagospodarowanie Terenów Zagrożonych Powodziami w Województwie Łódzkim; Łódź University Press: Łódź, Poland, 2015. [Google Scholar]
  49. Gutry-Korycka, M.; Magnuszewski, A.; Suchozebrski, J.; Jaworski, W.; Marcinkowski, M.; Szydlowski, M. Numerical estimation of flood zones in the Vistula River valley, Warsaw, Poland. IAHS-AISH Publ. 2006, 308, 191–195. [Google Scholar]
  50. Chang, H.; Lafrenz, M.; Jung, I.W.; Figliozzi, M.; Platman, D.; Pederson, C. Potential impacts of climate change on Flood-Induced Travel Disruptions: A Case Study of Portland, Oregon, USA. Ann. Assoc. Am. Geogr. 2010, 100, 938–952. [Google Scholar] [CrossRef]
  51. Sohn, J. Evaluating the significance of highway network links under the flood damage: An accessibility approach. Transp. Res. Part A Policy Pract. 2006, 40, 491–506. [Google Scholar] [CrossRef]
  52. Suarez, P.; Anderson, W.; Mahal, V.; Lakshmanan, T.R. Impacts of flooding and climate change on urban transportation: A systemwide performance assessment of the Boston Metro Area. Transp. Res. Part D Transp. Environ. 2005, 10, 231–244. [Google Scholar] [CrossRef]
  53. Brassel, K.E.; Reif, D. A procedure to generate thiessen polygons. Geogr. Anal. 1979, 11, 289–303. [Google Scholar] [CrossRef]
  54. Fiedler, F.R. Simple, practical method for determining station weights using Thiessen polygons and isohyetal maps. J. Hydrol. Eng. 2003, 8, 219–221. [Google Scholar] [CrossRef]
  55. Han, D.; Bray, M. Automated Thiessen polygon generation. Water Resour. Res. 2006, 42, 2–6. [Google Scholar] [CrossRef]
  56. Gissing, A.; Opper, S.; Tofa, M.; Coates, L.; McAneney, J. Influence of road characteristics on flood fatalities in Australia. Environ. Hazards 2019, 7891, 1–12. [Google Scholar] [CrossRef]
  57. Albano, R.; Sole, A.; Adamowski, J.; Mancusi, L. A GIS-based model to estimate flood consequences and the degree of accessibility and operability of strategic emergency response structures in urban areas. Nat. Hazards Earth Syst. Sci. 2014, 14, 2847–2865. [Google Scholar] [CrossRef]
  58. Pyatkova, K.; Chen, A.S.; Djordjević, S.; Butler, D.; Vojinović, Z.; Abebe, Y.A.; Hammond, M. Flood impacts on road transportation using microscopic traffic modelling techniques. In Simulating Urban Traffic Scenarios. Lecture Notes in Mobility; Behrisch, M., Weber, M., Eds.; Springer: Cham, Switzerland, 2019; pp. 115–126. ISBN 9783319336145. [Google Scholar]
  59. Yin, J.; Yu, D.; Yin, Z.; Liu, M.; He, Q. Evaluating the impact and risk of pluvial flash flood on intra-urban road network: A case study in the city center of Shanghai, China. J. Hydrol. 2016, 537, 138–145. [Google Scholar] [CrossRef]
  60. Jacyna, M.; Wasiak, M.; Kłodawski, M.; Lewczuk, K. Simulation model of transport system of Poland as a tool for developing sustainable transport. Arch. Transp. 2014, 31, 23–35. [Google Scholar] [CrossRef]
  61. Kowalski, M.; Wiśniewski, S. Transport accessibility and mobility: A forecast of changes in the face of planned development of the network of expressways and motorways in Poland. Eur. Spat. Res. Policy 2019, 26. in print. [Google Scholar]
  62. Fotheringham, A.S. A new set of spatial-interaction models: The theory of competing destinations. Environ. Plan. A Econ. Space 1983, 15, 15–36. [Google Scholar] [CrossRef]
  63. Spiekermann, K.; Schürmann, C. Update of Selected Potential Accessibility Indicators. Final Report for the ESPON 2006 Programme; Spiekermann & Wegener Stadt- und Regionalforschung: Dortmund, Germany, 2007. [Google Scholar]
  64. Ingram, D.R. The concept of accessibility: A search for an operational form. Reg. Stud. 1971, 5, 101–107. [Google Scholar] [CrossRef]
  65. Geurs, K.T.; Ritsema van Eck, J.R. Accessibility Measures: Review and Applications. Evaluation of Accessibility Impacts of Land-Use Transportation Scenarios, and Related Social and Economic Impact; RIVM Report 408505 006; National Institute of Public Health and the Environment: Bilthoven, The Netherlands, 2001. [Google Scholar]
  66. Gil, J.; Steinbach, P. From flood risk to indirect flood impact: Evaluation of street network performance for effective management, response and repair. In Proceedings of the WIT Transactions on Ecology and the Environment; WIT Press: Southampton, UK, 2008; Volume 118, pp. 335–344. [Google Scholar]
  67. Goodwin, L.C. Weather Impacts on Arterial Traffic Flow; Mitretek Systems Inc.: Falls Church, VA, USA, 2002. [Google Scholar]
  68. Penning-Rowsell, E.; Johnson, C.; Tunstall, S.; Tapsell, S.; Morris, J.; Chatteron, J.; Green, C. The Benefits of Flood and Coastal Risk Management: A Handbook of Assessment Techniques; Middlesex University Press: London, UK, 2005. [Google Scholar]
  69. Helbing, D.; Hennecke, A.; Shvetsov, V.; Treiber, M. Micro-and macro-simulation of freeway traffic. Math. Comput. Model. 2002, 35, 517–547. [Google Scholar] [CrossRef]
  70. Kerner, B.S.; Klenov, S.L. Microscopic theory of spatial-temporal congested traffic patterns at highway bottlenecks. Phys. Rev. E 2003, 68, 36130. [Google Scholar] [CrossRef]
  71. Garbutt, K.; Ellul, C.; Fujiyama, T. Mapping social vulnerability to flood hazard in Norfolk, England. Environ. Hazards 2015, 14, 156–186. [Google Scholar] [CrossRef]
  72. Coles, D.; Yu, D.; Wilby, R.L.; Green, D.; Herring, Z. Beyond ‘flood hotspots’: Modelling emergency service accessibility during flooding in York, UK. J. Hydrol. 2017, 546, 419–436. [Google Scholar] [CrossRef]
  73. Borowska-Stefańska, M.; Kowalski, M.; Turoboś, F.; Wiśniewski, S. Optimisation patterns for the process of a planned evacuation in the event of a flood. Environ. Hazards 2019, 18, 335–360. [Google Scholar] [CrossRef]
  74. Siqueira-Gay, J.; Giannotti, M.A.; Tomasiello, D.B. Accessibility and flood risk spatial indicators as measures of vulnerability. Revista Brasileira de Cartografia 2016, 69, 869–880. [Google Scholar]
  75. Keay, K.; Simmonds, I. The association of rainfall and other weather variables with road traffic volume in Melbourne, Australia. Accid. Anal. Prev. 2005, 37, 109–124. [Google Scholar] [CrossRef] [PubMed]
  76. Al Hassan, Y.; Barker, D.J. The impact of unseasonable or extreme weather on traffic activity within Lothian region, Scotland. J. Transp. Geogr. 1999, 7, 209–213. [Google Scholar] [CrossRef]
  77. Doll, C.; Trinks, C.; Sedlacek, N.; Pelikan, V.; Comes, T.; Schultmann, F. Adapting rail and road networks to weather extremes: Case studies for southern Germany and Austria. Nat. Hazards 2014, 72, 63–85. [Google Scholar] [CrossRef]
  78. Nokkala, M.; Leviäkangas, P.; Oiva, K. The Costs of Extreme Weather for the European Transport Systems. EWENT Project D4; VTT Technical Research Centre of Finland: Espoo, Finland, 2012; ISBN 9789513878535. [Google Scholar]
  79. Gautam, K.P.; van der Hoek, E.E. Literature Study on Environmental Impact of Floods; Delft Cluster: Delft, The Netherlands, 2003. [Google Scholar]

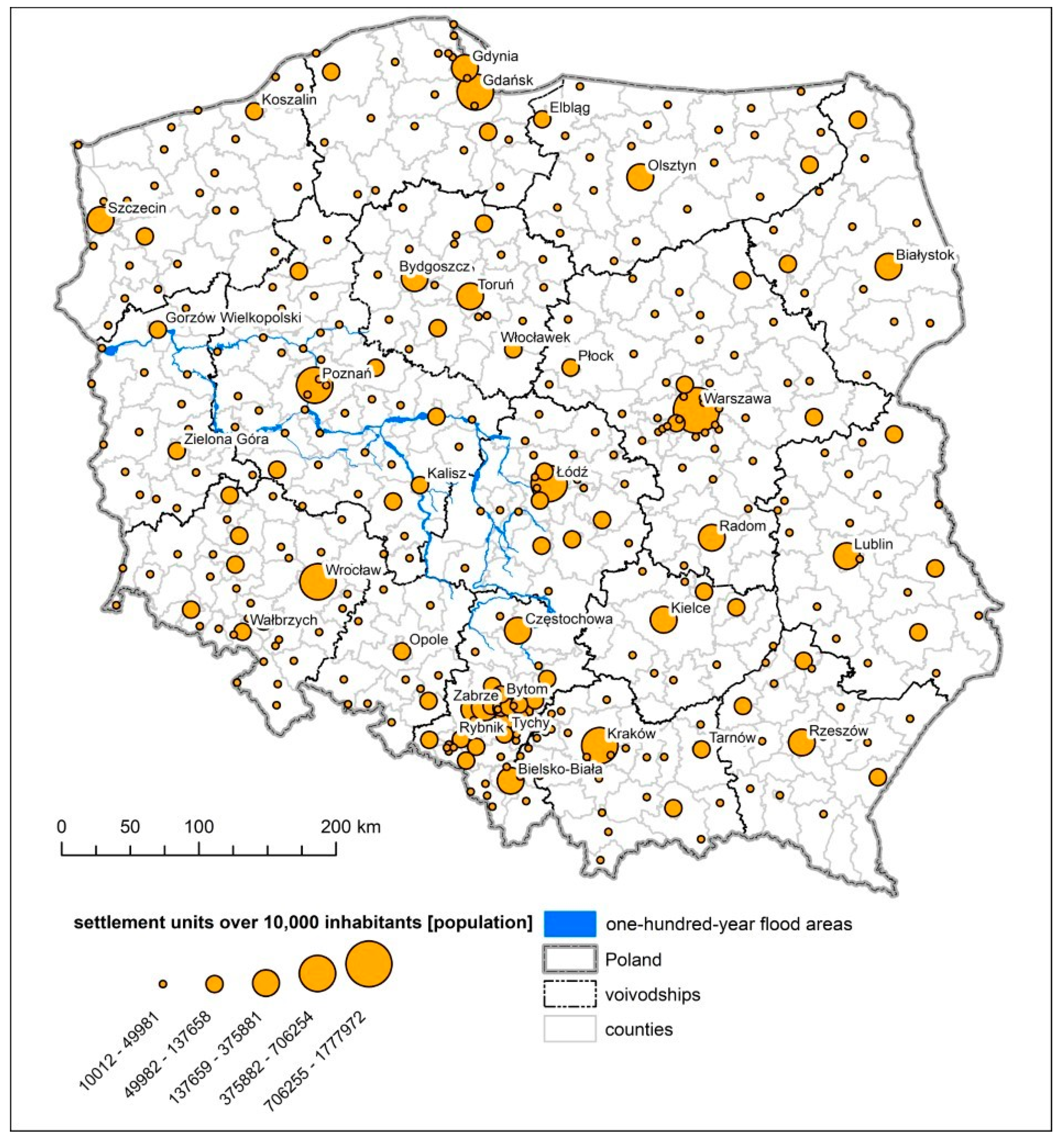

Figure 1. Areas of a one-hundred-year flood within the Warta Water Region compared to the administrative division and settlement network of Poland. Source: The authors’ own elaboration.
Figure 1. Areas of a one-hundred-year flood within the Warta Water Region compared to the administrative division and settlement network of Poland. Source: The authors’ own elaboration.
Ijgi 08 00534 g001
Figure 2. Areas of a one-hundred-year flood within the Warta Water Region compared to the administrative division and road network of Poland. Source: The authors’ own elaboration.
Figure 2. Areas of a one-hundred-year flood within the Warta Water Region compared to the administrative division and road network of Poland. Source: The authors’ own elaboration.
Ijgi 08 00534 g002
Figure 3. The road network and a one-hundred-year flood areas against the natural topography of the voivodeships within the Warta Water Region. Source: The authors’ own elaboration.
Figure 3. The road network and a one-hundred-year flood areas against the natural topography of the voivodeships within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g003

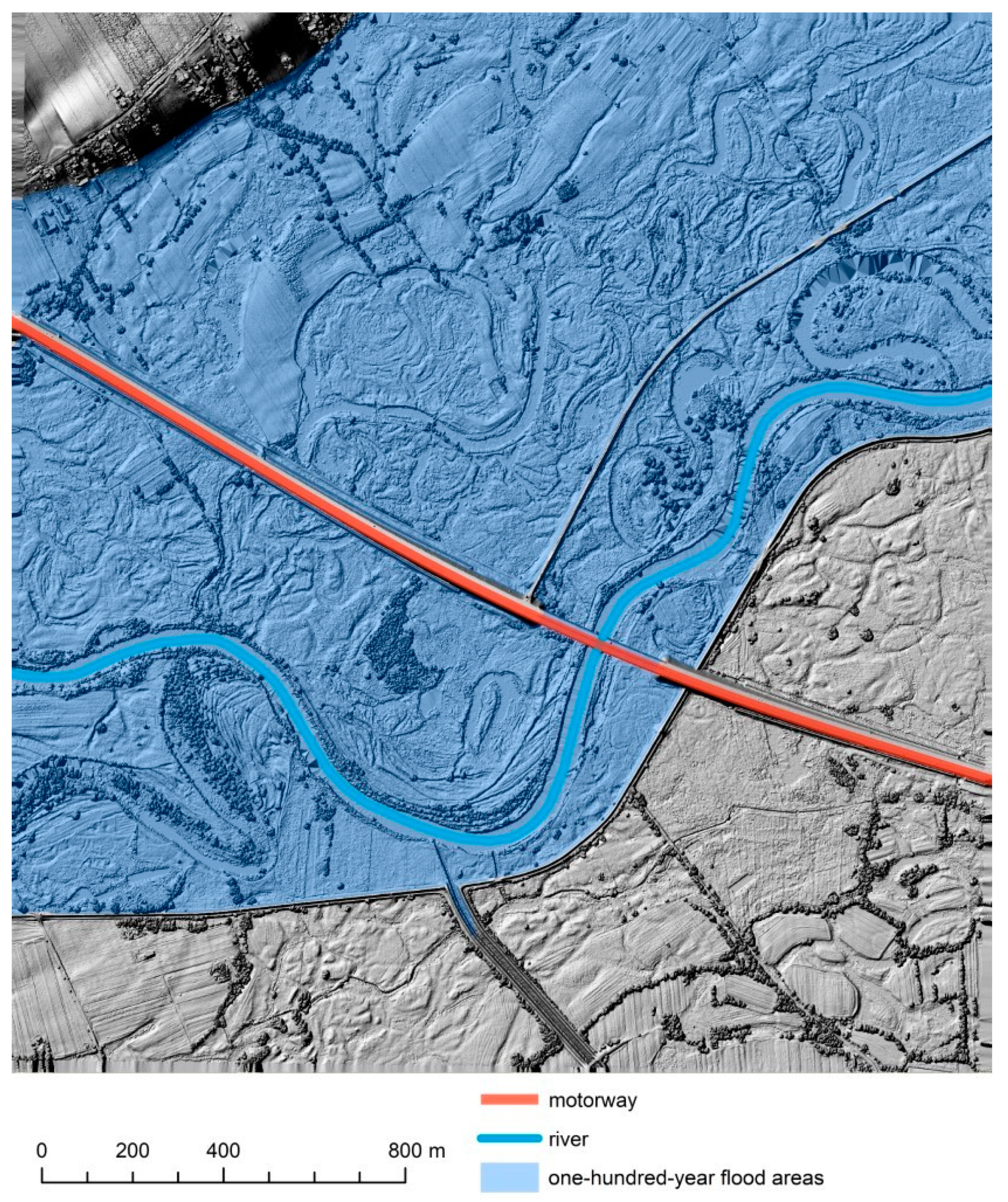

Figure 4. The section of the A2 motorway running through one-hundred-year flood areas within the Warta Water Region against the land development derived from the DTM. Source: The authors’ own elaboration.
Figure 4. The section of the A2 motorway running through one-hundred-year flood areas within the Warta Water Region against the land development derived from the DTM. Source: The authors’ own elaboration.
Ijgi 08 00534 g004
Figure 5. Spatial differentiation of vehicle flows for real-time traffic for all trip motivations in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Figure 5. Spatial differentiation of vehicle flows for real-time traffic for all trip motivations in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g005
Figure 6. Spatial differentiation of vehicle flows for real-time traffic for commuting trips in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Figure 6. Spatial differentiation of vehicle flows for real-time traffic for commuting trips in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g006
Figure 7. Spatial differentiation of vehicle flows for real-time traffic for business trips in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Figure 7. Spatial differentiation of vehicle flows for real-time traffic for business trips in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g007
Figure 8. Spatial differentiation of vehicle flows for real-time traffic for tourism in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Figure 8. Spatial differentiation of vehicle flows for real-time traffic for tourism in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g008
Figure 9. Spatial differentiation of vehicle flows for real-time traffic for articulated lorries in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Figure 9. Spatial differentiation of vehicle flows for real-time traffic for articulated lorries in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g009
Figure 10. Spatial differentiation of speed changes for real-time traffic for passenger cars in the event of a one-hundred-year flood within the Warta Water Region*. * The map only presents changes in speed by 1 or more km/h. Source: The authors’ own elaboration.
Figure 10. Spatial differentiation of speed changes for real-time traffic for passenger cars in the event of a one-hundred-year flood within the Warta Water Region*. * The map only presents changes in speed by 1 or more km/h. Source: The authors’ own elaboration.
Ijgi 08 00534 g010
Figure 11. Spatial differentiation of speed changes for real-time traffic for lorries in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Figure 11. Spatial differentiation of speed changes for real-time traffic for lorries in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g011
Figure 12. Spatial differentiation of changes in potential accessibility for short trips (commuting to work) in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Figure 12. Spatial differentiation of changes in potential accessibility for short trips (commuting to work) in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g012
Figure 13. Spatial differentiation of changes in potential accessibility for long trips (business and tourism) in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Figure 13. Spatial differentiation of changes in potential accessibility for long trips (business and tourism) in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g013
Figure 14. Spatial differentiation of changes in potential accessibility for long haul trips (articulated lorries) in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Figure 14. Spatial differentiation of changes in potential accessibility for long haul trips (articulated lorries) in the event of a one-hundred-year flood within the Warta Water Region. Source: The authors’ own elaboration.
Ijgi 08 00534 g014
Table 1. The surface of flood-hazard areas within the Warta Water Region compared to other regions within the catchment area of the Oder [ha].
Table 1. The surface of flood-hazard areas within the Warta Water Region compared to other regions within the catchment area of the Oder [ha].
Catchment AreaWater Region10% (a Ten-Year Flood)1% (a One-Hundred-Year Flood)1M% (a One-Hundred-Year Sea Flood)PZ – Complete Destruction of Protective Structures within Service StripWZ– Complete Destruction of Stopbanks
surface [ha]
OderLower Oder and Western Coastal Strip26,059.730,250.130,368.414,555.2115,873.3
Noteć26,471.839,389.4--12,914
Warta75,341.3101,169.5--99,659.4
Middle Oder90,382.1157,914.8--139,786.4
Upper Oder16,973.636,101.2--12,563.04
Source: The authors’ own elaboration based on the data from [43].
Table 2. The number of residents living in flood hazard areas within the Warta Water Region compared to other regions within the catchment area of the Oder.
Table 2. The number of residents living in flood hazard areas within the Warta Water Region compared to other regions within the catchment area of the Oder.
Catchment AreaWater Region10% (a Ten-Year Flood)1% (a One-Hundred-Year Flood)1M% (a One-Hundred-Year Sea Flood)PZ – Complete Destruction of Protective Structures Within Service StripWZ– Complete Destruction of Stopbanks
number of residents
OderLower Oder and Western Coastal Strip2031,8174,2031,033730
Upper Oder2,09720,101--22,471
Noteć285741--873
Middle Oder9,73382,471--117,909
Warta9725,341--35,255
Source: The authors’ own elaboration based on the data from [43].
Table 3. Section types applied within the model to represent the road network.
Table 3. Section types applied within the model to represent the road network.
Section Type Road Status Road Type Area Cross Section
1 National Motorway Urban 2 × 3
2 National Motorway Urban 2 × 2
4 National Motorway (a section with tollbooths) Extra-urban 2 × 3
6 National Motorway (a section with tollbooths) Extra-urban 2 × 2
10 National Expressway Urban 2 × 3
11 National Expressway Urban 2 × 2
12 National Expressway Urban 1 × 2
13 National Expressway Extra-urban 2 × 3
14 National Expressway Extra-urban 2 × 2
15 National Expressway Extra-urban 1 × 2
20, 22, 23 National Dual-carriageway road Extra-urban 2 × 2
21 Voivodeship Dual-carriageway road Extra-urban 2 × 2
24 National 2 + 1 road Extra-urban 2 + 1
25 Voivodeship 2 + 1 road Extra-urban 2 + 1
30 National Single-carriageway road Extra-urban 1 × 2, carriageway width > 12m
31, 33, 34, 36 National Single-carriageway road Extra-urban 1 × 2, carriageway width 9–12m
32, 35, 94 National Single-carriageway road Extra-urban 1 × 2, carriageway width 7–9m
40 National Single-carriageway road Extra-urban 1 × 2, carriageway width 6–7m
50 National Single-carriageway road Extra-urban 1 × 2, carriageway width <6m
60 Voivodeship Single-carriageway road Extra-urban 1 × 2, carriageway width > 12m
61 Voivodeship Single-carriageway road Extra-urban 1 × 2, carriageway width 9–12m
62 Voivodeship Single-carriageway road Extra-urban 1 × 2, carriageway width 7.5–9m
63 Voivodeship Single-carriageway road Extra-urban 1 × 2, carriageway width 6–7.5m
64 Voivodeship Single-carriageway road Extra-urban 1 × 2, carriageway width 5–6m
65 Voivodeship Single-carriageway road Extra-urban 1 × 2, carriageway width <5m
66 Voivodeship Urban, fast traffic trunk road (completely collision-free) Urban 2 × 3
67 Voivodeship Urban, fast traffic trunk road (completely collision-free) Urban 2 × 2
68 Voivodeship Urban, fast traffic trunk road Urban 2 × 3
69 Voivodeship Urban, fast traffic trunk road Urban 2 × 2
70 Voivodeship Urban, trunk road Urban 2 × 2
71 Voivodeship Urban, trunk road Urban 1 × 4
72 Voivodeship Urban, service road Urban 2 × 2
73 Voivodeship Urban, fast traffic trunk road Urban 1 × 2
74 Voivodeship Urban, fast traffic trunk road Urban 1 × 2
75 Voivodeship Urban, service road Urban 1 × 2
76 Voivodeship Urban, service road Urban 1 × 4
80 National Urban, fast traffic trunk road (completely collision-free) Urban 2 × 3
81 National Urban, fast traffic trunk road (completely collision-free) Urban 2 × 2
82, 87 National Urban, fast traffic trunk road Urban 2 × 3
83 National Urban, fast traffic trunk road Urban 2 × 2
84 National Urban, trunk road Urban 2 × 2
85 National Urban, trunk road Urban 1 × 4
86 National Urban, service road Urban 2 × 2
90 National Urban, fast traffic trunk road Urban 1 × 2
91 National Urban, trunk road Urban 1 × 2
92 National Urban, service road Urban 1 × 2
93 National Urban, service road Urban 1 × 4
Source: [46].
Table 4. List of matrices applied in the traffic model.
Table 4. List of matrices applied in the traffic model.
Matrix No. Traffic Type Vehicle Type Trip Motivation
1 National (internal) Passenger car Home-workplace
2 Business
3 Tourism
4 Other
5 Light commercial vehicle
6 Truck
7 Articulated lorry
8 International (external) Passenger car Home-workplace
9 Business
10 Tourism
11 Other
12 Light commercial vehicle
13 Truck
14 Articulated lorry
Source: [46].
Table 5. Speed decrease for real-time traffic for passenger cars in the event of a one-hundred-year flood within the Warta Water Region (by section type).
Table 5. Speed decrease for real-time traffic for passenger cars in the event of a one-hundred-year flood within the Warta Water Region (by section type).
Section Type No. of Sections Maximum Speed Decrease [km/h]
12 8 −16
8 33 −20
73 20 −33
6 41 −15
74 78 −29
62 23 −45
40 158 −32
63 583 −47
65 12 −26
35 105 −38
31 102 −13
14 129 −12
30 9 −7
15 1 −3
90 72 −19
91 35 −9
5 65 −12
64 72 −12
76 12 −8
81 3 −2
83 10 −3
75 54 −8
50 57 −8
20 23 −3
84 3 −2
68 11 −3
82 4 −2
70 18 −7
1 4 −1
11 2 −1
2 4 −1
25 1 −1
60 2 −1
61 11 −1
66 1 −1
71 1 −1
Source: The authors’ own elaboration.
Table 6. Speed increase for real-time traffic for passenger cars in the event of a one-hundred-year flood within the Warta Water Region (by section type).
Table 6. Speed increase for real-time traffic for passenger cars in the event of a one-hundred-year flood within the Warta Water Region (by section type).
Section TypeNo. of SectionsMaximum Speed Increase [km/h]Average Speed Increase [km/h]
3199318.5
9059456.9
306146.8
15466.0
12155.0
7317184.6
9115133.7
3545153.6
7435253.4
5021133.2
623183.0
40149222.6
7517202.4
63296152.3
61042.0
60122.0
142241.8
68441.8
84421.8
643931.3
651331.2
61921.1
701611.0
5211.0
76211.0
83211.0
Source: The authors’ own elaboration.
Back to TopTop
