Article

Double-Stranded RNAs (dsRNAs) as a Sustainable Tool against Gray Mold (Botrytis cinerea) in Grapevine: Effectiveness of Different Application Methods in an Open-Air Environment

1
Research Centre for Viticulture and Enology, Council for Agricultural Research and Economics (CREA-VE), Via XXVIII Aprile 26, 31015 Conegliano, Italy
2
Institute for Sustainable Plant Protection, National Research Council (IPSP-CNR), Strada delle Cacce 73, 10135 Torino, Italy
3
Dipartimento di Scienze Agroalimentari, Ambientali e Animali, Università degli Studi di Udine, Via delle Scienze 206, 33100 Udine, Italy
*
Authors to whom correspondence should be addressed.
Biomolecules 2020, 10(2), 200; https://doi.org/10.3390/biom10020200
Received: 22 December 2019 / Revised: 12 January 2020 / Accepted: 27 January 2020 / Published: 29 January 2020
(This article belongs to the Section Natural and Bio-inspired Molecules)

Abstract

Grapevine is one of the most important and globally widespread fruit species, with a high impact on the economy of many countries but with an intense environmental effect. Therefore, new environmentally friendly defense strategies against fungal pathogens are needed for more sustainable agriculture. A novel emerging approach is spray-induced gene silencing (SIGS), which concerns the exogenous application of double-stranded RNA (dsRNA) inducing enhanced plant resistance against fungal pathogens. Here, we tested the ability of SIGS to prevent and counteract infection of Botrytis cinerea, one of the most economically impacting pathogens of grapevine. In particular, we tested three independent approaches for dsRNA delivery into plants: (i) high pressure spraying of leaves; (ii) petiole adsorption of dsRNAs; (iii) postharvest spraying of bunches. We demonstrated that independently from the method of application, SIGS can reduce virulence of the fungus. Moreover, we also observed three different levels of efficacy depending on the method of application. Thus, the present data provide crucial information on the possibility to exploit SIGS as an alternative sustainable and ecofriendly strategy for grapevine pre- and postharvest protection.
Keywords: dsRNA; spray induced gene silencing; plant protection; sustainability; grapevine; Vitis vinifera; Botrytis cinerea dsRNA; spray induced gene silencing; plant protection; sustainability; grapevine; Vitis vinifera; Botrytis cinerea

1. Introduction

The global population is exponentially growing and, together with the ongoing climate changing scenario, is threatening food security [1]. One of the main issues is that more than 30% of the global agricultural production is lost in the field every year due to attacks from a multitude of pathogens [2], resulting in extensive use of pesticides and fungicides. Among all the different cultural systems, viticulture is considered one of the most treated cropping systems [3], with an intensive fungicide schedule used to control the spread of fungal pathogens (from 12 to 30 treatments per season) [4]. For these reasons, there is a need for new and more sustainable strategies to control pathogens. In line with this, modern agriculture (including viticulture) is now entering a new green revolution, thanks to gene function studies (both in plants and pathogens) and by the application of this knowledge in pest management strategies [5,6,7,8].
Among the most important fungal pathogens affecting grapevine, Botrytis cinerea (gray mold) is the cause of grape bunch rot, causing lower yields and reductions in fruit and wine quality [9]. The fungus becomes quiescent after infection of flower parts, only resuming growth when berries ripen, causing fruit rot [10]. In addition, B. cinerea shows saprophytic ability and nutritional versatility, giving it a survival advantage. During winter, it is able to survive in dead and infected plant tissues from the previous season, dormant or as saprophytically active mycelium [10,11]. In temperate climates, management of B. cinerea involves an integration of agricultural methods which create an unfavorable niche for fungal growth along with the application of fungicides. At least two factors can influence the application of antifungal compounds: (i) the use of fungicides close to harvest is limited by regulations to prevent residues in wines or in table grape; (ii) several cases of resistance to fungicides have been reported in B. cinerea [12].
One of the most intriguing processes involved in plant defense was discovered more than 20 years ago by Fire and Mello, who described the gene-silencing mechanism of eukaryotes, naming it RNA interference (RNAi) [13]. The system is based on the recognition of double-stranded RNA (dsRNA) molecules, which lead to the so called post-transcriptional gene silencing (PTGS) by degradation of the target messenger RNA (mRNA) [13]. Intriguingly, besides their role in endogenous gene regulation [14], small RNAs (sRNAs) are also involved in plant–pathogen interactions. For example, it is well known that once a virus enters a plant cell, viral-derived dsRNAs are targeted by the RNAi machinery to initiate a cascade of regulatory events which lead to the production of small interfering RNAs (siRNAs) [15]. In recent years, it has been reported that sRNAs can also act as effectors [16]: some pathogens and pests deliver sRNAs into plant cells to suppress host immunity [17] and, in parallel, plants can transfer sRNAs into pathogens and pests to lower their virulence [18]. To deepen the knowledge about sRNAs as effectors, the system model composed by Arabidopsis thaliana and Botrytis cinerea was studied [17]. By means of sRNAs sequencing, transgenic expression of fungal sRNAs, and pathogenicity tests, the authors demonstrated that B. cinerea produces several specific sRNA molecules able to shut down key genes of the plant immune system. This result was also confirmed by further experiments in which transgenic plants with impaired RNAi machinery displayed lower susceptibility, as well as mutant fungal strains for two proteins involved in sRNAs processing displaying lower virulence [17].
The possibility to exploit the silencing machinery for plant protection has arisen from a peculiar phenomenon called host-induced gene silencing (HIGS) [19]: transgenic plants expressing artificial dsRNAs can induce gene silencing in interacting pests and pathogens, delivering to them siRNAs, which act as effectors against the invader [20,21,22,23,24]. Despite the high potentiality of this technique, the main factors limiting its utilization are the lack of transformation protocols for many crop species and regulatory restrictions for genetically modified (GM) plants [25]. In Europe, the use of transgenic plants is strictly normed, and several countries are still denying the possibility of their use due to ethical concerns (the so called ‘GMO opt-out’). To overcome these problems, dsRNAs can be directly applied on leaves or fruits, offering shorter-term plant protection through an alternative RNAi strategy. Recent works have demonstrated that the RNA spraying method, called spray-induced gene silencing (SIGS), is effective in controlling fungal pathogens [26,27]. In specific, Wang and colleagues [27] showed that exogenously applied fluorescein-tagged dsRNAs are absorbed by fungal mycelia in about 12 h, leading to reduced accumulation of target mRNAs when compared to the untreated control. Similarly, when dsRNAs were applied on fruits, leaves, or flowers of several species, they observed reduced fungal virulence.
When grapevine fruits are detached from plants and until cell death occurs, they remain metabolically active, reacting to external stresses by changing their metabolism and, as a consequence, modifying their phytochemical composition [28]. For this reason, postharvest strategies are generally aimed at reducing metabolic activity to preserve the original physicochemical properties [29]. For some special foods, postharvest controlled stresses to induce specific metabolic changes are desired, such as for grape, where water loss is needed for raisin production or for making special wines [30]. As previously mentioned, B. cinerea is one of the main pathogens threatening grape during ripening and postharvest, limiting its shelf-life for both the table grape and wine making industry. In light of this, we report the possibility to control pre- and postharvest gray mold infections by using SIGS, an environmental friendly and sustainable alternative to fungicides.

2. Materials and Methods

2.1. Plant Material

The experimental trial was carried out at the beginning of September 2019 at CREA—Research Centre for Viticulture and Enology (45°51′10.1″ N, 12°15′21.2″ E), working on seven-year old potted grapevines (Vitis vinifera L.) using the B. cinerea-susceptible cultivar Moscato [31,32] (white grape variety) grafted onto Kober 5BB rootstock and maintained in an open air environment. Plants were grown in 150 L pots using a peat substrate (TS4, Turco Silvestro, Italy) and placed over a woven polypropylene geotextile mulching film under a greenhouse shade cloth in order to protect them from leaf- and fruit-damaging hailstorms. Fungal material used in this study corresponded to an isolate of B. cinerea collected from naturally infected grapevines cv. Moscato grown in a nearby experimental vineyard and maintained under in vitro conditions to obtain conidia.

2.2. dsRNAs—Design and Production

Three essential B. cinerea genes were selected considering the fungicide site of action (see Results and Discussion section): BcCYP51, Bcchs1, and BcEF2. To amplify a fragment of the fungal essential genes, specific primers were developed on non-conserved regions. Primers were designed to be suitable for overlapping PCR in order to obtain a final PCR amplicon with all the selected sequences (Table S1). The PCR product was cleaned using the DNA Clean & Concentrator Kit (Zymo Research, CA, USA) following manufacturer instructions. Specific restriction enzyme digestion was then performed with PstI (Thermo Fisher Scientifc, MA, USA) to clone the PCR amplicon into plasmid L4440, which contains a double and convergent T7 promoter to produce dsRNA (Addgene plasmid #1654) [33]. L4440 was previously linearized with PstI and dephosphorylated with alkaline phosphatase (Thermo Fisher Scientific, MA, USA) to prevent self-ligation. Ligation products were transformed into chemically competent DH5α E. coli cells. In order to confirm the correctness of plasmid sequences, positive colonies were grown overnight in 4 mL of LB plus antibiotic, subjected to plasmid extraction using the Zyppy™ Plasmid Miniprep Kit (Zymo Research, Irvine, CA, USA), and sequenced with Sanger method [34] at Bio-Fab Research (Roma, Italy) as previously mentioned [35].
A similar approach was used to obtain dsRNAs with GFP sequence. Specific primers were designed to amplify a 376 bp amplicon from the pCBCT plasmid (Table S1). Both forward and reverse primers contain a PstI restriction site in order to allow cloning into linearized L4440 plasmid. Ligation, transformation of DH5α E. coli cells, and plasmid production were performed as above mentioned.
The plasmid carrying the custom-built sequence was transformed into HT115 (DE3) E. coli chemically competent cells [36]. Bacterial cells were plated on LB media supplemented with 12.5 µg/mL of tetracycline and 100 µg/mL of ampicillin. Positive colonies were then screened by PCR [37] and stored at −80 °C for the subsequent operation.
To produce dsRNAs, a single colony carrying the selected plasmid was grown in 10 mL of LB amended with antibiotics overnight. The following day, 1 L of LB with antibiotics was inoculated with the 10 mL of bacterial culture and shaken at 37 °C, 215 rpm, for 4 h. Then, IPTG was added to a final concentration of 400 µM and bacteria were left to grow for an additional 4 h. Bacteria cells were then pelleted and stored at −80 °C until further processing.
Extraction of dsRNAs was achieved through a classic phenol–chloroform extraction followed by isopropanol precipitation [38]. RNA obtained was treated with DNaseI (Thermo Fisher Scientifc, Waltham, MA, USA) and dsRNA integrity was checked with a 1% agarose gel. To quantify the amount of dsRNA, a weighted ladder was used (HyperLadder™ Molecular Weight Markers, Bioline, UK) (Supplementary Figure S1).

2.3. Effects of In Vitro and In Vivo dsRNA Delivery on B. cinerea Development

The effects of produced dsRNAs on B. cinerea growth and virulence were first tested in vitro using potato dextrose agar (PDA, HiMedia Laboratories, The Netherlands) plates. Plugs 8 mm in diameter were obtained from a Botrytis colony actively growing for 6 days. One plug was placed at the center of each plate and then, for each treatment, 500 ng (30 µL) of dsRNA was immediately added on top of the plug and then continuously supplied every 12 h. Three conditions were tested: (i) dsRNA carrying B. cinerea sequences (Bc dsRNA); (ii) dsRNA carrying GFP sequence (GFP dsRNA); (iii) water as control treatment (H2O). Growth dynamics was evaluated by measuring the diameter of colonies at 1, 2, 3, and 5 days post-inoculation.
We then evaluated the in vivo effects by means of fungal development on grape bunches. Experiments were carried out using three application methods (plus an untreated control) on two independent blocks of plants for each treatment (3 plants × 3 application method × 4 treatments × 2 blocks = 72 plants in total). In detail, in addition to each condition reported above (Bc dsRNA; GFP dsRNA; H2O) a control condition (CTRL) was added. The three application methods selected were (i) high pressure spraying on plant leaves avoiding bunches (about 300 µg in 3 mL of ddH2O per plants of dsRNAs); (ii) leaf petioles adsorption (about 300 µg in 3 mL of ddH2O per plants of dsRNAs); (iii) high pressure spraying on postharvest berry bunches (about 10 µg in 500 µL of ddH2O per bunch of dsRNAs).
From each plant, three randomly selected bunches were harvested and inoculated with pathogen (Bc +,1 mL per bunch, 105 conidia per mL) and one was harvested and maintained as uninoculated control (Bc −). Then, each bunch was kept in an independent plastic box with wet filter paper (3 mL per box) placed on the bottom to retain high humidity and induce pathogen development. In detail, four bunches were harvested per plant for each condition and application method: for SIGS we harvested bunches 2 days after dsRNAs application, while in the petiole adsorption method, we harvested bunches 7 days after dsRNAs inoculation [39]. Pathogen was inoculated (1 mL per bunch, 105 conidia per mL) at the time of harvesting for both leaf and petiole application methods. Finally, for postharvest trials, bunches were harvested and stored at room temperature for 3 days, then dsRNAs were applied and fungal pathogen inoculated 2 days after. For each conditions and application method, ten days after pathogen inoculation disease development was evaluated as percentage of berries attacked in every bunch [32,40]. An experimental overview is provided in Figure 1.
Significant differences among samples were analyzed by one-way ANOVA test, using the Tukey’s HSD post hoc test for separating means when ANOVA results were significant (p < 0.05).

2.4. RNA Extraction and Northern Blot Analysis

Distal leaf and berry samples from petiole adsorption method were harvested for checking dsRNA mobility and accumulation over time at 3 and 7 days post dsRNA inoculation. RNA was extracted using the Spectrum plant total RNA kit (Merck KGaA, Darmstadt, Germany) following the manufacturer’s instructions. Northern blotting was carried out according to a previously published method [41]. Briefly, 2 μg of total RNA was separated by electrophoresis on a 1.2% denaturing formaldehyde agarose gel and capillary-blotted onto a nylon membrane positively charged. The Bc dsRNA and grapevine 18S rRNA were used as probes by digoxigenin labeling with a PCR DIG Probe Synthesis Kit (Merck KGaA, Darmstadt, Germany) according to the manufacturer’s instructions. Hybridizations, Dig chemiluminescent detection, and probe stripping procedures were carried out following manufacturer’s instructions (Merck KGaA, Darmstadt, Germany).

3. Results and Discussion

To provide a proof of concept and show the potentiality of RNAi technology against pre- and postharvest grape berry pathogens, we conducted an experiment targeting three independent essential genes of B. cinerea which were selected on the basis of fungicide sites of action found in literature [42,43]. The first selected gene was lanosterol 14α-demethylase (erg11 or CYP51), which is the primary target of triazole antifungal agents. This class of compound was one of the most efficient, widely used for fungal control, for which we are now observing severe drug resistance also for human pathogens [44]. The erg11 gene belongs to the cytochrome P450 monooxygenase (CYP) superfamily and mediates a crucial step in the biosynthesis of ergosterol, which is a fungal-specific sterol [45]. Since chitin, in fungal cell walls, is unique to fungi, it provides ideal targets for the development of selective antifungal agents and, for this reason, we selected chitin synthase 1 (chs1) as the second target for our RNAi protocol. The gene is involved in polymerization of N-acetylglucosamine from UDP-N-acetylglucosamine and plays a crucial role in cell wall polymerization [46]. It has been already demonstrated that the inactivation of chs1 in B. cinerea leads to stunted growth and a weakened cell wall structure [47]. Finally, we identified elongation factor 2 (EF2) as the third essential gene. The latter catalyzes ribosomal translocation during protein synthesis and is a target for sordarin-derived antifungal compounds [48]. Once the three targets were identified, we proceeded by amplifying a small fragment (about 200–250 bp) of each with custom designed primers. Primers were designed with adaptors to allow overlapping PCR and produce a final PCR amplicon of 732 bp containing sequences from the three different genes. A PCR amplicon of 385 bp was obtained from GFP sequence in the pCBCT plasmid and further used as control for dsRNAs inoculation. For both Bc dsRNAs and GFP dsRNAs, we were able to produce up to 2 mg of dsRNA for each liter of bacterial culture.
After dsRNAs production, we proceeded to test their ability to reduce growth of B. cinera in axenic conditions. As is shown in Figure 2A,B, colonies exposed to Bc dsRNA showed a significant reduction in growth compared to colonies exposed to GFP dsRNAs or water. Interestingly, during a preliminary trial, we supplied Bc dsRNAs only at the time of plate inoculation, observing a reduction in mycelia growth in the first 24 h, but not at later times. For this reason, we repeated the experiment supplying dsRNAs (or water in the case of negative control) every 12 h. Probably, as also observed for Fusarium asiaticum, the ability of B. cinerea to maintain secondary amplification of the RNAi signal could be impaired [49]. It is well known that two distinct types of sRNAs participate in RNAi: primary siRNAs which are derived from dicer nuclease-mediated cleavage and secondary siRNAs whose synthesis requires an RNA-dependent RNA polymerase (RdRP) [50]. Although the core RNAi machinery appears to be widely conserved in fungi [51], it is also known that many exceptions exist [52]. For example, some fungi show dicer-independent pathway or some others have completely lost the RNAi machinery along evolution [53]. In the light of this, we can speculate that the isolate of B. cinerea used in the present study is impaired in the amplification of secondary siRNA, but further studies are needed to confirm this result.
Since the axenic culture gave interesting results, we decided to move our experiments onto grapevine plants, testing the ability of produced molecules to impair fungal growth and virulence on berry bunches which is the most economically impacting site of infection. Three different effective methods for dsRNA application have been reported in the literature: the first is the application onto leaf by high pressure spraying. This specific approach allows dsRNAs to enter into plant cells, which will then process them into siRNAs [54]. One of the features of plant RNAi is the ability to amplify the initial response through RdRPs which, as already mentioned, synthesize secondary siRNAs [55]. Secondary siRNAs are more abundant than primary siRNAs and display a stronger impact on target gene expression level [56]. In our experiments, application of dsRNAs through high pressure spraying leads to a significant reduction in pathogen development only when Bc dsRNAs were applied, as shown in Figure 3A,B. The observed results confirmed the efficacy of the selected sequences against B. cinerea.
A second method of application was based on dsRNAs delivery through petiole adsorption (Supplementary Figure S2). It was demonstrated that if a petiole from a detached leaf is immediately put in contact with a liquid containing dsRNAs, it can work as source, adsorbing the liquid and leading to the upstream transportation of dissolved molecules [39]. The interesting feature of this method is that the adsorbed liquid moves into xylem vessels and into the apoplastic space, leading to the spread of intact dsRNAs inside the plant [39]. To deliver solutions into open-air growing vines, we developed a system using 5 mL tips (in which the solution was loaded) linked immediately after leaf detachment in order to avoid embolism formation in xylem vessels (Supplementary Figure S2). In addition, as already observed in another work [39], the diffusion level of dsRNAs into plant tissues increased over time, reaching the maximum at 7 days post application, as demonstrated by Northern blot analysis (Supplementary Figure S3). Disease development scoring showed that only Bc dsRNA-treated plants had less susceptible bunches, as shown in Figure 4A,B. Moreover, as shown in Supplementary Figure S3, dsRNAs seem to accumulate more in berries than in leaves. This is probably due to the time of treatment, in September, when the ripening processes are still ongoing and berries transpire a considerable amount of water to regulate temperature and osmotic pressure [57].
Finally, the third application method tested was the high pressure nebulization of dsRNAs solutions directly on harvested grape bunches. As was already demonstrated, application of dsRNAs on leaf surfaces inhibits fungal growth in both the directly sprayed as well as the distal non-treated parts [26]. Moreover, the same authors demonstrated that control of fungal infections in non-treated tissues involve adsorption and movement through the plant vascular system of intact dsRNAs. In our experiment, the application of dsRNAs on berry surfaces resulted in reduced disease development, as shown in Figure 5A,B.
To determine which of the three methods could represent the best approach to control B. cinerea infections, we compared the disease development of Bc dsRNA-treated bunches. As reported in Figure 6, we observed three different levels of efficacy: the most effective application method was the high pressure spraying of dsRNAs on berry bunches in postharvest grapes. The second most effective method was through petiole adsorption and, finally, the least effective was high pressure leaf spraying, which showed a disease severity more than double if compared with the postharvest application. Despite the lower amount of dsRNA that was applied in the first method compared to the other two approaches, we observed a higher efficiency in controlling pathogen development. We cannot exclude that application through petiole adsorption and high pressure spraying in leaves led to the different accumulation of dsRNA molecules in bunches. For this reason, further investigations are needed to confirm this result. Moreover, despite in vitro application, petiole adsorption and postharvest methods provide intact dsRNAs to the fungus, and only in vivo applications do not require a continuous dsRNAs supply, displaying long-lasting effectiveness. This is probably due to the fact that sprayed dsRNAs are adsorbed by plant tissues and are not directly available for fungal uptake [26]. Hence, it is conceivable that the dsRNAs are continuously supplied to the fungus over its growth on plant tissues through slow plant-mediated movement and release in the xylem and apoplast compartments.
Furthermore, the two most effective application methods used in this study were those in which intact dsRNAs are provided to the fungus. A possible explanation for this phenomenon is linked to the specificity of fungal RNAi machinery [53]. It has been demonstrated that fungal sRNA patterns differ from that of plants: the typical plant siRNA sizes are conserved and range between 21–22 and 24 nucleotides in length [58,59,60]. In fungi, the siRNA lengths range from 21 up to 30 nucleotides in length, also within the same fungal family [38,61,62]. In light of this, we can speculate that argonaute proteins (AGO) and dicer-like proteins (DCL) of fungi can better recognize intact dsRNAs with respect to plant siRNAs that are already processed.
In this study, we demonstrated that dsRNAs can confer protection against B. cinerea in both pre- and postharvest conditions. In addition, this is the first trial in which several application methods were compared in a natural environment. To date, the majority of trials were performed only in vitro or on small plant explants [26,27,63], but we demonstrated the ability of SIGS to be implemented in real conditions. The potentiality of SIGS, as an alternative method to conventional chemicals, represents a challenging opportunity for researchers and agricultural-related industries. SIGS show many advantages: (i) specificity can be managed by choosing a more or a less conserved nucleotide sequence; (ii) it is possible to develop specific sequences for an unlimited range of pathogens, with the only request being an active RNAi machinery. Moreover, while HIGS has been frequently demonstrated to be easily achievable [23,64,65,66], only a few examples have demonstrated the efficiency of exogenous RNA delivery to kill fungal pathogens [26,63,67], as observed in our study. Although the exact mechanism of external RNA recognition, uptake, and transport remains to be determined, the potentiality of SIGS as sustainable strategy for grape and plant protection is becoming more and more real. In the future, commercial applications of SIGS will be conceivable, although some problems still need to be fixed: (i) cost-efficient dsRNAs production at large scales must be achieved, (ii) specific application tools need to be developed, as well as (iii) stabilizing agents useful for field conditions. Therefore, more research into practical issues will be required to exploit this promising technique in sustainable viticulture and, more generally, the context of agricultural defense management.

Supplementary Materials

The following are available online at https://www.mdpi.com/2218-273X/10/2/200/s1, Table S1: List of primer, Figure S1: Agarose gel electrophoretic analysis of dsRNAs, Figure S2: Overview of in vivo petiole adsorption, Figure S3: Northern blot analysis.

Author Contributions

L.N. designed the experimental system, carried out the wet lab experiments and wrote the manuscript draft. W.C. helped in design the experimental system, analyzed data and supervised the experiments. M.S. performed part of the wet lab experiments. G.G. performed the Northern blot analysis. G.G. and W.C. critically revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The work was carried out within the frame of ‘Bioprime’ Project funded by the Italian Ministry of Agriculture, Food and Forestry.

Conflicts of Interest

The authors declare that they have no competing interests.

References

  1. Gullino, M.L.; Pugliese, M.; Gilardi, G.; Garibaldi, A. Effect of increased CO2 and temperature on plant diseases: A critical appraisal of results obtained in studies carried out under controlled environment facilities. J. Plant Pathol. 2018, 100, 1–19. [Google Scholar] [CrossRef]
  2. Alexander, P.; Brown, C.; Arneth, A.; Finnigan, J.; Moran, D.; Rounsevell, M.D. Losses, inefficiencies and waste in the global food system. Agric. Syst. 2017, 153, 190–200. [Google Scholar] [CrossRef] [PubMed]
  3. Provost, C.; Pedneault, K. The organic vineyard as a balanced ecosystem: Improved organic grape management and impacts on wine quality. Sci. Hortic. 2016, 208, 43–56. [Google Scholar] [CrossRef]
  4. Pertot, I.; Caffi, T.; Rossi, V.; Mugnai, L.; Hoffmann, C.; Grando, M.S.; Gary, C.; Lafond, D.; Duso, C.; Thiery, D.; et al. A critical review of plant protection tools for reducing pesticide use on grapevine and new perspectives for the implementation of IPM in viticulture. Crop Prot. 2017, 97, 70–84. [Google Scholar] [CrossRef]
  5. Kamoun, S.; Furzer, O.; Jones, J.D.; Judelson, H.S.; Ali, G.S.; Dalio, R.J.; Roy, S.G.; Schena, L.; Zambounis, A.; Panabières, F.; et al. The Top 10 oomycete pathogens in molecular plant pathology. Mol. Plant Pathol. 2015, 16, 413–434. [Google Scholar] [CrossRef] [PubMed]
  6. Pusztahelyi, T.; Holb, I.J.; Pócsi, I. Secondary metabolites in fungus-plant interactions. Front. Plant Sci. 2015, 6, 573. [Google Scholar] [CrossRef]
  7. Mbengue, M.; Navaud, O.; Peyraud, R.; Barascud, M.; Badet, T.; Vincent, R.; Barbacci, A.; Raffaele, S. Emerging Trends in Molecular Interactions between Plants and the Broad Host Range Fungal Pathogens Botrytis cinerea and Sclerotinia sclerotiorum. Front. Plant Sci. 2016, 7, 987. [Google Scholar] [CrossRef]
  8. Shalaby, S.; Horwitz, B.A. Plant phenolic compounds and oxidative stress: Integrated signals in fungal–plant interactions. Curr. Genet. 2015, 61, 347–357. [Google Scholar] [CrossRef]
  9. Jaspers, M.; Seyb, A.; Trought, M.; Balasubramaniam, R. Overwintering grapevine debris as an important source of Botrytis cinerea inoculum. Plant Pathol. 2013, 62, 130–138. [Google Scholar] [CrossRef]
  10. Elmer, P.A.; Michailides, T.J. Epidemiology of Botrytis cinerea in orchard and vine crops. In Botrytis: Biology, Pathology and Control; Springer: Dordrecht, The Netherlands, 2007; pp. 243–272. [Google Scholar]
  11. Nair, N.; Guilbaud-Oulton, S.; Barchia, I.; Emmett, R. Significance of carry over inoculum, flower infection and latency on the incidence of Botrytis cinerea in berries of grapevines at harvest in New South Wales. Aust. J. Exp. Agr. 1995, 35, 1177–1180. [Google Scholar] [CrossRef]
  12. Leroux, P. Chemical control of Botrytis and its resistance to chemical fungicides. In Botrytis: Biology, Pathology and Control; Springer: Dordrecht, The Netherlands, 2007; pp. 195–222. [Google Scholar]
  13. Fire, A.; Xu, S.Q.; Montgomery, M.K.; Kostas, S.A.; Driver, S.E.; Mello, C.C. Potent and specific genetic interference by double-stranded RNA in Caenorhabditis elegans. Nature 1998, 391, 806–811. [Google Scholar] [CrossRef] [PubMed]
  14. Llave, C.; Kasschau, K.D.; Rector, M.A.; Carrington, J.C. Endogenous and silencing-associated small RNAs in plants. The Plant Cell 2002, 14, 1605–1619. [Google Scholar] [CrossRef] [PubMed]
  15. Llave, C. Virus-derived small interfering RNAs at the core of plant–virus interactions. Trends Plant Sci. 2010, 15, 701–707. [Google Scholar] [CrossRef] [PubMed]
  16. Weiberg, A.; Jin, H.L. Small RNAs—The secret agents in the plant-pathogen interactions. Curr. Opin. Plant Biol. 2015, 26, 87–94. [Google Scholar] [CrossRef]
  17. Weiberg, A.; Wang, M.; Lin, F.-M.; Zhao, H.; Zhang, Z.; Kaloshian, I.; Huang, H.; Jin, H. Fungal small rnas suppress plant immunity by hijacking host RNA interference pathways. Science 2013, 342, 118–123. [Google Scholar] [CrossRef] [PubMed]
  18. Cai, Q.; Qiao, L.; Wang, M.; He, B.; Lin, F.-M.; Palmquist, J.; Huang, S.-D.; Jin, H. Plants send small RNAs in extracellular vesicles to fungal pathogen to silence virulence genes. Science 2018, 360, 1126–1129. [Google Scholar] [CrossRef]
  19. Nunes, C.C.; Dean, R.A. Host-induced gene silencing: A tool for understanding fungal host interaction and for developing novel disease control strategies. Mol. Plant Pathol. 2012, 13, 519–529. [Google Scholar] [CrossRef]
  20. Baum, J.A.; Bogaert, T.; Clinton, W.; Heck, G.R.; Feldmann, P.; Ilagan, O.; Johnson, S.; Plaetinck, G.; Munyikwa, T.; Pleau, M.; et al. Control of coleopteran insect pests through RNA interference. Nat. Biotechnol. 2007, 25, 1322–1326. [Google Scholar] [CrossRef]
  21. Huang, G.; Allen, R.; Davis, E.L.; Baum, T.J.; Hussey, R.S. Engineering broad root-knot resistance in transgenic plants by RNAi silencing of a conserved and essential root-knot nematode parasitism gene. Proc. Natl. Acad. Sci. USA 2006, 103, 14302–14306. [Google Scholar] [CrossRef]
  22. Nowara, D.; Gay, A.; Lacomme, C.; Shaw, J.; Ridout, C.; Douchkov, D.; Hensel, G.; Kumlehn, J.; Schweize, P. HIGS: Host-Induced Gene Silencing in the Obligate Biotrophic Fungal Pathogen Blumeria graminis. Plant Cell 2010, 22, 3130–3141. [Google Scholar] [CrossRef]
  23. Koch, A.; Kumar, N.; Weber, L.; Keller, H.; Imani, J.; Kogel, K.-H. Host-induced gene silencing of cytochrome P450 lanosterol C14 alpha-demethylase-encoding genes confers strong resistance to Fusarium species. Proc. Natl. Acad. Sci. USA 2013, 110, 19324–19329. [Google Scholar] [CrossRef] [PubMed]
  24. Jahan, S.N.; Åsman, A.K.; Corcoran, P.; Fogelqvist, J.; Vetukuri, R.R.; Dixelius, C. Plant-mediated gene silencing restricts growth of the potato late blight pathogen Phytophthora infestans. J. Exp. Bot. 2015, 66, 2785–2794. [Google Scholar] [CrossRef] [PubMed]
  25. Masip, G.; Sabalza, M.; Pérez-Massot, E.; Banakar, R.; Cebrian, D.; Twyman, R.M.; Capell, T.; Albajes, R.; Christou, P. Paradoxical EU agricultural policies on genetically engineered crops. Trends Plant Sci. 2013, 18, 312–324. [Google Scholar] [CrossRef] [PubMed]
  26. Koch, A.; Biedenkopf, D.; Furch, A.; Weber, L.; Rossbach, O.; Abdellatef, E.; Linicus, L.; Johannsmeier, J.; Jelonek, L.; Goesmann, A.; et al. An RNAi-Based control of Fusarium graminearum Infections through spraying of long dsrnas involves a plant passage and is controlled by the fungal silencing machinery. PLoS Pathog. 2016, 12. [Google Scholar] [CrossRef]
  27. Wang, M.; Weiberg, A.; Lin, F.-M.; Thomma, B.P.; Huang, H.-D.; Jin, H. Bidirectional cross-kingdom RNAi and fungal uptake of external RNAs confer plant protection. Nat. Plants. 2016, 2, 16151. [Google Scholar] [CrossRef]
  28. Schreiner, M.; Huyskens-Keil, S. Phytochemicals in fruit and vegetables: Health promotion and postharvest elicitors. Crit. Rev. Plant. Sci. 2006, 25, 267–278. [Google Scholar] [CrossRef]
  29. Wills, R.; Golding, J. Postharvest: An Introduction to the Physiology and Handling of Fruit and Vegetables; UNSW press: Wallingford, UK, 2016. [Google Scholar]
  30. Rizzini, F.M.; Bonghi, C.; Tonutti, P. Postharvest water loss induces marked changes in transcript profiling in skins of wine grape berries. Postharvest Biol. Tec. 2009, 52, 247–253. [Google Scholar] [CrossRef]
  31. Vercesi, A.; Laura Toffolatti, S.; Venturini, G.; Campia, P.; Scagnelli, S. Characterization of Botrytis cinerea populations associated with treated and untreated cv. Moscato vineyards. Phytopathol. Mediterr. 2014, 108–123. [Google Scholar]
  32. Gabriolotto, C.; Monchiero, M.; Negre, M.; Spadaro, D.; Gullino, M.L. Effectiveness of control strategies against Botrytis cinerea in vineyard and evaluation of the residual fungicide concentrations. J. Environ. Sci. Heal. Part B 2009, 44, 389–396. [Google Scholar] [CrossRef]
  33. Timmons, L.; Fire, A. Specific interference by ingested dsRNA. Nature 1998, 395, 854. [Google Scholar] [CrossRef]
  34. Sangers, F.; Nicken, S.; Coulson, A.R. DNA sequencing with chain-terminating inhibitors. Proc. Natl. Acad. Sci. USA 1977, 74, 5463–5467. [Google Scholar] [CrossRef]
  35. Nerva, L.; Turina, M.; Zanzotto, A.; Gardiman, M.; Gaiotti, F.; Gambino, G.; Chitarra, W. Isolation, molecular characterization and virome analysis of culturable wood fungal endophytes in esca symptomatic and asymptomatic grapevine plants. Environ. Microbiol. 2019, 21, 2886–2904. [Google Scholar] [CrossRef]
  36. Timmons, L.; Court, D.L.; Fire, A. Ingestion of bacterially expressed dsRNAs can produce specific and potent genetic interference in Caenorhabditis elegans. Gene 2001, 263, 103–112. [Google Scholar] [CrossRef]
  37. Nerva, L.; Forgia, M.; Ciuffo, M.; Chitarra, W.; Chiapello, M.; Vallino, M.; Varese, G.C.; Turina, M. The mycovirome of a fungal collection from the sea cucumber Holothuria polii. Virus Res. 2019, 273, 197737. [Google Scholar] [CrossRef] [PubMed]
  38. Nerva, L.; Ciuffo, M.; Vallino, M.; Margaria, P.; Varese, G.C.; Gnavi, G.; Turina, M. Multiple approaches for the detection and characterization of viral and plasmid symbionts from a collection of marine fungi. Virus Res. 2016, 219, 22–38. [Google Scholar] [CrossRef] [PubMed]
  39. Dalakouras, A.; Jarausch, W.; Buchholz, G.; Bassler, A.; Braun, M.; Manthey, T.; Krczal, G.; Wassenegger, M. Delivery of hairpin RNAs and small RNAs into woody and herbaceous plants by trunk injection and petiole absorption. Front. Plant Sci. 2018, 9, 1253. [Google Scholar] [CrossRef]
  40. Chervin, C.; Westercamp, P.; Monteils, G. Ethanol vapours limit Botrytis development over the postharvest life of table grapes. Postharvest Biol. Tec. 2005, 36, 319–322. [Google Scholar] [CrossRef]
  41. Gambino, G.; Perrone, I.; Carra, A.; Chitarra, W.; Boccacci, P.; Marinoni, D.T.; Barberis, M.; Maghuly, F.; Lamier, M.; Gribaudo, I. Transgene silencing in grapevines transformed with GFLV resistance genes: Analysis of variable expression of transgene, siRNAs production and cytosine methylation. Transgenic Res. 2010, 19, 17–27. [Google Scholar] [CrossRef]
  42. Liu, N.; Tu, J.; Dong, G.; Wang, Y.; Sheng, C. Emerging new targets for the treatment of resistant fungal infections. J. Med. Chem. 2018, 61, 5484–5511. [Google Scholar] [CrossRef]
  43. Fishel, F.M.; Dewdney, M. Fungicide resistance action committee’s (FRAC) classification scheme of fungicides according to mode of action. PI94 University of Florida: Gainesville, FL, USA, 2018. Available online: https://edis.ifas.ufl.edu/pi131 (accessed on 28 January 2020).
  44. Whaley, S.G.; Berkow, E.L.; Rybak, J.M.; Nishimoto, A.T.; Barker, K.S.; Rogers, P.D. Azole antifungal resistance in Candida albicans and emerging non-albicans Candida species. Front. Microbiol. 2017, 7, 2173. [Google Scholar] [CrossRef]
  45. Daum, G.; Lees, N.D.; Bard, M.; Dickson, R. Biochemistry, cell biology and molecular biology of lipids of Saccharomyces cerevisiae. Yeast 1998, 14, 1471–1510. [Google Scholar] [CrossRef]
  46. Bowen, A.; Chen-Wu, J.; Momany, M.; Young, R.; Szaniszlo, P.; Robbins, P. Classification of fungal chitin synthases. Proc. Natl. Acad. Sci. USA. 1992, 89, 519–523. [Google Scholar] [CrossRef] [PubMed]
  47. Soulié, M.-C.; Piffeteau, A.; Choquer, M.; Boccara, M.; Vidal-Cros, A. Disruption of Botrytis cinerea class I chitin synthase gene Bcchs1 results in cell wall weakening and reduced virulence. Fungal Genet. Biol. 2003, 40, 38–46. [Google Scholar] [CrossRef]
  48. Justice, M.C.; Hsu, M.-J.; Tse, B.; Ku, T.; Balkovec, J.; Schmatz, D.; Nielsen, J. Elongation factor 2 as a novel target for selective inhibition of fungal protein synthesis. J. Biol. Chem. 1998, 273, 3148–3151. [Google Scholar] [CrossRef]
  49. Song, X.S.; Gu, K.X.; Duan, X.X.; Xiao, X.M.; Hou, Y.P.; Duan, Y.B.; Wang, J.X.; Yu, N.; Zhou, M.G. Secondary amplification of siRNA machinery limits the application of spray-induced gene silencing. Mol. Plant Pathol. 2018, 19, 2543–2560. [Google Scholar] [CrossRef]
  50. Pak, J.; Fire, A. Distinct populations of primary and secondary effectors during RNAi in C. elegans. Science 2007, 315, 241–244. [Google Scholar] [CrossRef]
  51. Li, L.; Chang, S.-S.; Liu, Y. RNA interference pathways in filamentous fungi. Cell. Mol. Life Sci. 2010, 67, 3849–3863. [Google Scholar] [CrossRef]
  52. Torres-Martinez, S.; Ruiz-Vazquez, R.M. The RNAi universe in fungi: A varied landscape of small RNAs and biological functions. Ann. Rev. Microbiol 2017, 71, 371–391. [Google Scholar] [CrossRef]
  53. Billmyre, R.B.; Calo, S.; Feretzaki, M.; Wang, X.; Heitman, J. RNAi function, diversity, and loss in the fungal kingdom. Chromosome Res. 2013, 21, 561–572. [Google Scholar] [CrossRef]
  54. Dalakouras, A.; Wassenegger, M.; McMillan, J.N.; Cardoza, V.; Maegele, I.; Dadami, E.; Runne, M.; Krczal, G.; Wassenegger, M. Induction of silencing in plants by high-pressure spraying of in vitro-synthesized small RNAs. Front. Plant Sci. 2016, 7, 1327. [Google Scholar] [CrossRef]
  55. Tang, G.; Reinhart, B.J.; Bartel, D.P.; Zamore, P.D. A biochemical framework for RNA silencing in plants. Genes. Dev. 2003, 17, 49–63. [Google Scholar] [CrossRef] [PubMed]
  56. Zhang, C.; Ruvkun, G. New insights into siRNA amplification and RNAi. RNA Biol. 2012, 9, 1045–1049. [Google Scholar] [CrossRef] [PubMed]
  57. Dokoozlian, N.K. Grape berry growth and development. Raisin Prod. Manual 2000, 3393, 30. Available online: http://iv.ucdavis.edu/files/24467.pdf (accessed on 28 January 2020).
  58. Axtell, M.J.; Jan, C.; Rajagopalan, R.; Bartel, D.P. A two-hit trigger for siRNA biogenesis in plants. Cell 2006, 127, 565–577. [Google Scholar] [CrossRef] [PubMed]
  59. Nerva, L.; Vigani, G.; Di Silvestre, D.; Ciuffo, M.; Forgia, M.; Chitarra, W.; Turina, M. Biological and molecular characterization of Chenopodium quinoa mitovirus 1 reveals a distinct small RNA response compared to those of cytoplasmic RNA viruses. J. Virol. 2019, 93, e01998-e18. [Google Scholar] [CrossRef]
  60. Qiao, W.; Zarzyńska-Nowak, A.; Nerva, L.; Kuo, Y.W.; Falk, B.W. Accumulation of 24 nucleotide transgene-derived siRNAs is associated with crinivirus immunity in transgenic plants. Mol. Plant Pathol. 2018, 19, 2236–2247. [Google Scholar] [CrossRef]
  61. Nakayashiki, H.; Nguyen, Q.B. RNA interference: Roles in fungal biology. Curr. Opin. Microbiol. 2008, 11, 494–502. [Google Scholar] [CrossRef]
  62. Dang, Y.; Yang, Q.; Xue, Z.; Liu, Y. RNA interference in fungi: Pathways, functions, and applications. Eukaryot. Cell 2011, 10, 1148–1155. [Google Scholar] [CrossRef]
  63. McLoughlin, A.G.; Wytinck, N.; Walker, P.L.; Girard, I.J.; Rashid, K.Y.; de Kievit, T.; Fernando, W.G.D.; Whyard, S.; Belomonte, M.F. Identification and application of exogenous dsRNA confers plant protection against Sclerotinia sclerotiorum and Botrytis cinerea. Sci. Rep. 2018, 8, 7320. [Google Scholar] [CrossRef]
  64. Baulcombe, D.C. VIGS, HIGS and FIGS: Small RNA silencing in the interactions of viruses or filamentous organisms with their plant hosts. Curr. Opin. Plant Biol. 2015, 26, 141–146. [Google Scholar] [CrossRef]
  65. Govindarajulu, M.; Epstein, L.; Wroblewski, T.; Michelmore, R.W. Host-induced gene silencing inhibits the biotrophic pathogen causing downy mildew of lettuce. Plant Biotechnol. J. 2015, 13, 875–883. [Google Scholar] [CrossRef] [PubMed]
  66. Zhang, T.; Jin, Y.; Zhao, J.-H.; Gao, F.; Zhou, B.-J.; Fang, Y.-Y.; Guo, H.S. Host-induced gene silencing of the target gene in fungal cells confers effective resistance to the cotton wilt disease pathogen Verticillium dahliae. Mol. Plant. 2016, 9, 939–942. [Google Scholar] [CrossRef] [PubMed]
  67. Song, X.-S.; Gu, K.-X.; Duan, X.-X.; Xiao, X.-M.; Hou, Y.-P.; Duan, Y.-B.; Wang, J.X.; Zhou, M.-G. A myosin5 dsRNA that reduces the fungicide resistance and pathogenicity of Fusarium asiaticum. Pestic. Biochem. Phys. 2018, 150, 1–9. [Google Scholar] [CrossRef] [PubMed]

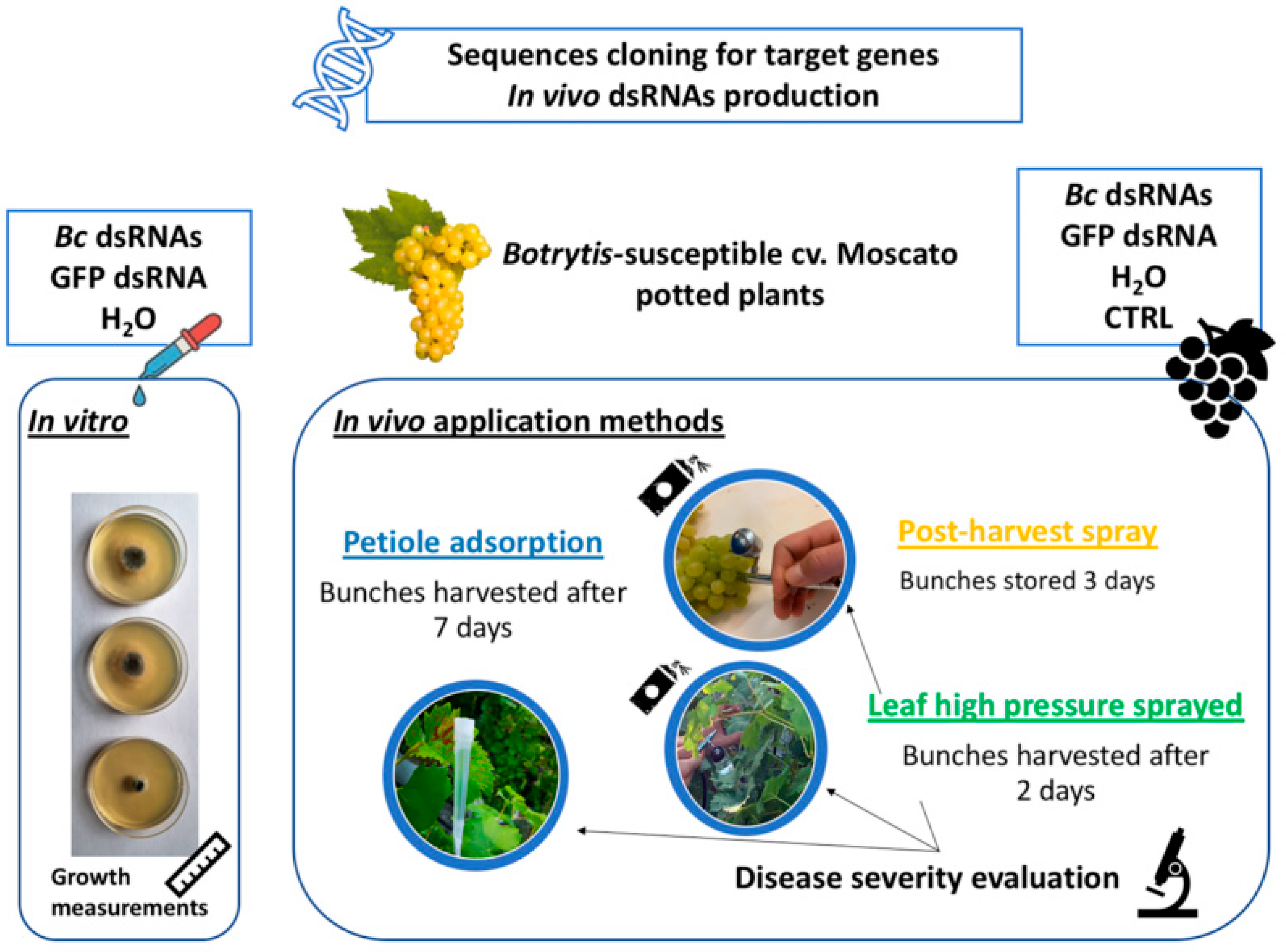

Figure 1. Experimental workflow overview of in vitro and in vivo experiments.
Figure 1. Experimental workflow overview of in vitro and in vivo experiments.
Biomolecules 10 00200 g001

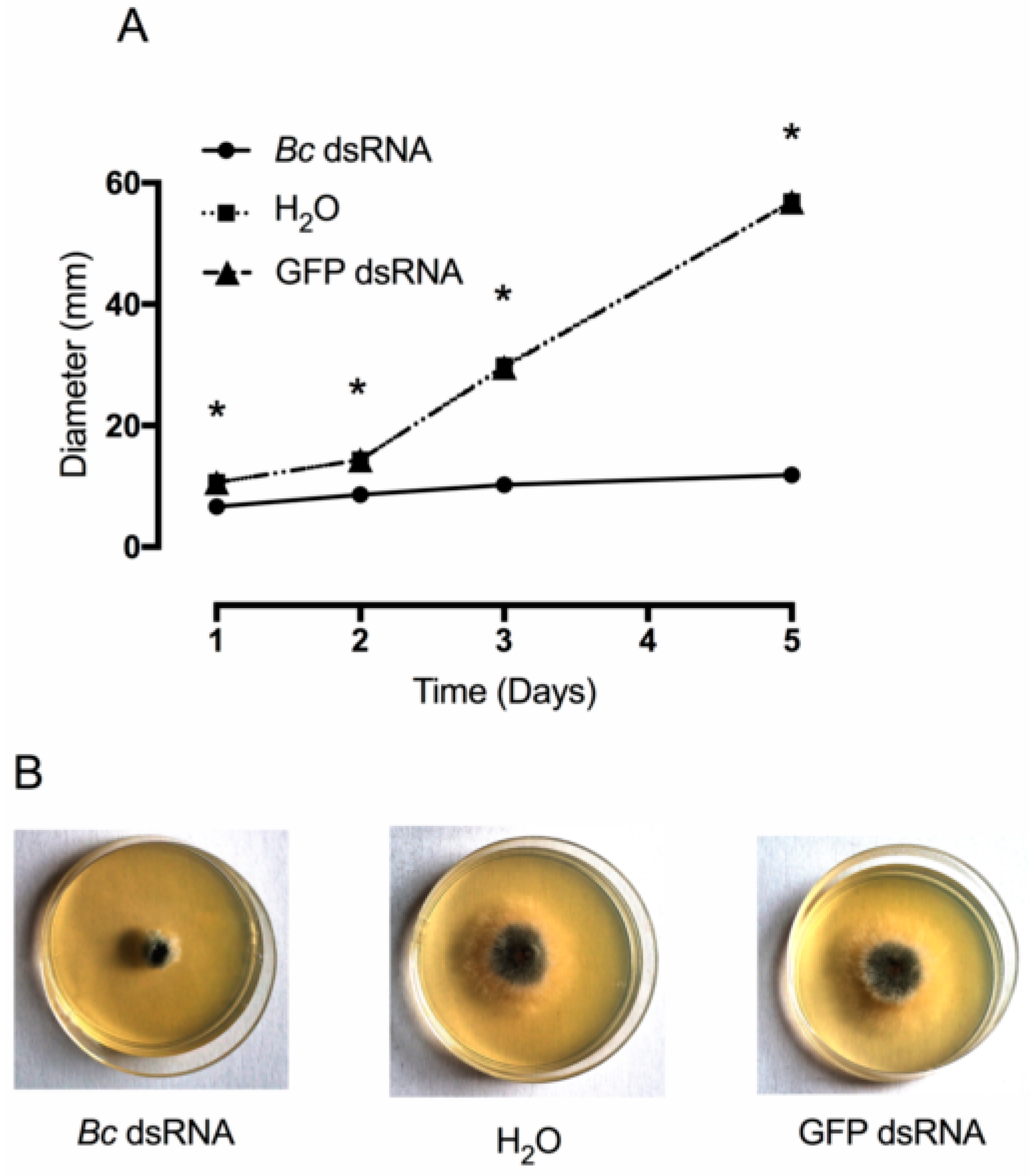

Figure 2. Effect of supplied dsRNAs in vitro. Growth of B. cinerea over time following the application of Bc dsRNA, GFP dsRNA, and H2O (A). Examples of fungal development in petri dishes in response to dsRNAs or H2O delivery at three days (B). Asterisks indicate significant differences as determined by Tukey HSD test (p ≤ 0.05).
Figure 2. Effect of supplied dsRNAs in vitro. Growth of B. cinerea over time following the application of Bc dsRNA, GFP dsRNA, and H2O (A). Examples of fungal development in petri dishes in response to dsRNAs or H2O delivery at three days (B). Asterisks indicate significant differences as determined by Tukey HSD test (p ≤ 0.05).
Biomolecules 10 00200 g002

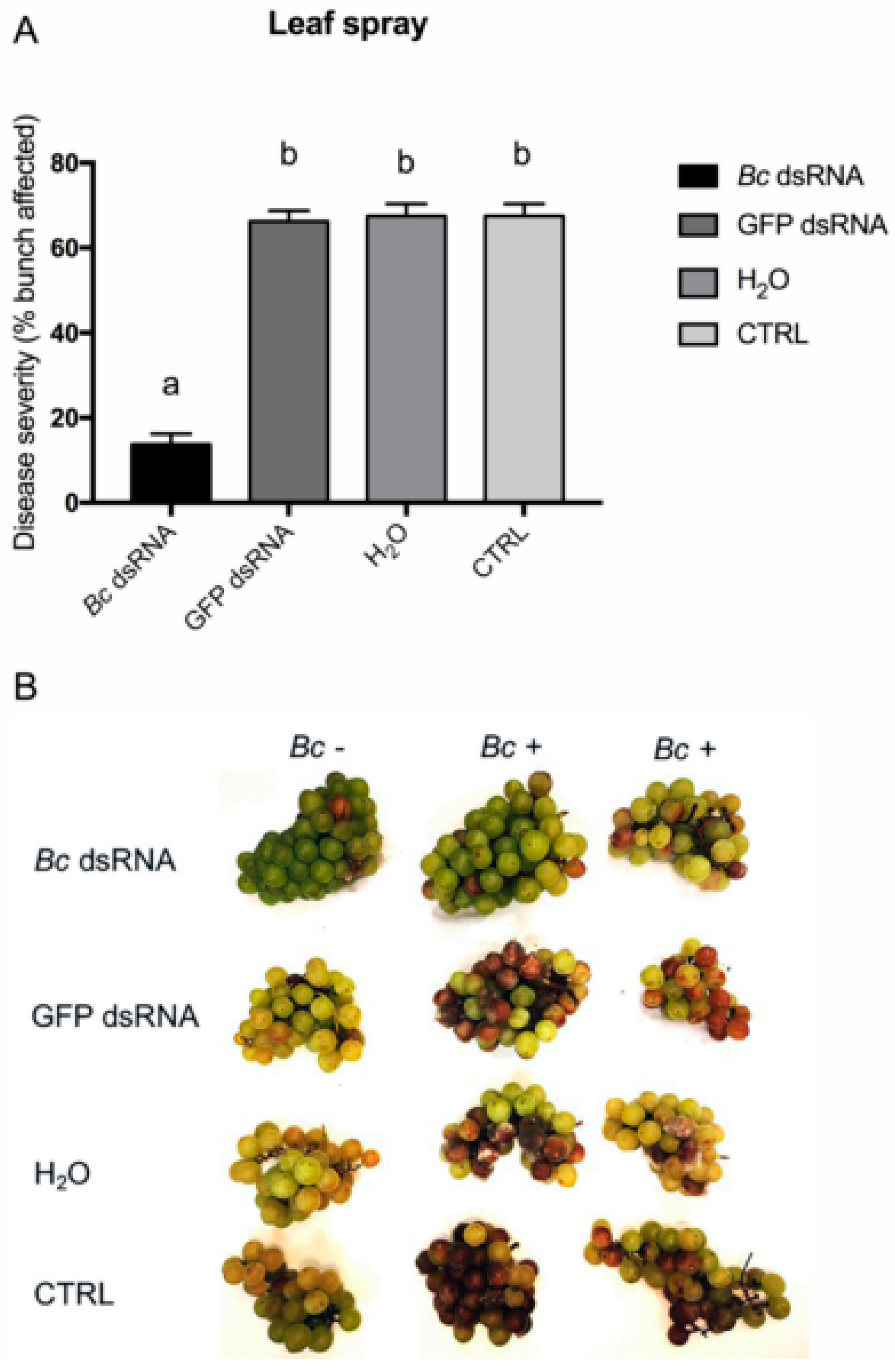

Figure 3. Disease severity on bunches recorded for the in vivo high pressure leaf spray application method. Percentage of berries affected following Bc dsRNA, GFP dsRNA, H2O application, and in untreated CTRL samples. Different lowercase letters above bars indicate significant differences as determined by Tukey HSD test (p ≤ 0.05) (A). Overview of representative samples for each condition tested. One bunch was maintained as uninoculated control (Bc −) and two inoculated (Bc +) bunches of cv. Moscato are shown (B).
Figure 3. Disease severity on bunches recorded for the in vivo high pressure leaf spray application method. Percentage of berries affected following Bc dsRNA, GFP dsRNA, H2O application, and in untreated CTRL samples. Different lowercase letters above bars indicate significant differences as determined by Tukey HSD test (p ≤ 0.05) (A). Overview of representative samples for each condition tested. One bunch was maintained as uninoculated control (Bc −) and two inoculated (Bc +) bunches of cv. Moscato are shown (B).
Biomolecules 10 00200 g003

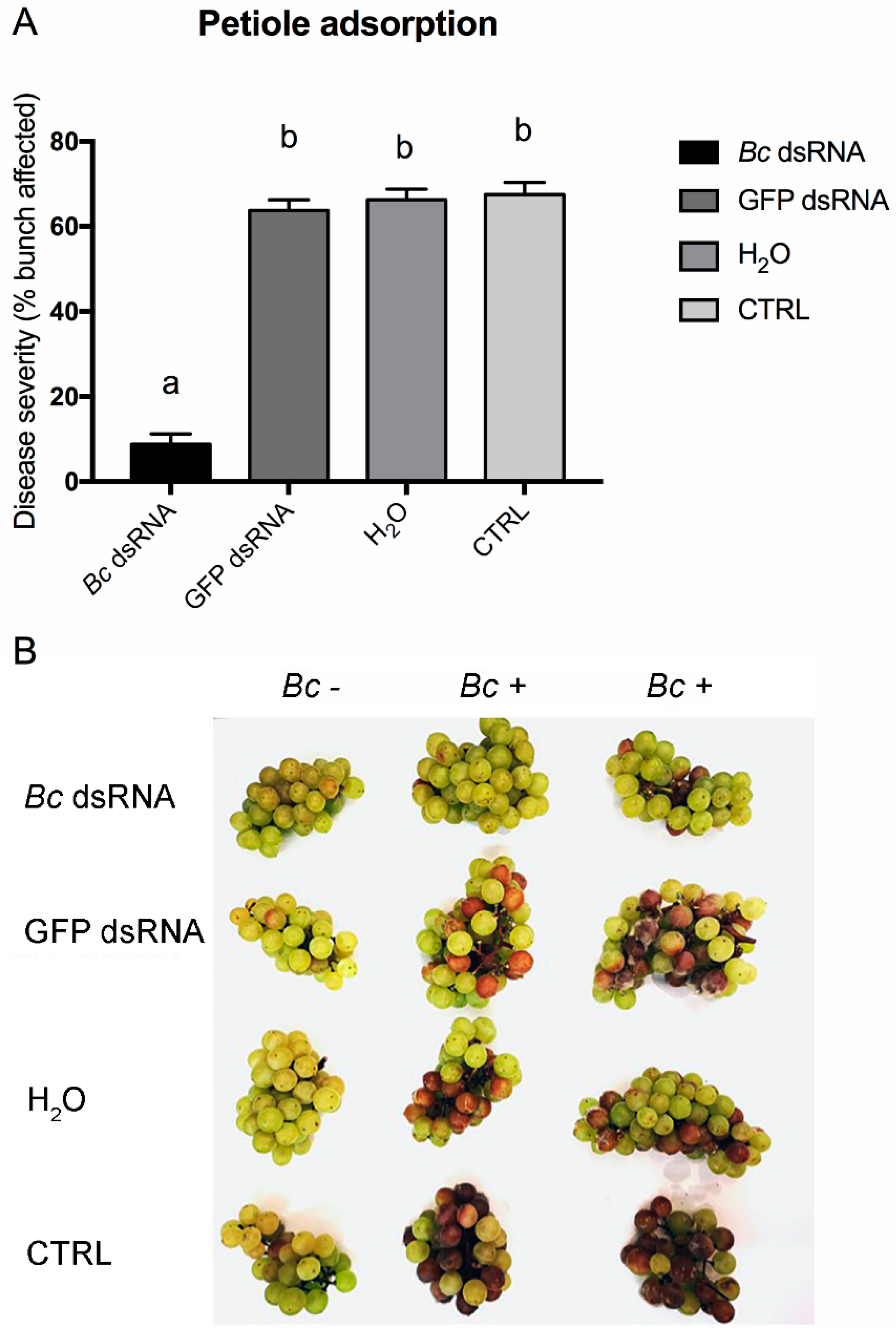

Figure 4. Disease severity on bunches recorded for the in vivo petiole adsorption application method. Percentage of berries affected following Bc dsRNA, GFP dsRNA, H2O application and in untreated CTRL samples. Different lowercase letters above bars indicate significant differences as determined by Tukey HSD test (p ≤ 0.05) (A). Overview of representative samples for each condition tested. One bunch was maintained as uninoculated control (Bc −) and two inoculated (Bc +) bunches of cv. Moscato are shown (B).
Figure 4. Disease severity on bunches recorded for the in vivo petiole adsorption application method. Percentage of berries affected following Bc dsRNA, GFP dsRNA, H2O application and in untreated CTRL samples. Different lowercase letters above bars indicate significant differences as determined by Tukey HSD test (p ≤ 0.05) (A). Overview of representative samples for each condition tested. One bunch was maintained as uninoculated control (Bc −) and two inoculated (Bc +) bunches of cv. Moscato are shown (B).
Biomolecules 10 00200 g004

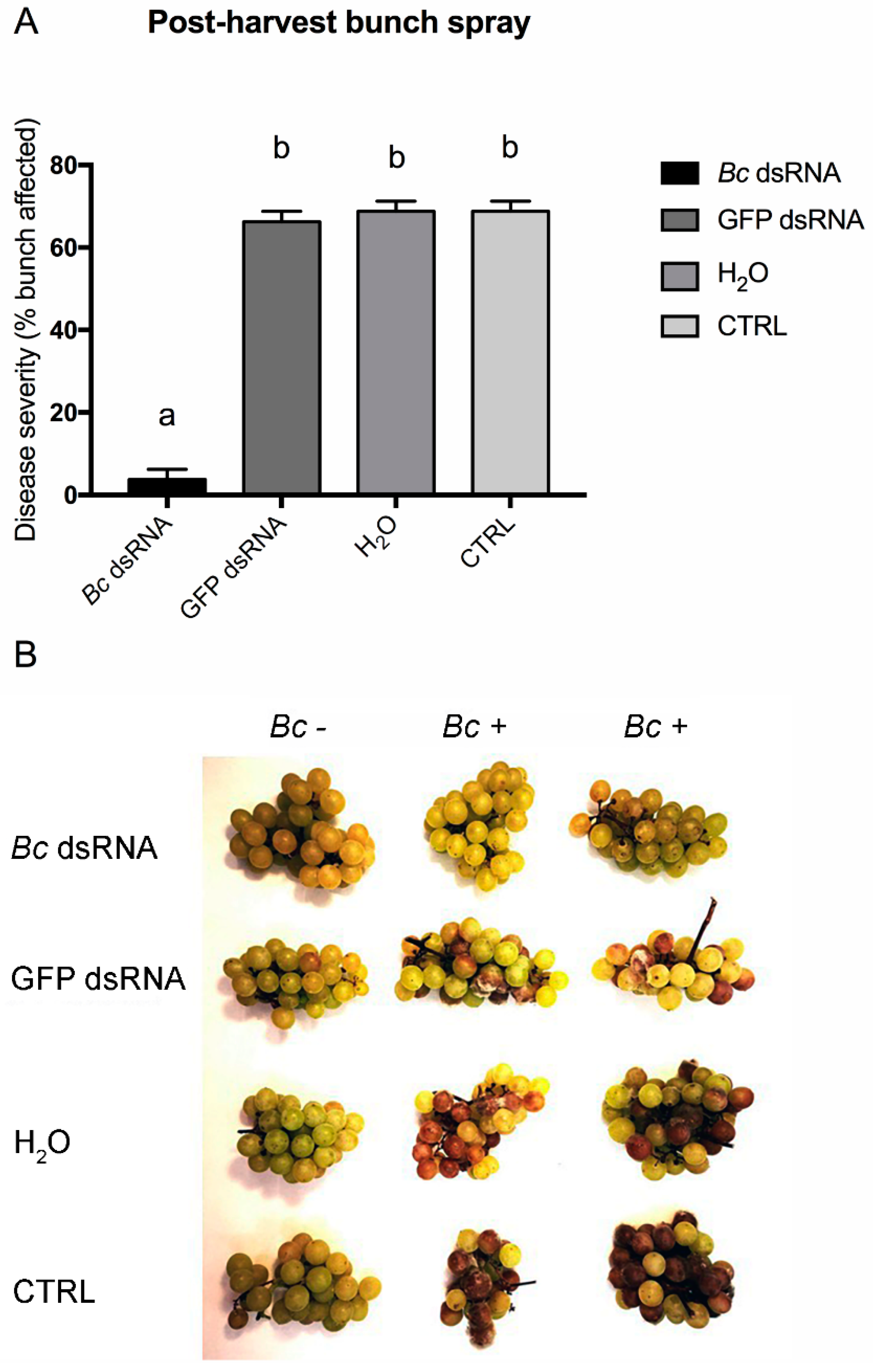

Figure 5. Disease severity on bunches recorded for the in vivo high pressure spray application method in postharvest bunches. Percentage of berries affected following Bc dsRNA, GFP dsRNA, H2O application and in untreated CTRL samples. Different lowercase letters above bars indicate significant differences as determined by Tukey HSD test (p ≤ 0.05) (A). Overview of representative samples for each condition tested. One bunch was maintained as uninoculated control (Bc -) and two inoculated (Bc +) bunches of cv. Moscato are shown (B).
Figure 5. Disease severity on bunches recorded for the in vivo high pressure spray application method in postharvest bunches. Percentage of berries affected following Bc dsRNA, GFP dsRNA, H2O application and in untreated CTRL samples. Different lowercase letters above bars indicate significant differences as determined by Tukey HSD test (p ≤ 0.05) (A). Overview of representative samples for each condition tested. One bunch was maintained as uninoculated control (Bc -) and two inoculated (Bc +) bunches of cv. Moscato are shown (B).
Biomolecules 10 00200 g005

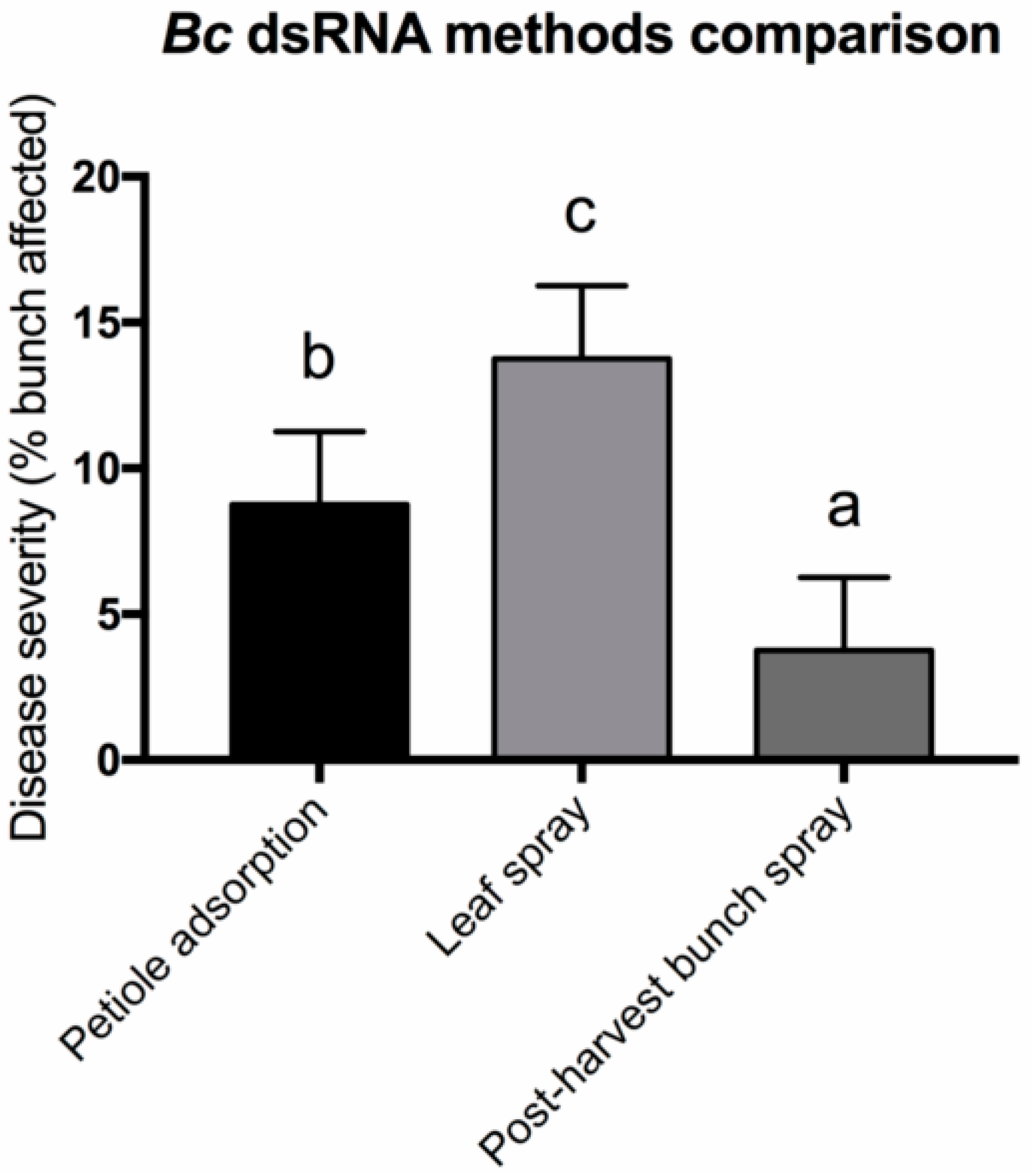

Figure 6. Comparison of disease severities among application methods used in this study using Bc dsRNAs. Different lowercase letters above bars indicate significant differences as determined by Tukey HSD test (p ≤ 0.05).
Figure 6. Comparison of disease severities among application methods used in this study using Bc dsRNAs. Different lowercase letters above bars indicate significant differences as determined by Tukey HSD test (p ≤ 0.05).
Biomolecules 10 00200 g006
