Dynamic Instability of Rydberg Atomic Complexes

Abstract

Atoms and molecules in highly excited (Rydberg) states have a number of unique characteristics due to the strong dependence of their properties on the values of principal quantum numbers. The paper discusses the results of an investigation of collisional Rydberg complexes specific features, resulting in the development of dynamic chaos and the accompanying diffusion autoionization processes. It is shown (experiment and theory) that, in subthermal low energies, the global chaotic regime that evolved in quasimolecular systems leads to significant changes in the Rydberg gases radiation/ionization kinetics. The effect of Förster resonance on the width of the fluorescence spectra and stochastic ionization processes in Rydberg systems is also discussed.

1. Introduction

The interest in the research of physical processes involving highly excited (Rydberg) atomic systems is caused by their significance in the fundamental issues of science (due to the combination of quantum and classical properties) [1,2] and the prospects of their wide implementations in modern applied knowledge-intensive technologies (see, e.g., [3]). The main feature of Rydberg particles is their extremely big size ~n² (where n is the principal quantum number), which results in huge dipole moments. This opens up unique opportunities for both the controlled and addressed management of quantum states by external electromagnetic fields [4], and for the creation of long-lived coherent (entangled) states in cold Rydberg media due to the long range dipole-dipole interaction between the medium particles [5,6]. Therefore, the cold Rydberg atoms are considered to be promising objects for solving the problems of quantum information. With their help, the physical carriers of quantum bits [7] can be realized with the simultaneous execution of the basic quantum operations [8].

Another class of interesting phenomena in dense gaseous media is associated with the collision and radiation kinetics of Rydberg electrons when they are scattered on cold atoms in the ground states, which can lead to the formation of exotic molecules [9,10] and specific chemical reactions [11]. Under certain conditions, cold Rydberg media quickly evolve into cold neutral plasma, which is accompanied by the formation of free electrons and the development of various phenomena, such as spontaneous plasma expansion, recombination of Rydberg atoms, plasma instabilities, and the propagation of collective waves [12]. The physics of ultra-low-temperature plasma should take into account not only traditional ionization and recombination processes involving electrons and ions [13,14], but also the formation of charged particles, which are both due to the ionization of Rydberg atoms by thermal radiation [12,15] and as a result of the Penning autoionization of Rydberg atomic pairs [16,17].

Recombination processes leading to populating highly excited states are the sources of Rydberg atoms/molecules formation in stellar atmospheres of late spectral types, interstellar nebulae, and other space objects, including our solar system (see “Rydberg atoms in astrophysics” by Dalgarno in [1,18]). Rydberg particles play a fundamental role in the Earth’s lower ionosphere, primarily affecting the propagation of satellite radio signals of the global positioning system (GPS) or radar stations [19]. Besides, they are a source of super background incoherent radiation in the decimeter and infrared ranges.

An important feature of the Rydberg systems is related to the “Coulomb” condensation of their quantum states near the energy continuum ($n\to \infty$). Due to strong Stark/Zeeman effects, interaction with electromagnetic fields can lead to multiple quasi-crossings and the mixing of Rydberg electron sublevels with different orbital (l), azimuthal (m), and principal (n) quantum numbers. This allows for the selectively excited initial state to begin a chaotic motion across a dense grid of Rydberg levels with the subsequent transition to the energy continuum. Such uncontrolled drift of a highly excited electron, leading to diffusion ionization, can be observed for single Rydberg atoms under the influence of external fields [20,21,22], as well as for an ensemble of Rydberg atoms with strong long-range dipole-dipole interaction [23]. In molecular or quasi-molecular collisional Rydberg complexes, the diffusion migration of the initial excitation causes both the dissociation of molecules [24] and the formation of molecular/atomic ions [25]. These diffusion processes, as induced by either external controlling or internal molecular fields, lead to the development of instability with the loss of initial coherence in the ensemble of Rydberg particles. The analysis of the dynamics of quantum complexes with a complex branched quasi-crossing structure of energy surfaces is extremely challenging within the framework of traditional quantum mechanical methods of calculation. The purpose of our work is to describe an alternative, semiclassical approach that is based on the concept of dynamic chaos evolution in Hamiltonian systems [26,27,28]. Another set of questions under consideration concerns the features of the radiation kinetics of Rydberg atoms in the vicinity of the Förster resonance. The latter is used as a controlling mechanism for varying the long-range interatomic interaction [29] and it has numerous applications in applied problems of Rydberg media. Noteworthy, the peculiarities of the radiative rate constants, as discussed below, are of potential interest for the interpretation of spectroscopic data, as obtained from fluorescence spectra of cold media of astrophysical relevance, such as different modifications of cold white dwarfs [30] or neutral sodium clouds near Jovian moon Io.

2. Kinetics of Radiative Transitions for Highly Excited Atoms

2.1. Spectral Parameters of an Excited Atom

We note that the atomic system of units is used, unless otherwise stated.

Knowledge of the probabilities of optical transitions lies at the basis of any analysis of processes involving excited atoms. Despite the fact that literature on this subject today has many dozens of works, the topic has not lost its actuality. As a rule, the existing theoretical methods for calculating the lifetime $\tau$, or the radiation width $A=1/\tau$ of the quantum state of an excited atom, leads to better agreement with the experiment in comparison with the probability of an individual optical transition. According to the review work from 1991 [31], even then, the discrepancy between the experimental and theoretical values of the radiation width for excited states of alkali metal atoms did not exceed 10%. Such accuracy was sufficient to use these data in an analysis of collisional processes in optically thin gas media and low-temperature plasmas. In the framework of the semiclassical approximation of quantum mechanics [32,33], the principal quantum number n determines in the first approximation the parameters of the orbit of the valence electron of the hydrogen atom and its energy. The orbital quantum number l determines the magnitude of the orbital angular momentum $L=l+0.5$ (Langer’s correction [33]), and also the degree of perturbation of the valence electron in the field of the atomic residue; the field of which may differ from the Coulomb. The corresponding “perturbed” value of energy $\epsilon$ is found, introducing the concepts of a quantum defect $\Delta {\mu }_l$ and an effective quantum number $n^{*}=n-\Delta {\mu }_l$: $\epsilon =1/(2n^{*2})$.

The experimental data on the lifetimes $\tau$, as known today, can be described by a power law [31]:

$$\tau =\pi \sqrt{3}{c}^3/4\cdot {(l+0.5)}^2\cdot {\alpha }_l{(n^{*})}^{{\beta }_l}$$

(1)

where ${\alpha }_l$ and ${\beta }_l$ are dimensionless constants for a given $\mathrm{l}$-series [31] and c is the speed of light. Accordingly, for example, for hydrogen and alkali atoms ${\beta }_l=3$ [31,34]. At the primary selective excitation of Rydberg atoms (with a fixed value $n>5$) and an increase of the concentration of normal atoms, the formation of a block of states with values of the quantum number l from 0 to n − 1 and with an average lifetime ~n⁵, becomes possible due to intense atom-atom interactions. In this case, the principal fraction of the population of excited states is from those with large l values. In the case of a complete l mixing of the Hydrogen atom Rydberg states, the expression for the probabilities ${\langle A\rangle }_n$ of radiative decay of the block of n-states is written in the form [31,34]:

$${\langle A\rangle }_n=\frac{8}{\sqrt{3}\pi c^3{n}^5}\ln (1.414\cdot n)$$

(2)

The current level of fundamental research and their engineering applications requires reliable data on the lifetimes of excited atoms. Until recently, such information for highly excited atoms in modern databases, as a rule, was absent. Importantly, Rydberg’s lifetimes are highly dependent on ambient temperatures [15], so the correct measurement of their natural widths remains a challenge [35]. Concerning this, an extrapolation scheme for estimating the lifetimes of Rydberg states, tested while using the example of alkali metal atoms, has been developed [31].

2.2. Blocking of the Spectral Transitions. Double Stark (Förster) Resonance

One should have in mind that the term “hydrogen-like” atom, which is often used in the literature for Rydberg states, does not guarantee the complete coincidence of the structure of the energy levels of the excited atom with the energy structure of the hydrogen atom. Thus, for a “hydrogen-like” alkali metal atom with a standard [L-S] bond between the moments [33], the level $\{n,l+1\}$ may be located between the $\{n,l\}$ and $\{n+1,l\}$ states of the excited atom (see Figure 1), which does not correspond to the case of the hydrogen atom [33]. In the case when the $\{n,l+1\}$ level is located exactly in the middle between the $\{n,l\}$ and $\{n+1,l\}$ states, the Stark two-photon resonance condition is realized, otherwise the Förster resonance (hereinafter FR) [29] achieved in practice by an electric field of the order of 5 Vcm⁻¹ [36]. The criterion for the emergence of the FR is simply formulated in terms of a quantum defect of atomic series:

$$\Delta {\mu }_l\equiv {\mu }_l-{\mu }_{l+1}=0.5$$

(3)

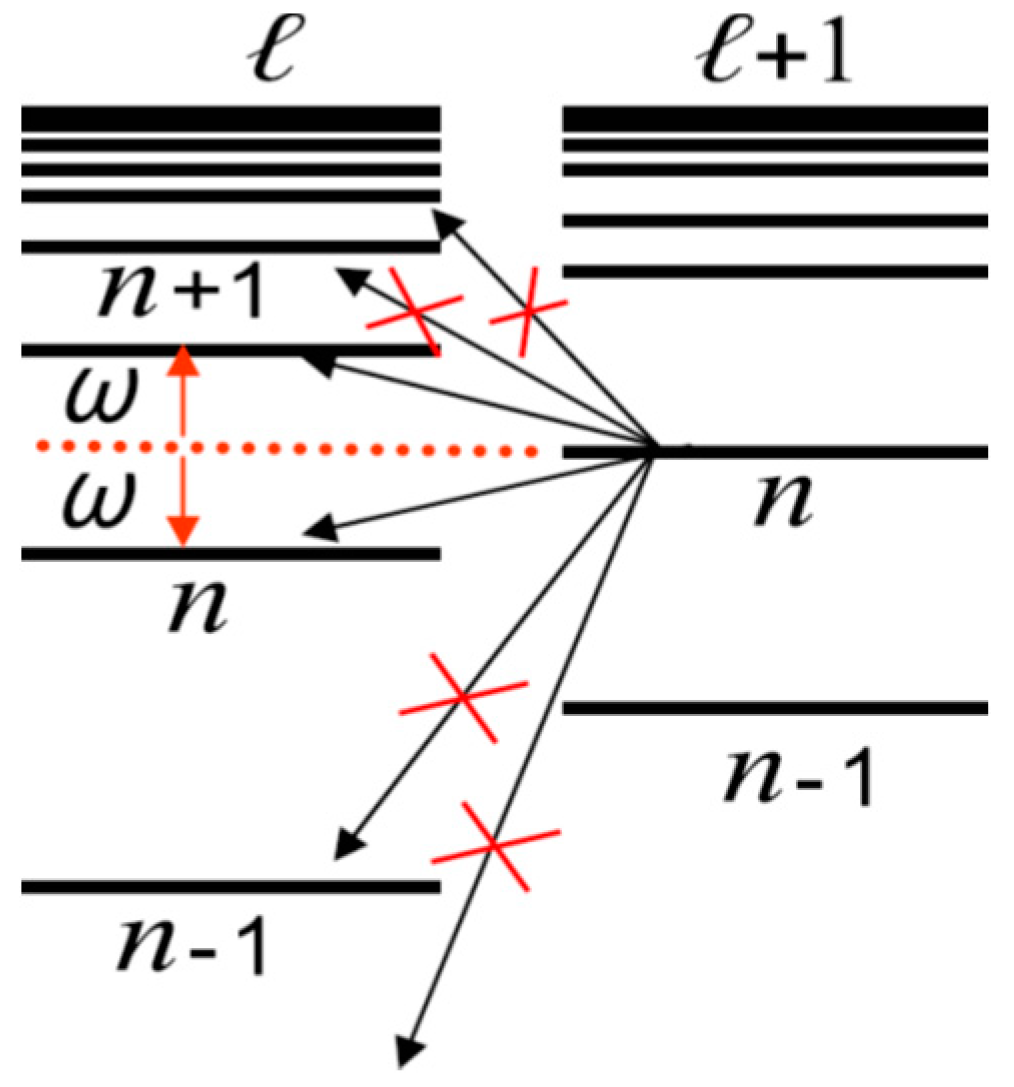

The simplest example is a three-dimensional oscillator with a frequency $\omega$, for which the energies $\epsilon$ of the levels [33]

$$\epsilon =\omega \cdot (2n-l+3/2)$$

(4)

for all $l$-series satisfies FR. The unique frequency of oscillator emission is its natural frequency $\omega$. Therefore, according to the Bohr-Heisenberg correspondence principle [32,37,38], the dipole matrix elements of the spectral transitions are nonzero only for “short” transitions between adjacent quantum states (see, for instance, Equations (2) and (9) in review work [39]). It means that, under conditions of FR, one should expect a significant weakening of the optical oscillator strengths for the “long” transitions (see Figure 1). This situation is most closely realized for the sodium atom for the s- and p-series (see

Table 1. Qantum defect ${\mu }_l$ for s-, p-series [32] along with $\Delta {\mu }_P$ and the factor $1/{\tau }_P$ from Equation (1).

	Li	Na	K	Rb	Cs	H
s	0.40	1.35	2.19	3.13	4.06	0
p	0.04	0.85	1.71	2.66	3.59	0
$\Delta {\mu }_P$	0.36	0.50	0.48	0.47	0.47	0
$10/{\tau }_P$	0.69	0.14	0.51	0.75	0.61	10

), which causes the anomalously small radiation widths of the Rydberg states of sodium p-series, whose value is ~ 5 times smaller than the widths of the other alkali atoms (see Table 1, last row where $1/{\tau }_P$ are presented in) at the same energies of the corresponding states [31].

Thus, the Förster resonance is a unique phenomenon, in which anomalies in the spectral characteristics of excited atomic systems should be expected. Accordingly, in Ref. [36], under the conditions of the FR, the processes of blocking microwave transitions between Rydberg levels of rubidium in (A** + A) quasimolecular complex were investigated (experiment). From the academic point of view, the RF influence on the spectra of the excited atoms is considered in [40] within the framework of a model one-electron atom with the Sommerfeld potential [41]

$$U_Z(r)=-1/r+\alpha /(2r^2),$$

(5)

where $r$ is the distance of the valence electron to the center of the atomic core and $\alpha$ is a parameter of the model. Sommerfeld introduced a potential of such a type in describing relativistic corrections to the theory of a hydrogen atom. An important particularity of Sommerfeld’s potential is the possibility of an accurate analytical description of atomic parameters. For example, the energy of atomic states is given by the following expression

$$\epsilon =-\frac{1}{2{(n+l_{ef}-l)}^2};l_{ef}=\sqrt{{(l+0.5)}^2+\alpha }-0.5$$

(6)

The quantity $l_{ef}$ is called the effective orbital number and is directly connected with the quantity of the quantum defect: $\Delta {\mu }_l=l-l_{ef}$. The concept of an effective orbital number $l_{ef}$ is widely used in calculating the probability of radiative transitions in alkali atoms [42]. It allows, in particular, for describing the FR between $l$ and $l-1$ atomic series [43] by selecting the parameter $\alpha ={\alpha }_{l,l-1}$:

$${\alpha }_{l,l-1}=3\cdot (l^2-{0.25}^2),$$

(7)

Accordingly, in the case of {p, s} series, ${\alpha }_{p,s}$ = 2.81. For {d, p} series, ${\alpha }_{d,p}$ = 11.8.

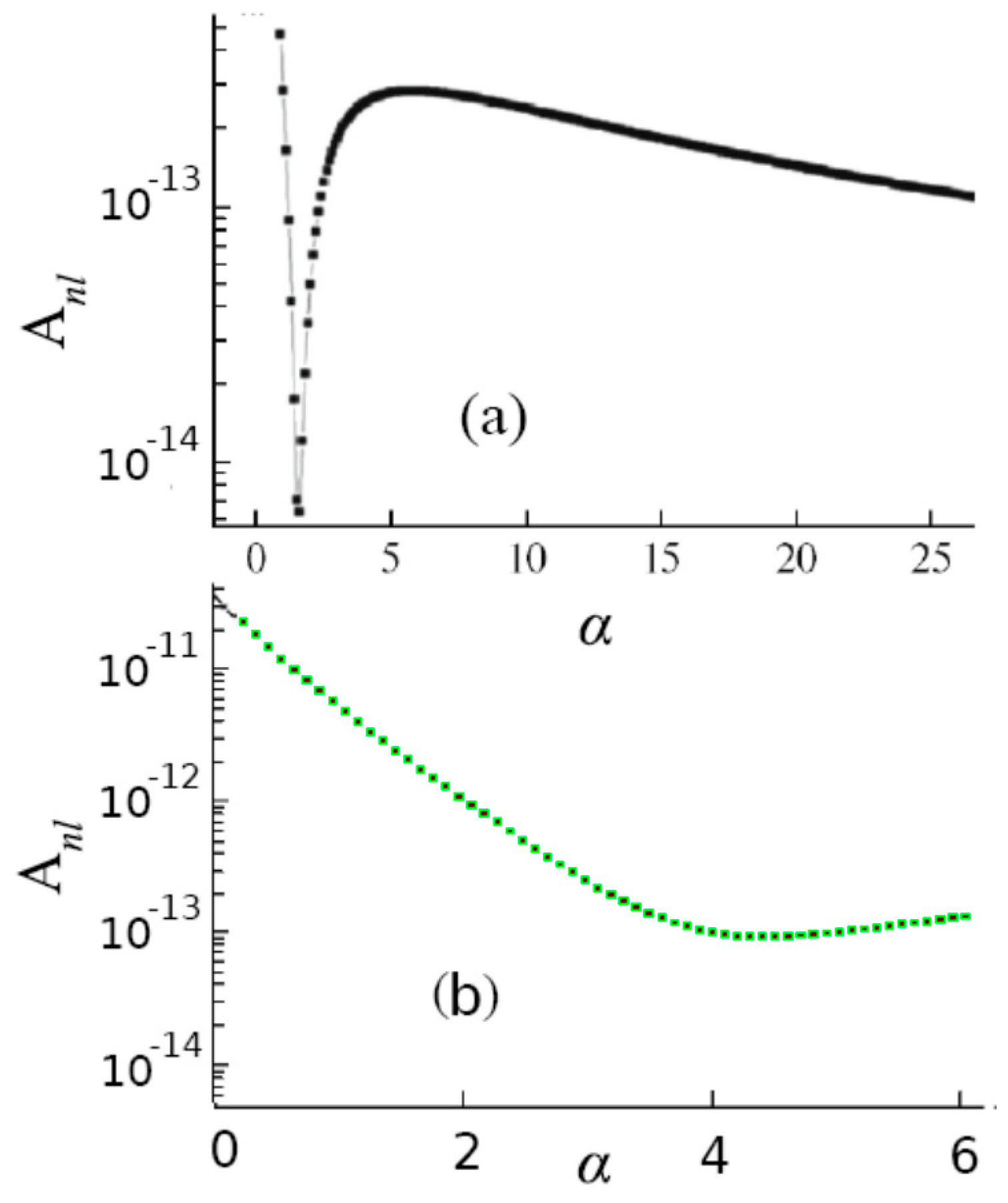

In Figure 2, the dependence of the radiative decay probability $A_{nl}=1/{\tau }_{nl}$ (Einstein’s coefficients) on the parameter $\alpha$ for fixed 30s and 25p states of the model Sommerfeld atom is shown. It can be seen that, in the vicinity of the FR, the radiative lifetimes of the Rydberg states can vary significantly (by orders of magnitude). Similar effects manifest themselves, and in collision Rydberg complexes [25,43], which will be discussed in the following sections.

3. Rydberg Quasimolecular Complex in the Framework of the Dipole Resonance Mechanism Model

A wide range of collisional processes

$${\mathrm{A}}^{**}(nl)+\mathrm{A}\to {\mathrm{A}}_2^{**}\to \{\begin{array}{c}{\mathrm{A}}^{**}(n^{\prime }{l}^{\prime })+{\mathrm{A}}^{*}\\ {\mathrm{A}}^{**}(n^{\prime }{l}^{\prime })+{\mathrm{A}}^{+}+e\\ {\mathrm{A}}_2^{+}+e\end{array}$$

(8)

with the participation of Rydberg states pass through the phase of formation of the intermediate Rydberg complex ${\mathrm{A}}_2^{**}$. A fundamental contribution to “Rydberg Physics” was made by Fermi [44], who proposed considering the quasimolecular formation of ${\mathrm{A}}_2^{**}$ as a structure that consists of two positively charged atomic cores ${\mathrm{A}}^{+}$, a quasi-free Rydberg electron (RE) $e_{nl}^{-}$ in the Keplerian orbit, and the generalized valence electron $e^{-}$ (see Figure 3). The further development of the Fermi approach [45,46,47], the so-called dipole resonance ionization (DRI), has found wide application in the solution of a diverse range of problems (see, for example, the review [13]) from the broadening and shift of spectral lines to the balance of ionization processes in the solar photosphere (see, for example, [25,48]).

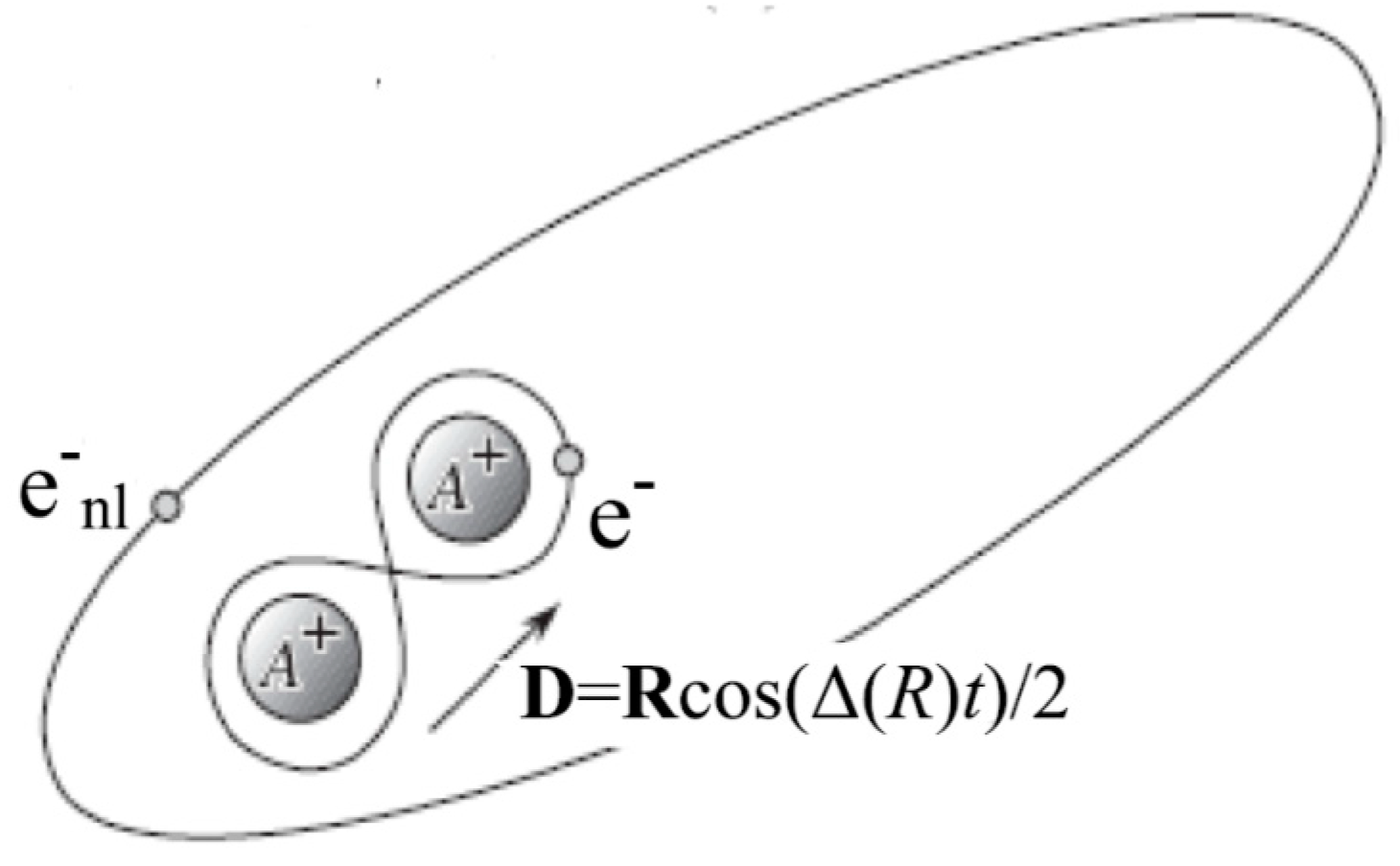

Within the framework of the DRI model, the probability of realization of various final channels for the collision (8) is determined by the internal dipole moment D of the quasimolecule ${\mathrm{A}}_2^{**}$. The moment D arises in the process of the charge exchange in the system (A + A⁺) and it induces an alternating electric field E(t), perturbing the motion of the RE $e_{nl}^{-}$ on the Coulomb orbit (see Figure 3). With respect to the ionization channels for the DRI model, the following simplifying assumptions are accepted: (i) both the trajectory of the external electron $e_{nl}^{-}$ and relative motion of the ion ${\mathrm{A}}^{+}$ and unexcited atom A are semiclassical (ii) with the initial impact parameter $\rho$; and, (iii) ionization proceeds within a certain region with a given limiting distance $R_{ion}$ between colliding atoms, which depends on the type of ion-atom residue and it is a parameter of the theory. The system is traditionally described in the adiabatic approximation using the appropriate potential curves of the Rydberg complex and the molecular ion ${\mathrm{A}}_2^{+}$.

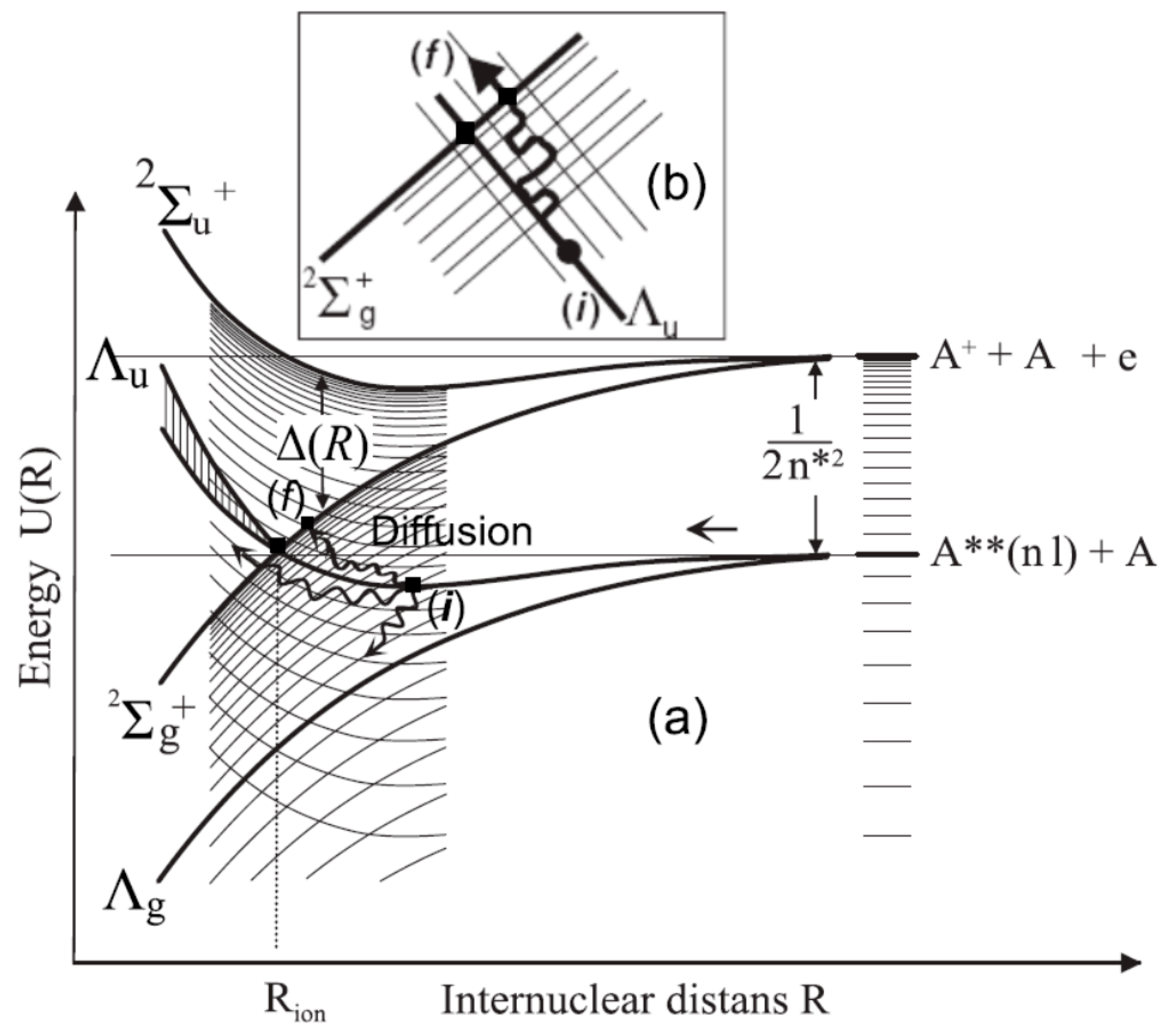

A graphical illustration of the ionization process is given in Figure 4. Under the assumptions made, the charge exchange between atomic residues A⁺ within the quasimolecule ion ${\mathrm{A}}_2^{+}$ leads to the splitting $\Delta \left(\mathrm{R}\right)$ (known as “exchange interaction” [45]) of its energy levels and it creates a time-dependent dipole moment D = ${\mathbf{R}}^{\cos (\Delta \left(\mathrm{R}\right)\mathrm{t})/2}$, which oscillates with frequency $\omega =\Delta \left(\mathrm{R}\right)$, i.e., outside the complex ${\mathrm{A}}_2^{+}$ an alternating quasimonochromatic microwave electric field E(t) is induced (see Figure 3). We note that, as shown in [49], the effect of the field E(t) on the Rydberg electron $e_{nl}^{-}$ is equivalent to its perturbation by an external, spatially uniform field with the frequency ${\omega }_L=\Delta \left(\mathrm{R}\right)$, and with polarization along the interatomic axis R. Ionization occurs inside the range of distances ($\mathrm{R}<{\mathrm{R}}_{\mathrm{ion}}$), where the exchange interaction $\omega =\Delta \left(\mathrm{R}\right)$), starting from the threshold value $\Delta ({\mathrm{R}}_{\mathrm{ion}})$, exceeds the binding energy $|{\epsilon }_{nl}|=1/(2n^{*2})$ of the $e_{nl}^{-}$ electron and, thus, opens the autoionization channel of the quasimolecule complex ${\mathrm{A}}_2^{**}$. The probability of ionization per unit time, or the autoionization width of the process, is expressed in terms of the photoionization cross section ${\sigma }_{ph}(nl,\omega )$.

The considered mechanism of dipole resonance, which played an important role in the development of the physics of thermal collisions of heavy particles, has a strictly deterministic character. However, as the main quantum number n of the Rydberg atom A**(nl) increases, when the initial ${\Lambda }_u$ energy curve (as shown in Figure 4) passes through a set of quasi-intersections with the neighboring ${\Lambda }_g$ energy curves during the collision, the trajectory instability of the Rydberg electron $e_{nl}^{-}$ begins to appear in the simiclassical approximation. As a result, the random migration of excitation occurs along the grid of energy terms, which have the energy separation $\Delta \epsilon =1/{(n^{*})}^3$ between them. In the framework of modern concepts of nonlinear mechanics [26], this makes it possible to introduce the idea of dynamic chaos [27], in chemi-ionization processes in thermal and subthermal collisions that involve RA.

4. Rydberg Collisional Complex ${\mathbf{A}}_{\mathbf{2}}^{\mathbf{*}\mathbf{*}}$ in Approximation of Dynamic Chaos

At the end of the 19th century, in mathematics, Poincaré [27] introduced the notion of integrable and nonintegrable systems. In the first case, we meant a system with a “smooth” response to a small external perturbation and the conditions for the motion of individual particles are amenable to a direct description. However, in the general case, dynamical systems are not integrable, since perturbations that violate the total symmetry, as a rule, cannot be eliminated.

4.1. Nonlinear Dynamic Resonances and the Emergence of Deterministic Chaos

The main reason for the nontrivial influence of external periodic perturbations on the dynamic properties of integrable systems is associated with the appearance of nonlinear dynamic resonances [26], which, for large time intervals, leads to strong instability of the solutions obtained. In the framework of the KAM theory (Kolmogorov, Arnold, Moser) [27], it was shown that the presence of multiple resonances leads to the appearance of layers in the phase space of the considered ensembles of particles with diffusion motion that form a branched “stochastic web” [50]. To get into the element of the “stochastic web”, the excitation energy of the initial state should be as close as possible to one of the “resonant” values. For given perturbation parameters, a set of quantum states associated with initial dynamic nonlinear resonances can be indicated.

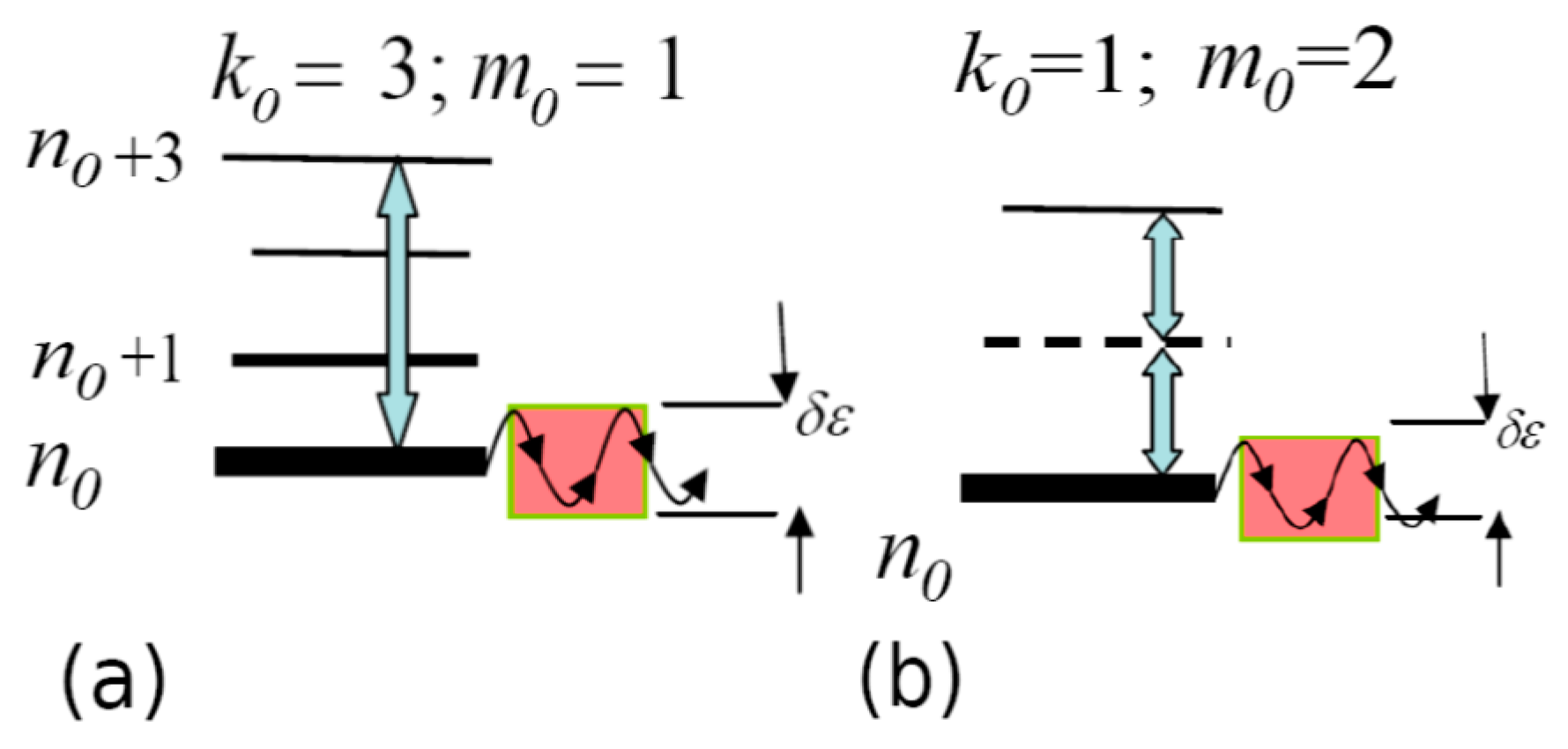

The quantitative consideration of the instability of the RE dynamics in a periodic external microwave electromagnetic field $E(t)={\displaystyle \sum _{m=0}^{\infty }{\overline{E}}_m}\cos (m{\omega }_L)$ (where ${\omega }_L$ is the frequency) is based in the frame of the semiclassical approach on the Bohr–Heisenberg correspondence principles [32,37,38]. The largest perturbation by the field $E(t)$ (i.e., strong mixing between populations of two levels with fixed $n_0$ and $n_0+k_0$ values of principal quantum numbers) should be expected in the case of $m_0$-photon resonance ($m_0\ge 1$). For this, a “dynamic” coincidence of the $m_0{\omega }_L$ “photon” energy with the energy distance $k_0{\omega }_{\epsilon }$ between the levels is necessary (see Figure 5):

$$m_0{\omega }_L=\epsilon (n_0+k_0)-\epsilon (n_0)\approx k_{0}d\epsilon /dn=k_0{\omega }_{\epsilon }.$$

(9)

Note that the energy density $d\epsilon /dn$ of the levels can be expressed through the frequency ${\omega }_{\epsilon }=1/n^{*3}$ of the classical revolution of the electron along the Keplerian orbit [32]. The realization of relation (9) is termed in the literature (see, for example, [27]) as the manifestation of a dynamic nonlinear resonance of the order $\left\{k_0{m}_0\right\}$ in the vicinity of the energy ${\epsilon }_{k_0,m_0}=\epsilon (n_0)$ (see Figure 5). In this case, the electron energy $\epsilon$ begins to oscillate with respect to its unperturbed value with the amplitude $\delta \epsilon$ [26,27]:

$$\delta \epsilon =2\sqrt{\frac{{\omega }_{\epsilon }\left|{\overline{E}}_{m_0}\right|}{d{\omega }_{\epsilon }/d\epsilon }};\epsilon ={\epsilon }_{k_0,m_0}$$

(10)

where ${\overline{E}}_{m_0}$ is an amplitude of the $m_0$-term at the frequency $m_0{\omega }_L$ in the Fourier series of the field $E(t)$.

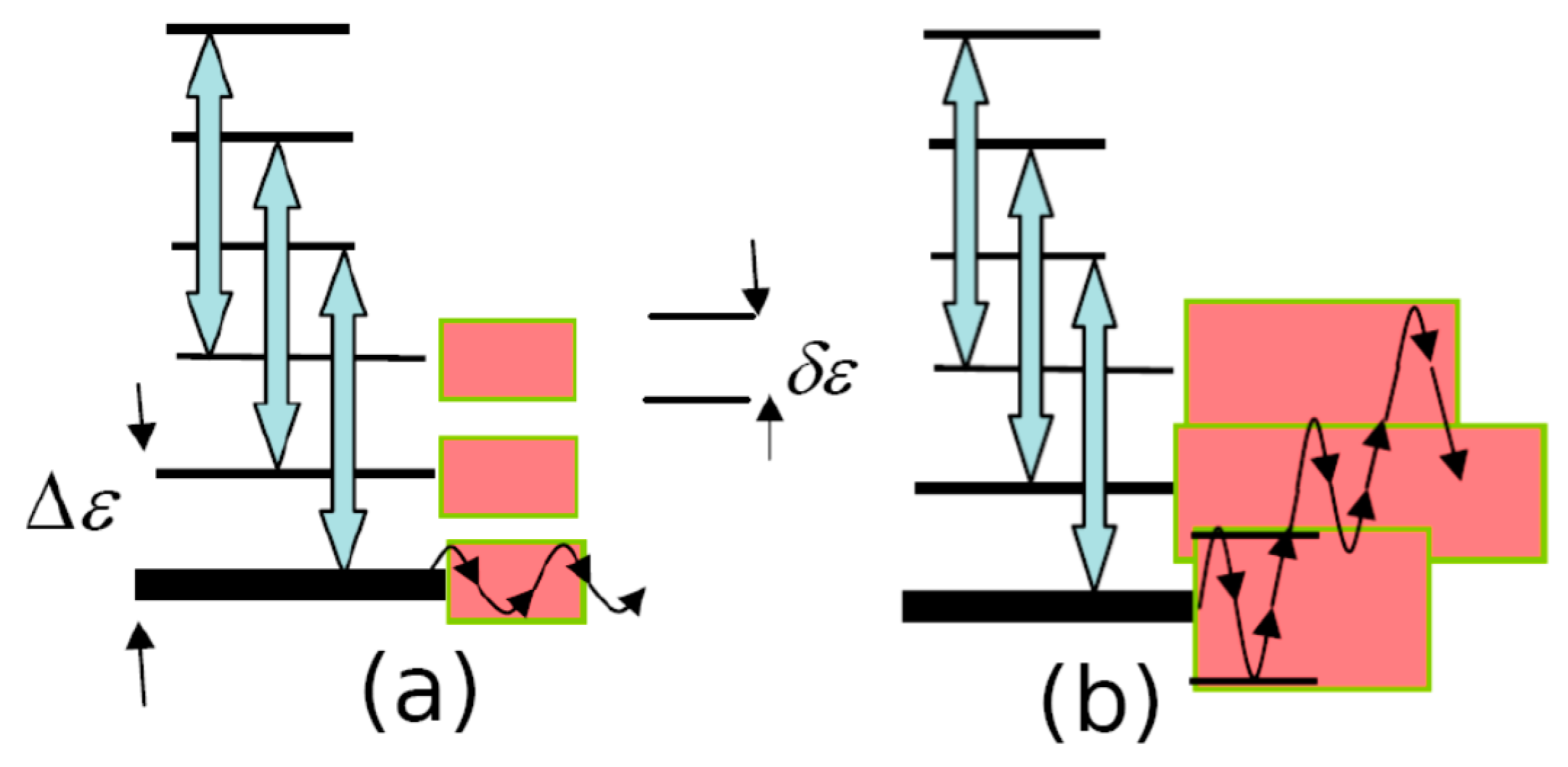

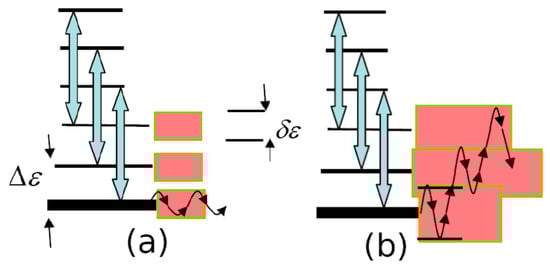

The width $\delta \epsilon$ of the nonlinear resonance (the amplitude of the energy oscillations) is characterized by a root dependence on the amplitude ${\overline{E}}_{m_0}$ of the perturbation. Out of resonance, the amplitude of the energy variations corresponds to a linear dependence on $E(t)$.

For linear systems $d{\omega }_{\epsilon }/d\epsilon =0$, which formally lead to an arbitrarily large excitation of the electron ($\delta \epsilon \to \infty$) without transition into the stochastic regime. For a nonlinear system, the finiteness of the widths of nonlinear resonances causes the emergence of a global chaos regime according to the Chirikov criterion [27]

$$K=\delta \epsilon /\Delta \epsilon >1,$$

(11)

is satisfied, where $\Delta \epsilon ={\omega }_{\epsilon }=1/n^{*3}$ is energy distance between neighboring levels. In the general case, for a particular system of quantum states of an excited atom, a whole set of quantum number values $n_0$ corresponding to different orders of dynamic resonances can be realized (see Figure 5). In the absence of the overlapping effect ($\delta \epsilon <\Delta \epsilon$) between the widths $\delta \epsilon$ of neighboring resonances, separate islands of instability can arise in the energy space. Figure 6a shows the dynamics of the change in the energy of the Rydberg electron for such a case. It can be seen that the “overlap” of resonances is still not enough for the onset of global chaos, and the energy of the initial level $n_0$ undergoes finite oscillations within the width $\delta \epsilon$ (10). In the case of the overlapping of resonances (see Figure 6b), an electron can go far from its initial state up to the states of a continuous spectrum (ionization) during diffusion. This corresponds to the onset of a global chaos regime. Here, the essential point is the threshold of the intensity of external perturbation, leading to a global chaos regime, the criterion of which appears in the inequality (11).

4.2. The Standard Map (SM)

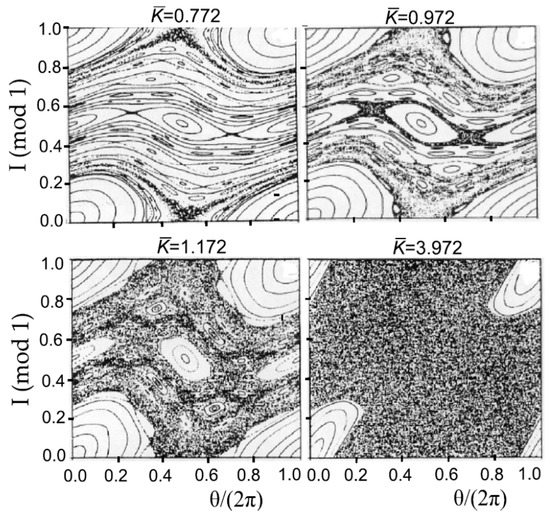

A nice illustration of the mechanisms that are involved in the transition to the global chaos is an example of the so-called standard mapping [26]. The standard map (SM), also known as the Chirikov–Taylor map [26], is one of the simplest models of chaos, in which the most characteristic and complex features of this problem are preserved. The corresponding model Hamiltonian, resulting in SM, has the form

$$H=H_0(I)+\frac{\overline{K}}{2\pi }\cos (\theta ){\displaystyle \sum _{n=-\infty }^{\infty }\delta \left(\frac{t}{2\pi }-n\right)};H_0(I)=\frac{I^2}{2}$$

(12)

and describes a rotor (an initial free atomic system with Hamiltonian $H_0(I)$) periodically kicked by delta-impulses of some external force (a perturbation). Here, T = 2π is the corresponding period, while $\overline{K}$ is a dimensionless parameter that characterizes the force amplitude. The rotor phase space variables “angle-action” (θ, I) are defined on a cylinder (−∞ < I < ∞; 0 < θ < 2π).

When considering the identity

$${\displaystyle \sum _{n=-\infty }^{\infty }\delta (t/T-n)=}{\displaystyle \sum _{m=-\infty }^{\infty }\exp (i2\pi mt/T)},$$

(13)

we can rewrite the Hamiltonian (12) in the form

$$H=\frac{1}{2}{I}^2+\frac{\overline{K}}{4\pi }{\displaystyle \sum _{m=-\infty }^{\infty }\left[\exp (im{\omega }_{L}t+\theta )+\exp (im{\omega }_{L}t-\theta )\right]}$$

(14)

with ${\omega }_L=2\pi /T=1$. Expression (14) corresponds to the motion of the rotor in a periodic wave packet with an infinite number of harmonics. The amplitudes of the harmonics have the same magnitude, while their phases depend on the rotor angle $\theta$.

To identify the range of applicability of the Chirikov criterion (11), consider the Hamiltonian equations of the perturbed rotor (14)

$$\dot{I}=i\frac{\overline{K}}{4\pi }{\displaystyle \sum _{m=-\infty }^{\infty }\left[\exp (im{\omega }_{L}t+i\theta )-\exp (im{\omega }_{L}t-i\theta )\right]};$$

(15)

$$\dot{\theta }=\omega (I);\omega (I)=d{H}_0/dI=I,$$

(16)

where $\omega (I)$ is an angular frequency of the rotor having the angular momentum I. The nonlinear resonances (9) arise in the frame of the zero order of the perturbation theory when we use in (15) unperturbed temporal dependence for the angle variable: $\theta (t)=I\cdot t$. The external force provides the strongest influence at the rotor dynamics if the series (15) contain stationary terms, i.e., the action variable I should satisfy $m{\omega }_L=\pm \omega (I)=\pm I$. This relation corresponds to Equation (11) provided $k_0=\pm 1$, which means that the nonlinear resonances under consideration have orders $\{k=\pm 1,m\}$ with $I_{k,m}=m/k\cdot {\omega }_L=m/k$ and ${\epsilon }_{k,m}=m^2/2$. Since $I_{-1,-m}=I_{1,m}$, we may restrict ourselves to the case of the resonance values $I_{1,m}$. In the vicinity of one of these resonances ($I\approx I_{1,m_0}=m_0$), one may simplify series (15) by dropping all the oscillating terms. This transforms the system (15), (16) into

$$\dot{\delta I}\approx \overline{K}/(2\pi )\sin (\theta -m_{0}t);\dot{\Psi }=\delta I$$

(17)

with $\delta I=I-I_{1,m_0}=I-m_0$ and $\Psi =\theta -m_{0}t$. System (17) is reduced to the nonlinear equation of the phase oscillation

$$\stackrel{\mathbf{\dot{}}\mathbf{\dot{}}}{\Psi }\approx \overline{K}/(2\pi )\sin (\Psi )$$

(18)

Equations (17), (18) result in the oscillation of the action $\delta I$ with the maximum amplitude $\max \delta I^2$~$4\overline{K}/\pi$ corresponding to the maximum distance between two separatrix branches that are generated in the phase space by Equation (7) [27]. We may assess the amplitudes $\delta \epsilon$ of the energy oscillations of the resonance states that are depicted in Figure 6 as $\delta \epsilon \approx |\omega (I)|\cdot \max \left|\delta I\right|$. The distance ΔI_1,m between two adjacent resonance values I_1,m is ΔI_1,m = 1, which gives, for the corresponding energy separation, $\Delta \epsilon =|\omega (I)|\Delta I=|\omega (I)|$ (see Figure 6). Chirikov criterion (11), hence, is reduced to the form

$$K\approx \frac{|\omega (I)|\cdot \max \left|\delta I\right|}{|\omega (I)|}=2\sqrt{\overline{K}/\pi }>1.$$

(19)

The characteristic important feature of the Hamiltonian (12) in the standard map model is the simultaneous overlapping of all resonance energies widths, as shown in Figure 6b. Figure 7 demonstrates the evolution of the rotor trajectories $(I(t),\theta (t))$ in the phase space for some parameter $\overline{K}$ values. It is clearly seen that, initially ($\overline{K}=0.772$), small islands of instabilities (black areas) increase their size as the parameter $\overline{K}$ increases, forming a “stochastic sea” for large amplitudes ($\overline{K}=3.972$) of the external force.

4.3. Conception of Diffusional Ionization

A significant contribution to the development of the theory of stochastization of quantized systems was made by the authors of Refs. [20,51], who considered the evolution of a bound Rydberg electron with its ionization in an external microwave field. The adaptation of the methods of work [51] in describing the development of dynamic chaos in the act of a single collision (8) is described in [49]. It is shown that, under the influence of a quasimonochromatic internal electric field E(t), nonlinear dynamic resonances can arise due to the coincidence of the overtone $k_0{\omega }_{\epsilon }$ of the angular frequency ${\omega }_{\epsilon }$ of motion of RE $e_{nl}^{-}$ on the Keplerian orbit with charge-exchange frequency $\Delta \left(\mathrm{R}\right)$ of the internal electron $e^{-}$ (see Figure 3). As a result, the motion of the RE becomes unstable, and the RE evolution in the energy space takes the character of random walks along the quasi-intersecting “grid” of potential curves (see Figure 4), which opens the possibility of a kinetic description of the RE dynamics

In a series of subsequent works [22,52,53,54], data on the formation of dynamic nonlinear resonances with a transition to the stage of global chaos for isolated atoms in an external linearly polarized electric field $E(t)=E_0\cos ({\omega }_{L}t+\theta )/2$ were refined. We note that, the widths of the dynamic resonances (10), as well as the effects of stochastic dynamics, are directly related to the matrix elements of the perturbation operators. This conclusion is confirmed by the results of [52], in which the coefficients of the light-induced diffusion equation for a weakly bound electron in an external microwave field are explicitly expressed in terms of the dipole matrix elements for optical transitions. Since the implementation of the diffusion ionization requires finite time, to take into account the regime of dynamic chaos becomes important for slow collisions, which is for a range of thermal and subthermal energies. A transition to the ionization continuum due to a stochastic walk (see Figure 6b) can be described, with good accuracy, in terms of kinetic methods using the distribution function $\overline{f}(\epsilon ,t)$ [22,27] in the bound state region of a Rydberg electron ($\epsilon <0$). For calculations, it is more convenient to work with the distribution $f(n,t)$ over the principal quantum number $n$

$$f(n,t)dn=\overline{f}(\epsilon ,t)d\epsilon ,$$

(20)

using the relation $\epsilon =-1/(2n^2)$. In this case, the time dependence of $f(n,t)$ is found from the solution of a diffusion equation of the Fokker–Planck type [27]

$$\frac{\partial }{\partial t}f(n,t)=\frac{\partial }{\partial n}{D}_n\frac{\partial }{\partial n}f(n,t)$$

(21a)

with the initial condition that at the moment $t=0$ the excited electron is at the level $n_0$, i.e., $f(n,t=0)=\delta (n-n_0)$ ($\delta (x)$ is the Dirac delta-function). To determine the evolution of $f(n,t)$, Equation (21a) must be supplemented by the following boundary conditions with respect to the quantum variable $n$ at the boundaries of the region of development of stochasticity $nc<n<\infty$:

$$f(n\to \infty ,t)=0,\frac{\partial }{\partial n}f(n=n_c,t)=0,$$

(21b)

where the quantity $n_c$ is determined from the Chirikov criterion (11), as [22]

$$n_c^4{(n_c{\omega }_L)}^{1/3}=1/(49E_0)$$

(22)

The boundary of the continuum ($n=\infty$) is an absorbing wall for the diffusion flux where $f(n)$ becomes zero. The amplitude $E_0$ of the microwave field determines the critical value $n_c$ of the principal quantum number below which the electron has regular motion, and the underlying states ($n<n_c$) refer to the deterministic region, since here the energy separation $\Delta \epsilon =1/n^3$ of the neighboring levels exceed the widths of the dynamic resonances (see Figure 6a). Thus, the values $n=n_c$ determine the position of the “reflecting wall”, on which the diffusion flux vanishes.

According to [22,51], the value of the diffusion coefficient $D_n$ is

$$D_n\cong 0.65E_0^2{n}^3{\omega }_L^{-4/3}$$

(23)

From here, the average time, ${\tau }_{eff}$, required to reach the ionization limit by RE, which begins its diffusion motion with an initial binding energy $\epsilon =-1/(2n_0^2)$, is determined as [24,49]

$${\tau }_{\mathrm{eff}}(n_0)=\frac{{\omega }_L^{4/3}}{0.65E_0^2}{n}_0^2\left(1-\frac{n_c}{2n_0}\right)$$

(24)

The distribution $f(n,t)$ makes it possible to find parameters of the diffusion process, such as the average number of jumps from one level to another, experienced by the particle during its diffusion drift to the continuum of energies, the average lifetime of the excited atom, and the degree of its “survival” at a given time interval, i.e., knowledge of $f(n,t)$ relatively simply makes it possible to obtain theoretical data for comparison with the values that were observed in the experiment.

4.4. Diffusional Ionization of Hydrogen Atom in External Field

More detailed information on the processes of diffusional ionization requires numerical calculations. Within the semiclassical approximation, numerical data are extracted from the study of the dynamics of motion (trajectories) of the RE. Analysis of time processes with the strong stochastization of trajectories requires the use of a stable numerical calculation scheme. The corresponding algorithm, which is based on the Floquet technique [55] and geometric integration methods [56,57], was proposed in [54] to find the parameters of atomic systems that were subjected to external periodic fields.

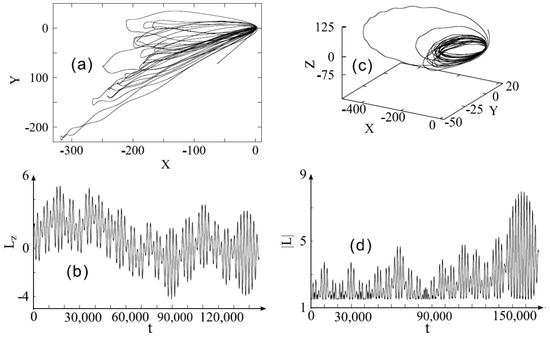

As an example, Figure 8 shows the trajectories of motion and shows the time dependence of the orbital angular momentum L in conditions of dynamic chaos development. We take the initial 10P ($n_0=10,l_0=1$) state of the hydrogen atom in the microwave field with frequency ${\omega }_L=3/{10}^3$ and amplitude $E_0$, exceeding its threshold value $E_c=2/(49n_0^4)$ [22]. Two characteristic initial configurations of the vector ${\mathbf{L}}_0$ and the Runge-Lenz vector ${\mathbf{A}}_0$ (directed along the semiaxis of the unperturbed Keplerian orbit [58]) were chosen, corresponding to the maximal changes in the modulus |L| for cases of two-dimensional ($E_0=8,2E_c$) and three-dimensional ($E_0=6,5E_c$) trajectories. Note that, according to the literature data, the range of values of n ≈ 10 corresponds to the range of strong interaction of the dipole field of the cluster ${\mathrm{A}}_2^{+}$ with the Rydberg electron $e_{nl}^{-}$ (see Figure 3). Also note that the results of numerical calculations in Figure 8 show a significant change of the orbital momentum L in the microwave field under the conditions of development of global chaos, which is in contrast to the main approximation of the authors [22,51], assuming the adiabatic invariance of L.

4.5. Diffusional Ionization of the Rydberg Colisional Complex

The diffusion Equation (13) have a number of specific features with respect to the calculations of chaotic motion of RE $e_{nl}^{-}$ in collisional molecular complexes due to the variation of both the amplitude and the frequency of the internal electric field $E(t)$ as the (adiabatic) internuclear distance $R$ changes (see Figure 3 and Figure 4). At the same time, the RE ionization boundary shifts (see Figure 4), since it is determined by the potential curve ${}^2{\Sigma }_g^{+}$. Figure 9 shows the boundaries of the stochasticity region for RE (see the discussion of Equation (21b)) in the case of collisions of hydrogen $\mathrm{A}$ and ${\mathrm{A}}^{**}$ atoms: the lower dashed curve (circles) corresponds to the lower “reflective wall” $n_{\min }(R(t))$ ($n_{\min }=n_c$ is found from Equation (22)), while the upper dotted curve (crosses) defines the position of the “absorbing wall” $n_{\max }(R(t))$. For the Rydberg states, lying above $n_{\max }(R)$, the exchange interaction $\Delta (R)$ exceeds their binding energies, so that the internal microwave field results in the fast photoionization of those states. The parameters of the problem are chosen in such a way that no ionization occurs when the RE ($n_0=10$) motion is regular (i.e., without any stochatization).

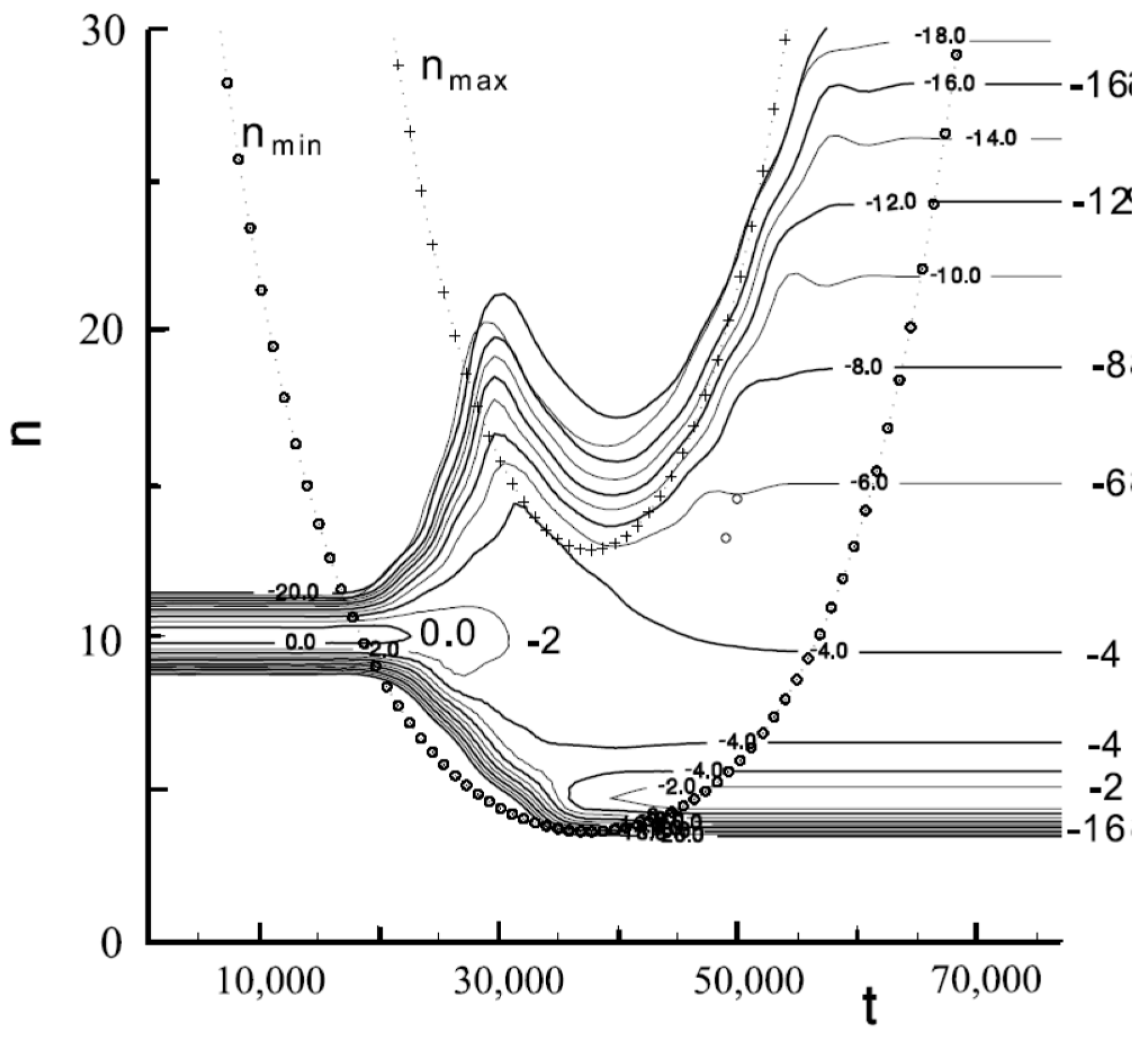

Figure 9 also shows the results of calculating [47]; the parameters of RE diffusion evolution for a time-varying region of the phase space. The initial distribution, corresponding to the localization of the RE at the energy level with $n=n_0=10$, was chosen as the narrow Gaussian distribution $f(n,t=-\infty )=\exp (-{(n-n_0)}^2)/\sqrt{\pi }$. The principal feature of the present is the realization of the RE diffusion along the energy levels in the act of a single collision. The solid lines in the figure give a map of levels $\ln f(n,t)$—the values of the logarithm are plotted alongside the corresponding curves. The position of the minima of the boundary curves $n_{\max /\min }(R(t))$ is determined by the turning point with the minimum approach of the nuclei. It is evident that, while the initial value $n_0=10$ is located lower than $n_{\min }(R(t))$, i.e., lies in the regular motion region, there is no diffusion along the n axis. Diffusion begins to develop after the moment of entry of the initial value $n_0=10$ in the stochastic region ${\Omega }_{st}$ (the region lying above the curve $n_{\min }(R(t))$). As a result of stochastic diffusion, the Rydberg electron has a finite probability of reaching the ionization boundary and passing to a continuum of energies through the photoionization channel. In this case, ionization is found as the probability of the electron leaving the region of bound states. The validity of such a model was verified on the quantitative level by the example of the chemi-ionization process involving Rydberg atoms of sodium [49].

4.6. Assotiative Ionization Rate Constants

The experimental methods existing in atomic and molecular physics make it possible to compare the ionization parameters that were calculated in the frame of stochastic dynamics with the results of direct measurements performed in atomic beams of different types [59]. Atomic/molecular beams have been widely implemented in practice as convenient sources of particles that are used for investigations in the physics of collisions [60], spectroscopy [61], and the analysis of the interaction of light and matter [62]. In recent decades, a new type of beams, known as “cold beams” [63], has been added to the two classical types of beams, i.e., diffusion [14,64] and supersonic [59] ones. Cold beams are extracted from magneto-optical traps and they have unique prospects for use in nanotechnology [65] due to their extremely narrow divergence angle.

An important parameter that characterizes the efficiency of ionization processes (8) is the rate constants $K(nl,T)$. In experiments, rate constants are found from a measured number of registered charged particles. A theoretical treatment of $K(nl,T)$

$$K(nl,T)={\displaystyle \int \sigma (v_c)\cdot v_{c}f(v_c,T)d{v}_c}$$

(25)

operates with the cross sections $\sigma$(v) and the distribution function f (v, T) over the relative (impact) velocity v = v_c of colliding atoms of the same mass M:

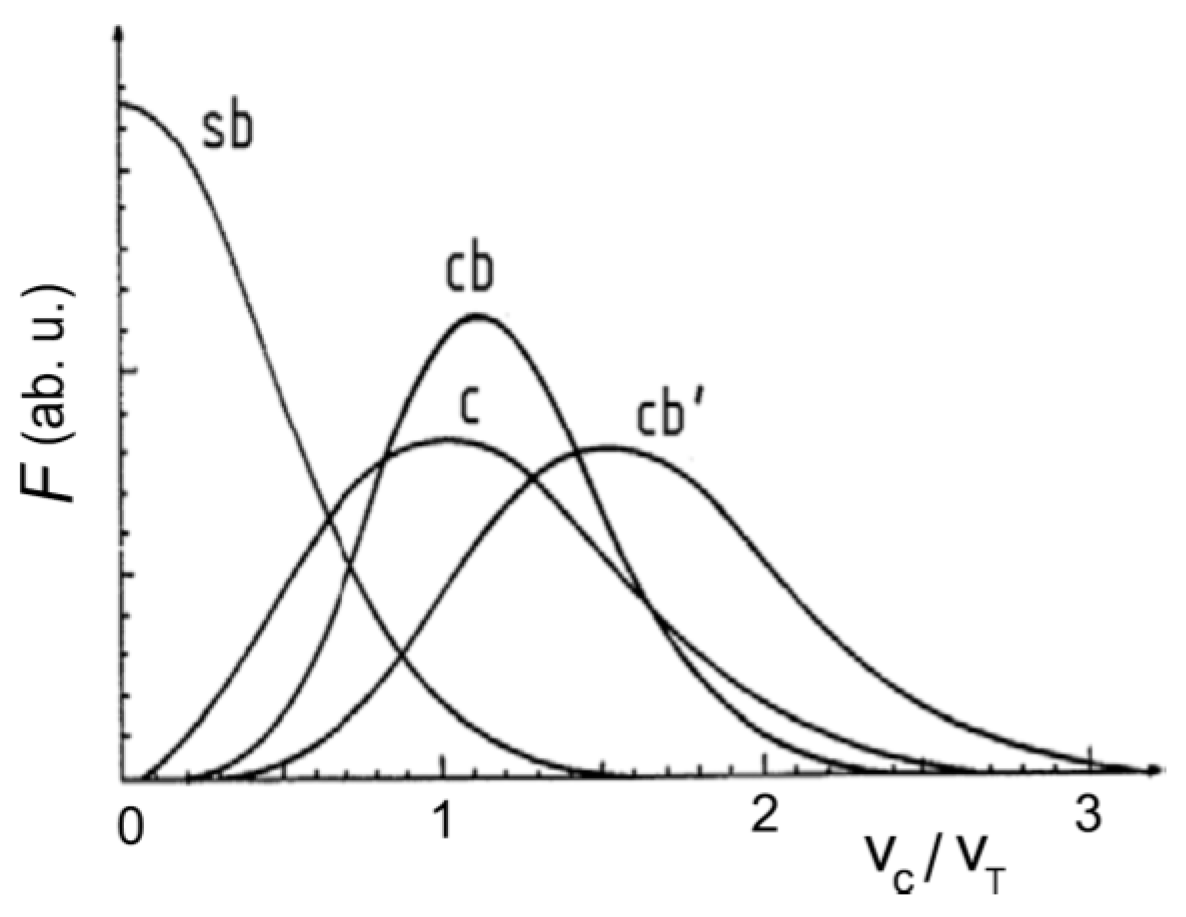

The velocity distribution $f(v_c,T)$ dependence on the beams source temperature T may be expressed via the characteristic thermal velocity $v_T={(kT/M)}^{1/2}$ as $f(v_c,T)=F(v_c/v_T)/v_T$. The function $F(x)$ has quite different profiles in cells, single beams, and crossed beams cases, as demonstrated in Figure 10 [13,64].

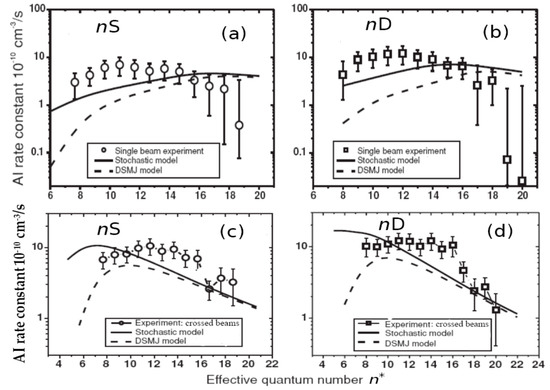

Figure 11 and Figure 12 show, following [53,60,66,67,68], the values of the associative ionization (AI) rate constants $K_{ai}(nl,T)$ obtained under the conditions of a single and two orthogonal beams. The formation of molecular ion occurs upon the collisions of Rydberg sodium atoms ${\mathrm{A}}^{**}(nl)$ excited to nS, nP, or nD states with atoms A in the ground state. Experimental data of Figure 11, frame (a) (dots, l = 1), corresponds to crossed beams conditions, T = 600 K [66]. Figure 11 data related to frame (b) (open circles, l = 1), frame (c) (open triangles, l = 2), and frame (d) (open squares, l = 2) were obtained in a single beam of Na atoms, T = 1000 K [67]. Full curves exhibit results of theory [60], accounting for stochastic diffusion effects, while dotted curves correspond to calculations in the frame of regular DSMJ model [43,44,45].

Figure 12 shows the results of more recent experiments [53,66] on AI rate constants measurements, the authors of which took into account the effects of free electrons escaping due to atoms photoionization by black body radiation.

It can be seen that, in the $4<n^{*}<28$ range of effective quantum numbers, the data of the experiment and the stochastic theory (solid curves) agree with each other (although measurements have large error bars), whereas calculations using the traditional DSMJ model [43,44,45] (dashed curves) significantly underestimate the corresponding results, particularly for the lower values of n.

4.7. Features of Diffusional Ionization under Conditions of Förster Resonance

In Section 2.2, a significant decrease in the probabilities of Rydberg states radiative decay in Förster resonance (FR) conditions was demonstrated, which is due to the suppression of dipole matrix elements. Since the widths of the nonlinear resonances δε, as shown in [43,52], are directly related to the probabilities of microwave transitions in the excited atom, the blocking of the latter means the blocking of the development of dynamic chaos. The possibility of “controlling” the development of global chaos in the Rydberg diatomic cluster, using the double Stark resonance (or FR) mechanism, was considered in [40,43].

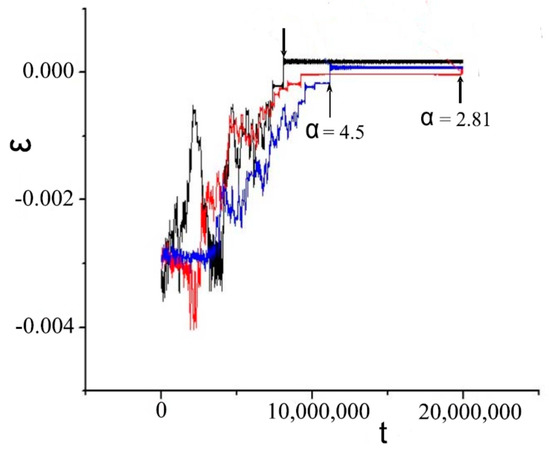

Figure 13 shows the time dependence of the RE binding energy under conditions of the development of diffusional ionization of Rydberg states of the model Sommerfeld atom, which is under the influence of an external microwave field, for different values of the Sommerfeld parameter α (see Equation (5)). It can be seen that the ionization time is significantly prolonged when the FR is realized (α = 2.81), which indicates the partial blockage of global stochatization.

5. Conclusions

Our work presents the results of studies (experiment and theory) of the radiative and collisional kinetics of Rydberg atoms, with their specific features arising from the closeness of highly excited bound states to the energy continuum. The model problems that are considered here reveal significant changes (by orders of magnitude) in the dipole matrix elements values of optical transitions in the vicinity of the Förster resonance, which is an important tool for creating entangled states in the system of cold Rydberg atoms. In particular, the anomalously long lifetimes of the p-series Rydberg states of the sodium atom are explained by the proximity of the Na p- and s-series energy levels structure to the Förster resonance configuration. We have considered the ionization processes of Rydberg atomic complexes in microwave electric fields. Under the multiplicity of the quasi-crossing of energy levels near the ionization continuum, the semiclassical method for taking into account the ionization instability of Rydberg states is discussed. This method is based on the formalism of nonlinear dynamic resonances and the evolution of dynamic chaos in Hamiltonian systems. The results of the numerical modeling of diffusion ionization of atomic hydrogen Rydberg states in an external microwave field are given with a demonstration of the nontrivial evolution of the orbital moment. The possibility of reducing the theoretical analysis of collisional ionization of Rydberg alkali metal atoms to the problem of the stochastic ionization of a Rydberg electron by an “internal” microwave field is shown. This field is induced by the charge exchange processes in the system “ion core of a Rydberg atom plus neutral atom-collision partner”. The comparison of the experimental and calculated data on the associative ionization rate constants in “Rydberg sodium atom-normal sodium atom” collision demonstrates the validity of describing the dynamic instability of Rydberg complexes within the framework of the dynamic chaos evolutionary theory for Hamiltonian systems.
