Hybrid Solar-RF Energy Harvesting Systems for Electric Operated Wheelchairs

Abstract

Over the decades, with the advancement of science and technology, wheelchairs have undergone remarkable changes, such as controlling an electrical wheelchair by using brain signals. However, existing electrical wheelchairs still need improvements in terms of energy management. This paper proposes an hybrid Solar-Radio frequency (RF) harvesting system able to supply power for the continuous and effective operation of electrically powered wheelchairs. This system can simultaneously harvest power from RF and solar source that are both available in the surrounding environment. A maximum power point tracking (MPPT) and a boost converter are exclusively employed for the standalone solar system while the standalone RF system is equipped with a 9-stage voltage multiplier (VM). The voltage level for the charging process is obtained by adding the output voltage of each source. In addition, a current booster and a stabilizer are used to reach the required level of current and pin the charging voltage to a stable level, respectively. Simulation results show how the hybrid system is better and more stable when the boost current and stabilizer are used in the charging system. Moreover, we also provide some analytic results to prove the advantages of this system.

1. Introduction

Wheelchairs represent one of the most common assistive devices that permit to improve the quality of life of people with limited mobility problems, such as disabled persons and elderly, by offering them autonomous mobility opportunities. The first wheelchair model, also known as invalid’s chair, was the one made for Philip II of Spain at the end of 16th century [1]. From that starting point, the concept of this assistive device started to evolve trying to address needs and circumstances of their users from time to time [2]. According to their propulsion system, wheelchairs can be categorized in two main classes: (i) manually powered wheelchair (MW), and (ii) electrically powered wheelchair (EW). The MW is the most commonly seen wheelchair in the hospital. However, this is not the optimal choice for elderly persons and both legs and arm disabled persons, which could not have the sufficient strength to propel themselves. On the other hand, EWs offer a completely different approach, enabling users to control and navigate their wheelchair independently using a traditional joystick or alternative control systems, such as head joysticks, chin joysticks, sip-n-puff, and thought control [3,4,5,6,7]. Therefore, EW can be labelled as the best option at an affordable price.

Basically, the main components of an EW are: (i) a chassis, which can be foldable and can have different abilities, such as stair-climbing or standing positions, (ii) a controller, which is the interface between human and machine, (iii) a seating system with footrests, lateral supports and backrests, which typically include cushions that use foam, gel, or air to prevent pressure sores, and (iv) a battery unit used to provide energy to the navigation and locomotion system [8]. Although several studies have been conducted to propose innovative solutions to improve ergonomics of chassis and facility of controlling and operating system, addressing different users needs [9,10,11,12,13,14,15,16,17,18], the autonomy of EW’s users results still strongly dependent on battery lifetime. Indeed, depending on the operating environment and the weight of users, a frequent recharging process for EW’s battery may be necessary [19,20], limiting the travelling distance especially into outdoor environments. Moreover, increasing the size of battery embedded into EWs does not represent an optimal solution since to an increase of the size correspond an increase of the weight, which will hinder the movement of the EW.

An alternative solution to the increase of battery size is represented by the design of an hybrid EW with different energy sources. Authors in [21] proposed a model of electrical robotic wheelchair with three energy sources, i.e., a battery, a photovoltaic solar cell, and a hydrogen f cell. Then, when conditions allow for abundant sunlight, the photovoltaic solar cell is used. When solar energy is not available, the fuel cell is used. Finally, when the hydrogen is depleted, the battery is used. A similar approach has been proposed in [22] where the battery is removed and only photovoltaic and hydrogen cell fuel were used. Then, these approaches enable users to enjoy more independence, especially when they are outdoors. However, even if the sunlight represents an infinite source of energy, these hybrid EWs remains still strongly dependent on a recharging procedure for either battery or hydrogen fuel cell.

Recently, the concept of wireless power transfer (WPT) represents an emerging technology able to provide power to battery constrained devices, such as unmanned aerial vehicles (UAVs) or into wireless sensor networks (WSNs), where the use of electric cables results infeasible [23,24]. Then, a WPT-based approach is able to avoid the dependence of having a charging socket. From these perspectives, this paper proposes a new energy solution for EW’s battery charging by combining two sources of infinite energy as solar and RF energy. This mechanism allows EW to charge the battery itself by converting energy from the surrounding environment into power, especially in outdoor environment. In particular, this paper propose an hybrid Solar-Radio frequency harvesting system to supply power for the continuous and effective operating of an electric operated wheelchair.

The rest of the paper is organized as follows. An overview of the proposed system will be described in Section 2. Section 3 describes and discusses the theoretical basis of both standalone solar and RF-based charging system, including respective system diagrams. Section 4 introduce the whole proposed EW’s charging solution, presenting and discussing the simulation results subsequently in Section 5. Finally, conclusions and future directions will be presented in Section 6.

2. System Model

As outlined before, the power supply for EW are batteries that are charged through the electrical grid either at home or using a dedicated socket. To minimize this dependence and increase flexibility for charging, our system model consists of an hybrid Solar-RF energy harvesting system able to charge EW’s batteries. The most used source of energy for harvesting is solar energy. It is renewable energy causing pollution-free environment and safer than using traditional electricity. In addition, due to the high life of solar panels, no high level of maintenance is required. In contrast to solar energy that operates during the day, RF energy can be harvested even at night. Indeed, presently, telecommunications technologies are developing rapidly in order to meet smart cities requirements. This leads to the existence of many radio frequencies from base stations, mobile phones, WIFI signals. Then, using energy source from radio frequencies represents a good option. Hence, the combination of RF and solar energy can certainly support each other to create a stable, continuous and efficient source of energy for EW’s batteries [25].

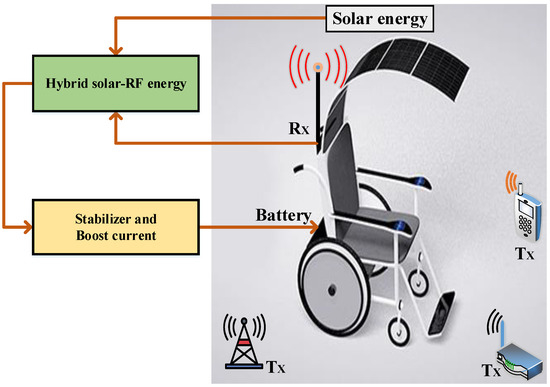

The whole system model for the operated wheelchair is illustrated in Figure 1. The solar panels, attached to the top of the wheelchair, are not only used to harvest energy from sunlight but also protect the user from rainy and sunny weather conditions, acting then as a shielding umbrella. In addition, an antenna system is installed in order to harvest RF energy from the surrounding source. The output of these energy sources will be handled through a stabilizer and a current boost system to provide the proper levels of current and voltage to battery. In this paper, we suppose that the EW is equipped with 350 W motor power that takes energy from a Li-polymer 22.8 V 10 C 6S1P 32,000 mAh battery [26], which has a 22.8 V discharge voltage and a maximum discharge current of 320 A.

Since the charging process is strongly dependent on the charging voltage and current, the output values from the hybrid system cannot be directly used to supply the load, i.e., the battery. Indeed, the charging voltage requires being approximately the rated voltage of the battery while the charging current directly impacts the charging time. Then, they affect significantly the charging process. Our system model uses a stabilizer and a boost current system to modify outputs of the hybrid system before charging the wheelchair’s battery.

3. The Hybrid Solar-Rf Harvesting Energy System

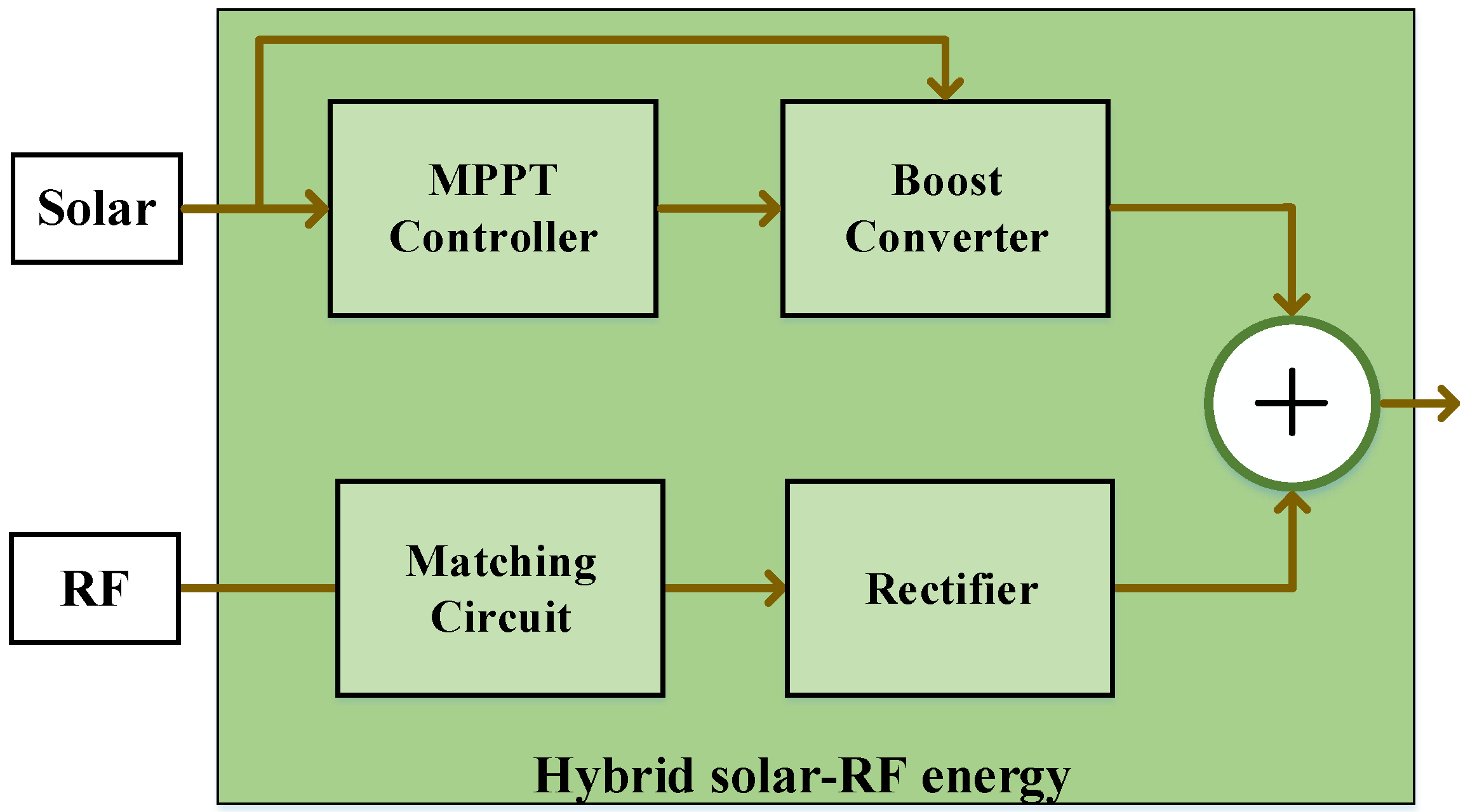

As illustrated in Figure 2, the proposed system for EW’s battery charging can be divided in two main modules, i.e., solar module and RF module, which will be discussed in detail in Section 3.1 and Section 3.2, respectively.

3.1. Solar Energy Module

The solar system comprises three main parts such as solar panels, MPPT controller, and boost converter. Solar panels are used to extract power from the sunlight by using semiconducting materials. The MPPT controller improves the conversion efficiency and prevents overcharging for battery and unnecessary discharge scenarios. The boost converter steps up the low DC harvesting voltage level to a high DC voltage level in order to meet battery power demand.

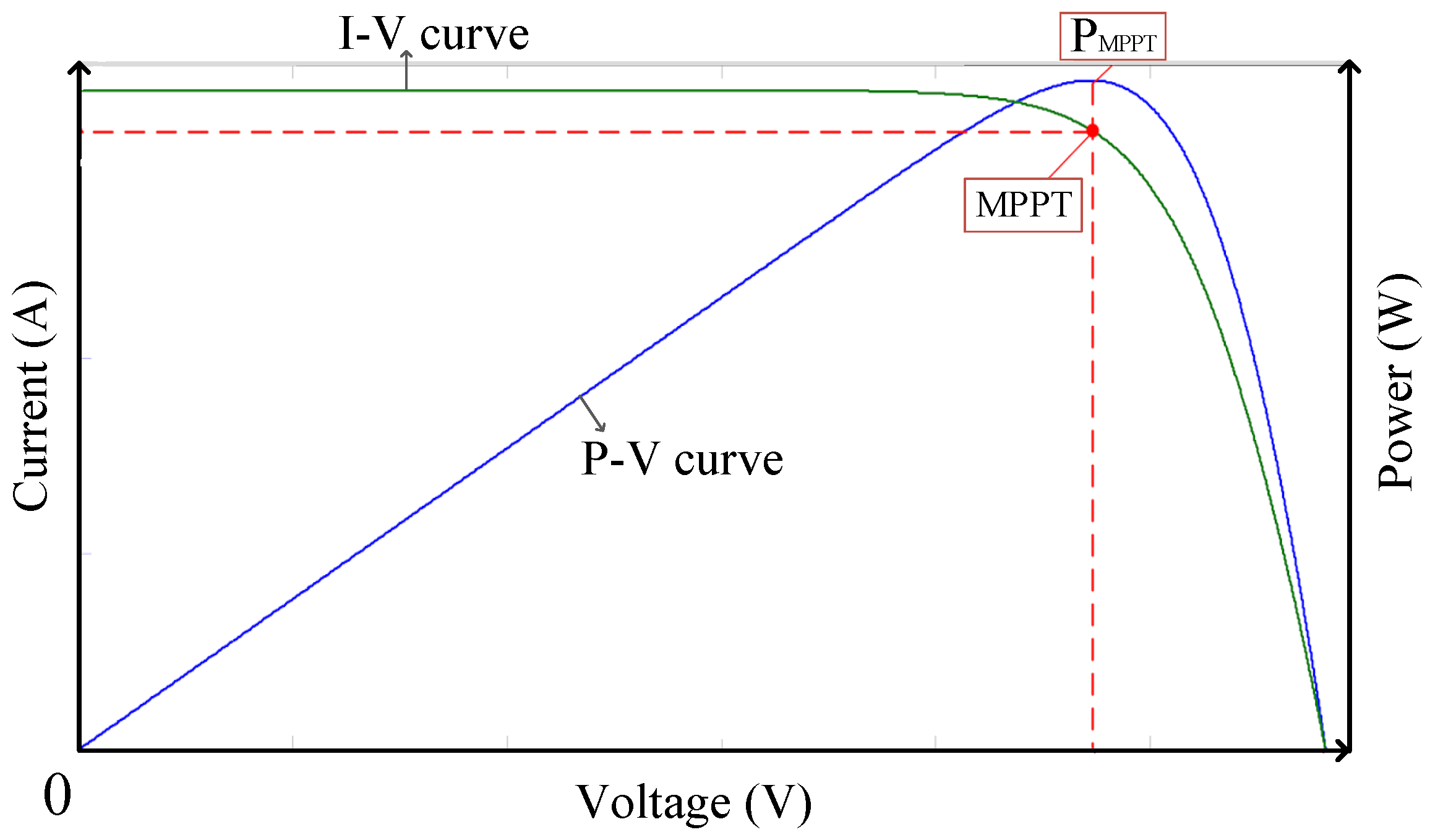

Usually, the conversion efficiency from solar arrays into electric energy is low and not suitable for the specific battery charging purpose. To achieve higher efficiency, the MPPT is installed in the solar system. As illustrated in Figure 3, the MPPT tracks the highest power point for the photovoltaic panels, providing the most optimal amount of energy from the solar array to the battery bank by accommodating for differences in voltages between the solar array and the battery bank. The MPPT can monitor the capacity of the batteries and then match the necessary voltage needed from the solar array. Based on potential difference theory, the higher voltage flows to the lower voltage between two points in an electric circuit, which in this paper is the difference between the solar array and the battery bank. During sunny condition, harvesting voltage from the solar panels transfers into the battery. However, in the opposite cases, the power of the battery could be discharged back to the solar arrays. In this case, the MPPT works as a switch, switching off when the solar voltage is lower than the battery voltage. The MPPT is able to tackle this issue by preventing unnecessarily discharging voltage scenario. Moreover, the MPPT also prevents the overcharging by regulating the amount of the amps and current that comes from solar panels to the battery bank.

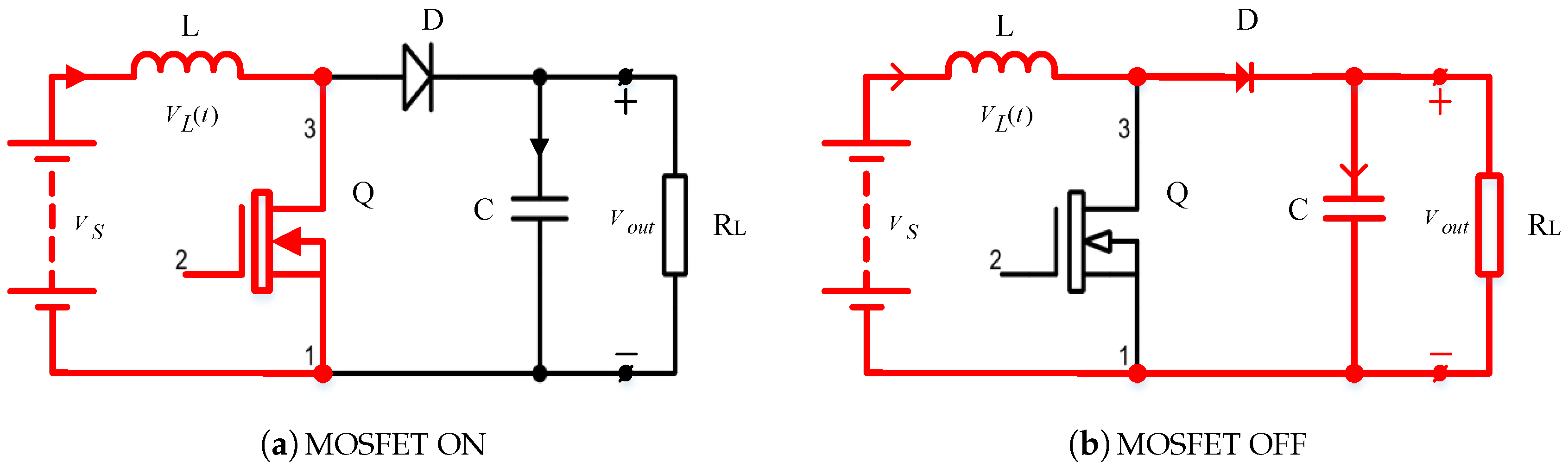

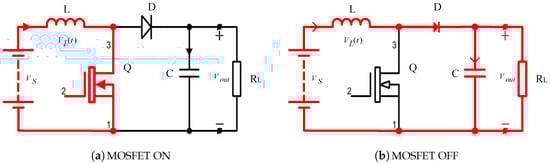

The DC-DC boost converter is used to step up a lower DC voltage, generated by solar panels, to higher DC voltage demanded by the wheelchair’s battery. Figure 4 depicts the working principle of the boost converter. When the mosfet transistor is ON (Figure 4a), the current from the source only flows through the inductor and the mosfet, and is isolated with the load by the reverse bias of the diode, so the inductor store whole input source during this period. During the OFF state of the switch (Figure 4b), the input source flows through the inductor and the diode to the load. Then, the output voltage ($V_O$) of DC-DC boost converter is much greater than the input voltage ($V_S$). Equation (1) shows the relationship between the output voltage and the source [27]:

$$V_O=V_L+V_S$$

(1)

where $V_O$ is the output voltage of the boost converter, $V_L$ is the inductor voltage storing during the ON state of mosfet, and $V_S$ is the harvesting voltage from the solar arrays. Equation (2) expresses the relationship between the ON and OFF modes of the mosfet switch, where $D_{on}$ is the ON percentage time of the mosfet transistor and $D_{off}$ is the OFF percentage of time of the transistor.

$$D_{off}=1-D_{on}$$

(2)

On the other side, Equation (3) shows the direct affect of the ON and OFF time of the mosfet transistor to the output voltage, where $V_S$ is the source voltage and $V_O$ is the output voltage of the boost converter [28].

$$V_O=\frac{V_S}{D_{off}}$$

(3)

Then, by using the boost converter the output values are able to step up to higher levels. Details about the passive elements used in the boost converter and the dimension of the solar panel are reported in

Table 1. The information of solar panel and passive elements for the boost converter.

Parameters	Solar Panel	Inductor	Mosfet	Capacitor	Resistor	Diode
Value	121.7 × 53.3 × 0.2 cm − 1.8 kg	3 mH	IRF540N	100 $\mathsf{\mu }$F	6.6 $\Omega$	1N4007

.

However, even if it is higher than the input source, the output voltage of such boost converter can fluctuate and then may be not suitable for charging the battery.

3.2. Radio Frequency Energy

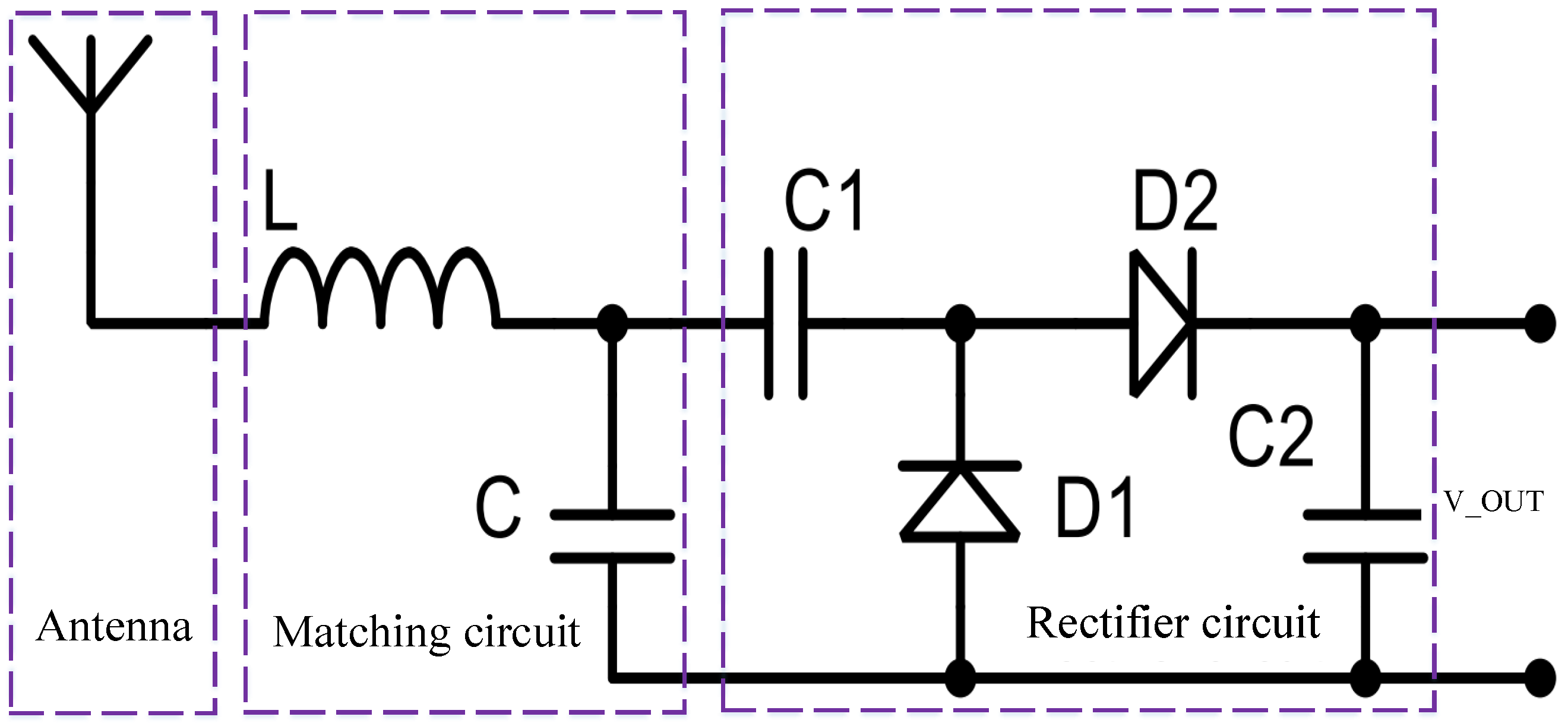

As illustrated in Figure 5, the RF harvesting energy circuit comprises a receiving antenna, a matching circuit and a rectifier circuit.

The antenna harvest energy from electromagnetic waves, converting it into electrical energy. Depending on their designs, antennas can capture different frequency ranges in the environment. The popular RF bands are TV broadcast (500–700 MHz), mobile phones (900 MHz), local area networks (2.4–5.8 GHz), Wi-Fi signals (5 GHz), satellite stations (1–40 GHz), radar (5 MHZ–130 GHz). The amount of power captured by a generic receiving antenna can be expressed as [29]:

$$P_{antenna}=G\times L_c\times P_t\times G_t\left({\displaystyle \frac{\lambda }{4\pi d}}\right)$$

(4)

where $P_{antenna}$ is the output power at the antenna, G is the receiving gain, $L_c$ is the loss factor, $P_t$ is the transmitting power, $G_t$ the transmitting gain, $\lambda$ is the wavelength, d is the distance between transmitter and the antenna. To improve the transferring performance between the antenna and the rectifier circuit (voltage multiplier), the RF harvesting system must employ a matching circuit which consists of one coil and one capacitor. The matching circuit matches antenna’s impedance with proper impedance of the voltage multiplier (VM) enhancing transmission efficiency. The VM is a multi-stage circuit that includes two diodes and two capacitors in each stage. It is used to convert the AC harvesting voltage of the antenna to the DC voltage, boosting it to higher values. With the same input voltage, the more numbers of the VM’s stages is employed, the higher output voltage can be approached. In particular, output voltage for an N-stage with the ideal voltage multiplier is [30]:

$$U_{OUT}=4\times N\times U_{IN}$$

(5)

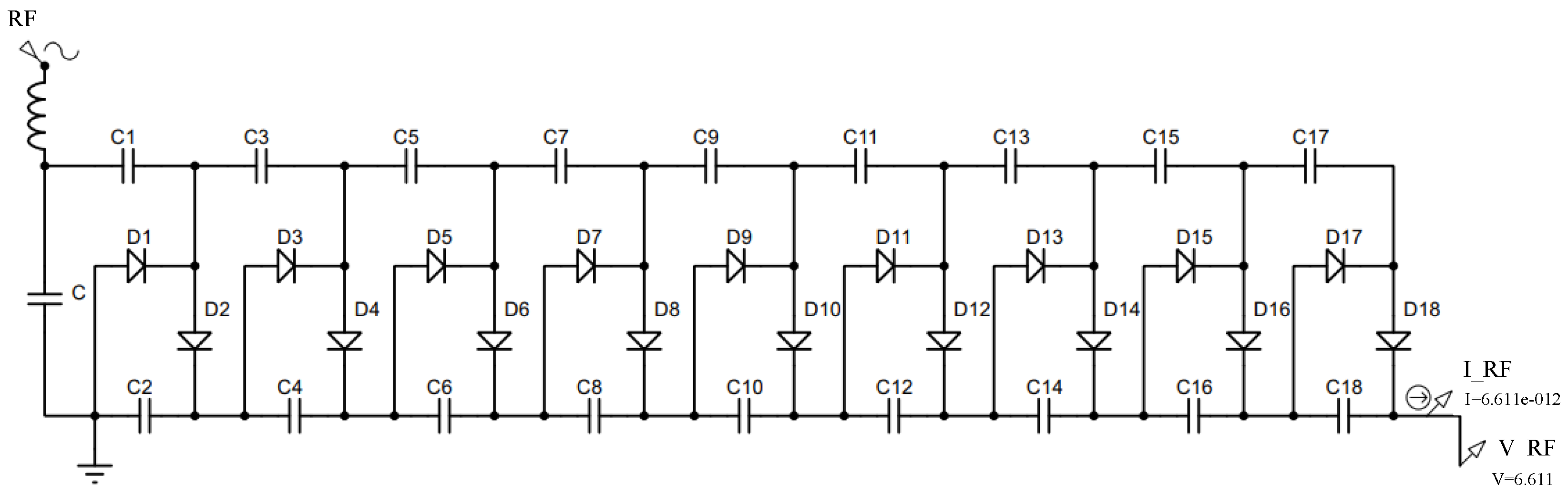

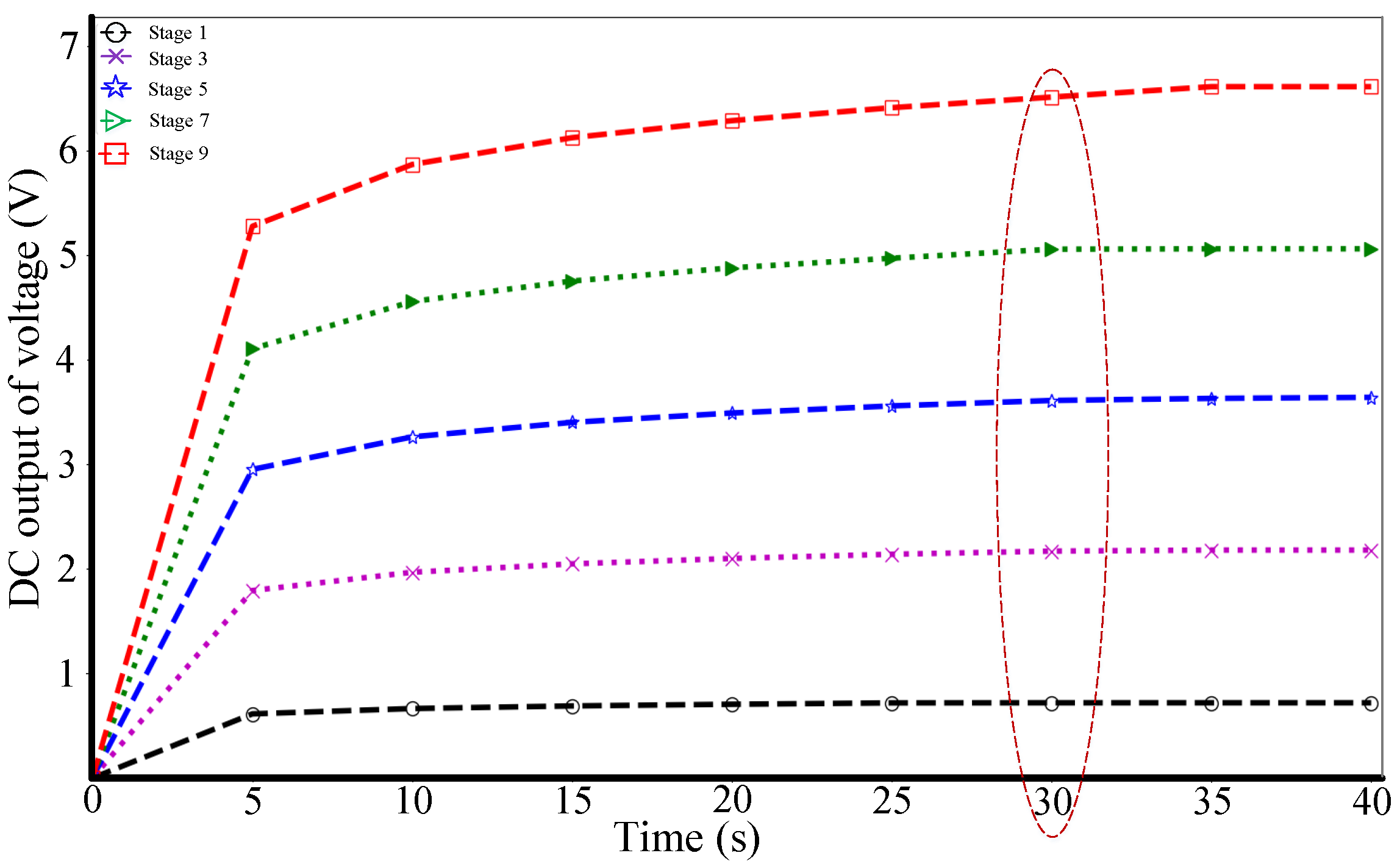

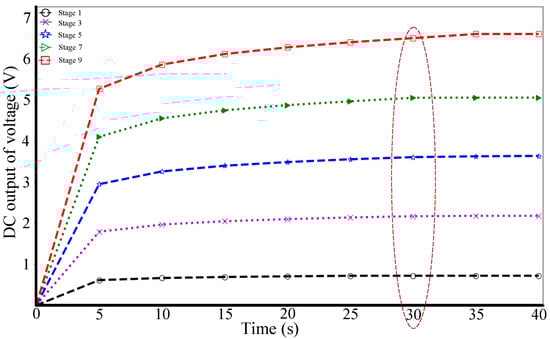

where $U_{OUT}$ is the output voltage of the VM, N is the number stages, and $U_{IN}$ is the input voltage of the voltage multiplier. In Figure 6, we show and compare some different stage numbers of VM. Depending on both the output value and the settling time, in this paper we suppose to use the nine stages VM to meet power for hybrid system. The simulating model of the VM to amplify the RF harvesting power is illustrated in Figure 7.

Table 2. The information of RF harvesting energy system.

Parameter	RF Signal		Inductor	Capacitor	Diode
	Frequency	Amplitude
Value	900 MHz, 2.4 GHz, 5.8 GHz	0.2 V	1 mH	C = 0.22 $\mathsf{\mu }$F; C${}_1$ to C${}_{1}8$ = 100 $\mathsf{\mu }$F	10DQ015

contains some information of the common RF source and also detail about some passive elements of the employed VM system.

4. Charging System

Output values of the hybrid energy system need to achieve suitable levels of both voltage and current to effectively charge the wheelchair’s Li-polymer 6S1P battery. The output voltage must get approximately 22.8 V to satisfy input requirements of the battery. The voltage generated by the solar and RF harvesting systems are stepped up by the boost converter and VM, respectively. However, these values result to fluctuate. On the other side, the charging time for EW’s battery is [31]:

$$Time={\displaystyle \frac{Q_{battery}}{I}}$$

(6)

where $Time$ is the charging time to fully charge for the battery in hours, $Q_{battery}$ is the capacity of the battery in Ampere hour (Ah), and I is the charging current in Ampere (A). Since the level of current provided by the hybrid system result to be low, this will strongly impacts on the charging time. With these perspectives, in order to address the aforementioned voltage-current issues we suppose to use the voltage-current stabilizer illustrated in Figure 8. Then, using this complete charging system, the supplying voltage will be suitable to the battery voltage, and the higher reached current reduces the charging time.

5. Simulations and Results

In this section, we simulate separately three scenarios, i.e., solar energy harvesting, RF energy harvesting, and hybrid solar-RF energy harvesting. For each scenario levels of harvested voltage and current will be provided.

5.1. Stand-Alone Harvesting Solar Energy

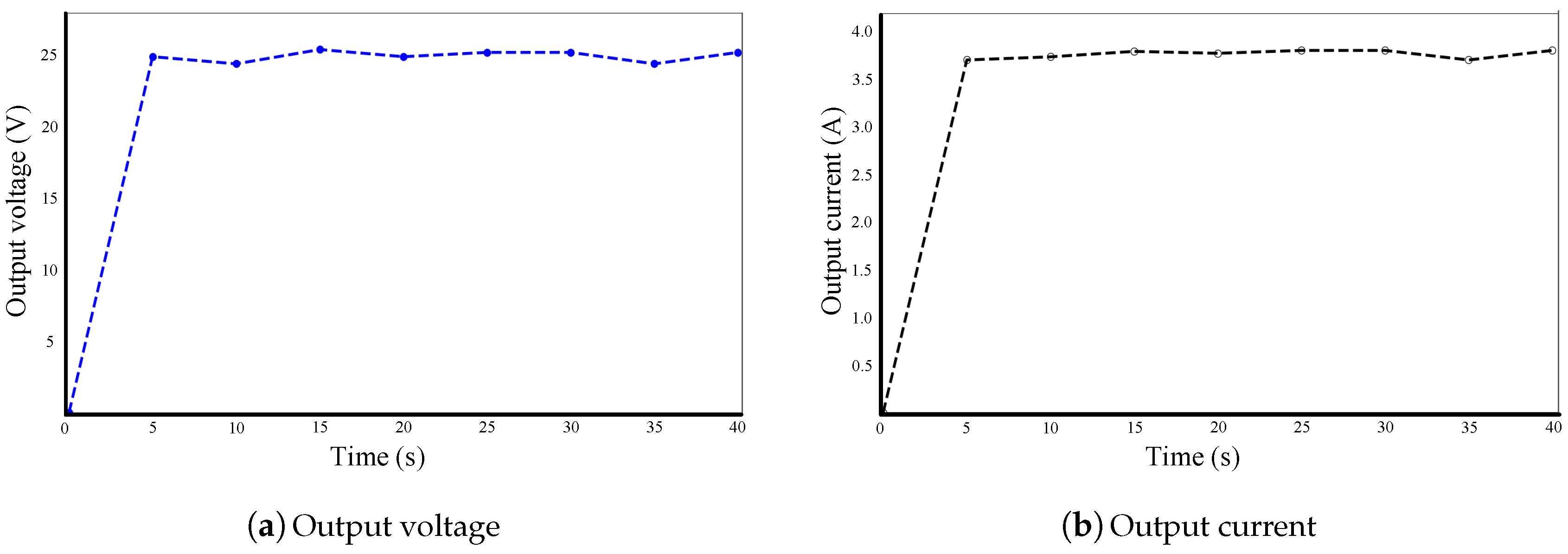

The solar panels are attached to top of the wheelchair, so we choose the panels which have dimensions: 121.7 × 53.3 × 0.2 cm and 1.8 kg. With this solar area, the power able to extract from panels is 10 V. As mentioned in Section 3.1, the harvesting energy system is equipped with MPPT method and DC-DC boost converter, which permits to harvest the highest power from the sunlight. The output values of voltage and current from the boost converter are illustrated in Figure 9a,b, respectively. From these figures, one can notice how the usage of the boost converter permits to step up the voltage value to 25.202 V with a level of provided current around 3.818 A. However, supposing that an 32,000 mAh 6S1P battery is employed, the current level is not suitable for charging it. Moreover, as mentioned before, values of current and voltage are fluctuating and then not good for charging battery.

5.2. Stand-Alone Harvesting RF Energy

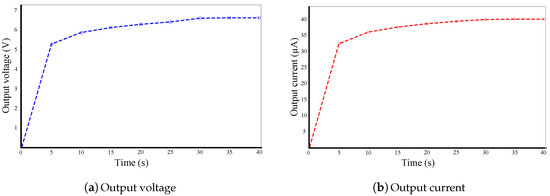

Nine stages of VM are employed to harvest energy from RF signals. DC output values of the RF system are illustrated in Figure 10. As for the solar systems, the output voltage is at the desired output value. However, using the VM voltage and current outputs result more stable. Then, the harvesting RF system is more continuous than the solar system, but these values are not suitable to directly meet power requirements for the charging procedure.

5.3. Hybrid Solar-RF Harvesting Energy

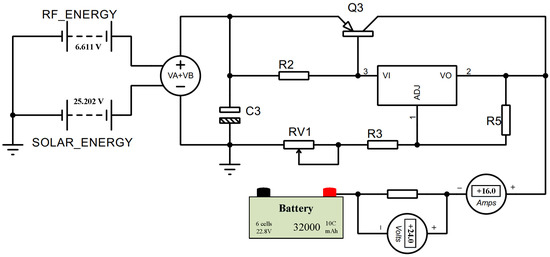

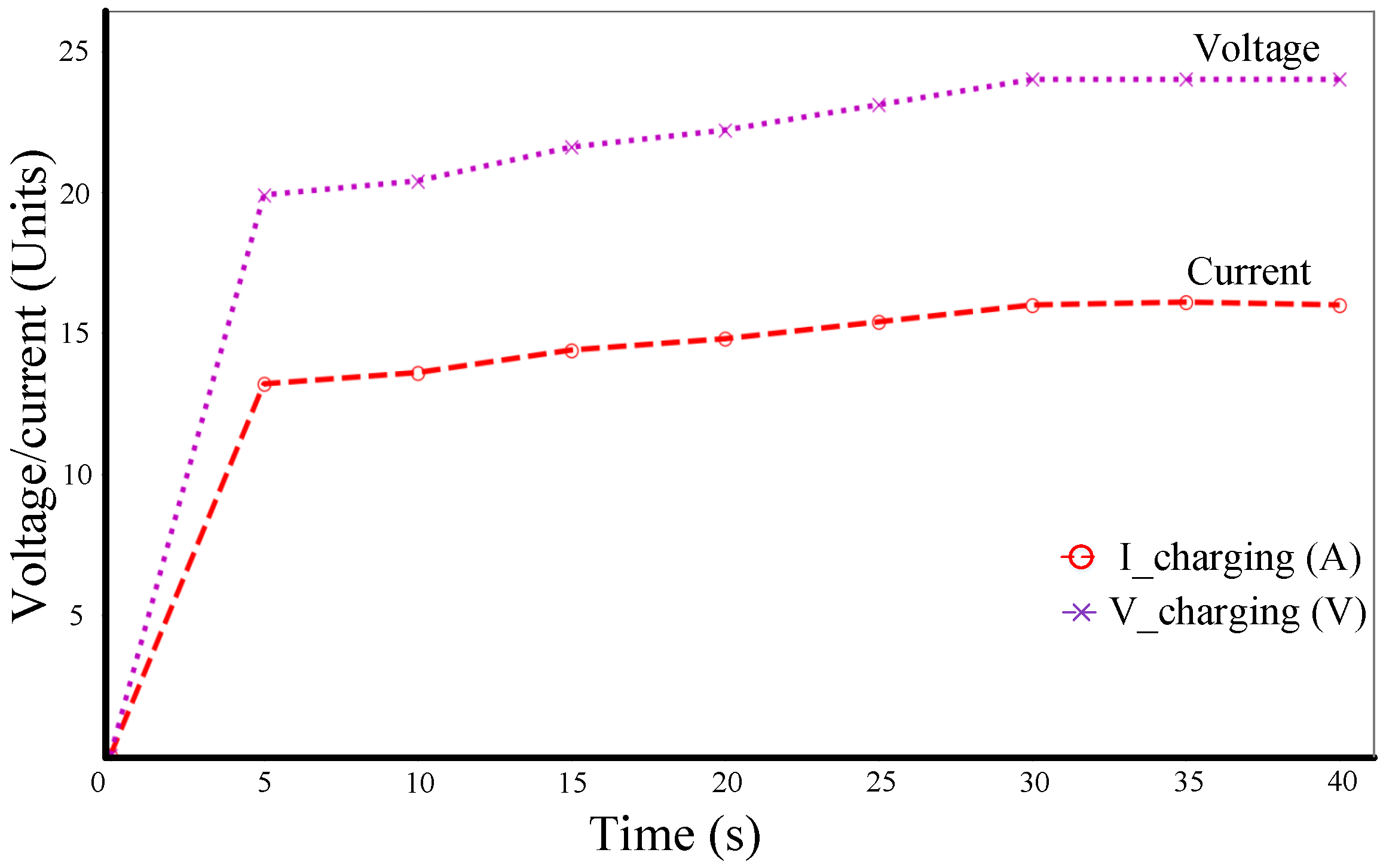

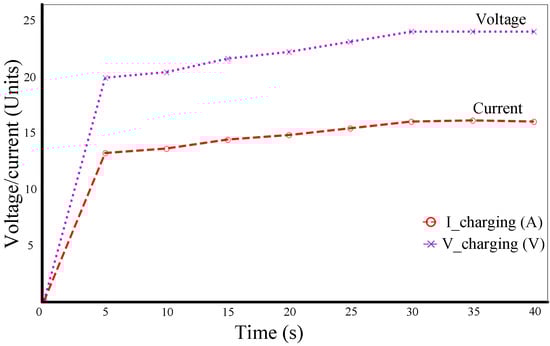

From each output of the stand-alone systems, we observed that the output of each source is not able to reach the charging requirements. The hybrid method for harvesting energy from the two sources will pass through the stabilizer and boost current to increase the current and pin the voltage to a suitable value for the battery’s initial requirements. The simulation results are shown in Figure 11. From this figure one can note how the proposed hybrid system is able to reach a 16.0 A current and the voltage is pinned at 24 V. This value of voltage fully meets the needs of the battery and the current of 16.0 A greatly improves battery charging time according to Equation (6).

The current reaches a stable threshold of 16.0 A after a response time of about 30 s. This time is acceptable because the system does not have too strict requirements in real time, and wheelchairs do not directly use the power of output of the hybrid system that is used indirectly via battery. We calculate that the estimated time to fully charge the battery is 2 h.

6. Conclusions and Future Work

This paper proposes a hybrid RF and solar power system able to meet EW’s battery charging requirements, providing a charging current of 16A and a voltage of 24 V. Then, this charging system, in addition to reducing battery charging time, permits improving the travel of EW’s users.

Future directions of this work can be identified in the investigation and definition of methodologies aimed to improve both harvesting energy module and charging module. For example, the antenna of RF module can be optimized to properly capture high densities of frequency spectrum. In addition, since the MOSFET’s switch of the DC-DC boost converter is a significant factor that determines the output voltage magnitude and directly causes the output fluctuation in the harvesting solar system, intelligent algorithms can be defined to achieve desired results. Finally, the charging system could be optimized in order to be dependent from the battery percentage, regulating the charge voltage and current in order to enhance the charging efficiency of the battery.
