An Implementation Scheme of Range and Angular Measurements for FMCW MIMO Radar via Sparse Spectrum Fitting

1
State Key Laboratory of Marine Resource Utilization in South China Sea and School of Information and Communication Engineering, Hainan University, Haikou 570228, China
2
Key Laboratory for Ubiquitous Network and Service Software of Liaoning Province, School of Software, Dalian University of Technology, Dalian 116620, China
*
Authors to whom correspondence should be addressed.
Electronics 2020, 9(3), 389; https://doi.org/10.3390/electronics9030389
Received: 2 February 2020 / Revised: 19 February 2020 / Accepted: 22 February 2020 / Published: 27 February 2020
(This article belongs to the Special Issue Recent Advances in Array Antenna and Array Signal Processing)

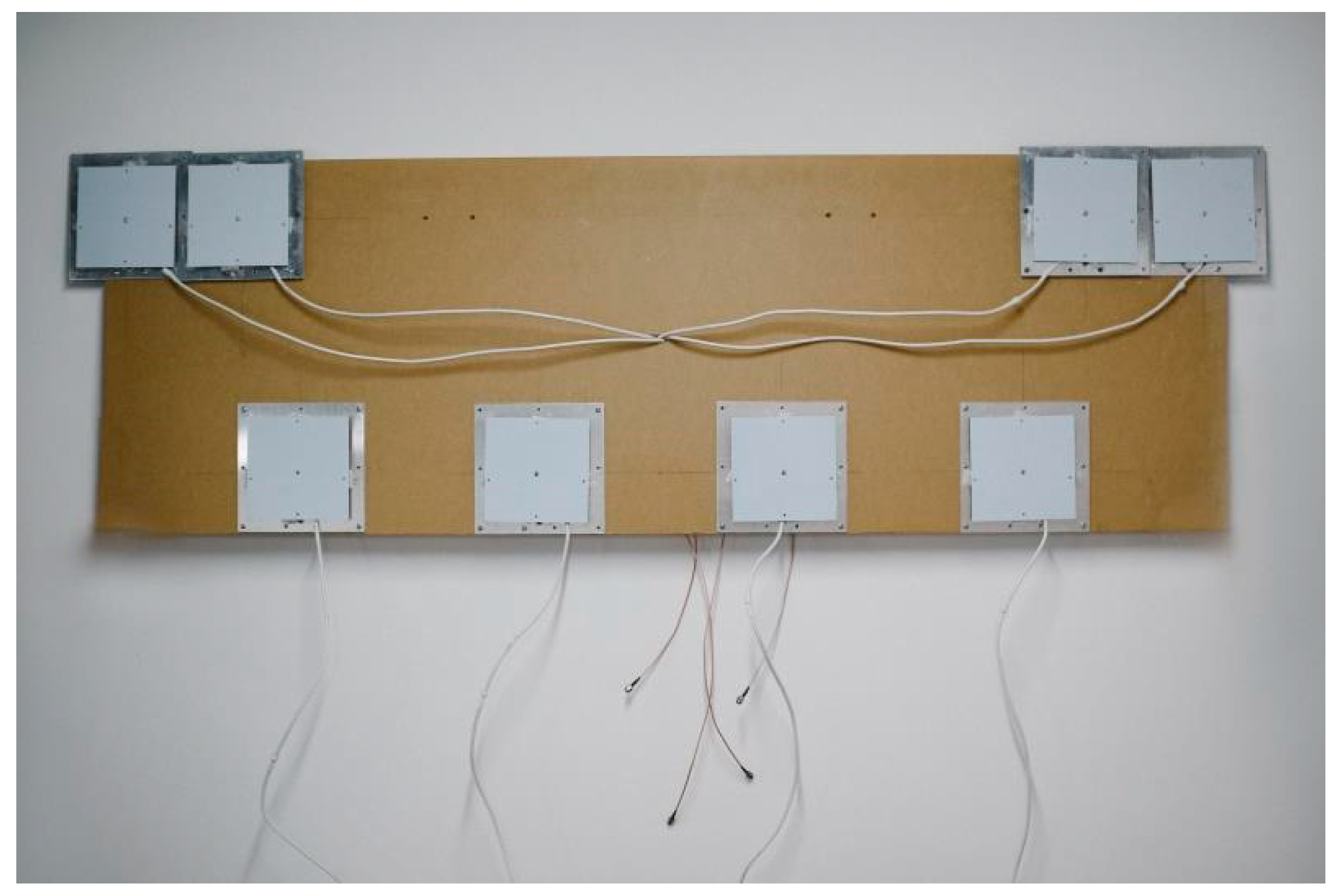

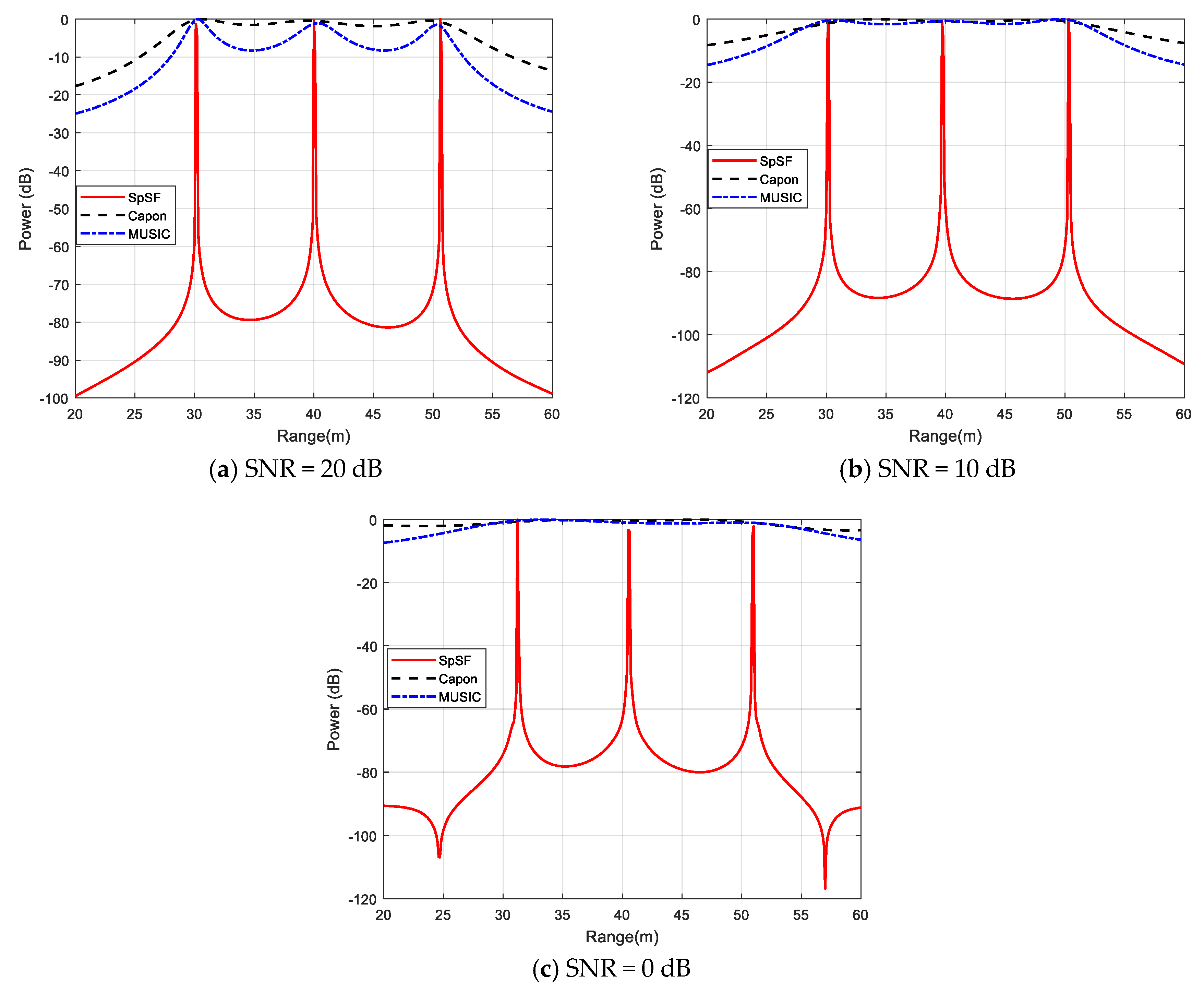

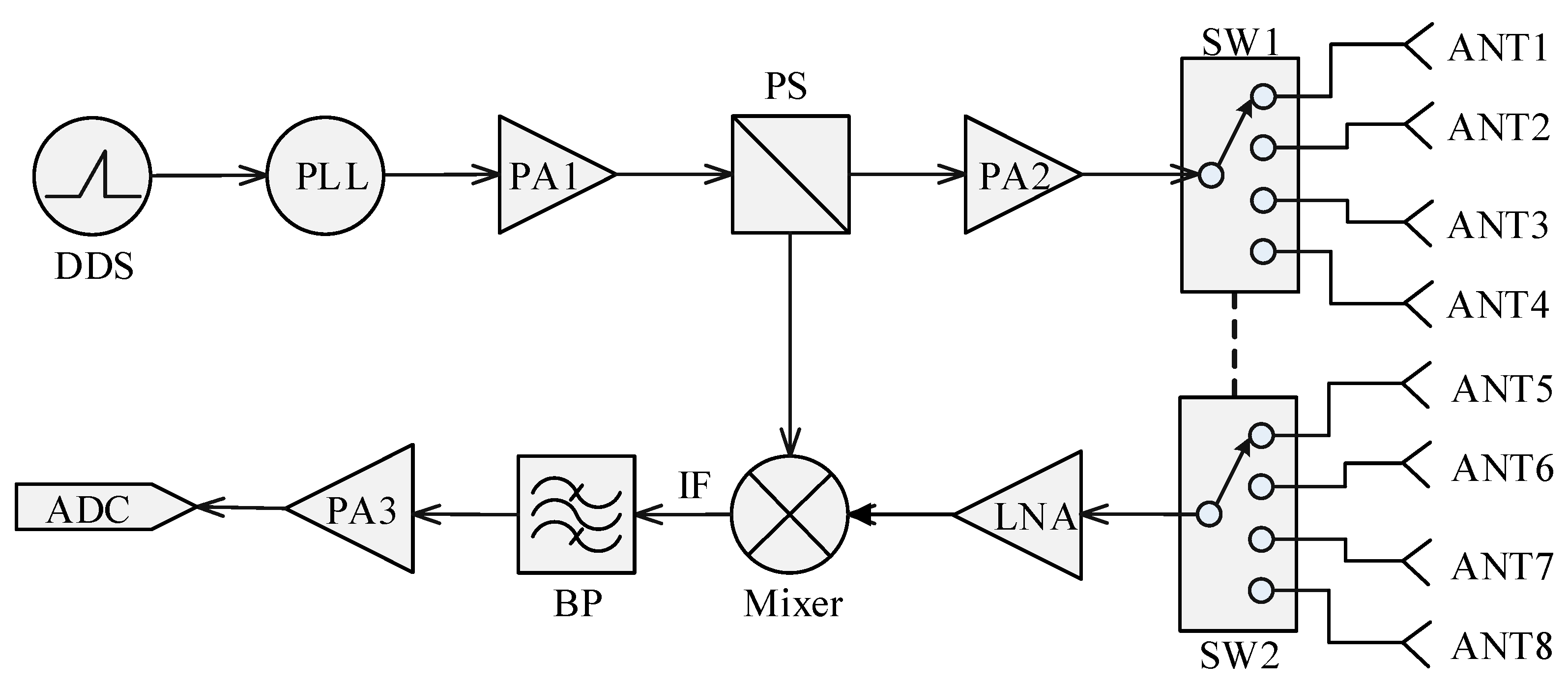

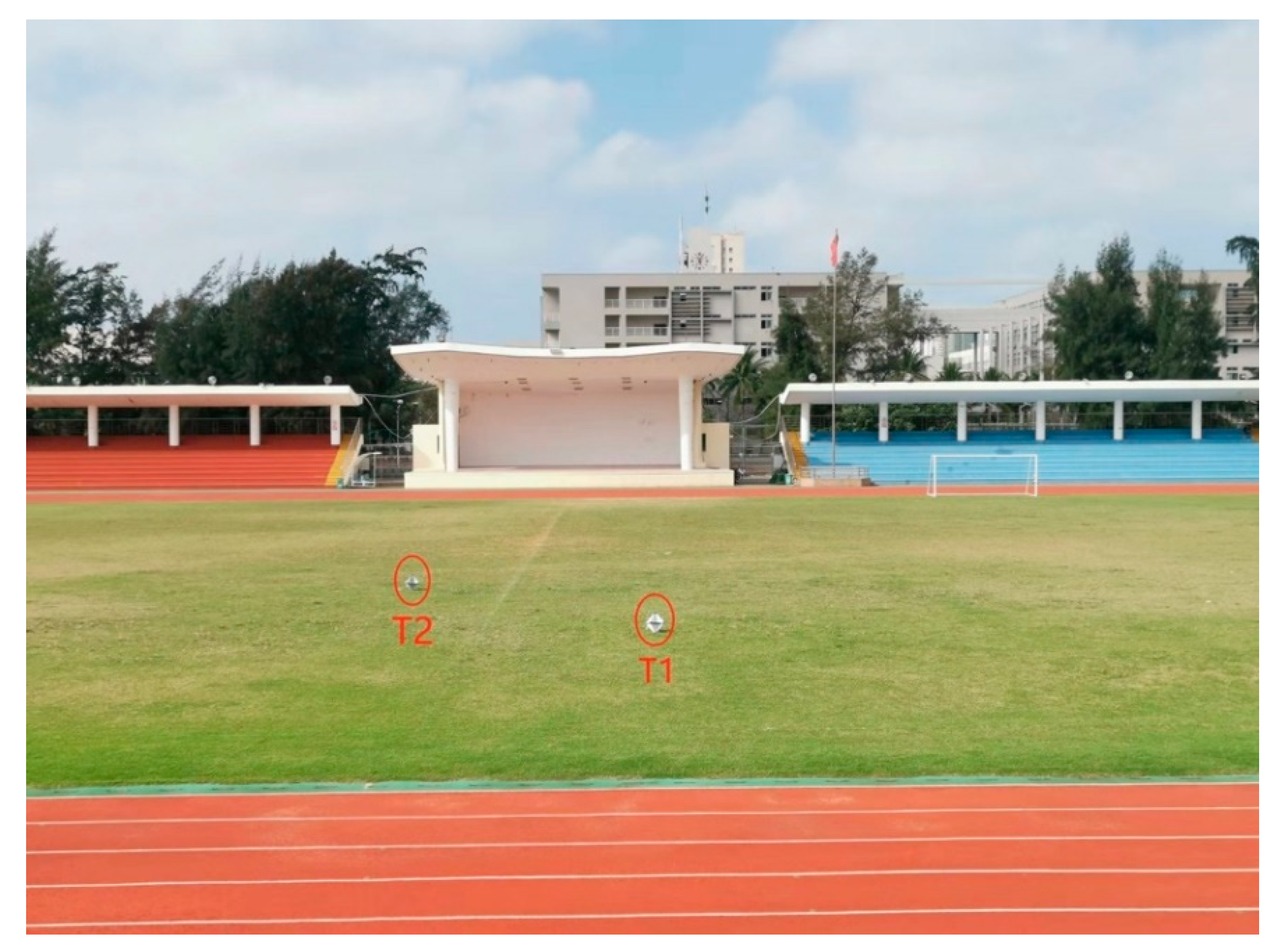

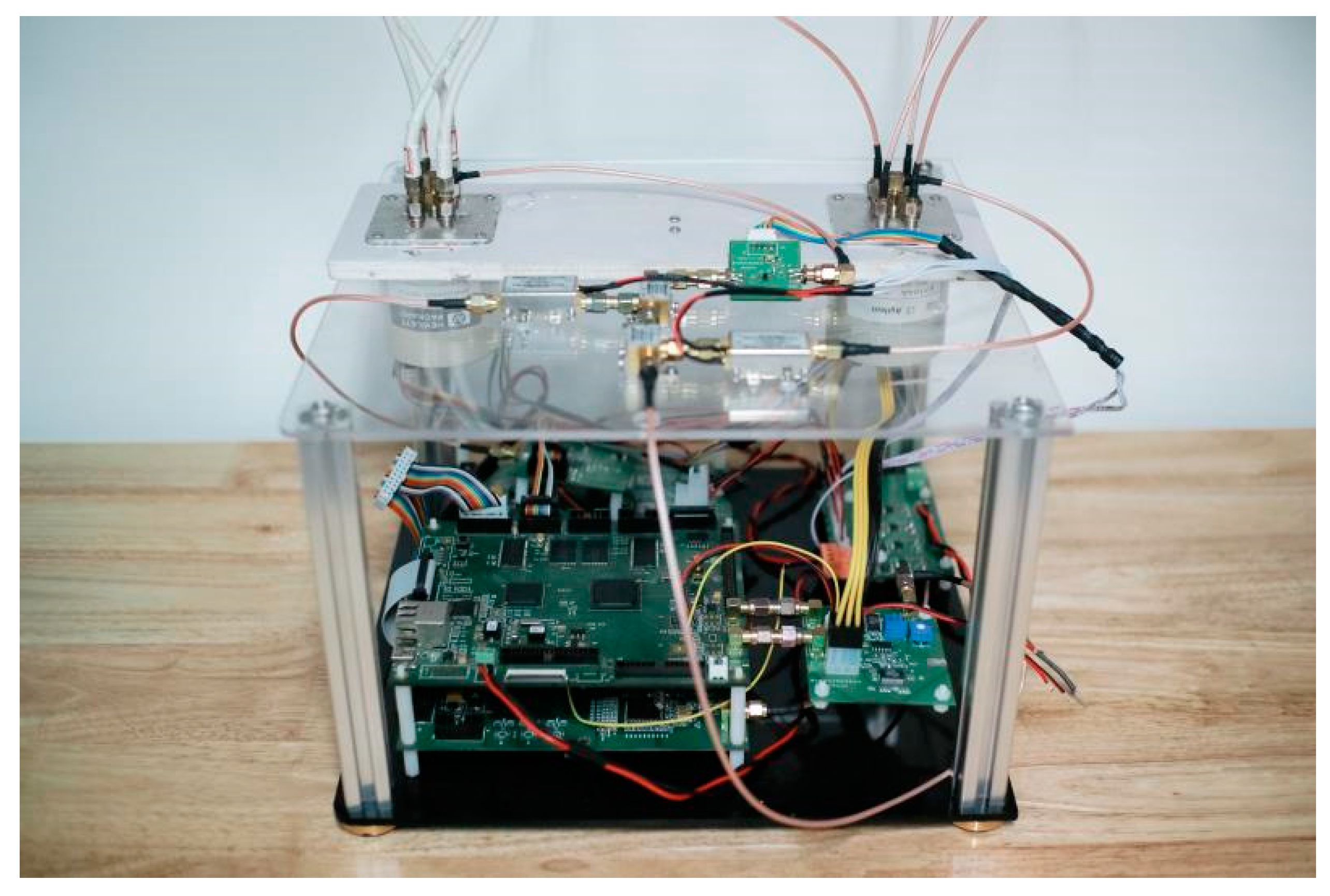

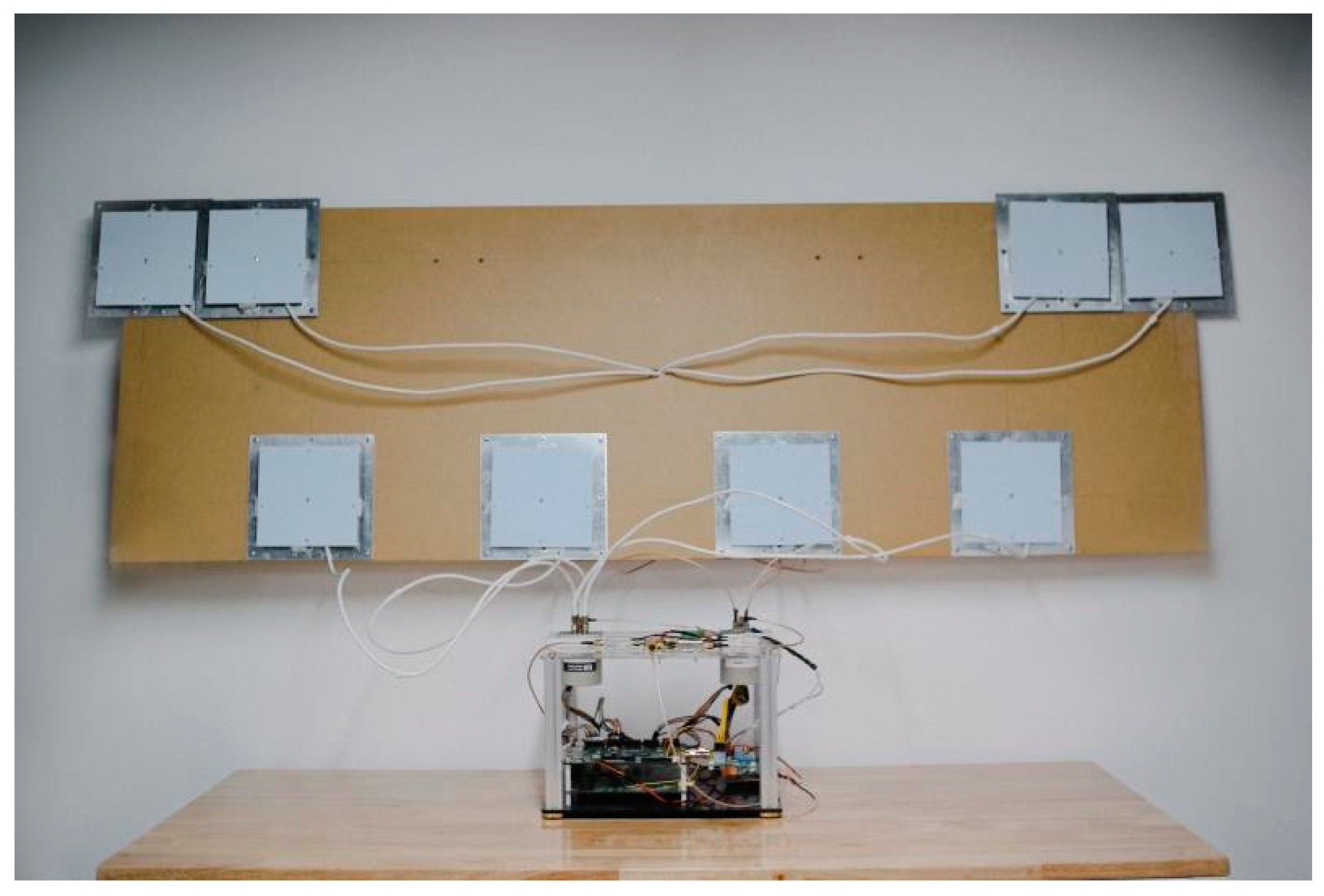

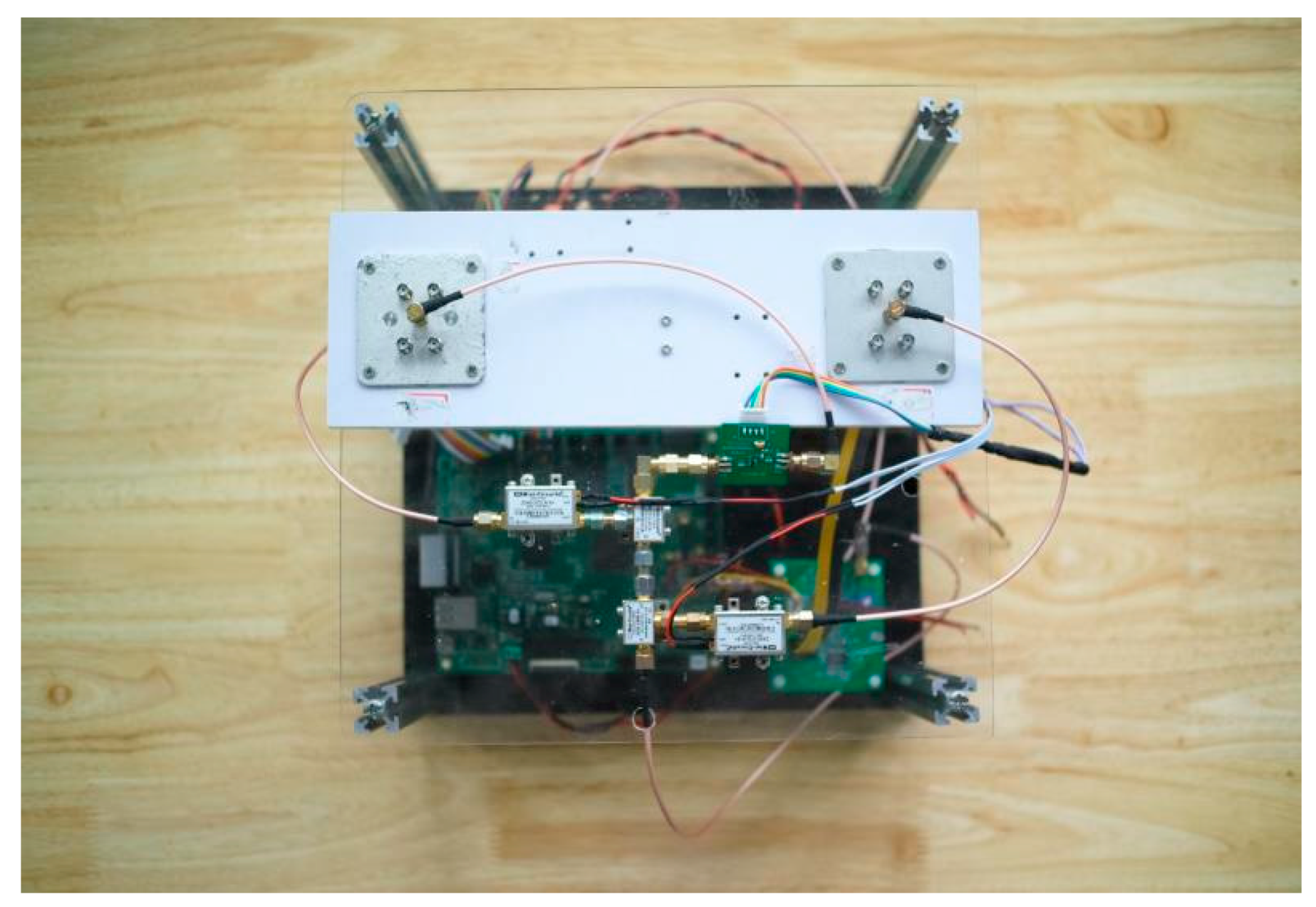

The work presented in this paper is about implementing a frequency-modulated continuous wave (FMCW) multiple-input multiple-output (MIMO) positioning radar and a sparse spectrum fitting (SpSF) algorithm for range and angular measurements. First, we designed a coherent FMCW MIMO radar system working in the S-band with low power consumption that consists of four transmitter and four receiver antennas and has the ability to extend its virtual aperture; thus, this system can achieve a higher resolution than conventional phased array radars. Then, the SpSF algorithm was designed for estimating the distance and angle of the targets in the FMCW MIMO radar. Due to the fact that the SpSF algorithm can exploit the spatial sparsity diversity of a signal, the SpSF algorithm that is applied in the designed MIMO radar system can achieve a better estimation performance than the multiple signal classification (MUSIC) and Capon algorithms, especially in the context of small snapshots and low signal-to-noise ratios (SNRs). The simulated and experimental results are used to prove the effectiveness of the designed MIMO radar and the superior performance of the algorithm. View Full-Text
Keywords: FMCW; MIMO radar; sparse spectrum fitting; position measurement FMCW; MIMO radar; sparse spectrum fitting; position measurement
