Design of Streaming Data Transmission Using Rolling Shutter Camera-Based Optical Camera Communications

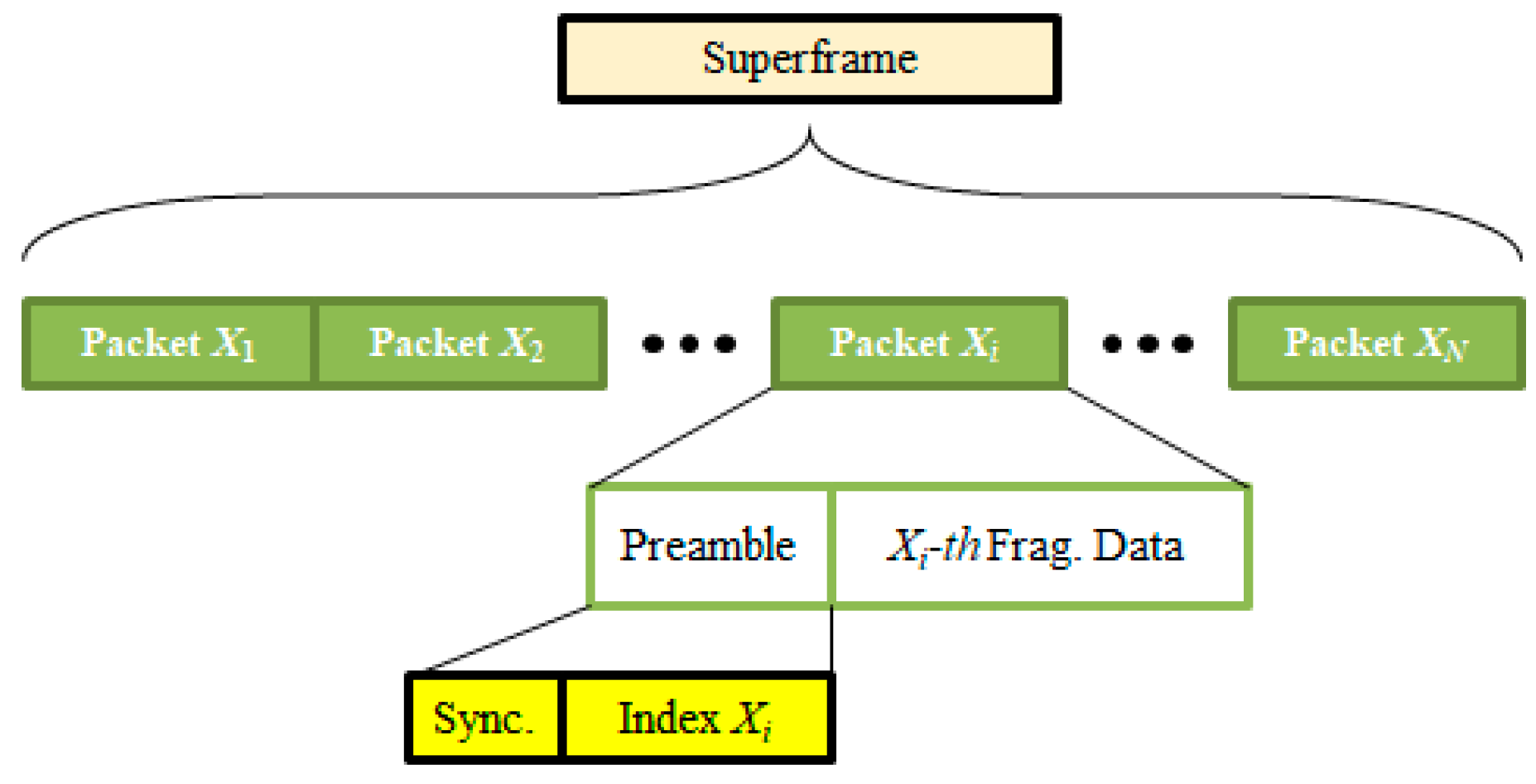

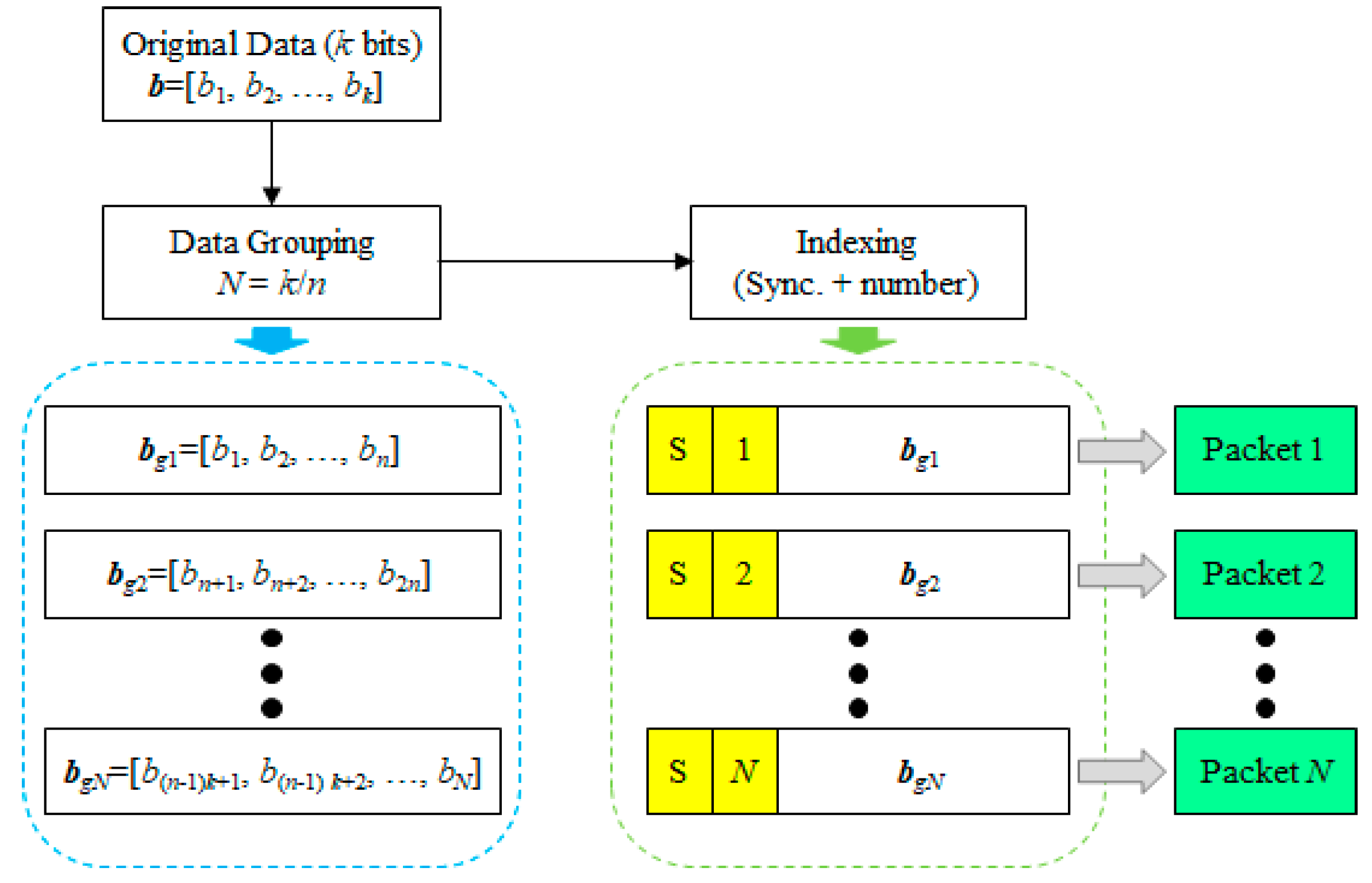

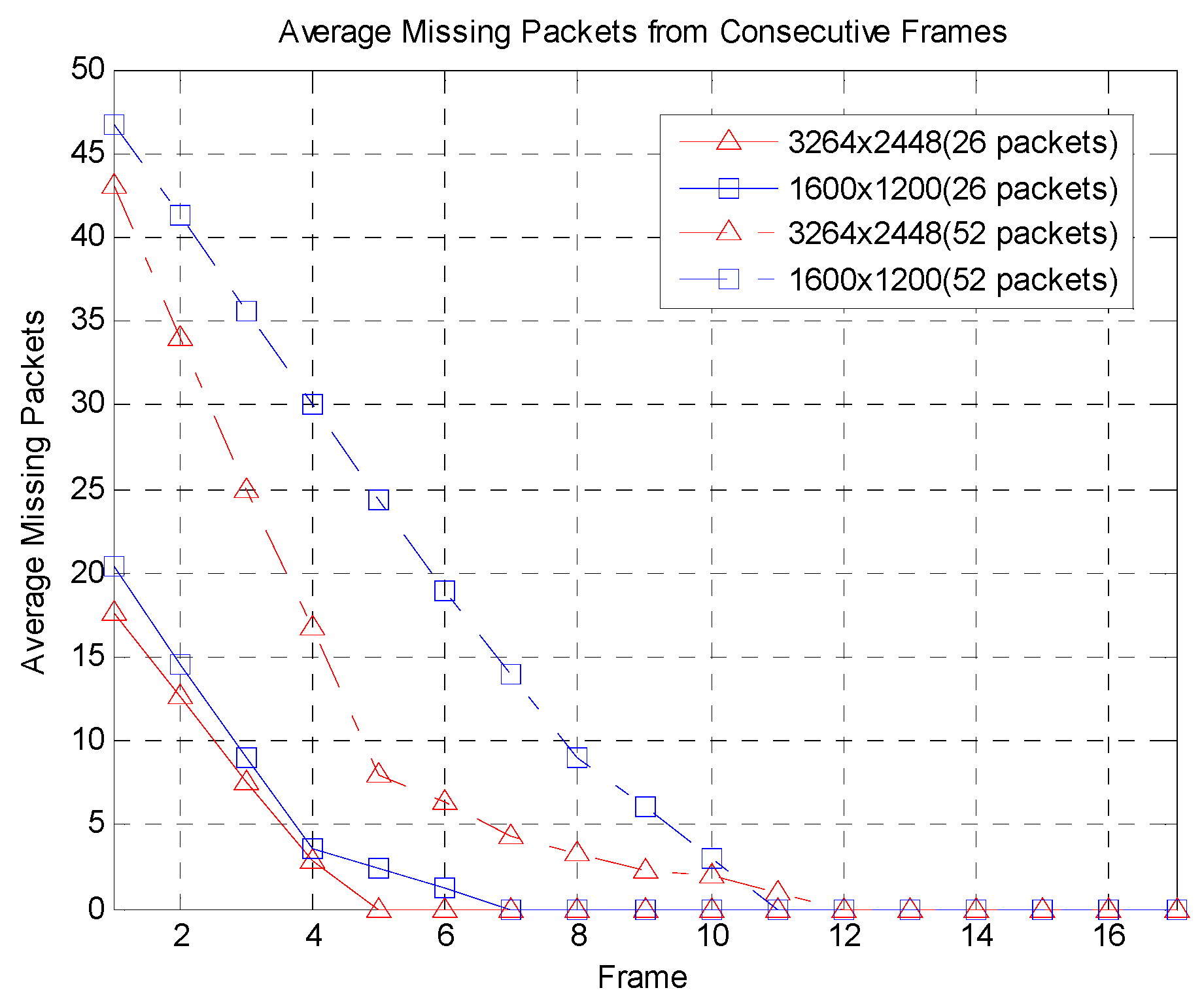

This paper addresses a method to transmit streaming data via rolling shutter camera-based optical camera communications (OCC). Since the amount of data that can be contained within one frame is limited, and the continuity of received data cannot be guaranteed due to OCC environmental variations, we introduce the concept of dividing the streaming data into several fragmented sets that are transmitted sequentially. We propose a superframe to contain sequential packets of fragmented data and corresponding indices, so that sequential packets for streaming data can be continuously collected. When redundant frame transmission is considered, any packet lost due to OCC environmental conditions can be recovered. Experimental results show that the proposed method can be successfully used to transmit streaming data, with the number of redundant frames required to acquire all data packets based on image resolution. In addition, we describe how to identify missing packets from a network point of view to reduce the number of redundant frames needed to acquire all the data. This paper presents baseline results of communication performance when sending streaming data via a rolling shutter-based OCC.
