Compact and Low Crosstalk Echelle Grating Demultiplexer on Silicon-On-Insulator Technology

by
Daniele Melati
*,
Pierre G. Verly
,
André Delâge
,
Shurui Wang
,
Jean Lapointe
,
Pavel Cheben
,
Jens H. Schmid
,
Siegfried Janz
and
Dan-Xia Xu
Advanced Electronics and Photonics Research Centre, National Research Council Canada, Ottawa, ON K1A 0R6, Canada
*
Author to whom correspondence should be addressed.
Electronics 2019, 8(6), 687; https://doi.org/10.3390/electronics8060687
Received: 7 May 2019 / Revised: 12 June 2019 / Accepted: 13 June 2019 / Published: 18 June 2019
(This article belongs to the Special Issue Optical Communications and Networks)
View Full-Text Download PDF
Browse Figures

Abstract

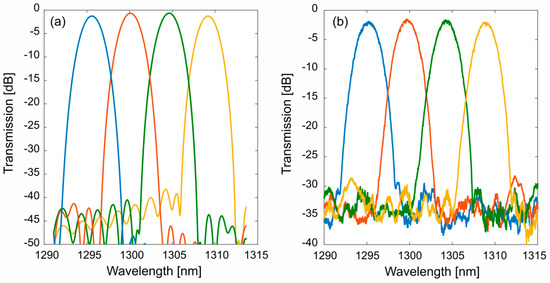

We report on the design of an ultra-compact integrated wavelength demultiplexer in echelle configuration for the optical O-band realized on silicon-on-insulator technology. The device has four channels with channel spacing of 800 GHz and a small footprint of 260 × 83 μm2. Channel crosstalk lower than −28 dB across the four channels is experimentally demonstrated along with insertion losses of −1.5 dB. View Full-Text
Keywords: demultiplexer; wavelength division multiplexing (WDM); silicon-on-insulator (SOI); integrated photonics; optical o-band; echelle; filter demultiplexer; wavelength division multiplexing (WDM); silicon-on-insulator (SOI); integrated photonics; optical o-band; echelle; filter
►▼ Show Figures

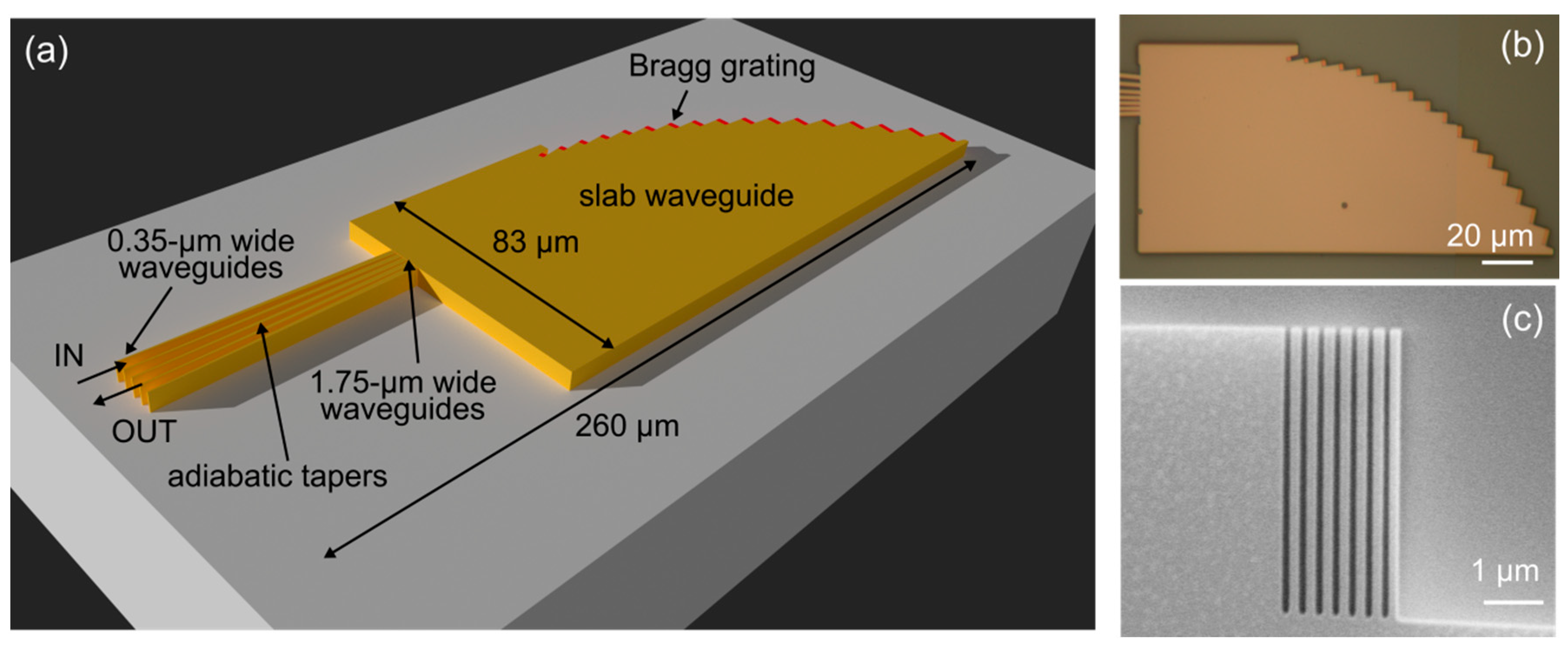

Figure 1
