Electronics 2019, 8(4), 446; https://doi.org/10.3390/electronics8040446

Article
Using Different Ions in the Hydrothermal Method to Enhance the Photoluminescence Properties of Synthesized ZnO-Based Nanowires
1
School of Information Engineering, Jimei University, Xiamen 361021, China
2
Department of Electronic Engineering, Chung Yuan Christian University, Taoyuan City 320, Taiwan
3
Department of Chemical and Material Engineering, National University of Kaohsiung, Kaohsiung 811, Taiwan
*
Authors to whom correspondence should be addressed.
Received: 18 March 2019 / Accepted: 16 April 2019 / Published: 18 April 2019

Abstract

:
ZnO films with a thickness of ~200 nm were deposited on SiO2/Si substrates as the seed layer. Then Zn(NO3)2-6H2O and C6H12N4 containing different concentrations of Eu(NO3)2-6H2O or In(NO3)2-6H2O were used as precursors, and a hydrothermal process was used to synthesize pure ZnO as well as Eu-doped and In-doped ZnO nanowires at different synthesis temperatures. X-ray diffraction (XRD) was used to analyze the crystallization properties of the pure ZnO and the Eu-doped and In-doped ZnO nanowires, and field emission scanning electronic microscopy (FESEM) was used to analyze their surface morphologies. The important novelty in our approach is that the ZnO-based nanowires with different concentrations of Eu3+ and In3+ ions could be easily synthesized using a hydrothermal process. In addition, the effect of different concentrations of Eu3+ and In3+ ions on the physical and optical properties of ZnO-based nanowires was well investigated. FESEM observations found that the undoped ZnO nanowires could be grown at 100 °C. The third novelty is that we could synthesize the Eu-doped and In-doped ZnO nanowires at temperatures lower than 100 °C. The temperatures required to grow the Eu-doped and In-doped ZnO nanowires decreased with increasing concentrations of Eu3+ and In3+ ions. XRD patterns showed that with the addition of Eu3+ (In3+), the diffraction intensity of the (002) peak slightly increased with the concentration of Eu3+ (In3+) ions and reached a maximum at 3 (0.4) at%. We show that the concentrations of Eu3+ and In3+ ions have considerable effects on the synthesis temperatures and photoluminescence properties of Eu3+-doped and In3+-doped ZnO nanowires.
Keywords:
ZnO-based nanowires; hydrothermal method; Eu3+ and In3+ ions; photoluminescence properties

1. Introduction

Nanostructured semiconducting ZnO-based materials have been widely investigated, attracting significant attention due to their novel physical and chemical properties. Important applications include solar cells [1], light-emitting diodes [2], and super-hydrophobic surfaces [3]. The electron transport efficiency and mechanisms of semiconducting ZnO-based materials are dependent on surface states closely linked to the surface-to-volume ratio. One-dimensional (1D) and two-dimensional (2D) ZnO nanostructures are of great interest because they possess a large surface-to-volume ratio, enabling them to absorb more test molecules or accept more measured signals on their surface and, thereby, be highly efficient sensors. They are considered promising materials for various sensors because they have high electrochemical stability, are not toxic, are receptive to doping, and are inexpensive [4]. Many different methods of growing ZnO-based nanostructured materials have been investigated. For example, Lupan et al. used a successive ionic layer adsorption and reaction (SILAR) method to deposit undoped and Sn and Ni co-doped nanostructured ZnO thin films on glass [5]. Niarchos et al. investigated a reliable and low-cost method for large-scale ZnO nanorod production, using an alternative aqueous chemical growth (ACG) low-temperature process to grow ZnO nanorods on patterned Si substrates [6]. Kenanakis et al. used an aqueous solution to thoroughly investigate the growth of highly oriented ZnO nanowires on different substrates [7].
Recently, ZnO-based nanostructured materials, including nanotubes, nanowires (nanorods), and thin films, have been synthesized by various physical and chemical methods and used to fabricate sensors for a variety of applications. For example, Mondal et al. used a ZnO-SnO2 composite material to fabricate a micro-electro–mechanical system (MEMS) microheater on silicon (Si) to develop a low-power gas sensor [8]. Zhao et al. grew a single ZnO nanowire on a flexible substrate using a custom-built nano-manipulation system and investigated it as an ultra-high-sensitivity strain sensor [9]. Thomas et al. used a microwave successive ionic layer adsorption reaction to synthesize pure and Al-doped photosensitive ZnO films and investigated their luminescence properties [10].
Various attempts have been made to grow pure ZnO and different ion-doped ZnO nanowires and investigate them as different applications. For example, Bai et al. used a seed-assisted hydrothermal method to grow the Al-doped ZnO nanowires on a silicon substrate [11]. Even though they could grow the ZnO nanowires at a low temperature of 95 °C, this method is very complicated to grow the Al-doped ZnO nanowires because they needed to deposit the Al on ZnO seed layer and annealed the samples at 550 °C. Chang et al. used a traditional thermal evaporation method to synthesize ZnO nanowires on a (100) Si substrate and then used a molecular beam epitaxy system to subsequently carry out the Mn doping process [12]. They constructed a back-gated Mn-doped ZnO nanowire field-effect transistor (FET) to demonstrate the electric-field control properties of ferromagnetism.
In-doped ZnO nanowires can be synthesized and grown using different methods. For example, the In-doped ZnO nanowires were synthesized via a thermal evaporation process, using metallic powders of zinc and indium as precursors and oxidizing them in the presence of oxygen [13,14]. Xu et al. also used a thermal evaporation method to synthesize the In-doped ZnO nanowires, but the used precursors were ZnO and In2O3 powders [15]. The Eu-doped ZnO nanowires could also be synthesized using different methods. Rifai and Kulnitskiy used chemical vapor deposition method to synthesize the single-crystal Eu3+-doped wurtzite ZnO micro- and nanowires [16]. Lupan et al. investigated Eu-doped ZnO nanowire arrays that could be electrodeposited in a three electrode electrochemical cell using an aqueous solution containing ZnCl2, KCl, and EuCl3 as the supporting electrolyte [17]. Geburt et al. first used the vapor–liquid–solid mechanism to synthesize ZnO nanowires with diameters of about 100 to 300 nm. After that, they used ion implantation to dope the Eu3+ ions in ZnO nanowires [18]. Apparently, the concentrations of Eu3+ and In3+ ions in these researches are difficult to control well, and it is difficult to investigate the effects of different concentrations of Eu3+ and In3+ ions on their properties.
When all the synthesis methods are compared, using an aqueous solution to grow ZnO nanostructured materials is considered better, mainly due to low growth temperature and good potential for large-scale production. Previously, we found that changing the deposition parameters in our hydrothermal method (the concentrations of Zn(NO3)2-6H2O and C6H12N4; the face direction of ZnO/SiO2/Si substrates during hydrothermal deposition; and deposition time) resulted in ZnO films with three different morphologies on ZnO/SiO2/Si substrates [19]. Different deposition parameters yielded undoped ZnO in the shape of irregular plate-structured films, nanowires (nanorods), and chrysanthemum-like clusters (nanoflower films). We also found that with a synthesis temperature of 100 °C, nanowires could be grown using an undoped ZnO solution. ZnO-based nanowires can be used in many fields, for example, as ultraviolet (UV) photodetectors or sensors [20]. Trivalent lanthanide ion-doped wide-bandgap semiconducting ZnO nanowires could be the promising active materials in opto-electronic devices [17]. We believe that if the photoluminescence excitation (PLE) and photoluminescence emission (PL) properties are enhanced, the sensitivity of these fabricated UV photodetectors or sensors and the emission properties of opto-electronic devices will also be improved. We, therefore, used Eu3+ and In3+ ions and investigated the PLE and PL properties of Eu-doped and In-doped ZnO nanowires.
In the present study, the first important novelty is that we used Eu(NO3)3-6H2O and In(NO3)2-6H2O as the dopant sources of Eu3+ and In3+ ions because we could control their concentrations well. Next, we could synthesize the Eu-doped and In-doped ZnO nanowires using the hydrothermal method at low temperature (below 100 °C) and investigate the effects of different concentrations of Eu3+ and In3+ ions on their crystalline and photoluminescence properties. The last novelty is that the Eu3+ and In3+ ions form a compound with ZnO during the synthesis process of ZnO-based nanowires, for that the Eu3+ and In3+ ions can reach the whole region of the synthesized Eu-doped and In-doped ZnO nanowires. We found that at 100 °C, ZnO-based nanowires did not grow well when different concentrations of Eu3+ and In3+ ions were added. The needed synthesis temperatures drop increased with the concentrations of Eu3+ and In3+ ions. We will demonstrate how the designs of synthesis temperature and precursor materials can control the structures of pure ZnO and of Eu-doped and In-doped ZnO nanowires with hexagonal prismatic structures.
As compared with other researches, another important novelty is that no researches prove tht the concentrations of Eu3+ and In3+ ions will affect the growth temperatures of Eu-doped and In-doped ZnO nanowires and investigate the effect of the concentrations of Eu3+ and In3+ ions on the growth morphologies and PL properties. As the hydrothermal method was used to grow the Eu-doped and In-doped ZnO nanowires, their crystal qualities have been enhanced. The visible-light emission, which is caused by the defect states, was not found in Eu-doped and In-doped ZnO nanowires and the near-band-edge emission peak (located at around 395 nm) was enhanced because the number of defect states was reduced. We thoroughly investigate the effects of different concentrations of Eu3+ and In3+ ions on the growth properties of ZnO-based nanowires. We also show that the ions used and their concentrations have considerable effects on the synthesis temperatures and photoluminescence properties of ZnO-based nanowires.

2. Experimental

A ZnO seed layer is necessary to initialize the uniform growth of oriented nanowires using aqueous solutions. ZnO powder (Us Research Nanomaterials Inc., purity 99.99%, particle sizes small than 1 μm, Houston, TX, USA) was mixed with polyvinyl alcohol (PVA, ECHO Chemical Co., Ltd. Miaoli, Taiwan) as a binder, and the ZnO-PVA mixture was pressed into pellets 6 mm thick and 56 mm in diameter using a steel die. After debindering, each ZnO pellet was sintered at 1100 °C for 2 h to form a ceramic target. SiO2/Si (Summit-Tech Resource Corp. Hsinchu, Taiwan) was used as the substrate to fabricate pure (undoped) as well as Eu3+-doped and In3+-doped ZnO nanowires. First, the SiO2/Si substrates were cleaned with deionized (DI) water (office created), acetone (ECHO Chemical Co., Ltd.), and isopropyl alcohol (ECHO Chemical Co., Ltd.), then radio frequency (RF) magnetron sputtering was used to deposit the ZnO seed layers (ZnO/SiO2/Si substrates). Next, Zn(NO3)2-6H2O (Alfa Aesar, MA, USA), C6H12N4 (ECHO Chemical Co., Ltd.), and Eu(NO3)3-6H2O (Alfa Aesar) or In(NO3)2-6H2O (Alfa Aesar) were mixed with DI water with the designed compositions. The Zn(NO3)2-6H2O, Eu(NO3)3-6H2O, and In(NO3)2-6H2O decomposed to form the mixed solutions of Zn2+ and In3+ ions or Zn2+ and Eu3+ ions in DI water. It was impossible for In3+ and Eu3+ ions to be separated with Zn2+ ions from the solutions during the growth processes of ZnO-based nanowires, the Eu-doped and In-doped ZnO nanowires could be grown from the mixed solutions. The Eu3+-doped and In3+-doped ZnO nanowires were synthesized at temperatures of 100 to 60 °C for 1 h using a hydrothermal method. Previously, we used a well-designed structure to grow ZnO-based nanostructured materials via a hydrothermal method [19]. We found that when Zn(NO3)2-6H2O and C6H12N4 were used as reagents to synthesize ZnO-based nanostructured materials, the concentration of the diluted solution had important effects on the synthesis results. We, therefore, fixed the concentration of the diluted solution as a reference point [19].
We also found that the face direction of the ZnO seed layer and the synthesis time were two important factors affecting the synthesis of ZnO-based nanostructured materials. We found that when the face direction was down, nanowires grew on the ZnO seed layer, and when the direction was up, nanoflowers grew on the layer. We also determined that 1 h was the best synthesis duration for growing ZnO nanowires on the ZnO seed layer. Hence, facedown and 1 h were used as the parameters for growing pure, Eu3+-doped, and In3+-doped ZnO nanowires. The compositions for growing the Eu3+-doped nanowires were ZnO + y Eu3+ ions, where y = 0, 1, 2, or 3 at%, abbreviated as ZnO-0-Eu (undoped-ZnO), ZnO-10-Eu, ZnO-20-Eu, ZnO-30-Eu, and ZnO-40-Eu. The compositions for growing the In3+-doped ZnO nanowires were ZnO + x In3+ ions, where x = 0, 0.4, 0.8, or 1.2 at%, abbreviated as ZnO-4-In, ZnO-8-In, and ZnO-12-In. The morphologies of pure ZnO and Eu3+-doped and In3+-doped ZnO nanowires were observed by field-emission scanning electron microscopy (FESEM, Hitachi 4800, Tokyo, Japan) and used to determine the effects of synthesis temperature and the concentrations of Eu3+ and In3+ ions on the synthesis properties of the pure and doped ZnO nanowires. Crystalline phases were analyzed using X-ray diffraction (XRD, D8, Bruker, MA, USA) to determine the effects of concentrations of Eu3+ and In3+ ions on the crystalline and photoluminescence properties of the ZnO-based nanowires.

3. Results

In the case of undoped ZnO grown at 80 °C, ZnO nanowires were not synthesized on the ZnO/SiO2/Si substrate and only irregular ZnO nano-particles were observed, as Figure 1a shows (presents a top-down image). As the temperature was 100 °C, ZnO nanowires were successfully synthesized on the ZnO/SiO2/Si substrate, as Figure 1b shows. To investigate the effects of concentrations of Eu3+ and In3+ ions on the synthesis properties of hydrothermally grown Eu3+-doped and In3+-doped ZnO nanostructures, the synthesis temperature of all the ZnO + y Eu3+ and ZnO + x In3+ compositions was set at 100 °C. The general surface morphologies of the hydrothermally grown Eu3+-doped ZnO nanostructures were examined by FESEM, and the results are also shown in Figure 1. The SEM image of this sample revealed that the undoped ZnO nanowires had a hexagonal wurtzite structure, with an easily discernable hexagonal prism arrangement. When the compositions were changed to ZnO-20-Eu and ZnO-40-Eu, as Figure 1c,d show, no nanowires grew on the ZnO/SiO2/Si substrates and only irregular plate-structured grains were observed. When the compositions were changed to ZnO-60-Eu and ZnO-80-Eu (not shown here), only very large, irregular plate-structured grains were observed. These results prove that synthesis temperature is an important parameter to affect the synthesized results of ZnO-based nanowires.
However, when In3+ was used, the surface morphologies of the In3+-doped ZnO nanostructures resembled those of the Eu3+-doped ZnO nanostructures. When ZnO-4-In, ZnO-8-In, and ZnO-12-In were used to grow ZnO-based nanowires at 100 °C, their FESEM images were similar to those of ZnO-20-Eu and ZnO-40-Eu: no nanowires grew, and only irregular plate-structured grains were observed (not shown here). These results suggest that when the ZnO seed layer is deposited, the concentrations of Eu3+ or In3+ ions have an important effect on the synthesis results of the ZnO-based nanostructures. Increasing the concentrations of Eu3+ or In3+ ions lowers the temperature required to form the ZnO-based nanowires. We next demonstrated that the concentrations of Eu3+ or In3+ ions (or the synthesis temperature) are the most important factor in the syntheses of Eu3+-doped and In3+-doped ZnO nanowires on ZnO/SiO2/Si substrates.
The Eu3+-doped ZnO nanomaterials were synthesized at 100 °C using various concentrations of Eu3+ ions. The XRD patterns of the Eu3+-doped ZnO nanostructures are shown in Figure 2. Only the diffraction peak of the (002) plane was observed; no (004) plane diffraction peak appeared. Apparently, the diffraction intensity of the Eu3+-doped ZnO nanostructures decreased as the concentration of Eu3+ ions increased, reaching a minimum at ZnO-30-Eu, then becoming saturated as the concentration of Eu3+ ions was further increased. Using Figure 2, we also measured the 2θ value and full width at half maximum (FWHM) value of the (002) plane of the Eu3+-doped ZnO nanostructures. The 2θ values of the (002) plane of the 100 °C-synthesized Eu3+-doped ZnO nanostructures were unchanged at 34.44 ± 0.02 as the concentration of Eu3+ ions increased. The FWHM value of the (002) plane initially increased, reaching saturation when the concentration of Eu3+ ions was 3 at%. These results suggest that the crystallinity of the Eu3+-doped ZnO nanostructures degenerated as the concentration of Eu3+ ions increased. Comparison with the results in Figure 1 leads us to believe that the degeneration was caused by unformed nanostructures.
When In3+ was used as the ion, the XRD patterns of the In3+-doped ZnO nanomaterials were similar to those of the Eu3+-doped ZnO nanomaterials (not shown here). These results also suggest that increasing the concentration of In3+ ions led the In3+-doped ZnO to form ZnO-based nanowires at lower temperatures. In addition, only the diffraction peak of the (002) plane was observed in the In3+-doped ZnO nanostructures; no diffraction peak for the (004) plane was evident. The diffraction intensity of the In3+-doped ZnO nanostructures decreased as the concentration of In3+ ions increased, reaching a minimum at ZnO-4-In, then it was unchanged as the concentration of In3+ ions was further increased.
The morphologies of the synthesized Eu3+-doped ZnO nanowires are shown in Figure 3 for different concentrations of Eu3+ ions and synthesis temperatures. Figure 3a shows that when ZnO-10-Eu was used at 90 °C, nanowires with diameters in the range of 50 to 160 nm and hexagonal prism structures were readily observable. When the concentration of Eu3+ ions increased, the synthesis temperature could be lowered. As Figure 3b–d show, the synthesis temperatures of the ZnO-20-Eu, ZnO-30-Eu, and ZnO-40-Eu nanowires were 80, 70, and 60 °C, and their diameters were in the ranges of 50 to 85, 40 to 80, and 140 to 450 nm, respectively. Other than the nanowire structure changing from an equilateral hexagon to a non-equilateral hexagon, the surface morphologies experienced no apparent change, and all had a hexagonal prism structure.
Figure 4 shows top-view SEM images of high-density In3+-doped ZnO nanowires grown on ZnO/SiO2/Si substrates at different synthesis temperatures and with different concentrations of In3+ ions. Figure 4a shows that the 88 °C ZnO-4-In nanowires had the structure of hexagonal prisms with diameters in the range of 45 to 150 nm. When the concentration of In3+ ions was increased, the In3+-doped ZnO nanowires could be synthesized at a low temperature. As Figure 4b,c shows, the synthesis temperatures of ZnO-8-In and ZnO-12-In nanowires were 75 and 60 °C, and their diameters were in the ranges of 130 to 280 and 70 to 150 nm, respectively. The top-view image shows that the In3+-doped ZnO nanowires changed from an equilateral hexagon structure to a non-equilateral hexagon structure as the concentration of In3+ ions increased. When Eu3+ or In3+ ions were added, the nanowires still displayed a hexagonal wurtzite structure, providing strong evidence that the undoped ZnO and the Eu3+-doped and In3+-doped ZnO nanowires grew in the (002) direction, independent of the concentrations of Eu3+ or In3+ ions.
Table 1 shows the corresponding FESEM images of formed Eu-doped and In-doped ZnO nanowires (Figure 3 and Figure 4) the elemental ratios obtained by FESEM equipped with energy dispersive X-ray spectroscopy (EDX) analyses for elemental Zn and Eu or Zn and In. Six different areas of Eu-doped and In-doped ZnO nanowires were depicted for analysis, and the range of the measured elemental ratio for Eu and In and the average value of the measured elemental ratio are shown in Table 1. The Eu and In elements were detected in Eu-doped and In-doped ZnO nanowires, respectively, and the measured elemental ratios increased with the concentrations of Eu3+ and In3+ ions.
We investigated the crystallinity of Eu3+-doped ZnO nanowires synthesized with different concentrations of Eu3+ ions and synthesis temperatures using XRD, and the results are shown in Figure 5. All of the patterns were in agreement with the diffraction data from the standard card (JCPDS 36-1451). The main diffraction peak of ZnO is (101) (JCPDS 36-1451), which is located around 2θ∼36.25°. However, the stronger intensity of the (002) diffraction peak, which is located at 2θ = 34.44 ± 0.02~34.40 ± 0.02, was discernible for all of the Eu3+-doped ZnO nanowires, suggesting that all of the Eu3+-doped ZnO nanowires had a high c-axis orientation. The 2θ value of the c-orientation (200) peak decreased from 34.43 ± 0.02, 34.43 ± 0.02, 34.42 ± 0.02, 34.41 ± 0.02, to 34.40 ± 0.02 as the concentration of Eu3+ ions increased from 0 1, 2, 3, to 4 at%. The radius of Eu3+ ions larger than that of Zn2+ ions is the reason to cause an unapparent decrease in the 2θ value of the c-orientation (200) peak. The FWHM value of the (200) diffraction peak decreased from 2θ = 0.19 (34.37–34.55), 0.18 (34.35–34.52), 0.17 (34.34–34.50), to 0.15 (34.34–34.48) as the concentration of Eu3+ ions increased from 0, 1, 2, to 3 at%, indicating that the crystallization of the nanowires increased with the concentration of Eu3+ ions. When the concentration of Eu3+ ions increased from 3 or 4 at%, the (100) peak was observed, the diffraction intensity of the (200) diffraction peak increased, and the FWHM value increased from 2θ = 0.15 to 0.17 (34.34–34.50). Figure 5 also shows that the diffraction intensity of the (100) peak increased and the FWHM value decreased as the concentration of Eu3+ ions increased from 3 to 4 at%. These results suggest that the crystallization property changed when the concentration of Eu3+ ions was 3 at% or more.
The crystallinities of In3+-doped ZnO nanowires synthesized with different concentrations of Eu3+ ions were investigated using XRD, and the results are shown in Figure 6. Comparison of these results showed differences when the concentration of In3+ ions was varied. As the concentration of In3+ ions was increased from 0 to 0.4 at%, the FWHM value of the (200) diffraction peak decreased from 2θ = 0.18 (34.37–34.55) to 0.17 (34.37–34.54) and the diffraction intensity increased. As the concentration of In3+ ions was further increased from 0.4, 0.8, to 1.2 at%, the FWHM value of the (200) diffraction peak decreased from 2θ = 0.17, 0.20 (34.36–34.55), to 0.25 (34.33–34.57) and the diffraction intensity decreased. Nevertheless, the synthesized In3+-doped ZnO nanowires exhibited no (100) diffraction peak. Further analysis of the XRD data in Figure 6 showed that the radius of the In3+ ions (0.80 nm) was larger than that of the Zn2+ ions (0.74 nm), and all the (002) diffraction peaks were located at 2θ = 34.44 ± 0.02 as the concentrations of In3+ ions were 0.0 and 0.4 at% and located at 2θ = 34.43 ± 0.02 as the concentrations of In3+ ions were 0.8 and 1.2 at%. Even the radius of In3+ ions is larger than that of Zn2+ ions, but the concentration of In3+ ions used to dope into the In-doped ZnO nanowires was very low, and the 2θ value of the c-orientation (200) peak was almost unchanged. The results in Figure 1, Figure 2, Figure 3, Figure 4, Figure 5 and Figure 6 prove that when the undoped ZnO and the Eu3+-doped ZnO and In3+-doped ZnO nanowires grew well, the synthesized ZnO-based nanowires had a good wurtzite hexagonal crystal structure. The undoped ZnO, the Eu3+-doped ZnO, and the In3+-doped ZnO had similar crystalline results; thus, we believe they will have different PLE and PL spectra.
The radii of 4-coordination and 6-coordination Zn2+ ions are 60 and 74 pm, and the radii of 4-coordination and 6-coordination In3+ ions are 62 and 80 pm; 4-coordination Eu3+ ions do not exist, and the radius of 6-coordination Eu3+ ions is 95 pm. The values of the calculated lattice constant, c, of the Eu3+-doped and In3+-doped ZnO nanowires were considerably smaller than the c value of the undoped ZnO nanowires. Because all the investigated ZnO-based nanowires had a hexagonal wurtzite structure, the Zn2+, Eu3+, and In3+ ions were in a 6-coordination structure. Comparison of the results in Figure 2, Figure 5 and Figure 6 shows that the radii of Eu3+ (0.95 nm) and In3+ (0.80 nm) are larger than that of Zn2+ (0.74 nm), and no variation in the lattice parameters of the undoped, Eu3+-doped, and In3+-doped ZnO nanowires was observable. However, comparison of the images in Figure 1a, Figure 3 and Figure 4 show that from the top view, the ZnO-based nanowires changed from an equilateral hexagon to a non-equilateral hexagon configuration as the concentrations of Eu3+ and In3+ ions increased. We believe this was the result of the differences between the radius of Zn2+ ions and the radius of Eu3+ ions.
Figure 7 shows the room-temperature PLE spectra of different ion-doped ZnO nanowires recorded in the wavelength range of 200 to 350 nm. The PLE spectra were measured at an emission wavelength of 395 nm, while the PL spectra were measured for maximum emission intensity. There are obvious differences between the PLE spectra of pure ZnO and different ion-doped ZnO nanowires. The emission intensity of the PLE spectra of the Eu3+-doped ZnO nanowires increased with the concentration of Eu3+ ions and reached a maximum value in the 60 °C-grown ZnO-40-Eu, and that of In3+-doped ZnO nanowires appeared in the 88 °C-grown ZnO-4-In. Comparison of the results in Figure 1, Figure 2, Figure 3 and Figure 4 suggests that the photoluminescence properties of the ZnO-based nanowires were dependent on their crystalline properties. We, therefore, used the PLE and PL spectra of the 100 °C-grown ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires to compare their optical properties.
The PLE spectra in Figure 7 changed as different ions were added. As the wavelength in Figure 7 increased from 200 to 350 nm, the PLE emission intensities first decreased to a minimum, then increased to a maximum, then decreased again. Compared with that of pure ZnO nanowires, the wavelengths of 0 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires reveal the minimum intensities were shifted to higher values and wavelengths of them reveal the maximum had no apparent changes. When different ions were added to synthesize the ZnO-based nanowires, they caused dissimilar energy level transitions in different energy bands, leading the phosphors to release light with different emission peaks (or wavelengths). This is why the PLE spectra of the 100 °C-grown ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires differed. The broadening of the emission peaks of the 100 °C-grown ZnO and 60 °C-grown ZnO-40-Eu nanowires can be interpreted by the formation of band tailing in the band gap, which often is induced by the formation of the defects in the semiconductor during the synthesis process or the introduction of an impurity into the semiconductor [15].
The room-temperature PL emission spectra of the 100 °C-grown ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires were excited using a wavelength of 242 nm and recorded in the range of 200 to 700 nm. These PL properties were obtained at room temperature, and the results are compared in Figure 8. In addition, there are obvious differences between the PL spectra of pure ZnO and different ion-doped ZnO nanowires. The wavelengths resulting in the maximum emission intensities were 395 ± 2, 396± 2, and 397 ± 2 nm for 100 °C-grown undoped ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires, respectively. These results suggest that the additions of Eu3+ or In3+ affect the maximum intensities of the emission spectra, but they almost cannot affect wavelengths resulting in the maximum emission intensities. The 100 °C-grown undoped ZnO and 60 °C-grown ZnO-40-Eu nanowires had two distinct, visible-light emission peaks, one centered at ~361 nm and the other at 395 or 396 nm, and the emission spectra ranged from 280 to 570 nm.
With the 88 °C-grown ZnO-4-In nanowires, only one peak was observed, and the emission spectra ranged from 360 to 520 nm. The maximum intensities of the PL emission spectra were 100 °C-grown ZnO < 88 °C-grown ZnO-4-In < 60 °C-grown ZnO-40-Eu. Our results suggest two important findings. First, when a hydrothermal method is used to grow ZnO-based nanowires, adding different concentrations of Eu3+ and In3+ ions can reduce the synthesis temperature, and this temperature decreases with the concentrations of Eu3+ and In3+ ions. Second, when different ions in different concentrations are added to grow ZnO-based nanowires, the optical properties of the synthesized ZnO-based nanowires can be controlled. The PLE and PL properties of these ZnO-based nanowires depend on their crystalline properties.
In the past, different researches or different methods to synthesize the undoped and ion-doped ZnO nanowires would have different emission results of PL spectra. Xu et al. measured a PL spectrum using a He-Cd laser of 260 nm as the excitation source at room temperature. They found that the undoped ZnO nanowires has a visible-light emission band with center at about 490 nm and the In-doped ZnO nanowires with an emission band centering at around 398 nm dominate in the PL spectrum [15]. Kim et al. used He-Cd (325 nm) laser as the excitation source, they found that the room-temperature PL spectroscopy of In-doped ZnO nanowires exhibits an unapparent UV emission centered at 378 nm and a broad emission centered at 561 nm [13]. Zeng et al. found that as a Xe lamp was used as the excitation light, the room-temperature PL properties of an undoped ZnO nanosheet featured a broad yellow band centered at 575 nm and they thought that the emission of yellow light is attributed to transitions of oxygen interstitials (Oi) [21]. They also found that as UV (464 nm) light was used as the excitation light, the spectra of Eu-doped ZnO nanowires emitted a pure red luminescence and consisted of a series of resolved emission peaks centered at 577, 589, 612, 619, and 654 nm, they can be assigned to the transitions of 5D07F0 (577 nm), 5D07F1 (589 nm), 5D07F2 (612, 619 nm), and 5D07F3 (654 nm), respectively [22].
Geburt et al. also found that the Eu-doped ZnO nanowires have the sharp and structured emission features between 1.5 and 2.1 eV, and these peaks can be clearly assigned to the 5D07FJ (J = 0, 1, 2, 3, 4) transitions of Eu3+ ions [18]. Lupan et al. recorded the PL spectrum of Eu-doped ZnO nanowires under UV 266 nm excitation, no red emission due to the transitions of Eu3+ ions could be detected. The main emission peak centered at 382 nm was found and a weak green luminescence due to ZnO intrinsic defects could also be observed at about 530 nm [17]. Gomi et al. found earlier that interstitial Zn (Zni) causes the red emission [23] and Teke et al. found that vacancy Zn and oxygen (VZn and VO) cause the green emission [24]. TekeXing et al. also found that VZn and VO cause the green emission and excess oxygen cause the orange–red emission [25]. Chen et al. also found that the excess oxygen on the surfaces of ZnO nanowires causes the orange–red emission, and it is adjustable via the annealing process or the surfaces’ modification of ZnO nanowires [26]. However, we had measured the emission spectrum of ZnO NPs excited by UV light with wavelength of 242 nm, and the main peak was at about 393 nm [27]. Usually, the PL emission of ZnO-based materials is attributed to different defects, such as oxygen vacancies (VO), zinc vacancies (VZn), or is caused by the complex defects of involving interstitial zinc (Zni) and interstitial oxygen (Oi) [28]. The energy level of Zni is one type of shallow donor level below conduction band, and it locates 3.15 or 2.91 eV, whereas, the energies of VZn, Oi, and OZn are more acceptors level above the valence band. The 3.15 eV related to light wavelength can be calculated using 1240 (nm)/3.15 = 394 nm. In this study, the centered wavelengths of PL spectra for the grown undoped, Eu-doped, and In-doped ZnO nanowires are about 395 nm. These results suggest that Zni is the main reason to cause PL properties of the grown undoped, Eu-doped, and In-doped ZnO nanowires.
Thus, in our case, we used the hydrothermal method to synthesize the ZnO-based nanowires and used Eu(NO3)2-6H2O or In(NO3)2-6H2O as precursors of the dopants. We believe that the Eu3+ and In3+ ions will purely occupy the sites of Zn and act as a dopant to change the semiconducting characteristic and enhance the emission intensities of Eu-doped and In-doped ZnO nanowires, and the defects of Zni, VZn, and VO will not happen in the synthesized ZnO-based nanowires. The emission peaks of 100 °C-grown undoped ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires centered at about 395 nm are characteristic of ZnO near band edge recombination. However, as the Eu(NO3)2-6H2O or In(NO3)2-6H2O are used as the dopants of ZnO-based nanowires and the hydrothermal method is used to synthesize the Eu-doped and In-doped ZnO nanowires, their emission intensities of PL spectra are really enhanced. When In is used as dopant in ZnO nanowires, an enhancement in near-band-edge emission peak (located at around 395 nm) occurs than for pure ZnO nanowires while visible-light emission is decreased significantly owing to change in the growth kinetics due to In supply which helps to reduce the number of defect states resulting in improved crystal quality [29]. XRD patterns in Figure 5 and Figure 6 show that the 100 °C-grown undoped ZnO nanowires had high crystal quality and the crystal qualities of the 60 °C-grown ZnO-40-Eu and 88 °C-grown ZnO-4-In nanowires were higher than that of 100 °C-grown undoped ZnO nanowires. For that, the visible-light emission, which is caused by the number of defect states, cannot be found in Figure 8 and only near-band-edge emission peak is observed. We thought that it is the reason that the maximum PL intensities of the 60 °C-grown ZnO-40-Eu and 88 °C-grown ZnO-4-In nanowires are higher than that of the 100 °C-grown undoped ZnO nanowires. The synthesized 60 °C-grown ZnO-40-Eu and 88 °C-grown ZnO-4-In nanowires can be the promising active materials in UV detectors and opto-electronic devices.

4. Conclusions

In this study, we used a hydrothermal method to investigate a simple process for synthesizing the Eu3+-doped and In3+-doped ZnO nanowires at temperatures lower than 100 °C. We found that the requisite synthesis temperatures for undoped ZnO, ZnO-10-Eu, ZnO-20-Eu, ZnO-30-Eu, and ZnO-40-Eu nanowires were 100, 90, 80, 70, and 60 °C, and for ZnO-4-In, ZnO-8-In, and ZnO-12-In nanowires were 88, 75, and 60 °C, respectively. For the undoped, Eu3+-doped, and In3+-doped ZnO nanowires, the (200) peak was the main diffraction peak, and the 2θ values of the c-orientation (200) peak were almost unchanged as the concentration of Eu3+ ions increased from 0 to 4 at% and the concentration of In3+ ions increased from 0 to 1.2 at%. The (200) diffraction peak was observed when the concentrations of Eu3+ ions were 3 and 4 at%; its diffraction intensity increased, and the FWHM value of the (200) diffraction peak decreased with the concentration of Eu3+ ions. Two distinct emission peaks were discernible in the 100 °C-grown undoped ZnO and 60 °C-grown ZnO-40-Eu nanowires, one centered at ~300 nm and the other at 395 or 396 nm, and the emission spectra ranged from 280 to 570 nm. The visible-light emission the visible-light emission was not found in the 100 °C-grown undoped-ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires and only near-band-edge emission peak was observed because their crystal qualities were enhanced, and the number of defect states was reduced. The 88 °C-grown ZnO-4-In nanowires exhibited only one peak, and the emission spectra ranged from 360 to 520 nm. The PL emission spectra showed that the maximum intensities increase in the order 100 °C-grown ZnO < 88 °C-grown ZnO-4-In < 60 °C-grown ZnO-40-Eu.

Author Contributions

Y.-F.W. organized the paper and helped with writing it; W.-Y.C. and C.-F.Y. organized the paper and helped with editing the English; J.-R.S. and C.-C.C. carried out the experiments, analyzed the data, and measurements.

Acknowledgments

Financial support from the NSFC project titled “Fabrication of high efficiency ammonia gas sensors by using P3HT-zinc oxide nanowire hetero-junction for pilot detection liver cancer” is deeply appreciated.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chung, J.; Lee, J.; Lim, S. Annealing effects of ZnO nanorods on dye-sensitized solar cell efficiency. Physica B Condens. Matter 2010, 405, 2593–2598. [Google Scholar] [CrossRef]
  2. Saito, N.; Haneda, H.; Sekiguchi, T.; Ohashi, N.; Sakaguchi, I.; Koumoto, K. Low-temperature fabrication of light-emitting zinc oxide micropatterns using self-assembled monolayers. Adv. Mater. 2002, 14, 418–421. [Google Scholar] [CrossRef]
  3. Kwak, G.; Seol, M.; Tak, Y.; Yong, K. Superhydrophobic ZnO nanowire surface: Chemical modification and effects of UV irradiation. J. Phys. Chem. C 2009, 113, 12085–12089. [Google Scholar] [CrossRef]
  4. Wei, A.; Pan, L.H.; Huang, W. Recent progress in the ZnO nanostructure-based sensors. Mater. Sci. Eng. B 2011, 176, 1409–1421. [Google Scholar] [CrossRef]
  5. Lupan, O.; Shishiyanu, S.; Chow, L.; Shishiyanu, T. Nanostructured zinc oxide gas sensors by successive ionic layer adsorption and reaction method and rapid photothermal processing. Thin Solid Films 2008, 516, 3338–3345. [Google Scholar] [CrossRef][Green Version]
  6. Niarchos, G.; Makarona, E.; Tsamis, C. Growth of ZnO nanorods on patterned templates for efficient, large-area energy scavengers. Microsyst. Technol. 2010, 16, 669–675. [Google Scholar] [CrossRef]
  7. Kenanakis, G.; Vernardou, D.; Koudoumas, E.; Katsarakis, N. Growth of c-axis oriented ZnO nanowires from aqueous solution: The decisive role of a seed layer for controlling the wires’ diameter. J. Cryst. Growth 2009, 311, 4799–4804. [Google Scholar] [CrossRef][Green Version]
  8. Mondal, B.; Maity, S.; Das, S.; Panda, D.; Saha, H.; Kundu, A. Fabrication and packaging of MEMS based platform for hydrogen sensor using ZnO–SnO2 composites. Microsyst. Technol. 2016, 22, 2757–2764. [Google Scholar] [CrossRef]
  9. Zhao, H.; Liu, X.J.; Chen, L.Z.; Chang, S.P.; Chang, M. Fabrication of ultra-high-sensitivity flexible strain sensor based on single ZnO nanowire. Microsyst. Technol. 2017, 23, 1703–1707. [Google Scholar] [CrossRef]
  10. Thomas, D.; Sadasivuni, K.K.; Waseem, S.; Kumar, B.; Cabibihan, J.J. Synthesis, green emission and photosensitivity of Al-doped ZnO film. Microsyst. Technol. 2018, 24, 3069–3073. [Google Scholar] [CrossRef]
  11. Bai, S.N.; Tsai, H.H.; Tseng, T.Y. Structural and optical properties of Al-doped ZnO nanowires synthesized by hydrothermal method. Thin Solid Films 2007, 516, 155–158. [Google Scholar] [CrossRef]
  12. Chang, L.T.; Wang, C.Y.; Tang, J.S.; Nie, T.X. Electric-Field Control of Ferromagnetism in Mn-Doped ZnO Nanowires. Nano Lett. 2014, 14, 1823–1829. [Google Scholar] [CrossRef] [PubMed]
  13. Kim, S.H.; Umar, A.; Hwang, S.W.; Al-Garni, H.; Abaker, M.; Al-Sayari, S.A.; Dar, G.N.; Al-Hajry, A. Growth of branched In-doped ZnO nanowires: Structural and Optical Properties. AIP Conf. Proc. 2011, 1370, 142–148. [Google Scholar]
  14. Hsu, C.L.; Tsai, T.Y. Fabrication of Fully Transparent Indium-Doped ZnO Nanowire Field-Effect Transistors on ITO/Glass Substrates. J. Electrochem. Soc. 2011, 158, K20–K23. [Google Scholar] [CrossRef]
  15. Xu, L.; Su, Y.; Chen, Y.Q.; Xiao, H.H.; Zhu, L.A.; Zhou, Q.T.; Li, S. Synthesis and Characterization of Indium-Doped ZnO Nanowires with Periodical Single-Twin Structures. J. Phys. Chem. B 2006, 110, 6637–6642. [Google Scholar] [CrossRef]
  16. AlRifai, S.A.; Kulnitskiy, B.A. Microstructural and optical properties of europium-doped zinc oxide nanowires. J. Phys. Chem. Sol. 2013, 74, 1733–1738. [Google Scholar] [CrossRef]
  17. Lupan, O.; Pauporte, T.; Viana, B.; Aschehoug, P.; Ahmadic, M.; Cuenya, B.R.; Rudzevich, Y.; Lin, Y.; Chow, L. Eu-doped ZnO nanowire arrays grown by electrodeposition. Appl. Surf. Sci. 2013, 282, 782–788. [Google Scholar] [CrossRef]
  18. Geburt, S.; Lorke, M.; da Rosa, A.L.; Frauenheim, T.; Röder, R.; Voss, T.; Kaiser, U.; Heimbrodt, W.; Ronning, C. Intense Intrashell Luminescence of Eu-Doped Single ZnO Nanowires at Room Temperature by Implantation Created Eu−Oi Complexes. Nano Lett. 2014, 14, 4523–4528. [Google Scholar] [CrossRef] [PubMed]
  19. Chen, Y.C.; Cheng, H.Y.; Yang, C.F.; Hsieh, Y.T. Investigation of the Optimal Parameters in Hydrothermal Method for the Synthesis of ZnO Nanorods. J. Nanomater. 2014, 2014, 430164. [Google Scholar] [CrossRef]
  20. Guo, L.; Zhang, H.; Zhao, D.X.; Li, B.H.; Zhang, Z.H.; Jiang, M.M.; Shen, D.Z. High responsivity ZnO nanowires based UV detector fabricated by the dielectrophoresis method. Sens. Actuators B Chem. 2012, 166, 12–16. [Google Scholar] [CrossRef]
  21. Zeng, X.Y.; Yuan, J.L.; Wang, Z.Y.; Zhang, L.D. Nanosheet-Based Microspheres of Eu3+-doped ZnO with Efficient Energy Transfer from ZnO to Eu3+ at Room Temperature. Adv. Mater. 2007, 19, 4510–4514. [Google Scholar] [CrossRef]
  22. Lin, C.Y.; Yang, S.H.; Lin, J.L.; Yang, C.F. Effects of the Concentration of Eu3+ Ions and Synthesizing Temperature on the Luminescence Properties of Sr2−xEuxZnMoO6 Phosphors. Appl. Sci. 2017, 7, 30. [Google Scholar] [CrossRef]
  23. Gomi, M.; Oohira, N.; Ozaki, K.; Koyano, M. Photoluminescent and Structural Properties of Precipitated ZnO Fine Particles. Jpn. J. Appl. Phys. 2003, 42, 481–485. [Google Scholar] [CrossRef]
  24. Janotti, A.; Van de Walle, C.G. Fundamentals of zinc oxide as a semiconductor. Rep. Prog. Phys. 2009, 72, 126501. [Google Scholar] [CrossRef]
  25. Teke, A.; Ozgur, U.; Dogan, S.; Gu, X.; Morkocu, H.; Nemeth, B.; Nause, J.; Everitt, H.O. Excitonic fine structure and recombination dynamics in single-crystalline ZnO. Phys. Rev. B 2004, 70, 195207. [Google Scholar] [CrossRef]
  26. Chen, T.; Xing, G.Z.; Zhang, Z.; Chen, H.Y.; Wu, T. Tailoring the photoluminescence of ZnO nanowires using Au nanoparticles. Nanotechnology 2008, 19, 435711. [Google Scholar] [CrossRef]
  27. Yuan, Z.S.; Lin, C.Y.; Sun, S.H.; Liu, N.Y.; Yang, C.F.; Chen, C.C. Investigation of Undoped [email protected]2 Core-Shell Phosphors with Green Luminescence. Microsyst. Technol. 2018. [Google Scholar] [CrossRef]
  28. Mo, Z.J.; Hao, Z.H.; Wu, H.Z.; Yang, Q.; Zhuo, P.; Yang, H.; Xu, J.P.; Zhang, X.S.; Li, L. Synthetic and effect of annealing on the luminescent properties of ZnO nanowire. J. Lumin. 2016, 175, 232–236. [Google Scholar] [CrossRef]
  29. Farid, S.; Mukherjee, S.; Sarkar, K.; Mazouchi, M.; Stroscio, M.A.; Dutta, M. Enhanced optical properties due to indium incorporation in zinc oxide nanowires. Appl. Phys. Lett. 2016, 108, 021106. [Google Scholar] [CrossRef]
Figure 1. Surface morphologies of hydrothermally grown Eu3+-doped ZnO nanostructures, (a) undoped ZnO synthesized at 80 °C; synthesized at 100 °C: (b) undoped ZnO, (c) ZnO-20-Eu, and (d) ZnO-40-Eu.
Figure 1. Surface morphologies of hydrothermally grown Eu3+-doped ZnO nanostructures, (a) undoped ZnO synthesized at 80 °C; synthesized at 100 °C: (b) undoped ZnO, (c) ZnO-20-Eu, and (d) ZnO-40-Eu.
Electronics 08 00446 g001

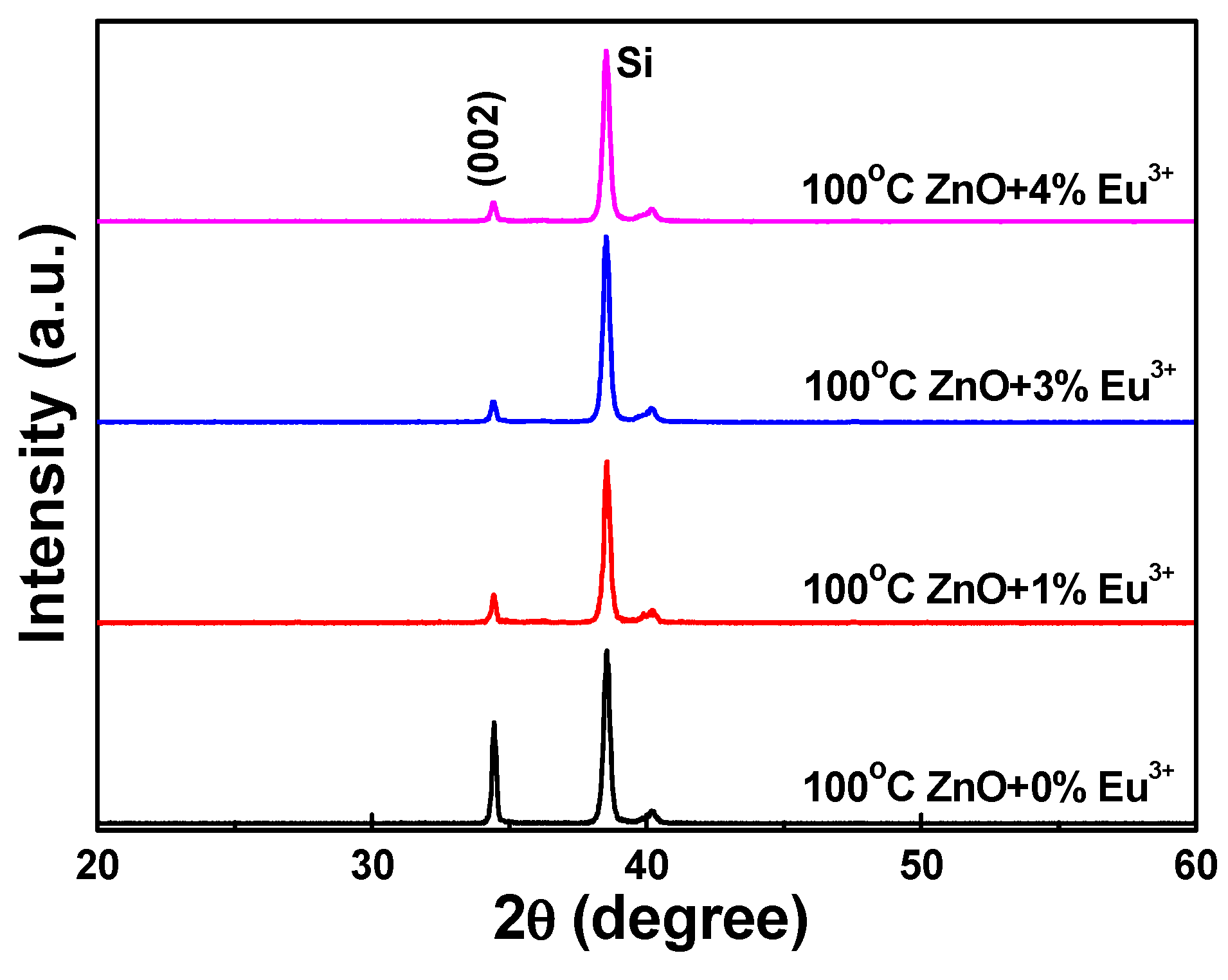

Figure 2. X-ray diffraction (XRD) patterns of synthesized Eu3+-doped ZnO nanowires as a function of the concentration of Eu3+ ions; the synthesis temperature was 100 °C.
Figure 2. X-ray diffraction (XRD) patterns of synthesized Eu3+-doped ZnO nanowires as a function of the concentration of Eu3+ ions; the synthesis temperature was 100 °C.
Electronics 08 00446 g002
Figure 3. Surface morphologies of hydrothermally grown Eu3+-doped ZnO. (a) ZnO-10-Eu nanowires synthesized at 90 °C, (b) ZnO-20-Eu nanowires synthesized at 80 °C, (c) ZnO-30-Eu nanowires synthesized at 70 °C, and (d) ZnO-40-Eu nanowires synthesized at 60 °C.
Figure 3. Surface morphologies of hydrothermally grown Eu3+-doped ZnO. (a) ZnO-10-Eu nanowires synthesized at 90 °C, (b) ZnO-20-Eu nanowires synthesized at 80 °C, (c) ZnO-30-Eu nanowires synthesized at 70 °C, and (d) ZnO-40-Eu nanowires synthesized at 60 °C.
Electronics 08 00446 g003
Figure 4. Surface morphologies of hydrothermally grown In3+-doped ZnO: (a) ZnO-4-In nanowires synthesized at 88 °C, (b) ZnO-8-In nanowires synthesized at 75 °C, and (c) ZnO-12-In nanowires synthesized at 60 °C.
Figure 4. Surface morphologies of hydrothermally grown In3+-doped ZnO: (a) ZnO-4-In nanowires synthesized at 88 °C, (b) ZnO-8-In nanowires synthesized at 75 °C, and (c) ZnO-12-In nanowires synthesized at 60 °C.
Electronics 08 00446 g004

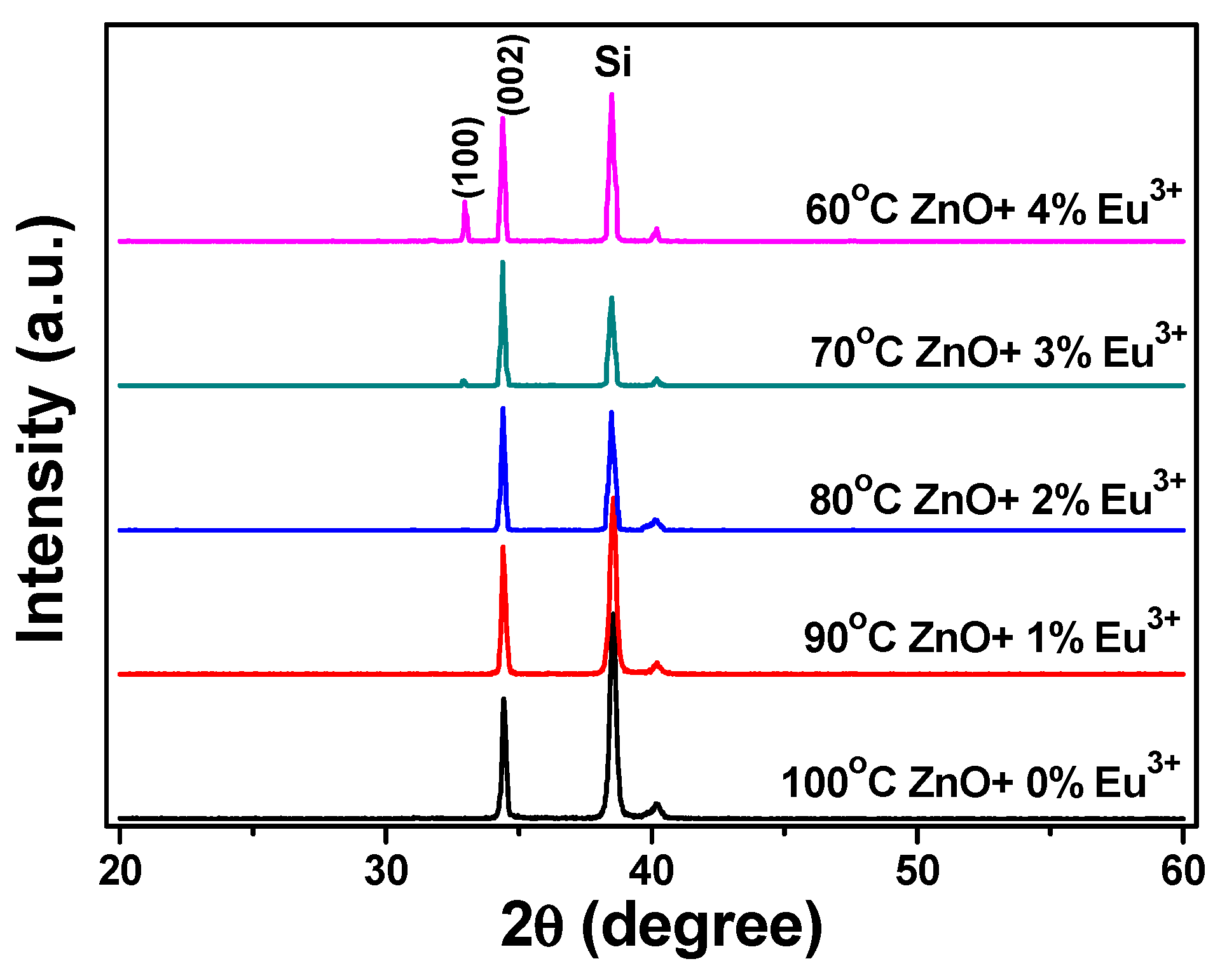

Figure 5. XRD patterns of the synthesized Eu3+-doped ZnO nanowires as a function of the concentration of Eu3+ ions (or synthesis temperature).
Figure 5. XRD patterns of the synthesized Eu3+-doped ZnO nanowires as a function of the concentration of Eu3+ ions (or synthesis temperature).
Electronics 08 00446 g005

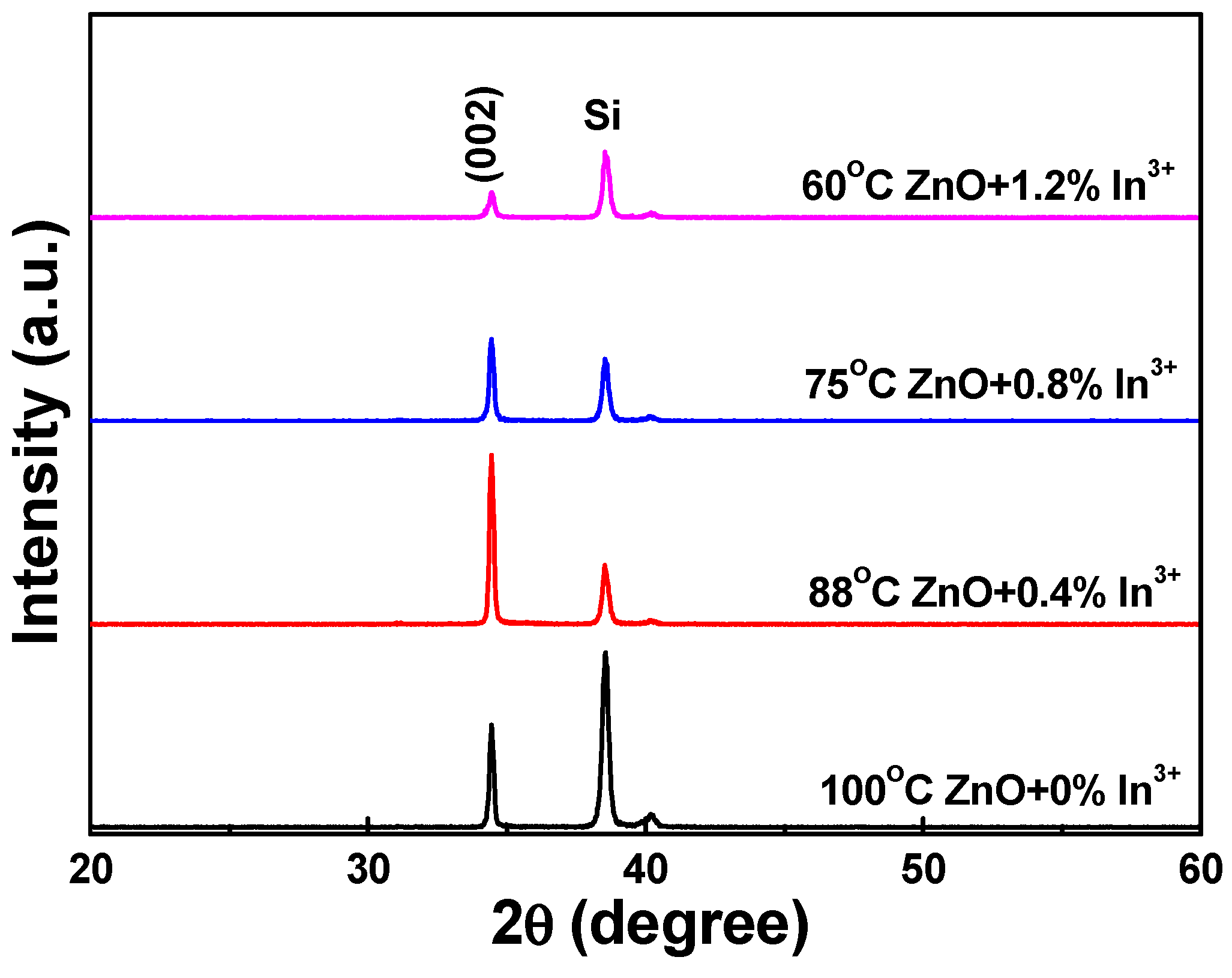

Figure 6. XRD patterns of the synthesized In3+-doped ZnO nanowires as a function of the concentration of In3+ ions (or synthesis temperature).
Figure 6. XRD patterns of the synthesized In3+-doped ZnO nanowires as a function of the concentration of In3+ ions (or synthesis temperature).
Electronics 08 00446 g006

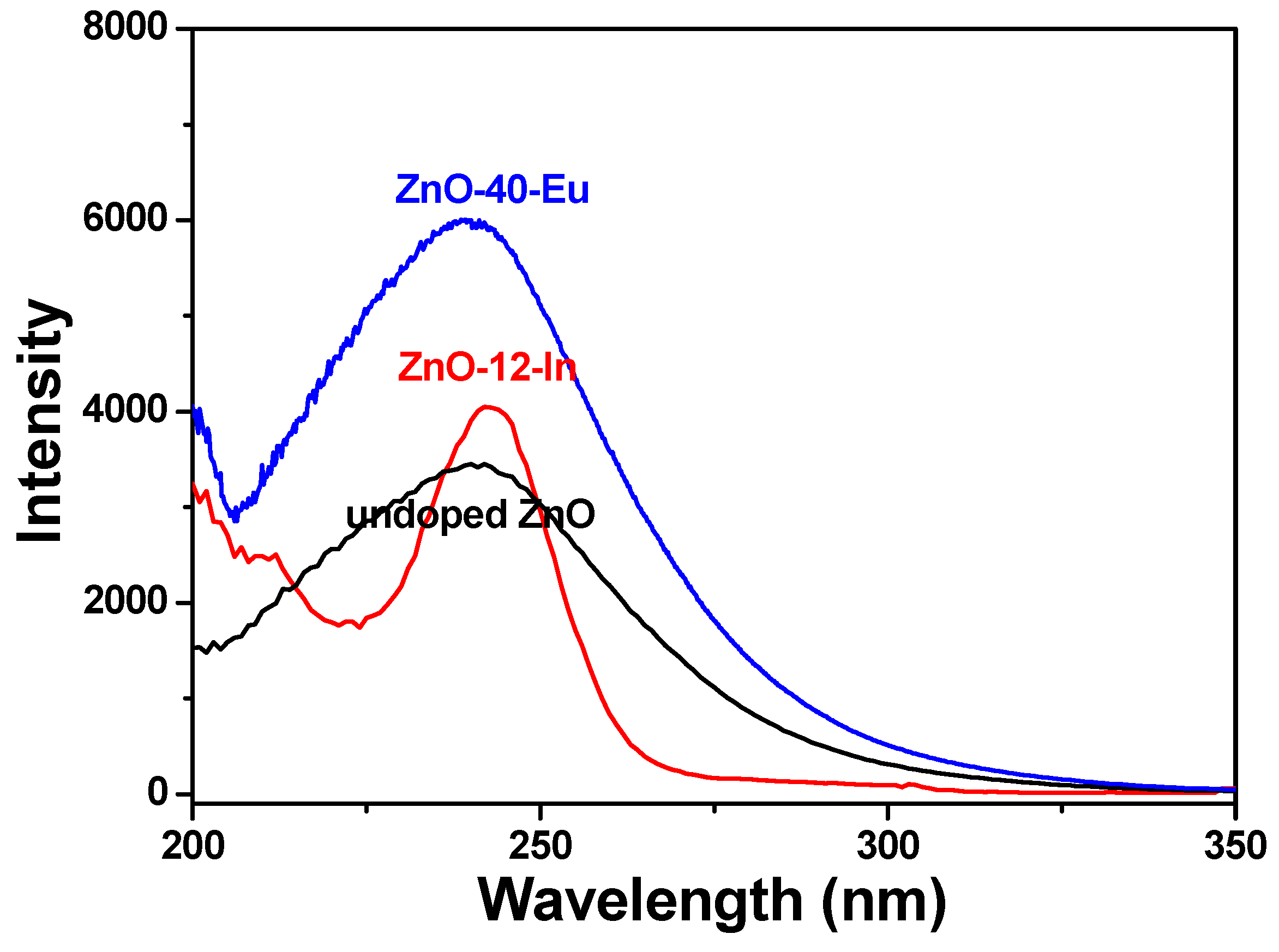

Figure 7. Photoluminescence excitation (PLE) spectra of 100 °C-grown ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires.
Figure 7. Photoluminescence excitation (PLE) spectra of 100 °C-grown ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires.
Electronics 08 00446 g007

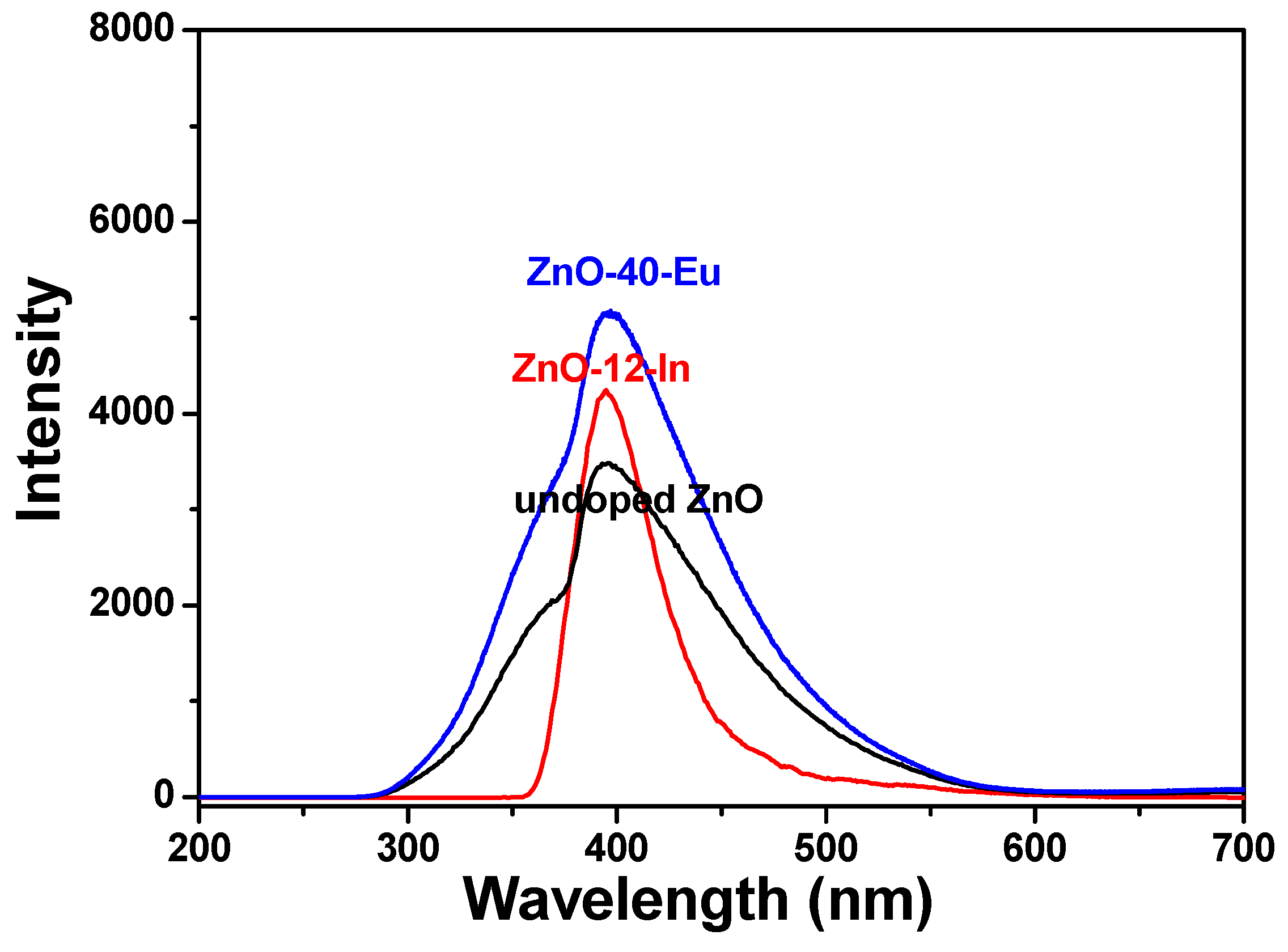

Figure 8. Photoluminescence emission (PL) spectra of 100 °C-grown ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires.
Figure 8. Photoluminescence emission (PL) spectra of 100 °C-grown ZnO, 60 °C-grown ZnO-40-Eu, and 88 °C-grown ZnO-4-In nanowires.
Electronics 08 00446 g008
Table 1. Energy dispersive X-ray spectroscopy (EDX) analyses for elemental Zn and Eu or Zn and In. Eu(In)-measured: the range of the measured elemental ratio; Eu(In)-average: the average value of the measured elemental ratio.
Table 1. Energy dispersive X-ray spectroscopy (EDX) analyses for elemental Zn and Eu or Zn and In. Eu(In)-measured: the range of the measured elemental ratio; Eu(In)-average: the average value of the measured elemental ratio.
CompositionEu-MeasuredEu-AverageCompositionIn-MeasuredIn-Average
ZnO-10-Eu0.56–0.78%0.69%ZnO-4-In0.04–0.34%0.21%
ZnO-20-Eu1.32–1.77%1.47%ZnO-8-In0.38–0.72%0.59%
ZnO-30-Eu2.02–2.51%2.24%ZnO-12-In0.85–1.11%1.02%
ZnO-40-Eu3.25–3.56%3.32%
