Engineering Terahertz Light–Matter Interaction with Quantum Electronic Metamaterials

Abstract

While electromagnetic metamaterials completely revolutionized optics and radio frequency engineering, recent progress in the development of conceptually related electronic metamaterials was more slow. Similar to electromagnetic metamaterials, which engineer material response to the electromagnetic field of a photon, the purpose of electronic metamaterials is to affect electron propagation and its wave function by changing material response to its electric field. This makes electronic metamaterials an ideal tool for engineering light–matter interaction in semiconductors and superconductors. Here, we propose the use of Fermi’s quantum refraction, which was previously observed in the terahertz spectroscopy of Rydberg atoms and two-dimensional surface electronic states, as a novel tool in quantum electronic metamaterial design. In particular, we demonstrate several potential applications of this concept in two-dimensional metamaterial superconductors and “universal quantum dots” designed for operation in the terahertz frequency range.

1. Introduction: Electromagnetic and Electronic Metamaterials: A Brief Comparison

Electromagnetic metamaterials [1,2,3,4,5,6,7,8,9,10,11], which engineer material response to the electromagnetic field of photons, revolutionized the fields of optics and radio frequency design. It was no surprise that conceptually similar approaches could be implemented in such diverse fields as acoustics [12,13,14,15,16,17], thermal engineering [18,19,20,21,22,23], and many others. In particular, it was only natural to expect that somewhat similar approaches help engineer electron wave function and its propagation through material media via engineering the material’s response to the electron’s electric field. The resulting concept of quantum electronic metamaterials enabled the engineering of ballistic electron propagation through semiconductors [24] and tuning the properties of Cooper pairs in metamaterial superconductors [25]. For example, negative refraction effects were shown to exist in ballistic electron propagation through semiconductors exhibiting a negative effective on electron mass, leading to some very interesting properties of nanoscale positive–negative electron mass multilayers [24], that look quite similar to the behaviour of similarly structured electromagnetic metamaterials in the visible frequency range [26]. In another recent example, it was suggested that electron transport properties and electron–electron interaction may be widely tuned in van der Waals heterostructures, thus forming quantum electronic metamaterials [27]. Such metamaterials would be an ideal tool for engineering light–matter interaction on the nanoscale.

However, as was noted in [27], compared to the electromagnetic metamaterials, the progress of electronic metamaterials was somewhat slower, due to the much smaller de Broglie wavelength of an electron compared to the typical wavelengths of light. For example, while tuning the dielectric response of aluminium-based metamaterial superconductors on a sub-micrometre scale was spectacularly successful, leading to tripling of superconducting critical temperature Tc of aluminium [28], the metamaterial structuring was relatively easy to implement in that case because of the relatively large micrometre scale size of Cooper pairs in aluminium. Since the coherent length in higher Tc superconductors is typically much shorter, and it typically falls into a several nanometre scale [25], the development of new electronic metamaterial design tools capable of nanometre-scale operation becomes critically important for this and many other applications of quantum electronic metamaterials. In this paper, we will introduce Fermi’s quantum refraction effect [29] as a novel and promising design tool. In particular, we will demonstrate several potential applications of this concept in two-dimensional metamaterial superconductors and “universal quantum dots” designed for operation in the terahertz frequency range.

2. Materials and Methods: Fermi’s Quantum Refraction as an Efficient Tool of Nanometre-Scale Electronic Metamaterial Engineering

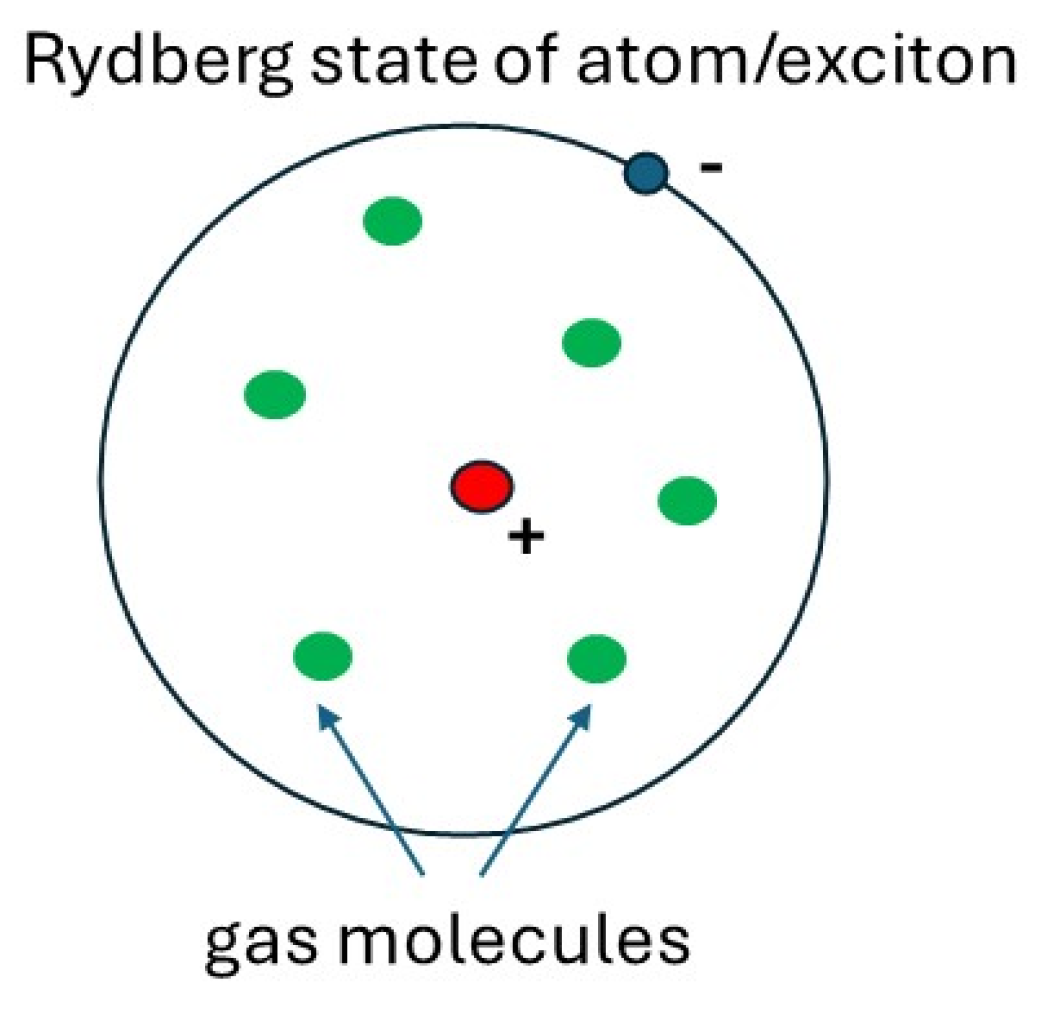

Initially introduced by Enrico Fermi to describe neutron scattering, the quantum refraction effect [29] also manifests itself in numerous spectroscopic experiments, such as the far infrared spectroscopy of Rydberg atoms [30] (see Figure 1) and terahertz spectroscopy of two-dimensional surface states in cryodielectrics [31]. In both situations, low-energy coherent electron scattering by atomic and molecular species may be described by Fermi’s pseudopotential:

$$V(r)={\displaystyle \frac{2\pi {ħ}^2}{m}}b\delta \left(\overrightarrow{r}\right),$$

(1)

where b is the electron scattering length (equal to the real part of the s-scattering amplitude taken with a minus sign), δ(r) is the Dirac delta function, and r is the scatterer position. If we assume that the fields of neighbouring scatterers do not overlap, and the mean distance N^−1/3 between the scatterers falls within the following range:

$$b<<N^{-1/3}<<\lambda ,$$

(2)

where λ is the de Broglie wavelength of the electron, the coherent interaction between the electron and the gas of scatterers having coordinate-dependent concentration N(r) may be described in terms of “quantum refraction”, so that the resulting interaction potential is given by the following:

$$V(r)={\displaystyle \iiint \psi *\frac{2\pi {ħ}^2}{m}b\delta \left({\overrightarrow{r}}_i\right)\psi dxdydz}=a_0{e}^{2}bN\left(\overrightarrow{r}\right),$$

(3)

where a₀ = 0.0529 nm is the Bohr radius, r_i are the scatterer locations, and ψ is the electron wave function. This effect is easily observed in Rydberg atoms immersed in a rarified gaseous atmosphere (see Figure 1), when a frequency of electron transition from the ground state into a highly excited Rydberg state is measured [30]. While there are virtually no gas molecules inside the ground state, the highly excited Rydberg state contains many molecular scatterers, so that a spectroscopic shift Δν = V/h is observed in agreement with Equation (3). A conceptually similar effect was also observed in THz-range spectroscopic experiments on two-dimensional electronic states above the surfaces of such cryodielectrics as liquid and solid hydrogen, deuterium, and neon (see [31] and references therein). Depending on the atomic or molecular species, the electron scattering length may be either positive or negative. For example, the scattering lengths of helium (b = +1.2a₀) and neon (b = +0.25a₀) are positive [32], while the scattering lengths of argon (b = −1.4a₀), krypton (b = −3.1a₀) [33], and molecular hydrogen (b = −2.6a₀) [31] are negative. Moreover, as experimentally observed in [31], the quantum refraction effect appears to be additive: the simultaneous addition of hydrogen and helium into the system resulted in counteracting opposite spectroscopic shifts.

These experimental observations suggests that Fermi’s quantum refraction may act as an ideal tool of nanometre-scale quantum electronic metamaterial design. For example, in a semiconductor setting, a spatially engineered n(r) profile of various dopant species may be used to engineer and tune the effective potential V(r) experienced by a Rydberg exciton state. In principle, almost any desired V(r) shape may potentially be engineered this way. Compared to such widely used metamaterial engineering techniques as metal–dielectric mixing [28], quantum refraction engineering would have much higher spatial resolution, which may easily reach a few nanometres in scale.

3. Results

3.1. Engineering a Universal Quantum Dot Using Fermi’s Quantum Refraction

Let us consider an example of exciton Rydberg state engineering in more detail. This consideration will illustrate the power and usefulness of the proposed new metamaterial design tool in the terahertz frequency range.

Exciton Rydberg states in semiconductors are a well-known and currently very active field of research; see, for example, a very recent work by He et al. [34]. These states are useful (e.g., in quantum computing) because of their very long lifetimes at low temperatures. At large radial quantum numbers n, the Rydberg state spectrum follows hydrogen-atom-like behaviour:

$$E_n={\displaystyle \frac{Ry*}{{\left(n-{\delta }_l\right)}^2}},$$

(4)

where Ry* is the effective Rydberg constant (which depends on the average dielectric surroundings) and d_l is the small quantum correction or “defect”, which typically depends on the angular number l. As described above, such Rydberg systems appear to be ideal for Fermi’s quantum refraction observations and the spectroscopic tuning of energy levels. As illustrated in Figure 1, such a Rydberg state may be imagined as a negatively charged electron orbiting a distant positively charged hole. The velocity of such orbital motion in the large n limit may be obtained classically as follows:

$${\displaystyle \frac{m{v}^2}{r}}={\displaystyle \frac{e^2}{\epsilon r^2}},$$

(5)

where ε describes the dielectric background, resulting in the following equation.

$$v^2={\displaystyle \frac{e^2}{m\epsilon r}},$$

(6)

The presence of dielectric background in the latter equations indicates that, in principle, the energy levels of Rydberg states may be tuned by metamaterial means, and such tuning would indeed be very useful. However, the spatial scale of such metamaterial engineering would need to fall into the nanometre range, and this should be performed at low frequencies if the conventional electromagnetic metamaterial approach is used. Such a task is not practically possible at present.

On the other hand, this task appears to be quite feasible using the Fermi’s quantum refraction approach. Let us take our ques from nature and engineer the “electron rotation curve” (given by Equation (6)) to emulate the flattened rotation curves of distant stars in typical spiral galaxies [35], thus emulating the modified Newtonian dynamics (MOND) [36] in an atomic/exitonic setting. The benefits of such a choice will be clear from the discussion that follows. Continuing the simplified classical consideration in Equations (5) and (6), it is clear that the “flattening” (v ≈ const) of the electron rotation curve would require engineering the centripetal force of falling as 1/r, resulting in logarithmic potential energy V(r) at large distances from the hole:

$$V(r)=\beta Ln\left({\displaystyle \frac{r}{r_0}}\right),$$

(7)

where β and r₀ are the constants setting the energy and distance scale. Since, at large distances, this logarithmic potential will dominate the original Coulomb contribution, the quantum refraction prescription for necessary N(r) results from combining Equations (3) and (7).

$$N(r)={\displaystyle \frac{\beta }{a_0{e}^{2}b}}Ln\left({\displaystyle \frac{r}{r_0}}\right),$$

(8)

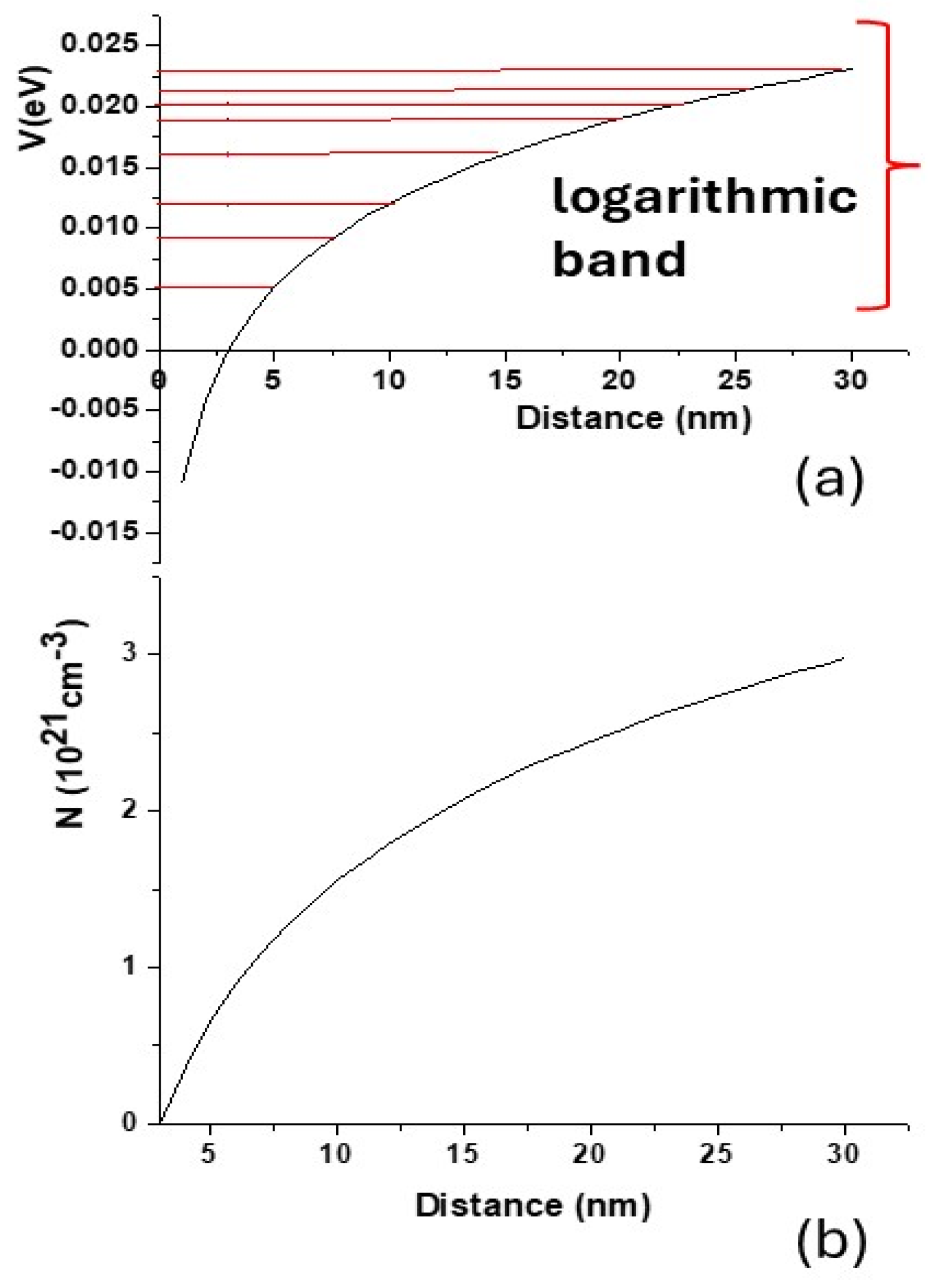

If (similar to galaxies) the flattened rotation curve regime sets in at large orbital distances, the energy scale β will be low enough for N^−1/3 to satisfy the condition in Equation (2). An example of the logarithmic quantum refraction potential and the corresponding radial distribution of scatterer concentration in the case of helium atoms is presented in Figure 2. In this particular case, the parameter values of r₀ = 3 nm and β = 0.01 eV have been assumed. This numerical example indicates that Equation (2)’s inequality may indeed to be satisfied with the reasonable choice of metamaterial design parameters. Thus, the only challenge to this approach is the engineering of controlled N(r), which is definitely possible in thin semiconductor samples. For example, it may be achieved by such well-developed techniques as spatially controlled ion implantation.

As far as the potential benefits of such engineered logarithmic V(r) profiles are concerned, let us recall the basic properties of the logarithmic potential well. Solutions of Schrodinger’s equation for such a potential well are extensively discussed in the literature (see for example ref. [37]). For the large radial n_r and angular n_θ quantum numbers, the energy levels of the logarithmic quantum well may be approximated as follows:

$$E_n=\beta Ln(\sqrt{2\pi }{n}_r), \mathrm{at} n_{\theta }=0, \mathrm{and}$$

(9)

$$E_n=\beta \left({\displaystyle \frac{1}{2}}+Ln\left(n_{\theta }\right)\right) \mathrm{at} n_r=0,$$

(10)

respectively. These levels are indicated in Figure 2a by red lines. An important advantage of such energy-level spectra compared to the Rydberg-like spectrum given by Equation (4) is that such an engineered “universal” quantum dot would resonate at pretty much any terahertz range frequency withing a very broad logarithmic band. Thus, universal terahertz quantum dots may be created, which would be extremely useful in many light-emitting and -sensing applications [38], such as THz quantum-dot-based cameras and polarimeters. They can also be used to enable THz detectors for 6G technology. The only potential complication is that the scattering length values of various atoms and molecules obtained in free space may not necessarily match the values to be observed in semiconductors, and these values may need to be determined again in the corresponding relevant environments.

In addition, such an analogue MOND system may enable interesting toy models of non-trivial astrophysical effects. For example, if the quantum state of gas molecules in Figure 1 is periodically modulated with external light, such non-trivial effects as the dynamical and gravitational instability of oscillating-field dark matter [39] and oscillating cosmological force acting on a distant star gravitationally bound to a spiral galaxy [40] may be emulated, thus expanding the recently introduced metamaterial multiverse [41] concept.

3.2. Application of Quantum Refraction to Metamaterial Superconductors

Engineering metamaterial superconductors is another potentially very important application of Fermi’s quantum refraction effect. The connection between the fields of metamaterial research and superconductivity stems from the fact that the superconducting properties of a material, such as electron–electron pairing interaction, the superconducting critical temperature Tc, and the superconducting energy gap Δ, which typically falls into the THz range, etc., are defined by the effective dielectric response function ε_eff(q,ω) of the material [42]. Indeed, the electron–electron interaction in a superconductor may be expressed in the form of an effective Coulomb potential:

$$V\left(\overrightarrow{q},\omega \right)={\displaystyle \frac{4\pi e^2}{q^2{\epsilon }_{eff}\left(\overrightarrow{q},\omega \right)}}=V_C{\displaystyle \frac{1}{{\epsilon }_{eff}\left(\overrightarrow{q},\omega \right)}},$$

(11)

where V_C is the Fourier-transformed Coulomb potential in a vacuum and ε_eff(q,ω) is the linear dielectric response function of the superconductor treated as an effective medium. Therefore, considerable enhancement of attractive electron–electron interaction may be expected in such actively studied metamaterial scenarios as epsilon near zero (ENZ) [43] and hyperbolic metamaterials [44] since, in both cases, ε_eff(q,ω) may become small and negative in substantial portions or the four-momentum (q,ω) space. Such an effective dielectric response-based macroscopic electrodynamics description is valid if the metamaterial may be considered as a homogeneous medium on the spatial scales below the superconducting coherence length.

Unfortunately, the latter requirement places quite stringent limitations on the Tc increase, which may result from metamaterial engineering. While tuning the dielectric response of aluminium-based metamaterial superconductors on the sub-micrometre scale was spectacularly successful in both ENZ [28] and hyperbolic metamaterial [45] scenarios, leading to the tripling of the superconducting critical temperature Tc of aluminium, the metamaterial structuring was relatively easy to implement, in that case, because of the very large micrometre scale size of Cooper pairs in aluminium. For example, the ENZ scenario was implemented by the simple mixing of nanometre-scale metallic and dielectric constituents of the metamaterial [28]. Unfortunately, such a simple recipe cannot be applied to higher Tc superconductors, in which the coherence length ξ (the size of the Cooper pair) typically equals only several nanometres. Based on the discussion in Section 2 and Section 3.1 above, the Fermi’s quantum refraction effect may salvage the metamaterial superconductor approach in higher Tc superconductors.

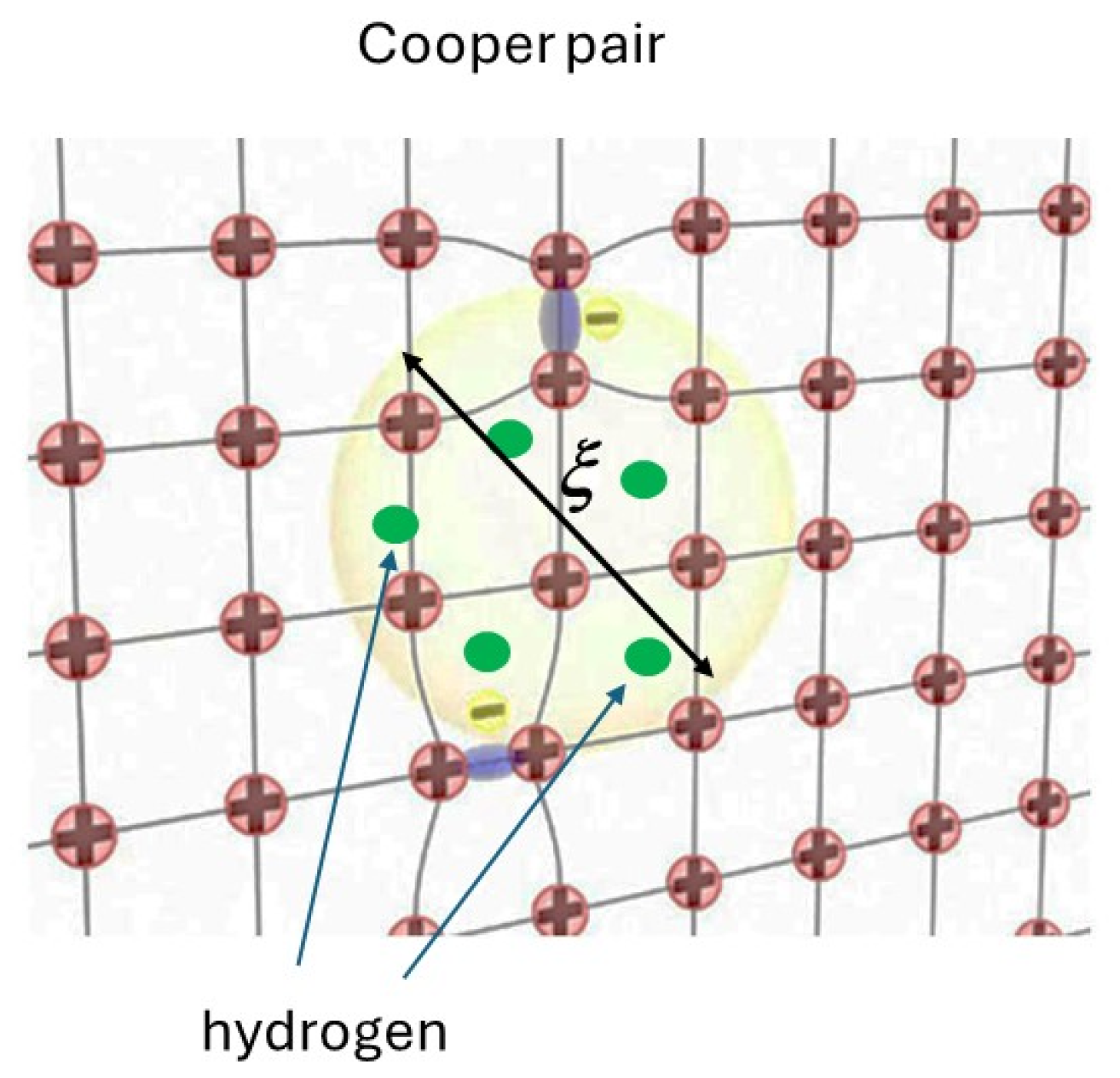

Let us assume that the volume of superconductor is implanted with an atomic or molecular species (say hydrogen), which has a negative scattering length β, as illustrated in Figure 3. If the Cooper pair size ξ satisfies Equation (2):

$$b<<N^{-1/3}<<\xi ,$$

(12)

where N^−1/3 is the mean distance between the implanted atoms, the Fermi’s quantum refraction approximation (see Equation (3)) should remain valid, and the Cooper pair will acquire an energy shift:

$$\Delta E=a_0{e}^{2}bN,$$

(13)

leading to the increased coupling of electrons in the pair and, hence, increased Tc. While conceptually similar to such a popular metamaterial technique as positive–negative ε mixing, the described metamaterial engineering technique based on Fermi’s quantum refraction should be capable of reaching a much higher spatial resolution, all the way down to the atomic scale. In fact, it may also be productive to re-examine whether Fermi’s quantum refraction may play some role in known high Tc superconductors.

We should also remark that the implementation of quantum refraction effects should be especially straightforward in the case of two-dimensional superconductivity, which is observed on the surfaces of AuSn₄ [46] and BiIn₂ [47] semimetals. In the case of 2D metamaterial superconductors, the desired atomic or molecular species may be homogeneously deposited directly onto the superconducting surface. Thus, unlike the potential 3D implementations of impurity-modulated quantum refraction, which may present challenges related to the need of precise spatially controlled 3D implantation, 2D implementations of quantum refraction look straightforward.

4. Discussion and Conclusions

To summarize, in this paper, we have proposed the use of Fermi’s quantum refraction effect, which was previously observed in the spectroscopy of Rydberg atoms and two-dimensional surface electronic states, as a novel tool in quantum electronic metamaterial design and engineering. In particular, we demonstrated several potential applications of this concept in metamaterial superconductors and “universal quantum dots” designed for operation in the mid and long infrared ranges. Because of experimentally observed additive properties of quantum refraction [31], this effect appears to be an ideal tool to engineer any desired spatial shape of a potential well on the single nanometre scale. This makes electronic metamaterials an ideal tool for engineering light–matter interaction in semiconductors and superconductors in the terahertz frequency range.

In particular, in the case of two-dimensional surface superconductivity, the engineering of a superconducting gap (which falls into the THz frequency range) would look very similar to the effects of quantum refraction observed in the previous THz spectroscopic experiments [31]. Our proposal supplements other recent important advances in the field of electronic metamaterials [48,49,50,51,52,53]. It may bring about accelerated progress in the area of THz quantum-dot-based cameras and polarimeters, and enable improved THz detectors for 6G technology.

The advantages and novelty of Fermi’s quantum refraction effect compared to some other techniques used in electronic metamaterial engineering are summarized in the

Table 1. Comparative table of various approaches to engineering of electronic metamaterials.

Metamaterial Approach	Spatial Resolution	Tunability
Quantum refraction	Atomic resolution	Additive [31]
Engineered effective mass [24]	Nanometre scale	Non-additive
van der Waals heterostructures [27]	Nanometre scale	Non-additive

below.

This Table 1 clearly demonstrates the novel advantages of quantum refraction in terms of achievable spatial resolution (down to the atomic scale) and the ease of metamaterial tunability; the observed tuning of electronic energy levels due to Fermi’s quantum refraction is additive [31], which greatly facilitates metamaterial engineering. The previously developed metamaterial techniques, such as the engineering of effective electron mass in various multilayer structures [24,27], are limited by the electron’s de Broglie wavelength in heterostructures, which is typically considerably larger than the atomic scale.
