Survey of Millimeter-Wave Propagation Measurements and Models in Indoor Environments

Abstract

The millimeter-wave (mmWave) is expected to deliver a huge bandwidth to address the future demands for higher data rate transmissions. However, one of the major challenges in the mmWave band is the increase in signal loss as the operating frequency increases. This has attracted several research interests both from academia and the industry for indoor and outdoor mmWave operations. This paper focuses on the works that have been carried out in the study of the mmWave channel measurement in indoor environments. A survey of the measurement techniques, prominent path loss models, analysis of path loss and delay spread for mmWave in different indoor environments is presented. This covers the mmWave frequencies from 28 GHz to 100 GHz that have been considered in the last two decades. In addition, the possible future trends for the mmWave indoor propagation studies and measurements have been discussed. These include the critical indoor environment, the roles of artificial intelligence, channel characterization for indoor devices, reconfigurable intelligent surfaces, and mmWave for 6G systems. This survey can help engineers and researchers to plan, design, and optimize reliable 5G wireless indoor networks. It will also motivate the researchers and engineering communities towards finding a better outcome in the future trends of the mmWave indoor wireless network for 6G systems and beyond.

1. Introduction

Wireless networks in an indoor environment are omnipresent, and their importance can not be underestimated in our daily lives. Radio propagation study in wireless networks in realistic indoor environments leads us to build high-density networks with large capacities. The frequency bands in the millimeter-wave (mmWave) spectrum (30–300 GHz) have gained increasing attention and now appear to be the most likely candidates to host the upcoming wireless multi-gigabit applications for 5G wireless networks and beyond. In this regard, the frequency range between 24.25 and 86 GHz for the future development of International Mobile Telecommunications for 2020 and beyond has been proposed during the 2015 World Radio Communication Conference [1].

The radio channel propagation can be affected by small scattering objects due to the short wavelength of the utilized frequencies in the mmWave band. An indoor environment represents the rich sources of scattering objects for radio channel propagation. There are many structural issues influencing the indoor radio channel propagation, such as construction materials, building (size, rooms, corridors), number of people moving within the room, a form of furniture and location and interaction with other systems. All of these obstacles force the signal to propagate across multiple paths through reflections, refraction and diffraction phenomena. Researchers and engineers have considered this problem since the 1990s and developed myriad systems to provide channel models using path loss (PL), and wideband parameters, i.e., resolved paths and delay resolution in many different environments and frequencies.

The radio channel model can be classified into analytical models and physical models [2]. The analytic channel model is defined based on the mathematical analysis of the channel. Analytical models characterize the communication channel mathematically and can be derived from physical models such as the correlation-based Kronecker [3,4] and Weichselberger [5] channel models as well as the propagation-based finite scatterer [6], maximum entropy [7] and virtual channel representation [8] models, which are best used for algorithm development and system analysis.

The physical channel models are constructed based on the double directional radio channel between the transmitter (Tx) and Receiver (Rx) based on electromagnet wave propagation. The physical channel models can be classified into deterministic, stochastic and geometry-based stochastic. Deterministic channel models characterize the radio wave propagation in a certain physical environment based on assumptions of the propagation mechanisms. These models require a detailed geometry of the environment as well as electromagnetic parameters of the materials. The radio wave propagation is calculated by using ray-based methods or by solving Maxwell’s equations [9] with full-wave methods such as the method of moments [10] or the finite difference time domain method [11]. The full-wave methods have high accuracy but they are computationally very demanding. In ray-based methods, rays are launched covering the full sphere (3D) or circle (2D) around the Tx and traced until they reach the Rx, as proposed, e.g., in [12]. Stochastic models, on the other hand, aim to describe the behaviour of the propagation channels statistically without assuming the geometry of the environment. In stochastic modeling, the parameters of the radio channel are defined by probability distribution functions, which can be tuned based on channel measurements or deterministic modeling. An example of stochastic models is the Saleh–Valenzuela model [13], which assumes that radio waves arrive to the Rx in concentrated groups of multipath components, called clusters. In geometry-based stochastic channel modeling (GSCM) the propagation channel from the Tx to the Rx is characterized deterministically but the locations and properties of the scatterer objects are chosen in a stochastic way. This approach has gained a lot of attention at lower microwave frequencies and several reference models, such as COST273 and WINNER [14], are based on GSCM. More details for physical radio channel models are found in [15]. Recently, map-based mmWave channel models proposed such as a 3-D statistical model for 5G wireless systems [16] and a backscattering channel model (Map-based) for personal radar applications [17]. More details for map-based mmWave channel models can be found in [18].

Surveys on mmWave have been identified in the literature [15,19,20,21,22,23,24,25,26,27,28]. These surveys have discussed some of the key areas that border on propagation characteristics, channel models, applications, mmWave technologies, design considerations such as environments, scenarios, and operating frequency. While some of these works have discussed measurement campaigns related to mmWave, there is still a lack of a comprehensive survey of mmWave channel measurements in indoor environments. For instance, the authors in [24,28] have presented the measurement techniques and the channel models for indoor environments. There is a need for an up to date review of existing works and future directions for the mmWave communication for indoor environments.

In this work, we provide an overview of the radio propagation study at mmWave in indoor environments. Firstly, we reviewed several types of channel measurement techniques in light of the different bandwidths of the probing signal. Secondly, we have identified the mmWave frequencies that have been used over the last two decades in indoor environments. Third, we present the path loss model for indoor environments at mmWave bands. Fourth, the mmWave measurements result from different studies in indoor environments are discussed. Finally, the future trends and research directions are discussed.

2. Measurement Techniques

The most direct method of studying radio wave propagation is by channel measurements, which will achieve statistical models that verify the propagation theoretical models. Different measurement techniques with various experimental setups have been used to study the different aspects of the radio frequency (RF) channels. In general, they can be classified as narrowband (NB) and wideband (WB) techniques based on the relationship between the probing signal bandwidth and the channel coherent bandwidth.

2.1. NB Measurement

NB measurement techniques are used to measure the path loss, narrowband fading, small-scale fading characteristics and Doppler spread. The simplicity of this technique is the main advantage of NB measurements. In narrowband techniques, a continuous wave (CW) is transmitted and the received power is measured over space or time. The basic block diagram of NB measurement is shown in Figure 1. The main drawback of the NB measurement technique is that the received signal represents only the envelope of the vector summation of the multipath components (MPCs); no quantitative multipath information is available. Hence, if the bandwidth of the signal is high, the WB measurement technique should be used to estimate the time dispersion parameters of the channel.

2.2. WB Measurement

The wideband channel sounders are used to resolve each MPC and provide the time dispersion parameters. To extract the time dispersion parameters for the wideband channel, the channel sounding measurements is applied. The wideband channel sounders are either frequency domain (WBFD) or time domain (WBTD), where the Fourier transform is used to convert between frequency and time domain.

In the frequency domain, the channel transfer function is measured using a vector network analyzer (VNA), where the complex frequency response of the channel is measured by the S${}_{21}$ parameter. The block diagram for a VNA channel sounder-based system is shown in Figure 2. Using the VNA system, the channel is measured at different frequency tones along with the bandwidth of the system, by using stepped frequency sweeping. Hence, the large bandwidth results in the slower measurement of the channel. So, the VNA system can not be used to measure a time-variant channel, implying that it can be used only for slow varying channels [24,29].

The time-domain measurement provides a more direct characterization approach. These measurement techniques use a pulse generator to transmit short pulses of the order of nano-seconds representing the large bandwidth of wideband channels, while a digital sampling oscilloscope is used to record the received signal [30,31,32]. This measurement technique is fast and suitable for rapid channel variations, however, it is a challenge to generate short pulses with adequate power to achieve good-quality received signals.

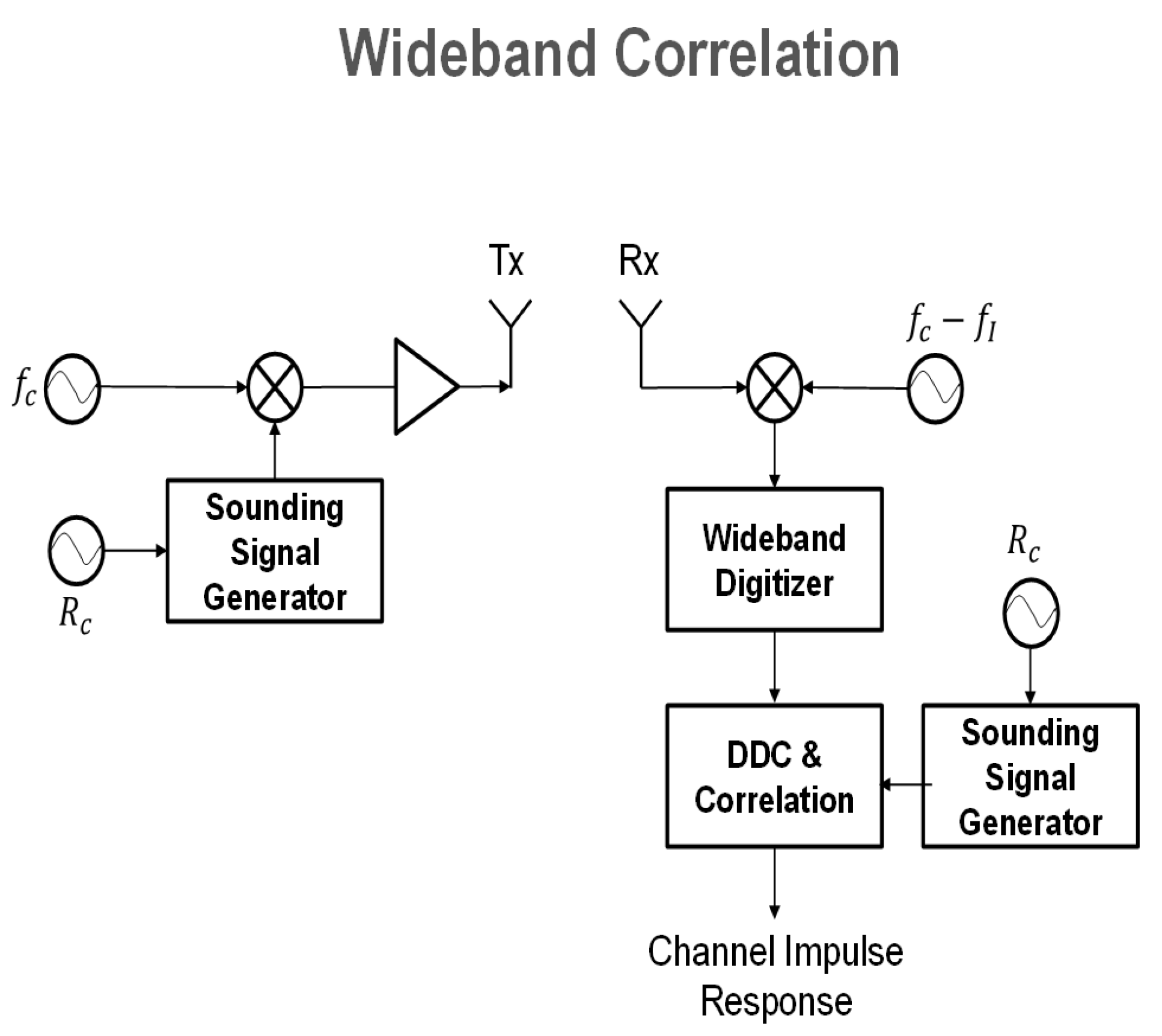

A more prominent measurement technique in the time domain approach uses correlation channel sounders (CS) [24,29]. In this method, a sequence of pulses such as a pseudo noise (PN) sequence is sent by the Tx, while in the Rx part the cross correlation between the transmitted and received signals is used to extract the channel. Since the Tx and the Rx are separated in the time domain approach, it can be used for long distance, although with a synchronization challenge. The correlation channel sounder approach is based on the assumption that the clock rate of the pulses sequence is the same at the Tx and Rx for real-time correlation processing. The wideband correlation channel sounder diagram is shown in Figure 3. It supports the fast measurement speed, which needs more expensive wideband digitizer. To use low cost narrowband digitizer with sacrifice in the measurement speed, the sliding correlation channel sounder (SCS) has been widely used, which approximates a true correlator receiver by multiplying the received signal with a “slow” copy of the transmitted signal and then filtering the product [33,34]. The block diagram of the SCS is shown in Figure 4. Although the hardware connection between the Tx and Rx is not required by the SCS measurement technique, the separation PN generators at the Tx and Rx require different references from the frequency oscillators. Moreover, the dynamic range of the measurement is restricted by the clock rate of PN sequence differences.

3. Mmwave Indoor Channel Characteristics

In this section, we address indoor channel characteristics of mmWave based on path loss and time dispersion.

3.1. Path Loss Models

The path loss represents the fundamental quantities characterizing the wireless propagation channel and influencing the performance of any communication system. It is used to characterize the wireless channels in terms of power decay with Tx-Rx separation distance. Extensive studies have been done to investigate the indoor channel models for mmWave in terms of path loss. Different path loss models have been proposed and investigated for the indoor channels at different mmWave bands, including the close-in free space reference distance (CI) model as well as the 3GPP and WINNER floating intercept (FI) model. The path loss model estimates the amount of degradation on the propagated signals along the propagation path with a certain distance for line-of-sight (LOS) and non-LOS (NLOS) channels. The reflection, refraction, diffraction, and scattering are considered in path loss evaluation. The CI path loss model is expressed as [35]:

$${PL}^{CI}\left(f,d\right)\left[dB\right]=PL(f,d_0)+10n{log}_{10}\left({}^d/{}_{d_0}\right)+X_{\sigma },$$

(1)

where $PL\left(f,d\right)$ is the path loss at different frequencies with various Tx-Rx separation distance (d in meters), $PL(f,d_0)$ is the path loss at close-in reference distance $d_0$ in dB, n denotes the distance dependency of path loss and called path loss exponent (PLE), and $X_{\sigma }$ is a zero-mean Gaussian distributed random variable with a standard deviation $\sigma$ dB (shadowing effects). The FI path loss model is defined as [35]:

$${PL}^{FI}\left(d\right)\left[dB\right]=\alpha +10.\beta {log}_{10}\left(d\right)+{X_{\sigma }}^{FI},$$

(2)

where $\alpha$ and $\beta$ are the floating-intercept in dB and the slope of the line, respectively. The shadow fading is represented by zero mean Gaussian random variable ${X_{\sigma }}^{FI}$ dB with standard deviation of $\sigma$ dB.

Another popular model is the ABG path loss model, which is well-used to investigate frequency dependency of path loss besides distance dependency in FI model. Recently, the ABG model is widely used in mmWave band for 5G system and it is defined as [36]:

$$\begin{array}{ll}{PL}^{ABG}\left(f,d\right)\left[dB\right]=& 10\alpha {log}_{10}\left(d\right)+\beta \\ & +10\gamma log10(f/1\mathrm{GHz})+{X_{\sigma }}^{ABG},\end{array}$$

(3)

where $\alpha$ is the distance dependence factor on path loss, $\beta$ is an optimized offset, $\gamma$ is the frequency dependence factor and ${X_{\sigma }}^{ABG}$ is the shadow fading term. The close-in free space reference distance model with frequency-dependent PLE (CIF) is recently proposed to model the propagation loss for indoor channels in the mmWave for the 5G system. It is presented as [37]:

$$\begin{array}{ll}P{L}^{CIF}=& PL(f,d_0)+10n\left(1+b\left(\frac{f-f_0}{f_0}\right)\right){log}_{10}\left({}^d/{}_{d_0}\right)\\ & +X_{\sigma },\end{array}$$

(4)

where n denotes PLE, and b is an optimization parameter that captures the slope, or linear frequency dependency of the PLE that balances at the centroid of the frequencies being modeled. The term $f_0$ is a fixed reference frequency, the centroid of all frequencies represented by the path loss model, found as the weighted sum of measurements from different frequencies, using the following equation:

$$f_0=\frac{{\sum }_{k=1}^K{f}_k{N}_K}{{\sum }_{k=1}^K{N}_K},$$

(5)

where K is the number of unique frequencies, and $N_k$ is the number of path loss data points correspondings to the kth frequency $f_k$. The input parameter $f_0$ represents the weighted frequencies of all measurement (or Ray-tracing) data applied to the model. For large indoor distances (greater than 50 m), the breakpoint at a specific distance ($d_{Bp}$) was used and the dual-slope ABG and CIF models were considered [38].

3.2. Time Dispersion Parameters

The root mean square delay spread (RMSDS) is used to characterize the time dispersion properties of the wideband channel. It is an indicator of the possible extent of inter-symbol interference according to the bandwidth of the signal [39]. It is defined as the second central moment of the power delay profile (PDP) [40]:

$${\tau }_{rmsds}=\sqrt{\overline{{\tau }^2}-{\left(\overline{\tau }\right)}^2},$$

(6)

where,

$$\overline{\tau }=\frac{{\sum }_{l}P\left({\tau }_l\right){\tau }_l}{{\sum }_{l}P\left({\tau }_l\right)},$$

(7)

$$\overline{{\tau }^2}=\frac{{\sum }_{l}P\left({\tau }_l\right){\tau }_l^2}{{\sum }_{l}P\left({\tau }_l\right)},$$

(8)

The (7) and (8) represent the first moment (mean excess delay) and second moment of the PDP, respectively. The $P\left({\tau }_l\right)$ is the received power at lth multipath.

4. Review of mmWave Indoor Measurements

In this section, a review of published work on the mmWave frequencies that have been used in different indoor environments is discussed.

The 30–300 GHz spectrum is assigned to the extremely high frequency (EHF) or mmWave band, however, the industry often uses the term mmWave to define frequencies between 10 GHz and 300 GHz [41]. Here, we will include the 28 GHz in mmWave band as it is near the EHF spectrum and it has been used for many studies in indoor environments. The 28 GHz was used for indoor environments recently (since 2013) for 5G wireless networks. Many researchers have investigated radio propagation at mmWave band for different scenarios in various indoor environments in both LOS and NLOS scenarios.

The measurements were conducted at different frequencies from 28 GHz to 100 GHz. Different antennas with different gains and half-power beamwidths (HPBWs) in azimuth (Az) or elevation (Ev) plane were used. Some of those antennas are directional such as horn antennas or omnidirectional (Omni) such as biconical and open-ended waveguide (OEW) antennas.

Table 1. MmWave channel measurement in indoor offices.

Source	Scenarios LOS, NLOS	Region	Meas. Type	Frq. (GHz) /$\frac{1}{\mathit{B}}$ (ns)	Antenna Type /Gain (dBi)	AzHPBW (°) /EvHPBW (°)	Distance (m)	Channel Statistics
[37]	Both	USA	WBTD	28/2.5	Horn/20	15/15	4–46	PL, PDP, RMSDS
[42]	Both	China	WBTD	28/2	Horn/-	10/-	-	RMSDS, AOA, AS
[43]	Both	South Korea	WBTD	28/4	Horn/24.5	10/10	10–40	PL,AS, RMSDS
[44]	Both	China	WBTD	28/4	Omni	-	1–45	PL, RMSDS
[45]	Both	China	WBTD	28/-	Horn	2-	-	PL
[46]	Both	China	WBFD	28/1 and 0.5	Horn/19.2	20/18	<20	PL
[47]	Both	New Zealand	WBTD	28/1.7	Biconical, Sectored, Horn/2.4, 9.4, 25	360, 92.2, and 10	<50	PL, RMSDS, AS, K-factor
[48]	Both	-	WBFD	28/1	Omni, Horn/6, 25	10/10	-	PDP, AOA
[49]	LOS	China	WBTD	28/2	Omni, Horn/8, 25	-	1–30	PL, RMSDS
[50]	LOS	South Korea	WBTD	28/2	Horn/24.5	10	5–14	PL, AS, RMSDS
[51]	Both	Denmark	WBFD	26–30/0.25	horn/6, 19	20/20	5 -	PL, PAPD
[52]	LOS	USA	WBFD	26.5–40/0.07	Horn/10	-/55	0.2–1.8	PL
[53]	-	China	NB	28 and 31	Horn	-	-	Penetration loss
[54]	Both	South Korea	WBTD	28 and 38/2	Omni/5 and 6	-	6–54	PL
[55]	LOS	UK	WBTD	32 and 39 /0.5	Horn/10	54/54	4–20	PL, RMSD
[56]	LOS	Japan	NB	37.1	Horn, Omni/-	-/60	5–45	PL
[57]	Both	China	NB	45	Horn, OEW, VDA /23.7, 6, 2.5	12, 60, 120 /12, 60, 240	1–10	PL shadow fading
[29]	Both	Germany	WBTD	60/1, 0.2	Omni	-	0.5–10	PL, RMSDS
[58,59]	Both	USA	WBTD	60/2.5	Horn/25	50/50	3.5–24.7	PL, RMSDS
[60,61]	Both	Germany	WBTD	60, 70/0.25	Horn and Lens/ 20	15/15	-	AOD, RMSD, PDP
[62]	Both	Japan	WBFD	70/0.33	Horn, Omni/-/-	15,30,60/-	4–19	PL
[37,63,64]	Both	USA	WBTD	73.5/2.5	Horn/20	15/15	4–42	PL, PDP, RMSDS
[65,66]	LOS	Finland	WBFD	61–65, 69–74 /0.25, 0.2	Omni, Horn/5, 20	20/20	0.9–10.3	Scattering
[67]	Both	China	WBTD	60/0.5	Horn/25	10/10	2–6	AS, PDP, PAS
[68]	Both	Austria	WBFD	55–65/0.1	OEW/5	-	2.5–3	CIR
[69,70]	LOS	France	WBFD	60/0.5	Omni, Horn/ 2, 22.5	13/10	-	PL, CIR

,

Table 2. MmWave channel measurement in different rooms and halls.

Source	Scenarios LOS, NLOS	Region	Meas. Type	Frq. (GHz) /$\frac{1}{\mathit{B}}$ (ns)	Antenna Type /Gain (dBi)	AzHPBW (°) /EvHPBW (°)	Distance (m)	Channel Statistics
[71]	Dining room LOS	Malaysia	WBTD	28, 38/1	omni, horn /3, 19.2, 21.1	18.6, 14.5/-	1–10	PL, RMSDS
[72]	Rooms (NLOS)	USA, Chile	NB	28/-	Horn/10, 24	55, 10/-	<100	PL
[73]	Conference room Both	China	WBFD	28/-	Horn/20	17/14.6	1–10	PL
[74] [51]	Empty room Both	Denmark	WBFD	28–30/0.50 26–30/0.25	Biconical, horn/6, 19	20/20	5 -	PL, PAPD
[75]	Computer room Both	China	WBTD	30, 60 /0.45, 0.9	Horn/15, 20	35	28	PDP, RMSDS
[57]	Conference, living rooms (Both)	China	NB	45/-	Horn, OEW, VDA /23.7, 6, 2.5	12, 60, 120 /12, 60, 240	1–10	PL shadow fading
[76]	Classrooms (Both)	Malaysia	NB	40/-	Horn, Omni /21.34, 3	-	1–27	PL
[77]	Conference room LOS	China	WBTD	39/0.5	Horn, Omni	-	2–10	PL, RMSDS, K-factor
[78]	Conference room Both	China	WBFD	45/1.5	Horn/18.9, 23.7	11, 18.2	-	PDP, AOA
[79]	Rooms (Both)	USA	WB	60/10	OEW, horn/6.7, 29	90, 7	2.4–60	PL, RMSDS, PAP
[80]	Conference room LOS	Germany	WBTD	60/1	Omni/2	-/70	1–5	PL, RMSDS, PDP
[81,82]	Rooms (Both)	Russia	WBTD	60/1.3	Horn/16, 18	25, 20	< 3	Polarization
[83]	Computer room LOS	France LOS	WBFD	60/0.5	Polarized/12, 10	30/30	1–7	PL, Fading
[84]	Room (Both)	Netherlands	WBFD	60/0.5	Biconical/9/-	9	0.7–7	PL
[85]	Empty room LOS	USA	WBFD	60/2.5	bow-tie	-	-	RMSDS, fading
[86]	Conference room Both	Finland	WBFD	61–65/0.25	Biconical, OEW	-	-	AOD, AOA
[87]	Room (Both)	Netherlands	WBFD	58/0.5	Omni /-	-	0.5–14	PL, RMSDS
[88]	Rooms (Both)	Japan	WBFD	61–65/0.25	Bioconical, OEW/2, 7	-	1–5	PL, RMSDS
[89]	Conference room LOS	Germany	WBTD	60/0.33	Omni, OEW/2, 8	-	2–10	Human body shadowing effects
[69,70]	Meeting room LOS	France	WBFD	60/0.5	Omni, Horn/ 2, 22.5	13/10	-	PL, CIR
[90]	Rooms (Both)	UK	WBFD	57–64/1	Omni/6	-	-	PDP, RMSDS
[91,92]	Class rooms, hall (Both)	Denmark	WBFD	28/0.5	Bicone/4.8, 6	-	2.5–6.5	PL,AS, RMSDS
[93]	Halls (Both)	UAE	NB	28/-	Horn/15	-	1–60	PL

,

Table 3. MmWave channel measurement in indoor corridors/ hallways.

Source	Scenarios LOS, NLOS	Region	Meas. Type	Frq. (GHz) /$\frac{1}{\mathit{B}}$ (ns)	Antenna Type /Gain (dBi)	AzHPBW (°) /EvHPBW (°)	Distance (m)	Channel Statistics
[35,36,94]	Both	Malaysia	WBTD	28, 38/1	Omni, horn /3, 11.6, 15.2	37.6, 27.5 /44.8, 28.3	1–67	PL, AS, RMSDS
[72]	NLOS	USA, Chile	NB	28/-	Horn/10, 24	55, 10/-	<100	PL
[46]	Both	China	WBFD	28/1 and 0.5	Horn/19.2	20/18	<20	PL
[95]	Both	China	WBTD	28/1	Omni/5	-	3–20	PL, RMSDS, K-factor
[93]	LOS	UAE	NB	28/-	Horn/15	-	1–60	PL
[96,97]	LOS	USA	NB	30/-	Omni	-	1–6.5 8-13.5	PL
[98]	Both	USA	NB	31	Horn/10	54/54	1–67, 18–25	PL
[99]	Both	Germany	WBTD	30/-	Horn/-	30	10–80	PL, RMSDS, PDP
[76]	Both	Malaysia	NB	40/-	Horn, Omni /21.34, 3	-	1–27	PL
[100,101,102]	Both	Spain	WBFD	30, 39, and 40/0.026	Omni	-	0.5–13	PL, K-factor, RMSDS
[103]	Both	China	WBTD	41/0.5	Horn/24	7/7	1.35–70	PL, RMSDS
[104]	LOS	Greece	WBTD	60/8	Horn/21	36/11	-	RMSDS
[105]	LOS	Germany	WBTD	60/1	OEW, lens	6/120/-	-	PAP, PDP, K-factor, RMSDS
[90]	-	UK	WBFD	57–64/1	Omni, horn /6, 10,10	-,69, 55/6.5,-,-	-	PDP, RMSDS
[99,106]	Both	Germany	WBTD	60 and 74/-	Horn/20	30, 15	10–80	PL, RMSDS, PDP, AS
[107]	LOS	Spain	WBTD	39/7.1	Horn, Omin/20.9, 3.5	14, 26	5–50	PL
[79]	Both	USA	WB	60/10	OEW, horn/6.7, 29	90, 7	2.4–60	PL, RMSDS, PAP

,

Table 4. MmWave channel measurement in laboratories.

Source	Scenarios LOS, NLOS	Region	Meas.Type	Frq. (GHz) /$\frac{1}{\mathit{B}}$ (ns)	Antenna Type /Gain (dBi)	AzHPBW (°) /EvHPBW (°)	Distance (m)	Channel Statistics
[93]	Both	UAE	NB	28/-	Horn/15	-	1–60	PL
[96,97]	Both	USA	NB	30	Omni	-	1–6.5 8–13.5	PL
[108]	–	Hungary	NB	38	Horn	-	1–36	RSS
[100,101,102]	Both	Spain	WBFD	30, 39, and 40/0.026	Omni	-	0.5–13	PL, K-factor, RMSDS
[109]	–	China	NB	45	Horn/25	10	8.5	Diffraction
[110]	Both	France	WBTD	60/2	Horn, patch/22.4, 3	12, 60/10, 60	8.7–13.2	Human effects
[29]	Both	Germany	WBTD	60/1, 0.2	Omni	-	0.5–10	PL, RMSDS
[111]	Both	Greece	NB	60	Horn/21	36/11	0.5–15	PL, Fading statistics, people effect
[104]	Both	Greece	WBTD	60/8	Horn/21	36/11	-	RMSDS, excess delay

and

Table 5. MmWave channel measurement in indoor libraries and other indoor environments.

Source	Scenarios LOS, NLOS	Region	Meas. Type	Frq. (GHz) /$\frac{1}{\mathit{B}}$ (ns)	Antenna Type /Gain (dBi)	AzHPBW (°) /EvHPBW (°)	Distance (m)	Channel Statistics
[112]	Library (Both)	USA	WBTD	28/0.5	Horn/17	24/26	10–50	PADP, PL, RMSDS
[29]	Library (Both)	Germany	WBTD	60/1, 0.2	Omni	-	0.5–10	PL, RMSDS
[77]	Lobby (LOS)	China	WBTD	39/0.5	Horn, Omni	-	2–10	PL, RMSDS, K-factor
[98]	Courtyard	USA	NB	31	Horn/10	54/54	1–67, 18–25	PL
[113]	Shopping mall (LOS)	China	WBTD	28/0.833	Horn/25	10/11	-	Human shadowing
[114]	Shopping mall (Both)	Finland	WBFD	28/0.25	Horn, bicone /19, 0	10/40, 60	<35	PL
[65,66]	Shopping mall railway station (LOS)	Finland	WBFD	61–65, 69–74 /0.25, 0.2	Omni, Horn/5, 20	20/20	0.9–10.3	Scattering
[93]	Tunnel (Both)	UAE	NB	28/-	Horn/15	-	1–60	PL
[115]	Indoor airport terminal (Both)	USA	NB	31	Horn/10	54/54	2–14	PL
[116,117]	Indoor airport terminal (Both)	South Korea	WBTD	2	Horn/10 and 24.4	/60 and 10	28–300	PL

give a comprehensive overview of published indoor mmWave channel measurement campaigns in the last two decades from different regions in the world. The tables describe the measurement scenario either LOS or NLOS or both LOS and NLOS, measurement region, the measurement technique types, center frequency, the delay resolution of wideband measurements that represented by inverse of radio frequency bandwidth (B), the antenna type, gain, and HPBW, the Tx-Rx separation distance, and the studied parameters. The reported indoor measurement campaigns in the literature were taken in the indoor office, corridor, hall, different type of rooms (conference, meeting, computer, class, living, dining, empty, and others), laboratory, shopping mall, library, tunnel, courtyard, lobby, railway station, and airport.

4.1. Indoor Office

The office environment is characterized by obstructions from different objects such as desks, chairs, cubicle partitions, doors, windows, and walls. Measurement set-ups are positioned at heights above ground levels (AGL) such as 1.80 m [45] and 1.48 m [46]. A review of the works in indoor offices environment at different frequencies are presented as follows.

Based on directional measurements at 28 GHz using horn antennas in indoor offices environments [37] the path loss (PL) results showed that the PLE values are 1.7 and 4.4 for LOS and NLOS scenarios, respectively. It was observed that when the polarization of the Tx and Rx antennas are different (cross-polarization) such as vertical-horizontal (V-H), the PLEs for the same particular scenario are 4.1 and 5.1 for LOS and NLOS scenarios, respectively. This implies that the received power significantly degrades when the polarization of the Rx antenna is different from the Tx antenna polarization. For the directional channel characteristics using horn antennas at Tx and Rx, the AzHPBW and EvHPBW of the antennas are crucial for power delay profile (PDP) and the PL statistics. Hence, to get the accurate channel statistics for such an environment using horn antennas that have high gains, the horn antennas are usually installed on a rotational platform to collect the signals from different directions. The Tx and Rx horn antennas should be rotated to different angles where the total received power obtained by summing the received powers at each steering direction [37] Large scale omnidirectional path loss models were developed based on this concept as presented in [37] for both LOS and NLOS scenarios. It was shown that the omnidirectional PLE values at 28 GHz are 1.1 and 2.7 for LOS and NLOS scenarios, respectively. This implies that the received power significantly improved for both scenarios when the rotation platform was used. The same results were reported in [46,50] the omnidirectional PLE values based on directional measurements with rotation platform are 1.6 and 2.1 for LOS and NLOS scenarios, respectively. Based on measurements using omnidirectional antennas at both Tx and Rx [54] it was found that the PLE values are 1.8 and 3.0 for LOS and NLOS scenarios, respectively. Some of the measurements used omnidirectional antenna in one side only either in Tx or Rx and used a horn antenna on the other side. In [49], it was found that the PLE for the LOS scenario at 28 GHz is 1.7 using omnidirectional antenna at Tx and horn antenna at Rx. The same observations for the effects of antenna types were found at 60 GHz band and 70 GHz band in different indoor office environments.

The RMSDS, Angle of arrival (AOA), Angle of departure (AOD) and angular spread (AS) were investigated in [42,43,47,50] at 28 GHz and in [60,61] at 60 and 70 GHz, based on WBTD measurements using horn antennas at both Tx and Rx sides. The channel impulse response (CIR), power angular profile (PAP), power angular spread (PAS), power angular and delay profile (PADP) and K-factor channel statistics were presented in different indoor office environments at various mmWave frequencies. Table 1 summarizes a comparison of mmWave channel measurements for indoor office environments.

4.2. Indoor Room, Hall, and Hallway/Corridor

The halls are characterized by large spaces and sometimes limited objects. The rooms are characterized by smaller spaces and more objects. Corridors are usually long passages in a building from which doors lead into rooms.

The study from [91,92] has shown that the size of the hall and position of the Tx and Rx can affect the delay spread and the angle spread. Higher values of delay spread were obtained in hall compared to the smaller environment like the classroom and office but with lower angle spread. Wei et al. [74] compared the spatial-temporal characteristics of 28–30 GHz to other frequencies 2–4, 14–16 GHz in LOS and obstructed-LOS scenarios in an empty room. The results show the 28–30 GHz has similar PADP with the 14–16 GHz, however, a richer multipath environment was obtained at 2–4 GHz due to diffuse scattering effects. Furthermore, few scatters were observed at 28–30 GHz in the empty room which indicated the lack of frequency dependency.

A comparative study of measurement versus ray tracing simulation using PAP was presented for large empty room and office scenarios [51]. The results of the empty room scenario from the measurements and simulations were in agreement and characterized by sparse delay and angle domains, with only a few dominant paths. In [75], a wideband measurement for indoor environment with tables, computers and enclosed with glass windows and a room was reported for 30 GHz. An RMSDS of 28 ns at 95% CDF value was obtained for dual polarized antennas with the Tx positioned at 2.35 m AGL and the Rx at 1.6 m AGL in a near LOS scenario. In [71], directional and omni-directional large-scale path loss models were investigated in a dining room for 28 GHz and compared with 38 GHz. It was observed that the location of the Rx and the density of the surrounding objects in room can affect the RMSDS and PL. Smaller RMSDSs were noticed in LOS boresight locations compared to gypsum board and glass window locations due to less obstruction and multipath effects. In [77], the study for large scale and small scale propagation characteristics for 39 GHz was carried out in a conference room and lobby. The results from the lobby indicated rich MPCs, greater values of RMSDS and RMS AS when compared to the 3GPP channel model. The summary of a comparison of mmWave channel measurements for indoor rooms and hall environments is given in Table 2.

The experimental results in [72] showed that the propagation link between the corridors and rooms was affected due to the penetration loss. For instance, a 12 dB loss was observed in the 28 GHz compared to the 2 GHz in the same corridor. In [35,36], the CI and FI path-loss models were investigated using the V-V and V-H antenna polarizations. The PLEs for the V-V and V-H configurations obtained for the corridors were less than 2. It was observed that the MPCs added up constructively due to the side walls along the corridor. A comparative study of 28 GHz and 3.5 GHz was conducted in [94] and the diffraction loss (DL) and frequency drop (FD) were investigated. It was observed that the DL for the 28 GHz was twice that of the 3.5 GHz. The Path loss and small-scale fading were investigated in [96] using directional antennas at 30 GHz in a LOS scenario on the corridor. The strength of the direct path signal was used to determine the coefficients K and m that best fit the Rician and Nakagami distribution models, respectively. A Good fit of the model was obtained from the computation of the measured data but the values K and m are affected by the distance between Tx and Rx. However, the Rician factor K was computed by trial-and-error, while the Nakagami factor m was directly computed from the measured data. The modified-CI model offered the same PLE as FI model with less computational complexity. In [103], the propagation characteristic in a confined corridor with a corner was investigated with highly directional antennas at 41 GHz. The result from the study showed that the angle of the corridor corner can result in power loss.

The study from [90] investigated the use of two types of combinations of antennas that is when Tx and Rx are both horn (horn-horn) antennas and when Tx is horn and the Rx is omnidirectional (horn-omni) antenna using a channel-sounding with swept-frequency method. Measurement campaigns were carried out in the corridor for 57 to 64 GHz frequency band. The result showed that limited AOA is observed in MPCs due to the guided nature of propagation in the corridor without much difference in the horn-horn and horn-omni antenna combination. Studies from [105] showed a relative lower values of RMSDS for measurement campaigns at 60 GHz in different corridors. The propagation effects and characteristic for 74 GHz in an entrance hall was reported in [106]. A comparison of mmWave channel measurements for indoor corridors and hallways environment is summarized in Table 3.

4.3. Indoor Laboratory

The laboratory environment is composed of workbenches, desks, equipment, tables and enclosed by walls and ceiling made of different materials, and windows. In [93], it was reported that the PLE is identical with free space path loss exponent (FSPLE) based on NB measurements at 28 GHz in indoor laboratory. In [96,97], statistical coefficient of Rician and Nakagami distribution functions for 30 GHz propagation channel using measurement results in a LOS showed that the value of the coefficient varies with the distance between the Tx and Rx, and a good fit was obtained for small scale fading characteristics. The measurement system was designed and developed in [108] for an indoor propagation map at 38 GHz which showed that propagation conditions were largely affected by reflection. A measurement campaign was presented in [100,102] for frequency between 1 and 40 GHz for LOS and NLOS. The RMSDS, PL and K-Factor for various ranges of frequency were presented in [100] while the reverberation time was shown to decrease with frequency in [102]. The diffraction due to blockage from cylindrical blocks with different materials and the human body at 45 GHz was presented in [109]. The signal attenuation by the human body was found to be smaller than the cylindrical block which indicated that the diffraction by the human body was better.

Multipath parameters for wideband 60 GHz channel were reported in [104]. The RMSDS values of 12 ns in LOS and 21 ns in NLOS scenario were observed and the channel also exhibited enhanced frequency selective characteristics. The temporal variation of the 60 GHz channel due to the presence of humans was reported in [110,111]. The propagation characteristic for 60 GHz for environment with and without the movement of people in a LOS and NLOS was presented [111]. The number of bodies, speed and the propagation environment resulted in a fluctuation of the received signal between fixed terminals. More studies on the effect of human activity from the number of people between zero and fifteen persons for a 60 GHz channel were reported in [110]. The results showed that direct part shadowing from the human body can result in attenuation of more than 20 dBm for some duration based on the number of people. Table 4 summarizes a comparison of mmWave channel measurements for indoor laboratory environments.

4.4. Other Indoor Scenarios

Rising interest to use the mmWave in different application scenarios led to indoor channel measurements in the indoor library, indoor lobby and courtyard, indoor shopping malls, indoor hospital, indoor tunnels, indoor airport terminal building, maintenance hangar, and hall in passenger terminals, and indoor railway station.

A Study in a shopping mall was conducted in [114] using a wideband directional channel measurement. A high correlation was observed in the multipath components of the 28 and 140 GHz. Propagation studies in large halls inside the airport from [116,117] reported PLEs in LOS close to that of free space curve (n = 2) where the Tx and Rx were positioned at 8 m and 1.5 m, respectively. Table 5 gives a comparison of mmWave channel measurements for indoor libraries and other indoor environments.

Some measurements were conducted at W-band (75–110 GHz) for a short distance in indoor environments. In [118,119], the measurements were conducted at W-band for a very short distance in an indoor environment to study the reflection from wood, polymer, and metal [119] and the channel variation based on PDP at 5–25 cm Tx-Rx separation distance with 5 cm step [118]. It was found that the PLE of W-band is almost identical with free space PLE.

5. Path Loss and RMSDS Results and Discussion

5.1. Path Loss Analysis

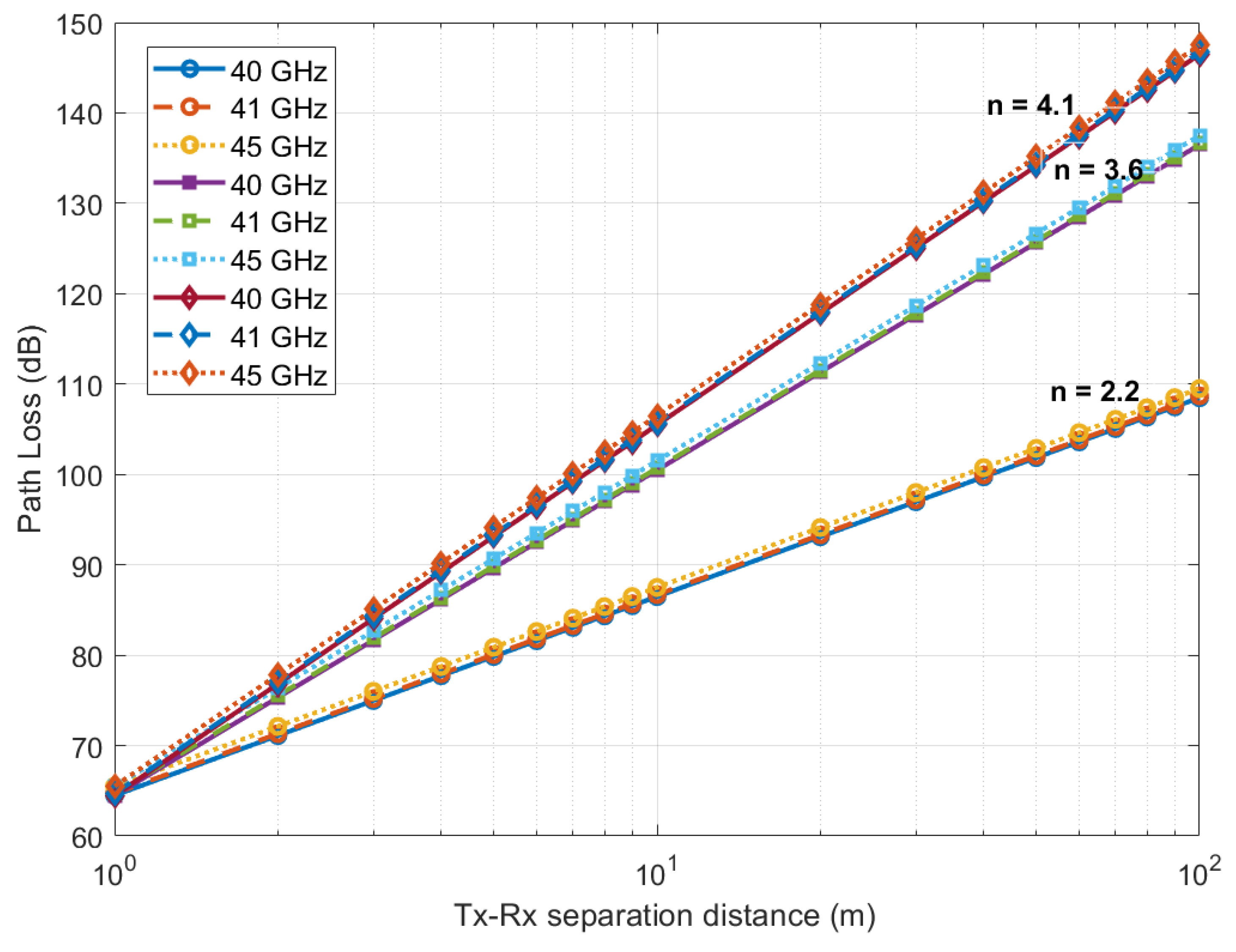

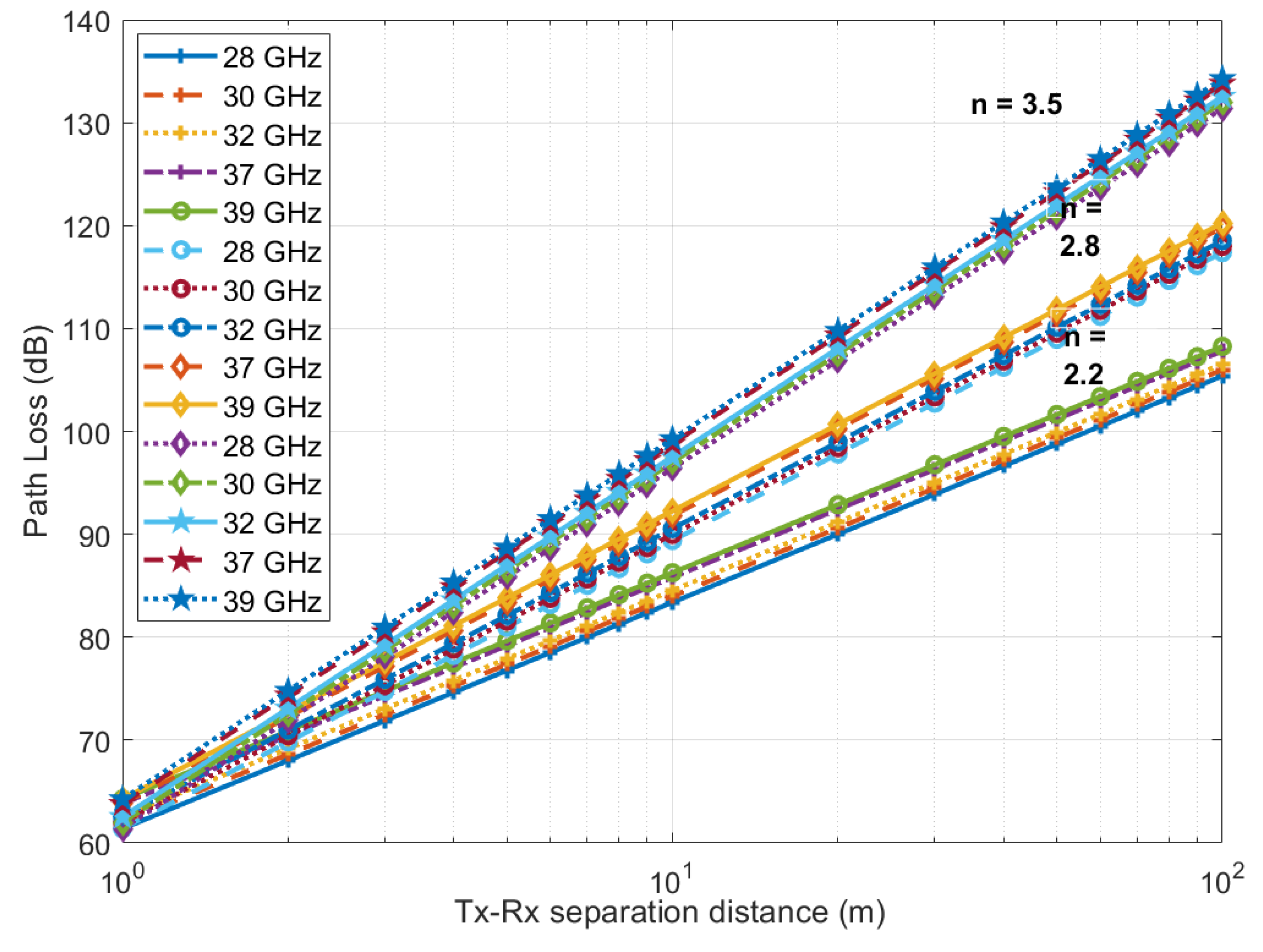

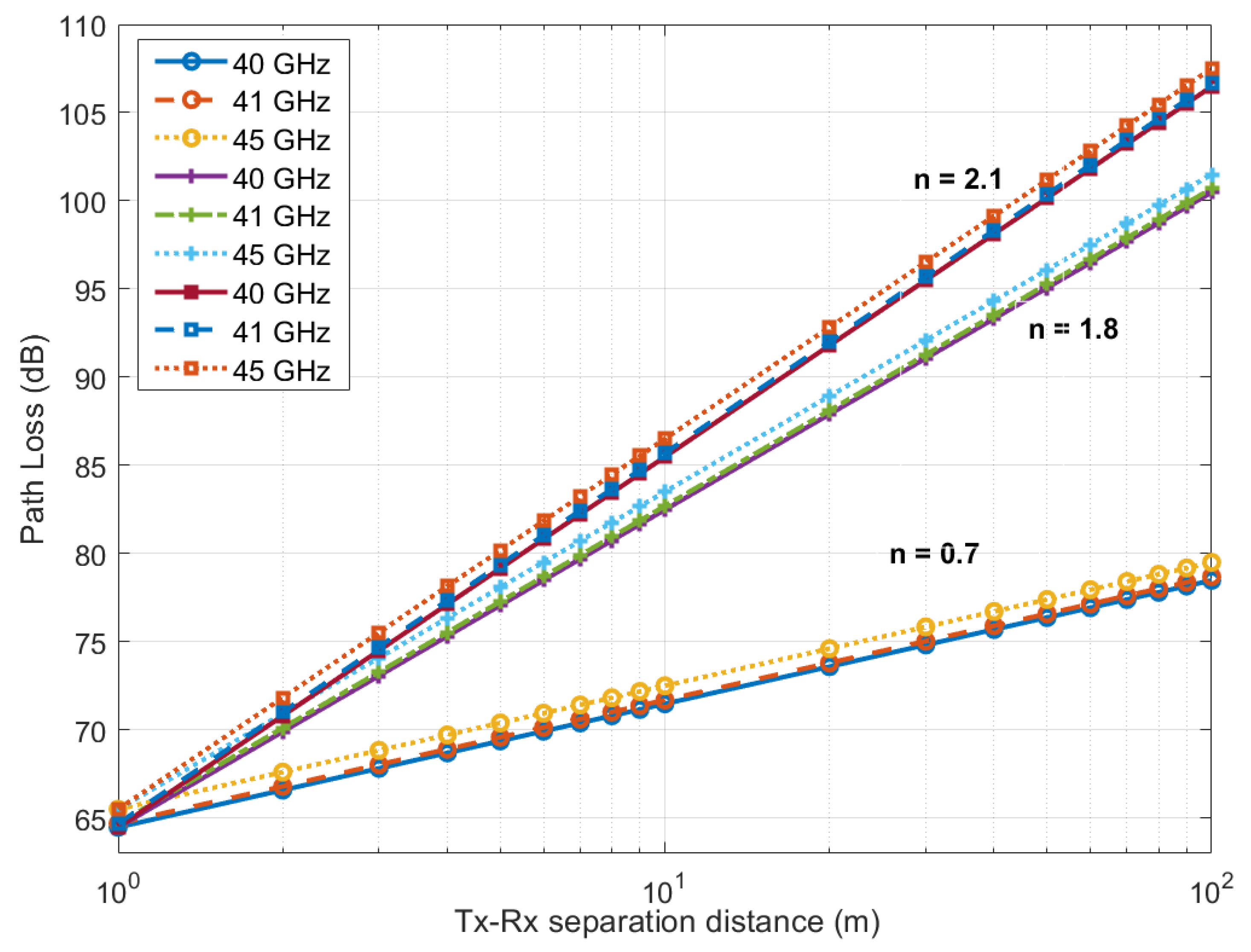

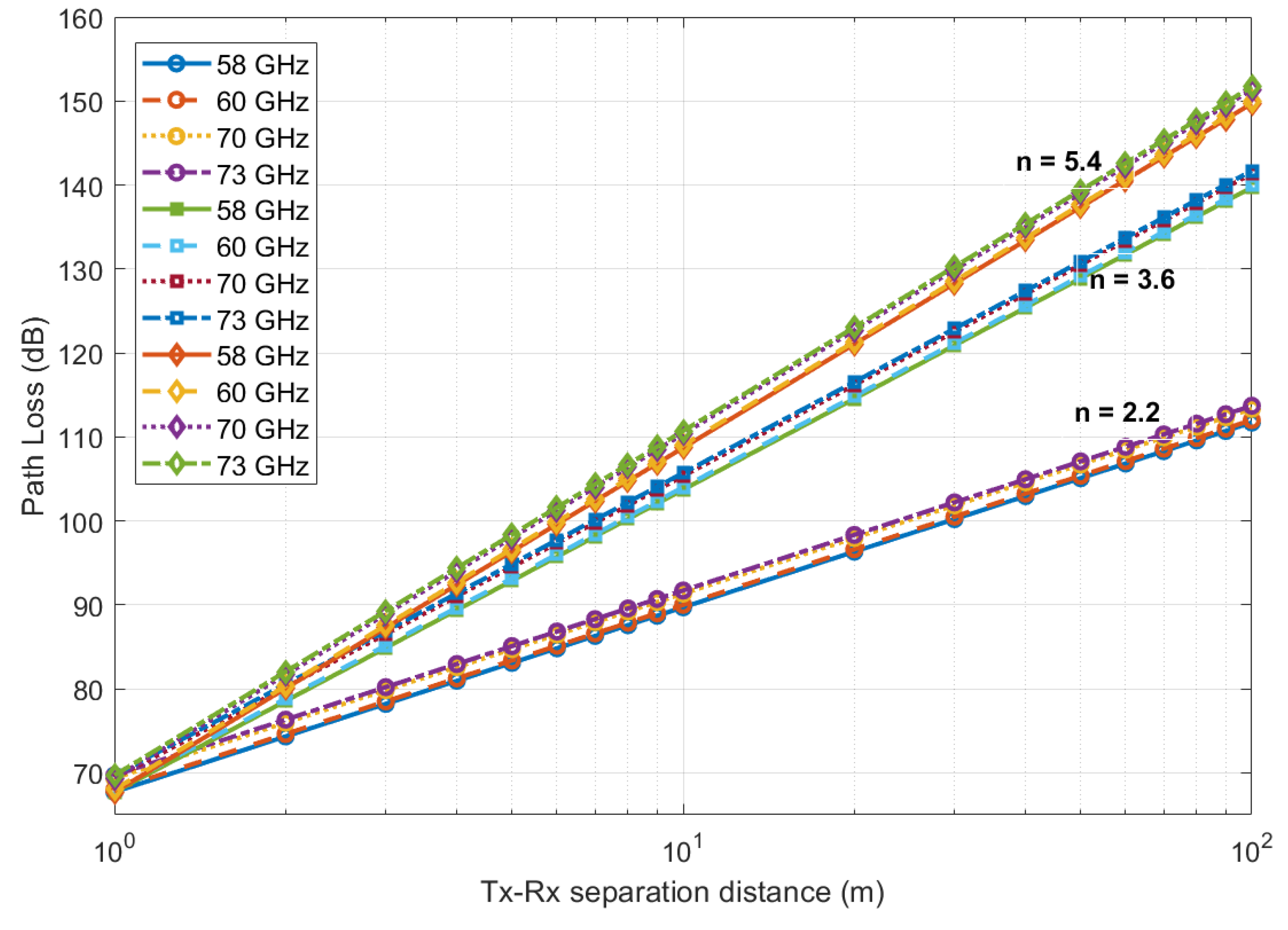

Based on all mentioned path loss models in Section 3.1, the path loss mainly depends on the operating frequency, Tx-Rx separation distance, the environment effects (presented in the PLE (n) and shadowing effects ($X_{\sigma }$).

Table 6. Path Loss and Delay Spread for different studies in indoor offices.

Source	Freq. (GHz)	Scenarios	CI Model n, $\mathit{\sigma }$ (dB)	FI Model $\mathit{\beta }$, $\mathit{\sigma }$ (dB)	RMSDS (ns)
[37]	28	LOS NLOS	1.1–4.1, 1.8–8.0 2.7–5.1, 9.4–11.6	0.8–1.4, 1.4–2.0 2.3–3.6, 9.3–10.6	0.7–134.4 0.6–198.5
[43]	28	LOS NLOS	1.9, 2.1 2.8, 6.2	1.7, 2.1 1.5, 5.8	- <100 (18.9)
[44]	28	LOS NLOS	-	1.9, 2.2 3.6, 2.9	20–50 20–50
[72]	28	NLOS	-	2.3, 3.4	-
[46]	28	LOS NLOS	1.6 and 1.8, 0.7 and 0.6 2.1 and 2.5, 2 and 3.5	1.3 and 1.5, 0.9 and 0.8 1.2 and 1.4, 1.6 and 3.2	-
[47]	28	LOS NLOS	1.5, 1.7 2.2, 3.4	1.4, 1.7 2.2, 3.3	5–20 10–40
[49]	28	LOS	1.6–1.8, 0.7–2.7	-	5–25
[50]	28	LOS	1.7, 1.3 and 3.1	-	10–30
[75]	30	LOS	-	-	2.5–28
[52]	30	LOS	2.0, 0.1	1.9, 0.1	–
[55]	32 and 39	LOS	1.9 and 1.8, 2.5 and 2.2	-	24.3 and 20.5
[54]	38	LOS NLOS	2.0, 4.6 2.9, 6.8	0.9, 3.1 1.3, 6.2	–
[120]	37.2	LOS	1.5–2.1, 4.4–5.5	-	8–16
[80]	60	LOS	-	1.3, -	-
[29]	60	LOS	-	1.3, 5.1	5–20
[83]	60	LOS	1.9, 1.7	-
[84]	60	LOS NLOS	0.6–1.2, 1.3–2.7 2.7–5.4, 2.7–3.9	- -	-
[58,59]	60	LOS	2.1, 7.9	-	2–30
[60]	60	NLOS	-	-	3.3–5.7
[87]	58	LOS NLOS	1.2, 2.7 5.4, 3.9	- -	5–35 5–45
[66]	60	LOS	-	-	5–20
[69,70]	60	LOS	1.6–1.8, 0.1–1.1	-	-
[62]	70	LOS NLOS	1.7, 2.2 2.9, 6.8	-	-
[37]	73	LOS NLOS	1.3–4.7, 2.4–8.6 3.2–6.4, 9.7–15.9	0.5–1.6, 1.4–4.6 1.3–2.7, 7.5–11.3	0.5–143.8 0.5–142

presents the CI and FI path loss model parameters based on different measurements in indoor office environments for LOS and NLOS scenarios among different mmWave frequencies. The CI and FI path loss model parameters for different indoor halls, corridors, libraries, and laboratories are presented in

Table 7. Path Loss and Delay Spread for different studies in hall, corridor, library, and laboratory.

Source	Freq. (GHz)	Scenarios	CI Model n, $\mathit{\sigma }$ (dB)	FI Model $\mathit{\beta }$, $\mathit{\sigma }$ (dB)	RMSDS (ns)
[35,36,94]	28	LOS NLOS	0.6–1.8, 2.1–3.8 3.6, 5.7	0.9–1.2, 2.0–3.1 3.0, 5.3	1–11.7 1–11
[116,117]	28	LOS NLOS	2.2, 1.2 and 1.3 3.0 and 2.7, 7.8 and 5.3	-	-
[72]	28	LOS	-	1.7, /2.4	-
[46]	28	LOS	1.3 and 1.5, 0.9 and 0.8	1 and 1.3, 1.0 and 1.3	-
[112]	28	LOS NLOS	2.1, 4.2 3.3, 13.5	1.8, 4.1 1.3, 13.0	27.5–45 25–63
[91,92]	28	LOS	-	1.5, 0.5	5–25
[95]	28	LOS NLOS	1.9, 4.2 -	-	<60 <60
[93]	28	LOS	1.7–2.1, 0.7–5.5	-	-
[98]	31	LOS NLOS	1.7, 2.2 2.9, 6.8	- -	-
[35,36]	38	LOS	0.8–1.3, 1.3–3.3	0.9–1.5, 2.3–4.3	1–11
[76]	40	LOS	1.8, 4.7	1.8, 4.7	-
[100]	30 and 40	LOS	-	1.4, -	1–8
[101]	30 and 39	LOS NLOS	- -	1.9 and 1.8, - 2.8 and 2.4, -	2–10 1–8
[107]	39	LOS	2 and 1.5, 5.1 and 4.1	2.1 and 1.3, 5.1 and 4.0	-
[103]	41	NLOS	1.6–2.2, 2.2–3.0	-	1–10
[79]	60	LOS	1.9, 8.6	-	4.6–47.3
[111]	60	LOS NLOS	1.8, 1.1 2.0, 3.8	- -	-
[104]	60	LOS NLOS	- -	- -	12.3–21.1 18.5–31.7
[105]	60	LOS	-	-	5–30
[99]	30 and 60	LOS OLOS NLOS	1.7 and 1.8, 3.7 and 3.8 1.8 and 1.9, 1.2 and 1.4 2.3 and 2.5, 5.9 and 7.2	- - -	6.7 and 3.4 27.1 and 23.5 28.3 and 22.5
[90]	60	LOS	-	-	<70

. Based on the CI path loss model, Table 6 shows that the PLE values for LOS indoor office environments are equal to or less than of FSPLE value of 2 for all studied mmWave frequencies. In some indoor office environments, the PLE (n) is lower (below 1.5) and even below 1. This implies that there are strong MPCs from different scattering objects and many MPCs are added up constructively. In [37], the PLE values are up to 4.7 for 28 and 73 GHz in the indoor office. These values are abnormal as compared with other studies. The high PLE which is more than FSPLE in LOS indoor environment is due to the cross-polarization between the Tx and Rx antenna. In [37], the results showed that using the same environment with the same measurement setup, the PLE values are 1.1 and 1.3 at 28 and 73 GHz, respectively, using V-V polarization. However, for the V-H (cross) polarization, the PLE values are 2.5 and 3.5 at 28 and 73 GHz, respectively. This implies that the received power degraded by 14 and 22 dB/decade using cross polarizations at 28 and 73 GHz, respectively. The 3GPP FI path loss model for LOS indoor office environment shows the line slope $\beta$ values are less than the FSPLE value for all listed mmWave frequencies in Table 6.

The PLE and $\beta$ values are less than the FSPLE value for all frequencies in LOS indoor corridors [35,36,46,72,76,91,92,93,94,95,98,99,100] as depicted in Table 7. The PLE values are around FSPLE value in large halls as in [107,116,117]. In [116,117], the PLE for LOS at 28 GHz along 300 m big hall in passengers terminals is 2.2 (more than the FSPLE value of 2 by 0.2). In [107], the PLE along 50 m LOS hallway is 2 at 39 GHz. For the library [112] and the laboratory [107] environments, the PLE values are identical with FSPLE value.

The standard deviation values of the shadowing effect (deviation from log-linear-fit) vary from 0.1 to 5.5 dB for CI model and between 0.1 and 5.1 dB for FI model at all listed LOS studies in Table 6 and Table 7. The large standard deviation values of 8, 8.6 dB at 28 and 73 GHz, respectively, for CI models [37], are for cross polarizations and 8.6 dB at 60 GHz [79] is due to the penetration effects for one measurement locations.

The PLE values for NLOS indoor office environments vary from 2.1 to 5.4 for all listed frequencies in Table 6. In [37], the PLE for cross polarization at 73 GHz is 6.4. The $\beta$ of the 3GPP FI path loss model in NLOS indoor office vary from 1.3 to 3.6 [37,43,44,46,54] for different mmWave frequencies. The PLE values for NLOS indoor corridor environments [94,98,103,111,116,117] vary from 1.6 to 3.6 at different frequencies as shown in Table 7. The PLEs for NLOS scenarios vary from 2 to 3.3 for hall [116,117], library [112], and laboratory [111]. The $\beta$ values for the FI model are 3 and 1.3 at 28 GHz in the indoor corridor [94] and library [112]. It is worth mentioning that the PLE is not frequency-dependent in an indoor environment and it depends on the structure of the environment and the type of environment.

It can be noted from the PLE and $\beta$ values of the CI and FI path loss models are similar for LOS scenarios for most of the listed studies in Table 6 and Table 7, however, for NLOS scenarios, there is a deviation between both models in most of the indoor environments.

Figure 5 presents the CI and FI path loss models along 100 m at 28 and 38 GHz for LOS and NLOS scenarios. It can be shown that the PLEs at 28 GHz are 1.9 and 2.8 in indoor offices for LOS and NLOS, respectively, [43]. In the same environment, the slope line values for the FI model are 1.7 and 1.5 for LOS and NLOS, respectively. The CI and FI models for LOS are comparable (0.2 difference in PLEs, which is around 2 dB per decade). The deviation of the FI model comparing with CI based on the reference distance (1 m in most cases of the indoor environments) can be explored from the deviation of floating-intercept from free space path loss at the reference distance. In [43], the $\alpha$ value of the FI model is 63.2 which is more than the FSPL value at $d_0$ of 1 m by 1.8 dB. However, for the NLOS scenario, the $\alpha$ value of the FI model is more than the FSPL value at $d_0$ of 1 m by 18.7 dB from FSPL at a reference distance of 1 m.

In [54], the same findings were explored for 38 GHz in the indoor office environment as shown in Figure 5. It can be seen that for the LOS scenario, the PLE for the CI model and $\beta$ for FI model are 2 and 0.9, and the $\alpha$ value of the FI model is more than the FSPL value at $d_0$ of 1 m by 14.3 dB. The NLOS line slope of FI model is less than the PLE of the CI model by around 16 dB per decade. The $\alpha$ value of the FI model is more than the FSPL value at $d_0$ of 1 m by 19.6 dB. Base on all mmWave studies in different LOS and NLOS indoor environments, the FI and CI path loss models can fit the experimental data well in LOS scenarios, however, for NLOS scenarios the CI model is preferred.

The path loss is calculated for LOS and NLOS indoor environments based on the CI model for different mmWave bands; namely 30 GHz, 40 GHz, and 70 GHz as shown in Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11. As it is noted from Table 6 and Table 7, for all listed studies, the PLE trend is not monotonic with frequency, hence, the same PLE can be applied for different frequencies. For each band, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11 show that with the same PLE, the path loss values are comparable for all listed frequencies in the same band, i.e., at 30 GHz band (28 GHz, 30 GHz, 32 GHz, and 39 GHz), using 0.6 PLE the maximum path loss difference between the lowest frequency in the band 28 GHz and the highest one 39 GHz is around 3 dB. The path loss is affected by the construction and the structure of the environments, which can be explored from PLE values. For example, in a narrow corridor and closed indoor office with concrete walls available (acts as a wave-guide for the received signal), the PLE is less than 1 for different frequencies [35,36,84,94].

5.2. RMSDS Analysis

The RMSDS values vary from 0.5 to 134.4 ns and from 0.5 to 198.5 ns for LOS and NLOS scenarios, respectively, among all listed frequencies in Table 6 and Table 7. Based on these studies in different indoor environments, the RMSDS trend is not monotonic with Tx-Rx separation distance and frequency. It depends on the structure of the environment and the measurement setup. For the narrow beamwidth of the antenna and the small indoor environment, the RMSDS is small. The delay spread of mmWave frequencies is considerably similar to the currently used frequency bands below 3 GHz. Table 6 and Table 7 presents the RMSDS for most studies in the literature at mmWave frequencies.

5.3. Summary

Based on the review of many results of the path loss model of mmWave bands at different frequencies from 28 to 73 GHz in different indoor environments at different regions in the world, the operating frequencies for indoor environments can be grouped into three different bands named 30 GHz, 40 GHz, and 70 GHz. The 30 GHz band represents the frequency range from 28 to 39 GHz while the 40 GHz band and 70 GHz bands represent the frequency range of 40–45 GHz and 58–73 GHz, respectively. From this study, it can be observed that for the indoor environment with the same physical characteristics the change of the carrier frequency within the same band does not contribute much. For example, using the CI path loss model with PLE of 1.6 and $d_0$ of 1 m the path loss values at such particular Tx-Rx separation distance, i.e., 100 m for 28 GHz (lowest frequency at 30 GHz band) and 39 GHz (highest frequency at 30 GHz band) are 64.5 dB and 67.5 dB, respectively. This implies that the path loss value at 39 GHz is only increased by 3 dB compared to the value of path loss at 28 GHz.

From different LOS and NLOS indoor environments studies at mmWave bands, the FI and CI path loss models can fit the experimental data well in the LOS scenario, however, for the NLOS scenario, the CI model is preferred. Based on these studies in different indoor environments, the RMSDS trend is not monotonic with Tx-Rx separation distance and frequency. It depends on the physical structure of the environments and the measurement setup.

6. Future Trends

From the survey of the existing works, we discuss the future trends based on the following areas.

6.1. Critical Indoor Environment

The 5G wireless networks will be used for different indoor applications such as emergency cases. A common part of any building structure is the stairs, essentially used in emergency cases for fire escape or in natural disasters. Few propagation measurements have been conducted at mmWave for indoor channels in the stairwell [121,122,123]. In [121,122], the path loss was investigated using CI, FI, ABG, and CIF models based on NB measurements at 28 GHz, 32 GHz, and 38 GHz that conducted in two different stairwells in a tropical region, i.e., Malaysia. The path loss models in the stairwell environments indicated that the received power decay is high where the PLE is more than 7. More studies are needed to investigate the radio propagation channel at mmWave in stairwell environments.

Furthermore, propagation measurement at mmWave band in indoor industrial environments is expected to attract more research interest [124]. For instance, the mmWave channel properties were investigated at 28 and 60 GHz based on wideband measurements using VNA in two different factories, which represent light and heavy industry [125]. The wireless channels need more characterization in different indoor industrial environments.

6.2. Artificial Intelligence

The use of artificial intelligence (AI) methods such as machine learning and deep learning are now been applied in the field of wireless communication. Recent studies have investigated the use of machine learning for the prediction of path loss models [126,127,128,129]. The result of these studies has shown a positive reduction in complexity, amount of time required in measurement and an enhancement in path loss models. Further research is expected in the application of machine learning for the prediction of channel models for indoor environments. Moreover, deep learning is also used to model the path loss for 5G communications with static objects [130]. The influence of moving objects such as vehicles and the heights of Tx and Rx antennas are still an open issue which can be addressed for path loss modelling using deep learning.

6.3. Channel Characterization for Indoor Devices

The use of mmWave for dense indoor devices is expected to solve the problem of bandwidth scarcity needed for high data rates. In addition, the mmWave can provide narrow beam communication for device-to-device communication in indoor environments. Examples of devices that benefit from the application of mmWave are wearable devices as presented in [131,132]. The need for characterization of propagation studies for different devices operating at mmWave for indoor environments is expected to attract further research interest.

6.4. Reconfigurable Intelligent Surface

The use of reconfigurable intelligent surfaces (RIS) is considered a promising network architecture for 5G, 6G and beyond. The RIS makes use of a surface composed of N elements that are reconfigurable to collect wireless signals from a Tx and passively beamform them towards the desired Rx [133,134]. This is expected to help improve the propagation in indoor environments and overcome the limitations of signal loss attributed to mmWave propagation. Hence, more investigation of path loss models is needed in mmWave for RIS as presented in the recent studies [135,136,137]. In addition, it is found that most researchers used simplified models for the wireless channel (i.e., i.i.d Rayleigh fading channel). The channel fading is applicable for inexpensive antenna whose inter-distance is larger than half of the wavelength, but their application to metasurface-based RISs made with more fading factors such as small-scale-fading necessitates further investigation [137,138]. In addition, the uses of models that accounts of spatially-stationary scattering channel such as the plane-wave model (isotropic) and plane-wave model (non-isotropic) for metasurface/antenna arrays proposed in [139,140] needs to be explored for mmWave indoor environment.

6.5. MmWave for 6G

The current candidate 5G frequency band (24 to 86 GHz) may not be sufficient due to the fast emerging wireless data traffic and emerging applications. Hence, the 6G wireless system is focused on exploring above 100 GHz to overcome spectrum scarcity and bandwidth limitation [141]. Furthermore, more communication is envisaged to be done indoors since 80% of the time people stay in indoors [142]. Hence, more research work is expected in the study of mmWave frequencies from 100 to 300 GHz and beyond (sub-THz and THz wireless networks) in indoor environments [143]. This is expected to open several research issues on propagation models at various indoor locations, and penetration measurement for different materials. The performance of the current 5G mmWave frequency bands can be compared with 6G proposed frequency bands. Furthermore, the 6G channel measurement is time consuming, and the design of a high-performance channel sounder that can fulfill the requirement of 6G channel is still open research [144].

6.6. Near-Ground Propagation Measurements

The propagation measurement of mmWave near-groud is still a challenging and interesting research area. The mmWave band will be used in V2V communication in which two antennas in the front and rear bumper of vehicles are installed. In such cases, the Tx and Rx antennas are located close to the ground [145,146]. Furthermore, The internet of things (IoT) and sensors application operating on mmWave and propagate near the ground will open a new direction for future research [147].

7. Conclusions

A review of indoor mmWave channel measurements at different candidate frequencies for 5G wireless networks has been presented. The indoor channel characteristics of the mmWave band from two main wireless channel perspectives, that is, the path loss and time dispersion have been discussed. While the path loss increases as the operating frequency increases, the path loss exponent is not frequency-dependent, but it depends on the environment type and structure. The best models for path loss in the indoor environment at the mmWave bands such as the CI and FI models for LOS channels and CI model for NLOS channels were identified. It was noted that the mmWave indoor channel has a small RMSDS value for narrow HBPW and a small size indoor environment. The future trends for the mmWave indoor environment have been discussed in this paper. Further research works are needed in the study of mmWave industrial indoor environments, indoor stairwell environment, propagation studies for wearable devices, reconfigurable intelligent surfaces, and application of artificial intelligence. This survey has provided a comprehensive review of the work that has been conducted on measurement campaigns and propagation models for the indoor mmWave environment. The engineering and research community will find it helpful in the design of an optimum indoor wireless network, and the performance of mmWave for 5G, 6G wireless networks and beyond.
