Cytoprotection of Antioxidant Biocompounds from Grape Pomace: Further Exfoliant Phytoactive Ingredients for Cosmetic Products

Abstract

The goal of this study was to investigate the efficacy and the safety of grape pomace (Vitis labrusca L.) obtained from the winemaking process as an antioxidant raw material for cosmetic formulations. Grape pomace was dried and submitted to extraction with solvents. The extracts were filtered and freeze-dried. The extraction carried out with 75% acetone-water showed a better yield (1.9 g·g⁻¹). High performance liquid chromatography (HPLC) analysis confirmed the presence of ellagic acid as an active biocompound in the extracts. The Total phenolic content of freeze-dried extracts reached 69.83 ± 1.02 mg for 75% acetone-water system. Antioxidant activity determined by the 2,2-Diphenyl-1-picrylhydrazyl (DPPH) method revealed there was no statistical difference between the extract (EC₅₀ 6.9 ± 0.21) and butylated hydroxytoluene (BHT) (EC₅₀ 7.6 ± 0.71). Results of cytotoxicity showed that extracts from grape pomace were safe, even at the highest concentration tested (200 mg·mL⁻¹) against the 3T3 cell line. Scanning Electron Microscopy (SEM) analysis revealed that there were no morphological cell changes of cells treated. Cytoprotection of cells towards the oxidation promoted by the peroxide solution was observed in the lowest concentration tested (0.73 mg·mL⁻¹). Grape pomace from the winemaking process revealed a significant antioxidant activity attributed to its biocompounds. The safety and efficacy of extracts of grape pomace as raw material for cosmetic formulations was proposed through cell culture assays.

1. Introduction

The skin consists of an interface between the human body and the environment. Therefore, it is exposed to endogenous and exogenous oxidant agents that could generate many free radicals [1]. Oxidative stress arises when the formation of free radicals is greater than its elimination by the antioxidant defense system of the body. The free radicals damage molecules and cellular structures, which can result in changes to their physiological functions. These processes are among the main causes of skin ageing. Thus, antioxidants are not only employed as preservatives in cosmetic products, preserving the product from decay, but also to protect the skin from damage caused by oxidative processes. Interest in the discovery of natural antioxidant agents as total or partial replacements of synthetic antioxidants in which toxicological activities were reported is growing [2,3,4,5,6,7,8,9,10].

Polyphenols are substances that have more than one phenolic hydroxyl group, bound to one or more benzene ring systems. They are produced in small quantities by the secondary metabolism of plants. Flavonoids are the main group of polyphenols, and include classes such as flavones (quercetin, for example), isoflavones, anthocyanidins, stilbenes (resveratrol), and catechins (epigallocatechin-3-gallate or EGCG) [11,12,13,14].

In vitro antioxidant activity is the most common means of evaluating the antioxidant potential of substances in the elimination of free radicals. Inhibition of lipid oxidation plays the protective action of polyphenols in cell membranes. The phenolic content of the extract can be correlated with antioxidant activity, which is often derived from a synergistic effect of active substances. However, the polyphenol extract profile also determines its efficacy, since the individual activity of substances varies widely [8,15].

Many studies have been conducted by isolating and evaluating the activity of phenolic substances in skin cells. Some of them have shown activity against elastase, hyaluronidase, and anti-MMP-1, suggesting that these compounds may exhibit anti-aging effects. Pretreatment of keratinocytes with polyphenols causes a decrease in intracellular ROS formation induced by ultraviolet (UV)B rays. The combination of antioxidants usually present in natural products is more effective due to the synergistic effect produced. Thus, formulations containing more than one antioxidant are superior, due to their synergy effect and to the fact that they protect cells in different layers of the skin [4,16,17,18].

Grapes have a great number of phenolic compounds in their chemical composition. Grape pomace or grape marc from the winemaking process is also an interesting source of phenolic compounds. Grapes and their bagasse are rich sources of fiber and phenolic compounds and may be considered as a potential source of raw cosmetic materials. The polyphenols from these sources are very promising for the cosmetics industry, which is always in search of new and sustainable sources for active ingredients [19,20]. Additionally, grape pomace can be an eco-friendly alternative for cosmetic products, since they can be used as a biodegradable exfoliant ingredient. Synthetic polymeric particles of polyethylene (PE), polypropylene (PP), polymethyl methacrylate (PMMA) and polyethylene terephthalate (PET) are widely employed as exfoliants agents. These microplastics are not removed by conventional water treatment process and can be harmful to the ocean and aquatic environment. Thus, many countries have already banned its use and the cosmetic industry trend needs to employ eco-friendly raw materials such as seed fruits [21,22].

In this context, grape pomace is an example of biodegradable exfoliant with additional antioxidant activity for skin treatments. As an active ingredient in cosmetic products, grape pomace needs to be submitted to safety and efficacy studies. In spite of the well-known exfoliant properties of grape pomace, the literature lacks in evaluating possible cytoprotective effects of the antioxidant biocompounds from this raw material provided by the winemaking process [23]. Therefore, the aim of this study was to assess the antioxidant efficacy and the in vitro safety of the grape pomace of Vitis labrusca L. obtained from winery waste.

2. Materials and Methods

2.1. Plant Material

The grape pomace of Vitis labrusca L. was obtained from the Franco Italian Winery in Colombo, Paraná, Brazil. After the first press, the pomace was transported to the Federal University of Parana and maintained to −8 °C until the drying.

2.2. Reagents

Cell culture medium Roswell Park Memorial Institute (RPMI) 1640 and antibiotics (penicillin 100 U·mL⁻¹/streptomycin 100 µg·mL⁻¹) were obtained from Sigma (St. Louis, MO, USA). Fetal bovine serum was acquired from Gibco Life Technologies (Paisley, UK). 3-(4,5-Dimethylthiazol-2-yl)-2,5-Diphenyltetrazolium Bromide (MTT) was purchased from Molecular Probes (Eugene, OR, USA). Extract samples were sterilized by filtering with 0.22 μm pore filter membrane (Corning, NY, USA).

2.3. Extracts Preparation

The grape pomace was dried at 60 °C for 2 h. The dry material was then ground in a processor and made into a powder using a mill. Ten grams of dried residue were mixed with 50 mL of each solvent: acetone, 75% acetone-water, methanol, 75% methanol-water, ethanol, and 75% ethanol-water. Extractions occurred during agitation, for 2 h, at a temperature below 60 °C. After filtration, extracts were freeze-dried in order to calculate yields.

2.4. High Performance Liquid Chromatography

Analysis of antioxidant compounds present in freeze-dried extracts was held in gradients, in an HPLC Varian Prostar 420 Autosampler (model 50492, Agilent, Walnut Creek, CA, USA), with a 335, ELO6019048 series Photodiode Array Detector, and a 230/01513 solvent delivery module. Extract sample and standard solutions of quercetin, ellagic acid, and rutin were diluted in methanol (50 μg·mL⁻¹). The chromatographic conditions were: a reverse-phase C18 column; oven temperature of 40 °C; volume of injection of 20 μL, flow of 0.8 mL·min⁻¹, running time of 30 min and mobile phase, as shown in

Table 1. High performance liquid chromatography (HPLC) gradient method for antioxidant compound identification in freeze-dried extract of grape pomace.

Time (min)	Acidified Water (%)	Methanol (%)
0	100	0
10	50	50
15	40	60
20	20	80
30	0	100

.

2.5. Determination of Total Phenolic Content

The grape pomace freeze-dried extracts (0.5 mL) were mixed with distilled water (8 mL) and the Folin Ciocalteau reagent (0.5 mL). The solutions were homogenized and then a 20% sodium carbonate solution (1 mL) was added. The tubes were stored at room temperature for 1 h for color development. Absorbance was measured at 720 nm by the spectrophotometer. Gallic acid was used to calculate the standard curve (2, 5, 10, 15, and 20 mg·mL⁻¹), and the results were expressed as mg of gallic acid equivalents (GAE) per g of extract [24].

2.6. DPPH Radical Scavenging Activity

Radical scavenging activity was spectrophotometrically evaluated by the DPPH radical method [25]. A methanol solution of lyophilized extract (1 mg·mL⁻¹) was diluted to a range of concentrations (0.5 to 25 µg·mL⁻¹) in 96-well microplates. The solvent itself was regarded as the control. The DPPH radical scavenging activities of quercetin (0.75 to 15 µg·mL⁻¹) and BHT (0.11 to 19 µg·mL⁻¹) were also determined for comparison. Aliquots (200 µL) of a methanolic solution of DPPH (0.5 mM) were mixed into the wells of the microplate. After 30 min of incubation, the optical density (OD) was measured at a 518 nm wavelength using a microplate reader (Thermo Scientific Multiskan^®FC, Thermo Fisher Scientific, Vantaa, Finland). DPPH radical scavenging activity was calculated as:

[1 − OD (DPPH + sample)/OD (DPPH alone)] × 100%.

(1)

Experiments were performed in triplicate. For each experiment, the first five concentrations of the DPPH curve were used in order to obtain the equation of straight line (y = ax + b) and so the EC₅₀ was determined by replacing the y value by 50 to obtain the concentration of the sample with ability to reduce 50% of DPPH. With results of EC₅₀, the mean and standard deviation were calculated. EC₅₀ was defined as the sufficient concentration to obtain 50% of the maximum scavenging activity. Statistical analysis was performed by a one-way ANOVA and Tukey post hoc test. Differences were accepted as significant at p < 0.05.

2.7. Cell Culture

The 3T3 cell line was cultivated in a RPMI culture medium supplemented with 10% fetal bovine serum (SFB) and 100 U·mL⁻¹ of antibiotic solution (penicillin/streptomycin). Cells were incubated at 37 °C in a humidified atmosphere with 5% CO₂. Cell growth was monitored daily in an inverted phase microscope, and the culture medium changed every two days. At pre-confluence, cells were harvested using 0.25% trypsin/ethylenediamine tetraacetic acid (EDTA).

2.8. MTT Cytotoxicity Assay

Cells suspended in culture medium were plated in 96-well plates (1.10³ cells/well). After starvation, culture media supplemented with the extracts (0.5; 1; 5; 10; 20; 50; 100, and 200 mg·mL⁻¹) were introduced to the cells. Twenty-four hours later, the medium was replaced by the MTT solution (0.05 mg·mL⁻¹) and cells were incubated for 3 h. The MTT solution was removed, and 100 uL of DMSO was added for the solubilization of formazan crystals. Cytotoxicity was assessed by the microplate reader (Thermo Scientific Multiskan^®FC, Thermo Fisher Scientific, Vantaa, Finland) at 590 nm [26]. The optical density (OD) values were converted to % of cell viability as:

Cell viability % = [OD (treatment)/OD (control)] × 100%

(2)

2.9. Cytoprotection Assay

Fibroblast cells were plated in a 96-well plate (1 × 10³ cells/well). The media was removed 24 h after seeding (except for the negative control group) and the cells were exposed to an acute dose (600 μM) of peroxide (H₂O₂) in phosphate buffered saline (PBS) (hydrogen peroxide concentration that promoted a 50% reduction of cell viability) [26]. After this treatment, the solution with the oxidizing agent was removed, and cell viability was then determined by the MTT method.

2.10. Analysis of Cell Morphology by Scanning Electron Microscopy (SEM)

3T3 cells were seeded in a 6-well plate (6 × 10⁴ cells/well) containing sterile coverslips (13 mm circular diameter and 0.13 mm thick) for microscopy. The cells were treated with culture media containing the extracts at the concentrations tested in the cytotoxicity assay. After treatment, cells that remained attached to the coverslips were fixed with 1 mL of 2.5% glutaraldehyde solution for 24 h and dehydrated in several ethanol solutions in concentrations of 30, 50, 70, 95, and 100%. Later, the cells were kept in a desiccator for 24 h for subsequent coating with a thin layer of gold-palladium in a metallizer. Subsequently, they were submitted to Scanning Electron Microscopy through the spectrophotometer (Shimadzu) for evaluation of the morphology of the attached fibroblasts. The micrographs were obtained after visualization of the samples, using voltages of 10 to 15 kV acceleration.

3. Results

3.1. Extracts Preparation

Extracts from the grape pomace were prepared with six different solvents: acetone, 75% acetone-water; methanol; 75% methanol-water; ethanol, and 75% ethanol-water. After freeze-drying, the extracts were weighed to calculate yield. Results were expressed in mg·g⁻¹. 75% acetone-water showed to be more suitable as an extraction solvent (190), followed by 75% methanol-water (100), acetone (90), ethanol (50), 75% ethanol-water, and methanol (20).

3.2. High Performance Liquid Chromatography

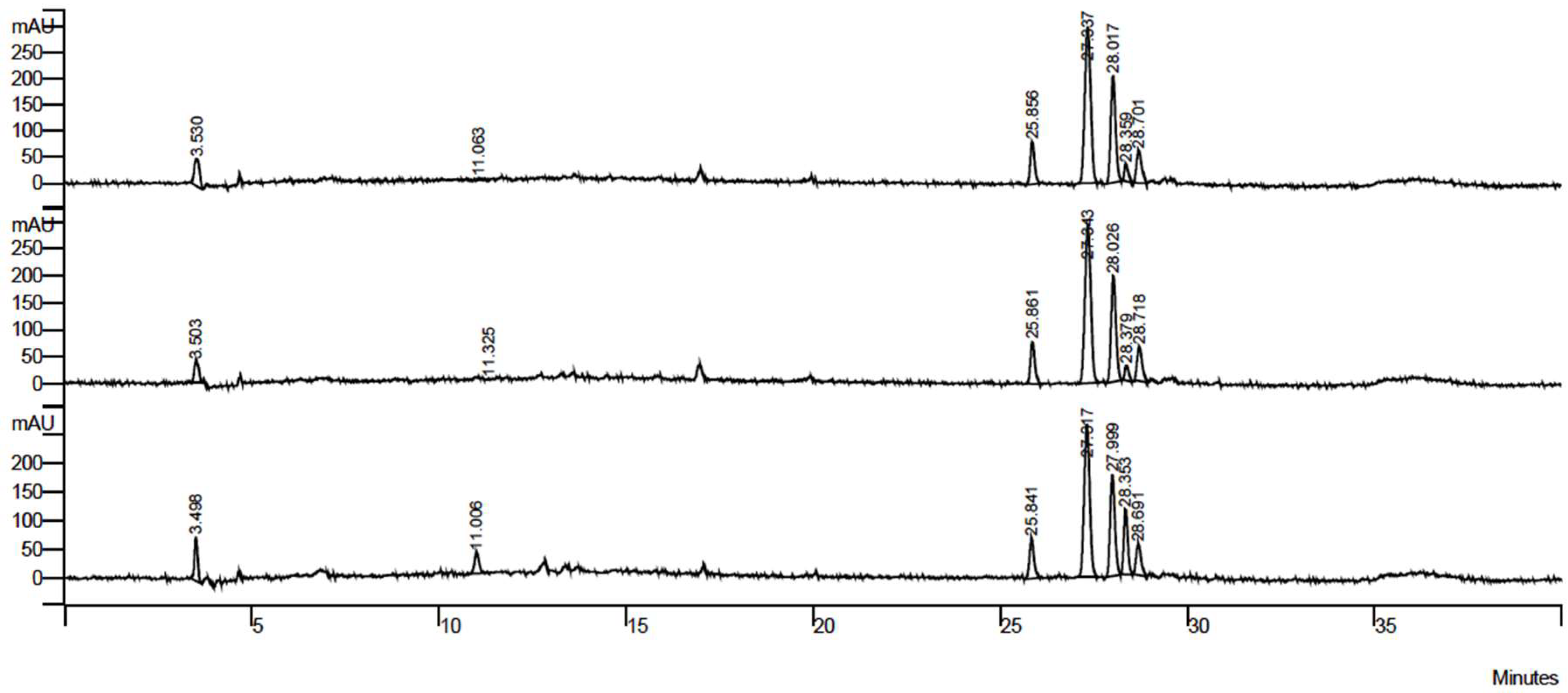

Figure 1 shows the chromatograms of extracts in 75% acetone-water, 75% methanol-water, and 75% ethanol-water. There was no difference observed in chromatographic profile among the solvents tested.

Retention time and UV spectra of the peaks from standard solutions of quercetin, rutin, and ellagic acid were compared with the peaks from the extracts. Of the tested patterns, only ellagic acid was identified by the major peak (at 27 min) of the chromatograms of all extracts. Considering the yielded results and the similarity of chromatographic analysis, extracts from 75% acetone-water were chosen for further assays.

3.3. Determination of Total Phenolic Content

The total phenolic content analysis was performed in triplicate by the Folin test. Phenolic compounds were determined through the absorbance values (obtained in milligrams) of gallic acid equivalent (GAE) per gram. The leaching-out value of phenolic compounds reached 69.83 ± 1.02 mg GAE g⁻¹ for 75% acetone-water system; 58.57 ± 0.37 mg GAE g⁻¹ for 75% methanol-water, 56.93 ± 0.96 mg GAE g⁻¹ for acetone, 40.16 ± 1.14 mg GAE g⁻¹ for ethanol, 35.57 ± 0.76 mg GAE g⁻¹ for 75% ethanol-water, and 35.12 ± 1.03 mg GAE g⁻¹ methanol.

3.4. Antioxidant Effect of Grape Pomace Extract in the DPPH Assay

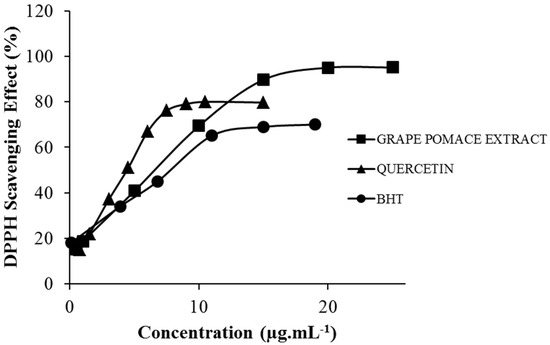

Radical scavenging activity of grape pomace extract was compared to quercetin and butylated hydroxytoluene (BHT) by determining their abilities to chemically reduce the stable free DPPH radical (Figure 2).

The sample concentration required to inhibit 50% of DPPH radical (EC₅₀) were used to express the results (

Table 2. Effect of grape pomace extract vs. quercetin (natural antioxidant) and BHT (synthetic antioxidant) on DPPH radical-scavenging activity.

Antioxidant	Concentration Range (µg·mL−1)	EC50 1 (µg·mL−1)
Grape pomace extract	0.5–25	6.9 ± 0.21
BHT	0.11–19	7.6 ± 0.71
Quercetin	0.75–15	4.5 ± 0.35

¹ EC₅₀ effective concentrations have been determined as the concentration leading to 50% of the maximal DPPH reduction.

). The smaller this value, the lower the required amount of extract to reduce 50% of the free DPPH radical becomes, and so the higher its antioxidant capacity.

3.5. Cytotoxicity Test

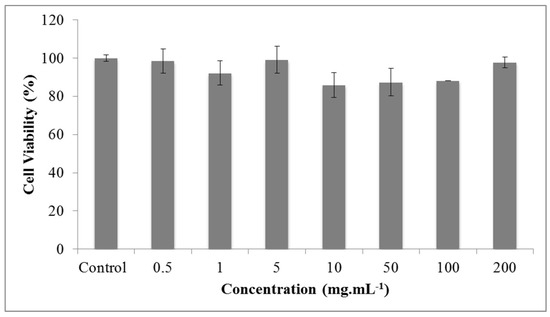

The analysis of freeze-dried extract of grape pomace by the MTT method revealed that there was no statistically significant difference between the results obtained at the concentrations tested (0.5; 1.0; 5.0; 10.0; 50.0; 20.0; 100.0, and 200.00 mg·mL⁻¹) and the control group (3T3 fibroblast cells treated only with the culture medium), as shown in Figure 3.

3.6. Cytoprotection Assay Using H₂O₂

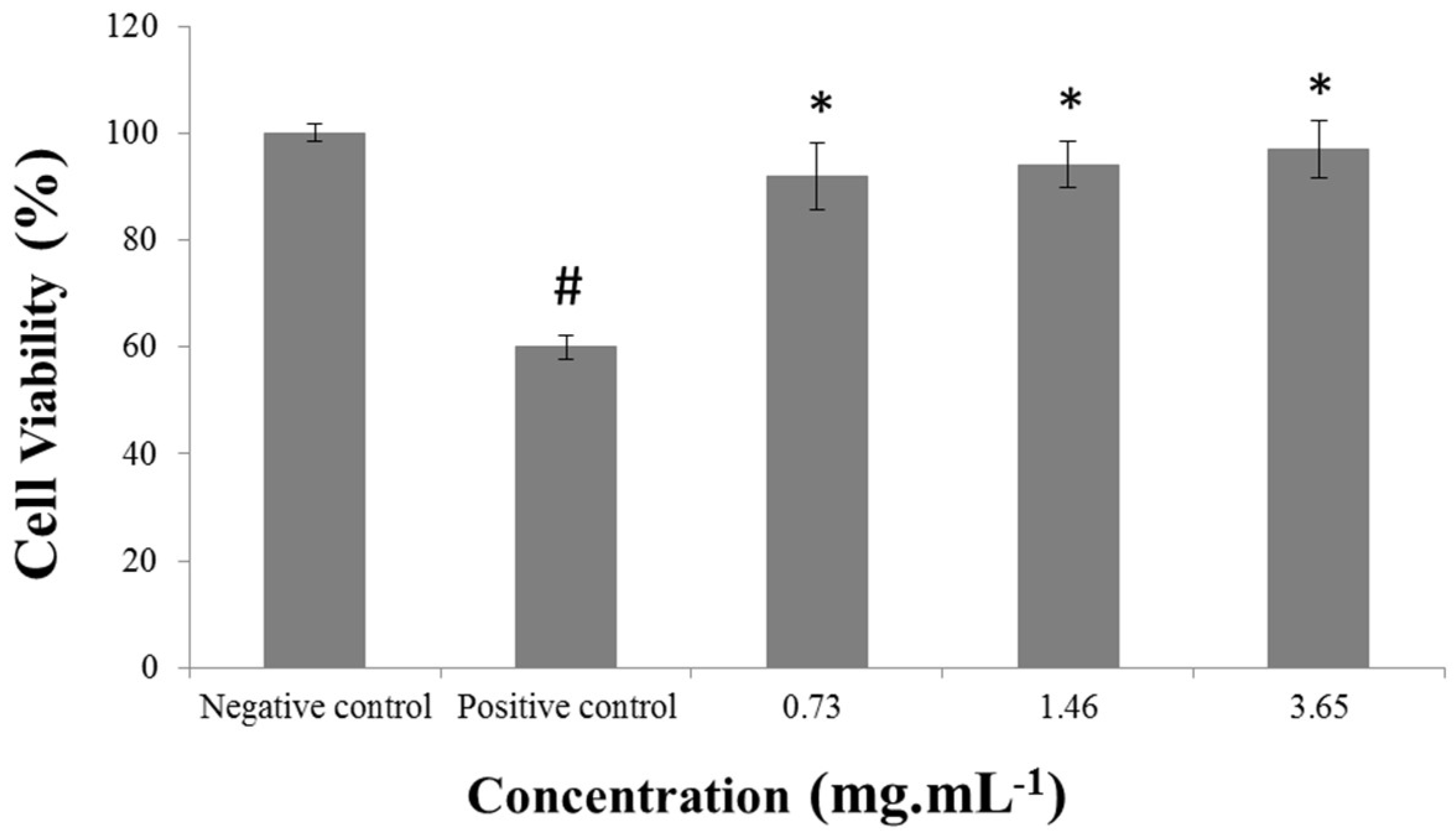

The cytoprotection assay evaluates the antioxidant protection offered to the cells by the lyophilized extract before an acute exposure to H₂O₂. A dose-effect relationship was not observed at the concentrations tested. It could eventually occur at a concentration lower than 0.73 mg·mL⁻¹ considering that the DPPH assay revealed a high antioxidant activity of grape pomace at minimum concentrations. The results obtained demonstrate that even at the lowest concentration tested, there was a significant protection of the cells that were treated with freeze-dried extract when compared to the positive control group (cells treated only with H₂O₂ 600 μM peroxide solution, see Figure 4).

3.7. Analysis of Cell Morphology by Scanning Electron Microscopy

The analysis of cell morphology by SEM revealed that there were no changes in 3T3 fibroblasts treated with freeze-dried extract of grape pomace. All micrographs showed the spindle shape typical of fibroblasts, with extensions and cytoplasmic projections. The fibroblasts were refractive, which is characteristic of adherent and viable cells. Therefore, no morphological changes were found in the 3T3 cell line even with the maximum concentration tested (200 mg·mL⁻¹), when compared to the micrographs of cells treated only with the control group (Figure 5).

4. Discussion

The leaching-out value of phenolic compounds reached 69.830 mg GAE g⁻¹. This result demonstrates a high content of bioactive compounds present in the grape pomace. In addition, this total phenolic content is higher than that reported by Ribeiro et al. (2015), which found 41.245 mg GAE g⁻¹ to grape pomace (Vitis labrusca L.) from the winemaking process [27]. The difference in phenolic content can be related to the extract preparation procedure, since these authors used 60% ethanol-water as solvent, while a 75% acetone-water was chosen in the present investigation.

Statistical analysis performed by one way ANOVA demonstrated greater antioxidant activity of quercetin when compared to grape pomace extract and BHT. However, there was no statistical difference between the extract and BHT. BHT is a synthetic antioxidant widely used in the cosmetic industry and it is considered safe to use in cosmetic formulations [28], but its toxic effects are well known in the literature [28,29,30]. The results indicate that the grape pomace extract has a significant DPPH radical scavenging activity and can be proposed as an eco-friendly and biodegradable alternative for BHT. The EC₅₀ obtained (6.9 ± 0.21 µg·mL⁻¹) is also higher than that achieved by Amico et al. (2008) which evaluated the radical scavenging activity of grape pomace (Vitis vinifera L.) extracts from winemaking process and obtained EC₅₀ data between from 9.9 to 30.7 µg·mL⁻¹ [31].

These results suggested that grape pomace can be further used as an antioxidant raw material for cosmetics since ellagic acid has demonstrated scavenging activity against a variety of ROS. Its four hydroxyl and two lactone functional groups can act respectively as hydrogen bond acceptors and donors, enabling ellagic acid to scavenge radicals [27].

The grape pomace extract can also be considered safe for skin application. The safety of grape pomace is found in the literature. Melo et al. (2015) investigated the cytoxicity of grape pomace from different grape cultivars against mouse macrophage RAW 264.7 cells and the winery byproduct extracts presented low cytotoxicity [32]. However, this is the first report regarding its evaluation against fibroblast cells in order to make its future skin use feasible. The non-cytotoxic results of grape pomace (Vitis vinifera L.) extract from the winemaking process against 3T3 cell line pave the way for using this exfoliant raw material as a phytoactive antioxidant for cosmetic use.

Cytoprotective activity of fruit and vegetable wastes, including grape pomace, was described by Kabir et al. (2015) in African monkey kidney MA104 cells [33]. Leong et al. (2016) showed the cytoprotective capacity of grape juice (Vitis vinifera L.) against H₂O₂-induced oxidative stress in Caco-2 cells [34]. In the present study, grape pomace (Vitis vinifera L.) extract from the winemaking process prevented H₂O₂-induced fibroblast cell death. Oxidative stress occurs when cellular homeostasis, which normally involves a fine balance between free radical generation and their detoxification by antioxidants, is disturbed. H₂O₂ is well known to act as a potent inducer of reactive oxygen species (ROS) and it is capable of inducing cell injury both in vitro and in vivo. H₂O₂ is particularly known to induce oxidative damage, leading to lipid peroxidation, ROS generation, depletion in reduced glutathione, and reduction in antioxidant enzyme activity (catalase, superoxide dismutase, and glutathione peroxidase) preceding cell death [26]. Thus, the cytoprotective effect of grape pomace is a great finding in order to suggest the cosmetic use of this raw material due to its high potential in preventing damages caused in dermal cells such as fibroblasts and preventing skin aging. Further studies are necessary in order to provide a comprehensive solution concerning the development of skin care products based on grape marc.

The cell morphology verified by SEM reinforces the cytoprotective results and demonstrates the potential of grape pomace as feasible raw material for innovative cosmetic application since it also shows an exfoliant effect.

5. Conclusions

In the present study, the in vitro efficacy and safety of grape pomace (Vitis labrusca L.) as antioxidant raw material for further cosmetic formulations was proven. Freeze-dried extracts obtained with acetone-water revealed a high total phenolic content and HPLC analysis confirmed the presence of ellagic acid as an active biocompound. Antioxidant activity assessed by the DPPH method demonstrated significant antioxidant activity in grape pomace extract when compared to BHT. Results of cytotoxicity and SEM analysis have shown that extracts from grape pomace were safe even in the highest concentration tested. Cytoprotection of fibroblasts treated with freeze-dried extracts from grape pomace was significantly improved. In vitro safety and efficacy tests provided promising results, which revealed that grape pomace can be a potential source of antioxidant raw material for cosmetic purposes.
