Histone H2A and Bovine Neutrophil Extracellular Traps Induce Damage of Besnoitia besnoiti-Infected Host Endothelial Cells but Fail to Affect Total Parasite Proliferation

by
Iván Conejeros
*,†,
Zahady D. Velásquez
†,
Daniela Grob
,
Ershun Zhou
,
Hannah Salecker
,
Carlos Hermosilla
and
Anja Taubert
Institute of Parasitology, Biomedical Research Center Seltersberg, Justus Liebig University-Giessen, 35392 Giessen, Germany
*
Author to whom correspondence should be addressed.
†
These authors contributed equally.
Biology 2019, 8(4), 78; https://doi.org/10.3390/biology8040078
Submission received: 19 July 2019 / Revised: 8 October 2019 / Accepted: 9 October 2019 / Published: 11 October 2019
(This article belongs to the Special Issue Neutrophil Extracellular Traps)
Browse Figures
Versions Notes

Abstract

:
Besnoitia besnoiti tachyzoites infect and develop in bovine endothelial cells in vivo and trigger the release of neutrophil extracellular traps (NETs) from bovine polymorphonuclear neutrophils (PMN). The purpose of this study was to analyze if pure B. besnoiti tachyzoite-triggered NETs would damage endothelial host cells and subsequently influence intracellular development and proliferation of B. besnoiti tachyzoites in primary bovine endothelial cells. For comparison purposes, isolated A23187-induced NETs were also used. Thus, we here evaluated endothelial host cell damage triggered by histone 2A (H2A) and B. besnoiti tachyzoite-induced NET preparations and furthermore estimated the effects of PMN floating over B. besnoiti-infected endothelium under physiological flow conditions on endothelial host cell viability. Overall, all treatments (H2A, B. besnoiti-triggered NETs and floating PMN) induced endothelial cell death of B. besnoiti-infected host cells. However, though host cell damage led to significantly altered intracellular parasite development with respect to parasitophorous vacuole diameter and numbers, the total proliferation of the parasite over time was not significantly affected by these treatments thereby denying any direct effect of NETs on intracellular B. besnoiti replication.

1. Introduction

The obligate intracellular parasite Besnoitia besnoiti (B. besnoiti) replicates in vivo in endothelium and represents the causal agent of besnoitiosis in cattle. Bovine besnoitiosis has a high impact on animal welfare and cattle production. Since 2010, bovine besnoitiosis has been classified as an emerging disease by the European Food Safety Authority (EFSA). Within the life cycle of B. besnoiti, cattle act as intermediate hosts whilst the definitive host, shedding oocysts, is still unknown [1,2,3].
Polymorphonuclear neutrophils (PMN) and endothelium are key players of host innate immune responses both interacting with B. besnoiti stages during acute infection [4]. In addition to classical effector mechanisms, such as reactive oxygen species (ROS) production, phagocytosis and degranulation, PMN are able to extrude chromatin structures decorated with granular proteins that are able to ensnare and eventually kill pathogens. These structures were first reported by Brinkmann et al. [5] and named neutrophil extracellular traps (NETs). They are involved in several physiopathological processes and are described as a defense mechanism that is directed against pathogens (bacteria, fungi, parasites) but also induced by soluble mediators (for review on NET inducers and respective mechanisms please refer to [6,7]). In case of apicomplexan parasites, NETs were reported to be released by PMN of different donor origin in response to stages of B. besnoiti [4], Neospora caninum [8,9], Toxoplasma gondii [10,11], Eimeria bovis [12,13], Plasmodium falciparum [14], and Cryptosporidium parvum [15], thereby highlighting the conserved nature of NETs formation throughout parasite and host species. Specifically regarding B. besnoiti-triggered NET formation the process is correlated with a simultaneous increase in autophagy, a process that involves AMPK phosphorylation indicating some insights about the controlling mechanisms in B. besnoiti-triggered NETs formation [16].
Direct interactions of PMN or NETs with endothelium at physiological conditions have already been reported [17,18,19] and indicated a critical role of PMN in the pathophysiology of endothelium impairment. Nonetheless, few data are still available with respect to NET-derived effects on parasite-infected endothelium in vitro and in vivo. In general, endothelial cells react upon parasite infections by a broad spectrum of immune-related reactions, such as upregulation of adhesion molecules (e.g., ICAM-1, VCAM-1, P-selectin, E-selectin), chemokines and PMN adhesion onto activated endothelium [12,20,21,22,23,24]. With this regard, our previous data showed that B. besnoiti infections induced the following early innate immune reactions in primary bovine umbilical endothelial cells (BUVEC): i) Increased gene transcription of adhesion and inflammatory molecules (ICAM-1, CXCL1, CXCL8, CCL5, and COX-2), ii) augmented PMN adhesion to BUVEC layers and iii) release of NETs under physiological flow conditions [20].
PMN-derived NETs affect endothelium by increasing endothelial cell (EC) layer permeability and directly damaging single endothelial cells [25,26]. Additionally, NETs induce the expression of leukocyte adhesion molecules in activated ECs and, consequently, enhance local inflammatory responses [27]. EC damage is mainly explained by transiently increased abundance of proteases/proteins in the microenvironment of vessels. Major NET components that were already proven as inducers of EC damage include histone 2A (H2A) [26]. Core histones are the most abundant proteins on NETs (70% of all NET-associated proteins) and H2A represents the 26.9% of the total NETs protein content [28]. Moreover, differences in cytotoxicity are dependent of the histone type, being H2A, H2B, and H4 individually more cytotoxic than a mixture of histones [29]. In addition, a critical role of histone H4 in lytic cell death of smooth muscle cells and endothelial cells in a mice model of atherosclerosis was reported recently [30]. Altogether, this evidence highlights the importance of NET-derived histones in tissue damage originated by NET-releasing neutrophils.
The aim of the current study was to determine whether bovine PMN and especially B. besnoiti tachyzoite-triggered NETs in addition to a major single NET component, such as H2A [27], induce cytotoxicity and damage in ECs and further alter intracellular B. besnoiti tachyzoite development in endothelial host cells. The current methods included fluorescence- and confocal microscopy applying static or physiological flow conditions on B. besnoiti-infected and non-infected primary bovine umbilical vein endothelial cells (BUVEC). Respective analyses were performed on BUVEC treated with H2A and NET preparations triggered by B. besnoiti tachyzoites. For comparison purposes, NETs were also induced by the calcium ionophore and PMN activator A23187 [31,32,33,34,35]. This compound has been successfully used to stimulate PMN and isolate NETs from humans [36].
Current data revealed that B. besnoiti-triggered NETs and H2A induced cytotoxicity and damage in B. besnoiti-infected bovine endothelial cells. With respect to parasite intracellular development, B. besnoiti parasitophorous vacuole (PV) diameter and number per host cell were found diminished in treated BUVEC. However, total tachyzoite proliferation over time was not significantly affected by NET-derived treatments, thereby denying a direct effect of NETs on intracellular B. besnoiti replication.

2. Materials and Methods

2.1. Ethic Statement

This study was conducted in accordance to Justus Liebig University Giessen Animal Care Committee Guidelines. Protocols were approved by the Ethic Commission for Experimental Animal Studies of the Federal State of Hesse (Regierungspräsidium Giessen; A9/2012; JLU-No.521_AZ), and in accordance to European Animal Welfare Legislation (ART13TFEU) and current applicable German Animal Protection Laws.

2.2. Primary Host Endothelial Cell Isolation and Maintenance

Primary bovine umbilical vein endothelial cells (BUVEC) were isolated from umbilical cords obtained from calves born by sectio caesarea at the Clinic of Obstetrics, Gynecology and Andrology of Small and Large Animals, Faculty of Veterinary Medicine, Justus Liebig University Giessen, Germany. Umbilical cords were kept at 4 °C in 0.9% HBSS–HEPES buffer (pH 7.4; Gibco, Grand Island, NY, USA) supplemented with 1% penicillin (500 U/mL; Sigma-Aldrich, St. Louis, MO, USA) and streptomycin (500 μg/mL; Sigma-Aldrich) for a maximum of 16 h before use. For the isolation of endothelial cells (EC), 0.025% collagenase type II (Worthington Biochemical Corporation, Lakewood, NJ, USA) suspended in Pucks solution (Gibco) was infused into the lumen of ligated umbilical veins and incubated for 20 min at 37 °C in 5% CO2 atmosphere. After gently massaging umbilical veins, the cell suspension was collected in RPMI-1640 medium and supplemented with 1 mL fetal calf serum (FCS, Gibco) in order to inactivate collagenase type II. After two washes (350 × g, 12 min, 20 °C), cells were resuspended in complete endothelial cell growth medium (ECGM, PromoCell (Heidelberg, Germany), supplemented with 10% FCS), plated in 25 cm2 tissue plastic culture flasks (Greiner Bio-One, Frickenhausen, Germany) and kept at 37 °C in 5% CO2 atmosphere until confluency. BUVEC were cultured in modified ECGM medium (EGCM, diluted at 30% in M199 medium, supplemented with 5% FCS and 1% penicillin and streptomycin (Sigma-Aldrich)) with medium changes every 2–3 days. BUVEC cell layers were used for B. besnoiti infections after three passages in vitro.

2.3. Isolation of Bovine PMN

Healthy adult dairy cows served as blood/PMN donors. Animals were bled by puncture of jugular vein and peripheral blood was collected in heparinized sterile plastic tubes (Kabe Labortechnik, Nümbrecht-Elsenroth, Germany). 20 mL of heparinized blood was mixed with 20 mL sterile PBS supplemented with 0.02% EDTA (Sigma-Aldrich), the mixture was carefully layered on top of 12 mL Biocoll® separating solution (density = 1.077 g/L; Biochrom AG, Berlin, Germany) and centrifuged (800 × g, 45 min). After removal of plasma and peripheral blood mononuclear cells (PBMC), cell pellet was suspended in 25 mL bi-distilled water and gently mixed for 40 s to lyse erythrocytes. Osmolarity was rapidly restored by supplementing appropriate volumes of Hanks balanced salt solution (4 mL, HBSS 10×; Biochrom AG). For entire erythrocyte lysis, this step was repeated twice and PMN were later suspended in sterile RPMI 1640 medium supplemented with 1% penicillin and 1% streptomycin (Sigma-Aldrich). Counting of PMN was performed in a Neubauer haemocytometer chamber (Laboroptik, Lancing, UK). Finally, freshly isolated bovine PMN were allowed to rest at 37 °C and 5% CO2 atmosphere for 30 min until further use.

2.4. In Vitro Maintenance and Harvesting of B. besnoiti (Strain Bb1Evora04) Tachyzoites

Permanent Madin-Darby bovine kidney (MDBK) cells were used as host cells to maintain B. besnoiti tachyzoites (strain Bb1Evora04; parasite passage number undetermined) in vitro. MDBK cell layers were cultured in 75 cm2 plastic tissue culture flasks (Greiner Bio-One, Frickenhausen, Germany) containing RPMI 1640 (Sigma-Aldrich) cell culture medium supplemented with 2% FCS (Merck, Darmstadt, Germany), 1% penicillin (500 U/mL) and streptomycin (500 mg/mL) (both Sigma-Aldrich) at 37 °C and 5% CO2 atmosphere until confluency. MDBK cell layers were then infected with 2 × 106 vital tachyzoites of B. besnoiti. Harvesting of B. besnoiti tachyzoites was performed as described previously [4].

2.5. Detection of Extracellular DNA and Protein Markers of NETs by Confocal and Fluorescence Microscopy

Bovine PMN were co-cultured with B. besnoiti tachyzoites (ratio 1:4) for 3 h (37 °C and 5% CO2 atmosphere) on 0.01% poly-L-lysine pretreated coverslips (15 mm diameter, Thermo Fisher Scientific, Braunschweig, Germany), fixed by adding 4% paraformaldehyde (Merck) in PBS and stored at 4 °C until further staining.
For NETs visualization, 4′,6-Diamidine-2′-phenylindole (DAPI) was used to stain DNA and anti-histone (clone H11-4, 1:200; Merck Millipore (Darmstadt, Germany), #MAB3422) and anti-NE (AB68672, 1:200, Abcam, Cambridge, UK) antibodies were used to stain specific proteins on ETs structures. Therefore, fixed samples were washed three times with PBS, incubated with permeabilization solution (3% BSA, 0.3% Triton X-100 in PBS) for 60 min at room temperature (RT) and incubated with corresponding primary antibodies diluted in permeabilization solution for overnight at 4 °C. Thereafter, samples were washed thrice with PBS and incubated in secondary antibody solutions (Alexa Fluor 488 goat anti-rabbit IgG #A-11008 or Alexa Fluor 594 goat anti-mouse IgG, #A-11005; both Life Technologies (Eugene, Oregon, USA) 30 min, 1:500 in permeabilization solution, RT). Finally, samples were washed thrice in PBS and mounted in DAPI-containing mounting media (Fluoromount G with DAPI; Thermo Fisher Scientific). Visualization was achieved applying confocal microscopy (Zeiss LSM 710, Oberkochen, Germany). Image processing was carried out with Fiji ImageJ software (NIH, USA (https://imagej.net/Fiji)) using Z-project and merged channel plugins restricted to overall adjustments of brightness and contrast.

2.6. Preparation of B. besnoiti Tachyzoite- or A23187-Induced NETs

Isolation of NETs was performed as previously described by Barrientos et al. [36] with some modifications. Briefly, 1.5 × 106 bovine PMN/well were seeded in 12-well culture plates and stimulated either with A23187 (5 µM) or 6 × 106 B. besnoiti tachyzoites (= 1:4 PMN:tachyzoites ratio) for 3 h (37 °C, 5% CO2). After incubation, the medium was carefully aspirated and wells were washed twice with 1 mL of PBS. Then, 400 µL of AluI (4 U/mL, New England Biolabs, Ipswich, Massachusetts, USA) were added and plates were incubated for 20 min at 37 °C and 5% CO2. Thereafter, samples were recovered and centrifuged for 5 min at 300 × g to remove cells and debris. NET preparations were immediately stored at −80 °C until further quantification and use.
DNA content of NET preparations was estimated by Quant-iT PicoGreen (Thermo Fisher Scientific). Briefly, 2 µL of each NET sample was mixed with 98 µL of TE buffer (1 M Tris pH 7.4; 0.5 M EDTA pH = 8.0) and incubated for 5 min at room temperature (RT), protected from light. Afterwards, DNA content was quantified in a Varioskan fluorescence automated multiplate reader (Thermo Scientific, USA) applying exposition/emission wavelengths of 480/520 nm, respectively. All DNA measurements were performed in duplicates. A standard λ-DNA curve was used to interpolate the DNA concentration of the samples.

2.7. Estimation of NET-, DNA- and Histone 2A (H2A)-Induced Endothelial Cell Death

Three different BUVEC isolates were cultured to 100% confluency on 96- or 24-well plates (Greiner Bio-One, Frickenhausen, Germany) depending on the experiment setting. For H2A-related experiments, cells were treated with 10 or 100 µg H2A/mL for 4 h or 12 h. For DNA and NET preparations experiments cells were treated for 12 h. To control the influence of components of NETs, B. besnoiti secreted and excreted substances and to test if a single protein such as BSA can influence the observed results we also tested BSA (incubation for 4 h and 12 h) at the same concentrations used for histone H2A (10 and 200 µg/mL), viable and heat-inactivated B. besnoiti tachyzoites and supernatants recovered from B. besnoiti cell culture after 3 h of infection, named excretory secretory (E/S) components at two different dilutions. At each time point, the medium was removed and cells were analyzed for cytotoxic effects via live/dead staining (5 μM Sytox Orange® (Thermo Fisher Scientific) diluted in modified ECGM medium, 10 min, RT, in the dark). Fluorescence intensity was estimated at 574/570 nm excitation and emission wavelengths, respectively.

2.8. Physiological Flow Condition Experiments

Three different BUVEC isolates were cultured in µ-slide-0.4 Luer chambers (IBIDI®, Martinsried, Germany) until confluency. BUVEC layers were infected with B. besnoiti tachyzoites 12 h before performing flow condition experiments or left uninfected for controls. Culture plates were mounted on the stage of a motorized inverted microscope (Olympus Microscope IX81, Hamburg, Germany) using a top-stage incubator (IBIDI®, Martinsried, Germany) with a controlled atmosphere of 5% CO2 and 37 °C. The chambers containing non-infected or B. besnoiti-infected BUVEC were connected to a pump flow system using Luer adapters and a constant physiological wall shear stress of 1.0 dyn/cm2 was applied (syringe pump sp100i; World Precision Instruments, Friedberg, Germany) for 5 min of perfusion of either pure medium or a solution 5 x 106 PMN/mL. After perfusion, plates were carefully removed from IBIDI® chambers, cells were fixed in 4% paraformaldehyde at RT for 10 min and finally washed thrice with sterile PBS for further staining.

2.9. Determination of Endothelial Cell Damage Using Isolectin GS-IB4

PFA-fixed BUVEC layers were treated with blocking/permeabilization solution (PBS with 3% BSA, 0.1% saponin; 1 h, RT). Thereafter, the samples were incubated in isolectin GS-IB4 which binds predominantly to the cell membrane of blood vessel endothelia [37]. Isolectin GS-IB4 conjugated with Alexa Fluor 594 (Molecular Probes, Eugene, Oregon, USA) was used at a concentration of 20 µg/mL, diluted in blocking/permeabilization solution and the samples were stained for 20 min at RT, in a humidified chamber according to Tanaka et al. [38]. Then, samples were washed thrice in PBS and mounted using DAPI-containing mounting medium Fluoromount G® (Thermo Fisher Scientific). Of each sample, five random microscopic images were taken applying identical conditions of exposition, light intensity and compensation (Olympus Microscope IX81). Image processing was carried out by Fiji ImageJ® using merged-channel-plugins restricted to overall adjustment of brightness and contrast. In brief, images were converted to eight bit and greyscale color. A sharpen filter was applied followed by the color threshold selection, selecting min error algorithm, and defined as background the isolectin-negative regions. The lack of isolectin-derived signals in BUVEC layers was defined as EC damage. For calculation, data from isolectin-negative area were divided by those of the total area to obtain the percentage of EC damage in each analyzed image. Overall, data from a total of 15 images (resulting from three different BUVEC isolates, and three different PMN isolations) were included in the calculation. A workflow of the procedure to obtain endothelial damage values is presented in the supplementary material (Supplementary Figure S5).

2.10. Determination of B. besnoiti Rosette Number and Parasitophorous Vacuoles (PV) Diameter

Three different BUVEC isolates were included in all experiments. For each experimental condition, five microscopic images of B. besnoiti-infected BUVEC and non-treated controls were randomly taken via phase contrast microscopy (Olympus Microscope IX81®). The number of B. besnoiti rosettes present in the PV of infected host cells were counted and PV sizes reflecting differential stages of tachyzoite replication were measured manually by three independent observers using the Image J® software (NIH).

2.11. Quantification of B. besnoiti Tachyzoites by qPCR

The number of free-released B. besnoiti tachyzoites (extracellular tachyzoites in cell culture supernatants) was determined by qPCR using primers described previously by Cortes et al. [39].

2.12. Graphical Representation of Results and Statistical Analyses

Statistical significance was defined by a p-value < 0.05. If not otherwise stated, p-value was determined using the Kruskal-Wallis test followed by Dunn’s multiple comparisons test. Data are presented as bar graphs (showing mean ± SD) or box-whiskers graphs (showing middle line at median and lines at maximum and minimum values). Capital letter N is used to denote the number of biological replicates (BUVEC isolates) and minuscule letter n is used when the analysis referred to B. besnoiti rosettes numbers. All statistical analyses and graphs were performed via the Graph Pad® v. 7.03 software (San Diego, CA, USA).

3. Results

3.1. B. besnoiti Tachyzoites Induce Bovine NETs

Markers of NETs of granular origin, such as neutrophil elastase, were detected colocalizing with histone and DNA when bovine PMN were confronted with B. besnoiti tachyzoites at 1:4 ratio for 3 h and observed under confocal microscopy after immunostaining (Figure 1A) or after DNA staining with Sytox Orange (Supplementary Figure S4). Tachyzoites being trapped in NETs were also observed (white triangles) alongside a pointed distribution of neutrophil elastase in NETs (Figure 1B). Images are representative for the experiments conducted with PMN from three different animals. Colocalization of extracellular DNA with these proteins confirmed typical characteristics of NETs. Using the NETs quantification method proposed by González et al. [40] it was estimated that 15% of bovine PMN that were confronted with B. besnoiti tachyzoites release NETs (Supplementary Figure S2).

3.2. H2A, B. besnoiti Tachyzoite- and A23187-Derived NET Preparations Are All Cytotoxic for BUVEC

Cell death was determined by a live/dead-staining with Sytox Orange® (Thermo Fisher Scientific, Waltham, MA USA), which only enters into cells with compromised membranes (= dead cells). Overall, treatments of BUVEC with H2A at 200 µg/mL resulted in significantly enhanced cell death when applied for 4 h (H2A 200 µg/mL versus nontreated control: p = 0.04; Figure 2A) or 12 h (H2A 200 µg/mL versus non-treated control: p = 0.01; Figure 2B). In addition, we tested if pure NET preparations obtained from bovine PMN being stimulated either with B. besnoiti tachyzoites (Bb-NETs) or the calcium ionophore A23187 (A23187-NETs) also induced BUVEC death in a static system. In this context, A23187 induced NETs in the bovine system in 39.5% of the cells at the working concentration of 5 µM (Supplementary Figure S1). Preparation of pure NETs resulted in concentrations of 161.5 ± 35 ng DNA/mL for A23187-NETs and 169 ± 17 ng DNA/mL for Bb-NETs. Overall, an average of 40 ng DNA per 106 PMN was obtained. For the estimation of cytotoxic effects on BUVEC, NETs were used at two different concentrations defined as 1X and 2X corresponding to a final concentration of 3.3 and 6.6 ng DNA/mL, respectively. Respective data showed that Bb-NET (1X versus non-treated control: p = 0.03) induced significant cytotoxic effect after 12 h of exposure. On the other hand, both A23187-NET conditions (1X, 2X) showed increased cytotoxicity, but without reaching statistical significance. (Figure 2C). When the influence of protein alone (BSA), B. besnoiti tachyzoites (live and heat-killed), and excretory/secretory molecules (E/S) (Figure 2D,E) was analyzed, we found that only viable B. besnoiti tachyzoites induced cytotoxicity in BUVEC after 12 h of incubation (Figure 2E).

3.3. PMN Induce Endothelial Cell Damage in B. besnoiti-Infected BUVEC Under Flow Conditions

We recently showed that PMN being perfused over B. besnoiti-infected BUVEC show increased endothelial adhesion and additionally form NETs [2]. Here, we applied a constant physiological shear stress of 1 dyn/cm2 onto BUVEC and additionally conducted the experiments under controlled temperature (37 °C) and atmosphere (5% CO2) conditions. Medium was perfused over BUVEC layers infected with B. besnoiti tachyzoites for 12 h for a time period of 5 min under presence or absence of floating bovine PMN. Non-infected BUVEC were used as controls. Following perfusion, BUVEC layers were assayed for the EC damage marker isolectin-IB4 coupled to Alexa Fluor 594 and stained with DAPI as nuclear marker (exemplary images are illustrated in Figure 3A). Unmerged and phase contrast images confirming PMN adhesion on BUVEC layers are presented in supplementary material (Supplementary Figure S3). Overall, perfusion of PMN over non-infected BUVEC induced EC damage (17.48% ± 10.58%), whilst perfusion of medium alone hardly affected BUVEC layers (2.83% ± 0.47%) (Figure 3B). Interestingly, when PMN were perfused over B. besnoiti-infected cell layers, EC damage increased to 35.47% ± 9.20% at 12 h of infection (Figure 3B). Given that perfusion of medium alone did not induce considerable EC damage in B. besnoiti-infected BUVEC (3.43% ± 0.57% Figure 3B), the former effect could not be due to an enhanced sensitivity of infected BUVEC towards shear stress conditions. Consequently, medium only-related data on non-infected and B. besnoiti-infected cells did not differ significantly.

3.4. H2A Treatments Decrease PV Diameter in B. besnoiti-Infected Host Cells but Does Not Affect the Number of Rosettes and Total Tachyzoite Production Over Time

Since we observed that H2A, NETs and PMN induced cytotoxicity and damage on infected BUVEC under static and physiological flow conditions, we next analyzed whether treatments with H2A as a major component of NETs may also influence intracellular development of B. besnoiti (for experimental set-up see Figure 4A). Therefore, we determined B. besnoiti PV diameters which reflect the typical division stages of B. besnoiti tachyzoites (Figure 4A). In addition, we quantified the number of rosettes present in each host cell. Overall, H2A treatments induced a decrease of the PV diameter independent of the time point of H2A supplementation (Figure 4C). As such, this effect was observed at time points, 4 h and 12 hours post infection (h.p.i.) and at both H2A concentrations (10 and 100 µg/mL) (H2A-treated versus untreated: 100 µg, 4 h: p = <0.0001; 10 µg, 4 h: p = <0.0001; 100 µg, 12 h: p = <0.0001). Referring to mean rosette numbers/host cell, no significant difference was observed between non-treated and H2A-treated samples when varying PV loads per host cell were statistically analyzed within one condition. Given that up to 15 rosettes were detected in non-treated cells, PV number-derived categories were formed and compared to each other. Following this strategy, no changes in mean PV numbers in H2A-treated BUVEC were observed (Figure 5A) whilst the general infection rate remained unchanged (Figure 5B). Accordingly, when estimating tachyzoite production over time (30 h), no significant differences were observed between H2A-treated cells and untreated controls (Figure 5C).

3.5. Treatments of B. besnoiti-Infected BUVEC with Bb-NETs and A23187-NETs Affect PV Development and Total Tachyzoite Production

Overall, treatments of B. besnoiti-infected BUVEC layers with Bb-NETs or A23187-NETs at 4 and 12 h.p.i. differentially affected B. besnoiti PV diameter. Whilst A23187-NETs induced a significant diminishment of PV size at both time points of treatment (A23187-NETs-1X (4 h) versus untreated control: p < 0.0001; A23187-NETs-1X (12 h) versus untreated control: p = 0.052; A23187-NETs-2X (12 h) versus untreated control: p < 0.0001), treatments with Bb-NETs had no effects when performed at 4 h.p.i. (Figure 6A). However, in the case of later Bb-NET treatments (12 h.p.i.), a significant decrease of PV diameters was estimated for 1X concentration (Bb-NETs-1X (12 h): p = 0.012) (Figure 6A, lower panel). When rosette numbers/host cell were analyzed and normalized as percentage of the infected host cells which contained one to 15 rosettes, we observed a decrease in the number of host cells which contained only one B. besnoiti rosette per cell in the case of Bb-NET and A23187-NET treatments (Figure 7A). When estimating total tachyzoite production and release over 30 h, a striking difference was observed when comparing Bb-NET- and A23187-NET-related treatments: Whilst total tachyzoite proliferation was not altered by Bb-NETs (Figure 7B), treatments with A23187-NETs led to a significant and dramatic (almost 10-fold) increase of tachyzoite numbers present in cell culture supernatants (Figure 7B). This effect was independent of both, A23187-NET concentration and the time point of supplementation.

4. Discussion

B. besnoiti tachyzoites predominantly infect host endothelial cells from different organs and vessels in vivo [20]. In the acute stage, the toxic effect has been related to increased vascular permeability. It is described that these lesions are mainly located in small- and medium-sized vessels, but also in arteries [2]. In this report we used primary endothelial cells isolated from three different animals in order to be as close as possible to the in vivo situation.
We have recently demonstrated that B. besnoiti tachyzoites are NET-inducers [4] and that perfusion of bovine PMN over B. besnoiti-infected bovine endothelial cells leads to enhanced PMN adhesion and NET deposition on endothelium [20]. NETs are able to entrap B. besnoiti tachyzoites thereby hampering the parasite from active host cell invasion. Previously, it was reported that NETs affected tachyzoite-derived host cell invasion since infection rates in primary BUVEC cells decreased by more than 25% when PMN-pre-exposed B. besnoiti tachyzoites were used for infection. This effect was reversed by the addition of DNAse, highlighting that NET can potentially affect the continuous infection and proliferation cycles [4]. Additionally, in the acute phase of besnoitiosis leukopenia is observed, an effect that is explained by increased tissue emigration and margination [41]. It is tempting to assume that, as proposed for other intracellular protozoan parasites as Leishmania [42], tachyzoite-mediated NETs formation and the corresponding entrapment, induces a series of events involving—at least—mononuclear phagocytes and an inflammatory responses that can restrict the site of the acute infection. Histopathological examination of chronically infected animals has shown inflammatory infiltrates composed by lymphocytes, macrophages, and plasma cells. In some cases, infiltration and disruption of tissue cysts by inflammatory cells was also observed [43]. Adaptive immune reactions of cattle to B. besnoiti have been also reviewed [2] and are not covered in this report. Altogether, this evidence gives insights on the multifactorial, complex, and interrelated immune response of cattle to B. besnoiti in the acute and chronic stages of the infection.
In this report we confirmed the previous observation and calculated that 15% of PMN release NETs in response to B. besnoiti tachyzoites and that the calcium ionophore A23187 induces NETs in the 39.5% and 67.7% of the cells at 5 µM and 25 µM concentration, respectively. On this respect, it must be considered that several NETs quantification systems are described and that the current results must be interpreted in the context of similar methodologies (image analysis) in order to establish correct comparisons [40,44,45]. In addition, we present for the first time evidence that pure NET preparations as well as PMN perfusion under physiological shear stress conditions lead to damage and cell death of parasite-infected endothelial host cells. In addition, we demonstrate that, though PV sizes appear to be affected by NET treatments, NET-related endothelial cell damage fails to significantly influence total parasite proliferation. The current finding emphasizes the hypothesis that excess NET formation may contribute to pathogenesis driven by cell-toxic side-effects and that these immune defence-related structures fail to exert lethal effects on tachyzoite stages.
In the current study, we worked with pure NET preparations that were released from bovine PMN either in response to B. besnoiti tachyzoites or after stimulation with the calcium ionophore A23187. In this regard, isolation of NETs was achieved by partial digestion of the DNA backbone by the enzyme nuclease AluI as demonstrated by Barrientos et al. [28]. We here obtained comparable quantities of DNA for both inducers (161.5 ± 35 ng/mL for A23187-NETs and 169.17 ± 17 ng/mL for Bb-NETs). These DNA values are one order of magnitude below the ones described for human PMN stimulated with A23187 [36] when normalized as µg of DNA per 1 × 106 PMN. This difference might rely on species-specific differences in the activity of human and bovine PMN [46] and on peculiarities of PMN activation induced by calcium influxes in cattle [32]. No other data exist so far on the recovery or isolation of parasite-induced NETs to conduct a reliable comparison. However, it is expected that NETs derived from B. besnoiti tachyzoites and A23187-stimulated PMN contains neutrophil elastase, histones, and MPO considering the detection of these proteins in immunofluorescence of NETs induced by B. besnoiti tachyzoites in vitro under static and flow conditions [4,20].
H2A is a key component of NETs and NET-derived H2A was recently reported as a potent inducer of epithelial- and endothelial cell death in both, primary and permanent cell lines [26]. In line, the current data confirmed this effect for primary bovine endothelial cells and additionally showed that cytotoxicity for BUVEC was also observed when cell layers were treated with A23187-NETs and Bb-NETs. Considering that histones present in NETs show a lower molecular mass compared to chromatin-derived histones (which may be due to post-translational modifications [28]) and are not as concentrated as when pure H2A is applied, different molecules present in NETs may also have driven these effects. In addition, given that B. besnoiti-infected BUVEC generally showed a high infection rate (at least 95% of BUVEC were infected) it additionally appears unlikely that exclusively non-infected cells died within the infected cell layer.
The current study furthermore evaluated endothelial damage under controlled atmosphere and physiological flow conditions by means of the specific marker isolectin IB-4, a lectin derived from Griffonia simplicifolia that preferentially binds to endothelium in blood vessels [29], and which was used before in NETs-endothelium damage related studies [38]. The current estimation of the endothelial damage showed that B. besnoiti-infected endothelial cells were indeed significantly affected by perfused bovine PMN. Endothelium-PMN interactions, mainly referring to leukocyte adhesion cascades, have extensively been studied comprising a series of steps and signaling pathways [17]. In the case of B. besnoiti-infected endothelium, it is known that infection leads to changes in BUVEC host cell metabolism [47]. Moreover, gene expression of the cytokines CXCL1, CXCL8, CCL2, and CCL5 and the adhesion molecules VCAM-1, P-selectin, ICAM-1, and E-selectin was increased in B. besnoiti-infected BUVEC at 12 h.p.i. and, in this context, induction of PMN adhesion and NET release occurred under flow [20]. In this study we add evidence that bovine PMN can also induce damage on activated endothelium at the same time point through PMN adhesion and NET release. These lethal effects most probably are due to a transient higher concentration of proteases as hypothesized by others [48].
As an interesting finding, we here showed that the presence of H2A but also of A23187-NETs and Bb-NETs led to a decrease of intracellular PV diameter thereby reflecting earlier developmental stages with less numbers of tachyzoites (two- and four-mers of tachyzoites have a smaller diameter than 8- or 16-mers). Noteworthy, this phenomenon occurred irrespective of the time point of B. besnoiti infection. The two time points here used, i.e., 4 and 12 h.p.i., reflect B. besnoiti replication at the beginning (4 hp.i.: before first division) and in the middle (12 h.p.i.: after two divisions) of first merogony, but before lysis of infected BUVEC occurs (from 20 h ongoing). It must be noted that different B. besnoiti strains exhibit different lytic cycle characteristics in vitro when a permanent cell line (MARC-145) is used as a host cell [49]. Our results cannot be compared in terms of the lytic cycle since we use the Bb1Evora04 B. besnoiti strain, that was not included in this study and as a host cell we used isolated primary cells (BUVEC). Thus, the timepoint to measure endothelial damage were rationally selected based on the gene expression profile of BUVEC cells infected with B. besnoiti tachyzoites and the formation of NETs over infected endothelium [20]. At a first glance, the effects on PV diameter could indicate a direct detrimental effect of H2A or NET preparations on tachyzoite development. However, when host cells were analyzed for rosettes numbers, less cells carrying only one rosette were detected in the case of A23187- and Bb-NET treatments. This effect can be linked to selective endothelial cell death, which leads to the release of (obviously) vital tachyzoites which then “rescue” themselves by invading neighboring cells. Since they first have to establish within these new host cells, proliferation onset is delayed, and smaller PVs are found. We consistently observed similar effects in other adverse cell culture conditions, e.g., when cells died out of nutritional deficits. As a general finding, this effect only occurs when single BUVEC die within a total cell layer, not when a cell layer entirely detaches. In agreements with this hypothesis, total B. besnoiti tachyzoite production was not significantly affected in NET-treated BUVEC. The latter data clearly indicated that direct lethal effects of NET preparations on intracellular tachyzoites did not occur.
In contrast to H2A or Bb-NETs, treatments of B. besnoiti-infected BUVEC with A23187-NETs led to a striking and significant increase of B. besnoiti tachyzoite production and release into cell culture supernatants within 30 h of infection. The basis of these effects remains unclear although it is known that NET-derived protein composition varies according to the stimuli and may therefore exert different reactions. However, it must be taken into account that existing data mainly refer to PMA-stimulated PMN [28,50], and that also a dependence on the PMN donor species as well as on the quantity of key components present in NETs has been reported [36]. Nevertheless, since Behrendt et al. [51] reported on A23187-induced tachyzoite host cell egress in case of the closely related coccidian parasites Toxoplasma gondii and Neospora caninum, the increase of free tachyzoites may also have been induced by residues of A23187 compound present in NET preparations (even though these preparations were thoroughly washed before use). However, Behrendt et al. [51] reported that A23187-induced tachyzoite egress largely depends on PV maturity and on A23187 concentration. Thus, exclusively 10 µM A23187 treatments led to egress of tachyzoites from immature PV. Interestingly, reactions were species-dependent since already 1 µM of this compound caused egress of 86% of T. gondii tachyzoites but had no effect on N. caninum tachyzoites. Given that we here used 5 µM A23197 for NET induction but removed the compound by consecutive washings rather argues against A23187-induced egress as cause for enhanced tachyzoite numbers in cell culture supernatants.
Regarding the mechanisms that can explain our results on, we can hypothesize based on the evidence that shows direct effects of NETs over endothelium: Activation of endothelial pro-MMP-2 and impairment in vasorelaxation by NET through externalization of neutrophil-MMP-9 [52], direct damage to the endothelium by the most prominent histone on NET:H2A; or even degradation products of histones [26,29]. In this context, histones directly activateTLR2 and TLR4 [53] and the corresponding inflammatory signaling cascades [54]. Nevertheless, if these mechanisms are indeed involved in the modulation of intracellular B. besnoiti development is unknown so far and may be a matter of further research. Finally, since our data did not include parasite viability or posterior infection rate as parameters is not possible to give a conclusion on this regard.

5. Conclusions

Overall, we here present new data on the damaging capacity of B. besnoiti tachyzoite- and A23197-triggered NETs and H2A and showed that PV diameter and number of rosettes/host cell may have been affected by NET-driven host cell death. However, NETs induced by B. besnoiti tachyzoites do not influence the total parasite proliferation on infected primary endothelial cells.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-7737/8/4/78/s1, Figure S1: Immunofluorescence on PMN releasing NETs in response to A23187 5 and 25 µM and determination of % of PMN releasing NET in these conditions. Figure S2: Estimation of the % of PMN releasing NETs in response to B. besnoiti tachyzoites and PMA 100 nM. Figure S3. Additional Images of DAPI/Isolectin IB4 staining of experimental conditions. Figure S4. Additional figures showing B. besnoiti tachyzoites inducing bovine NETs. Figure S5. Workflow illustrating the procedure of image analysis to obtain endothelial damage percentages shown in Figure 3.

Author Contributions

Conceptualization, A.T., C.H., I.C., and Z.D.V.; Investigation, Z.D.V., D.G., E.Z., and H.S.; Validation, I.C. and Z.D.V.; Formal Analysis, I.C., Z.D.V., and A.T.; Resources, A.T. and C.H.; Writing—Original Draft Preparation, I.C.; Writing—Review and Editing, Z.D.V., A.T., and C.H.; Supervision, A.T. and C.H.; Project Administration, C.H. and A.T.; Funding Acquisition, A.T.

Funding

This research was funded by the German Research Foundation (DFG) grant number [216337519 (TA291/4-2)]. Mr. Ershun Zhou PhD program is funded by a Chinese council scholarship (2015)3022.

Acknowledgments

We want to acknowledge Christine Henrich for her excellent technical support and the quantification of B. besnoiti tachyzoites production by qPCR.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Basso, W.; Schares, G.; Gollnick, N.S.; Rütten, M.; Deplazes, P. Exploring the life cycle of Besnoitia besnoiti—Experimental infection of putative definitive and intermediate host species. Vet. Parasitol. 2011, 178, 223–234. [Google Scholar] [CrossRef] [PubMed]
  2. Alvarez-García, G.; García-Lunar, P.; Gutiérrez-Expósito, D.; Shkap, V.; Ortega-Mora, L.M. Dynamics of Besnoitia besnoiti infection in cattle. Parasitology 2014, 141, 1419–1435. [Google Scholar] [CrossRef] [PubMed]
  3. Jacquiet, P.; Liénard, E.; Franc, M. Bovine besnoitiosis: Epidemiological and clinical aspects. Vet. Parasitol. 2010, 174, 30–36. [Google Scholar] [CrossRef] [PubMed]
  4. Muñoz-Caro, T.; Hermosilla, C.; Silva, L.M.R.; Cortes, H.; Taubert, A. Neutrophil Extracellular Traps as Innate Immune Reaction against the Emerging Apicomplexan Parasite Besnoitia besnoiti. PLoS ONE 2014, 9, e91415. [Google Scholar] [CrossRef] [PubMed]
  5. Brinkmann, V. Neutrophil Extracellular Traps Kill Bacteria. Science 2004, 303, 1532–1535. [Google Scholar] [CrossRef]
  6. Papayannopoulos, V. Neutrophil extracellular traps in immunity and disease. Nat. Rev. Immunol. 2018, 18, 134–147. [Google Scholar] [CrossRef]
  7. Brinkmann, V. Neutrophil Extracellular Traps in the Second Decade. J. Innate Immun. 2018, 10, 414–421. [Google Scholar] [CrossRef]
  8. Villagra-Blanco, R.; Silva, L.M.R.; Muñoz-Caro, T.; Yang, Z.; Li, J.; Gärtner, U.; Taubert, A.; Zhang, X.; Hermosilla, C. Bovine Polymorphonuclear Neutrophils Cast Neutrophil Extracellular Traps against the Abortive Parasite Neospora caninum. Front. Immunol. 2017, 8, 606. [Google Scholar] [CrossRef]
  9. Villagra-Blanco, R.; Silva, L.M.R.; Gärtner, U.; Wagner, H.; Failing, K.; Wehrend, A.; Taubert, A.; Hermosilla, C. Molecular analyses on Neospora caninum-triggered NETosis in the caprine system. Dev. Comp. Immunol. 2017, 72, 119–127. [Google Scholar] [CrossRef]
  10. Yildiz, K.; Gokpinar, S.; Gazyagci, A.N.; Babur, C.; Sursal, N.; Azkur, A.K. Role of NETs in the difference in host susceptibility to Toxoplasma gondii between sheep and cattle. Vet. Immunol. Immunopathol. 2017, 189, 1–10. [Google Scholar] [CrossRef]
  11. Abi Abdallah, D.S.; Lin, C.; Ball, C.J.; King, M.R.; Duhamel, G.E.; Denkers, E.Y. Toxoplasma gondii Triggers Release of Human and Mouse Neutrophil Extracellular Traps. Infect. Immun. 2012, 80, 768–777. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Behrendt, J.H.; Ruiz, A.; Zahner, H.; Taubert, A.; Hermosilla, C. Neutrophil extracellular trap formation as innate immune reactions against the apicomplexan parasite Eimeria bovis. Vet. Immunol. Immunopathol. 2010, 133, 1–8. [Google Scholar] [CrossRef] [PubMed]
  13. Muñoz-Caro, T.; Mena Huertas, S.J.; Conejeros, I.; Alarcón, P.; Hidalgo, M.A.; Burgos, R.A.; Hermosilla, C.; Taubert, A. Eimeria bovis-triggered neutrophil extracellular trap formation is CD11b-, ERK 1/2-, p38 MAP kinase- and SOCE-dependent. Vet. Res. 2015, 46, 23. [Google Scholar] [CrossRef] [PubMed]
  14. Kho, S.; Minigo, G.; Andries, B.; Leonardo, L.; Prayoga, P.; Poespoprodjo, J.R.; Kenangalem, E.; Price, R.N.; Woodberry, T.; Anstey, N.M.; et al. Circulating Neutrophil Extracellular Traps and Neutrophil Activation Are Increased in Proportion to Disease Severity in Human Malaria. J. Infect. Dis. 2019, 219, 1994–2004. [Google Scholar] [CrossRef]
  15. Muñoz-Caro, T.; Lendner, M.; Daugschies, A.; Hermosilla, C.; Taubert, A. NADPH oxidase, MPO, NE, ERK1/2, p38 MAPK and Ca2+ influx are essential for Cryptosporidium parvum-induced NET formation. Dev. Comp. Immunol. 2015, 52, 245–254. [Google Scholar] [CrossRef]
  16. Zhou, E.; Conejeros, I.; Velásquez, Z.D.; Muñoz-Caro, T.; Gärtner, U.; Hermosilla, C.; Taubert, A. Simultaneous and Positively Correlated NET Formation and Autophagy in Besnoitia besnoiti Tachyzoite-Exposed Bovine Polymorphonuclear Neutrophils. Front. Immunol. 2019, 10, 1131. [Google Scholar] [CrossRef]
  17. Kolaczkowska, E.; Kubes, P. Neutrophil recruitment and function in health and inflammation. Nat. Rev. Immunol. 2013, 13, 159–175. [Google Scholar] [CrossRef]
  18. Kolaczkowska, E.; Jenne, C.N.; Surewaard, B.G.J.; Thanabalasuriar, A.; Lee, W.-Y.; Sanz, M.-J.; Mowen, K.; Opdenakker, G.; Kubes, P. Molecular mechanisms of NET formation and degradation revealed by intravital imaging in the liver vasculature. Nat. Commun. 2015, 6, 6673. [Google Scholar] [CrossRef] [Green Version]
  19. McDonald, B.; Urrutia, R.; Yipp, B.G.; Jenne, C.N.; Kubes, P. Intravascular Neutrophil Extracellular Traps Capture Bacteria from the Bloodstream during Sepsis. Cell Host Microbe 2012, 12, 324–333. [Google Scholar] [CrossRef] [Green Version]
  20. Maksimov, P.; Hermosilla, C.; Kleinertz, S.; Hirzmann, J.; Taubert, A. Besnoitia besnoiti infections activate primary bovine endothelial cells and promote PMN adhesion and NET formation under physiological flow condition. Parasitol. Res. 2016, 115, 1991–2001. [Google Scholar] [CrossRef]
  21. Hermosilla, C.; Zahner, H.; Taubert, A. Eimeria bovis modulates adhesion molecule gene transcription in and PMN adhesion to infected bovine endothelial cells. Int. J. Parasitol. 2006, 36, 423–431. [Google Scholar] [CrossRef] [PubMed]
  22. Taubert, A.; Krüll, M.; Zahner, H.; Hermosilla, C. Toxoplasma gondii and Neospora caninum infections of bovine endothelial cells induce endothelial adhesion molecule gene transcription and subsequent PMN adhesion. Vet. Immunol. Immunopathol. 2006, 112, 272–283. [Google Scholar] [CrossRef] [PubMed]
  23. Taubert, A.; Zahner, H.; Hermosilla, C. Dynamics of transcription of immunomodulatory genes in endothelial cells infected with different coccidian parasites. Vet. Parasitol. 2006, 142, 214–222. [Google Scholar] [CrossRef] [PubMed]
  24. Taubert, A.; Wimmers, K.; Ponsuksili, S.; Jimenez, C.A.; Zahner, H.; Hermosilla, C. Microarray-based transcriptional profiling of Eimeria bovis-infected bovine endothelial host cells. Vet. Res. 2010, 41, 70. [Google Scholar] [CrossRef] [PubMed]
  25. Schreiber, A.; Rousselle, A.; Becker, J.U.; von Mässenhausen, A.; Linkermann, A.; Kettritz, R. Necroptosis controls NET generation and mediates complement activation, endothelial damage, and autoimmune vasculitis. Proc. Natl. Acad. Sci. USA 2017, 114, 9618–9625. [Google Scholar] [CrossRef] [PubMed]
  26. Saffarzadeh, M.; Juenemann, C.; Queisser, M.A.; Lochnit, G.; Barreto, G.; Galuska, S.P.; Lohmeyer, J.; Preissner, K.T. Neutrophil Extracellular Traps Directly Induce Epithelial and Endothelial Cell Death: A Predominant Role of Histones. PLoS ONE 2012, 7, e32366. [Google Scholar] [CrossRef]
  27. Folco, E.J.; Mawson, T.L.; Vromman, A.; Bernardes-Souza, B.; Franck, G.; Persson, O.; Nakamura, M.; Newton, G.; Luscinskas, F.W.; Libby, P. Neutrophil Extracellular Traps Induce Endothelial Cell Activation and Tissue Factor Production Through Interleukin-1α and Cathepsin G. Arterioscler. Thromb. Vasc. Biol. 2018, 38, 1901–1912. [Google Scholar] [CrossRef]
  28. Urban, C.F.; Ermert, D.; Schmid, M.; Abu-Abed, U.; Goosmann, C.; Nacken, W.; Brinkmann, V.; Jungblut, P.R.; Zychlinsky, A. Neutrophil Extracellular Traps Contain Calprotectin, a Cytosolic Protein Complex Involved in Host Defense against Candida albicans. PLOS Pathog. 2009, 5, e1000639. [Google Scholar] [CrossRef]
  29. Zlatina, K.; Lütteke, T.; Galuska, S.P. Individual Impact of Distinct Polysialic Acid Chain Lengths on the Cytotoxicity of Histone H1, H2A, H2B, H3 and H4. Polymers 2017, 9, 720. [Google Scholar] [CrossRef]
  30. Silvestre-Roig, C.; Braster, Q.; Wichapong, K.; Lee, E.Y.; Teulon, J.M.; Berrebeh, N.; Winter, J.; Adrover, J.M.; Santos, G.S.; Froese, A.; et al. Externalized histone H4 orchestrates chronic inflammation by inducing lytic cell death. Nature 2019, 569, 236. [Google Scholar] [CrossRef]
  31. Kankaanranta, H.; Moilanen, E. Flufenamic and tolfenamic acids inhibit calcium influx in human polymorphonuclear leukocytes. Mol. Pharmacol. 1995, 47, 1006–1013. [Google Scholar] [PubMed]
  32. Burgos, R.A.; Conejeros, I.; Hidalgo, M.A.; Werling, D.; Hermosilla, C. Calcium influx, a new potential therapeutic target in the control of neutrophil-dependent inflammatory diseases in bovines. Vet. Immunol. Immunopathol. 2011, 143, 1–10. [Google Scholar] [CrossRef] [PubMed]
  33. Mahomed, A.G.; Anderson, R. Activation of human neutrophils with chemotactic peptide, opsonized zymosan and the calcium ionophore A23187, but not with a phorbol ester, is accompanied by efflux and store-operated influx of calcium. Inflammation 2000, 24, 559–569. [Google Scholar] [CrossRef] [PubMed]
  34. Douda, D.N.; Khan, M.A.; Grasemann, H.; Palaniyar, N. SK3 channel and mitochondrial ROS mediate NADPH oxidase-independent NETosis induced by calcium influx. Proc. Nat. Acad. Sci. USA 2015, 112, 2817–2822. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Kenny, E.F.; Herzig, A.; Krüger, R.; Muth, A.; Mondal, S.; Thompson, P.R.; Brinkmann, V.; Von Bernuth, H.; Zychlinsky, A. Diverse stimuli engage different neutrophil extracellular trap pathways. Elife 2017, 6, e24437. [Google Scholar] [CrossRef] [PubMed]
  36. Barrientos, L.; Marin-Esteban, V.; de Chaisemartin, L.; Le-Moal, V.L.; Sandré, C.; Bianchini, E.; Nicolas, V.; Pallardy, M.; Chollet-Martin, S. An Improved Strategy to Recover Large Fragments of Functional Human Neutrophil Extracellular Traps. Front. Immunol. 2013, 4, 166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Laitinen, L. Griffonia simplicifolia lectins bind specifically to endothelial cells and some epithelial cells in mouse tissues. Histochem. J. 1987, 19, 225–234. [Google Scholar] [CrossRef]
  38. Tanaka, K.; Koike, Y.; Shimura, T.; Okigami, M.; Ide, S.; Toiyama, Y.; Okugawa, Y.; Inoue, Y.; Araki, T.; Uchida, K.; et al. In vivo characterization of neutrophil extracellular traps in various organs of a murine sepsis model. PLoS ONE 2014, 9, e111888. [Google Scholar] [CrossRef]
  39. Cortes, H.C.; Reis, Y.; Gottstein, B.; Hemphill, A.; Leitão, A.; Müller, N. Application of conventional and real-time fluorescent ITS1 rDNA PCR for detection of Besnoitia besnoiti infections in bovine skin biopsies. Vet. Parasitol. 2007, 146, 352–356. [Google Scholar] [CrossRef]
  40. Gonzalez, A.S.; Bardoel, B.W.; Harbort, C.J.; Zychlinsky, A. Induction and quantification of neutrophil extracellular traps. Methods Mol. Biol. 2014, 1124, 307–318. [Google Scholar]
  41. Langenmayer, M.C.; Scharr, J.C.; Sauter-Louis, C.; Schares, G.; Gollnick, N.S. Natural Besnoitia besnoiti infections in cattle: Hematological alterations and changes in serum chemistry and enzyme activities. BMC Vet. Res. 2015, 11, 32. [Google Scholar] [CrossRef] [PubMed]
  42. Morgado, F.N.; Nascimento, M.T.C.; Saraiva, E.M.; de Oliveira-Ribeiro, C.; Madeira, M.d.F.; da Costa-Santos, M.; Vasconcellos, E.C.F.; Pimentel, M.I.F.; Rosandiski Lyra, M.; Schubach, A.d.O.; et al. Are Neutrophil Extracellular Traps Playing a Role in the Parasite Control in Active American Tegumentary Leishmaniasis Lesions? PLoS ONE 2015, 10, e0133063. [Google Scholar] [CrossRef] [PubMed]
  43. Frey, C.F.; Gutiérrez-Expósito, D.; Ortega-Mora, L.M.; Benavides, J.; Marcén, J.M.; Castillo, J.A.; Casasús, I.; Sanz, A.; García-Lunar, P.; Esteban-Gil, A.; et al. Chronic bovine besnoitiosis: Intra-organ parasite distribution, parasite loads and parasite-associated lesions in subclinical cases. Vet. Parasitol. 2013, 197, 95–103. [Google Scholar] [CrossRef] [PubMed]
  44. Boeltz, S.; Amini, P.; Anders, H.-J.; Andrade, F.; Bilyy, R.; Chatfield, S.; Cichon, I.; Clancy, D.M.; Desai, J.; Dumych, T.; et al. To NET or not to NET:current opinions and state of the science regarding the formation of neutrophil extracellular traps. Cell Death Differ. 2019, 26, 395. [Google Scholar] [CrossRef]
  45. de Buhr, N.; von Köckritz-Blickwede, M. How Neutrophil Extracellular Traps Become Visible. J. Immunol. Res. 2016, 2016, 1–13. [Google Scholar] [CrossRef] [Green Version]
  46. Brown, G.B.; Roth, J.A. Comparison of the response of bovine and human neutrophils to various stimuli. Vet. Immunol. 1991, 28, 201–218. [Google Scholar] [CrossRef]
  47. Taubert, A.; Hermosilla, C.; Silva, L.M.R.; Wieck, A.; Failing, K.; Mazurek, S. Metabolic signatures of Besnoitia besnoiti-infected endothelial host cells and blockage of key metabolic pathways indicate high glycolytic and glutaminolytic needs of the parasite. Parasitol. Res. 2016, 115, 2023–2034. [Google Scholar] [CrossRef]
  48. Gupta, A.K.; Joshi, M.B.; Philippova, M.; Erne, P.; Hasler, P.; Hahn, S.; Resink, T.J. Activated endothelial cells induce neutrophil extracellular traps and are susceptible to NETosis-mediated cell death. FEBS Lett. 2010, 584, 3193–3197. [Google Scholar] [CrossRef] [Green Version]
  49. Frey, C.F.; Regidor-Cerrillo, J.; Marreros, N.; García-Lunar, P.; Gutiérrez-Expósito, D.; Schares, G.; Dubey, J.P.; Gentile, A.; Jacquiet, P.; Shkap, V.; et al. Besnoitia besnoiti lytic cycle in vitro and differences in invasion and intracellular proliferation among isolates. Parasit. Vectors 2016, 9, 115. [Google Scholar] [CrossRef]
  50. Lim, C.H.; Adav, S.S.; Sze, S.K.; Choong, Y.K.; Saravanan, R.; Schmidtchen, A. Thrombin and Plasmin Alter the Proteome of Neutrophil Extracellular Traps. Front. Immunol. 2018, 9, 1554. [Google Scholar] [CrossRef] [Green Version]
  51. Behrendt, J.H.; Taubert, A.; Zahner, H.; Hermosilla, C. Studies on synchronous egress of coccidian parasites (Neospora caninum, Toxoplasma gondii, Eimeria bovis) from bovine endothelial host cells mediated by calcium ionophore A23187. Vet. Res. Commun. 2008, 32, 325–332. [Google Scholar] [CrossRef] [PubMed]
  52. Carmona-Rivera, C.; Zhao, W.; Yalavarthi, S.; Kaplan, M.J. Neutrophil extracellular traps induce endothelial dysfunction in systemic lupus erythematosus through the activation of matrix metalloproteinase-2. Ann. Rheum. Dis. 2015, 74, 1417–1424. [Google Scholar] [CrossRef] [PubMed]
  53. Xu, J.; Zhang, X.; Monestier, M.; Esmon, N.L.; Esmon, C.T. Extracellular histones are mediators of death through TLR2 and TLR4 in mouse fatal liver injury. J. Immunol. 2011, 187, 2626–2631. [Google Scholar] [CrossRef] [PubMed]
  54. Akira, S. Toll-like Receptor Signaling. J. Biol. Chem. 2003, 278, 38105–38108. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Biology 08 00078 g001 550
Figure 1. B. besnoiti tachyzoites induce neutrophil extracellular traps (NETs). 2 × 105 bovine polymorphonuclear neutrophils (PMN) were confronted with plain medium (control) or 8 × 105 B. besnoiti tachyzoites (1:4 ratio) for 3 h at 37 °C and 5% CO2. Samples were fixed and immune-stained for neutrophil elastase (green) and histones (red). The coverslips were mounted in mounting media containing 4′,6-Diamidine-2′-phenylindole DAPI to stain DNA (blue). Representative image of NETs in response to B. besnoiti tachyzoites is shown in (A). In (B) a zoom shows the detail of NETs trapping B. besnoiti tachyzoites (white triangle). In addition, the dotted distribution of neutrophil elastase in NETs is observed (white asterisk).
Figure 1. B. besnoiti tachyzoites induce neutrophil extracellular traps (NETs). 2 × 105 bovine polymorphonuclear neutrophils (PMN) were confronted with plain medium (control) or 8 × 105 B. besnoiti tachyzoites (1:4 ratio) for 3 h at 37 °C and 5% CO2. Samples were fixed and immune-stained for neutrophil elastase (green) and histones (red). The coverslips were mounted in mounting media containing 4′,6-Diamidine-2′-phenylindole DAPI to stain DNA (blue). Representative image of NETs in response to B. besnoiti tachyzoites is shown in (A). In (B) a zoom shows the detail of NETs trapping B. besnoiti tachyzoites (white triangle). In addition, the dotted distribution of neutrophil elastase in NETs is observed (white asterisk).
Biology 08 00078 g001
Biology 08 00078 g002 550

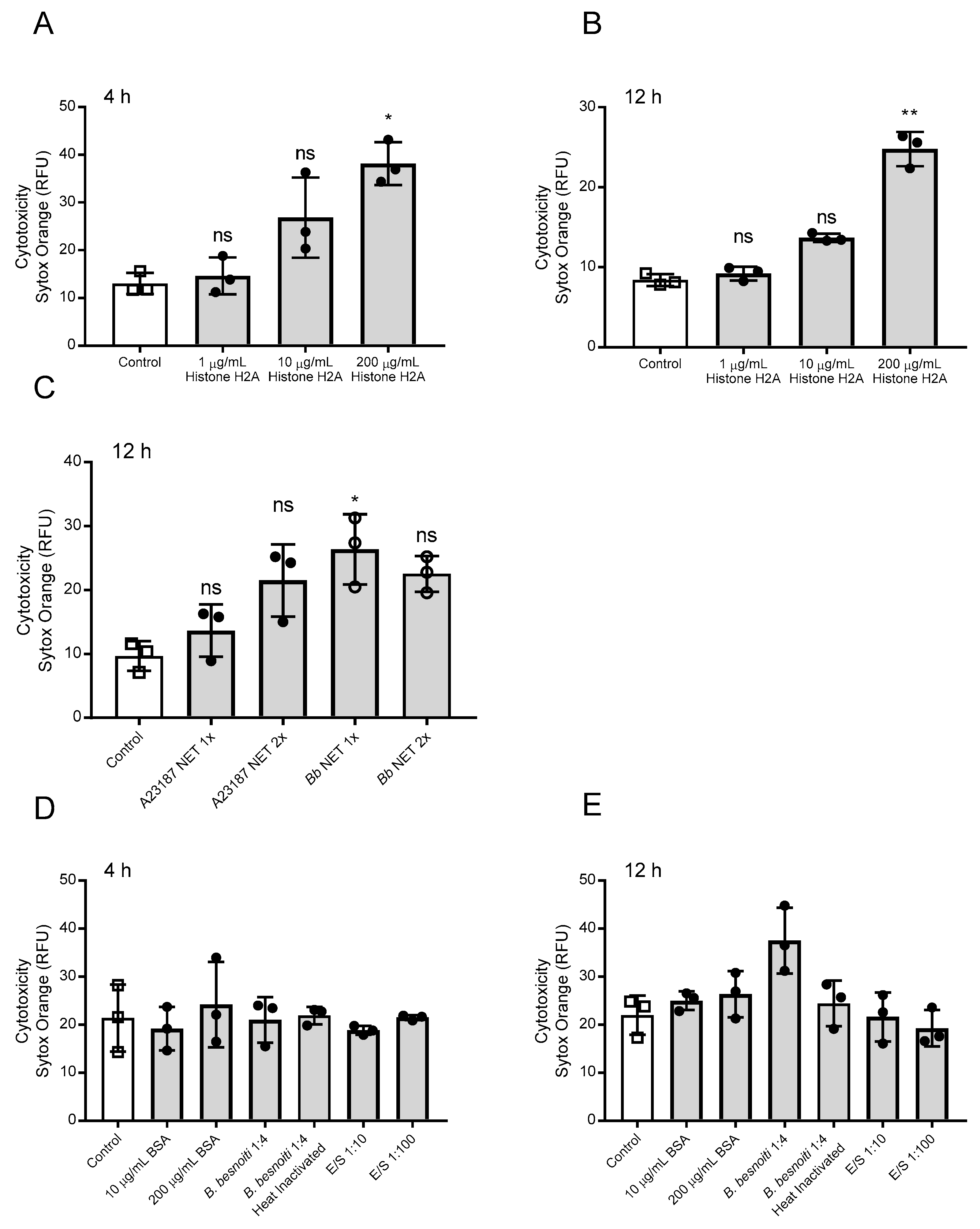

Figure 2. Histone 2A (H2A) and NETs preparations induce cell death in bovine umbilical vein endothelial cells (BUVEC). Three different BUVEC isolates were treated with H2A at concentrations of 1–200 µg/mL for 4 (A) h and 12 (B) h and with NETs preparations from bovine PMN confronted with B. besnoiti tachyzoites (Bb NET) or stimulated with A23187 (A23187 NET) for 12 h (C). For control purposes BUVEC were incubated with bovine serum albumin (BSA), heat killed, and viable B. besnoiti tachyzoites and excretory/secretory (E/S) molecules for 4 h (D) and 12 (E) h. Cell death was evaluated using Sytox Orange® staining. Bars represent mean ± SD. Statistical significance (ns = non-significant, * p < 0.05; ** p < 0.01; p < 0.001) was determined by Kruskal-Wallis test followed by a Dunn’s post-test comparing experimental versus control conditions (N = 3), all experiments were performed in duplicates.
Figure 2. Histone 2A (H2A) and NETs preparations induce cell death in bovine umbilical vein endothelial cells (BUVEC). Three different BUVEC isolates were treated with H2A at concentrations of 1–200 µg/mL for 4 (A) h and 12 (B) h and with NETs preparations from bovine PMN confronted with B. besnoiti tachyzoites (Bb NET) or stimulated with A23187 (A23187 NET) for 12 h (C). For control purposes BUVEC were incubated with bovine serum albumin (BSA), heat killed, and viable B. besnoiti tachyzoites and excretory/secretory (E/S) molecules for 4 h (D) and 12 (E) h. Cell death was evaluated using Sytox Orange® staining. Bars represent mean ± SD. Statistical significance (ns = non-significant, * p < 0.05; ** p < 0.01; p < 0.001) was determined by Kruskal-Wallis test followed by a Dunn’s post-test comparing experimental versus control conditions (N = 3), all experiments were performed in duplicates.
Biology 08 00078 g002
Biology 08 00078 g003 550

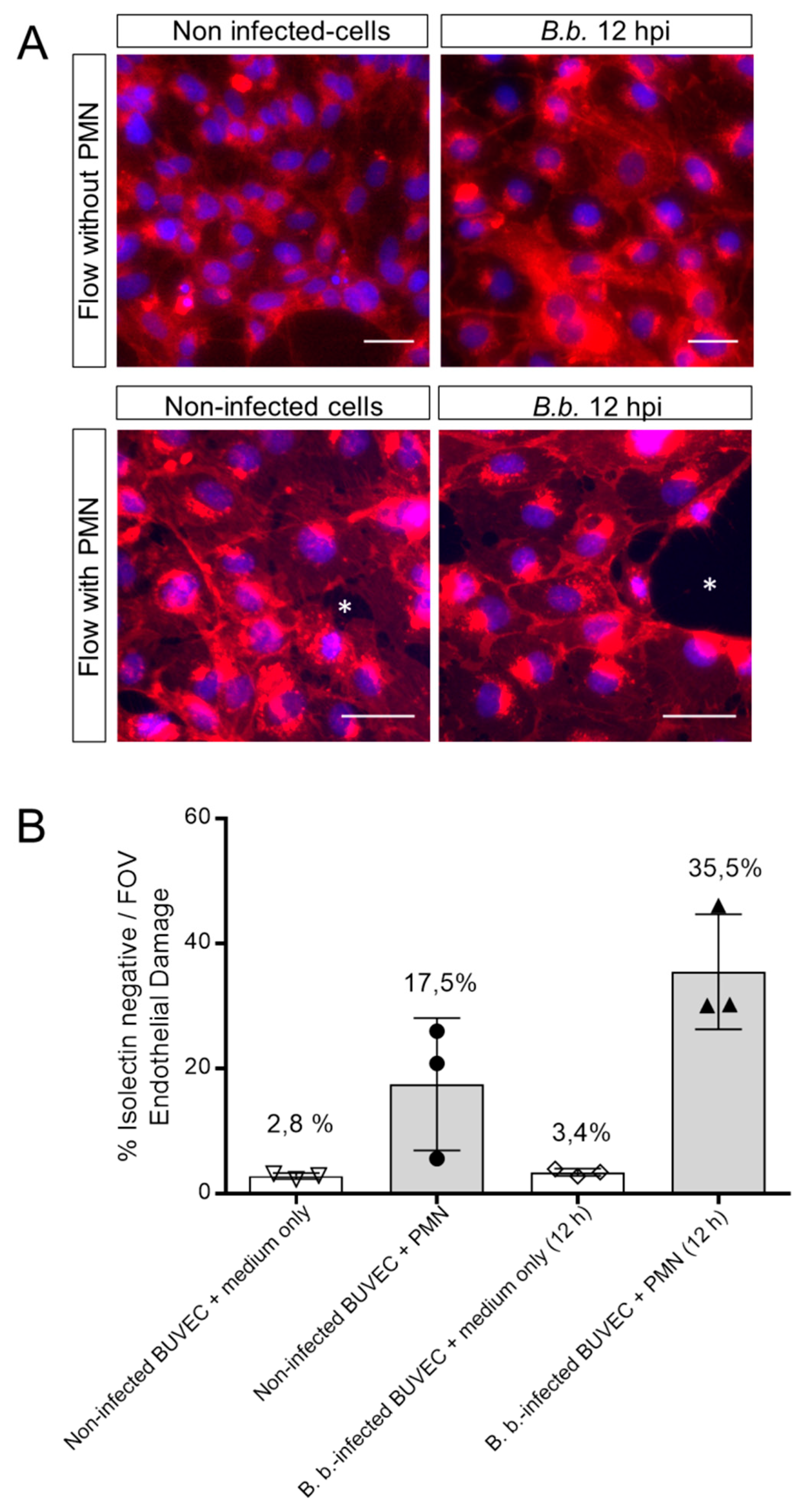

Figure 3. PMN induce damage on B. besnoiti-infected BUVEC under physiological flow conditions. PMN or medium alone were perfused at a constant shear stress of 1 dyn/cm2 over B. besnoiti-infected and non-infected BUVEC at 12 h.p.i. After 5 min of perfusion, cell layers were fixed and stained with DAPI for nuclei and with Alexa Fluor 594-conjugated isolectin-IB4 that predominantly binds endothelium and observed under fluorescence microscopy. Endothelial damage is calculated dividing the isolectin-negative surface (white asterisks, A, representative images) by the total surface of the field of view. Column graph represents results of the percentage of endothelial damage after analyzing five random pictures from three different BUVEC isolates per each experimental condition (B). FOV = Field of view. Number over the bars indicates the mean % and error bars ± SD.
Figure 3. PMN induce damage on B. besnoiti-infected BUVEC under physiological flow conditions. PMN or medium alone were perfused at a constant shear stress of 1 dyn/cm2 over B. besnoiti-infected and non-infected BUVEC at 12 h.p.i. After 5 min of perfusion, cell layers were fixed and stained with DAPI for nuclei and with Alexa Fluor 594-conjugated isolectin-IB4 that predominantly binds endothelium and observed under fluorescence microscopy. Endothelial damage is calculated dividing the isolectin-negative surface (white asterisks, A, representative images) by the total surface of the field of view. Column graph represents results of the percentage of endothelial damage after analyzing five random pictures from three different BUVEC isolates per each experimental condition (B). FOV = Field of view. Number over the bars indicates the mean % and error bars ± SD.
Biology 08 00078 g003
Biology 08 00078 g004 550

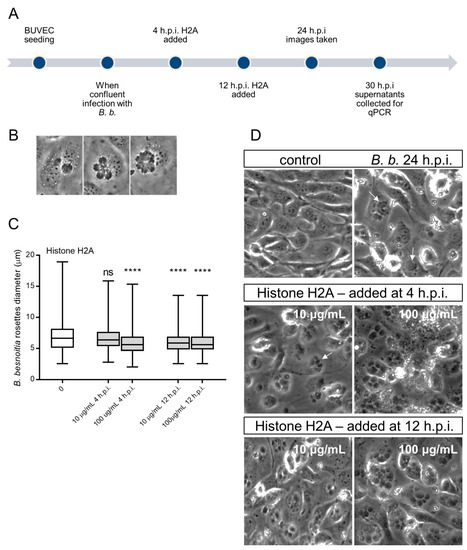

Figure 4. Histone 2A (H2A) treatment of B. besnoiti-infected BUVEC reduces B. besnoiti parasitophorous vacuole (PV) diameter. BUVEC (three different isolates, N = 3) were treated with H2A at 10 or 100 µg/mL at 4 and 12 h.p.i. (for experimental procedure refer to Figure 4A). At 24 h.p.i. experimental conditions were documented by five randomly taken images using a phase contrast microscope (B,D). (B) Shows the typical development of B. besnoiti rosettes within 24 h of infection (non-synchronous tachyzoite division leads to the formation of 2-mers to 16-mers). Here, the diameter of each B. besnoiti PV was measured (n = 825) and plotted as box and whiskers plot (C), line at median, bars indicating maximum and minimum values. Statistical significance, N = 3 (ns = non significant, **** p < 0.0001) was determined by Kruskal-Wallis test followed by a Dunn´s post-test comparing experimental versus control condition at 4 and 12 h.p.i. In (D) a representative image of each experimental condition is shown, white arrows indicate B. besnoiti rosettes inside host BUVEC cell.
Figure 4. Histone 2A (H2A) treatment of B. besnoiti-infected BUVEC reduces B. besnoiti parasitophorous vacuole (PV) diameter. BUVEC (three different isolates, N = 3) were treated with H2A at 10 or 100 µg/mL at 4 and 12 h.p.i. (for experimental procedure refer to Figure 4A). At 24 h.p.i. experimental conditions were documented by five randomly taken images using a phase contrast microscope (B,D). (B) Shows the typical development of B. besnoiti rosettes within 24 h of infection (non-synchronous tachyzoite division leads to the formation of 2-mers to 16-mers). Here, the diameter of each B. besnoiti PV was measured (n = 825) and plotted as box and whiskers plot (C), line at median, bars indicating maximum and minimum values. Statistical significance, N = 3 (ns = non significant, **** p < 0.0001) was determined by Kruskal-Wallis test followed by a Dunn´s post-test comparing experimental versus control condition at 4 and 12 h.p.i. In (D) a representative image of each experimental condition is shown, white arrows indicate B. besnoiti rosettes inside host BUVEC cell.
Biology 08 00078 g004
Biology 08 00078 g005 550

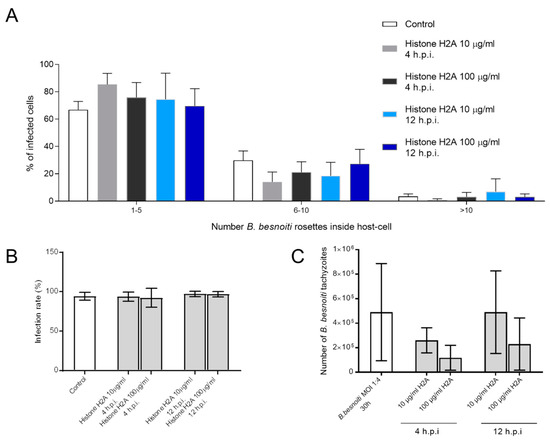

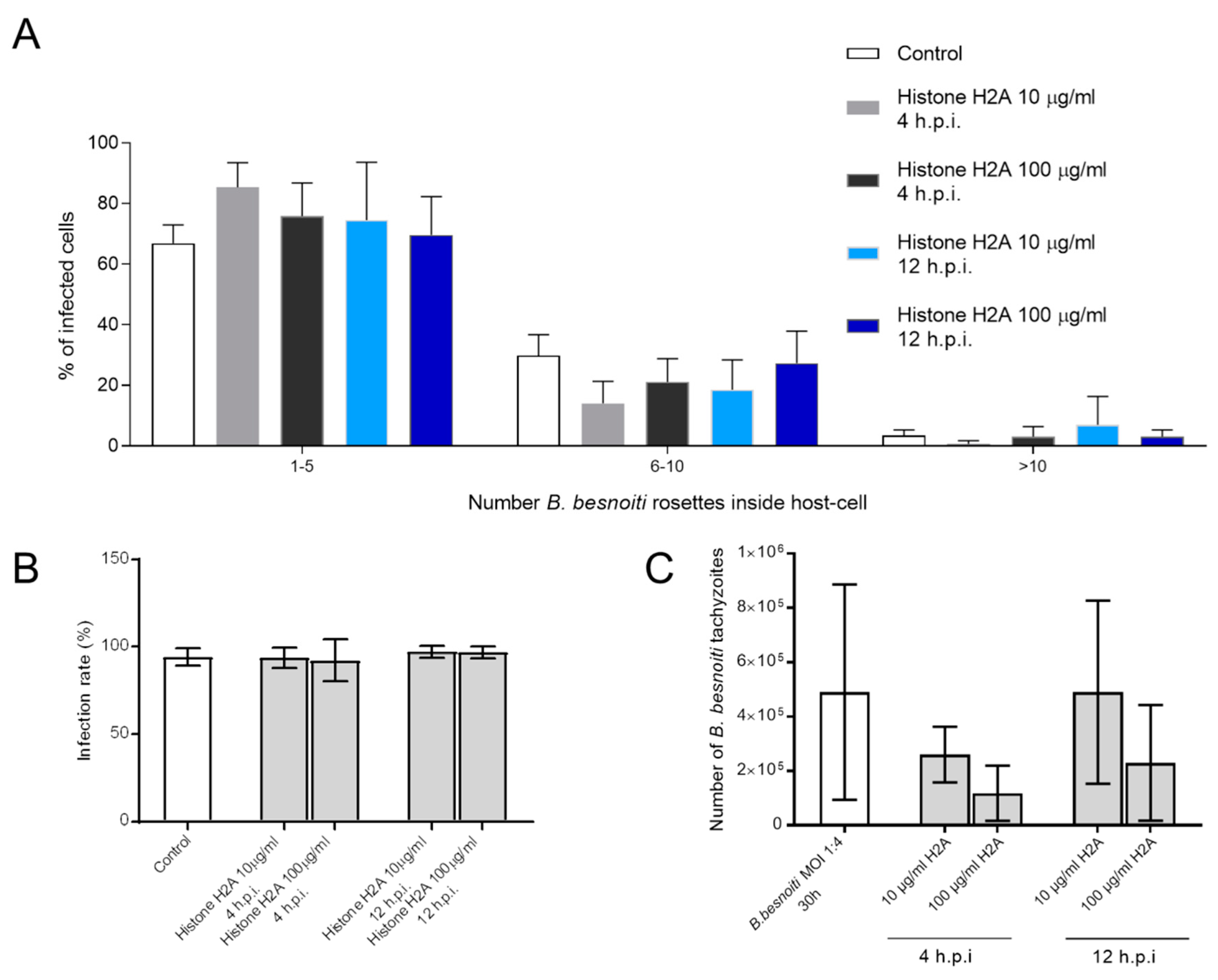

Figure 5. Histone 2A (H2A) did not affect the number of intracellular B. besnoiti rosettes. B. besnoiti-infected BUVEC (three different isolates, N = 3) were treated with H2A (10 or 100 µg/mL) at 4 and 12 h.p.i. At 24 h.p.i. cell layers were analyzed by randomly taking five microscopic images using phase contrast microscopy. The total number of B. besnoiti rosettes per host cell was determined and the percentage of host cells carrying different numbers of PV was estimated and sub-grouped in different categories (with 1–5, 6–10 and >10 rosettes/cell, respectively; (A)). Furthermore, the infection rate (B) and the total number of tachyzoites being released into cell supernatant within 30 h.p.i. was estimated via qPCR (C). Bar graph shows mean ± SD. (n = 238).
Figure 5. Histone 2A (H2A) did not affect the number of intracellular B. besnoiti rosettes. B. besnoiti-infected BUVEC (three different isolates, N = 3) were treated with H2A (10 or 100 µg/mL) at 4 and 12 h.p.i. At 24 h.p.i. cell layers were analyzed by randomly taking five microscopic images using phase contrast microscopy. The total number of B. besnoiti rosettes per host cell was determined and the percentage of host cells carrying different numbers of PV was estimated and sub-grouped in different categories (with 1–5, 6–10 and >10 rosettes/cell, respectively; (A)). Furthermore, the infection rate (B) and the total number of tachyzoites being released into cell supernatant within 30 h.p.i. was estimated via qPCR (C). Bar graph shows mean ± SD. (n = 238).
Biology 08 00078 g005
Biology 08 00078 g006 550

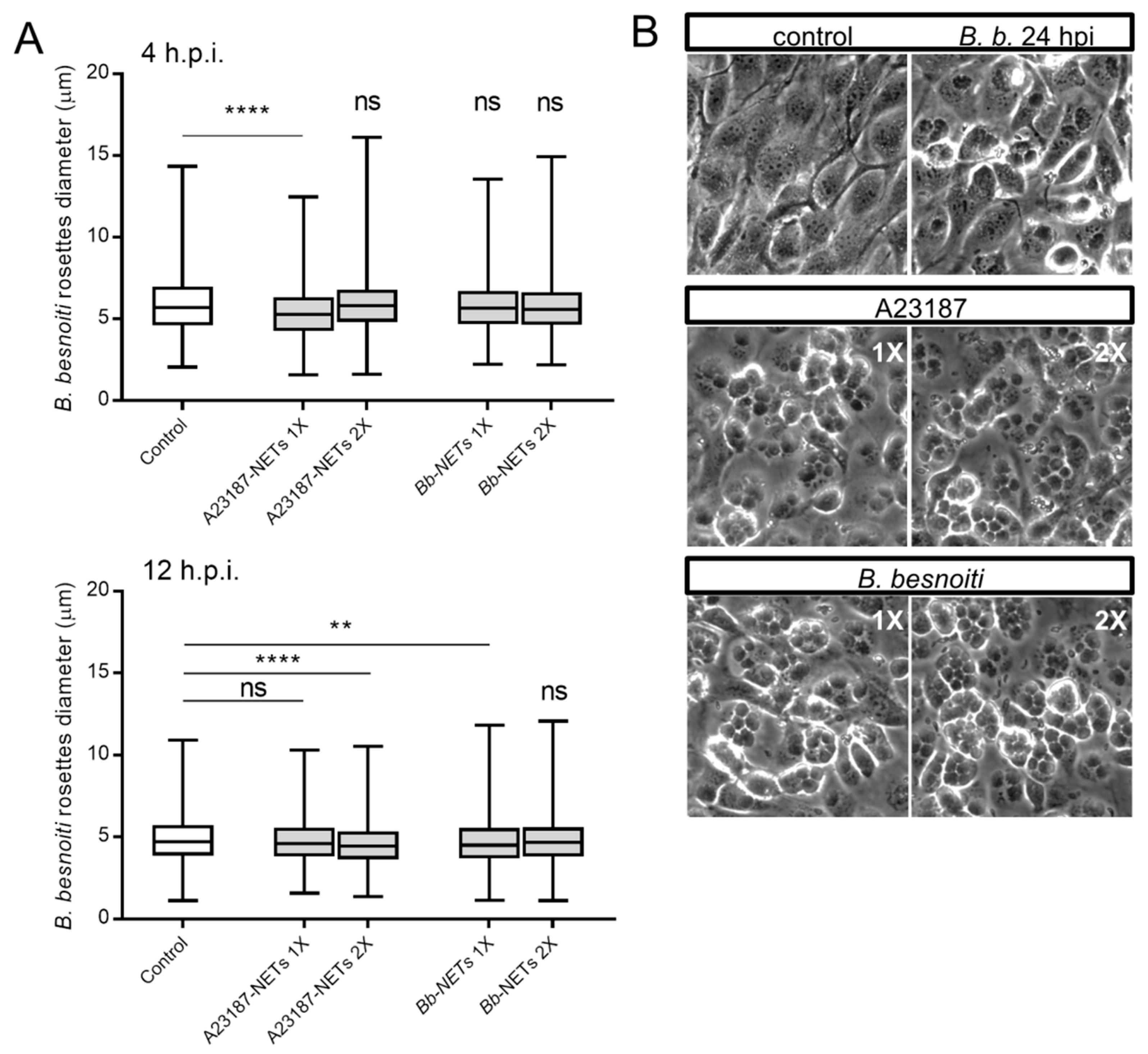

Figure 6. Bb-NETs and A231887-NETs induced a decrease in rosette diameter in B. besnoiti-infected BUVEC. Bb-NETs or A231887-NETs were added at two different concentrations (1X and 2X) to infected BUVEC cells (three different isolates, N = 3) at 4 (A, upper panel) and 12 (A, lower panel) h.p.i. At 24 h.p.i. experimental conditions were documented within five random pictures using a phase contrast microscope and the diameter of B. besnoiti rosettes was determined (n = 1115). Box and whiskers plot, line at median, bars indicating maximum and minimum values. Statistical significance was determined by Kruskal-Wallis test followed by a Dunn´s post-test comparing experimental versus control condition at 4 and 12 h.p.i. (A). Representative images infected BUVEC cells to which Bb and A23187 NETs were added at 12 h.p.i. are shown (B). ns = non significant, ** p < 0.01, **** p < 0.0001.
Figure 6. Bb-NETs and A231887-NETs induced a decrease in rosette diameter in B. besnoiti-infected BUVEC. Bb-NETs or A231887-NETs were added at two different concentrations (1X and 2X) to infected BUVEC cells (three different isolates, N = 3) at 4 (A, upper panel) and 12 (A, lower panel) h.p.i. At 24 h.p.i. experimental conditions were documented within five random pictures using a phase contrast microscope and the diameter of B. besnoiti rosettes was determined (n = 1115). Box and whiskers plot, line at median, bars indicating maximum and minimum values. Statistical significance was determined by Kruskal-Wallis test followed by a Dunn´s post-test comparing experimental versus control condition at 4 and 12 h.p.i. (A). Representative images infected BUVEC cells to which Bb and A23187 NETs were added at 12 h.p.i. are shown (B). ns = non significant, ** p < 0.01, **** p < 0.0001.
Biology 08 00078 g006
Biology 08 00078 g007 550

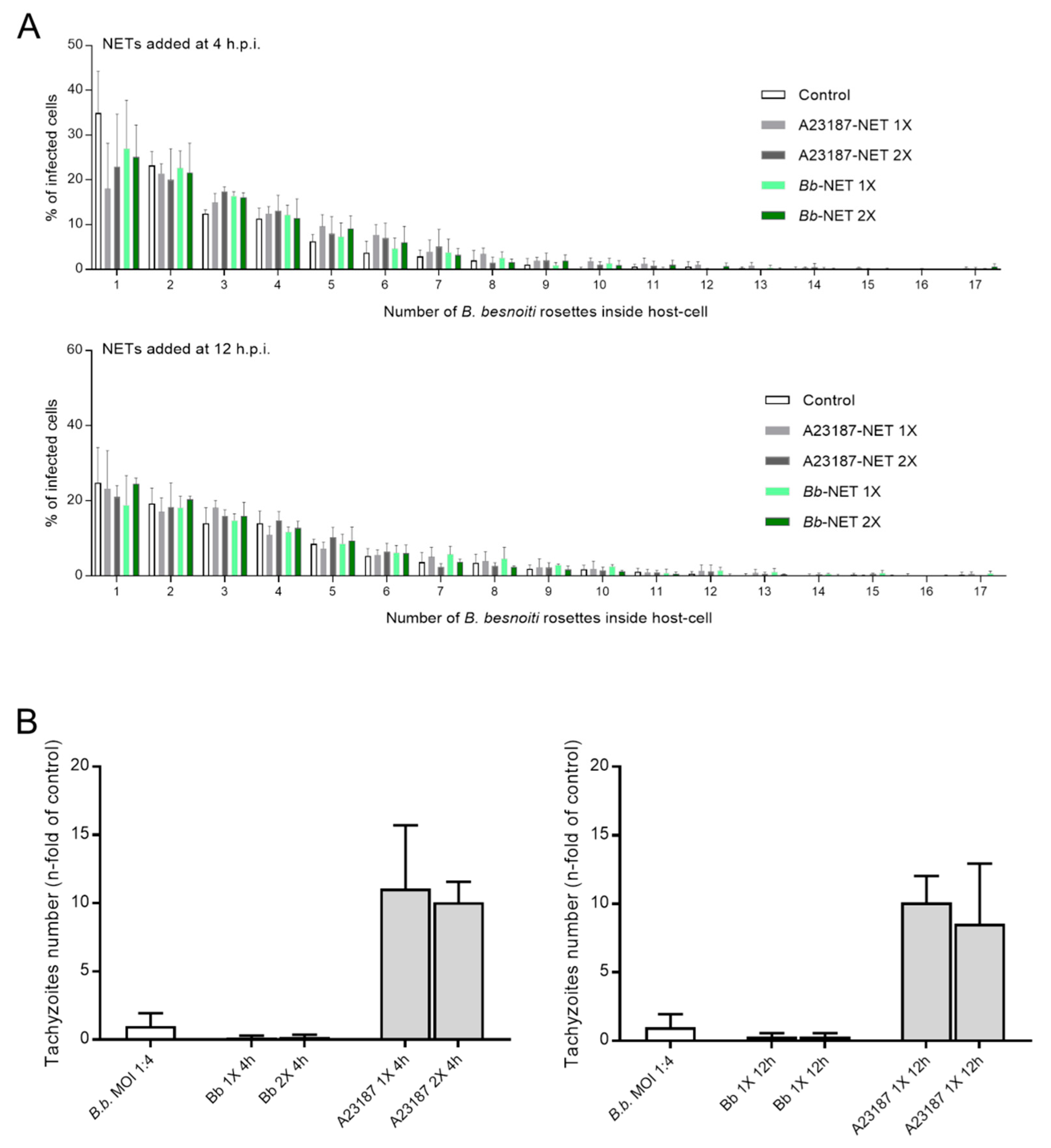

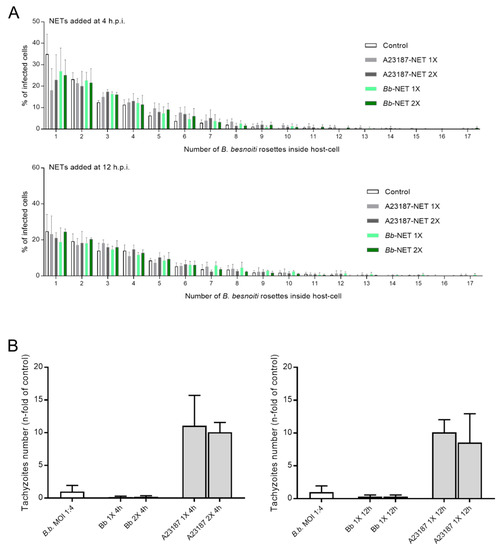

Figure 7. Effects of Bb-NET and A23187-NET treatments on intracellular B. besnoiti rosettes formation and tachyzoite release. B. besnoiti-infected BUVEC (three different isolates, N = 3), were treated with Bb-NETs or A231887-NETs at 1X and 2X concentrations at 4 and 12 h.p.i. All treatments were performed in duplicates. At 24 h.p.i. cells were analyzed by randomly taking five images for each experimental condition using phase contrast microscopy. The total number of B. besnoiti rosettes per host cell at 4 (n = 1115) and 12 h.p.i. (n = 970) was determined and the percentage of host cells carrying different numbers of rosettes was calculated (A) In addition, the total number of tachyzoites being released into cell supernatant within 30 h.p.i. was estimated via qPCR (B). Bars represents mean ± SD.
Figure 7. Effects of Bb-NET and A23187-NET treatments on intracellular B. besnoiti rosettes formation and tachyzoite release. B. besnoiti-infected BUVEC (three different isolates, N = 3), were treated with Bb-NETs or A231887-NETs at 1X and 2X concentrations at 4 and 12 h.p.i. All treatments were performed in duplicates. At 24 h.p.i. cells were analyzed by randomly taking five images for each experimental condition using phase contrast microscopy. The total number of B. besnoiti rosettes per host cell at 4 (n = 1115) and 12 h.p.i. (n = 970) was determined and the percentage of host cells carrying different numbers of rosettes was calculated (A) In addition, the total number of tachyzoites being released into cell supernatant within 30 h.p.i. was estimated via qPCR (B). Bars represents mean ± SD.
Biology 08 00078 g007

Share and Cite

MDPI and ACS Style

Conejeros, I.; Velásquez, Z.D.; Grob, D.; Zhou, E.; Salecker, H.; Hermosilla, C.; Taubert, A. Histone H2A and Bovine Neutrophil Extracellular Traps Induce Damage of Besnoitia besnoiti-Infected Host Endothelial Cells but Fail to Affect Total Parasite Proliferation. Biology 2019, 8, 78. https://doi.org/10.3390/biology8040078

AMA Style

Conejeros I, Velásquez ZD, Grob D, Zhou E, Salecker H, Hermosilla C, Taubert A. Histone H2A and Bovine Neutrophil Extracellular Traps Induce Damage of Besnoitia besnoiti-Infected Host Endothelial Cells but Fail to Affect Total Parasite Proliferation. Biology. 2019; 8(4):78. https://doi.org/10.3390/biology8040078

Chicago/Turabian Style

Conejeros, Iván, Zahady D. Velásquez, Daniela Grob, Ershun Zhou, Hannah Salecker, Carlos Hermosilla, and Anja Taubert. 2019. "Histone H2A and Bovine Neutrophil Extracellular Traps Induce Damage of Besnoitia besnoiti-Infected Host Endothelial Cells but Fail to Affect Total Parasite Proliferation" Biology 8, no. 4: 78. https://doi.org/10.3390/biology8040078

APA Style

Conejeros, I., Velásquez, Z. D., Grob, D., Zhou, E., Salecker, H., Hermosilla, C., & Taubert, A. (2019). Histone H2A and Bovine Neutrophil Extracellular Traps Induce Damage of Besnoitia besnoiti-Infected Host Endothelial Cells but Fail to Affect Total Parasite Proliferation. Biology, 8(4), 78. https://doi.org/10.3390/biology8040078

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
