Next Article in Journal
Cavitation Erosion Resistance and Wear Mechanism Model of Flame-Sprayed Al2O3-40%TiO2/NiMoAl Cermet Coatings
Next Article in Special Issue
Effect of Particle In-Flight Behavior on the Microstructure and Fracture Toughness of YSZ TBCs Prepared by Plasma Spraying
Previous Article in Journal
The Surface Anodization of Titanium Dental Implants Improves Blood Clot Formation Followed by Osseointegration
Previous Article in Special Issue
The Electronic and Elastic Properties of Si Atom Doping in TiN: A First-Principles Calculation
Open AccessArticle

Phase Composition, Thermal Conductivity, and Toughness of TiO2-Doped, Er2O3-Stabilized ZrO2 for Thermal Barrier Coating Applications

1, 1,2,*, 1 and 1,2
1
School of Materials Science and Engineering, Tianjin University, Tianjin 300072, China
2
Tianjin Key Laboratory of Advanced Joining Technology, Key Lab of Advanced Ceramics and Machining Technology of Ministry of Education, Tianjin 300072, China
*
Author to whom correspondence should be addressed.
Coatings 2018, 8(7), 253; https://doi.org/10.3390/coatings8070253
Received: 26 May 2018 / Revised: 5 July 2018 / Accepted: 17 July 2018 / Published: 20 July 2018
(This article belongs to the Special Issue Advanced Ceramic Coatings and Interfaces)
  |
PDF [2071 KB, uploaded 20 July 2018]
  |

Abstract

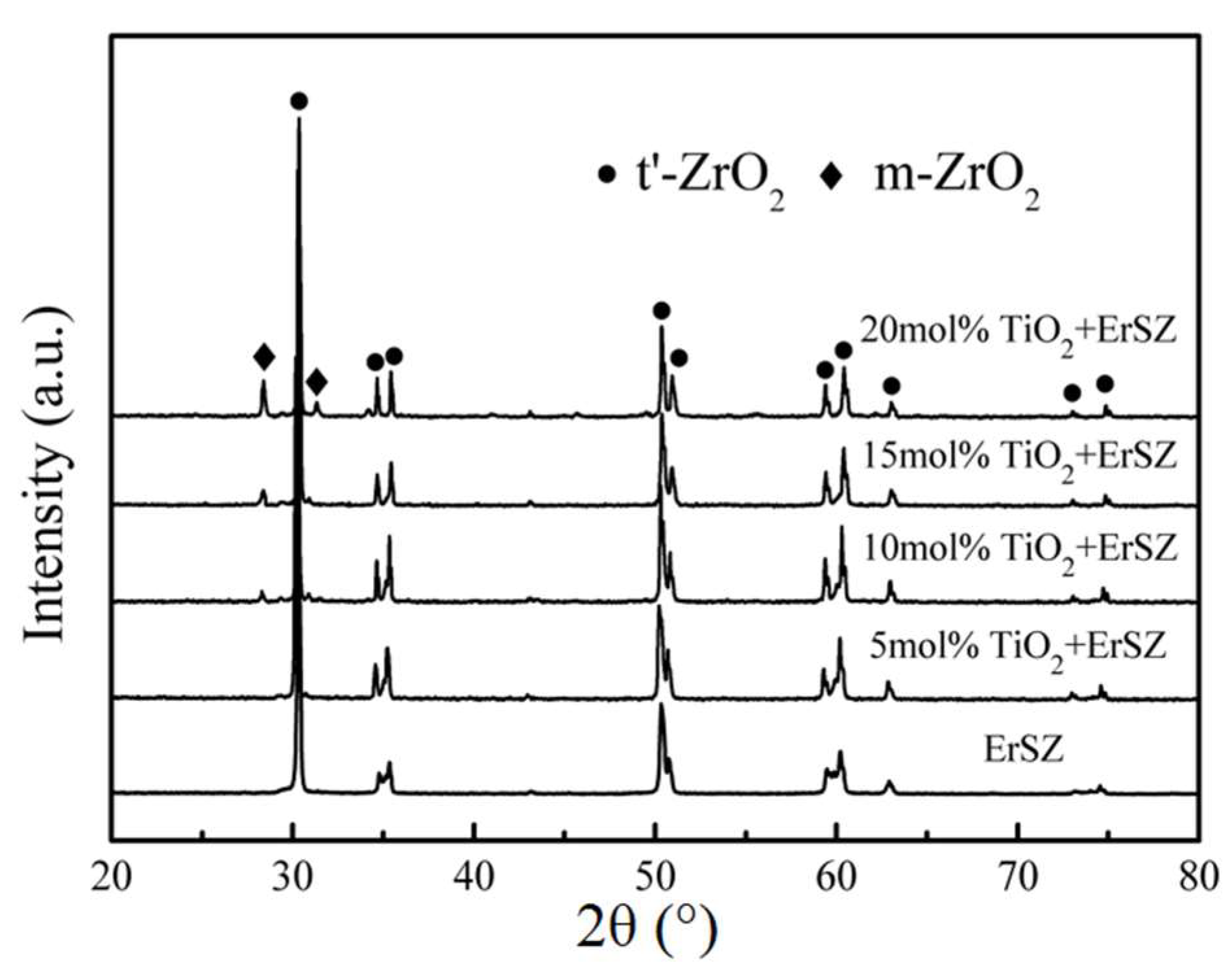

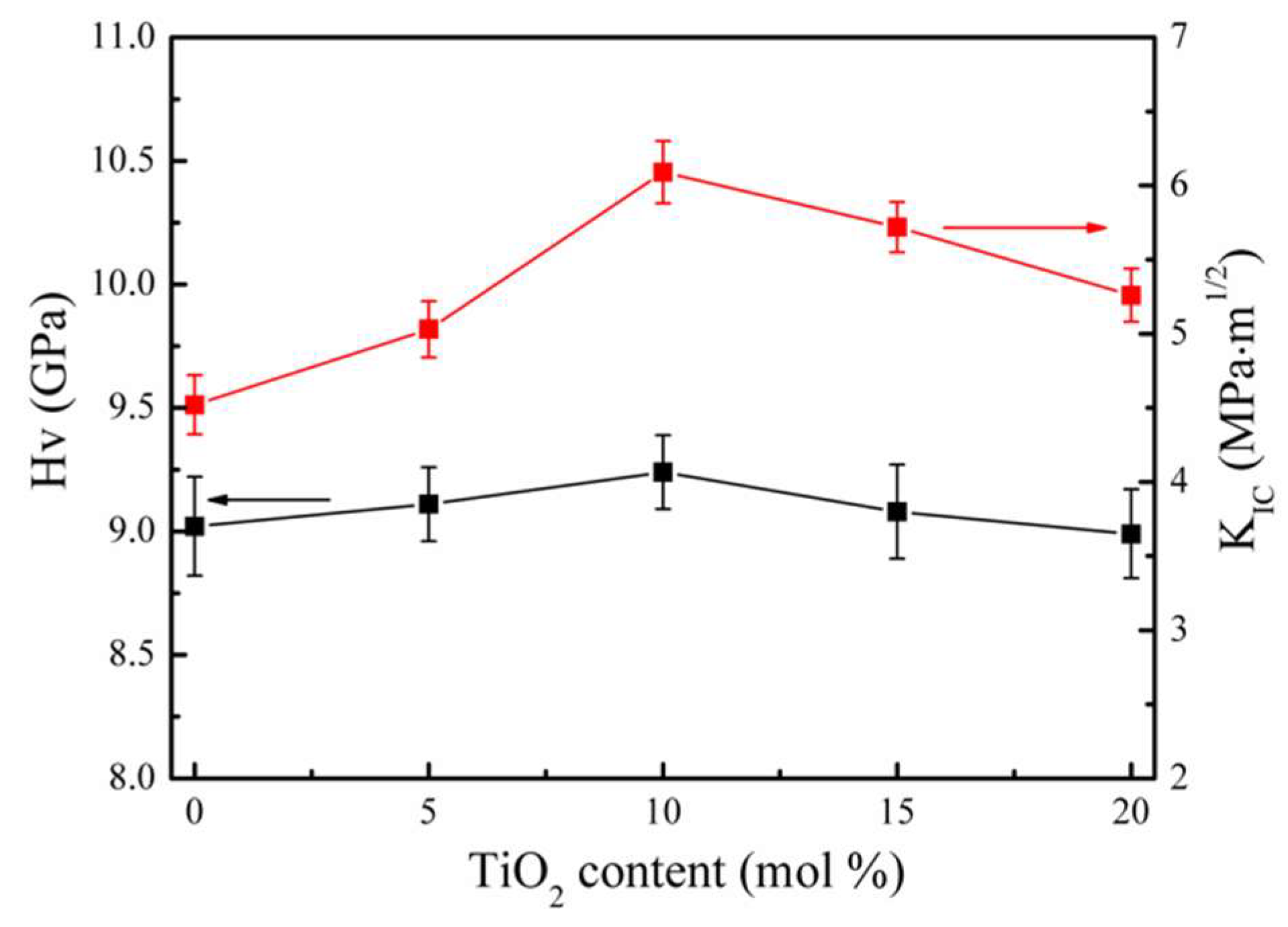

TiO2 was doped into Er2O3-stabilized ZrO2 (ErSZ) to obtain desirable properties for thermal barrier coating (TBC) applications. The phase composition, thermal conductivity, and mechanical properties of TiO2-doped ErSZ were investigated. ErSZ had a non-transformable metastable tetragonal (t′) phase, the compound with 5 mol % TiO2 consisted of t′ and cubic (c) phases, while 10 mol % TiO2 doped ErSZ had t′, c, and about 3.5 mol % monoclinic (m) phases. Higher TiO2 doping contents caused more m phase, and the compounds were composed of t′ and m phases. When the dopant content was below 10 mol %, TiO2 doping could decrease the thermal conductivity and enhance the toughness of the compounds. At higher doping levels, the compounds exhibited an increased thermal conductivity and a reduction in the toughness, mainly attribable to the formation of the undesirable m phase. Hence, 10 mol % TiO2-doped ErSZ could be a promising candidate for TBC applications. View Full-Text
Keywords: thermal barrier coatings; doping; phase stability; thermal conductivity; toughness thermal barrier coatings; doping; phase stability; thermal conductivity; toughness
Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, Q.; Guo, L.; Yan, Z.; Ye, F. Phase Composition, Thermal Conductivity, and Toughness of TiO2-Doped, Er2O3-Stabilized ZrO2 for Thermal Barrier Coating Applications. Coatings 2018, 8, 253.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Coatings EISSN 2079-6412 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
