Next Article in Journal
Phase Composition, Thermal Conductivity, and Toughness of TiO2-Doped, Er2O3-Stabilized ZrO2 for Thermal Barrier Coating Applications
Next Article in Special Issue
Dental Adhesion Enhancement on Zirconia Inspired by Mussel’s Priming Strategy Using Catechol
Previous Article in Journal
To Do List for Research and Development and International Standardization to Achieve the Goal of Running a Majority of Electric Vehicles on Solar Energy
Previous Article in Special Issue
Repair Bond Strength of a Resin Composite to Plasma-Treated or UV-Irradiated CAD/CAM Ceramic Surface
Open AccessArticle

The Surface Anodization of Titanium Dental Implants Improves Blood Clot Formation Followed by Osseointegration

Department of Medical, Oral and Biotechnological Sciences, University of Chieti-Pescara, Chieti 66100, Italy
*
Author to whom correspondence should be addressed.
Coatings 2018, 8(7), 252; https://doi.org/10.3390/coatings8070252
Received: 2 June 2018 / Revised: 28 June 2018 / Accepted: 16 July 2018 / Published: 20 July 2018
(This article belongs to the Special Issue Advanced Bioadhesive and Bioabhesive Coatings)

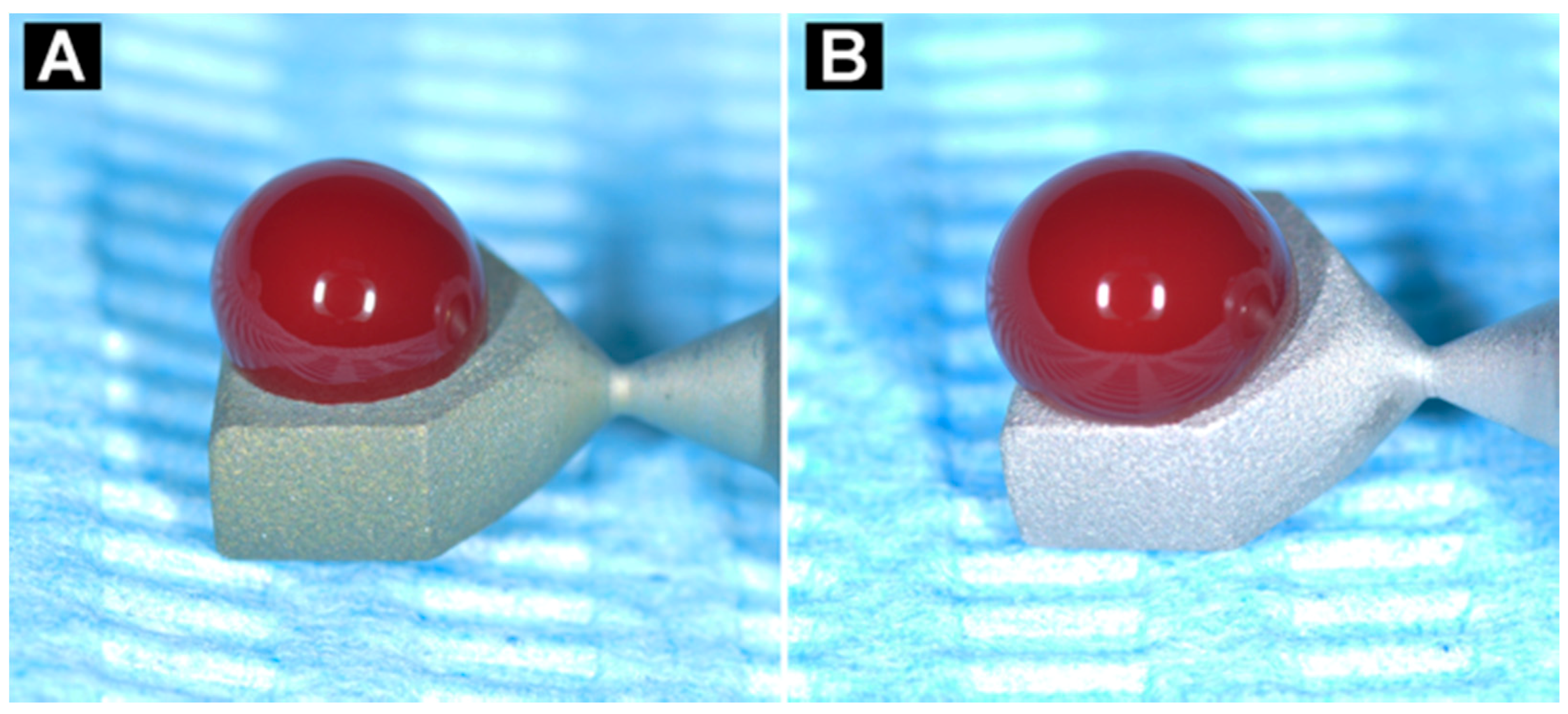

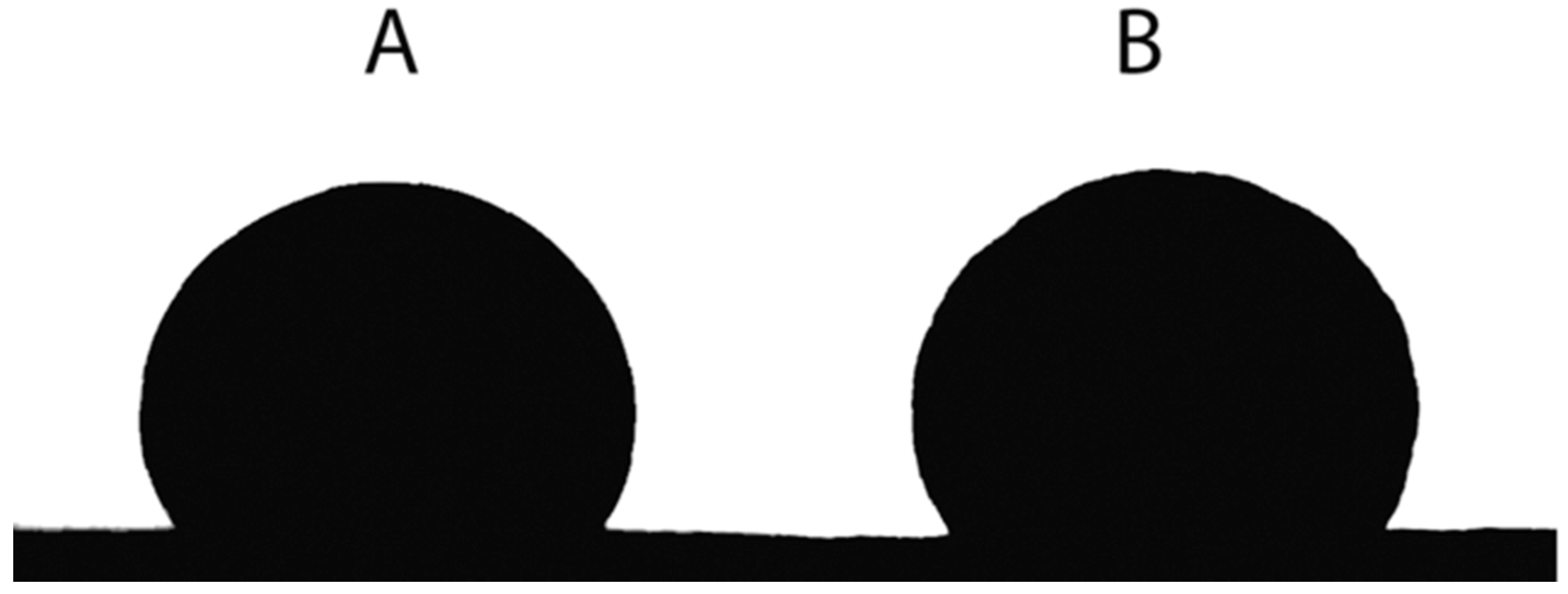

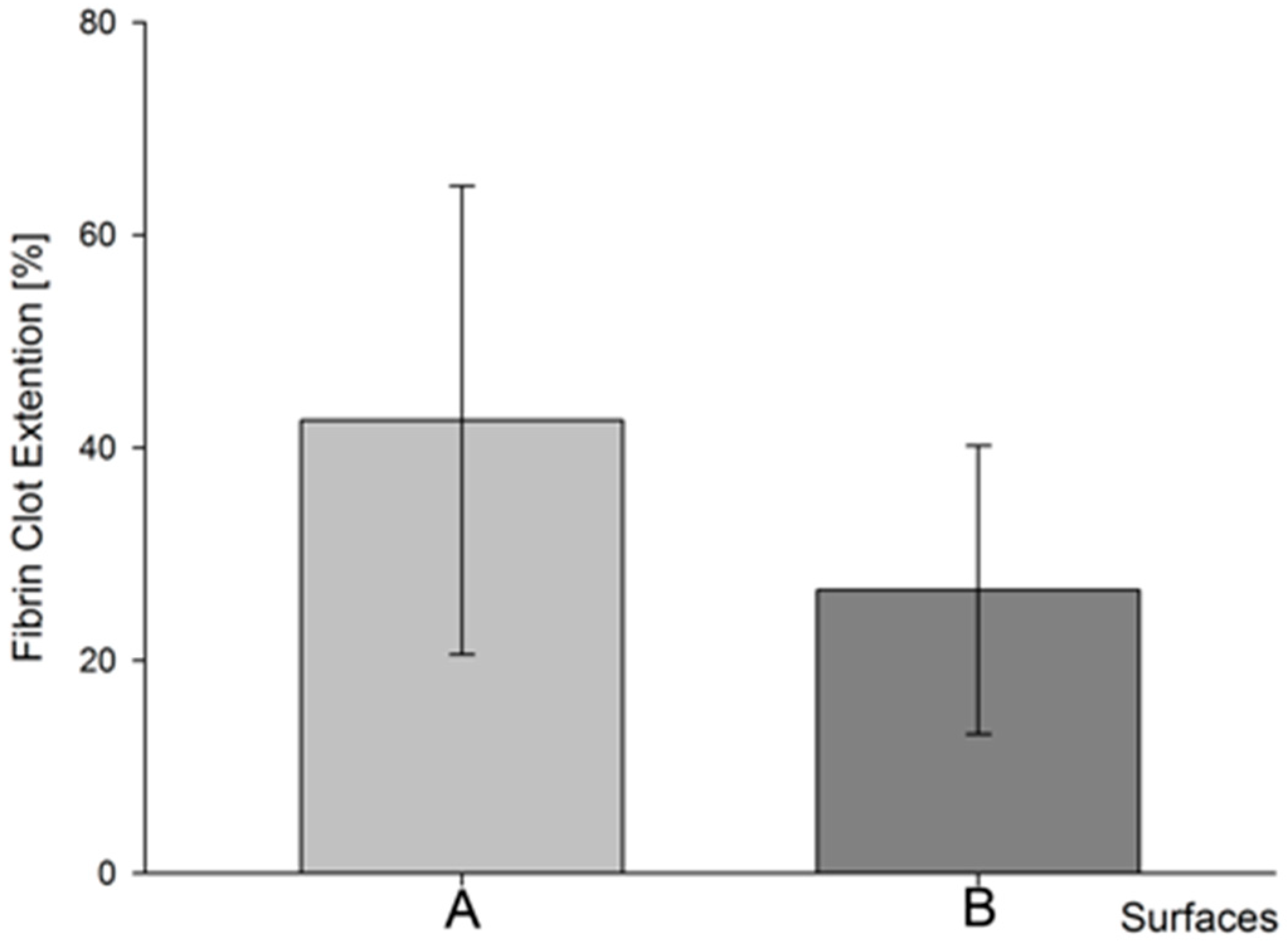

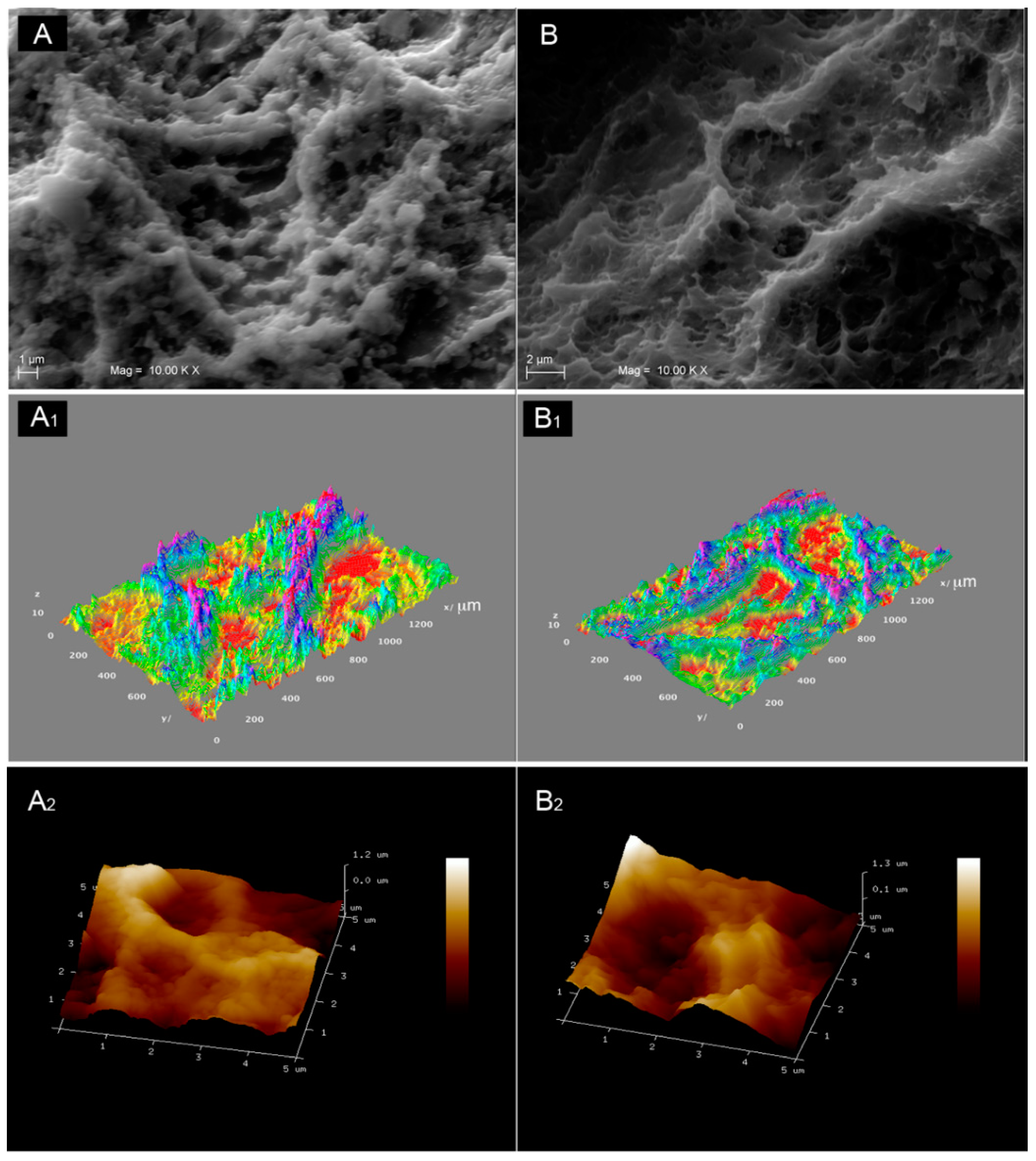

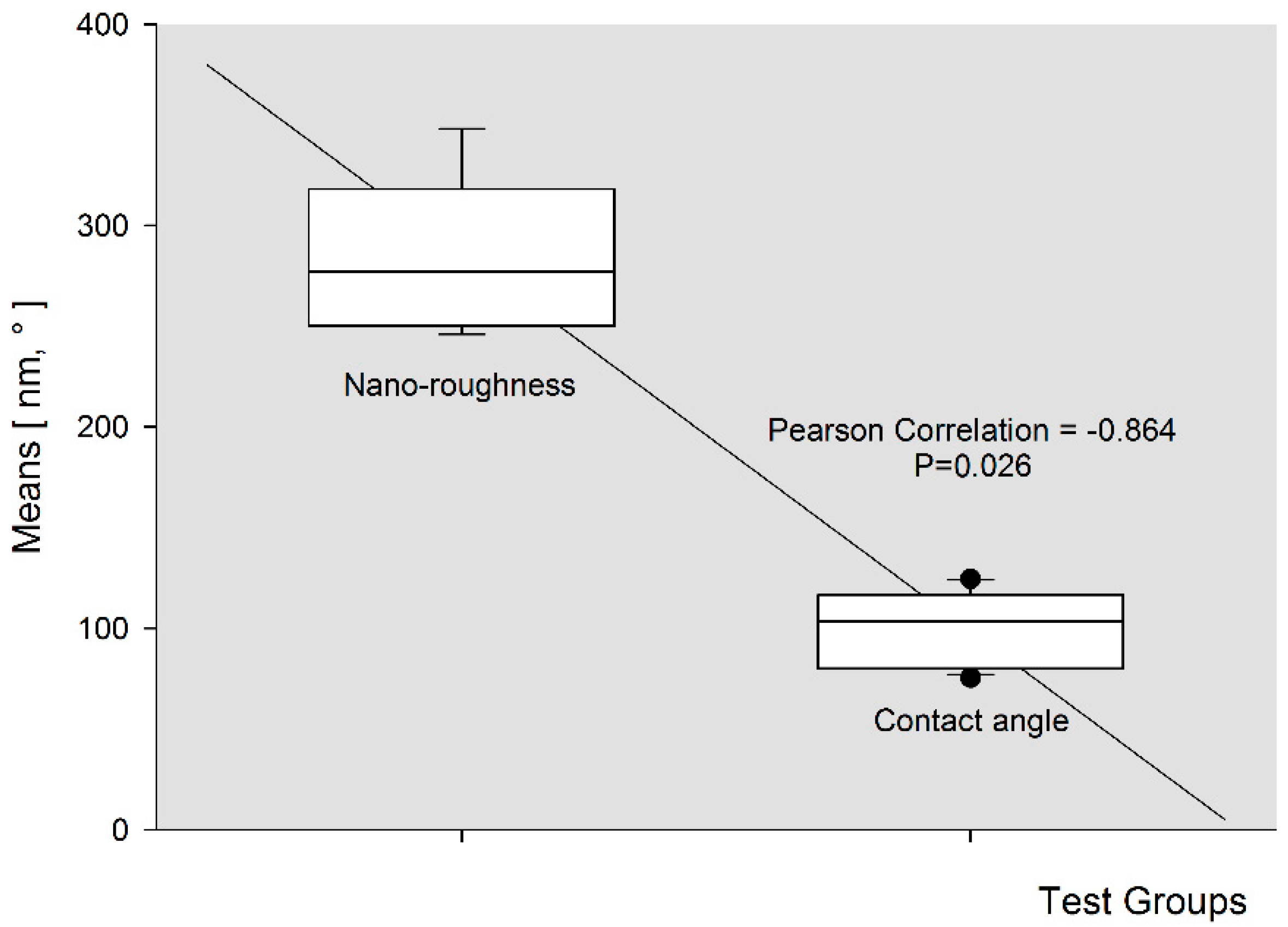

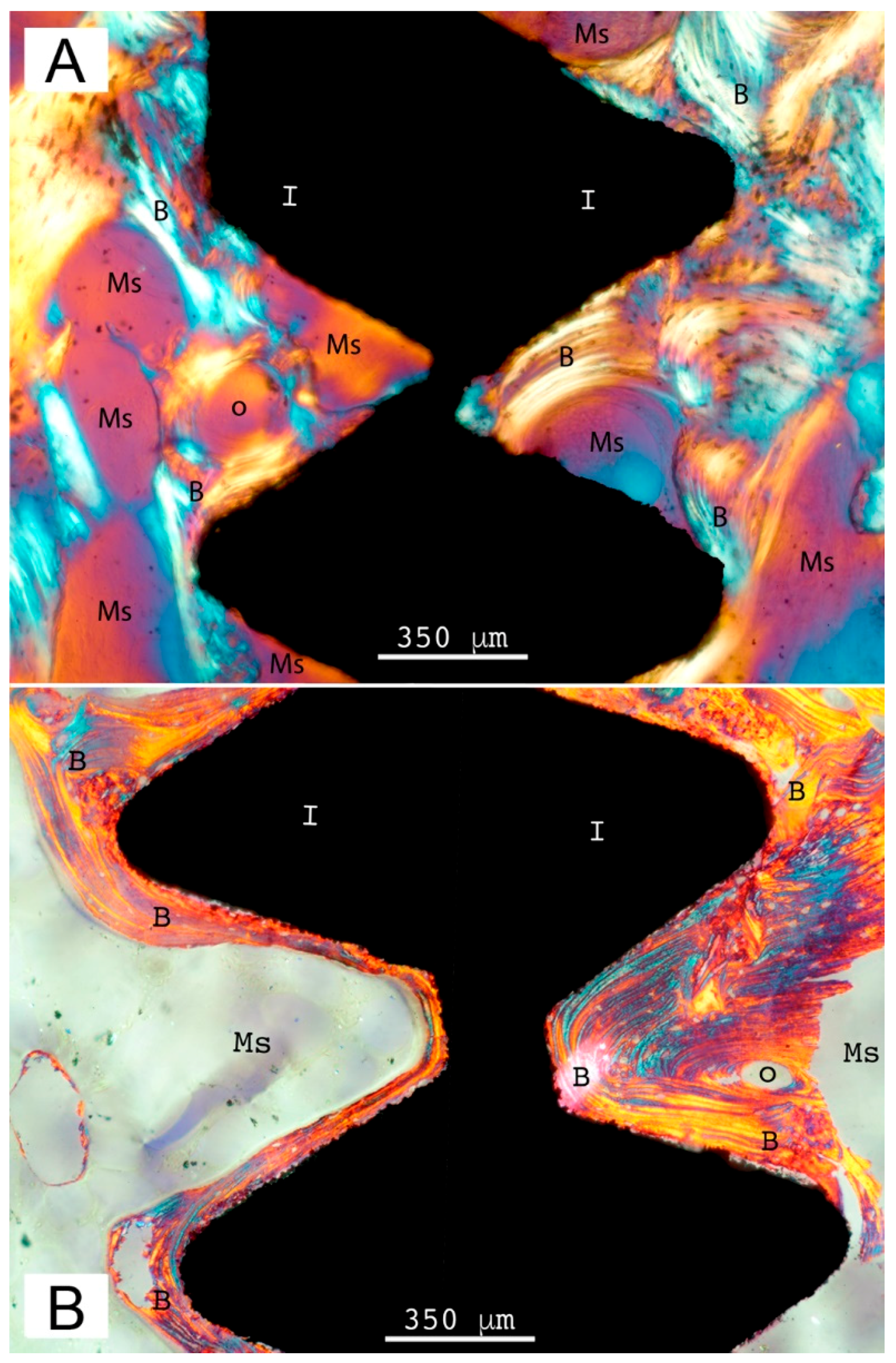

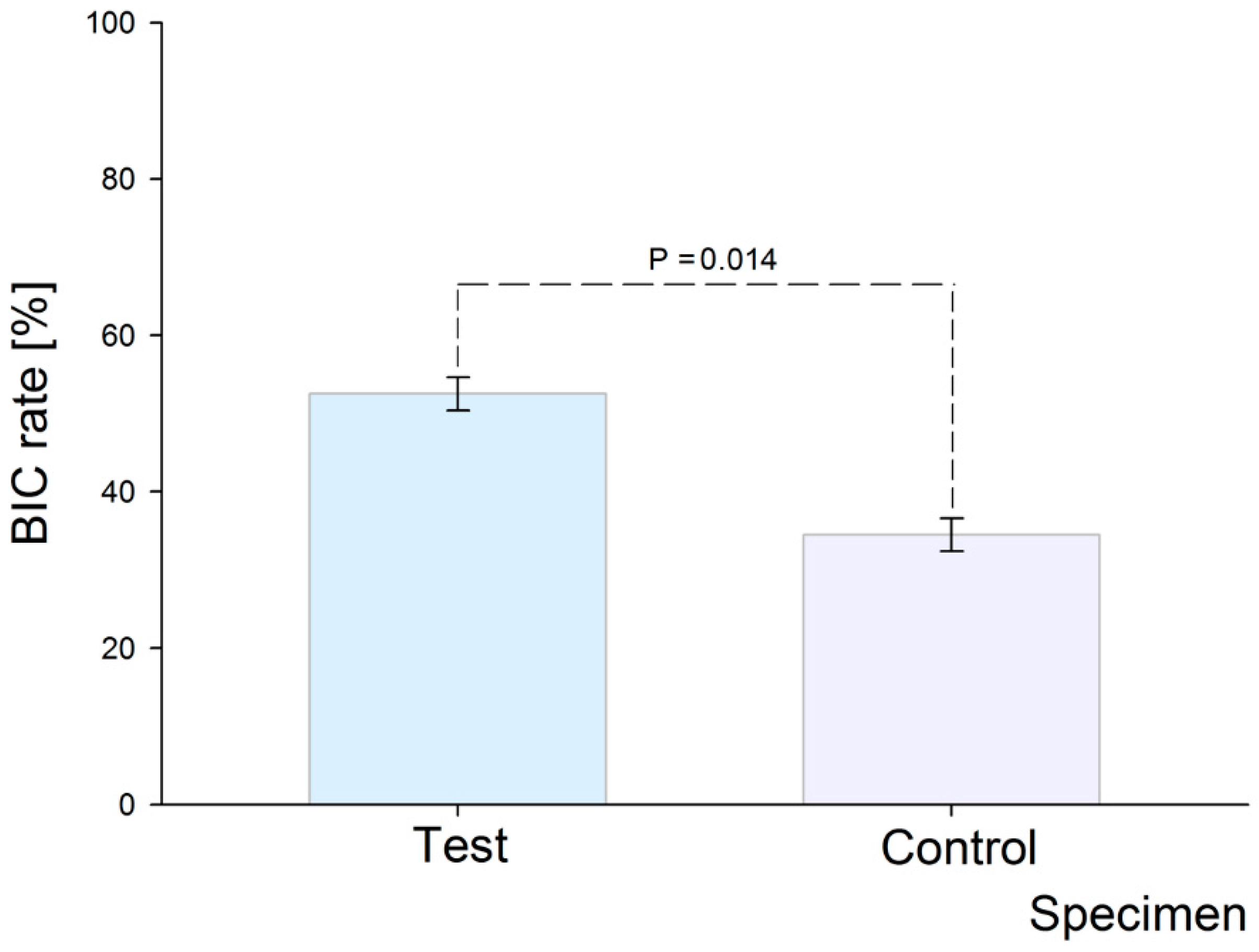

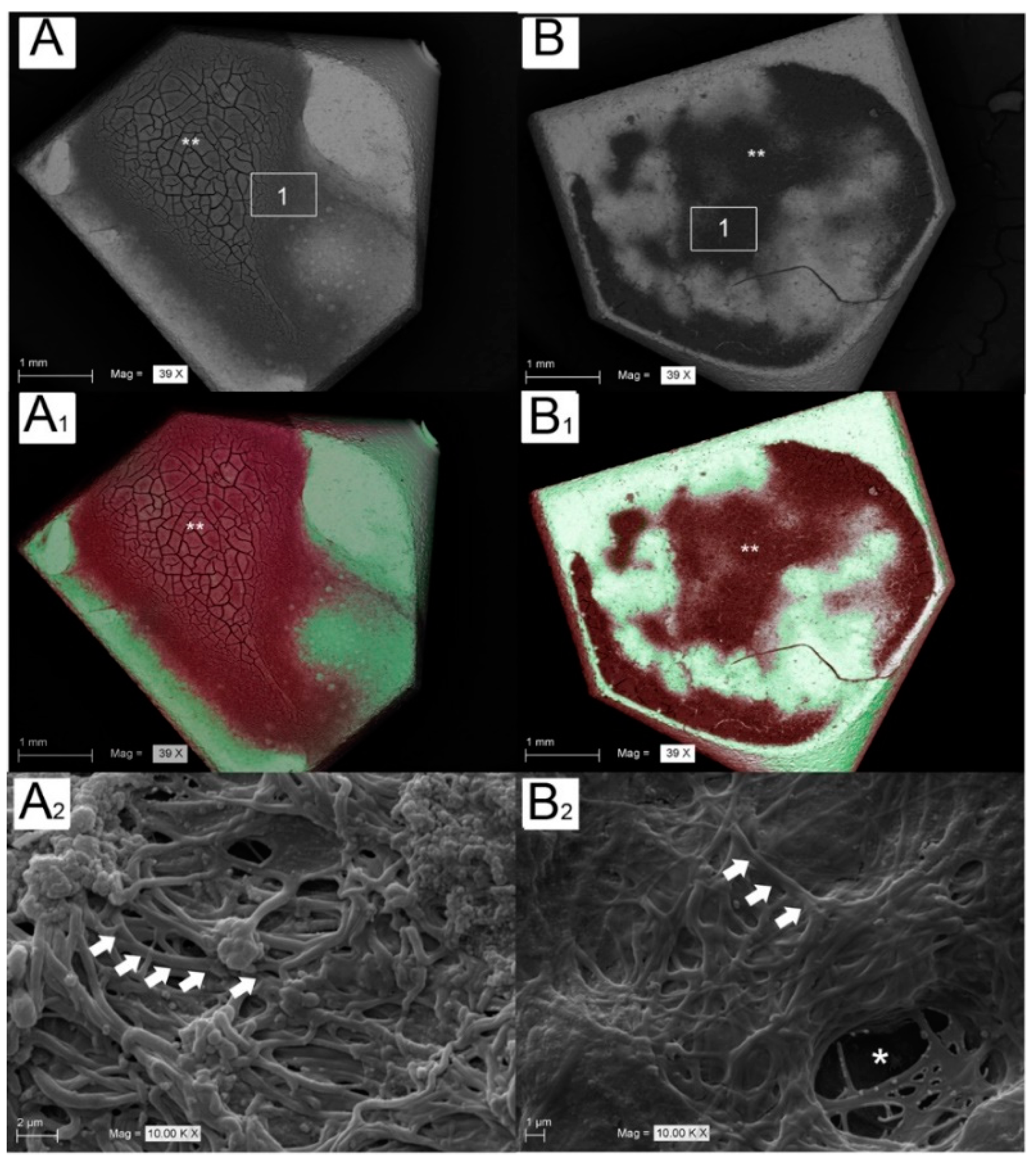

The anodization of titanium dental implant influences the biologic processes of osseointegration. 34 grit-blasted and acid-etched titanium specimens were used to evaluate micro- and nano-roughness (Ra), contact angle (θ) and blood clot extension (bce). 17 samples were anodized (test) while the remaining were used as control. The bce, was measured using 10 µL of human blood left in contact with titanium for 5 min at room temperature. The micro- and nano-scale Ra were measured under CLSM and AFM, respectively, while the θ was analyzed using the sessile drop technique. The bone-implant contact (BIC) rate was measured on two narrow implants retrieved for fracture. bce was 42.5 (±22) for test and 26.6% (±13)% for control group (p = 0.049). The micro-Ra was 6.0 (±1.5) for the test and 5.8 (±1.8) µm for control group (p > 0.05). The θ was 98.5° (±18.7°) for test and 103° (±15.2°) for control group (p > 0.05). The nano-Ra was 286 (±40) for the test and 226 (±40) nm for control group (p < 0.05). The BIC rate was 52.5 (±2.1) for test and 34.5% (±2.1%) for control implant (p = 0.014). (Conclusions) The titanium anodized surface significantly increases blood clot retention, significantly increases nano-roughness, and favors osseointegration. When placing dental implants in poor bone quality sites or with immediate loading protocol anodized Ti6Al4V dental implants should be preferred. View Full-Text
Keywords: implant; topography; surface treatment; blood clot extension implant; topography; surface treatment; blood clot extension
Show Figures

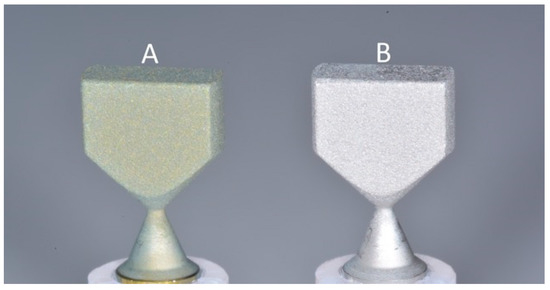

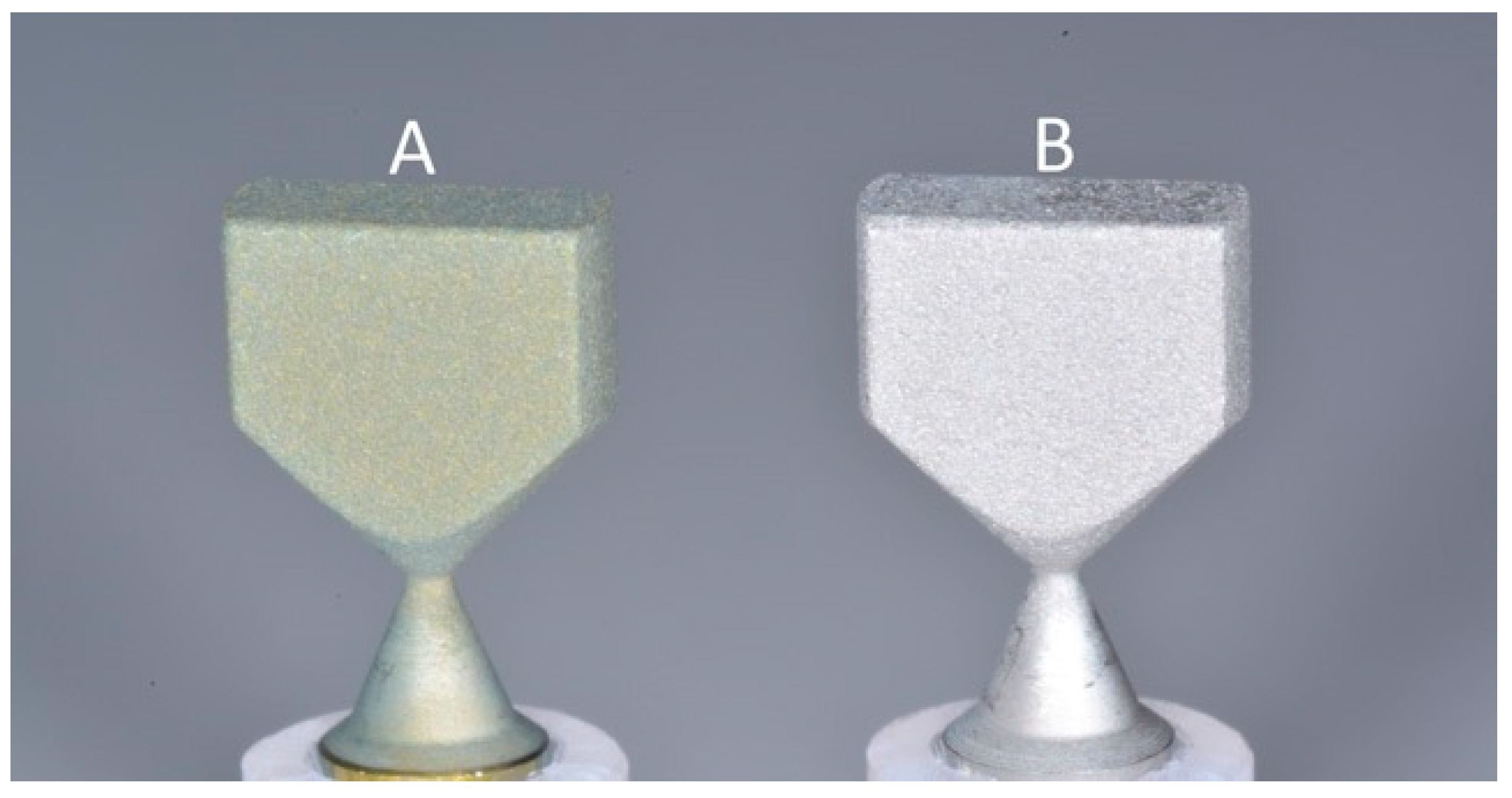

Figure 1

MDPI and ACS Style

Traini, T.; Murmura, G.; Sinjari, B.; Perfetti, G.; Scarano, A.; D’Arcangelo, C.; Caputi, S. The Surface Anodization of Titanium Dental Implants Improves Blood Clot Formation Followed by Osseointegration. Coatings 2018, 8, 252.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
