A Simple and Scalable Two-Step Process for Durable Hydrophobic and Stain-Resistant Leather Coatings

Abstract

There is a strong and growing need for low environmental impact, fluorine-free finishes that deliver durable water repellency and stain resistance to leather while preserving its original appearance. This work successfully addresses this need by introducing a simple, robust, and scalable two-step coating strategy that endows leather surfaces with excellent hydrophobic and self-cleaning properties. The process relies on a straightforward spray application of functionalized silica nanoparticles followed by a hydrophobic silane, namely hexadecyltrimethoxysilane (HDTMS), enabling precise control over surface properties through the number of applied layers. Comprehensive characterization by Fourier transform infrared spectroscopy (FTIR) and scanning electron microscopy with energy-dispersive X-ray spectroscopy (SEM–EDS) confirmed the effective formation and uniformity of the coating. Performance testing demonstrated excellent functional outcomes: the optimized coating achieved a water contact angle (WCA) of 128° and maintained values above 125° even after abrasion, highlighting its durability. Treated leather exhibited resistance to common liquid stains such as tea and coffee, maintaining a clean surface. These functional gains were achieved without compromising the leather’s natural look or soft feel, even after multiple coating cycles. This work delivers a fluorine-free solution offering an effective route to high-value water- and stain-resistant leather finishes that respect both environmental and aesthetic requirements.

1. Introduction

Leather is one of the world’s oldest and most used natural materials due to its extraordinary durability, flexibility, breathability, and natural texture. Its versatility enables it to be used in a wide range of applications, from footwear to clothing, fashion accessories, and furniture, especially when looking for a high-quality material [1,2].

During leather production, animal hides are transformed through a chemical process in which collagen chains cross-link, a process known as tanning [3,4,5]. This treatment chemically stabilizes collagen, imparting the material with enhanced durability and improving its mechanical and thermal resistance. Nevertheless, water permeability and the vulnerability to staining with common water-based products like tea, coffee, or juices, are still a challenge, due to the polar nature of collagen with amine, hydroxyl and carboxylic groups [6,7].

The ability to impart a hydrophobic character to a material has been extensively studied for fabrics. In this context, fluoride organic compounds proved to provide excellent hydrophobicity, with WCA in the hydrophobic (>90°) [8,9] and superhydrophobic (>150°) ranges [10], and excellent stain resistance. However, significant concerns have been raised regarding the release of fluoride compounds due to their environmental impact and toxicity [11,12,13].

To replace fluorochemicals, researchers have increasingly focused on safer and more environmentally friendly materials. These alternative approaches have achieved promising hydrophobic and even superhydrophobic performance on various substrates, including textiles, glass, and polymers. However, their application to leather remains scarcely explored. It is now well established that the process of creating a hydrophobic surface relies on the combination of two factors: surface roughness, particularly multi-scale roughness, and low surface energy [14]. The first step is often accomplished by depositing silica, titania, or zinc oxide multi-sized particles from a sol of these materials.

Silica nanoparticles (n-SiO₂) are environmentally friendly, stable, and display good mechanical and physicochemical properties, including the ability to bond to many substrates. Tetraethylorthosilicate (TEOS) is frequently used as a precursor to create silica-based coatings with micro/nano roughness, also imparting improved abrasion resistance to the substrate material [15,16]. The compound 3-glycidyloxypropyltrimethoxysilane (GPTMS) is often used in combination with TEOS to improve the physical and mechanical properties of TEOS-based coatings, thanks to the reactivity of the epoxy group.

Wang et al. [17] used a hybrid TEOS/GPTMS (Tetraethylorthosilicate/glycidyloxypropyltrimethoxysilane) coating system followed by the grafting of a hexadecyltrimethoxysilane (HDTMS) layer to obtain superhydrophobic coatings on cotton, wool, and polyester fabrics. The polyester and cotton fabrics maintained their superhydrophobic character after 40 washing cycles, while the wool-treated surface decreased the WCA to 110°. Abbas and co-authors [18] combined the utilization of TEOS and HDTMS with ethylenediaminetetraacetic acid (EDTA) to improve the coating’s stability through the formation of ester bridges between the cotton and the n-SiO₂/HDTMS layer. A superhydrophobic cotton surface was obtained that maintained a 145° WCA after 12 washing cycles.

Several authors have also explored biomolecule-based hydrophobic agents, improving sustainability by introducing safer, bio-derived alternatives into coating formulations. Patil et al. [19] combined the application of anisotropic n-SiO₂ with the cellulose grafting of heptanoic anhydride to reach WCA above 150° for cotton. Razavi and co-authors [20] describe the fabrication of superhydrophobic surfaces from the esterification reaction between the hydroxyl groups of copper oxide and the two natural fatty acids, myristic and cinnamic acid.

However, investigation into the development of hydrophobic coatings for leather remains scarce, with researchers attempting to transpose methods developed for fabrics. The work proved challenging because leather is subjected to extensive chemical processing, which limits the availability and reactivity of collagen functional groups for chemical bonding. On the other hand, treatments involving temperatures above 100–120 °C are ruled out because of leather degradation. Mahltig et al. [21] functionalized n-SiO₂ particles with three hydrophobic agents, two of them fluor-based alkyl silanes, and applied the silica sols on leather using a rolling process. The WCA reached 100°, but after abrasion, all materials became hydrophilic (WCA < 50°). Ma et al. [22] tested a two-step method where the leather was first sprayed with either polyacrylate or polyurethane emulsions, followed by spraying with an ethanolic dispersion of hydrophobic n-SiO₂ (non-disclosed composition). The WCA remained relatively stable above 140° after 60 min of water contact, and WCA increased up to 170° after the deposition of six layers of n-SiO₂. However, the coating showed poor mechanical robustness.

More recently, Fierro and co-authors [23] developed a hydrophobic coating with self-cleaning and anti-bacterial properties, also showing improved abrasion resistance and color stability, when compared with uncoated leather. These remarkable properties were achieved by using Ag-TiO₂-SiO₂ nanoparticles obtained in a multi-step, complex synthesis process. A different approach was used by Feng [24] and Ruzafa-Silvestre [25], who used plasma polymerization of vinyltriethoxysilane and hexamethyldisiloxane on leather, respectively, to achieve hydrophobicity. WCA values were 140° and 158°, and Ruzafa-Silvestre claimed that the plasma treatment does not change the leather’s appearance. The mechanical properties of the coating were not tested. The disadvantage of this process is the expensive equipment needed to perform the coating. In conclusion, further research is still needed to develop non-fluoride coatings that combine simplicity, efficiency, and robustness with environmentally friendly characteristics.

This work describes the development of a simple, innovative hydrophobic, self-cleaning coating for leather. A two-step approach was adopted in which TEOS was hydrolyzed to produce n-SiO₂ particles that were capped with GPTMS and applied to the leather substrate using a spray coating technique. GPTMS was added, aiming at improving the leather–silica bonding and hydrophobicity, following the works of Wang [17] and Zhu [26]. Next, a solution of HDTMS was sprayed onto the silica-treated surface to impart hydrophobicity to the leather. The spray coating technique provides several advantages, including little waste generation, ease of application, uniform surface coverage, and straightforward scalability for industrial implementation. Furthermore, the mild conditions under which spray coating is performed in this work help preserve the leather’s integrity.

2. Materials and Methods

2.1. Materials

Tetraethyl orthosilicate (TEOS, 98%), acetic acid (glacial, 100%) and hexadecyltrimethoxysilane (HDTMS, 85%) were purchased Merck (Darmstadt, Germany). Ammonium hydroxide (NH₄OH, 28%) and ethanol absolute (EtOH, 99.8%) were purchased from VWR Chemicals (Darmstadt, Germany), while 3-glycidoxypropyl-trimethoxysilane (GPTMS, 98%) was obtained from abcr GmbH (Karlsruhe, Germany). All chemicals were used as received, without further purification. Wet blue leather samples were supplied by a local tannery.

2.2. Preparation of GPTMS-TEOS Hybrid Solution

Sol–gel hybrid TEOS/GPTMS coatings were prepared according to the Stöber method, using ammonia as the catalyst, using a method adapted from the work of Schramm et al. [27]. In summary, 1 mL of NH₄OH was mixed with 50 mL of ethanol, and under magnetic stirring, 1 mL of TEOS and an equimolar amount of distilled water were added to the solution. Stirring continued for 2 h to form a transparent silica sol exhibiting a characteristic light blue color. Afterwards, GPTMS was introduced with different TEOS/GPTMS molar ratios of 3.0, 1.0 and 0.6 to functionalize the n-SiO₂. The hybrid sols were stirred for an additional 4 h to form the coating solution.

2.3. Preparation of HDTMS Solution

HDTMS (3 mL) was slowly added to a solution containing 87.3 mL of ethanol and 9.7 mL of distilled water. The pH was maintained at 4 by adding acetic acid. Thereafter, the solution was stirred for 1 h to complete the HDTMS hydrolysis.

2.4. Leather Surface Coating

The leather surface was wiped with a cleaning solution with the following composition: H₂O/99.7 wt% C₂H₅OH/28 wt% NH₄OH, 85/10/5, v/v/v [28].

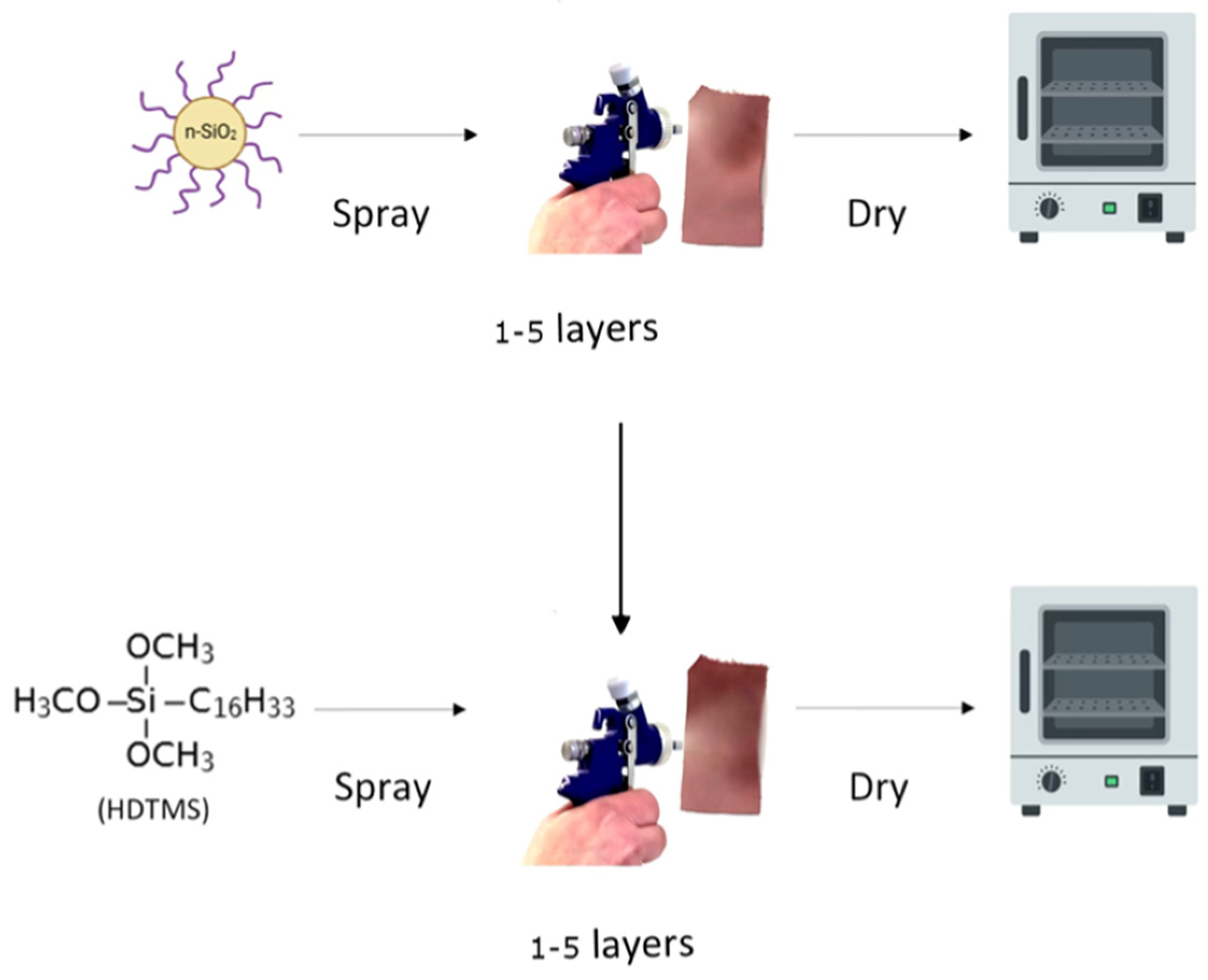

After an initial drying step, the leather samples were repeatedly spray-coated with the functionalized n-SiO₂ suspension, with each layer subsequently cured at 100 °C for 30 min. Afterward, the hydrolyzed HDTMS solution was applied in successive spray depositions onto the functionalized leather surface, with each HDTMS layer dried at 110 °C for 1 h. The spray gun was operated at 2.5–3.5 bar and positioned approximately 20 cm from the leather. A schematic of the experimental procedure is depicted in Figure 1.

2.5. Abrasion Testing

The durability of the coated samples was tested by cyclic mechanical abrasion using a custom-made crockmeter. A 3 cm × 4 cm leather sample was glued with a double-face scotch on the base of a steel cube. The steel block was placed on a polishing cloth, with the leather sample facing the cloth, and the block was moved with a stroke length of 20 cm and a stroke speed of 20 cycles/min. The applied pressure on the leather was 15 kPa.

2.6. Stain Resistance Evaluation

Stain resistance tests for coffee and tea were conducted separately on the leather. A drop of each staining substance was applied to the test specimens, which were then left for 10 min before being dried at room temperature.

2.7. Characterization Procedures

The particle size distribution of n-SiO₂ was analyzed by Dynamic Light Scattering (DLS) using a Zetasizer Advance (Malvern Panalytical Instrument, UK).

The SEM/EDS analyses were performed using an FEI Quanta 400 FEG ESEM/EDAX Genesis X4M Scanning Electron Microscope (FEI Company, USA) with X-ray microanalysis and electron backscattered diffraction analysis. All samples were previously coated with an Au/Pd thin film by sputtering for 100 s using the SPI Module Sputter Coater equipment.

Changes in surface chemistry of the coated samples were analyzed using a Fourier transform infrared spectrometer (JASCO FT/IR-4100, JASCO EUROPE, Italy) equipped with an attenuated total reflection (ATR) accessory and Spectra Manager software v1.2. Spectra analysis was performed with Spectragryph optical spectroscopy software v1.2.16.1.

Static WCA was measured by the sessile drop method at room temperature using a tensiometer Attention^® Theta Lite (Biolin Scientific, Gothenburg, Sweden) with OneAttension^® software version 4.0.2. Deionized water droplets of 5 μL were deposited on the surface and the contact angle was measured immediately after droplet deposition and after 5 min. All reported WCA values represent the average (with standard error) of five different measurements obtained on each sample surface.

2.8. Statistical Analysis

All data were presented as mean values ± standard deviation (S.D.). Data comparison was conducted using IBM SPSS Statistics 30.0 (SPSS Inc., Chicago, IL, USA). The significance of the differences in the data was established using a one-way analysis of variance (ANOVA) followed by Tukey’s multiple-comparison test. Statistical significance was set at p < 0.05.

3. Results

3.1. Particle Size Distribution

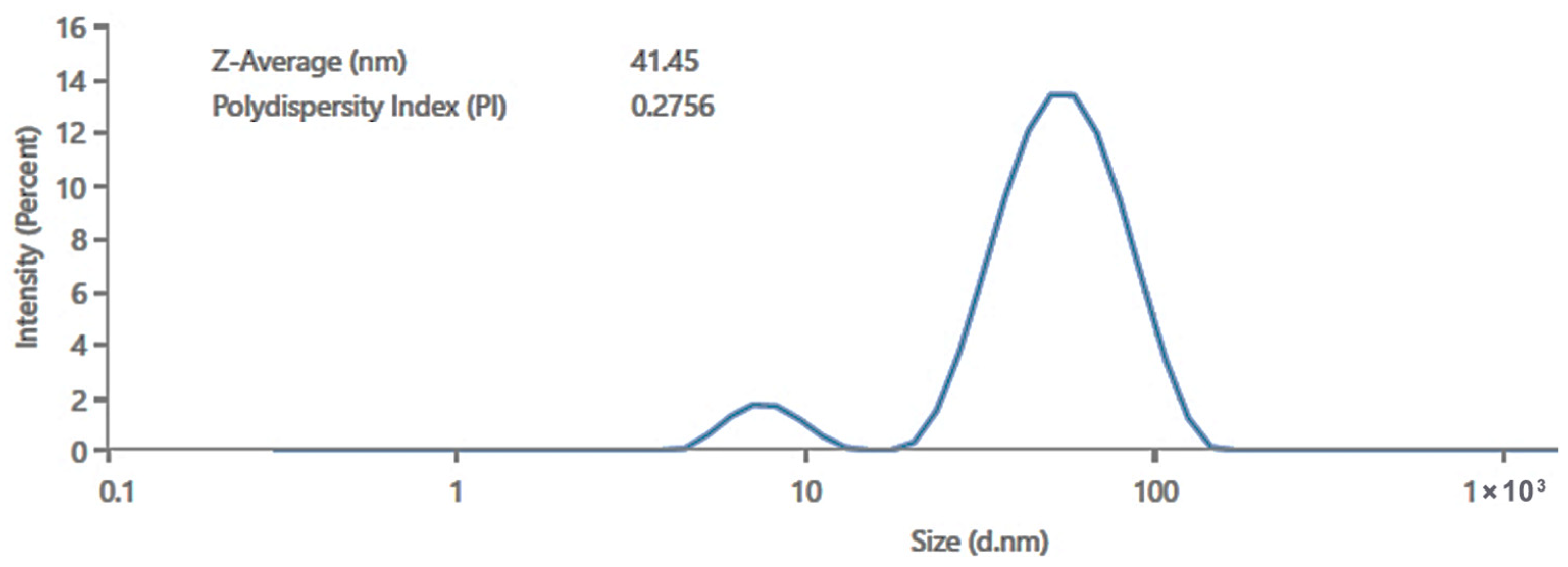

Particle size analysis was first conducted to evaluate the dispersion of the n-SiO₂ particles prior to application. The Dynamic Light Scattering (DLS) results indicate a Z-average hydrodynamic diameter of 41.4 nm, with a polydispersity index (PDI) of 0.2719, suggesting a moderately polydisperse nanoparticle suspension (Figure 2) [29,30]. The distinct minor peak at 8–12 nm may result from the combination of rapid TEOS addition and slow agitation, which increased local supersaturation and triggered burst nucleation, producing many small silica nuclei [31,32].

3.2. Morphological and Chemical Analysis of the Coated Leather Surface

The addition of TEOS to an ethanol–NH₄OH solution led to the hydrolysis of TEOS, followed by condensation and the formation of silica nuclei that grew to form silica nanoparticles. The equimolar water concentration helped maintain the right balance between hydrolysis and condensation, thereby governing nucleation rate and growth kinetics to achieve a controlled particle growth. In the subsequent step, the hydrolyzed GPTMS preferentially grafts onto the silica nanoparticles, as steric hindrance of the glycidyl group limits GPTMS homocondensation [33], see Figure 3. It is also possible that the TEOS/GPTMS ratio affects particle size and agglomeration, but this topic was not explored in this work.

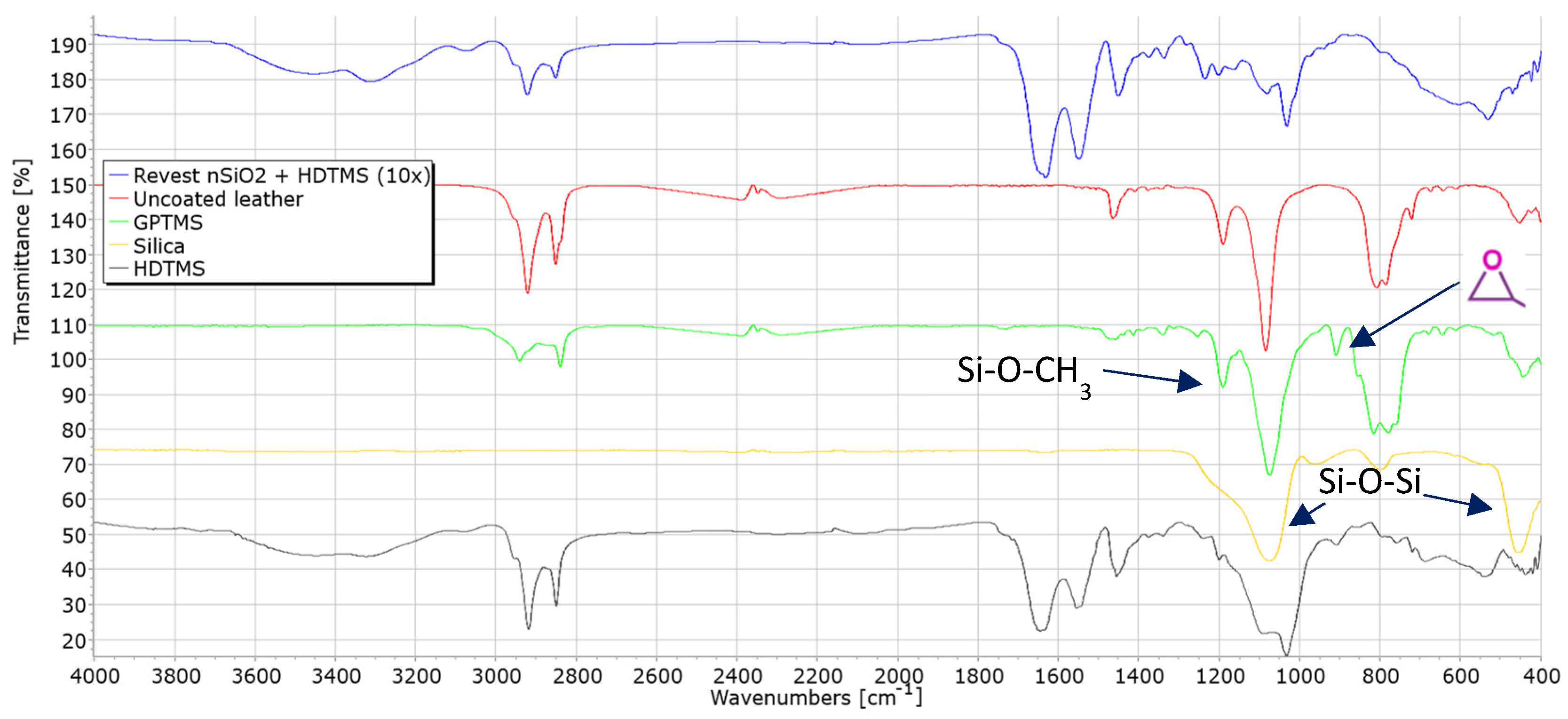

Figure 4 presents the FTIR spectra of uncoated leather, as well as leather with a 10-layer coating, alongside the spectra of silica (resulting from TEOS hydrolysis), GPTMS, and HDTMS for comparison. From the FTIR spectrum of uncoated leather, it is possible to identify a broad band at 3500 cm⁻¹, assigned to O-H stretching from adsorbed water and collagen hydroxyl, and a band at 3313 cm⁻¹ assigned to N-H stretching from collagen amide groups [7]. The bands at 2923 and 2848 cm⁻¹ are assigned to C–H stretching (aliphatic, CH₂, CH₃) of collagen chains and, eventually, fatty acids used to process leather; the absorptions at 1700–1500 cm⁻¹ correspond to amide I and II bands of collagen [7], the band at 1030 cm⁻¹ corresponds to C-O vibration of either collagen or tannins that are often present in leather [34], and the band at 1455 cm⁻¹ is assigned to C-H bending [7].

In the spectrum of the 10-layer coated leather (10×), all characteristic leather bands remain clearly visible, evidencing the presence of a very thin coating. The bands at 1080 cm⁻¹ and 452 cm⁻¹ are assigned to the Si-O-Si stretching of silica and reveal the presence of n-SiO₂ [35]. It is also worth noting that the band at 1188 cm⁻¹, attributed to the asymmetric stretching of Si–O–CH₃ in HDTMS and GPTMS [36], is absent in the spectrum of the coated leather, suggesting that the hydrolysis of both GPTMS and HDTMS was complete, see Figure 4. Similarly, the characteristic epoxy band of GPTMS at 906 cm⁻¹ [37] is barely visible in the coatings, suggesting that the epoxy group has also reacted—likely contributing to the grafting of n-SiO₂ to the leather surface through nucleophilic attack from the carboxyl collagen groups, although this cannot be proven from the FTIR data alone.

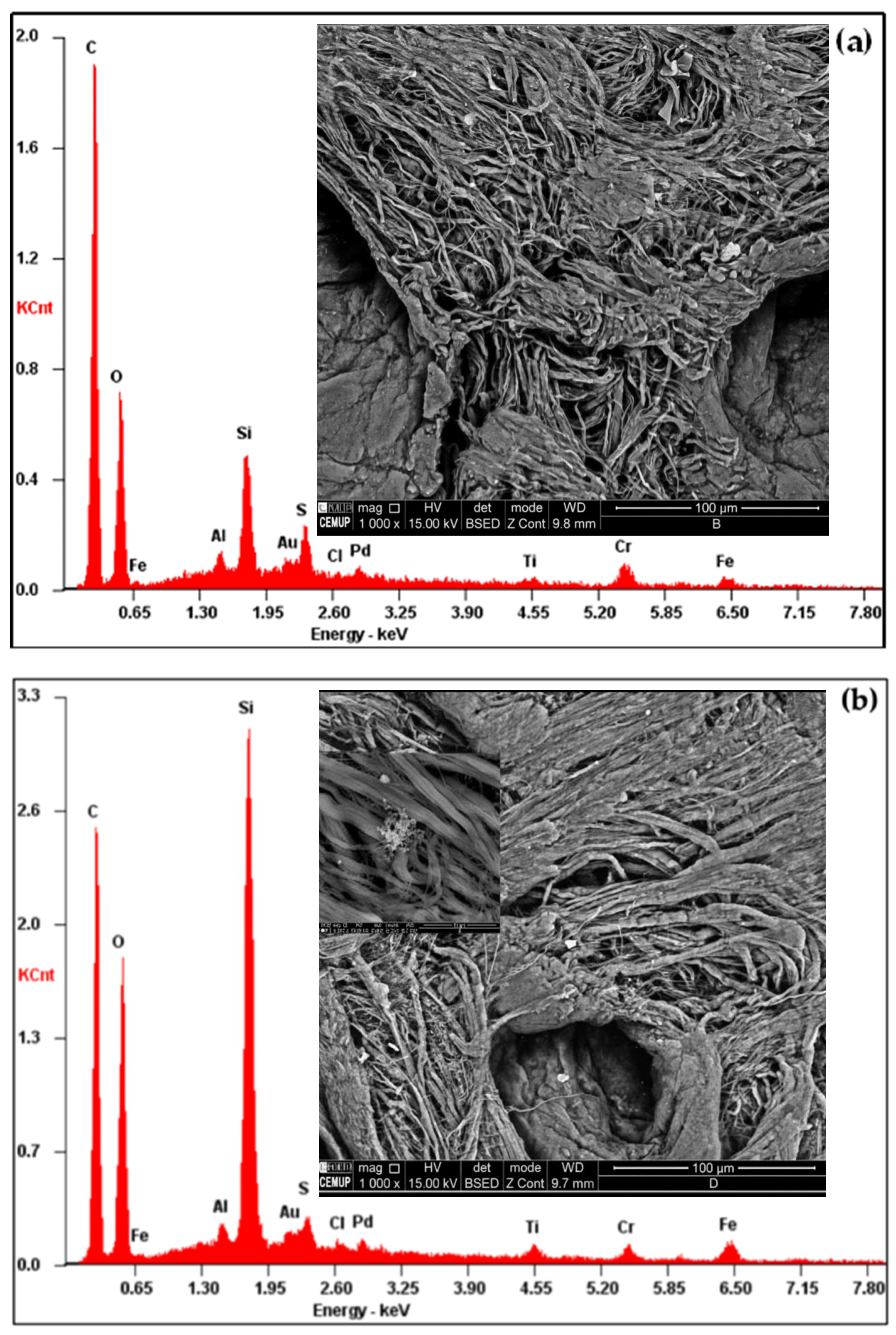

To assess the coated leather’s surface morphology and chemical composition, a scanning electron microscope equipped with energy-dispersive X-ray spectroscopy (SEM-EDS) analysis was employed, as shown in Figure 5. In the spectrum of untreated leather (Figure 5a), the significant elements detected include carbon (C) and oxygen (O), which are ascribed to the organic nature of leather. The presence of minor peaks, such as those for silicon (Si), aluminum (Al), and iron (Fe), indicates the presence of trace impurities or naturally occurring elements within the leather substrate. In contrast, the coated sample (Figure 5b) shows a significantly increased silicon signal in the EDS spectrum, consistent with an effective deposition process of the silica-based coating. After deposition of the coating film on the leather samples, a decrease in the carbon signal was observed, which suggests that the carbon-rich leather substrate is partially masked by the inorganic coating layer [23].

The SEM image of the uncoated leather, shown in Figure 5a, reveals the typical fibrous structure of collagen, characterized by a rough and uneven texture and visible pores, which are typical of natural leather and provide breathability and flexibility. On the other hand, in the coated specimens shown in Figure 5b, a slightly smoother surface with less-defined leather fibers is observed, pointing to the formation of a surface film. Nevertheless, the pores remain clearly visible, suggesting that the leather should retain its breathability. In some areas, rough, irregular structures composed of n-SiO₂ particle aggregates can be seen, leading to multi-scale roughness, as shown in the inset of Figure 5b, a key factor in achieving hydrophobicity [18].

3.3. Surface Wettability

The WCA measurements on leather are challenged by its fibrous, rough surface and porosity, which impair accurate baseline detection and induce contact line pinning and hysteresis. Protruding collagen fibers can exert unpredictable forces on droplets, compromising advancing/receding angle data [38]. To increase consistency, we therefore report only WCA values using 5 µL water droplets.

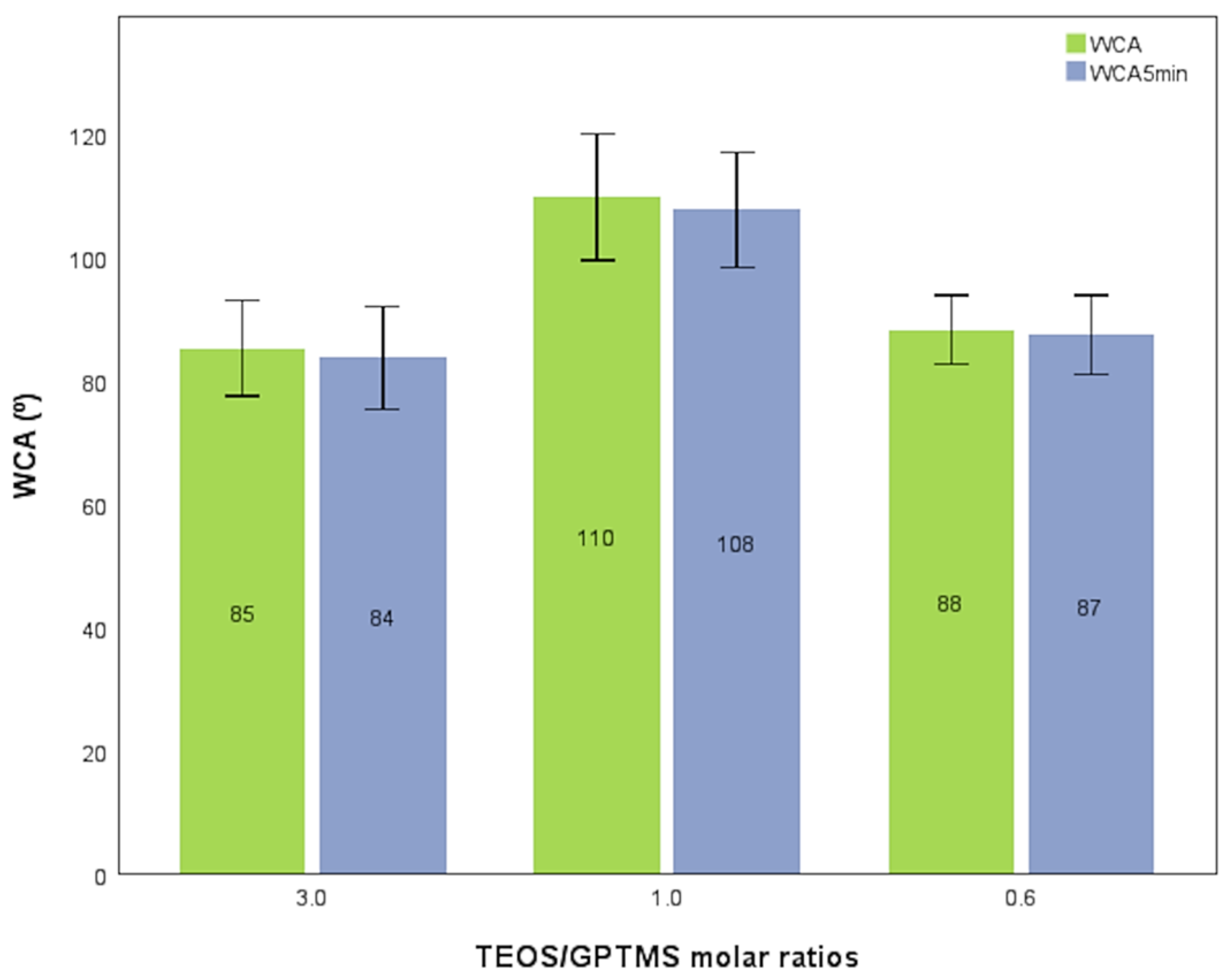

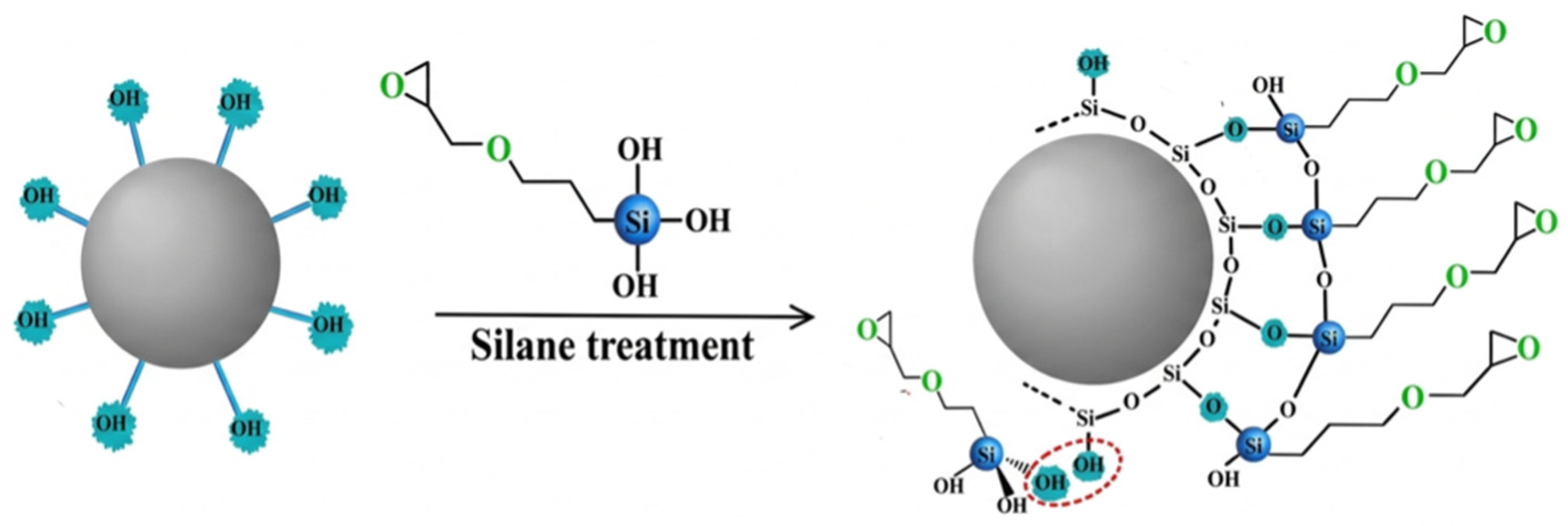

GPTMS was added to silica with the dual purpose of bridging silica to the leather surface hydroxyl groups and increasing the WCA. Different TEOS/GPTMS molar ratios of 3.0, 1.0, and 0.6 were employed to investigate the effect of GPTMS on wettability using single-layer coatings, as shown in Figure 6. A TEOS/GPTMS molar ratio of 1.0 was found to yield the highest WCA, and a further increase in the GPTMS amount resulted in a significant reduction in the WCA values. Therefore, only coatings prepared with TEOS/GPTMS molar ratio of 1.0 were further studied. Schramm et al. achieved similar results using cotton as substrate, but the WCA decrease was not as significant [27].

The observed increase in WCA with decreasing TEOS/GPTMS ratio can be attributed to the masking of the silanol (hydrophilic) groups by the organic, low-surface-energy groups (epoxy, propyl) of GPTMS. However, an excess of GPTMS will likely promote some homocondensation, leading to the formation of disordered organosilane domains due to the asymmetric trifunctional structure (only three hydrolyzable groups) and the presence of the bulky glycidyl group. Hypothetically, this will expose polar oxygen-rich groups, leading to an increase in the WCA. Consequently, the 1.0 ratio achieves an optimal balance, yielding higher and more consistent WCA values.

It is important to note that the particle size distribution presented in this work corresponds to the formulation selected for subsequent optimization of the coating process, although different TEOS/GPTMS molar ratios were initially screened to evaluate their influence on wettability.

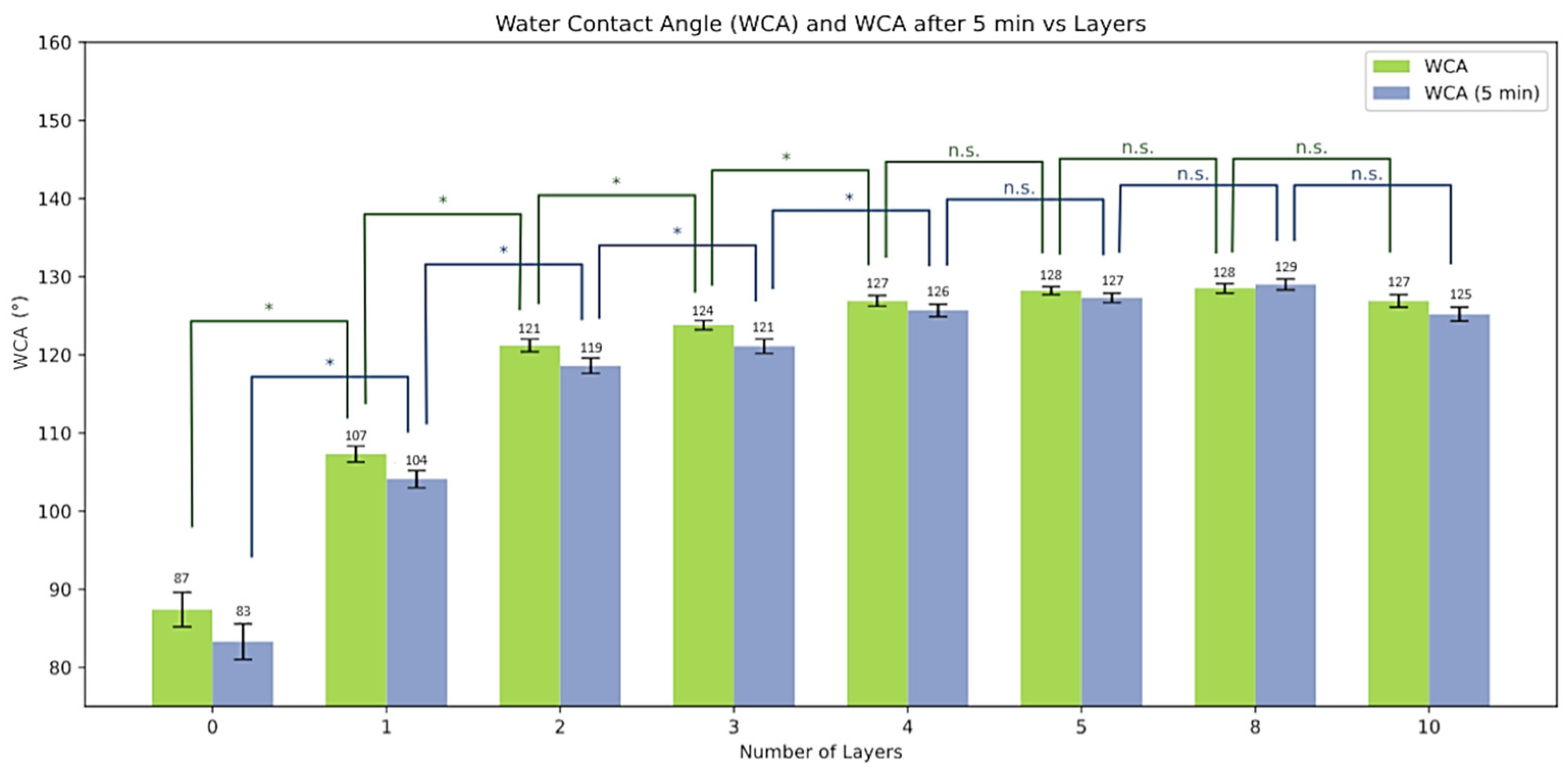

Figure 7 presents the WCA values of uncoated leather substrates and those spray-coated with an increasing number of layers. To assess short-term water repellency, measurements were repeated after 5 min. Leather substrates, without any modification, exhibited a mean WCA of 87° ± 4°, underscoring their inherent hydrophilicity. This low value is expected, as the leather’s natural, porous, fibrous structure provides strong sites for water adsorption associated with polar amine, hydroxyl, and carboxylate groups. With a single coating layer, the measured WCA increased to 107° ± 4°. This increase suggests that even a thin coating is enough to modify the surface energy sufficiently to create a more water-repellent interface, albeit with incomplete surface coverage. Increasing the number of sprayed layers further improved surface coverage and, therefore, hydrophobicity. The WCA measured after 5 min revealed minimal variation, indicating good stability of the hydrophobic performance over time. Statistical analysis revealed that as additional layers were applied, the WCA increased significantly (p < 0.05) until it reached 127° in the fourth layer, after which it plateaued. The increase in WCA with the number of coating layers arises from two main factors. First, multilayer deposition enhances surface coverage by HDTMS hydrophobic groups; second, the stacking of silica particles from multilayer deposition generates hierarchical micro-/nano-scale roughness, which traps air and favors a Cassie–Baxter wetting regime [39], thereby resulting in a higher WCA. Higher surface coverage is likely to promote the filling of leather pores (see Figure 5), with a low impact on roughness or on WCA.

Ma et al. [22] also studied the effect of a multilayer hydrophobic n-SiO₂ coating on the WCA of leather substrates. The authors concluded that a single layer allowed the WCA to reach 128°, which increased to 170° for an eight-layer coating, beyond which the WCA slightly decreased, a trend in line with the present results. Mahltig et al. [21] and Ferri [23] also used silane chemistry to obtain hydrophobic sols, which were used to coat the leather surface. They reported water contact angles of 117° and 120°, respectively, after a single applied layer, and Ferri noted that applying a second layer did not further increase the WCA. Mahltig reported that the WCA decreased to below 100° after abrasion testing, while Ferri observed that, for all formulations except the fluorine-based one, water was absorbed by the leather within ten minutes.

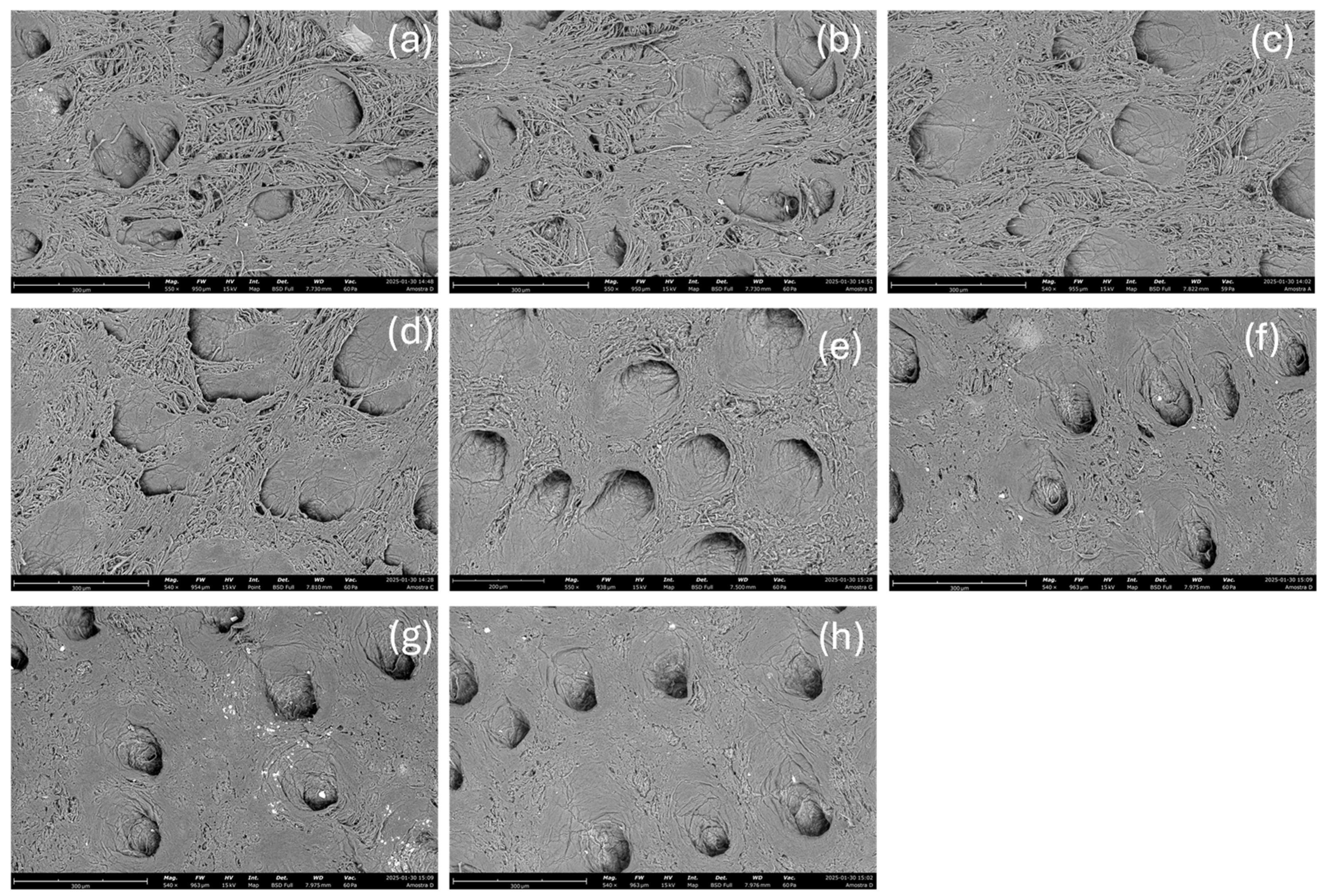

The thickening of the coating with increasing number of deposited layers can be confirmed from analyses of the morphologies of coated leather surfaces with different numbers of layers, as shown in the SEM images in Figure 8. The uncoated surface, Figure 8a, exhibits the natural structure of leather, characterized by prominent fibers and a porous network. After applying a single layer, the pores and fibers are still visible, yet there is evidence of partial coverage, suggesting that the coating material has begun to deposit, leading to a slight smoothing of the surface and the emergence of a new texture, as shown in Figure 8b.

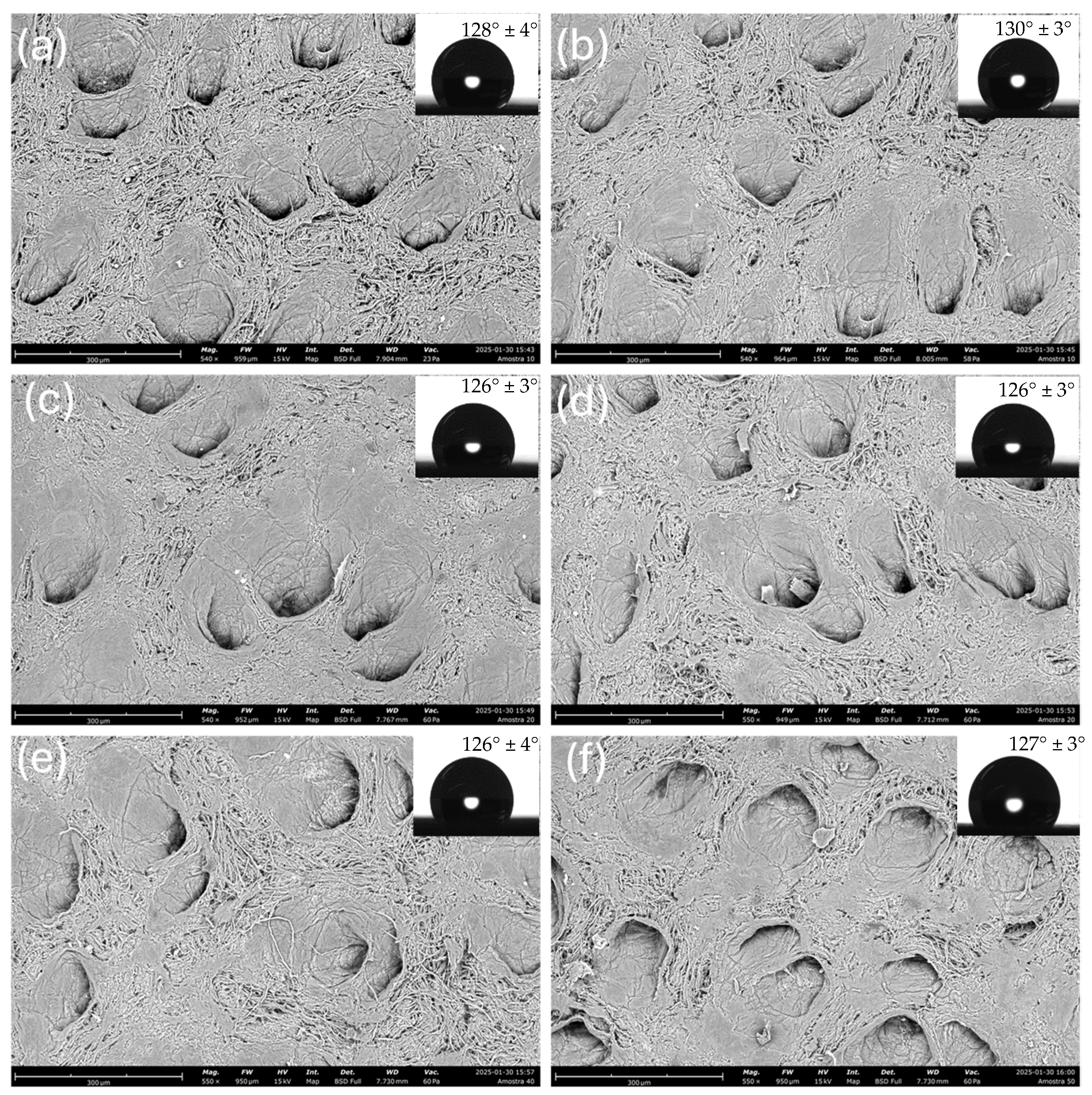

In Figure 8c,d, with two and three layers, respectively, the cumulative coating deposition leads to increased uniformity and reduced visibility of the underlying fibers. The surface appears to be more continuously covered. From four layers onwards, Figure 8e, the coated surface becomes more balanced, with reduced fiber visibility, indicating the formation of a thin coating layer that effectively covers the leather surface. Although subtle differences can still be observed between, for example, the four- and ten-layer coatings, these differences are minimal. In summary, the transformation in morphology—from a porous, fibrous structure in uncoated leather to a porous, uniformly coated surface with multiple layers—reflects the thickness of the coating.

Although the combination of silica nanoparticles and a low-surface-energy silane such as HDTMS is often associated with superhydrophobic behavior (WCA ≥ 150°), the maximum WCA obtained in this work stabilized around 128°. This apparent limitation can be rationalized by considering both the intrinsic characteristics of leather and the design constraints of the coating process. Leather exhibits a highly porous, fibrous collagen network with open pores and microvalleys, which may make full coating difficult. Eventually, some collagen polar groups (amine, hydroxyl and carboxyl) within the leather structure remain accessible to water at the droplet perimeter, promoting local wetting and lowering the apparent contact angle.

3.4. Abrasion Resistance

An important aspect of this investigation regarded the evaluation of the mechanical robustness of the hydrophobic coating. To this end, abrasion tests were performed to simulate the wear that leather experiences during regular use. The SEM images in Figure 9 illustrate the morphological evolution of the four-layer coating on leather, without abrasion, and after being subjected to an increasing number of abrasion cycles (10, 20, 30, 40, and 50). Despite the appearance of microscopic surface irregularities after several abrasion cycles, the treated leather preserved a stable WCA, demonstrating the robustness of the coating. The persistence of high WCA values, ranging from 126 to 130° after abrasion, suggests that the coating is well-adhered to the leather surface and capable of withstanding friction without significant degradation of its hydrophobic properties.

This improved mechanical durability is likely due to both the physical interlocking of the nanoparticles, facilitated by the roughened surface topography [40], the eventual chemical bonding between the carboxyl groups of collagen and the ether group of GPTMS compounds, and hydrogen bonding between the amine, carboxyl and hydroxyl groups of collagen and exposed silanol surface groups. Comparatively, Mahltig [21], who also used a silica/hydrophobic silane approach, reported a sharp decrease in the WCA to 50° after abrasion. Abrasion resistance has been a critical parameter in several studies, and our finding that the WCA remains stable even after mechanical abrasion is a promising indication of the coating’s long-term durability in practical applications.

Other durability assessment methods, such as sandpaper abrasion or tape-adhesion tests, were considered; however, these procedures are not well suited for soft and porous substrates like leather. Due to the fibrous and compliant nature of leather, sandpaper-based abrasion often leads to non-representative damage modes, including fiber pull-out, surface tearing, or cutting wear, which do not reflect typical service conditions. Similarly, tape-adhesion tests can produce artifacts related to the mechanical interlocking of the adhesive with the leather’s open-pore structure rather than the actual adhesion of the coating itself. For these reasons, the mechanical durability evaluation in this study focused on wear modes that more accurately simulate real-world handling and flexing of leather.

3.5. Stain Resistance

The stain resistance of the coated leather was evaluated using tea and coffee, two common household staining agents known for their intense pigmentation. These liquids were selected because they are representative hydrophilic contaminants, and their pronounced visual contrast, together with their tendency to leave persistent marks on untreated leather, makes them practical and relevant choices for evaluating the coating’s stain resistance performance under realistic use conditions.

Both tea and coffee are polar liquids that readily interact with collagen’s polar functional groups, leading to rapid absorption via capillary action. Subsequently, the chromophoric polyphenols in these liquids strongly bind to collagen, resulting in permanent staining. The C-16, outward-oriented HDTMS chains should form a compact, low-surface-energy coating that repels polar liquids and suppresses capillary action. The aim of this study was to assess the HDTMS-coated leather surface’s resistance to staining relative to untreated leather.

For these tests, defined droplets of tea and coffee were applied to the leather surface and allowed to remain for 10 min. Visual inspection revealed that neither staining agent produced any visible marks on the surface of the coated samples, as exemplified in Figure 10.

The test outcome indicates that the hydrophobic coating not only repels water but also prevents the adhesion of complex liquids that could otherwise penetrate the porous leather matrix. This phenomenon is particularly important for practical applications where leather products are exposed to various staining agents during use, such as clothing and other leather goods, car seat upholstery, and similar products. The absence of visible stains indicates that the coating successfully minimizes liquid penetration and retains its functionality, even after extended contact periods [41].

4. Conclusions

The present study demonstrates a novel, simple, and straightforward two-step coating process that significantly enhances the hydrophobic and self-cleaning properties of leather substrates. The process involves spraying the leather surface with a GPTMS functionalized nano-SiO₂ particle dispersion, followed by pulverization with a hydrophobic silane (HDTMS) solution, thereby creating a robust, hierarchical surface structure that promotes water repellency.

The excellent stain resistance of the coated leather was evidenced by its ability to successfully repel common staining agents such as tea and coffee, and the sustained hydrophobic WCA under mechanical stress indicates that the coating is mechanically stable on the leather substrate.

Although the present work focuses on demonstrating the feasibility, performance, and durability of a fluorine-free hydrophobic coating for leather, a life-cycle assessment is essential to verify the methodology’s environmental sustainability. Future studies will therefore consider a broader evaluation of the life-cycle impact and safety of the chemical components involved, particularly in the context of large-scale implementation.

In conclusion, this work demonstrates that the use of nanostructured GPTMS/SiO₂-based coatings applied via a multilayer spray process enhances hydrophobicity, mechanical robustness, and stain resistance in leather substrates without affecting the appearance or touch of the original leather. The developed coating process offers a scalable, environmentally sustainable approach to enhancing leather’s protective finish, thereby improving its durability and preserving both its esthetic and functional properties.
