Salivary pH Effect on Orthodontic Appliances: In Vitro Study of the SS/DLC System

Abstract

Stainless steels (SS) are the most-used alloys for manufacturing fixed orthodontic appliances due to their attractive set of mechanical properties, biocompatibility, and high corrosion resistance. Nevertheless, during regular orthodontic treatments–taking at least around 2 years–the intraoral environment inevitably degrades these bioalloys, releasing metallic ions into the oral cavity. In the first part of this in vitro study, the corrosion resistance of commercial SS appliances (brackets, tubes, and bands) was evaluated in Fusayama-Meyer artificial saliva at pH values of 2.3 and 6.8 over the course of 30 days. As expected, the results corroborated that salivary pH highly influences corrosion behaviour. Released Ni, Cr, and Fe were within dietary intake values. In the second part, a novel approach for oral corrosion prevention based on the chemical inertness of DLC materials is presented. SS surfaces were functionalized with biocompatible a-C:H-sputtered coatings and submitted to the same experimental conditions. The anticorrosion ability of this system was demonstrated, preventing the pitting corrosion that occurred on the SS substrates. Despite the galvanic coupling effect due to the presence of the Cr-based interlayer, this study enhanced the potential use of the reactive sputter-deposited a-C:H coatings in orthodontics.

1. Introduction

The European Union (EU) forbids the use of Nickel (Ni) [1]:

(a)

«in any post-assemblies which are inserted into pierced ears and other pierced parts of the human body unless the rate of nickel release from such post-assemblies is less than 0.2 μg/cm²/week (migration limit)»;

(b)

«in articles intended to come into direct and prolonged contact with the skin (…) if the rate of nickel release from the parts of these articles coming into direct and prolonged contact with the skin is greater than 0.5 μg/cm²/week»;

(c)

«in articles referred to in point (b) where these have a non-nickel coating unless such coating is sufficient to ensure that the rate of nickel release from those parts of such articles coming into direct and prolonged contact with the skin will not exceed 0.5 μg/cm²/week for a period of at least two years of normal use of the article».

However, metallic biomedical alloys lie outside this EU regulation regarding this matter.

In contemporary orthodontics, malocclusions are usually treated with fixed orthodontic appliances, which are systems composed of brackets, archwires, tubes and/or bands tightened by ligatures and bonded to the teeth with adhesives or resins [2,3]. Since a regular orthodontic treatment takes at least around 2 years [4], the biocompatibility of the materials employed is of utmost importance.

Biometallic alloys, such as Nitinol (NiTi) and stainless steels (SS), are preferred over other classes of materials to manufacture fixed orthodontic appliances due to their wide range of properties, including superior in vivo mechanical behaviour [3]. However, the oral cavity is a dynamic and complex system where metallic ion release inevitably occurs due to multiple changing variables: chemical composition, temperature and pH, different diets, oral flora and its byproducts, oral hygiene, and health and psychosomatic conditions of each individual [5,6,7,8,9,10,11]. Corrosion with metallic species release is the end result. Important consequences of this deleterious oral reaction include discoloration of the enamel, hypersensitivity, inflammatory reactions, and toxicity effects [5,7,12,13].

Some released metallic species are toxic and/or can induce allergic reactions [5,7,14]. Among them, Ni stands out: (i) The International Agency for Research on Cancer (IARC) classifies Ni²⁺ and all its compounds as carcinogenic or potentially carcinogenic to humans [12]; (ii) Ni is a strong immunologic sensitizer, capable of triggering cytotoxic and mutagenic effects [14,15]; (iii) Ni²⁺ can affect cellular functions, inducing apoptosis and modifying gene expression [14,15].

Reported intra- to extraoral and subtle to severe symptoms of allergy to Ni-containing orthodontic components include a burning sensation, generalized urticaria, and widespread eczema [7,16,17,18]. While, in general, the impact of Ni-related allergies in orthodontics seems low and non-consensual [5,6,7], Ni allergies may easily be underdiagnosed [6,18].

Despite concerns, Ni-containing alloys are still used, since metal-free alternative solutions still face multiple concerns that undermine clinicians’ acceptance [2,3,19]. Surface engineering provides two options to enhance the properties of metallic surfaces: surface modification or coating deposition [20]. Aspiring to a safe future, the second alternative was chosen in this study.

Amorphous carbon films, also termed diamond-like carbon (DLC) films [21], are extensively used and/or studied as protective coatings for several industrial applications [22], including to prevent tribocorrosion of metallic parts [23]. These coatings are clearly attractive for biomedical applications due to their excellent biocompatibility [24]. The hydrogenated forms of amorphous carbon, a-C:H, constitute a major group of DLC materials with H contents up to 60 at.% [25]. Together with H content, the sp²/sp³ C–C bond ratio rules the final properties of DLCs [21], which can be further tuned by doping [23]. One of the major disadvantages of DLC coatings is the low long-term adhesion to substrates [26], which can be improved by depositing a metallic-based interlayer between the substrate and the C-based coating [23,27]. To the authors’ knowledge, little research has been carried out in orthodontics when compared to other medical fields (e.g., orthopaedics [26,27]), despite encouraging results already published [28,29,30].

In a previous research work, the authors discussed the reactive CH₄ flow effect on the microstructure, hardness, and biological behavior of sputtered, deposited a-C:H coatings. The cell viability of the a-C:H/AISI 316L system was confirmed using two types of cells: macrophages and fibroblasts, either in mono or coculture with extracts, for estimated H contents in the range of 28–40 at.%. The highest biocompatibility was found for coatings with the lowest H content [31]. Following this important result, the present study addresses the synthesis of the a-C:H coatings with lower H content, by sputtering, on SS substrates with higher Ni nominal content (AISI 310). The goal for the work persists: to functionalize the surface against metallic diffusion into the oral cavity without compromising biocompatibility and the SS bulk properties.

In the first part of this in vitro study, the corrosion behaviour of commercially available brackets, tubes, and bands was assessed in Fusayama-Meyer artificial saliva for 30 days. Two pH values were selected: one close to the oral physiological value (pH = 6.8) and the other according to ISO 10271:2001 (pH = 2.3) [32] The second part regards a-C:H films deposited by reactive magnetron sputtering—a clean, highly versatile, and low-cost technology—to improve surface properties of SS alloys. The previously cited experimental conditions were also used to simulate the oral conditions in vitro [31].

2. Materials and Methods

2.1. Materials

2.1.1. Orthodontic Components

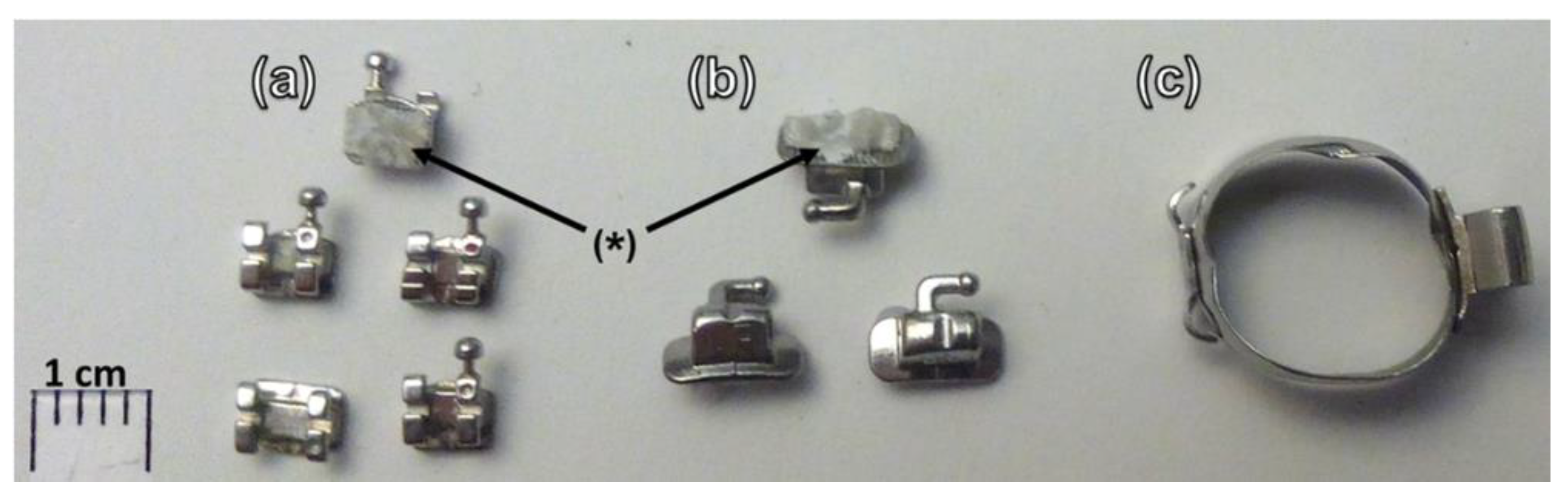

Typical commercially available Ni-containing components of orthodontic appliances were used in this study (Figure 1), whose characteristics are summarized in

Table 1. Nominal chemical composition of the commercially available SS components of fixed orthodontic appliances and AISI310 substrates.

Component	Grade	Composition (wt.%)
		Ni	Cr	C	Mn	Si	Cu	Fe
Brackets 1	AISI303	8–10	17–19	≤0.15	≤2	≤1	-	Balance
Tubes 2	AISI630	3–5	15–18	≤0.07	≤2	≤1	3–5	Balance
Bands 1	AISI305	11–13	17–19	≤0.12	≤2	≤1	-	Balance
Substrates for coatings	AISI310	19–22	24–26	≤0.25	≤2	≤1.5	-	Balance

Suppliers: ¹ Ormco™, Orange, CA, USA; ² Morelli™, Sorocaba, SP, Brazil.

. Table 1 also includes the nominal composition of the AISI 310 substrates used for coating deposition, which were selected due to their exceptionally higher Ni content (>20 wt.%) in comparison to conventional orthodontic SS grades.

2.1.2. a-C:H Coatings

Hydrogenated amorphous carbon coatings, a-C:H, were synthetized by reactive magnetron sputtering (Teer Coating equipment, TEER Coating Ltd., Worcestershire, UK) in the direct-current (dc) discharge regime, with two C and one Cr target (purity > 99.9%). The SS316L surface preparation followed the “traditional” approach for coating deposition: samples were grinded with SiC sandpaper (P500 to P2000) and mirror-polished with 3 µm diamond suspension. All samples were ultrasonically cleaned in an acetone/alcohol bath and dried by hot airflow. Preceding the external a-C:H layer deposition, substrates were sputter-etched with Ar+ bombardment for 30 min to remove surface impurities, followed by a Cr-based buffer layer formation of ~300 nm (Cr and C targets power of 2000 and 50 W, respectively) to improve adhesion of the coatings to the metallic substrates. The deposition parameters were maintained constantly: total working gas pressure of 0.6 Pa, Ar flow of 46 sccm, CH₄ flow of 5 sccm, negative substrate bias of −50 V, 2 graphite targets (99.9% purity) with a constant power of 1750 W. The deposition time was selected to achieve a total coating thickness close to 1 µm [31,33]. To facilitate reading, coated and uncoated AISI310 samples will be termed as a-C:5H and SS310, respectively.

2.2. Corrosion Tests

Corrosion tests were performed in an immersion solution of Fusayama-Meyer artificial saliva (

Table 2. Chemical composition of the Fusayama-Meyer artificial saliva.

Concentration [g/L]
NaCl	KCl	CaCl2∙2H2O	NaH2PO4	Na2S∙9H2O	CO (NH2)2	HCl (1M)
0.4	0.4	0.795	0.78	0.005	1	until pH 6.8 or 2.3

), following ISO 10271: Dental metallic materials–Corrosion Test methods [32] and other research works [31,33,34]. For the SS310 samples and a-C:5H coatings, a ratio of 1 cm² of sample surface area per 10 mL of solution was used, while for the fixed orthodontic components (10 brackets, 2 bands and 6 tubes), a ratio of 0.02 mg per 1 mL of saliva was chosen. Two pH solution values were selected: 6.8 and 2.3. Before the tests, the base of the brackets and tubes were covered with commonly used orthodontic resin (Transbond™, 3M™, St. Paul, MN, USA) (see Figure 1) to inhibit corrosion from those surfaces, similar to the real oral use. After immersion, samples were ultrasonically cleaned in alcohol and air dried prior to characterization.

2.3. Characterization Procedure

Quantitative analysis of Ni, Cr, and Fe released into the artificial saliva was performed in duplicate by inductively coupled plasma-optical emission spectroscopy (ICP-OES) in a PerkinElmer-Optima 8000 series spectrometer (PerkinElemer, Inc., Waltham, MA, USA). All solutions were previously acidified by adding 1 mL of HNO₃ (65%) per 5 mL of saliva and diluted twice to reach a final volume of 10 mL. The ICP detection limits were 5 μg/L for Ni and 10 μg/L for Cr and Fe. The average metal-release rates (µg per day and per g) were estimated. SS310 samples were used as reference for the a-C:5H coatings.

The surface and cross-section morphologies were observed by high-resolution scanning electron microscopy (SEM-ZEISS Merlin Compact/VP Compact, Oberkochen, Germany). Both chemical composition and elemental distribution maps were obtained through energy-dispersive spectroscopy (EDS-coupled Oxford X-Max Instruments to the SEM system, Oxford Instruments, Oxford, UK).

Structural and chemical bonding were studied through visible Raman spectroscopy (LabRAM HR Evolution, Horiba, 532 nm wavelength, Kyoto, Japan). Raman spectra were deconvoluted in the D and G bands by using a Gaussian-type fitting [21,35]. An additional band at ~1250 cm⁻¹ was considered to obtain proper fittings [35,36,37]. The C–C sp³ hybridization fraction was calculated using Equation (1),

$$\% s{p}^3=\left[0.24-48.9 \left(w_G-0.1580\right)\right]\times 100,$$

(1)

where $w_G$ is the position of the G peak in the inverse of micrometer unit (µm⁻¹) [38].

Phase composition of the coatings was characterized by Fourier-transform infrared spectroscopy (FTIR) in the attenuated total reflection (ATR) mode (Smart Orbit, Nicolet 380, Thermo Fisher Scientific, Waltham, MA, USA). Normalized absorbance spectra of coatings are presented, summarizing at least 3 measurements per sample. The FTIR spectra were deconvoluted in 9 Gaussian-type bands corresponding to the known vibrational frequencies of a-C:H in the infrared absorption range of 2800–3100 cm⁻¹ [21]. Note that a possible band at 3300 cm⁻¹, for C-H bonds with the sp¹ carbon configuration [21], was absent; therefore, spectra were analysed at around 3100 cm⁻¹ and include all sp²- and sp³-C hybridization assignments of C-H bonds. The sp³/sp² ratio was estimated by applying Equation (2) to all peak areas,

$$\frac{s{p}^3}{s{p}^2}=\frac{A_5+A_6+A_7+A_8+A_9}{A_1+A_2+A_3+A_4}.$$

(2)

The average surface roughness (Ra) was measured by atomic force microscopy (AFM-Veeco DiInnova, Barcelona, Spain) running in intermittent mode (vibration frequency of 11 to 19 kHz) on a 2 × 2 μm² area. An OCA contact angle measuring system (DataPhysics Instruments GmbH, Filderstadt, Germany) was used to assess the static contact angles, applying distilled water (at least three measurements per sample).

Mechanical properties were evaluated by depth-sensing indentation (DSI), using a Berkovich indenter (MicroMaterials NanoTest platform, Wrexham, UK). Nanohardness values were obtained from an average of 20 indentations performed under a nominal load of 5 mN, with a maximum indentation depth below 10% of the coatings’ thickness. The H content of the a-C:5H coatings was estimated from their nanohardness knowledge by using Equation (3) [38],

$$Hardness \left[GPa\right]=44.195-0.93\times H_{content}\left[at.\%\right].$$

(3)

3. Results and Discussion

3.1. Orthodontic Components

The ICP results of orthodontic SS components are summarized in

Table 3. ICP-OES data concerning Ni, Cr, and Fe release.

-			Concentration (µg/L)
Samples	Days	pH	Ni	Cr	Fe
Brackets	30	6.8	54	24	218
		2.3	75,020	24,380	138,960
Tubes	30	6.8	11	<LD	90
		2.3	691	2162	10,723
Bands	30	6.8	363	125	2710
		2.3	593	812	4608
SS310	7	6.8	17	<LD	145
		2.3	38	29	256
	30	6.8	20	23	182
		2.3	42	35	356
a-C:H	7	6.8	12	<LD	69
		2.3	34	40	217
	30	6.8	12	21	77
		2.3	64	51	345

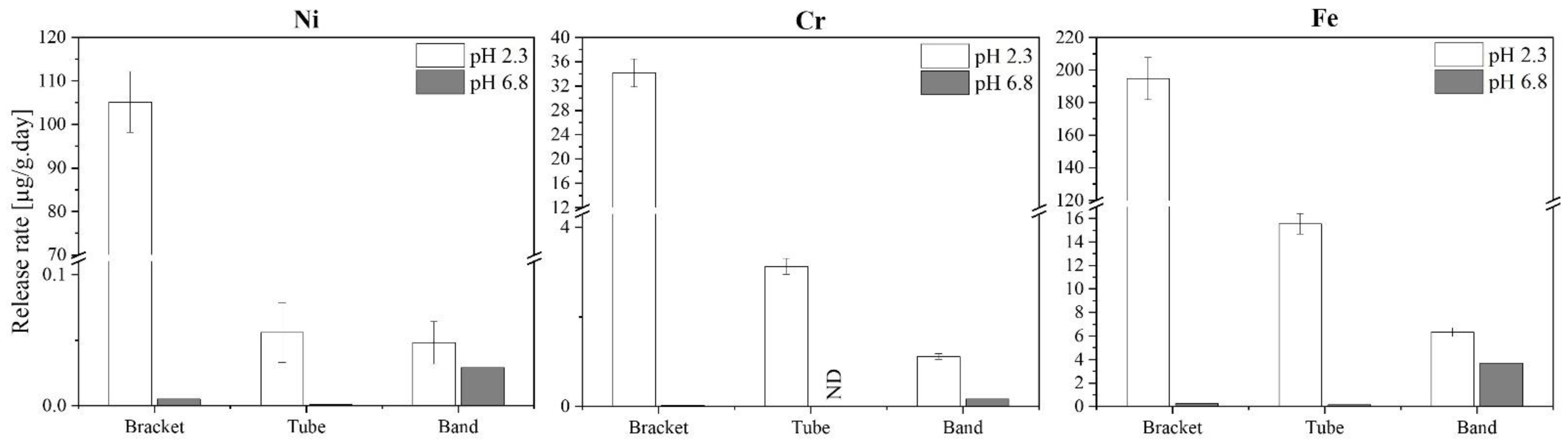

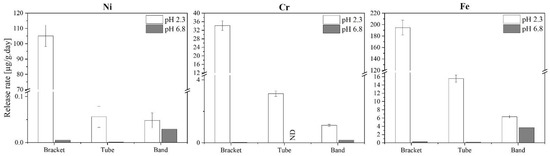

, and Figure 2 shows the metal release rates, as a function of the artificial saliva pH. Three main conclusions arise from the analysis of these corrosion data:

• The increased rate of metallic element release is evident in the decreasing pH of the saliva;
• Ni is released in a higher rate than Cr for all orthodontic components;
• Ni release during the sampling period is significantly higher for brackets in comparison to tubes and bands at pH = 2.3.

The AISI303 brackets presented a lower in vitro corrosion resistance, corroborated by the highest release rates of all elements in the acidic saliva (pH = 2.3), Figure 2. Fe was, undoubtedly, the main released element (~195 µg/g·day), followed by Ni (~105 µg/g·day) and Cr (~34 µg/g·day)—a release ranking obtained by other authors [39,40,41]. The low Cr corrosion rate did not follow its relative content in the alloy (Table 1), most likely due to its function: to improve the corrosion resistance by forming an external oxide layer. SEM micrographs (Figure 3) clearly showed a low-adherent external layer with multiple detachments in a “puzzlelike” morphology. The EDS elemental distribution maps showed that this top layer is mainly composed of O, Cr, and P. According to the passivation mechanisms in physiological conditions, the typical oxide layer on SS mainly includes Fe and Cr, with lower Ni content (typically in the inner layer region), and Mn and Mo, depending on the steel nominal composition [42,43]. Furthermore, the presence of P as phosphates in the passivation layers of metallic alloys, in physiological conditions, was reported in the literature [42] due to biocompatibility features. Yet, no pitting, crevices or other localized forms of corrosion were detected in the studied surfaces.

As expected, considerably lower release rates were observed for the higher pH value of 6.8 (~0.3, 0.03 and 0.005 µg/g·day of Fe, Cr, and Ni, respectively). In fact, brackets revealed no relevant surface morphological changes regarding its as-received state (figures not shown). A systematic literature review conducted by Mikulewicz and Chojnacka [44] also highlights the influence of the acid pH in the in vitro corrosion of SS appliances, finding a 30–50 times higher metal release in an acid environment than in more neutral solutions. Other authors of in vitro studies (not included in [44]) also reported the higher corrosion susceptibility and metallic release of various SS orthodontic components in more acid immersion solutions [45,46,47,48,49].

Tubes presented no signs of localized corrosion in either pH value. AISI630 SS is a precipitation-hardened alloy (martensitic structure) with high mechanical strength, high hardness, and excellent corrosion resistance, superior to the other austenitic SS studied grades. In fact, corrosion rates for Fe were almost 13 and 10 times lower than for brackets, and only traces of Ni were detected by ICP (Figure 2). Notice that this SS grade is the only one that presents the element Cu in the nominal composition (see Table 1), contributing to the Ni equivalent effect. However, in the acidic saliva (pH = 2.3), SEM examination, coupled with EDS analysis (Figure 4) exposed traces of an outer layer with O, Cr, and P. Like in the case of brackets, this acidic condition influenced the adhesion of the passive layer. Notice that this “alveolar”, loose layer morphology contains higher P content (~13 wt.%) than in the case of brackets.

Finally, the bands presented similar corrosion rates to those obtained for tubes (Figure 2). This behaviour may not be directly related to the corrosion resistance of bioalloy AISI305—with nominal composition similar to the AISI303 brackets—but decreased due to the presence of the AISI630 tube attached to the band (see Figure 1). Note that the bands are fixed to the molar teeth during the orthodontic treatment and have the function of fixing the archwires. Thus, it could be considered a dual orthodontic component.

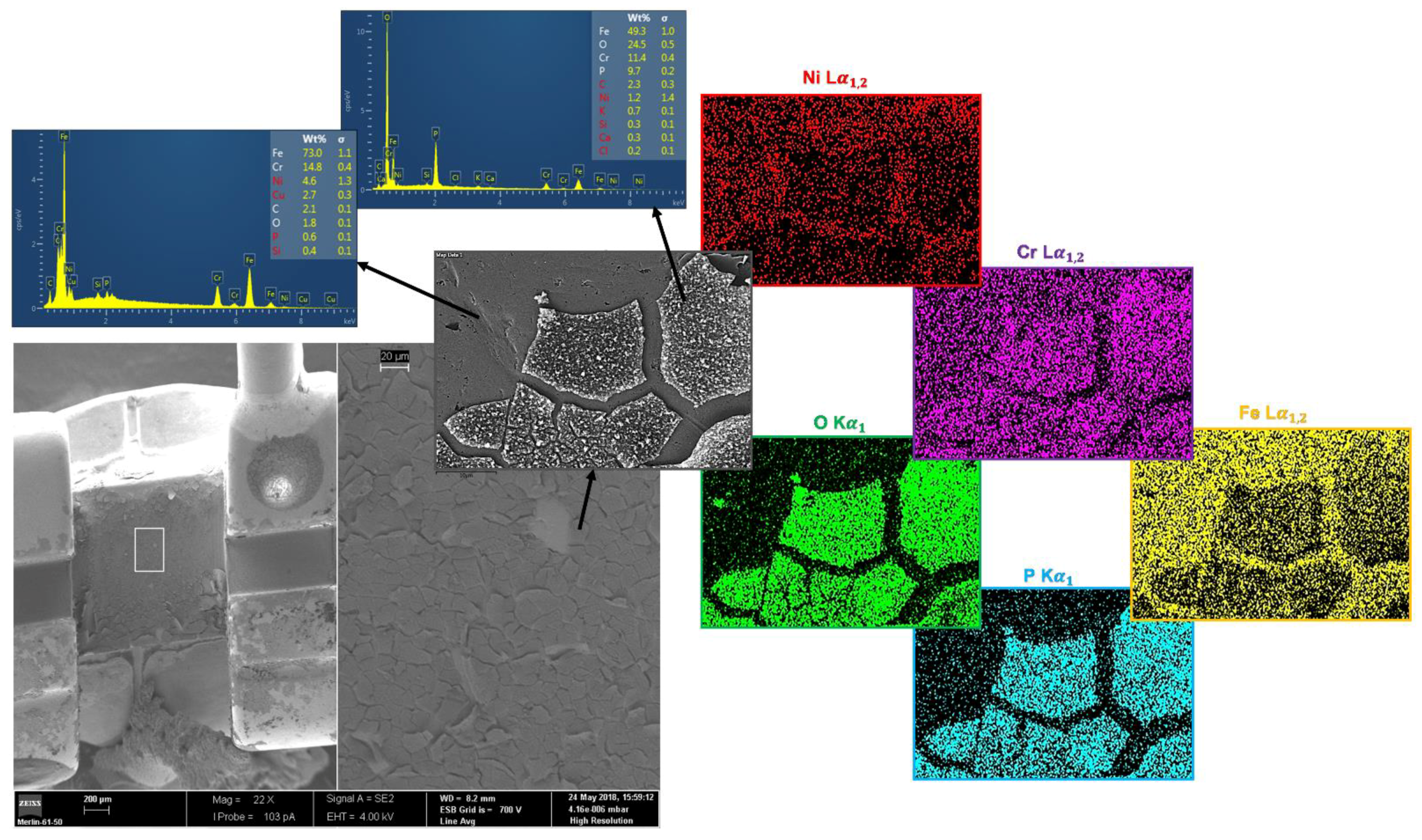

Welding is a common procedure for manufacturing orthodontic pieces like brackets, bands, and tubes with more complex shapes [50]. However, welded pieces can greatly influence the release of metallic ions [41]. Soldered joints may promote galvanic corrosion and metallic ion release [5,6,51]. The outcomes can be harmful: Jacoby et al. [51], for instance, found a significant decrease in cell viability percentages in vitro after exposure to extracts of orthodontic bands containing Ag solder joints, whereas Freitas and colleagues [52] argue that “silver soldering used in orthodontics exhibits severe cell toxicity”.

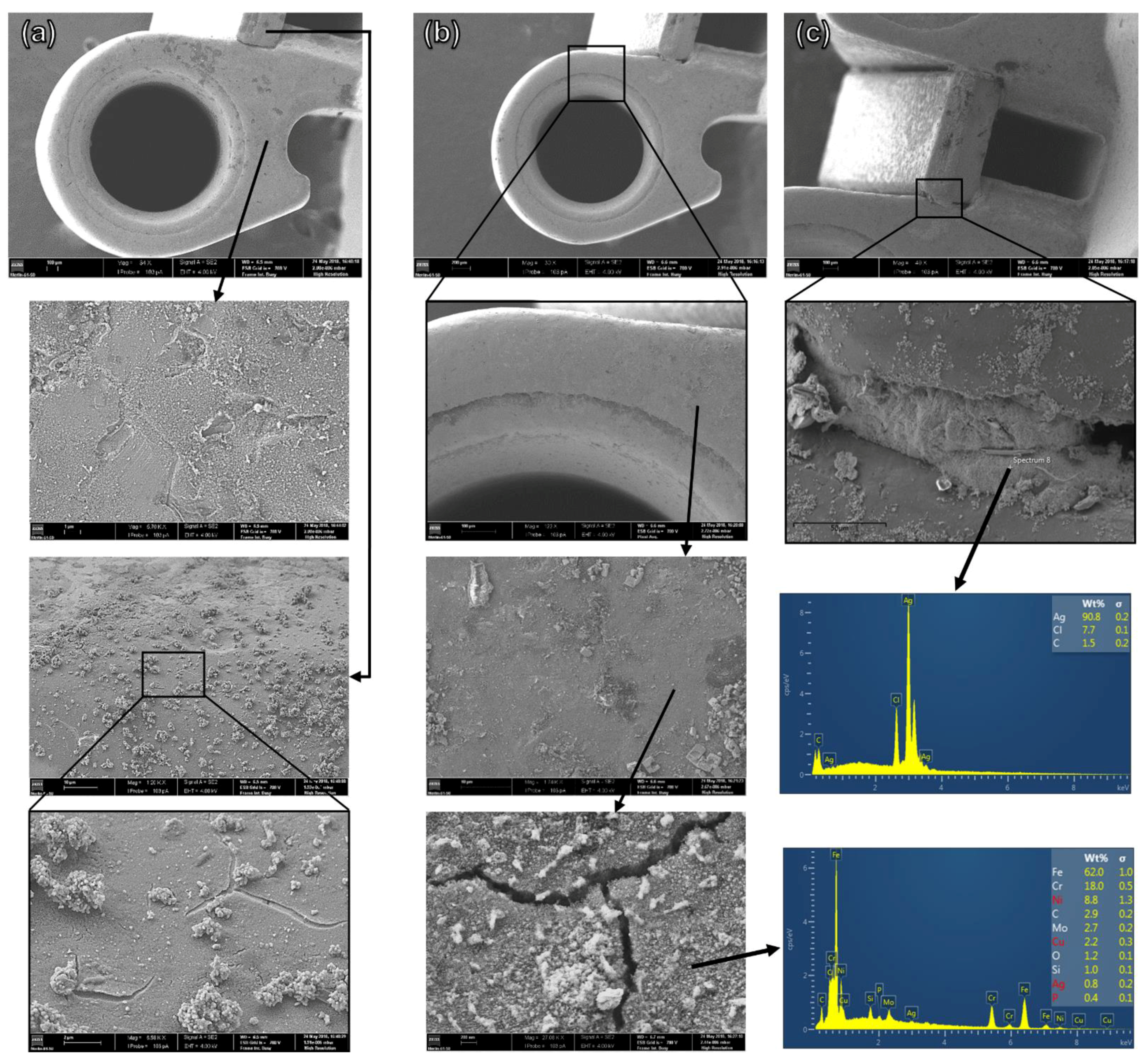

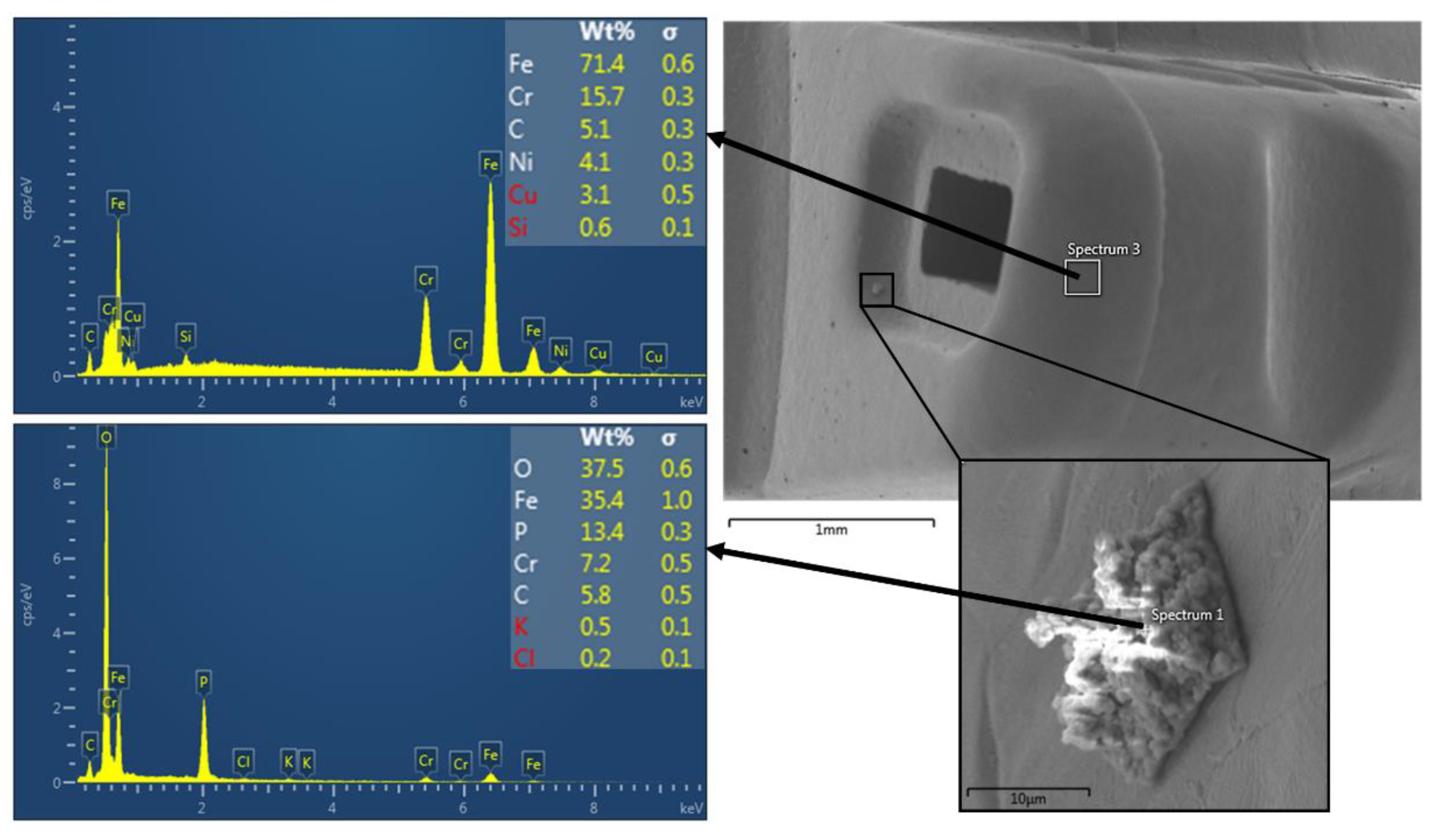

The observation of the attached tube by SEM showed an O-based layer (Figure 5a,b) for both pH values. These layers are well-adherent but with similar morphological features and lower P content (~0.4 wt.%) than those on brackets and tubes (Figure 3 and Figure 4). However, a careful analysis of the attached tube to the band (Figure 2) showed a worse corrosion behaviour at pH = 6.8 than brackets and tubes, suggesting that the influence of pH may not be the sole main contributor. In fact, Ag was detected in the top layer (Figure 5b), which is unexpected, since typical chemical compositions of SS alloys exclude this metallic element.

The Ag source was found near the adjacent rectangular orifice (Figure 5c): an Ag brazing material was used to weld a small metallic parallelepipedal to the main tube component. Additionally, Ag-containing particles of several shapes were spread over the surface of this component (Figure 5), preferentially located near the welded region. In this region, particles presented high Ag contents (as high as ~70 wt.%). This finding reinforces the influence of Ag-based welding in promoting corrosion of orthodontic components, as found by other authors [53,54].

To conclude the first part of this in vitro study, a simple calculation estimated the average daily amounts of metals released from a typical orthodontic appliance, composed of 20 brackets, 4 bands and 4 tubes, without considering NiTi or SS archwires—approximately 150, 55 and 307 µg/day, respectively for Ni, Cr, and Fe.

Dietary studies conducted in different countries estimated a daily intake of Ni from food and drinking water of 100–300 µg/day, while consumption of Ni-enriched foodstuffs may increase this value up to 900 µg/day [6,55]. Concerning Cr, an average daily intake of 280 µg/day was estimated [6]. Finally, Fe is an essential element and is consumed daily in large quantities in the human diet, including in drinking water, and does not represent a risk to human health [56,57]. Average Cr and Ni releases obtained in this study are therefore within the daily intake levels and in accordance with several authors [40,45,46,58,59,60,61]. However, values are expected to peak in the first 1–2 weeks [40,41,60,61,62] of the orthodontic treatment. Besides, NiTi or SS archwires are used simultaneously with the studied components [2] and may contribute with more metal release into the oral cavity [39]. In a recent study [63], other authors found a significant increase in Ni concentration in the urine of patients undergoing orthodontic treatment, encouraging further research on bioaccumulation of this metal. Orthodontic appliances may be an additional source of potentially toxic elements that should not be disregarded [39], particularly for patients hypersensitive to Ni.

A possible path to improve the corrosion resistance of orthodontic metallic alloys is through protection of the surfaces with chemically inert coatings [20]. In this work, a-C:H-based coatings were sputter-deposited on an SS alloy with high Ni content, AISI310, to explore their potential as corrosion-protective films for orthodontic applications.

3.2. Sputtered a-C:H Coatings

3.2.1. Characterization Post-Deposition

Table 4. Main characteristics of the a-C:H coatings before and after corrosion tests.

-	-	As-Deposited	As-Immersed
-	-	-	7 Days		30 Days
			pH 6.8	pH 2.3	pH 6.8	pH 2.3
Elemental composition [at.%]	C	96.4	NE	NE	96.7	96.7
	Cr	2.0			1.6	1.6
	Ar	1.6			1.7	1.7
Roughness [nm]	Ra	6.8	NE	NE	NE	8.7
Contact Angle [º]	-	56 ± 6	62 ± 12	59 ± 6	54 ± 2	54 ± 3
Nanohardness [GPa]	HB	22.7 ± 3.9	20.5 ± 1.9	17.5 ± 1	23.7 ± 1.9	20.5 ± 2.0
Raman bonding configuration	G band [cm−1]	1549	1550	1548	1546	1546
	ID/IG ratio	0.45	0.45	0.46	0.45	0.46
	C-C sp3 [%]	39	39	40	41	41
FTIR analysis	C-H sp2/sp3 ratio	0.31	0.31	0.19	0.16	0.16

summarizes the main characteristics of the sputter-deposited a-C:H coatings, while Figure 6 displays the surface and cross-section micrographs and elemental distribution maps by SEM/EDS.

Concerning the coatings’ morphology (Figure 6), SEM micrographs revealed a C-based top layer (~770 nm) with a typical cauliflower-like surface morphology [31,33,64,65,66] deposited on a well-adherent Cr-based interlayer. No preferential growth direction of the a-C:H coating was detected, in contrast with the well-defined columnar morphology of the buffer adhesion layer (~380 nm). The good elemental chemical homogeneity is corroborated by the EDS analysis, as shown in Figure 6. In agreement with previous results [31], a small Ar contamination was detected due to the carrier-gas effect during the films’ formation.

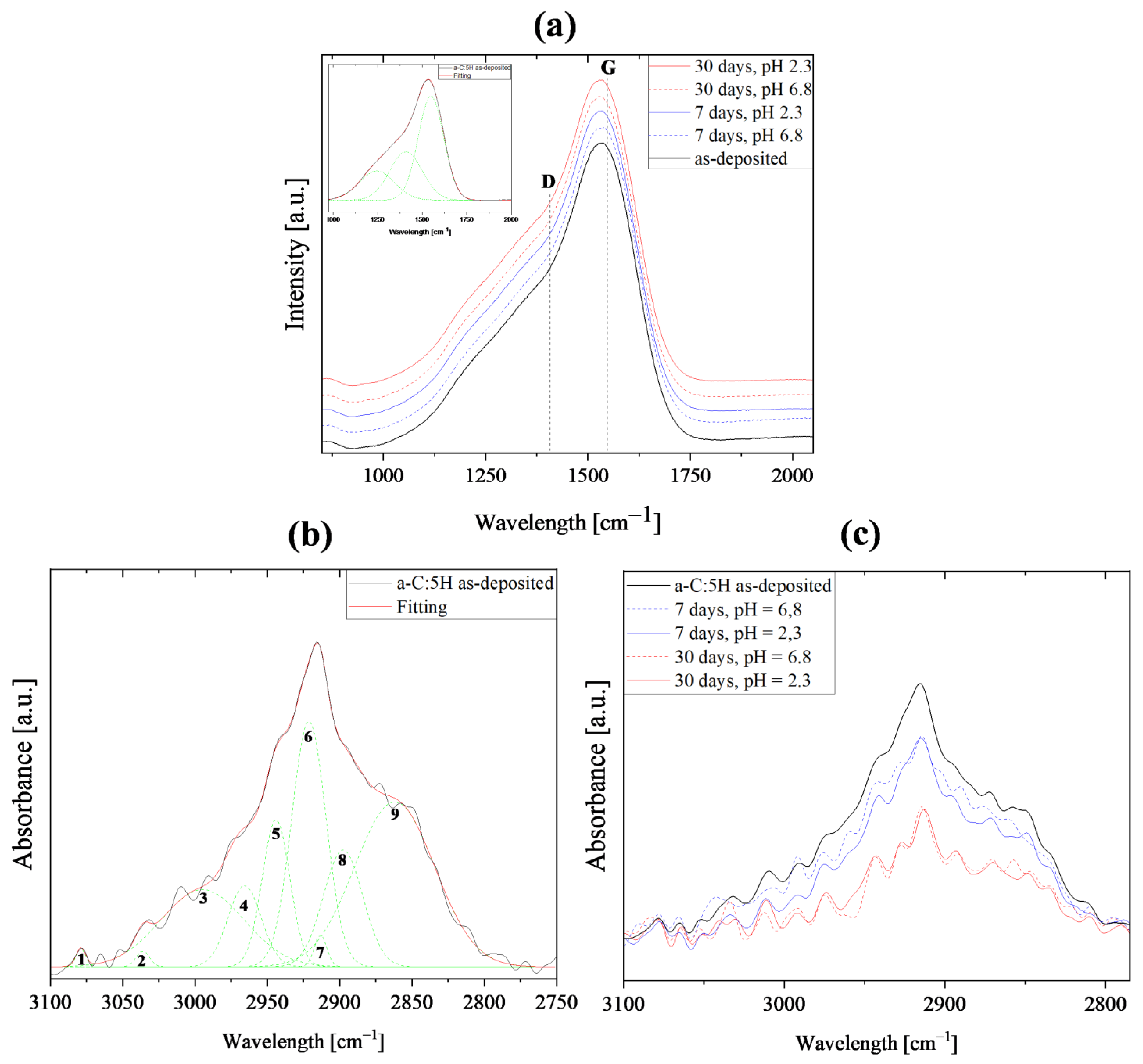

Visible Raman and FTIR spectroscopies were complementarily employed to evaluate the a-C:H chemical properties, namely the sp²/sp³ C–C bindings and the H-bonded content. Typical Raman spectra presenting the two broadened D and G bands were acquired (Figure 7a). Successful peak fitting allowed for the location of the graphitic signature of C (sp² hybridization G band) at ~1549 cm⁻¹, while the disorder clusters of hexagonal sheets of C (sp² hybridization D bands) were found at ~1411 cm⁻¹.

The absence of the notorious Raman photoluminescence background suggests an H content in the studied coating below ~25 at.% [25,31,38,67,68]. In fact, by using a nanohardness of 22.7 GPa in Equation (3), an H content of ~23 at.% was estimated. Together with the obtained I_D/I_G ratio of ~0.45 (Table 4), these results are in perfect agreement with those obtained by other authors [25]. The sp² C–C hybridization dominates the structure of the coatings, as the estimated sp³ C–C fraction was ~39% from Equation (1). Thus, based upon the a-C:H materials classification [25,69]—established in the ternary sp²-sp³-H diagram—the sputter-deposited a-C:5H coatings in this study can be considered a diamond-like a-C:H (DLCH) coating. DLCH coatings are characterized by high hardness values, up to around 20 GPa, and a carbon sp³ hybridization range of 40–60% [70], corroborating the data obtained from the a-C:5H films.

Following other authors [21,69] who claimed that the main effect of H in an a-C:H film is to modify the C–C bonding not by increasing their fraction but by terminating the sites of double bonding of carbon as C–H_x (x = 1, 2, 3), FTIR analyses were performed. As can be seen in Figure 7b, the wide, broad band centred at ~2900 cm⁻¹, whose Gaussian peak fitting results in nine superimposed peaks, can be assigned to the stretching modes of both sp²- and sp³-C–H_x bonds in the range of ~2800–3300 cm⁻¹ [21].

Table 5. FTIR peak fitting results of vibrational frequency assignments of as-deposited and as-immersed a-C:H coatings: peak positions (Pos_i) and areas (A_i).

Index (i)	Peak Assignment [21]		As-dep.		7 Days pH = 6.8		7 Days pH = 2.3		30 Days pH = 6.8		30 Days pH = 2.3
	Configuration	Position	Posi	Ai	Posi	Ai	Posi	Ai	Posi	Ai	Posi	Ai
		(cm−1)	(cm−1)	(a.u.)	(cm−1)	(a.u.)	(cm−1)	(a.u.)	(cm−1)	(a.u.)	(cm−1)	(a.u.)
1	CH2–sp2 (A)	3085	3079	0.03	3080	0.06	3078	0.05	3082	0.04	3080	0.03
2	CH–sp2	3035	3036	0.03	3044	0.06	3036	0.04	3035	0.06	3037	0.04
3	CH–sp2 (S)	2990–3000	2995	0.94	2997	0.85	2997	0.46	2994	0.16	3004	0.19
4	CH2–sp2 (S)	2975	2966	0.39	2974	0.25	2973	0.21	2974	0.07	2974	0.09
5	CH3–sp3 (A)	2955	2944	0.60	2948	0.43	2949	0.50	2943	0.28	2945	0.45
6	CH2–sp3 (A)	2920	2921	1.23	2924	1.17	2922	1.17	2919	0.48	2918	0.46
7	CH–sp3	2920	2913	0.06	2914	0.05	2915	0.09	2914	0.08	2912	0.05
8	CH3–sp3 (S)	2885	2898	0.67	2897	0.66	2897	0.51	2895	0.22	2897	0.30
9	CH2–sp3 (S)	2855	2862	1.93	2861	1.66	2860	1.63	2860	1.06	2860	0.94

A: Antisymmetric stretching vibration; S: Symmetric stretching vibration.

lists the FTIR peaks, identified by an index, correlating their positions with their assignments. While peaks 1 to 4 are assigned to sp²-CH_x bonds, peaks 5 to 9 are due to sp³-CH_x bonds. Using Equation (2) and the relative FTIR peak areas (Table 5), a predominance of sp³-bonded H to C atoms over sp² C–H bonds was estimated: sp²/sp³ ~0.31. This means that hydrogen is preferentially bonded to sp³-hybridized C atoms [71].

3.2.2. Characterization Post-Corrosion Tests

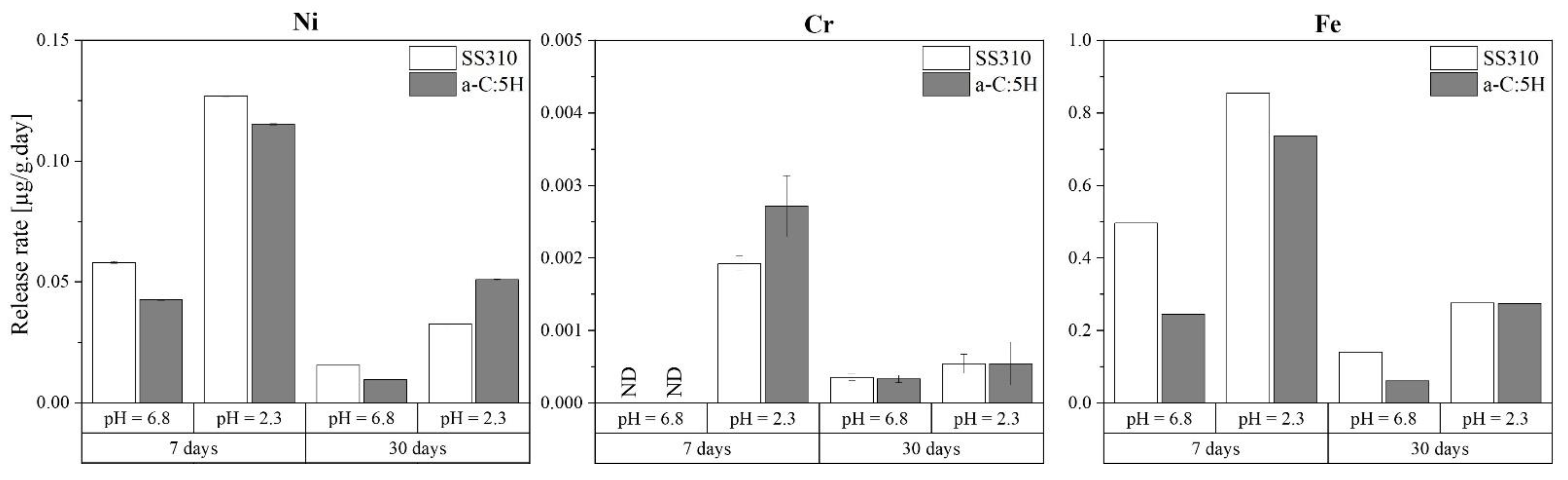

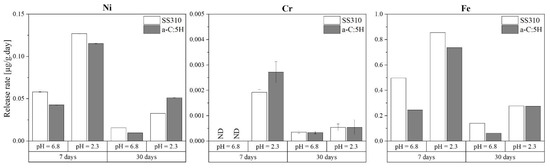

The ICP-OES data for both coated and uncoated SS310 samples (Table 3) are displayed in Figure 8 as metal release rates. Three main conclusions were clear from the data:

• Release rates increased with decreasing pH values of the saliva;
• Release rates decreased with increasing immersion times;
• Ni release rates were higher than those of Cr for both reference SS310 and a-C:5H samples.

After the 30-day immersion corrosion test in the artificial saliva with pH = 2.3, SEM surface analysis revealed pitting corrosion on the SS310 uncoated samples (Figure 9), which were absent at pH = 6.8. Indeed, SS, as all Fe alloys, is known to be susceptible to pitting corrosion, especially in chloride-containing solutions [43,72,73]. This is a localized metal dissolution reaction, which is nucleated at the external passive film by the presence of defects such as crevices, pores, inclusions, etc. The reaction progress requires that the environment inside the pit be able to maintain the continuous active dissolution state at the pitting surface. Two main constitutes, H⁺ and Cl⁻, are involved: H⁺ is derived from the hydrolysis of metal cations, and Cl⁻ (in solution) migrates into the pit to balance the charge and maintain the electroneutrality.

The pitting corrosion process can be summarized as follows [73]:

• «Anodic site formation is the first stage in pitting where the passive protective layer on the surface of the metal is destroyed. The destruction of the protective film may be done chemically or mechanically.

$$\mathrm{M}\to {\mathrm{M}}^{\mathrm{n}+}+\mathrm{ne}$$

(4)

It is then balanced by reacting oxygen on the adjacent surface at the Cathode

$${\mathrm{O}}_2+2{\mathrm{H}}_2\mathrm{O}+4{\mathrm{e}}^{-}\to 4{\mathrm{OH}}^{-}$$

(5)

2.

The continuous dissolution of metal results to the accumulation of outrageous positive ions (M⁺) at the anodic zone. This is a self-stimulating and self-propagating process. Neutralization of charges is sustained by the negative ions (anions), like chloride which comes from the electrolyte (using seawater as sample).

$${\mathrm{M}}^{+}\mathrm{Cl}+{\mathrm{H}}_2\to \mathrm{MOH}++\mathrm{MOH}+{\mathrm{H}}^{-}{\mathrm{Cl}}^{-}$$

(6)

The positive charges are kept neutralized by the hydroxyl ions (OH^–) through hydrolysis process.

3.

Repassivation is prevented by the presence of hydrogen ion and chloride content. This process produces free acid while the value of pH at the base of the pit is significantly decreased (1.5–1.0).

4.

The rate of migration of chloride ion increases with dissolution rate at the anode. This makes the reaction to be time dependent and leading to the formation of more M⁺Cl^– and the hydrolysis of H⁺Cl^–.

5.

This process go on till the point of perforation of the metal. This is an autocatalytic process which advances with time leading to more metal dissolution.

6.

The metal finally perforate thereby causes the termination of the process.»

Hence, the increase in the H⁺ concentration (lowering pH from 6.8 to 2.3) leads to a pit increase in the Cl⁻ ions, which intensifies the local progression reaction and further decreases the local pH value.

In fact, the corrosion resistance of SS310 in acidic saliva, for both immersion times, was low for all evaluated metallic elements (Table 3 and Figure 8). As expected, Fe ranks first, followed by Ni, in agreement with the results from the real orthodontic components. A noticeable behaviour is the higher release rate of all elements after 7 days than after 30 days: the initial “burst” release precedes the beginning of the spontaneous passivation process, i.e., the formation of a Cr-based oxide layer. Over time, surface oxide formation progresses and a decrease in metal release rates is expected [40,41,58,60,61,62]. The passivation mechanism seemed to reach a thermodynamic equilibrium, therefore stabilizing the release rates.

Unexpectedly, some abnormal profiles were detected for a-C:H coatings (Figure 8). While the release rates in saliva with pH = 6.8 were always lower than those from SS310, the same did not always occur in the more acidic saliva. Right after 7 days of immersion, the Cr release rate from a-C:5H was ~40% higher than that from uncoated SS310 but was similar at day 30. Ni release from coatings was ~10% lower than SS310 after 7 days but ~55% higher after 30 days. Finally, Fe release was ~15% lower and similar to SS310 after 7 and 30 days, respectively. This logic-defying behaviour exceeded the single influence of pH on the samples, especially if the abovementioned overall inertness of the a-C:H coating is considered.

Fe remains the main released element, followed by Ni. At day 7, more than the absence of a passivation equilibrium, a corrosion-promoting mechanism was taking place: Cr was released at a higher rate than from uncoated SS310. As time progressed, Cr (and possibly Fe) from the alloy seemed to participate in the passivation phenomenon, explaining the similar release rates from SS310 and a-C:5H at day 30, contrary to Ni, which leached into the saliva.

The SEM/EDS analysis seems to contradict the ICP-OES data and evidences a clear stability of the top a-C:5H as an anticorrosive layer in all study conditions: no segregation, metallic inclusion, delamination, or detachments were detected (Figure 10). In fact, the surface polishing “linear defects”—almost null for coatings deposited on the Si wafers (Figure 6)—were potential diffusion paths for saliva to reach the coating/substrate interface, and thus promoting corrosion; however, the morphology looked unchanged, with no observable chemical composition variation by EDS analysis, regardless the saliva pH value. The good adhesion of this coating to the SS substrate, promoted by the Cr-based interlayer, avoided detachment from the SS substrate.

Static contact angle values obtained with water are compiled in Table 4. The as-deposited a-C:5H surface presented a slightly higher water contact angle value (~56°) than the only-polished SS310 substrate (~53°). Such values suggest that these surfaces are hydrophilic [74]. However, when the a-C:5H coating was deposited on Si substrates, a water contact angle of 71° ± 3° was obtained, comparable to those obtained by several authors on sputtered DLC coatings [21,31,75,76,77]. Defects on the SS surface from polishing seemed the cause of this divergence: during coating growth, these “linear” features influence the final coating-surface morphology (roughness), and therefore, the wettability. Nonetheless, a-C:5H coating presented a low Ra: ~7 nm (Table 4).

After the in vitro corrosion tests, no significant variations on static contact angles were detected for all immersion conditions when compared with the as-deposited state (Table 4). While pitting corrosion occurred on SS10 samples, its extent seemed insufficient to cause major wettability changes. On the other hand, a-C:5H coatings, which conserved both chemical and morphological characteristics, also maintained the as-deposited hydrophilic character. Moreover, Ra values of the coatings registered only a minor variation after 30 days at pH = 2.3 (Table 4), which seemed negligible: ~7 and 9 nm before and after immersion, respectively.

Both Raman and FTIR analyses corroborate the chemical structure stability of the coatings under study at oral physiological pH values, as well as in acid conditions (Figure 7). The Raman spectra evolution, shown in Figure 7a, presented unquestionably similar features, resulting in almost invariable G and D peak positions, I_D/I_G ratios, and sp³ content (Table 4) regarding the as-deposited state. In addition, the mechanical behaviour, referenced by nanohardness, was preserved after immersion in artificial saliva; that is, ~20 GPa.

FITR results confirmed the prevalence of sp³ C-H bonds after the corrosion tests, with a variation that was reflected in the sp²/sp³ variation: this ratio, which relates the area of peaks 1 to 4 (C–H sp²) and 5 to 9 (C–H sp³), decreased in time, regardless the pH value (Table 4 and Figure 7b). Note, however, that the intensity of the spectra decreases in the studied region (2800–3100 cm⁻¹).The total area under this spectral region is a relative measure for the content of bonded H in the a-C:H coatings, which may indicate a small decrease in bonded H to C atoms over time [71].

The inertness of a-C:H coatings was therefore supported, even for the longer immersion period in the acidic artificial saliva, suggesting their potential use as protective coatings for orthodontic applications.

The simultaneous presence of this inert layer on the substrates and similar or even higher release rates of metallic elements is, however, difficult to explain. Similar results were also obtained in a previous research work [31]. A recent study [78] may have provided the answer to this enigma: the authors highlighted the crucial role of metallic-based interlayers in increasing overall corrosion susceptibility, due to the formation of galvanic cells, particularly if Cr–C based interlayers are used. Therefore, the corrosion of the coatings in the present study should be due to the presence of the Cr-based interlayer and not to the highly stable a-C:H coating. This may also explain the main source of Cr in the first 7 days: the buffer interlayer. Such findings illustrate the crucial importance of the interface between metal substrates/coating systems when C-based coatings are to be considered for orthodontic applications. Indeed, most authors that found a significant in vitro decrease in metal release from DLC-coated samples did not report the use of adhesion-promoting interlayers [79,80].

From the corrosion behaviour at pH = 2.3 of both orthodontic components and either coated or uncoated SS310 samples, three conclusions arise from an overall discussion of the results:

• Brackets released substantially more Fe, Ni, and Cr than any other studied samples;
• Both uncoated and a-C:H-coated SS310 samples released significantly less Cr and Fe than real orthodontic components; and
• Ni release rates were lower from tubes and bands than from SS310 and a-C:5H samples at day 7 (less than 50%) but similar (a-C:5H) or higher (SS310) at day 30.

The explanation for these corrosion profiles might lie in the use of different SS grades (with different corrosion resistance) and/or manufacturers [62,81]. Note that besides higher Ni, SS310 presents higher Cr content than the steel grades of the orthodontic components (Table 1). The lack of clear corrosion signs on the surface of orthodontic pieces, especially in the case of brackets, may be a consequence of the complex surface geometry, which may have camouflaged signs of localized corrosion forms that clearly appeared on the surface of SS310.

The direct comparison of this study with other in vitro research works is difficult due to the multiple methodologies with different constituents (e.g., materials, manufacturers, immersion solutions), even when assessing the in vitro cytotoxicity [14]. Therefore, this study focused on comparing metallic ion release trends rather than quantities, while assessing the potential use of a-C:H coatings as diffusion barriers for SS bioalloys.

Further ongoing work centres on optimizing overall coating production by replacing the interlayer with other types of materials and architectures. Moreover, in vitro cytotoxicity tests and microbiological assays with representative oral bacteria will soon be performed to ascertain their influence on the sputter-deposited a-C:H coatings.

4. Conclusions

The present in vitro research work is divided into two sections and assessed the saliva pH effect on both orthodontic components and the sputter-deposited a-C:H coatings.

In the first part, real SS brackets, tubes, and bands were characterized before and after a 30-day in vitro corrosion test with Fusayama-Meyer artificial saliva, and released Ni, Cr, and Fe were quantified. The results showed that: (i) salivary pH clearly influenced corrosion behaviour; (ii) brackets were, by far, the main source of metallic ions into the saliva; (iii) Ag welding found on bands may have influenced the corrosion behaviour, regardless the pH value of the saliva; (iv) released Ni was within daily dietary intake values. Orthodontic appliances may be an additional source of potentially toxic elements that should not be disregarded.

In the second part, hydrogenated amorphous carbon films were successfully deposited over SS310 by reactive magnetron sputtering, with a Cr-based adhesion promoting interlayer. The a-C:H top layer was found in the hard regime (over 20 GPa) and classified as DLCH. While AISI310 substrates presented clear signs of pitting corrosion in acidic conditions, the a-C:H conserved the chemical, mechanical, and structural inertness, as well as the anticorrosion ability. The well-known stability of amorphous C-based materials was therefore verified. However, leaching of metallic ions from a-C:5H coatings was higher than from SS310. This unexpected result was attributed to galvanic effects between dissimilar materials: Cr-based interlayer and SS substrates.
