Open AccessArticle
Biosensors 2018, 8(1), 13; https://doi.org/10.3390/bios8010013

Prolonged Corrosion Stability of a Microchip Sensor Implant during In Vivo Exposure

1
IHP, Im Technologiepark 25, 15236 Frankfurt (Oder), Germany
2
Leibniz-Institut für Nutztierbiologie (FBN), W. Stahl Allee 2, 18196 Dummerstorf, Germany
3
Fraunhofer Institut für Biomedizinische Technik, Joseph-von-Fraunhofer-Weg 1, 66280 Sulzbach, Germany
*
Author to whom correspondence should be addressed.
Received: 15 November 2017 / Revised: 15 January 2018 / Accepted: 29 January 2018 / Published: 1 February 2018
(This article belongs to the Special Issue Implantable Biosensors for in vivo Detection and Measurement)
Full-Text   |   PDF [3501 KB, uploaded 1 February 2018]   |

Abstract

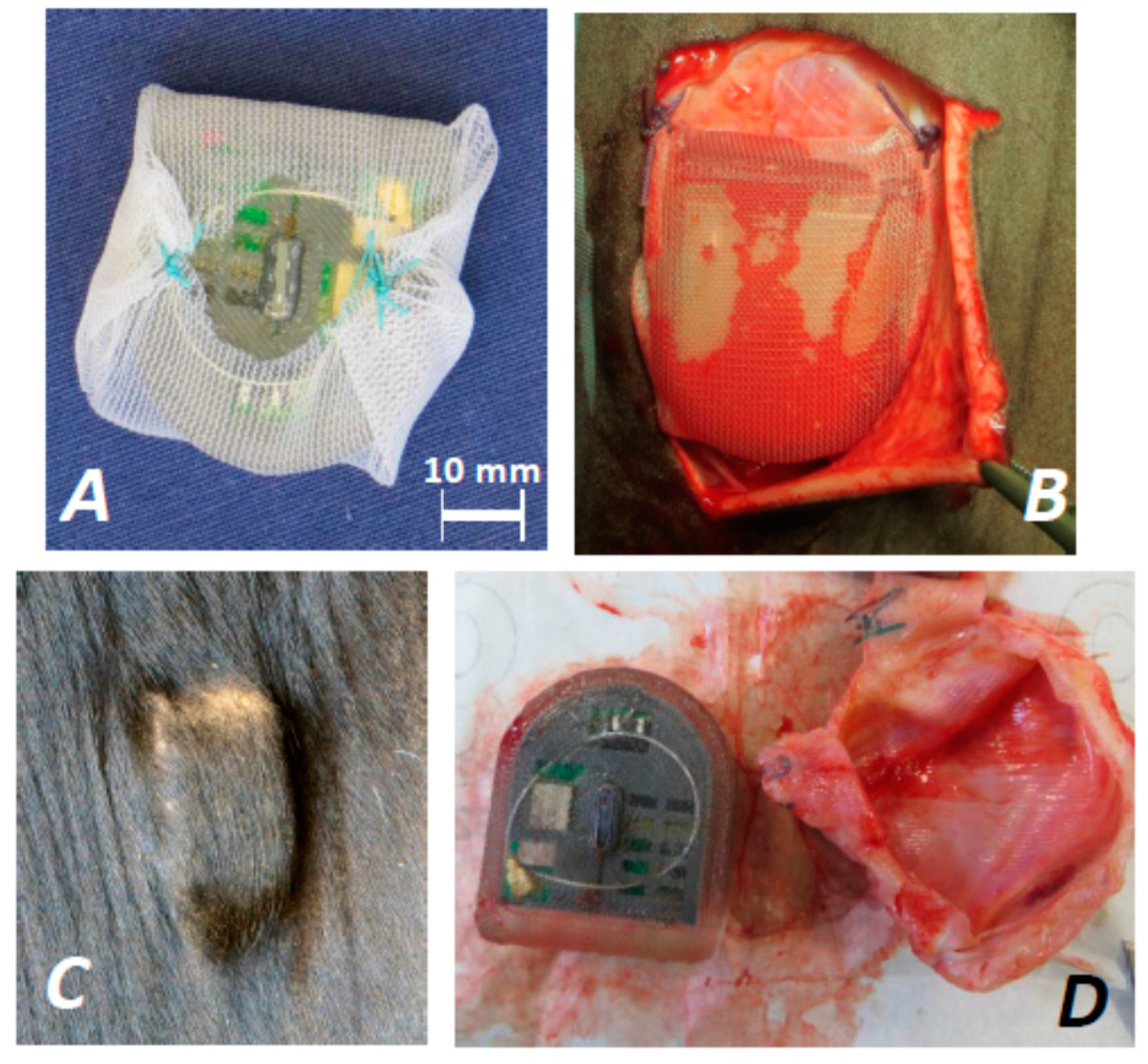

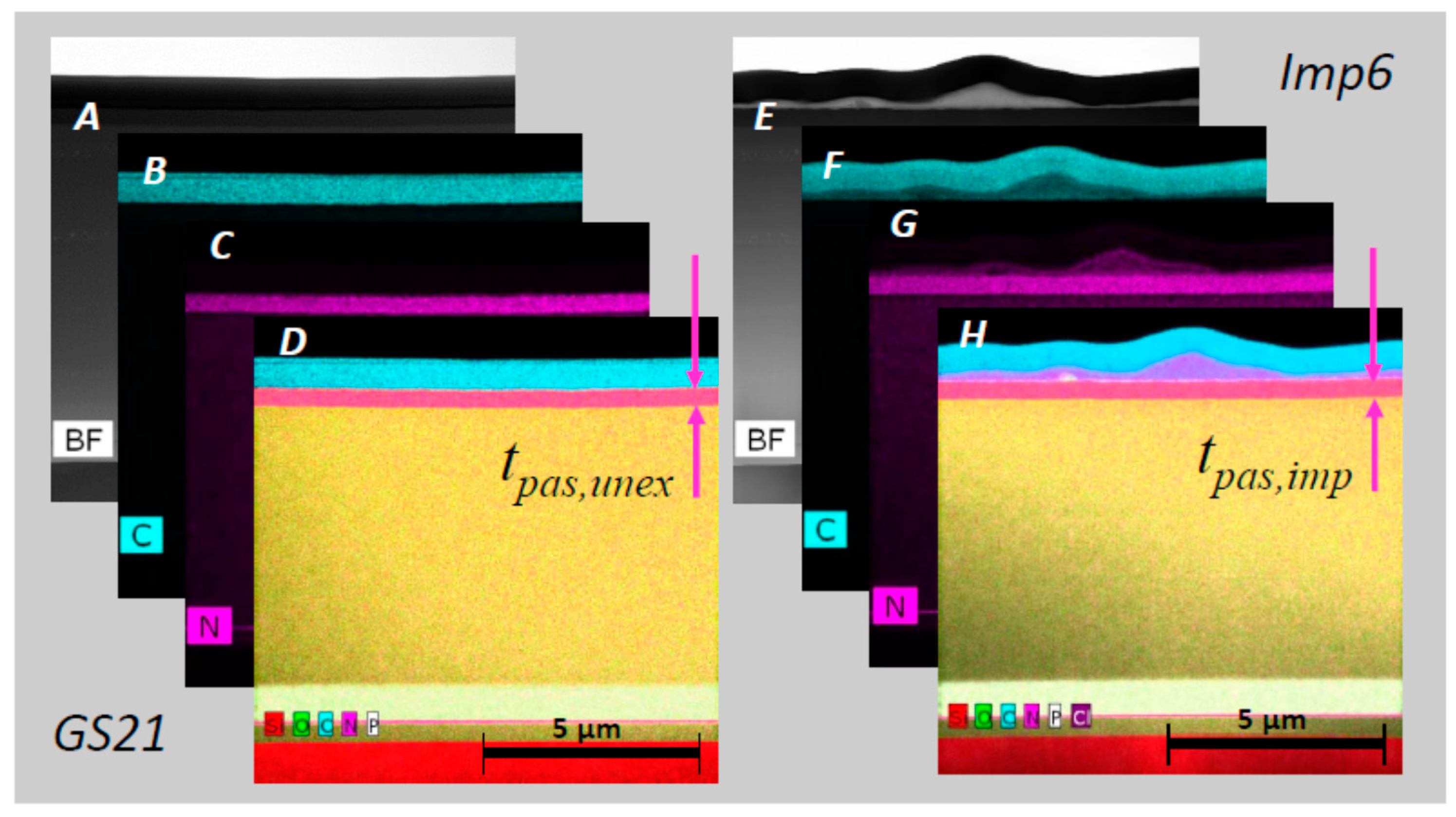

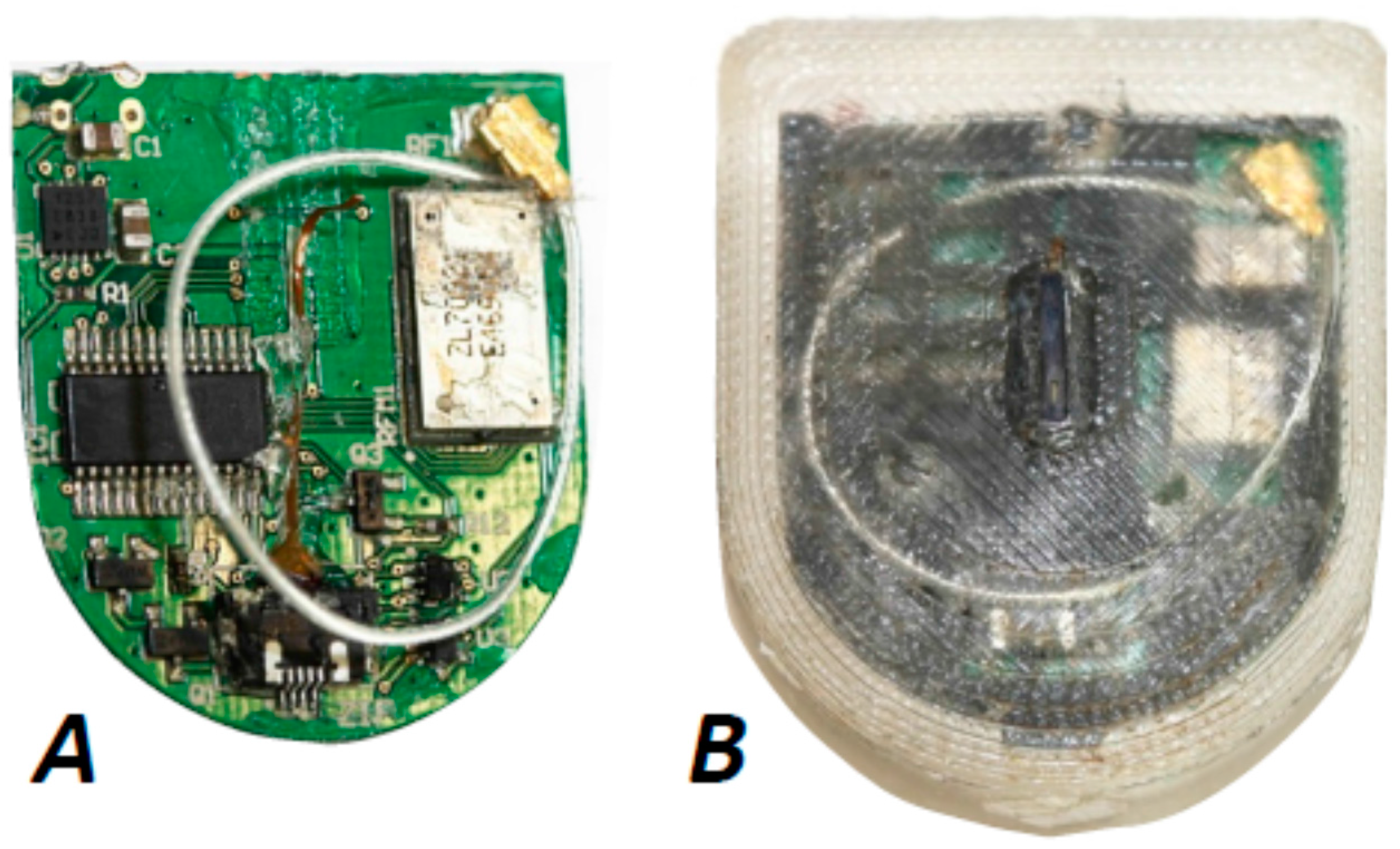

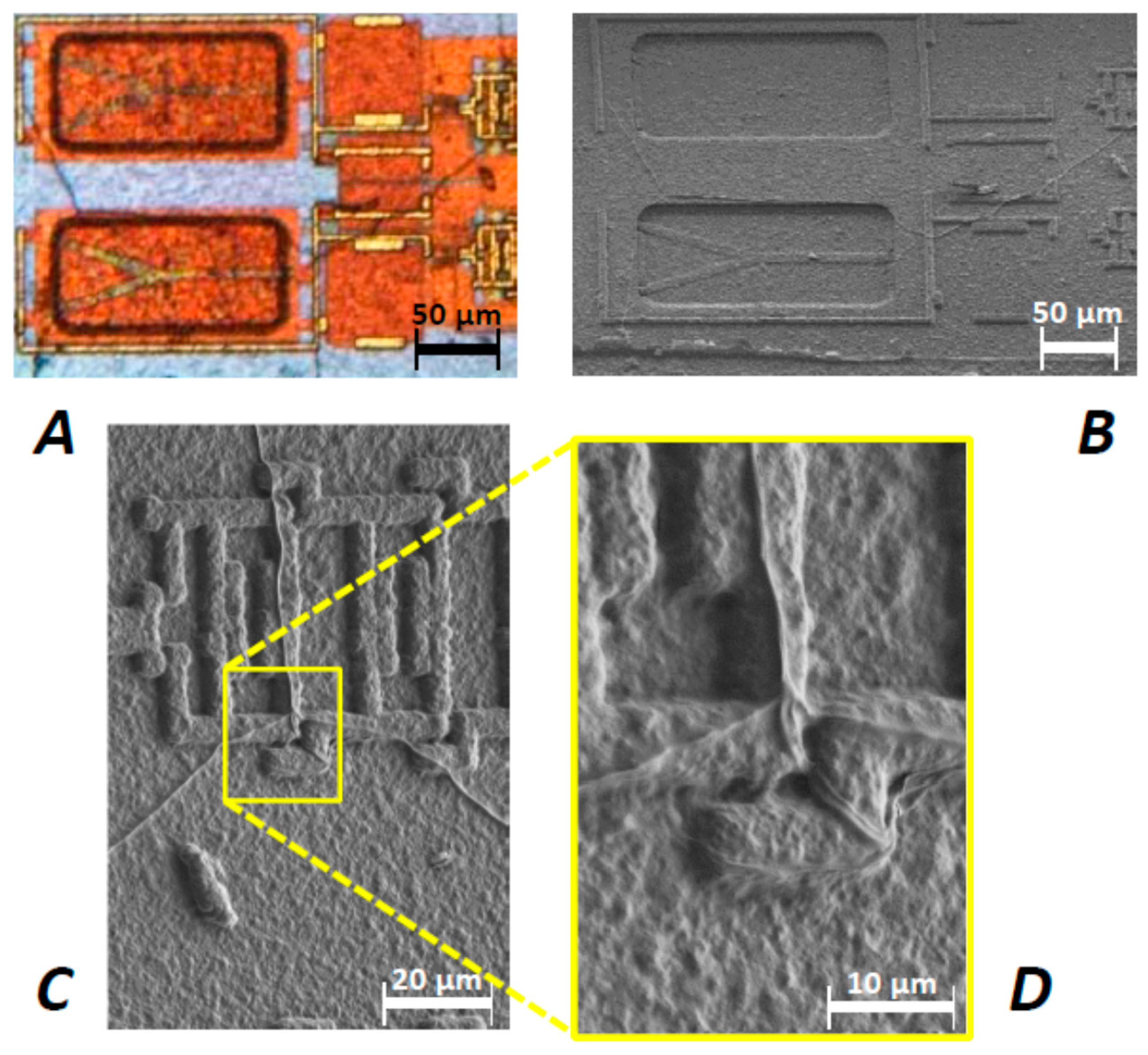

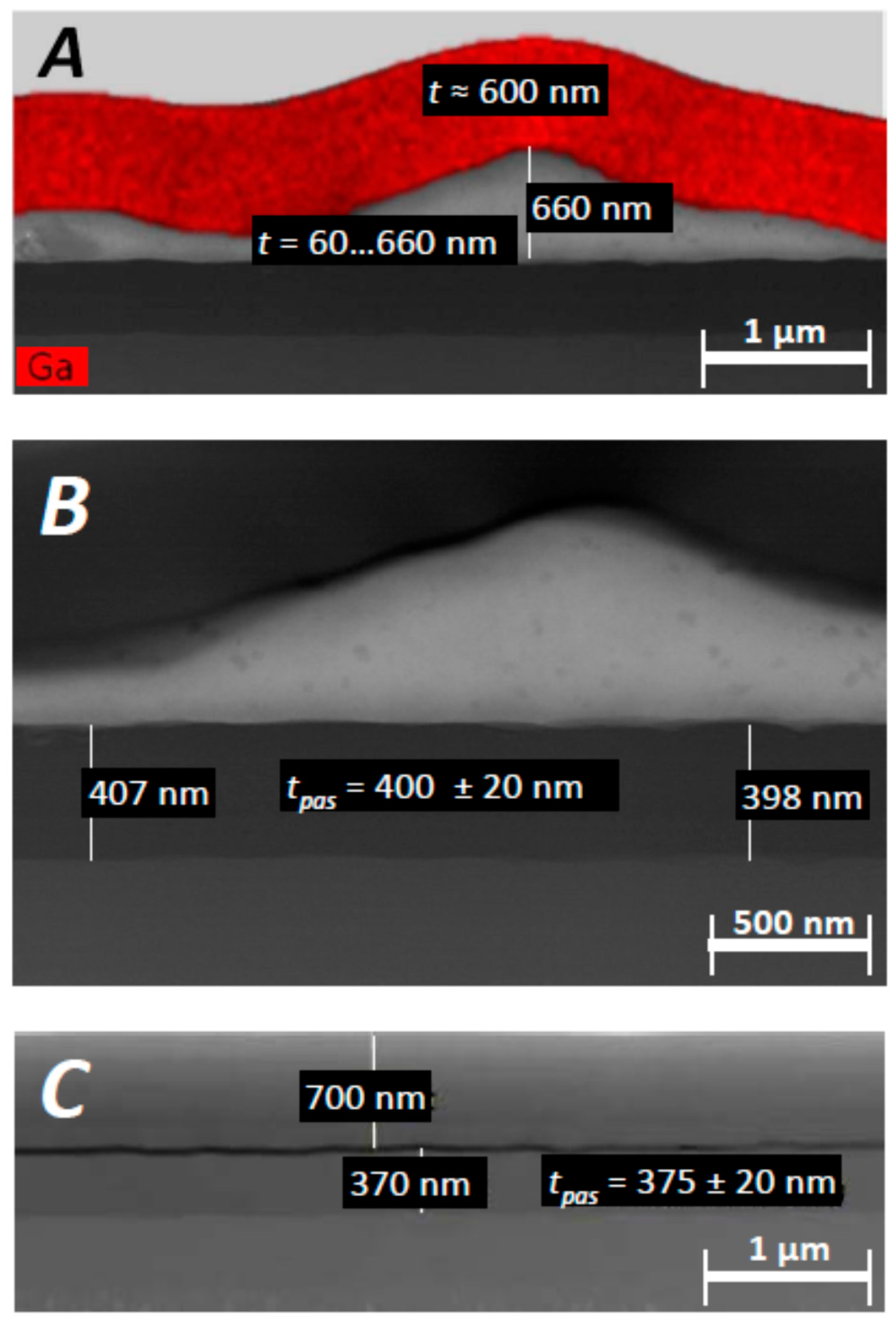

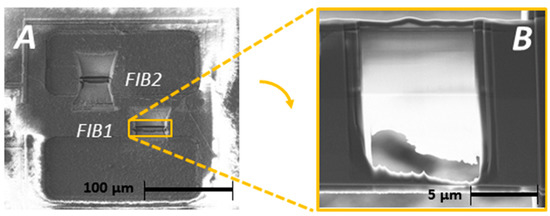

A microelectronic biosensor was subjected to in vivo exposure by implanting it in the vicinity of m. trapezii (Trapezius muscle) from cattle. The implant is intended for the continuous monitoring of glucose levels, and the study aimed at evaluating the biostability of exposed semiconductor surfaces. The sensor chip was a microelectromechanical system (MEMS) prepared using 0.25 µm complementary metal–oxide–semiconductor CMOS/BiCMOS technology. Sensing is based on the principle of affinity viscometry with a sensoric assay, which is separated by a semipermeable membrane from the tissue. Outer dimensions of the otherwise hermetically sealed biosensor system were 39 × 49 × 16 mm. The test system was implanted into cattle in a subcutaneous position without running it. After 17 months, the device was explanted and analyzed by comparing it with unexposed chips and systems. Investigations focused on the MEMS chip using SEM, TEM, and elemental analysis by EDX mapping. The sensor chip turned out to be uncorroded and no diminishing of the topmost passivation layer could be determined, which contrasts remarkably with previous results on CMOS biosensors. The negligible corrosive attack is understood to be a side effect of the semipermeable membrane separating the assay from the tissue. It is concluded that the separation has enabled a prolonged biostability of the chip, which will be of relevance for biosensor implants in general. View Full-Text
Keywords: implant; biostability; semipermeable membrane; MEMS; CMOS implant; biostability; semipermeable membrane; MEMS; CMOS
Figures

Figure 1
