The Characteristics of Transparent Non-Volatile Memory Devices Employing Si-Rich SiOX as a Charge Trapping Layer and Indium-Tin-Zinc-Oxide

by
Joong-Hyun Park
1,
Myung-Hun Shin
2,* and
Jun-Sin Yi
1,*
1
School of Electronic Electrical Engineering, Sungkyunkwan University, Suwon 440-746, Korea
2
School of Electronics and Information Engineering, Korea Aerospace University, Goyang-City 412-791, Korea
*
Authors to whom correspondence should be addressed.
Nanomaterials 2019, 9(5), 784; https://doi.org/10.3390/nano9050784
Submission received: 7 April 2019 / Revised: 8 May 2019 / Accepted: 20 May 2019 / Published: 22 May 2019
(This article belongs to the Special Issue Nanomaterials for the Advanced Manufacturing of Electronic Devices)
Browse Figures
Review Reports Versions Notes

Abstract

:
We fabricated the transparent non-volatile memory (NVM) of a bottom gate thin film transistor (TFT) for the integrated logic devices of display applications. The NVM TFT utilized indium–tin–zinc–oxide (ITZO) as an active channel layer and multi-oxide structure of SiO2 (blocking layer)/Si-rich SiOX (charge trapping layer)/SiOXNY (tunneling layer) as a gate insulator. The insulators were deposited using inductive coupled plasma chemical vapor deposition, and during the deposition, the trap states of the Si-rich SiOx charge trapping layer could be controlled to widen the memory window with the gas ratio (GR) of SiH4:N2O, which was confirmed by fourier transform infrared spectroscopy (FT-IR). We fabricated the metal–insulator–silicon (MIS) capacitors of the insulator structures on n-type Si substrate and demonstrated that the hysteresis capacitive curves of the MIS capacitors were a function of sweep voltage and trap density (or GR). At the GR6 (SiH4:N2O = 30:5), the MIS capacitor exhibited the widest memory window; the flat band voltage (ΔVFB) shifts of 4.45 V was obtained at the sweep voltage of ±11 V for 10 s, and it was expected to maintain ~71% of the initial value after 10 years. Using the Si-rich SiOX charge trapping layer deposited at the GR6 condition, we fabricated a bottom gate ITZO NVM TFT showing excellent drain current to gate voltage transfer characteristics. The field-effect mobility of 27.2 cm2/Vs, threshold voltage of 0.15 V, subthreshold swing of 0.17 V/dec, and on/off current ratio of 7.57 × 107 were obtained at the initial sweep of the devices. As an NVM, ΔVFB was shifted by 2.08 V in the programing mode with a positive gate voltage pulse of 11 V and 1 μs. The ΔVFB was returned to the pristine condition with a negative voltage pulse of −1 V and 1 μs under a 400–700 nm light illumination of ~10 mWcm−2 in erasing mode, when the light excites the electrons to escape from the charge trapping layer. Using this operation condition, ~90% (1.87 V) of initial ΔVFB (2.08 V) was expected to be retained over 10 years. The developed transparent NVM using Si-rich SiOx and ITZO can be a promising candidate for future display devices integrating logic devices on panels.

1. Introduction

The ionic bonded amorphous oxide semiconductor (AOS) materials with a large optical bandgap were introduced for the applications of transparent electrode like indium tin oxide (ITO) or zinc oxide (ZnO) [1]. Nowadays, AOS have been used in active matrix devices of thin film transistor (TFT). The conduction band of the AOS is related with the ns orbitals of heavy metals, such as indium (In), gallium (Ga) and zinc (Zn). Even when AOS is composed in an amorphous phase, electrons can easily transport through the ns orbitals because the ns orbitals of AOS are overlapped by large size metals and are less sensitive to the arrangement of atoms [2]. The AOS TFT has many advantages compared with an amorphous silicon (Si) based TFT. It has high field-effect mobility (~10 cm2/Vs) and very low leakage current (~10−12 A/cm2) and it can be very uniformly fabricated even on flexible substrates [3]. Moreover, AOS can be applicable for transparent and flexible display devices because it has a high optical bandgap (>3 eV) and it can be made at low process temperature (~200 °C) [4]. In spite of a short period of research and developments, it can be used in the manufacturing of commercial display products for active matrix organic light emitting diodes (AMOLED) [5].
In a future display, various active components such as pixel devices, gate and source driver, logic devices and non-volatile memory (NVM) will be integrated on a display panel. The basic operating of NVM devices is to store charges in a dielectric layer; when charges are trapped or detrapped in the dielectric layer of an NVM transistor, the threshold voltage (VTH) of the transistor can be altered between two states as programming and erasing states. Two representative types of NVM in recent studies are floating gate and charge trapping layer memories [6,7]. In the floating gate NVM, the charges injected from a channel region through a tunneling layer are stored in a floating gate. The charge trapping NVM consists of three important layers: tunneling, charge trapping and blocking layers, where the charges are injected from a channel through the thin tunneling layer (a dielectric layer near the channel) and stored in the charge trapping layer. The thickness and interface traps of the tunnel layer are critical because they directly affect the electric field in the tunnel layer, which determines the tunnel current. The charge trapping layer stores the charges in the traps of the layer; as many shallow or deep traps, as possible are favorable. The blocking layer near the gate should be thick enough to block charge transport to the gate region, and the thickness and the trap states of the blocking layer must be carefully designed because they can also affect the electric field in the tunnel layer.
The AOS based charge trapping NVMs have been researched in previous literature. Zhang et al. fabricated a novel multi-level NVM using an amorphous Indium-Gallium-Zinc-Oxide (a-IGZO) layer as both storage and channel layers at low temperatures [8] but reported the programming/erasing (P/E) characteristics with such drawbacks as poor data retention, insufficient mobility (~2 cm2/Vs), and high erasing voltage (−15 V). Bak et al. reported on a-IGZO NVMs using an IGZO channel and ZnO trap layers fabricated at a low process temperature of 200 °C [9], which also exhibited high programming/erase voltages (20 V/−20 V), lower mobility (0.2 cm2/Vs), hump in transfer curve, and poor data retention. Yin et al. reported on an NVM with a bottom gate n-type IGZO TFT structure [10,11] of IGZO (channel)/Al2O3 (tunneling layer)/IGZO (charge trapping layer)/Al2O3 (blocking layer)/Mo (bottom gate) layers; low VTH of 0.7 V and high field-effect mobility of 10.3 cm2/Vs are exhibited, but reliability characteristics were still so poor that the program/erase cycles and retention time were less than 103 times and 103 s, respectively. The IGZO and its interface were not optimized yet as a charge trapping layer so that the stored charges easily escaped.
In this work, we fabricated a charge trapping NVM employing gallium free indium tin zinc oxide (ITZO) as an active channel layer of NVM and Si-rich oxide (SiOX) as a charge trapping layer; the bottom gate ITZO NVM with SiO2 (blocking layer)/SiOX (charge trapping layer)/SiOXNY (tunneling layer) was fabricated. The ITZO layer has many advantages in that it reported a high field-effect mobility (>30 cm2/Vs) and high transparency [12,13]. The high field-effect mobility of the ITZO is useful for high density panels, such as virtual reality displays. Though the oxygen vacancies in the bulk and interface of the AOS channel might shift the VTH under a bias voltage, these traps can be easily released by source-drain voltage, so that they will not influence on the long-term retention characteristics of NVM devices. The Si-rich SiOX layer has many Si phases and defect sources in the SiOX matrix, such as Si-H bonds in HSi3O, HSi2O2, H2SiO2, so that it can enlarge memory windows, which means it has charge storage ability at a certain applied bias voltage. Moreover, the Si-rich SiOX layer has low operating voltage, which can save the power consumption of a memory device. In addition, the charge states of the Si-rich SiOX layer can be experimentally controlled or can be engineered and optimized by simply controlling a gas ratio of silane and nitrous oxide (SiH4:N2O) during the deposition process. Thus, the Si-rich SiOX can be a very promising material as a charge trapping layer. The increase of states in the charge trapping layer was investigated by a fourier transform infrared (FT-IR) spectroscopy, and the expansion of the memory window was confirmed by capacitive-voltage (C-V) measurement. The superior reliability characteristics of the fabricated bottom gate ITZO NVM was presented. This work will be useful to develop the next transparent future display integrating of display components.

2. Device Fabrication

The schematics of fabricated devices are shown in Figure 1. To characterize and optimize the Si-rich SiOx layer, metal–insulator–silicon (MIS) capacitors were fabricated as shown in Figure 1a; the stack of aluminum/silicon dioxide (SiO2)/Si-rich SiOX/silicon oxynitride (SiOXNY) layer was deposited by inductive coupled plasma chemical vapor deposition (ICP-CVD) on a n-type single crystalline Si substrate of about 1–5 Ωcm resistivity. At first, a 2.7 nm-thick SiOXNY tunneling layer was formed using a N2O plasma treatment under a N2O gas flow of 2.7 sccm for 8 min at 170 °C. A 20 nm-thick SiOX charge trapping layer was deposited with different SiH4:N2O gas ratio changed from 1:2 to 6:1, and a 20 nm-thick SiO2 blocking layer was deposited under the SiH4:N2O gas ratio of 2:60 at the same temperature. The insulator stack was annealed using a rapid thermal annealing at 250 °C for 30 min. The layer thicknesses of the device are very important for the proper operation. Especially, the thickness of the blocking layer can directly affect the internal electric field and the amount of the trapped charges. We selected the thickness of each layer based on those that were optimized through previous experiments [14]. The detailed deposition condition for MIS capacitor was summarized at Table 1. Finally, a silver (Ag) electrode of 100 nm was deposited at 350 °C by a thermal evaporation method. The thickness of each layer was measured by an ellipsometer. The fabricated MIS capacitor was measured by an impedance analyzer at high frequency of 1 MHz.
Using the optimized Si-rich SiOx charge trapping layer, a bottom gate charge trapping NVM with ITZO layer was fabricated as shown in Figure 1b. The stack of insulator layers was deposited by ICP-CVD on the n-type single crystalline Si substrate of a gate electrode. The SiO2, SiOX, SiOXNY layers were deposited sequentially in ICP-CVD. The deposition conditions of the insulator layers were the same as those of the MIS capacitor. On top of the insulator stack, a 25 nm-thick ITZO active layer was deposited by DC magnetron sputtering method at room temperature; the ITZO target was composed of In2O3:SnO2:ZnO (=1:1:1), the RF power for the plasma deposition was 80 W, and the working pressure was 5 mTorr with an oxygen partial pressure of 25–30%. After annealing at 250 °C to improve the device performance, a 150-nm thick Ag layer for source/drain electrodes was deposited and patterned by photo lithography. The current-voltage and capacitive-voltage characteristics for the fabricated devices were measured by a semiconductor parameter analyzer (EL420C) and an impedance analyzer (Hewlett Packard 4192A LF), respectively.

3. Results & Discussions

Figure 2 shows the measured results of FT-IR transmittance spectroscopy (Bruker, IFS-66/S) for the SiOX charge trapping layer with a different SiH4:N2O gas ratio to evaluate as a charge trapping layer. The SiOX layers showed the high absorption of Si-O bending peaks (or defects known as non-bridging oxygen hole center, NBOHC) at 860 cm−1 [15]. These NBOHC defects are known as the trapping sites to retain the injected charges. The charge trapping sites are observed in the all the conditions. In particular, SiOx having a high Si content shows a remarkably large number of Si-H bonds as well as HSi3O, HSi2O2, H2SiO2, and HSiO3 at around 2000~2300 cm−1 [16,17], and as the GR increases, the absorptions around 2000–2300 cm−1 also increase. This implies that many Si phases and defects can exist in the Si-rich SiOX. The numerous Si phases are desirable in a charge trapping layer because of their potential for large capacity and wide memory window, so the Si-rich SiOX grown at the gas ratio of 6:1 is preferable.
The charging effects in conventional MIS structures are usually attributed to the traps in bulk of insulator and traps in the interface between the insulator and semiconductor. Each charge trapping effect can be distinguished by capacitance-voltage (C-V) measurement. To compare the charge storage characteristics of the NVMs for the charge storage layers grown by different SiH4:N2O GR conditions, the C-V characteristics of the MIS capacitors were measured at forward and reverse sweeping modes because each MIS capacitor has the same insulator structure of the NVM. In the case of the SiOX film using GR0.5, the charge trapping effect due to bulk trap in the insulator was high and the charge trapping effect due to the interface trap between insulator and semiconductor was almost zero.
Figure 3 shows measured C-V characteristics of the MIS capacitor with the insulator stack of SiO2/SiOX/SiOXNY. A small voltage signal of 1 MHz was applied between top (Ag) electrode and bottom n-type single crystalline Si substrate with the bias voltage sweeping from depletion (−V) to accumulation (+V) for the capacitance measurement. At the positive bias voltage, electrons, the majority carriers of Si channel were accumulated at the interface to the SiOXNY, the MIS capacitance was close to that of the overall insulator capacitor of SiO2/SiOX/SiOXNY (COX, ~8.48 × 10−8 F/cm2). At the negative bias voltage, the electrons near the SiOXNY were repelled and the depletion region was expanded until the inverted (p-type) channel was formed in the n-type Si region, so that the device capacitance becomes the effective value of series-connected capacitors made of the insulator capacitor, SiO2/SiOX/SiOXNY and the depletion capacitor in the n-type Si substrate. When the bias voltage of the MIS capacitor was swept, the C-V characteristic curves were changed for the sweeping voltage range and the sweeping mode: forward (from negative to positive) and reverse (from positive to negative) mode. In the forward mode, part of the accumulated electrons at the interface to the SiOXNY was trapped in the trapping layer via tunneling process, which kept the interface region of the n-type Si depleted even after the applied voltage was removed. In the reverse mode, the electrons in the trapping layer escaped to the n-type Si; the empty trap states (or holes occupied) induce the electrons in the n-type Si to reduce the depletion region. Therefore, the hysteresis curves are clockwise in Figure 3.
The number of tunneled carriers depends both on the electric field intensity in the tunneling layer, and the amount of available states in the trapping layer. As the sweep voltage range increases from −5–5 V to −15–15 V, the flat band voltage (VFB) shifts due to electron or hole trappings also increasing. The flat band voltage at which population inversion occurred in the n-type Si (or channel) was determined by the metal-silicon work function difference and the various oxide charges. The total hysteresis can be presented the sum of the difference of the VFB shift (ΔVFB) by the hole and electron charging. Though the VFB of real MIS structures was further affected by the presence of charge in the oxide or at the oxide-semiconductor interface, for convenience, VFB was measured at middle of C-V curve in this paper.
When the charge trapping layer was deposited at the condition of GR0.5, the ΔVFB was imperceptible even at the sweeping voltage of −15~15 V, and, the ΔVFB from characteristic C-V curves was very small. It means that GR0.5 is not suitable for a charge trapping layer. When the charge trapping layer was deposited by GR2, ΔVFB was 7.31 V in the large range voltage sweeps from −10 V to +10 V, but the ΔVFB at the small sweep voltage range of −5–5 V is still imperceptible. This was attributed to small voltages not being able to give rise to a considerable charging effect in the defect sites of Si-rich SiOX film. At the condition of GR6, wide ΔVFB were exhibited as 10.92 and 2.47 V at the sweep voltage range of −10–10 and −5–5 V, respectively. As shown in Figure 2, the charge trapping layer with more Si phases can increase the ΔVFB (memory window) to more clearly distinguish memory states. The SiOX layer grown at the highest SiH4:N2O gas ratio (GR6) condition can capture the greatest amount of charge with a large number of Si phases.
We compared the charge storage performance of the fabricated MIS capacitor for the GR condition of the charge trapping layer using the measured C-V characteristics. Figure 4a,b shows the operation voltage of programming/erasing as a function of the bias voltage comparing GR2 and GR6. In both conditions, the ΔVFB also increased with the applied bias voltage; the internal electrical field in the MIS capacitor increased with the bias voltage, which could facilitate the tunneling of the electrons, and make the electrons easily trapped or detrapped in the charge trapping layer. But, the difference of ΔVFB was observed. At the bias voltage of ±11 V, the ΔVFB were 2.18 and 4.45 V for the charge trapping layers of GR2 and GR6. The difference of ΔVFB was due to the difference of charge trapping density as shown in FT-IR spectroscopy in Figure 2; a higher trap density in the Si-rich SiOX film can be obtained by the deposition under higher GR.
Figure 4c,d shows charge retention characteristics for the MIS capacitors of the different GR, which is induced from the C-V measurements. After applying the bias voltages of programming (11 V) and erasing (−11 V) to the MIS capacitors for 10 s, C-V characteristics were measured over time to extract ΔVFB between the programming and erasing states. The initial ΔVFB were 3.07 and 4.24 V for GR2 and GR6 MIS capacitors. The ΔVFB was gradually degraded during the observation for 103 s. Assuming the same ΔVFB deterioration trend, ΔVFB was estimated to hold ~67% and ~71% of the initial ΔVFB of GR2 and GR6 MIS capacitor for 109 s (nearly 10 years). Assuming that the NVM device was working 10 years, the retention of GR2 and GR6 was about 67% and 71% of each initial ΔVFB, respectively. Additionally, a low operation voltage of about ±11 V was used. These good retention properties are promising for NVM because of using the SiO2/SiOX/SiOXNY memory stack.
Figure 5 shows the drain current to gate voltage (ID-VGS) transfer characteristics of the fabricated metal/SiO2/SiOX/SiOXNY/ITZO NVMs at programming and erasing modes, which is measured at the drain voltage of 1 V. The fabricated device exhibited excellent transistor characteristics because of the high field-effect mobility (μFE) of ITZO layer. The measured initial values of μFE, VTH, subthreshold swing (S.S.), and on/off current ratio were 27.2 cm2/Vs, 0.15 V, 0.17 V/dec and 7.57 × 107, respectively. At the program mode of the NVMs, the positive-voltage pulses of 1 μs in the voltage range of 9–13 V were applied to the gate, and the ID-VG transfer curves were shifted to the positive. When the positive voltage pulse was applied to the gate, an internal electric field was applied to the SiO2/SiOX/SiOXNY dielectric stack. As a result, electrons could be injected from the conduction band of the ITZO channel through the tunneling layer and stored in the Si-rich SiOX charge trapping sites. It is known that the electrons were trapped not only in shallow or deep traps of SiOX, but also in OH¯, H+ residues, and oxygen vacancy (VO) sites at the interfaces with the ITZO channel layer in the programming mode [18]. Thus, the memory window can be expected to increase due to the plenty of the negative charges. The ΔVTH by the gate voltage pulses of 11 and 13 V were 2 and 3.7 V, respectively. Higher programing voltage and more states both in shallow or deep traps of the charge trapping layers add more advantages to the NVMs because the tunneling electric field can be higher with the gate voltage, and more electrons can be stored in the trap states as in the MIS capacitors.
Various tunneling mechanisms have been suggested, such as direct tunneling, Fowler–Nordheim (FN) tunneling and channel hot electron (CHE) tunneling processes [19]. In our work, an ultra-thin tunneling layer of less than 4 nm was used, and the energy barrier (ΦB) between ITZO and SiOXNY was ~2 eV, so we expected that a direct tunneling process could be dominantly involved. We noted that specifying one of these processes was difficult because these processes can occur together. So, it can be done in future studies.
A transparent NVM can be programmed with the positive-voltage pulses at the gate with plentiful negative charges sources but erasing at the negative-voltage pulses at the gate cannot easily erase the NVMs. Even with the significant negative gate voltage (−20 V), the ΔVTH did not move back to the negative direction, which was a very different result from the MIS capacitor. The erasing behavior in the AOS NVM was introduced [20]. In the MIS on n-type Si substrate, the bandgap of Si was smaller than that of the Si-rich SiOx (~2.4 eV), so the trapped electrons could be easily tunneled to the conduction band of the n-type Si when the negative bias voltage bends the conduction band down. However, the bandgap of ITZO (~3.2 eV) was higher than that of Si-rich SiOx, and electrons could not tunnel to the inner state of the forbidden band (in the bandgap) of the ITZO channel at a low negative bias voltage. A possible reason for this result is that the AOS, such as IGZO and ITZO, has only an electron carrier in nature. When the negative voltage was applied in Si for the erasing operation, hole carriers were injected to the charge trapping layer through the tunneling layer. Then, injected electrons could be neutralized by the hole carrier. However, few hole carriers were available in erasing behavior. Thus, the VTH in ITZO NVM was very difficult to shift back to the negative side.
As shown in Figure 6, the injected electrons were detrapped from the programmed electrons using white light having a wavelength from 400 to 700 nm with 10 mWcm−2 and negative gate bias of −1 V for 1 s. As a result, the transfer curve returned to the pristine value. It was also reported that there was charge detrapping behavior under the light-assisted erasing process [21]. To investigate light induced erasing behavior, the optical bandgap was measured by UV-visible spectra. The optical bandgap of ITZO and SiOXNY, SiOX, was 3.05~3.15 eV, 5.1 eV and 2.3 eV, respectively. To explain erasing behavior, Figure 6 shows a band diagram of the Metal/SiO2/SiOX/SiOXNY/ITZO NVM under white light irradiation. When the white light was irradiated on the ITZO layer, the electron hole pair was generated. The negative gate voltage made the electric field so that holes were injected to the charge storage layer through the tunneling layer at the valance band of ITZO.
Because the low bandgap of the Si-rich SiOX and very thin tunneling layer was used, it was expected that its low valence band offset was aligned with ITZO layer [22,23]. Thus, generated holes were easily trapped under light illumination at the SiOX/SiOXNY interface or at SiOX bulk trap states in the storage layer. Injected holes were recombined with trapped electrons, and neutralized. Thus, VTH in the fabricated NVM could return to the pristine value. Surplus electrons by white light in ITZO became carriers, so that carrier concentration as well as conductivity of ITZO layer was increased (σ = qμn). It can move VTH shift to negative direction like as a negative bias illumination stress (NBIS) condition [24].
We need to note that the control of external light illumination must be considered to use the ITZO NVM devices properly. For the application of transparent NVM, in-depth research of erasing electrons will be required, such as integration with light emission devices, which can trigger the erasing operation. A bandgap engineering for the layer structure, optimizing the conduction/valance band offset between the tunneling layer and the charge trapping layer, can reduce tunnel barrier and improve the erasing operation, or the excitations of the trapped charges which can be done by local thermal heating or electro-magnetic resonating terminals can promote the tunneling process without the external light source.
The retention characteristics of the fabricated Metal/SiO2/SiOX/SiOXNY/ITZO NVM at programming state are shown in Figure 7. After applying programming voltage pulse of 11 V and 1 μs, the threshold voltage shift was measured for 104 s. From the results of Figure 7, it is expected that the shifted threshold voltage can be maintained for 10 years. The initial memory window was ~2.08 V, and after 104 s, the memory window was maintained as ~1.95 V and was expected to be ~1.87 V after 10 years; ~90% of the trapped charges can be retained for ~10 years.

4. Conclusions

A charge trapping NVM was fabricated for the logic devices integrated on display panels. The bottom gate NVM consisted of ITZO as an active channel and multi-insulator gate structure of SiO2 (blocking layer)/Si-rich SiOX (charge trapping layer)/SiOXNY (tunneling layer). The insulator gate structure was deposited using a ICP-CVD, and by changing the GR of SiH4:N2O, the trap states of Si-rich SiOx charge trapping layer were controlled. The MIS capacitors using the insulator structure on n-type Si substrate shows clear hysteresis capacitive curves as a function of sweep voltage and trap density (or GR). When the SiOx charge trapping layer of GR6 was used, the ΔVFB of the MIS capacitor with the SiOx charge trapping layer was 4.45 V at the sweep voltage of ±11 V and was expected to maintain ~71% after 10 years. The NVM TFT with the same insulator gate structure and ITZO channel exhibited good ID-VG transfer characteristics because of high field-effect mobility (μFE) of ITZO; the initial μFE, VTH, subthreshold swing (S.S.), and on/off current ratio were 27.2 cm2/Vs, 0.15 V, 0.17 V/dec and 7.57 × 107, respectively. In a programing mode by positive gate voltage pulses of 11 V and 1 μs, the ΔVTH of the NVM TFT was shifted by 2.08 V. In erasing mode, the ΔVTH returned by negative voltage pulses of −1 V and 1 μs under the illumination of 400–700 nm light with ~10 mWcm−2 intensity power. The illuminated light excited the electrons in the charge trapping layer, and assisted the electrons to escape and tunnel in the erasing mode. Using this operation condition, ~90% (1.87 V) of initial ΔVTH (2.08 V) of the NVM TFT was expected to be retained over 10 years. These results are of superior reliability and characteristics for a bottom gate ITZO NVM. The developed device and work can be used in future transparent display embedding and in the integrating of circuit components on display panels, and further research on easing the electrons without light assistance will be useful for the practical usage of the ITZO NVM.

Author Contributions

All authors have contributed to this work. Writing, J.-H.P., Writing-review, M.-H.S., Supervision, J.-S.Y.

Funding

This work was supported by the Pioneer Research Center Program though the National Research Foundation of Korea, which is funded by the Ministry of Science, ICT and Future Planning (NRF-2013M3C1A3065040). This research was supported by Basic Science Research Program through the National Research Foundation (NRF) of Korea funded by the Ministry of Science, ICT & Future Planning (NRF-2017R1D1A1B03034984).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ellmer, K. Past achievements and future challenges in the development of optically transparent electrodes. Nat. Photonics 2012, 6, 809–817. [Google Scholar] [CrossRef]
  2. Hsieh, H.H.; Kamiya, T.; Nomura, K.; Hosono, H.; Wu, C.C. Modeling of amorphous InGaZnO4 thin film transistors and their subgap. Appl. Phys. Lett. 2008, 92, 133503. [Google Scholar] [CrossRef]
  3. Steudel, S.; Steen, J.L.; Nag, M.; Ke, T.H.; Smout, S.; Bel, T.; Diesen, K.; Haas, G.; Maas, J.; Riet, J.; et al. Power saving through state retention in IGZO-TFT AMOLED displays for wearable applications. SID Tech. Pap. 2017, 25, 222–228. [Google Scholar] [CrossRef] [Green Version]
  4. Lee, C.T.; Huang, Y.Y.; Tsai, C.C.; Liu, S.F.; Kuo, C.C.; Chiu, C.H.; Huang, C.H.; Liu, E.C.; Huang, S.C.; Chen, C.L.; et al. A novel highly transparent 6-in. AMOLED display consisting of IGZO TFTs. SID Tech. Pap. 2015, 46, 872–875. [Google Scholar] [CrossRef]
  5. Nam, W.J.; Shim, J.S.; Shin, H.J.; Kim, J.M.; Ha, W.S.; Park, K.H.; Kim, H.G.; Kim, B.S.; Oh, C.H.; Ahn, B.C.; et al. 55-inch OLED TV using InGaZnO TFTs with WRGB pixel design. SID Tech. Pap. 2013, 44, 243–246. [Google Scholar] [CrossRef]
  6. Kahng, D.; Sze, S.M. A floating gate and its application to memory devices. Bell Syst. Tech. J. 1967, 46, 1283. [Google Scholar] [CrossRef]
  7. Wegener, H.A.R.; Lincoln, A.J.; Pao, H.C.; O’Connell, M.R.; Oleksiak, R.E. The variable threshold transistor, a new electrically alterable, non-destructive read-only storage device. IEEE IEDM Tech. Dig. 1967. [Google Scholar] [CrossRef]
  8. Hsu, C.H.; Fan, Y.S.; Liu, P.T. Multilevel resistive switching memory with amorphous InGaZnO-based thin film. Appl. Phys. Lett. 2013, 102, 062905. [Google Scholar] [CrossRef] [Green Version]
  9. Bak, J.Y.; Ryu, M.K.; Park, S.H.K.; Hwang, C.S.; Yoon, S.M. Nonvolatile charge-trap memory transistors with top-gate structure using In–Ga–Zn-O active channel and ZnO charge-trap layer. IEEE Electron Device Lett. 2014, 35, 357–359. [Google Scholar] [CrossRef]
  10. Yin, H.; Kim, S.; Lim, H.; Min, Y.; Kim, C.J.; Song, H.; Park, J.; Kim, S.W.; Tikhonovsky, A.; Hyun, J.; et al. Program/erase characteristics of amorphous gallium indium zinc oxide nonvolatile memory. IEEE Trans. Electron Devices 2010, 55, 271–277. [Google Scholar] [CrossRef]
  11. Yin, H.; Kim, S.; Kim, C.J.; Song, I.; Park, J.; Kim, S.; Park, Y. Fully transparent nonvolatile memory employing amorphous oxides as charge trap and transistor’s channel layer. Appl. Phys. Lett. 2008, 93, 172209. [Google Scholar] [CrossRef]
  12. Jang, K.; Raja, J.; Lee, Y.J.; Kim, D.Y.; Yi, J. Effects of carrier concentration, indium content, and crystallinity on the electrical properties of Indium-Tin-Zinc-Oxide thin-film transistors. IEEE Electron Device Lett. 2013, 34, 1151–1153. [Google Scholar] [CrossRef]
  13. Tomai, S.; Nishimura, M.; Itose, M.; Matuura, M.; Kasami, M.; Matsuzaki, S.; Kawashima, H.; Utsuno, F.; Yano, K. High-performance thin film transistor with amorphous In2O3–SnO2–ZnO channel layer. Jpn. J. Appl. Phys. 2012, 51, 03CB01. [Google Scholar] [CrossRef]
  14. Jung, S.W.; Hwang, S.H.; Yi, J. Memory properties of oxide–nitride–oxynitride stack structure using ultra-thin oxynitrided film as tunneling layer for nonvolatile memory device on glass. Thin Solid Films 2008, 517, 362–364. [Google Scholar] [CrossRef]
  15. Nguyen, H.H.; Raja, J.; Dang, N.C.; Nguyen, V.D.; Trinh, T.T.; Jang, K.; Yi, J. Investigation of charge storage and retention characteristics of silicon nitride in NVM based on InGaZnO channels for system-on-panel applications. Microelectron. Eng. 2012, 9, 34–40. [Google Scholar] [CrossRef]
  16. Nguyen, H.H.; Nguyen, V.D.; Trinh, T.T.; Jang, K.; Baek, K.; Raja, J.; Yi, J. Fabrication of SiO2/SiOx/SiOxNy non-volatile memory with transparent amorphous indium gallium zinc oxide channels. J. Electrochem. Soc. 2011, 158, H1077–H1083. [Google Scholar] [CrossRef]
  17. Duy, N.V.; Jung, S.; Kim, K.; Son, D.N.; Nga, N.T.; Cho, J.; Choi, B.; Yi, J. High performance nonvolatile memory using SiO2/SiOx/SiOxNy stack on excimer laser-annealed polysilicon and the effect of blocking thickness on operation voltage. J. Phys. D Appl. Phys. 2010, 43, 075101. [Google Scholar] [CrossRef]
  18. Raja, J.; Nguyen, C.P.T.; Lee, C.; Balaji, N.; Chatterjee, S.; Jang, K.; Kim, H.; Yi, J. Improved data retention of InSnZnO nonvolatile memory by H2O2 treated Al2O3 tunneling layer: A cost-effective method. IEEE Electron Device Lett. 2016, 37, 1272–1275. [Google Scholar] [CrossRef]
  19. Chiu, F.C. A Review on Conduction Mechanisms in Dielectric Films. Adv. Mater. Sci. Eng. 2014. [Google Scholar] [CrossRef]
  20. Su, N.C.; Wang, S.J.; Chin, A. A nonvolatile InGaZnO charge-trapping-engineered flash memory with good retention characteristics. IEEE Electron Device Lett. 2010, 31, 201–203. [Google Scholar] [CrossRef]
  21. Snyder, E.S.; McWhorter, P.J.; Dellin, T.A.; Sweetman, J.D. Radiation response of floating gate EEPROM memory cells. IEEE Trans. Nucl. Sci. 1989, 36, 2131–2139. [Google Scholar] [CrossRef]
  22. Ji, K.W.; Kim, J.I.; Mo, Y.G.; Jeong, J.H.; Yang, S.H.; Hwang, C.S.; Park, S.H.; Ryu, M.K.; Lee, S.Y.; Jeong, J.K. Comparative study on light-induced bias stress instability of IGZO transistors with SiNx and SiO2 gate dielectrics. IEEE Electron Device Lett. 2010, 31, 1404–1406. [Google Scholar] [CrossRef]
  23. Chung, Y.J.; Kim, J.H.; Kim, U.K.; Cho, D.Y.; Jung, H.S.; Jeong, J.K.; Hwang, C.S. Direct Observation of Hole Current in Amorphous Oxide Semiconductors under Illumination. Electrochem. Solid-State Lett. 2011, 14, G35–G37. [Google Scholar] [CrossRef]
  24. Tiwari, N.; Chauhan, R.N.; Shieh, H.P.D.; Liu, P.T.; Huang, Y.P. Photoluminescence and reliability study of ZnO cosputtered IGZO thin-film transistors under various ambient conditions. IEEE Trans. Electron Devices 2016, 63, 1578–1581. [Google Scholar] [CrossRef]
Nanomaterials 09 00784 g001 550

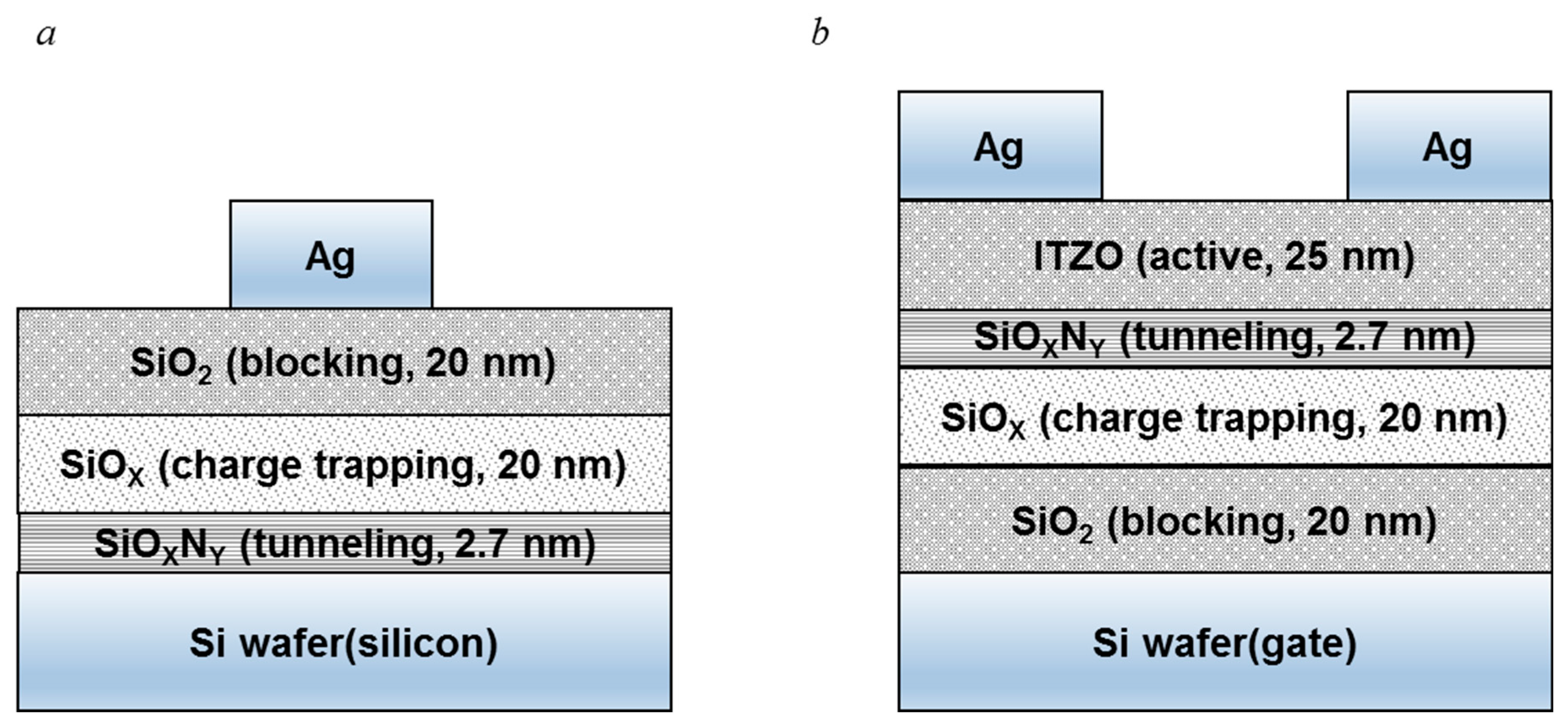

Figure 1. Schematic cross sections of (a) metal–insulator–silicon (MIS) (Ag/SiO2/SiOX/SiOXNY/Si) capacitor, and (b) indium tin zinc oxide (ITZO) non-volatile memory (NVM) with a SiO2/SiOX/SiOXNY stack.
Figure 1. Schematic cross sections of (a) metal–insulator–silicon (MIS) (Ag/SiO2/SiOX/SiOXNY/Si) capacitor, and (b) indium tin zinc oxide (ITZO) non-volatile memory (NVM) with a SiO2/SiOX/SiOXNY stack.
Nanomaterials 09 00784 g001
Nanomaterials 09 00784 g002 550

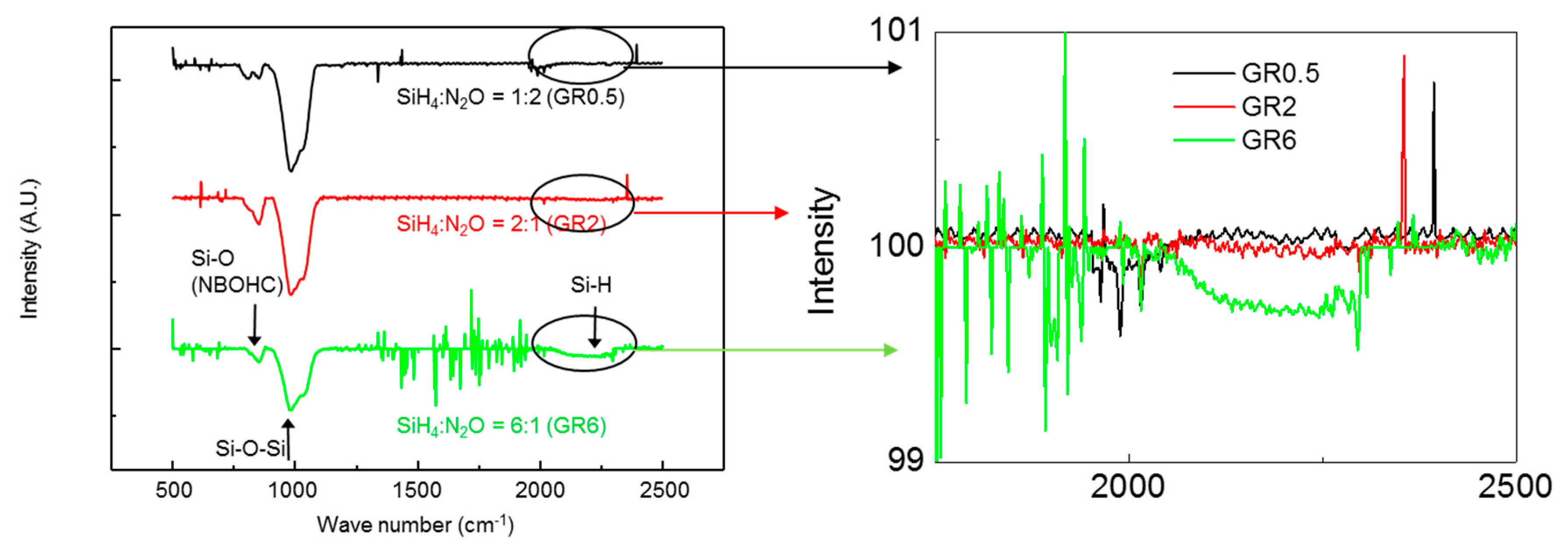

Figure 2. The FT-IR transmittance spectroscopy of the SiOX layer as a charge trapping layer with different SiH4:N2O gas ratio (GR).
Figure 2. The FT-IR transmittance spectroscopy of the SiOX layer as a charge trapping layer with different SiH4:N2O gas ratio (GR).
Nanomaterials 09 00784 g002
Nanomaterials 09 00784 g003 550

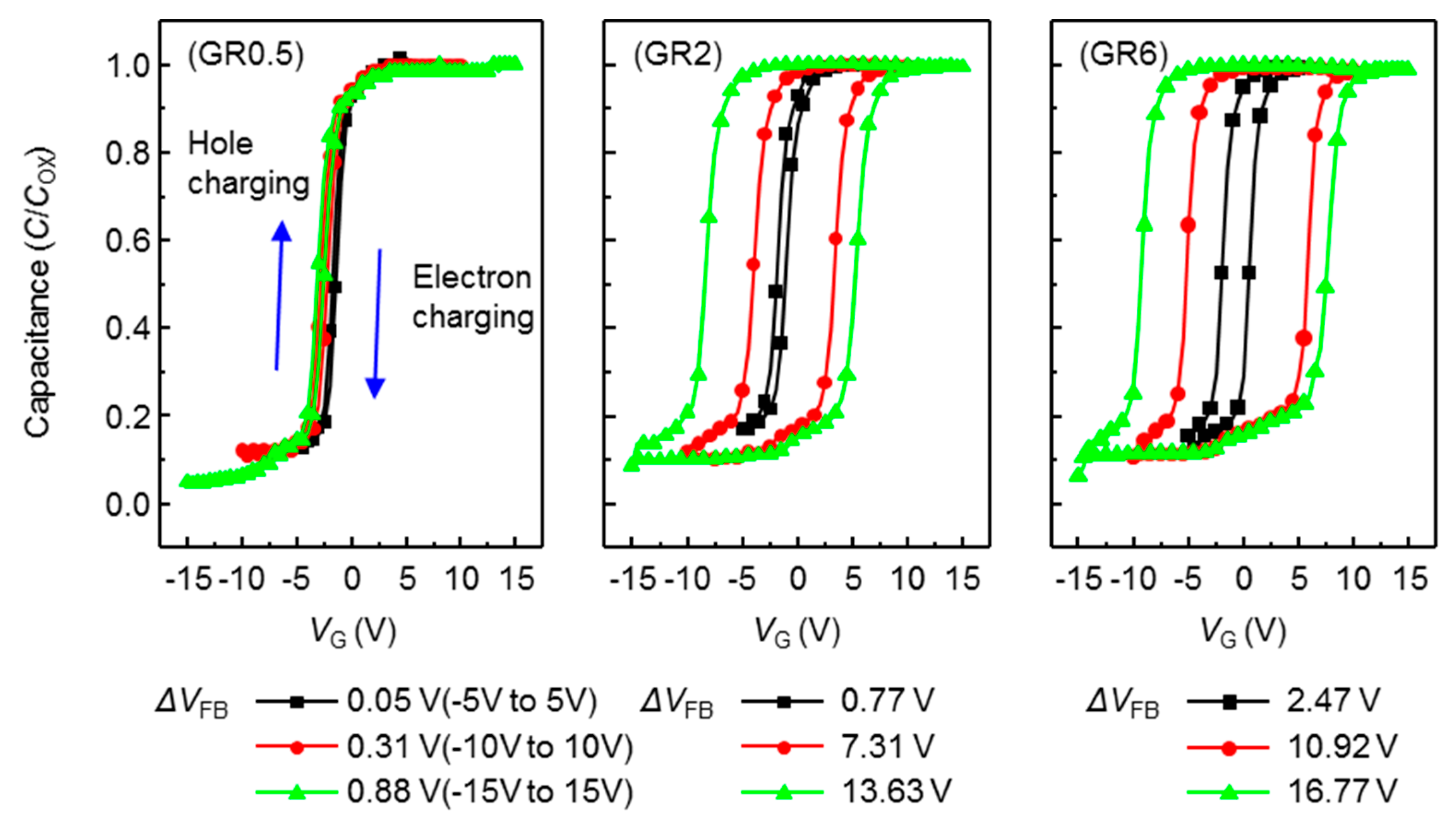

Figure 3. The capacitance-voltage characteristics curves of the Metal/SiO2/SiOX/SiOXNY/Silicon capacitor with different SiH4:N2O gas ratio for Si-rich SiOx charge trapping layer; the flat band voltage shift (ΔVFB) (sweep voltage range) are 0.05 V (−5–5 V), 0.31 V (−10–10 V), and 0.88 V (−15–15 V) for black, red, and green lines, respectively.
Figure 3. The capacitance-voltage characteristics curves of the Metal/SiO2/SiOX/SiOXNY/Silicon capacitor with different SiH4:N2O gas ratio for Si-rich SiOx charge trapping layer; the flat band voltage shift (ΔVFB) (sweep voltage range) are 0.05 V (−5–5 V), 0.31 V (−10–10 V), and 0.88 V (−15–15 V) for black, red, and green lines, respectively.
Nanomaterials 09 00784 g003
Nanomaterials 09 00784 g004 550
Figure 4. The operation voltages of programming/erasing charges trapped in MIS capacitors for bias voltage with different SiH4:N2O gas ratio for Si-rich SiOX charge trapping layer: (a) GR2 and (b) GR6, and extrapolated retention characteristics up to 10 years (109 s) of the Metal/SiO2/SiOX/SiOXNY/Si capacitor with different SiH4:N2O gas ratio for Si-rich SiOX charge trapping layer: (c) GR2 and (d) GR6.
Figure 4. The operation voltages of programming/erasing charges trapped in MIS capacitors for bias voltage with different SiH4:N2O gas ratio for Si-rich SiOX charge trapping layer: (a) GR2 and (b) GR6, and extrapolated retention characteristics up to 10 years (109 s) of the Metal/SiO2/SiOX/SiOXNY/Si capacitor with different SiH4:N2O gas ratio for Si-rich SiOX charge trapping layer: (c) GR2 and (d) GR6.
Nanomaterials 09 00784 g004
Nanomaterials 09 00784 g005 550

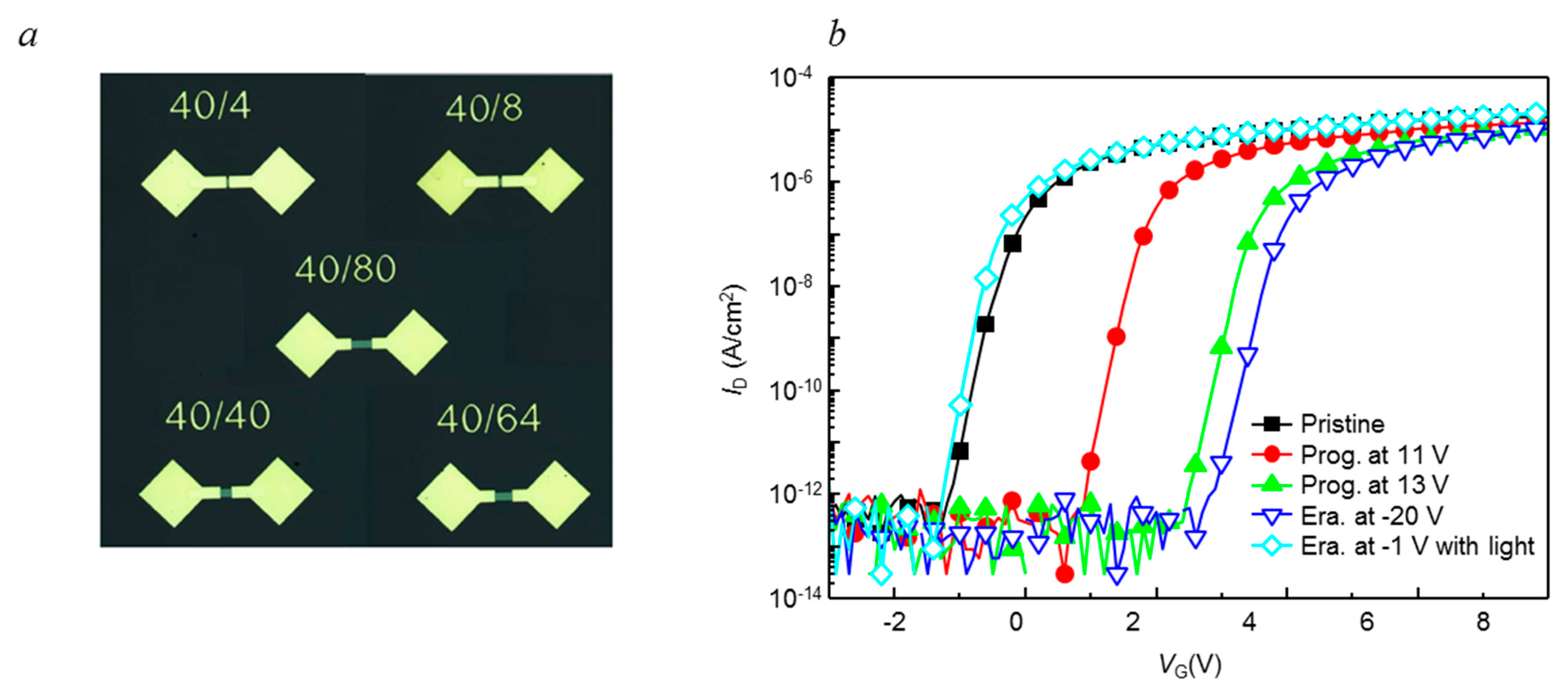

Figure 5. (a) Optical microscopy image of the fabricated ITZO NVM and (b) Programming and erasing characteristics of the Metal/SiO2/SiOX/SiOXNY/ITZO NVM.
Figure 5. (a) Optical microscopy image of the fabricated ITZO NVM and (b) Programming and erasing characteristics of the Metal/SiO2/SiOX/SiOXNY/ITZO NVM.
Nanomaterials 09 00784 g005
Nanomaterials 09 00784 g006 550

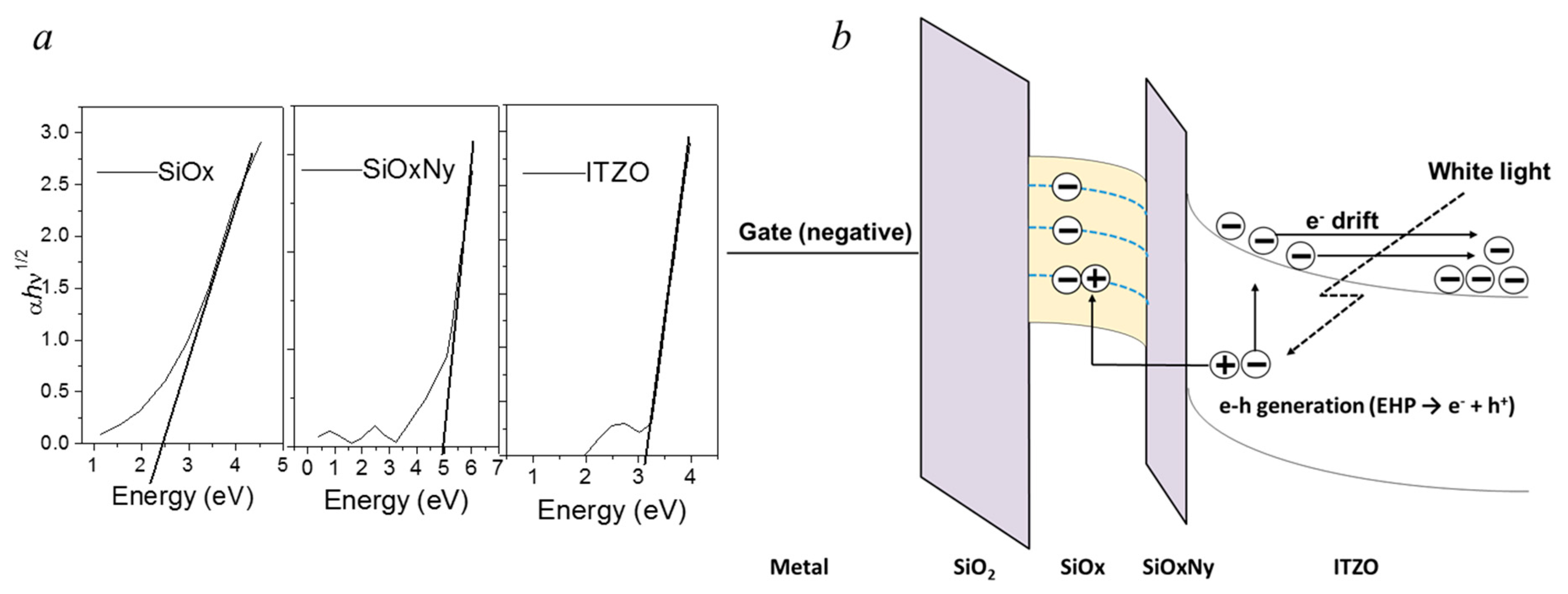

Figure 6. (a) The UV-vis spectroscopy and (b) Band diagram of the Metal/SiO2/SiOX/SiOXNY/ITZO NVM under the white light irradiation.
Figure 6. (a) The UV-vis spectroscopy and (b) Band diagram of the Metal/SiO2/SiOX/SiOXNY/ITZO NVM under the white light irradiation.
Nanomaterials 09 00784 g006
Nanomaterials 09 00784 g007 550

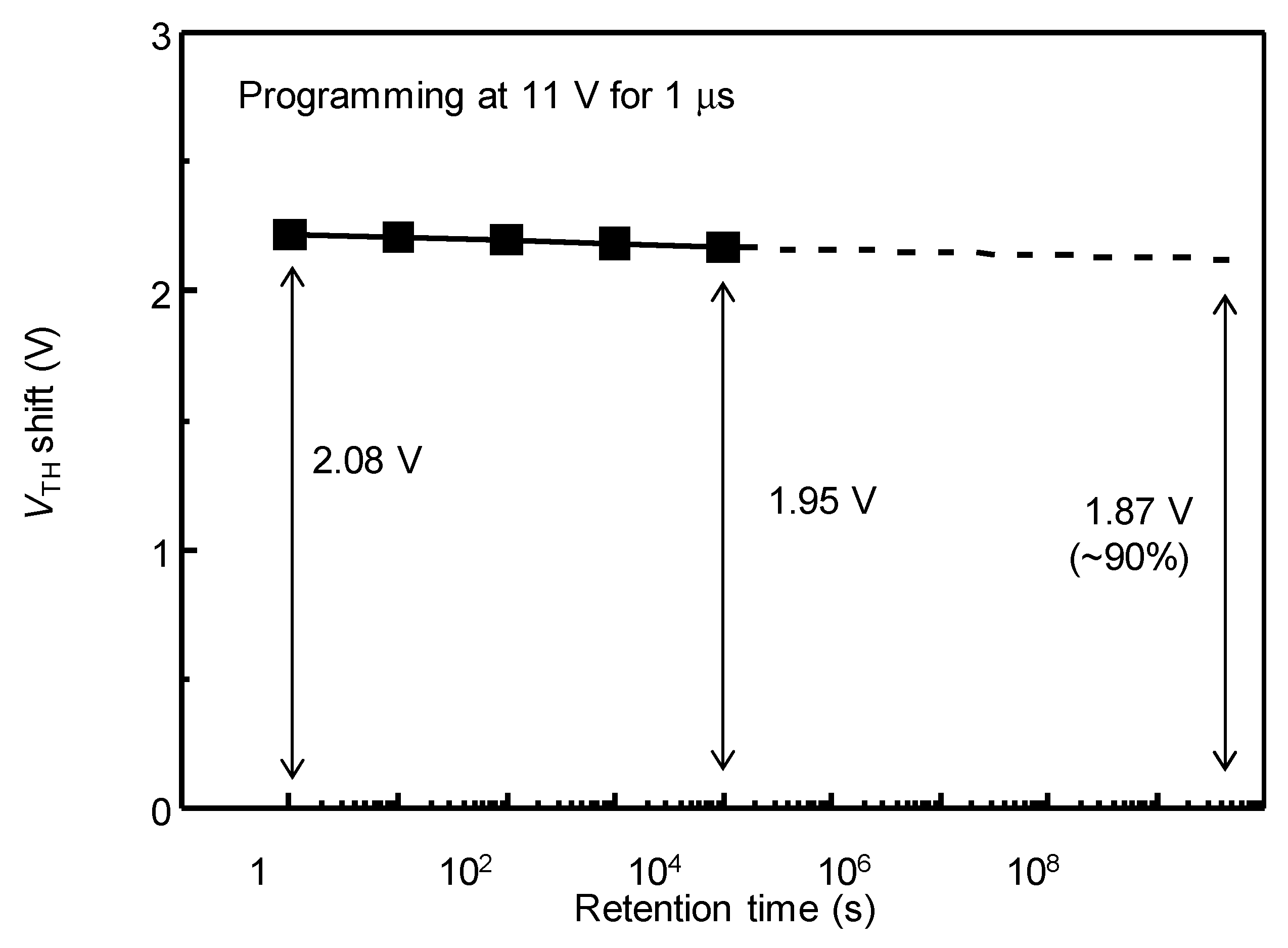

Figure 7. The extrapolated retention characteristics up to 10 years (109 s) of the Metal/SiO2/SiOX/SiOXNY/ITZO NVM.
Figure 7. The extrapolated retention characteristics up to 10 years (109 s) of the Metal/SiO2/SiOX/SiOXNY/ITZO NVM.
Nanomaterials 09 00784 g007
Table
Table 1. Deposition condition for deposition of the SiO2/SiOX/SiOXNY layer.
Table 1. Deposition condition for deposition of the SiO2/SiOX/SiOXNY layer.
SiH4 (sccm)N2O (sccm)GR (*)Temp (°C)Pressure (mTorr)Power (W)Thickness (nm)
SiO2 (blocking)260 1701002520
SiOX (charge tapping)5100.5
10521701002520
3056
SiOXNY (tunneling) 2.7 17010252.7
* GR: gas ratio of SiH4:N2O.
