Recent Advances in MoS₂-Based Saturable Absorbers for Mode-Locked Fiber Lasers

Abstract

Ultrashort pulse mode-locked fiber lasers demonstrate significant application potential in optical communication, precision measurement, and ultrafast photonics. As the critical component for pulse generation, the performance of saturable absorbers directly dictates the output characteristics of these lasers. To address the limitations of traditional saturable absorbers regarding operating bandwidth, fabrication cost, and environmental stability, two-dimensional transition metal dichalcogenides represented by molybdenum disulfide have emerged as research hotspots in the field of novel saturable absorbers due to their broadband tunability, superior nonlinear optical response, and flexible fabrication processes. This review focuses on molybdenum disulfide saturable absorbers and systematically summarizes their nonlinear optical properties, mainstream fabrication strategies, and recent application progress in mode-locked fiber lasers. Furthermore, the advantages and challenges concerning key performance metrics such as pulse stability, output power, and pulse duration are comprehensively evaluated. Finally, future perspectives on critical issues including fabrication process optimization, long-term stability enhancement, and composite structure design are discussed. This work aims to provide theoretical references and technical support for the practical application of high-performance ultrashort pulse fiber lasers.

1. Introduction

Ultrafast fiber lasers have emerged as key core light sources in optical communications, precision micro–nano fabrication, biomedical imaging, and nonlinear spectroscopy, driven by their superior beam quality, efficient thermal management, and compact all-fiber architecture. Among the techniques for generating ultrashort pulses, passive mode-locking is widely recognized as a robust method for achieving high-energy ultrashort pulses. This is primarily attributed to its distinct advantages, including the elimination of external modulation, simplified system architecture, and high operational stability. As the core functional component in passive mode-locking technology, the nonlinear optical properties of the saturable absorber directly determine the mode-locking threshold, pulse stability, output pulse duration, and wavelength tuning range of the laser [1].

Although traditional semiconductor saturable absorber mirrors (SESAMs) have achieved commercial viability, their deployment in next-generation high-power fiber lasers is fundamentally constrained. State-of-the-art ultrafast fiber oscillators now routinely deliver average powers exceeding 10 W with pulse energies > 100 nJ, whereas conventional SESAMs typically exhibit irreversible thermal degradation at average intracavity powers above ~1–2 W. Furthermore, SESAMs are limited by narrow operational bandwidths (<100 nm) and costly epitaxial growth processes that hinder wavelength tunability and scalable integration [2,3]. These quantitative bottlenecks have motivated the urgent search for alternative saturable absorbers capable of meeting the demands of modern high-power, broadband ultrafast optics.

In this context, two-dimensional layered materials have emerged as a promising platform for next-generation saturable absorbers. Their atomic-level thickness, large specific surface area, and unique quantum confinement effects yield distinct nonlinear optical responses and ultrafast carrier dynamics [4,5,6,7]. Among transition metal dichalcogenides, molybdenum disulfide (MoS₂) has been widely investigated as a representative candidate. Exhibiting tunable saturable absorption across the near-infrared to mid-infrared spectral ranges, strong excitonic interactions, and favorable chemical stability, MoS₂ has attracted significant attention as a post-graphene saturable absorber, offering broadband operation from the near-infrared to mid-infrared ranges, inherent environmental stability, and layer-dependent tunable nonlinearity [8,9,10,11,12]. Relative to single-element carbon-based materials such as graphene and black phosphorus (BP), MoS₂ exhibits enhanced environmental stability and fabrication reproducibility, while enabling parameter optimization—including modulation depth and saturation intensity—through layer-number control and heterostructure design [13,14,15,16,17,18].

Table 1. Key Performance Parameters of Representative Saturable Absorbers for Mode-Locked Fiber Lasers.

SA Material	Modulation Depth (%)	Response Time	Damage Threshold	Wavelength Range (μm)	Refs.
MoS2 (few-layer)	3.0–20.0	−30 fs	≈1.7 GW/cm2	1.0–2.0	[9,19,20,21,22]
Graphene	6.2–66.5	0.1–0.5 ps	—	0.8–2.5	[23,24]
CNTs	1.0–4.5	<1 ps	+130%	1.0–2.0	[25,26]
BP	−15.0	24 ± 2 fs	0.2–0.4 mJ/cm2	1.0–3.0	[27,28,29]
MXene (e.g., Ti3C2Tx)	11.3–50.0	N/A	1.5–3.0 GW/cm2	1.0–2.5	[30]
Topological Insulator (e.g., Bi2Se3)	39.8–98.0	<1 ps	—	1.0–2.0	[31,32]
SESAM	0.39–11.5	18–100 ps	0.5–5.0 GW/cm2	0.8–2.0	[3,33,34]

General notes: Modulation depth is defined as (T_unsat − T_sat)/T_unsat; negative values indicate anomalous saturation (e.g., BP). Damage thresholds are reported for femtosecond pulses (typically 100–500 fs). All values represent typical experimental ranges from recent literature.

demonstrates the key performance parameters of representative saturable absorbers for mode-locked fiber lasers.

This review addresses critical gaps in the current understanding of MoS₂-based saturable absorbers for mode-locked fiber lasers. While previous reviews have established foundational knowledge on basic properties and early-stage applications, this work extends the discussion by linking material structure to ultrafast carrier dynamics through mechanistic analysis of representative heterostructure and composite designs. We further evaluate performance trade-offs across spectral bands and operational conditions, explicitly discussing intrinsic limitations such as interface-induced damage thresholds and environmental sensitivity in hybrid systems. Finally, we outline realistic pathways toward industrial deployment, grounded in current manufacturing capabilities and reliability requirements, aiming to provide actionable guidance for designing next-generation ultrafast lasers beyond laboratory-scale demonstrations.

2. Properties and Fabrication

2.1. Optical and Nonlinear Properties

As a representative transition metal dichalcogenide, molybdenum disulfide has emerged as a prominent candidate for SAs in mode-locked ultrafast fiber lasers, primarily due to its distinctive layered crystal structure and unique optical characteristics. The application potential of this material in mode-locking technology is fundamentally rooted in its controllable structural properties, notable nonlinear optical responses, broad spectral adaptability, and tailorable stability.

The nonlinear optical characteristics serve as the foundation for MoS₂ functioning as a mode-locked SA, with the saturable absorption effect originating predominantly from carrier saturation mechanisms. When the incident optical intensity falls below the saturation threshold, valence band electrons in MoS₂ are excited to the conduction band, resulting in carrier absorption and consequently low transmittance. Conversely, as the incident intensity reaches the saturation threshold, extensive excitation of valence band electrons occurs, leading to absorption saturation and a significant enhancement in transmittance [19,35]. This dynamic process facilitates pulse selection and shaping, thereby enabling the mode-locking operation [36,37,38,39].

Molybdenum disulfide features a layered van der Waals structure, with covalently bonded S-Mo-S monolayers connected by weak interlayer forces. This architecture determines a strong layer-dependent optical performance. As the layer number increases, the band structure transitions from a direct to an indirect bandgap, significantly altering optical absorption and nonlinear parameters. Few-layer MoS₂ has been widely used for mode-locked SAs, as it combines the strong nonlinear response characteristic of monolayers with improved structural stability compared to single-layer films. The exact optimal layer number depends on specific application requirements, including pump wavelength and cavity configuration, and varies across different experimental realizations. Precise layer control is therefore essential for optimizing mode-locking performance [9]. However, optical performance metrics such as modulation depth and non-saturable loss are heavily dependent on the integration scheme. For instance, the microfiber-based device shown in Figure 1 exhibits a modulation depth of ~2.82% but suffers from a high non-saturable loss of ~57.34%. In a practical all-fiber ring cavity, such significant non-saturable loss acts as a substantial intracavity insertion loss. This not only raises the laser oscillation threshold—requiring higher pump power to initiate mode-locking—but also inevitably reduces the slope efficiency of the laser output. In comparison to other integration schemes that will be discussed later, such as end-face or D-shaped fiber configurations, microfiber devices often encounter greater challenges in suppressing this parasitic loss. This is largely attributed to the difficulties in controlling the evanescent field interaction length and ensuring material deposition uniformity along the tapered region. Therefore, balancing the modulation depth with low non-saturable loss remains a critical optimization target for different device geometries. Unlike traditional alternatives, MoS₂ exhibits a broadband response, achieving saturable absorption across 1 μm, 1.55 μm, and 2 μm bands. This versatility covers the primary operational wavelengths of ultrafast fiber lasers without requiring complex structural modifications, providing a practical foundation for multi-wavelength mode-locking systems [40,41,42,43]. Long-term stability is critical but often degraded under environmental factors such as high temperature and humidity, which induce oxidation and interlayer exfoliation. To mitigate this, encapsulation and composite structuring have been employed. Polymer encapsulation, for instance, effectively isolates moisture and oxygen, ensuring stable modulation over extended operation [44,45]. Comparative studies have shown that monolayer MoS₂ devices can achieve mode-locking thresholds as low as −200 µW in similar 1.55 µm cavity configurations [9], but they typically exhibit rapid degradation under continuous operation due to environmental oxidation within hours. Conversely, multilayer (>20 layers) films demonstrate enhanced damage resistance with thresholds exceeding 10 MW/cm² [45], yet their nonlinear absorption coefficients are significantly reduced, requiring pump powers >10 mW to initiate mode-locking. In contrast, few-layer (3–10 layers) MoS₂ achieves a practical balance with mode-locking thresholds in the range of 1–2 mW while maintaining stable operation over extended periods (>100 h) under ambient conditions [41,45]. Beyond chemical stability, interfacial adhesion and mechanical durability are vital for reliable integration. Studies indicate that monolayer MoS₂ adhesion on SiO₂ is governed by van der Waals forces and atomic flatness, with optimized interfaces even demonstrating self-healing capabilities under minor deformation. Furthermore, surface modifications have been shown to reduce wear rates by approximately 40% while maintaining a stable friction coefficient [46]. These findings underscore the importance of interfacial engineering in preventing mechanical exfoliation and thermal delamination under intense laser irradiation.

2.2. Mainstream Preparation Methods for MoS₂ SAs

The preparation process of MoS₂ SAs directly determines their layer distribution, lateral dimensions, film uniformity, and nonlinear optical properties, which ultimately control the output performance and operational stability of mode-locked lasers. In recent years, with the continuous advancement of two-dimensional material fabrication technologies, the preparation of MoS₂ SAs has evolved from traditional mechanical exfoliation into a diversified technical system integrating scalable manufacturing, precise regulation, and high-performance optimization.

The nonlinear optical performance of MoS₂ SAs is intrinsically linked to their preparation processes and microstructures. Experimental data demonstrate that high-quality MoS₂ devices enable stable mode-locked operation. For instance, as shown in Figure 2a, under pump powers ranging from 120 to 210 mW, the central wavelength of the output spectrum remains stable at approximately 1045 nm with a symmetrical profile. Moreover, the linear relationship between output and pump powers, depicted in Figure 2b, confirms that the laser maintains stable mode-locking without multi-pulse or Q-switched instabilities across a broad power range [47]. These metrics validate the capability of high-quality MoS₂ to drive long-term stable ultrafast lasers.

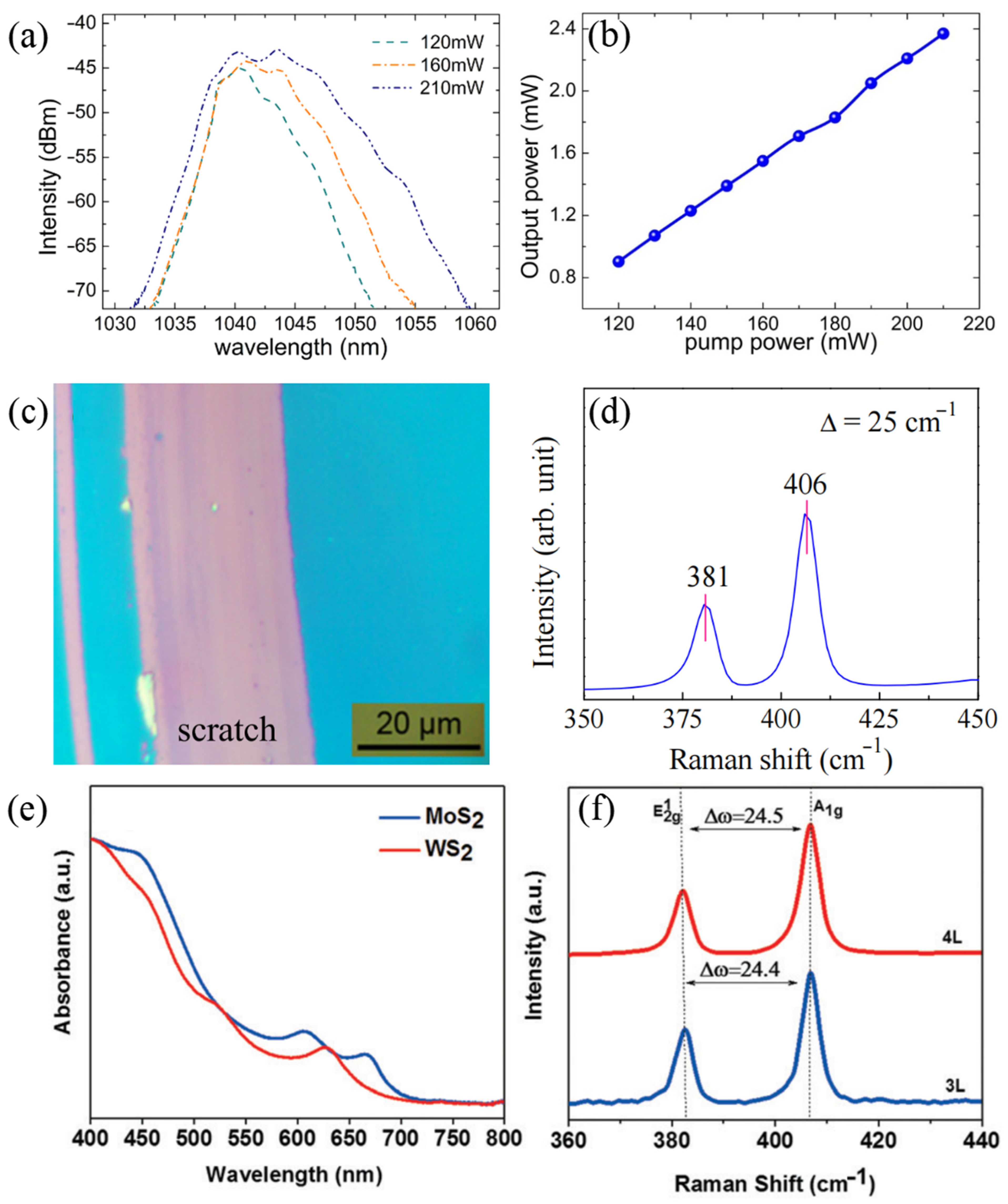

Mechanical exfoliation remains the most fundamental technique for obtaining high-quality MoS₂ nanosheets. Recent advancements in dry transfer methods have significantly reduced surface contamination to below 1 nm and improved the successful transfer rate to over 85% [50,51]. This method yields single-layer MoS₂ with high crystal quality, low defect density [52], and carrier mobilities exceeding 30 cm²/V·s, making it well-suited for fundamental physical research. However, its inherent limitations, including restricted flake sizes and uncontrollable layer distribution, preclude its use in scalable manufacturing.

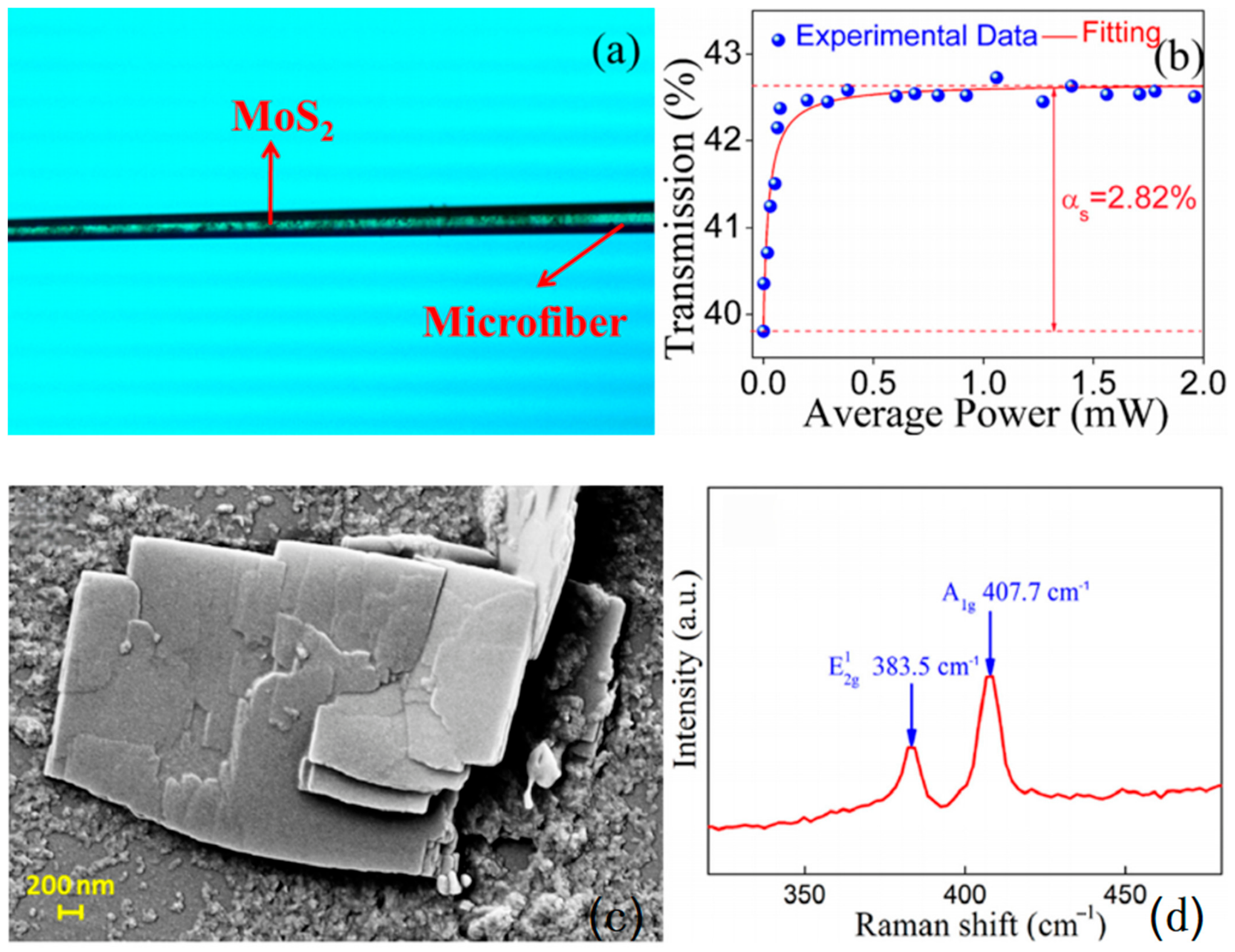

Chemical vapor deposition serves as the core technology for scalable fabrication. CVD-grown MoS₂ films exhibit continuous and uniform coverage over large areas without apparent voids or cracks, as evidenced by the optical image in Figure 2c, which shows a continuous MoS₂ thin film uniformly covering an SiO₂/Si substrate. Raman spectroscopy confirms the structural integrity of the multilayer films, and the corresponding spectrum in Figure 2d displays characteristic E¹_2g and A_1g vibrational modes with a frequency difference of approximately 25 cm⁻¹, indicative of multilayer MoS₂ [48]. Through process optimization, CVD-prepared films can achieve damage thresholds exceeding 200 MW/cm², satisfying the requirements for high-power mode-locked lasers [53,54]. Nevertheless, CVD is constrained by high equipment costs, complex parameter tuning, and the susceptibility of transferred films to wrinkles and mechanical damage.

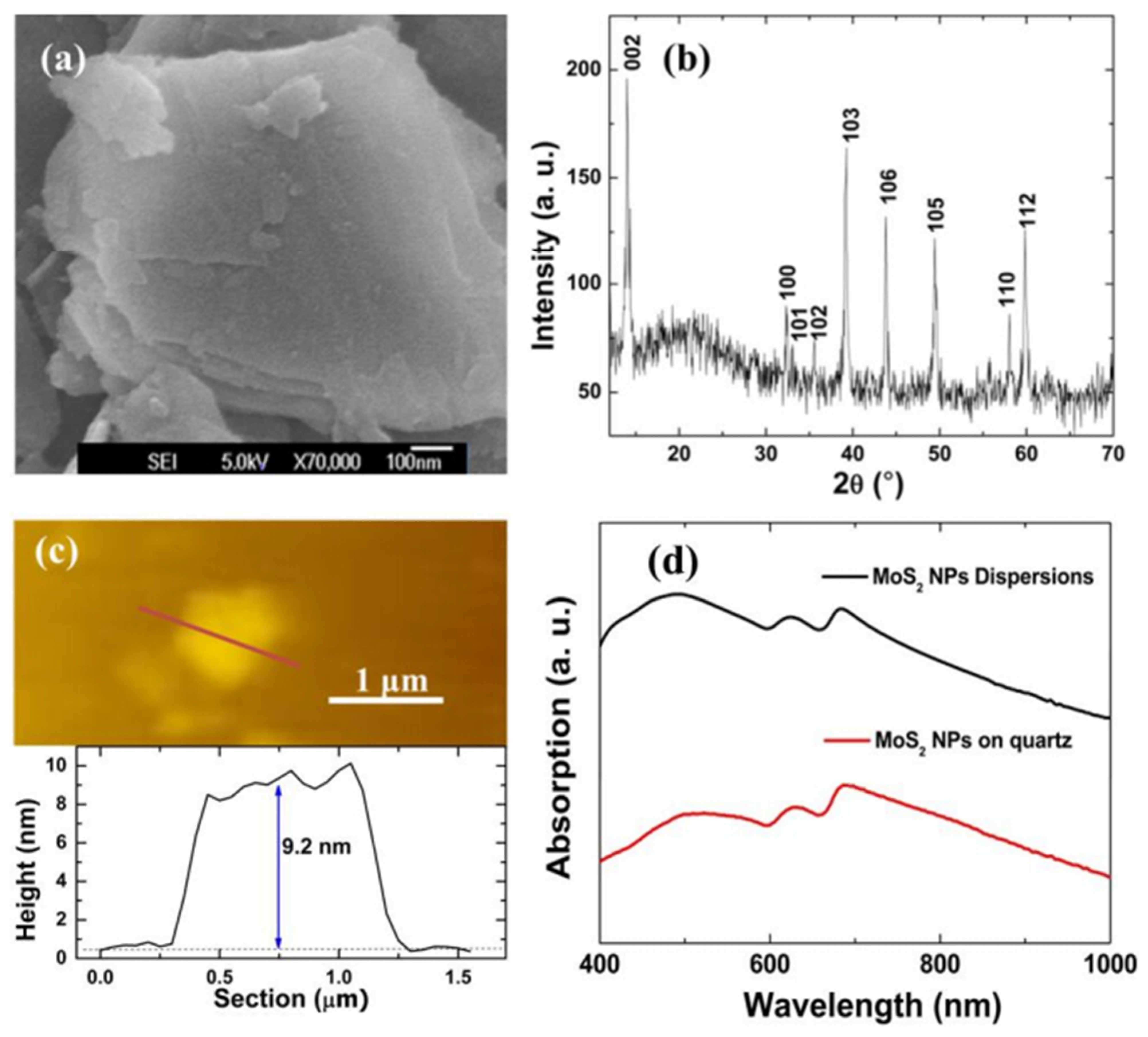

Liquid-phase exfoliation and solution processing offer low-cost and scalable alternatives. Bulk MoS₂ is exfoliated via ultrasonication and subsequently deposited onto substrates using spin-coating or drop-casting. Figure 2e,f exhibits the UV-vis absorption spectra of the MoS₂ suspensions and Raman spectra of MoS₂ nanosheets spin-coated onto Si²⁺/SiO₂ substrates [49]. Although the resulting nanosheets are relatively small and possess more crystal defects, composite strategies effectively mitigate these issues. For example, just as an adaptive mask-generating algorithm based on fuzzy set theory can automatically optimize threshold selection for noisy data in interferometry [55,56], the incorporation of MoS₂ into a polymer matrix can effectively compensate for structural defects in exfoliated nanosheets. Nonlinear transmission measurements typically yield a saturation intensity of 0.35 MW/cm² and a modulation depth of 35.4% [49]. Researchers have also developed composite films like MoS₂/PVA and MoS₂/SiO₂ to further improve stability and performance [56,57]. This approach allows for flexible tuning of film thickness and optical properties, facilitating the mass production of cost-effective mode-locked devices, despite potential solvent-induced substrate degradation [58].

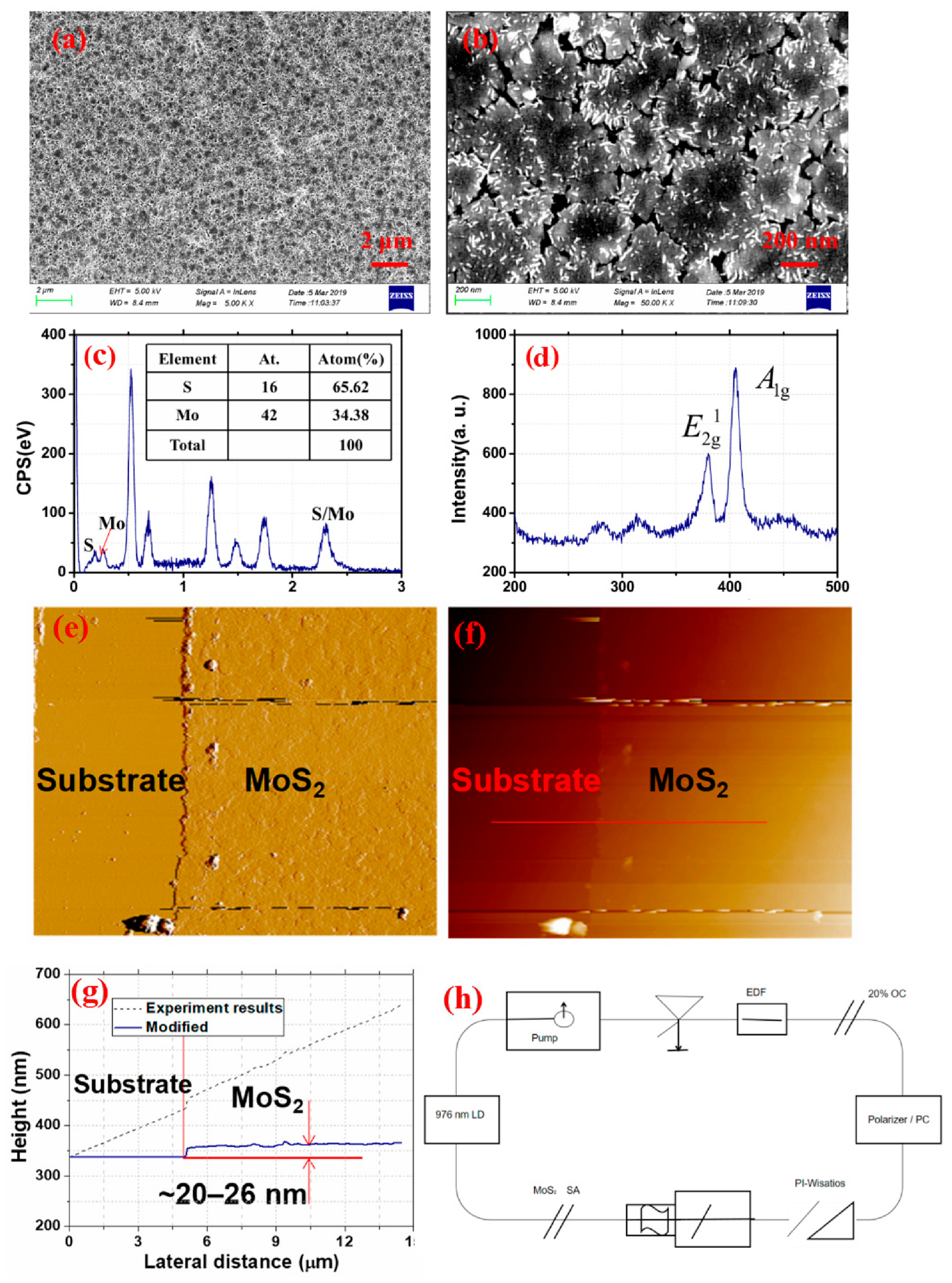

Beyond conventional methods, micro–nano fabrication and transfer technologies have advanced device integration, providing important process support for high-quality SAs [59,60]. Current research highlights heterostructure construction and doping modification. Sandwich heterostructures utilizing hexagonal boron nitride and graphene effectively regulate carrier transport, thereby enhancing nonlinear optical performance and operational stability [61]. Furthermore, doping with metallic or non-metallic elements optimizes the band structure and carrier concentration, enabling precise control over key parameters such as modulation depth and saturation intensity.

Comparative analyses underscore the distinct advantages of different preparation routes. While mechanically exfoliated microfiber devices typically exhibit modulation depths around 2.82%, CVD-grown films achieve modulation depths between 5% and 10% with significantly reduced saturation intensities [62]. Additionally, embedding MoS₂ nanosheets in a PVA matrix can elevate the damage threshold to 1.2 GW/cm², representing a fivefold improvement over pristine films [63]. The superior performance of CVD stems from precise kinetic control during growth, enabling centimeter-scale continuous films with defect densities as low as 10¹⁰ cm⁻² [64,65,66]. In contrast, mechanically exfoliated flakes are generally smaller than 10 μm with higher edge defect densities. Moreover, in situ doping during CVD can tune carrier concentrations to 10¹³ cm⁻², enhancing nonlinear absorption coefficients and suppressing thermal accumulation from non-radiative recombination under high-power irradiation. Consequently, CVD not only facilitates scalable production but also fundamentally enhances the damage tolerance of SAs through optimized crystal quality.

Table 2. Comparison of Preparation Methods for MoS₂ SAs.

Preparation Method	Typical Layer Number	Advantages	Disadvantages	Key Performance Parameters	Refs.
Mechanical Exfoliation (Scotch Tape Method)	Monolayer/ Few-layer	High crystal quality Low defect density Simple operation	Small flake size Low yield Poor controllability	Modulation Depth: ~2–5% Non-saturable Loss: Low	[10,36]
Chemical Vapor Deposition	Monolayer/ Controlled layers	Large area growth Uniform thickness control High optical quality	High equipment cost Complex transfer process High temperature required	Modulation Depth: 5–10% Damage Threshold: High	[54,67]
Liquid Phase Exfoliation	Few-layer/ Multi-layer	Low cost Scalable production Easy integration with polymers	Lateral size distribution Potential solvent residues Restacking issues	Modulation Depth: 3–8% Saturation Intensity: Moderate	[56,57]
Hydrothermal Method	Multi-layer/ Nanoflowers	Environmentally friendly Good crystallinity Controlled morphology	Long reaction time Aggregation tendency	Modulation Depth: >10% Stability: Good	[44]
Fiber Integration/Deposition	—	All-fiber compatibility Low insertion loss Compact structure	Fragile structure Limited interaction length	Modulation Depth: <5% Insertion Loss: Very Low	[12,42]

summarizes the trade-offs among crystal quality, layer-number control, and cost-effectiveness for various preparation methods. Mechanical exfoliation yields high-quality monolayer or few-layer MoS₂ but suffers from extremely low production rates, rendering it inadequate for scalable applications. In contrast, chemical vapor deposition enables large-area controllable growth; however, its direct integration into all-fiber devices is hindered by complex transfer processes and stringent high-temperature requirements. Liquid-phase exfoliation and hydrothermal synthesis have emerged as mainstream strategies for large-scale production due to their low cost and operational simplicity, yet they face challenges regarding non-uniform lateral size distribution and restacking issues. Notably, fiber-integrated deposition facilitates the direct fusion of materials with optical fibers, significantly enhancing system compactness and stability despite a limited interaction length. Consequently, the optimal synthesis strategy must be tailored to specific laser performance metrics and fabrication conditions in practical applications.

2.3. Performance Characterization Techniques for MoS₂ SAs

Performance characterization is essential for evaluating the mode-locking potential of MoS₂ SAs and optimizing their fabrication processes. Current characterization methodologies are mature and can be systematically categorized into linear, nonlinear, and stability assessments, providing a scientific basis for device design and process refinement.

Linear characterization primarily evaluates the fundamental optical properties and crystal structure of the material. Transmission spectroscopy determines the optical absorption characteristics and operational wavelength range, while also providing preliminary insights into layer distribution. Raman spectroscopy serves as the core technique for layer identification [68]; the precise determination of layer thickness and crystal defect density relies on analyzing the frequency shift and intensity ratio of characteristic peaks [69]. Furthermore, atomic force microscopy acts as a complementary tool to visually assess surface morphology, thickness, and film uniformity.

Nonlinear characterization is critical for assessing mode-locking capabilities by measuring saturable absorption properties and carrier dynamics. The Z-scan technique is the standard method for determining third-order nonlinear optical coefficients [70]. By analyzing transmittance variations under different incident intensities, this technique accurately calculates the nonlinear absorption coefficient and saturation intensity, effectively distinguishing between saturable and reverse saturable absorption mechanisms [71]. For instance, mechanically exfoliated monolayer MoS₂ at 532 nm exhibits a nonlinear absorption coefficient of −1.5 × 10⁻¹² m²/W, a saturation intensity of approximately 80 MW/cm², and a modulation depth between 5% and 8% [72]. Pump-probe spectroscopy is utilized to measure carrier recovery times, typically revealing a bi-exponential decay. The fast component corresponds to carrier-phonon scattering, while the slow component relates to exciton recombination [73]. These time constants directly determine the theoretical limit of the mode-locked pulse duration [74,75], providing a basis for pulse width optimization [76]. Moreover, integrating the SA into a laser cavity allows for the direct evaluation of practical mode-locking performance, such as the startup threshold and pulse width. For example, CVD-grown MoS₂ has demonstrated pulse widths as short as 120 fs, a repetition rate of 25 MHz, and a mode-locking threshold of merely 50 mW [77,78,79]. With the advancement of fiber-integrated devices, testing for evanescent field interactions, end-face coupling, and polarization stability has also become integral to comprehensive evaluation [80,81].

Stability characterization evaluates the long-term operational reliability of the SA under practical conditions. This includes long-term operation tests to monitor pulse parameter variations over time, as well as environmental tolerance tests assessing performance under varying temperatures and humidity levels. Polarization tolerance is another crucial metric; experimental results indicate that the modulation depth fluctuation of MoS₂ SAs remains below 5% across different polarization states, demonstrating excellent stability [82,83]. Overall, this systematic characterization framework provides quantitative guidance for process optimization and establishes unified standards for evaluating the practical application of MoS₂ in mode-locked fiber lasers.

3. Optimized MoS₂ Fiber Lasers

3.1. Pulse Performance Optimization

As a representative two-dimensional transition metal dichalcogenide, the application of MoS₂ in mode-locked fiber lasers has evolved from initial proof-of-concept demonstrations to a new phase focused on in-depth performance optimization and precise mechanistic regulation. Fundamental research on ultrafast nonlinear pulse dynamics provides essential theoretical support for the generation and manipulation of ultrashort pulses [84]. The observation and analysis of complex pulse behaviors, such as soliton molecules and bound solitons, offer critical insights into the pulse formation mechanisms within MoS₂-based lasers [85,86]. In addition, investigations into nonlinear dynamical phenomena, including vector solitons and domain wall solitons, provide valuable strategies for optimizing pulse stability in MoS₂ systems [87]. Building upon these foundations, a profound understanding and precise manipulation of the intrinsic physical mechanisms of MoS₂ SAs are imperative for overcoming performance bottlenecks and advancing device practicality.

To address the practical requirements of ultrafast fiber lasers, current optimization efforts for MoS₂-based mode-locked lasers primarily focus on pulse compression, energy scaling, and enhanced stability. Significant breakthroughs in high-performance pulse generation have recently been achieved through the regulation of intrinsic material properties and the management of intracavity dynamics. Moreover, optimizing the laser cavity architecture, dispersion management, and polarization control is critical for realizing superior mode-locked outputs. Rational cavity design and dynamic balance mechanisms are essential to fully exploit the nonlinear modulation capabilities of MoS₂ SAs [88,89,90,91].

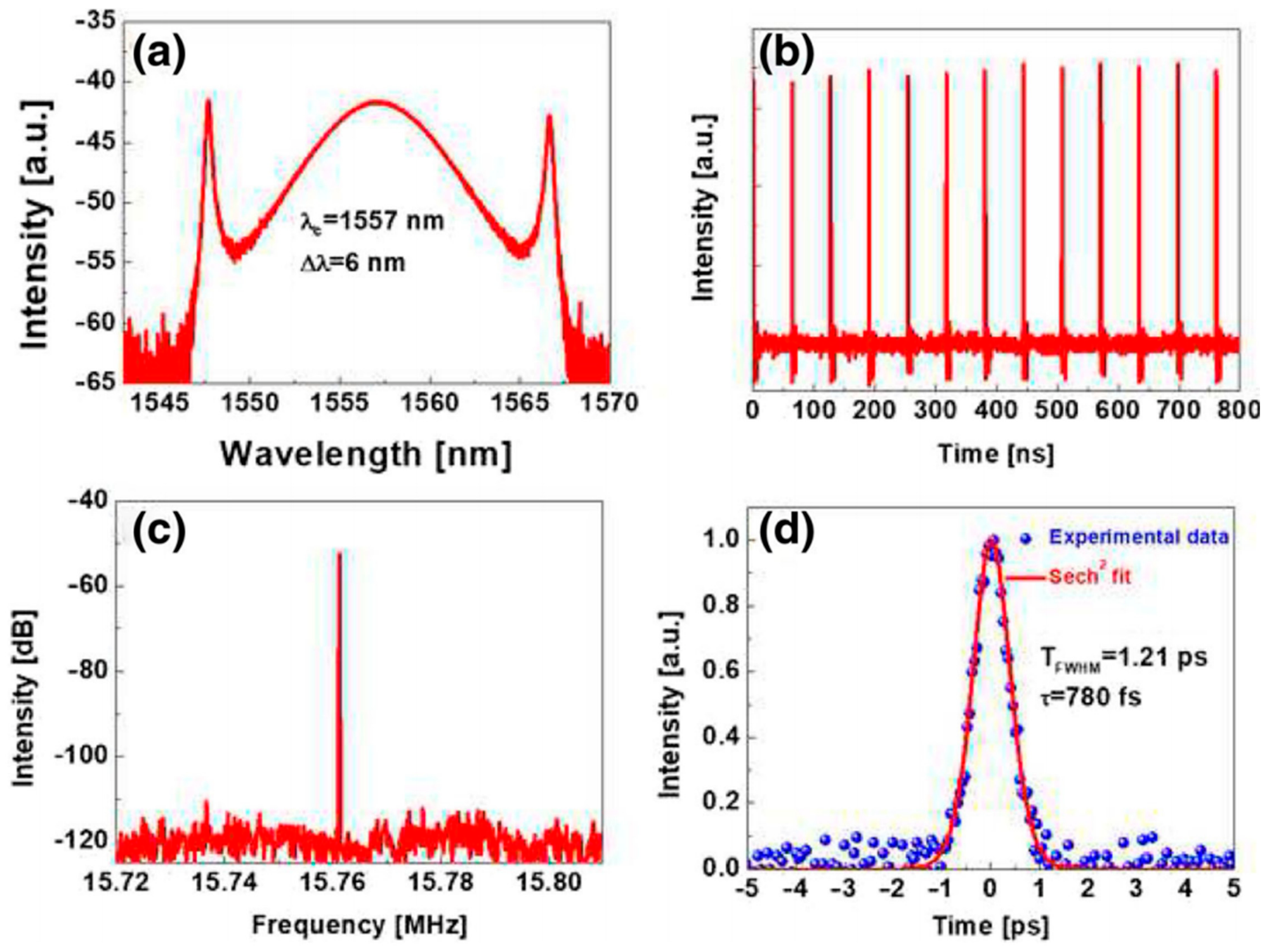

Mode-locked fiber lasers utilizing MoS₂ SAs exhibit typical soliton mode-locking dynamics. The output spectrum features a central wavelength of 1557 nm and a 3 dB bandwidth of 6 nm, accompanied by distinct Kelly sidebands on both sides. This spectral profile indicates a balance between intracavity dispersion and nonlinearity, providing the necessary spectral foundation for pulse compression [92]. In the time domain, a hyperbolic secant fit to the autocorrelation trace yields a pulse width of 780 fs. This value surpasses the picosecond-level pulse widths typically observed in early two-dimensional material-based mode-locked lasers, confirming the efficient ultrashort pulse shaping capability of MoS₂ SAs. Moreover, frequency-domain stability tests reveal a signal-to-noise ratio of 65 dB at the fundamental repetition rate, demonstrating high stability and low noise characteristics suitable for reliable long-term operation. This high SNR reflects suppressed amplitude fluctuations resulting from the fast carrier recovery dynamics of MoS₂, which effectively damps relaxation oscillations and stabilizes the pulse train against environmental perturbations.

Intracavity parameter tuning significantly influences pulse performance optimization. The spectral bandwidth and pulse duration can be tailored through careful adjustment of the net cavity dispersion and SA parameters. This synchronous spectral broadening and pulse compression reflect the coupling mechanism among intracavity dispersion management, polarization state, and material nonlinear modulation. Optimizing intracavity loss and dispersion distribution can further enhance the nonlinear response of MoS₂, thereby facilitating extreme pulse compression [93].

The ultimate limit of pulse compression is primarily governed by the carrier relaxation dynamics of the SA. Pump-probe experiments typically reveal that few-layer MoS₂ possesses ultrafast carrier recovery characteristics with relaxation times ranging from 200 to 500 fs [20]. This sub-picosecond response serves as the fundamental basis for its ability to support ultrashort pulse generation. This sub-picosecond response enables MoS₂ to effectively filter continuous background light and achieve rapid modulation of ultrashort pulses. Furthermore, constructing van der Waals heterostructures, such as MoS₂/graphene, can further accelerate the carrier recombination process through interfacial charge transfer mechanisms [94]. Experimental data indicate that the carrier relaxation time in such heterostructures can be reduced to below 500 fs, thereby enhancing the nonlinear modulation depth and suppressing pulse broadening [95,96]. Notably, specifically in the type-II band alignment in the MoS₂/WS₂ heterostructure drives ultrafast interfacial charge transfer (<100 fs), forming spatially indirect interlayer excitons (IXs). The suppressed dielectric screening in these IXs accelerates radiative recombination to t(IX) ≈ 1.2 ps, a timescale sufficiently fast to enable the stable generation of 780-fs mode-locked pulses (Figure 3d). This direct link between electronic structure and pulse performance is experimentally verified by the bias-dependent PL and carrier dynamics shown in Figure 4.

3.1.1. Pulse Width Compression and Femtosecond Pulse Generation

The ultimate limit of pulse compression directly reflects the synergistic efficiency between the nonlinear response speed of the SA and intracavity dispersion management [21,98]. To overcome the picosecond-level physical limitations, researchers typically integrate MoS₂ SAs into anomalous dispersion cavities with fine tuning via dispersion-compensating fibers [99]. Wang et al. demonstrated the broadband saturable absorption of few-layer MoS₂ from the visible to near-infrared band, confirming its potential as an effective SA for ultrafast pulse generation [21]. This performance stems from precise compensation of third-order dispersion using dispersion-compensating fibers, which minimizes pulse pedestal formation and allows the MoS₂ saturable absorber to operate near its transform-limited condition. Concurrently, subsequent work achieved femtosecond pulse outputs in the anomalous dispersion regime through synergistic optimization of intracavity dispersion and MoS₂ SAs [98,99]. This result not only verifies the sub-picosecond ultrafast carrier relaxation time of MoS₂ but also demonstrates that it has surpassed the performance bottleneck of traditional semiconductor SA mirrors [100,101]. In addition, the long-term stability of mode-locked operation based on MoS₂ SAs has been experimentally verified; for instance, a CVD-grown multilayer MoS₂-based SA demonstrated robust and stable mode-locking characterized by a high RF signal-to-noise ratio of approximately 62 dB [11], confirming the feasibility of MoS₂ SAs for practical applications.

3.1.2. Enhancement of Single-Pulse Energy and Output Power

The core of breaking through power bottlenecks lies in increasing the optical damage threshold of MoS₂ SAs. Constructing MoS₂-polymer composite films or employing microfiber evanescent field integration structures can significantly enhance thermal dissipation and laser damage resistance [102]. In polymer composites, the matrix acts as a heat spreader with higher thermal conductivity than air-exposed flakes, reducing local temperature rise per unit absorbed energy; in microfiber configurations, the extended interaction length lowers peak intensity on the MoS₂ layer for a given average power, distributing thermal load over a larger area. Recent studies confirm that lasers based on MoS₂ heterostructure SAs can operate stably under high-power pumping. For instance, a Tm:CALGO laser utilizing a MoS₂ SA achieved an average output power of 1.44 W with a high fundamental repetition rate of 131.6 MHz, corresponding to a single-pulse energy of ~10.9 nJ [103]. It is worth noting that, unlike the typical strategy of increasing pulse energy by lowering the repetition rate in long cavities, this result demonstrates the capability of MoS₂ SAs to sustain high average power and moderate pulse energy in a high-repetition-rate regime, although the pulse duration was in the picosecond range (~924 ps) due to the Q-switched mode-locking operation. These high-power compatible designs optimize the light–matter interaction length, suppressing harmful nonlinear effects while improving energy extraction efficiency [103,104].

From the perspective of micromechanics and damage tolerance, the power handling capacity of SAs depends not only on the intrinsic bandgap structure of the material but also on its microscopic defects and interfacial stress distribution. Incorporating recent advances in multiscale modeling, finite element stress simulations of the MoS₂-substrate interface can accurately predict damage initiation thresholds and failure modes [105]. Both experimental data and simulation results indicate that polymer-encapsulated MoS₂ SAs can achieve damage thresholds of 1.2 GW/cm², representing an approximately fivefold increase compared to pristine MoS₂ films [64]. The physical essence of this enhancement is that the polymer matrix acts as a stress buffer, dispersing local high stresses generated by photothermal effects, and restricts the degrees of freedom of the MoS₂ layer to inhibit crack propagation. This matrix-protection-based damage tolerance design offers an effective engineering solution to the thermal lensing and ablation challenges faced by two-dimensional materials under high-power laser irradiation.

3.1.3. Stability Optimization and Environmental Tolerance

The self-starting capability and startup threshold of mode-locking directly determine device practicality. Optimizing SA parameters and dynamically controlling intracavity polarization can significantly lower the mode-locking threshold and enhance operational robustness [106,107]. Lower thresholds are achieved when the saturable absorber’s modulation depth exceeds the total cavity loss margin, while polarization control aligns the intracavity birefringence with the saturable absorber’s anisotropic absorption axis, maximizing effective nonlinear modulation per round trip. Long-term operational stability and environmental adaptability are fundamental metrics for laser practicality. Experimental data demonstrate that lasers utilizing MoS₂ and h-BN heterostructure SAs exhibit output power fluctuations below 2.5% after eight hours of continuous operation, with energy stability improving by nearly 40% compared to traditional MoS₂ SAs. This stability advantage originates from the suppression of photothermal effects and the passivation of interfacial defect states by the heterostructure [31,108]. Furthermore, the comprehensive review by Woodward et al. has systematically sum-marized the nonlinear optical properties of few-layer MoS₂SAs and their integration strategies in short-pulse laser systems, laying a theoretical foundation for subsequent stability optimization and environmental tolerance studies [11].

Collectively, these results validate both the long-term reliability and ultrashort pulse generation capability of MoS₂ SAs. On one hand, lasers utilizing MoS₂/h-BN heterostructure-SAs maintain output power fluctuations within 2.5% after eight hours of continuous operation, confirming effective environmental isolation and industrial-grade stability. On the other hand, Wang et al. achieved 620 fs pulse widths in the anomalous dispersion regime through synergistic optimization of intracavity dispersion and MoS₂ SAs [21], underscoring the material’s advantage in overcoming the pulse compression limits of traditional semiconductor SA mirrors.

3.2. Regulation of Nonlinear Absorption Characteristics

High-quality material preparation is vital for achieving excellent nonlinear absorption properties. As shown in Figure 5, scanning electron microscopy images Figure 5a,b show that the prepared MoS₂ films display uniform and dense microstructures without macroscopic cracks or agglomeration [109]. This confirms that the liquid-phase exfoliation or deposition processes ensure large-area continuity, providing a uniform medium for subsequent optical interactions. Quantitative analysis via energy-dispersive X-ray spectroscopy Figure 5c reveals a molybdenum-to-sulfur atomic ratio near the theoretical 1:2 stoichiometry, indicating high phase purity and minimal impurities. Raman spectroscopy of Figure 5d verifies the crystal quality, revealing distinct in-plane and out-of-plane vibrational modes characteristic of the 2H phase with high crystallinity.

Film thickness is a key geometric parameter determining the strength of the nonlinear optical response. As directly evidenced by the atomic force microscopy images and the corresponding height profile Figure 5e–g, atomic force microscopy measurements indicate a step height of around 20 to 26 nm, corresponding to a multilayer structure. This thickness range ensures sufficient light–matter interaction length to generate significant nonlinear effects while avoiding excessive transmittance losses. The experimental setup for the mode-locked laser Figure 5h uses a compact all-fiber ring cavity pumped by a 980 nm laser diode. Integrating the high-quality MoS₂ film directly into the cavity leverages its nonlinear absorption to initiate and sustain mode-locking, laying the hardware foundation for high-performance ultrafast laser output [109].

The nonlinear optical properties of two-dimensional transition metal dichalcogenides offer the physical basis for passive mode-locking [110]. The nonlinear absorption behavior of MoS₂ is mainly governed by ultrafast carrier relaxation dynamics and multiphoton absorption processes, which directly influence pulse formation, compression capability, and high-power stability [21]. Precisely managing the trade-off between carrier relaxation and nonlinear absorption can effectively improve mode-locking performance and expand its application potential in high-power, narrow-pulse fiber lasers.

3.2.1. Ultrafast Carrier Relaxation Mechanisms

Carrier relaxation in MoS₂ typically involves two distinct timescales: sub-picosecond fast relaxation and picosecond-to-nanosecond slow relaxation. Research indicates that controlling the layer number or introducing defects can tune the relative contributions of these time constants [95]. For instance, few-layer MoS₂ exhibits shorter relaxation times of approximately 200 to 500 fs, facilitating narrower pulse compression. This ultrafast response enables the effective elimination of continuous background light to form stable pulse trains [111].

3.2.2. Material Characterization and Experimental Validation

The nonlinear absorption of MoS₂ primarily manifests as a competition between saturable absorption and reverse saturable absorption. At low optical intensities, the saturable absorption effect dominates, increasing transmittance with intensity. In contrast, at high intensities, nonlinear effects such as two-photon absorption (TPA) may induce RSA. To optimize mode-locking performance, researchers employ doping or heterostructure construction to suppress TPA, thereby broadening the linear dynamic range and maintaining excellent modulation characteristics under high-power conditions [112,113,114].

3.3. Breakthroughs in MoS₂-Based Composite SAs

Single-component MoS₂ materials often face an intrinsic trade-off between modulation depth and damage threshold. To overcome this contradiction, the construction of van der Waals heterostructures has emerged as the mainstream technical pathway for enhancing mode-locking performance.

Despite the significant nonlinear optical response of intrinsic MoS₂, its performance remains limited by the intrinsic band structure and interlayer coupling, particularly regarding modulation depth, damage threshold, and carrier relaxation time [105]. To address these limitations, composite structural designs based on band engineering and interfacial modulation have become core strategies for enhancing MoS₂-based SAs [115,116,117,118]. As illustrated in Figure 6, mainstream composite configurations include pristine MoS₂ as a reference, the layered stacking of MoS₂/graphene van der Waals heterostructures, MoS₂ embedded within a polymer matrix [119], and hierarchical plasmon-enhanced MoS₂ architectures. This section reviews recent advances in synergistically optimizing mode-locking performance through heterostructures, polymer composites, and plasmonic enhancement.

Different design strategies yield varying degrees of performance enhancement. For MoS₂/graphene systems, Sun X.D. et al. observed that interfacial charge transfer significantly amplifies the nonlinear optical response [96]. The modulation depth of this heterostructure increased by approximately 30% compared to pristine MoS₂, with carrier relaxation times reduced to below 500 fs. In MoS₂/BP systems, Xue Y. et al. utilized the narrow bandgap of BP to extend the operational wavelength [120]. This heterostructure not only achieved Q-switching at 2.0 μm but also nearly doubled the nonlinear absorption coefficient relative to pristine BP, Furthermore, ultrafast carrier dynamics studies of BP/MoS2 heterostructures have revealed rapid charge transfer and efficient carrier relaxation processes that underpin the feasibility of such composite SAs for high-speed photonic applications [121]. These findings demonstrate that composite structures can resolve the performance bottlenecks of single materials in specific spectral bands or under high-power conditions.

3.3.1. Two-Dimensional Material Heterostructures

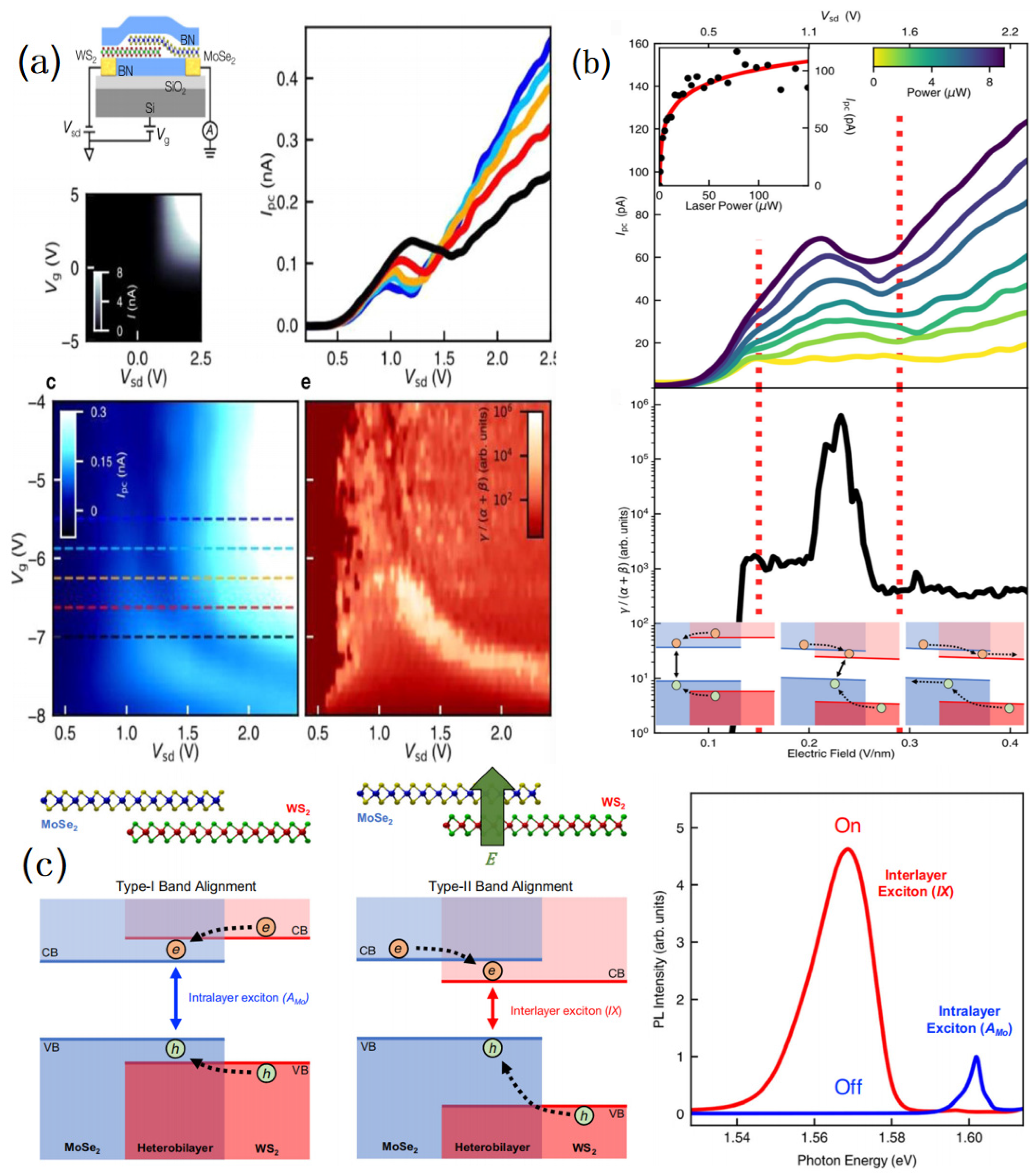

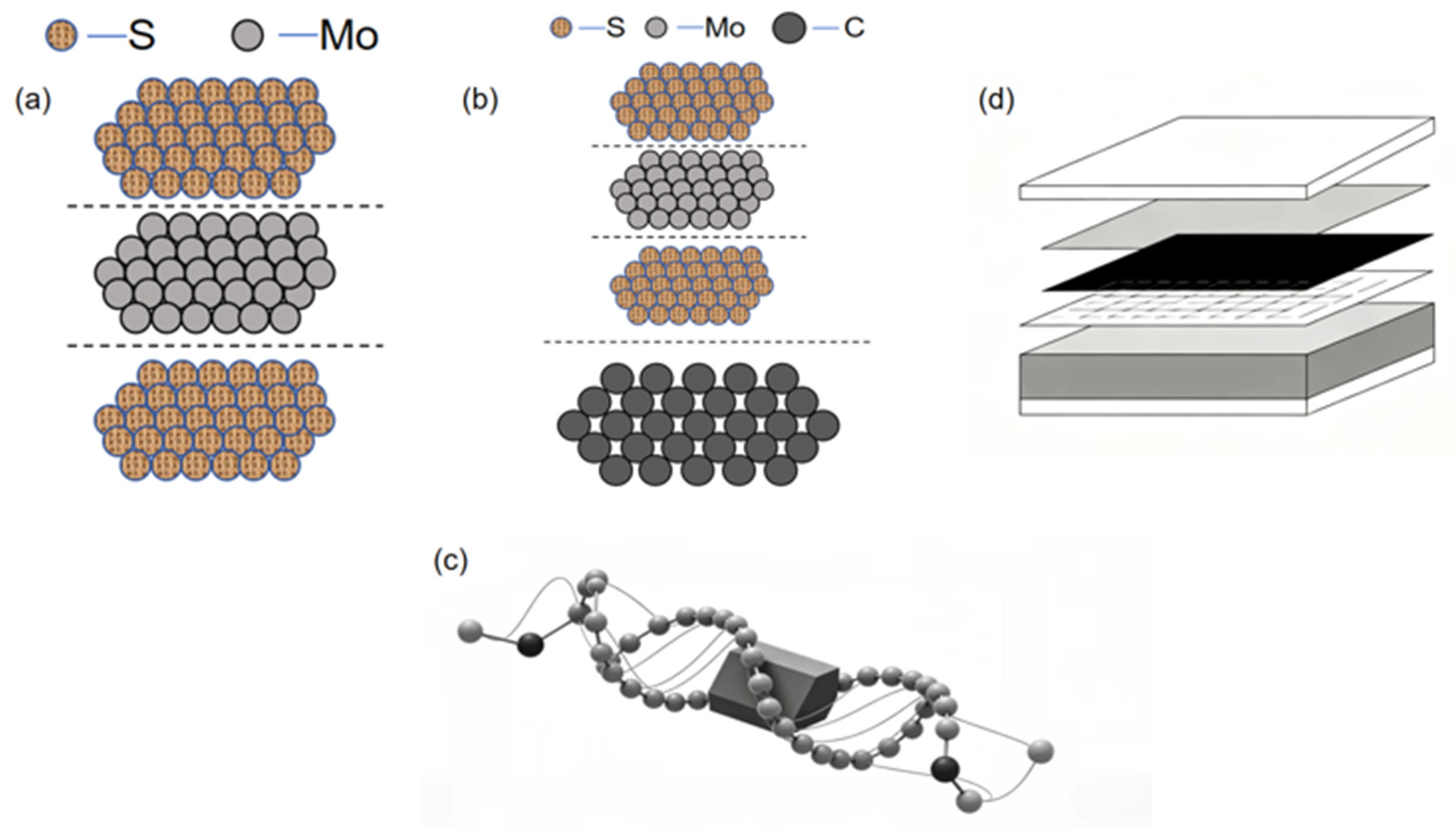

The formation of conventional and dissipative solitons relies on the synergy of dispersion, nonlinearity, gain, and loss. Heterostructure design can further suppress multi-soliton competition and enhance pulse stability [122,123]. The MoS₂/graphene heterostructure combines the strong light–matter interaction of MoS₂ with the ultra-broadband response of graphene. Interfacial charge transfer effectively modulates the Fermi level, optimizing saturable absorption and improving mode-locking stability [24,124,125,126]. Experimental data indicate that lasers utilizing this heterostructure achieve stable mode-locking with pulse widths as short as −837 fs at 1.55 μm, with a modulation depth of 12.4% [127].

For mid-infrared applications, the MoS₂/BP heterostructure leverages the tunable bandgap of BP for efficient mode-locking at 2 μm [120]. MoS₂ serves as a protective layer to prevent the environmental degradation of BP. Moreover, the favorable band alignment facilitates photogenerated carrier separation, accelerating carrier relaxation and enabling narrower pulses. The nonlinear absorption coefficient of this heterostructure is nearly twice that of pristine BP [128]. Heterostructures combining MoS₂ with other transition metal dichalcogenides, such as WS₂ or MoSe₂, also exhibit superior performance. Variations in band structure and carrier mobility allow for band matching and synergistic optimization of carrier dynamics, further enhancing nonlinear optical responses [129,130].

3.3.2. MoS₂/Polymer Composites

Dispersing MoS₂ nanosheets in polymer matrices, such as polymethyl methacrylate or polyvinyl alcohol, yields mechanically robust and easily integrable composite films. The polymer matrix prevents nanosheet agglomeration and assists in suppressing background noise through optical limiting effects. Crucially, the high thermal conductivity and mechanical strength of the polymer significantly improve the damage threshold of the SA [74]. Experimental results show that MoS₂/PVA composite films achieve a damage threshold of 1.2 GW/cm², representing a fivefold increase over pristine MoS₂ films [63]. These composites maintain excellent nonlinear absorption while offering flexibility and processability for fiber device integration, enabling stable nanosecond pulse generation at 1.0 μm with superior long-term operational stability.

3.3.3. MoS₂/Metal Nanostructure Composites

Integrating MoS₂ with metallic nanostructures, such as gold or silver nanoparticles, exploits surface plasmon resonance to enhance light–matter interactions [114]. The SPR effect generates intense localized electromagnetic fields, significantly amplifying the nonlinear absorption coefficient of MoS₂. Studies indicate that MoS₂/Au nanoparticle composites exhibit a nonlinear absorption coefficient approximately one order of magnitude higher than pristine MoS₂ [131]. Lasers based on these plasmonic composites achieve mode-locking at reduced pump thresholds. Notably, the SPR effect modulates carrier dynamics in MoS₂, accelerating carrier relaxation and facilitating the generation of narrower pulses [132].

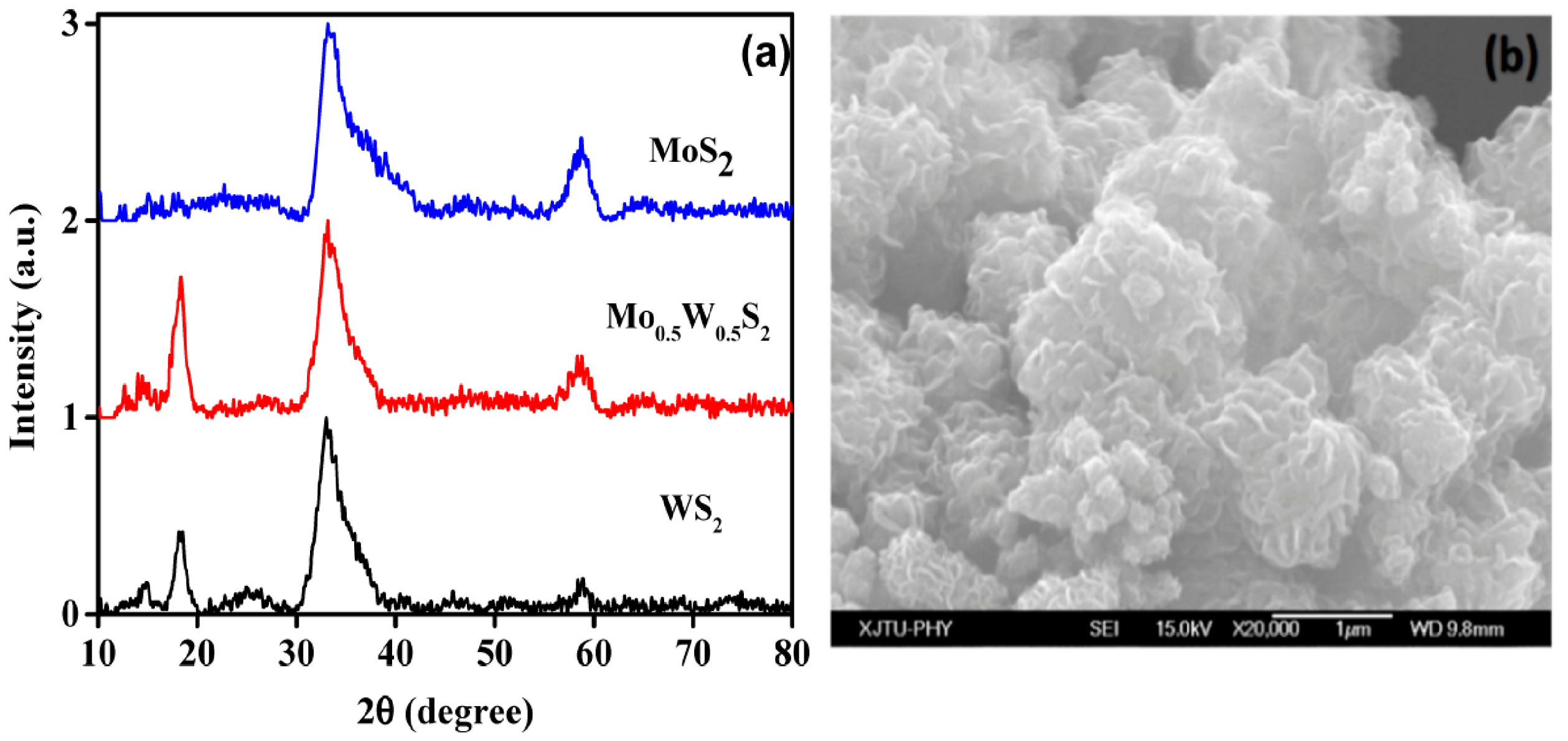

As illustrated in Figure 7, the successful synthesis of Mo_0.5W_0.5S₂ alloys not only validates the feasibility of tuning lattice structures via alloying but also exhibits a distinctive hierarchical flower-like morphology. This unique architecture synergistically boosts nonlinear optical performance. The flower-like structure significantly increases the specific surface area, providing abundant active sites for light–matter interactions. Concurrently, lattice constant variations confirmed by X-ray diffraction effectively modulate the band structure and optimize carrier dynamics. Compared to pristine MoS₂, this alloyed system leverages synergistic elemental effects to substantially enhance the nonlinear absorption coefficient and accelerate carrier relaxation. These attributes are critical for achieving low-threshold, ultrashort-pulse laser generation. Such structural characteristics further highlight the core value of transition metal dichalcogenide alloying strategies in overcoming the performance bottlenecks of single materials, offering novel structural paradigms for developing highly efficient SAs for ultrafast lasers [133].

Collectively, constructing heterogeneous and composite structures can effectively overcome the intrinsic limitations of pristine MoS₂, achieving synergistic performance enhancement and providing an effective pathway for developing high-performance MoS₂ SAs. Furthermore, integrating dispersion management, polarization optimization, and intrinsic parameter modification of SAs enables multidimensional improvements in mode-locking performance, offering universal strategies for the design of high-performance ultrafast lasers [134,135,136]. Future research should focus on exploring advanced hybrid architectures and composite architectures and elucidating their underlying physical mechanisms to achieve superior mode-locking performance.

Table 3. Performance Comparison of Different MoS₂-Based Composite SAs.

Composite Structure Type	Modulation Depth (%)	Saturation Intensity (MW/cm2)	Damage Threshold (GW/cm2)	Response Time (ps/fs)	Operating Band (nm)	Measurement Conditions (Wavelength/Pulse Width)	References
MoS2/Graphene Heterostructure	5.8–6.5	15–25	>1.5	<500 fs	1000/1550	Z-scan @ 800 nm, ~140 fs; Mode-locking @ 1064 nm, ~350 fs	[96,127]
MoS2/BP	4.2–5.0	10–18	0.3–0.5	<300 fs	2000	Q-switching @ 1094 nm, ~100 ns; Mode-locking @ 2000 nm, ps regime	[24,120,121,122,123,124,125,126,127,128]
MoS2/Polymer	2.5–3.8	20–40	>1.2	0.5–1.0 ps	1000/1550	Mode-locking @ 1550 nm, ~500 fs	[74]
MoS2/Metal Plasmonic	>8.0	<10	0.2–0.4	<200 fs	1550	Z-scan @ 800 nm, ~100 fs; Mode-locking @ 1550 nm, ~200 fs	[131,132]
Mo0.5W0.5S2 Alloy	3.5–4.5	20–40	>1.2	0.5–1.0 ps	1000/1550	Q-switching @ 1550 nm, ~800 fs	[133]

General notes: Z-scan, open-aperture Z-scan technique; Q-switching, passively Q-switched operation; Mode-locking, passively mode-locked operation.

summaries the performance comparison of different MoS₂-based composite SAs. The data highlights that constructing composite structures effectively tunes nonlinear optical properties. Specifically, MoS₂/Graphene heterostructures offer ultrafast response for ultrashort pulse lasers, while MoS₂/BP composites extend operation to the mid-infrared (2.0 µm). Polymer encapsulation enhances environmental stability for all-fiber integration, and plasmonic nanostructures significantly reduce saturation intensity (<10 MW/cm²), facilitating low-threshold mode-locking. These strategies demonstrate that interface engineering can overcome the bottlenecks of pristine MoS₂.

4. Application Comparison and Prospects of Carbon Nanotube and MoS₂ SAs

Carbon nanotubes and molybdenum disulfide serve as representative nonlinear optical materials, both demonstrating unique advantages as SAs in mode-locked fiber lasers. However, they exhibit significant differences in physical mechanisms, performance parameters, and application scenarios. From a material perspective, CNTs have been a mainstream choice for passive mode-locking since the 1990s due to their exceptional mechanical strength, thermal conductivity, broadband absorption, and mature fabrication processes, making them dominant in industrial high-power applications. In contrast, MoS₂ has emerged as a prominent two-dimensional material in the post-graphene era. Characterized by its atomic thickness, tunable bandgap, and strong light–matter interaction, it has shown unique potential in ultrafast photonics, particularly in mid-infrared bands and femtosecond pulse generation [137,138].

From a technological evolution perspective, CNT technology has reached maturity with clear device integration pathways and controllable costs. However, constrained by intrinsic nonlinear refractive indices and damage thresholds, CNTs are gradually encountering physical bottlenecks in extreme power or ultrashort pulse scenarios. In contrast, MoS₂ is currently in a phase of technological breakthrough. Through heterostructure design, polymer composites, and surface plasmon modulation, its performance boundaries are continuously expanding. Although optimization in scalable fabrication and long-term stability is still required, its irreplaceability in emerging application scenarios has become increasingly prominent.

4.1. Application Scenarios and Value Comparison Across Different Wavelength Bands

In practical applications of mode-locked fiber lasers, the operating wavelength directly determines the value and feasibility of the application scenarios. MoS₂ and CNTs exhibit distinct performance characteristics and application prospects at 1.0 µm, 1.5 µm, and 2.0 µm bands.

At the 1.0 µm band, which primarily corresponds to ytterbium-doped fiber lasers for ultrashort pulse generation and micro–nano processing, CNT SAs demonstrate outstanding advantages. Benefiting from mature fabrication processes, they achieve stable picosecond-level mode-locked output and are widely used in fundamental research and medium-power industrial marking [28,139]. The advantage of MoS₂ SAs lies in their sub-picosecond carrier relaxation time at this band, enabling lasers to surpass the picosecond limit and achieve femtosecond pulse output. For instance, MoS₂ saturable absorbers based on side-polished fiber or fiber-ended deposition structures have successfully realized passive mode-locking in fiber lasers [140,141]. In precision micro-processing scenarios requiring extreme temporal resolution, MoS₂ exhibits higher application value than CNTs due to its narrower pulse width and smaller heat-affected zone [132].

At the 1.5 µm band, the standard window for fiber communication systems and a critical region for high-power fiber lasers, CNTs remain the traditional dominant choice. Their high damage threshold and excellent chemical stability make them the preferred solution for high-power industrial processing and long-distance optical communication systems due to their maturity and reliability [142,143]. MoS₂ faces challenges at this band, primarily its relatively low damage threshold and susceptibility to environmental influences such as oxidation and defect-mediated degradation [144,145]. However, owing to its exceptionally high nonlinear absorption coefficient and layer-tunable bandgap, MoS₂ provides superior modulation depth and more stable mode-locking states in scenarios demanding extreme pulse quality rather than extreme power. Through composite structures such as MoS₂-polymer hybrids, MoS₂ is progressively closing the gap with CNTs in power handling capacity [23,92,146,147,148,149].

At the 2.0 µm band, located in the eye-safe region and corresponding to strong absorption bands of water and organic molecules, it serves as a critical window for biomedicine and gas sensing. Narrow-gap materials such as CNTs and black phosphorus possess intrinsic absorption advantages at this wavelength due to their naturally matched bandgaps. In contrast, the photon energy at 2.0 µm (~0.62 eV) lies well below the direct bandgap of monolayer MoS₂ (~1.8 eV); therefore, its saturable absorption in this band does not originate from resonant interband transitions, but is instead attributed to defect-/edge-state-mediated sub-bandgap absorption and two-photon absorption processes, as evidenced by giant near-infrared TPA coefficients in monolayer MoS₂ [22], enhanced TPA via sulfur vacancy engineering [150], picosecond-scale defect-assisted carrier capture dynamics [95], and strain/electric-field tunability of two-photon absorption thresholds [151]. While MoS₂ does not offer intrinsic superiority over narrow-gap alternatives at 2.0 µm, it presents competitive broadband applicability owing to its robust environmental stability, ease of all-fiber integration, and scalable preparation—advantages that complement the higher intrinsic nonlinearity of CNTs and BP. In frontier fields such as optical coherence tomography, minimally invasive surgery, and mid-infrared gas detection, MoS₂-based SAs thus serve as a viable and practically advantageous option for mode-locked light sources in this band, particularly where device reliability and integration convenience are prioritized [152,153].

4.2. Application Evolution of MoS₂ and CNT SAs in Mode-Locked Lasers

At the core device level of mode-locked fiber lasers, CNTs and MoS₂ exhibit significant complementarity and competition in physical mechanisms and performance. Specifically for MoS₂, two-dimensional transition metal dichalcogenides demonstrate unique application potential in nonlinear photonics due to band structure evolution induced by quantum confinement effects. As a typical representative, monolayer MoS₂ possesses a direct bandgap of approximately 1.8 to 1.9 eV, triggering strong excitonic resonance effects and significant nonlinear optical responses [154]. As shown in Figure 8, comprehensive characterization of the as-prepared MoS2 nanomaterials directly validates these structural and optical properties: the scanning electron microscopy image Figure 8a clearly depicts the layered stacking morphology of the MoS₂ nanoplatelets, confirming the characteristic two-dimensional layered architecture; the X-ray diffraction pattern Figure 8b confirms the hexagonal crystal structure of the exfoliated MoS₂, consistent with the highly ordered hexagonal lattice arrangements and the interlayer van der Waals spacing precisely locked at 0.62 nm [155]; the atomic force microscopy topography and corresponding height profile Figure 8c quantitatively reveal a nanosheet thickness of approximately 9.2 nm, indicating a multilayer structure that preserves the van der Waals interlayer stacking while maintaining the nonlinear optical response governed by quantum confinement. Optical measurements indicate excellent broadband absorption from visible to near-infrared regions, with A and B exciton peaks located at 632 nm and 675 nm, respectively, as directly evidenced by the UV-Vis-NIR absorption spectrum Figure 8d, and corresponding absorption coefficients reaching the order of 10⁵. Its ultrafast carrier dynamics are dominated by defect-assisted Auger recombination mechanisms, with relaxation time constants as low as the sub-picosecond scale [156], providing a physical foundation for efficient femtosecond mode-locking. Notably, a low saturation intensity threshold of 5 to 10 MW/cm² and a modulation depth of 10% to 15% grant it significant competitive advantages in low-power laser systems. These intrinsic physical parameters and microstructural characteristics collectively determine the application potential of MoS₂ as a high-performance SA.

4.2.1. Physical Mechanisms and Advantages of CNTs and MoS₂

As a one-dimensional quantum material, the nonlinear optical properties of carbon nanotubes (CNTs) primarily originate from their unique band structure and high electron mobility. In practical applications, CNTs exhibit an exceptionally high modulation depth, typically ranging from 10% to 20%, providing inherent advantages in suppressing continuous-wave lasing and maintaining pulse stability [143]. Moreover, the outstanding mechanical strength and thermal conductivity of CNTs endow them with a high damage threshold, enabling them to withstand high-power laser fluxes at the watt level. Consequently, they have been widely adopted in industrial-grade high-power fiber lasers [158,159]. However, the bandgap of CNTs is strictly constrained by their diameter and chirality. Although broadband absorption can be achieved by mixing tubes of different chiralities, absorption efficiency significantly degrades at specific wavelengths. Furthermore, the nonlinear response speed of CNTs is limited by carrier-phonon scattering processes, typically occurring on the picosecond scale, which makes it challenging to meet the extreme requirements for femtosecond pulse generation [160,161].

In contrast, molybdenum disulfide, as a typical two-dimensional transition metal dichalcogenide, exhibits strongly layer-dependent physical properties. Comprehensive characterizations reveal the correlation between its microstructure and optical characteristics. Morphological and thickness analyses via scanning electron microscopy and atomic force microscopy confirm that exfoliated MoS₂ nanosheets possess a layered stacking structure with a thickness of approximately 9.2 nm. This few-layer structure induces an indirect-to-direct bandgap transition, thereby generating a strong excitonic effect. Crystallographic analysis via X-ray diffraction displays distinct characteristic peaks, confirming a well-defined hexagonal crystal structure that serves as the foundation for its superior optoelectronic performance. Optically, ultraviolet-visible-near-infrared absorption spectra exhibit pronounced A and B exciton absorption peaks accompanied by broadband background absorption. The direct bandgap in monolayer or few-layer MoS₂ yields a strong excitonic effect and significant nonlinear optical response, allowing for saturable absorption at low incident optical intensities. This low saturation intensity threshold makes MoS₂ highly suitable for low-power, high-efficiency mode-locked laser designs [162]. The ultrafast carrier dynamics of MoS₂—typically characterized by a primary relaxation component in the 200–500 fs range [20,132]—are central to its function as a saturable absorber. This sub-picosecond recovery enables efficient suppression of continuous-wave (CW) background light and rapid nonlinear modulation of ultrashort pulses, which is essential for stabilizing soliton mode-locking and mitigating Q-switching instabilities. Crucially, the observed recovery kinetics are highly sensitive to structural integrity: in pristine exfoliated nanosheets, defect-assisted Auger recombination dominates, enabling near-ideal sub-500 fs response; in contrast, CVD-grown or hybrid-integrated films often exhibit sulfur vacancies and interfacial trap states that introduce slower (ps-scale) decay components, compromising pulse fidelity and promoting Q-switched instabilities. Thus, the intrinsic ~200–500 fs timescale serves as an upper bound, and the actual performance in laser devices depends critically on defect engineering and interface control [134,163]. Additionally, the bandgap of MoS₂ can be tuned from 1.2 eV to 1.8 eV by adjusting the layer number, offering flexible spectral response ranges from the visible to the near-infrared region [154].

Nevertheless, compared to CNTs, MoS₂ possesses relatively low thermal conductivity, and its atomic-scale thickness renders it highly susceptible to thermal accumulation and structural damage under high-power laser irradiation [161]. This constitutes the primary physical bottleneck restricting its promotion in extreme high-power industrial applications [164]. Moreover, the fabrication process of MoS₂ is highly sensitive to environmental conditions, such as environmental instability caused by sulfur vacancy defects. Its long-term stability still requires improvement compared to mature commercial CNT products [161].

Despite the complementary advantages of individual components, MoS₂/CNT hybrid saturable absorbers face intrinsic limitations that constrain their broader adoption. First, the damage threshold of the composite remains capped by the heterogeneous interface: while CNTs provide thermal conduction pathways, localized Joule heating at MoS₂-CNT junctions under high repetition rates can trigger irreversible degradation well below the theoretical limit of either constituent. Second, environmental sensitivity persists due to residual sulfur vacancies and adsorbed species at the interface, which act as charge traps and accelerate performance decay under ambient humidity—passivation strategies mitigate but do not eliminate this vulnerability. Third, and most critically, there exists an unavoidable trade-off between modulation depth and insertion loss in hybrid SAs: increasing MoS₂ loading enhances nonlinear modulation but simultaneously raises linear absorption and scattering losses, reducing overall cavity efficiency; conversely, optimizing for low loss compromises self-starting reliability. This fundamental compromise limits the simultaneous achievement of high-energy pulses and robust operation, distinguishing hybrid SAs from idealized theoretical models.

In summary, CNTs and MoS₂ possess distinct advantages as SAs. CNTs remain highly competitive in high-power, long-lifespan industrial applications due to their high damage threshold and mature processing. On the other hand, MoS₂ demonstrates great potential in generating ultrashort pulses, expanding operating wavelength bands, and constructing miniaturized, integrated photonic devices, driven by its ultrafast nonlinear response and tunable band structure. The performance disparities do not represent a simple division of superiority and inferiority but rather point toward distinct technical application scenarios and developmental trajectories.

4.2.2. Composite Structural Design and Interface Engineering

To overcome the thermal damage bottleneck of single materials under high-power laser irradiation, researchers have proposed composite structural design strategies. The core of this strategy lies in utilizing synergistic effects by introducing auxiliary materials with high thermal conductivity or wide bandgaps to compensate for the shortcomings of the host material.

For MoS₂ composite optimization, mixing MoS₂ with high-thermal-conductivity graphene or carbon nanotubes can construct efficient electron and phonon transport channels. For instance, MoS₂/graphene heterostructures not only retain the exceptionally high nonlinear modulation depth of MoS₂ but also utilize the superior thermal conductivity of graphene to rapidly dissipate heat, significantly elevating the device’s damage threshold. Experiments indicate that while maintaining femtosecond-scale carrier relaxation speeds, such composite materials can withstand incident powers three to five times higher than pristine MoS₂ films [39,65,146].

Regarding interfacial modification of CNTs, although CNTs possess high intrinsic thermal conductivity, thermal resistance increases during high-density packing. Modifying the CNT surface with polymers or inorganic dielectric layers can optimize their dispersion on substrates and mitigate the formation of localized hot spots [165].

For universal packaging technologies, utilizing microfibers or planar waveguides as carriers to encapsulate two-dimensional materials within low-loss dielectrics like SiO₂ or Al₂O₃ protects the materials from environmental degradation. Additionally, the strong optical field confinement effect of the waveguide reduces the stringent damage threshold requirements of the materials themselves [44,45].

4.3. Constraints of Intrinsic Material Properties and Breakthroughs via Process Optimization

The core challenge for CNT SAs lies in the uncontrollability of their physical properties. Due to fabrication limitations, commercial CNTs typically exhibit non-uniform distributions in tube diameter, wall number, and chirality. This non-uniformity directly broadens the bandgap distribution of the SA, thereby affecting the pulse stability and signal-to-noise ratio of mode-locked lasers. However, this challenge is being effectively mitigated through advanced separation and purification technologies. Recent advancements in density gradient centrifugation and gel chromatography have enabled the acquisition of high-purity semiconducting CNTs. Moreover, precisely controlling the alignment density and deposition methods of CNTs effectively suppresses undesirable nonlinear backgrounds, significantly enhancing device performance consistency [166].

As a two-dimensional material, the dangling bonds on the surface of MoS₂ make it susceptible to erosion by oxygen and water molecules in atmospheric environments, leading to performance degradation over time. This environmental sensitivity is a primary concern for industrial-grade, long-lifespan applications. Addressing this bottleneck, recent research indicates that interface engineering and heterostructure construction are effective solutions [167]. Constructing van der Waals heterostructures by sandwiching MoS₂ between hexagonal boron nitride layers, or employing atomic layer deposition for surface passivation and encapsulation, can effectively isolate environmental interference and significantly enhance long-term stability. These protection strategies have extended the operational lifespan of MoS₂ devices in laboratory environments several times over.

Both materials share common challenges. In high-power mode-locking applications, both face damage risks induced by thermal accumulation. Although CNTs possess high thermal conductivity, they are prone to localized ablation under high-flux irradiation, whereas the relatively low thermal conductivity of MoS₂ makes thermal management even more challenging. To break through this power limit, composite structural design has become a current research hotspot. Heterojunctions combining topological insulators with MoS₂ can further enhance nonlinear absorption and achieve rapid self-starting, providing new pathways for low-threshold, highly stable mode-locked devices [168]. Analogously, compositing CNTs or MoS₂ with high-thermal-conductivity polymers or graphene not only utilizes the matrix material for auxiliary heat dissipation but also optimizes nonlinear absorption characteristics through interfacial effects. Such hybrid integration significantly improves the damage threshold of SAs, ensuring the stable operation of high-power ultrafast lasers.

Beyond thermal management, achieving large-area, high-yield manufacturing from laboratory to industrialization remains a shared challenge. Traditional micro-mechanical exfoliation cannot meet mass production demands, while direct growth methods face difficulties in integrating with fiber end faces. This challenge is being overcome by novel micro–nano fabrication technologies. For example, combining roll-to-roll transfer technology with chemical vapor deposition has enabled the preparation of centimeter-scale uniform MoS₂ films. For CNTs, in situ growth technologies based on fiber end faces are also maturing. These technological advancements are progressively reducing manufacturing costs and driving the transition of both materials from scientific samples to standardized commercial devices.

5. Summary and Outlook

5.1. Research Status and Core Conclusions

This paper provides a systematic overview of the research progress on MoS₂-based mode-locked fiber lasers, covering three dimensions: intrinsic material properties, SA construction and characterization, and laser performance. The nonlinear optical properties of MoS₂ depend heavily on its layer-dependent band structure [169,170]. Current mainstream preparation techniques include mechanical exfoliation, chemical vapor deposition (CVD), and liquid-phase exfoliation [160,171]. Mechanical exfoliation produces high-quality single crystals, CVD shows greater potential for fabricating large-area films with controllable layer numbers, and liquid-phase exfoliation is advantageous for low-cost, large-scale production of dispersions [57,172].

Regarding SA construction, fiber end-face integration, D-shaped fiber side polishing, and microfiber evanescent field coupling are the dominant integration schemes [158,173]. Characterizations via Z-scan and pump-probe techniques confirm that MoS₂ possesses a low saturation intensity, high modulation depth, and sub-picosecond ultrafast carrier relaxation time, making it a promising candidate for ultrashort pulse generation [163,174,175]. Integrating MoS₂ SAs into fiber laser cavities has successfully achieved stable mode-locking across the 1.0 μm to 2.0 μm spectral range [176]. These lasers generate ultrashort pulses ranging from picoseconds to femtoseconds and demonstrate distinct control capabilities in complex dynamical mechanisms such as multi-wavelength mode-locking and dissipative soliton resonance [177,178,179]. These results demonstrate the potential of MoS₂ as a complementary alternative to traditional SESAMs in low-to-medium power ultrafast fiber lasers, while acknowledging that SESAMs remain the dominant solution for high-power commercial applications.

However, current research faces several critical challenges. Few-layer MoS₂ is prone to environmental degradation under high-power laser irradiation, which limits the long-term stability of devices [144,145,161]. Furthermore, fluctuations in layer uniformity during CVD growth and residual dispersants in liquid-phase exfoliation lead to significant batch-to-batch performance variations in SA devices [160,171]. Additionally, the intrinsically low thermal conductivity of MoS₂ and the thermal lensing effect at the fiber coupling interface limit further improvements in single-pulse energy [164,165].

5.2. Development Trends and Technical Pathways

Based on current research progress and the overall development trends in the two-dimensional materials field, the future evolution of MoS₂-based mode-locked fiber lasers will focus on four key directions: material engineering, integration processes, performance breakthroughs, and application extensions.

In material engineering, the research focus will shift from single-material systems to van der Waals heterostructures. Stacking MoS₂ with hexagonal boron nitride or graphene will achieve environmental isolation and carrier dynamics regulation, further optimizing nonlinear absorption characteristics [180,181,182,183]. In integration processes, all-polarization-maintaining fiber integration will become the core direction for industrial-grade applications. Combining this with advanced micro–nano fabrication technologies to directly grow or transfer MoS₂ onto photonic crystal fibers or integrated photonic chips is expected to enable ultrafast light sources with smaller footprints and higher efficiencies [184,185]. However, realizing these pathways requires overcoming concrete engineering bottlenecks that remain underexplored. First, transferring MoS₂ onto PM fiber end-faces or side-polished surfaces inevitably introduces asymmetric mechanical stress and interfacial contamination, which degrade the polarization extinction ratio and undermine the fundamental advantage of all-PM architectures [186]; stress-compensated bonding and in situ PER monitoring during fabrication are therefore essential but not yet mature. Second, atomic-layer integrity is highly vulnerable during coating and transfer steps: thermal expansion mismatch between MoS₂ and polymer/fiber substrates, combined with capillary forces in wet processing, generates localized strain concentrations that induce micro-cracking and irreversible nonlinear performance loss [187,188]. Third, while advanced integration schemes promise enhanced performance, the field lacks standardized protocols for evaluating SA degradation under realistic operational loads; virtually no studies characterize device evolution under continuous intracavity powers exceeding 100 mW over extended durations [10,92,108], making it impossible to qualify MoS₂ SAs for industrial deployment without establishing community-agreed test standards encompassing accelerated aging, in situ spectral monitoring, and post-mortem morphological analysis [189]. Addressing these specific obstacles is a prerequisite for translating laboratory-scale integration demonstrations into reliable commercial products.

Regarding performance breakthroughs, bandgap engineering approaches such as alloying and strain tuning are expected to extend the operational wavelength of MoS₂-based SAs into the mid-infrared region beyond 2 μm. Concurrently, combining large-mode-area fibers with novel nonlinear management techniques will address high-power thermal management challenges, achieving high single-pulse energy mode-locked output. In application extensions, MoS₂-based mode-locked lasers will transition from laboratory research to practical scenarios including biomedical imaging, precision spectroscopy, and optical communications [5,189]. Developing customized two-dimensional material mode-locked lasers tailored to specific application requirements for pulse width, repetition rate, and wavelength will be instrumental in advancing the industrialization of this technology [190].

5.3. Industrial Viability

The transition of MoS₂-based saturable absorbers from laboratory-scale demonstrations to industrial deployment requires a balanced assessment of manufacturing economics, process scalability, and long-term operational stability—dimensions that are often underemphasized in fundamental studies yet critical for practical adoption. Solution-processed approaches, particularly liquid-phase exfoliation, are widely regarded as promising for scalable production due to their inherent throughput potential relative to CVD or mechanical exfoliation [57]. Nevertheless, realizing this scalability hinges on achieving consistent nanosheet thickness and lateral dimensions across production batches, a challenge that has not been fully resolved. Although CVD produces materials with superior crystallinity, its adaptation to roll-to-roll manufacturing remains constrained by transfer-induced defects and substrate compatibility limitations, as evidenced in wafer-scale growth studies [191].

In terms of industrial scalability, the principal bottleneck resides less in material synthesis itself than in the reproducible integration of MoS₂ SAs into fiber laser cavities with commercially viable yield rates. Solution-based deposition techniques such as inkjet printing present promising pathways for scalable fabrication, as demonstrated for various 2D materials [9]; however, they demand precise regulation of solvent evaporation kinetics and film uniformity to minimize performance variation over large-area substrates, and MoS₂-specific process optimization remains limited. While recent progress in in situ polymerization and direct growth on fiber end-faces has alleviated certain integration challenges, comprehensive process windows tailored for industrial-scale manufacturing have yet to be established.

Long-term reliability exceeding 1000 h constitutes one of the most demanding criteria for industrial qualification, and existing literature offers limited empirical evidence to confirm that MoS₂ SAs can consistently satisfy this benchmark. Short-term stability evaluations (typically <100 h), indicate sufficient robustness under moderate intracavity intensities [192], but accelerated aging data under realistic thermal and optical stress conditions remain sparse. Potential degradation pathways, inferred from general 2D material studies, may include photo-oxidation at edge sites, interfacial delamination driven by cyclic thermal loading, and defect-mediated fatigue of absorption saturation, though direct mechanistic evidence for MoS₂ SAs is still lacking. Encapsulation strategies employing hexagonal boron nitride capping layers have shown promise in enhancing material stability under harsh conditions [193]; however, their capacity to sustain device performance during continuous >1000 h operation at high peak power densities lacks systematic validation. Attaining industrial-grade reliability will thus necessitate not only advances in passivation methodologies but also the development of standardized testing protocols that capture the synergistic effects of optical, thermal, and environmental stressors, drawing upon established multi-stress reliability frameworks for optoelectronic devices [194].
