Article

Synthesis of RuO2-Co3O4 Composite for Efficient Electrocatalytic Oxygen Evolution Reaction

by
Jingchao Zhang
1,*,
Yingping Bu
1,2,
Jia Hao
1,
Wenjun Zhang
1,
Yao Xiao
1,
Naihui Zhao
1,
Renchun Zhang
1 and
Daojun Zhang
1,*
1
Henan Key Laboratory of New Optoelectronic Functional Materials, College of Chemistry and Chemical Engineering, Anyang Normal University, Anyang 455000, China
2
College of Chemistry, Zhengzhou University, Zhengzhou 450001, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2025, 15(17), 1356; https://doi.org/10.3390/nano15171356
Submission received: 23 July 2025 / Revised: 30 August 2025 / Accepted: 1 September 2025 / Published: 3 September 2025
(This article belongs to the Special Issue Nanomaterials for Sustainable Green Energy)
Browse Figures
Versions Notes

Abstract

Among various H2 production methods, splitting water using renewable electricity for H2 production is regarded as a promising approach due to its high efficiency and zero carbon emissions. The oxygen evolution reaction (OER) is an important part of splitting water, but also the main bottleneck. The anodic oxygen evolution reaction (OER) for water electrolysis technology involves multi-electron/proton transfer and has sluggish reaction kinetics, which is the key obstacle to the overall efficiency of electrolyzing water. Therefore, it is necessary to develop highly efficient and cheap OER electrocatalysts to drive overall water splitting. Herein, a series of efficient RuO2-Co3O4 composites were synthesized via a straightforward three-step process comprising solvothermal synthesis, ion exchange, and calcination. The results indicate that using 10 mg of RuCl3·xH2O and 15 mg of Co-MOF precursor in the second ion exchange step is the most effective way to acquire the Co3O4-RuO2-10 (RCO-10) composite with the largest specific area and the best electrocatalytic performance after the calcination process. The optimal Co3O4-RuO2-10 composite powder catalyst displays low overpotential (η10 = 272 mV), a small Tafel slope (64.64 mV dec−1), and good electrochemical stability in alkaline electrolyte; the overall performance of Co3O4-RuO2-10 surpasses that of many related cobalt-based oxide catalysts. Furthermore, through integration with a carbon cloth substrate, Co3O4-RuO2-10/CC can be directly used as a self-supporting electrode with high stability. This work presents a straightforward method to design Co3O4-RuO2 composite array catalysts for high-performance electrocatalytic OER performance.

1. Introduction

Among various H2 production methods, using renewable electricity for green H2 production is considered a promising approach due to its high efficiency and zero carbon emissions [1,2,3,4,5,6,7]. During the process of electrolyzing water, the anodic oxygen evolution reaction (OER) forms the main energy barrier, which is much higher than that of the cathode hydrogen evolution reaction (HER) [8,9,10,11,12]. Notably, OER possesses sluggish reaction kinetics and involves multi-electron/proton transfer and is the key obstacle to the overall efficiency of electrolyzing water [13,14,15,16,17,18]. Exploring OER catalysts with high activity and stability can provide an effective solution to these problems [19,20]. Hence, it is necessary to develop low-cost and high-performance OER electrocatalysts to drive overall water splitting.
At present, the precious metal oxides IrO2 and RuO2 are considered benchmark OER catalysts due to their high activity over the entire pH range [21,22,23]. However, noble metal Ir-based catalysts cannot be widely applied in the industrial field due to their prohibitive cost and limited resources [24,25,26]. Therefore, it is urgently necessary to explore new and efficient non-noble metal or low-content noble metal catalysts with relatively low cost. Among the platinum group elements, ruthenium is widely used as the cheapest noble metal [27,28]. Considering that Ru costs approximately one-sixth the price of Ir and has better intrinsic activity, there are great research prospects for Ru-based nanomaterials in acidic or alkaline water electrolyzers. However, the stability of RuO2 is not satisfactory in either acidic or alkaline electrolytes due to the inevitable corrosion and dissolution in the form of high-valence Run>4+ species. Recently, Du et al. reported that the design of interface engineering of RuO2/CoOx can stabilize RuO2 [29]. Jiang’s group explored a NimRunOx-C catalyst with excessive nickel (m > n), which can protect Ru and exhibit stable performance for OER [30]. Thus, it can be predicted that immobilizing Ru species in transition-metal oxide matrices can greatly improve the stability of RuO2.
Transition-metal oxide (TMO) electrocatalysts have attracted much attention due to their advantages of abundant reserves, low cost, and robust electrochemical performance in an alkaline medium [31,32,33,34,35,36,37]. In particular, the spinel Co3O4 structure of cobalt oxide catalysts consists of two types of Co sites and multiple oxidation valent states; Co3O4 micro-nanostructure catalysts show moderate adsorption energies for OER intermediates and exhibit high OER catalytic activities in alkaline electrolytes [38,39]. Moreover, the OER properties of Co3O4 can be regulated via the incorporation of secondary noble metal oxides [40,41,42]. According to previous reports, doping noble metal materials into cobalt-based oxides can alter the intrinsic electronic structure of catalysts, thereby improving catalytic activity [43,44,45,46,47]. In addition, cobalt oxides derived from metal-organic framework (MOF) precursors play a crucial role in electrocatalytic fields such as oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) due to their large specific surface area and porosity [48,49,50,51,52,53].
In this work, MOF-derived RuO2-Co3O4 (RCO) powder and its array catalyst were fabricated using a simple three-step synthesis method, and their electrocatalytic OER performance was characterized. The optimal RuO2-Co3O4-10 sample not only has a stable structure but also exhibits a large BET specific surface area (89.20 m2g−1). The electrocatalytic performance of the RuO2-Co3O4-10 was tested by placing the sample in 1 M KOH solution: it exhibited low overpotential (η10 = 272 mV) and small Tafel slope (64.64 mV dec−1). The stability of the electrode material was tested using the constant current method, and the potential change in the RuO2-Co3O4-10-modified electrode was negligible during the stability test, which lasted for 5 h. To overcome the limitation of the long-term stability test, Co3O4/RuO2-10 composite was grown on carbon cloth (RCO-10/CC) using the same method. Compared to the Co3O4/RuO2-10 sample, the as-synthesized RuO2-Co3O4-10/CC electrode exhibits a lower overpotential of 262 mV and demonstrates outstanding long-term durability over 24 h. This work presents a straightforward method to design RuO2-Co3O4 composite array catalysts for high-performance electrocatalytic OER performance.

2. Experimental Section

2.1. Chemicals

Co(NO3)2·6H2O, C16H36BrN, CO(NH2)2, ethanol, and potassium hydroxide (KOH) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China); 1,3,5-benzenetricarboxylate, RuCl3·xH2O, and Nafion were obtained from Aladdin Industrial Corporation (Shanghai, China). In this work, all chemicals were AR grade and directly used without further purification.

2.2. Preparation of Samples

Synthesis of Co-MOF powder precursor: Firstly, 1.2 g of urea, 0.1 g of tetrabutylammonium bromide, 0.1 mmol of Co(NO3)2·6H2O, and 0.1 mmol of 1,3,5-benzenetricarboxylate were sequentially added to a 20 mL reaction vessel liner and dispersed in a mixed solution of 10 mL of H2O and 5 mL of 75% ethanol. The reaction mixture was stirred for 40 min until the solution became transparent. Afterwards, the reaction kettle was placed in an oven at 100 °C and maintained for 12 h. Then, the obtained product was washed three times with water and ethanol, then Co-MOF precursors were collected by centrifugation and dried under vacuum conditions.
Synthesis of RuCo-MOFs powder: 15 mg of Co-MOF was separately dispersed in a mixed solution of 10 mL H2O and 5 mL 75% ethanol containing 5, 10, or 15 mg of RuCl3·xH2O with vigorous stirring. An hour later, the brownish black suspension was centrifuged and dried in an oven at 60 °C to obtain RuCo-MOF-5, RuCo-MOF-10, and RuCo-MOF-15.
Preparation of RuO2-Co3O4 composite powder sample: RuCo-MOF-10 precursor was heated to 350 °C in a furnace at a rate of 2 °C min−1 and then kept for 2 h to obtain the final RuO2-Co3O4-10 (RCO-10) sample. Under the same calcination conditions, Co-MOF, RuCo-MOF-5, and RuCo-MOF-15 precursors could yield the products Co3O4 (CO), RuO2-Co3O4-5 (RCO-5), and RuO2-Co3O4-15 (RCO-15), respectively.
Preparation of Co3O4-RuO2-10/CC composite self-supported electrode: A piece of hydrophilic carbon cloth (CC) of 1 cm × 2.5 cm was separately rinsed in a 3 M HCl solution, deionized water, and ethanol. Initially, Co-MOF/CC was obtained with the same synthesis step used for the Co-MOF powder precursor, except that the carbon cloth was added after the reaction mixture was stirred evenly and the reaction conditions remained unchanged. The pink Co-MOF/CC was washed with water and ethanol, then dried at 80 °C for 12 h. The average loading mass is ~4 mg cm−2. Subsequently, the RuCo-MOF-10/CC was obtained by immersing Co-MOF/CC in a H2O and ethanol (75%) mixture (H2O/ethanol = 2:1) containing 6.7 mg RuCl3·xH2O and just holding for 1 h at room temperature. The brown RuCo-MOF-10/CC was dried and calcined at 350 °C for 2 h to produce the Co3O4-RuO2-10/CC composite self-supporting electrocatalyst.

2.3. Material Characterization

High-resolution field-emission scanning electron microscopy (FE-SEM, Hitachi SU8010, Tokyo, Japan) and field-emission transmission electron microscopy (TEM, Tecnai G2S Twin F20, FEI, Hillsboro, OR, USA) were used to analyze the morphology and structure of the synthesized samples. The crystal structure and phase composition of the samples were all studied on an X-ray powder diffractometer (XRD, PANalytical X’ Pert operated at 40 kV and 40 mA) with a step size of 0.05252° and 194 s per step. The chemical valence state and surface elemental composition of the samples were analyzed via X-ray photoelectron spectroscopy (XPS, Thermo Scientific K-Alpha, McMurdo, Antarctica, USA). The elemental distribution of the sample was characterized on a X-ray energy spectrometer (EDX, XFlash Detector, Bruker, Berlin, Germany). The specific surface area and pore size of the samples were determined using a fully automated rapid specific surface area and porosity analyzer (BET, Gemini VII 2390, Micromeritics Instrument Corporation, Norcross, GA, USA).

2.4. Electrode Preparation and Electrochemical Measurements

All electrochemical measurements were conducted on an electrochemical workstation (CHI 760E, Chenhua, Shanghai, China) using a three-electrode system at room temperature. The Hg/HgO electrode is used as the reference electrode, platinum wire is used as the counter electrode, and the glassy carbon electrode (0.196 cm2) of the rotating disk electrode (RDE) is used as the working electrode. The working electrode was prepared as follows: 5 mg of catalyst was dispersed in a mixed solution of 700 μL distilled H2O, 250 μL isopropanol, and 50 μL Nafion (5 wt%), and the mixed solution was sonicated for 30 min to obtain a uniform ink. Then, we used a pipette to take 10 μL of ink and evenly drop it onto the surface of the dry RDE.
For the OER tests, the powder samples were placed in alkaline electrolyte (1 M KOH solution). Before electrochemical testing, O2 needs to be introduced into KOH solution for at least 30 min to ensure that the electrolyte is in an oxygen-saturated state [54]. Firstly, 20 cycles of cyclic voltammetry curves (CVs) were performed at a scan rate of 20 mV s−1 and a voltage range of 0–0.3 V (vs. Hg/HgO) to stabilize the electrode surface. Afterwards, linear sweep voltammetry (LSV) curves and Tafel plot tests were performed at a scan rate of 5 mV s−1. The Tafel slope values were obtained by fitting the Tafel plot curves via the equation η = a + b log j, where η, j, and b correspond to the overpotential, current density, and Tafel slope, respectively [55]. CV measurements were conducted at different scan rates (10–100 mV s−1) in the non-Faraday region with a voltage range of 0–0.1 V (vs. Hg/HgO) to determine the Cdl value of the synthesized sample and evaluate the ECSA. Electrochemical impedance spectroscopy (EIS) is tested under open circuit voltage with a range of 0.1–106 Hz. The stability of the sample was evaluated using the constant current method. For the Co3O4-RuO2-10/CC self-standing electrode, the geometrical area immersed in electrolyte is 1 cm2. During the testing process, iR compensation was not performed and all tests were conducted at room temperature [56]. All potentials are converted vs. RHE according to the formula ERHE = EHg/HgO + 0.098 + 0.059 × pH.

3. Results and Discussion

The synthesis route of the RuO2-Co3O4 composite sample is shown in Figure 1. RuO2-Co3O4 layered arrays were successfully prepared using a straightforward three-step method. Firstly, metal/organic framework (MOF) precursors were synthesized using the solvothermal method at 100 °C for 12 h. Afterwards, the precursor powder was added to a mixed RuCl3·xH2O solution of H2O and ethanol, and stirred thoroughly at room temperature for 1 h to introduce Ru3+ into the MOF precursors. Finally, it was calcined at 350 °C for 2 h to obtain the target product. The Co3O4-RuO2-10/CC integrated electrode was synthesized using the same approach, except that carbon cloth was added in the first step.
The phase composition and crystal structure of the sample were analyzed using PXRD. Figure 2 shows the PXRD and JCPDS standard patterns of the Co3O4 and Co3O4-RuO2 series samples. The diffraction peaks of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 at 19.0°, 31.3°, 36.8°, 38.5°, 44.8°, 55.6°, 59.3°, and 65.2° are attributed to the (111), (220), (311), (222), (400), (422), (511), and (440) crystal planes of Co3O4 (JCPDS No.: 42-1467). The diffraction peaks of RCO-5, RCO-10, and RCO-15 at 28.1°, 35.2°, and 40.2° are attributed to the (110), (101), and (200) crystal planes of RuO2 (JCPDS No.: 21-1172), respectively [57,58]. It can be clearly observed that the diffraction peak of sample Co3O4 (CO) matches pure phase Co3O4, while the series of samples RCO-5, RCO-10, and RCO-15 containing the Ru element exhibit both Co3O4 and RuO2 diffraction peaks. Furthermore, both Co3O4 and RuO2 diffraction peaks were broad, suggesting the presence of small nanoparticles in the composite. The following pattern can also be observed: as the content of added Ru3+ ion gradually increases, the diffraction peaks corresponding to Co3O4 show a gradual weakening, while the diffraction peaks of RuO2 show a strengthened trend. This indicates the successful introduction of Ru3+ ions into the MOF precursors.
The morphology and structure of the synthesized Co-MOFs were studied by using FE-SEM and XRD (Figure S1). Figure 3a–d show the SEM images of the precursors of Co-MOF, RuCo-MOF-5, RuCo-MOF-10, and RuCo-MOF-15, respectively. The enlarged image in the upper right corner indicates that the morphology of the RuCo-MOF series samples is a layered structure of nanosheets stacked together. The addition of an appropriate RuCl3·xH2O solution did not significantly influence the morphology, but excessive RuCl3·xH2O addition can damage the original morphology and structure.
Figure 3e–h show SEM images of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 generated from the precursor after calcination at 350 °C for 2 h. After calcination, a small portion of thin broken nanosheets was observed to adhere to the layered structure, but the overall morphology remained intact. Based on the enlarged SEM image, it can be observed that the nanosheets of Co3O4 are tightly arranged, while the introduction of Ru3+ results in a fan-shaped scattering of the layered structure, which can increase the effective specific surface area. The unique morphology structure is conducive to providing a larger specific surface area with more catalytic active sites and promoting the penetration of the electrolyte in the reaction process. Figure 3i–l show the EDX mapping of Co3O4-RuO2-10, confirming the uniform distribution of Co, Ru, and O elements in the composite sample.
Using EDX to analyze the types and contents of elements for the as-synthesized electrocatalysts. The peak appearing around 1.5 keV is due to the use of an aluminum sample stage, where signal peaks from the substrate are observed during testing in thinner areas of the sample. Figure S2 shows the EDX spectra of all samples. In Figure S2a, the atomic ratio of Co to O is 1:1.48, indicating that the main component of the samples is Co3O4. The atomic ratio Ru:Co:O of Co3O4-RuO2-5 in Figure S2b is 1:13.27:25.11, indicating the presence of Co3O4 and RuO2 components in the sample, and with a higher content of Co3O4. The atomic ratio Ru:Co:O of Co3O4-RuO2-10 in Figure S2c is 1:7.24:11.7, indicating the presence of Co3O4 and RuO2 components in the sample, with a moderate amount of RuO2. The atomic ratio Ru:Co:O of Co3O4-RuO2-15 in Figure S2d is 1:3.66:7.83, indicating the presence of Co3O4 and RuO2 components in the sample, with a higher content of RuO2. All the results are consistent with the PXRD characterization results.
The TEM images in Figure 4a–c show that the Co3O4-RuO2-10 micro-layers were constructed with ultra-thin nanosheets. Furthermore, as shown in Figure 4d, the sintered sample has high crystallinity and a porous structure. The enlarged HRTEM image in Figure 4e clearly shows the heterointerface around the microcrystalline grain boundaries of Co3O4 and RuO2, highlighted by the red dashed line. The lattice spacing of 0.232 and 0.242 nm could be assigned to the (222) and (311) faces of Co3O4, whereas the lattice fringes with spacings of 0.255 nm were assigned to the (101) lattice plane of RuO2 (Figure 4f). The corresponding fast Fourier transform (FFT) pattern in the right part of Figure 4f confirms the polycrystal nature of Co3O4 and RuO2. Furthermore, the high-angle annular dark field (HAADF) STEM-EDX element maps also confirms the successful synthesis of the Co3O4-RuO2 composite (Figure 4g).
The specific surface area and pore size of the synthesized samples were measured using N2 adsorption/desorption isotherms, indicating the presence of abundant mesoporous structures in the samples. In particular, all the Co3O4-RuO2 series catalysts have higher surface areas than Co3O4. Figure 5a–d show the Brunauer–Emmett–Teller (BET) plots of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 powder samples with specific surface areas of 28.25, 53.13, 89.20, and 57.89 m2g−1, respectively. The Co3O4-RuO2-10 exhibits the largest specific surface area among the four samples, which is approximately 3.2 times that of pure Co3O4. The inset graphs of Figure 5a–d show the pore size distribution of the four samples, and the corresponding pore size distribution was also measured using the Barrett–Joyner–Halenda (BJH) method. The concentrated pore sizes of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 are 35.77, 8.49, 13.79, and 28.89 nm, respectively, indicating that the Co3O4-RuO2-10 sample possesses the highest proportion of mesopores in the as-synthesized samples. The surface areas of the Co3O4-RuO2 series catalysts increased with RuO2 loading up to ~12 at.%, then decreased slightly at higher RuO2 values.
Due to its large BET specific surface area and mesoporous structure, the Co3O4-RuO2-10 sample is advantageous in providing more active sites and improving charge transport ability, thereby enhancing electrocatalytic OER efficiency.
We further used XPS to understand the elemental composition and chemical valence state for the as-prepared samples. Figure 6a shows the survey spectra of the Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 samples with the C element used for calibration. It is evident that Co and O elements are present in Co3O4, while Co, O, and Ru elements are present in Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 catalysts, confirming the successful introduction of the Ru element into the structure. From the graph, it can also be observed that as the content of added RuCl3·xH2O increases, the peak of Ru 3p gradually strengthens, which is consistent with the test results of XRD and EDX. Figure 6b shows the high-resolution XPS spectra of Co2p. From Figure 6b, it can be observed that there are two pairs of spin–orbit peaks and one pair of satellite peaks in the Co 2p region of Co3O4-RuO2-10. The two peaks with binding energies of 779.7 and 794.6 eV are attributed to Co 2p3/2 and Co 2p1/2 of Co3+, respectively, while the two peaks with binding energies of 781.5 and 796.3 eV are attributed to Co 2p3/2 and Co 2p1/2 of Co2+, indicating that the Co element exists in a mixed-valence state in the electrocatalyst. In addition, the two peaks with binding energies at 787.2 and 803.4 eV are both satellite peaks (Sat.) [37,38,39]. Compared with other samples, Co3O4-RuO2-10 has the greatest positive shift in the binding energy of Co 2p. This is due to the high electronegativity of the Ru element, which promotes the transfer of electrons from Co3O4 to RuO2 and accumulates more positive charges. The high electronegativity of the Ru element and the interaction between Co and adjacent Ru atoms are key factors in improving the interfacial charge redistribution and can thereby enhance the catalytic activity. Figure 6c shows a high-resolution XPS image of the synthesized Ru 3p sample, with peaks around 463.0 and 485.3 eV attributed to Ru 3p3/2 and Ru 3p1/2, respectively. The binding energy of 463.3 eV (Ru 3p3/2) and 485.6 eV (Ru 3p1/2) was attributed to Rux<4+ and Ru4+, respectively. There is an obvious binding energy shift to lower energies of the Ru 3p3/2 peak in Co3O4-RuO2-10 and Co3O4-RuO2-15 compared to Co3O4-RuO2-5, suggesting that the electron densities of the Ru atomic centers have changed, resulting in electron enrichment on Ru sites and higher content of low-valence ruthenium [29,30,40,59]. Figure 6d shows an O 1s high-resolution XPS image of the synthesized sample; similarly, the O 1s binding energy of the Co3O4-RuO2 series samples also shows a negative shift relative to that of Co3O4.
The peak with a binding energy around 529.6 eV is attributed to M-O bonds (M=Ru, Co, and Ni), the peak with a binding energy around 531.2 eV is attributed to lattice oxygen, and the peak with a binding energy around 532.9 eV is attributed to adsorbed hydroxyl oxygen [60]. The successful introduction of RuO2 and the heterogeneous interfacial synergistic effect are both beneficial for improving the intrinsic OER catalytic performance.
The OER performance of different samples was investigated in 1 M KOH solution saturated with O2 using a standard three-electrode system. In addition, bubbles continuously form on the surface of the catalyst film during the reaction process. To reduce their impact, the rotational speed of the working electrode is always maintained at 1600 r.p.m. during electrochemical testing. Figure 7a shows the polarization curves of all catalysts with a scan rate of 5 mV s−1. The Co3O4-RuO2-10 exhibited excellent OER activity, with an overpotential of 272 mV required to reach 10 mA cm−2. Co3O4, Co3O4-RuO2-5, and Co3O4-RuO2-15 require overpotentials of 399, 331, and 322 mV, respectively, to achieve the same current density.
Analyzing the LSV data reveals that compared to pure Co3O4, the optimized addition of Ru3+ during the second ion exchange step leads to 1.5-fold lower overpotential and 40-fold higher current density. The RuO2-Co3O4 composite samples obtained through calcination of the RuCo-MOF precursor significantly enhance the OER kinetics of catalysts due to electron transfer between the two structures. By examining the OER kinetics through the Tafel plots, as shown in Figure 7b, the Tafel slope of Co3O4-RuO2-10 is 64.64 mV dec−1, which is lower than Co3O4 (77.10 mV dec−1), Co3O4-RuO2-5 (76.73 mV dec−1), and Co3O4-RuO2-15 (71.98 mV dec−1), indicating that Co3O4-RuO2-10 has the fastest OER kinetics among the four samples. Usually, electrochemical impedance spectroscopy (EIS) is used to evaluate the resistivity and conductivity of electrocatalysts. Figure 7c shows the Nyquist plots of all samples measured at open circuit voltage, where the diameter of the semicircle reflects the charge transfer resistance (Rct) between electrocatalyst and electrolyte. It can clearly be seen from the graph that the semicircle diameter of Co3O4-RuO2-10 is the smallest compared to the other samples. The fitted Rct value of Co3O4-RuO2-10 is 2.42 Ω, which is much lower than that of the Co3O4, Co3O4-RuO2-5, and Co3O4-RuO2-15 samples, with Rct values of 8.70, 4.03, and 5.26 Ω, respectively (Table 1). The results suggest that Co3O4-RuO2-10 has a stronger charge transfer ability and faster reaction rate. This is consistent with the test results of LSV and Tafel curves. The results show that if too low or too high a content of Ru3+ added, the optimal catalytic performance will not be obtained. Only introducing an appropriate amount of the Ru element can produce the best OER performance.
In addition, CV measurements were conducted at different scan rates in the non-Faraday region (0–0.1 V vs. Hg/HgO), and Cdl values were obtained by linear-fitting the difference in current density with scan rates to evaluate the electrochemical surface area (ECSA) and its corresponding intrinsic activity. Figure S3a–d show the corresponding CV curves of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 at different scan rates (20, 40, 60, 80, and 100 mV s−1). Figure 7d shows the linear fit between the difference in current density and scan rate. It can be concluded that Co3O4-RuO2-10 has the highest slope, indicating that it has the highest Cdl value of 2.77 mF cm−2. The Cdl values of Co3O4, Co3O4-RuO2-5, and Co3O4-RuO2-15 are 0.29, 1.74, and 1.10 mF cm−2, respectively. This indirectly proves that the Co3O4-RuO2-10 sample has the highest ECSA and OER electrocatalytic activity.
In order to evaluate the long-time stability of Co3O4-RuO2-10 sample with the best electrocatalytic performance, the RuO2-Co3O4-10/CC heterostructure was also prepared in this study for large-scale application as an integrated electrode for the electrocatalytic OER over a long period (Figures S4–S6). Figure 8 confirms that the smaller and thinner nanosheet assemblies are firmly grown on carbon cloth fibers, which helped to guarantee the robust durability of Co3O4-RuO2-10/CC during the OER tests. Firstly, the stability of all powder samples was evaluated using the constant current method (j = 10 mA cm−2) on the RDE. Figure 9a shows the potential changes in Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 within 5 h. There was a significant jump in the potential of Co3O4, Co3O4-RuO2-5, and Co3O4-RuO2-15 during the testing process, which may be due to the detachment of the catalyst film on the RDE surface. Under the same conditions, only Co3O4-RuO2-10 was less affected by bubbles during stability testing at 1600 r.p.m., and the catalyst film on the electrode surface did not detach. The amplitude of potential change was the smallest, demonstrating its good stability. In addition, the η10 and Tafel slope of Co3O4-RuO2-10 (RCO-10) and other transition-metal electrocatalysts for the OER are also compared in Figure 9b. It is noteworthy that RuO2-Co3O4-10 exhibits superior OER performance and durability, which are comparable to the related transition-metal-based electrocatalysts recently reported, and better than that of pure RuO2 (317 mV) and commercial IrO2 catalysts (374 mV) (details in Table S1). Furthermore, Figure 9c and Figure S7 demonstrate that Co3O4-RuO2-10/CC shows a small amplitude increase in activity compared to the Co3O4-RuO2-10 powder catalyst fixed using Nafion, with a lower overpotential of 262 mV at 10 mA cm−2, a small Tafel slope and a minimal charge transfer resistance. Figure 9d shows the chronopotentiometric (CP) responses of Co3O4-RuO2-10/CC at 10 mA cm−2, which display a very low degradation and almost no detachment of the catalyst during the testing process. In addition, the morphology, crystal structure, and composition of the Co3O4-RuO2-10/CC after the stability test are further characterized in Figure S8a–e. In Figure S8a–c, there are no obvious changes in the morphology of Co3O4-RuO2-10/CC. In Figure S8d, the peak intensity at 35.32° for RuO2 shows a slight decrease, which is also supported by the slight reduction in the percentage of Ru atoms in Figure S8e. Therefore, the self-supported Co3O4-RuO2-10/CC helps to maintain the high activity and stability of the catalyst.

4. Conclusions

In this work, a simple solvothermal method was used to prepare Co-MOFs. Then, the Ru element was successfully introduced into the framework through an ion exchange process. Finally, RuCo-MOFs with different Ru contents were calcined at 350 °C to successfully synthesize a series of RuO2-Co3O4 composite samples. A series of phase characterizations were carried out on the optimal material, Co3O4-RuO2-10, and its robust layer structure and large BET specific surface area were key factors in its excellent catalytic performance. The successfully introduced Ru element contributes more electrons to the O element due to its high electronegativity, thus enhancing its electron transfer ability and improving its electrocatalytic activity by adjusting the electronic structure of the catalyst surface. Therefore, compared with the same series of catalysts, Co3O4-RuO2-10 exhibits a lower overpotential (η10 = 272 mV) and smaller Tafel slope (64.64 mV dec−1). Meanwhile, the stability and catalytic performance were substantially enhanced by growing the Co-MOF precursor on carbon cloth and further transforming it into a Co3O4-RuO2-10/CC self-supported electrode. This work may provide a method for the design of transition-metal oxide heterostructures and their application in water electrolysis.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/nano15171356/s1, Figure S1: XRD pattern of Co-MOF precursor; Figure S2: EDX of Co3O4 and Co3O4-RuO2 series samples; Figure S3: (a) CV curves of Co3O4, (b) Co3O4-RuO2-5, (c) Co3O4-RuO2-10, and (d) Co3O4-RuO2-15 at different scan rates (20–100 mV s−1); Figure S4: Digital photos of Co-MOF/CC, RuCo-MOF-10/CC, and Co3O4-RuO2-10/CC; Figure S5: LSV polarization curve of Co3O4-RuO2-10 on RDE with 90% iR-compensation; Figure S6: (a) XRD pattern and (b) EDX of Co3O4-RuO2-10/CC; Figure S7: Tafel slope and Nyquist plot of Co3O4-RuO2-10/CC; Figure S8: (a–c) SEM images, (d) XRD pattern and (e) EDX of Co3O4-RuO2-10/CC after stability tests; Table S1: Comparison of the overpotentials at a current density of 10 mAcm−2 for OER in alkaline electrolyte with the reported transition metal based electrocatalysts.

Author Contributions

Author Conceptualization, D.Z.; Data curation, Y.B., J.H., W.Z. and J.Z.; Formal Analysis, J.Z.; Funding acquisition, D.Z.; Investigation, Y.B., Y.X., N.Z. and J.Z.; Methodology, R.Z. and D.Z.; Project administration, D.Z. and R.Z.; Supervision, D.Z.; Writing—original draft, Y.B. and J.Z.; Writing—review and editing, D.Z. and J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Science Foundation of China (No. 21603004, U1604119), the Science and Technology Research Project of Henan Province (252300420237, 222102240096), and the Foundation of Henan Educational Committee (22A150002).

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Ding, H.; Liu, H.; Chu, W.; Wu, C.; Xie, Y. Structural Transformation of Heterogeneous Materials for Electrocatalytic Oxygen Evolution Reaction. Chem. Rev. 2021, 121, 13174–13212. [Google Scholar] [CrossRef] [PubMed]
  2. Quan, L.; Jiang, H.; Mei, G.L.; Sun, Y.J.; You, B. Bifunctional Electrocatalysts for Overall and Hybrid Water Splitting. Chem. Rev. 2024, 124, 3694–3812. [Google Scholar] [CrossRef] [PubMed]
  3. Gao, X.T.; Zhang, S.; Wang, P.T.; Jaroniec, M.; Zheng, Y.; Qiao, S.Z. Urea catalytic oxidation for energy and environmental applications. Chem. Soc. Rev. 2024, 53, 1552–1591. [Google Scholar] [CrossRef]
  4. Yan, D.F.; Mebrahtu, C.; Wang, S.Y.; Palkovits, R. Innovative Electrochemical Strategies for Hydrogen Production: From Electricity Input to Electricity Output. Angew. Chem. Int. Ed. 2023, 62, e202214333. [Google Scholar] [CrossRef]
  5. Chen, L.; Yu, C.; Dong, J.T.; Han, Y.N.; Huang, H.L.; Li, W.B.; Zhang, Y.F.; Tan, X.Y.; Qiu, J.S. Seawater electrolysis for fuels and chemicals production: Fundamentals, achievements, and perspectives. Chem. Soc. Rev. 2024, 53, 7455–7488. [Google Scholar] [CrossRef]
  6. Li, Y.; Wei, X.F.; Chen, L.S.; Shi, J.L. Electrocatalytic Hydrogen Production Trilogy. Angew. Chem. Int. Ed. 2021, 60, 19550–19571. [Google Scholar] [CrossRef]
  7. Yu, Z.P.; Liu, L.F. Recent Advances in Hybrid Seawater Electrolysis for Hydrogen Production. Adv. Mater. 2024, 36, 2308647. [Google Scholar] [CrossRef]
  8. Liu, X.; Li, Y.Q.; Cao, Z.Y.; Yin, Z.H.; Ma, T.L.; Chen, S.R. Current progress of metal sulfides derived from metal–organic frameworks for advanced electrocatalysis: Potential electrocatalysts with diverse applications. J. Mater. Chem. A 2022, 10, 1617–1641. [Google Scholar] [CrossRef]
  9. Yue, Y.; Zhong, X.Y.; Sun, M.Z.; Du, J.; Gao, W.S.; Hu, W.; Zhao, C.Y.; Li, J.; Huang, B.L.; Li, Z.L.; et al. Fluorine Engineering Induces Phase Transformation in NiCo2O4 for Enhanced Active Motifs Formation in Oxygen Evolution Reaction. Adv. Mater. 2025, 37, 2418058. [Google Scholar] [CrossRef]
  10. Xiao, J.; Huang, T.; Jiang, J.; Feng, Y.; Xu, G.; Zhang, L. Engineering Ru-Complementary Catalytic Centers on Co2P/CoP Heterojunction for Industrial Alkaline Water Electrolysis. Adv. Funct. Mater. 2025, 35, e07040. [Google Scholar] [CrossRef]
  11. Zhou, Y.F.; Mao, Y.; Ye, C.Z.; Wang, Z.Y.; Wei, S.H.; Kennedy, J.V.; Zhao, Y.F.; Yang, H.; Cowie, B.C.C.; Waterhouse, G.I.N. Ru Single Atoms Anchored on Co3O4 Nanorods for Efficient Overall Water Splitting under pH- Universal Conditions. Adv. Energy Mater. 2025, 15, 2500700. [Google Scholar] [CrossRef]
  12. Wang, X.; Pi, W.; Li, Z.B.; Hu, S.; Bao, H.F.; Xu, W.L.; Yao, N. Orbital-level band gap engineering of RuO2 for enhanced acidic water oxidation. Nat. Commun. 2025, 16, 4845. [Google Scholar] [CrossRef]
  13. Jiao, J.X.; Chen, D.; Zhao, H.Y.; Dong, Y.; Mu, S.C. Durable ruthenium oxide catalysts for water oxidation reaction. Sci. China Chem. 2025, 68, 2217–2233. [Google Scholar] [CrossRef]
  14. Kandel, M.R.; Pan, U.N.; Dhakal, P.P.; Ghising, R.B.; Sidra, S.; Kim, D.H.; Kim, N.H.; Lee, J.H. Manganese-Doped Bimetallic (Co,Ni)2P Integrated CoP in N,S Co−Doped Carbon: Unveiling a Compatible Hybrid Electrocatalyst for Overall Water Splitting. Small 2024, 20, 2307241. [Google Scholar] [CrossRef]
  15. Wang, Z.P.; Huang, J.H.; Wang, L.; Liu, Y.Y.; Liu, W.H.; Zhao, S.L.; Liu, Z.Q. Cation-Tuning Induced d-Band Center Modulation on Co-Based Spinel Oxide for Oxygen Reduction/Evolution Reaction. Angew. Chem. Int. Ed. 2022, 61, e202114696. [Google Scholar] [CrossRef] [PubMed]
  16. Zhuang, L.Z.; Ge, L.; Yang, Y.S.; Li, M.R.; Jia, Y.; Yao, X.D.; Zhu, Z.H. Ultrathin Iron-Cobalt Oxide Nanosheets with Abundant Oxygen Vacancies for the Oxygen Evolution Reaction. Adv. Mater. 2017, 29, 1606793. [Google Scholar] [CrossRef] [PubMed]
  17. Yu, M.; Budiyanto, E.; Tüysüz, H. Principles of Water Electrolysis and Recent Progress in Cobalt-, Nickel-, and Iron-Based Oxides for the Oxygen Evolution Reaction. Angew. Chem. Int. Ed. 2022, 61, e202103824. [Google Scholar] [CrossRef] [PubMed]
  18. Wang, X.; Zhong, H.; Xi, S.; Lee, W.S.V.; Xue, J. Understanding of Oxygen Redox in the Oxygen Evolution Reaction. Adv. Mater. 2022, 34, 2107956. [Google Scholar] [CrossRef]
  19. Zhang, Y.Y.; Fu, Q.; Song, B.; Xu, P. Regulation Strategy of Transition Metal Oxide-Based Electrocatalysts for Enhanced Oxygen Evolution Reaction. Acc. Mater. Res. 2022, 3, 1088–1100. [Google Scholar] [CrossRef]
  20. Sun, X.; Yuan, Y.; Liu, S.Z.; Zhao, H.Q.; Yao, S.Q.; Sun, Y.Y.; Zhang, M.Y.; Liu, Y.J.; Lin, Z.Q. Recent Advances in Perovskite Oxides for Oxygen Evolution Reaction: Structures, Mechanisms, and Strategies for Performance Enhancement. Adv. Funct. Mater. 2025, 35, 2416705. [Google Scholar] [CrossRef]
  21. Over, H. Fundamental Studies of Planar Single-Crystalline Oxide Model Electrodes (RuO2, IrO2) for Acidic Water Splitting. ACS Catal. 2021, 11, 8848–8871. [Google Scholar] [CrossRef]
  22. Yang, J.; Huang, L.; Chen, Y.; Li, D.; Sun, J.; Jiang, R.B.; Kang, J.H.; Fang, Y.P. Recent Development of Ir- and Ru-Based Electrocatalysts for Acidic Oxygen Evolution Reaction. ACS Appl. Mater. Interfaces 2025, 17, 20519–20559. [Google Scholar] [CrossRef]
  23. Ke, J.; Zhu, W.X.; Ji, Y.J.; Chen, J.X.; Li, C.C.; Wang, Y.; Wang, Q.; Huang, W.-H.; Hu, Z.W.; Li, Y.Y.; et al. Optimizing Acidic Oxygen Evolution Reaction via Modulation Doping in Van der Waals Layered Iridium Oxide. Angew. Chem. Int. Ed. 2025, 64, e202422740. [Google Scholar] [CrossRef]
  24. Ikram, F.; Cheong, S.; Persson, I.; Ramadhan, Z.R.; Poerwoprajitno, A.R.; Gooding, J.J.; Tilley, R.D. Iridium Nanocrystals Enriched with Defects and Atomic Steps to Enhance Oxygen Evolution Reaction Performance. J. Am. Chem. Soc. 2025, 147, 10784–10790. [Google Scholar] [CrossRef]
  25. Bertelsen, A.D.; Kløve, M.; Broge, N.L.N.; Bondesgaard, M.; Stubkjær, R.B.; Dippel, A.-C.; Li, Q.Y.; Tilley, R.; Jørgensen, M.R.V.; Iversen, B.B. Formation Mechanism and Hydrothermal Synthesis of Highly Active Ir1−xRuxO2 Nanoparticles for the Oxygen Evolution Reaction. J. Am. Chem. Soc. 2024, 146, 23729–23740. [Google Scholar] [CrossRef]
  26. Sun, S.G.; Wan, Z.Q.; Xu, Y.Y.; Zhou, X.M.; Gao, W.; Qian, J.J.; Gao, J.; Cai, D.; Ge, Y.J.; Nie, H.G.; et al. Phase Engineering Modulates the Electronic Structure of the IrO2/MoS2 Heterojunction for Efffcient and Stable Water Splitting. ACS Nano 2025, 19, 12090–12101. [Google Scholar] [CrossRef] [PubMed]
  27. Sun, C.Y.; Cui, X.H.; Xiao, F.L.; Cui, D.L.; Wang, Q.L.; Dang, F.; Yu, H.H.; Lian, G. Modulating the d-Band Center of RuO2 via Ni Incorporation for Efficient and Durable Li–O2 batteries. Small 2024, 20, 2400010. [Google Scholar] [CrossRef] [PubMed]
  28. Yang, R.; Shi, X.Z.; Wang, Y.Y.; Jin, J.; Liu, H.W.; Yin, J.; Zhao, Y.-Q.; Xi, P.X. Ruthenium-modified porous NiCo2O4 nanosheets boost overall water splitting in alkaline solution. Chin. Chem. Lett. 2022, 33, 4930–4935. [Google Scholar] [CrossRef]
  29. Du, K.; Zhang, L.F.; Shan, J.Q.; Guo, J.X.; Mao, J.; Yang, C.-C.; Wang, C.-H.; Hu, Z.P.; Ling, T. Interface engineering breaks both stability and activity limits of RuO2 for sustainable water oxidation. Nat. Commun. 2022, 13, 5448. [Google Scholar] [CrossRef]
  30. Zhao, Y.H.; Xi, M.H.; Qi, Y.B.; Sheng, X.D.; Tian, P.F.; Zhu, Y.H.; Yang, X.L.; Li, C.Z.; Jiang, H.L. Redirecting dynamic structural evolution of nickel- contained RuO2 catalyst during electrochemical oxygen evolution reaction. J. Energy Chem. 2022, 69, 330–337. [Google Scholar] [CrossRef]
  31. Yang, M.; Lu, W.; Jin, R.X.; Liu, X.-C.; Song, S.Y.; Xing, Y. Superior Oxygen Evolution Reaction Performance of Co3O4/NiCo2O4/Ni Foam Composite with Hierarchical Structure. ACS Sustain. Chem. Eng. 2019, 7, 12214–12221. [Google Scholar] [CrossRef]
  32. Gao, X.H.; Zhang, H.X.; Li, Q.G.; Yu, X.G.; Hong, Z.L.; Zhang, X.W.; Liang, C.D.; Lin, Z. Hierarchical NiCo2O4 Hollow Microcuboids as Bifunctional Electrocatalysts for Overall Water-Splitting. Angew. Chem. Int. Ed. 2016, 55, 6290–6294. [Google Scholar] [CrossRef]
  33. Wang, W.H.; Kuai, L.; Cao, W.; Huttula, M.; Ollikkala, S.; Ahopelto, T.; Honkanen, A.-P.; Huotari, S.; Yu, M.K.; Geng, B.Y. Mass-Production of Mesoporous MnCo2O4 Spinels with Manganese(IV)-and Cobalt(II)-Rich Surfaces for Superior Bifunctional Oxygen Electrocatalysis. Angew. Chem. Int. Ed. 2017, 56, 14977–14981. [Google Scholar] [CrossRef]
  34. Xiao, K.; Wang, Y.F.; Wu, P.Y.; Hou, L.P.; Liu, Z.-Q. Activating Lattice Oxygen in Spinel ZnCo2O4 through Filling Oxygen Vacancies with Fluorine for Electrocatalytic Oxygen Evolution. Angew. Chem. Int. Ed. 2023, 62, e202301408. [Google Scholar] [CrossRef]
  35. Xu, K.B.; Ma, S.; Shen, Y.N.; Ren, Q.L.; Yang, J.M.; Chen, X.; Hu, J.Q. CuCo2O4 nanowire arrays wrapped in metal oxide nanosheets as hierarchical multicomponent electrodes for supercapacitors. Chem. Eng. J. 2019, 369, 363–369. [Google Scholar] [CrossRef]
  36. Zhang, Z.H.; Liu, X.H.; Wang, D.; Wan, H.; Zhang, Y.; Chen, G.; Zhang, N.; Ma, R.Z. Ruthenium composited NiCo2O4 spinel nanocones with oxygen vacancies as a high-efficient bifunctional catalyst for overall water splitting. Chem. Eng. J. 2022, 446, 137037. [Google Scholar] [CrossRef]
  37. Xu, Y.; Zhang, F.C.; Sheng, T.; Ye, T.; Yi, D.; Yang, Y.J.; Liu, S.J.; Wang, X.; Yao, J.N. Clarifying the controversial catalytic active sites of Co3O4 for the oxygen evolution reaction. J. Mater. Chem. A 2019, 7, 23191–23198. [Google Scholar] [CrossRef]
  38. Rong, C.L.; Sun, Q.; Zhu, J.X.; Arandiyan, H.; Shao, Z.P.; Wang, Y.; Chen, Y. Advances in Stabilizing Spinel Cobalt Oxide-Based Catalysts for Acidic Oxygen Evolution Reaction. Adv. Sci. 2025, 12, e09415. [Google Scholar] [CrossRef]
  39. Li, C.; Ye, B.R.; Ouyang, B.; Zhang, T.F.; Tang, T.; Qiu, Z.; Li, S.P.; Li, Y.Q.; Chen, R.H.; Wen, W.; et al. Dual Doping of N and F on Co3O4 to Activate the Lattice Oxygen for Efficient and Robust Oxygen Evolution Reaction. Adv. Mater. 2025, 37, 2501381. [Google Scholar] [CrossRef]
  40. Fan, R.Y.; Liu, H.J.; Ren, J.K.; Li, Y.C.; Nan, J.; Zhou, Y.L.; Liu, C.Y.; Chai, Y.M.; Dong, B. Ligand-Confinement-Induced Catalyst−Support Interface Interactions in Co3O4-Supported RuO2 for Long-Term Stable Acidic Oxygen Evolution Reaction. ACS Sustain. Chem. Eng. 2024, 12, 2313–2323. [Google Scholar] [CrossRef]
  41. Wang, C.; Qi, L.M. Heterostructured Inter-Doped Ruthenium-Cobalt Oxide Hollow Nanosheet Arrays for Highly Efficient Overall Water Splitting. Angew. Chem. Int. Ed. 2020, 59, 17219–17224. [Google Scholar] [CrossRef]
  42. Pan, S.C.; Zhang, L.L.; Liu, M.L.; Pan, X.C.; Bi, M.; Guo, T.; Zhang, Y.; Sun, J.W.; Vasiliev, A.; Ouyang, X.P.; et al. Neighboring Site Synergies in Co-Defective Ru−Co Spinel Oxide toward Oxygen Evolution Reaction. ACS Sustain. Chem. Eng. 2023, 11, 290–299. [Google Scholar] [CrossRef]
  43. Yang, X.; Liu, Y.; Guo, R.K.; Xiao, J.F. Ru doping boosts electrocatalytic water splitting. Dalton Trans. 2022, 51, 11208–11225. [Google Scholar] [CrossRef]
  44. Li, W.M.; Liu, R.; Yu, G.T.; Chen, X.J.; Yan, S.; Ren, S.Y.; Chen, J.J.; Chen, W.; Wang, C.; Lu, X.F. Rationally Construction of Mn-Doped RuO2 Nanofibers for High-Activity and Stable Alkaline Ampere-Level Current Density Overall Water Splitting. Small 2024, 20, 2307164. [Google Scholar] [CrossRef]
  45. Wang, H.; Abruña, H.D. Comparative Study of Ru-Transition Metal Alloys and Oxides as Oxygen Evolution Reaction Electrocatalysts in Alkaline Media. ACS Appl. Energy Mater. 2022, 5, 11241–11253. [Google Scholar] [CrossRef]
  46. Zhang, F.F.; Hong, S.H.; Qiao, R.X.; Huang, W.-H.; Tang, Z.; Tang, J.Y.; Pao, C.-W.; Yeh, M.-H.; Dai, J.; Chen, Y.; et al. Boosting Alkaline Hydrogen Evolution by Creating Atomic-Scale Pair Cocatalytic Sites in Single-Phase Single-Atom-Ruthenium-Incorporated Cobalt Oxide. ACS Nano 2025, 19, 11176–11186. [Google Scholar] [CrossRef]
  47. Wu, D.L.; Chen, D.; Zhu, J.W.; Mu, S.C. Ultralow Ru Incorporated Amorphous Cobalt-Based Oxides for High-Current-Density Overall Water Splitting in Alkaline and Seawater Media. Small 2021, 17, 2102777. [Google Scholar] [CrossRef]
  48. Wu, Q.X.; Dong, A.Q.; Yang, C.C.; Ye, L.; Zhao, L.J.; Jiang, Q. Metal- organic framework derived Co3O4@Mo-Co3S4-Ni3S2 heterostructure supported on Ni foam for overall water splitting. Chem. Eng. J. 2021, 413, 127482. [Google Scholar] [CrossRef]
  49. Fan, L.B.; Meng, T.; Yan, M.X.; Wang, D.W.; Chen, Y.T.; Xing, Z.C.; Wang, E.K.; Yang, X.R. Rational Construction of Ruthenium-Cobalt Oxides Heterostructure in ZIFs-Derived Double-Shelled Hollow Polyhedrons for Efficient Hydrogen Evolution Reaction. Small 2021, 17, 2100998. [Google Scholar] [CrossRef]
  50. Abitha, M.; Chinnuswamy, V.; Ponpandian, N. Oxide derivatives of metal–organic frameworks for water splitting: A concise review. Sustain. Energy Fuels 2025, 9, 921–941. [Google Scholar] [CrossRef]
  51. Sun, N.N.; Shah, S.S.A.; Lin, Z.Y.; Zheng, Y.Z.; Jiao, L.; Jiang, H.L. MOF-Based Electrocatalysts: An Overview from the Perspective of Structural Design. Chem. Rev. 2025, 125, 2703–2792. [Google Scholar] [CrossRef]
  52. Li, Y.J.; Feng, Z.H.; Wang, X.; Han, X.; Li, C.J.; Xia, J.X.; Yin, S.; Li, H.M. MOFs-derived 3D Hierarchical CoFe2O4/RuO2 Hollow Nanosheet Array for Efficient Overall Water Splitting. Electrochim. Acta 2024, 503, 144930. [Google Scholar] [CrossRef]
  53. Wang, Y.Y.; Zhang, Z.Y.; Liu, X.; Ding, F.; Zou, P.; Wang, X.X.; Zhao, Q.B.; Rao, H.B. MOF-Derived NiO/NiCo2O4 and NiO/NiCo2O4-rGO as Highly Efficient and Stable Electrocatalysts for Oxygen Evolution Reaction. ACS Sustain. Chem. Eng. 2018, 6, 12511–12521. [Google Scholar] [CrossRef]
  54. McCrory, C.C.L.; Jung, S.; Peters, J.C.; Jaramillo, T.F. Benchmarking Heterogeneous Electrocatalysts for the Oxygen Evolution Reaction. J. Am. Chem. Soc. 2013, 135, 16977–16987. [Google Scholar] [CrossRef]
  55. Song, X.Z.; Ni, J.C.; Wang, X.B.; Dong, J.H.; Liang, H.J.; Pan, Y.; Dai, Y.; Tan, Z.Q.; Wang, X.F. Hollow Starlike Ag/CoMo-LDH Heterojunction with a Tunable d-Band Center for Boosting Oxygen Evolution Reaction Electrocatalysis. Inorg. Chem. 2023, 62, 13328–13337. [Google Scholar] [CrossRef]
  56. Zheng, W.R. iR Compensation for Electrocatalysis Studies: Considerations and Recommendations. ACS Energy Lett. 2023, 8, 1952–1958. [Google Scholar] [CrossRef]
  57. Jin, M.Y.; Han, X.; Yang, A.T.; Chou, T.; Chen, T.T.; Pi, Y.C.; Wang, S.; Yang, Y.; Wang, J.; Jin, H.L. Grain-Boundary-Rich Pt/Co3O4 Nanosheets for Solar-Driven Overall Water Splitting. Inorg. Chem. 2025, 64, 327–334. [Google Scholar] [CrossRef]
  58. Lazouskaya, M.; Vetik, I.; Tamm, M.; Uppuluri, K.; Scheler, O. Binary RuO2−CuO Electrodes Outperform RuO2 Electrodes in Measuring the pH in Food Samples. ACS Omega 2023, 8, 13275–13284. [Google Scholar] [CrossRef]
  59. Tian, W.Y.; Xie, X.; Zhang, X.G.; Li, J.H.; Waterhouse, G.I.N.; Ding, J.; Liu, Y.S.; Lu, S.Y. Synergistic Interfacial Effect of Ru/Co3O4 Heterojunctions for Boosting Overall Water Splitting. Small 2024, 20, 2309633. [Google Scholar] [CrossRef]
  60. Shah, K.; Dai, R.; Mateen, M.; Hassan, Z.; Zhuang, Z.; Liu, C.; Israr, M.; Cheong, W.C.; Hu, B.; Tu, R.; et al. Cobalt Single Atom Incorporated in Ruthenium Oxide Sphere: A Robust Bifunctional Electrocatalyst for HER and OER. Angew. Chem. Int. Ed. 2022, 61, e202114951. [Google Scholar] [CrossRef]
Nanomaterials 15 01356 g001

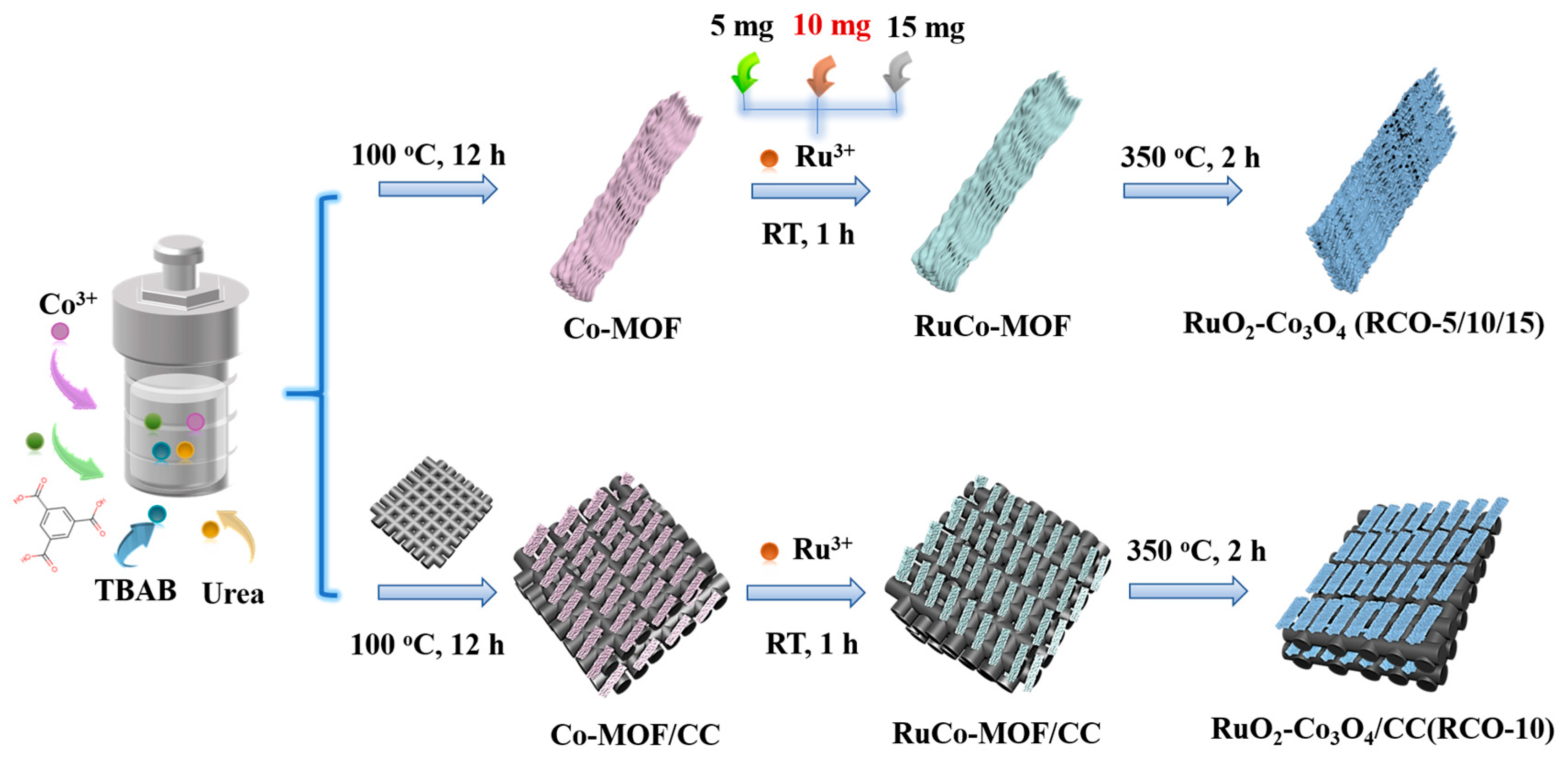

Figure 1. Schematic diagram of the synthesis of Co3O4-RuO2 series powder samples and Co3O4-RuO2-10/CC integrated electrode.
Figure 1. Schematic diagram of the synthesis of Co3O4-RuO2 series powder samples and Co3O4-RuO2-10/CC integrated electrode.
Nanomaterials 15 01356 g001
Nanomaterials 15 01356 g002

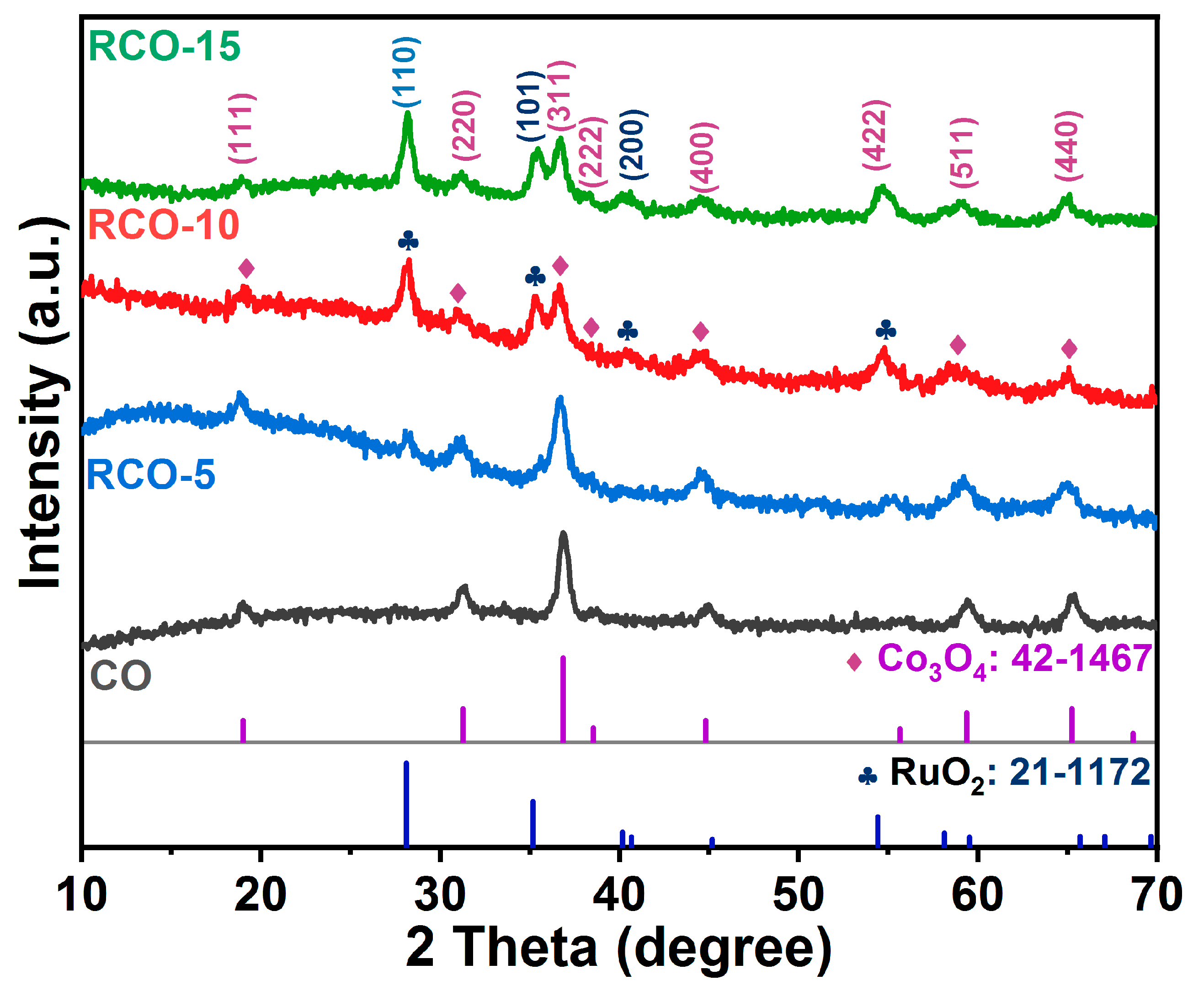

Figure 2. PXRD patterns of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 samples.
Figure 2. PXRD patterns of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 samples.
Nanomaterials 15 01356 g002
Nanomaterials 15 01356 g003

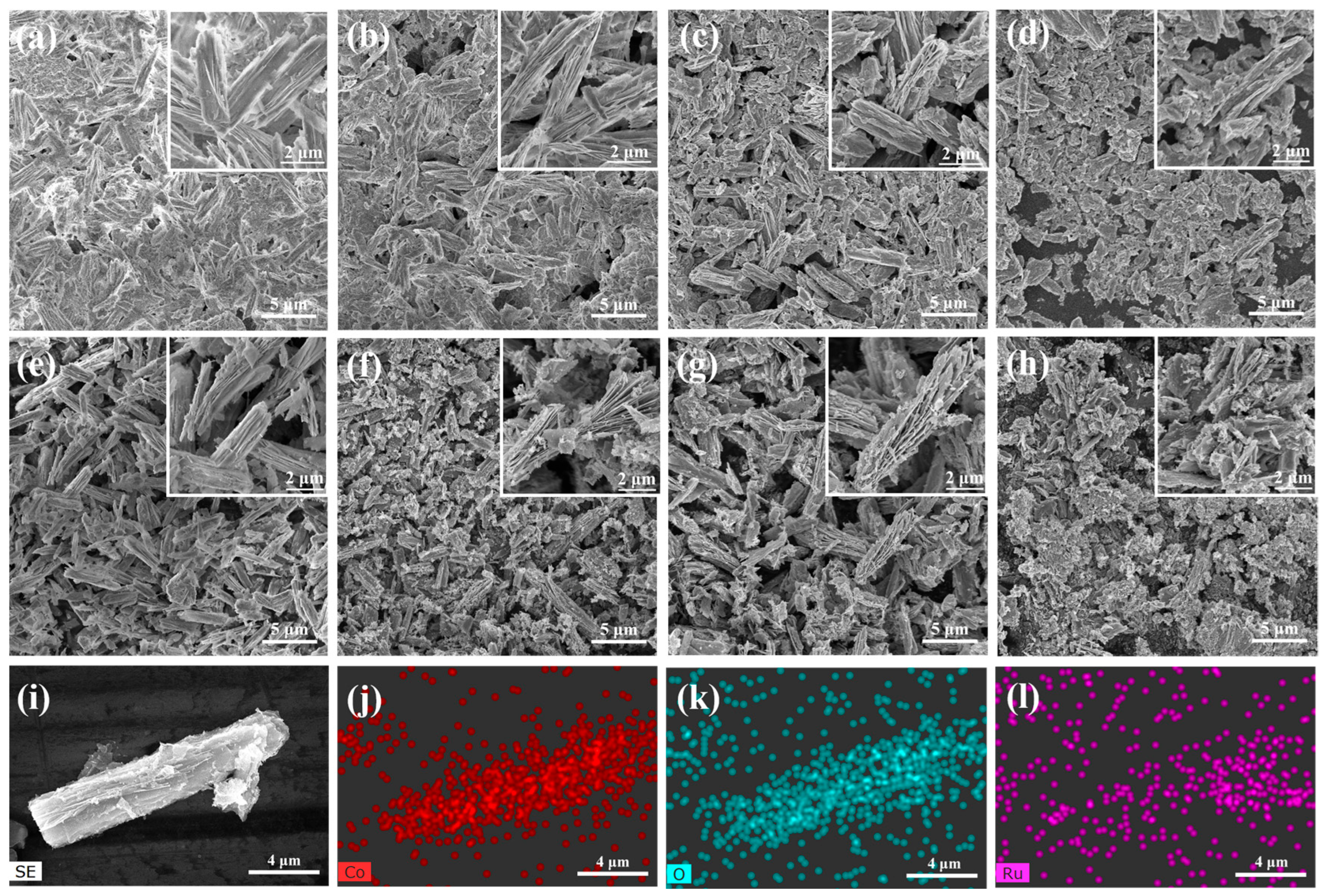

Figure 3. (a–d) SEM images of precursors of Co-MOF, RuCo-MOF-5, RuCo-MOF-10, and RuCo-MOF-15; (e–h) SEM images of as-prepared Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 samples; (i–l) EDX mapping diagram of optimal Co3O4-RuO2-10 sample.
Figure 3. (a–d) SEM images of precursors of Co-MOF, RuCo-MOF-5, RuCo-MOF-10, and RuCo-MOF-15; (e–h) SEM images of as-prepared Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 samples; (i–l) EDX mapping diagram of optimal Co3O4-RuO2-10 sample.
Nanomaterials 15 01356 g003
Nanomaterials 15 01356 g004

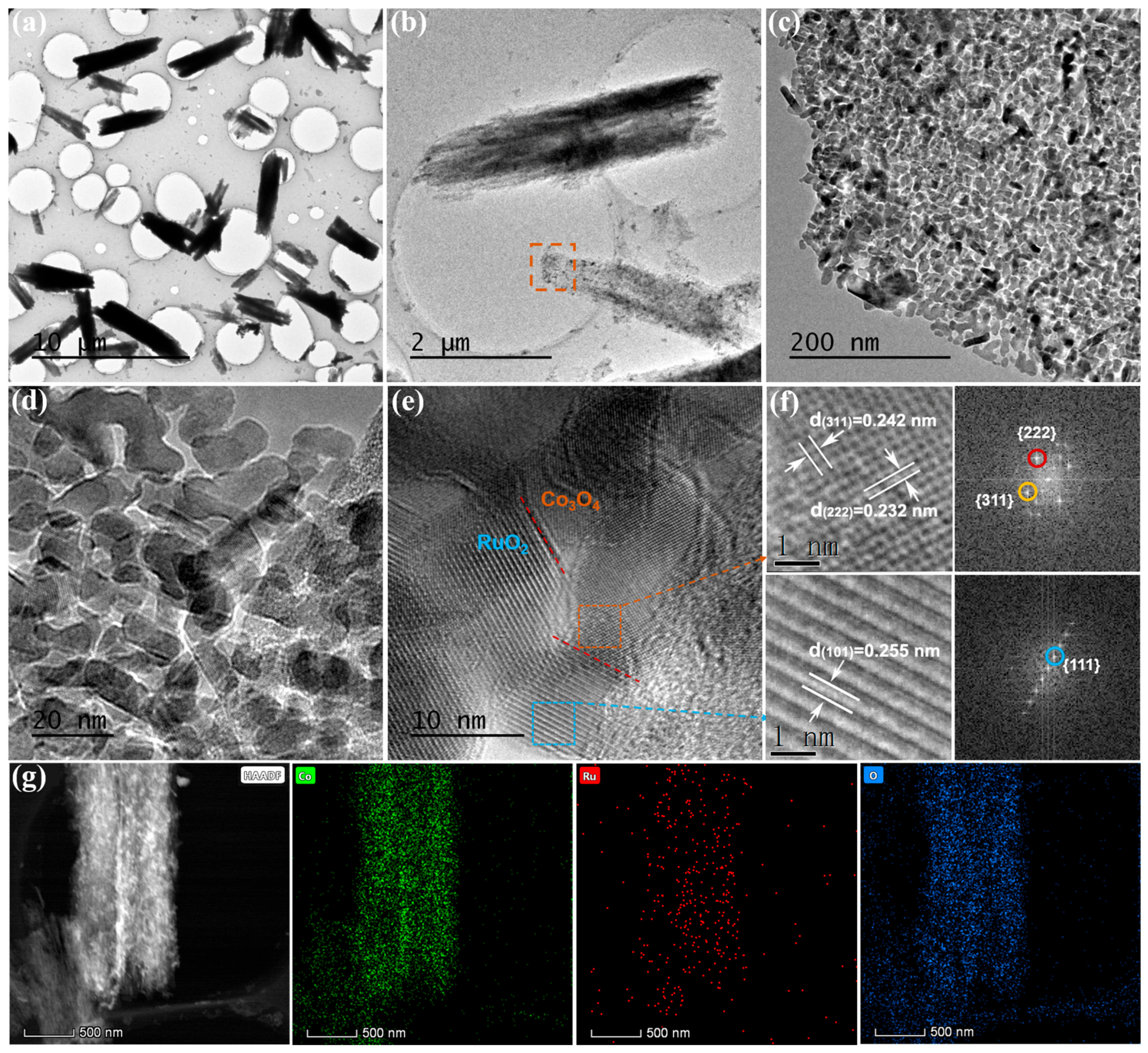

Figure 4. (a–d) TEM images of Co3O4-RuO2-10 sample; (e) HRTEM images of Co3O4-RuO2-10 with Co3O4 and RuO2 interface; (f) corresponding magnified dotted square area and FFT in (e); (g) HAADF and STEM-EDX element maps of Co3O4-RuO2-10 sample.
Figure 4. (a–d) TEM images of Co3O4-RuO2-10 sample; (e) HRTEM images of Co3O4-RuO2-10 with Co3O4 and RuO2 interface; (f) corresponding magnified dotted square area and FFT in (e); (g) HAADF and STEM-EDX element maps of Co3O4-RuO2-10 sample.
Nanomaterials 15 01356 g004
Nanomaterials 15 01356 g005

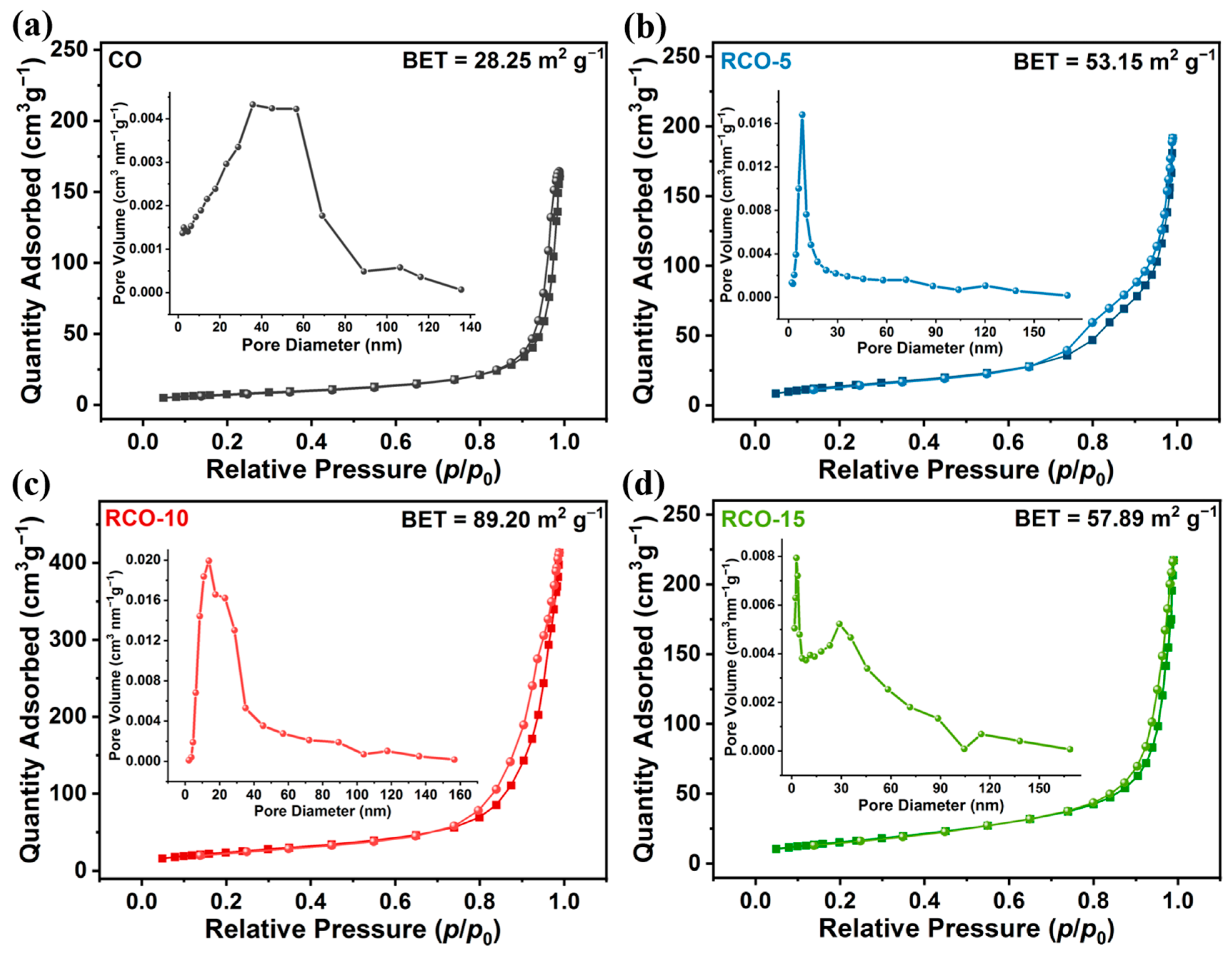

Figure 5. (a–d) N2 adsorption/desorption isotherms of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 samples; the inset illustrates pore size distribution plots.
Figure 5. (a–d) N2 adsorption/desorption isotherms of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 samples; the inset illustrates pore size distribution plots.
Nanomaterials 15 01356 g005
Nanomaterials 15 01356 g006

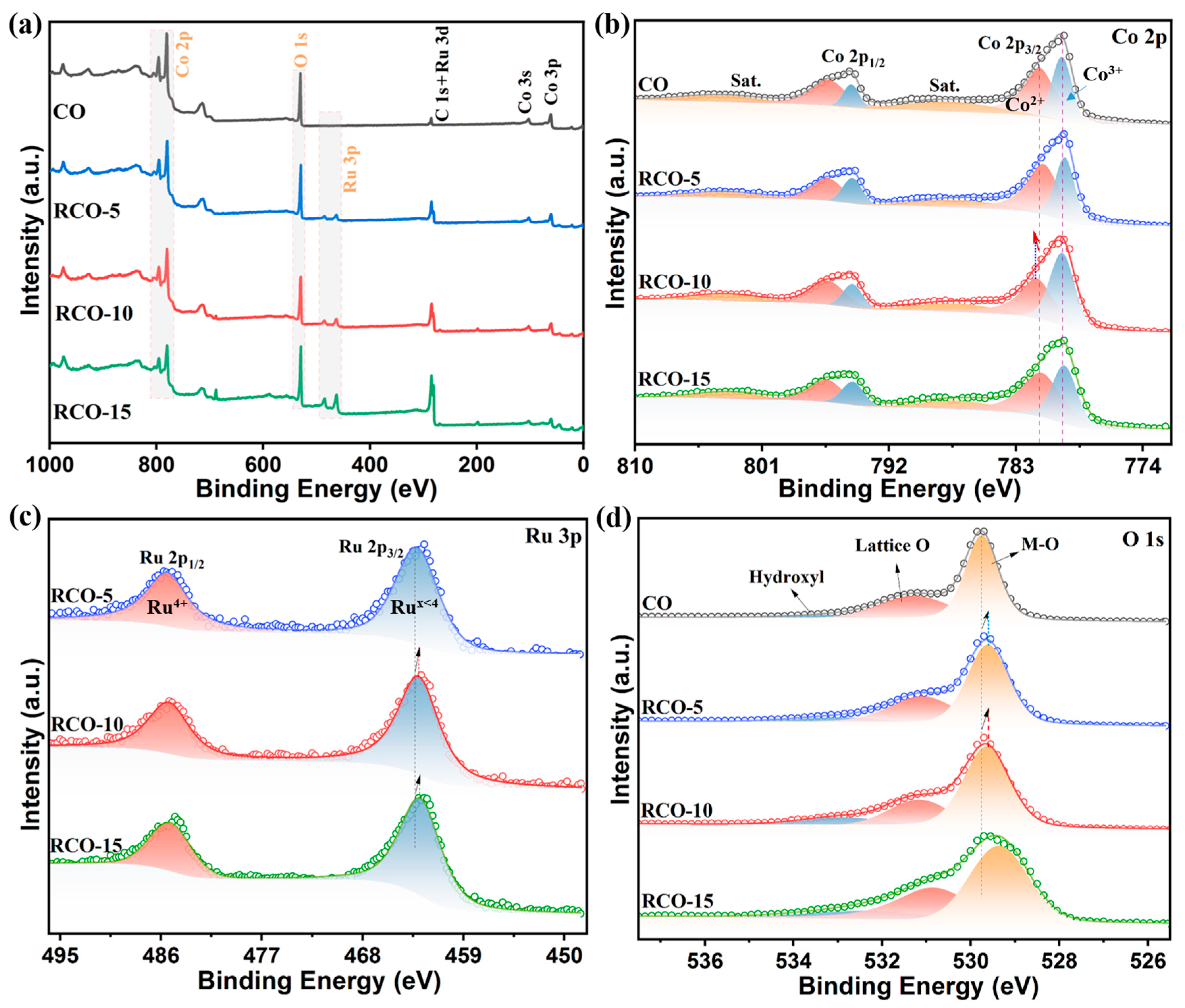

Figure 6. (a) XPS survey of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 samples; high-resolution XPS spectra of (b) Co 2p, (c) Ru 3p, and (d) O 1s.
Figure 6. (a) XPS survey of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 samples; high-resolution XPS spectra of (b) Co 2p, (c) Ru 3p, and (d) O 1s.
Nanomaterials 15 01356 g006
Nanomaterials 15 01356 g007

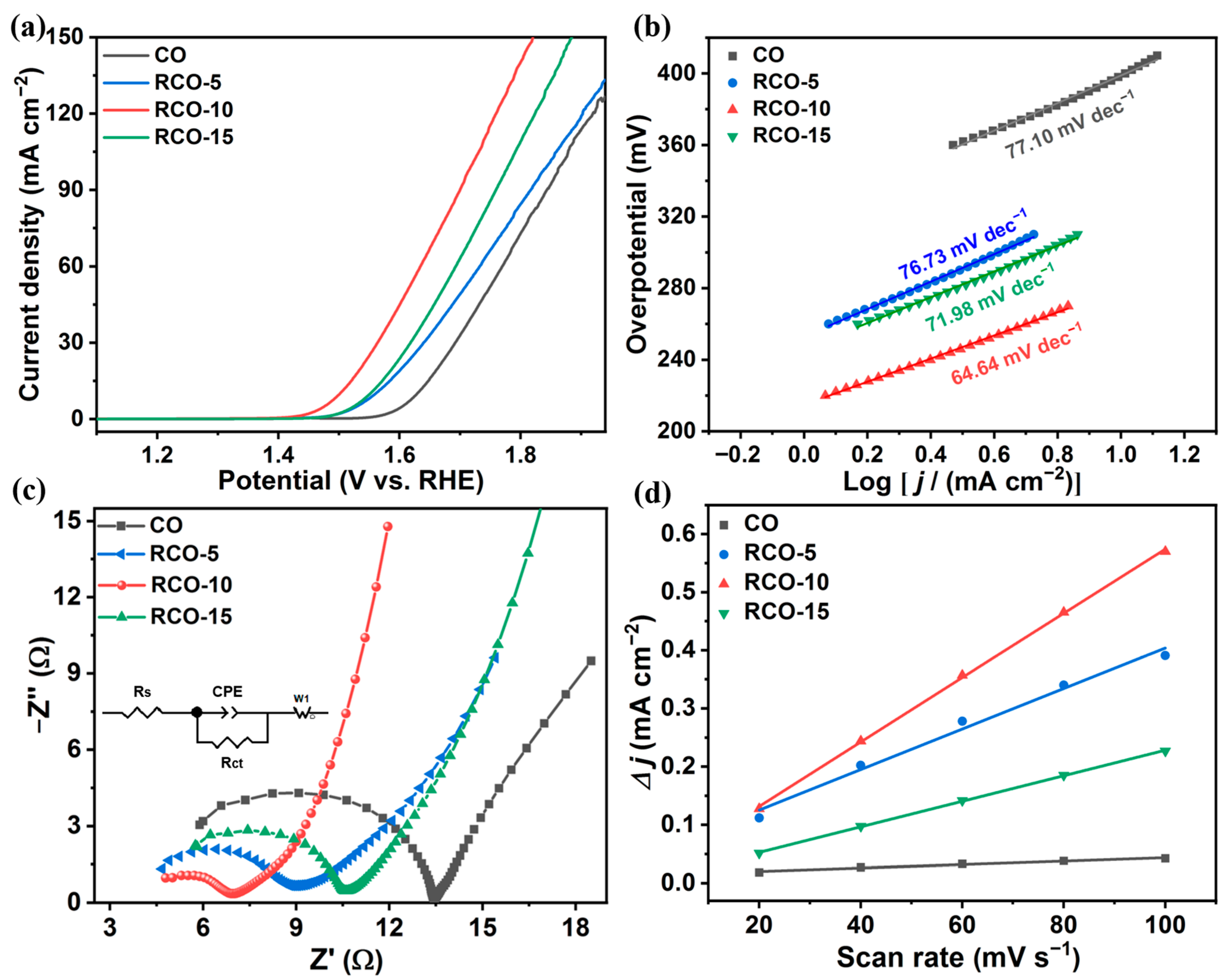

Figure 7. Electrochemical test plots of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15: (a) LSV curves without iR compensation; (b) Tafel slope curves; (c) Nyquist plots and the equivalent circuit inset; (d) Cdl value calculated based on the corresponding CV curves.
Figure 7. Electrochemical test plots of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15: (a) LSV curves without iR compensation; (b) Tafel slope curves; (c) Nyquist plots and the equivalent circuit inset; (d) Cdl value calculated based on the corresponding CV curves.
Nanomaterials 15 01356 g007
Nanomaterials 15 01356 g008

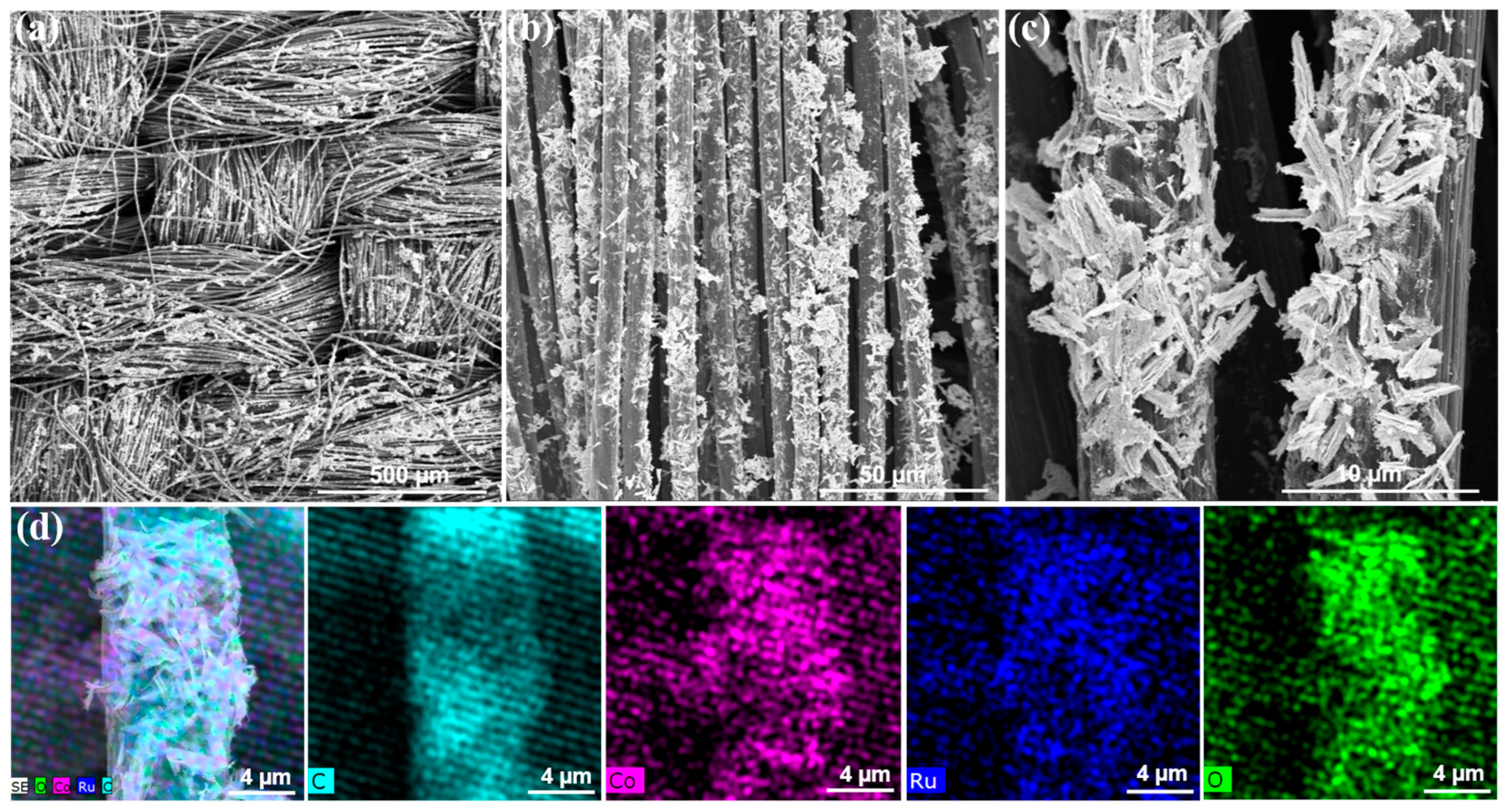

Figure 8. (a–c) SEM images of Co3O4-RuO2-10/CC; (d) EDX mapping diagram of optimal Co3O4-RuO2-10/CC sample.
Figure 8. (a–c) SEM images of Co3O4-RuO2-10/CC; (d) EDX mapping diagram of optimal Co3O4-RuO2-10/CC sample.
Nanomaterials 15 01356 g008
Nanomaterials 15 01356 g009
Figure 9. (a) Stability tests of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 on RDE for 5 h at 10 mAcm−2; (b) comparison of the overpotentials and Tafel slopes of various electrocatalysts; (c) LSV profiles of Co3O4-RuO2-10 and Co3O4-RuO2-10/CC without iR compensation; (d) chronopotentiometric curve for Co3O4-RuO2-10/CC self-supporting electrode at 10 mAcm−2.
Figure 9. (a) Stability tests of Co3O4, Co3O4-RuO2-5, Co3O4-RuO2-10, and Co3O4-RuO2-15 on RDE for 5 h at 10 mAcm−2; (b) comparison of the overpotentials and Tafel slopes of various electrocatalysts; (c) LSV profiles of Co3O4-RuO2-10 and Co3O4-RuO2-10/CC without iR compensation; (d) chronopotentiometric curve for Co3O4-RuO2-10/CC self-supporting electrode at 10 mAcm−2.
Nanomaterials 15 01356 g009
Table 1. Comparison of OER performance of series samples in alkaline medium.
Table 1. Comparison of OER performance of series samples in alkaline medium.
CatalystsOverpotential (mV)
(j = 10 mA cm−2)		Tafel Slope (mV dec−1)Rct (Ω)
CO39977.108.70
RCO-533176.734.03
RCO-1027266.642.42
RCO-1532271.985.26
