Article

Ag-Activated Metal−Organic Framework with Peroxidase-like Activity Synergistic Ag+ Release for Safe Bacterial Eradication and Wound Healing

by
Jie Zhou
1,2,†,
Ning Chen
3,4,†,
Jing Liao
2,3,†,
Gan Tian
5,
Linqiang Mei
2,
Guoping Yang
1,*,
Qiang Wang
3,* and
Wenyan Yin
2,*
1
Jiangxi Key Laboratory for Mass Spectrometry and Instrumentation, Jiangxi Province Key Laboratory of Synthetic Chemistry, East China University of Technology, Nanchang 330013, China
2
CAS Key Laboratory for Biomedical Effects of Nanomaterials and Nanosafety, Institute of High Energy Physics, Chinese Academy of Sciences, Beijing 100049, China
3
Laboratory for Micro-Sized Functional Materials, Department of Chemistry and College of Elementary Education, Capital Normal University, Beijing 100048, China
4
School of Energy and Chemical Engineering, Ulsan National Institute of Science and Technology (UNIST), Ulsan 44919, Republic of Korea
5
Institute of Pathology, The First Affiliated Hospital, Third Military Medical University, Chongqing 400038, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Nanomaterials 2022, 12(22), 4058; https://doi.org/10.3390/nano12224058
Submission received: 11 October 2022 / Revised: 8 November 2022 / Accepted: 14 November 2022 / Published: 17 November 2022
(This article belongs to the Special Issue Toxicity Assessment of Metal Nanoparticles and Metal Oxide Nanoparticles)
Browse Figures
Review Reports Versions Notes

Abstract

Silver nanoparticles (Ag NPs), a commonly used antibacterial nanomaterial, exhibit broad-spectrum antibacterial activity to combat drug-resistant bacteria. However, the Ag NPs often causes a low availability and high toxicity to living bodies due to their easy aggregation and uncontrolled release of Ag+ in the bacterial microenvironment. Here, we report a porous metal−organic framework (MOF)-based Zr-2-amin-1,4-NH2-benzenedicarboxylate@Ag (denoted as UiO-66-NH2-Ag) nanocomposite using an in-situ immobilization strategy where Ag NPs were fixed on the UiO-66-NH2 for improving the dispersion and utilization of Ag NPs. As a result, the reduced use dose of Ag NPs largely improves the biosafety of the UiO-66-NH2-Ag. Meanwhile, after activation by the Ag NPs, the UiO-66-NH2-Ag can act as nanozyme with high peroxidase (POD)-like activity to efficiently catalyze the decomposition of H2O2 to extremely toxic hydroxyl radicals (·OH) in the bacterial microenvironment. Simultaneously, the high POD-like activity synergies with the controllable Ag+ release leads to enhanced reactive oxygen species (ROS) generation, facilitating the death of resistant bacteria. This synergistic antibacterial strategy enables the low concentration (12 μg/mL) of UiO-66-NH2-Ag to achieve highly efficient inactivation of ampicillin-resistant Escherichia coli (Ampr E. coli) and endospore-forming Bacillus subtilis (B. subtilis). In vivo results illustrate that the UiO-66-NH2-Ag nanozyme has a safe and accelerated bacteria-infected wound healing.

1. Introduction

Nowadays, bacterial infection-induced diseases, such as skin abscesses [1,2], respiratory tract infections [3], and urinary tract infections, have become one of the most serious public problems in the world [4,5]. In the past few decades, many strategies have been made to fight against bacterial infections, and a range of antibiotics have been developed [6,7]. However, owing to the abuse of antibiotics, many bacteria emerged multi-drug resistance (MDR), resulting in increasingly difficult antibiotic treatments [8,9,10,11]. Therefore, it is very urgent to develop innovative antimicrobial systems and therapies as a complement to current antimicrobial treatments [12,13].
Nanomaterials have attracted great attention in antibacterial therapy due to their unique physicochemical properties, allowing them to have special therapeutic approaches to avoid the MDR of antibiotics. For examples, a large number of novel antibacterial nanomaterials such as precious metals [14], nano-metal oxides [15,16], metal-organic frameworks (MOFs) [17,18], organic nano-polymers [19,20], and carbon-based nanomaterials [21,22] have been developed. Typical antibacterial therapies such as enzyme-like catalysis therapy [23], photothermal therapy [24], photodynamic therapy [25], gas therapy [26], and combination therapy have been rationally designed. Among them, silver nanoparticles (Ag NPs) have broad-spectrum antimicrobial activity and can decrease MDR [27,28,29]. Moreover, Ag NPs have been used in clinical antibacterial applications [30]. Although their antibacterial mechanisms remain controversial, there is growing evidence that released Ag+ from Ag NPs are involved in key inhibition processes through membrane/wall deformation and production of reactive oxygen species (ROS). Consequently, the Ag NPs inhibit bacterial cell metabolism and eventually lead to bacteria death [31,32,33,34,35,36]. However, clinical studies have found that overuse of difficult-to-handle Ag NPs have frequently led to toxicity in humans, such as gastrointestinal disorders, convulsions, and even death [37]. In addition, increased Ag concentration does not necessarily lead to increased Ag+ concentration in the biological system. If Ag+ cannot be controllably released from the Ag NPs, amplified toxic effect of containing-Ag nanomaterials will occur [38,39]. Particularly, the Ag NPs alone or its composites with other organic polymers tend to aggregate due to poor compatibility and inhomogeneous distribution when exposed to the bacterial microenvironment, resulting in the reduction or elimination of antibacterial activity [40]. Therefore, it is a great challenge to explore novel antibacterial strategies to achieve efficient antibacterial activity using a smart nanocarrier that can carry Ag NPs homogeneously and avoid aggregation induced by direct contact between Ag NPs and the bacterial environment, ensuring sufficient use and controllable release of Ag+.
MOFs are novel multifunctional precursors composed of metal nodes and organic connections. Due to their unique advantages, such as porous structure and high specific surface area [41,42,43], the applications of MOFs have been extended to various biomedical fields, including phototherapy and nanocarriers, etc. [44,45]. It has been reported that the diversity of metal nodes, linkers and their wide range of coordination interactions can endow MOFs and their derivatives with enzyme-like catalytic activities, that is, nanozymes [46]. These MOFs-based nanozymes have gained increased attention owing to their low cost, durability, and high stability. Recently, the continuous development of MOFs-based nanozymes with peroxidase (POD)-like catalytic activity showed great potential in fighting against bacterial infection. This POD-like activity can decompose low dose H2O2 to generate highly toxic hydroxyl radicals (·OH), and then cause lipid peroxidation of bacteria [47]. Copper, iron, and zinc-based MOFs have been used to load Ag NPs in their frames [48,49]. However, unlike the biocompatible Zr-based nanomaterials [50], these MOFs have potential health hazards due to the metals used in their formations. Zr-2-amino-1,4-benzenedicarboxylate (UiO-66-NH2) is a typical Zr-based MOF, low-toxic and easily formed with good thermal and chemical stability, making it a suitable drug delivery carrier [51]. In addition, some studies have shown that exogenous metal can regulate the POD-like activity of UiO-66-NH2 nanozymes [52]. Therefore, we anticipate that the UiO-66-NH2 could be an ideal carrier for Ag NPs loading with good dispersion to form a smart enzyme-like catalytic platform.
In this study, we designed a MOF-Ag-derived Zr-2-amino-1,4-benzenedicarboxylate@Ag (denoted as UiO-66-NH2-Ag) nanocomposite as a typical nanozyme with enhanced POD-like activity synergistic pH-responsive Ag+ release to achieve high availability and bactericidal effect. The anchoring of a small amount of Ag NPs on the porous surface of UiO-66-NH2 was successfully achieved via an in-situ immobilization method (Scheme 1). Moreover, the porous surface of UiO-66-NH2 promoted the formation of ultra-small and well-dispersed Ag NPs to avoid direct interaction with external environment. Consequently, the UiO-66-NH2-Ag reduced the use dose of Ag and ensured its own biosafety and controllability due to its pH-responsive Ag+ release in the acidic bacterial microenvironment. In addition, anchoring of Ag NPs greatly activated POD-like activity of the UiO-66-NH2, enabling it to catalyze the decomposition of H2O2 in bacteria into ·OH with synergistic Ag+ release to produce more ROS, greatly enhancing antibacterial effect. Systematic antibacterial experiments showed that the UiO-66-NH2-Ag at very low concentration (12 μg/mL) had a >99.99% bactericidal activity against Gram-negative ampicillin-resistant Escherichia coli (Ampr E. coli) and Gram-positive endospore-forming Bacillus subtilis (B. subtilis). Furthermore, their efficient antimicrobial effect and accelerated wound healing ability were successfully demonstrated in Ampr E. coli infected skin of mice. Overall, the UiO-66-NH2-Ag nanocomposite possesses great potential for broad-spectrum bactericidal application.

2. Materials and Methods

Materials. Silver nitrate (AgNO3, 99.8%), zirconium tetrachloride (ZrCl4, >99.5%), 2-aminoterephthalic acid (ATA, >98%) and N,N-dimethyl formamide (DMF, >99.8%) were obtained from Aladdin. Disodium terephthalate (TA) was purchased from Alfa Aesar Reagent Co. 3,3′,5,5′-Tetramethylbenzidine (TMB) was obtained from Tokyo Chemical Industry. Nitric acid (HNO3, 70%, BV-III grade), hydrogen peroxide (H2O2, 30%), sodium chloride (NaCl), sodium hydroxide (NaOH), ethanol, and anhydrous methanol (>99.7%) were obtained from Beijing Chemical Corporation, Beijing, China. Fetal bovine serum (FBS), yeast extract, dulbecco’s modified eagle’s medium (DMEM), penicillin, streptomycin, and tryptone were obtained by Sigma-Aldrich. SYTO 9 green fluorescent nucleic acid was purchased from Keygen Biotechnology. Hoechst 33342, 2′,7′-dichlorodihydrofluorescein diacetate (DCFH-DA) and propidium iodide (PI) were obtained from Beyotime, Shanghai, China.
Synthesis of UiO-66-NH2 nanoparticles. UiO-66-NH2 nanoparticles (NPs) were synthesized via a hydrothermal approach in terms of an improved process [53]. In a typical synthesis, 30.3 mg (0.13 mM) ZrCl4 and 23.5 mg (0.13 mM) ATA were dissolved in DMF (15 mL) with stirring. Then, the above mixture was shifted to a sealed Teflon-lined stainless-steel autoclave (25 mL), heat at 200 °C for 1 d. After cooling, the resulting product was washed by centrifugation with anhydrous methanol. The final products were obtained after drying.
Synthesis of UiO-66-NH2-Ag nanocomposite. In-situ immobilization strategy was adopted to synthesize the UiO-66-NH2-Ag nanocomposite. First, the UiO-66-NH2 NPs (20 mg) were dispersed in anhydrous methanol (5 mL) under stirring for 20 min. Then, anhydrous methanol solution (5 mL) containing AgNO3 (10 mg) was added under stirring for another 20 min. The suspension was vigorously stirred in the dark under 50 °C. 20 h later, the obtained product UiO-66-NH2-Ag was centrifuged and washed several times with methanol and distilled water, and then dried at room temperature under dark.
Characterizations. A Bruker D8 (Germany) Advanced Power diffractometer (λ = 1.5406 A) was used for powder X-ray diffraction (XRD) analysis of samples. A Hitachi S-4800 (Tokyo, Japan) field emission scanning electron microscope (FE-SEM) and a Tecnai G2 F20 (Eindhoven, The Netherlands) transmission electron microscope (TEM) were used to characterize the morphology and size of samples. Element analysis result was obtained via an energy-dispersive X-ray spectrum (EDX, Oxford x-met 8000, Oxford, UK) attached on the TEM. A JEM-ARM 200F cold field gun (Tokyo, Japan, 200 kV) was used for high-angle annular dark-field scanning transmission electron microscope (HAADF-STEM) to analyze the structure and composition of samples. A Micromeritics Tristar 3000 (Norcross, GA, USA) instrument was used to analyze the pore size distributions and nitrogen adsorption-desorption isotherms at 77 K. The specific surface was calculated based on the relative pressure (P/P0) from 0.01 to 1.00 via the Brunauer-Emmett-Teller (BET) method. Escalab 250 X-ray photoelectron spectrometer (Thermo Fisher Scientific Inc., Waltham, UK) with Al Kα radiation was used for X-ray photoelectron spectroscopy (XPS) measurements. UV-Vis-NIR spectrophotometer (VARIAN CARY 50, Shanghai, China) was used to test the absorption peak. A Zeta potential/Particle system (Malvern Zetasizer Nano ZS, Worcestershire, UK) was used to measure Zeta potential.
Analysis of pH-dependent Ag+ release from UiO-66-NH2-Ag nanocomposite. UiO-66-NH2-Ag nanocomposite (40 mg) was dispersed at different pH values in phosphate buffered saline (PBS, pH 7.4 or 5.0, 20 mL) at 37 °C. Aliquots of solution (1 mL) were withdrawn at planned time points (45 min, 1.5, 3, 6, 12 h and 1, 2, 3, 4, 5, 6, 7, 10 d). After filtering the samples, the suspension solutions were shifted to flasks containing HNO3 (5 mL, 70%), and digested at 180 °C. Afterwards, inductively coupled plasma mass spectrometry (ICP-MS, Thermo Elemental X7, Winsford, UK) was used to detect the digested solutions. The detected samples were repeated three times.
Detection of ·OH. Non-fluorescent terephthalic acid (TA) can be oxidized by ·OH to 2-hydroxyl terephthalic acid (TAOH), which has a characteristic peak at 435 nm under the excitation of 315 nm [54]. By observing the fluorescence intensity of TAOH, we detected the formation of ·OH from H2O2 catalyzed by UiO-66-NH2-Ag using the Horiba FluoroLog-3 fluorescence spectrometer (USA). Typically, the solutions to be measured were divided into five groups, including TA, UiO-66-NH2-Ag, H2O2, TA + H2O2 and TA + H2O2 + UiO-66-NH2-Ag. The final working concentrations were 10 μg/mL for UiO-66-NH2-Ag, 0.1 mM for H2O2 and 0.5 mM for TA. The solution was gently mixed in the dark at 37 °C for 12 h. Then, the fluorescence intensity was recorded.
POD-like catalytic activity of UiO-66-NH2-Ag. TMB was used as a substrate to measure the POD-like activity of UiO-66-NH2-Ag. UV-Vis absorbance of oxidized TMB (oxTMB) at 652 nm will be observed using UV-Vis-NIR spectrophotometer (VARIAN CARY 50, Shanghai, China) if the UiO-66-NH2-Ag has an obvious POD-like activity, like other POD-like catalytic nanomaterials [55]. Typically, the TMB solution was added to HAc-NaAc buffer containing UiO-66-NH2-Ag (33 μg/mL) and H2O2 (10 mM) and incubated for 10 min at 25 °C in the dark to evaluate the POD-like activity by recording the absorption at 652 nm. The effect of H2O2 and UiO-66-NH2-Ag concentrations on POD-like activity was investigated by changing the concentrations of UiO-66-NH2-Ag (5, 10, 20, 50, 100 μg/mL) and H2O2 (0, 2.5, 5, 10, 20 mM) at 25 °C. In addition, the POD-like activity was also measured by varying the incubation temperature (25, 30, 35, 40, 50, 60, 70 °C) in the HAc-NaAc buffer and pH (2, 3, 4, 5, 6, 7, 8) in the PBS buffer.
Cytotoxicity and hemolysis analysis. Human umbilical vein endothelial cells lines (HUVEC) and human glioma cells lines (U87) were employed for the investigation of the cytotoxicity of UiO-66-NH2-Ag. The two cells (6 × 103 cells per well) were grown in 96-well plates and incubated in an incubator (37 °C, 5% CO2) for 24 h. Subsequently, the two cells were incubated with different concentrations of UiO-66-NH2-Ag (0, 3.9, 7.8, 15.6, 31.2, 62.5, 125, and 250 μg/mL) for a further 24 h. After being washed three times with fresh medium, Cell Counting Kit-8 (CCK-8) assay was adopted and then a microplate reader (SpectraMax M2, USA) was used to record the absorbance at 450 nm.
For hemolysis analysis, fresh blood (1 mL) obtained from BALB/c mice (6 weeks old) obtained from Vital River was mixed with PBS (2 mL) containing EDTA. After centrifugation at 2000 rpm and washing three times, red blood cells (RBCs) were collected and resuspended in PBS. The diluted RBCs suspension solution was then added to PBS (negative control), distilled water (positive control) and different concentrations of UiO-66-NH2-Ag dispersions (3.9, 7.8, 15.6, 31.3, 62.5, 125, and 250 µg/mL). These mixtures were kept at 25 °C for 4 h. Finally, UV-Vis spectrophotometry was used to measure the absorbance of the supernatant at 541 nm.
Bacterial solutions. Gram-negative ampicillin-resistant Escherichia coli (Ampr E. coli) and Gram-positive endospore-forming Bacillus subtilis (B. subtilis) were respectively transferred to Luria-Bertani (LB) containing ampicillin (50 µg/mL) and Beef-Peptone-Yeast (BPY) broth. The two bacteria were kept at 37 °C under shaking for 5 h. Then, the bacteria were centrifuged and washed with PBS.
In vitro antibacterial performances. The antibacterial performances of UiO-66-NH2-Ag nanocomposite were tested by the plate counting method. Two Gram bacteria (Ampr E. coli and B. subtilis, OD600 = 0.10) were assayed diluted to 1.0 × 105 CFU/mL in PBS. The diluted bacteria (0.4 mL) were mixed with the UiO-66-NH2-Ag (0.1 mL) with the final concentration of 0, 3, 6, 12, 25, 50, and 100 μg/mL and oscillated at 37 °C for 4 h. Next, the above mixture (100 μL) was spread on LB or BPY solid culture plates and cultured at 37 °C for 24 h.
Moreover, we also performed a live/dead staining experiment to study the antibacterial performance of UiO-66-NH2-Ag. First, UiO-66-NH2-Ag nanocomposite (0, 3, 6, 12 μg/mL) were incubated with 500 μL of Ampr E. coli or B. subtilis suspension (1.0 × 108 CFU/mL) at 37 °C for 4 h. After incubation, propidium iodide (PI) (red) and SYTO 9 (green) were mixed with the suspension of Ampr E. coli or Bacillus subtilis. The final concentrations of PI and SYTO 9 were 30 μM and 20 μM, respectively. The mixture was incubated at 37 °C under dark for 25 min. Finally, laser scanning confocal microscopy (Nikon, Tokyo, Japan) was used to observe the fluorescence images.
Morphology observation of bacteria. To further evaluate antibacterial performance, Ampr E. coli and B. subtilis were mixed with different concentrations (6, 12, 25, 50 and 100 μg/mL) of UiO-66-NH2-Ag nanocomposite at 37 °C for 4 h. Next, these bacteria were fixed with paraformaldehyde (4%) at 4 °C. Then, the bacteria were sequentially dehydrated with ethanol (30%, 50%, 70%, 80%, 90%, and 100%) for 10 min. The prepared bacteria were sprayed with gold and used for FE-SEM images.
ROS detection. DCFH-DA fluorescent probe was used to detect ROS production in bacteria. First, UiO-66-NH2-Ag nanocomposite (0, 3, 6, 12 μg/mL) were incubated with 500 μL of Ampr E. coli or B. subtilis suspension (1.0 × 108 CFU/mL) for 4 h at 37 °C. After incubation, DCFH-DA was mixed with suspensions of E. coli or B. subtilis. The final concentration of DCFH-DA was 10 μM. The mixture was incubated at 37 °C for 15 min under dark. Finally, the fluorescence images were observed using a laser scanning confocal microscope.
In vivo wound healing. To evaluate the performance of UiO-66-NH2-Ag on promoting wound healing, male BALB/c mice (6 weeks) were grouped into three groups (n = 6 in each group): (1) Control PBS; (2) Ag+; (3) UiO-66-NH2-Ag. After anesthetizing, the wound with diameter of 5 mm (∼78 mm2) was surgically obtained on the back of the mice. These skin wounds were then infected with Ampr E. coli suspension (1.0 × 105 CFU/mL). 12 h later, 5 μL of PBS, AgNO3 (0.86 μg/mL) and UiO-66-NH2-Ag (12.5 μg/mL with 0.86 μg of Ag loading) solutions were applied to the wounds at corresponding groups, respectively. This process of adding the above solutions to the wound was performed twice at 12-h intervals. The wounds were photographed daily, and the body weight of mice was recorded. During the treatment, wound tissues were photographed, and then the skin tissues (n = 3 per group) were collected and fixed with 4% formaldehyde for Hematoxylin-Eosin (H&E) staining and Masson’s staining within day 8. Furthermore, blood samples were collected from each group of mice on day 8 for routine blood analysis. After that, representative H&E-stained images of major organs of mice (n = 6 for each group) after being treated with UiO-66-NH2-Ag at day 7, day 15, and day 30 were also used to evaluate long-term safety. All animal experiments were performed and approved in accordance with the Key Laboratory for Biomedical Effects of Nanomaterials and Nanosafety, CAS guidelines for the care and use of laboratory of Animals Ethics Committee.

3. Results and Discussion

The porous MOF-based UiO-66-NH2 NPs were synthesized by a hydrothermal approach. Subsequently, an in-situ immobilization dispersion reaction of Ag+ and the UiO-66-NH2 was used to initiate and fix Ag NPs on the surface of UiO-66-NH2, resulting in the formation of MOF-based UiO-66-NH2-Ag nanocomposite. FE-SEM image in Figure S1a and TEM image in Figure 1a showed that the UiO-66-NH2-Ag had an octahedral-like construction with a diameter of ~60 nm. Noteworthy, the Ag NPs with a diameter of about 5 nm were uniformly distributed on the surface of UiO-66-NH2. XRD patterns of the UiO-66-NH2 showed the purity and good crystallinity (Figure 1b) [56]. The high agreement between UiO-66-NH2 and UiO-66 on the 2θ peak indicated that the introduction of the -NH2 group had no impact on the skeletal structure of UiO-66. After in-situ immobilization of the Ag NPs, typical peaks (111 and 200) of cubic-phased Ag appeared (JCPDS No. 87-0719), implying the successful anchoring of Ag NPs on the surface of UiO-66-NH2. To evaluate the porosity of UiO-66-NH2, N2 adsorption/desorption isotherm was measured, and the specific surface area was calculated as 473 m2 g−1 (Figure S2a). According to the Barrett–Joyner–Halenda (BJH) model, the pore size distribution from the isothermal adsorption branch was estimated to be approximately 1.5 nm (Figure S2b). Furthermore, we found that UiO-66-NH2 had a low zeta potential in water (−5.5 ± 0.47 mV). However, the zeta potential of UiO-66-NH2-Ag changed to +8.06 ± 0.16 mV, further implying a successful immobilization of Ag to the UiO-66-NH2-Ag surface (Figure 1c).
The element mapping of Zr, N, Ag, and O in UiO-66-NH2-Ag nanocomposite was illustrated by HAADF-STEM images (Figure 1d). The EDX spectrum of UiO-66-NH2-Ag nanocomposite (Figure S3) exhibited a similar result with the elemental mapping analysis. Next, we analyzed the surface elemental compositions and chemical states of the obtained nanocomposite. As shown in Figure 1e, XPS survey spectrum indicated the coexistence of Zr, C, N, Ag and O in the UiO-66-NH2-Ag. Moreover, the XPS spectrum of Ag 3d was shown in Figure 1f, where the Ag 3d5/2 (368.5 eV) and Ag 3d3/2 (374.6 eV) peaks implied the existence of Ag in the zero-valent form [57]. The XPS Zr 3d peak could be further split into Zr 3d5/2 (182.6 eV) and Zr 3d3/2 (185.0 eV), which were attributed to Zr-O in UiO-66 (Figure S4a) [58]. The N 1s XPS spectrum showed a typical peak located at 399.4 eV, corresponding to –NH2 and –NH groups (Figure S4b). UV-Vis-NIR spectrum of the UiO-66-NH2-Ag well inherited the feature of UiO-66-NH2 and had wide absorbance from UV-Vis to NIR regions. Especially, UiO-66-NH2-Ag had a stronger absorbance than UiO-66-NH2 at 400–750 nm on account of the successful anchoring of Ag NPs (Figure 1g).
Nanomaterials especially metal-based nanocomposites have the ability as nanozyme with improved POD-like catalytic activity, which can catalyze H2O2 to produce highly toxic ·OH for killing bacteria [16,17]. We then attempted to evaluate the POD-like activity of UiO-66-NH2-Ag nanocomposite by the catalytic oxidation of colorless TMB to blue oxidized TMB (oxTMB) in the presence of H2O2. In Figure 2a, compared with other groups, the TMB + H2O2 + UiO-66-NH2-Ag had an intense absorption at 652 nm with a significant blue color within 10 min, confirming that UiO-66-NH2-Ag had a high POD-like activity. Meanwhile, the blue gradually deepened with the increased UiO-66-NH2-Ag concentration, indicating the concentration-dependent POD-like activity (Figure 2b). The catalytic activity also depended on H2O2 concentration, pH values and temperature. As shown in Figure 2c, the POD-like activity increased with the increased H2O2 concentration. Moreover, we found that the optimal pH value and temperature were ~pH 5.0 and 37–42 °C, which were very close to the pH value of real bacterial microenvironment and living body temperature (Figure 2d,e). It is reasonable to refer that the enhanced POD-like activity of UiO-66-NH2-Ag after being activated by the Ag NPs could be due to the accelerated electron transfer from TMB to H2O2 compared with the UiO-66-NH2 NPs.
Due to the enhanced POD-like activity of UiO-66-NH2-Ag, it is necessary to further investigate the formation of ·OH. TA was used as a typical fluorescence (FL) probe to detect the ·OH with a maximum peak at 435 nm upon the reaction with ·OH. As shown in Figure S5, besides its inherent FL peak [59], the characteristic peak at 435 nm was significantly enhanced in TMB + H2O2 + UiO-66-NH2-Ag group compared to the TMB + UiO-66-NH2-Ag group, implying that H2O2 could be efficiently changed into ·OH catalyzed by UiO-66-NH2-Ag. The enhanced POD-like activity provided a possibility for the subsequent synergy with controllable Ag+ release to kill bacteria.
It was reported that the bacteria-infected acute wound microenvironment is weak acidity [60]. To investigate the pH-dependent Ag+ release capacity of UiO-66-NH2-Ag nanocomposite responsive to acute wound microenvironment, the Ag content on the surface of UiO-66-NH2-Ag was determined to be 4.396 wt% by ICP-MS. In addition, the cumulative Ag+ release capacity of UiO-66-NH2-Ag over 10 d is shown in Figure 2f. The release of Ag+ increased significantly within the first 2 h both in pH 7.4 and 5.0. Then, 47.33 µg/mL of Ag+ was released from UiO-66-NH2-Ag into 20 mL media within 1 d, and 56.12 µg/mL of cumulative release of Ag+ within 10 d was calculated. Especially, the cumulative Ag+ release capacity of UiO-66-NH2-Ag over 10 d can reach up to ~84.12 µg/mL, which was very higher than that in the neural condition. This process proves the pH-responsive release ability of UiO-66-NH2-Ag, which can be explained as follow. First, the porous UiO-66-NH2 scaffolds as a relatively stable nanocarrier make the Ag NPs well-dispersed in the biological environment and difficult to reunite. Second, the well-dispersed Ag NPs with large surface area fixed on the surface of UiO-66-NH2-Ag scaffolds could easily release the relatively large number of Ag+. At the same time, the positive surface charge of UiO-66-NH2-Ag (shown in Figure 1c) could also easily repel the released Ag+ to the surface of bacteria, and then more easily meets the release requirement into acute acidic wound microenvironment. The pH-responsive Ag+ release of the UiO-66-NH2-Ag offers great potential for chemical sterilization.
Inspired by the ability of controllable release of Ag+ and the remarkable POD-like activity, we next evaluated the antibacterial effects of UiO-66-NH2-Ag nanocomposite. Typical Gram-negative ampicillin-resistant Escherichia coli (Ampr E. coli) was selected as a model bacterial strain, and the antibacterial ability was determined by plate counting method. Interestingly, the UiO-66-NH2-Ag had superior antibacterial efficacy and led to a very low survival rate of 2.2% for Ampr E. coli after co-incubated with UiO-66-NH2-Ag (6 μg/mL) for 4 h (Figure 3a,c). However, ~98% survival rate of Ampr E. coli was observed for UiO-66-NH2 without Ag NPs loading under the same incubation condition (Figure S6), suggesting the negligible antimicrobial effect of low concentration UiO-66-NH2. The large gap in antimicrobial effect of UiO-66-NH2 before and after loading of Ag NPs suggested the importance of the synergy of Ag+ release and the increased POD-like activity of UiO-66-NH2 after loading Ag NPs with uniform distribution. And the UiO-66-NH2-Ag can promote the production of a large amount of ROS with a concentration-dependent effectin bacterial microenvironment (Figure S7). To further investigate the antibacterial performance of UiO-66-NH2-Ag against other bacteria, endospore-forming Bacillus subtilis (B. subtilis) as a typical Gram-positive bacterium was selected for antibacterial test. As shown in Figure 3b,d, after 4 h of incubation, the bacterial survival rate decreased sharply with the increased concentration of UiO-66-NH2-Ag. Notably, the two bacteria died with >99.99% of killing rate when the concentration of UiO-66-NH2-Ag was 12 μg/mL.
Next, live/dead staining was used to distinguish living cells from dead cells by SYTO 9 (for dead and live cells, green) and propidium iodide (PI for dead cells, red) staining for further understanding its concentration-dependent killing ability to Ampr E. coli and B. subtilis. Similar to the previous plate counting results, more dead bacteria were observed in the 12 μg/mL of UiO-66-NH2-Ag group, while a few dead bacteria were observed when treated with 6 μg/mL and 3 μg/mL of UiO-66-NH2-Ag (Figure S8). The above results showed that this Ag-loaded nanocomposite exhibited remarkable antibacterial properties for Ampr E. coli and B. subtilis at very low doses.
FE-SEM images in Figure 4a were used to further study the antibacterial behavior of UiO-66-NH2-Ag. As expected, the Ampr E. coli incubated with control group was smooth. The rod-like morphology and the cell membrane structure of the Ampr E. coli were intact. However, 6 μg/mL of UiO-66-NH2-Ag treated for 20 min resulted in slight wrinkles and some disruption on the surface of bacterial cell wall (red arrows). As the concentration of UiO-66-NH2-Ag rose to 12 μg/mL, the damage of bacterial surface was more intense with more wrinkles and incomplete surfaces. As the concentration increased to 50 μg/mL, the membrane of bacteria was severely damaged, and the bacterial morphology was changed and fused together. Similar results were verified on B. subtilis (Figure 4b). Therefore, UiO-66-NH2-Ag with low dose use of Ag NPs has a powerful antibacterial effect due to the high POD-like activity synergistic Ag+ release, which can produce large amounts of ROS to directly disrupt bacteria. This efficient antibacterial performance and low dose use of Ag NPs offer great possibilities for bacterial disinfection.
Good biocompatibility is a prerequisite for biological applications. Therefore, we performed hemolysis to assess the effect of UiO-66-NH2-Ag nanocomposite on RBCs. Interestingly, no obvious erythrocyte hemolysis was observed after incubation in RBCs with different concentrations of UiO-66-NH2-Ag (Figure S9). Furthermore, in vitro cytotoxicity studies of UiO-66-NH2-Ag nanocomposite on HUVEC and U87 cells were performed by CCK-8 assay. Even at 250 μg/mL of UiO-66-NH2-Ag, the two cells remained highly active (Figure S10). These results clearly revealed that UiO-66-NH2-Ag has good biocompatibility at the tested dosage.
To observe the in vivo wound healing effect of UiO-66-NH2-Ag nanocomposite, Ampr E. coli was selected to infect the wounds on the epidermis of BALB/c mice (Figure 5a). The mice were divided into (1) Control, (2) Ag+, and (3) UiO-66-NH2-Ag groups. Figure 5b showed representative photographs of different treated wounds in mice during the treatment. All wounds shrank with the prolonged time. Notably, the UiO-66-NH2-Ag treated group showed better wound healing than the control and Ag+ groups, which can be attributed to the effective Ag+ release synergetic POD-like activity on the wound surface. The maximum percentage of wound area in each group further demonstrated its effect in accelerating wound healing (Figure 5c). There was no obvious change in the body weight of mice for UiO-66-NH2-Ag treated group compared with the control group, indicating that UiO-66-NH2-Ag had no significant toxicity to mice (Figure 5d). After treatment, the wound tissues were analyzed by H&E staining and Masson trichrome staining (Figure 5e and Figure S11). On day 3, H&E staining showed epidermal damage in each group. On day 5, repair of damaged skin tissues was observed in all treatment groups. On day 8, complete reepithelialization and differentiated epithelium were clearly observed in the UiO-66-NH2-Ag group compared to the other groups. Masson trichrome staining (blue) was used to distinguish collagen fibers from muscle fibers during wound healing. On days 3 and 5, no obvious collagen fibers were observed in each group. On day 8, collagen fibers in control group had no obvious recovery effect, while collagen fibers in Ag+ group had some recovery. The UiO-66-NH2-Ag group showed the optimal recovery of collagen fiber. In addition, major organs of mice were stained with H&E and blood indexes of mice were used to evaluate the biocompatibility of the UiO-66-NH2-Ag. As shown in Figure S12, no obvious damage or inflammatory reaction was observed in the H&E staining, indicating that the UiO-66-NH2-Ag had good histocompatibility within 30 days. Meanwhile, the nine blood routine indexes were all within the normal range, indicating that UiO-66-NH2-Ag was biologically safe (Figure S13). Therefore, this synergistic antibacterial system can not only achieve rapid wound disinfection, but also has good biosafety.

4. Conclusions

In summary, we constructed a biocompatible MOF-based UiO-66-NH2-Ag nanocomposite consisting of well-dispersed Ag NPs anchored on the porous UiO-66-NH2. The nanocomposite can avoid the aggregation of Ag NPs while enhancing dispersion of Ag NPs. Meanwhile, UiO-66-NH2-Ag not only improved the utilization of Ag NPs, but also provided a pH-responsive Ag+ release in acidic wound environment. In addition, the UiO-66-NH2-Ag can act as nanozyme with enhanced POD-like catalytic activity after loading Ag NPs, which allowed it to break down H2O2 within bacteria to produce highly toxic ·OH to destroy bacteria integrity. This POD-like activity synergistic Ag+ release greatly facilitated the production of more ROS in bacteria, resulting in highly effective bactericidal activity. UiO-66-NH2-Ag at a low concentration of 12 μg/mL could effectively kill Ampr E. coli and B. subtilis with >99.99% bactericidal activity. Moreover, UiO-66-NH2-Ag maintained low cytotoxicity over a wide concentration range (0–250 μg/mL). In vivo results revealed that UiO-66-NH2-Ag exhibited high antibacterial effect and significantly accelerated bacteria-infected wound healing without any influence on organ and blood indicators. This work provides a new strategy for safe wound disinfection broadens the prospect of antimicrobial nanomaterials for broad-spectrum bactericide application.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/nano12224058/s1, Figure S1: FE-SEM image of UiO-66-NH2-Ag nanocomposite; Figure S2: N2 adsorption/desorption isotherms of UiO-66-NH2 and BJH pore size distribution curves of UiO-66 and UiO-66-NH2; Figure S3: EDX of UiO-66-NH2-Ag nanocomposite. Inset is the mass ratio of different elements; Figure S4: XPS data of high-resolution Zr 3d and N 1s of UiO-66-NH2-Ag nanocomposite; Figure S5: FL spectra of TAOH after different treatments; Figure S6: Photographs of bacterial colonies formed by Ampr E. coli exposed to different concentrations of UiO-66-NH2. And Ampr E. coli killing ratio treated with different concentrations of UiO-66-NH2; Figure S7: Fluorescence images of Ampr E. coli and B. subtilis incubated with different concentrations of UiO-66-NH2-Ag using DCFH-DA probe for ROS detection; Figure S8: Fluorescence images of Ampr E. coli and B. subtilis treated with different concentrations of UiO-66-NH2-Ag incubated with SYTO-9 and PI; Figure S9: Hemolysis experiment of UiO-66-NH2-Ag at different concentrations; Figure S10: Cell viabilities of HUVEC and U87 cells after incubation with different concentrations of UiO-66-NH2-Ag for 24 h; Figure S11: Percentage of collagen fiber area after different treatments; Figure S12: Representative H&E stained images of major organs of mice after treated with UiO-66-NH2-Ag for different days; Figure S13: Routine blood analysis of mice after 8 days of treatment.

Author Contributions

W.Y., G.Y. and Q.W., conceptualization of the project, funding acquisition, project administration and writing—review and editing of the manuscript. J.Z., N.C. and J.L. conducted most experiments and wrote the draft manuscript. L.M. performed the animal experiments. G.T. reviewed and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (U1932112, 22175182, 21471103, 81971747), Beijing Natural Science Foundation (2202064), Sheng Yuan Cooperation (2021SYHZ0048), Chongqing Natural Science Foundation (cstc2020jcyj-msxmX0061).

Institutional Review Board Statement

All animal experiments were performed and approved in accordance with the Key Laboratory for Biomedical Effects of Nanomaterials and Nanosafety, CAS guidelines for the care and use of laboratory of Animals Ethics Committee.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, F.; Fang, R.H.; Luk, B.T.; Hu, C.J.; Thamphiwatana, S.; Dehaini, D.; Angsantikul, P.; Kroll, A.V.; Pang, Z.; Gao, W.; et al. Nanoparticle-Based Antivirulence Vaccine for The Management of Methicillin-Resistant Staphylococcus Aureus Skin Infection. Adv. Funct. Mater. 2016, 26, 1628–1635. [Google Scholar] [CrossRef] [PubMed]
  2. Zhang, L.; Wang, Y.; Wang, J.; Wang, Y.; Chen, A.; Wang, C.; Mo, W.; Li, Y.; Yuan, Q.; Zhang, Y. Photon-Responsive Antibacterial Nanoplatform for Synergistic Photothermal-/Pharmaco-Therapy of Skin Infection. ACS Appl. Mater. Interfaces 2019, 11, 300–310. [Google Scholar] [CrossRef] [PubMed]
  3. Pan, H.; Yao, X.; Chen, W.; Wang, F.; He, H.; Liu, L.; He, Y.; Chen, J.; Jiang, P.; Zhang, R.; et al. Dissecting Complicated Viral Spreading of Enterovirus 71 Using in Situ Bioorthogonal Fluorescent Labeling. Biomaterials 2018, 181, 199–209. [Google Scholar] [CrossRef]
  4. Whiteley, M.; Diggle, S.P.; Greenberg, E.P. Progress in and Promise of Bacterial Quorum Sensing Research. Nature 2017, 551, 313–320. [Google Scholar] [CrossRef] [PubMed]
  5. Varadi, L.; Luo, J.L.; Hibbs, D.E.; Perry, J.D.; Anderson, R.J.; Orenga, S.; Groundwater, P.W. Methods for the Detection and Identification of Pathogenic Bacteria: Past, Present, and Future. Chem. Soc. Rev. 2017, 46, 4818–4832. [Google Scholar] [CrossRef]
  6. Raffatellu, M. Learning from Bacterial Competition in the Host to Develop Antimicrobials. Nat. Med. 2018, 24, 1097–1103. [Google Scholar] [CrossRef]
  7. D’Elia, R.V.; Woods, S.; Butcher, W.; McGahon, J.; Khadke, S.; Perrie, Y.; Williamson, E.D.; Roberts, C.W. Exploitation of The Bilosome Platform Technology to Formulate Antibiotics and Enhance Efficacy of Melioidosis Treatments. J. Control. Release 2019, 298, 202–212. [Google Scholar] [CrossRef]
  8. Rizzello, L.; Pompa, P.P. Nanosilver-Based Antibacterial Drugs and Devices: Mechanisms, Methodological Drawbacks, and Guidelines. Chem. Soc. Rev. 2014, 43, 1501–1518. [Google Scholar] [CrossRef]
  9. Dik, D.A.; Fisher, J.F.; Mobashery, S. Cell-Wall Recycling of The Gram-Negative Bacteria and The Nexus to Antibiotic Resistance. Chem. Rev. 2018, 118, 5952–5984. [Google Scholar] [CrossRef]
  10. Chen, J.; Su, F.Y.; Das, D.; Srinivasan, S.; Son, H.N.; Lee, B.; Radella, F., 2nd; Whittington, D.; Monroe-Jones, T.; West, T.E.; et al. Glycan Targeted Polymeric Antibiotic Prodrugs for Alveolar Macrophage Infections. Biomaterials 2019, 195, 38–50. [Google Scholar] [CrossRef]
  11. Piepenbreier, H.; Diehl, A.; Fritz, G. Minimal Exposure of Lipid II Cycle Intermediates Triggers Cell Wall Antibiotic Resistance. Nat. Commun. 2019, 10, 2733. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, T.; Zhang, X.; Mei, L.; Ma, D.; Liao, Y.; Zu, Y.; Xu, P.; Yin, W.; Gu, Z. A Two-step Gas/Liquid Strategy for The Production of N-doped Defect-rich Transition Metal Dichalcogenide Nanosheets and Their Antibacterial Applications. Nanoscale 2020, 12, 8415–8424. [Google Scholar] [CrossRef] [PubMed]
  13. Smith, A.W. Biofilms and Antibiotic Therapy: Is There a Role for Combating Bacterial Resistance by The Use of Novel Drug Delivery Systems? Adv. Drug Deliv. Rev. 2005, 57, 1539–1550. [Google Scholar] [CrossRef] [PubMed]
  14. Cai, T.; Fang, G.; Tian, X.; Yin, J.J.; Chen, C.; Ge, C. Optimization of Antibacterial Efficacy of Noble-Metal-Based Core-Shell Nanostructures and Effect of Natural Organic Matter. ACS Nano 2019, 13, 12694–12702. [Google Scholar] [CrossRef] [PubMed]
  15. Ivask, A.; ElBadawy, A.; Kaweeteerawat, C.; Boren, D.; Fischer, H.; Ji, Z.X.; Chang, C.H.; Liu, R.; Chang, C.H.; Liu, R.; et al. Toxicity Mechanisms in Escherichia Coli Vary for Silver Nanoparticles and Differ from Ionic Silver. ACS Nano 2013, 8, 374–386. [Google Scholar] [CrossRef] [PubMed]
  16. Eshed, M.; Lellouche, J.; Gedanken, A.; Banin, E. A Zn-Doped CuO Nanocomposite Shows Enhanced Antibiofilm and Antibacterial Activities Against Streptococcus Mutans Compared to Nanosized CuO. Adv. Funct. Mater. 2014, 24, 1382–1390. [Google Scholar] [CrossRef]
  17. Han, D.; Han, Y.; Li, J.; Liu, X.; Yeung, K.W.K.; Zheng, Y.; Cui, Z.; Yang, X.; Liang, Y.; Li, Z.; et al. Enhanced Photocatalytic Activity and Photothermal Effects of Cu-doped Metal-organic Frameworks for Rapid Treatment of Bacteria-infected Wounds. Appl. Catal. B 2020, 261, 118248. [Google Scholar] [CrossRef]
  18. Liu, Y.; Xu, X.; Xia, Q.; Yuan, G.; He, Q.; Cui, Y. Multiple Topological Isomerism of Three-Connected Networks in Silver-based Metal-organoboron Frameworks. Chem. Commun. 2010, 46, 2608–2610. [Google Scholar] [CrossRef]
  19. Liu, Z.; Zhu, Y.; Liu, X.; Yeung, K.W.K.; Wu, S. Construction of Poly (Vinyl Alcohol)/Poly (Lactide-glycolide Acid)/Vancomycin Nanoparticles on Titanium for Enhancing the Surface Self-antibacterial Activity and Cytocompatibility. Colloids Surf. B 2017, 151, 165–177. [Google Scholar] [CrossRef]
  20. Sedghi, R.; Shaabani, A. Electrospun Biocompatible Core/Shell Polymer-free Core Structure Nanofibers with Superior Antimicrobial Potency Against Multi Drug Resistance Organisms. Polymer 2016, 101, 151–157. [Google Scholar] [CrossRef]
  21. Tian, T.; Shi, X.; Cheng, L.; Luo, Y.; Dong, Z.; Gong, H.; Xu, L.; Zhong, Z.; Peng, R.; Liu, Z. Graphene-based Nanocomposite as an Effective, Multifunctional, and Recyclable Antibacterial Agent. ACS Appl. Mater. Interfaces 2014, 6, 8542–8548. [Google Scholar] [CrossRef] [PubMed]
  22. Jian, H.J.; Wu, R.S.; Lin, T.Y.; Li, Y.J.; Lin, H.J.; Harroun, S.G.; Lai, J.Y.; Huang, C.C. Super-Cationic Carbon Quantum Dots Synthesized from Spermidine as an Eye Drop Formulation for Topical Treatment of Bacterial Keratitis. ACS Nano 2017, 11, 6703–6716. [Google Scholar] [CrossRef] [PubMed]
  23. Herget, K.; Hubach, P.; Pusch, S.; Deglmann, P.; Gotz, H.; Gorelik, T.E.; Gural’skiy, I.A.; Pfitzner, F.; Link, T.; Schenk, S.; et al. Haloperoxidase Mimicry by CeO2-x Nanorods Combats Biofouling. Adv. Mater. 2017, 29, 1603823. [Google Scholar] [CrossRef] [PubMed]
  24. Yin, W.; Yu, J.; Lv, F.; Yan, L.; Zheng, L.R.; Gu, Z.; Zhao, Y. Functionalized Nano-MoS2 with Peroxidase Catalytic and Near-Infrared Photothermal Activities for Safe and Synergetic Wound Antibacterial Applications. ACS Nano 2016, 10, 11000–11011. [Google Scholar] [CrossRef]
  25. Sun, X.; Sun, J.; Sun, Y.; Li, C.; Fang, J.; Zhang, T.; Wan, Y.; Xu, L.; Zhou, Y.; Wang, L.; et al. Oxygen Self-Sufficient Nanoplatform for Enhanced and Selective Antibacterial Photodynamic Therapy against Anaerobe-Induced Periodontal Disease. Adv. Funct. Mater. 2021, 31, 2101040. [Google Scholar] [CrossRef]
  26. Marino, N.; Perez-Lloret, M.; Blanco, A.R.; Venuta, A.; Quaglia, F.; Sortino, S. Photo-antimicrobial Polymeric Films Releasing Nitric Oxide with Fluorescence Reporting under Visible Light. J. Mater. Chem. B 2016, 4, 5138–5143. [Google Scholar] [CrossRef]
  27. Chernousova, S.; Epple, M. Silver as Antibacterial Agent: Ion, Nanoparticle, and Metal. Angew. Chem. Int. Ed. Engl. 2013, 52, 1636–1653. [Google Scholar] [CrossRef]
  28. Zhang, Y.; Sun, P.; Zhang, L.; Wang, Z.; Wang, F.; Dong, K.; Liu, Z.; Ren, J.; Qu, X. Silver-Infused Porphyrinic Metal-Organic Framework: Surface-Adaptive, On-Demand Nanoplatform for Synergistic Bacteria Killing and Wound Disinfection. Adv. Funct. Mater. 2019, 29, 1808594. [Google Scholar] [CrossRef]
  29. Zheng, Q.; Zhou, M.; Deng, W.; Chris Le, X. Is There a Silver Lining? Aggregation and Photo-transformation of Silver Nanoparticles in Environmental Waters. J. Environ. Sci. 2015, 34, 259–262. [Google Scholar] [CrossRef]
  30. Yin, I.X.; Zhang, J.; Zhao, I.S.; Mei, M.L.; Li, Q.; Chu, C.H. The Antibacterial Mechanism of Silver Nanoparticles and Its Application in Dentistry. Int. J. Nanomed. 2020, 15, 2555–2562. [Google Scholar] [CrossRef]
  31. Vilela, D.; Stanton, M.M.; Parmar, J.; Sanchez, S. Microbots Decorated with Silver Nanoparticles Kill Bacteria in Aqueous Media. ACS Appl. Mater. Interfaces 2017, 9, 22093–22100. [Google Scholar] [CrossRef] [PubMed]
  32. Xiu, Z.M.; Zhang, Q.B.; Puppala, H.L.; Colvin, V.L.; Alvarez, P.J. Negligible Particle-specific Antibacterial Activity of Silver Nanoparticles. Nano Lett. 2012, 12, 4271–4275. [Google Scholar] [CrossRef] [PubMed]
  33. Xie, X.; Mao, C.; Liu, X.; Zhang, Y.; Cui, Z.; Yang, X.; Yeung, K.W.K.; Pan, H.; Chu, P.K.; Wu, S. Synergistic Bacteria Killing Through Photodynamic and Physical Actions of Graphene Oxide/Ag/Collagen Coating. ACS Appl. Mater. Interfaces 2017, 9, 26417–26428. [Google Scholar] [CrossRef] [PubMed]
  34. Lucia, B.; Javier, A.; Gracia, M.; Silvia, I.; Stefano, C.; Ernesto, R. Production, Characterization and Testing of Antibacterial PVA Membranes Loaded with HA-Ag3PO4 Nanoparticles, Produced by SC-CO2 Phase Inversion. J. Chem. Technol. Biotechnol. 2019, 94, 98–108. [Google Scholar]
  35. Jaime, G.C.; Loredana, S.; Begonya, V.; Maxim, G.; Víctor, I.R.; Samuel, P.; Diego, F.; Juan, B.C. ZnO/Ag Nanocomposites with Enhanced Antimicrobial Activity. Appl. Sci. 2022, 12, 5023. [Google Scholar] [CrossRef]
  36. Lange, A.; Sawosz, E.; Wierzbicki, M.; Kutwin, M.; Daniluk, K.; Strojny, B.; Ostrowska, A.; Wojcik, B.; Lojkowski, M.; Golebiewski, M.; et al. Nanocomposites of Graphene Oxide-Silver Nanoparticles for Enhanced Antibacterial Activity: Mechanism of Action and Medical Textiles Coating. Materials 2022, 15, 3122. [Google Scholar] [CrossRef]
  37. Rai, M.; Yadav, A.; Gade, A. Silver Nanoparticles as a New Generation of Antimicrobials. Biotechnol. Adv. 2009, 27, 76–83. [Google Scholar] [CrossRef]
  38. Wang, X.; Sun, W.; Yang, W.; Gao, S.; Sun, C.; Li, Q. Mesoporous Silica-protected Silver Nanoparticle Disinfectant with Controlled Ag+ Ion Release, Efficient Magnetic Separation, and Effective Antibacterial Activity. Nanoscale Adv. 2019, 1, 840–848. [Google Scholar] [CrossRef]
  39. Sukhorukova, I.V.; Sheveyko, A.N.; Shvindina, N.V.; Denisenko, E.A.; Ignatov, S.G.; Shtansky, D.V. Approaches for Controlled Ag+ Ion Release: Influence of Surface Topography, Roughness, and Bactericide Content. ACS Appl. Mater. Interfaces 2017, 9, 4259–4271. [Google Scholar] [CrossRef]
  40. Tan, Z.K.; Gong, J.L.; Fang, S.Y.; Li, J.; Cao, W.C.; Chen, Z.P. Outstanding Anti-bacterial Thin-film Composite Membrane Prepared by Incorporating Silver-based Metal–Organic Framework (Ag-MOF) for Water Treatment. Appl. Surf. Sci. 2022, 590, 153059. [Google Scholar] [CrossRef]
  41. James, S.L. Metal-organic Frameworks. Chem. Soc. Rev. 2003, 32, 276–288. [Google Scholar] [CrossRef] [PubMed]
  42. Meek, S.T.; Greathouse, J.A.; Allendorf, M.D. Metal-organic Frameworks: A Rapidly Growing Class of Versatile Nanoporous Materials. Adv. Mater. 2011, 23, 249–267. [Google Scholar] [CrossRef] [PubMed]
  43. Furukawa, H.; Cordova, K.E.; O’Keeffe, M.; Yaghi, O.M. The Chemistry and Applications of Metal-organic Frameworks. Science 2013, 341, 1230444. [Google Scholar] [CrossRef] [PubMed]
  44. Horcajada, P.; Gref, R.; Baati, T.; Allan, P.K.; Maurin, G.; Couvreur, P.; Ferey, G.; Morris, R.E.; Serre, C. Metal-organic Frameworks in Biomedicine. Chem. Rev. 2012, 112, 1232–1268. [Google Scholar] [CrossRef] [PubMed]
  45. Yang, J.; Yang, Y.W. Metal–Organic Frameworks for Biomedical Applications. Small 2020, 16, 1906846. [Google Scholar] [CrossRef]
  46. Wang, D.; Jana, D.; Zhao, Y. Metal-Organic Framework Derived Nanozymes in Biomedicine. Acc. Chem. Res. 2020, 53, 1389–1400. [Google Scholar] [CrossRef]
  47. Liu, X.; Yan, Z.; Zhang, Y.; Liu, Z.; Sun, Y.; Ren, J.; Qu, X. Two-Dimensional Metal-Organic Framework/Enzyme Hybrid Nanocatalyst as a Benign and Self-Activated Cascade Reagent for in Vivo Wound Healing. ACS Nano 2019, 13, 5222–5230. [Google Scholar] [CrossRef]
  48. Rahmati, Z.; Abdi, J.; Vossoughi, M.; Alemzadeh, I. Ag-doped Magnetic Metal Organic Framework as a Novel Nanostructured Material for Highly Efficient Antibacterial Activity. Environ. Res. 2020, 188, 109555. [Google Scholar] [CrossRef]
  49. Ximing, G.; Bin, G.; Yuanlin, W.; Shuanghong, G. Preparation of Spherical Metal-organic Frameworks Encapsulating Ag Nanoparticles and Study on its Antibacterial Activity. Mater. Sci. Eng. C 2017, 80, 698–707. [Google Scholar] [CrossRef]
  50. Chen, N.; Fu, W.; Zhou, J.; Mei, L.; Yang, J.; Tian, Y.; Wang, Q.; Yin, W. Mn2+-doped ZrO2@PDA Nanocomposite for Multimodal Imaging-guided Chemo-photothermal Combination Therapy. Chin. Chem. Lett. 2021, 32, 2405–2410. [Google Scholar] [CrossRef]
  51. Nasrabadi, M.; Ghasemzadeh, M.A.; Zand Monfared, M.R. The Preparation and Characterization of UiO-66 Metal–organic Frameworks for the Delivery of the Drug Ciprofloxacin and an Evaluation of their Antibacterial Activities. New J. Chem. 2019, 43, 16033–16040. [Google Scholar] [CrossRef]
  52. Gao, P.; Feng, Y.; Wang, M.; Jiang, N.; Qi, W.; Su, R.; He, Z. Ferrocene-Modified Metal–Organic Frameworks as a Peroxidase-Mimicking. Catalyst. Catal. Lett. 2020, 151, 478–486. [Google Scholar] [CrossRef]
  53. Xu, X.; Chu, C.; Fu, H.; Du, X.; Wang, P.; Zheng, W.; Wang, C. Light-responsive UiO-66-NH2/Ag3PO4 MOF-nanoparticle Composites for the Capture and Release of Sulfamethoxazole. Chem. Eng. J. 2018, 350, 436–444. [Google Scholar] [CrossRef]
  54. Zhang, C.; Yan, L.; Wang, X.; Dong, X.; Zhou, R.; Gu, Z.; Zhao, Y. Tumor Microenvironment-Responsive Cu2(OH)PO4 Nanocrystals for Selective and Controllable Radiosentization via the X-ray-Triggered Fenton-like Reaction. Nano Lett. 2019, 19, 1749–1757. [Google Scholar] [CrossRef]
  55. Ji, S.; Jiang, B.; Hao, H.; Chen, Y.; Dong, J.; Mao, Y.; Zhang, Z.; Gao, R.; Chen, W.; Zhang, R.; et al. Matching the Kinetics of Natural Enzymes with a Single-atom Iron Nanozyme. Nat. Catal. 2021, 4, 407–417. [Google Scholar] [CrossRef]
  56. Cui, S.; Ye, Z.; Qian, C.; Liu, J.; Jin, J.; Liang, Q.; Liu, C.; Xu, S.; Li, Z. Construction of Ternary Ag/AgBr@UIO-66(NH2) Heterojunctions with Enhanced Photocatalytic Performance for The Degradation of Methyl Orange. J. Mater. Sci. Mater. Electron. 2018, 29, 15138–15146. [Google Scholar] [CrossRef]
  57. Rodríguez-González, V.; Alfaro, S.O.; Torres-Martínez, L.M.; Cho, S.-H.; Lee, S.-W. Silver–TiO2 Nanocomposites: Synthesis and Harmful Algae Bloom UV-Photoelimination. Appl. Catal. B 2010, 98, 229–234. [Google Scholar] [CrossRef]
  58. Cui, J.; Xu, X.; Yang, L.; Chen, C.; Qian, J.; Chen, X.; Sun, D. Soft foam-like UiO-66/Polydopamine/Bacterial Cellulose Composite for the Removal of Aspirin and Tetracycline Hydrochloride. Chem. Eng. J. 2020, 395, 125174. [Google Scholar] [CrossRef]
  59. Vellingiri, K.; Deep, A.; Kim, K.-H.; Boukhvalov, D.W.; Kumar, P.; Yao, Q. The Sensitive Detection of Formaldehyde in Aqueous Media Using Zirconium-based Metal Organic Frameworks. Sens. Actuators B Chem. 2017, 241, 938–948. [Google Scholar] [CrossRef]
  60. Huang, Y.; Mu, L.; Zhao, X.; Han, Y.; Guo, B.L. Bacterial Growth-Induced Tobramycin Smart Release Self-Healing Hydrogel for Pseudomonas Aeruginosa-Infected Burn Wound HealingSens. ACS Nano 2022, 8, 13022–13036. [Google Scholar] [CrossRef]
Nanomaterials 12 04058 sch001
Scheme 1. Schematic illustrations of the synthesis process of well-dispersed Ag NPs anchored with porous MOF-based UiO-66-NH2 to form UiO-66-NH2-Ag nanocomposite and their peroxidase-like activity synergistic Ag+ release for high efficient and rapid bacterial elimination.
Scheme 1. Schematic illustrations of the synthesis process of well-dispersed Ag NPs anchored with porous MOF-based UiO-66-NH2 to form UiO-66-NH2-Ag nanocomposite and their peroxidase-like activity synergistic Ag+ release for high efficient and rapid bacterial elimination.
Nanomaterials 12 04058 sch001
Nanomaterials 12 04058 g001
Figure 1. (a) TEM image of UiO-66-NH2–Ag nanocomposite. (b) XRD patterns of the UiO-66-NH2 and UiO-66-NH2–Ag. (c) Zeta potential of UiO-66-NH2 and UiO-66-NH2-Ag. Data represent mean ± standard error of the mean (n = 3). (d) The high-angle annular dark-field (HAADF)-STEM image of UiO-66-NH2–Ag, and corresponding element mappings of the Ag, O, Zr and N signals. (e) XPS survey plot and (f) Ag 3d spectra of UiO-66-NH2Ag. (g) UV-vis-NIR spectra of UiO-66-NH2 and UiO-66-NH2-Ag aqueous dispersions.
Figure 1. (a) TEM image of UiO-66-NH2–Ag nanocomposite. (b) XRD patterns of the UiO-66-NH2 and UiO-66-NH2–Ag. (c) Zeta potential of UiO-66-NH2 and UiO-66-NH2-Ag. Data represent mean ± standard error of the mean (n = 3). (d) The high-angle annular dark-field (HAADF)-STEM image of UiO-66-NH2–Ag, and corresponding element mappings of the Ag, O, Zr and N signals. (e) XPS survey plot and (f) Ag 3d spectra of UiO-66-NH2Ag. (g) UV-vis-NIR spectra of UiO-66-NH2 and UiO-66-NH2-Ag aqueous dispersions.
Nanomaterials 12 04058 g001
Nanomaterials 12 04058 g002
Figure 2. (a) Absorbance spectra of oxTMB in the presence of H2O2 for 10 min using UiO-66-NH2-Ag and UiO-66-NH2. (b) Concentration-dependent POD-like activity of UiO-66-NH2-Ag in the presence of TMB (1 mM) and H2O2 (10 mM). Inset shows the photographs of the reaction system. UiO-66-NH2-Ag concentration rises from left to right. (c) H2O2 concentration-dependent POD-like activity of UiO-66-NH2-Ag. UiO-66-NH2-Ag concentration: 33 μg/mL and TMB concentration: 1 mM. Inset shows the photographs of the reaction system. H2O2 concentration rises from left to right. (d) pH-dependent POD-like activities. Insets from left to right are photos of the reaction system at pH = 2 and pH = 5, respectively. (e) Temperature-dependent POD-like activities. Insets from left to right are photos of the reaction system at different temperature points. Concentrations: TMB (1 mM), H2O2 (10 mM) and UiO-66-NH2-Ag (33 μg/mL). (f) Time-dependent Ag+ release from UiO-66-NH2-Ag at 37 °C with two different pH values.
Figure 2. (a) Absorbance spectra of oxTMB in the presence of H2O2 for 10 min using UiO-66-NH2-Ag and UiO-66-NH2. (b) Concentration-dependent POD-like activity of UiO-66-NH2-Ag in the presence of TMB (1 mM) and H2O2 (10 mM). Inset shows the photographs of the reaction system. UiO-66-NH2-Ag concentration rises from left to right. (c) H2O2 concentration-dependent POD-like activity of UiO-66-NH2-Ag. UiO-66-NH2-Ag concentration: 33 μg/mL and TMB concentration: 1 mM. Inset shows the photographs of the reaction system. H2O2 concentration rises from left to right. (d) pH-dependent POD-like activities. Insets from left to right are photos of the reaction system at pH = 2 and pH = 5, respectively. (e) Temperature-dependent POD-like activities. Insets from left to right are photos of the reaction system at different temperature points. Concentrations: TMB (1 mM), H2O2 (10 mM) and UiO-66-NH2-Ag (33 μg/mL). (f) Time-dependent Ag+ release from UiO-66-NH2-Ag at 37 °C with two different pH values.
Nanomaterials 12 04058 g002
Nanomaterials 12 04058 g003
Figure 3. Photographs of bacterial colonies formed by (a) Ampr E. coli and (b) B. subtilis after exposed to different concentrations of UiO-66-NH2–Ag. (c) Ampr E. coli and (d) B. subtilis killing ratios in (a,b). *** p < 0.001 tested by Student’s t-test.
Figure 3. Photographs of bacterial colonies formed by (a) Ampr E. coli and (b) B. subtilis after exposed to different concentrations of UiO-66-NH2–Ag. (c) Ampr E. coli and (d) B. subtilis killing ratios in (a,b). *** p < 0.001 tested by Student’s t-test.
Nanomaterials 12 04058 g003
Nanomaterials 12 04058 g004
Figure 4. FE-SEM images of (a) Ampr E. coli and (b) B. subtilis treated with (I) PBS control and different concentrations of (II) 100 μg/mL, (III) 50 μg/mL, (IV) 25 μg/mL, (V) 12 μg/mL, (VI) 6 μg/mL of UiO-66-NH2-Ag. The red arrows show the damaged part.
Figure 4. FE-SEM images of (a) Ampr E. coli and (b) B. subtilis treated with (I) PBS control and different concentrations of (II) 100 μg/mL, (III) 50 μg/mL, (IV) 25 μg/mL, (V) 12 μg/mL, (VI) 6 μg/mL of UiO-66-NH2-Ag. The red arrows show the damaged part.
Nanomaterials 12 04058 g004
Nanomaterials 12 04058 g005

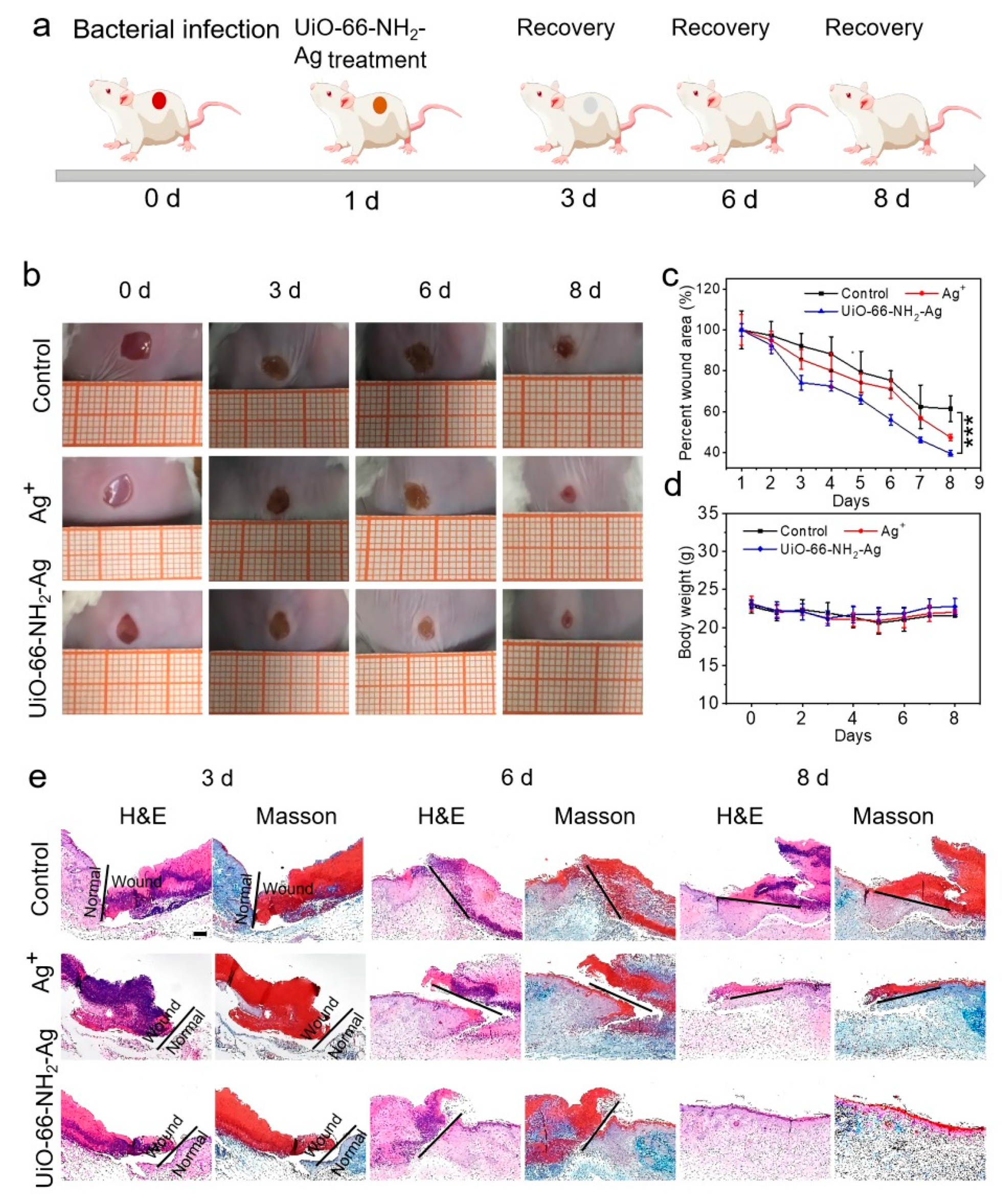

Figure 5. (a) Schematic diagram of wound healing model establishment and treatment plan. (b) Photographs of Ampr E. coli infected wound treated with PBS, Ag+, UiO-66-NH2-Ag at 0, 3, 6, 8 days. Mouse (c) percent of wound area and (d) body weight during the treatment. (e) Corresponding histological analysis of wound of mice on the 3rd, 6th and 8th day after different treatments. Scale bars: 50 μm. p values were calculated by Student’s t-test: *** p < 0.001.
