Investigate on the Mechanism of HfO2/Si0.7Ge0.3 Interface Passivation Based on Low-Temperature Ozone Oxidation and Si-Cap Methods

1
School of Information Science and Technology, North China University of Technology, Beijing 100144, China
2
Integrated Circuit Advanced Process Center, Institute of Microelectronics, Chinese Academy of Science, Beijing 100029, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Alexander Kromka
Nanomaterials 2021, 11(4), 955; https://doi.org/10.3390/nano11040955
Received: 23 February 2021 / Revised: 2 April 2021 / Accepted: 7 April 2021 / Published: 9 April 2021
(This article belongs to the Special Issue Silicon Nanodevices)

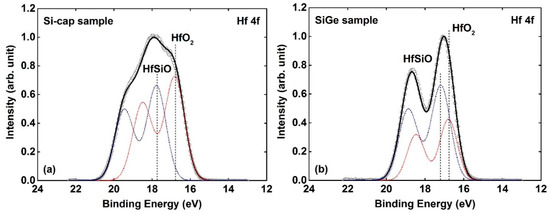

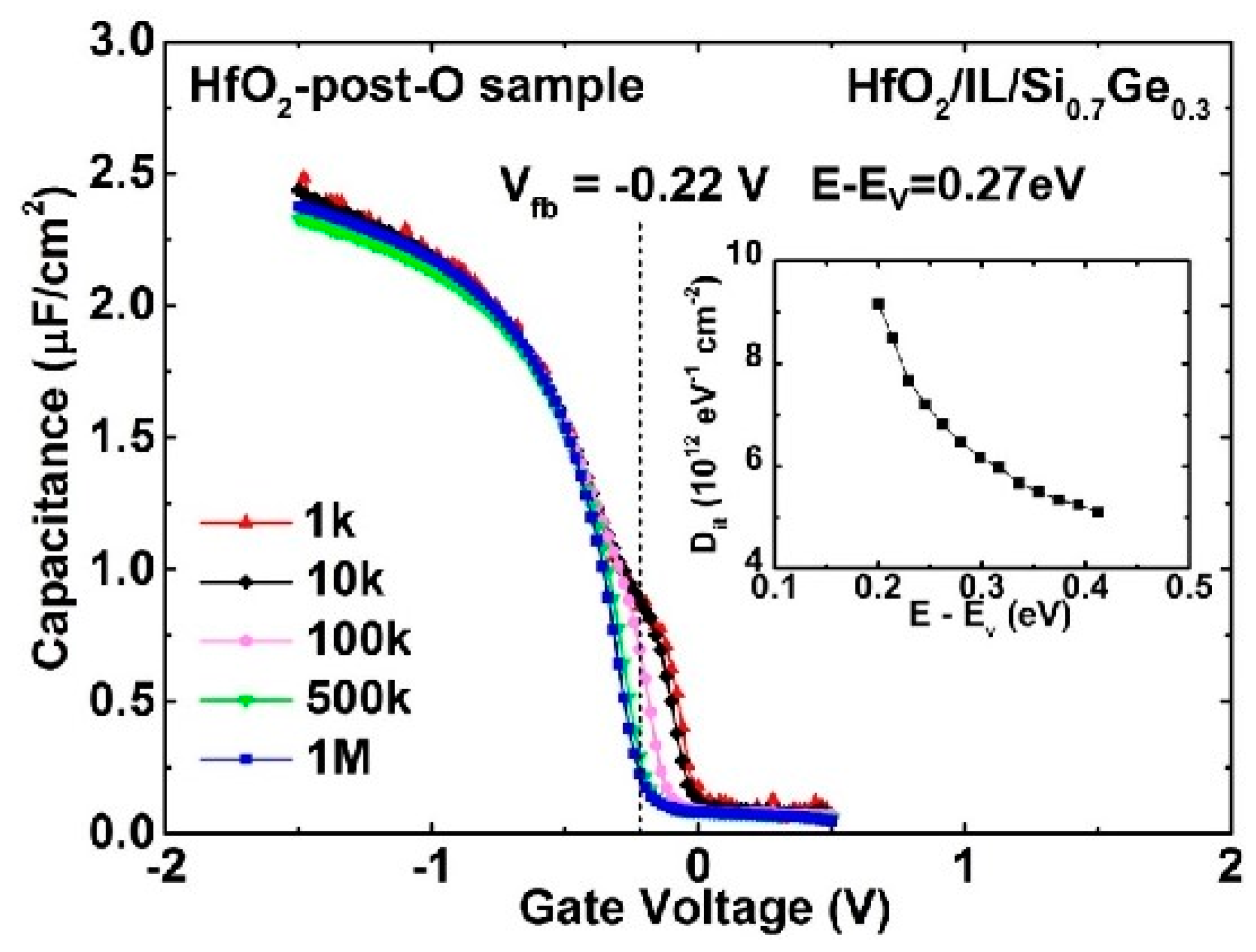

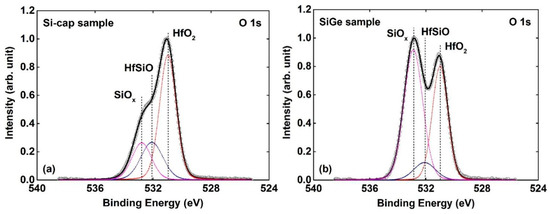

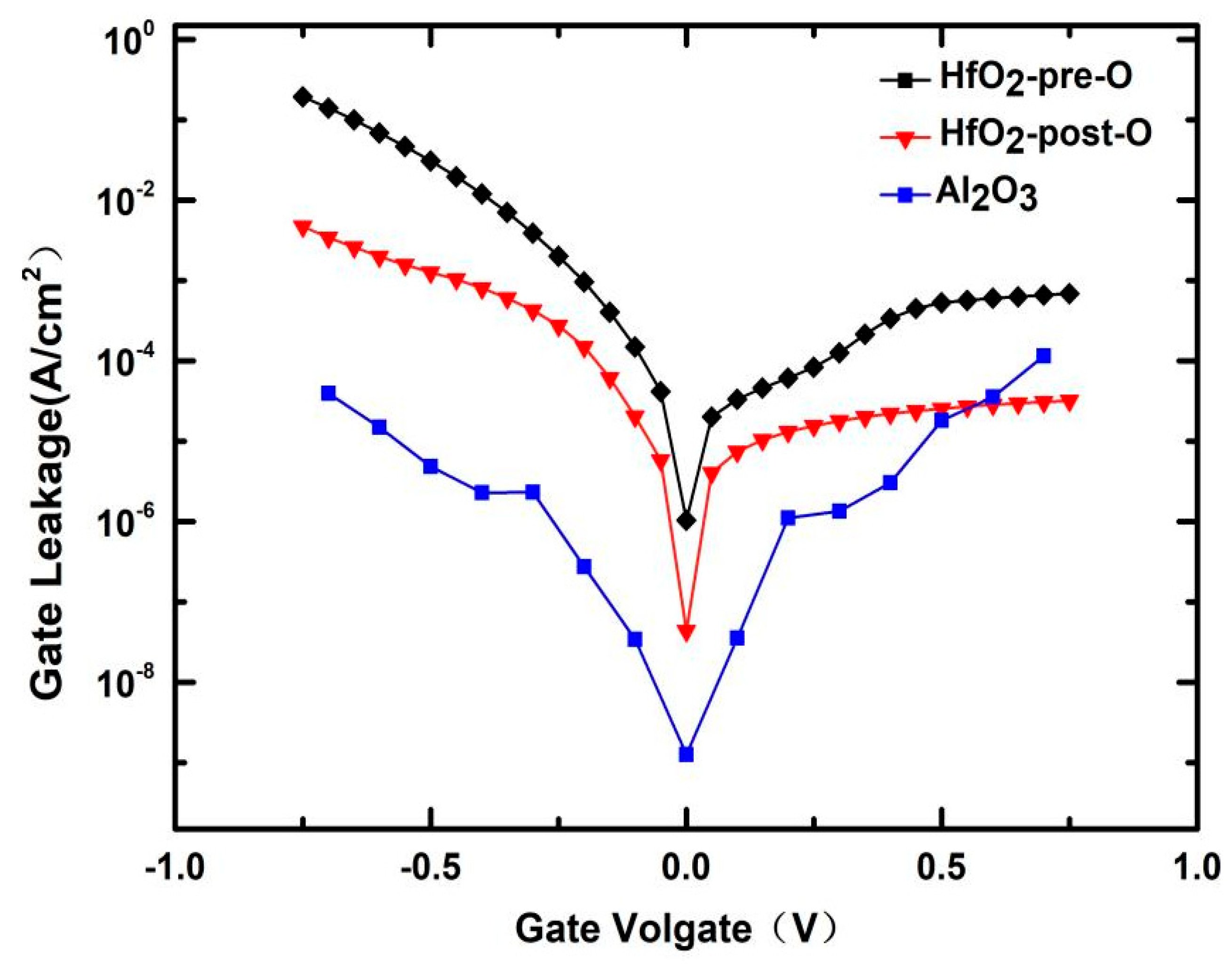

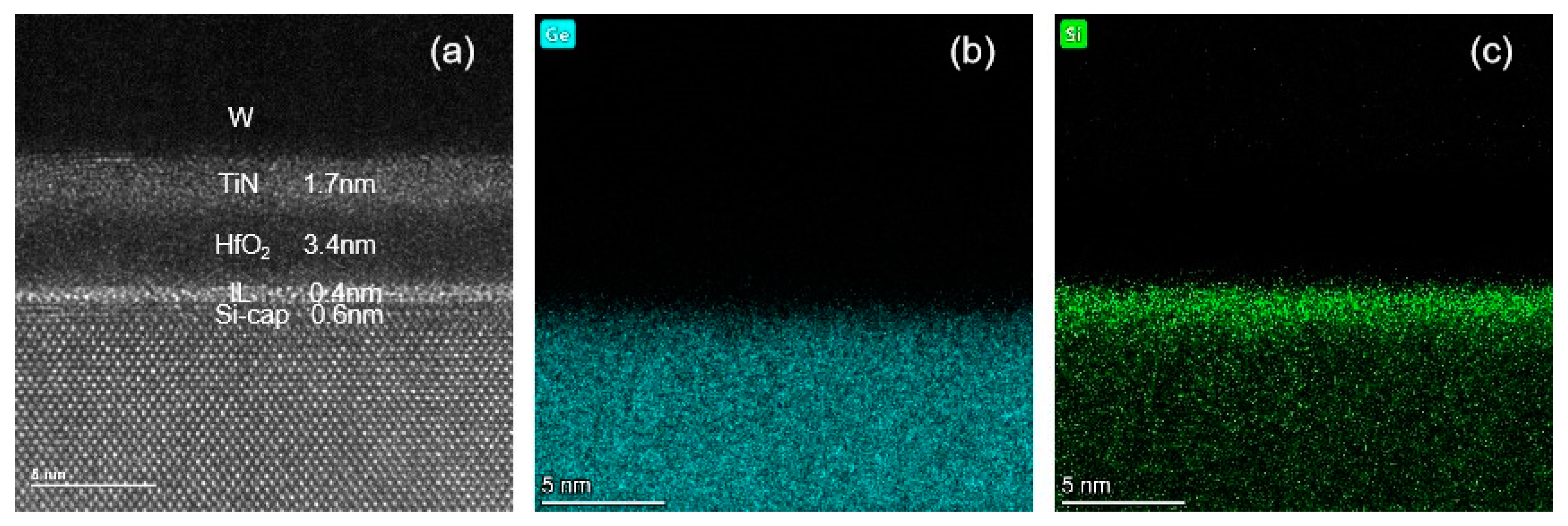

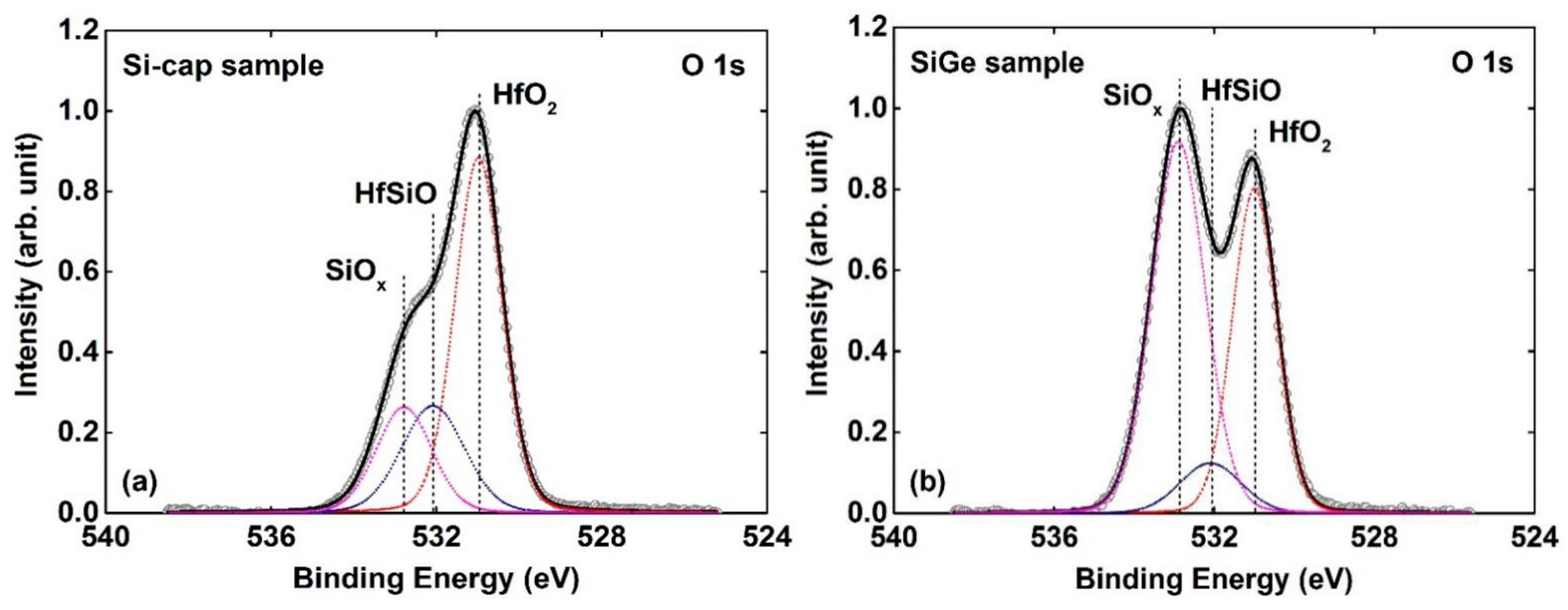

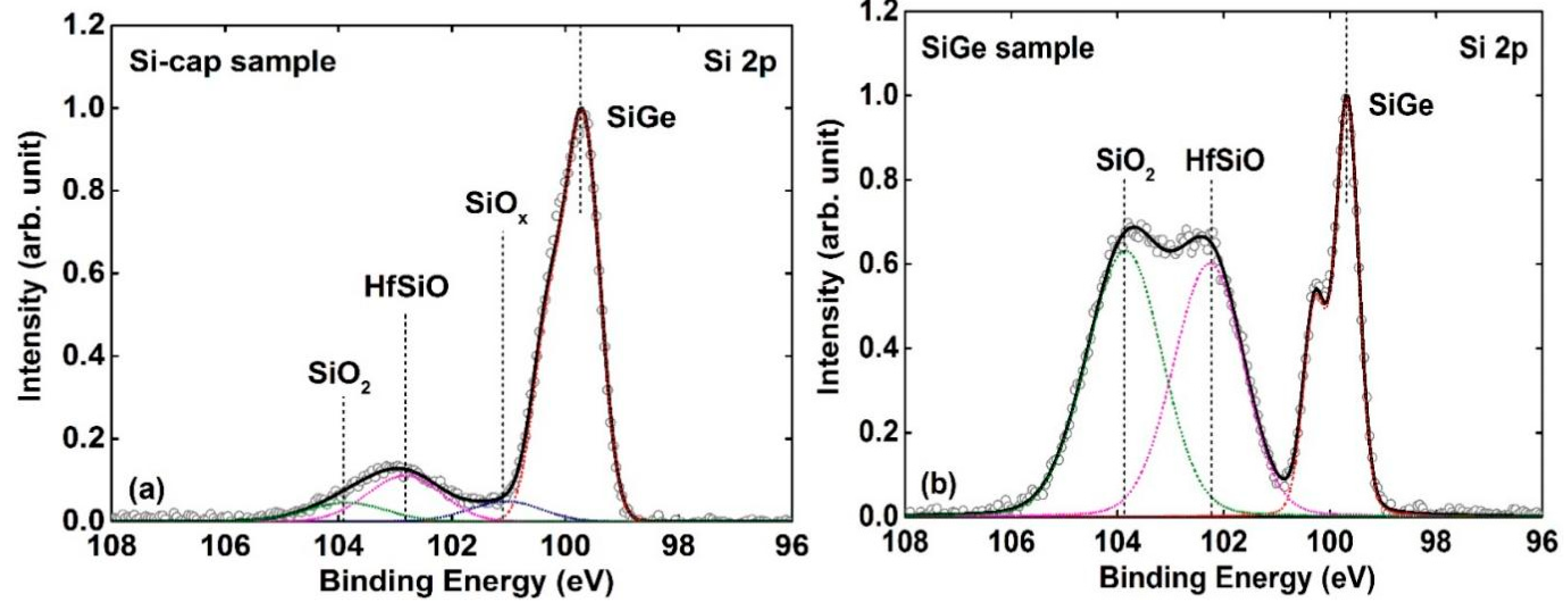

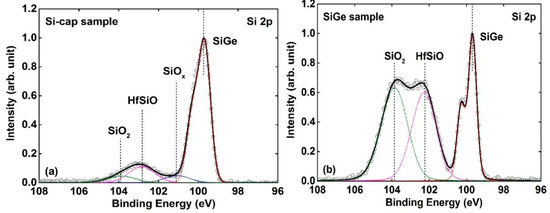

The interface passivation of the HfO2/Si0.7Ge0.3 stack is systematically investigated based on low-temperature ozone oxidation and Si-cap methods. Compared with the Al2O3/Si0.7Ge0.3 stack, the dispersive feature and interface state density (Dit) of the HfO2/Si0.7Ge0.3 stack MOS (Metal-Oxide-Semiconductor) capacitor under ozone direct oxidation (pre-O sample) increases obviously. This is because the tiny amounts of GeOx in the formed interlayer (IL) oxide layer are more likely to diffuse into HfO2 and cause the HfO2/Si0.7Ge0.3 interface to deteriorate. Moreover, a post-HfO2-deposition (post-O) ozone indirect oxidation is proposed for the HfO2/Si0.7Ge0.3 stack; it is found that compared with pre-O sample, the Dit of the post-O sample decreases by about 50% due to less GeOx available in the IL layer. This is because the amount of oxygen atoms reaching the interface of HfO2/Si0.7Ge0.3 decreases and the thickness of IL in the post-O sample also decreases. To further reduce the Dit of the HfO2/Si0.7Ge0.3 interface, a Si-cap passivation with the optimal thickness of 1 nm is developed and an excellent HfO2/Si0.7Ge0.3 interface with Dit of 1.53 × 1011 eV−1cm−2 @ E−Ev = 0.36 eV is attained. After detailed analysis of the chemical structure of the HfO2/IL/Si-cap/Si0.7Ge0.3 using X-ray photoelectron spectroscopy (XPS), it is confirmed that the excellent HfO2/Si0.7Ge0.3 interface is realized by preventing the formation of Hf-silicate/Hf-germanate and Si oxide originating from the reaction between HfO2 and Si0.7Ge0.3 substrate. View Full-Text
Keywords: HfO2/Si0.7Ge0.3 gate stack; ozone oxidation; Si-cap; interface state density; passivation HfO2/Si0.7Ge0.3 gate stack; ozone oxidation; Si-cap; interface state density; passivation
Show Figures

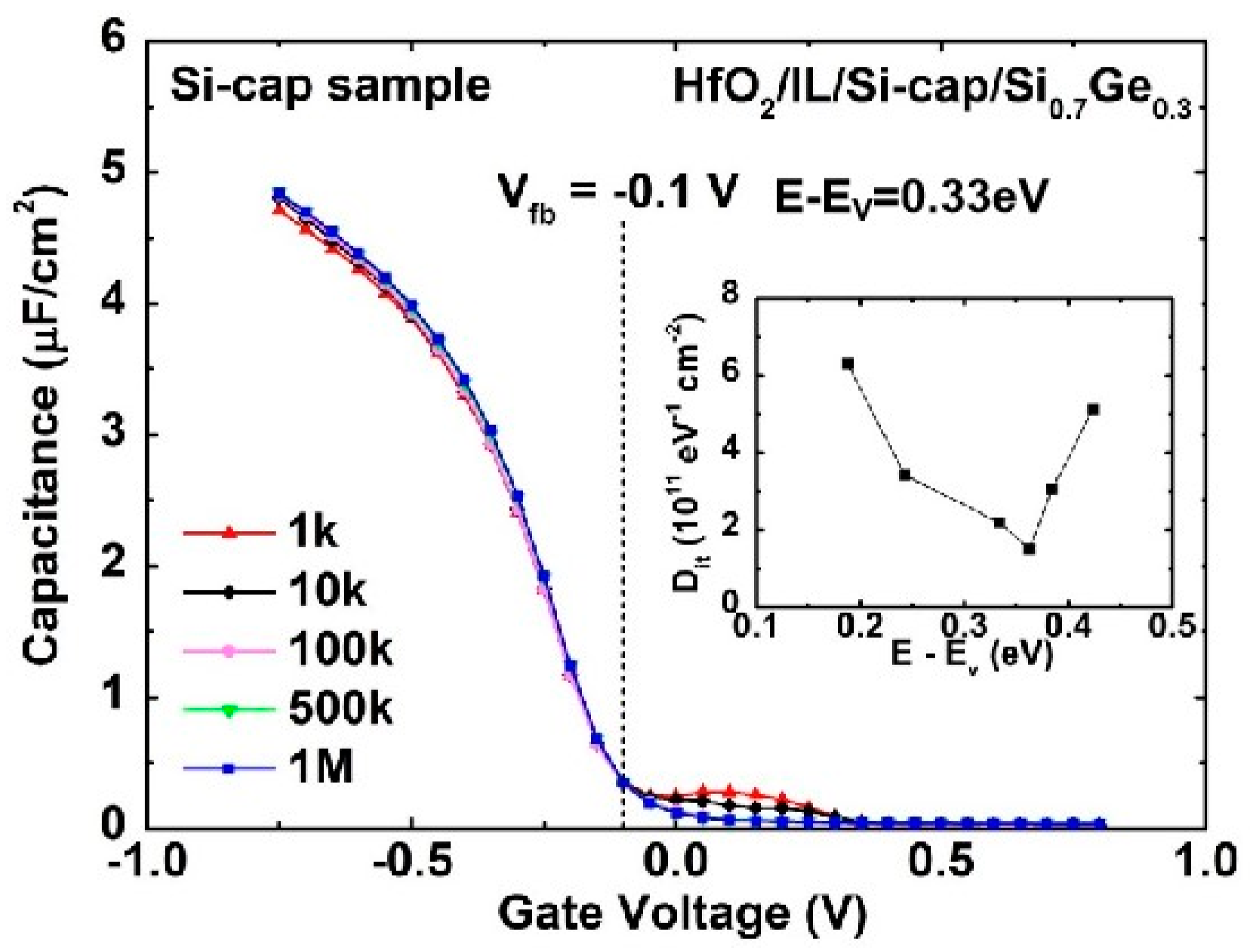

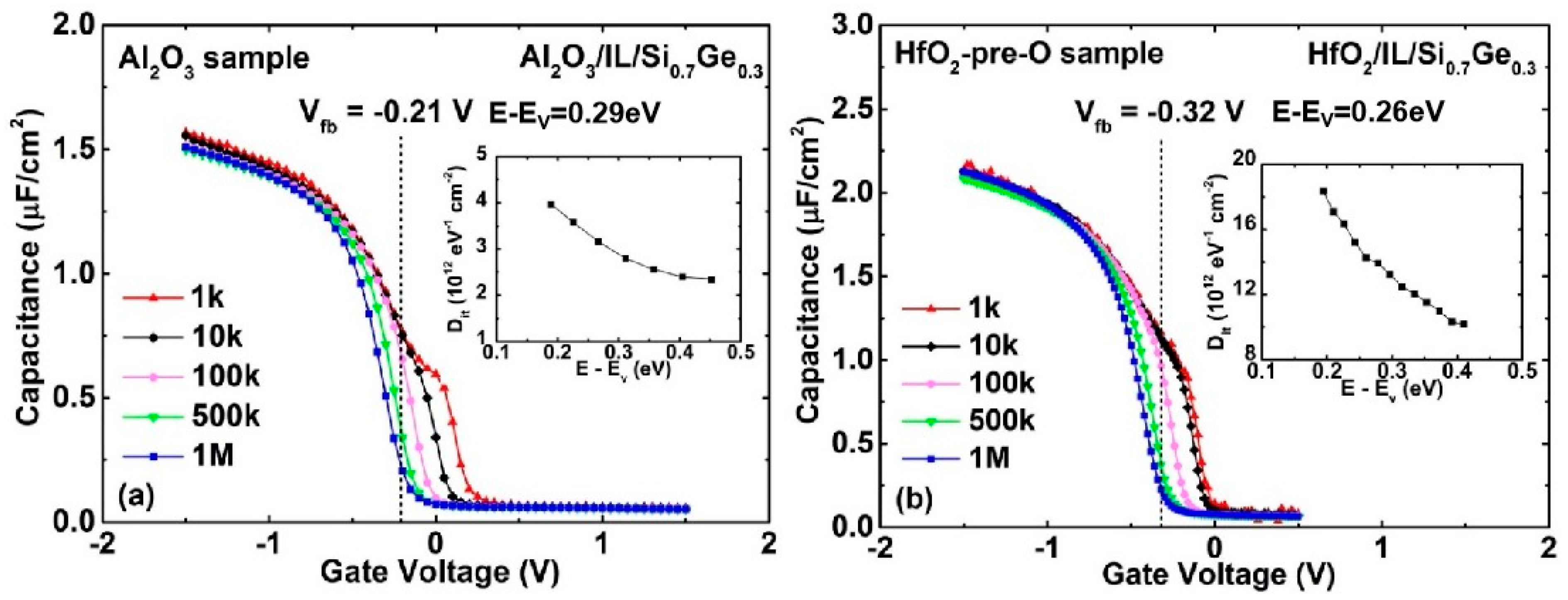

Figure 1
