Nitrogen Doped Intercalation TiO2/TiN/Ti3C2Tx Nanocomposite Electrodes with Enhanced Pseudocapacitance

by
Ben Yang
1,
Yin She
1,2,*,
Changgeng Zhang
1,
Shuai Kang
3,
Jin Zhou
4 and
Wei Hu
1,*
1
Key Laboratory of Optoelectronic Technology and System of Ministry of Education, College of Optoelectronic Engineering, Chongqing University, Chongqing 400044, China
2
Key Laboratory of Fundamental Science Micro/Nano Device System Technology, Micro System Research Center of Chongqing University, Chongqing 400044, China
3
Intelligent Manufacturing Technology Institute, Chongqing Institute of Green and Intelligent Technology, Chinese Academy of Sciences, Chongqing 400714, China
4
Chongqing Academy of Metrology and Quality Inspection, Chongqing 401121, China
*
Authors to whom correspondence should be addressed.
Nanomaterials 2020, 10(2), 345; https://doi.org/10.3390/nano10020345
Submission received: 13 January 2020 / Revised: 10 February 2020 / Accepted: 12 February 2020 / Published: 18 February 2020
(This article belongs to the Special Issue Design and Synthesis of Nanomaterials for Energy Storage)
Browse Figures
Versions Notes

Abstract

:
Layered two-dimensional titanium carbide (Ti3C2Tx), as an outstanding MXene member, has captured increasing attention in supercapacitor applications due to its excellent chemical and physical properties. However, the low gravimetric capacitance of Ti3C2Tx restricts its rapid development in such applications. Herein, this work demonstrates an effective and facile hydrothermal approach to synthesize nitrogen doped intercalation TiO2/TiN/Ti3C2Tx with greatly improved gravimetric capacitance and excellent cycling stability. The hexamethylenetetramine (C6H12N4) in hydrothermal environment acted as the nitrogen source and intercalants, while the Ti3C2Tx itself was the titanium source of TiO2 and TiN. We tested the optimized nitrogen doped intercalation TiO2/TiN/Ti3C2Tx electrodes in H2SO4, Li2SO4, Na2SO4, LiOH and KOH electrolytes, respectively. The electrode in H2SO4 electrolyte delivered the best electrochemical performance with high gravimetric capacitance of 361 F g−1 at 1 A g−1 and excellent cycling stability of 85.8% after 10,000 charge/discharge cycles. A systematic study of material characterization combined with the electrochemical performances disclosed that TiO2/TiN nanoparticles, the introduction of nitrogen and the NH4+ intercalation efficaciously increased the specific surface areas, which is beneficial for facilitating electrolyte ions transportation. Given the excellent performance, nitrogen doped intercalation TiO2/TiN/Ti3C2Tx bodes well as a promising pseudocapacitor electrode for energy storage applications.

1. Introduction

Supercapacitors, bridged the gap between lithium-ion batteries and conventional capacitors, have been considered to be a class of state-of-the-art energy storage devices with characteristics of high power density, long cycle life, and fast charge/discharge properties [1,2]. Electric double layer capacitors (EDLCs) based on carbon or carbon derivatives store charges via ions electro-sorption. EDLCs commonly exhibit excellent cyclic stability due to the high electrical conductivity and extraordinary chemical stability, while withstanding relatively low specific capacitance because of the limitation of charge accumulation in electrical double layers [3]. By contrast, pseudocapacitors enable the charge storage by mainly taking advantage of fast redox reactions based on metal oxides, sulfides and conducting polymers [4,5,6,7]. Pseudocapacitors can achieve substantially high specific capacitances through surface redox reactions but usually suffer from short cyclic lifetimes [8]. Two-dimensional (2D) materials, like graphene-based composites, have been used in redox capacitors and have shown impressive pseudocapacitance on account of their large electrochemically active surfaces [9]. Yet these pseudocapacitive materials display serious volume changes during the fast charge/discharge processes, resulting in deterioration in cyclability, which curtails their wide scale use [10,11]. Therefore, researchers have focused on the development of redox-active materials with high specific capacitance and good stability for pseudocapacitors.
MXenes, a new but quickly expanding class of 2D transition metal carbides and nitrides, have showed great potential in supercapacitor electrodes applications because of their enriched features of good electrical conductivity, remarkable chemical durability, hydrophilic nature, and intercalation characteristics [12,13,14,15,16,17,18,19,20,21]. Generally, MXenes are referred to formula Mn+1XnTx (where M is an early transition metal, X is C or N, T is a surface termination –OH, –F and/or –O, and n is 1, 2, or 3.) and can be synthesized by selectively etching “A” element layer from MAX phases in acidic fluoride containing solutions, such as HF, NH4HF2 and LiF in HCl [22,23,24,25,26]. To date, MXenes have been reported to exhibit high volumetric capacitance up to 900 F cm−3 and no measurable capacitance losses even after 10,000 cycles for Ti3C2Tx in aqueous electrolyte, which means a better performance than those of the carbon electrodes [26]. Nevertheless, the gravimetric capacitances of MXenes electrodes are usually low because the adjacent layers are easy to restack owing to the van der Waals interaction, which limits the accessibility of ions and utilization of the active sites [27,28].
To meet the practical requirements of high gravimetric capacitance and long cyclic life for MXenes supercapacitors, exploiting more pseudocapacitances by increasing the active sites has been considered as a valid tactic [29]. On the one hand, a high-efficiency strategy using heteroatoms incorporation into MXene-based electrodes can promote the surface properties and enhance the electrochemical reactivity and the electrical conductivity of MXenes [30,31,32,33,34,35,36]. Rufford and co-workers synthesized nitrogen-doped Ti3C2Tx supercapacitor electrode by annealing in ammonia gas [32]. Que’s group reported nitrogen-doped delaminated Ti3C2Tx and nitrogen and sulfur co-doped Ti3C2Tx electrodes through urea-assisted and thiourea-assisted carbonization, respectively [33,34]. These experimental results suggested that the introduction of heteroatoms into the Ti3C2Tx led to a remarkable increase of specific capacitance due to the strong electronegativity of heteroatoms compared with those of carbon atoms, which affected the surficial electrical and chemical properties of MXenes [30].
On the other hand, modifying the surface structures of MXenes with pseudocapacitive materials (like RuO2 and MnO2) is an effective strategy to prevent the re-stacking of sheets and meanwhile bring additional pseudo reactive sites, jointly imparting enhanced performances [37,38,39,40,41,42,43]. The redox-based metal cations are the key active ions carrying out redox reaction in the electrolyte, which deliver pseudocapacitance. For instance, Rakhi et al. synthesized ε-MnO2/Ti2CTx and ε-MnO2/Ti3C2Tx electrodes for aqueous pseudocapacitors [37]. Jiang et al. reported MXene-RuO2 asymmetric supercapacitors, which displayed enhanced device performance [41]. Moreover, recent researches have demonstrated that MXenes can be intercalated by a variety of cations [23,24,25,26]. The MXene electrodes undergo a large dilatation during Li+, K+, Na+ or Mg2+ intercalation, resulting in volumetric expansion and –F surface groups reduction [29]. The cation intercalated MXene electrodes show a significant enhancement in the gravimetric capacitance performance than its non-intercalated counterpart in pseudocapacitor application.
Pseudocapacitive materials modifying and heteroatoms doping are promising supports for faradic reactions and the cation intercalation can create open pathways for ions transport. These measures are promising for enhancing the gravimetric capacitances in supercapacitor electrode applications. Herein, in order to improve the gravimetric capacitance, we fabricated nitrogen doped intercalation TiO2/TiN/Ti3C2Tx (N-TiO2/TiN/Ti3C2Tx) via a facile C6H12N4 solution-assisted hydrothermal process. The combination of cations intercalating, heteroatoms doping and pseudocapacitive materials addition collectively produced high gravimetric capacitance MXenes pseudocapacitor. The N-TiO2/TiN/Ti3C2Tx demonstrated high gravimetric capacitance of 361 F g−1 at 1 A g−1 coupled with good cycling stability of 85.8% after 10,000 cycles.

2. Materials and Methods

2.1. Preparation of Ti3C2Tx

Typically, 3 g Ti3AlC2 (−200 mesh, Forsman, Beijing, China) powder was slowly added into 30 mL HF solution (40 wt%) and magnetically stirred at a speed of 450 rpm for 36 h at 40 °C. Afterwards, the multi-layered Ti3C2Tx was obtained after washing with deionized (DI) water and centrifuging until the supernatant reached a PH value about 6–7, and followed by drying in a vacuum oven at 80 °C for 12 h.

2.2. Synthesis of N Doped Intercalation TiO2/TiN/Ti3C2Tx

For the preparation of N-TiO2/TiN/Ti3C2Tx, the multi-layered Ti3C2Tx was treated in a hydrothermal environment with hexamethylenetetramine (C6H12N4) solution. Briefly, 50 mmol C6H12N4 was dispersed in 50 mL DI water and stirred until it completely dissolved. Then 0.8 g multi-layered Ti3C2Tx was added and stirred in C6H12N4 solution. Subsequently, the mixed solution was transferred into a 100 mL Teflon-lined stainless-steel autoclave and the hydrothermal reactions were conducted at 150 °C for 6 h, 12 h, 20 h, respectively. After the autoclave cooled to room temperature, the obtained N-TiO2/TiN/Ti3C2Tx was washed with DI water until neutral. Finally, the wet sediments were dried at 60 °C for 8 h.

2.3. Material Characterization

X-ray diffraction (XRD, Rigaku D/Max-2000, Rigaku, Tokyo, Japan) was performed with Cu Kα radiation (λ = 0.15406 nm) to characterize the crystalline structure. Scanning electron microscopy (SEM, FEI Nova 400, Peabody, MA, Netherland) and transmission electron microscopy (TEM, JEM-2100, JEOL, Tokyo, Japan) were used to examine the morphologies and microstructures. Chemical compositions and states were further analysed by X-ray photoelectron spectroscopy (XPS, ESCALAB 250 Xi, Thermo Fisher, Madison, USA) with monochromated Al Kα radiation (hν = 1486.6 eV). Raman spectroscopic (Raman, LabRAM HR Evolution, Horiba, Lille, France) and Fourier transform infrared spectroscopy (FTIR, Nicolet iS50, Thermo Fisher, Madison, USA) were employed to probe the functional groups. Nitrogen adsorption/desorption measurements were performed to investigate the surface characteristics at 77 K using a surface area analyser (BET, Quadrasorb 2MP, Quantachrome Instruments, FL, USA).

2.4. Preparation of Electrodes and Electrochemical Measurements

Pseudocapacitive electrodes were fabricated by dispersing 80 wt% active materials (Ti3C2Tx, 6 h, 12 h and 20 h N-TiO2/TiN/Ti3C2Tx), 10 wt% carbon black, and 10 wt% polyvinylidene fluoride in N-methyl-2-pyrrolidone to form a slurry. The resulting slurry was coated on the conductive carbon paper collector (area of 1 cm2, TGP H-60, Toray Industries, Tokyo, Japan) with a mass loading of 1.52 mg and then dried in a vacuum oven at 60 °C for 8 h. The electrochemical properties including cyclic voltammetry (CV) and galvanostatic charge-discharge (GCD) were measured in a three-electrode cell by using a CHI 660E electrochemical workstation, in which a platinum plate served as the counter electrode, a saturated calomel electrode (SCE) as the reference electrode, and the Ti3C2Tx based active material as the working electrode. 1 M H2SO4, 1 M KOH, 1 M LiOH, 1 M Na2SO4, and 1 M Li2SO4 were selected as electrolytes to investigate the influence of ionic radius on supercapacitor performance. Cycling stability was measured by repeating the GCD tests for 10,000 cycles at 8 A g−1. The electric impedance spectroscopy (EIS) was performed with an amplitude of 5 mV from 10 mHz to 100 kHz.

3. Results and Discussion

3.1. Material Characterizations and Analysis

We successfully fabricated N-TiO2/TiN/Ti3C2Tx by the exfoliation and following facile hydrothermal treatment. The schematic diagram of fabrication process for N-TiO2/TiN/Ti3C2Tx is shown in Figure 1. The multi-layered Ti3C2Tx was firstly obtained by exfoliating Al layer from Ti3AlC2 with 40 wt% HF solution. The dried and neutral Ti3C2Tx powder was dispersed into C6H12N4 solution under a hydrothermal condition at 150 °C for 6 h, 12 h and 20 h, respectively. During the hydrothermal process, the Ti3C2Tx itself as titanium source was partly oxidized to TiO2 and nitrided to TiN. In addition, NH4+ ions decomposed from C6H12N4 intercalated spontaneously between Ti3C2Tx layers and the N atoms doped into Ti3C2Tx layers. After the treated suspensions naturally cooled to room temperature, the reaction products were washed with DI water until neutral and then were dried.
XRD was carried out to characterize the crystal structure and orientation of the as-prepared Ti3C2Tx and N-TiO2/TiN/Ti3C2Tx. Figure 2a shows major peaks of (002), (004), (008) and (110), validating the formation of Ti3C2Tx [44]. Additionally, despite the main peaks of Ti3C2Tx retain in 20 h N-TiO2/TiN/Ti3C2Tx sample, new peaks at 2θ values of 35.98° and 43.42° might be readily attributed to (101) and (210) plane of TiO2 (JCPDS card No. 21-1276), and 34.46°, 40.78° and 63.58° are assigned to (101), (210) and (301) plane of TiN (JCPDS card No. 17-0386), respectively. When the Ti3C2Tx treated with C6H12N4 solution, some Ti atoms of Ti3C2Tx were oxidized into TiO2 and nitrated into TiN nanoparticles. Moreover, it is noteworthy that the (002) peak of 20 h N-TiO2/TiN/Ti3C2Tx narrowed and moved by a significant shift of 1.58° towards a lower angle in Figure 2b comparing with Ti3C2Tx. This shift signs an increase in the d-spacing from 1.01 nm to 1.24 nm, demonstrating an expansion of the interlayer spacing. The enlarged interlayer space is expected to increase ion diffusion or active site accessibilities, which may lead to a high capacitance. Moreover, the crystallite size of the Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx are calculated about to be 12 and 18 nm based on the Scherrer formula, respectively [45]. The 20 h N-TiO2/TiN/Ti3C2Tx is expected better conductivity because the grain boundary widths decrease as crystallite size increases [46]. Figure S1 shows the XRD patterns of Ti3C2Tx with different hydrothermal treatment time periods in C6H12N4 solutions. The 6 h and 12 h samples possess the same peaks of the 20 h N-TiO2/TiN/Ti3C2Tx, but the 20 h sample displays a lower angle at (002) peak.
The morphology evolution is shown in the SEM images of Figure 3. Different from Ti3AlC2 without any layers (Figure S2), Figure 3a reveal the loosely stacked multilayer structure with smooth surface of Ti3C2Tx because of the broken metallic Ti–Al bond binding the neighboring layers [47]. The SEM images of the N-TiO2/TiN/Ti3C2Tx (Figure 3b–d) also feature well-stacked nanosheets. Specifically noting that a large number of TiO2/TiN nanoparticles homogeneously disperse on the surfaces and between the Ti3C2Tx layers, and the average size about 46 nm of particles of 20 h N-TiO2/TiN/Ti3C2Tx is much larger than those of 6 h and 12 h N-TiO2/TiN/Ti3C2Tx. Comparing with Ti3C2Tx, the lateral size of N-TiO2/TiN/Ti3C2Tx evidently diminished, which transformed to a much more delaminated structure. Such a layered structure is beneficial for ions transport and improving the pseudocapacitance performance [39].
TEM images provide further insights into the microstructures of the Ti3C2Tx and the 20 h N-TiO2/TiN/Ti3C2Tx samples. The Ti3C2Tx manifests a typically multi-layered structure, and the interlayer spacing from Figure 4b is about 1.01 nm. While the interlayer spacing of the 20 h N-TiO2/TiN/Ti3C2Tx is measured to be 1.24 nm in Figure 4d. The expansion distance of 20 h N-TiO2/TiN/Ti3C2Tx is highly coincide with the XRD results. In Figure 4c, it could be observed that 20 h N-TiO2/TiN/Ti3C2Tx exhibits layered structure and numerous TiO2 and TiN nanoparticles evenly fasten on Ti3C2Tx layers. The lattice spacing of 0.26 nm and 0.24 nm were measured from Figure 4e, which could be identified as the (101) plane of TiN and (210) plane of TiO2, respectively. Both element maps of Figure 4f demonstrate the homogeneous element distribution of titanium, nitrogen, carbon, oxygen and fluorine of 20 h N-TiO2/TiN/Ti3C2Tx. Table 1 lists the atomic concentrations of the elements of Ti3C2Tx and N-TiO2/TiN/Ti3C2Tx samples. The results indicate that the 20 h N-TiO2/TiN/Ti3C2Tx has the highest N concentration and lowest fluorine content.
Raman and FTIR spectra of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx are displayed in Figure 5a,b. Three broad Raman bands at approximately 205, 381, and 608 cm−1 are detected from Ti3C2Tx, which are consistent with the reported data [48,49]. It is noted that a new peak at 154 cm−1 emerges of 20 h N-TiO2/TiN/Ti3C2Tx, which can be assigned to the vibrational mode of TiO2 [49]. Peaks at 1352 cm−1 and 1580 cm−1 correspond to D and G bands of graphitic carbon become more obviously, suggesting that the hydrothermal treatment promote the formation of amorphous carbon and the thinner nanosheets with more structural defects. This result may be beneficial for the improvement of the conductivity of the sample. The FTIR spectra of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx directly proved the existence of identical stretching vibrations of C–F (1033 cm−1), O–H (1390 cm−1), C–O (1636 cm−1) and –OH (3447 cm−1), as shown in Figure 5b [50,51]. The comparison of these two spectra clearly shows the disappearance of the broadband around 3447 cm−1, suggesting that the terminal –OH groups are reduced to some extend after the treatment. In addition, the fluorine content has also been proved to be decreased by the EDS. The lower terminated surface group concentration on the surface leads to more Ti atoms participating in redox reactions [29]. Particularly, the peak at 3112 cm−1 is account for the vibration of –NH, revealing the surfaces of the 20 h N-TiO2/TiN/Ti3C2Tx were passivated by –NH groups [50]. A stretching vibration of Ti–O bond appears at 660 cm−1 and proves the formation of TiO2 [51]. No sharp absorption peak corresponding to stretching vibrations of Ti–N is observed due to its high reflectivity of infrared light [52].
Nitrogen adsorption/desorption isotherms were measured to characterize the specific surface areas and pore size distributions of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx. As shown in Figure 5c, the Brunauer-Emmett-Teller (BET) surface areas of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx are 6.32 m2 g−1 and 29.93 m2 g−1, respectively. The large increased surface area is due to the formation of numerous TiO2/TiN nanoparticles and the expanded interlayer spacing distance after the hydrothermal treatment. The increased surface area is beneficial for improving the electrochemical performance through enhancing ion diffusion and active site accessibilities during the electrochemical reaction processes [53]. Figure 5d exhibits pore size distributions of the Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx, suggesting that most pores of the both samples are in a range of 3–6 nm.
Further details about surface chemical states were characterized by XPS technique in Figure 6. As shown in Figure 6a, peaks of Ti, C, O, and F elements in both Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx are visualized. Specifically, the 20 h N-TiO2/TiN/Ti3C2Tx disclosed an additional remarkable N 1s peak at about 400 eV. The intensity of the F 1s peak decreased quickly while the O 1s peak increased significantly, indicating that a large amount of F terminal groups were removed and TiO2 formed after the treatment. The deconvolutions of N 1s, Ti 2p, C 1s, O 1s, and F 1s levels are presented in Figure 6b–f, respectively. The high-resolution N 1s core level spectra can be fitted into three main constituent peaks, as shown in Figure 6b, including N–Ti bond at 396.4 eV, N–H peak at 399.5 eV, and quaternary–N at 401.3 eV, respectively [33,34]. The N–H bond is assigned to the thermal decomposition of C6H12N4 solution. Fractional N atoms originated from the amino groups transform into the doped nitrogen in carbon, which also react with Ti to form N–Ti covalent bonds. In Figure 6c, the Ti 2p core level can be fitted with three doublets of (Ti 2p3/2–Ti 2p1/2), and Ti–N, TiO2 peaks. The Ti 2p3/2 components located at 454.8, 455.6, and 456.3 eV correspond to Ti–C, Ti–F and Ti–O, respectively. Peaks at 457.3 and 459.1 eV can be assigned to Ti–N and TiO2, respectively [31,54,55,56,57,58]. It could be seen that the TiO2 peak becomes stronger and a Ti–N peak emerges after the hydrothermal treatment, which could be a sign of formation of TiO2 and TiN particles. The C 1s spectra present five peaks related to C–Ti (281.4 eV), C–Ti–O (282.2 eV), C–C (283.9 eV), C–O (285.6 eV) and C–F (287.0 eV) [55]. The O 1s core level is fitted with O–Ti, C–Ti–Ox, C–Ti–(OH)x and H2O–Ti bonds, which are located at 529.4, 530.4, 531.4 and 532.5 eV, respectively [54,58]. In Figure 6f, the F 1s peaks at 684.8 and 686.1 eV are correspond the Ti–F and C–F bonds, respectively.
On the basis of the material characterizations and analysis, we confirmed that the hydrothermal process induced Ti oxidization and nitradation, NH4+ intercalation and N doping between the Ti3C2Tx layers. The incorporation of TiO2 and TiN nanoparticles, the intercalation of NH4+ and N doping not only increased the surface areas of the N-TiO2/TiN/Ti3C2Tx and enlarged interlayer space between the Ti3C2Tx layers, but also provided additional diffusion paths for ionic migration. Therefore, the N-TiO2/TiN/Ti3C2Tx are expected to have enhanced supercapacitive performances compared with Ti3C2Tx.

3.2. Electrochemical Properties

Enlightened by the advantageously structural features, N-TiO2/TiN/Ti3C2Tx forebodes its potential application on supercapacitors. We conducted cyclic voltammetry (CV), galvanostatic charge-discharge (GCD) and electric impedance spectroscopy (EIS) experiments in the three-electrode configurations to appraise the electrochemical performance of the Ti3C2Tx, 6 h, 12 h and 20 h N-TiO2/TiN/Ti3C2Tx, which are labelled as 0 h, 6 h, 12 h and 20 h in Figure 7, Figure 8, Figure 9 and Figure 10, respectively. A series of pre-experiments were performed to select a suitable potential range and an activated treatment after multiple cycles was needed to reach a steady state.
Figure 7a displays a comparison of the CV loops of Ti3C2Tx, 6 h, 12 h and 20 h N-TiO2/TiN/Ti3C2Tx at a fixed scan rate of 5 mV s−1 with a potential window confined between −0.25 and 0.25 V in 1 M H2SO4 electrolyte. The capacitance contribution of conductive carbon paper can be negligible as shown in Figure S3. Apparently, regardless of Ti3C2Tx, all N-TiO2/TiN/Ti3C2Tx CV profiles behave similarly and feature capacitance humps at potentials of −0.25 V to −0.1 V (vs. SCE). It is demonstrated that these humps derive from the combination of bonding/debonding of hydronium with the terminal oxygen in the Ti3C2Tx electrode and the additional pseudocapacitive effect is related to valence change of Ti species [59]. Meanwhile, CV curves exhibit intuitive tendency that the integrated area augments with the increase of hydrothermal treatment time, in which the 20 h N-TiO2/TiN/Ti3C2Tx possesses the largest integrated area among these electrodes. This significant improvement in gravimetric capacitance most likely originated from two reasons: (a) The increased specific surface areas and enlarged interlayer distance between Ti3C2Tx layers improved the ion diffusion or the active site accessibilities. (b) The replacement of N atoms and the formation of graphite carbon bring better electrical conductivity, which is favorable for rate performances [32].
To shed light on the effects of cations diffusion, the influence of ionic radius in different electrolytes was investigated in Figure 7b. Clearly, the responses in the H+, Na+, Li+ and K+ ionic electrolytes were different, which means the cations rather than the anions were intercalating. The specific capacitances decease in the order of H2SO4, Li2SO4, Na2SO4, LiOH and KOH at the same scan rate of 5 mV s−1, and the detailed CV and GCD profiles of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx electrodes in Li2SO4, Na2SO4, LiOH and KOH electrolytes are plotted in Figures S4 and S5, respectively. The 20 h N-TiO2/TiN/Ti3C2Tx electrode in H2SO4 electrolyte delivered the best electrochemical performance among all the electrolytes in Figure 7b. The H2SO4 electrolyte possessed excellent conductivity and the H+, the smallest cations, might empower faster and easier surface redox reactions, which brought about greater contributions to intercalation-pseudocapacitance at the same scan rate. The intercalation/de-intercalation processes of H+ are based on the following reactions [60,61,62].
Ti3C2Ox(OH)yFz + δē + δH+ → Ti3C2Ox-δ(OH)y + δFz
Figure 8a,b illustrate CV curves of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx electrodes at scan rates from 5 to 100 mV s−1, respectively. Figure 8a shows better symmetric properties than Figure 8b due to the reversible redox reaction which will affect the stability of the electrodes. However, the Ti3C2Tx possesses smaller rectangular curves, corresponding to lower capacitances, while the 20 h N-TiO2/TiN/Ti3C2Tx exhibits superior capacitive performance. Across all scan rates, the CV curves of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx electrodes maintain similar shapes, which displays a slight shift of the anodic and cathodic peaks. The GCD curves of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx electrodes at current densities of 1, 2, 5, and 10 A g−1 are shown in Figure 8c,d, respectively. All of the curves are nearly linear symmetrical and exhibit typical triangular shapes with inconspicuous voltage drops (iR drop) at different current densities, which indicates that the little overall resistance and excellent electrochemical reversibility are achieved.
Figure 8e,f compared the variation in specific capacitance as a function of scan rates and current densities of the Ti3C2Tx, 6, 12 and 20 h N-TiO2/TiN/Ti3C2Tx electrodes, respectively. The detailed experiment data of 6 h and 12 h N-TiO2/TiN/Ti3C2Tx electrodes are placed in Figure S6. From the CV plots, the 20 h N-TiO2/TiN/Ti3C2Tx electrode shows enhanced capacitive performance of 336 F g−1 at a scan rate of 5 mV s−1 compared with Ti3C2Tx electrode of 38 F g−1 at the same scan rate. The pure Ti3C2Tx are easy to agglomerate, impeding the ion transport. The Ti3C2Tx electrode yields a similar specific capacitance to those HF etched Ti3C2Tx electrodes in the previous reports [63,64]. The specific capacitances calculated from GCD curves of the 20 h N-TiO2/TiN/Ti3C2Tx electrode are 361, 343, 321, and 297 F g−1 at 1, 2, 5 and 10 A g−1, respectively. These results are mainly consistent with the order calculated by the CV curves. The decreasing trend in gravimetric capacitance suggests that parts of the electrode surfaces are inaccessible at higher charge/discharge rates.
Figure 9a records the Nyquist impedance of EIS spectra to investigate the ion-transport behavior and the internal resistance of the electrodes. The Nyquist plots are consisted of a high frequency semicircle and a low frequency linear branch, corresponding to charge transfer resistance Rct and Warburg impedance W, respectively. Equivalent series resistances of Ti3C2Tx, and 6, 12 and 20 h N-TiO2/TiN/Ti3C2Tx electrodes are found to be 1.43 Ω, 1.41 Ω, 1.38 Ω, and 1.13 Ω, respectively. It suggests that 20 h N-TiO2/TiN/Ti3C2Tx electrode exhibits best conductivity because of its larger electroactive surface areas and lower charge transfer resistance [29]. Nyquist plots of 20 h N-TiO2/TiN/Ti3C2Tx in different electrolytes are plotted in Figure S7. Figure 9b shows the Bode plots of all electrode materials. The phase angle of the 20 h N-TiO2/TiN/Ti3C2Tx electrode is close to −83.0° at a frequency of 0.01 Hz, indicating that the capacitive performance of the electrode is close to that of an ideal capacitor. The characteristic frequencies, f0, for the phase angle of −45° are 0.16, 0.22, 0.28 and 0.35 Hz for the Ti3C2Tx, and 6 h, 12h, and 20 h N-TiO2/TiN/Ti3C2Tx. The corresponding time constants τ0 (=1/f0) were calculated to be 6.25, 4.54, 3.57 and 2.86 s, respectively. The fast frequency response of 20 h N-TiO2/TiN/Ti3C2Tx may owing to the nitrogen doping, which can enhance the electrolyte ion transport rates [65,66].
Electrochemical stability is one of the most important factors in practical application of pseudocapacitor electrodes. Figure 10a shows the GCD cycling stability of the 20 h N-TiO2/TiN/Ti3C2Tx electrode at a current density of 8 A g−1 along with the triangular shape of the last five GCD cycles in the inset of Figure 10a. It is found that above 85.8% of the capacitance remained after 10,000 cycles for the 20 h N-TiO2/TiN/Ti3C2Tx electrode, possessing a prominent cycling stability. Nyquist plot of the 20 h N-TiO2/TiN/Ti3C2Tx electrode after 10,000 charge/discharge cycles (Figure 10b) shows that the 20 h N-TiO2/TiN/Ti3C2Tx electrode still maintains well low equivalent series resistance of 1.08 Ω. The above-mentioned results reveal that the 20 h N-TiO2/TiN/Ti3C2Tx electrode is very stable and relatively invertible during cycling. Hence, it can be concluded that the 20 h N-TiO2/TiN/Ti3C2Tx electrode is promising for supercapacitor application.
With the aim to assess the practical application of 20 h N-TiO2/TiN/Ti3C2Tx, a symmetric supercapacitor was fabricated in 1 M H2SO4 aqueous electrolyte. The CV curves with the suitable potential window of 0–0.7 V from 5 to 100 mV s−1 and the GCD profiles at current densities of 1, 2, 3, 4, 5 A g−1 are plotted in Figure 11a and Figure S8, respectively. The Ragone plot, which is correlated containing/covering the energy density with power density, is depicted in Figure 11b. It can be seen that the symmetric supercapacitor cell delivers an energy density of 4.42 Wh kg−1 at a power density of 1.14 kW kg−1 and remains an energy density of 2.93 Wh kg−1 at a high power density of 13.4 kW kg−1.

4. Conclusions

In summary, we reported a facile synthesis of nitrogen doped intercalation TiO2/TiN/Ti3C2Tx via 6 h, 12 h and 20 h hydrothermal treatments of C6H12N4 solution. TiO2/TiN nanoparticles inserted between the Ti3C2Tx layers, which effectively prevent the self-restacking of Ti3C2Tx during fabrication and enable more pesudocapacitances. Moreover, benefiting from the introduction of nitrogen and the NH4+ intercalation, the accessibility of the Ti3C2Tx layers to electrolyte ions is also enhanced. When employed as electrode materials for supercapacitors, the 20 h N-TiO2/TiN/Ti3C2Tx electrode exhibited high performances with a specific capacitance of 361 F g−1 at 1 A g−1 and a capacitance retention of 85.8% after 10,000 charge/discharge cycles when used in a three-electrode configuration in 1 M H2SO4. Besides, the assembled symmetric supercapacitor delivered an energy density of 4.42 Wh kg−1 at a power density of 1.14 kW kg−1. Furthermore, the influence of ionic radius in different electrolytes were studied by using H2SO4, Li2SO4, Na2SO4, LiOH and KOH electrolytes. The H2SO4 electrolyte possessed excellent conductivity and empowered faster and easier surface redox reactions, which brought about greater contributions to intercalation-pseudocapacitance. The excellent electrochemical performance could be attributed to the unique architecture with physical confinement preventing the restacking of Ti3C2Tx, and the minimized pass path between electrolyte and electrodes. This facile synthesis paves a new strategy to achieve promising pseudocapacitance MXene electrode materials in practical applications.

Supplementary Materials

The following are available online at https://www.mdpi.com/2079-4991/10/2/345/s1, Figure S1: XRD patterns of Ti3C2Tx and 6 h, 12 h, 20 h N-TiO2/TiN/Ti3C2Tx, Figure S2: High-magnification SEM images of pristine Ti3AlC2, Figure S3: CV curves at scan rate of 50 mV s−1 of conductive carbon paper, Figure S4: CV and GCD curves of Ti3C2Tx in different electrolytes of (a,b) Na2SO4, (c,d) Li2SO4, (e,f) KOH and (g,h) LiOH, Figure S5: CV and GCD curves of 20 h N-TiO2/TiN/Ti3C2Tx in different electrolytes of (a,b) Na2SO4, (c,d) Li2SO4, (e,f) KOH and (g,h) LiOH, Figure S6: CV and GCD curves of (a,b) 6 h, (c,d) 12 h N-TiO2/TiN/Ti3C2Tx in H2SO4 electrolyte, Figure S7: Nyquist plots of 20 h N-TiO2/TiN/Ti3C2Tx in different electrolytes. 1 M H2SO4 have lower resistance of the bulk electrolyte solution compared with Na2SO4, Li2SO4, KOH and LiOH, Figure S8: GCD plots at different current densities of the symmetric 20 h N-TiO2/TiN/Ti3C2Tx//20 h N-TiO2/TiN/Ti3C2Tx supercapacitor in 1 M H2SO4.

Author Contributions

All authors have read and agree to the published version of the manuscript. Conceptualization, W.H.; methodology, Y.S.; software, C.Z.; investigation, B.Y., Y.S. and J.Z.; data curation, Y.S.; writing—original draft preparation, B.Y.; writing—review and editing, Y.S., S.K., and W.H.; supervision, W.H.; funding acquisition, W.H.

Funding

This research was funded by the Natural Science Foundation of China (No. 51602033), Chongqing Research Program of Basic Research and Frontier Technology (No. cstc2019jcyj-msxmX0040 and No. cstc2017jcyjAX0197).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dubal, D.P.; Ayyad, O.V.; Ruiz, V.; Gomez-Romero, P. Hybrid Energy Storage: The Merging of Battery and Supercapacitor. Chem. Soc. Rev. 2015, 44, 1777–1790. [Google Scholar] [CrossRef] [PubMed]
  2. Dunn, B.; Kamath, H.; Tarascon, J.M. Electrical Energy Storage for the Grid: A Battery of Choices. Science 2011, 334, 928–935. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Béguin, F.; Presser, V.; Balducci, A.; Frackowiak, E. Carbons and Electrolytes for Advanced Supercapacitors. Adv. Mater. 2014, 26, 2219–2251. [Google Scholar] [CrossRef] [PubMed]
  4. Hu, W.; Wei, H.; She, Y.; Tang, X.; Zhou, M.; Zang, Z.; Du, J.; Gao, C.; Guo, Y.; Bao, D. Flower-Like Nickel-Zinc-Cobalt Mixed Metal Oxide Nanowire Arrays for Electrochemical Capacitor Applications. J. Alloys Compd. 2017, 708, 146–153. [Google Scholar] [CrossRef]
  5. Hu, W.; Chen, R.; Xie, W.; Zou, L.; Qin, N.; Bao, D. CoNi2S4 Nanosheet Arrays Supported on Nickel Foams with Ultrahigh Capacitance for Aqueous Asymmetric Supercapacitor Applications. ACS Appl. Mater. Interfaces 2014, 6, 19318–19326. [Google Scholar] [CrossRef]
  6. Snook, G.A.; Kao, P.; Best, A.S. Conducting-Polymer-Based Supercapacitor Devices and Electrodes. J. Power Source 2011, 196, 1–12. [Google Scholar] [CrossRef]
  7. Yin, Y.; Zhou, G.; Gao, X.; Chen, J.; Zhang, L.; Xu, J.; Zhao, P.; Gao, F. α- and β-Phase Ni-Mg Hydroxide for High Performance Hybrid Supercapacitors. Nanomaterials 2019, 9, 1686. [Google Scholar] [CrossRef] [Green Version]
  8. Lu, Q.; Chen, J.G.; Xiao, J.Q. Nanostructured Electrodes for High-Performance Pseudocapacitors. Angew. Chem. Int. Ed. 2013, 44, 1882–1889. [Google Scholar] [CrossRef]
  9. Wang, C.; Xu, J.; Yuen, M.F.; Zhang, J.; Li, Y.; Chen, X.; Zhang, W. Hierarchical Composite Electrodes of Nickel Oxide Nanoflake 3D Graphene for High-Performance Pseudocapacitors. Adv. Funct. Mater. 2015, 24, 6372–6380. [Google Scholar] [CrossRef]
  10. Zhang, L.L.; Zhou, R.; Zhao, X.S. Graphene-Based Materials as Supercapacitor Electrodes. J. Mater. Chem. 2010, 20, 5983–5992. [Google Scholar] [CrossRef]
  11. Ng, V.M.H.; Huang, H.; Zhou, K.; Lee, P.S.; Que, W.; Xu, J.Z.; Kong, L.B. Recent Progress in Layered Transition Metal Carbides and/or Nitrides (MXenes) and Their Composites: Synthesis and Applications. J. Mater. Chem. A 2017, 5, 3039–3068. [Google Scholar]
  12. Xia, Q.X.; Shinde, N.M.; Yun, J.M.; Zhang, T.; Mane, R.S.; Mathur, S.; Kim, K.H. Bismuth Oxychloride/MXene Symmetric Supercapacitor with High Volumetric Energy Density. Electrochim. Acta 2018, 271, 351–360. [Google Scholar] [CrossRef]
  13. Krishnamoorthy, K.; Pazhamalai, P.; Sahooa, S.; Kim, S.J. Titanium Carbide Sheet Based High Performance Wire Type Solid State Supercapacitors. J. Mater. Chem. A 2017, 5, 5726–5736. [Google Scholar] [CrossRef]
  14. Yang, Y.; Umrao, S.; Shen, L.; Lee, S. Large-Area Highly Conductive Transparent Two-Dimensional Ti2CTx Film. J. Phys. Chem. Lett. 2017, 8, 859–865. [Google Scholar] [CrossRef] [PubMed]
  15. Ling, Z.; Ren, C.E.; Zhao, M.Q.; Yang, J.; Giammarco, J.M.; Qiu, J.; Barsouma, M.W.; Gogotsi, Y. Flexible and Conductive MXene Films and Nanocomposites with High Capacitance. Proc. Natl. Acad. Sci. USA 2014, 111, 16676–16681. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Xie, Y.; Naguib, M.; Mochalin, V.N.; Barsoum, M.W.; Gogotsi, Y.; Yu, X.; Nam, K.W.; Yang, X.Q.; Kolesnikov, A.I.; Kent, P.R.C. Role of Surface Structure on Li-Ion Energy Storage Capacity of Two-Dimensional Transition-Metal Carbides. J. Am. Chem. Soc. 2014, 136, 6385–6394. [Google Scholar] [CrossRef]
  17. Liu, J.; Zhang, H.B.; Sun, R.; Liu, Y.; Liu, Z.; Zhou, A.; Yu, Z.Z. Hydrophobic, Flexible, and Lightweight MXene Foams for High-Performance Electromagnetic-Interference Shielding. Adv. Mater. 2017, 29, 1702367. [Google Scholar] [CrossRef]
  18. Lukatskaya, M.R.; Mashtalir, O.; Ren, C.E.; Agnese, Y.D.; Rozier, P.; Taberna, P.L.; Naguib, M.; Simon, P.; Barsoum, M.W.; Gogotsi, Y. Cation Intercalation and High Volumetric Capacitance of Two-Dimensional Titanium Carbide. Science 2013, 341, 1502–1505. [Google Scholar] [CrossRef] [Green Version]
  19. Ghidiu, M.; Kota, S.; Halim, J.; Sherwood, A.W.; Nedfors, N.; Rosen, J.; Mochalin, V.N.; Barsoum, M.W. Alkylammonium Cation Intercalation into Ti3C2 (MXene): Effects on Properties and Ion-Exchange Capacity Estimation. Chem. Mater. 2017, 29, 1099–1106. [Google Scholar] [CrossRef]
  20. Augustyn, V.; Come, J.; Lowe, M.A.; Kim, J.W.; Taberna, P.L.; Tolbert, S.H.; Abruña, H.D.; Simon, P.; Dunn, B. High-Rate Electrochemical Energy Storage through Li+ Intercalation Pseudocapacitance. Nat. Mater. 2013, 12, 518–522. [Google Scholar] [CrossRef]
  21. Mashtalir, O.; Naguib, M.; Mochalin, V.N.; Dall’Agnese, Y.; Heon, M.; Barsoum, M.W.; Gogotsi, Y. Intercalation and Delamination of Layered Carbides and Carbonitrides. Nat. Commun. 2013, 4, 1716. [Google Scholar] [CrossRef] [PubMed]
  22. Naguib, M.; Mashtalir, O.; Carle, J.; Presser, V.; Lu, J.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-Dimensional Transition Metal Carbides. ACS Nano 2012, 6, 1322–1331. [Google Scholar] [CrossRef] [PubMed]
  23. Anasori, B.; Lukatskaya, M.R.; Gogotsi, Y. 2D Metal Carbides and Nitrides (MXenes) for Energy Storage. Nat. Rev. Mater. 2017, 2, 16098. [Google Scholar] [CrossRef]
  24. Naguib, M.; Mochalin, V.N.; Barsoum, M.W.; Gogotsi, Y. 25th Anniversary Article: MXenes: A New Family of Two-Dimensional Materials. Adv. Mater. 2014, 26, 992–1005. [Google Scholar] [CrossRef] [PubMed]
  25. Karlsson, L.H.; Birch, J.; Halim, J.; Barsoum, M.W.; Persson, P.O.Å. Atomically Resolved Structural and Chemical Investigation of Single MXene Sheets. Nano Lett. 2015, 15, 4955–4960. [Google Scholar] [CrossRef] [Green Version]
  26. Ghidiu, M.; Lukatskaya, M.R.; Zhao, M.; Gogotsi, Y.; Barsoum, M.W. Conductive Two-Dimensional Titanium Carbide Clay with High Volumetric Capacitance. Nature 2014, 516, 78–81. [Google Scholar] [CrossRef]
  27. Yan, J.; Ren, C.E.; Maleski, K.; Hatter, C.B.; Anasori, B.; Urbankowski, P.; Sarycheva, A.; Gogotsi, Y. Flexible MXene/Graphene Films for Ultrafast Supercapacitors with Outstanding Volumetric Capacitance. Adv. Funct. Mater. 2017, 27, 1701264. [Google Scholar] [CrossRef]
  28. Khazaei, M.; Ranjbar, A.; Ghorbani-Asl, M.; Arai, M.; Sasaki, T.; Liang, Y.; Yunoki, S. Nearly Free Electron States in MXenes. Phys. Rev. B 2016, 93, 205125. [Google Scholar] [CrossRef] [Green Version]
  29. Li, J.; Yuan, X.; Lin, C.; Yang, Y.; Xu, L.; Du, X.; Xie, J.; Lin, J.; Sun, J. Achieving High Pseudocapacitance of 2D Titanium Carbide (MXene) by Cation Intercalation and Surface Modification. Adv. Energy Mater. 2017, 7, 1602725. [Google Scholar] [CrossRef]
  30. Lin, T.; Chen, I.W.; Liu, F.; Yang, C.; Bi, H.; Xu, F.; Huang, F. Nitrogen-Doped Mesoporous Carbon of Extraordinary Capacitance for Electrochemical Energy Storage. Science 2015, 350, 1508–1513. [Google Scholar] [CrossRef] [Green Version]
  31. Bao, W.; Liu, L.; Wang, C.; Choi, S.; Wang, D.; Wang, G. Facile Synthesis of Crumpled Nitrogen-Doped MXene Nanosheets as A New Sulfur Host for Lithium-Sulfur Batteries. Adv. Energy Mater. 2018, 8, 1702485. [Google Scholar] [CrossRef] [Green Version]
  32. Wen, Y.; Rufford, T.E.; Chen, X.; Li, N.; Lyu, M.; Dai, L.; Wang, L. Nitrogen-Doped Ti3C2Tx MXene Electrodes For High-Performance Supercapacitors. Nano Energy 2017, 38, 368–376. [Google Scholar] [CrossRef]
  33. Yang, C.; Que, W.; Yin, X.; Tian, Y.; Yang, Y.; Que, M. Improved Capacitance of Nitrogen-Doped Delaminated Two-Dimensional Titanium Carbide by Urea-Assisted Synthesis. Electrochim. Acta 2017, 225, 416–424. [Google Scholar] [CrossRef]
  34. Yang, C.; Que, W.; Tang, Y.; Tian, Y.; Yin, X. Nitrogen and Sulfur Co-Doped 2D Titanium Carbides for Enhanced Electrochemical Performance. J. Electrochem. Soc. 2017, 164, 1939–1945. [Google Scholar] [CrossRef]
  35. Rakhi, R.B.; Ahmed, B.; Hedhili, M.N.; Anjum, D.H.; Alshareef, H.N. Effect of Postetch Annealing Gas Composition on The Structural and Electrochemical Properties of Ti2CTx MXene Electrodes for Supercapacitor Applications. Chem. Mater. 2015, 27, 5314–5323. [Google Scholar] [CrossRef] [Green Version]
  36. Zhao, T.; Zhang, J.; Du, Z.; Liu, Y.; Zhou, G.; Wang, J. Dopamine-Derived N-Doped Carbon Decorated Titanium Carbide Composite for Enhanced Supercapacitive Performance. Electrochim. Acta 2017, 254, 308–319. [Google Scholar] [CrossRef]
  37. Boota, M.; Anasori, B.; Voigt, C.; Zhao, M.; Barsoum, M.W.; Gogotsi, Y. Pseudocapacitive electrodes produced by oxidant-free polymerization of pyrrole between the layers of 2D titanium carbide (MXene). Adv. Mater. 2016, 28, 1517–1522. [Google Scholar] [CrossRef]
  38. Rakhi, R.B.; Ahmed, B.; Anjum, D.; Alshareef, H.N. Direct Chemical Synthesis of MnO2 Nanowhiskers on Transition-Metal Carbide Surfaces for Supercapacitor Applications. ACS Appl. Mater. Interfaces 2016, 8, 18806–18814. [Google Scholar] [CrossRef] [Green Version]
  39. Cao, M.; Wang, F.; Wang, L.; Wu, W.; Lv, W.; Zhu, J. Room Temperature Oxidation of Ti3C2 MXene for Supercapacitor Electrodes. J. Electrochem. Soc. 2017, 164, 3933–3942. [Google Scholar] [CrossRef]
  40. Zhu, M.; Huang, Y.; Deng, Q.; Zhou, J.; Pei, Z.; Xue, Q.; Huang, Y.; Wang, Z.; Li, H.; Huang, Q.; et al. Highly Flexible, Freestanding Supercapacitor Electrode with Enhanced Performance Obtained by Hybridizing Polypyrrole Chains with MXene. Adv. Energy Mater. 2016, 6, 1600969. [Google Scholar] [CrossRef]
  41. Jiang, Q.; Kurra, N.; Alhabeb, M.; Gogotsi, Y.; Alshareef, H.N. All Pseudocapacitive MXene-RuO2 Asymmetric Supercapacitors. Adv. Energy Mater. 2018, 8, 1703043. [Google Scholar] [CrossRef]
  42. Huang, J.; Meng, R.; Zu, L.; Wang, Z.; Feng, N.; Yang, Z.; Yu, Y.; Yang, J. Sandwich-Like Na0.23TiO2 Nanobelt/Ti3C2 MXene Composites from a Scalable in Situ Transformation Reaction for Long-Life High-Rate Lithium/Sodium-Ion Batteries. Nano Energy 2018, 46, 20–28. [Google Scholar] [CrossRef]
  43. Dong, Y.; Wu, Z.; Zheng, S.; Wang, X.; Qin, J.; Wang, S.; Shi, X.; Bao, X. Ti3C2 MXene-Derived Sodium/Potassium Titanate Nanoribbons for High-Performance Sodium/Potassium Ion Batteries with Enhanced Capacities. ACS Nano 2017, 11, 4792–4800. [Google Scholar] [CrossRef] [PubMed]
  44. Xu, S.; We, G.; Li, J.; Ji, Y.; Klyui, N.; Izotov, V.; Han, W. Binder-Free Ti3C2Tx MXene Electrode Film for Supercapacitor Produced. Chem. Eng. J. 2017, 317, 1026–1036. [Google Scholar] [CrossRef]
  45. Burton, A.W.; Ong, K.; ReaIgnatius, T.; Chan, Y. On the Estimation of Average Crystallite Size of Zeolites from the Scherrer Equation: A Critical Evaluation of its Application to Zeolites with One-Dimensional Pore Systems. Microporous Mesoporous Mater. 2009, 117, 75–90. [Google Scholar] [CrossRef]
  46. Maldonado, K.L.L.; Presa, P.D.L.; De La Rubia, M.A.; Crespo, P.; Frutos, J.D.; Hernando, A.; Aquino, J.A.M.; Galindo, J.T.E. Effects of Grain Boundary Width and Crystallite Size on Conductivity and Magnetic Properties of Magnetite Nanoparticles. J. Nanopart. Res. 2014, 16, 2482–2493. [Google Scholar] [CrossRef]
  47. Wang, Z.; Xuan, J.; Zhao, Z.; Li, Q.; Geng, F. Versatile Cutting Method for Producing Fluorescent Ultrasmall MXene Sheets. ACS Nano 2017, 11, 11559–11565. [Google Scholar] [CrossRef]
  48. Wang, W.R.; Wang, S.; Zhang, Y.; Jin, D.; Tao, X.; Zhang, L. Graphene-Coupled Ti3C2 MXenes-Derived TiO2 Mesostructure Promising Sodium-Ion Capacitor Anode with Fast Ion Storage and Long-Term Cycling. J. Mater. Chem. A 2018, 6, 1017–1027. [Google Scholar] [CrossRef]
  49. Zhang, X.; Liu, Y.; Dong, S.; Ye, Z.; Guo, Y. One-Step Hydrothermal Synthesis of a TiO2-Ti3C2Tx Nanocomposite with Small Sized TiO2 Nanoparticles. Ceram. Int. 2017, 43, 11065–11070. [Google Scholar] [CrossRef]
  50. Xue, Q.; Zhang, H.; Zhu, M.; Pei, Z.; Li, H.; Wang, Z.; Huang, Y.; Huang, Y.; Deng, Q.; Zhou, J.; et al. Photoluminescent Ti3C2 MXene Quantum Dots for Multicolor Cellular Imaging. Adv. Mater. 2017, 29, 1604847. [Google Scholar] [CrossRef]
  51. Luo, J.; Tao, X.; Zhang, J.; Xia, Y.; Huang, H.; Zhang, L.; Gan, Y.; Liang, C.; Zhang, W. Sn4+ Ions Decorated Highly Conductive Ti3C2 MXene: Promising Lithium-Ion Anodes with Enhanced Volumetric Capacity and Cyclic Performance. ACS Nano 2016, 10, 2491–2499. [Google Scholar] [CrossRef] [PubMed]
  52. Sedira, S.; Achour, S.; Avci, A.; Eskizeybekb, V. Physical Deposition of Carbon Doped Titanium Nitride Film by DC Magnetron Sputtering for Metallic Implant Coating Use. Appl. Surf. Sci. 2014, 5, 81–85. [Google Scholar] [CrossRef]
  53. Xie, X.; Zhao, M.; Anasori, B.; Maleski, K.; Ren, C.E.; Li, J.; Byles, B.W.; Pomerantseva, E.; Wang, G.; Gogotsi, Y. Porous Heterostructured MXene/Carbon Nanotube Composite Paper with High Volumetric Capacity for Sodium-Based Energy Storage Devices. Nano Energy 2016, 26, 513–523. [Google Scholar] [CrossRef]
  54. Peng, C.; Yang, X.; Li, Y.; Yu, H.; Wang, H.; Peng, F. Hybrids of Two-Dimensional Ti3C2 and TiO2 Exposing {001} Facets toward Enhanced Photocatalytic Activity. ACS Appl. Mater. Interfaces 2016, 8, 6051–6060. [Google Scholar] [CrossRef]
  55. Qian, A.; Hyeon, S.E.; Seo, J.Y.; Chung, C.H. Capacitance Changes Associated with Cation-Transport in Free-Standing Flexible Ti3C2Tx MXene Film Electrodes. Electrochim. Acta 2018, 266, 86–93. [Google Scholar] [CrossRef]
  56. Soundiraraju, B.; George, B.K. Two-Dimensional Titanium Nitride (Ti2N) MXene Synthesis, Characterization, and Potential Application as Surface-Enhanced Raman Scattering Substrate. ACS Nano 2017, 11, 8892–8900. [Google Scholar] [CrossRef]
  57. Lu, X.; Zhu, J.; Wu, W.; Zhang, B. Hierarchical Architecture of PANI@TiO2/Ti3C2Tx Ternary Composite Electrode for Enhanced Electrochemical Performance. Electrochim. Acta 2017, 228, 282–289. [Google Scholar] [CrossRef]
  58. Han, M.; Yin, X.; Wu, H.; Hou, Z.; Song, C.; Li, X.; Zhang, L.; Cheng, L. Ti3C2 MXenes with Modified Surface for High-Performance Electromagnetic Absorption and Shielding in the X-Band. ACS Appl. Mater. Interfaces 2016, 8, 21011–21019. [Google Scholar] [CrossRef]
  59. Zhang, C.; Anasori, B.; Seral-Ascaso, A.; Park, S.H.; McEvoy, N.; Shmeliov, A.; Duesberg, G.S.; Coleman, J.N.; Gogotsi, Y.; Nicolosi, V. Transparent, Flexible, and Conductive 2D Titanium Carbide (MXene) Films with High Volumetric Capacitance. Adv. Mater. 2017, 29, 1702678. [Google Scholar] [CrossRef]
  60. Zhu, K.; Zhang, H.; Ye, K.; Zhao, W.; Yan, J.; Cheng, K.; Wang, G.; Yang, B.; Cao, D. Two-Dimensional Titanium Carbide MXene as Capacitor-Type Electrode for Rechargeable Aqueous Li-Ion and Na-Ion Capacitor Batteries. ChemElectroChem 2017, 4, 1–9. [Google Scholar] [CrossRef]
  61. Ren, C.E.; Hatzell, K.B.; Alhabeb, M.; Ling, Z.; Mahmoud, K.A.; Gogotsi, Y. Charge- and Size-Selective Ion Sieving through Ti3C2Tx MXene Membranes. J. Phys. Chem. Lett. 2015, 6, 4026–4031. [Google Scholar] [CrossRef] [PubMed]
  62. Lukatskaya, M.R.; Kota, S.; Lin, Z.; Zhao, M.Q.; Shpigel, N.; Levi, M.D.; Halim, J.; Taberna, P.L.; Barsoum, M.W.; Simon, P.; et al. Ultra-High-Rate Pseudocapacitive Energy Storage in Two-Dimensional Transition Metal Carbides. Nat. Energy 2017, 6, 17105. [Google Scholar] [CrossRef]
  63. Xu, S.; Wei, G.; Li, J.; Han, W.; Gogotsi, Y. Flexible MXene-Graphene Electrodes with High Volumetric Capacitance for Integrated Co-Cathode Energy Conversion/Storage Devices. J. Mater. Chem. A 2017, 5, 17442–17451. [Google Scholar] [CrossRef]
  64. Lin, Z.; Barbara, D.; Taberna, P.L.; Aken, K.L.V.; Anasori, B.; Gogotsi, Y.; Simon, P. Capacitance of Ti3C2Tx MXene in Ionic Liquid Electrolyte. J. Power Source 2016, 326, 575–579. [Google Scholar] [CrossRef] [Green Version]
  65. Yoon, Y.; Lee, M.; Kim, S.K.; Bae, G.; Song, W.; Myung, S.; Lim, J.; Lee, S.S.; Zyung, T.; An, K.S. A Strategy for Synthesis of Carbon Nitride Induced Chemically Doped 2D MXene for High-Performance Supercapacitor Electrodes. Adv. Energy Mater. 2018, 8, 1703173. [Google Scholar] [CrossRef]
  66. Yang, Q.; Xu, Z.; Fang, B.; Huang, T.; Cai, S.; Chen, H.; Liu, Y.; Gopalsamy, K.; Gao, W.; Gao, C. MXene/Graphene Hybrid Fibers for High Performance Flexible Supercapacitors. J. Mater. Chem. A 2017, 5, 22113–22119. [Google Scholar] [CrossRef]
Nanomaterials 10 00345 g001 550

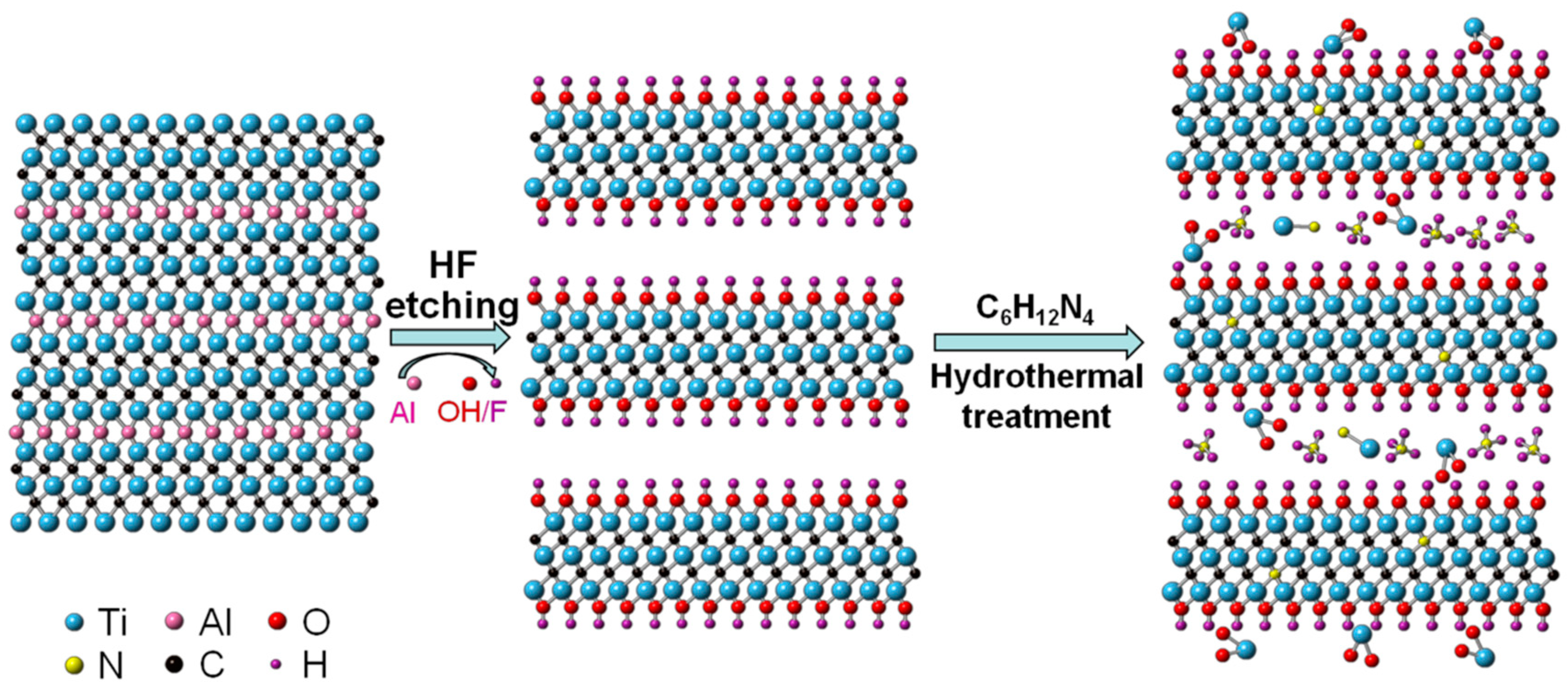

Figure 1. Schematic illustration of the preparation process for N-TiO2/TiN/Ti3C2Tx.
Figure 1. Schematic illustration of the preparation process for N-TiO2/TiN/Ti3C2Tx.
Nanomaterials 10 00345 g001
Nanomaterials 10 00345 g002 550

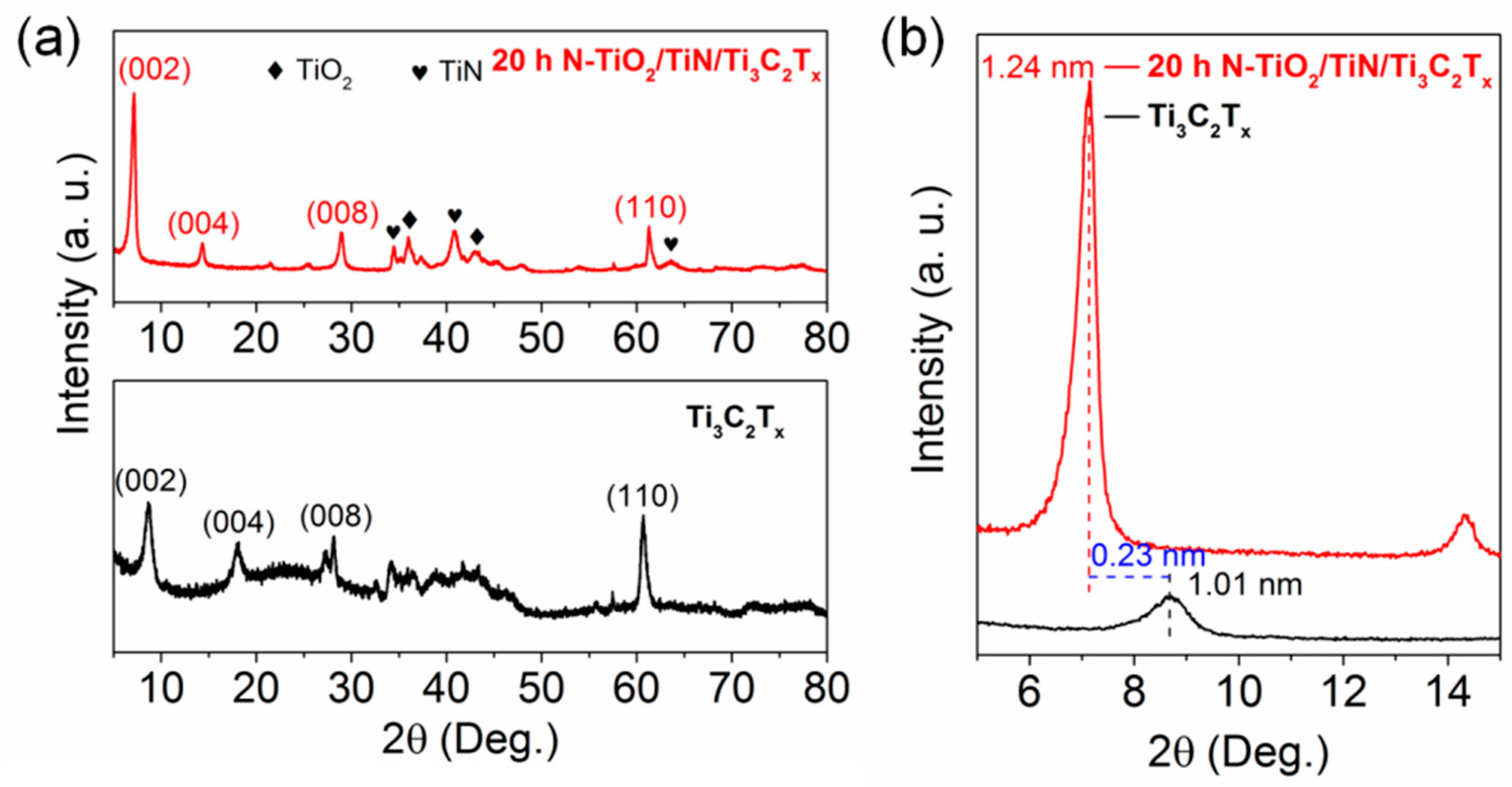

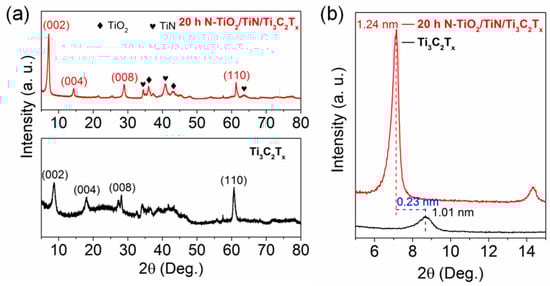

Figure 2. (a) XRD patterns of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx, (b) XRD patterns of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx over a small range of 2θ from 5–15°.
Figure 2. (a) XRD patterns of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx, (b) XRD patterns of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx over a small range of 2θ from 5–15°.
Nanomaterials 10 00345 g002
Nanomaterials 10 00345 g003 550
Figure 3. SEM images of (a) Ti3C2Tx, (b) 6 h, (c) 12 h and (d) 20 h N-TiO2/TiN/Ti3C2Tx.
Figure 3. SEM images of (a) Ti3C2Tx, (b) 6 h, (c) 12 h and (d) 20 h N-TiO2/TiN/Ti3C2Tx.
Nanomaterials 10 00345 g003
Nanomaterials 10 00345 g004 550
Figure 4. Transmission electron microscopy (TEM) and high-resolution TEM (HRTEM) images of (a,b) Ti3C2Tx and (c–e) 20 h N-TiO2/TiN/Ti3C2Tx. (f) EDS element mapping of 20 h N-TiO2/TiN/Ti3C2Tx.
Figure 4. Transmission electron microscopy (TEM) and high-resolution TEM (HRTEM) images of (a,b) Ti3C2Tx and (c–e) 20 h N-TiO2/TiN/Ti3C2Tx. (f) EDS element mapping of 20 h N-TiO2/TiN/Ti3C2Tx.
Nanomaterials 10 00345 g004
Nanomaterials 10 00345 g005 550

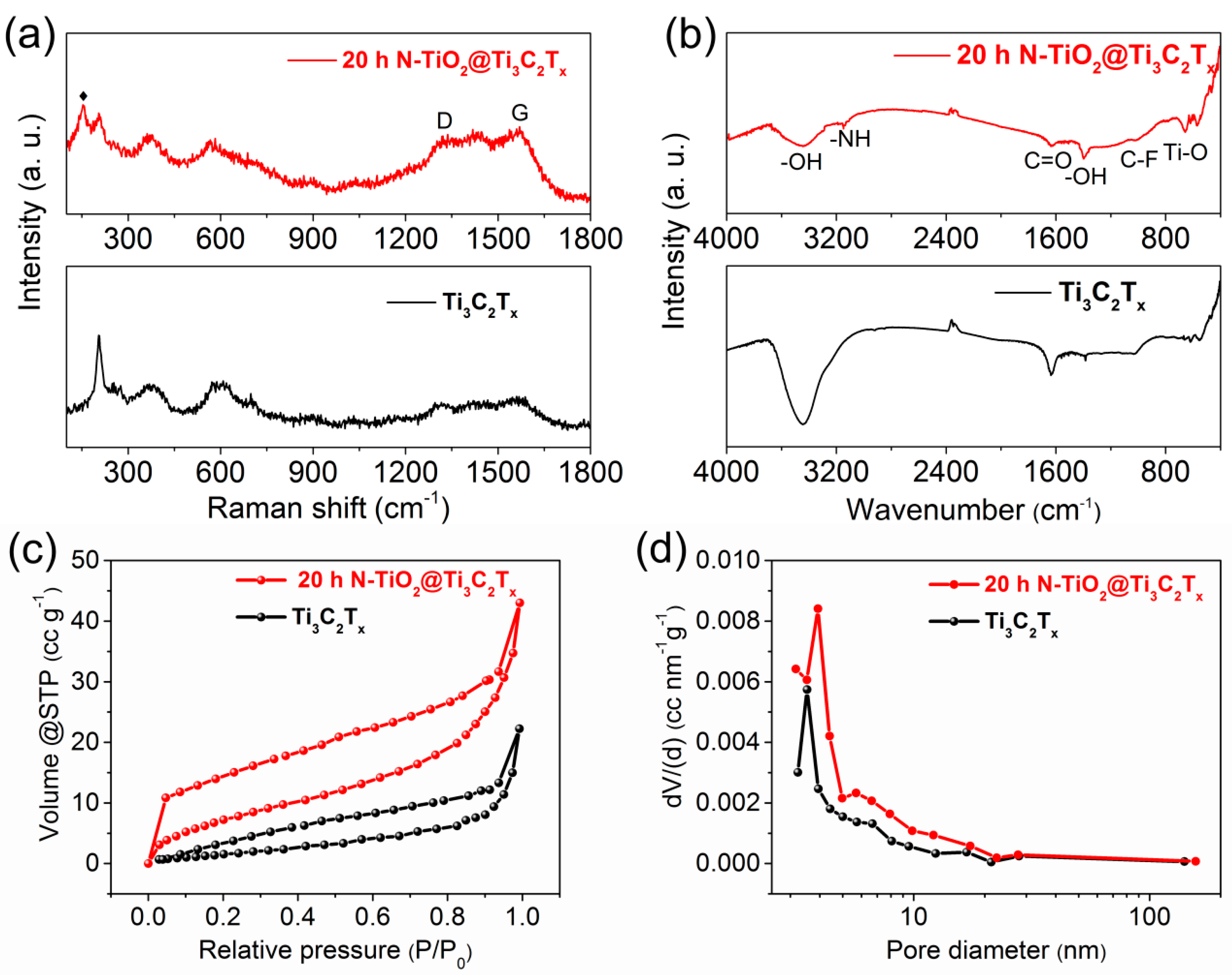

Figure 5. (a) Raman spectra, (b) Fourier transform infrared spectroscopy (FTIR) spectra, (c) Nitrogen (77 K) adsorption-desorption isotherms and (d) the corresponding pore size distribution curves of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx.
Figure 5. (a) Raman spectra, (b) Fourier transform infrared spectroscopy (FTIR) spectra, (c) Nitrogen (77 K) adsorption-desorption isotherms and (d) the corresponding pore size distribution curves of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx.
Nanomaterials 10 00345 g005
Nanomaterials 10 00345 g006 550

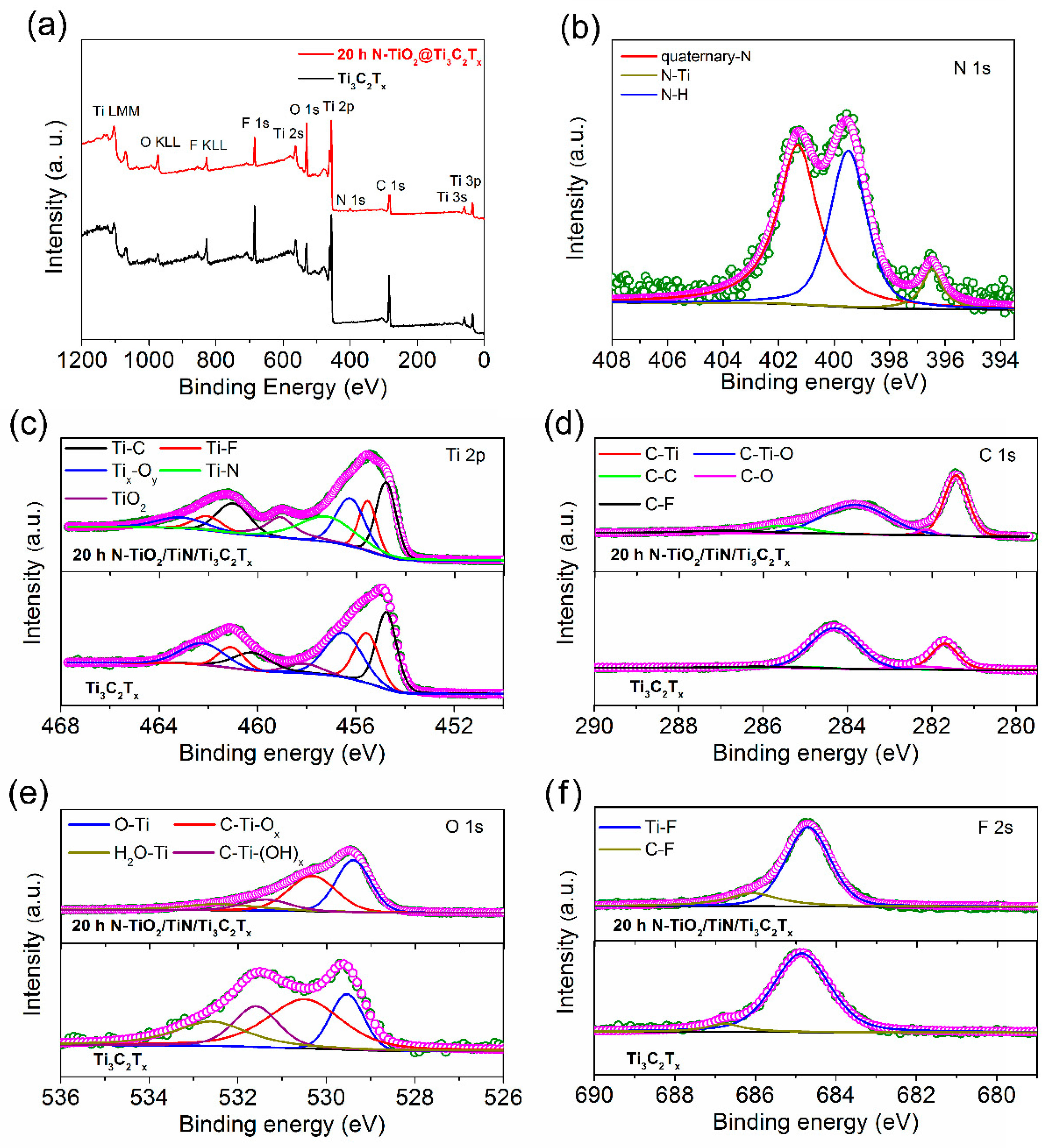

Figure 6. (a) X-ray photoelectron spectroscopy (XPS) survey spectra of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx. High resolution (b) N 1s, (c) Ti 2p, (d) C 1s, (e) O 1s, and (f) F 1s of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx.
Figure 6. (a) X-ray photoelectron spectroscopy (XPS) survey spectra of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx. High resolution (b) N 1s, (c) Ti 2p, (d) C 1s, (e) O 1s, and (f) F 1s of Ti3C2Tx and 20 h N-TiO2/TiN/Ti3C2Tx.
Nanomaterials 10 00345 g006
Nanomaterials 10 00345 g007 550

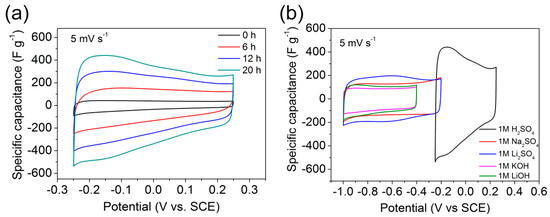

Figure 7. Electrochemical performance of Ti3C2Tx and N-TiO2/TiN/Ti3C2Tx electrodes in a three-electrode system. (a) CV profiles at 5 mV s−1 for N-TiO2/TiN/Ti3C2Tx electrodes in 1 M H2SO4. (b) CV profiles at 5 mV s−1 for 20 h N-TiO2/TiN/Ti3C2Tx in different electrolytes.
Figure 7. Electrochemical performance of Ti3C2Tx and N-TiO2/TiN/Ti3C2Tx electrodes in a three-electrode system. (a) CV profiles at 5 mV s−1 for N-TiO2/TiN/Ti3C2Tx electrodes in 1 M H2SO4. (b) CV profiles at 5 mV s−1 for 20 h N-TiO2/TiN/Ti3C2Tx in different electrolytes.
Nanomaterials 10 00345 g007
Nanomaterials 10 00345 g008 550

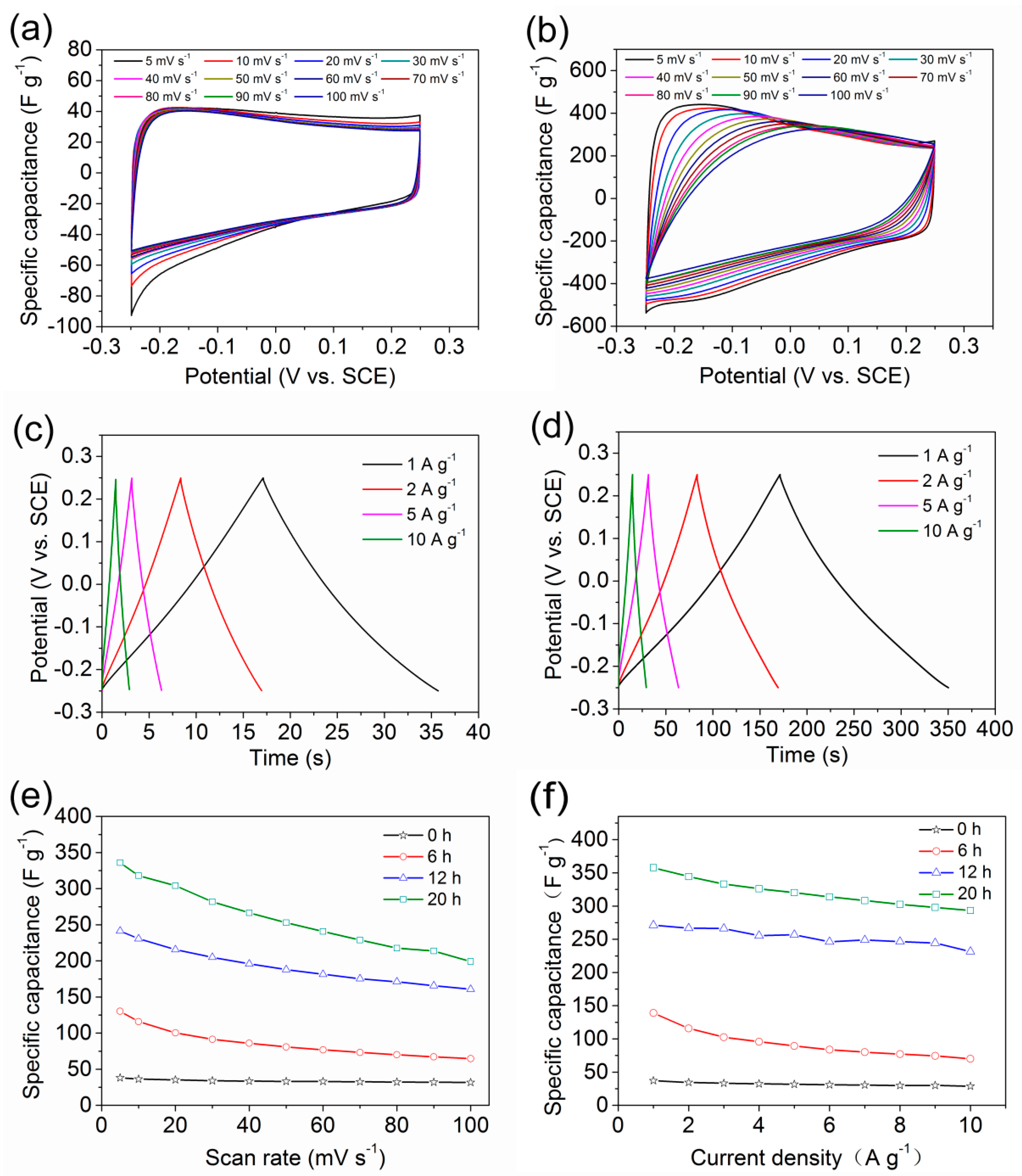

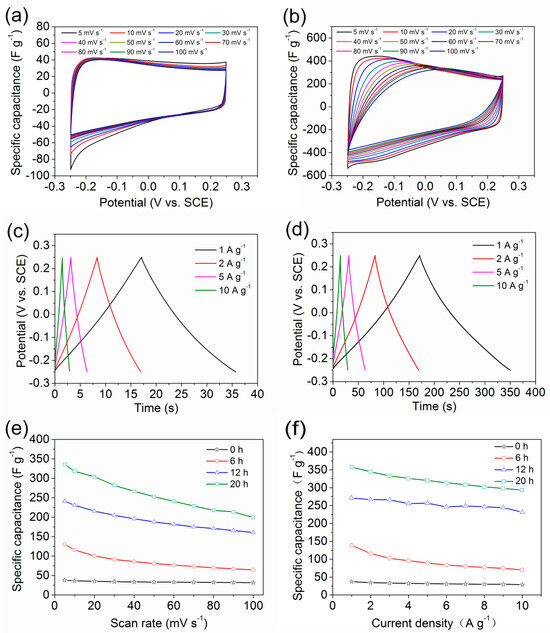

Figure 8. CV profiles of (a) Ti3C2Tx and (b) 20 h N-TiO2/TiN/Ti3C2Tx at different scan rates. The GCD curves for (c) Ti3C2Tx and (d) 20 h N-TiO2/TiN/Ti3C2Tx at current densities of 1, 2, 5, and 10 A g−1. (e) Gravimetric specific capacitances at different scan rates. (f) Gravimetric specific capacitances at different current densities of Ti3C2Tx, 6 h, 12 h and 20 h N-TiO2/TiN/Ti3C2Tx electrodes.
Figure 8. CV profiles of (a) Ti3C2Tx and (b) 20 h N-TiO2/TiN/Ti3C2Tx at different scan rates. The GCD curves for (c) Ti3C2Tx and (d) 20 h N-TiO2/TiN/Ti3C2Tx at current densities of 1, 2, 5, and 10 A g−1. (e) Gravimetric specific capacitances at different scan rates. (f) Gravimetric specific capacitances at different current densities of Ti3C2Tx, 6 h, 12 h and 20 h N-TiO2/TiN/Ti3C2Tx electrodes.
Nanomaterials 10 00345 g008
Nanomaterials 10 00345 g009 550

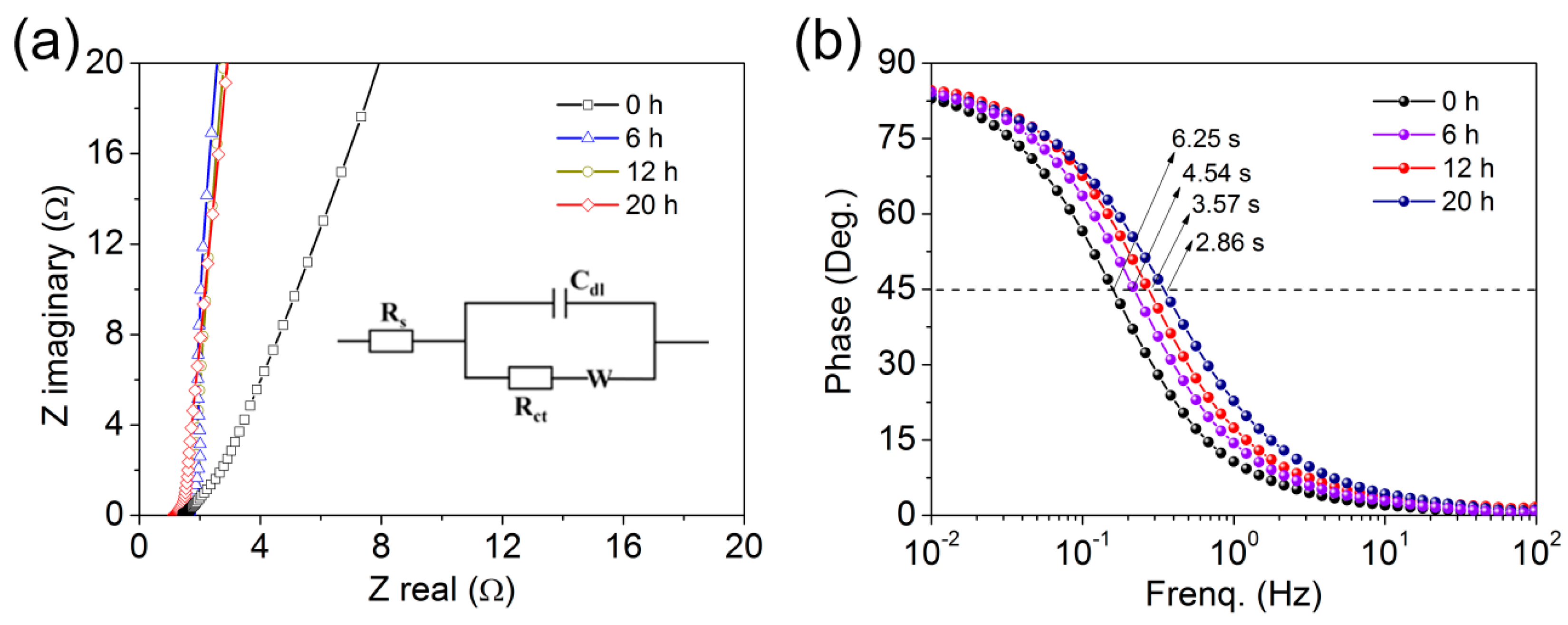

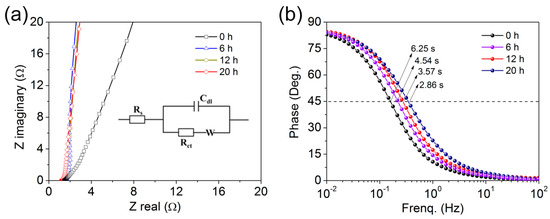

Figure 9. (a) Nyquist impedance spectra of different Ti3C2Tx-based electrodes in magnified high-frequency region. (b) Bode plots of phase angle versus frequency. The inset of (a) is the corresponding equivalent circuit mode.
Figure 9. (a) Nyquist impedance spectra of different Ti3C2Tx-based electrodes in magnified high-frequency region. (b) Bode plots of phase angle versus frequency. The inset of (a) is the corresponding equivalent circuit mode.
Nanomaterials 10 00345 g009
Nanomaterials 10 00345 g010 550

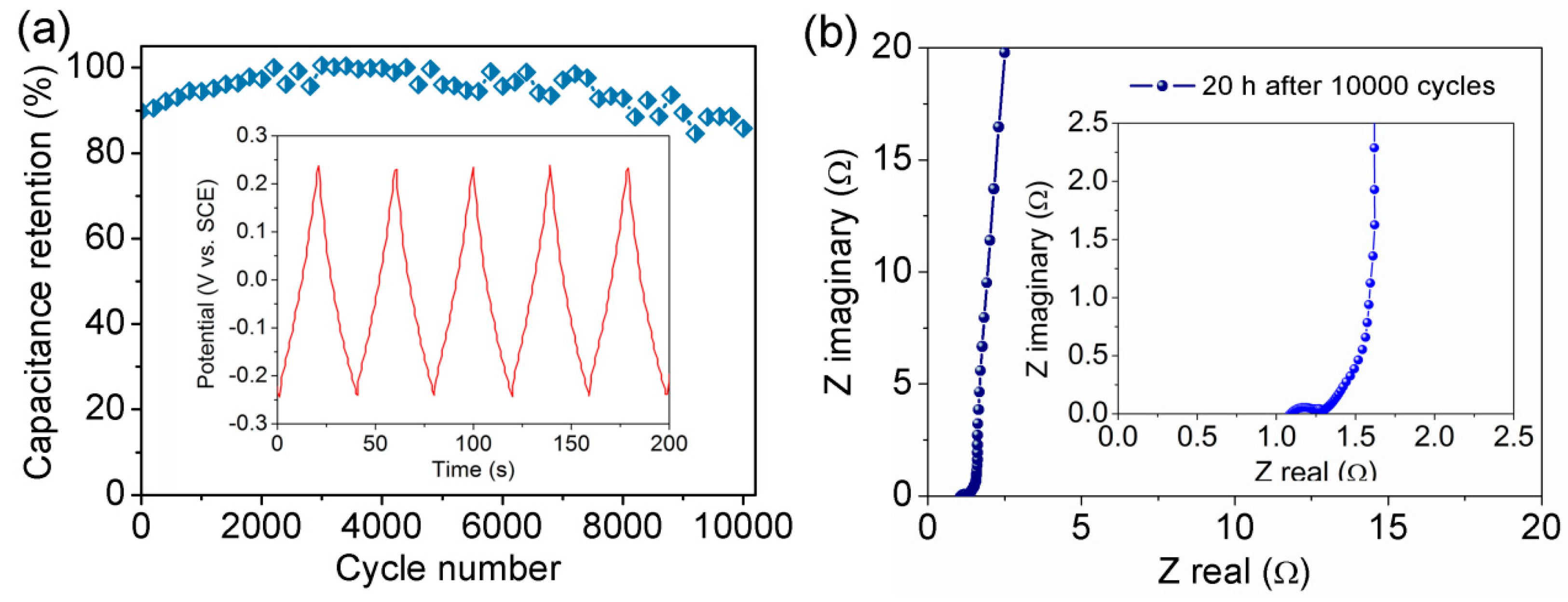

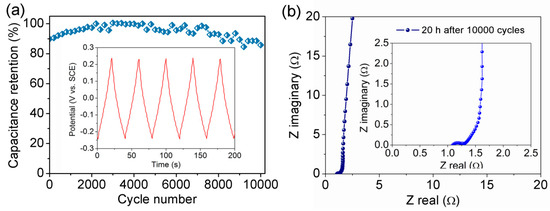

Figure 10. (a) Life cycle test in 1 M H2SO4 up to 10,000 cycles at the charge/discharge rate of 8 A g−1. (b) Nyquist spectrum of 20 h N-TiO2/TiN/Ti3C2Tx after 10,000 cycles. The insets are (a) the last five GCD cycling data at a current density of 8 A g−1 and (b) the magnified high-frequency region.
Figure 10. (a) Life cycle test in 1 M H2SO4 up to 10,000 cycles at the charge/discharge rate of 8 A g−1. (b) Nyquist spectrum of 20 h N-TiO2/TiN/Ti3C2Tx after 10,000 cycles. The insets are (a) the last five GCD cycling data at a current density of 8 A g−1 and (b) the magnified high-frequency region.
Nanomaterials 10 00345 g010
Nanomaterials 10 00345 g011 550

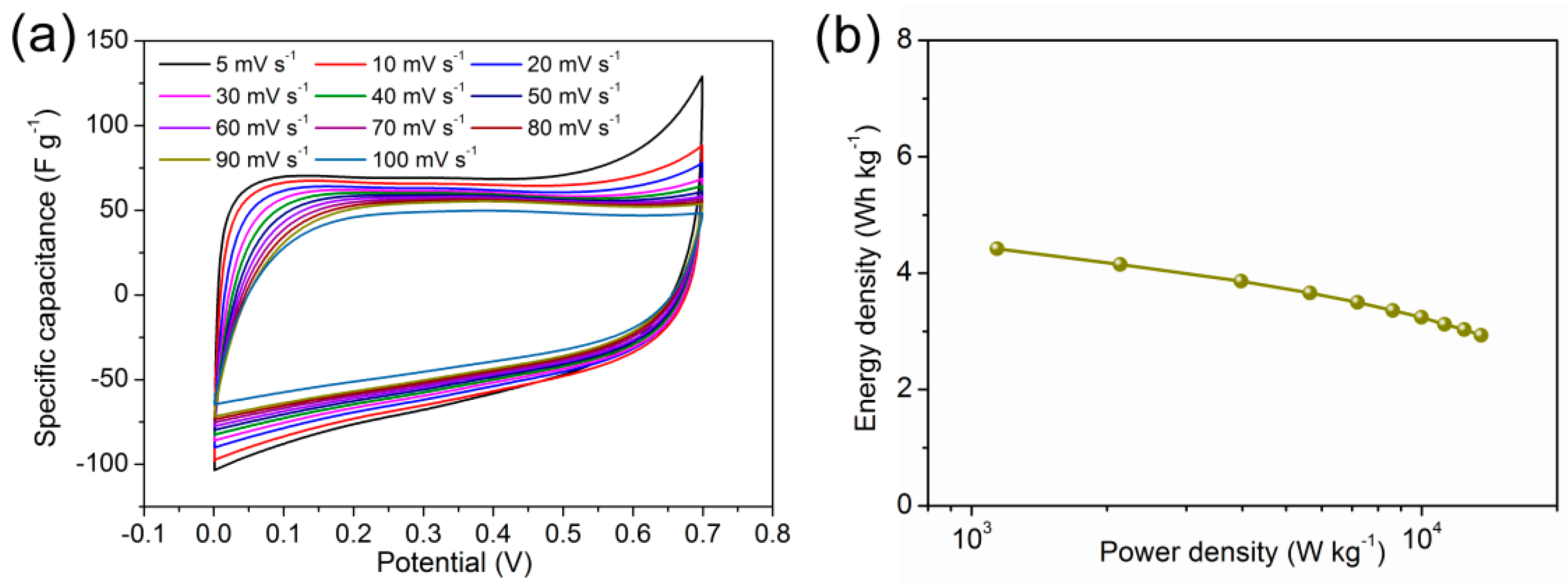

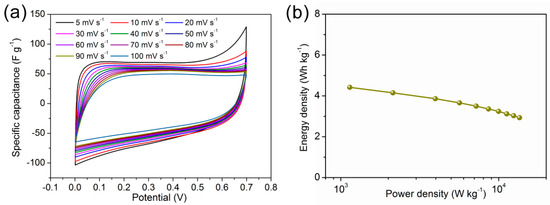

Figure 11. Electrochemical performance of the symmetric 20 h N-TiO2/TiN/Ti3C2Tx//20 h N-TiO2/TiN/Ti3C2Tx supercapacitor in 1 M H2SO4. (a) CV profiles at different scan rates under the potential of 0.7 V. (b) Power density versus energy density plot of the symmetric supercapacitor by CV test.
Figure 11. Electrochemical performance of the symmetric 20 h N-TiO2/TiN/Ti3C2Tx//20 h N-TiO2/TiN/Ti3C2Tx supercapacitor in 1 M H2SO4. (a) CV profiles at different scan rates under the potential of 0.7 V. (b) Power density versus energy density plot of the symmetric supercapacitor by CV test.
Nanomaterials 10 00345 g011
Table
Table 1. The atomic concentration (at %) of elements from Ti3C2Tx and N-TiO2/TiN/Ti3C2Tx.
Table 1. The atomic concentration (at %) of elements from Ti3C2Tx and N-TiO2/TiN/Ti3C2Tx.
MaterialsContents
TiCOFAlN
Ti3C2Tx32.228.320.115.63.8-
6 h N-TiO2/TiN/Ti3C2Tx27.834.523.510.52.91.3
12 h N-TiO2/TiN/Ti3C2Tx23.738.125.49.40.62.8
20 h N-TiO2/TiN/Ti3C2Tx23.839.224.17.90.84.2

Share and Cite

MDPI and ACS Style

Yang, B.; She, Y.; Zhang, C.; Kang, S.; Zhou, J.; Hu, W. Nitrogen Doped Intercalation TiO2/TiN/Ti3C2Tx Nanocomposite Electrodes with Enhanced Pseudocapacitance. Nanomaterials 2020, 10, 345. https://doi.org/10.3390/nano10020345

AMA Style

Yang B, She Y, Zhang C, Kang S, Zhou J, Hu W. Nitrogen Doped Intercalation TiO2/TiN/Ti3C2Tx Nanocomposite Electrodes with Enhanced Pseudocapacitance. Nanomaterials. 2020; 10(2):345. https://doi.org/10.3390/nano10020345

Chicago/Turabian Style

Yang, Ben, Yin She, Changgeng Zhang, Shuai Kang, Jin Zhou, and Wei Hu. 2020. "Nitrogen Doped Intercalation TiO2/TiN/Ti3C2Tx Nanocomposite Electrodes with Enhanced Pseudocapacitance" Nanomaterials 10, no. 2: 345. https://doi.org/10.3390/nano10020345

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
