Analysis of Risk Factors Influencing the Outcomes of Capsizing, Sinking, and Flooding Accidents in Coastal Waters of the Republic of Korea: A Fuzzy Bayesian Network Approach

Abstract

Capsizing, sinking, and flooding accidents occurring in the coastal waters of the Republic of Korea constitute a persistent marine safety concern, accounting for approximately 17% of total fatalities associated with marine accidents. Previous statistical analyses of accident causation have identified key contributing factors such as adverse weather conditions, improper cargo loading, and deficiencies in vessel maintenance; however, the complex interdependencies among these factors have not been sufficiently quantified. To address this limitation, this study proposes a fuzzy Bayesian network (FBN) model to systematically evaluate and quantify the risk factors associated with capsizing, sinking, and flooding accidents. A total of 164 adjudicated marine accident cases that occurred in Korean coastal waters over a 10-year period (2015–2024) were analyzed (data collection cutoff: 31 December 2024) to estimate prior probabilities for six major causal categories. Conditional probability tables (CPTs) were derived through a structured Delphi survey conducted with marine safety experts possessing more than 10 years of professional experience. To mitigate the subjectivity inherent in expert judgment, triangular fuzzy numbers (TFNs) and centroid-based defuzzification were applied. Sensitivity analysis identified sea state (SI = 0.0155) and cargo loading condition (SI = 0.0125) as the two most influential factors affecting the probability of capsizing. Scenario analysis further revealed that when adverse weather conditions and improper cargo loading occur simultaneously, the probability of capsizing increases to 39.3%, representing a 5.3 percentage point increase compared to the baseline. In addition, the model demonstrated a close agreement with observed accident outcome distributions, with a Kullback–Leibler (KL) divergence of 0.038, indicating differences within 1.3 percentage points across all outcome categories. The findings of this study provide practical implications for targeted marine safety interventions and the prioritization of regulatory measures in the coastal waters of the Republic of Korea.

1. Introduction

Marine safety is a critical concern for coastal countries with large fishing fleets and active coastal trade routes. The Republic of Korea, with a coastline of 15,297 km and 63,731 registered fishing vessels as of 2024, continues to face persistent challenges related to marine accidents, particularly capsizing, sinking, and flooding incidents [1,2]. These accident types not only result in significant human casualties and economic losses but also impose substantial burdens on government agencies, search and rescue operations, marine insurance systems, and regulatory enforcement bodies.

According to statistical data from adjudicated marine accident reports issued by the Korea Maritime Safety Tribunal (KMST) over the past decade (2015–2024), with a data collection cutoff date of 31 December 2024, capsizing, sinking, and flooding accidents accounted for 164 cases (8.7% of total marine accidents), yet contributed disproportionately to human casualties, representing 17% (comprising 98 confirmed fatalities and 67 missing persons, totaling 165 casualties) [3]. Analysis of these reports indicates that key contributing factors include adverse weather conditions, improper cargo loading, vessel equipment failures, navigational errors, and non-compliance with operational regulations. Importantly, these factors rarely act in isolation; rather, marine accidents typically arise from the convergent interaction of multiple causal pathways [4,5].

Conventional analyses of marine accidents in Korea have largely relied on univariate frequency analysis and categorical aggregation of accident causes [3]. While such descriptive approaches provide baseline insights, they are fundamentally limited in capturing probabilistic dependencies and conditional relationships among multiple risk variables. Moreover, classical statistical methods are constrained by data completeness issues, as marine accident reports often contain incomplete event histories, inconsistent causal coding, and missing contextual information.

Bayesian networks (BNs) provide a principled framework for representing probabilistic causal dependencies through directed acyclic graphs (DAGs), thereby addressing these limitations [6,7]. BN-based approaches have been widely applied in marine risk assessment, including ship collision analysis [8], fire and explosion risk in offshore units [9], and human error modeling in seafaring operations [10]. However, quantifying conditional probability tables (CPTs) remains challenging in data-scarce environments. Fuzzy set theory offers a robust mathematical framework for handling uncertainty and vagueness in expert judgment [11,12], and the integration of fuzzy logic with BNs—referred to as fuzzy Bayesian networks (FBNs)—has demonstrated effectiveness in various marine safety applications, such as fire and explosion risk assessment in cargo spaces [13], accident prediction in narrow waterways [14], and resilience analysis in Arctic navigation [15].

Despite these advances, limited research has explicitly applied FBNs to capsizing, sinking, and flooding accidents in Korean coastal waters, particularly with respect to cargo loading conditions and vessel-specific vulnerabilities. To address this gap, this study develops an FBN model based on 164 adjudicated marine accident cases and structured expert elicitation using the Delphi method [16].

The proposed FBN is grounded in Rasmussen’s risk management framework [4], wherein marine accidents are understood as emergent outcomes of multi-barrier failures across environmental, operational, and regulatory domains. Consistent with Hollnagel’s barrier model [5], the six parent nodes in the FBN correspond to distinct protective layers—environmental resilience, cargo stability, equipment integrity, navigational competence, regulatory compliance, and mooring safety—whose simultaneous degradation is represented as joint probabilistic pathways converging on adverse accident outcomes. This theoretical positioning clarifies not only how the FBN models marine safety causation, but also why the probabilistic framework improves decision-making: by quantifying the joint probability of multi-barrier failure, it enables safety managers to identify which combinations of degraded defenses most efficiently elevate risk, thereby moving beyond reactive incident analysis toward proactive risk governance.

The objectives of this study are fourfold: (1) to identify the empirical distribution of causal risk factors; (2) to construct an FBN that captures probabilistic dependencies among identified risk nodes; (3) to quantify CPTs using fuzzy Delphi-based expert judgments with triangular membership functions; and (4) to evaluate model outputs through sensitivity analysis and comparison with observed accident trends.

Compared with prior FBN studies in maritime safety [13,14,15,17,18], the present study offers three distinctive contributions. First, prior probabilities are derived empirically from 164 Korean adjudicated accident records rather than from assumed or internationally sourced distributions, ensuring ecological validity for Korean coastal operations. Second, the FBN structure explicitly incorporates regulatory compliance and mooring condition as independent structural nodes—variables that have been relatively underexplored in existing international FBN models—thereby reflecting the regulatory and operational characteristics unique to small-vessel coastal fishing operations in Korea. Third, the Delphi-based CPT quantification procedure is validated through content validity ratio (CVR) screening, providing a transparent and reproducible expert elicitation protocol applicable to other data-scarce maritime risk contexts.

The remainder of this paper is organized as follows. Section 2 reviews relevant literature; Section 3 presents the research methodology; Section 4 reports the FBN inference and sensitivity analysis results; Section 5 discusses policy implications for marine safety; and Section 6 concludes the study.

2. Literature Review

2.1. BN Applications in Marine Safety

The application of BNs to maritime risk assessment has expanded significantly over the past two decades. Trucco et al. [6] conducted pioneering work by integrating human factors into BN-based maritime risk models, thereby establishing a foundation for incorporating organizational and behavioral variables into probabilistic safety analysis. Hänninen and Kujala [8] further advanced this approach by applying BN modeling to estimate ship collision probabilities in the Gulf of Finland, providing a methodological framework that has since been widely adopted across diverse marine accident contexts.

Building on analyses of major marine accident records, Liu et al. [19] employed a BN model to quantify the causal structure of marine accidents in Chinese coastal waters by considering vessel type, environmental conditions, and operational factors. Their findings indicated that small vessels are particularly vulnerable and that adverse weather conditions are frequently associated with severe accident outcomes. These results are consistent with the patterns observed in the analysis of adjudicated marine accident cases in the coastal waters of the Republic of Korea examined in this study.

2.2. Fuzzy Set Theory and Expert Elicitation in Risk Modeling

The application of fuzzy set theory to risk assessment originates from Zadeh’s foundational work on linguistic variables [11]. Wang [20] further advanced this field by developing a fuzzy rule-based inference framework for ship safety assessment, which subsequently laid the conceptual foundation for the integration of fuzzy logic with BNs.

The Delphi method is a structured approach for achieving expert consensus through iterative rounds of anonymous surveys with controlled feedback [21]. In maritime risk-related studies, Delphi techniques and structured expert judgment have been widely employed for prioritizing safety measures, refining risk factors, and estimating probabilities based on expert knowledge. For instance, Kim and Gausdal [22] combined a modified Delphi method with the analytic hierarchy process (AHP) to derive priorities for safety leadership behaviors in a shipping context, while Yacob and Hassim [23] applied a Delphi-AHP approach to rank causal factors of marine transportation accidents.

Similarly, Lee et al. [24] identified risk factors for marine recreational activities using a modified Delphi method and subsequently constructed a BN by assigning probability values through expert panels. Trucco et al. [6] also utilized expert judgment to quantify CPTs in BN-based maritime transportation risk analysis, particularly in cases where empirical data were limited.

In addition, Delphi-based studies in the maritime domain frequently employ the content validity ratio (CVR) as a criterion for evaluating the relevance of selected items. Yang et al. [25] and Yacob and Hassim [23] incorporated CVR-based validation procedures to refine safety management indicators for port operations and causal factor frameworks for marine transportation accidents, respectively.

2.3. FBN Approaches

Onisawa [26] emphasized the necessity of incorporating fuzzy concepts to address uncertainty in reliability analysis. Building on this foundation, Yazdi and Kabir [27] proposed a risk analysis framework that integrates fuzzy set theory with BNs to effectively account for uncertain failure data and expert knowledge.

In the field of marine safety, FBNs have been widely employed as a quantitative tool for analyzing causal relationships among risk factors by integrating incomplete accident data with expert judgment. Eleye-Datubo et al. [17] applied FBNs to marine and offshore safety assessment, presenting a methodological framework that links linguistic and uncertain inputs to probabilistic risk models. Chen et al. [18] developed an evidence-based FBN using marine accident reports from 2001 to 2020, enabling a systematic analysis of the causal structure of general marine accidents.

Furthermore, Yin et al. [28] quantified accident risks arising from language and communication issues in maritime transportation using an FBN approach, demonstrating that human and communication-related factors can be structurally incorporated into maritime risk models. In a similar context, Göksu et al. [29] applied FBNs to assess ship steering gear failures, identifying root causes and evaluating risk levels under high-risk operational conditions such as berthing, strait navigation, and canal transit.

These studies highlight the methodological strength of FBNs in marine safety analysis, particularly in environments where quantitative data are limited, by enabling the integration of expert judgment with empirical accident evidence. However, a critical review of this literature reveals two persistent gaps: (1) none of the reviewed studies explicitly incorporate both regulatory compliance and mooring condition as independent structural nodes within the FBN, despite their documented relevance to coastal fishing vessel accidents; and (2) prior probability estimation in most FBN studies relies on expert assumptions or international databases rather than on domestically adjudicated accident records. The present study is specifically designed to address both gaps.

3. Methodology

3.1. Overall Research Framework

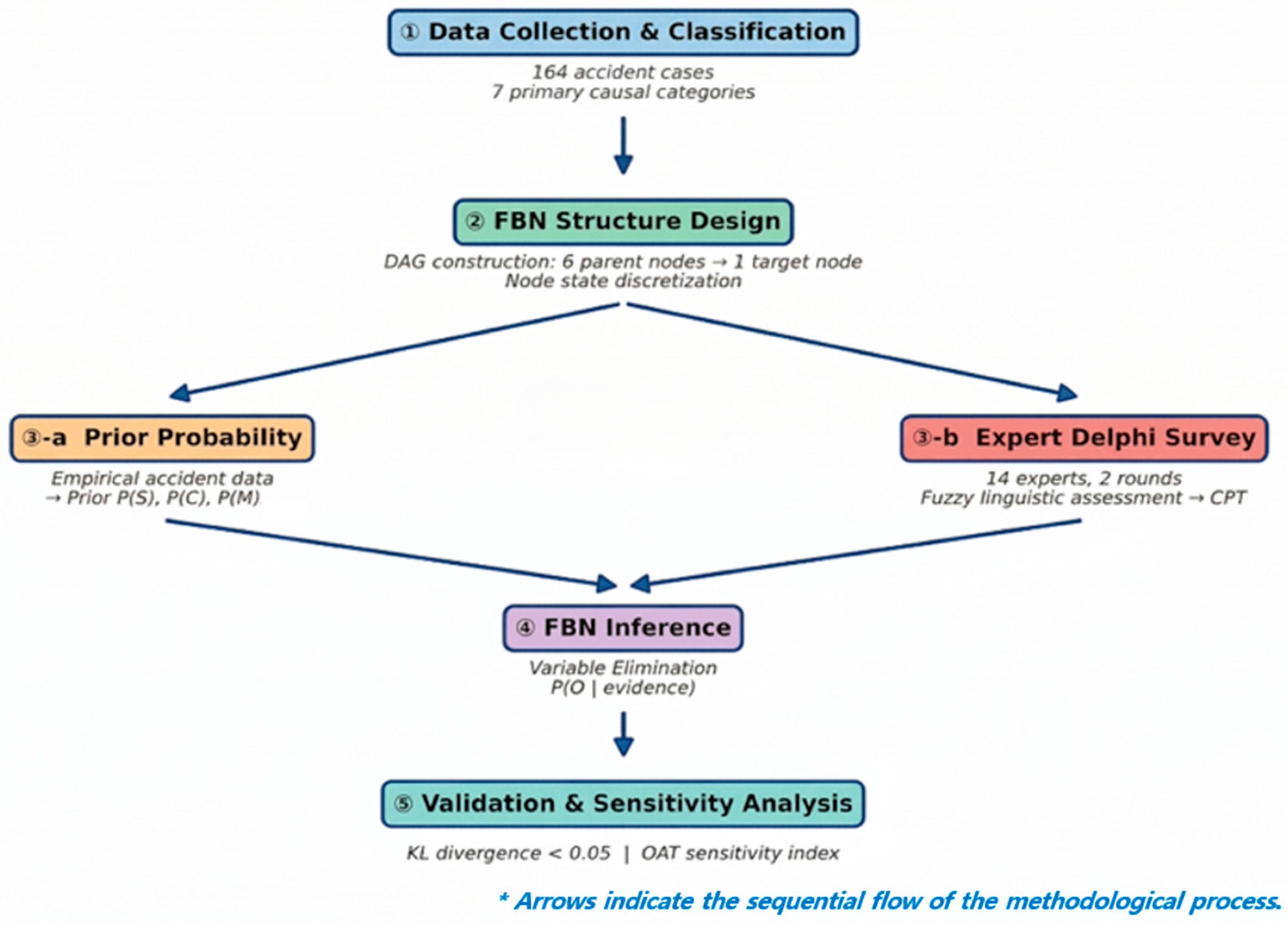

The methodological framework of this study, as illustrated in Figure 1, consists of five sequential stages: (1) collection of accident data and classification of causal factors; (2) design of the FBN structure; (3a) assignment of prior probabilities based on empirical accident records; (3b) quantification of CPTs through fuzzy Delphi-based expert elicitation; (4) probabilistic inference using the FBN; and (5) model validation and sensitivity analysis.

3.2. Fuzzy Set Theory: Mathematical Foundations

3.2.1. Triangular Fuzzy Numbers

The combination of fuzzy set theory with probabilistic Bayesian networks in this study addresses two distinct epistemic challenges that coexist in maritime accident risk modeling: (a) aleatory uncertainty, arising from the inherent randomness of accident occurrence and modeled through BN probability distributions; and (b) epistemic uncertainty, arising from vagueness and imprecision in expert judgment and modeled through fuzzy membership functions [11,27]. These two uncertainty types are complementary rather than competing, justifying their joint treatment within the FBN framework, as demonstrated in prior maritime safety applications [19,20,27].

A triangular fuzzy number (TFN) is characterized by a triple (a, m, b), where a denotes the lower bound, m the modal value, and b the upper bound, satisfying a ≤ m ≤ b. The membership function is defined as:

$${\mu }_{\tilde{A}}\left(x\right)={\displaystyle \frac{x-a}{m-a}}, a \le x \le m$$

(1a)

$${\mu }_{\tilde{A}}\left(x\right)={\displaystyle \frac{b-x}{b-m}}, m<x \le b$$

(1b)

$${\mu }_{\tilde{A}}\left(x\right)=0,\mathit{otherwise}$$

(1c)

where $\tilde{A}$ denotes the triangular fuzzy number; ${\mu }_{\tilde{A}}\left(x\right)$ is the degree of membership of value x in $\tilde{A}$; x is the input variable; a and b are the lower and upper bounds of the support, respectively; and m is the modal value at which ${\mu }_{\tilde{A}}\left(x\right)=1$. Figure 2 illustrates the five TFNs corresponding to the linguistic scale employed in this study. The five linguistic terms and their TFN parameters are defined in

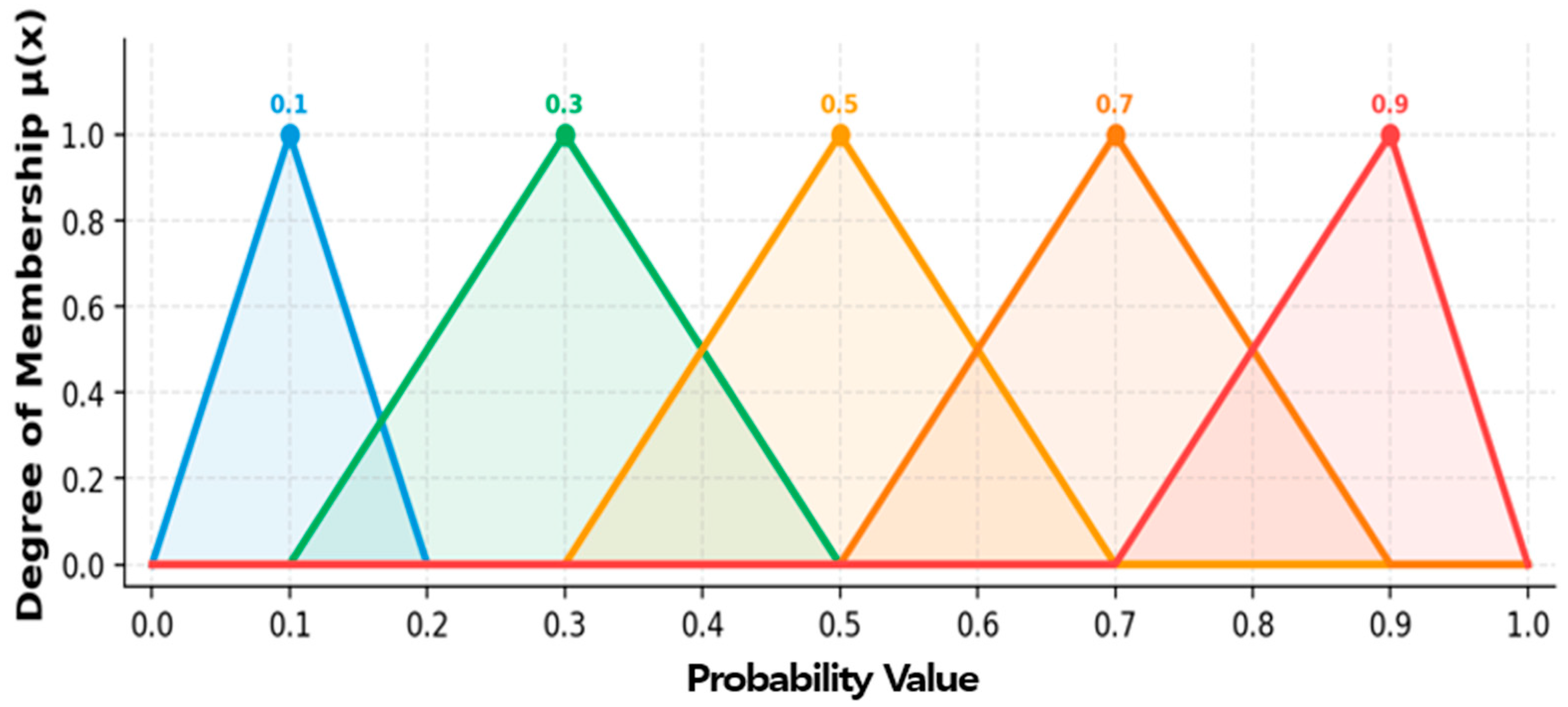

Table 1. Linguistic scale, TFN parameters, and defuzzified values for expert elicitation.

Linguistic Term	Abbrev.	TFN (a, m, b)	$\mathbf{Defuzzified} \widehat{\mathit{P}}$
Very Low	VL	(0.00, 0.10, 0.20)	0.100
Low	L	(0.10, 0.30, 0.50)	0.300
Medium	M	(0.30, 0.50, 0.70)	0.500
High	H	(0.50, 0.70, 0.90)	0.700
Very High	VH	(0.70, 0.90, 1.00)	0.867

.

3.2.2. Weighted Aggregation of Expert TFNs

Let ${\tilde{A}}_k=(a_k, m_k, b_k)$ denote the TFN of expert k, with normalized weight $w_k=s_k/\sum s_j$, where $s_k$ is the competence score. The expert competency score was assigned on a scale of 1–5, reflecting years of experience, qualification level, and practical expertise in marine accident investigation or ship inspection. The specific scoring rubric is provided in Appendix A

Table A1. Expert competence scoring rubric for Delphi panel weighting (scale: 1–5).

Score	Criteria	Examples
5	≥20 years of direct experience + national-level certification or academic appointment	Principal surveyor, senior accident investigator, professor with marine safety portfolio
4	15–19 years + relevant professional license or equivalent qualification	Licensed Master Mariner, senior ship inspector
3	10–14 years + relevant professional license	Maritime safety officer, mid-career accident investigator
2	<10 years with relevant license OR ≥ 10 years in adjacent field	Junior inspector, researcher with indirect marine experience
1	<10 years, limited direct accident investigation or inspection experience	Entry-level maritime professional

. Scores were assigned by the author based on verifiable professional credentials; each expert’s self-reported profile was independently cross-checked against institutional records.

The aggregated TFN and defuzzified (centroid) probability, and normalized outcome probability are given by Equations (2)–(4):

$${\tilde{A}}_{agg}=(\sum w_k·a_k, \sum w_k·m_k, \sum w_k·b_k)$$

(2)

When expert judgments differ substantially, the weighted aggregation in Equation (2) may theoretically violate the TFN condition a ≤ m ≤ b. To address this, boundary clipping was applied: if the aggregated modal value $m_{agg}$ fell outside [$a_{agg}$, $b_{agg}$], it was replaced by clip($m_{agg}$, $a_{agg}$, $b_{agg}$) = max($a_{agg}$, min($m_{agg}$, $b_{agg}$)). In practice, no boundary violations were detected in the present dataset, as the maximum inter-expert disagreement on any single CPT entry did not exceed two adjacent linguistic categories.

The analytical simplification P = (a + m + b)/3 is exact for triangular fuzzy numbers and derives from the centroid of a triangular membership function. For non-triangular fuzzy numbers (e.g., trapezoidal), a different closed-form expression would apply. Accordingly, Equation (3) is applicable specifically to TFNs as employed in this study.

$$\widehat{P}={\displaystyle \frac{\int x\cdot \mu \left(x\right)dx}{\int \mu \left(x\right)dx}}=(a_{agg}+m_{agg}+b_{agg})/3$$

(3)

$$P_i={\displaystyle \frac{\widehat{P_i}}{\sum _j\widehat{P_j}}}, \forall i\in \{Capsizing, Sinking, Flooding\}$$

(4)

where ${\tilde{A}}_{agg}$ is the weighted aggregate TFN; $a_k, m_k$ and $b_k$ are the lower bound, modal value, and upper bound of expert k’s TFN, respectively; $\widehat{P}$ is the defuzzified probability obtained via the centroid method; μ(x) is the membership function of the aggregated TFN; $a_{agg}$, $m_{agg}$, and $b_{agg}$ denote the lower bound, modal value, and upper bound of ${\tilde{A}}_{agg}$, respectively; $P_i$ is the normalized probability of accident outcome i; and $\widehat{P_i}$ is the corresponding defuzzified value prior to normalization. This normalization ensures that the probabilities of the three mutually exclusive outcome states sum to unity.

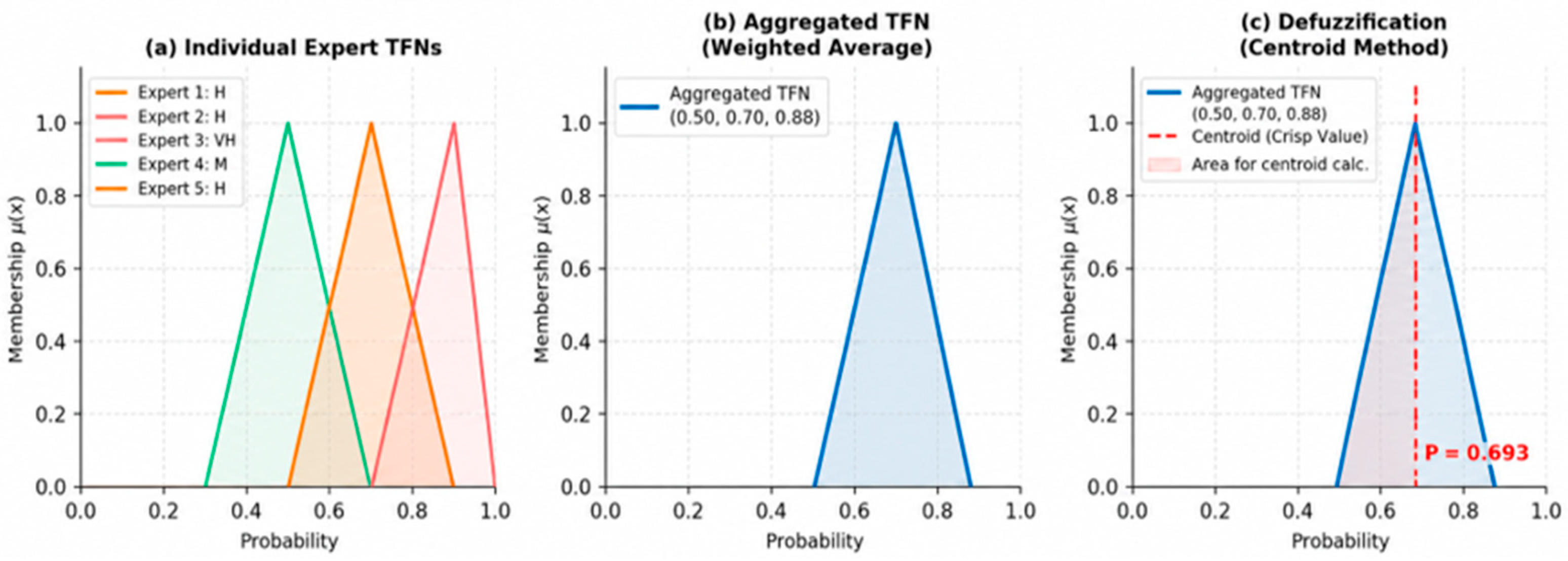

Figure 3 illustrates the complete three-stage fuzzy elicitation process from individual expert assessments through aggregation to defuzzification.

3.3. FBN Model Structure

3.3.1. Network Topology

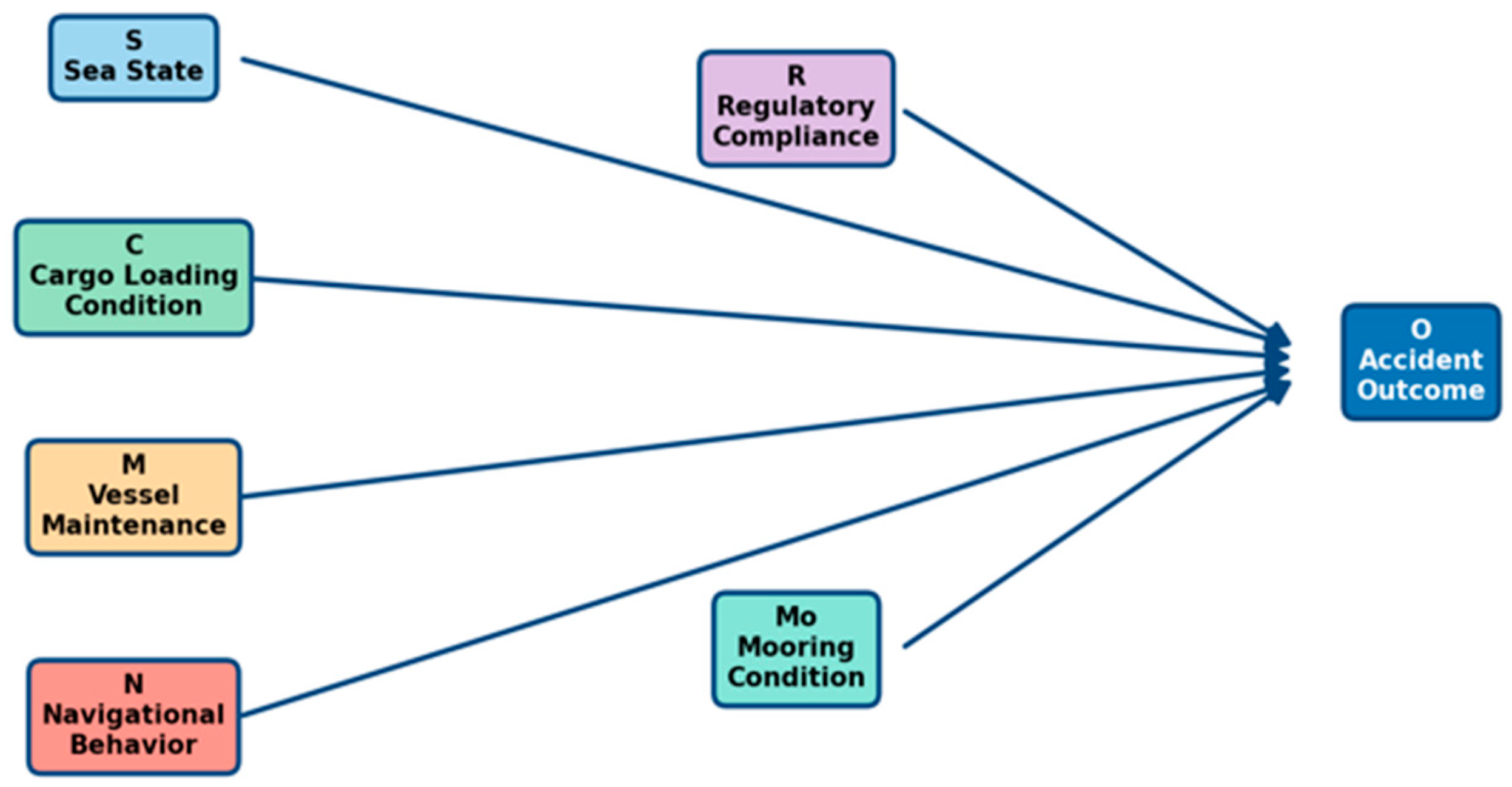

The FBN is constructed as a DAG comprising six parent nodes and one target outcome node (Figure 4). The outcome node in this model is defined based on a single “primary accident type” explicitly identified in the adjudication reports of the KMST. Although real-world marine accidents often involve sequential causal processes—such as flooding followed by sinking—the present study models the most severe ultimate outcome to which the risk factors converge. Accordingly, the outcome states are defined within a mutually exclusive discrete space, and the probabilities are normalized to reflect this assumption. The joint probability distribution factorizes as:

$$\begin{gathered} P\left(S, C, M, N, R,Mo,O\right)= \\ P\left(S\right)·P\left(C\right)·P\left(M\right)·P\left(N\right)·P\left(R\right)·P\left(Mo\right) ·P\left(O\right|S,C,M,N,R,Mo) \end{gathered}$$

(5)

where S, C, M, N, R, and Mo denote the six parent nodes representing sea state, cargo loading condition, vessel maintenance status, navigational behavior, regulatory compliance, and mooring condition, respectively; O is the target outcome node taking one of three mutually exclusive states {Capsizing, Sinking, Flooding}; $P\left(S\right), P\left(C\right), P\left(M\right), P\left(N\right), P\left(R\right)$ and $P\left(Mo\right)$ are the marginal prior probabilities of the respective parent nodes; and $P\left(O\right|S,C,M,N,R,Mo)$ is the conditional probability of the outcome node given the joint state of all six parent nodes, as specified in the CPT.

3.3.2. Prior Probability Assignment

The prior probabilities of each parent node were derived from an accident dataset based on 164 adjudicated marine accident cases.

Table 2. Node definitions, state discretizations, and prior probability estimates derived from the accident data.

Node	Variable	States	Prior Probabilities	Basis
S	Sea State	Low/Moderate/Severe	0.372/0.376/0.252	Accident record
C	Cargo Loading	Normal/Imbalanced/Overloaded	0.590/0.262/0.148	Accident record
M	Vessel Maintenance	Good/Deficient/Poor	0.600/0.250/0.150	Accident record
N	Nav. Behavior	Careful/Negligent	0.906/0.094	Accident record
R	Reg. Compliance	Compliant/Non-compliant	0.946/0.054	Accident record
Mo	Mooring Condition	Safe/Unsafe	0.950/0.050	Accident record

presents the node definitions, state discretization, and the estimated prior probabilities.

3.4. Delphi Expert Survey and CVR Validation

The Delphi method was applied in two rounds to elicit CPT values from 14 maritime professionals (mean experience ≥ 12 years). The CVR was computed after each Delphi round; the final acceptance threshold reported here is based on the 14 experts who completed the final Delphi round.

$$CVR={\displaystyle \frac{\left({\mathit{n}}_{\mathit{E}}-\frac{\mathit{N}}{2}\right)}{\frac{\mathit{N}}{2}}}$$

(6)

where $n_E$ is the number of experts rating the item as ‘High’ or ‘Very High’, and N is the total panel size. For N = 14 experts completing the final Delphi round, the minimum CVR for statistical significance at p < 0.05 is 0.51 [30]. Entries failing this threshold were resubmitted for targeted expert review prior to model finalization.

Given the cognitive burden of eliciting full CPTs across all 216 parent configurations, the Delphi survey focused on the 28 representative parent state combinations with the highest accident frequency based on prior data analysis. Remaining configurations were completed using monotonicity-constrained linear interpolation.

The interpolation procedure operated as follows. For each unelicited parent-node configuration, denoted as u = (s, c, m, n, r, mo), the two nearest elicited reference configurations, u_low and u_high, were identified based on the Hamming distance within the ordered state space. The interpolated conditional probability was then calculated as follows:

$$\mathit{P}(\mathit{O}|\mathit{u})=\mathit{P}(\mathit{O}|{\mathit{u}}_{\mathit{l}\mathit{o}\mathit{w}})+{\displaystyle \frac{\mathit{r}\mathit{a}\mathit{n}\mathit{k}\left(\mathit{u}\right)-\mathit{r}\mathit{a}\mathit{n}\mathit{k}\left({\mathit{u}}_{\mathit{l}\mathit{o}\mathit{w}}\right)}{\mathit{r}\mathit{a}\mathit{n}\mathit{k}\left({\mathit{u}}_{\mathit{h}\mathit{i}\mathit{g}\mathit{h}}\right)-\mathit{r}\mathit{a}\mathit{n}\mathit{k}\left({\mathit{u}}_{\mathit{l}\mathit{o}\mathit{w}}\right)}}\times \left[\mathit{P}\right(\mathit{O}|{\mathit{u}}_{\mathit{h}\mathit{i}\mathit{g}\mathit{h}})-\mathit{P}(\mathit{O}|{\mathit{u}}_{\mathit{l}\mathit{o}\mathit{w}}\left)\right]$$

(7)

where O denotes the accident outcome node, and rank(·) represents the ordinal position of a parent-node configuration from the most favorable to the most adverse state. Monotonicity was imposed by construction, such that deterioration in the parent-node states corresponded to non-decreasing probabilities of adverse accident outcomes. After interpolation, each CPT row was normalized to ensure that the conditional probabilities of the three mutually exclusive outcome states summed to unity:

$${\displaystyle \sum _{i=1}^3}P\left(O_i\mid u\right)=1$$

(8)

The complete CPT, consisting of 216 parent-node configurations and three accident outcome states, is provided in Supplementary Table S1.

3.5. Bayesian Inference: Variable Elimination

Given observed evidence e on a subset of parent nodes, let u denote the set of unobserved parent nodes, i.e., u = pa(O)\e. The posterior accident probability is computed by marginalizing the joint distribution over u:

$$P\left(O=o|e\right)={\sum }_{u}P\left(S\right)·P\left(C\right)·P\left(M\right)·P\left(N\right)·P\left(R\right)·P\left(Mo\right)·P\left(O=o|pa\left(O\right)\right)$$

(9)

where O is the accident outcome node; o∈{Capsizing, Sinking, Flooding} denotes a specific outcome state; e is the observed evidence on a subset of parent nodes; u = pa(O)\e is the set of unobserved parent nodes over which marginalization is performed; and P(S)∙P(C)∙P(M)∙P(N)∙P(R)∙P(Mo) are the prior probabilities of the six parent nodes, respectively. For the six-node structure with binary/ternary state spaces (total combinations: 3 × 3 × 3 × 2 × 2 × 2 = 216), exact inference is computationally tractable without approximation.

3.6. Sensitivity Analysis and Model Validation

The sensitivity index for each parent node $X_i$ is defined as the maximum absolute change in capsizing probability when $X_i$ is fixed at its most adverse state. Model calibration was assessed using the Kullback–Leibler (KL) divergence between the FBN-estimated outcome distribution and the observed accident frequency distribution, as given in Equations (10) and (11):

$${SI}_i=\left|P\right(O= \mathit{Capsizing}|X_i= \mathit{worst})-P(O=\mathit{Capsizing})|$$

(10)

$$D_{KL}\left(P\parallel Q\right)=\sum _{o}P\left(o\right)\ln \left[{\displaystyle \frac{P\left(o\right)}{Q\left(o\right)}}\right]$$

(11)

where ${SI}_i$ is the sensitivity index of parent node $X_i$; P(O = Capsizing|$X_i$ = worst) is the posterior capsizing probability when node $X_i$ is fixed at its most adverse state while all other nodes remain marginalized; P(O = Capsizing) is the baseline capsizing probability; $D_{KL}\left(P\parallel Q\right)$ is the KL divergence from the observed distribution Q to the model-estimated distribution P; o denotes each accident outcome state (Capsizing, Sinking, or Flooding); $P\left(o\right)$ is the FBN-estimated probability of outcome o; and $Q\left(o\right)$ is the corresponding observed frequency. A smaller KL divergence value indicates closer agreement between the model output and the empirical distribution.

4. Results

4.1. FBN Model Construction and Expert Elicitation

4.1.1. Network Structure and Expert Panel

The FBN structure was validated by the full expert panel (n = 14 in Round 1; n = 14 completing Round 2). The panel comprised five licensed ship masters and chief officers (mean experience: 18.4 years), three marine accident investigators (mean: 14.2 years), three ship surveyors (mean: 12.7 years), and three maritime safety academics (mean: 16.1 years). Following Round 1, the expert panel endorsed the six-node DAG without structural modification. A minor refinement was made to the Sea State node boundary: the threshold between ‘Low’ and ‘Moderate’ was adjusted from 1.0 m to 1.5 m significant wave height based on expert consensus regarding Korean coastal vessel operational thresholds.

4.1.2. CVR Results

CVR values were computed for all primary CPT entries following Round 2.

Table 3. CVR values for selected CPT entries (n = 14 experts). Values shown reflect the final round of consensus.

CPT Entry (Parent Condition → Outcome)	nE	N	CVR	Accepted
S = Severe → P(Capsizing) High	13	14	0.86	✓
C = Overloaded → P(Capsizing) High	12	14	0.71	✓
C = Imbalanced → P(Capsizing) High	11	14	0.57	✓
M = Poor → P(Sinking) High	12	14	0.71	✓
R = Non-compliant → P(Capsizing) High	10	14	0.54	✓
Mo = Unsafe + S = Severe → P(Sinking) High	11	14	0.57	✓

presents the results for selected high-priority entries. All entries in the final model achieved CVR > 0.51. Three entries that failed the threshold in Round 2 achieved consensus following targeted expert re-review.

4.2. Baseline Accident Probability Estimation

The baseline accident outcome probabilities, computed by marginalizing over all parent nodes weighted by their empirical prior distributions, are presented in

Table 4. Baseline accident outcome probabilities: FBN estimates vs. observed frequencies.

Accident Outcome	FBN Estimate	Observed Frequency	KL Divergence
Capsizing	34.00%	33.10%	—
Sinking	35.16%	36.40%	—
Flooding	30.84%	30.50%	—
Overall KL Divergence	—	—	0.038

. The model estimates P(Capsizing) = 34.00%, P(Sinking) = 35.16%, and P(Flooding) = 30.84%. The KL divergence value between the model output and the observed frequency distribution (0.038) indicates that the differences between the FBN estimates and the observed frequencies were within 1.3 percentage points across all outcome categories—capsizing (FBN estimate: 34.00% vs. observed: 33.10%), sinking (35.16% vs. 36.40%), and flooding (30.84% vs. 30.50%). This result suggests that the model adequately reproduces the empirical distribution of accident outcomes.

It should be noted that the baseline outcome probabilities presented in Table 4 do not represent the absolute risk of accident occurrence under normal operating conditions. Rather, they reflect conditional probabilities of capsizing, sinking, or flooding given that a marine accident has already occurred in the coastal waters of the Republic of Korea.

4.3. Sensitivity Analysis

Table 5. Sensitivity analysis results: Capsizing probability change under worst-case node states.

Rank	Node	Baseline P(Cap.)	Perturbed P(Cap.)	SI (Δ)	Worst State
#1	S—Sea State	0.3400	0.3555	0.0155	Severe
#2	C—Cargo Loading	0.3400	0.3525	0.0125	Overloaded
#3	N—Nav. Behavior	0.3400	0.3507	0.0107	Negligent
#4	R—Reg. Compliance	0.3400	0.3504	0.0104	Non-compliant
#5	Mo—Mooring	0.3400	0.3503	0.0103	Unsafe
#6	M—Maintenance	0.3400	0.3452	0.0052	Poor

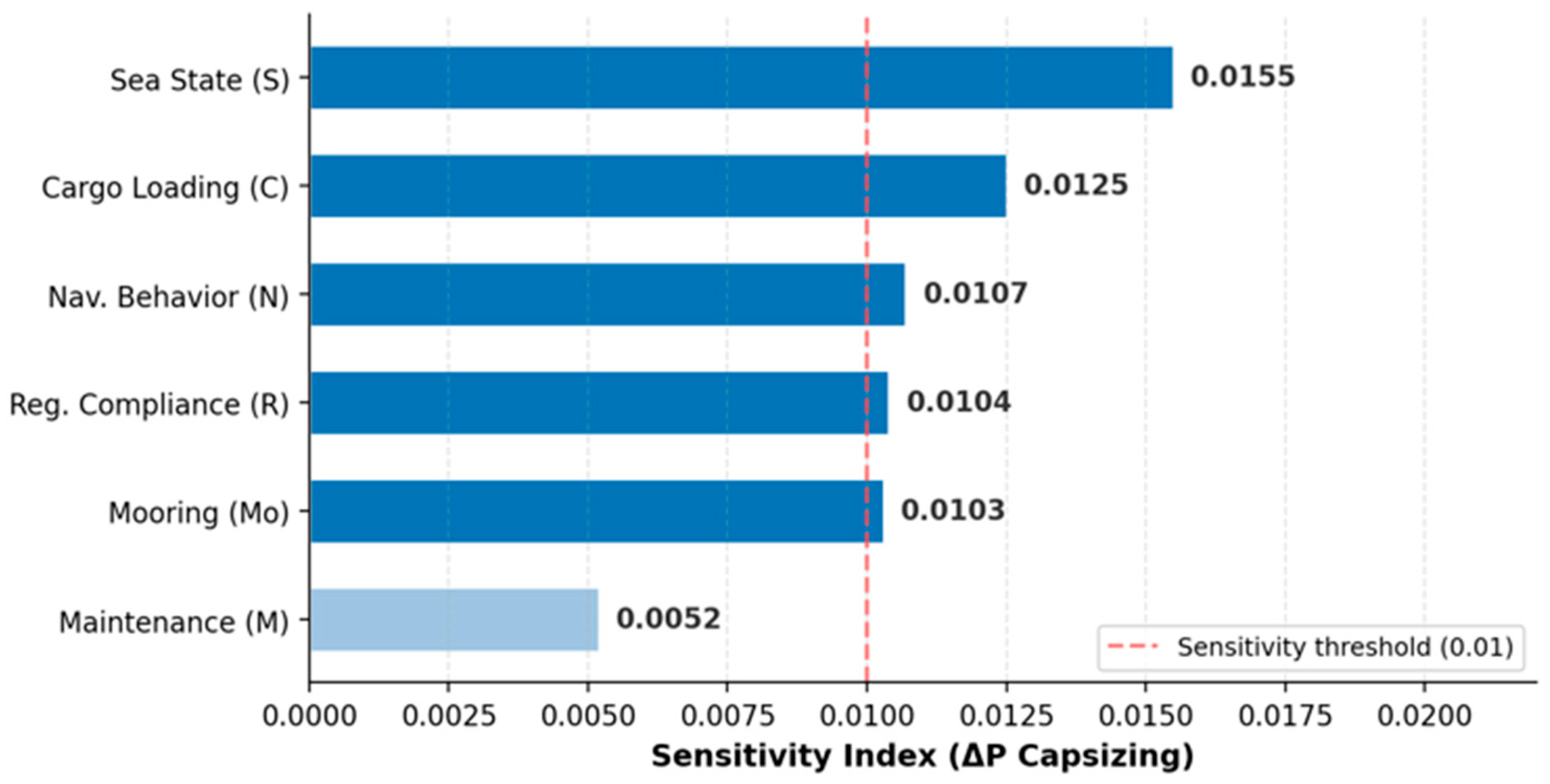

and Figure 5 present the results of the one-at-a-time (OAT) sensitivity analysis. Sea State (S) exhibited the highest sensitivity index (SI = 0.0155), followed by Cargo Loading Condition (C, SI = 0.0125), Navigational Behavior (N, SI = 0.0107), and Regulatory Compliance (R, SI = 0.0104). Vessel Maintenance Status (M) showed the lowest sensitivity index for capsizing probability (SI = 0.0052), reflecting its stronger mechanistic association with sinking through hull-flooding pathways than with capsizing.

The relatively small magnitude of the individual sensitivity indices (maximum SI = 0.0155) warrants further explanation. In an OAT analysis, setting a single node to its most adverse state while marginalizing over all other nodes means that the influence of the target node is attenuated by the residual probability distributions of the five remaining nodes. This attenuation effect is inherent in a multi-factor Bayesian network structure and does not necessarily imply limited practical relevance. For comparison, when two nodes are simultaneously fixed at adverse states—as in Scenario S1 (S = Severe, C = Imbalanced)—the capsizing probability increases by 5.3 percentage points. This contrast indicates that the OAT sensitivity index measures the marginal influence of a single factor under uncertainty in the other factors, whereas scenario analysis captures the joint and potentially non-additive effects of multiple concurrent risk conditions.

4.4. Scenario Analysis

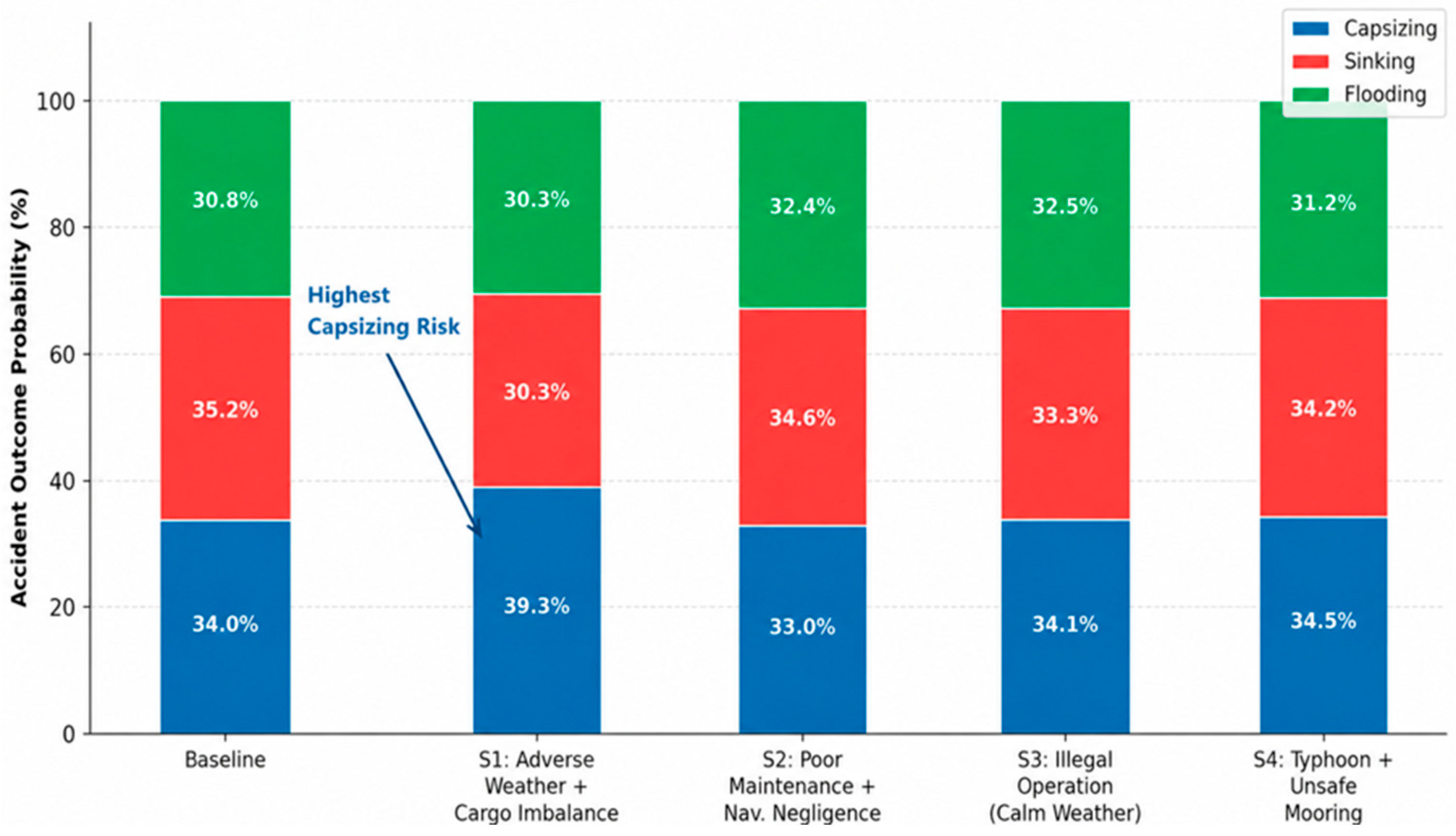

Table 6. Posterior accident outcome probabilities under four representative scenarios.

Scenario	Evidence	P(Capsizing)	P(Sinking)	P(Flooding)
Baseline	All nodes marginalized	34.00%	35.16%	30.84%
S1: Adverse weather + Cargo imbalance	S = Severe, C = Imbalanced	39.31%	30.35%	30.34%
S2: Poor maintenance + Negligent navigation	M = Poor, N = Negligent	32.99%	34.58%	32.43%
S3: Illegal operation (calm weather)	R = Non-compliant, S = Low	34.12%	33.34%	32.54%
S4: Typhoon approach + Unsafe mooring	S = Severe, Mo = Unsafe	34.50%	34.25%	31.25%

and Figure 6 present the posterior accident probabilities for four representative scenarios. Scenario S1 (adverse weather + improper cargo loading) yielded the highest probability of capsizing at 39.3%, representing an increase of 5.3 percentage points compared to the baseline. Scenario S1 employs C = Imbalanced rather than C = Overloaded (the worst state used in the OAT sensitivity analysis) for the following reason. Based on the present KMST dataset, cargo imbalance accounts for 26.2% of accident records, compared with 14.8% for overloading; accordingly, cargo imbalance represents the operationally most prevalent form of improper loading. Moreover, cargo imbalance—characterized by asymmetric weight distribution across a vessel’s transverse axis—directly reduces the righting lever (GZ curve) and generates a static list, rendering the vessel acutely vulnerable to wave-induced roll amplification under severe sea states. Overloading, while more extreme in magnitude, is a less frequent field condition and was therefore reserved for the boundary-case sensitivity analysis. This distinction is consistent with KMST accident records showing that deck cargo imbalance is the dominant loading-related causal factor in Korean coastal fishing vessel capsizing. In Scenario S2 (poor vessel maintenance + negligent navigation), the probability of flooding increased to 32.43%, while sinking remained the dominant outcome among the three categories at 34.58%. This result is consistent with the mechanical linkage between progressive water ingress and equipment-related failures. Scenario S3 (non-compliant operation under calm weather conditions) produced probabilities similar to the baseline, suggesting that regulatory non-compliance alone may have a limited effect on acute risk in the absence of adverse environmental or operational triggers. Scenario S4 (approaching typhoon + unsafe mooring) increased the probabilities of both capsizing and flooding, while the probability of sinking decreased slightly. The combined risk of capsizing and sinking remained high at 68.75%.

5. Discussion

5.1. Interpretation of Key Findings

The identification of adverse weather conditions and improper cargo loading as the two most influential risk nodes is consistent with the dominant causal narratives repeatedly reported in adjudicated marine accident cases in the Republic of Korea and aligns with findings from similar studies on marine accident causation in East Asian coastal waters [17]. Notably, the substantial increase in capsizing probability observed in Scenario S1, where adverse weather and improper cargo loading occur simultaneously, suggests the potential presence of non-additive and synergistic interactions between risk factors. In particular, when static stability (GZ) is reduced due to cargo imbalance, cargo shifting, or free surface effects, severe sea states can further amplify roll motion, thereby increasing the likelihood of stability failure [31,32,33,34]. Such complex interactions are difficult to capture using univariate frequency-based approaches alone.

Furthermore, the relatively higher sensitivity of vessel maintenance conditions with respect to sinking, compared to capsizing, provides meaningful mechanistic insights. This indicates that factors such as hull penetration defects, loss of watertight integrity, inadequate watertight door management, and equipment failures are more likely to contribute to progressive flooding pathways rather than directly inducing acute dynamic instability under rough sea conditions [31,35,36]. These findings suggest that maintenance-focused safety interventions may be more effective in reducing the risk of sinking and flooding accidents than in preventing capsizing events.

5.2. Implications for Maritime Safety Policy

The pronounced importance of cargo loading conditions, particularly in fishing vessels, is underscored by the finding that deck cargo accounts for 33.8% of cargo-related cases based on the present dataset analysis, representing the most dominant loading issue. This highlights the need to enhance safety awareness among fishing vessel masters regarding catch loading practices, as well as to strengthen enforcement by regulatory authorities such as the Coast Guard. The interaction between adverse weather conditions and improper cargo loading identified in Scenario S1 further supports the necessity for revising institutional frameworks to incorporate stability assessments in relation to weather advisories. A structural analysis of the Korean regulatory framework reveals specific institutional gaps that contribute to persistent non-compliance. Under the current Fishing Vessel Act, fishing vessels under 24 m in length are exempt from mandatory stability inspections, creating a regulatory blind spot that affects the majority of coastal fishing vessels. Furthermore, supervisory authority for vessel safety management is fragmented among the Ministry of Oceans and Fisheries, the Ministry of the Interior and Safety, and local governments, resulting in a fragmented scope of enforcement and a lack of consistency in the application of vessel stability standards. These structural conditions create systemic latent vulnerabilities that the present FBN identifies as compounding factors when adverse weather and improper cargo loading co-occur. To address these gaps, the following governance-level interventions are proposed. First, in accordance with the 2008 revised IS Code [31], safety certification requirements should be extended to all deck-type fishing vessels regardless of vessel length. Second, an integrated pre-departure risk assessment protocol combining FBN-based risk scores and real-time weather data should be institutionalized within the Korea Coast Guard’s port immigration management system. This system should automatically identify high-risk departure conditions (e.g., significant wave height exceeding 1.5 m and cargo imbalance indicators derived from loading declarations) and mandate pre-departure safety inspections. Third, to resolve implementation gaps between the Ministry of Oceans and Fisheries, the Ministry of the Interior and Safety, and local governments, an integrated maritime safety information sharing platform equipped with unified safety management standards should be established to improve the current fragmented system.

Meanwhile, illegal operational practices—such as failure to undergo mandatory inspections or exceeding passenger capacity (Scenario S3)—may only marginally increase acute risk under favorable conditions; however, they create latent vulnerabilities that can trigger catastrophic outcomes when combined with other contributing factors. This finding carries important implications for enforcement prioritization. Regulatory efforts are likely to achieve greater risk reduction when they target underlying structural conditions that enable persistent non-compliance, such as insufficient inspection coverage, inadequate watchkeeping enforcement, and the incomplete application of stability certification standards for small fishing vessels, rather than relying solely on punitive measures.

5.3. Comparison with Prior Literature

The ranking of risk factors derived from the sensitivity analysis is broadly consistent with findings from related studies on marine accident causation. Liu et al. [19] similarly identified adverse weather conditions and vessel-type-specific vulnerabilities as dominant contributors to marine accidents in Chinese coastal waters using a BN-based approach, a pattern that was replicated in the present study. Chen et al. [18], applying an evidence-based FBN to accident reports compiled by the U.S. National Transportation Safety Board (NTSB), likewise found that heavy weather exerted a relatively higher impact on flooding/foundering accidents compared to other accident types, which is consistent with the high sensitivity index assigned to the Sea State node in the present model.

However, direct quantitative comparison with prior FBN studies is constrained by differences in data sources, geographic scope, accident type classifications, and network structures. The present study is specifically grounded in adjudicated accident records from Korean coastal waters, and its FBN explicitly incorporates regulatory compliance and mooring conditions as structural risk nodes—variables that have been relatively underexplored in existing studies—thereby offering a complementary perspective to prior work. Notwithstanding these contextual differences, the recurring importance of weather-related conditions across Korean, Chinese [19], and U.S. [18] accident datasets suggests that the proposed FBN framework may be transferable to other coastal environments where small vessels, variable weather conditions, and limited accident data are common. This transferability, however, is conditional on the availability of a functionally equivalent accident reporting or adjudication system from which empirical prior probabilities can be derived. Specifically, the six-node DAG topology and the Delphi-based CPT elicitation protocol represent methodology-level contributions that can be replicated in other national contexts by recalibrating prior probability distributions using locally available accident records. Future validation studies in jurisdictions with comparable small-vessel coastal fishing fleet profiles and institutional reporting infrastructure would be a productive avenue for assessing the generalizability of the present findings.

5.4. Limitations and Future Research Directions

An important limitation of this study is that the dataset does not distinguish between fishing vessels and non-fishing vessels in the FBN node structure. Fishing vessels predominate in Korean coastal waters and exhibit stability characteristics—including a relatively high center of gravity due to deck cargo, insufficient or simplified stability documentation for smaller units, and seasonal overloading during peak fishing periods—that differ substantially from those of cargo or passenger vessels. The omission of a vessel-type node means that the estimated CPTs aggregate across vessel types, potentially obscuring risk heterogeneity that is relevant to targeted intervention design. Future research should incorporate vessel type as an explicit structural node to stratify risk profiles accordingly.

This study has several additional limitations. First, the quantification of the CPTs was based on Delphi judgments from a panel of domain experts, making it difficult to completely eliminate subjectivity. Future work should incorporate more objective probability estimation approaches, such as those based on machine learning algorithms, to further enhance the model.

Second, the absence of longitudinal time-series data prevented the application of dynamic BN modeling to capture temporal variations in the prevalence of risk factors. Third, the discretization of variables into binary and ternary states inevitably resulted in information loss compared to continuous probability distributions; therefore, future studies should consider hybrid discrete–continuous BN structures.

Fourth, due to data scarcity, the same accident dataset was used for both prior probability estimation and for model validation based on KL divergence, which constitutes a methodological limitation. Future research should address this issue by incorporating independent out-of-sample datasets and performing cross-validation to rigorously evaluate the model’s generalization capability.

Finally, although the monotonicity-constrained interpolation and CVR-validated Delphi procedure improved the transparency of CPT construction, the present study did not conduct a formal Monte Carlo-based robustness test for CPT uncertainty. Future research should apply CPT perturbation analysis and Monte Carlo simulation to further assess the robustness of the proposed FBN model.

6. Conclusions

This study developed and validated an FBN model for the quantitative risk assessment of capsizing, sinking, and flooding accidents in the coastal waters of the Republic of Korea, based on 164 adjudicated marine accident cases and structured expert elicitation using the Delphi method. The principal findings and contributions are as follows.

First, the proposed FBN successfully integrated empirical prior probabilities derived from accident records with expert judgment-based CPTs, achieving satisfactory agreement with the observed accident outcome distribution (KL divergence = 0.038). Second, sensitivity analysis identified sea state (SI = 0.0155) and cargo loading condition (SI = 0.0125) as the two most influential determinants of capsizing probability, suggesting that interventions targeting cargo loading management should be assigned high priority in marine safety policy for Korean coastal waters. Third, scenario analysis showed that when adverse weather conditions and cargo imbalance occur simultaneously, the probability of capsizing increases to 39.3%, representing a 5.3 percentage point increase relative to the baseline. This finding indicates the potentially synergistic and non-additive nature of interactions among multiple risk factors, which is difficult to capture through univariate analysis alone. Fourth, the fuzzy Delphi-based methodology provides a transparent and reproducible approach for quantifying CPTs under conditions of limited data availability, while the CVR results confirmed an acceptable level of expert consensus for the directly elicited CPT entries used as reference configurations.

Fifth, the proposed FBN framework makes three distinctive methodological contributions to the marine safety literature: (1) empirical prior probabilities derived from 10 years of Korean adjudicated accident records; (2) structural inclusion of regulatory compliance and mooring condition as independent risk nodes reflecting the operational characteristics of Korean coastal small-vessel operations; and (3) a CVR-validated Delphi protocol that is transparent, reproducible, and adaptable to other data-scarce maritime safety contexts.

The proposed FBN framework offers a quantitative decision-support tool for marine safety authorities, vessel operators, and regulatory agencies in prioritizing risk-based safety interventions, conducting pre-departure risk screening, and establishing scenario-based emergency response strategies. Future research should extend this framework by incorporating vessel-type stratification, temporal trend analysis, and integration with real-time operational data streams, thereby enabling the development of a more dynamic and practically applicable maritime risk assessment system.
