Predicting Biochemical Recurrence After Robot-Assisted Prostatectomy with Interpretable Machine Learning Model
Abstract
1. Introduction
2. Materials and Methods

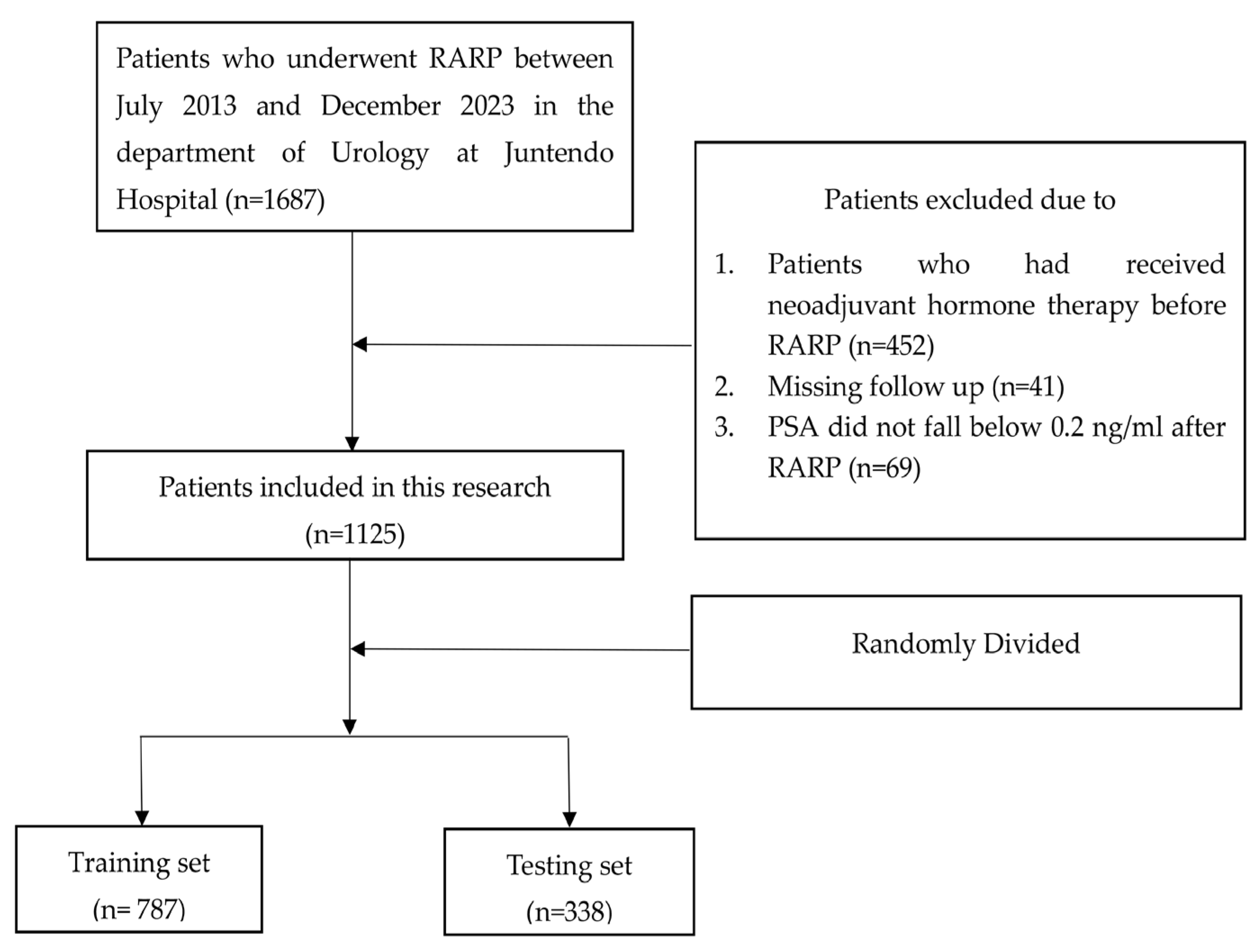

2.1. Study Design and Patients
2.2. Data Collection
2.3. Feature Selection
2.4. Model Building
2.5. Model Interpretation
2.6. Statistical Analysis
3. Results
3.1. Patient Characteristics

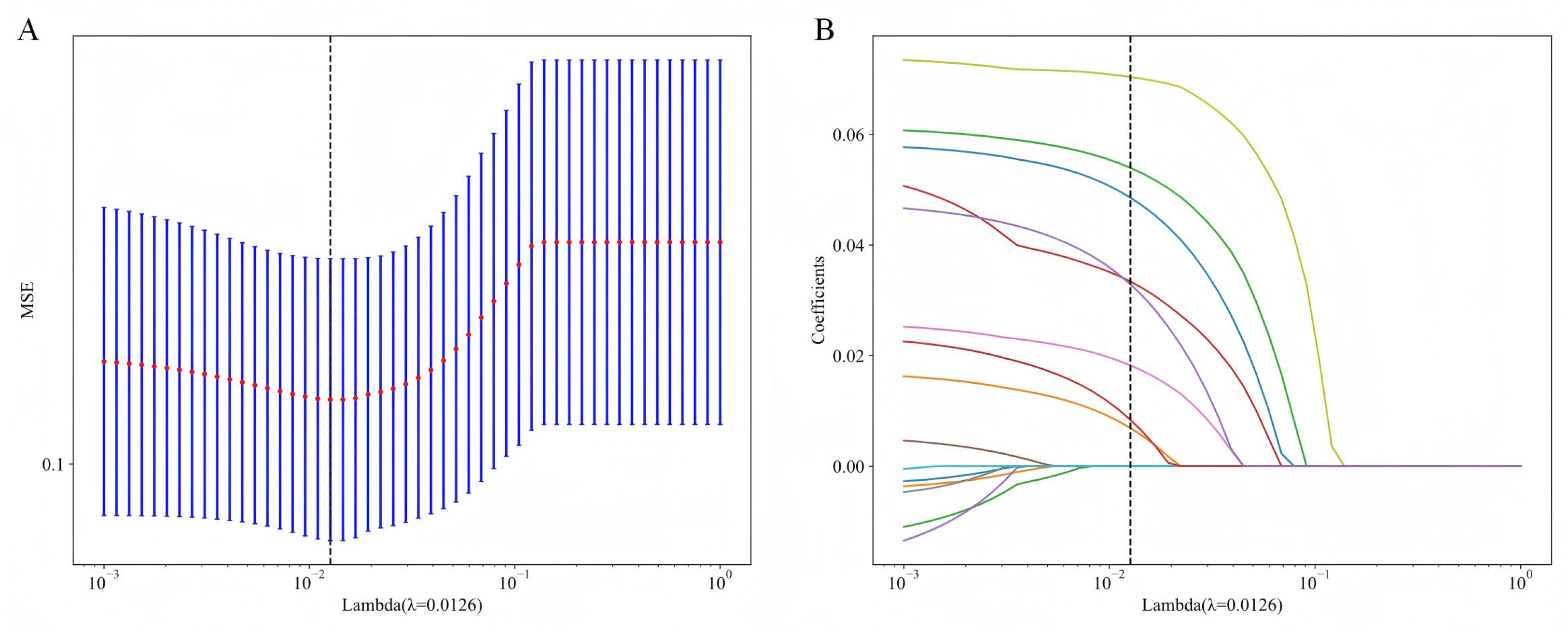

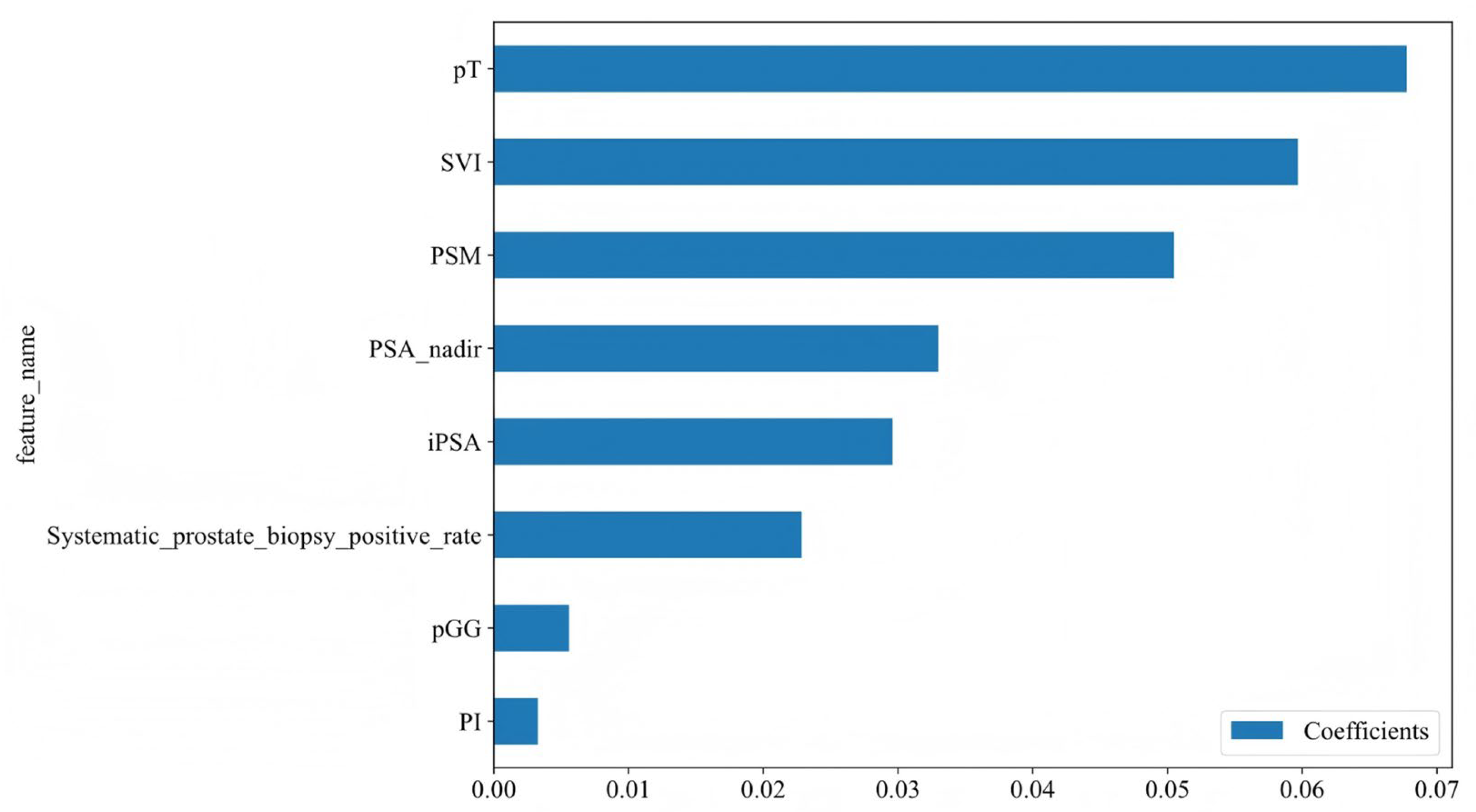

3.2. Feature Selection

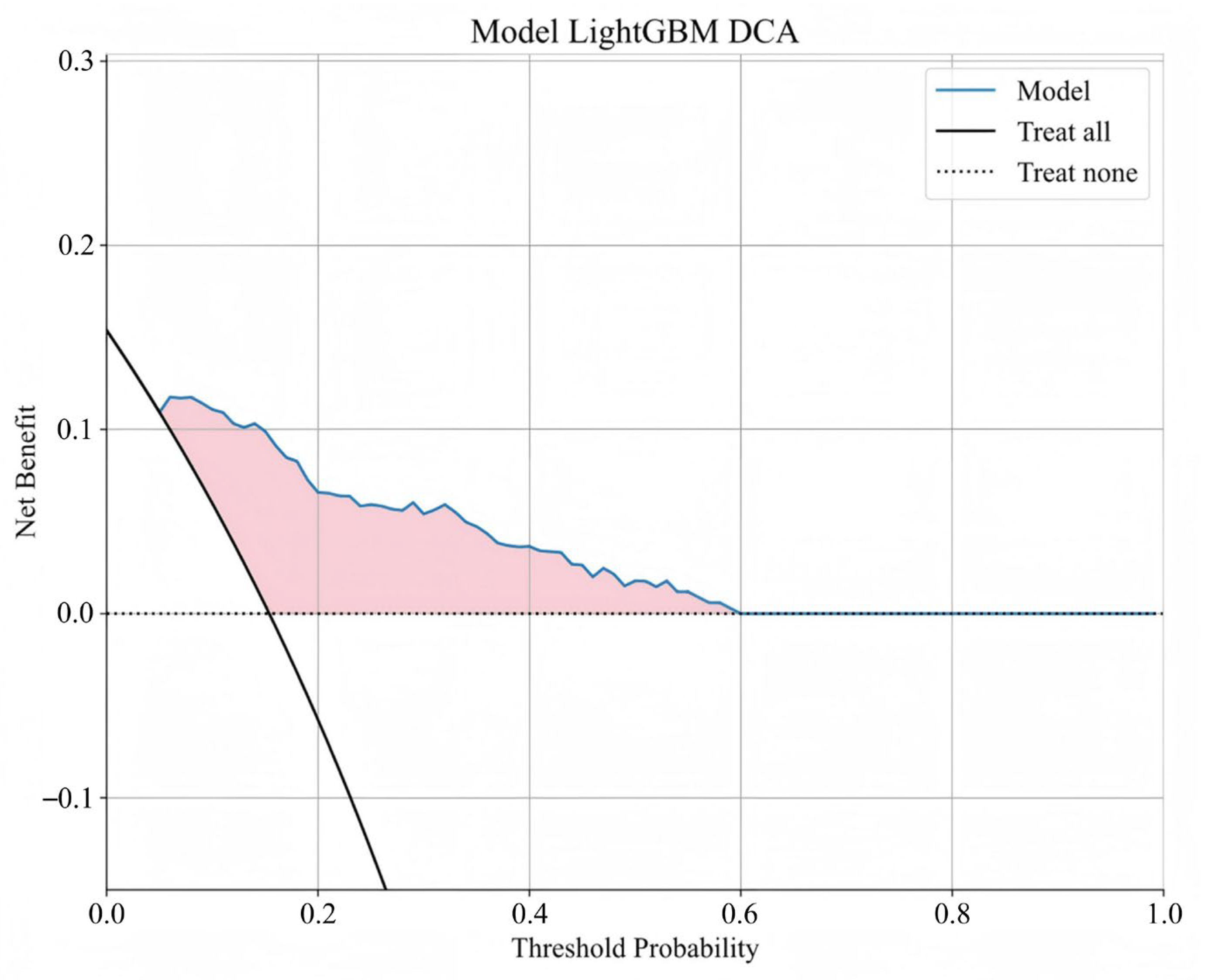

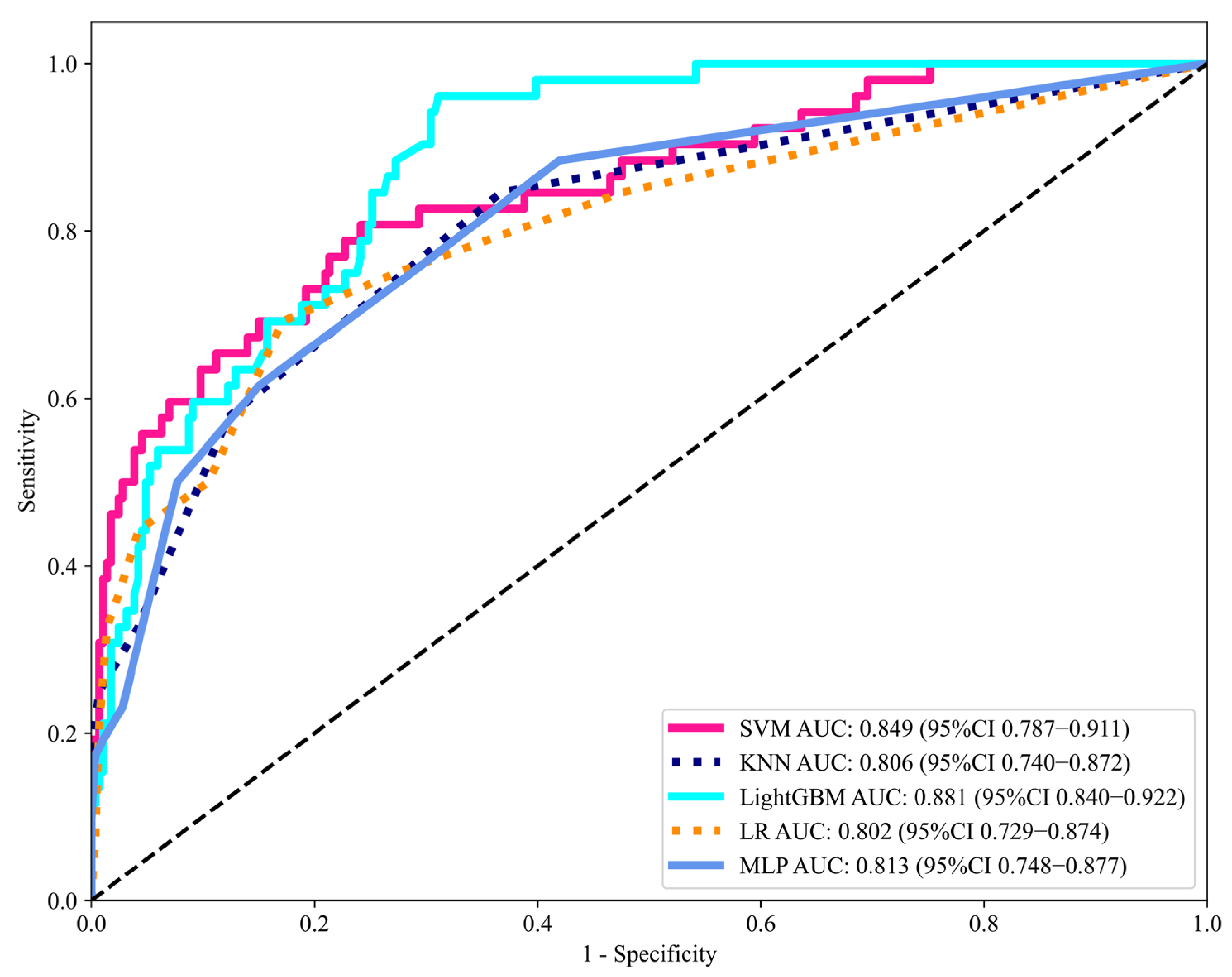

3.3. Model Building and Performance Evaluation

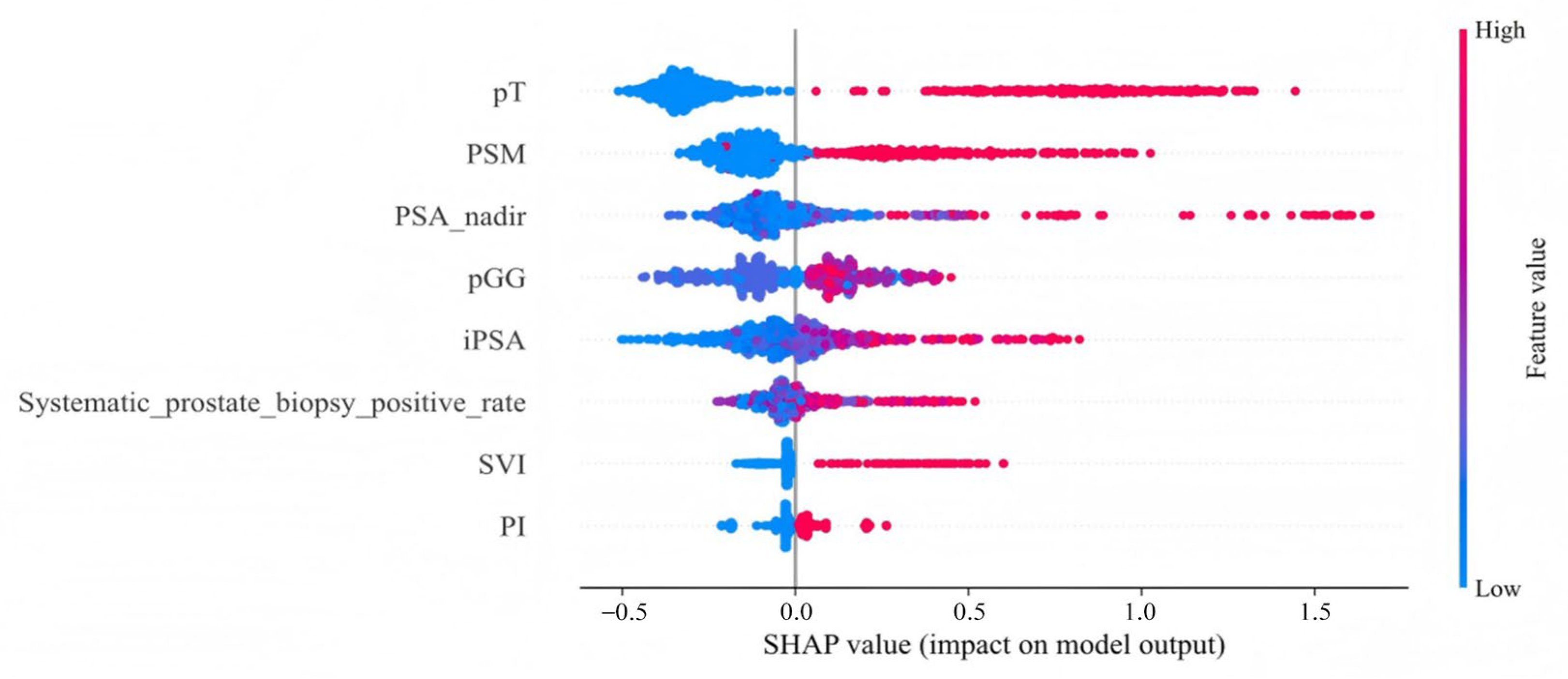

3.4. Interpretation of the Optimal Model with SHAP
4. Discussion
5. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
BCR | Biochemical recurrence |
RARP | Robot-assisted radical prostatectomy |
ML | Machine learning |
LR | Logistic regression |
KNN | K-nearest neighbor |
MLP | Multilayer perceptron |
SVM | Support vector machine |
LightGBM | Light gradient boosting machine |
LASSO | Least absolute shrinkage and selection operator |
ROC | receiver operating characteristic |
AUC | Area under the curve |
SHAP | Shapley additive explanations |
cT | Clinical T stage |
pT | Pathological T stage |
PSM | Positive surgical margin |
SVI | Seminal vesicle invasion |
PI | Perineural invasion |
pGG | Pathological International Society of Urological Pathology Grade Group |
PSA | Prostate-specific antigen |
iPSA | Initial prostate-specific antigen |
TST | Testosterone |
DCA | Decision curve analysis |
References
- Center, M.M.; Jemal, A.; Lortet-Tieulent, J.; Ward, E.; Ferlay, J.; Brawley, O.; Bray, F. International variation in prostate cancer incidence and mortality rates. Eur. Urol. 2012, 61, 1079–1092. [Google Scholar] [CrossRef] [PubMed]
- Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global Cancer Statistics 2020: GLOBOCAN Estimates of Incidence and Mortality Worldwide for 36 Cancers in 185 Countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef]
- Liss, M.A.; Lusch, A.; Morales, B.; Beheshti, N.; Skarecky, D.; Narula, N.; Osann, K.; Ahlering, T.E. Robot-assisted radical prostatectomy: 5-year oncological and biochemical outcomes. J. Urol. 2012, 188, 2205–2210. [Google Scholar] [CrossRef]
- Wang, J.; Hu, K.; Wang, Y.; Wu, Y.; Bao, E.; Wang, J.; Tan, C.; Tang, T. Robot-assisted versus open radical prostatectomy: A systematic review and meta-analysis of prospective studies. J. Robot. Surg. 2023, 17, 2617–2631. [Google Scholar] [CrossRef]
- Lee, S.H.; Seo, H.J.; Lee, N.R.; Son, S.K.; Kim, D.K.; Rha, K.H. Robot-assisted radical prostatectomy has lower biochemical recurrence than laparoscopic radical prostatectomy: Systematic review and meta-analysis. Investig. Clin. Urol. 2017, 58, 152–163. [Google Scholar] [CrossRef]
- Freedland, S.J.; Humphreys, E.B.; Mangold, L.A.; Eisenberger, M.; Dorey, F.J.; Walsh, P.C.; Partin, A.W. Risk of prostate cancer-specific mortality following biochemical recurrence after radical prostatectomy. JAMA 2005, 294, 433–439. [Google Scholar] [CrossRef]
- Cornford, P.; van den Bergh, R.C.N.; Briers, E.; Van den Broeck, T.; Cumberbatch, M.G.; De Santis, M.; Fanti, S.; Fossati, N.; Gandaglia, G.; Gillessen, S.; et al. EAU-EANM-ESTRO-ESUR-SIOG Guidelines on Prostate Cancer. Part II-2020 Update: Treatment of Relapsing and Metastatic Prostate Cancer. Eur. Urol. 2021, 79, 263–282. [Google Scholar] [CrossRef]
- Pound, C.R.; Partin, A.W.; Eisenberger, M.A.; Chan, D.W.; Pearson, J.D.; Walsh, P.C. Natural history of progression after PSA elevation following radical prostatectomy. JAMA 1999, 281, 1591–1597. [Google Scholar] [CrossRef]
- Murata, Y.; Tatsugami, K.; Yoshikawa, M.; Hamaguchi, M.; Yamada, S.; Hayakawa, Y.; Ueda, K.; Momosaki, S.; Sakamoto, N. Predictive factors of biochemical recurrence after radical prostatectomy for high-risk prostate cancer. Int. J. Urol. 2018, 25, 284–289. [Google Scholar] [CrossRef]
- Hashimoto, T.; Yoshioka, K.; Gondo, T.; Ozu, C.; Horiguchi, Y.; Namiki, K.; Ohno, Y.; Ohori, M.; Nakashima, J.; Tachibana, M. Preoperative prognostic factors for biochemical recurrence after robot-assisted radical prostatectomy in Japan. Int. J. Clin. Oncol. 2014, 19, 702–707. [Google Scholar] [CrossRef]
- Novara, G.; Ficarra, V.; Mocellin, S.; Ahlering, T.E.; Carroll, P.R.; Graefen, M.; Guazzoni, G.; Menon, M.; Patel, V.R.; Shariat, S.F.; et al. Systematic review and meta-analysis of studies reporting oncologic outcome after robot-assisted radical prostatectomy. Eur. Urol. 2012, 62, 382–404. [Google Scholar] [CrossRef]
- Khene, Z.E.; Bigot, P.; Doumerc, N.; Ouzaid, I.; Boissier, R.; Nouhaud, F.X.; Albiges, L.; Bernhard, J.C.; Ingels, A.; Borchiellini, D.; et al. Application of Machine Learning Models to Predict Recurrence After Surgical Resection of Nonmetastatic Renal Cell Carcinoma. Eur. Urol. Oncol. 2023, 6, 323–330. [Google Scholar] [CrossRef]
- Darcy, A.M.; Louie, A.K.; Roberts, L.W. Machine Learning and the Profession of Medicine. JAMA 2016, 315, 551–552. [Google Scholar] [CrossRef] [PubMed]
- Rajkomar, A.; Dean, J.; Kohane, I. Machine Learning in Medicine. N. Engl. J. Med. 2019, 380, 1347–1358. [Google Scholar] [CrossRef] [PubMed]
- Lundberg, S.M.; Erion, G.; Chen, H.; DeGrave, A.; Prutkin, J.M.; Nair, B.; Katz, R.; Himmelfarb, J.; Bansal, N.; Lee, S.I. From Local Explanations to Global Understanding with Explainable AI for Trees. Nat. Mach. Intell. 2020, 2, 56–67. [Google Scholar] [CrossRef] [PubMed]
- Lundberg, S.M.; Nair, B.; Vavilala, M.S.; Horibe, M.; Eisses, M.J.; Adams, T.; Liston, D.E.; Low, D.K.; Newman, S.F.; Kim, J.; et al. Explainable machine-learning predictions for the prevention of hypoxaemia during surgery. Nat. Biomed. Eng. 2018, 2, 749–760. [Google Scholar] [CrossRef]
- Umari, P.; Eden, C.; Cahill, D.; Rizzo, M.; Eden, D.; Sooriakumaran, P. Retzius-Sparing versus Standard Robot-Assisted Radical Prostatectomy: A Comparative Prospective Study of Nearly 500 Patients. J. Urol. 2021, 205, 780–790. [Google Scholar] [CrossRef]
- Nunes-Silva, I.; Hidaka, A.K.; Glina, F.P.A.; Hayashi, R.M.; Glina, S. Can salvage Retzius-sparing robotic-assisted radical prostatectomy improve continence outcomes? A systematic review and meta-analysis study. World J. Urol. 2023, 41, 2311–2317. [Google Scholar] [CrossRef]
- Mitsunari, K.; Fukushima, H.; Kurata, H.; Harada, J.; Nakamura, Y.; Matsuo, T.; Ohba, K.; Mochizuki, Y.; Imamura, R. Predictive Factors for Early Biochemical Recurrence Following Robot-assisted Radical Prostatectomy. Anticancer. Res. 2024, 44, 3149–3154. [Google Scholar] [CrossRef]
- Mullah, M.A.S.; Hanley, J.A.; Benedetti, A. LASSO type penalized spline regression for binary data. BMC Med. Res. Methodol. 2021, 21, 83. [Google Scholar] [CrossRef]
- Feng, L.; Hancock, R.; Watson, C.; Bogley, R.; Miller, Z.A.; Gorno-Tempini, M.L.; Briggs-Gowan, M.J.; Hoeft, F. Development of an Abbreviated Adult Reading History Questionnaire (ARHQ-Brief) Using a Machine Learning Approach. J. Learn. Disabil. 2022, 55, 427–442. [Google Scholar] [CrossRef]
- Cornford, P.; van den Bergh, R.C.N.; Briers, E.; Van den Broeck, T.; Brunckhorst, O.; Darraugh, J.; Eberli, D.; De Meerleer, G.; De Santis, M.; Farolfi, A.; et al. EAU-EANM-ESTRO-ESUR-ISUP-SIOG Guidelines on Prostate Cancer-2024 Update. Part I: Screening, Diagnosis, and Local Treatment with Curative Intent. Eur. Urol. 2024, 86, 148–163. [Google Scholar] [CrossRef] [PubMed]
- Wei, J.T.; Barocas, D.; Carlsson, S.; Coakley, F.; Eggener, S.; Etzioni, R.; Fine, S.W.; Han, M.; Kim, S.K.; Kirkby, E.; et al. Early Detection of Prostate Cancer: AUA/SUO Guideline Part I: Prostate Cancer Screening. J. Urol. 2023, 210, 46–53. [Google Scholar] [CrossRef] [PubMed]
- Lu, W.; Zhao, L.; Wang, S.; Zhang, H.; Jiang, K.; Ji, J.; Chen, S.; Wang, C.; Wei, C.; Zhou, R.; et al. Explainable and visualizable machine learning models to predict biochemical recurrence of prostate cancer. Clin. Transl. Oncol. 2024, 26, 2369–2379. [Google Scholar] [CrossRef]
- Qi, X.; Wang, S.; Fang, C.; Jia, J.; Lin, L.; Yuan, T. Machine learning and SHAP value interpretation for predicting comorbidity of cardiovascular disease and cancer with dietary antioxidants. Redox Biol. 2025, 79, 103470. [Google Scholar] [CrossRef]
- Sooriakumaran, P.; Haendler, L.; Nyberg, T.; Gronberg, H.; Nilsson, A.; Carlsson, S.; Hosseini, A.; Adding, C.; Jonsson, M.; Ploumidis, A.; et al. Biochemical recurrence after robot-assisted radical prostatectomy in a European single-centre cohort with a minimum follow-up time of 5 years. Eur. Urol. 2012, 62, 768–774. [Google Scholar] [CrossRef]
- Chung, J.H.; Jeong, J.Y.; Lee, J.Y.; Song, W.; Kang, M.; Sung, H.H.; Jeon, H.G.; Jeong, B.C.; Seo, S.I.; Lee, H.M.; et al. Biochemical recurrence after radical prostatectomy according to nadir prostate specific antigen value. PLoS ONE 2021, 16, e0249709. [Google Scholar] [CrossRef]
- Kotb, A.F.; Elabbady, A.A. Prognostic factors for the development of biochemical recurrence after radical prostatectomy. Prostate Cancer 2011, 2011, 485189. [Google Scholar] [CrossRef]
- Liu, Y.Y.; Chiang, P.H.; Chuang, Y.C.; Lee, W.C.; Cheng, Y.T.; Wang, H.J. Predictors of prostate-specific antigen biochemical recurrence in patients undergoing primary whole-gland prostate cryoablation. Ann. Surg. Oncol. 2015, 22, 1612–1617. [Google Scholar] [CrossRef]
- Zhang, L.; Wu, B.; Zha, Z.; Zhao, H.; Jiang, Y.; Yuan, J. Positive surgical margin is associated with biochemical recurrence risk following radical prostatectomy: A meta-analysis from high-quality retrospective cohort studies. World J. Surg. Oncol. 2018, 16, 124. [Google Scholar] [CrossRef]
- Salomon, L.; Anastasiadis, A.G.; Johnson, C.W.; McKiernan, J.M.; Goluboff, E.T.; Abbou, C.C.; Olsson, C.A.; Benson, M.C. Seminal vesicle involvement after radical prostatectomy: Predicting risk factors for progression. Urology 2003, 62, 304–309. [Google Scholar] [CrossRef]
- Blute, M.L.; Bergstralh, E.J.; Iocca, A.; Scherer, B.; Zincke, H. Use of Gleason score, prostate specific antigen, seminal vesicle and margin status to predict biochemical failure after radical prostatectomy. J. Urol. 2001, 165, 119–125. [Google Scholar] [CrossRef] [PubMed]
- Niu, Y.; Förster, S.; Muders, M. The Role of Perineural Invasion in Prostate Cancer and Its Prognostic Significance. Cancers 2022, 14, 4065. [Google Scholar] [CrossRef] [PubMed]
- Zhang, L.J.; Wu, B.; Zha, Z.L.; Qu, W.; Zhao, H.; Yuan, J.; Feng, Y.J. Perineural invasion as an independent predictor of biochemical recurrence in prostate cancer following radical prostatectomy or radiotherapy: A systematic review and meta-analysis. BMC Urol. 2018, 18, 5. [Google Scholar] [CrossRef] [PubMed]
- Menon, M.; Bhandari, M.; Gupta, N.; Lane, Z.; Peabody, J.O.; Rogers, C.G.; Sammon, J.; Siddiqui, S.A.; Diaz, M. Biochemical recurrence following robot-assisted radical prostatectomy: Analysis of 1384 patients with a median 5-year follow-up. Eur. Urol. 2010, 58, 838–846. [Google Scholar] [CrossRef]
- Liesenfeld, L.; Kron, M.; Gschwend, J.E.; Herkommer, K. Prognostic Factors for Biochemical Recurrence More than 10 Years after Radical Prostatectomy. J. Urol. 2017, 197, 143–148. [Google Scholar] [CrossRef]
- Ahove, D.A.; Hoffman, K.E.; Hu, J.C.; Choueiri, T.K.; D’Amico, A.V.; Nguyen, P.L. Which patients with undetectable PSA levels 5 years after radical prostatectomy are still at risk of recurrence?--implications for a risk-adapted follow-up strategy. Urology 2010, 76, 1201–1205. [Google Scholar] [CrossRef]
- Blas, L.; Shiota, M.; Takamatsu, D.; Kinoshita, F.; Matsumoto, T.; Lee, K.; Monji, K.; Kashiwagi, E.; Inokuchi, J.; Eto, M. Novel nomogram to predict biochemical recurrence-free survival after radical prostatectomy. World J. Urol. 2023, 41, 43–50. [Google Scholar] [CrossRef]
- Lotan, Y.; Shariat, S.F.; Khoddami, S.M.; Saboorian, H.; Koeneman, K.S.; Cadeddu, J.A.; Sagalowsky, A.I.; McConnell, J.D.; Roehrborn, C.G. The percent of biopsy cores positive for cancer is a predictor of advanced pathological stage and poor clinical outcomes in patients treated with radical prostatectomy. J. Urol. 2004, 171, 2209–2214. [Google Scholar] [CrossRef]
Feature Name | No BCR | BCR | p Value |
---|---|---|---|
Age (years) | 66.97 ± 6.56 | 67.34 ± 7.00 | 0.496 |
BMI (kg/m2) | 24.24 ± 3.24 | 24.19 ± 2.57 | 0.839 |
Prostate volume (ml) | 32.07 (24.55, 35.0) | 29 (21.33, 33.3) | 0.005 |
iPSA (ng/mL) | 6.5 (5, 8.89) | 8.165 (6.11, 12.66) | <0.001 |
PSAD (ng/mL2) | 0.28 (0.18, 0.29) | 0.29 (0.23, 0.42) | <0.001 |
PSA nadir (ng/mL) | 0.004 (0.002, 0.007) | 0.005 (0.002, 0.013) | <0.001 |
TST (ng/mL) | 4.6 (3.46, 5.91) | 4.675 (3.68, 6.17) | 0.422 |
Systematic prostate biopsy positive rate | 0.21 (0.13, 0.33) | 0.31 (0.19, 0.5) | <0.001 |
cT, n (%) | <0.001 | ||
1 | 171 (18.1%) | 25 (14%) | |
2 | 748 (79%) | 131 (73.6%) | |
3 | 28 (3%) | 22 (12.4%) | |
pT, n (%) | <0.001 | ||
1 | 2 (0.2%) | 0 (0%) | |
2 | 755 (79.7%) | 55 (30.9%) | |
3 | 190 (20.1%) | 123 (69.1%) | |
pGG, n (%) | 0.046 | ||
1 (3 + 3 = 6) | 149 (15.7%) | 21 (11.8%) | |
2 (3 + 4 = 7) | 406 (42.9%) | 66 (37.1%) | |
3 (4 + 3 = 7) | 231 (24.4%) | 59 (33.1%) | |
4 (5 + 3, 4 + 4, 3 + 5 = 8) | 109 (11.5%) | 26 (14.6%) | |
5 (5 + 4, 4 + 5, 5 + 5 = 10) | 52 (5.5%) | 6 (3.4%) | |
PSM, n (%) | <0.001 | ||
No | 722 (76.2%) | 85 (47.8%) | |
Yes | 225 (23.8%) | 93 (52.2%) | |
PI, n (%) | <0.001 | ||
No | 551 (58.2%) | 60 (33.7%) | |
Yes | 396 (41.8%) | 118 (66.3%) | |
SVI, n (%) | <0.001 | ||
No | 920 (97.1%) | 128 (71.9%) | |
Yes | 27 (2.9%) | 50 (28.1%) | |
D’Amico risk classification, n (%) | <0.001 | ||
Low | 173 (18.3%) | 21 (11.8%) | |
Middle | 604 (63.8%) | 79 (44.4%) | |
High | 170 (18%) | 78 (43.8%) |
Feature Name | Training Set | Testing Set | p Value |
---|---|---|---|
Age (years) | 68 (63, 72) | 68 (63, 72) | 0.932 |
BMI (kg/m2) | 24.14 (22.17, 26.08) | 23.72 (22.18, 25.53) | 0.174 |
Prostate volume (ml) | 32.07 (24, 34.55) | 30.9 (23.4, 35) | 0.191 |
iPSA (ng/mL) | 6.73 (5.15, 9.41) | 6.825 (5.12, 9.21) | 0.893 |
PSAD (ng/mL2) | 0.29 (0.18, 0.3) | 0.285 (0.19, 0.33) | 0.574 |
PSA nadir (ng/mL) | 0.004 (0.002, 0.008) | 0.004 (0.002, 0.007) | 0.911 |
TST (ng/mL) | 4.6 (3.49, 5.89) | 4.68 (3.51, 6.15) | 0.648 |
Systematic prostate biopsy positive rate | 0.25 (0.13, 0.38) | 0.25 (0.14, 0.4) | 0.195 |
cT, n (%) | 0.812 | ||
1 | 134 (17%) | 62 (18.3%) | |
2 | 619 (78.7%) | 260 (76.9%) | |
3 | 34 (4.3%) | 16 (4.7%) | |
pT, n (%) | 0.584 | ||
1 | 2 (0.3%) | 0 (0%) | |
2 | 563 (71.5%) | 247 (73.1%) | |
3 | 222 (28.2%) | 91 (26.9%) | |
pGG, n (%) | 0.406 | ||
1 (3 + 3 = 6) | 119 (15.1%) | 51 (15.1%) | |
2 (3 + 4 = 7) | 326 (41.4%) | 146 (43.2%) | |
3 (4 + 3 = 7) | 204 (25.9%) | 86 (25.4%) | |
4 (5 + 3, 4 + 4, 3 + 5 = 8) | 91 (11.6%) | 44 (13%) | |
5 (5 + 4, 4 + 5, 5 + 5 = 10) | 47 (6%) | 11 (3.3%) | |
PSM, n (%) | 0.617 | ||
No | 568 (72.2%) | 239 (70.7%) | |
Yes | 219 (27.8%) | 99 (29.3%) | |
PI, n (%) | 0.479 | ||
No | 422 (53.6%) | 189 (55.9%) | |
Yes | 365 (46.4%) | 149 (44.1%) | |
SVI, n (%) | 0.210 | ||
No | 738 (93.8%) | 310 (91.7%) | |
Yes | 49 (6.2%) | 28 (8.3%) | |
D’Amico risk classification, n (%) | 0.082 | ||
Low | 143 (18.2%) | 51 (15.1%) | |
Middle | 461 (58.6%) | 222 (65.7%) | |
High | 183 (23.3%) | 65 (19.2%) | |
BCR, n (%) | 0.792 | ||
No | 661 (84%) | 286 (84.6%) | |
Yes | 126 (16%) | 52 (15.4%) |
Model | Accuracy | AUC | 95% CI | Sensitivity | Specificity | F1 |
---|---|---|---|---|---|---|
LR | 0.808 | 0.802 | 0.729–0.874 | 0.692 | 0.829 | 0.526 |
KNN | 0.666 | 0.806 | 0.740–0.872 | 0.846 | 0.633 | 0.438 |
MLP | 0.814 | 0.813 | 0.748–0.877 | 0.615 | 0.85 | 0.504 |
SVM | 0.763 | 0.849 | 0.787–0.911 | 0.788 | 0.759 | 0.515 |
LightGBM | 0.731 | 0.881 | 0.840–0.922 | 0.942 | 0.692 | 0.524 |
