Membrane Photobioreactor Applied for Municipal Wastewater Treatment at a High Solids Retention Time: Effects of Microalgae Decay on Treatment Performance and Biomass Properties

by
Hui Zou
1,†,
Neema Christopher Rutta
1,†,
Shilei Chen
1,
Meijia Zhang
1,*,
Hongjun Lin
1,* and
Baoqiang Liao
2
1
College of Geography and Environmental Sciences, Zhejiang Normal University, Jinhua 321004, China
2
Department of Chemical Engineering, Lakehead University, 955 Oliver Road, Thunder Bay, ON P7B 5E1, Canada
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Membranes 2022, 12(6), 564; https://doi.org/10.3390/membranes12060564
Submission received: 13 April 2022 / Revised: 26 May 2022 / Accepted: 26 May 2022 / Published: 28 May 2022
(This article belongs to the Special Issue Advanced Membrane Technologies for Wastewater Treatment and Recycling)
Browse Figures
Versions Notes

Abstract

:
Membrane photobioreactor (MPBR) technology is a microalgae-based system that can simultaneously realize nutrient recovery and microalgae cultivation in a single step. Current research is mainly focused on the operation of MPBR at a medium SRT. The operation of MPBR at a high SRT is rarely reported in MPBR studies. Therefore, this study conducted a submerged MPBR to treat synthetic municipal wastewater at a long solids retention time of 50 d. It was found that serious microalgae decay occurred on day 23. A series of characterizations, including the biomass concentration, chlorophyll-a content, nutrients removal, and physical-chemical properties of the microalgae, were conducted to evaluate how microalgae decay affects the treatment performance and biomass properties. The results showed that the biomass concentration and chlorophyll-a/MLSS dropped rapidly from 3.48 to 1.94 g/L and 34.56 to 10.71 mg/g, respectively, after the occurrence of decay. The effluent quality significantly deteriorated, corresponding to the total effluent nitrogen and total phosphorus concentration sharply rising and exceeding that of the feed. In addition, the particle became larger, the content of the extracellular polymeric substances (EPSs) decreased, and the soluble microbial products (SMPs) increased instantaneously. However, the filtration resistance had no significant increase because of the comprehensive interactions of the floc size, EPSs, and SMPs. The above results suggest that the MPBR system cannot maintain long-term operation under a high SRT for municipal wastewater treatment. In addition, the biological treatment performance of the MPBR deteriorated while the antifouling performance of the microalgae flocs improved after the occurrence of decay. The occurrence of microalgae decay was attributed to the double stresses from the light shading and intraspecific competition under high biomass concentration. Therefore, to avoid microalgae decay, periodic biomass removal is required to control the environmental stress within the tolerance range of the microalgae. Further studies are required to explore the underlying mechanism of the occurrence of decay.

Graphical Abstract

1. Introduction

Wastewater reclamation and reuse have received more and more attention in the world as a result of the increasingly serious freshwater scarcity. At present, various wastewater treatment technologies, such as the activated sludge process (CAS) and membrane bioreactor (MBR), have matured and are widely used in practical applications [1,2,3,4,5,6]. However, most of these systems target organics removal using bacteria, and the treated effluent generally contains high levels of nitrogen and phosphorus. The direct disposal of such an effluent would cause eutrophication in the water body. Therefore, it generally requires additional processes targeting nutrient removal in order to meet discharge standards.
The microalgal membrane photobioreactor (MPBR), which integrates the photobioreactor (PBR) with the membrane filtration processes, is a promising technology for simultaneous microalgae cultivation and nutrient recovery [7,8,9,10]. For such a system, the use of sewage can offset the cost of the nutrients required for microalgae cultivation, and the microalgae biomass that is produced is one of the most promising precursors for biofuel production [11]. In addition, the greenhouse gas CO2 can be fixed by the microalgae through photosynthesis during the wastewater treatment process [12]. The feasibility of using MPBR for wastewater treatment has been extensively studied in the last decade [10,11,13,14,15,16,17,18,19].
As a complex biological system, the performance of MPBR is highly dependent on various operating conditions, such as lighting, hydraulic retention time (HRT), and solids retention time (SRT) [10,19]. Among all of these factors, SRT is a critical factor that has a significant influence on the biomass concentration, microalgal productivity, and nutrient removal in MPBR [15,18,20,21]. It is well known that a significant advantage of MPBR over PBR is the decoupling of HRT from SRT, which can reduce the downstream microalgal harvesting and dewatering due to the higher microalgae concentration that is achieved. However, researchers currently mainly adopt a medium SRT for the operation of MPBR [10,15,18,20]. To the best of our best knowledge, only two studies have operated MPBR at a long SRT [22,23]. For instance, Xu et al. [22] conducted MPBR at a prolonged SRT of 180 d for long-term operation, and eventually achieved a high biomass concentration of 4.84 g/L. A similar result was also reported by Praveen et al. [23]. However, the successes of these two studies were mainly attributed to the utilization of low organic strength secondary wastewater and a low initial microalgae concentration.
In fact, except for secondary wastewater, MPBR has also been applied for the treatment of high organic strength wastewater such as municipal wastewater and anaerobically digested wastewater [24,25]. However, the feasibility of the long-term operation of MPBR at a high SRT to treat municipal wastewater has never been reported. Therefore, a study on MPBR in this field is expected to provide valuable insight into the application of MPBR for municipal wastewater treatment.
In this study, a lab-scale MPBR system was operated at a high SRT of 50 d to explore the feasibility of long-term operation of the MPBR system under a high SRT for municipal wastewater treatment. A serious microalgae decay phenomenon occurred on day 23. The effects of microalgae decay on the treatment performance and biomass properties were then identified by a series of characterizations, including biomass production, chlorophyll-a concentration, nutrient removal, and microalgal properties. This study could provide practical experience for the operation and management of MPBR for high organic strength wastewater treatment.

2. Materials and Methods

2.1. MPBR Setup and Operation

A lab-scale cylindrical submerged transparent MPBR system was conducted for municipal wastewater treatment. The schematic of this setup is displayed in Figure 1. Solid−liquid separation was accomplished using a flat plate membrane module. The membranes used in this work were commercial grade, and were purchased from SINAP Co. Ltd., Shanghai, China. Air was pumped into the reactor through an aeration pump to provide CO2 for microalgae growth and to form eddy currents to scour the membrane surface for fouling control. Gentle mixing was created using a magnetic stirrer (Model 6795-61, Corning, New York, NY, USA) located at the bottom of the reactor so as to prevent microalgal precipitation. Continuous illumination was provided by four LED lamps (two on each side). Details regarding the operating conditions and membrane module properties are listed in Table 1. Chlorella vulgaris (CPCC 90) that was precultivated in a modified salt medium (MSM) [26] was inoculated as the seed.
Simulated municipal wastewater was utilized as the feed in this study. The compositions of the synthetic influent are displayed in Table 2. The concentrations of glucose, nitrogen, and phosphorus were determined according to the corresponding concentration in the medium-strength municipal wastewater. The concentrations of trace elements were the same as those in the modified MSM medium for microalgae pre-cultivation. The feed was stored in a fridge at 5 °C and pumped by a peristaltic pump that was controlled by a level sensor (Madison Co., New York, USA). Another peristaltic pump was used to intermittently suck the permeate, using an operating mode of 3 min on and 2 min off.

2.2. Extraction and Analysis of Chlorophyll-a

The extraction and analysis of chlorophyll-a followed the method used by Nautiyal, Subramanian [27]. A known content of microalgae sediments was obtained by centrifugation at 8000× g for 10 min and was then resuspended into a certain volume of methanol. After that, the obtained microalgal suspension was immersed in a 60 °C water bath for 30 min and then cooled down to room temperature. The chlorophyll-a concentration in the solvent was spectrophotometrically determined using a visible spectrophotometer (DR2800, Hach) at three wavelengths. The content of chlorophyll-a in unit mass microalgae can be calculated using the following equation:
Chlorophyll-a/MLSS(mg/g) = (16.29(A665.2 − A750) − 8.54(A652 − A750))/MLSS
where A750, A665.2, and A652 represent the absorbance at 750, 665.2, and 652 nm, respectively, and MLSS is the mixed liquor suspended solids of the microalgae.

2.3. PSD Analysis and Microscopic Observation

The PSD of the microalgae suspension was measured using a Malvern Mastersizer 2000 instrument (Worcestershire, West Midlands, UK) with a detection range of 0.02–2000 μm. Each sample was automatically measured in triplicate by the machine. This measurement was conducted one to two times per week.
The micromorphology of the microalgae was observed using an inverted optical microscope (Olympus IX51). For each sample, at least 30 images were randomly taken using a digital camera connected to the microscope.

2.4. Soluble Microbial Products (SMP) and Extracellular Polymeric Substances (EPS) Measurement

The SMP sample was collected from the microalgae suspension through centrifugation at 4000× g for 10 min and successive filtration through a 0.45 μm membrane. The bound EPS of the microalgae was extracted through a cation exchange resin (CER) (DowexTM MarathonTM C, Na+ form, Sigma-Aldrich, Bellefonte, PA, USA) method [28]. Details regarding the extraction process can be found in our previous publication [29]. The total content of SMP and bound EPS were normalized as the sum of protein and carbohydrates, which can be determined colorimetrically according to Lowry’s method and Gaudy’s method, respectively [30,31].

2.5. Other Analysis

The pH and temperature of the suspension were measured using a pH meter (pH 700, Oakton, Charleston, SC, USA) and thermometer, respectively. The trans-membrane pressure (TMP) was monitored using a pressure gage. The growth of the microalgae was monitored through the determination of mixed liquor suspended solids (MLSS). The determination of MLSS was conducted following the standard method [32]. Total nitrogen (TN) and total phosphorus (TP) were measured following the methods previously adopted [26]. The analyses were conducted twice for each sample, and the average values were reported.

3. Results

3.1. Biomass Concentration and Chlorophyll-a Content

The contents of the microalgal biomass (represented by MLSS) and chlorophyll-a/MLSS are shown in Figure 2. During the period before the decay occurred, the microalgal biomass in the MPBR gradually increased and reached 3.48 g/L on day 22. Unlike the biomass concentration, the chlorophyll-a/MLSS content remained relatively stable and the average value was 34.44 ± 3.23 g/L. The gradual increase in microalgal biomass and relatively stable content of chlorophyll-a suggested that MPBR operated in a stable manner in the first 22 days. When the microalgae decayed on day 23, the biomass concentration and chlorophyll-a/MLSS dropped rapidly from 3.48 to 1.94 g/L and 34.56 to 10.71 mg/g, respectively, within 5 days. The rapid decrease in biomass concentration and chlorophyll-a/MLSS indicated that a large number of microalgae died in a short time.
The occurrence of microalgae decay suggested that a high SRT greatly impacted the continued long-term operation of MPBR. In this system, SRT directly affects the biomass concentration, which has a trade-off relationship with the effective light transmittance (i.e., a high biomass concentration corresponds to a low effective light transmittance) [15,17]. In the current work, a high SRT of 50 d was adopted, and the higher initial biomass concentration enabled the system to achieve a high MLSS of 3.48 g/L in a short time. With the increase in biomass concentration, the intraspecific competition among the microalgae became increasingly fierce because of the significant decrease in light transmittance. On the other hand, untreated municipal wastewater was used as the influent. Unlike the secondary effluent in previous studies, the organic matter in the municipal wastewater will lead to the growth of bacteria, which will enhance the stress effect on microalgae growth [33,34]. Because of the above two reasons, a large number of microalgae died, which led to a significant reduction in the biomass and chlorophyll-a/MLSS in the MPBR system.

3.2. Nutrients Removal

Figure 3 shows the TN and TP concentrations in the feed and permeate. The real TN and TP in the feed were 46.7 ± 4.4 and 9.5 ± 0.4 mg/L, respectively. Under normal operating conditions (before the occurrence of decay), MPBR is a promising technique that can effectively remove TN and TP from the wastewater, although it requires a period of adaptation. In this study, the lowest TN and TP concentrations in the permeate were 10.9 and 3.2 mg/L, respectively, corresponding to the highest removal efficiency of 76.7% and 66.2%, respectively. However, once the decay occurred, both the TN and TP concentrations in the permeate significantly rose and even exceeded that of the feed. This result indicated that the released cytoplasm as a result of the microalgae decomposition would severely degrade the permeate quality. Although the microalgal decay phenomenon has seldom been studied in MPBR systems, such a phenomenon has been widely reported in natural systems such as lakes [35,36,37,38]. In addition, two days after the decay occurred, the TN and TP concentration in the permeate gradually decreased, suggesting that the destroyed MPBR system can self recover and the deteriorated permeate quality can also gradually improve. However, such a recovery process needs one week or even longer. Therefore, from the biological treatment performance, microalgae decay undoubtedly should be avoided and preferably prevented in advance in the practical operation and maintenance of MPBR.

3.3. Microalgae Properties and Membrane Fouling

3.3.1. PSD and Micromorphology

Figure 4 shows the PSD of the microalgae suspension before and after the occurrence of decay. It can be seen that the suspended flocs before the occurrence of decay had a double-peak shape, corresponding to a sharp primary peak ranging from 10–100 µm and a weak secondary peak in the range of 1–10 µm. In comparison, the microalgae liquor after the occurrence of decay had a perfect unimodal shape; the peak in the range of 1–10 µm disappeared and the proportion of the flocs in the range of 10–100 µm increased. The microscopic morphology of the microalgae in Figure 5 further demonstrates the variation in PSD for the microalgae suspension before and after the occurrence of decay. As shown in Figure 5, Chlorella vulgaris cells dispersed individually or combined as flocs before the occurrence of decay, while almost existing as flocs after the occurrence of decay. The PSD and microscopic observation jointly proved that decay shock had a great influence on the biological properties of the microalgae particles, especially for the small dispersed Chlorella vulgaris cells. Combined with the sudden decline of biomass (Figure 2) and the surge of nutrients in the effluent (Figure 3), it can be reasonably speculated that the Chlorella vulgaris cells in the system might be the first to decompose under the stress environment, and the released substances from the lysis could promote the aggregation of free algal cells.
For the MPBR system, particle size is very important for membrane fouling formation. It is generally believed that larger size flocs have a lower fouling potential because of their lower adhesive ability and looser cake layer that can be formed [39,40]. From this aspect, it seems that the occurrence of decay favors membrane fouling control because of the improved floc size. However, it should be noted that microalgae decay also leads to the release of the cytoplasm, which will increase the type and content of pollutants in the system and then may aggravate membrane fouling [41,42]. Therefore, the final effect of microalgae decay on membrane fouling mainly depends on the comprehensive influence degree of the above two opposite factors (increased floc size and foulants content).

3.3.2. EPS and SMP

Figure 6 compares the EPS and SMP values of the microalgal suspension before and after the occurrence of decay. It can be seen from Figure 6a that the amount of carbohydrates, proteins, and total EPS was comparable before the occurrence of decay, while gradually decreasing after the occurrence of decay. These results suggested that the microalgae flocs remained in a stable state before the occurrence of decay. However, after the decay occurred, a large number of microalgae cells died and decomposed suddenly, which led to the decomposition and corresponding decrease in EPS (from 26.18 ± 1.99 mg/g MLSS on day 23 to 11.61 ± 0.57 mg/g MLSS on day 25). Generally, EPS is considered a protective substance secreted by organisms to prevent them from being harmed in adverse environments [43,44]. As for membrane-related systems, a lower EPS is preferred because a higher EPS content would accelerate the formation of membrane fouling [45,46]. Therefore, according to the results obtained, it can be speculated that with the gradual increase in biomass concentration, the stress of photoinhibition and bacteria growth was too severe to be resisted by EPS secretion. On the other hand, it also suggests that the microalgae flocs after the occurrence of decay had better anti-fouling properties.
Figure 3b shows that the contents of total SMP gradually decreased from 52.63 ± 1.66 mg/L on day 4 to 15.41 ± 0.79 mg/L on day 19 (before the occurrence of decay), suddenly sharply increased to 84.68 ± 1.14 mg/L on day 23, and then gradually decreased to 39.75 ± 1.50 mg/L on day 25 (after the occurrence of decay). The variation trend in the protein was the same as that of the total SMP both before and after decay. SMPs are generally defined as biomass-released biopolymers and EPS hydrolysis is an important source of SMPs [45,47]. As illustrated above, the sudden increase in SMP corresponded to the decrease in EPS, reasonably demonstrating the outlet of the decreased EPS. SMPs also play a vital role in membrane fouling, especially when the main form of membrane fouling is gel layer formation, the increase in SMP content will significantly promote the increase in filtration resistance [42,48,49,50]. Therefore, after the occurrence of decay, the variation trends in EPS and SMP exhibited the opposite effects on membrane fouling. The comprehensive effects of EPS and SMP will rely on the main format of membrane fouling in the system.

3.3.3. Membrane Fouling Performance

The variations in TMP and flux for the MPBR system are displayed in Figure 7. It can be seen that the flux remained relatively constant and the TMP gradually increased with little fluctuation during the whole experimental period. The TMP increased from 1.69 kPa to 3.72 kPa before microalgae decay and then gradually reached 4.74 kPa after microalgae decay. Overall, there is no significant increase in TMP after the occurrence of decay. As stated above, the flocs size and EPS content exhibited the opposite effect when compared with the SMP content for the membrane fouling formation. The small rise in TMP further demonstrated that membrane fouling formation is the comprehensive interaction results of various factors.

3.4. Implications of High SRT for Long-Term Municipal Wastewater Treatment in MPBR

The occurrence of microalgae decay on the 23rd day suggests that the MPBR system cannot maintain long-term operation under a high SRT for municipal wastewater treatment. The occurrence of microalgae decay had a great impact on the MPBR system, which was reflected by the significant changes in the microalgae biomass, chlorophyll-a content, effluent quality, and the microalgae properties before and after the occurrence of decay.
Before the occurrence of decay, the microalgae biomass gradually increased, the chlorophyll-a and EPS content remained stable, and the TN and TP removal remained steady after a period of adaptation. The removal rate of TN and TP reached 10.54 and 2.14 mg/(L·d), respectively, which was comparable to or higher than that of most of the results that were previously reported [11,18,51]. From this aspect, it is feasible and promising to utilize microalgae for municipal wastewater treatment and microalgal biomass accumulation in the MPBR system under a high SRT.
However, the occurrence of microalgae decay on day 23 suggests that the above-mentioned feasibility is not always valid. That is, when the stress of the systematic environment caused by a high SRT exceeds the tolerance of the microalgae cells, the microalgae will start to die. In the current study, the high SRT and the application of municipal wastewater resulted in two main stresses on the microalgal cells. On the one hand, under high SRT operating conditions, the concentration of biomass gradually increased, which had a significant impact on light transmission. Ma et al. pointed out that all the light spectra attenuate exponentially with the light path based on a modified Cornet model for light transmission in the microalgal suspension [52]. In addition, the higher the microalgae concentration in the system, the faster the light attenuates at the same light path distance [52]. In this study, because of the separation effect of the membrane, the microalgae concentration (3.48 g/L) was very high compared with previous studies [14,18,22,53]. As a result, the photo masking effect was serious in the system. The severe insufficient light apparently will lead to fierce competition for light among the microalgae. On the other hand, unlike secondary effluents often reported in the literature, municipal wastewater has medium-strength organic matter, which provides a breeding ground for bacterial growth. In fact, the relationship between microalgae and bacteria is complex. They are cooperative and competitive [33,34]. Although suitable bacteria can provide CO2 for microalgae and thus facilitate the growth of microalgae, bacteria can also secrete toxic substances that limit the growth of microalgae [37]. Moreover, the growth of bacteria would preempt the growth space of microalgae and enhance the photo masking effect, which indirectly reduces the light transmission rate and enhances light competition among the microalgae. In this work, the microalgae started to die when the biomass content increased to 3.48 g/L. This indicated that the stress of the microalgal cells had reached the limit, which eventually led to the lysis of a large number of microalgal cells. Therefore, for MPBR systems operating at a high SRT, there should be a critical biomass concentration above which microalgae decay would occur. If the biomass can be effectively removed and always maintained below the critical value, then the total environmental stress can be controlled within the tolerance range of the microalgae, and the long-term stable operation can be maintained in the MPBR system.
After the decay occurred, the microalgae biomass, chlorophyll-a content, and nutrients removal decreased. From the perspective of biological performance, the occurrence of decay will not only reduce the biomass accumulation, but also reduce the effluent quality. The recovery of effluent quality required one week or even longer, and thus must be prevented in practice. Otherwise, the unsatisfactory effluents will enter the water body and cause problems such as eutrophication. On the other hand, from the perspective of membrane fouling, the particles became larger and the EPS content decreased, indicating that the microalgae flocs after decay had a better antifouling performance. However, the increased SMP suggested that more colloid-like substances were released into the system because of the occurrence of decay, which is beneficial to membrane fouling formation. As membrane fouling is the result of the comprehensive interactions of various factors, no significant TMP increase was observed after the occurrence of decay (Figure 7).
The above results provide some implications for municipal wastewater treatment and membrane fouling control in MPBR systems. According to the results in this work, a critical biomass concentration above which microalgae decay would occur exists. The MPBR system cannot maintain long-term operation under a high SRT for municipal wastewater treatment because the biomass concentration that can be achieved under a high SRT is too high. Therefore, to avoid microalgae decay, periodic biomass removal is required to control the environmental stress within the tolerance range of the microalgae. In addition, for MPBR, microalgae cells of a small size can more easily adhere to the membrane than sludge to form a filter cake layer, which will lead to serious membrane fouling problems [39]. Based on the above results, if a method or operating conditions can help flocculate free microalgal cells into flocs and prevent the increase in SMP content, the problem of membrane fouling can be significantly reduced. As a result, the subsequent enrichment and collection of microalgal biomass will also be facilitated because of the enlarged floc size.
It should be noted that, despite the valuable inspiration provided by this work, a distinctive limitation of this study is the design of a single experimental run. Although the single experimental run setting is not a special case and has been extensively applied in previous studies regarding MPBR [20,22,23], a duplicate design would be better and can avoid misinterpretation. In addition, too much biomass and bacterial development were speculated as to the potential reasons for microalgae decay. Apparently, the speculation was based on previous literature and the results obtained in this study. Nevertheless, their respective effects were not independently demonstrated in the current work. Therefore, further studies can be conducted on the following aspects in the future. For instance, finding the optimal HRT value by setting up experimental groups with HRT as a single variable. Afterwards, under the optimized HRT, several MPBRs can be operated in parallel with the long-term treatment of municipal wastewater. The effect of biomass concentration on the occurrence of decay can be confirmed by setting different SRTs. Furthermore, as organic matter could provide a breeding ground for bacterial growth, two types of wastewater, with and without organic matter, can be used as feed to verify the effects of bacterial development on the occurrence of decay.

4. Conclusions

In the current study, a lab-scale submerged MPBR was operated to treat synthetic municipal wastewater at a long SRT of 50 d. It was found that serious microalgae decay occurred on day 23, which had a great impact on the MPBR performance and the biological properties of the microalgae particles. A comparison of the microalgae properties showed that the biomass concentration, chlorophyll-a/MLSS, and effluent quality sharply decreased. However, the floc size increased, the EPSs content decreased, and the SMPs content increased. This suggests that the biological performance of the MPBR deteriorated while the antifouling performance of the microalgae flocs improved. However, the filtration resistance had no significant increase due to the comprehensive interactions of the floc size, EPSs, and SMPs. The occurrence of microalgae decay suggested that the MPBR system cannot maintain long-term operation under a high SRT for municipal wastewater treatment. The occurrence of decay was attributed to the double stresses from the light shading and intraspecific competition under a high biomass concentration. As a result, to avoid microalgae decay, periodic biomass removal is suggested to control the environmental stress within the tolerance range of the microalgae. Further studies are required in order to explore the underlying mechanism of the occurrence of decay in the future.

Author Contributions

Methodology, H.Z. and N.C.R.; formal analysis, S.C.; investigation, H.Z., N.C.R. and S.C.; data curation, S.C.; writing—original draft preparation, H.Z. and N.C.R.; writing—review and editing, M.Z., H.L. and B.L.; supervision, M.Z.; project administration, M.Z. and H.L.; funding acquisition, M.Z. and H.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Zhejiang Province (nos. LQ21E080010 and LD21E080001), the National Natural Science Foundation of China (nos. 52000160 and 51978628), the Key Research and Development Program of Zhejiang Province (no. 2022C03069), and the Zhejiang Provincial Ten Thousand Talent Program (ZJWR0302055).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bouju, H.; Buttiglieri, G.; Malpei, F. The use of microcalorimetry to compare the biological activity of a CAS and a MBR sludge-application to pharmaceutical active compounds. Water Sci. Technol. 2008, 58, 529–535. [Google Scholar] [CrossRef]
  2. Munz, G.; Gualtiero, M.; Salvadori, L.; Claudia, B.; Claudio, L. Process efficiency and microbial monitoring in MBR (membrane bioreactor) and CASP (conventional activated sludge process) treatment of tannery wastewater. Bioresour. Technol. 2008, 99, 8559–8564. [Google Scholar] [CrossRef]
  3. Cicek, N. A review of membrane bioreactors and their potential application in the treatment of agricultural wastewater. Can. Biosyst. Eng. 2003, 45, 37–49. [Google Scholar]
  4. Lin, H.; Gao, W.; Meng, F.; Liao, B.-Q.; Leung, K.-T.; Zhao, L.; Chen, J.; Hong, H. Membrane bioreactors for industrial wastewater treatment: A critical review. Crit. Rev. Env. Sci. Technol. 2012, 42, 677–740. [Google Scholar] [CrossRef]
  5. Radjenović, J.; Petrović, M.; Barceló, D. Fate and distribution of pharmaceuticals in wastewater and sewage sludge of the conventional activated sludge (CAS) and advanced membrane bioreactor (MBR) treatment. Water Res. 2009, 43, 831–841. [Google Scholar] [CrossRef]
  6. Wu, M.; Chen, Y.; Lin, H.; Zhao, L.; Shen, L.; Li, R.; Xu, Y.; Hong, H.; He, Y. Membrane fouling caused by biological foams in a submerged membrane bioreactor: Mechanism insights. Water Res. 2020, 181, 115932. [Google Scholar] [CrossRef]
  7. Abinandan, S.; Shanthakumar, S. Challenges and opportunities in application of microalgae (Chlorophyta) for wastewater treatment: A review. Renew. Sust. Energ. Rev. 2015, 52, 123–132. [Google Scholar] [CrossRef]
  8. Chen, G.; Zhao, L.; Qi, Y. Enhancing the productivity of microalgae cultivated in wastewater toward biofuel production: A critical review. Appl. Energy 2015, 137, 282–291. [Google Scholar] [CrossRef]
  9. Razzak, S.A.; Hossain, M.M.; Lucky, R.A.; Bassi, A.S.; de Lasa, H. Integrated CO2 capture, wastewater treatment and biofuel production by microalgae culturing—A review. Renew. Sust. Energ. Rev. 2013, 27, 622–653. [Google Scholar] [CrossRef]
  10. Luo, Y.; Le-Clech, P.; Henderson, R.K. Simultaneous microalgae cultivation and wastewater treatment in submerged membrane photobioreactors: A review. Algal Res. 2017, 24, 425–437. [Google Scholar] [CrossRef]
  11. Gao, F.; Yang, Z.-H.; Li, C.; Wang, Y.-J.; Jin, W.-H.; Deng, Y.-B. Concentrated microalgae cultivation in treated sewage by membrane photobioreactor operated in batch flow mode. Bioresour. Technol. 2014, 167, 441–446. [Google Scholar] [CrossRef] [PubMed]
  12. Maity, J.P.; Bundschuh, J.; Chen, C.-Y.; Bhattacharya, P. Microalgae for third generation biofuel production, mitigation of greenhouse gas emissions and wastewater treatment: Present and future perspectives—A mini review. Energy 2014, 78, 104–113. [Google Scholar] [CrossRef]
  13. Marbelia, L.; Bilad, M.R.; Passaris, I.; Discart, V.; Vandamme, D.; Beuckels, A.; Muylaert, K.; Vankelecom, I.F.J. Membrane photobioreactors for integrated microalgae cultivation and nutrient remediation of membrane bioreactors effluent. Bioresour. Technol. 2014, 163, 228–235. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Boonchai, R.; Seo, G. Microalgae membrane photobioreactor for further removal of nitrogen and phosphorus from secondary sewage effluent. Korean, J. Chem. Eng. 2015, 32, 2047–2052. [Google Scholar] [CrossRef]
  15. Xu, M.; Li, P.; Tang, T.; Hu, Z. Roles of SRT and HRT of an algal membrane bioreactor system with a tanks-in-series configuration for secondary wastewater effluent polishing. Ecol. Eng. 2015, 85, 257–264. [Google Scholar] [CrossRef]
  16. Gao, F.; Li, C.; Yang, Z.-H.; Zeng, G.-M.; Feng, L.-J.; Liu, J.-Z.; Liu, M.; Cai, H.-W. Continuous microalgae cultivation in aquaculture wastewater by a membrane photobioreactor for biomass production and nutrients removal. Ecol. Eng. 2016, 92, 55–61. [Google Scholar] [CrossRef]
  17. Honda, R.; Teraoka, Y.; Noguchi, M.; Yang, S. Optimization of Hydraulic Retention Time and Biomass Concentration in Microalgae Biomass Production from Treated Sewage with a Membrane Photobioreactor. J. Water Environ. Technol. 2017, 15, 1–11. [Google Scholar] [CrossRef] [Green Version]
  18. Luo, Y.; Le-Clech, P.; Henderson, R.K. Assessment of membrane photobioreactor (MPBR) performance parameters and operating conditions. Water Res. 2018, 138, 169–180. [Google Scholar] [CrossRef]
  19. Zhang, M.; Yao, L.; Maleki, E.; Liao, B.-Q.; Lin, H. Membrane technologies for microalgal cultivation and dewatering: Recent progress and challenges. Algal Res. 2019, 44, 101686. [Google Scholar] [CrossRef]
  20. Van Thuan, N.; Thi Thanh Thuy, N.; Hong Hai, N.; Nguyen, N.C.; Bui, X.-T. Influence of microalgae retention time on biomass production in membrane photobioreactor using human urine as substrate. Vietnam, J. Sci. Technol. Eng. 2018, 60, 5. [Google Scholar] [CrossRef] [Green Version]
  21. Zhang, M.; Leung, K.-T.; Lin, H.; Liao, B. Effects of solids retention time on the biological performance of a novel microalgal-bacterial membrane photobioreactor for industrial wastewater treatment. J. Environ. Chem. Eng. 2021, 9, 105500. [Google Scholar] [CrossRef]
  22. Xu, M.; Bernards, M.; Hu, Z. Algae-facilitated chemical phosphorus removal during high-density Chlorella emersonii cultivation in a membrane bioreactor. Bioresour. Technol. 2014, 153, 383–387. [Google Scholar] [CrossRef] [PubMed]
  23. Praveen, P.; Guo, Y.; Kang, H.; Lefebvre, C.; Loh, K.-C. Enhancing microalgae cultivation in anaerobic digestate through nitrification. Chem. Eng. J. 2018, 354, 905–912. [Google Scholar] [CrossRef]
  24. Chen, X.; Li, Z.; He, N.; Zheng, Y.; Li, H.; Wang, H.; Wang, Y.; Lu, Y.; Li, Q.; Peng, Y. Nitrogen and phosphorus removal from anaerobically digested wastewater by microalgae cultured in a novel membrane photobioreactor. Biotechnol. Biofuels 2018, 11, 190. [Google Scholar] [CrossRef] [Green Version]
  25. Chang, H.; Quan, X.; Zhong, N.; Zhang, Z.; Lu, C.; Li, G.; Cheng, Z.; Yang, L. High-efficiency nutrients reclamation from landfill leachate by microalgae Chlorella vulgaris in membrane photobioreactor for bio-lipid production. Bioresour. Technol. 2018, 266, 374–381. [Google Scholar] [CrossRef]
  26. Zhang, M.; Leung, K.-T.; Lin, H.; Liao, B. The biological performance of a novel microalgal-bacterial membrane photobioreactor: Effects of HRT and N/P ratio. Chemosphere 2020, 261, 128199. [Google Scholar] [CrossRef]
  27. Nautiyal, P.; Subramanian, K.A.; Dastidar, M.G. Production and characterization of biodiesel from algae. Fuel Process. Technol. 2014, 120, 79–88. [Google Scholar] [CrossRef]
  28. Frølund, B.; Palmgren, R.; Keiding, K.; Nielsen, P.H. Extraction of extracellular polymers from activated sludge using a cation exchange resin. Water Res. 1996, 30, 1749–1758. [Google Scholar] [CrossRef]
  29. Zhang, M.; Leung, K.-T.; Lin, H.; Liao, B. Membrane fouling in a microalgal-bacterial membrane photobioreactor: Effects of P-availability controlled by N:P ratio. Chemosphere 2021, 282, 131015. [Google Scholar] [CrossRef]
  30. Lowry, O.H.; Rosebrough, N.J.; Farr, A.L.; Randall, R.J. Protein measurement with the folin phenol reagent. J. Biol. Chem. 1951, 193, 265–275. [Google Scholar] [CrossRef]
  31. Gaudy, A.F. Colorimetric determination of protein and carbohydrate. Ind. Water Wastes 1962, 7, 17–22. [Google Scholar]
  32. APHA. Standard Methods for the Examination of Water and Wastewater, 20th ed.; American Public Health Association; American Water Works Association; Water Environmental Federation: Washington, DC, USA, 2005. [Google Scholar]
  33. Liu, J.; Wu, Y.; Wu, C.; Muylaert, K.; Vyverman, W.; Yu, H.-Q.; Muñoz, R.; Rittmann, B. Advanced nutrient removal from surface water by a consortium of attached microalgae and bacteria: A review. Bioresour. Technol. 2017, 241, 1127–1137. [Google Scholar] [CrossRef] [PubMed]
  34. Muñoz, R.; Guieysse, B. Algal–bacterial processes for the treatment of hazardous contaminants: A review. Water Res. 2006, 40, 2799–2815. [Google Scholar] [CrossRef] [PubMed]
  35. Han, C.; Ding, S.; Yao, L.; Shen, Q.; Zhu, C.; Wang, Y.; Xu, D. Dynamics of phosphorus–iron–sulfur at the sediment–water interface influenced by algae blooms decomposition. J. Hazard. Mater. 2015, 300, 329–337. [Google Scholar] [CrossRef]
  36. Zhao, Y.; Zhang, Z.; Wang, G.; Li, X.; Ma, J.; Chen, S.; Deng, H.; Annalisa, O.-H. High sulfide production induced by algae decomposition and its potential stimulation to phosphorus mobility in sediment. Sci. Total Environ. 2019, 650, 163–172. [Google Scholar] [CrossRef] [PubMed]
  37. Li, P.; Yao, Y.; Lian, J.; Ma, C. Effect of thermal stratified flow on algal blooms in a tributary bay of the Three Gorges reservoir. J. Hydrol. 2021, 601, 126648. [Google Scholar] [CrossRef]
  38. Yao, Y.; Li, D.; Chen, Y.; Han, X.; Wang, G.; Han, R. High-resolution characteristics and mechanisms of endogenous phosphorus migration and transformation impacted by algal blooms decomposition. Sci. Total Environ. 2022, 820, 152907. [Google Scholar] [CrossRef]
  39. Shen, L.-G.; Lei, Q.; Chen, J.-R.; Hong, H.-C.; He, Y.-M.; Lin, H.-J. Membrane fouling in a submerged membrane bioreactor: Impacts of floc size. Chem. Eng. J. 2015, 269, 328–334. [Google Scholar] [CrossRef]
  40. Liu, J.; Zhao, Y.; Fan, Y.; Yang, H.; Wang, Z.; Chen, Y.; Tang, C.Y. Dissect the role of particle size through collision-attachment simulations for colloidal fouling of RO/NF membranes. J. Membr. Sci. 2021, 638, 119679. [Google Scholar] [CrossRef]
  41. Zhang, M.; Hong, H.; Lin, H.; Shen, L.; Yu, H.; Ma, G.; Chen, J.; Liao, B.-Q. Mechanistic insights into alginate fouling caused by calcium ions based on terahertz time-domain spectra analyses and DFT calculations. Water Res. 2018, 129, 337–346. [Google Scholar] [CrossRef]
  42. Teng, J.; Zhang, M.; Leung, K.-T.; Chen, J.; Hong, H.; Lin, H.; Liao, B.-Q. A unified thermodynamic mechanism underlying fouling behaviors of soluble microbial products (SMPs) in a membrane bioreactor. Water Res. 2019, 149, 477–487. [Google Scholar] [CrossRef] [PubMed]
  43. Siddharth, T.; Sridhar, P.; Vinila, V.; Tyagi, R.D. Environmental applications of microbial extracellular polymeric substance (EPS): A review. J. Environ. Manag. 2021, 287, 112307. [Google Scholar] [CrossRef] [PubMed]
  44. Martis, B.S.; Mohan, A.K.; Chiplunkar, S.; Kamath, S.; Goveas, L.C.; Rao, C.V. Bacterium isolated from coffee waste pulp biosorps lead: Investigation of EPS mediated mechanism. Curr. Res. Microb. Sci. 2021, 2, 100029. [Google Scholar] [CrossRef] [PubMed]
  45. Lin, H.; Zhang, M.; Wang, F.; Meng, F.; Liao, B.-Q.; Hong, H.; Chen, J.; Gao, W. A critical review of extracellular polymeric substances (EPSs) in membrane bioreactors: Characteristics, roles in membrane fouling and control strategies. J. Membr. Sci. 2014, 460, 110–125. [Google Scholar] [CrossRef]
  46. Meng, F.; Chae, S.-R.; Drews, A.; Kraume, M.; Shin, H.-S.; Yang, F. Recent advances in membrane bioreactors (MBRs): Membrane fouling and membrane material. Water Res. 2009, 43, 1489–1512. [Google Scholar] [CrossRef]
  47. Liu, T.; Zheng, X.; Tang, G.; Yang, X.; Zhi, H.; Qiu, X.; Li, X.; Wang, Z. Effects of temperature shocks on the formation and characteristics of soluble microbial products in an aerobic activated sludge system. Process Saf. Environ. Prot. 2022, 158, 231–241. [Google Scholar] [CrossRef]
  48. Tian, Y.; Li, Z.; Ding, Y.; Lu, Y. Identification of the change in fouling potential of soluble microbial products (SMP) in membrane bioreactor coupled with worm reactor. Water Res. 2013, 47, 2015–2024. [Google Scholar] [CrossRef]
  49. Long, Y.; Yu, G.; Dong, L.; Xu, Y.; Lin, H.; Deng, Y.; You, X.; Yang, L.; Liao, B.-Q. Synergistic fouling behaviors and mechanisms of calcium ions and polyaluminum chloride associated with alginate solution in coagulation-ultrafiltration (UF) process. Water Res. 2021, 189, 116665. [Google Scholar] [CrossRef]
  50. Pan, Z.; Zeng, B.; Lin, H.; Teng, J.; Zhang, H.; Hong, H.; Zhang, M. Fundamental thermodynamic mechanisms of membrane fouling caused by transparent exopolymer particles (TEP) in water treatment. Sci. Total Environ. 2022, 820, 153252. [Google Scholar] [CrossRef]
  51. Gao, F.; Peng, Y.-Y.; Li, C.; Cui, W.; Yang, Z.-H.; Zeng, G.-M. Coupled nutrient removal from secondary effluent and algal biomass production in membrane photobioreactor (MPBR): Effect of HRT and long-term operation. Chem. Eng. J. 2018, 335, 169–175. [Google Scholar] [CrossRef]
  52. Ma, S.; Zeng, W.; Huang, Y.; Zhu, X.; Xia, A.; Zhu, X.; Liao, Q. Revealing the synergistic effects of cells, pigments, and light spectra on light transfer during microalgae growth: A comprehensive light attenuation model. Bioresour. Technol. 2022, 348, 126777. [Google Scholar] [CrossRef] [PubMed]
  53. Sheng, A.L.K.; Bilad, M.R.; Osman, N.B.; Arahman, N. Sequencing batch membrane photobioreactor for real secondary effluent polishing using native microalgae: Process performance and full-scale projection. J. Clean. Prod. 2017, 168, 708–715. [Google Scholar] [CrossRef]
Membranes 12 00564 g001 550

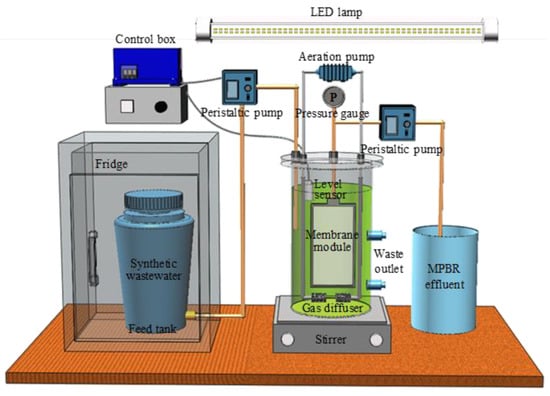

Figure 1. Experimental setup of the MPBR.
Figure 1. Experimental setup of the MPBR.
Membranes 12 00564 g001
Membranes 12 00564 g002 550

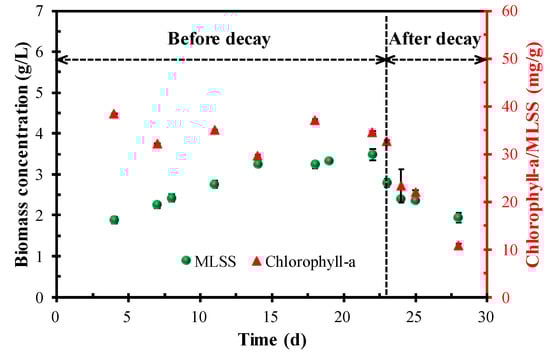

Figure 2. Variation in biomass concentration and chlorophyll-a/MLSS in the MPBR.
Figure 2. Variation in biomass concentration and chlorophyll-a/MLSS in the MPBR.
Membranes 12 00564 g002
Membranes 12 00564 g003 550

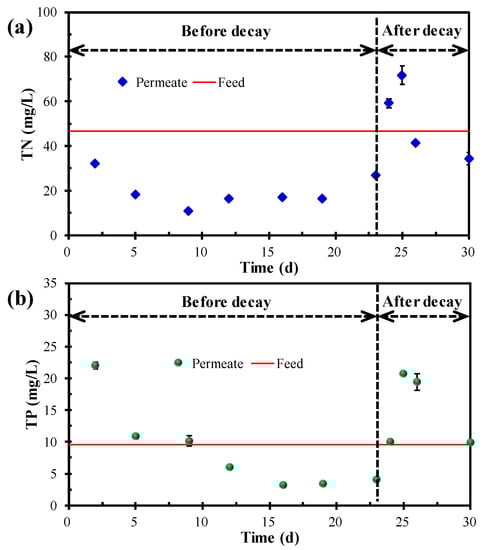

Figure 3. Variation in (a) TN and (b) TP in the feed and permeate.
Figure 3. Variation in (a) TN and (b) TP in the feed and permeate.
Membranes 12 00564 g003
Membranes 12 00564 g004 550

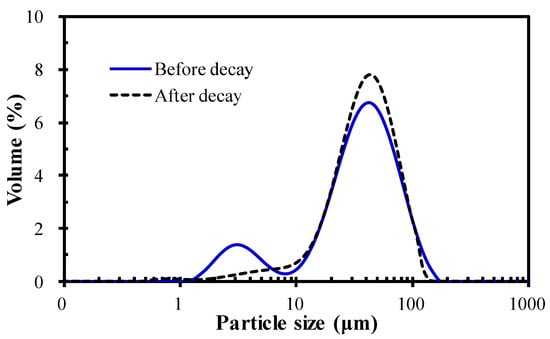

Figure 4. PSD of the microalgae in the MPBR before and after decay.
Figure 4. PSD of the microalgae in the MPBR before and after decay.
Membranes 12 00564 g004
Membranes 12 00564 g005 550

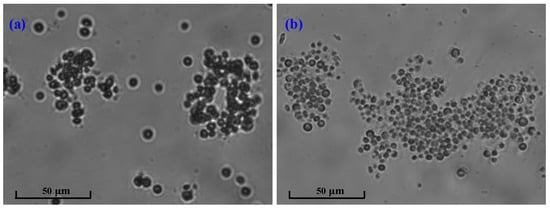

Figure 5. Microscopic morphology of the microalgae in the MPBR (a) before and (b) after decay.
Figure 5. Microscopic morphology of the microalgae in the MPBR (a) before and (b) after decay.
Membranes 12 00564 g005
Membranes 12 00564 g006 550

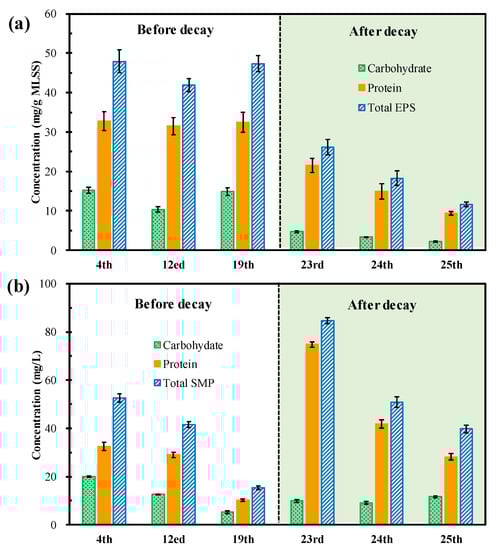

Figure 6. Comparison of the (a) EPS and (b) SMP content before and after decay.
Figure 6. Comparison of the (a) EPS and (b) SMP content before and after decay.
Membranes 12 00564 g006
Membranes 12 00564 g007 550

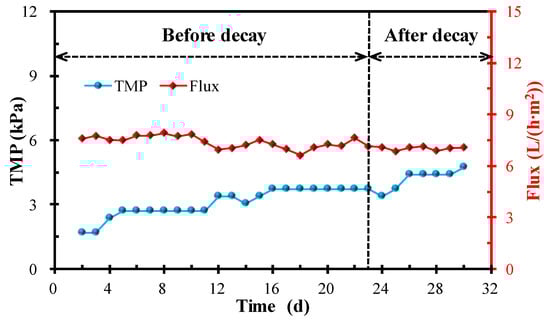

Figure 7. Variations in TMP and flux for the MPBR system.
Figure 7. Variations in TMP and flux for the MPBR system.
Membranes 12 00564 g007
Table
Table 1. Operating conditions and membrane module properties of the MPBR system.
Table 1. Operating conditions and membrane module properties of the MPBR system.
Parameters Value
Working volume9.64 L
Aeration rate7.5 ± 0.03 L/min
Illumination intensity8400 lux
SRT 50 d
HRT2.9 ± 0.1 d
Operating temperature25.2 ± 1.0 °C
Operating pH6.81 ± 0.66
Membrane typeFlat sheet
Membrane materialPolyvinylidene fluoride (PVDF)
Effective surface area0.03 m2
Pore size 0.1 μm
Membrane flux7.30 ± 0.34 L/(h·m2)
Table
Table 2. Composition of synthetic municipal wastewater.
Table 2. Composition of synthetic municipal wastewater.
ReagentsElement Concentration (mg/L)
Glucose500
EDTA disodium salt dehydrate64
NH4Cl50 (N)
K2HPO43.55 (P)
KH2PO45.9 (P)
CaCl2·2H2O3.0 (Ca)
MnCl2·4H2O0.4 (Mn)
CoCl2·6H2O0.1 (Co)
FeSO4·7H2O1.0 (Fe)
Na2MoO4·2H2O0.47 (Mo)
ZnSO4·7H2O2.0 (Zn)
CuSO4·5H2O0.4 (Cu)
H3BO32.0 (B)
MgSO4·7H2O6.0 (Mg)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zou, H.; Rutta, N.C.; Chen, S.; Zhang, M.; Lin, H.; Liao, B. Membrane Photobioreactor Applied for Municipal Wastewater Treatment at a High Solids Retention Time: Effects of Microalgae Decay on Treatment Performance and Biomass Properties. Membranes 2022, 12, 564. https://doi.org/10.3390/membranes12060564

AMA Style

Zou H, Rutta NC, Chen S, Zhang M, Lin H, Liao B. Membrane Photobioreactor Applied for Municipal Wastewater Treatment at a High Solids Retention Time: Effects of Microalgae Decay on Treatment Performance and Biomass Properties. Membranes. 2022; 12(6):564. https://doi.org/10.3390/membranes12060564

Chicago/Turabian Style

Zou, Hui, Neema Christopher Rutta, Shilei Chen, Meijia Zhang, Hongjun Lin, and Baoqiang Liao. 2022. "Membrane Photobioreactor Applied for Municipal Wastewater Treatment at a High Solids Retention Time: Effects of Microalgae Decay on Treatment Performance and Biomass Properties" Membranes 12, no. 6: 564. https://doi.org/10.3390/membranes12060564

APA Style

Zou, H., Rutta, N. C., Chen, S., Zhang, M., Lin, H., & Liao, B. (2022). Membrane Photobioreactor Applied for Municipal Wastewater Treatment at a High Solids Retention Time: Effects of Microalgae Decay on Treatment Performance and Biomass Properties. Membranes, 12(6), 564. https://doi.org/10.3390/membranes12060564

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
