Multi-Objective Optimization of Massive MIMO 5G Wireless Networks towards Power Consumption, Uplink and Downlink Exposure

Featured Application

The proposed method serves for the network planning of massive Multiple Input Multiple Output (MIMO) based 5G networks. This will be beneficial for the mobile network operators who aim to deploy wireless networks that are cost-effective and electromagnetic (EMF) -aware while providing maximal coverage for the users.

Abstract

The rapid development of the number of wireless broadband devices requires that the induced uplink exposure be addressed during the design of the future wireless networks, in addition to the downlink exposure due to the transmission of the base stations. In this paper, the positions and power levels of massive MIMO-LTE (Multiple Input Multiple Output-Long Term Evolution) base stations are optimized towards low power consumption, low downlink and uplink electromagnetic exposure and maximal user coverage. A suburban area in Ghent, Belgium has been considered. The results show that the higher the number of BS antenna elements, the fewer number of BSs the massive MIMO network requires. This leads to a decrease of the downlink exposure (−12% for the electric field and −32% for the downlink dose) and an increase of the uplink exposure (+70% for the uplink dose), whereas both downlink and uplink exposure increase with the number of simultaneous served users (+174% for the electric field and +22% for the uplink SAR). The optimal massive MIMO network presenting the better trade-off between the power consumption, the total dose and the user coverage has been obtained with 37 64-antenna BSs. Moreover, the level of the downlink electromagnetic exposure (electric field) of the massive MIMO network is 5 times lower than the 4G reference scenario.

1. Introduction

With the advent of the fifth generation (5G) of mobile wireless communication, the number of mobile subscriptions is expected to increase by 550 million [1]. The challenge for the mobile operators to contain this traffic is high as they need to design the 5G networks as optimal as possible in terms of power consumption, electromagnetic (EMF) exposure, and/or cost of deployment. The EMF exposure is required to comply with the limitations determined by the International Commission on Non-Ionizing Radiation Protection (ICNIRP) or any other organization such as the Institute of Electrical and Electronics Engineers (IEEE) and the US Federal Communications Commission (FCC), given the proliferation of the broadband wireless devices.

Massive multiple input multiple output (MIMO) is expected to be utilized in the upcoming 5G cellular network to address the unprecedented high data rate requested by the users [2]. In fact, a massive MIMO 5G BS is equipped with large number of antenna elements that makes it possible to serve many users simultaneously through spatial multiplexing. Moreover, since there are many more antennas than the users, beamforming can be used to focus the signal towards the intended user without interfering with the others. These two properties have the effects of increasing both the spectral and energy efficiency of a massive MIMO 5G network [3].

Recently, the research in the area of massive MIMO has mainly focused on the minimum energy efficiency requirement during the planning process, showing a particular attention to the energy consumption of the BSs deployed within the network [4]. Since the regulations on the electromagnetic field are imposing some strict limitations on the level of BS radiated power the general public is exposed to, the network operators are required to rethink their planning process accounting for the EMF exposure constraints [5]. So far, some studies related to the design of massive MIMO (multiple input multiple output) 5G networks have only addressed the downlink (DL) EMF exposure level resulting from the transmission of the base stations (BS) towards the users. In [6,7], the authors addressed the DL EMF exposure due to an array of 100 antennas (10 × 10) in the context of 5G. The authors in [8] proposed a statistical approach proving that the realistic EMF compliance boundary due to the DL transmissions of a massive MIMO BS is half-reduced compared to the one obtained with the traditional method. Similarly, [9,10] proposed a theoretical model that recommends to consider the actual maximum transmit power level for a realistic assessment of the DL EMF exposure due to a 5G massive MIMO base station, which is used by the International Electrotechnical Commission (IEC [11]). Since the BS transmit power is split over various directions depending on the locations of the users within the area of interest, the actual transmit power level of the 5G BS was found between 7–22% of the theoretical maximum power. Furthermore, in [12], the authors investigated a hybrid method combining the ray-tracing (RT) and the finite-difference time-domain (FDTD) to evaluate the DL human exposure due to a single massive MIMO base station in an industrial indoor environment. The RT served for the estimation of the propagation channels, while the FDTD was used for the simulation of the exposure of a human phantom. However, since a deployment of billions of connected objects are expected with the 5G’s use case related to massive machine type communication (mMTC) [13], there is also a need to address the level of EMF exposure, resulting from the transmission the devices towards the BSs as they may have a non-negligible contribution to the global network exposure. This is denoted as uplink (UL) exposure.

In this context, the works of [14,15,16] proposed a model of the UL exposure and investigated its contribution in the indoor or outdoor wireless network planning. In [17], a global EMF exposure metric denoted " Exposure Index (EI)" is proposed to estimate the EMF exposure caused by a wireless cellular network, accounting for both the transmissions of the users’ devices (UL exposure) and the BSs (DL exposure). However, all these researches focused on the previous wireless cellular network technologies (2G, 3G and 4G) rather than the 5G, which is the aim of our work. The main contribution of this study consists in proposing a simulation-based method to design massive MIMO 5G cellular networks such that the BSs’ positions and their respective power levels are optimized while jointly complying with the constraints of lower power consumption, lower DL EMF exposure and lower UL EMF exposure. Furthermore, a realistic assessment of EMF exposure of the network based on the actual maximum power rather than the theoretical maximum power is considered here. To the best of our knowledge, no related works yet investigated a design of massive MIMO network in the context of 5G which simultaneously minimizes the power consumption, the DL EMF exposure and the UL EMF exposure, while guaranteeing a good coverage and required capacity to accommodate the user demand.

The remainder of this paper is organized as follows. Section 2 describes the 5G system model considered for this paper; in Section 3 the methodology and the metrics dealing with the optimization objectives are investigated, while Section 4 discusses the results of the simulations based on the different scenarios used before concluding in Section 5.

2. Massive MIMO 5G Networks

2.1. System Model

A multi-cell massive MIMO network system consisting of L cells, each containing one BS with multiple antenna elements is considered in this study, as shown in Figure 1. This model is similar to the ones proposed in [18,19,20] in which each BS communicates coherently with the single-antenna users using the time division duplex (TDD) operating mode. This latter is considered to obtain the downlink signaling informations from the uplink pilots thanks to the channel reciprocity property it relies on. These operations take place during the coherence time ${\tau }_c$ when the propagation channels are almost stable with negligible fluctuations. At the beginning of the TDD process, the users send the uplink pilot sequences consisting of ${\tau }_p$ symbols to the BS which estimates the downlink channels before transmitting the requested downlink data. The estimated channels between the kth user in the lth cell and the mth antenna element of the corresponding BS are referred to as the small-scale fading channels which are assumed independent and identically distributed (i.i.d) Rayleigh fading [21].

2.2. Pilot Contamination

In a multi-cell environment where all users from different cells simultaneously send the ${\tau }_p$ uplink pilots sequences to their respective BSs, the transmissions of some users could be contaminated (Figure 1) by the transmissions of the other users belonging to the neighboring cells. One way to mitigate this effect is to set apart the cells with the users sharing the same pilot sequences through a reasonable pilot reuse pattern. A pilot reuse factor of 3 [22] has been considered for this study since it provides a better compromise between the lower level of inter-cell interference and the spectral efficiency offered which scales with the number of the uplink pilots [23,24].

Assuming the favorable propagation conditions for the operation of the massive MIMO that make the users’ channels directions almost orthogonal when the number of BS antenna elements grow large [18,25], the received signal vector $y_{lk}$ observed at the kth user in the lth cell is modeled as follows [18,26]:

$$y_{lk}=\underset{desiredsignal}{\underbrace{M{\alpha }_{MRT}\sqrt{p_p}\sqrt{{p_d}_{lk}}{\beta }_{lk}{s}_{lk}}}+\underset{contaminatedsignal}{\underbrace{M{\alpha }_{MRT}\sqrt{p_p}\sum _{l^{\prime }\ne l}^L\sqrt{{p_d}_{l^{\prime }k}}{\beta }_{l^{\prime }k}{s}_{l^{\prime }k}}}+\underset{noise}{\underbrace{{n_d}_l}}$$

(1)

With M the number of BS antenna elements, ${\alpha }_{MRT}$ the normalization constant considered to satisfy the transmit power constraint at the BS [26]; $p_p$ is the power of the pilots (in W) and ${p_d}_{lk}$ is the DL power of the serving base station (in W) received by the kth user in cell l; ${p_d}_{l^{\prime }k}$ is the DL power of the interfering BS (in W) in cell $l^{\prime }$ received by the kth user and ${n_d}_l$ is the noise level with variance ${\sigma }_n^2$; ${\beta }_{lk}$ and ${\beta }_{l^{\prime }k}$ are the large-scale fadings which are almost constant during the coherence interval and model the effects of the path loss, geometric attenuation and shadowing in cell l and $l^{\prime }$, respectively [18,27].

The Signal to Interference Noise Ratio (SINR) at the receiver side and the sum capacity $C_l$ offered by the lth cell can be obtained as follows, respectively [27,28]:

$$SIN{R}_{lk}=\frac{M{\alpha }_{MRT}{p}_p{p_d}_{lk}{\beta }_{lk}^2}{M{\alpha }_{MRT}{p}_p{\sum }_{l^{\prime }\ne l}^L{p_d}_{l^{\prime }k}{\beta }_{l^{\prime }k}^2+{\sigma }_n^2}$$

(2)

$$C_l=B·\sum _{k=1}^K{\gamma }^{DL}(1-\frac{{\tau }_p}{{\tau }_c}){\log }_2(1+SIN{R}_{lk})(bits/s)$$

(3)

where ${\gamma }^{DL}$ is the data symbol portions (out of the coherence interval) reserved for DL transmission (${\gamma }^{DL}=50\%$ [18]); B is the bandwidth of the channel (in Hz) and K is the maximum number of users simultaneously served by the cell.

3. Method: Massive MIMO Network Design

In this section, we discuss the different optimization metrics and the algorithm proposed for the design of 5G massive MIMO based network. Furthermore, we describe and formulate the optimization problem investigated while defining the objective fitness functions used, in terms of the power consumption, the downlink exposure and the uplink exposure. Depending on the way the DL and UL EMF exposure are assessed, we consider two types of objective fitness functions:

• A tri-objective fitness function with the downlink exposure and uplink exposure considered as two separate metrics.
• A bi-objective fitness function in which the downlink and uplink exposure are combined into a single exposure metric (the total dose).

3.1. Problem Description

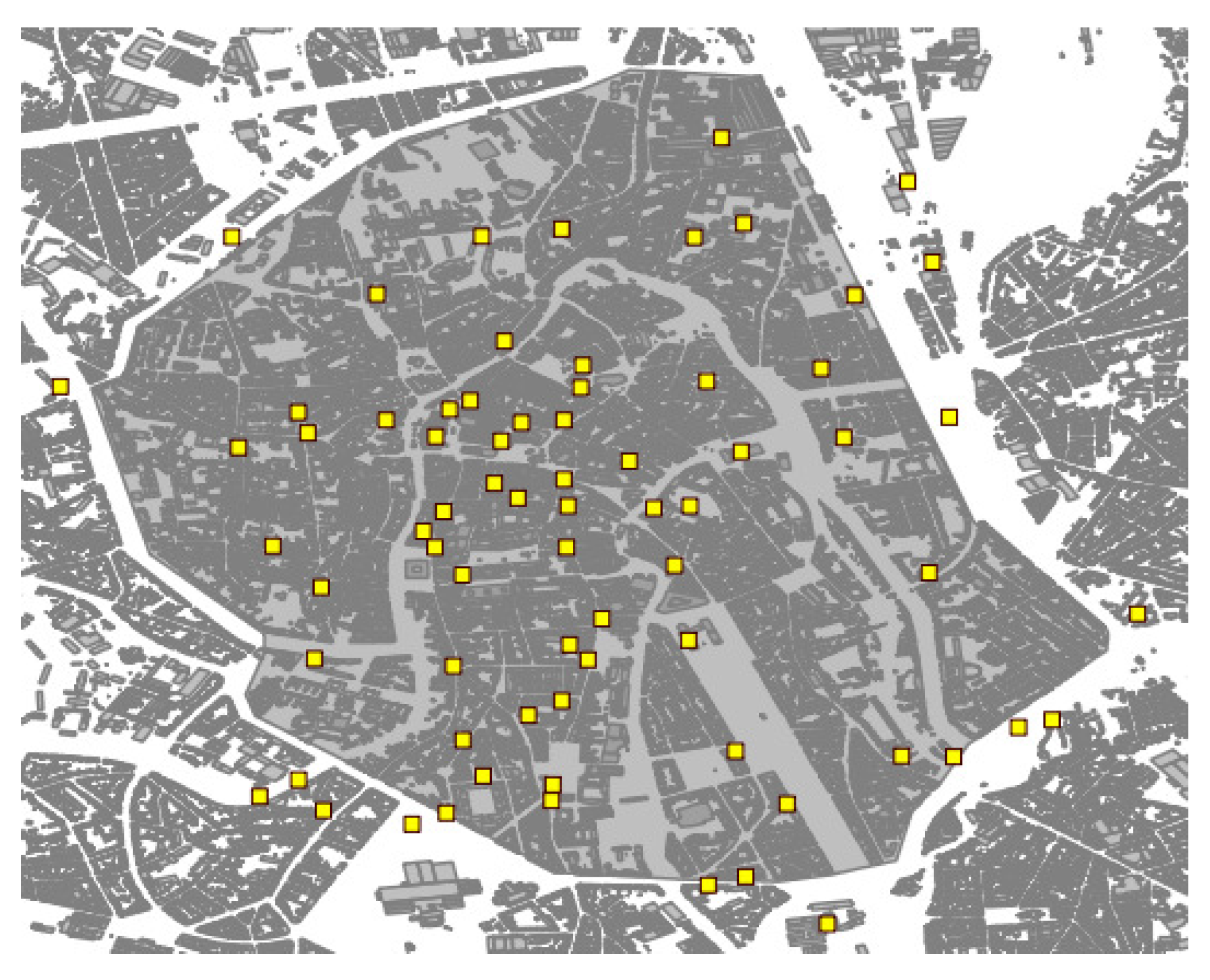

In this study, a realistic suburban area of 6.85 ${\mathrm{km}}^2$ in Ghent, Belgium (Figure 2) where a Belgian mobile operator has deployed its 4G network, has been used for the design of the massive MIMO network. The operator’s network consists of 75 possible base stations locations to cover the entire area and provide voice and data services to the users. Two types of optimization problems are considered here, during the design of massive MIMO-LTE networks: maximum area coverage problem and maximum user coverage problem, while simultaneously minimizing the power the consumption, the downlink exposure due to the BSs and the uplink exposure resulting from the transmissions of the users. Here, we use the electric field (in V/m) and the specific absorption rate (SAR in W/kg) as metrics for the downlink and uplink exposure, respectively. These two metrics are standardized by the ICNIRP [29] that defines exposure guidelines for the general public to 61 V/m (electric field) and 0.08 W/kg (whole-body SAR). Hence, the level of the EMF exposure due to the deployed massive MIMO network should be lower than these limitations to comply with the ICNIRP standards. The details of the problems are presented below.

We assume that we have a massive MIMO based mobile network that consists of K BSs and N users. The sets of BSs and users are $\mathcal{K}=\{1,2,\cdots ,K\}$ and $\mathcal{N}=\{1,2,\cdots ,N\}$, respectively. Moreover, we define the set of power values of each BS. This is denoted with $\mathcal{P}=\{p_1,p_2,\cdots ,p_K\}$. We consider the binary variable, $x_{kn}$ that describes the association of the k-th BS with the n-th user and can be formulated as

$$\begin{array}{c}\hfill x_{kn}=\left\{\begin{array}{cc}1,& \mathrm{if}n\text{-}\mathrm{th}\mathrm{user}\mathrm{is}\mathrm{associated}\mathrm{with}\mathrm{the}k\text{-}\mathrm{th}\mathrm{BS}\hfill \\ 0,& \mathrm{otherwise}.\hfill \end{array}\right.\end{array}$$

(4)

Moreover, we define the binary variable $y_k$ that describes the operation or not of the k-th BS and can be formulated as

$$\begin{array}{c}\hfill y_k=\left\{\begin{array}{cc}1,& \mathrm{if}\mathrm{BS}\mathrm{k}\mathrm{is}\mathrm{turned}\mathrm{on}\hfill \\ 0,& \mathrm{otherwise}.\hfill \end{array}\right.\end{array}$$

(5)

Additionally, we can define the discrete variable, $p_k$ that describes the transmission power value of the k-th BS as $p_k\in \{0,1,2,\cdots ,p_t\},\forall k\in \mathcal{K}$. where $p_t$ is the maximum allowable transmission power for a BS according to 3GPP recommendations ($p_t=43\mathrm{dBm}$ in this work). Thus, we define the solution vector to an integer vector that contains the active or not BSs, the operating power in dBm and the users associated.

3.1.1. Tri-Objective Fitness Function

The tri-objective fitness functions accounting for the power consumption, the downlink exposure and the uplink exposure are defined as follows:

• Power consumption fitness function
  The power consumption fitness function is defined as follows:

  $$f_1^3=\underset{\{\mathit{y},\mathit{p}\}}{\min }\left(1-\frac{{\displaystyle \sum _{k\in \mathcal{K}}}{P}_{\mathrm{calc}}\left(y_k{p}_k\right)}{P_{\max }}\right)$$

  (6)

  where $P_{\mathrm{calc}}\left(\right)$ is the power consumption of the designed network in $\mathrm{W}$ consisting of the powers consumed by the analog, the baseband and the circuit components [30]; $P_{\max }=K\times P_{\mathrm{calc}}\left(p_t\right)$ is the power consumption of the entire network when all BSs are assumed active and transmitting at maximum power (43 $\mathrm{dBm}$).
• Downlink exposure fitness function
  The below formula accounts for the downlink EMF exposure:

  $$f_2^3=\underset{\{\mathit{y},\mathit{p}\}}{\min }\left(1-\frac{\underset{k\in \mathcal{K}}{E}\left(y_k{p}_k\right)}{E_{\max }}\right)$$

  (7)

  where $E\left(\right)$ is the electric field in ($\mathrm{V}/\mathrm{m}$) within the designed network-covered area due to the downlink EMF exposure. This latter is modeled similarly to [31,32] in terms of the total EMF exposure E as the weighted average (over the area and the 40 simulations) of the median value $E_{50}$ of the electric field strengths in the area and the 95th percentile $E_{95}$ of the electric field strengths in the same area:

  $$E={\alpha }_1·E_{50}+{\alpha }_2·E_{95}$$

  (8)

  $E_{max}$ is the maximum DL exposure in [$\mathrm{V}/\mathrm{m}$] obtained when all BSs are assumed active and transmitting at maximum power with the maximum number of antenna elements mounted on each BS. This approach has been adopted since the favorable propagation conditions of the massive MIMO are assumed, in which the individual antenna’s propagation channels are mutually uncorrelated. ${\alpha }_1$ and ${\alpha }_2$ are the weighting coefficients related to $E_{50}$ and $E_{95}$ respectively and have been chosen of equal importance (${\alpha }_1={\alpha }_2=0.5$).
  From a practical point of view, with the use of multiple antenna elements, the BS does not always transmit at maximum power since the power is split among different directions depending on the locations of the users within the area of interest [9]. So, in 5G massive MIMO BS, the realistic power level $\mathrm{EIRP}$ per antenna element contributing to the EMF exposure is significantly lower compared to the theoretical maximum radiated power ${\mathrm{EIRP}}_{\mathrm{th}}$ since the duty cycles are applied (${\mathrm{EIRP}}_{\mathrm{real}}={\mathrm{EIRP}}_{\mathrm{th}}\left[\mathrm{in}\mathrm{W}\right]\ast {\mathrm{DC}}_{\mathrm{TDD}}\ast {\mathrm{DC}}_{\mathrm{SPA}}$). Even for very large degrees of system utilization, the authors in [9] proved that the realistic power level can take values between 7–22%, based on the user distributions considered in both azimuth and elevation. In this analysis, since the users are uniformly distributed in azimuth, the corresponding spatial duty cycle is set to 15% [9].
  To evaluate the electric field created by an antenna element A of a massive MIMO 5G base station, we evaluate the DL exposure at a grid as in [32] with constant distances between two different grid points in both x-and-y axes. For each grid point i, the electric field $E_{i,A}$ due to A in 5G is modeled as follows [31,33]:

  $$E_{i,A}={10}^{\frac{EIR{P}_{th}+10{\log }_{10}(D{C}_{TDD}^{DL}\ast D{C}_{SPA})-43.15+20·{\log }_{10}\left(f\right)-P{L}_d}{20}}$$

  (9)

  where f is the operating frequency in $\mathrm{MHz}$; $P{L}_d$ is the path loss in $\mathrm{dB}$; ${\mathrm{EIRP}}_{\mathrm{th}}$ is the theoretical maximum radiated power in $\mathrm{dBm}$; ${\mathrm{DC}}_{\mathrm{TDD}}^{\mathrm{DL}}$ is the TDD duty cycle in the downlink (${\mathrm{DC}}_{\mathrm{TDD}}^{\mathrm{DL}}=0.75$) capturing the fact that the BS does not transmit continuously and ${\mathrm{DC}}_{\mathrm{SPA}}$ (=0.15) is the spatial duty cycle accounting for the fraction of the BS transmit power towards the direction of the user [9]. The total EMF exposure ${\mathrm{E}}_{\mathrm{i}}$ at the considered location i (grid point), due to the transmission of all N base stations in the area, each with M antenna elements, is given by the below expression:

  $$E_i=\sqrt{\sum _{A=0}^{N·M}{E}_{i,A}^2}$$

  (10)

  With $E_{i,A}$ is the EMF exposure at a location i due to a single antenna element, calculated via Equation (9).
• Uplink exposure fitness function
  The UL EMF exposure fitness function is given by the below formula:

  $$f_3^3=\underset{\{\mathit{x},\mathit{y}\}}{\min }\left(1-\frac{\underset{k\in \mathcal{K}}{SA{R}_{ul}}\left(x_{kn}{y}_k\right)}{{SAR}_{\max }}\right)$$

  (11)

  With $SA{R}_{ul}\left(\right)$ is the uplink whole-body specific absorption rate in ($\mathrm{W}/\mathrm{Kg}$) due to the transmissions of the users covered by the designed network. $SA{R}_{ul}$ is obtained as a weighted average of the median and the 95th percentile values over the 40 simulations and over all users:

  $$SA{R}_{ul}={\psi }_1·SA{R}_{ul50}+{\psi }_2·SA{R}_{ul95}$$

  (12)

  $SA{R}_{ulmax}$ is the uplink whole-body specific absorption rate in ($\frac{\mathrm{W}}{\mathrm{Kg}}$) due to the transmission of the users at maximum transmit power (23 $\mathrm{dBm}$). $SA{R}_{ulmax}$ is obtained similarly to [31] in terms of weighted average as follows:

  $$SA{R}_{ulmax}={\psi }_1·SA{R}_{ulmax50}+{\psi }_2·SA{R}_{ulmax95}$$

  (13)

  The whole-body $SA{R}_{ul}$ in ($\frac{\mathrm{W}}{\mathrm{Kg}}$) due to a user’s uplink traffic is obtained as per the formula below:

  $$SA{R}_{ul}=P_{act}·D{C}_{TDD}^{UL}·SA{R}_{ref}^{UL}$$

  (14)

  $$P_{act}={10}^{\frac{max(-26,min(rxsens+PL,23\left)\right)}{10}}$$

  (15)

  where $D{C}_{TDD}^{UL}$ is the uplink duty cycle of the TDD network mode of operation. This parameter accounts for the relative transmission time with the TDD mode. Here, we assume a value of 0.25 as proposed in [9]. $SA{R}_{ref}^{UL}$ is the uplink reference whole-body specific absorption rate in ($\frac{\mathrm{W}}{\mathrm{Kg}}$) for 1 W of transmitted power ($SA{R}_{ref}^{UL}$ = 0.0052 ($\frac{\mathrm{W}}{\mathrm{Kg}}$)). This value has been obtained by simulations using the numerical tool (Sim4life) with 1 W of transmitting power, using a dipole at 3.7 $\mathrm{GHz}$, positioned next to the right ear. $P_{act}$ is the actual transmit power of the user’s device in ($\mathrm{W}$). The value of $P_{act}$ ranges from −26 to 23 $\mathrm{dBm}$. $PL$ is the propagation path loss experienced by the user (in $\mathrm{dB}$) and $rxsens$ is the sensitivity of the base station (in ($\mathrm{dBm}$)) for maintaining the user’s call defined as follows:

  $$rxsens=TN+NF+SNR$$

  (16)

  With $\mathrm{NF}$ is the noise figure in ($\mathrm{dB}$) ($\mathrm{NF}=7\mathrm{dB}$ [34]), $\mathrm{SNR}$ is the signal to noise ratio in ($\mathrm{dB}$) and $\mathrm{TN}$ is the thermal noise in ($\mathrm{dB}$) defined as follows:

  $$TN=10·{\log }_{10}(K_B·T·B)$$

  (17)

  where ${\mathrm{K}}_{\mathrm{B}}$ is the Boltzman constant ($1.38\times {10}^{-23}(\mathrm{J}/\mathrm{K})$), $\mathrm{T}$ is the reference temperature in Kelvin ($\mathrm{T}=290\mathrm{K}$) and $\mathrm{B}$ is the bandwidth.

3.1.2. Tri-Objective Optimization Problem Formulation

As the three objectives can scarcely be met simultaneously during the operation of the network, a utility function is built by linearly combining $f_1^3$, $f_2^3$ and $f_3^3$ to easily solve this tri-objective problem and find the possible solutions with the best compromises. Thus, this tri-objective problem can be formulated as follows:

$$\begin{array}{cc}\hfill \mathbf{P}\mathbf{1}:\underset{\{\mathit{y},\mathit{x},\mathit{p}\}}{\min }& {\omega }_{1,3}{f}_1^3+{\omega }_{2,3}{f}_2^3+{\omega }_{3,3}{f}_3^3\hfill \\ \hfill \mathrm{s}.\mathrm{t}.C_1:& y_k\in \{0,1\},\forall k\in \mathcal{K},\hfill \\ \hfill C_2:& p_k\in \{0,1,2,\cdots ,p_t\},\forall k\in \mathcal{K},\hfill \\ \hfill C_3:& x_{kn}\in \{0,1\},\forall n\in \mathcal{N},\forall k\in \mathcal{K},\hfill \\ \hfill C_4:& {\sum }_{k=1}^K{x}_{kn}=1,\forall n\in \mathcal{N},\hfill \\ \hfill C_5:& {\sum }_{j=1}^3{\omega }_{j,3}=1,\hfill \\ \hfill C_6:& \frac{{\sum }_{j=1}^K{\sum }_{i=1}^N{x}_{ij}}{N}\ge 0.95,\hfill \end{array}$$

where ${\omega }_{1,3},{\omega }_{2,3},{\omega }_{3,3}$ are the weights indicating the relative importance (preference) of the objective functions and are determined arbitrary based on the prior knowledge on the priority of either objective. The constraint $C_1$ denotes the operation or not of the k-th BS. Similarly, the constraint $C_2$ denotes the transmission power. The constraint $C_3$ denotes the association or not between user n and BS k. Moreover, the constraint $C_4$ expresses the unique association between one user n with BS k at the same time. Constraint $C_5$ denotes that the weights sum is equal to one [35]. Additionally, the constraint $C_6$ does not allow the percentage of users served by a BS to be below 95%, as per the radio network planning requirements.

Given that a linear function is convex, the utility function which is a linear combination of convex functions $f_1^3$, $f_2^3$ and $f_3^3$ is convex as well. Therefore, the problem can be treated as a multi-objective optimization convex problem since the utility or the global fitness function is minimized towards the constraints which are convex as well. The higher the global fitness function, the better the network is optimized as the individual objectives are minimized. We then apply the traditional weighted sum method to resolve the multi-objective optimization problem formulated earlier as the decision maker may have a knowledge of the objective’s priority. For each new combination of the weights, the 5G networks are designed by means of system-level simulations using the capacity-based network deployment tool of [36,37] extended with the appropriate optimization algorithm described further in this section. The Pareto optimal concept is then used to compare the different solutions obtained in order to identify the ones with better trade-off between the constraints.

3.1.3. Bi-Objective Fitness Function

The bi-objective fitness function accounts for the power consumption and the global EMF exposure. The latter combines the effects of both the downlink and uplink EMF exposure in terms of the total dose, which is the sum of the downlink dose due to the transmission of the BSs and the uplink dose resulting from the user’s devices. These fitness functions are defined as follows:

• Power Consumption fitness function
  Here, the fitness function $f_1^{{}^{\prime }}$ that addresses the power consumption objective is similar to Equation (6).
• Dose (EMF) fitness function
  The dose fitness function accounts for the optimization of both the downlink and uplink exposure through a global metric as follows:

  $$f_2^{{}^{\prime }2}=\underset{\{\mathit{y},\mathit{p}\}}{\min }\left(1-\frac{\underset{k\in \mathcal{K}}{dose}\left(y_k{p}_k\right)}{{dose}_{\max }}\right)$$

  (18)

  With $\mathrm{dose}\left(\right)\left(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}\right)$ the total dose due to the designed network and ${\mathrm{dose}}_{\max }\left(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}\right)$ the total dose due to the entire network when assuming all the BSs are active and working with the maximum antenna array configuration (256 antenna elements transmitting at max power and all devices active in UL with max power). The $dose$ is defined by the expression below:

  $$dose=d^{UL}+d^{DL}$$

  (19)

  where:

  (a)

  ${\mathrm{d}}^{\mathrm{DL}}\left(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}\right)$ is the SAR (whole-body or localized) value for DL multiplied by the time spent in the configuration:

  $$d^{DL}=T_d^{DL}·SA{R}^{DL}$$

  (20)

  With ${\mathrm{T}}_{\mathrm{d}}^{\mathrm{DL}}$ the downlink exposure duration in seconds ($\mathrm{s}$) and $SA{R}^{DL}$ the whole-body or localized $SAR$ induced by the BS in ($\frac{\mathrm{W}}{\mathrm{Kg}}$). In this study, we focus on the whole-body $SAR$:

  $$SA{R}^{DL}=\sum _{B{S}_i}{S}_{BSi}·SA{R}_{ref}^{DL}$$

  (21)

  $SA{R}_{ref}^{DL}$ is the downlink reference whole-body or localized $SAR$ in ($\frac{\mathrm{W}}{\mathrm{Kg}}\mathrm{per}\frac{\mathrm{W}}{{\mathrm{m}}^2}$), obtained by means of simulations performed for a horizontal single incident plane wave with an incident power density of 1 $\frac{\mathrm{W}}{{\mathrm{m}}^2}$, using numerical electromagnetic simulation software (Sim4life) and $S_{BSi}$ the received power density due to the base station at a location i in ($\frac{\mathrm{W}}{{\mathrm{m}}^2}$), obtained as follows:

  $$S_{B{S}_i}=\frac{E_{B{S}_i}^2}{120·\pi }$$

  (22)

  With $E_{B{S}_i}$ the electric field strength in [$\mathrm{V}/\mathrm{m}$] due to a base station at a location i obtained as in Equation (10);

  (b)

  $d^{UL}$ is $SA{R}^{UL}$ (whole-body or localized) values for UL, multiplied by the actual transmit time:

  $$d^{UL}=T_d^{UL}·SA{R}^{UL}$$

  (23)

  $T_d^{UL}$ is here assumed to be 35 s within the considered time frame of an hour [16] and $SA{R}^{UL}$ the uplink whole-body or localized $SAR$ induced by the BS obtained as in Equation (14).

3.1.4. Bi-Objective Optimization Problem Description

Similarly to P1, the bi-objective optimization problem can be formulated as follows:

$$\begin{array}{cc}\hfill \mathbf{P}\mathbf{2}:\underset{\{\mathit{y},\mathit{x},\mathit{p}\}}{\min }& {\omega }_{1,2}{f}_1^{{}^{\prime }2}+{\omega }_{2,2}{f}_2^{{}^{\prime }2}\hfill \\ \hfill \mathrm{s}.\mathrm{t}.C_1:& y_k\in \{0,1\},\forall k\in \mathcal{K},\hfill \\ \hfill C_2:& p_k\in \{0,1,2,\cdots ,p_t\},\forall k\in \mathcal{K},\hfill \\ \hfill C_3:& x_{kn}\in \{0,1\},\forall n\in \mathcal{N},\forall k\in \mathcal{K},\hfill \\ \hfill C_4:& {\sum }_{k=1}^K{x}_{kn}=1,\forall n\in \mathcal{N},\hfill \\ \hfill C_5:& {\sum }_{j=1}^2{\omega }_{j,2}=1,\hfill \\ \hfill C_6:& \frac{{\sum }_{j=1}^K{\sum }_{i=1}^N{x}_{ij}}{N}\ge 0.95,\hfill \end{array}$$

where $C_1$, $C_2$, $C_3$, $C_4$, $C_5$ and $C_6$ are the same optimization constraints considered in P1; ${\omega }_{1,2},{\omega }_{2,2}$ are the weights indicating the level of priority granted to either objective function.

Table 1. Specific parameters considered for the evaluation of the exposure.

Parameters	Symbols	Values	Units
Reference Specific	$SA{R}_{ref}^{DL}$	0.0048	$\frac{\mathrm{W}}{\mathrm{Kg}}\mathrm{per}\frac{\mathrm{W}}{{\mathrm{m}}^2}$
Absorption Rate DL
Reference Specific	$SA{R}_{ref}^{UL}$	0.0052	$\frac{\mathrm{W}}{\mathrm{Kg}}\mathrm{per}\mathrm{W}$
Absorption Rate UL
TDD duty cycle in DL	$D{C}_{TDD}^{DL}$	0.75	[-]
TDD duty cycle in UL	$D{C}_{TDD}^{UL}$	0.25	[-]
Spatial duty cycle in DL	$D{C}_{SPA}$	0.15	[-]
Time duration in DL	$T_d^{DL}$	3600	s
Time duration in UL	$T_d^{UL}$	35	s

summarizes the values of the specific parameters considered for the evaluation of the exposure: the reference SARs, the duty cycles and the exposure time duration.

3.2. Optimization Algorithm

In this paper, we proceed with the simulations of the optimal massive MIMO 5G networks to investigate the scenarios described above. We apply a capacity-based network deployment tool proposed in [19], in which the optimization algorithm in Figure 3 is implemented. The optimization algorithm of the tool is based on the BS-user association principle and optimizes the initial set of the base stations deployed in the area of interest while meeting the following optimization constraints: (i) the obtained network must have the least possible power consumption, (ii) the DL and UL EMF exposure resulting from the obtained 5G networks must be minimal, (iii) the network must respond to the instantaneous bit rates (voice and data) requested by the users and (iv) must provide a coverage for at least 95% of the users.

This algorithm is designed in such a way that the decision to associate a user with the base station is related to the value of the fitness function. The algorithm consists of two stages. In the first stage (Figure 3, step 2), a list of possible candidates BSs (active or not) to connect to the users is constructed based on the path loss (PL) between the user and each BS. For a BS to be included in the list of candidates BSs, two conditions must be verified:

• For each user, the algorithm evaluates the PL between the user and all the BSs. This PL should be lower than the maximum allowable path loss (MAPL);
• The capacity C of the BS should be high enough to support the high bit rate $C_u$ demanded by the user u (${\sum }_u{C}_u\le C$).

In the second stage (Figure 3, step 3), the algorithm estimates the fitness function for each of the BS inserted in the list of possible candidate BSs. The BS with the highest fitness value is associated with the user and enabled in case the BS was inactive. If there are already enabled (active) BSs within the network, the algorithm checks the possibility to transfer the users already associated with that BS to this newly active BS (Figure 3, step 5). This transfer requires the new enabled BS to present the highest fitness value. If no BS can be enabled, then the user cannot be covered. These operations are repeated for all the users. This results into an optimal massive MIMO 5G network with the highest fitness value. This latter shows a better trade-off between the low-power consumption, the low DL and UL EMF exposure and the users’ coverage requirements.

The computation of this algorithm requires the similar input files as in [19]:

• A traffic file containing the maximum number of simultaneous active users and their locations,
• The link budget parameter files (

  Table 2. Massive MIMO common link budget parameters.

  Parameters	Values
  Carrier frequency	3.7 GHz 1
  Channel bandwidth	20 MHz 1
  Transmit antenna element gain	0 dBi
  Transmit array antenna feed loss	3 dB
  Base Station Total radiated power	43 dBm
  Number of MS antenna elements	1
  MS transmit power	23 dBm
  Receive antenna element gain	0 dBi 1
  SNR	(7.5,15.5,17.2) dB 2
  Implementation loss	3 dB
  RX Noise figure	7 dB
  Other losses (Shadow, fading)	20 dB

  ¹ values obtained from [34]. ² values of signal-to-noise ratio corresponding to 1/2 BPSK, 1/2 8PSK, 1/2 16-QAM modulations, respectively [38].

  ),
• The 3-dimension (3D) shapes of the environment of study,
• The power consumption file of the individual BS components.

To ensure the massive MIMO requirements in terms of higher data rates imposed by the 5G applications are met, we consider the 3GPP LTE Rel. 8 path loss model $PL\left(d\right)$ (Equation (24)) and the power consumption model proposed in [19,34].

$$\mathit{P}\mathit{L}\left(\mathit{d}\right)=\mathit{P}{\mathit{L}}_{\mathit{m}\mathit{e}\mathit{d}}\left(\mathit{d}\right)+\mathbf{\chi }$$

(24)

With $\chi$ a log-normally distributed large-scale fading variable with standard deviation $\sigma$ of 10 dB [34] and $P{L}_{med}\left(d\right)$ is the median $PL$ at distance d and defined as follows:

$$P{L}_{med}\left(d\right)=40(1-0.004·h_b){\log }_{10}\left(d\right)-18{\log }_{10}\left(h_b\right)+21{\log }_{10}\left(\mathit{f}\right)+80\mathrm{dB}$$

(25)

where d is the distance in m between the BS and the user; $\mathit{f}$ is the carrier frequency in MHz and $h_b$ is the antenna height of the BS in $\mathrm{m}$.

4. Results

4.1. Scenarios

In this section, we present the different scenarios considered for the design of the massive MIMO network based on the optimization constraints. The operating frequency set to 3.7 GHz (with 20 MHz bandwidth). The results are compared with the reference 4G LTE network operating at 2.6 GHz (with 20 MHz bandwidth) without MIMO. The following scenarios are considered:

• Reference scenario: 4G LTE network operating at 2.6 GHz without MIMO. This is the reference network whose BS positions and power levels are optimized towards power consumption and downlink exposure. It is compared with the designed massive MIMO-LTE networks.
• Suburban information society (300 $\mathrm{Mbps}$ for user applications like real-time video gaming) scenarios [34]:

  –

  Scenario 1: the number of users is varied, while assuming all the optimization objectives are of the same importance (${\omega }_{1,3}={\omega }_{2,3}={\omega }_{3,3}=0.33$ for the tri-objective optimization problem and ${\omega }_{1,2}={\omega }_{2,2}=0.5$ for the bi-objective one) and the number of BS antenna elements is fixed (256 antenna elements). The number of users varies according to hourly traffic (from a Belgian mobile operator in Ghent), as presented in Figure 4.

  –

  Scenario 2: the number of BS antennas is varied while maintaining the same importance for the optimization objectives (${\omega }_{1,3}={\omega }_{2,3}={\omega }_{3,3}=0.33$ for the tri-objective optimization problem and ${\omega }_{1,2}={\omega }_{2,2}=0.5$ for the bi-objective one). Here, the number of simultaneous active users considered for the design is fixed (224 users at busy hour, worst case scenario), while the BSs are equipped with 16, 32, 64, 128 and 256 antenna elements, respectively.

  –

  Scenario 3: The number of simultaneous active users is set to 224 users. Using some sets of combinations (${\omega }_{1,2},{\omega }_{2,2}$), different massive MIMO networks are designed with various BS antenna elements (16, 32, 64, 128), among which only non-dominated Pareto front solutions are retained as optimal ones.

In all these scenarios, the favorable propagation conditions of massive MIMO have been assumed. Moreover, the user equipments (UE) are assumed to have one single transmit antenna. The moderate inter-cell interference resulting from the pilot contamination effects is modeled by the use of the pilot reuse factor $\mathrm{F}=3$ [19]. For each considered scenario, we run multiple simulations (40) to ensure we obtain a statistically relevant estimation of the parameters investigated (e.g., the number of BSs, the power consumption and the DL and UL EMF exposure) [32].

4.2. Discussion

The results obtained by simulations for the different massive MIMO 5G networks are discussed. They are listed in

Table 3. tri-Objective optimization: Impact of the number of antennas elements and the number of users ($p_{95}$ = 95th percentile).

Scenarios	#BS Ant/#Users	# BS	Power (kW)	DL Em (mV/m)	UL SAR	${\mathbf{f}}_1/{\mathbf{f}}_2/{\mathbf{f}}_3$	User Cov. (%)
${\mathit{\omega }}_{1,3}={\mathit{\omega }}_{2,3}={\mathit{\omega }}_{3,3}=0.33$	(-)	${\mathit{p}}_{95}$	${\mathit{p}}_{95}$	${\mathit{p}}_{95}$	(W/Kg)	(-)	${\mathit{p}}_{95}$
different # users	256/14	12	1.5	30.2	$2.66\times {10}^{-5}$	0.87/0.94/0.96	100.0
	256/29	17	2.1	43.7	$2.58\times {10}^{-5}$	0.82/0.95/0.9	96.5
	256/63	27	3.9	63.3	$2.83\times {10}^{-5}$	0.68/0.93/0.89	95.3
	256/126	33	4.8	76.1	$2.9\times {10}^{-5}$	0.66/0.93/0.88	97.6
	256/174	35	5.1	78.1	$2.93\times {10}^{-5}$	0.58/0.92/0.88	95.9
	256/194	36	5.6	81.8	$3.09\times {10}^{-5}$	0.53/0.91/0.88	96.9
	256/209	33	5.1	81.9	$3.09\times {10}^{-5}$	0.54/0.9/0.87	96.3
	256/224	36	5.6	82.78	$3.25\times {10}^{-5}$	0.51/0.91/0.87	96.0
different # antennas	16/224	48	1	93.5	$1.22\times {10}^{-5}$	0.92/0.91/0.95	89.7
	32/224	48	1.4	88.3	$1.85\times {10}^{-5}$	0.91/0.93/0.92	90.4
	64/224	46	2.3	84.6	$2.42\times {10}^{-5}$	0.81/0.88/0.9	93.3
	128/224	42	3.4	83.0	$3.04\times {10}^{-5}$	0.83/0.89/0.88	95.9
	256/224	36	5.6	82.3	$3.23\times {10}^{-5}$	0.99/0.84/0.98	96

and

Table 4. bi-Objective optimization: Impact of the number of antennas elements and the number of users ($p_{95}$ = 95th percentile).

Scenarios	#BS Ant/#Users	# BS	Power (kW)	DL Dose	UL Dose	Total Dose	${\mathbf{f}}_1^{{}^{\prime }}/{\mathbf{f}}_2^{{}^{\prime }}$	User Cov. (%)
${\mathit{\omega }}_{1,2}={\mathit{\omega }}_{2,2}=0.5$	(-)	${\mathit{p}}_{95}$	${\mathit{p}}_{95}$	$\frac{\mathbf{W}·\mathbf{s}}{\mathbf{Kg}}$	$\frac{\mathbf{W}·\mathbf{s}}{\mathbf{Kg}}$	$\frac{\mathbf{W}·\mathbf{s}}{\mathbf{Kg}}$	[-]	${\mathit{p}}_{95}$
different # users	256/14	10	1.4	$1.94\times {10}^{-5}$	$2.19\times {10}^{-5}$	$4.13\times {10}^{-5}$	0.87/0.98	100.0
	256/29	19	2.9	$3.11\times {10}^{-5}$	$1.62\times {10}^{-5}$	$4.71·106-5$	0.82/0.97	100
	256/63	27	4.1	$8.13\times {10}^{-5}$	$0.73\times {10}^{-4}$	$1.54·{10}^{-4}$	0.65/0.96	96.9
	256/126	32	4.7	$1.13\times {10}^{-4}$	$0.77\times {10}^{-4}$	$1.89\times {10}^{-4}$	0.58/0.98	96
	256/174	34	5.2	$1.12\times {10}^{-4}$	$0.94\times {10}^{-4}$	$2.06\times {10}^{-4}$	0.56/0.96	96.6
	256/194	34	5.4	$1.12\times {10}^{-4}$	$1.06\times {10}^{-4}$	$2.18\times {10}^{-4}$	0.52/0.97	94.8
	256/209	36	5.6	$1.2\times {10}^{-4}$	$1.12\times {10}^{-4}$	$2.32\times {10}^{-4}$	0.58/0.95	95.7
	256/224	36	5.6	$1.28\times {10}^{-4}$	$1.53\times {10}^{-4}$	$2.81\times {10}^{-4}$	0.58/0.95	96
different # antennas	16/224	47	1	$1.88\times {10}^{-4}$	$0.9\times {10}^{-4}$	$2.78\times {10}^{-4}$	0.94/0.96	88.5
	32/224	47	1.4	$1.71\times {10}^{-4}$	$1.28\times {10}^{-4}$	$2.99\times {10}^{-4}$	0.9/0.92	90
	64/224	45	2.2	$1.34\times {10}^{-4}$	$1.76\times {10}^{-4}$	$3.1\times {10}^{-4}$	0.82/0.9	93.8
	128/224	43	3.6	$1.26\times {10}^{-4}$	$1.72\times {10}^{-4}$	$2.98\times {10}^{-4}$	0.81/0.9	94.8
	256/224	36	5.6	$1.28\times {10}^{-4}$	$1.53\times {10}^{-4}$	$2.81\times {10}^{-4}$	0.56/0.95	96

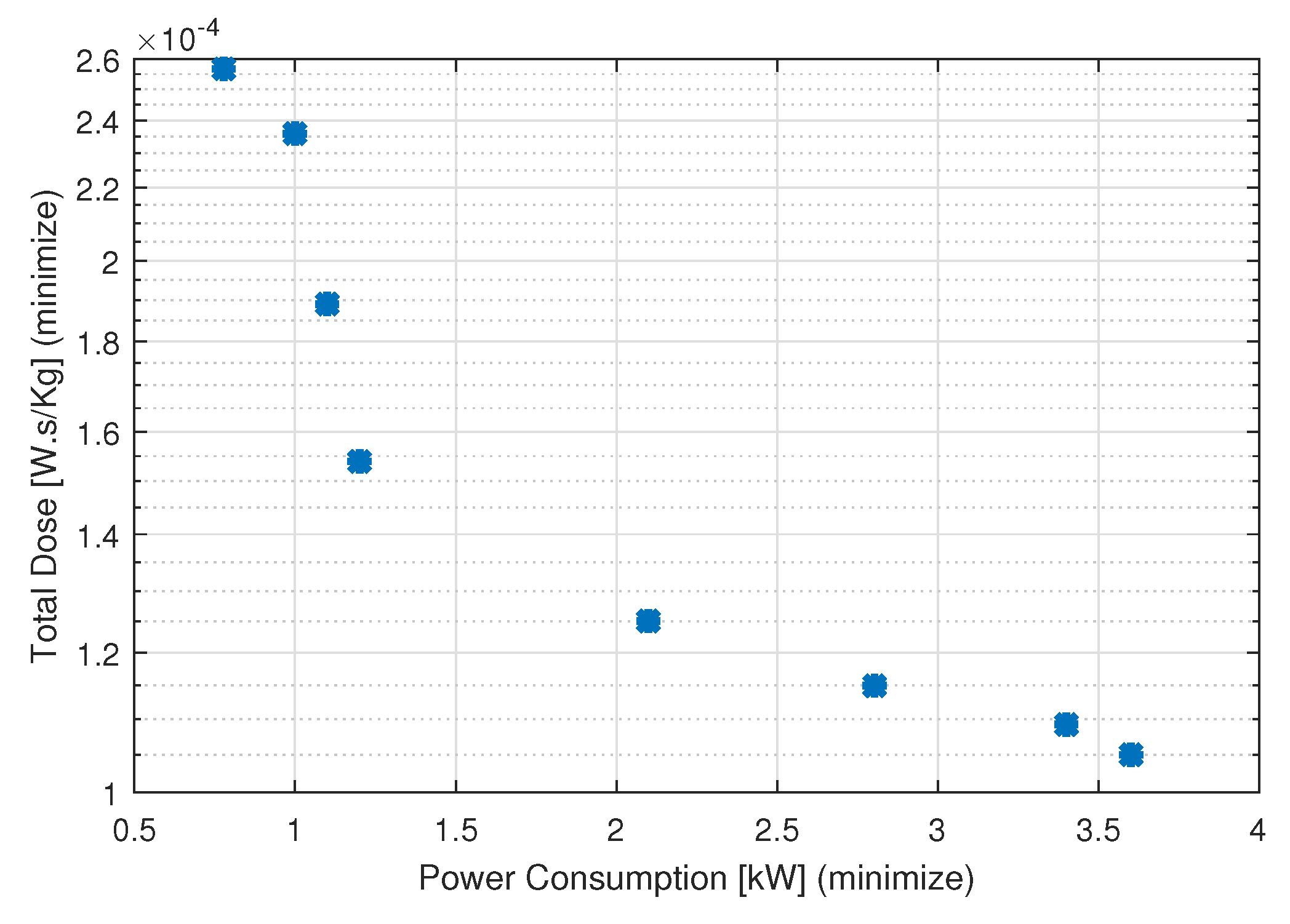

Best compromised solution (${\mathbf{\omega }}_{\mathbf{1},\mathbf{2}}=\mathbf{0.3};{\mathbf{\omega }}_{\mathbf{2},\mathbf{2}}=\mathbf{0.7}$)	64/224	37	2.1	$1.1\times {10}^{-4}$	$0.44\times {10}^{-4}$	$1.54\times {10}^{-4}$	0.94/0.96	93.5

which refer to scenarios 1 and 2 with respect to the tri-objective and bi-objective optimization problems, respectively. Firstly, the influence of the number of users and BS antenna elements on the massive MIMO network design is assessed, with equally important optimization objectives. Then, in a second step, the optimal solutions jointly meeting the optimization constraints are identified using the Pareto analysis. For each of the considered scenarios, 40 simulations were run to obtain a good estimation of the parameters of interest: the number of BSs, the power consumption, the DL and UL exposure, etc. Only the most important results have been reported within the aforementioned tables in which the 95th-percentile values have been considered for the number of BSs deployed in the network and their corresponding power consumption, while for the exposure (DL and UL), the mean between the 50th-percentile and the 95th-percentile has been used, as in Equation (7).

4.2.1. Impact of the Number of Users on the EMF Exposure

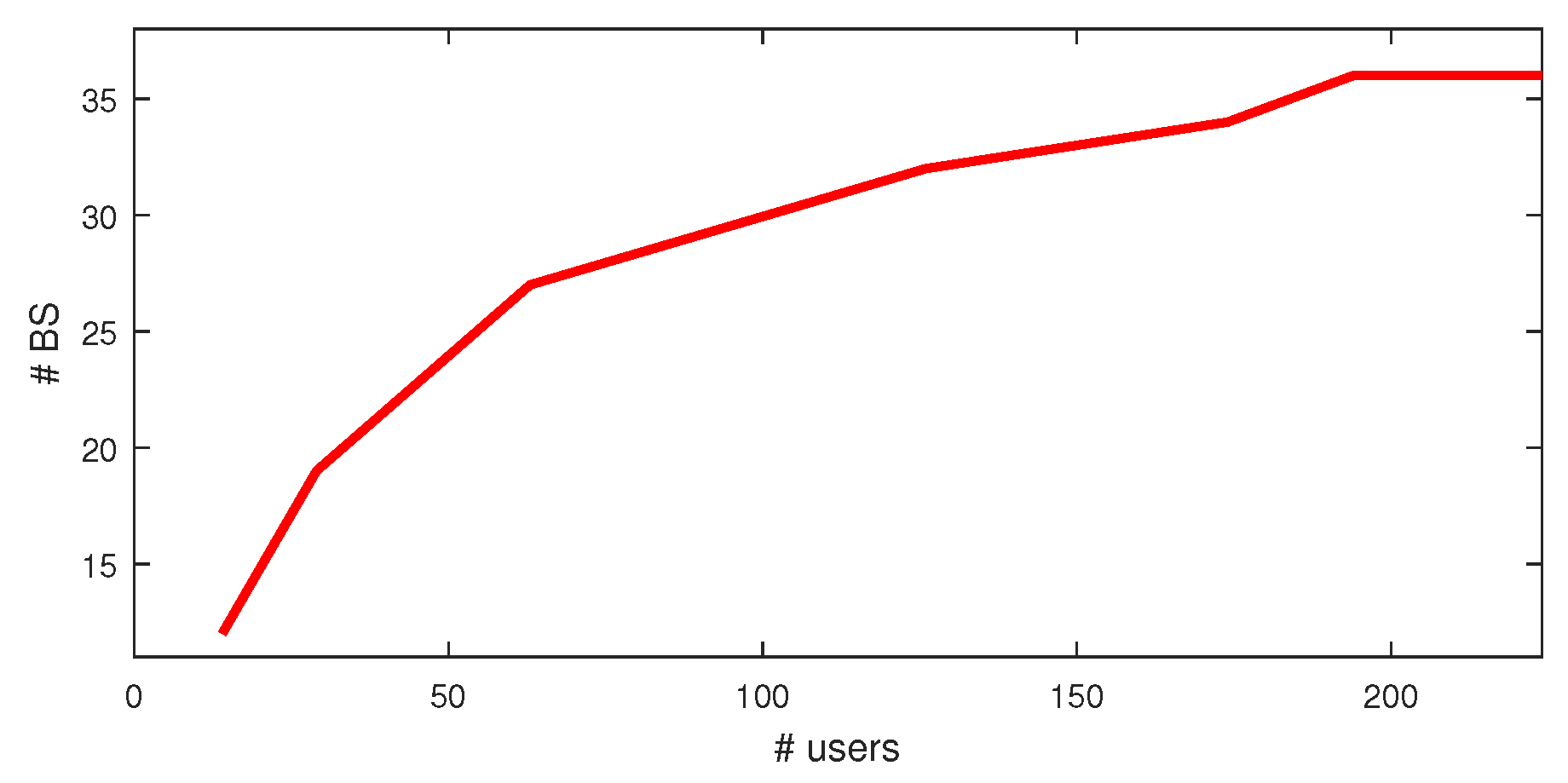

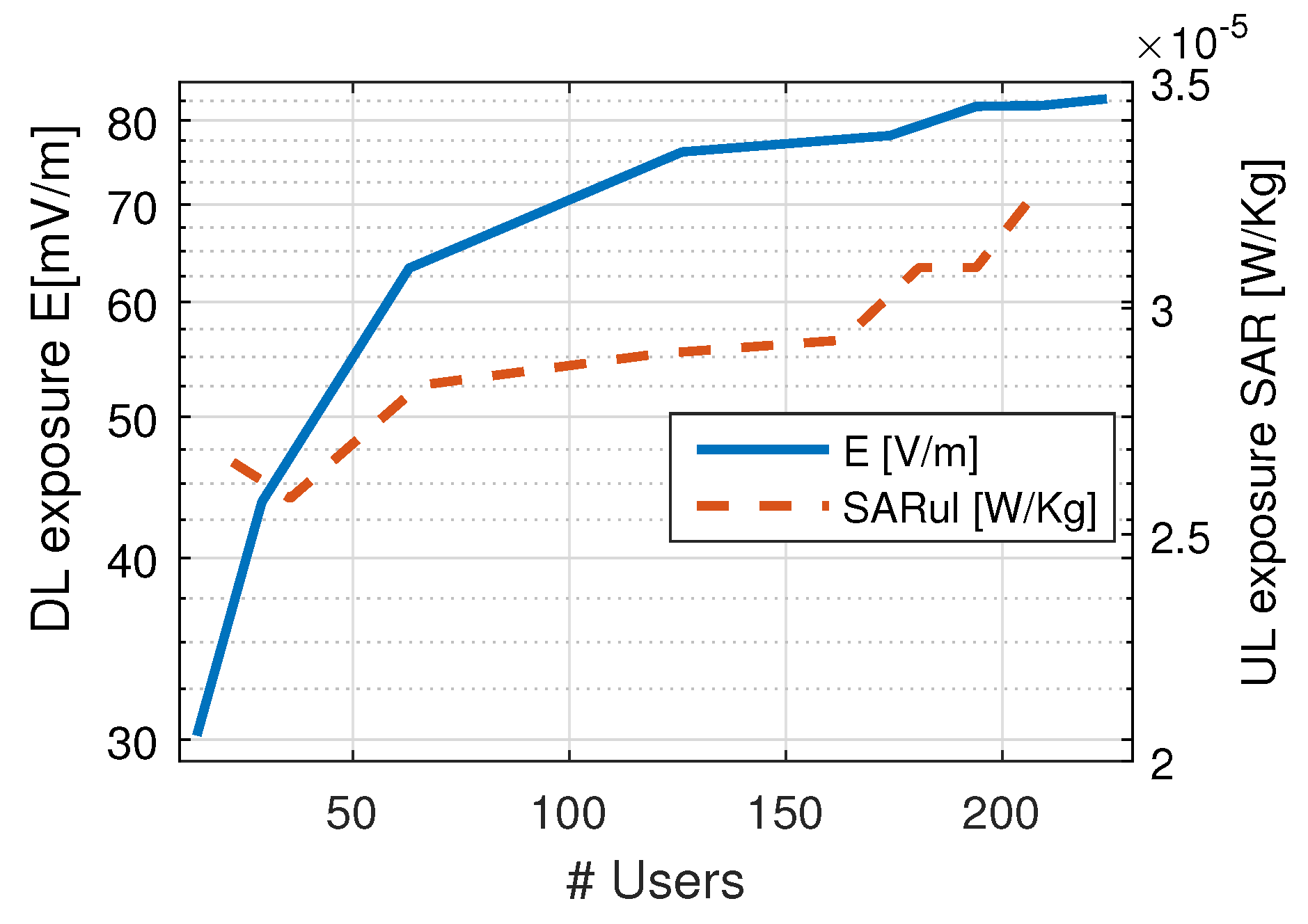

Figure 5 shows how the electric field E (DL exposure) and the SAR (UL exposure) scale with the number of users, assuming the BSs are equipped with a fixed number of BS antenna elements (256 antenna elements). The increase of the number of users leads to an increase of both E and $SAR$. The E and the SAR increase by 174% (from 30.2 (mV/m) to 82.8 (mV/m)) and 22.2% (from $2.66\times {10}^{-5}$ to to $3.25\times {10}^{-5}$ (W/Kg)), respectively when the number of users varies from 14 to 224 users (Table 3). Similarly, in Figure 6, the DL dose and the UL dose (bi-objective optimization problem) show the same trends, compared to those in Figure 5.

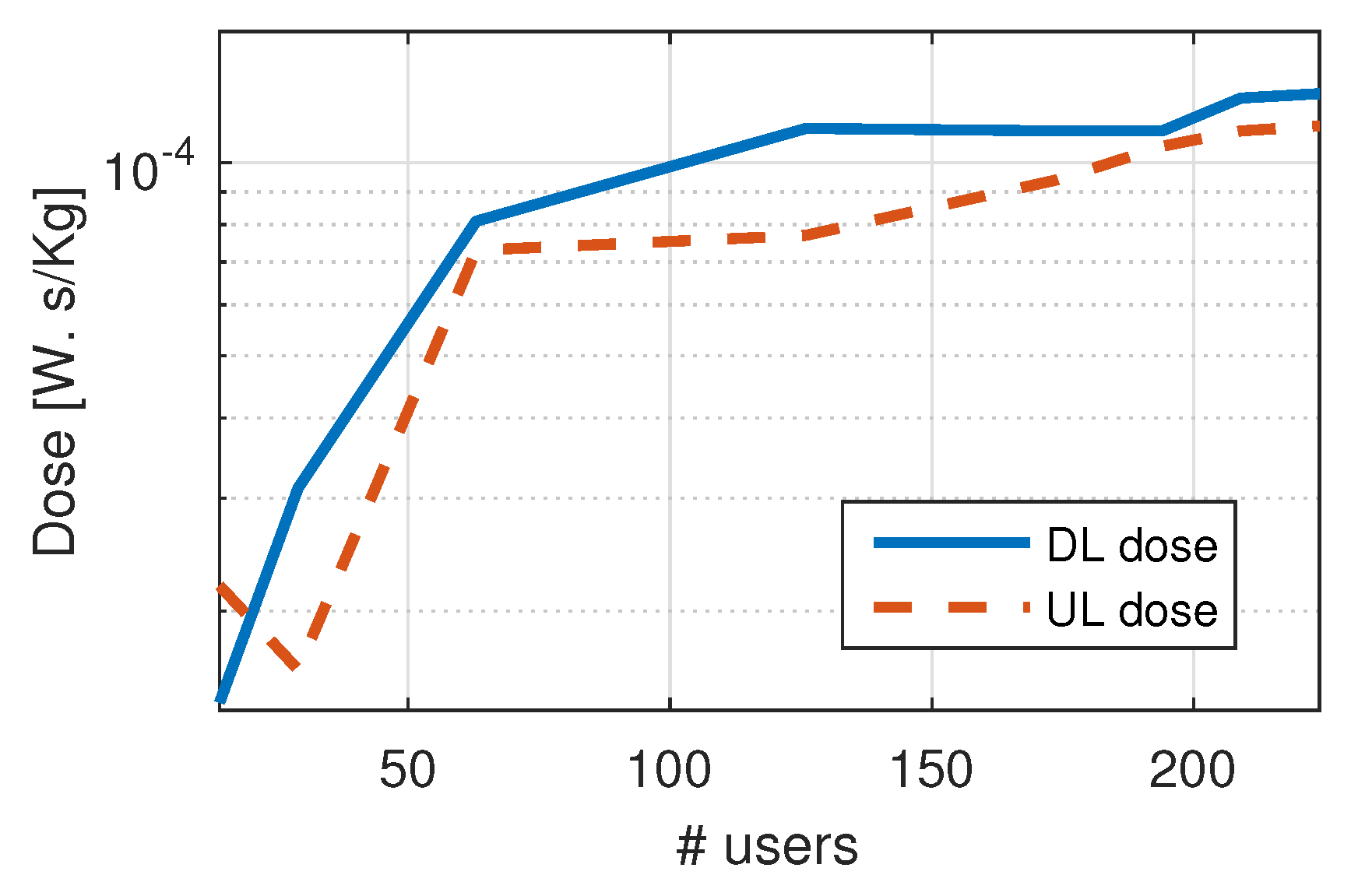

In one side, the UL dose increases (+598%, from $2.19\times {10}^{-5}$ with 14 users to $1.53\times {10}^{-4}$ ($\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}})$ with 224 users, Table 4) with the number of users before reaching an almost constant value as the optimal number of BSs required to cover the entire area is obtained (Figure 7). On the other side, the DL dose increases by 507% ( from $1.44\times {10}^{-5}\left(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}\right)$ with 14 users to $1.28\times {10}^{-4}\left(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}\right)$ with 224 users, Table 4). In fact, when the number of users increases within the networks, the number of BSs increases (Figure 7) as well to provide a better coverage to the users spread across the area of interest and cope with the traffic they generate. When the required number of BS is reached, the network coverage keeps improving thanks to the additional beamforming gain provided by the multiple antenna elements the BSs are equipped with. So the users’ transmit power slightly increases among the scenarios as soon as a better coverage is achieved with the number of BSs. However, this increase of BSs increases the DL exposure (E or the DL dose) whose increase rate (174% for E and 560% for DL dose) is more pronounced than the UL one (22.2% for UL SAR and 598% for UL dose).

4.2.2. Impact of the Number of Antenna Elements on the EMF Exposure

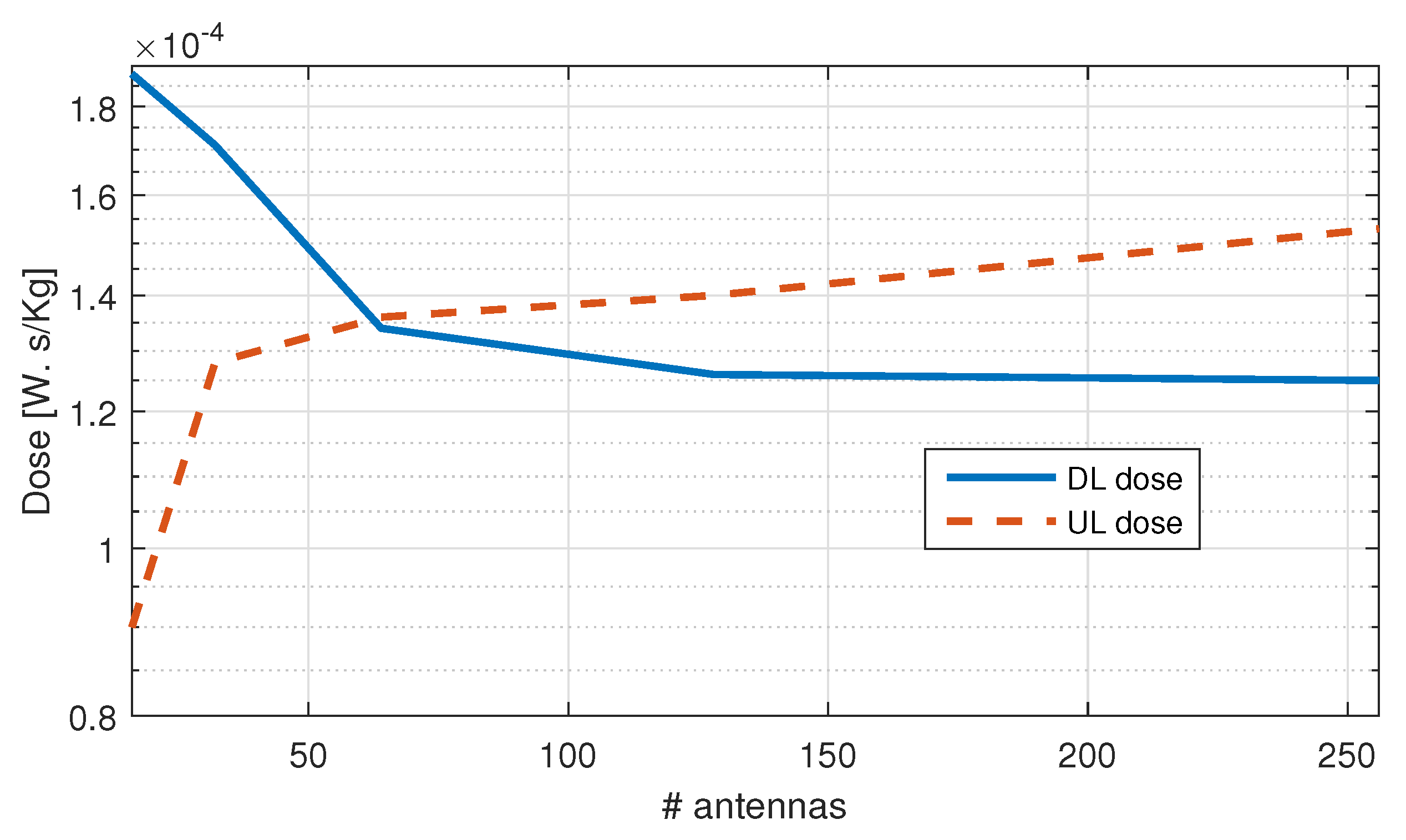

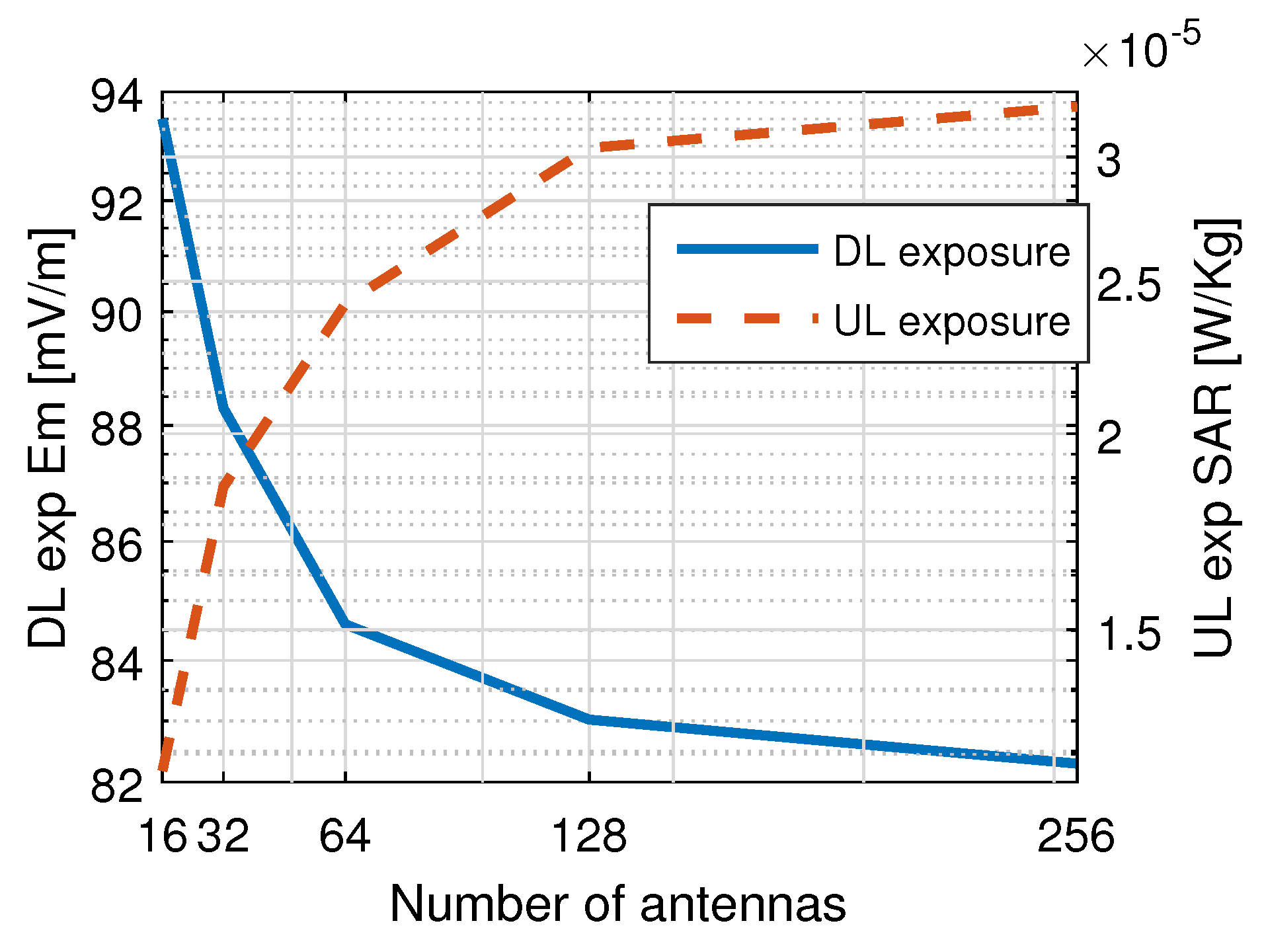

Figure 8 shows that when an equal importance is given to the tri-objective optimization problem (power consumption, DL exposure and UL exposure), the increase of the number of BS antenna elements leads to a decrease of the number of BSs deployed in the network (from 48 to 36 BSs, when the antenna elements is increased from 16 to 256, Table 3). This increase of antenna elements at the BS yields to lower power level at each antenna element, as the total radiated power of BS is spread among these multiple antenna elements. Despite this low per-antenna output power level which would have required more BSs with smaller cells’ range, the massive MIMO BS benefits from the additional beamforming (BF) gain that helps extend the range of the cells. The BF gain is defined as $10·{\log }_{10}(A$). This results into the deployment of fewer number of BS in the network, which lowers the DL exposure and augments of the UL exposure.

The DL exposure decreases by 12% (from 93.5 (mV/m) with 48 BSs to 82.3 (mV/m) with 36 BSs) when the number of BS antenna elements vary from 16 to 256 respectively (Table 3). This is explained by the low transmit power of the antenna elements used at the BS and the fewer BSs needed to provide the coverage to the users (in Table 3, with 256 antenna elements, 25% less BSs are needed in comparison with the scenario with 16 antenna elements). However, the increase of the UL exposure is related to the fact that the number of BSs deployed in the area of interest decreases with the number of antenna elements until it reaches an optimal value (with 256 antenna elements) requiring the user to transmit with high powers.

The same behavior can be observed when the DL and UL exposure effects are combined into a single metric in terms of dose (Figure 9). The increase of the number of antenna elements leads to a 32% reduction of the DL dose (from $1.88\times {10}^{-4}$ with 16 antenna elements to $1.28\times {10}^{-4}\left(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}\right)$ with 256 antenna elements, Table 4) given the low input power per antenna element. As the coverage improves with the beamforming gain, the more antenna elements the BS is equipped with the fewer number of BSs the network requires to provide a good coverage to the users who will have to adjust their transmit power accordingly to maintain a good radio link with the BS. This results into a 70% increase of the UL dose: from $0.9\times {10}^{-4}\left(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}\right)$ with 16 antenna elements to $1.53\times {10}^{-4}\left(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}\right)$ with 256 antennas (see Table 4).

The above results, summarized in Table 3 and Table 4, have been obtained with an approach to solve multi-objective optimization problem that assigns the same weight or importance to each objective for a simultaneous optimization in order to assess the influence of both the number of users and BS antenna elements. To this regards, the values of the individual fitness functions ($f_1,f_{2}and{f}_3$ for the tri-objective optimization and $f_1^{{}^{\prime }}and{f}_2^{{}^{\prime }}$ for the bi-objective one) have been evaluated and reported on the tables as well. It can be observed that, under the assumption of equal importance of the objective functions, $f_{2}and{f}_3$ are higher compared to $f_1$, meaning that the DL exposure ($\mathrm{E}$-field) and the uplink exposure ($\mathrm{UL}\mathrm{SAR}$) have a large impact on the optimization since more BSs with low input power are needed to obtain low levels of EMF exposure.

4.2.3. Pareto Front Analysis

Here, the scenario 3 is investigated. We focus on the bi-objective optimization problem (P2) for which we would like to estimate the best compromised solution among many others, that satisfy to the low power consumption, low EMF exposure and maximal user’s coverage requirements. Given the convexity of the optimization problem, we rely on the Pareto analysis using the weighted sum method. The following combinations of ${\omega }_{1,2}$ and ${\omega }_{2,2}$ has been used. First, we vary ${\omega }_{1,2}$ from 0.1 to 0.9 in steps of 0.1 and derive the corresponding ${\omega }_{2,2}$ = 1 − ${\omega }_{1,2}$. Then, ${\omega }_{2,2}$ is varied from 0.1 to 0.9 in steps of 0.1 and derive ${\omega }_{1,2}$ = 1 − ${\omega }_{2,2}$. For each combination (${\omega }_{1,2}$, ${\omega }_{2,2}$), we run 40 simulations using the parameters described in scenario 3 and evaluate the power consumption and the total dose due to the network designed. All these points are plotted (Figure 10) and the Pareto optimal concept is used to analyze the solution approaches which provide the best compromises between the constraints. Figure 10 shows that the most critical trade-offs are obtained between 1.2 kW and 2.1 kW, corresponding to a solution with 48 32-antenna BSs (${\omega }_{1,2}=0.2;{\omega }_{2,2}=0.8$) and a total dose of $1.54\times {10}^{-4}$ ($\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}$) and a solution with 37 64-antenna BSs (${\omega }_{1,2}=0.3;{\omega }_{2,2}=0.7$) and a total dose of $1.25\times {10}^{-4}$ ($\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}$), respectively. Within that interval, we obtain lower dose and lower power consumption simultaneously with 32 or 64 BS antenna elements. At lower power consumption (1.2 kW), a 39% reduction of the total dose is achieved, from $2.56\times {10}^{-4}$ ($\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}$) obtained with a 16-antenna BS (${\omega }_{1,2}=0.1;{\omega }_{2,2}=0.9$) to $1.54\times {10}^{-4}(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}$) obtained with a 32-antenna BS. However, the solution with higher power consumption and lower value of total dose (39 BSs, 3.5 (kW) and $1.043\times {10}^{-4}$ ($\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}$) (with ${\omega }_{1,2}=0.4$ and ${\omega }_{2,2}=0.6$) is achieved with BSs equipped with 128 antenna elements and provides better user coverage (96% vs. 94%), compared to the most critical trade-offs described above. Since, the objective functions considered here (the power consumption and the total dose) are conflicting, there may be many solutions that satisfy the constraints of low power requirements, low DL and UL EMF exposure.

4.2.4. Comparison with 4G LTE Reference Network

In this section, we compare the levels of EMF exposure due to a 4G LTE BS and a massive MIMO 5G one in terms of the electric field. A 4G LTE BS is equipped with a three sector antennas each transmitting at 43 dBm, with 10 dBi gain. The massive MIMO 5G BS antennas consist of multiple antenna elements with a total input power of 43 dBm. Each antenna element has 0 dBi gain. For a fair comparison, we optimize the power levels of the antennas and the positions of the BSs for both technologies.

The comparison between the cumulative distribution function (CDF) of the 5G downlink EMF exposure in terms of DL electric fields obtained with scenario 2 based on the tri-objective optimization and the CDF of the 4G reference scenario (optimized for exposure as well) is presented in Figure 11.

The latter shows that the DL EMF exposure level of the massive MIMO 5G network is always lower than the 4G one at the same probability. The 4G DL EMF exposure is 5 times higher compared to the DL EMF exposure of the massive MIMO 5G network (389.45 mV/m for the 4G reference network versus 82.8 mV/m for the 5G network, Table 3). This is mainly due to the fact that the 4G BS transmit all the times at maximum optimized power, while in massive MIMO 5G networks, the BS transmit power is lower due to the multiple antennas that are equipped. This reduces the power per antenna element. Moreover, the use of the TDD and spatial duty cycles significantly reduces the BS transmit power. This power reduction at the BS level is compensated by the beamforming gain to help maintain an acceptable radio link with the users. Furthermore, both the 4G (389.5 mV/m) and 5G DL (82.8 mV/m) level of EMF exposure still remains significantly lower than the limits imposed the ICNIRP guidelines (61 V/m [29]). This has been achieved thanks to the control of the power levels and the placements of the BSs.

5. Conclusions

In this study, we propose a joint optimization of a multi-cell massive MIMO network towards three objectives: the power consumption, the DL EMF exposure and the UL EMF exposure. Both the DL and UL EMF exposure have been addressed differently. In a first step, the DL and UL EMF exposure are studied separately (E-field for the DL exposure and SAR for the UL exposure), while in a second step, the two objectives are jointly expressed in terms of the dose metric. Assuming the optimization objectives equally important, the results of the simulations show that the DL EMF exposure is more impacted (+174% and +507% for E and DL dose, respectively) by the variation of the number of users than the UL EMF exposure (+5% and +1.3% for the $SAR$ and UL dose, respectively). Also, for the first time, it has been shown that the increase of the number of BS antennas elements contributes to a 12% reduction of the DL EMF exposure, at the expense of a higher UL EMF exposure (70% increase of the UL dose). Furthermore, using Pareto front analysis, we show that the optimal network required to serve 224 users, with a better trade-off of the power consumption and the total dose, is obtained with 37 64-antenna BSs for a power consumption of 2.2 kW and a total dose of $1.54\times {10}^{-4}\left(\frac{\mathrm{W}·\mathrm{s}}{\mathrm{Kg}}\right)$. Finally, the massive MIMO networks achieve the same performance in terms of user coverage with a DL exposure 5 times lower, compared to the 4G reference network. Experiments remain the future focus of this research to validate the results in a realistic environment.
