1. Introduction
Lightweight timber floors are attracting considerable interest in developing countries because of their advantages in terms of sustainability and construction speed. Among the different structural systems in buildings, floors are the only part with which human occupants are in constant physical contact. Therefore, this construction component could become a common source of complaints from the users, generated by the deflections and excessive vertical vibration of the floors while walking on them [
1]. This issue, which is becoming more recurrent in diverse construction contexts, has generated a sustained increase in experimental research associated with the dynamic serviceability of timber floors [
2].
Damping is one of the most influential factors in the human perception of transient vibration in a timber floor system [
1]. This is because damping is an intrinsic property of structural systems that influences oscillation amplitudes and the rate of decay under forced and free vibrations, respectively [
1]. Therefore, knowing the level of damping of a timber floor is an essential aspect for structural designers since vibrations tend to be more tolerable in floors that have higher damping [
3].
On timber floors, damping comes from two primary sources: the material damping (due to the internal wood anatomy and its defects, such as knots and internal cracks) and structural damping (due to friction in the structural joints and friction between structural and non-structural elements) [
3].Under human walking operational conditions, damping can be generated due to the combined effect of different small sources of non-linearity, such as joint friction, interaction between structural and non-structural elements, and the effect of the floor content. Hence, operational damping is not only generated by the intrinsic modal damping of the structure, but also because of all these other energy dissipation mechanisms. In terms of the structural performance, operational damping is more interesting to analyze than intrinsic modal damping, because this is the effect perceived by people.
From the above, it can be deduced that it is not realistic to define a single damping value that is representative of all timber floors. Therefore, each type of construction must be analyzed separately, since any difference in the construction technique or even in the workforce quality could generate different levels of damping [
3].
Several studies have been published on damping ratio estimations for different kinds of timber floors constructed in laboratory-controlled conditions. Firstly, investigations focused on studying timber floors that allowed span lengths between 3 m and 5 m to be reached. The floors were generally built with glulam beams [
3], an I-joist [
4], and a metal web joist [
5,
6], nailed, screwed, or glued to particleboard or plywood flooring. The damping ratios obtained in these floors had values from 0.82% to 4.78% for the first resonant mode. Subsequently, research focused on studying timber floors that could reach greater span lengths, between 6 m and 8 m. In this way, studies were carried out on timber floors built with laminated veneer lumber beams (LVL) [
7], and cross-laminated timber (CLT)-concrete composite slabs [
8]. Damping ratios between 0.52% and 1.29% for the first resonant mode were found for these floors. Most of the investigations mentioned above considered idealized support conditions for the floors and did not take into account the interaction with typical in-situ non-structural elements, such as ceilings on the floor’s underside and partition walls.
On the other hand, in the last decade, only a few studies have focused on damping ratio estimations for in-situ timber floors. Initially, some researchers analyzed the damping ratios for traditional timber floors in the context of elementary schools [
9] and multi-family buildings [
10]. These floors generally had a main resistant structure composed of a series of engineered timber beams up to 12 m in length (I-joist, web-joist), oriented strand board (OSB) or plywood boards nailed or screwed on their upper edge to receive concrete topping, and gypsum boards at their bottom edge to increase fire resistance. The damping ratios obtained for the first resonant mode varied between 0.47% and 9.10%. Subsequently, with the rise of industrialized construction, other researchers concentrated on studying the damping ratios of prefabricated timber floors for eight-story timber frame residential buildings [
11] and five-story multi-family apartment buildings [
12]. These floors generally had a main resistant structure composed of CLT slab panels and glulam beams, which often interacted with sophisticated ceiling systems and lightweight partition walls. The damping ratios obtained for the first resonant mode varied between 3.40% and 8.00%.
Previous work has tended to focus on damping ratio estimations for high-quality timber floors that were constructed in developed countries. The aim of our work is to expand current knowledge on timber floors’ damping to lightweight timber floors that are typical in Latin American social housing for low-income families. To the best of the authors’ knowledge, no systematic investigation on the damping mechanisms that are activated under human-walking operational conditions has been previously presented in a timber floor context, where softwood species, low-depth timber joists, and unskilled labor are usually used. Such an investigation is presented herein. Generally, this kind of timber floor has a poor vibration performance, which is reflected in the adverse results of satisfaction surveys distributed to users by government institutions. In this context, we focused on the experimental estimation of damping ratios in both laboratory and in-situ timber floors. Different floor spans, support details, types of non-structural elements, and human walking conditions were considered. All the floors were instrumented with accelerometers, and subsequently, operational modal analysis techniques were applied. Finally, some conclusions about the influence of damping ratio levels on the floor vibration performance were made. With the experimental results of this research, it is hoped that this study can contribute to the future calibration of simplified formulas for the vibratory design of these low-cost timber floors, which correlate more complex parameters (frequencies, damping, vibration dose value) with simpler ones (vertical displacements, velocities, or accelerations due to point loads).
2. Materials and Methods
In Chile, timber social housing has substantial budget restrictions. Generally, these are two-storey single-family houses with a total area of up to 60 square meters. The floor systems are characterized by 41 mm × 138 mm C24 [
13] radiata pine joists, spaced 410 mm at the center, with span lengths between 2.1 m and 3.1 m. Usually, the joists are laterally restrained by 41 mm × 138 mm radiata pine elements (hereafter “blocking”), spaced between 410 mm and 1220 mm. The deck is formed with 15 mm thick plywood boards, and the ceiling consists of 10 mm thick gypsum boards. The ceiling support consists of 41 mm × 41 mm radiata pine battens spaced at 400 mm, which in turn are connected to the timber joists. All the connections between components are nailed or screwed and spaced up to 300 mm at the center. The main nominal properties of these components [

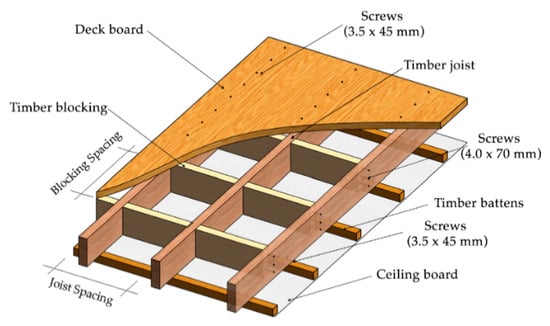

13] and their construction details are shown in
Table 1 and
Figure 1, respectively.
The experimental plan of this work was divided into two stages. In the first stage, timber floors built in a laboratory under well-controlled conditions were studied, for analyzing different span lengths and support connections. Then, a second stage focused on studying in-situ floors was carried out, to consider real support conditions and the effect of non-structural components.
2.1. Laboratory Tests
Eight timber floors with four different span lengths (3 m, 2.7 m, 2.4 m, and 2.1 m), and two kinds of wall-to-joist connections (wood-based and steel-based), were built in laboratory-controlled conditions. The span lengths were selected in order to represent the typical ranges present in social housing and to study the effect of the vibration amplitude on the floor damping ratios. Meanwhile, the two types of wall-to-joist connections were chosen for analyzing the influence of different energy dissipation conditions due to support friction on the floor’s vibration performance. All the floors were simply-supported on four sides, and none of them had additional non-structural elements, such as partition walls or ceiling sheathings. Temperature and relative humidity were not explicitly controlled, but were according to standard indoor spring seasonal conditions, i.e., 18 °C and 65%, respectively.

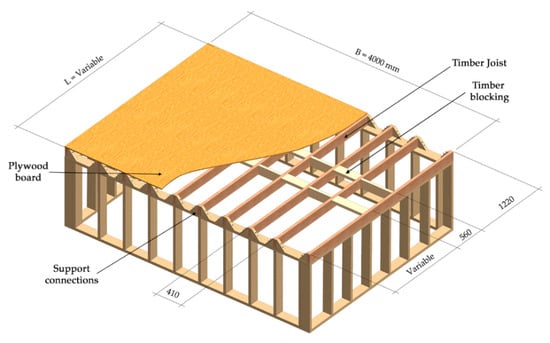

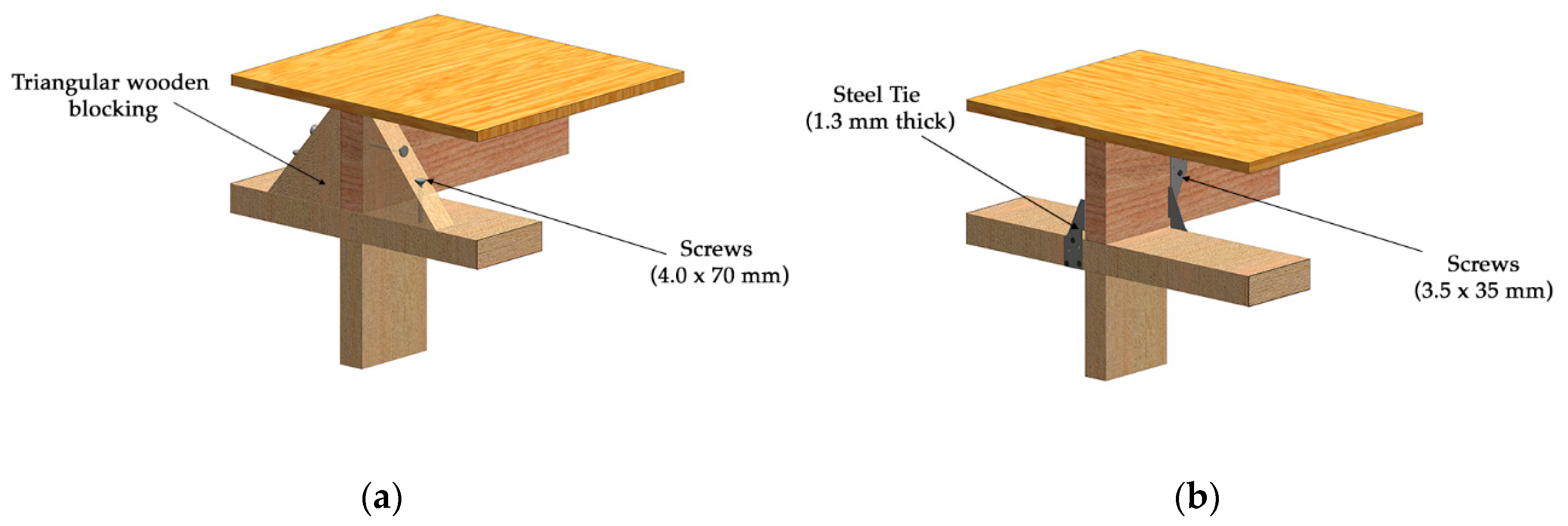

Figure 2 and
Figure 3 and
Table 2 show the construction details of the laboratory floors tested.

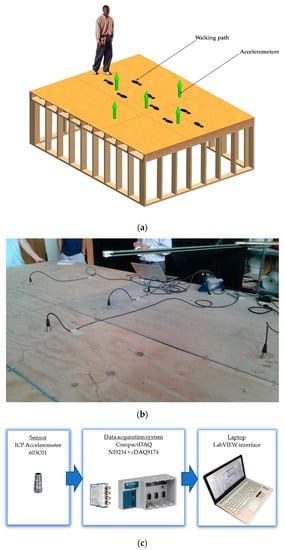

As a vibration source, a set of 36 short-duration walks were performed on each floor considering the different body masses of the walkers (between 56 kg and 87 kg) and step frequencies (between 1.4 Hz and 2.2 Hz). A portable metronome helped to synchronize the step frequencies and to generate a more representative set of walks. Vertical accelerations were recorded for the walking tests through five uniaxial accelerometers screwed to the top surface of the floors. The sensors were evenly spaced and located at the center lines of the timber floors (i.e., 1/4th, 2/4th, and 3/4th of both span length and floor width). Integrated circuit piezoelectric (ICP) accelerometers (model 603C01) were used, having a sensitivity of 100 mV/g. Accelerometer data acquisition was conducted through a multi-channel dynamic signal acquisition module (model NI 9234) gathered into a Compact DAQ chassis (model cDAQ-9174) and linked via USB to a laptop. For all tests, the sampling rate was set to 1652 Hz. The typical walking paths, accelerometer locations, and instrumentation setup are shown in
Figure 4.
In general, this study was looking for a methodology that would also allow field evaluations with a minimum number of sensors and the time for installing sensors and recording data to be optimized, especially in the case of in-situ tests performed in houses occupied by families. In all cases, we selected measuring points avoiding modal nodes to capture the highest possible number of vibration modes. Having all the above in mind, we used the recommendations given by [
14] in order to perform successful operational modal testing and analysis.
2.2. In-Situ Tests
In this stage, timber floors of two kinds of houses were studied. All the floors were wood-based, supported on their four sides, and had some partition walls on their upper face and a ceiling on their lower face. One timber floor had a maximum span length of 2.4 m (henceforth named Field-2.4-W), and the other 3.1 m (hereafter Field-3.1-W).

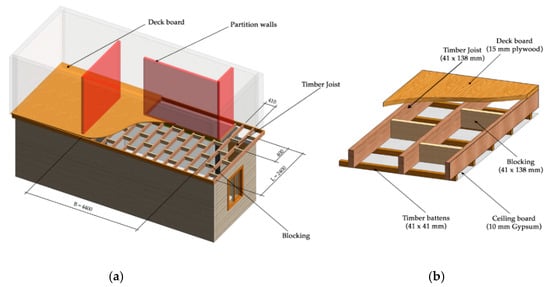

Figure 5 and
Figure 6 and

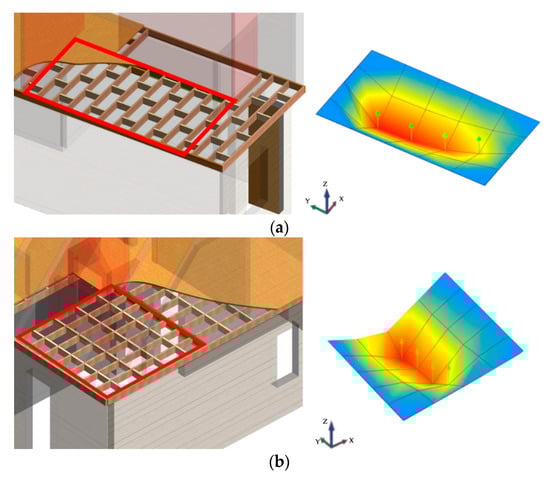

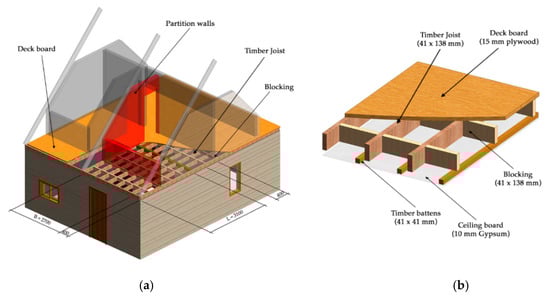

Table 3 present the construction details of the in-situ timber floors tested. The vibration source, accelerometer models, and signal acquisition details were similar to those used on the laboratory timber floors. However, due to space restrictions in the houses, only four accelerometers were used, which were evenly spaced and located along a line that passed through the center of the joists (

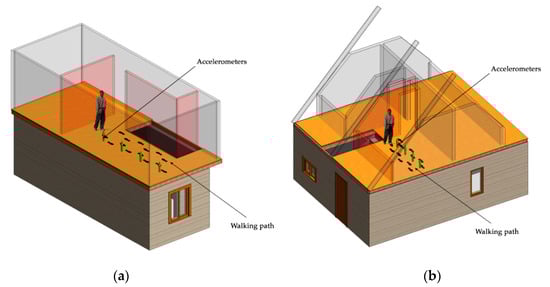

Figure 7).
2.3. Operational Modal Analysis and Damping Ratio Estimations
Operational Modal Analysis (OMA) is an engineering field that aims to identify the modal properties (modal frequencies, damping, and shapes) of dynamic systems based only on vibration response measurements. OMA provides a series of useful methods that can be classified as parametric and nonparametric. Usually, the parametric methods exhibit a better performance than the nonparametric methods. However, they use procedures that are more complex and computationally demanding. On the other hand, nonparametric methods are faster and easier to use in field tests, since they allow a quick view about the effectiveness of the measurements and the results of dynamic identification [
15]. Therefore, it is always convenient to use these two types of methods when trying to identify modal properties as challenging as the damping ratios.
In this study, only the frequency and damping ratio associated with the first resonant mode of the floors was estimated. This decision was based on the results obtained in previous theoretical studies, where a series of timber floors were modeled using the finite element method [
16]. For most of the numerical models of the floors, it was found that the first resonant mode had an effective modal mass equivalent to 60% of the total mass. In contrast, the rest of the modes had effective modal masses less than 10% of the total floor mass. In this way, it was estimated that the first resonant mode of the floors would have a significant influence on their vibratory performance.
Enhanced Frequency Domain Decomposition (EFDD) [
17,
18] and Stochastic Subspace Identification (SSI) [
19,
20] were selected as OMA techniques because they are widely used for modal parameter identification and are based on frequency domain (nonparametric) and time domain (parametric) approaches, respectively. The software package ARTeMIS Modal Pro [

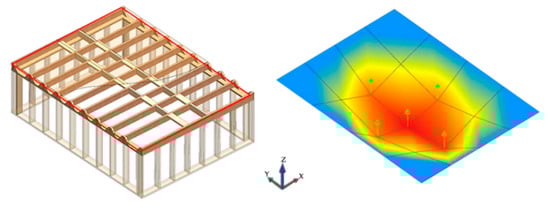

21] was used to determine modal frequencies, damping ratios, and shapes of the timber floors under operational-walking conditions for both EFDD and SSI methods.
EFDD is a method based on the singular value decomposition (SVD) of the power spectral density (PSD) matrix and allows the identification of even closely spaced modes. This approach uses four main steps in order to estimate the damping ratio, as is illustrated in

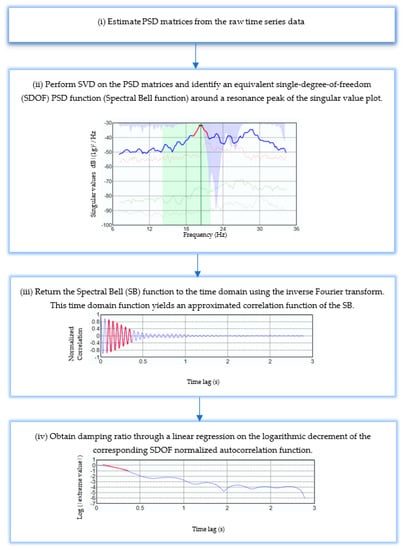

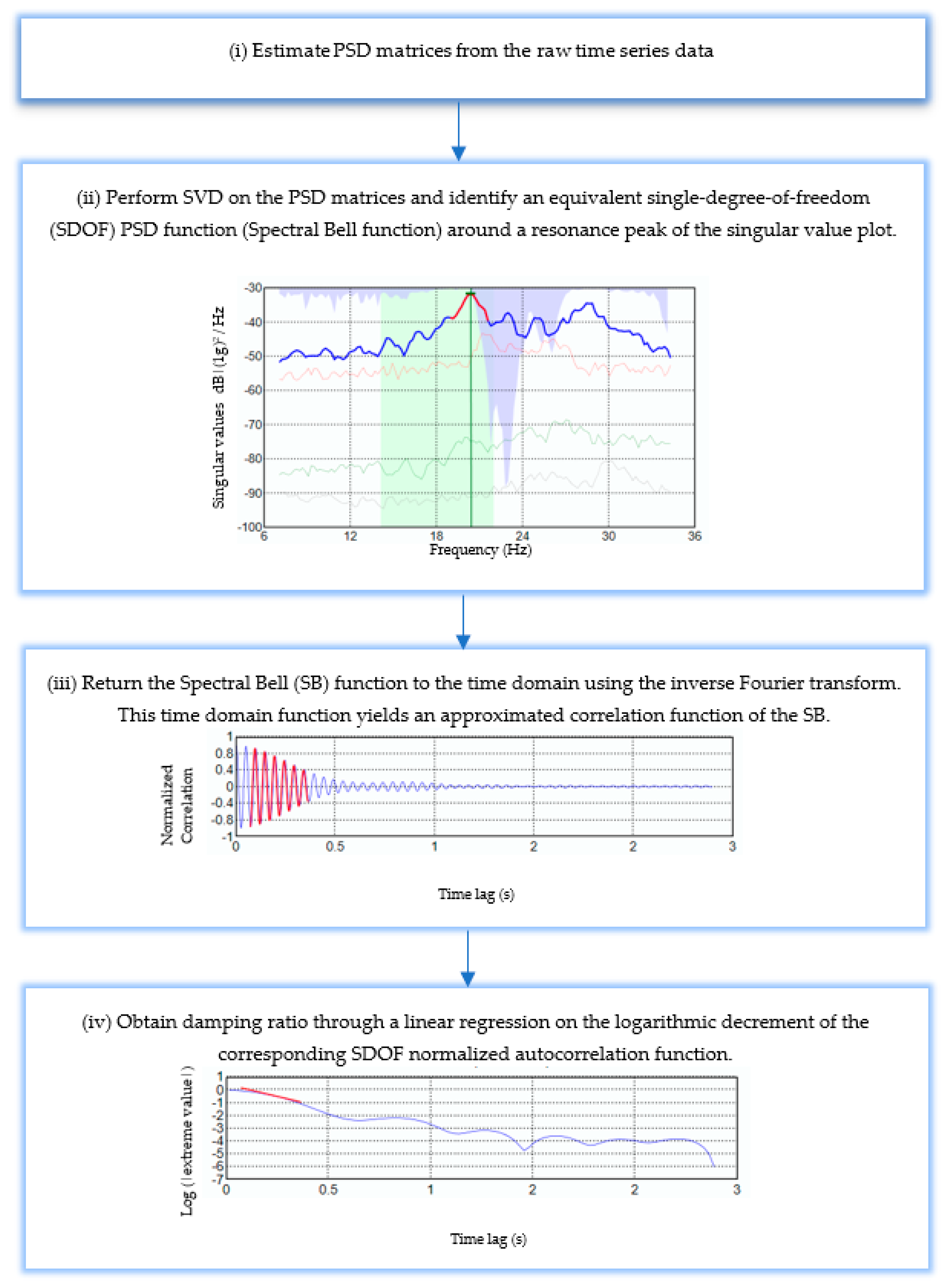

Figure 8.
Rainieri et al. [

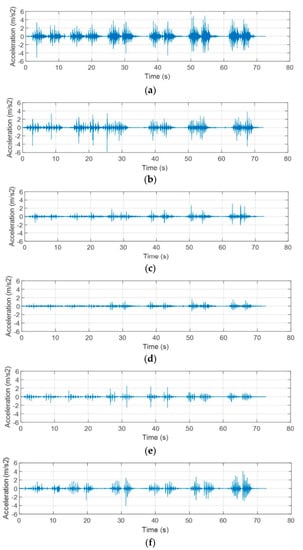

22] have suggested some basic test and data processing rules in order to obtain reliable damping ratio estimations with the EFDD method. Firstly, a total record length equal to 1000–2000 times the first natural structural period is usually recommended. This record’s lengths are needed to keep the PSD estimation errors low. According to some preliminary numerical simulations, it was estimated that the most flexible tested floors would have fundamental vibration periods of approximately 0.06 s. Therefore, it was decided that consecutive round-trip walks on the floors that had a total duration of at least 72 s would be conducted. In this way, it was possible to comply with the suggestions of the length records. Secondly, considerable attention must be paid when a frequency resolution is selected. Because the damping estimates improve with the frequency resolution [
22], its value was set to 0.101 Hz. This resolution was adequate with respect to the values of resonant frequencies and the modal density found for the timber floors. More details of the EFDD method can be found in [
15].
On the other hand, SSI is a method in which a parametric model is directly fitted to raw time series data. The purpose of parametric model estimation is to determine a model with a reasonable number of parameters (model order) such that both dynamic and statistical behavior can be correctly represented.
SSI is based on a state-space description of the differential equation of motion, converting the second-order problem into two first-order problems. Therefore, the new problem is defined by the so-called state equation and observation equation. These equations have system matrices (that contain physical and response information) and vectors (related to the statistical information on the input forces). In the context of walking-induced forces, timber floors are excited by non-measurable inputs; consequently, the measured system response is generated by assuming two stochastic white-noise processes related to the model and sensor. According to [
14], mobile loads produced by many people randomly walking on a floor at the same time can be classified as multiple-input loads, which are an excellent alternative to meet the assumptions of white noise for excitations. The walking paths shown in
Figure 4a and
Figure 7 are not exactly random excitation, but they are suitable for satisfying the white noise excitation assumption in the context of fast in-situ testing. Once the system matrices have been estimated, the modal parameters, such as frequencies, modal shapes, and damping ratios, can be extracted. In general, in the SSI method, it is not possible to determine the model order (dimension “n”) beforehand. Therefore, it is necessary to repeat the analysis with different model orders and verify the repeatability of the results. This procedure is performed by constructing stabilization charts. An SSI data-driven Unweight Principal Component algorithm (SSI-UPC) was selected to extract the damping ratios. This procedure has eight main steps, as is illustrated in

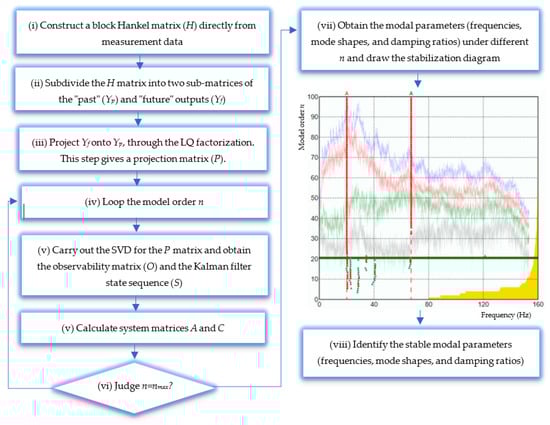

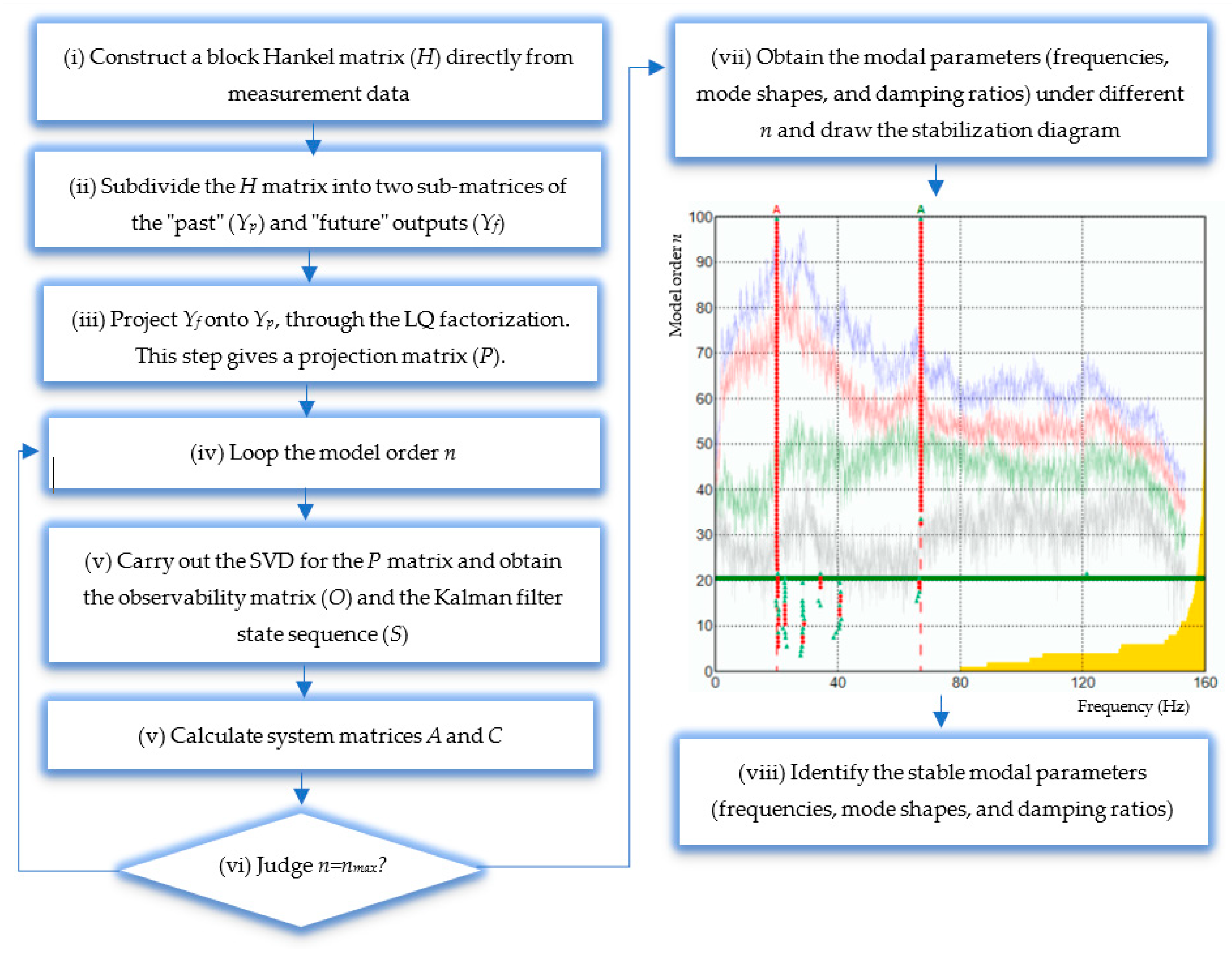

Figure 9. More details of the SSI method can be found in [
15].
2.4. Floor Vibration Serviceability Parameter
For evaluating the dynamic vibratory performance of a floor, it is necessary to calculate some reference parameters that can be compared with acceptance criteria established in regulations. In order to study the influence of the damping ratios on the floors’ dynamic serviceability, the vibration dose value (VDV) was selected. VDV is a time-accumulated vibration parameter that correlates well with the subjective perception of people exposed to vibrations. The physical meaning for this is based on two aspects: (i) VDV uses the fourth power of accelerations because people are sensitive to the maximum acceleration intensity, and (ii) VDV measures accumulated vibrations, instead of averaging it, because people feel more discomfort when they are exposed to long-duration vibrations. For these reasons, the VDV parameter has been recommended by relevant international regulations [
23,
24] and is currently being used by researchers to evaluate the vibration performance of wooden floors [
10]. Its mathematical expression is given by the fourth root of the time integral of the fourth power of the acceleration after it has been frequency weighted (
aw). When the vibration conditions are constant or repeated regularly, only one representative sample, of duration τ in seconds, needs to be measured (Equation (1)). The acceleration must be weighted, as how people perceive building vibrations depends on various factors, including the vibration frequency and direction. For vertical accelerations, the weighting curve modulus demonstrates the maximum sensibility in the frequency range from 4 Hz to 12.5 Hz.
On the other hand, it is necessary to extend the effect of an intermittent vibration of a short duration to a daytime of 16 h [
24]. According to [
25], in residential buildings, quiet scenarios of people walking are generally expected, so a regular short-duration event of vibration induced by walking should occur every 15 min, that is, 32 times in 16 h. Therefore, the VDV associated with a 16 h daytime can be expressed as shown in Equation (2):
where
VDVday is the vibration dose value for 16 h daytime exposure (in m∙s
−1.75), and N is the number of times an intermittent vibration of t seconds of duration occurs in 16 h.
Finally, the
VDVday obtained from the measurements must be compared with the vibratory performance criteria recommended by [

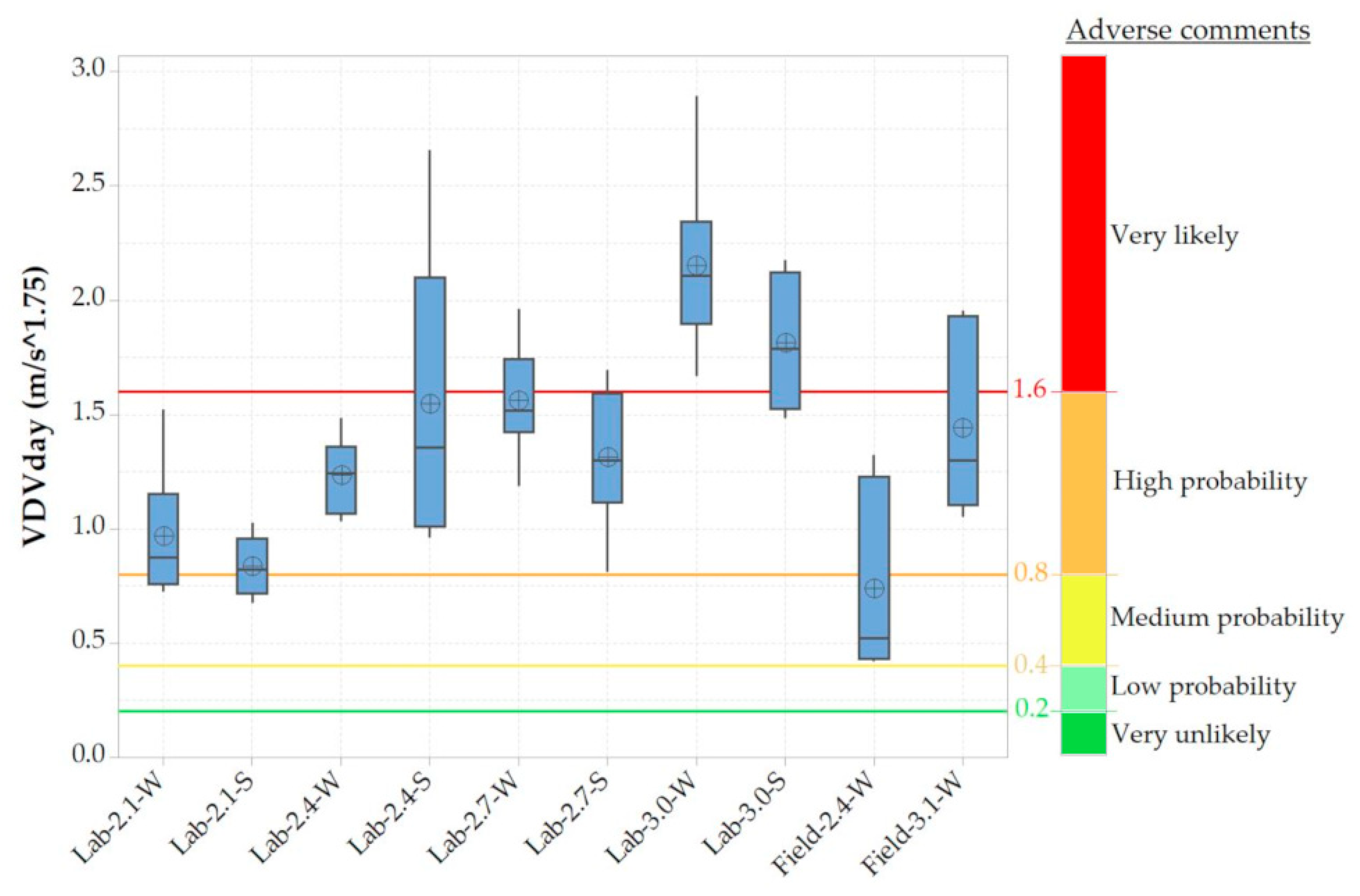

24]. The judgment made is of the probability that the determined vibration dose might result in an adverse comment by those who experienced it (
Table 4).
4. Conclusions
This paper has highlighted the importance of the damping ratio in the dynamic serviceability of lightweight timber floors that are typical in social housing projects, under human-walking excitations. The experimental campaign revealed ranges of values for damping ratios for both floors built in the laboratory and existing homes. The different dimensions and constructive details of the floors, together with the two operational modal analysis methods used for estimating the damping ratios, have allowed the current knowledge about this research topic to be extended.

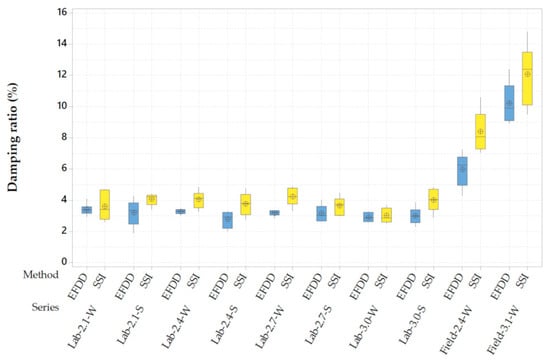

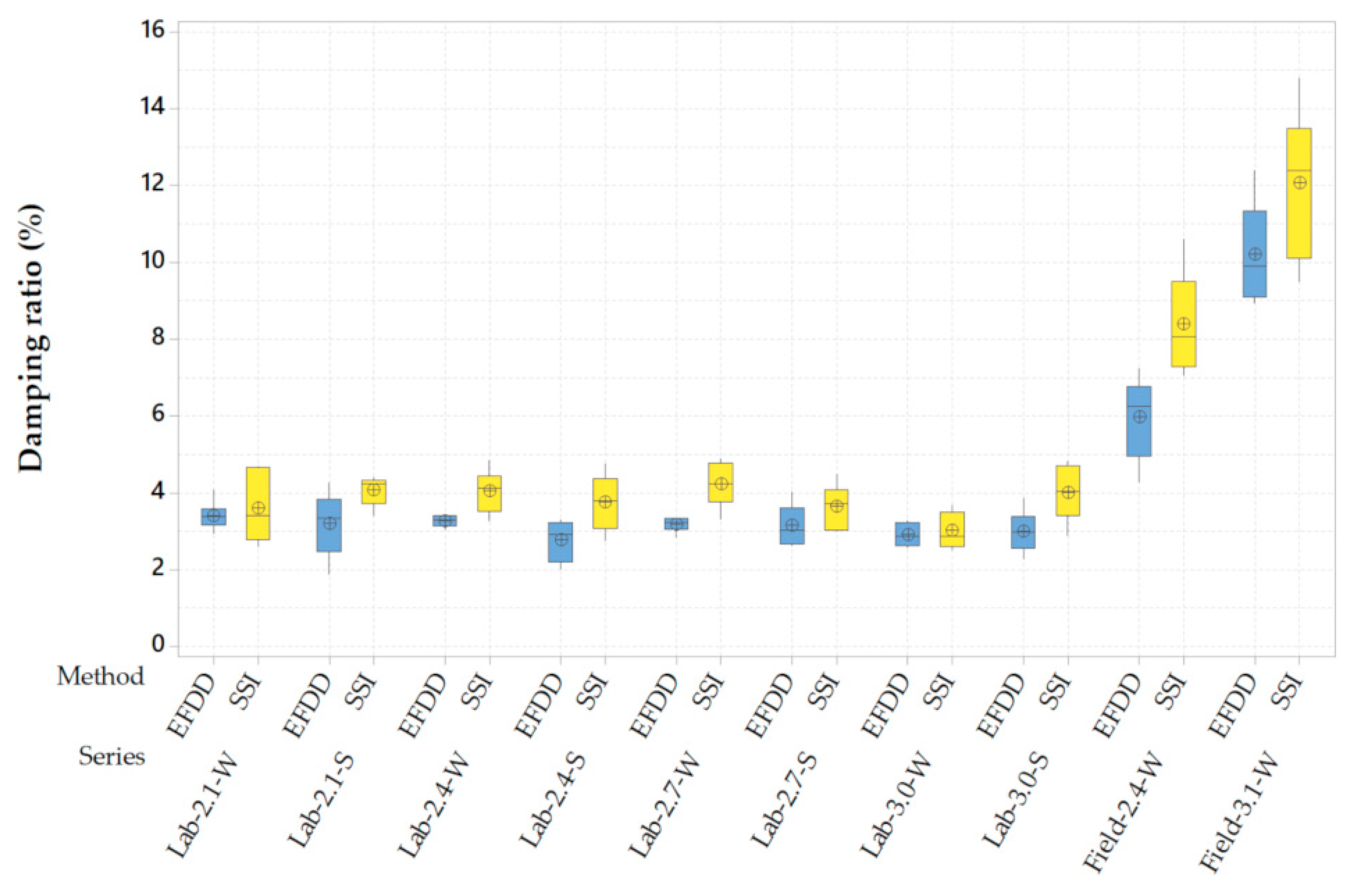

For the floors constructed in the laboratory, damping ratios were obtained in the range of 1.9% to 4.9%. In general, there were few statistically significant differences between the laboratory floors with different span lengths and types of support. Only the 3 m long floor with wood-based supports (Lab-3.1-W) had significantly lower values of damping ratios and a worse vibration performance, so its use in social housing projects is not recommended.
For the floors evaluated in-situ, damping ratios were obtained in the range of 4.3% to 14.8%, presenting values between 2 and 3 times greater than those of the laboratory floors. The reason for these increases in damping was mainly due to the presence of non-structural elements, such as a ceiling and partition walls. This favorable effect of the non-structural elements in the damping ratio confirms what was indicated by other researchers.
Concerning the methods used to calculate the damping ratio from experimental tests, the importance of using at least one that works in the frequency domain and another in the time domain is confirmed. On average, the SSI-UPC method obtained damping values that were 1.24 times higher than those of the EFDD method. Besides, the combined use of both methods provides further reliability to the results and detects tendencies that are challenging to find with a single method.
Damping ratios higher than those indicated in other studies were obtained for both the floors built in the laboratory and those evaluated in-situ. These results show that the amplitudes of vibrations induced by walking are larger and activate more energy dissipation mechanisms in the floors than the ambient vibration or low-energy impact tests used by other researchers. However, these increases in the damping ratios were not only due to the activation of new energy dissipation mechanisms, but also due to the human-structure interaction that occurred during the walks. Therefore, it is desirable to carry out new numerical investigations to quantify the contributions of the different physical phenomena to the total damping of the timber floors.
Finally, the positive influence of the damping ratio on the vibration performance of the floors was identified. For floors with similar vibration frequencies, it was observed that those with 2.1 times larger damping ratios had VDVday values that were up to 48% lower. These results allowed some floors to move from unacceptable vibration levels for users to others where it is possible that users generate adverse comments, but within a tolerable range of vibrations.
