1. Introduction
Clean energy resources such as renewable energy sources and flexible demand have been introduced into power systems in order to establish an environment-friendly society [
1,
2,
3,
4]. Wind energy, a kind of clean energy, has experienced rapid development in recent years to aid lowering of greenhouse gas emission [
5,
6]. However, wind farms cannot provide a steady power capacity, restricting the current power system from transitioning to one with high penetration of wind energy [
7]. The reason lies in the uncertain and intermittent nature of this resource. Therefore, in order to identify proper power planning schemes and reliably satisfy load demands, we need to estimate the contribution of uncertain wind energy to power systems.
Conventionally, the contribution of wind energy is quantified by CC, which is also called capacity value in some literature [
8]. CC can be defined as the additional amount of load the system can support after the integration of wind energy (or other power resource to be evaluated), with the reliability level unchanged [
9]. The calculation of CC is usually performed by the secant method, which is a relatively mature and steady algorithm [
10,
11]. Hence, the precision of the evaluation of CC depends mainly on two factors, i.e., the accuracy of the system reliability assessment and the wind speed model of uncertainty. The wind speed model is used to provide large numbers of stochastic scenarios for the assessment.
Traditional ways of modeling the marginal probability density function (PDF) of wind speed can be categorized into sequential or non-sequential methods.
In non-sequential models, the most commonly used paradigm is the Weibull distribution, which can be given by two parameters. The utilization of Weibull distribution was also reported in [
12,
13], which aimed at estimating wind energy resources, wind power forecasting, and so on. However, individual distribution, such as the Weibull and Rayleigh–Rice distributions, can hardly be suitable for capturing the characteristics of wind speed under various topographical and climatic conditions. Therefore, the focus of recent researchers has shifted to applying mixture distributions to fit the distribution of wind speed, among which the Gaussian mixture model (GMM) is typical. Ke, Chung and Sun in [
14] proposed a customized GMM to deal with the discontinuities of the PDF, based on which a novel probabilistic optimal power flow model was established. GMM was also combined with neural network to forecast short-term wind power generation in [
15].
The sequential models of wind speed are usually constructed by time series models. Morales, Mínguez and Conejo in [
16] employed an auto-regressive moving average (ARMA) process to model wind speed characteristics, which involves transformation of the historical data into normalized Gaussian time series before fitting the model. ARMA models have also been used for wind speed modeling in reliability studies of electrical power systems [
17]. Besides, auto-regressive integrated moving average (ARIMA) models are also reported to perform well in forecasting wind speed precisely [
18]. The time series models have also been combined with empirical mode decomposition (EMD) to deal with the high nonlinearity and instability of wind speed series in some researches [
19,
20].
Besides methods to model the marginal PDFs of wind speed, efforts have been made to construct the spatial dependence between wind speed and load at different sites to form an integral joint PDF. A prevailing methodology to cover the dependence is the copula theory. For example, Gaussian copula function was applied in [
21] to build a correlation structure using wind speed data available at the database of the National Oceanic and Atmospheric Administration. Xie, Li and Li in [
22] employed multivariate Archimedean copulas to model wind speed dependence, which performs better than Gaussian copula in modeling asymmetrical dependence structure [
23]. However, it was concluded in [
24] that the performance of multivariate Archimedean copulas deteriorates drastically if the number of wind and load sites increases. The deficiency cannot be overcome by simply using a mixture of multiple Archimedean copula functions.
Hence, researches on the pair copula method, which specializes in high dimension dependence construction, have been developing rapidly. The pair copula method is capable of representing a complex multivariate correlation structure as the product of multiple bivariate conditional copula functions, each of which can be chosen from any copula function family individually. The method greatly improves the flexibility and accuracy of the multivariate dependence modeling [
25]. In recent years, there have been researchers introducing the pair copula into the optimal planning and reliability assessment of power systems, whose graphical structure is called C-vine structure [
26,
27]. C-vine copulas are suitable for cases where there is a dominant variable among all the correlated random variables (RV). For instance, if the wind speed at one site is relatively highly related with the wind speed and load at all other sites, C-vine will exhibit satisfactory efficiency and precision.
Using the joint PDF of load and wind speed, we can evaluate the CC of wind energy based on the calculation of reliability indices. In the context of high reliability of power systems, various methods have been developed to accelerate the process of reliability assessment, among which the CE-IS method is a most popular one [
28,
29]. By combining CE-IS and the secant method, we can obtain a complete algorithm for CC evaluation.
However, there are drawbacks in this algorithm. Firstly, GMM fails to consider the higher-order statistics of the marginal PDFs, which may result in an excessive number of components. Secondly, C-vine copulas need the existence of a dominant RV. Otherwise, its performance declines greatly. Thirdly, the traditional CE-IS method assigns one RV to every conventional unit or wind turbine generator (WTG) to represent its working state, while too many RVs hinder the performance of CE-IS.

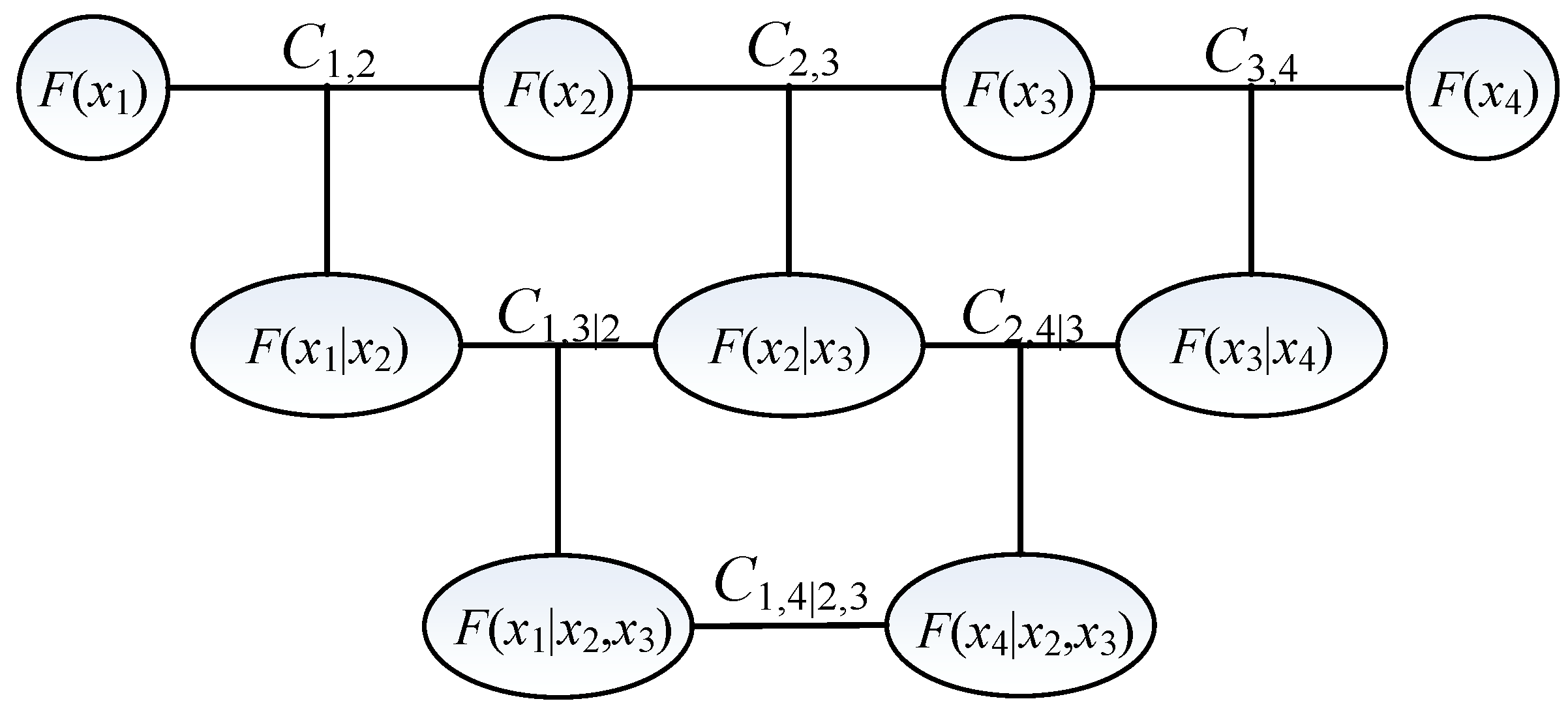

To solve the first and second problems, we develop a method of constructing a joint PDF by combining SNMM with D-vine copulas. SNMM owns superiority over GMM by considering higher-order statistics, which enables it to capture features of the PDFs with fewer components [
30]. D-vine copulas are introduced to link the marginal PDFs fitted by SNMM to form an integral joint PDF. The D-vine structure needs no dominant RV, and can thus be applied to more general situations [
31].
As for the drawback of CE-IS, we seek to improve it by offering a dimension reduction (DR) idea. The newly developed method is called DRCE-IS. The DR idea is implemented by using binomial and trinomial distributions to group two-state and three-state generators, which reduces discrete RVs. DRCE-IS is then designed to accommodate the two distributions to fulfil the speed-up of the power system reliability assessment.
On the basis of the SNMM, D-vine copulas and DRCE-IS, we can obtain reliability indices rapidly and precisely, offering necessary information for the secant method to further evaluate the CC of each wind farm.
The rest of the paper is organized as follows.
Section 2 details the process of SNMM for marginal PDF construction.
Section 3 describes the basic ideas of pair copulas and D-vine structure. In
Section 4, the DRCE-IS method is presented with SNMM and D-vine copulas integrated; the pre-simulation and main simulation stages are detailed.
Section 5 discusses the concept and procedures of the secant method. Numerical tests are performed and discussed in
Section 6. The conclusions are summarized in
Section 7.

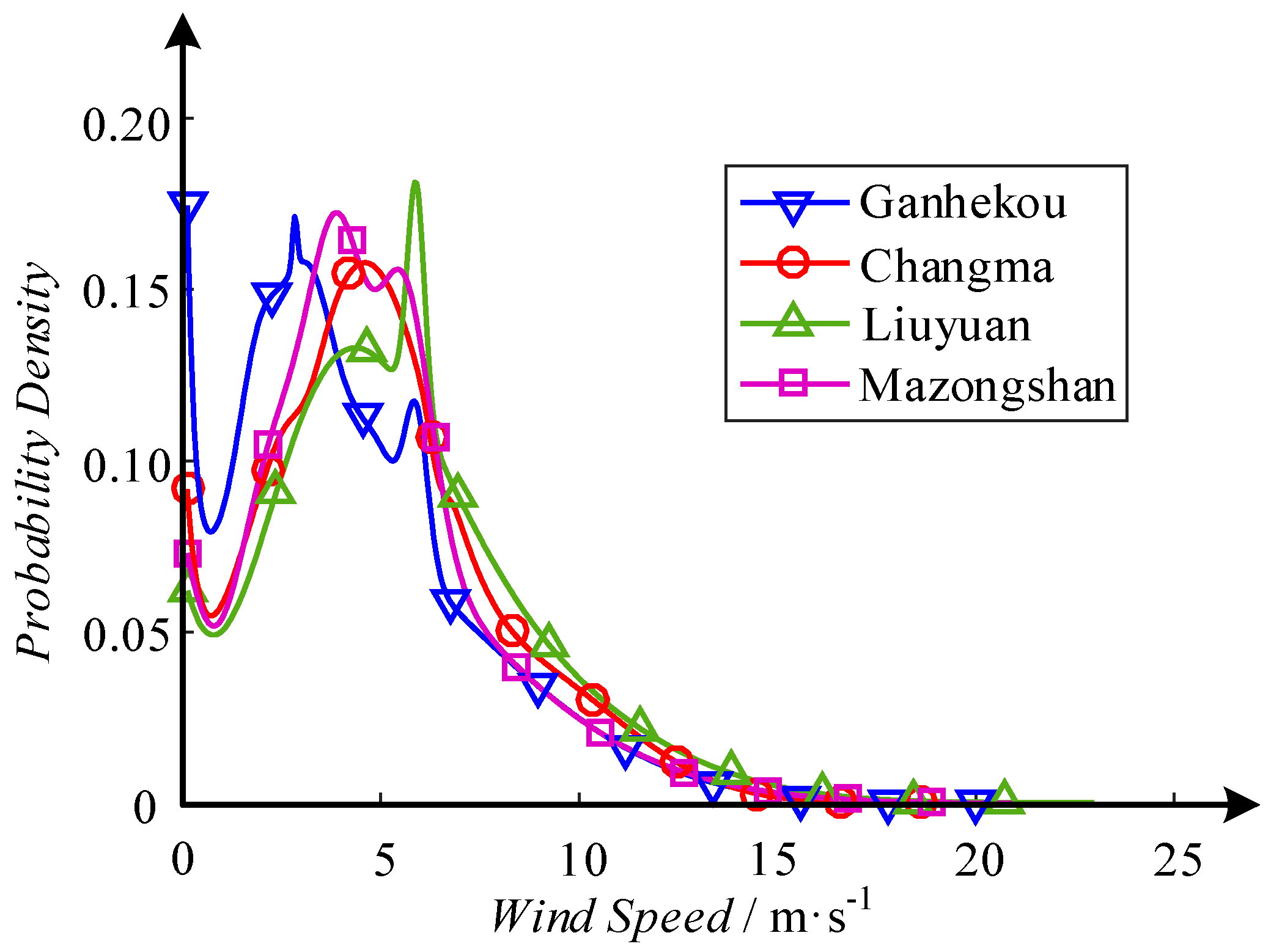

2. Model Marginal Distribution of Load and Wind Speed Using SNMM

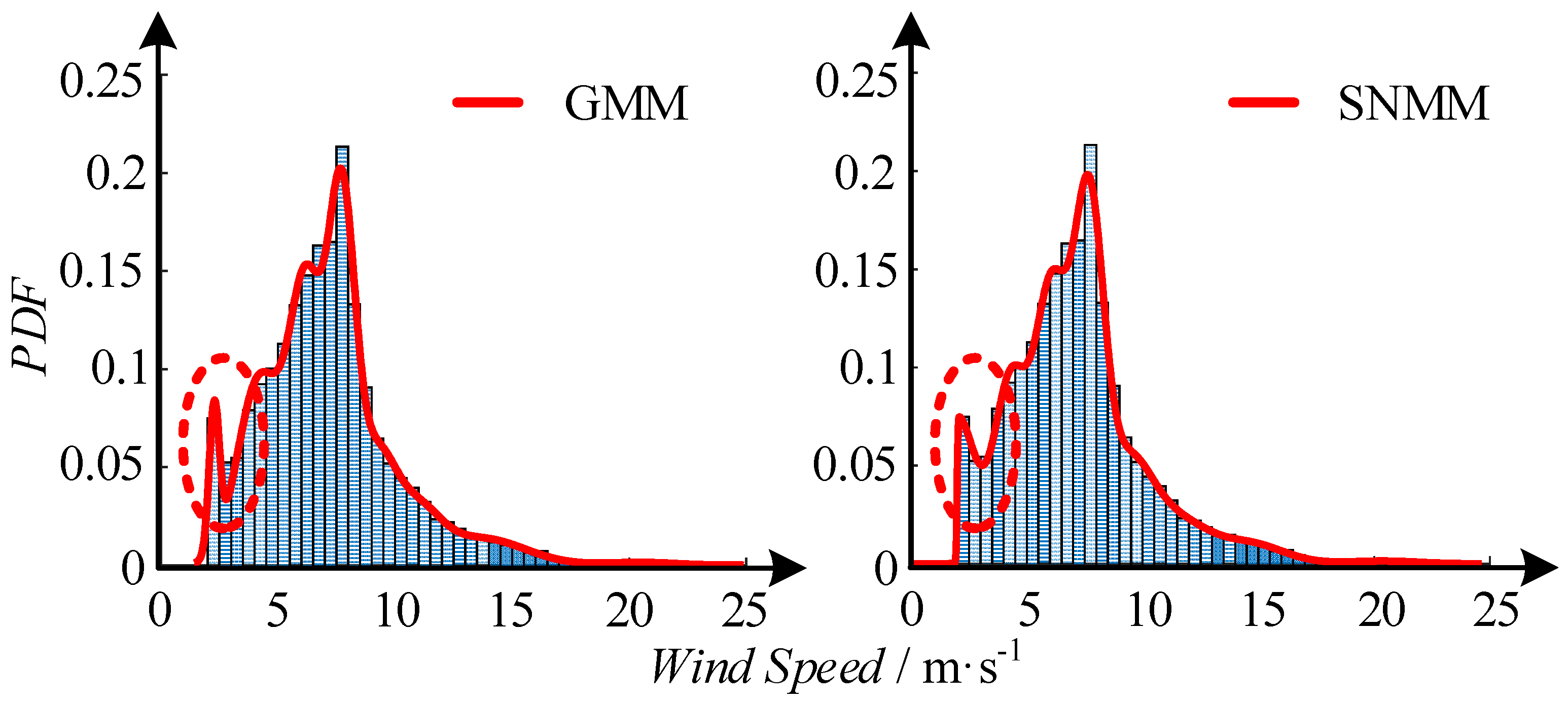

For an arbitrary PDF, there is no unique methodology to model it accurately enough, which propels the study on GMM to provide a rather satisfactory approximation. On this basis, SNMM was developed as an improvement of GMM by covering the skewness of the PDF, observed in the expression of SNMM PDF later.
Therefore, SNMM inherits almost all the merits of GMM. For example, any distribution can be represented by as a convex combination of several skew-normal (SN) distributions with respective means and variances. If infinite components are adopted, SNMM can inerrably depict distribution of any kind. Besides, due to the improvement, SNMM is capable of representing the asymmetry, heavy tail and multimodality of PDFs, which is superior to GMM [
32].
Because a PDF must be nonnegative and the integral of a PDF over the sample space of RVs must evaluate to unity, the mixture weights must be nonnegative and the sum of all the weights must be equal to one. Hence, for the univariate case, the parametric form of the PDF of SNMM
f(
xlw) is:
where
xlw represents the RV of load or wind speed.
lw is the index for the sites of load and wind speed.
ωm is the weight of the
m-th component of the SNMM. The sum over
ωm is 1.
nSN is the number of components in SNMM.
fSN,m(
·) is the PDF of a single SN distribution, whose expression is shown as:
where
φ is the PDF of standard Gaussian distribution. Φ is the corresponding cumulative distribution function (CDF) of
φ.
μm,
σm and
λm are the parameters reflecting the location, scale and skewness of the
m-th SN distribution, respectively.
The estimation of all parameters is conducted by the expectation maximization (EM) algorithm, which is a very mature and steady method applied in various mixture models [
33].
According to [
34], the CDF of SNMM
F(
xlw) can be expressed by the addition of the CDFs of the SN components, shown as:
where the CDF of a single SN distribution
FSN,m(
xlw) is:
where
T(·) is the Owen’s T function.
Based on (3) and (4), we derived the theoretical expression of the CDF of SNMM. Therefore, when we draw samples from SNMM, we can directly use the inverse CDF (iCDF) of SNMM, although the iCDF may not be an explicit expression [
35], i.e.,
xlw =
F−1(
U), where
U is uniformly distributed in [0, 1].
4. DRCE-IS Combined with D-Vine Copula and SNMM to Assess the Power System Reliability
The essence of CE-IS is to search for the optimal distribution for every RV, in order to reduce the variance of the reliability indices estimated by MCS. Based on the traditional CE-IS method, we propose the DRCE-IS method, which specifically aims at finding a better way to deal with the large numbers of 2- and 3-state units in the reliability assessment.
4.1. Overview of CE-IS
Denote all the RVs in reliability assessment by a vector
xss, i.e.,
where
xL,
xCU and
xWT are the RV vectors representing the states of transmission lines, conventional units and WTGs.
xLW is the RV vector representing the values of the load and wind speed at different sites.
Then the reliability index
γ can be determined by:
where
I(
xss) is a function to indicate the system state, e.g., in the normal or failure states.
f(
xss;
θ) is the original joint PDF of
xss with
θ as the parameter vector.
Equation (16) can be further transformed by the optimal joint PDF
g(
xss) used in importance sampling (IS), which is called IS PDF in this paper. The transformed (16) is shown as:
where the rightmost term is an expectation in which
g(
xss) and
I(
xss)
Q(
xss) act as the PDF and a function of the RVs.
The theoretical expression of the optimal IS PDF is [
28]:
where
g(
xss) is obviously entangled with
γ, which means that the explicit expression of
g(
xss) is unavailable.
To solve the problem, the concept of cross entropy is introduced into the process of IS to form the traditional CE-IS method. The basic idea is to select a function form in advance, regardless of the actual form of the optimal PDF. Denote the selected function form as f(·;ω), in which ω is the parameter vector unknown. By minimizing the Kullback-Leibler (KL) divergence between f(·;ω) and g(·), we can derive a satisfactory suboptimal PDF as the IS PDF.
The KL divergence
K(
g,
f) is expressed as:
where the first integral term is independent of
ω, so it can be regarded as a constant
C when we search for the optimal
ω.
Then, we plug (18) into (19) and get the objective function used for optimizing
ω, shown as:
The integral term in (20) can be further converted as:
where
Eω(∙) stands for the expectation of a function with
f(∙;
ω) as the PDF.
ns is the sample size for estimating the expectation.
Q(
xss) is called the likelihood ratio function (LRF), which can be divided into several parts, shown as:
There is no constraint imposed on (21), so the best ω can be achieved when the derivative of the last term in (21) is equal to zero.
4.2. Pre-Simulation Stage of DRCE-IS
DRCE-IS consists of a pre-simulation stage and a main simulation stage. We detail the pre-simulation stage first. The purpose of the pre-simulation stage is to derive IS PDFs for continuous RVs and IS probability mass functions (PMF) for discrete RVs.
We use an iterative process to eliminate the randomness of the samples in (21). In each iteration, we draw ns new samples from f(·;ω) to solve (21) again to renew f(·;ω) for the next iteration, until the terminating condition is satisfied.
IS PMFs, particularly, will hold the same function form as the original PMFs of the discrete RVs, while IS PDFs will be assigned a new function form, totally different from the original ones.
4.2.1. IS PMFs of Transmission Lines
The PMFs of the transmission lines are shown as:
where
ωl is the optimal failure probabilities of transmission lines.
xl is the RV representing the states of the
l-th transmission line, whose potential values are 0 and 1, indicating failure state and operation state, respectively.
nL is the number of transmission lines.
When we update
ωl, only the terms containing
ωl in (21) affect the IS PMF. Therefore, we retain them in the objective function, while other terms are replaced by a constant
C. Then, the objective function is shown as:
In the
t-th iteration, draw
ns new samples and make the derivative of (24) equal to zero, i.e.,
The solution of (25) is the optimal failure probabilities of transmission lines, which is shown as:
Equation (26) is valid for any
l = 1, …,
nL. The set {
xl|
l = 1, …,
nL} forms the vector
xL in (22). According to (21), LRF is defined as the ratio of the original PDF (or PMF) to the IS one. Hence, the LRF of transmission lines
Q(
xL) is given as:
where
θl is the original failure probability of the transmission line
l.
4.2.2. IS PMFs of Homogeneous 2- and 3-State Units
The wind farms in this paper are all centralized and integrated with the transmission network, which means that the WTGs on the same wind farm are definitely connected to the same bus in the power system. Hence, the WTGs of the same type on the same wind farm make equal contributions to the power system. These WTGs should have the same IS PMF. Similarly, the 2-state conventional units, which are of the same type and connected to the same bus, should have the same IS PMF. These units/WTGs are called “homogeneous units” in this paper.
If we search for the IS PMFs of the homogeneous units individually, the IS PMFs may significantly differ from each other due to the randomness of the samples, which are also far away from the theoretical optimal PMF. Besides, the state of each unit is regarded as a RV, which results in a high-dimension problem and a bulky solution space, increasing the difficulty and time in searching for optimal PMFs.
To solve the problem, we aggregate the homogeneous units into a single group and represent the group by one RV. For the group of 2-state conventional units, the RV follows binomial distribution, while for the group of 3-state WTGs, the RV obeys trinomial distribution.
By this means, the dimension of the solution space is reduced, which improves the quality of the IS PMFs.
Denote the number of 2-state conventional units in the
c-th group as
nc. The failure probability is marked as
ωf,c. Denote
xf,c as the number of units in the failure state in the
c-th group. The PMF of the
c-th group
p(
xc) is shown as:
where
xc = [
xf,c,
nc −
xf,c].
When we update
ωf,c, we only retain the terms containing
ωf,c in the objective function, i.e.,
Similarly with the processing of transmission lines, we can obtain the solution of (29), which is the updating formulae for
ωf,c, shown as:
Equation (30) is valid for any c = 1, …, ncg. ncg is the number of conventional unit groups.
The set {
xc|
c = 1, …,
ncg} forms the vector
xCU in (22). Then the LRF of conventional units
Q(
xCU) can be expressed as:
where
θf,c is the original failure probability of the
c-th group of conventional units.

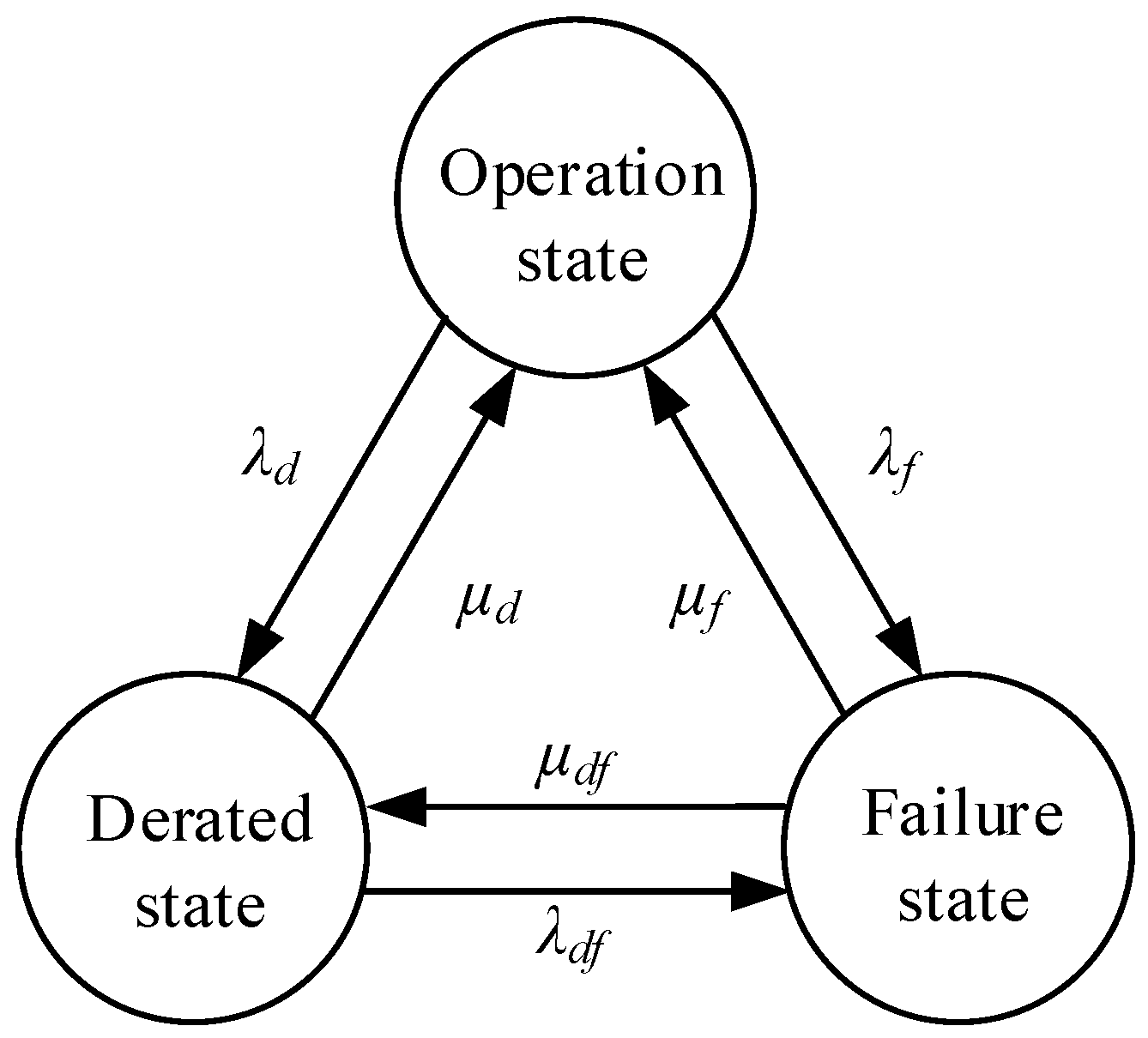

Denote the number of 3-state WTGs in the
w-th group as
nw. The failure and derated probabilities are marked as
ωf,w and
ωd,w, respectively. The PMF of the
w-th group
p(
xw) is shown as:
where
xw = [
xf,w,
xd,w,
xo,w].
xf,w,
xd,w and
xo,w are the number of WTGs in the failure, derated and operation states in the
w-th group, respectively, which meet:
Similarly with (24), when we update
ωf,w and
ωd,w, the objective function is shown as:
Similarly with (26), the solutions of (34) are the updating formulae for
ωf,w and
ωd,w, which are shown as:
Equations (35) and (36) is valid for any w = 1, …, nwg. nwg is the number of WTG groups.
The set {
xw|
w = 1, …,
nwg} forms
xWT in (22). Then the LRF of WTGs
Q(
xWT) is expressed as:
where
θf,w,
θd,w and
θo,w are the original state probabilities of the
w-th WTG group.
We only deal with 2- and 3-state units in this paper. However, the proposed method is not limited to 2- and 3-state units. The method can be expanded to the case of multi-state units by replacing p(xc) and p(xw) with the PMF of the multinomial distribution, so it is widely adaptive.
4.2.3. IS PDF of the Wind Speed and Load Based on D-Vine Copulas and SNMM
Load and wind speed are represented by continuous RVs, so we need to acquire the IS joint PDF, rather than the PMF. According to the basic idea of CE-IS, there is no restriction to f(·;ω) in (19). Actually whatever the form of f(·;ω) is, we can obtain a practical IS PDF by optimizing ω.
For simplicity, we select the multivariate Gaussian PDF as the IS joint PDF, in which all variables are supposed to be independent. The expectation
μLW and standard deviation
σLW are the parameters to be optimized, just like
ω in (19). Therefore, when we update
μLW and
σLW, the objective function can be represented by:
where
diag(∙) is a transformation by which a vector is converted into a diagonal matrix.
Similarly, with the processing of the PMFs, (38) is solved, whose solutions are the updating formulae for
μLW and
σLW, shown as:
where (·)°
2 stands for the Hadamard square.
The LRF of wind speed and load is defined based on the D-vine copulas and SNMM, because we need to combine them to obtain the original joint PDF. The LRF is expressed as:
where
nlw is the number of RVs of wind speed and load.
flw(·) is the marginal PDF modeled by SNMM.
4.2.4. Procedures of Pre-Simulation Stage
The procedures of the pre-simulation stage are detailed as below.
Step 1: Input the original PMFs and joint PDF of RVs in the reliability assessment. Set t = 0. Specify the sample size ns in each iteration.
Step 2: In the t-th iteration, draw ns new samples by using {ωl,t|l = 1, …, nL}, {ωf,c,t|c = 1, …, nc}, {ωf,w,t, ωd,w,t|w = 1, …, nw}, μtLW and σtLW. Denote the samples by {xss,s|s = 1, …, ns}.
Step 3: Quantify the performance of each sample in the term of reliability. The frequently used quantifying method is the minimum load shedding (MLS) model, whose objective function is the quantifying function S(xss,s).
The MLS model is expressed as:
where
Pg,
Psh and
δ are the control variable of the model.
Pg is the vector of generation power at all buses including wind power, whose upper and lower limits are
Pgmax and
Pgmin.
Psh is the vector of load shedding amount at all buses.
δ is the vector of the voltage phase angle of all buses.
Pd is the vector of the load demand at all buses.
b is a diagonal matrix, whose diagonal elements are the reciprocal of the reactance of all transmission lines.
A is the branch-node association matrix.
Plinemax is the vector of maximum transmission capacity of all lines.
Step 4: Sort the performance of {xss,s|s = 1, …, ns} and obtain a series {S1, S2, …, Sns}, where S1 ≥ S2 ≥…≥ Sns. Locate the ρ-quantile of the series and denote it as Sρ·ns.
Step 5: In the
t-th iteration, set a threshold
αt for {
S1,
S2, …,
Sns} by:
According to the value of
αt, we can define the system state
I(
xss,s) as:
Step 6: By (26), (30), (35), (36), (39) and (40), we can update the parameters of the IS PMFs and IS PDF with the samples generated in Step 2 and the system states obtained in Step 5.
Step 7: If αt = 0, end the pre-simulation stage and switch to the main simulation stage. Otherwise, set t = t + 1 and return to Step 2.

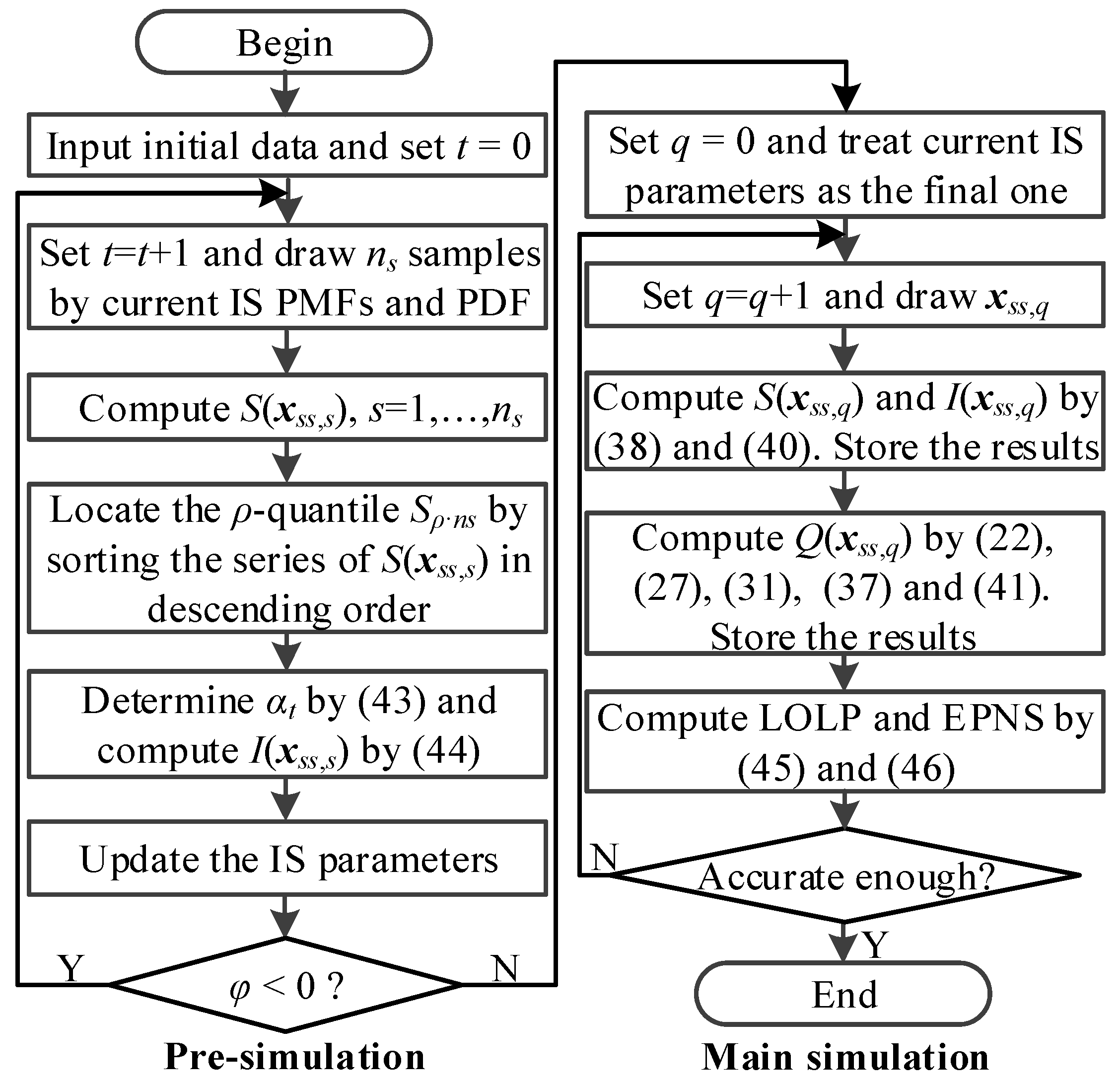

The pre-simulation procedures are shown in
Figure 2.
4.3. Main Simulation Stage of DRCE-IS
The main simulation stage is implemented by adding a scaling operation to the MCS, which is to use the LRF Q(xss,s) to multiply the I(xss,s). The procedures are detailed as follows.
Step 8: Set the counter q = 0. The PMFs and PDF in the last iteration of the pre-simulation stage is accepted here.
Step 9: q = q + 1. Generate a new sample xss,q with the IS PMFs and PDF.
Step 10: Compute S(xss,q) by (42). Evaluate the system state by (44) with αt = 0. Store the results.
Step 11: Compute Q(xss,q) by (22), (27), (31), (37) and (41). Store the results.
Step 12: Derive the reliability indices, the loss of load probability (LOLP) and expected power not supplied (EPNS) according to the stored data by:

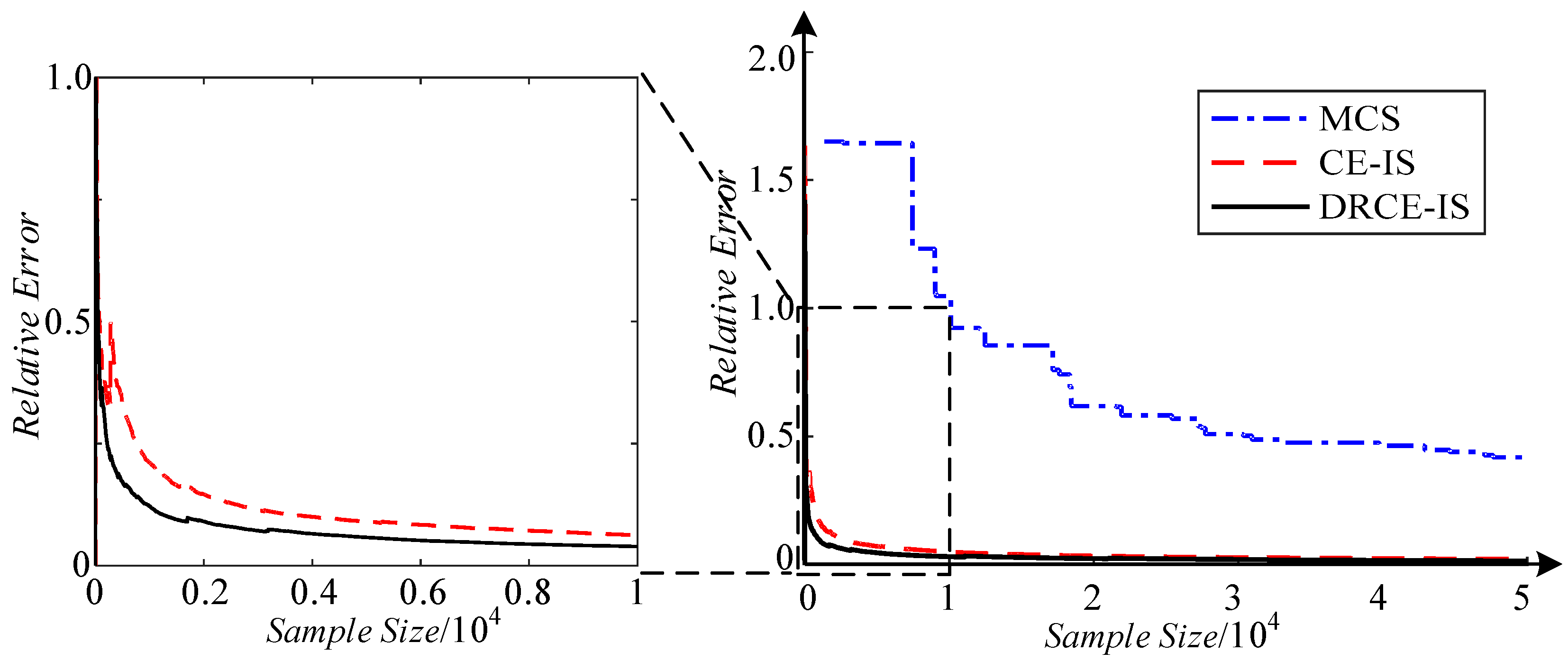

Step 13: Calculate the relative error of LOLP and EPNS. Compare them with the relative error limit. If LOLP and EPNS are accurate enough, end the algorithm and output them. Otherwise, return to Step 9.
The main simulation process is also shown in
Figure 2.
5. Capacity Credit Assessment of Wind Energy by the Secant Method
The CC of wind energy is frequently defined as the equivalent load carrying capacity (ELCC) [
41]. The ELCC is the load increment that is needed to maintain the reliability level unchanged after wind energy integration. The load increment is defined as the CC of the wind energy. The idea of ELCC is expressed as:
where
I(·) is LOLE, EENS or other reliability indices.
G and
L are the total generation capacity and load demand of the whole system, respectively.
ΔG stands for the wind energy to be evaluated. ΔL is the load increment that the power system can support due to the integration of the wind energy.
Therefore, we need to find the maximum value of Δ
L, which is usually implemented by the secant method [

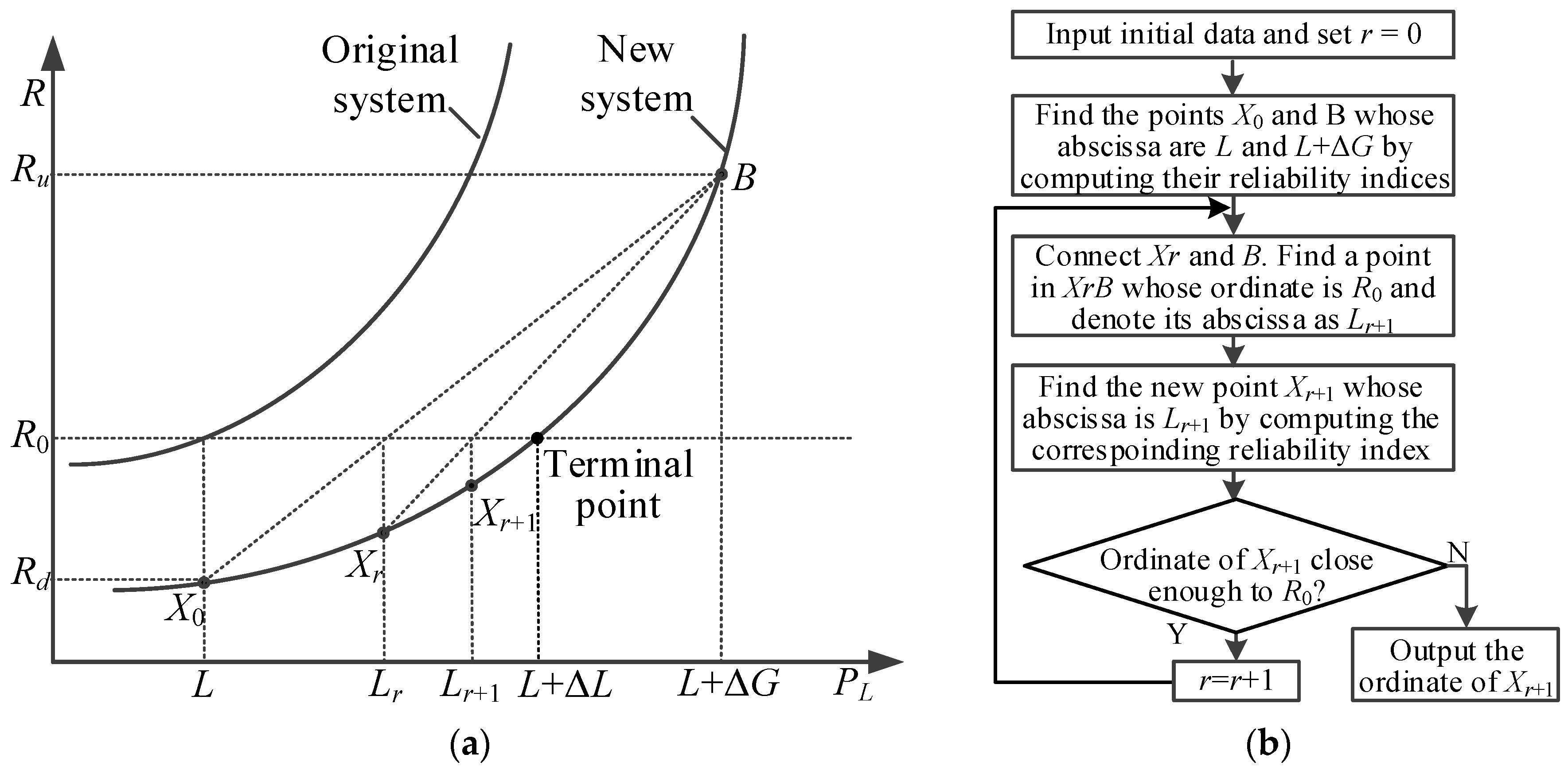

11]. The schematic diagram of the secant method is shown in
Figure 3.
In the secant method, we need to compute the reliability index of the original system, which excludes the wind energy to be evaluated. The value of this index is denoted as R0. Then we add the wind energy to form the new system and start an iterative process to compute the CC value.
From the schematic diagram, one can perceive that the points Xr and Xr+1 in the secant method are approaching the terminal point, whose ordinate is R0. Actually, once the position of the terminal point is located, its abscissa minus L is the CC of the wind energy.
The procedures of the secant method are detailed below.
Step 1: Set r = 0. Determine two points X0 and B by computing the reliability index with the load demands of the new system being L and L + ΔG, respectively.
Step 2: Connect Xr and B with a straight line, in which we search for a point whose ordinate is R0. The abscissa of this point is defined as Lr+1.
Step 3: Find the new point Xr+1 by computing the reliability index with the load of the new system being Lr+1.
Step 4: If the ordinate of Xr+1 is not close enough to R0, set r = r + 1 and return to Step 2. Otherwise, end the iteration. Output the value of the last Lr minus L, which is just ΔL in (47). ΔL is the CC of the wind energy.
The flowchart of the whole procedures is also presented in
Figure 3.
