An Elliptic Blending Turbulence Model-Based Scale-Adaptive Simulation Model Applied to Fluid Flows Separated from Curved Surfaces

Abstract

On the basis of a previously developed elliptic blending turbulence model (SST–k–ω–φ–α model), a scale-adaptive simulation (SAS) model is developed by following Menter and Egorov’s SAS concept. An SAS source term, which is related to the ratio of the modeled turbulence scale to the von Kármán length scale, is introduced into the corresponding length-scale determining equation. The major motivation of this study is that the conventional unsteady Reynolds-averaged Navier–Stokes (URANS) models provide only large-scale unsteadiness. The introduction of the SAS term allows the proposed SAS model to dynamically adjust to resolved structures in a URANS framework because this term is sensitive to resolved fluctuations. The predictive capabilities of the proposed SAS model are demonstrated by computing the complex flow configurations in three cases with flow separation from curved surfaces, namely, three-dimensional (3D) diffuser flow, two-dimensional (2D) periodic hills flow, and 2D U-turn duct flow. For comparison, the results predicted by the SST–k–ω–φ–α model and the Menter and Egorov’s SAS model (SST–SAS) are provided. The results are also compared with the relevant experimental, direct numerical simulation, and large eddy simulation data. The results show that the SST–k–ω–φ–α model cannot capture the critical features for all three flows, and that the SST–SAS model is able to predict the results reasonably well. The proposed SAS model is capable of resolving more portions of the turbulence structures, and it yields the best results in all the cases.

1. Introduction

Turbulence is a three-dimensional (3D), time-dependent, nonlinear, and ubiquitous phenomenon in nature. Fully understanding turbulence is a goal that people have been pursuing for several years. With the advent and continuous development of computers, the use of numerical simulation methods to study turbulence has also made great progress. Numerical simulation of turbulence is a very important issue, especially in engineering fields. It can help people save a considerable amount of money and shorten design time by avoiding the need to build and test prototypes.

To date, owing to limitations in computing power, direct numerical simulation (DNS) of turbulence is still difficult to achieve in engineering problems [1]. A practical method is to model turbulence. There are two typical methods for modeling turbulence: Reynolds-averaged Navier–Stokes (RANS) and large eddy simulation (LES). For many years, RANS models have offered the most economic approach and have been widely used in industrial applications. In RANS models, all turbulent structures are eliminated from the flow. This treatment greatly reduces the accuracy. LES is based on the approach of resolving large turbulent structures in space down to the grid limit everywhere in the flow. With LES, most of the turbulence spectra are resolved, and better results can usually be obtained. However, owing to the excessively high-resolution requirements for wall boundary layers, LES has a very limited impact on industrial simulation. Hybrid RANS–LES approaches have become increasingly popular in recent years as methods that maintain a balance between accuracy and cost [2]. Hybrid RANS–LES approaches incorporate the advantages of the RANS and LES models. Specifically, the attached wall boundary layers are covered by the RANS model; thus, the excessive resolution requirements of LES can be avoided. Meanwhile, the large, detached regions are handled in the LES mode, i.e., with a partial resolution of the turbulent spectrum.

Hybrid RANS–LES approaches have been developed by many researchers. Owing to space limitations, they are not reviewed comprehensively here. Interested readers can refer to the reviews in [3,4]. However, it is worth briefly reviewing one of them, the scale-adaptive simulation (SAS), which is utilized in this study. By revisiting the kL model of Rotta, the SAS model was developed by Menter and Egorov [5]. An additional source term consisting of the von Kármán length scale is introduced into the scale-determining equation of the relevant unsteady RANS (URANS) model. When the flow is strongly unstable, this term can reduce the computed length scale, thus yielding a lower eddy viscosity, which in turn allows flow fluctuations to be sustained. The SAS method has several advantages, a few of which are described. First, it is very easy to implement it into an existing URANS model (simply by inserting an additional source term into the scale-determining equation). Second, it does not contain any parameters related to grid size. It is generally known that when the grid resolution is not sufficiently fine, the models related to grid size yield poor results (for instance, the detached eddy simulation (DES) [5] and LES [6] models). Nevertheless, if the grid resolution is not sufficiently fine, the SAS model provides the URANS performance, which is reasonably capable of handling the flow. This feature seems attractive and can be regarded as a safeguard in the simulation of complex industrial flows [3].

Obviously, the performance of the SAS model depends on the RANS model used. The SAS model was originally developed based on the $k-\sqrt{k}L$ model, and was then transformed into the k–ε model, the k–ω model, and the well-known shear stress transport (SST) k–ω model [5]. The most widely used SAS model is based on the SST k–ω model. Among the many RANS models, there is a class of models that are very attractive, namely, the elliptic blending or elliptic relaxation-based models. The basis of this type of model is the $\overline{v^2}-f$ model developed by Durbin [7]. Since then, many variants have evolved. These models can be divided into three categories: one stems from the k–ε model, the second stems from the Reynolds stress model, and the third stems from the k–ω model. Research on the first two categories began earlier, and many results have been obtained. For detailed reviews of these models, readers can refer to Billard and Laurence [8] and Manceau [9]. Research on the k–ω-based models started relatively late, and the early developments of these models were reviewed by Yang et al. [10,11]. Recently, Biswas et al. [12] developed an elliptic blending lag model based on the conventional k–ω model. Shang and Agarwal [13] developed an elliptic blending lag model based on the conventional SST k–ω model. The present authors [14] developed an elliptic blending turbulence model by transforming the k–ε-based $\mathrm{BL}-\overline{v^2}/k$ model of Billard and Laurence [8] into a k–ω system. Additionally, the SST characteristics in the boundary layer were integrated, and the model performance was greatly improved. Generally, k–ω-based models have better stability than others [10,11].

There are very few SAS models based on elliptic blending or elliptic relaxation models. The only one found in the literature was developed by Krumbein et al. [15]. They proposed an SAS model based on the elliptic relaxation model of Hanjalić et al. [16] (the ζ–f model). The model was validated by computing several generic flow configurations with relatively coarse meshes, including the channel flow, flow over periodic hills, flow over fence, impinging jet, and flow mixing in the T-junction. The results are encouraging.

In this study, an SAS model, which is based on an elliptic blending model (denoted as the SST–k–ω–φ–α model) previously developed by the authors [14], was proposed and validated. In the next section, the formulation of the model and its implementation are briefly described. In the third section, the performance of the model is investigated by applying it to three flow configurations: 3D asymmetric diffuser flow, flow over two-dimensional (2D) periodic hills, and 2D U-turn duct flow. Lastly, the conclusions are presented.

2. Model Formulation and Implementation

The basis of the proposed SAS model is the SST–k–ω–φ–α model, which belongs to the elliptic blending RANS model category [14]. The SAS model consists of four model equations for the turbulent kinetic energy k, specific dissipation rate ω, wall-normal turbulent anisotropy φ, and elliptic variable α. The equations of the model are as follows:

$$\frac{\partial \rho k}{\partial t}+\frac{\partial }{\partial x_i}\left(\rho u_{i}k\right)=G_k-\rho f_k{\beta }^{\ast }k\omega +\frac{\partial }{\partial x_j}\left[\left(\frac{\mu }{2}+{\sigma }_k{\mu }_t\right)\frac{\partial k}{\partial x_j}\right],$$

(1)

$$\frac{\partial \rho \omega }{\partial t}+\frac{\partial }{\partial x_i}\left(\rho u_i\omega \right)=f_{\omega }\gamma \frac{\omega }{k}{G}_k-\rho \beta {\omega }^2+C_D+\frac{\partial }{\partial x_j}\left[\left(\frac{\mu }{2}+{\sigma }_{\omega }{\mu }_t\right)\frac{\partial \omega }{\partial x_j}\right]+Q_{SAS},$$

(2)

$$\frac{\partial \rho \varphi }{\partial t}+\frac{\partial }{\partial x_i}\left({\rho u}_i\varphi \right)=\left(1-{\alpha }^p\right){\rho f}_{\mathit{wall}}+{\alpha }^p{\rho f}_{\mathit{hom}}-\frac{\varphi }{k}{G}_k+\frac{2}{k}{\mu }_t{\sigma }_k\frac{\partial \varphi }{\partial x_j}\frac{\partial k}{\partial x_j}+\frac{\partial }{\partial x_j}\left[\left(\frac{\mu }{2}+{\sigma }_{\varphi }{\mu }_t\right)\frac{\partial \varphi }{\partial x_j}\right],$$

(3)

$$0=\frac{1-\alpha }{L^2}+\frac{\partial }{\partial x_j}\left(\frac{\partial \alpha }{\partial x_j}\right).$$

(4)

In addition, an additional source term Q_SAS is introduced into the ω-equation, and the remaining terms are the same as the SST–k–ω–φ–α model. For the meaning of each term and the value of each coefficient, please refer to Yang et al. [14].

The source term Q_SAS is the same as the SST k–ω model-based SAS model (denoted as the SST–SAS model) [5]. It is defined as follows:

$$Q_{SAS}=\max \left[\rho {\eta }_2\kappa S^2{\left(\frac{L_t}{L_{vk}}\right)}^2-C_{SAS}\frac{2\rho k}{{\sigma }_q}\max \left(\frac{1}{k^2}\frac{\partial k}{\partial x_j}\frac{\partial k}{\partial x_j},\frac{1}{{\omega }^2}\frac{\partial \omega }{\partial x_j}\frac{\partial \omega }{\partial x_j}\right),0\right],$$

(5)

with ${\eta }_2=3.51$, $\kappa =0.41$, $C_{SAS}=2$, and ${\sigma }_q=2/3$. The modeled turbulence length scale and the von Kármán length scale are

$$L_t=\frac{\sqrt{k}}{c_{\mu }^2\omega },$$

(6)

and

$$L_{vk}=\kappa \left|\frac{U^{\prime }}{U^{″}}\right|,$$

(7)

respectively. Here, c_μ = 0.09, $U^{\prime }=S$ is the magnitude of the shear stress, and $U^{″}$ is the magnitude of the velocity Laplacian, which is given by

$$U^{″}=\sqrt{\frac{{\partial }^2{U}_i}{\partial x_j^2}\frac{{\partial }^2{U}_i}{\partial x_k^2}}.$$

(8)

For the purpose of comparison, all test cases were computed using three models: the proposed SAS model (denoted as the SST–k–ω–φ–α–SAS model), SST–SAS model, and SST–k–ω–φ–α model. The FLUENT computational fluid dynamics (CFD) code was used as the computing platform. The SST–SAS model is built into the software itself. The proposed SAS and SST–k–ω–φ–α models were implemented using the user-defined function (UDF) functionality.

A pressure-based coupled algorithm was used to solve the governing equation system. The bounded second-order implicit scheme was used for the integration of the transient terms. The bounded central differencing scheme and the second-order upwind scheme were used to discretize the convection terms in the momentum equation and in the turbulence equations, respectively. The gradients and derivatives were evaluated by the least-squares cell-based method.

In all cases, the successive ratio mesh was used in the vertical direction of the wall, and the first grid point adjacent to the wall was carefully placed to ensure that the condition of nondimensional wall distance y⁺ < 1 was satisfied. The no-slip condition was applied to the solid walls. However, in different models, the wall treatments were different. Specifically, for the SST–k–ω–φ–α–SAS and SST–k–ω–φ–α models, u_i = 0, k = 0, φ = 0, α = 0, and ${\omega }_w=3\nu /\left({\beta }_0{y}_1^2\right)$ [14]. For the SST–SAS model, an automatic near-wall treatment method was used [17]. At the outlets, a zero-gradient condition was applied for each variable except pressure. For the periodic boundary conditions occurring in this study, the pressure drop across the periodic planes was set to zero. At inlets, the values of the variables were problem-dependent and are stated later in the paper for each case. Additionally, the vortex method [18] was applied to generate random fluctuations at the inlets.

3. Results and Discussion

The performance of the proposed SAS model was illustrated by computing the complex flow configurations in three cases with boundary layer separation from curved surfaces, namely, the 3D asymmetric diffuser flow, 2D periodic hills flow, and 2D U-turn duct flow. The motivation for choosing these cases is that they present challenges to conventional RANS models. The SST–SAS and SST–k–ω–φ–α models were adopted for comparison. In general, many factors may influence the results. For a reasonable comparison, for each case, all of the calculation conditions, such as the computational mesh, timestep size, discretization scheme, and Courant–Friedrichs–Lewy (CFL) number, were set the same or as close as possible for all three turbulence models.

3.1. 3D Asymmetric Diffuser Flow

To provide detailed and reliable data for the CFD model validation, Cherry et al. [19,20] designed a fully 3D diffuser flow and measured the velocity field and pressure distribution in detail. Using the same geometry and boundary conditions, a DNS was performed by Ohlsson et al. [21]. The DNS results were in good agreement with the measurements.

This case has been chosen to validate turbulence models by many researchers. For example, Billard et al. [22] considered the performances of four RANS turbulence models (the SST k–ω model of Menter [23], the $\mathrm{BL}-\overline{v^2}/k$ model of Billard and Laurence [8], the Speziale–Sarkar–Gatski (SSG) model of Speziale et al. [24], and the elliptic blending Reynolds stress model (EBRSM) of Manceau and Hanjalić [25]) in this flow. It was found that only the EBRSM could predict reasonable results. Abe and Ohtsuka [26] simulated this case using a pure RANS model, a pure LES model, and a hybrid RANS–LES model. The same mesh with a moderate grid resolution was used for the three models. It was shown that the hybrid RANS–LES model yielded better results than the other models. The pure LES model failed because the grid resolution was insufficient. Jakirlic and Maduta [27] simulated the 3D diffuser flow using a RANS model and an SAS model. It was found that the results predicted by the SAS model were in good agreement with the experimental and DNS findings, but the results predicted by the RANS model were not.

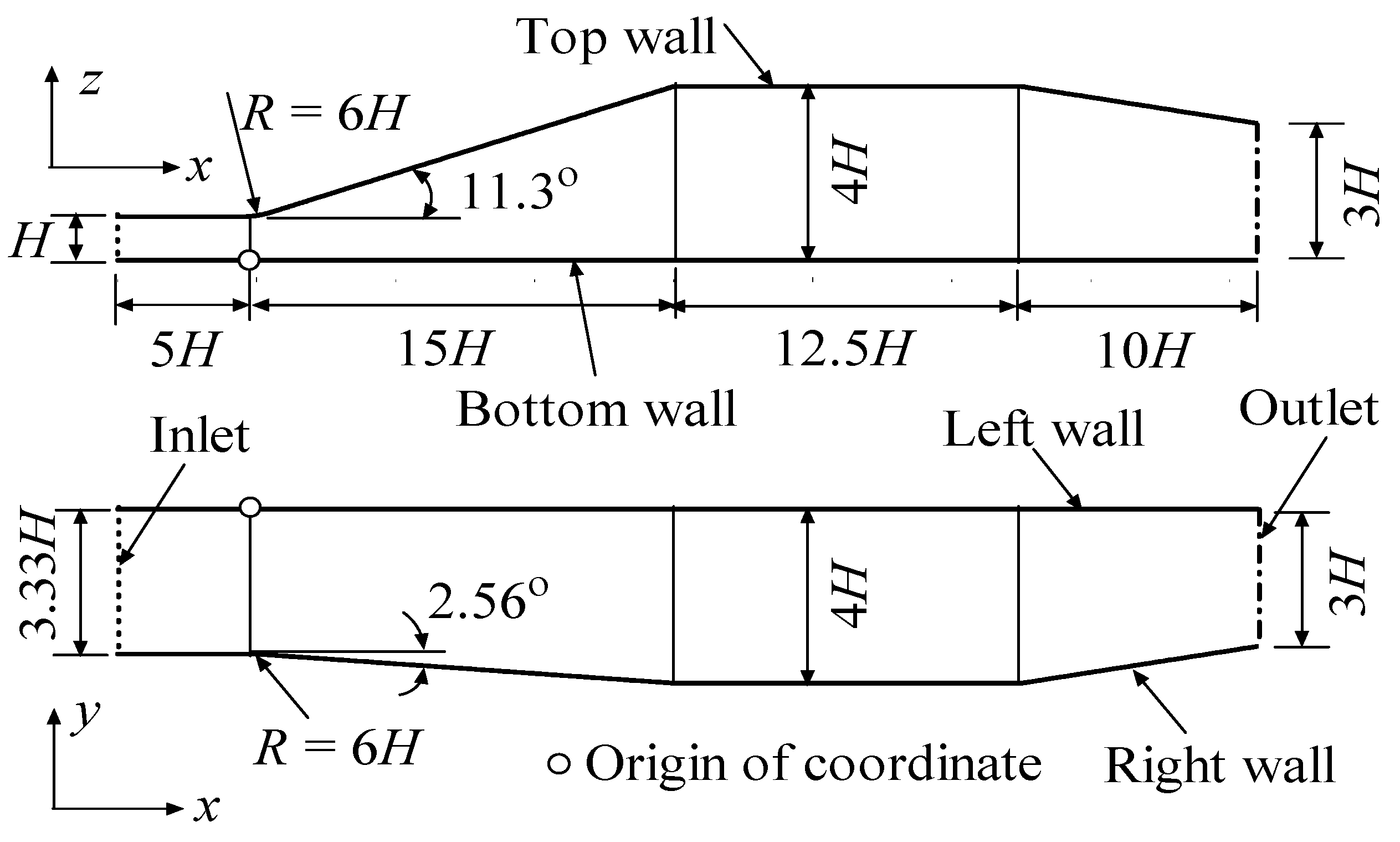

Figure 1 showed a schematic of the geometry and relevant boundary conditions of the 3D diffuser flow used in this study. Consistent with the experiment [19] and DNS [21], the Reynolds number (Re) based on the bulk velocity at the inlet (U_b) and the height of the inlet duct (H) was 10,000. The fully developed profiles, which were extracted from a precursor simulation in a long duct at the same Re and with relevant turbulence models, were used at the inlet. The number of computational meshes was 3.24 million, which was similar to that used by Jakirlic and Maduta [27]. The timestep size was 0.02 H/U_b. The statistics began at 5000 steps and continued to 10,000 steps to ensure that the mean values of the variables remained unchanged with time.

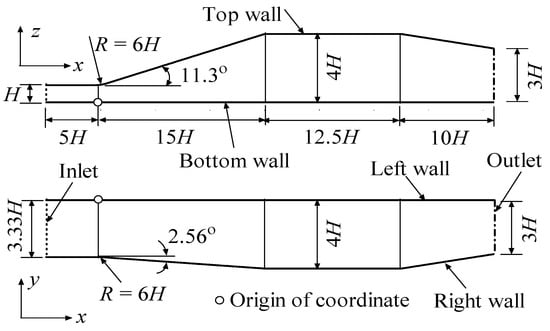

Figure 1. Schematic of the geometry and relevant boundary conditions of the 3D diffuser flow.

The DNS data of Ohlsson et al. [21] were used as references. A comparison of the contours of the mean stream-wise velocity $\overline{u}$ at different cross-sections, which was normalized by U_b, is shown in Figure 2. At x/H = 2, both the SST–k–ω–φ–α–SAS and the SST–SAS models predicted the flow separation at the top-right corner, where the two expanding walls intersect. However, the SST–SAS model incorrectly predicted a large separation at the top-left corner. The SST–k–ω–φ–α model also predicted the flow separation at the top-right corner, but the separation bubble was too large compared to that predicted by the DNS. Compared with the DNS, both the SST–k–ω–φ–α–SAS and the SST–SAS models predicted an earlier separation near the top-left corner (see the contours at x/H = 5), but a delayed separation near the center of the top wall (see the contours at x/H = 8). The proposed SAS model was better than the SST–SAS model in terms of predicting the location of the maximum velocity. At x/H = 15, the advantage of the SST–k–ω–φ–α–SAS model was even more pronounced. Compared to the SST–SAS model, the flow pattern predicted by the proposed SAS model showed better agreement with that obtained from the DNS. In the results of the SST–k–ω–φ–α model, the flow separation started at the top-right corner and then developed further downward along the side wall. The flow separated completely from the side wall quickly (at x/H = 5). Obviously, this behavior did not correspond to that of the DNS results. It is worth noting that the flow patterns from the SST–k–ω–φ–α model were very similar to those obtained by Billard et al. [22] using the SST k–ω and $\mathrm{BL}-\overline{v^2}/k$ models. This demonstrated that 3D diffuser flow is a challenge for many linear eddy viscosity models.

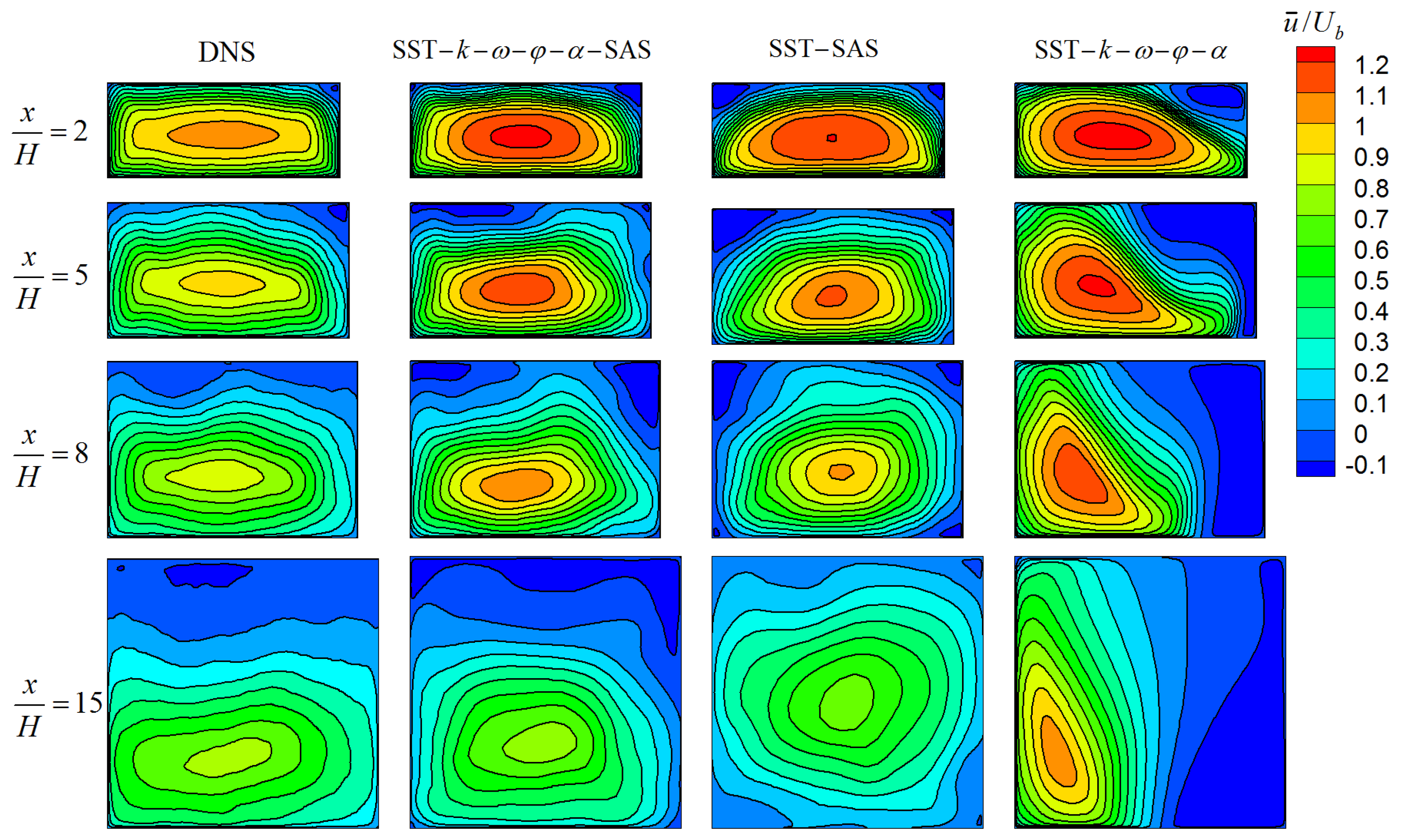

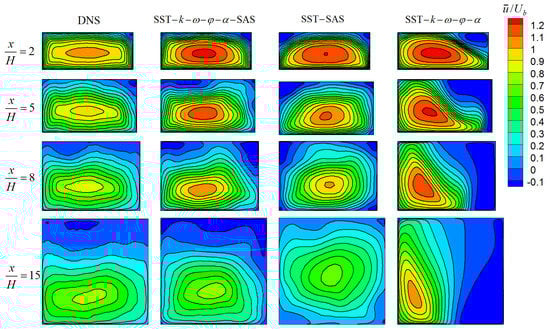

Figure 2. The contours of the normalized mean stream-wise velocity at different cross-sections.

Figure 3 showed a more quantitative comparison of the mean stream-wise velocity profiles, which were extracted from a spanwise midplane (y/H = −1.665). It can be seen that both the proposed SAS and the SST–SAS models reasonably predicted the upward movement of the velocity peak, but the SST–k–ω–φ–α model did not. Overall, the predictions of the SST–k–ω–φ–α model were very poor. In the upstream sections (x/H = 4 and x/H = 8), the predictions of the SST–SAS model were slightly better than those of the SST–k–ω–φ–α–SAS model. In contrast, the predictions of the SST–k–ω–φ–α–SAS model were better than those of the SST–SAS model in the downstream sections (x/H = 12, x/H = 15.5, and x/H = 18.5).

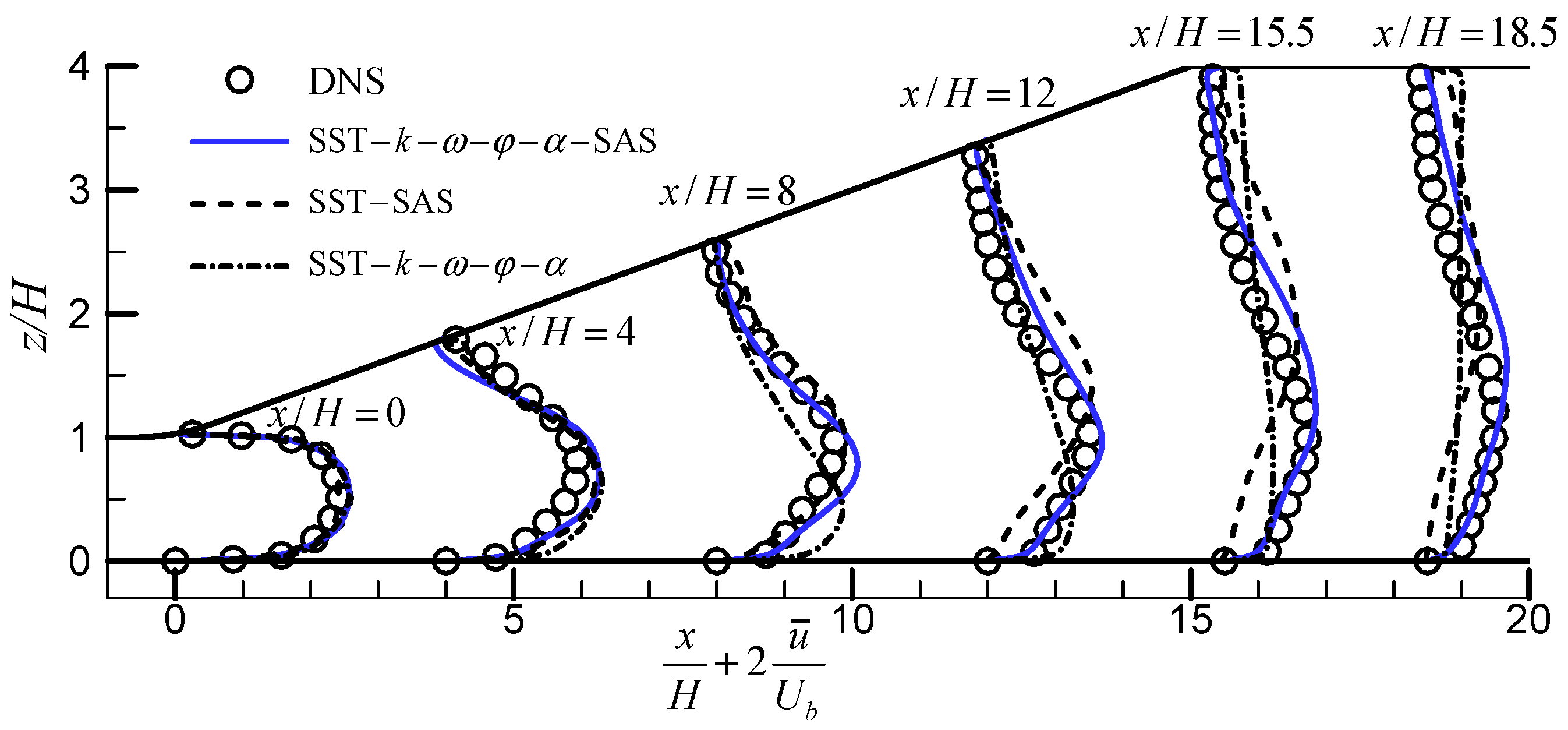

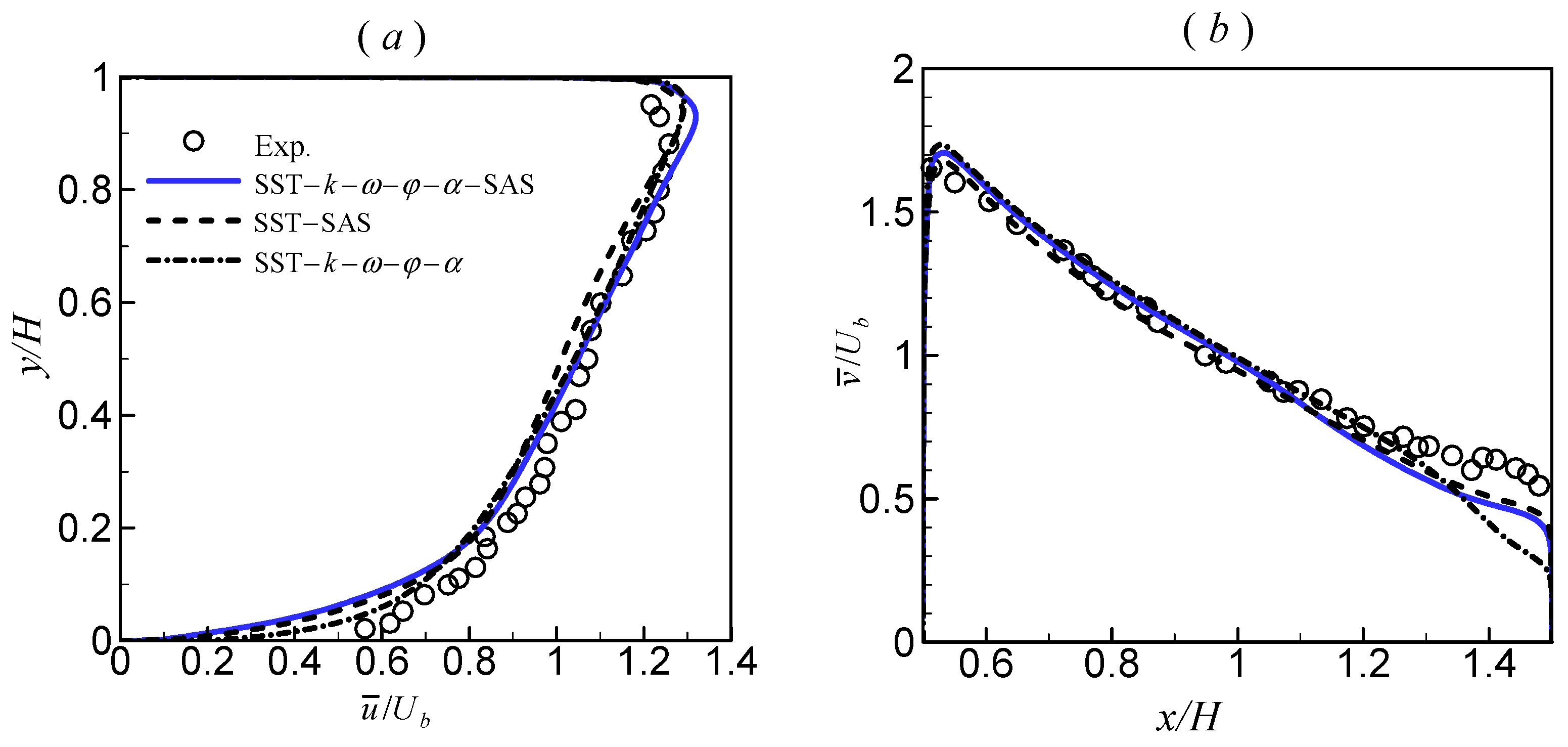

Figure 3. The normalized mean stream-wise velocity profiles on the spanwise midplane.

The pressure coefficients, $C_p=2\left(p-p_{ref}\right)/\left(\rho U_b^2\right)$, where p_ref is the reference pressure at x = 0, distributed along the intersection line of the spanwise midplane (y/H = −1.665) and the bottom wall, were compared with those from the DNS in Figure 4. As can be seen, the prediction by the SST–k–ω–φ–α–SAS model was in good agreement with that of the DNS. The SST–SAS model underpredicted the increase in pressure, whereas the SST–k–ω–φ–α model was not able to predict the increasing trend of the pressure.

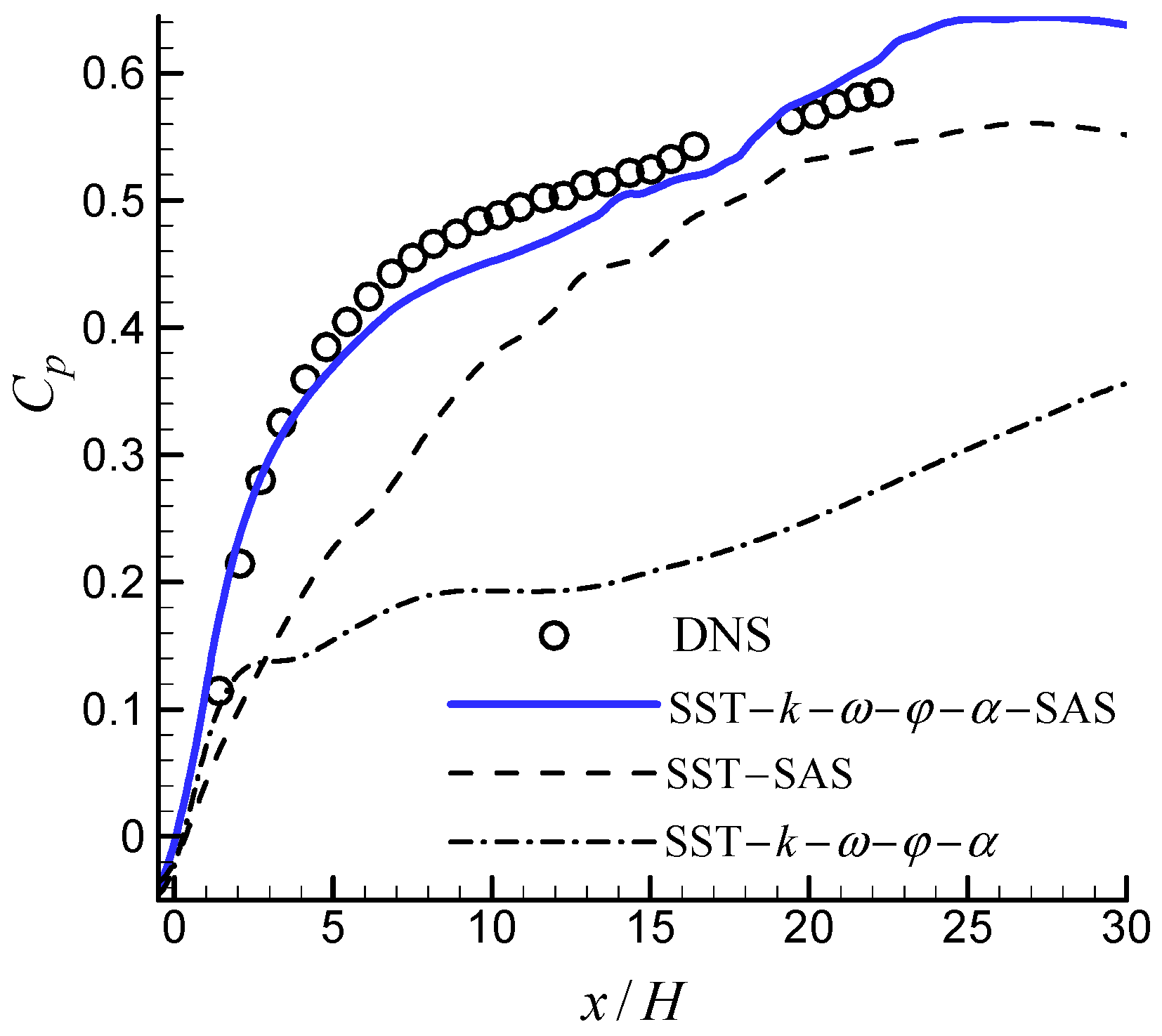

Figure 4. The pressure coefficients distributed along the intersection line of the spanwise midplane and the bottom wall.

The attractive characteristic of the SAS is that the formation of the turbulent spectrum is allowed by adjusting the length scale to match the resolved structures. The turbulent structures can be illustrated using the Q-criterion (Q = (S² − Ω²)/2). Figure 5 shows the turbulent structures predicted by the SST–k–ω–φ–α–SAS and SST–SAS models using an iso-surface of Q = 100 1/s². The color gradient in the figures represents the mean viscosity ratio (the ratio of eddy viscosity to molecular viscosity). It was clear that, in the diffuser, the turbulent structures predicted by the SST–k–ω–φ–α–SAS model were smaller than those predicted by the SST–SAS model. This explained why the SST–k–ω–φ–α–SAS model was better than the SST–SAS model overall.

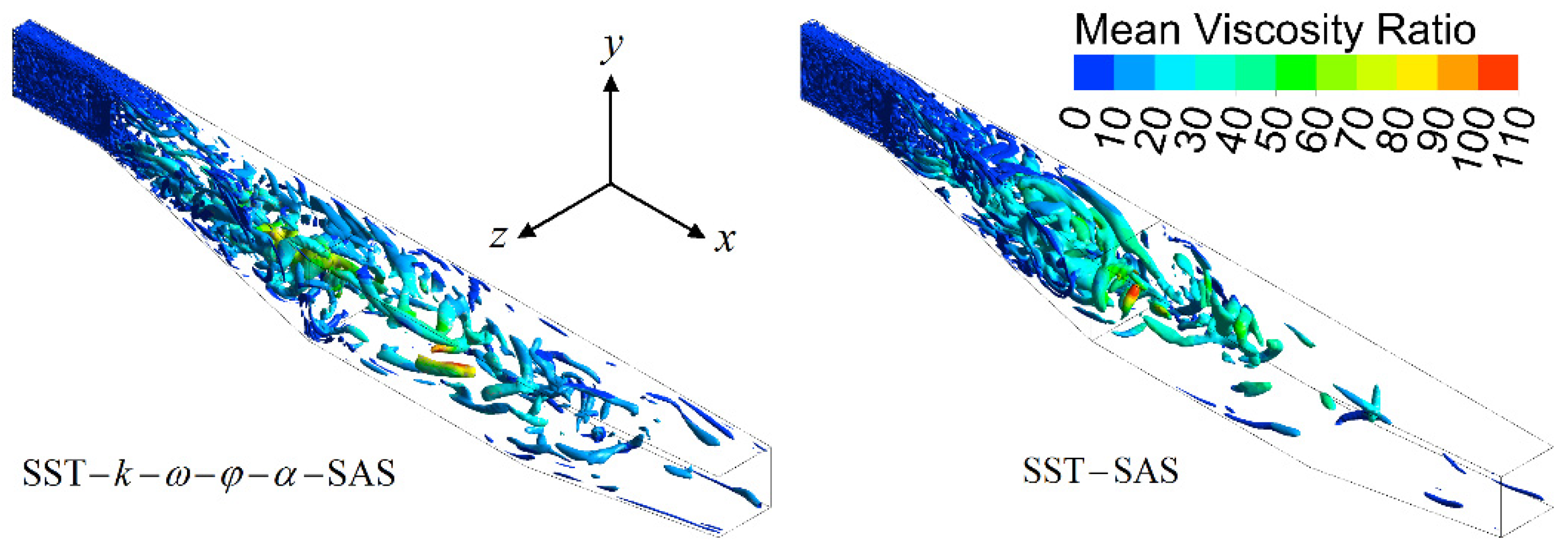

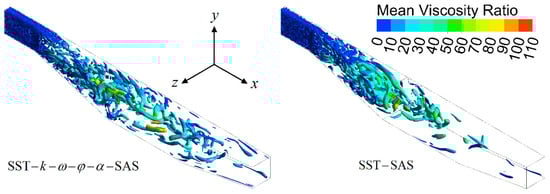

Figure 5. Visualization of the turbulent structures using iso-surface of Q = 100 1/s².

The difference between the results of the SST–k–ω–φ–α–SAS and SST–SAS models reveals the importance of the underlying RANS model in the SAS method, as this is the major difference between these two models. The SST–k–ω–φ–α–SAS model can yield more accurate near-wall turbulence [14], further improving the entire flow.

3.2. 2D Periodic Hills Flow

The 2D periodic hills flow is a popular benchmark for assessing turbulence models. The case with Re = 10,595 (based on the hill height and the bulk velocity above the hill crest) was comprehensively investigated using a highly resolved LES by Temmerman and Leschziner [28] and later by Frohlich et al. [29]. Using the same geometry, Breuer et al. [30] performed experimental studies and numerical simulations. They not only reproduced the results of Frohlich et al. [29], but also extended the research to a wide range of Re.

The LES data have usually been used as references to assess other turbulence models. A few examples are described. Jang et al. [31] compared the abilities of many RANS models (linear, nonlinear, and second-moment closure) for this flow. Billard and Laurence [8] compared the abilities of three RANS models (the $\mathrm{BL}-\overline{v^2}/k$ model, the $\overline{v^2}-f$ model of Lien and Kalitzin [32], and the SST k–ω model). Among these RANS models, only the nonlinear k–ω and the $\overline{v^2}-f$ models could predict reasonable flow features. The linear k–ε model yielded premature reattachment. On the contrary, the SST k–ω model delayed the reattachment and yielded excessively long recirculation. Frohlich and Terzi [3] used this case to evaluate the abilities of many hybrid RANS–LES models, including the DES, delayed DES (DDES), layering RANS–LES, RANS-limited LES, and SAS. Menter and Egorov [5] and Jakirlic and Maduta [27] used this case to investigate the performance of SAS.

The performance of the proposed SAS model was also evaluated using this flow. A schematic of the model geometry and the relevant boundary conditions is shown in Figure 6. It should be noted that, in all the simulations mentioned above, the computational domain was the region between two adjacent hill crests, and two periodic conditions were applied in the stream-wise and lateral directions. However, in the FLUENT CFD code used in this study, only one periodic condition was permitted in one case. Therefore, the region between the first and sixth hill crests was chosen as the computational domain, accompanied by a periodic condition in the lateral direction. In the streamwise direction, the inlet and outlet conditions were specified. As shown in Figure 6, the computational domain was divided into five sections, namely, S1, S2, S3, S4, and S5. The Re based on the hill height H and bulk velocity above the crest U_b was Re = 10,595. The domain size in the lateral direction was 4H. To avoid the influence of the inlet and outlet on the results, the results in S4 were selected for subsequent analysis. In the simulations of the two SAS models, the inlet conditions were extracted from precursor simulations using the corresponding RANS models. For example, the steady flow was obtained using the SST–k–ω–φ–α model, and the velocity components and turbulent quantities, which were extracted from the intersection surfaces of S4 and S5, were applied as the inlet condition in the simulation of the SST–k–ω–φ–α–SAS model. Similarly, for the simulation of the SST–SAS model, the inlet condition was extracted from a precursor simulation using the SST k-ω model. The total number of computational meshes was 4.76 million. The time step size was 0.005H/U_b. The statistics began at 10,000 steps and continued to 20,000 steps to ensure that the mean values of the variables remained unchanged with time. The LES data of Temmerman and Leschziner [28] were used as references.

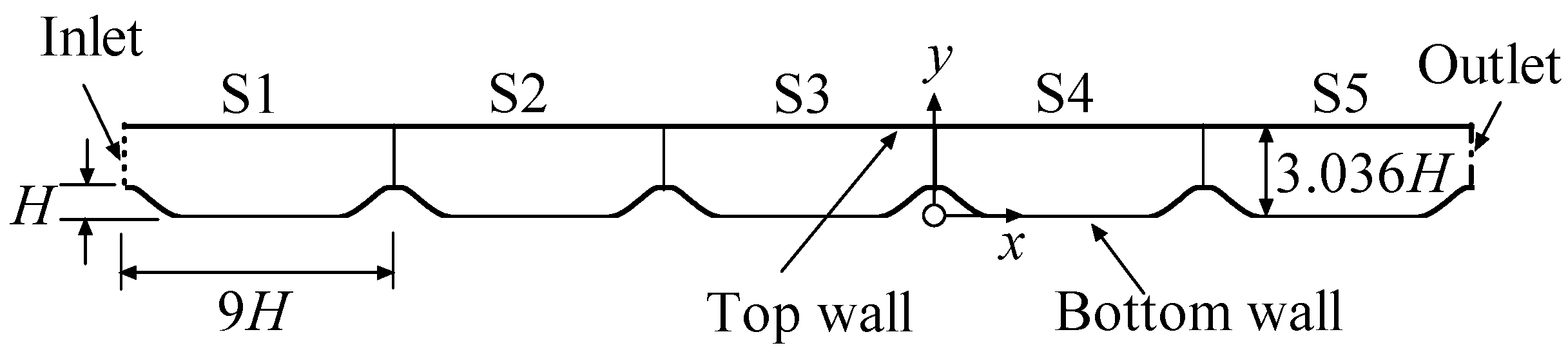

Figure 6. Schematic of the geometry and boundary conditions of the 2D periodic hills flow.

A comparison of the mean stream-wise velocity profiles for different transverse sections is shown in Figure 7. It was evident that the velocity profiles predicted by the proposed SAS model were in good agreement with those predicted by the LES. The SST–SAS model also predicted reasonable results, but the SST–k–ω–φ–α model drastically delayed the flow reattachment. The same characteristics could be observed from the skin friction coefficient ($C_f=2{\tau }_w/(\rho U_b^2)$) along the bottom wall (Figure 8). The C_f predicted by the proposed SAS model was better than those from the other two models. Table 1 lists the separation and reattachment points, as well as the length of the main recirculation region predicted by the three models. It was demonstrated that, although the proposed SAS model predicted both the separation and reattachment points slightly early, the length of the recirculation zone was in good agreement with the prediction of LES. The SST–SAS model predicted the separation point accurately but predicted the reattachment point much later. The SST–k–ω–φ–α model overpredicted the recirculation length significantly, with the furthest reattachment point.

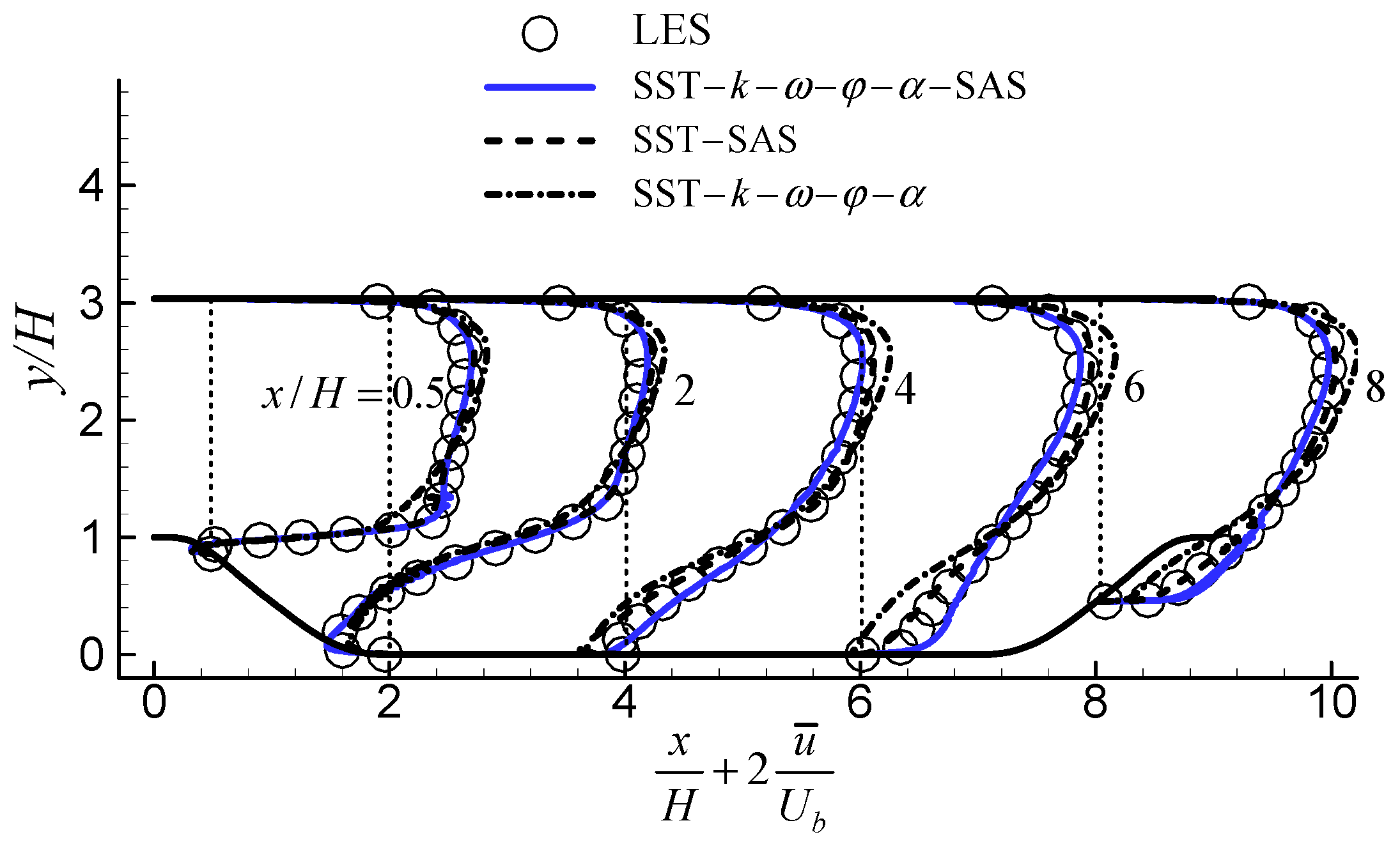

Figure 7. Comparison of the normalized mean stream-wise velocity profiles on different transverse sections.

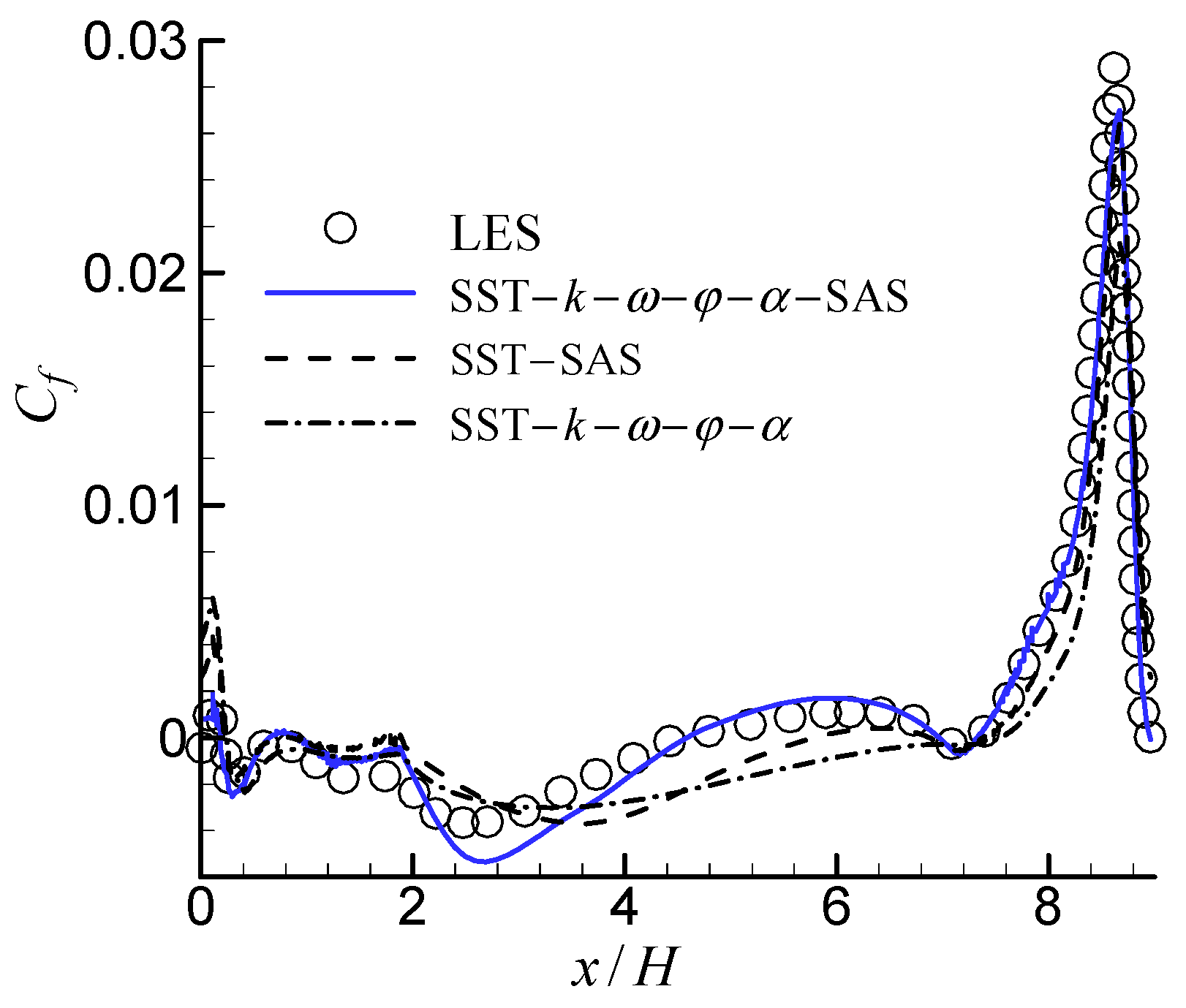

Figure 8. Comparison of the mean skin friction coefficients distributed along the bottom wall.

Table 1. Locations of separation (Sep.) and reattachment (Reatt.) points and the length of the main recirculation region (Len.) in the 2D periodic hills flow.

Model	Sep.	Reatt.	Len.
LES	0.22H	4.72H	4.50H
SST–k–ω–φ–α–SAS	0.18H	4.62H	4.44H
SST–SAS	0.22H	5.79H	5.57H
SST–k–ω–φ–α	0.24H	7.54H	7.30H

The performance difference between the SST–k–ω–φ–α–SAS and SST–SAS models can also be illustrated by the Q-criterion. The turbulent structures predicted by the SST–k–ω–φ–α–SAS and SST–SAS models using an iso-surface of Q = 30 1/s² were shown in Figure 9. There was a clear difference between the two images, indicating that the performances of these two models were different, although the computational conditions were the same. It was clear that the proposed SAS model produced a periodically resolved turbulent spectrum very well. In contrast, the SST–SAS model could not produce a periodically resolved turbulent spectrum. Specifically, in segment S3, the turbulent structures predicted by the SST–SAS model were very weak.

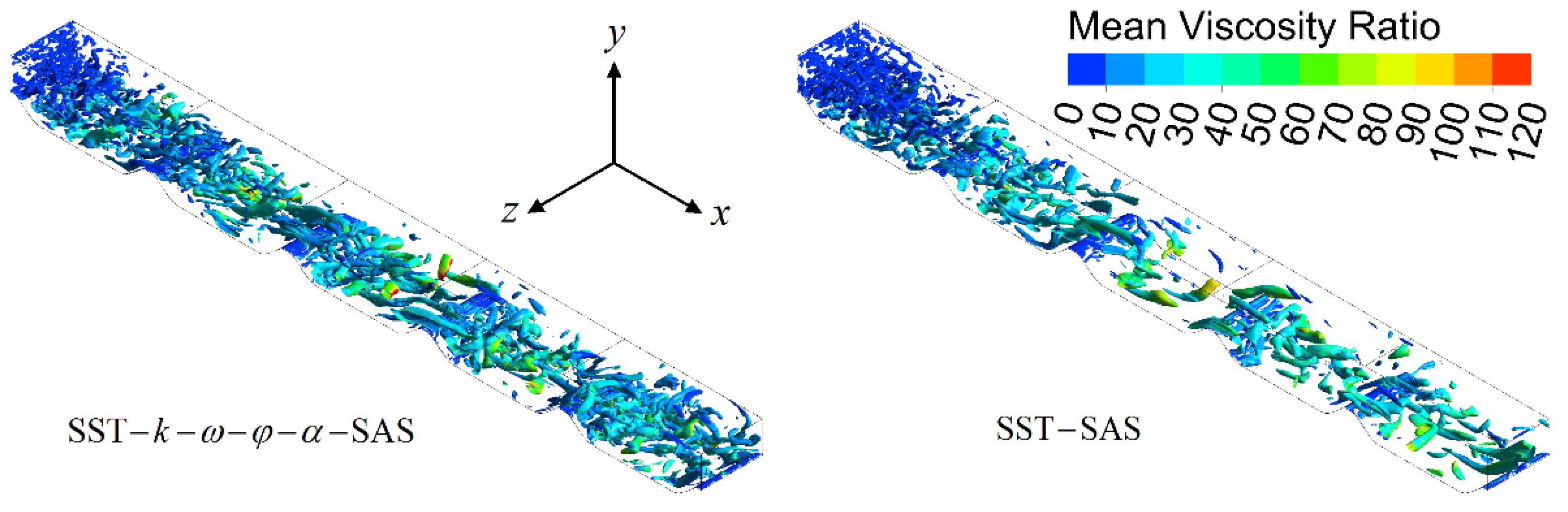

Figure 9. Visualization of the turbulent structures using iso-surface of Q = 30 1/s².

3.3. 2D U-Turn Duct Flow

It is well known that one of the serious weaknesses of conventional eddy viscosity models (EVMs) is that they are unable to capture the effects of strong streamline curvature. To ensure that the EVMs are able to do this, it is usually necessary to make corrections to the models. Several successful solutions have been published to date. For details, readers can refer to Arolla and Durbin [33] and Huang et al. [34]. The 2D U-turn duct flow is challenging for EVMs because of the strong streamline curvature, and it has been a benchmark for assessing the ability of turbulence models. The widely used reference data are the experimental measurements of Monson et al. [35]. For example, York et al. [36] used this flow to test their new eddy viscosity formulation. Smirnov and Menter [37] used this flow to validate the rotation and curvature correction in the SST k–ω model. Dhakal and Walters [38] used this flow to demonstrate the ability of their three-equation variant of the SST k–ω model to capture the effect of the streamline curvature.

In contrast to the eddy-viscosity-based RANS models, the LES can predict the strong streamline curvature effects without modifications because the turbulence spectra are resolved. However, the increased computational cost limits its utilization. Hybrid RANS–LES models are worthy of attention as approaches for maintaining a balance between accuracy and efficiency.

The 2D U-turn duct flow was used to test the performance of the proposed SAS model. Figure 10 illustrates the computational model used in this study. In accordance with the experiment of Monson et al. [35], the Re based on the bulk velocity U_b at the inlet and the height of the inlet channel H was 100,000. The domain size in the lateral direction was 4H. The periodic condition was specified in the lateral direction. At the inlet, the fully developed profiles, which were extracted from a preliminary computation in a periodic straight duct at the same Re with the relevant turbulence models, were used. The total number of computational meshes was 5.88 million. The time step size was 0.015H/U_b. The statistics began at 10,000 steps and continued to 30,000 steps to ensure that the mean values of the variables remained unchanged with time.

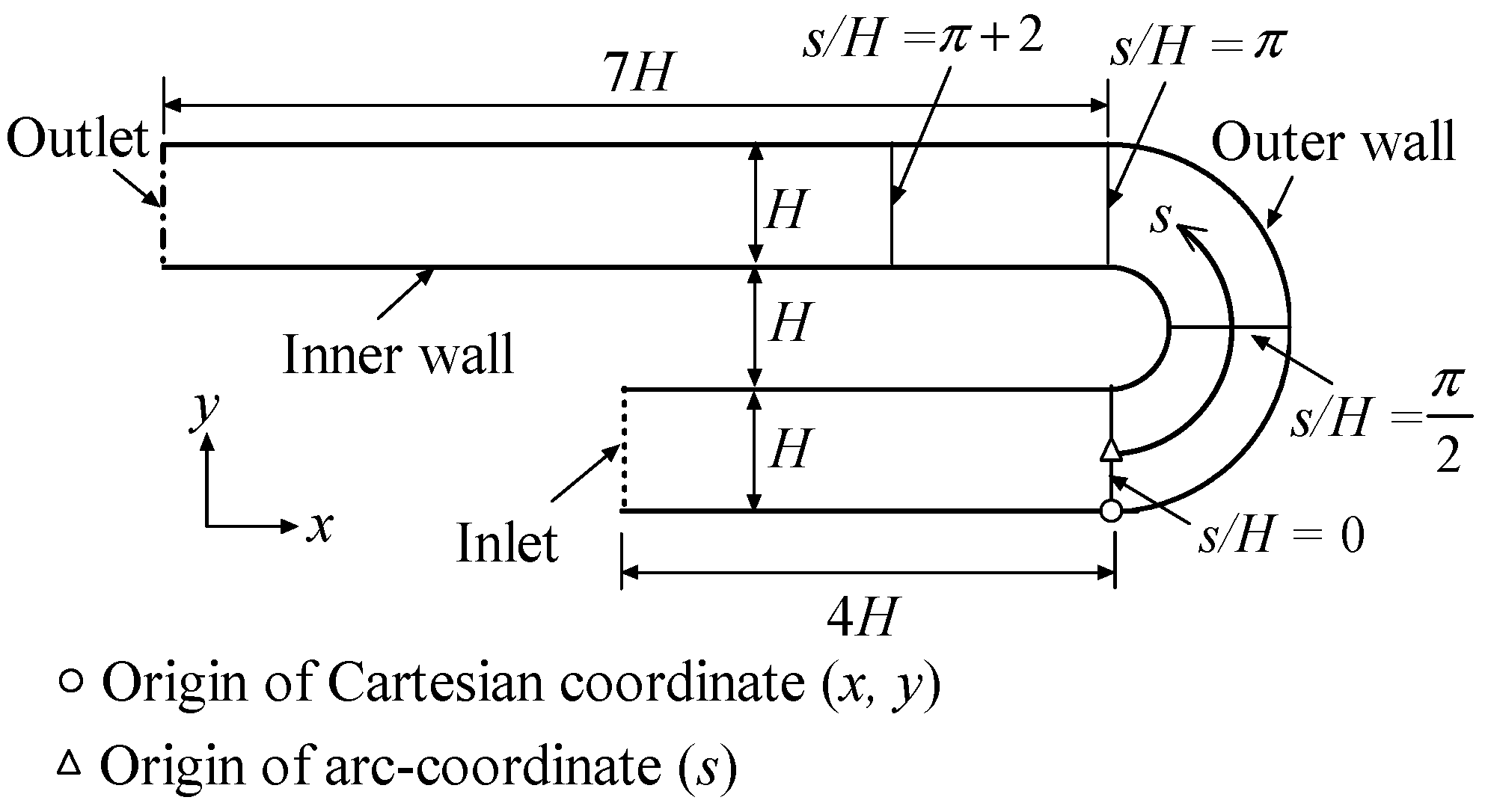

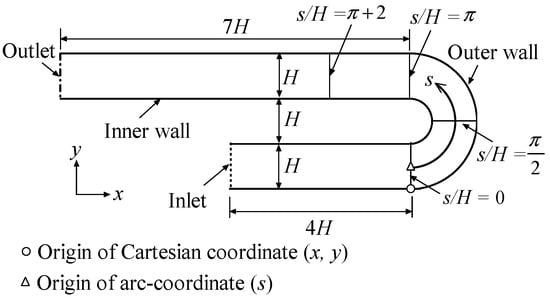

Figure 10. Schematic view of the geometry and the boundary conditions for the 2D U-turn flow.

An arc coordinate (s) was constructed to facilitate the analysis of the results, as shown in Figure 10. A comparison of the mean stream-wise velocity profiles for different transverse sections is shown in Figure 11. It was clearly demonstrated that the two hybrid RANS–LES models (the proposed SAS and SST–SAS models) had a positive effect compared to the RANS model (the SST–k–ω–φ–α model). At s/H = 0, all three models were able to predict the velocity profile well, and the difference was small. At s/H = π/2, the two hybrid models showed improved results near the concave outer wall compared to the SST–k–ω–φ–α model, which significantly underpredicted the velocity. At s/H = π, the two hybrid models showed improved results for the entire section. The SST–k–ω–φ–α model underpredicted the velocity near the concave outer wall and overpredicted the velocity near the convex inner wall. Moreover, in this section, the overall velocity profile predicted by the proposed SAS model was better than that predicted by the SST–SAS model. At s/H = π + 2, the velocity profile predicted by the SST–k–ω–φ–α model differed dramatically from the experimental results. The velocity near the outer wall predicted by the proposed SAS model matched the experimental results very well, but that near the inner wall differed significantly. It appeared that the SST–k–ω–φ–α–SAS model overpredicted the separation and slowed down the flow recovery. In contrast, the velocity near the inner wall predicted by the SST–SAS model matched the experimental results very well, but that near the outer wall was underpredicted.

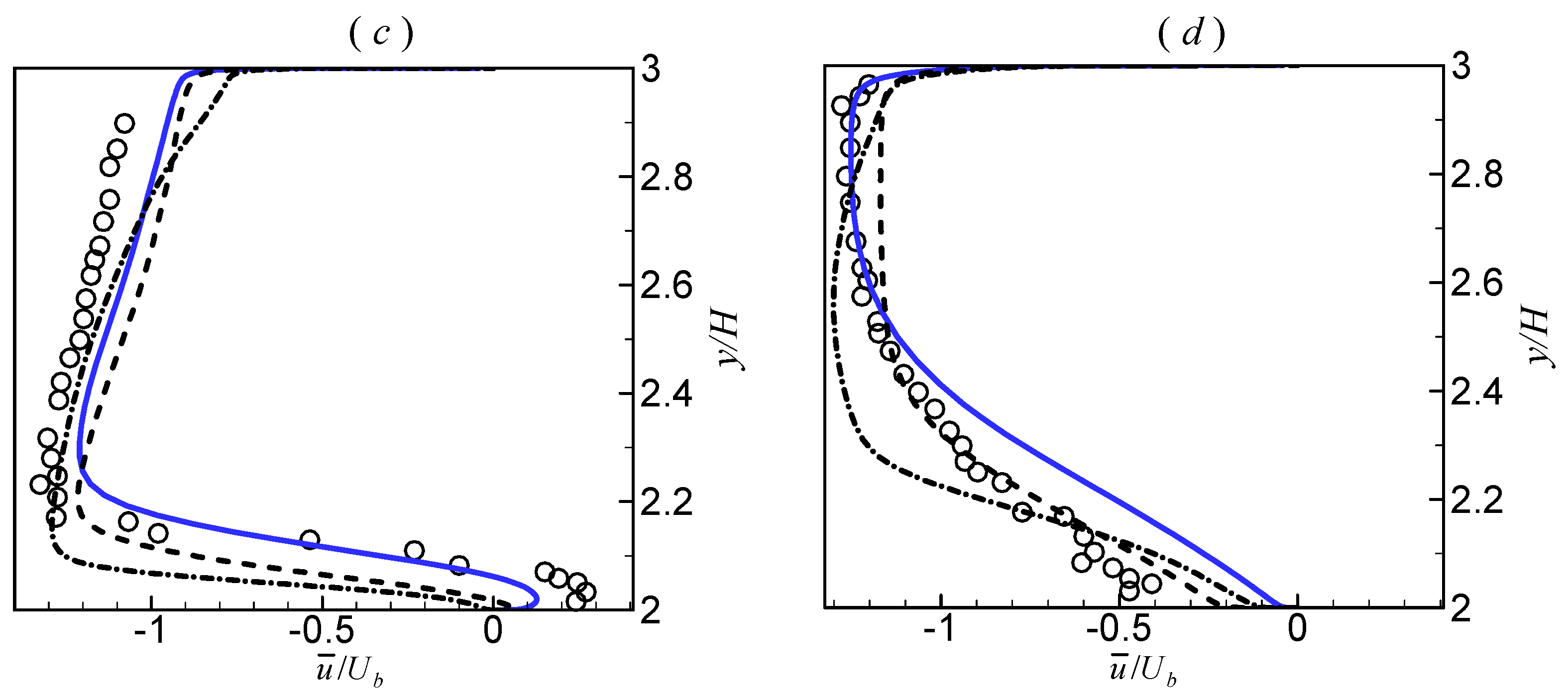

Figure 11. Comparison of the normalized mean velocity profiles at different transverse sections. (a) s/H = 0; (b) s/H = π/2; (c) s/H = π; (d) s/H = π + 2.

Figure 12 shows the distribution of the C_f along the inner and outer walls near the curved part. The improvement in the results predicted by the two hybrid RANS–LES models was clear. At the inner wall (Figure 12a), the results predicted by the two hybrid RANS–LES models were in good agreement with the experimental results. For the SST–k–ω–φ–α model, the C_f in the upstream region of the reattachment was well predicted, but the recovery of C_f after separation was significantly delayed. At the outer wall (Figure 12b), the SST–k–ω–φ–α model failed to predict the peak value of C_f and delayed the recovery of the C_f after separation. The two hybrid RANS–LES models significantly improved the prediction of C_f. Especially for the SST–k–ω–φ–α–SAS model, the C_f after separation was quite consistent with the experimental results.

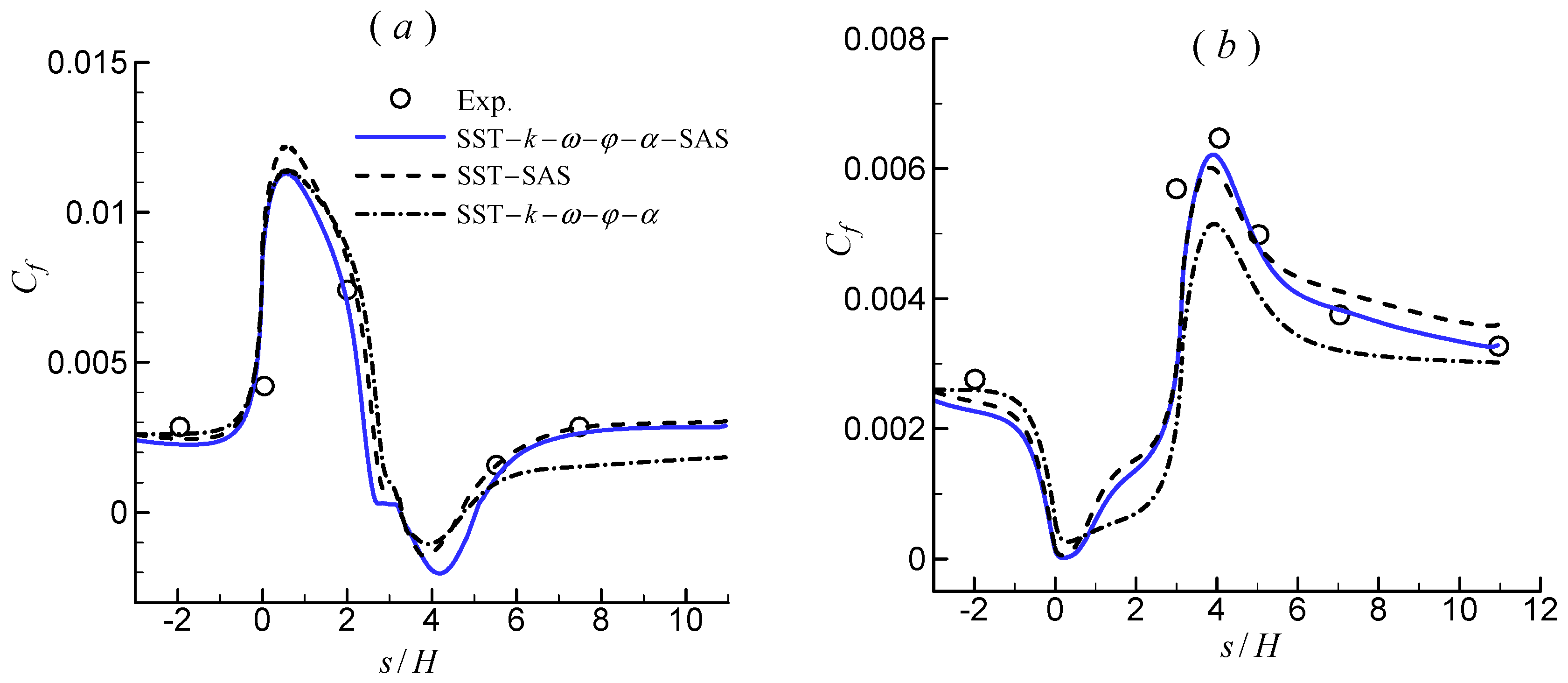

Figure 12. Comparison of the C_f distributed along the curved walls. (a) Inner wall; (b) outer wall.

It can be seen that, although the baseline model was linear eddy viscosity-based RANS, the hybrid RANS–LES models were indeed able to capture the effect of the strong streamline curvature without any additional correction. This finding is encouraging and expands the application range of hybrid RANS–LES models.

4. Conclusions

An SAS model was developed on the basis of a previously developed elliptic blending-based RANS model. The new SAS model was tested for three cases with boundary layer separation from curved surfaces: 3D diffuser flow, 2D periodic hills flow, and 2D U-turn duct flow. Comparisons of the model predictions with the experimental, DNS, and LES results from the literature, and with the results obtained using the RANS model (SST–k–ω–φ–α) and another SAS model (SST–SAS) were provided. The following conclusions can be obtained:

(1) In the 3D diffuser flow, the results predicted by the proposed SST–k–ω–φ–α–SAS model were the best. The SST–k–ω–φ–α model failed to accurately predict the separation of the flow, leading to incorrect velocity contours and poor pressure distribution. The results predicted by the SST–SAS model were better than those from the SST–k–ω–φ–α model, but they were quite different from the DNS data.

(2) In the 2D periodic hills flow, the velocity profiles predicted by the proposed SAS and SST–SAS models were in good agreement with LES, but the results of the SST–k–ω–φ–α model were poor. The length of the recirculation zone predicted by the proposed SAS model was in good agreement with the LES results and was better than that predicted by the SST–SAS model. The SST–k–ω–φ–α model significantly overpredicted the recirculation length.

(3) In the 2D U-turn duct flow, the two hybrid RANS–LES models had a positive effect compared to the RANS model. The velocity profiles and skin friction were significantly improved.

In summary, the SST–k–ω–φ–α model could not capture the critical features for all three flows. The SST–SAS model could predict reasonable results. The proposed SAS model was capable of resolving more portions of turbulence structures, and it yielded the best results in all the cases.

The results indicated that the underlying model in the SAS method is very important. Therefore, the development of an advanced RANS model is significant.
