Characterizing the Grating-like Nanostructures Formed on BaF₂ Surfaces Exposed to Extreme Ultraviolet Laser Radiation

Featured Application

laser surface-processing.

Abstract

Monocrystalline barium fluoride (BaF₂) slab targets were irradiated by focused 46.9-nm laser radiation at various fluence levels above the ablation threshold. Well-developed ablation patterns with sharp edges were studied by AFM (atomic force microscopy). Their inner surfaces were uniformly covered by periodic structures. The spatial period of the ripples depends on the laser fluence. When the sample is rotated by 45°, the orientation of the grating-like structure changes accordingly. Thus, the grating vector of the periodic structure seems to be coupled to the crystallographic planes of the single crystal. This means that the XUV-laser induced ripples reported here differ from LIPSS (laser-induced periodic surface structures) associated with interference phenomena occurring on illuminated surfaces. Therefore, other mechanisms are discussed to explain the formation of the periodic nanostructures reported in this article.

1. Introduction

The Ne-like Ar capillary-discharge laser (CDL) represents a compact, handy device that emits intense monochromatic radiation with a wavelength of 46.9 nm delivered in nanosecond pulses [1]. The extreme ultraviolet laser promises great potential for use in the field of holographic imaging [2], microscopy [3] and materials processing [4,5,6,7,8,9,10] including nanostructure manufacturing, benefitting from the short wavelength of its radiation. For numerous applications it is important that even a single photon carries the energy that exceeds the band gaps and the cohesive energies of almost all common materials. It is also important that such energetic photons (their energy is 26.4 eV) are strongly absorbed in the material almost solely by the photoelectric effect. Thus, the intense short-wavelength radiation can create ultra-fine structures via a direct ablation of dielectric materials that would be transparent to long-wavelength lasers, i.e., those working in UV, visible (Vis) and IR spectral ranges.

Patterning of the surface of materials can be performed with intense coherent electromagnetic radiation in two ways. Ripples are formed either spontaneously (so called LIPSS, first observed in the middle sixties [11]—frequently caused by an interference of incoming laser radiation with the front of the pulse scattered on an imperfect surface [12]) or by an externally modulated (e.g., in an interferometer, by reflection/transmission masks) wavefront of the laser beam (for such experiments with XUV-CDL radiation see refs [7,8,9,10]). In this article, we shall concentrate on the spontaneous LIPSS formation on XUV-CDL irradiated surfaces. It has been demonstrated earlier that the LIPSS associated with interference phenomena on the surfaces exposed to XUV radiation (radiation with wavelengths shorter than 100 nm here referred to as XUV [13]; EUV is now usually attributed to 13.5-nm radiation routinely engaged in EUV Lithography—EUVL [14]) occurring only rarely [15,16]. This scarcity is likely caused by the absence of back-reflected XUV radiation under normal incidence conditions. However, LIPSS of other kinds may quite often be found on the XUV-exposed surfaces.

In this article, barium fluoride (BaF₂) was exposed to focused XUV-CDL radiation as it is a typical UV-Vis transparent inorganic dielectric material widely used as a scintillator and in the manufacture of various optical elements (for more details on this material see ref [17]). It crystalizes (similarly to the more popular CaF₂) in an 8-coordinated fluorite structure [18]. In our initial experiments, reported in ref. [19], we indicated a spontaneous formation of grating-like nanostructures with a spatial period of 400 nm on the BaF₂ surfaces exposed to a focused 46.9-nm laser beam delivered by the CDL that was developed and operated at the Harbin Institute of Technology in China. This was quite a surprising finding because of a high abundance of such uniform ripples registered in the ablated area with no external modulation of the laser wavefront. Here, we made use of the CDL device available at the Institute of Plasma Physics in Prague, which is more powerful than the CDL source engaged in the earlier Harbin irradiation experiment, to characterize the grating-like nanostructures under wider irradiation conditions to test the possibility of tailoring their properties and to shed light on their formation mechanisms.

2. Materials and Methods

The experiment was performed using the CAPEX device in Prague, which is a source of intense XUV radiation (with a wavelength of 46.9 nm) with an output pulse energy of 200 μJ. A more detailed description of CAPEX apparatus can be found in papers published earlier [7,20,21]. The XUV laser beam was focused inside a vacuum interaction chamber by a Si/Sc multilayer spherical mirror (R = 2100 mm) with reflectivity 15%. The laser beam was attenuated by free-standing Al filters [21] of different thicknesses to vary the fluence while keeping the distance between the target surface and the beam’s tight focus position unchanged. The BaF₂ sample was fixed on a holder together with a gold-coated PMMA substrate. The irradiation was performed under normal incidence conditions. The experiment proceeded as follows: after a couple of periodically fired shots, when laser pulse energy had been proven to be stable, the windowless vacuum photodiode [20] measuring the pulse energy was removed from the beam path, and the gold-coated PMMA substrate was exposed to single shots to characterize the focused beam by the ablation imprint technique [22,23,24,25]. The imprint shapes were directly monitored by a CCD camera equipped with a suitable objective [23,24] and analyzed by well-proven procedures [22,25]. Moving the holder in several steps along axis of the incoming beam (z-scan [22]) we chose the best focus position by looking at the shape and size of the focal spot (midplane between tangential and sagittal foci). When the best focus was found, the holder with both the samples was rotated to place the BaF₂ sample into the beam path. Then, the BaF₂ samples were exposed to a given number of XUV-CDL pulses. The irradiated samples were removed from the sample holder to be analyzed by an optical profiler (WLI—white light interferometer), Nomarski (DIC—differential interference contrast) microscope and an AFM working in tapping mode.

3. Results and Discussion

3.1. Experimental Results

Figure 1 shows the ablation patterns on BaF₂ induced by 25 accumulated XUV-CDL pulses at different fluence levels as detected by the white light interferometer (WLI). The pattern in Figure 1a was ablated by the full laser energy. In Figure 1b,c, the laser was attenuated by Al filters with thicknesses of 200 nm and 400 nm. The corresponding fluence of the XUV laser in Figure 1 was approximately 230 mJ/cm², 30 mJ/cm² and 15 mJ/cm², from left to the right. Ablation craters become smaller as Al foils attenuate the beam, the deepest part of each crater is always located at the crater center.

The AFM scanned several 10 μm × 10 μm square areas inside the ablation craters. The corresponding AFM images can be seen in Figure 2. Nanostructures with a uniform morphology have been always registered. The structures exhibit a spatial period decreasing from approximately 1 μm down to 250 nm when the fluence decreases from 230 mJ/cm² down to 15 mJ/cm². Figure 3 shows the results obtained at a reduced number of accumulated pulses, i.e., 12 pulses were applied in creating the ablation crater. The spatial periods of the nanostructures remained unchanged with respect to the irradiation by more pulses at the same fluence level. However, the surface inside the ablation crater created by a lower number of pulses shows a higher roughness in comparison to the surfaces processed by more pulses.

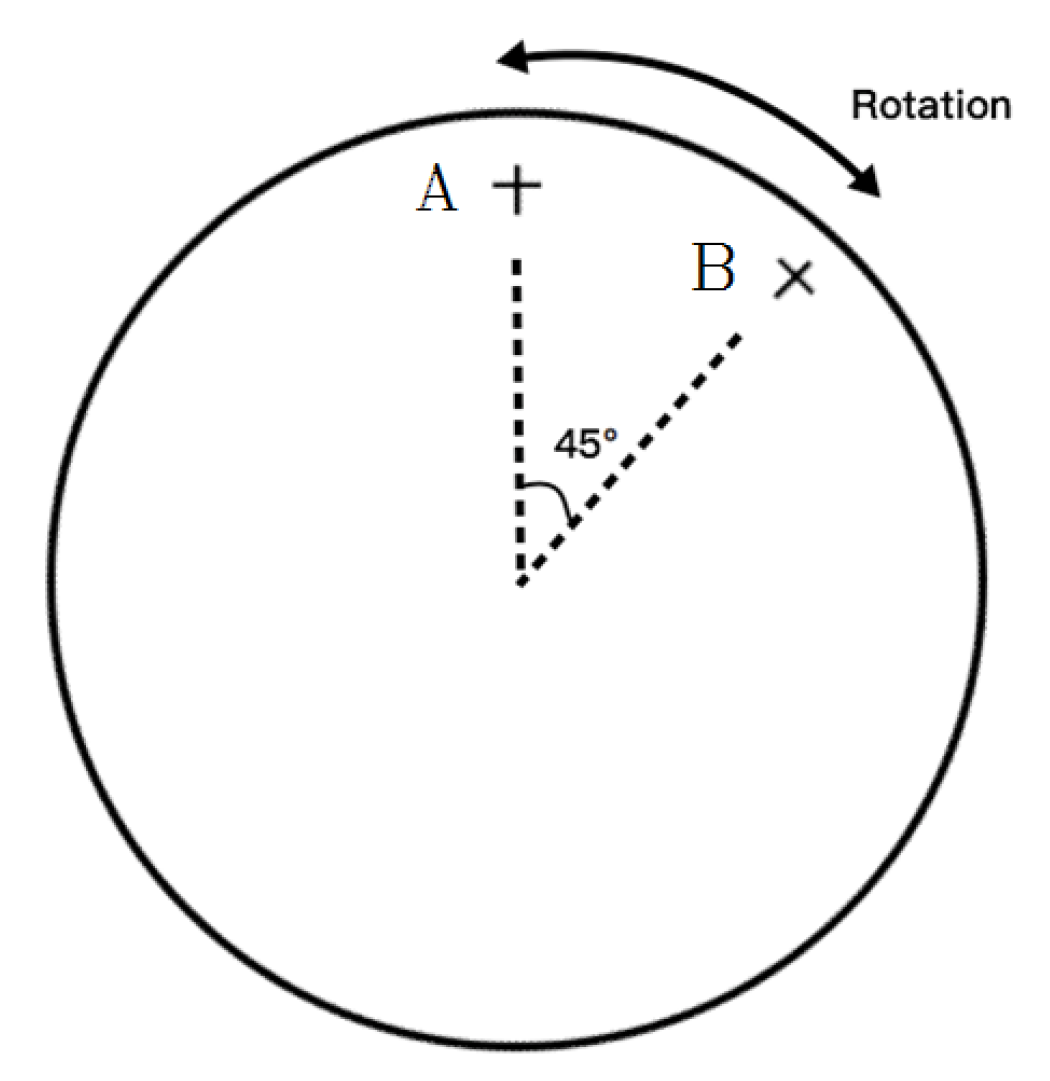

We may see in Figure 2 and Figure 3 that the nanostructures on BaF₂ induced by a 46.9 nm laser have a specific orientation. To characterize the effect of the orientation, the BaF₂ monocrystalline slab targets were ablated at two different positions with respect to the XUV-CDL beam. Figure 4 provides a sketch of the sample arrangement. First, in position A, the ablation pattern made by 25 laser pulses was obtained. Then, the sample was turned by 45 degrees into position B, where another ablation pattern was created by the same number of laser pulses under identical experimental conditions. Therefore, the only change in this experiment concerns the angle between the tangential plane of the focusing mirror and crystallographic planes of the single crystal of barium fluoride.

These two ablation patterns were subjected to AFM analysis without moving the sample (this is quite important, because the orientation of the structures observed in the AFM scanning area could change if the sample is moved). In Figure 5a,c, the overview images show ablation craters created in sample positions A and B, respectively. The shapes of these two patterns confirm that the focal spot was rotated by 45°. In Figure 5b,d, the ablated surfaces of samples A and B are visualized by AFM with a higher resolution. It can be clearly seen that, despite the rotation of the focal spot, the orientation of the nanostructures remains the same in both the sample positions. This means that the k-vector of the grating-like structure is coupled to the orientation of crystallographic planes in the single crystal.

3.2. Discussion and Outlook

Alkali earth halides—CaF₂ more frequently than BaF₂—have been exposed to intense ionizing and non-ionizing radiation many times. The main motivation of these studies lies in the study of damage to optical components and the manufacture of micro/nanostructures. Therefore, we may compare the characteristics of periodic nanostructures observed in our irradiation experiment with the surface damage patterns created under different irradiation conditions.

Grating-like structures (LIPSS) appeared on CaF₂ and BaF₂ surfaces exposed to picosecond [26] and femtosecond [27,28,29] long-wavelength laser pulses, respectively. In both cases, the periodicity of the ripples was comparable to the laser wavelength and the LIPSS grating vectors depended on the direction of the polarization vector of laser radiation. This contrasts with our finding, where it is the orientation of crystallographic planes which is related to the grating-vector direction. It seems that the crystallographic planes played an important role in the damage to CaF₂ induced by nanosecond pulses of UV laser radiation [30,31]. The damage pattern shows linear edges oriented along the crystallographic planes. However, their spacing is at least by one order of magnitude greater than in the case of XUV-CDL irradiation and they often cross each other at certain angles while the lines of the XUV-LIPSS reported here are dominantly parallel. Even nanoparticles emitted from BaF₂ irradiated by the nanosecond laser radiation often show a calcite crystal habitus and sharp edges [32]. This all indicates that laser-induced cleavage of alkali-earth halide crystals along the crystallographic planes can be observed in both the cases but with the long-wavelength laser radiation they have not been found to be as regular and uniform as observed on the XUV-CDL-illuminated surfaces in the present study.

Both long- and the short-wavelength radiation may create various defects in the crystal lattice of insulators [33] (similar effects are reported also in wide-gap semiconductors [34]) resulting in irreversible changes of illuminated surfaces. In CaF₂, the formation of defects leading to surface metallization was induced by nanosecond pulses of 193-nm [35] and 157-nm [36] excimer laser radiation. However, the calcium-rich nanostructures show an oval shape not a linear one. CaF₂ has also been irradiated at a wavelength of 46.9 nm [37] by a similar XUV-CDL source as utilized in the present study. However, only the ablation thresholds and the rates were measured. A detailed characterization of ablated areas has not been performed. As to ionizing radiation, the defect formation was induced in BaF₂ and CaF₂ by synchrotron radiation [38] and 850-eV [39] electrons, respectively. The results are similar to those obtained with intense UV radiation.

It is clearly visible that the periodic nanostructures observed in the XUV-CDL irradiation experiment differ from the morphology of all the damage patterns observed on alkali-earth-halide surfaces exposed to radiation of various kinds in numerous studies reported earlier [26,27,28,29,30,31,32,33,34,35,36,37,38,39]. We should keep in mind that an attenuation length of 46.9-nm XUV-CDL radiation in BaF₂ is very short, i.e., only about 10 nm [40,41]. Thus, energy density gradients are enormous in the near-surface region of the irradiated crystal. Thus, unique thermo-mechanical processes (and their interplays with other phenomena) may occur in a very thin near-surface layer under these irradiation conditions. To distinguish between different possible mechanisms of XUV-LIPSS formation, further XUV-CDL interaction experiments performed in ultra-clean UHV environments are needed. They should be followed by an elemental sensitive imaging of the surface with high spatial resolution to reveal local changes of the Ba:F ratio. In this way, we might elucidate the possible role of crystal lattice defects. For testing the spallation/micro-cracking mechanism, different single crystal cuts should be irradiated on a wider variety of crystallographic plane orientations with respect to the laser beam. Interaction experiments with ultra-short pulses delivered by free-electron lasers tuned at a wavelength of 46.9-nm under different incident angles would help to verify the validity of various LIPSS formation theories.

4. Conclusions

A detailed characterization of periodic, grating-like nanostructures spontaneously formed on the surface of BaF₂ single crystals irradiated by nanosecond pulses of 46.9-nm laser radiation was performed. The structures are highly abundant and uniform. Their spatial periods strongly depend on the fluence of the XUV-CDL radiation. An important finding is that their grating vector follows crystallographic planes when the sample is rotated by 45°. In brief, lines of the grating-like structure are also rotated by 45° as the sample rotates by 45°. Therefore, complex processes occurring in a near surface layer of the material associated with the crystallographic planes take place here rather than the standard LIPSS origination mechanism due to the interference of incoming laser light with the laser light scattered or diffracted on the ablating surface.
