A Fuzzy-Based Method for Objects Selection in Blockchain-Enabled Edge-IoT Platforms Using a Hybrid Multi-Criteria Decision-Making Model

Abstract

The broad availability of connected and intelligent devices has increased the demand for Internet of Things (IoT) applications that require more intense data storage and processing. However, cloud-based IoT systems are typically located far from end-users and face several issues, including high cloud server load, slow response times, and a lack of global mobility. Some of these flaws can be addressed with edge computing. In addition, node selection helps avoid common difficulties related to IoT, including network lifespan, allocation of resources, and trust in the acquired data by selecting the correct nodes at a suitable period. On the other hand, the IoT’s interconnection of edge and blockchain technologies gives a fresh perspective on access control framework design. This article provides a novel node selection approach for blockchain-enabled edge IoT that provides a quick and dependable node selection. Moreover, fuzzy logic to approximation logic was used to manage numerical and linguistic data simultaneously. In addition, the Technique for Order of Preference by Similarity to Ideal Solution (TOPSIS), a powerful tool for examining Multi-Criteria Decision-Making (MCDM) problems, is used. The suggested fuzzy-based technique employs three input criteria to select the correct IoT node for a given mission in IoT-edge situations. The outcomes of the experiments indicate that the proposed framework enhances the parameters under consideration.

1. Introduction

Recently, many types of network-based systems have become prevalent, such as the Wireless Body Area Network (WBAN) [1], mobile networks [2], spatial-temporal networks [3], and the Internet of Things (IoT) [4]. Since the invention of the IoT by Kevin Ashton, the concept of IoT has become more prosperous and more powerful [5,6]. IoT has been described as a network in which different objects with exclusive identifiers and the capability to transmit data are interconnected without the need for human interaction over the Internet [7,8,9]. The rapid growth of 6G-enabled IoT has recently piqued academia and industry’s interest [10,11,12]. Further, the issues related to privacy, anomaly, and security are becoming essential as the applications become more prevalent [13,14,15,16]. Safe and robust communication and networks include authentication, data sharing, and analysis [17,18,19].

Blockchain is devised to present data availability and tamper resistance in a decentralized environment and an immutable that is tailored to increase IoT data integrity, security, and availability while optimizing IoT applications [20]. It is an encoded, dispersed ledger technology for building tamper-resistant real-time records which is applicable in many fields [21,22]. Furthermore, this platform provides a reliable environment for IoT devices by securely interconnecting them and protecting them from the adversarial attacks that plague centralized client/server models [23].

Moreover, the network of IoT is assorted for a particular action, meaning that specific IoT nodes will complete it better than others. The critical problem that has been considered in this paper is determining which nodes are best suited. Obtaining the right nodes at the right time and their selection helps mitigate common IoT-based concerns such as network lifespan, allocation of resources, and trust in the gathered data [24]. The issue of energy and routing could be solved by choosing the node rather than optimizing node numbers and their location [25]. In this case, the nodes can be organized in any order, and only a subsection of nodes is stimulated at any given time for a given mission. By selecting the appropriate subset of nodes based on the task criteria, node selection aids energy efficiency [26]. Furthermore, there is individual-based selection, in which every node is evaluated independently and the best nodes are selected, or group-based selection, in which possible clusters are evaluated as a whole and the finest set is selected. So, evaluations are focused on the task specifications and constraints [27]. The latest selection strategies, in particular, are not well-suited to localization tasks due to several flaws. First, the present selection methods concentrate on comprehensive environmental monitoring, making them less application-oriented [28]. The information gathered is not used in a response system to update the community of nodes, which could be critical for increasing the speed of localization. Most studies on the area of interest coverage in the literature are planned for nodes with sensing ranges. However, this is not true for all sensors, for example, radiation sensors, which do not have a range [29]. These flaws necessitate the use of a dynamic selection outline that acclimates to the localization mission and uses the gathered readings to update the node collection [30].

Fuzzy Logic (FL) is a method that employs approximation logic to manage linguistic and numerical data simultaneously [31,32]. To achieve an actual output and determine the details of the non-linear mapping, fuzzy logic works on stages of input likelihoods [33]. Furthermore, the models based on Markov Theory and Multi-Criteria Decision-Making (MCDM) have been used to solve engineering problems in science, technology, economics, and other fields in numerous studies [34,35,36]. However, MCDM models, which combine computational and mathematical methods to provide a subjective assessment of performance criteria by decision-makers, have emerged as a part of the process study. In addition, the Technique for Order of Preference by Similarity to Ideal Solution (TOPSIS), a powerful tool for examining Multi-Criteria Decision-Making (MCDM) problems, is used. TOPSIS has been widely utilized to tackle decision-making difficulties. This strategy is based on comparing all the possibilities in the issue. The TOPSIS approach provides the following advantages: Simplicity, rationality, comprehensibility, high computational efficiency, and the ability to quantify the relative performance of each choice in a simple mathematical form. Consequently, in this investigation, blockchain technology has been employed to improve the privacy and security of the system. Using an edge platform can also improve system efficiency, reduce latency, and improve performance. To select an appropriate node for a specific mission, the proposed fuzzy-based method uses three input parameters: IoT Node’s Free Buffer Space (INFBS), IoT Node’s Remaining Energy (INRE), and IoT Node’s Distance to Event (INDE). Using a hybrid MCDM model, the node selection issue in blockchain-enabled edge-IoT platforms using a fuzzy-based method has been analyzed. This investigation’s significant outcomes are listed below:

• Proposing a secure framework for integrating edge and blockchain technologies into IoT networks to ensure data protection and energy efficiency.
• Providing a platform for node selection for various IoT-edge frameworks.
• Utilizing an edge platform to increase performance, decrease latency, and increase system efficiency.
• Introducing a novel fuzzy-based method using a hybrid MCDM model.
• Improving parameters such as INFBS, INRE, and INDE.

The rest of this article is organized in the following manner. Section 2 deals with the theoretical background. Section 3 covers the adopted methodology, Section 4 deals with results, and Section 5 discusses the conclusion and future scope.

2. Related Works

In the last several years, much research has been conducted and is currently being performed on distributed computation. Researchers have focused on various topics, including architectural design, bug report prediction, and overall system performance [37,38]. Moreover, several optimization strategies are accessible for the mobile computing area [39,40]. Scholars have focused on many elements of IoT optimization under various restrictions. Most researchers have focused on reducing power consumption and overall system delay and optimizing additional factors such as cost and bandwidth utilization. Qureshi and Kumar [41] provided a general logistics benchmarking process with the Fuzzy Analytic Hierarchy Process (FAHP). Logistics’ essential success elements are recognized and prioritized in the literature. Using these crucial success indicators, LOGINET, a 3PL services provider situated in western India, is benchmarked against four other service providers. Their relative ranking has also been displayed using the standard.

Wudhikarn and Chakpitak [42] created an integrated technique for overcoming the inadequacies and gaps observed in previous benchmarking studies, as well as for benchmarking Intellectual Capital (IC) in the undeveloped logistics sector. The suggested technique integrated the analytic network process and the concept of thinking and non-thinking assets with the generic benchmarking procedure to address the lack of consideration of relationships among previous benchmarking concepts and the impacts of their managerial factors, as well as to examine the wide range of elements and indicators of IC influencing the sustainable development of organizations.

Riaz and Qaisar [43] developed a mathematical outline for minimizing latency and choosing nodes in edge-based networks. Furthermore, a solution based on branch-and-bound and outer approximation is thoroughly described. A comprehensive study of the suggested algorithm’s convergence is provided, demonstrating that it converges linearly and offers the best answer. According to experimental data, the Outer Approximation Algorithm (OAA) successfully optimized the system as the total system throughput rose with node numbers. According to their findings, their technique can considerably minimize the time required for node selection and total latency while maximizing the output. To compare OAA outcomes, a many-to-one matching-based method was employed as a baseline. OAA beats the matching-based method, according to the results. Other features of the service model and different service parameters, such as workload balancing among MEC nodes, can be catered for in this work.

Furthermore, Redhu and Anupam [44] proposed an optimum relay node-choosing technique to quickly forward data over time-varying IoT networks. Poisson point processes are used to describe the movement of dense IoT networks. Relay nodes are selected by balancing the network’s data latency and risk of packet loss. The suggested approaches’ performance is tested in a variety of network topologies. The effects of the risk of packet loss in a time-varying network, the duration of the connection history on data latency, data on delayed connectivity, node density, and transmission range are shown in the results. The suggested bi-objective optimization issue is equated to single-objective optimization in terms of performance. When the latter is optimized, the performance of such approaches is found to deteriorate. On the other hand, the technique works well while minimizing data delay and packet loss danger.

In addition, for eliminating IoT nodes and selection in OppNets, Cuka and Elmazi [45] provided two fuzzy-based schemes: Node removal and node selection. They employed three input measures for node removal, INDE, NFBS, and the IoT node’s battery level, and four input measures for selecting nodes, namely ‘Node Contact Duration’, ‘Node Inter Contact Time’, ‘Node’s Unique Encounters’, and Node’s Number of Past Encounters. IoT Node Selection Possibility (INSP) is the output parameter. The findings demonstrate that the suggested techniques correctly excluded and selected IoT nodes. They found from both systems that in the Node Elimination System (NES), the nodes that did not meet the fundamental resource readiness criterion were removed from the selection process. They discovered in NES that IoT nodes with adequate principal resources are chosen for further job selection.

Lu and Wudhikarn [46] presented an integrated model for producing intellectual capital performance indicators, which can be used in a financial shared-services organization to enhance the standard IC process model. Their research aims to employ IC management in conjunction with the MCDM approach to build an IC measurement system and use the best–worst method to determine the weights of IC performance indicators to prioritize KPIs. These prioritized IC performance indicators assist managers in focusing on the important components of their IC management and effectively allocating the organization’s limited resources. Their hybrid solution was applied in four commercial courier businesses. The suggested technique prioritized and determined the magnitude of the aspects under consideration, including the IC elements and their performance metrics. The findings show that management prioritizes the IC of the best performer and other enterprises. Their benchmark results revealed gaps, the potential for improvement, and prospects for sustainable development for inferior logistics businesses.

Shukla and Tripathi [27] developed a three-phase implementation technique. The network is initially installed in a hierarchical cluster architecture, expanding to any level. The effective relay node selection technique is used in the second stage to elect the sensor node as a relay node. The quantity of relay nodes available in each cluster is determined by the node and relay node communication range density, and it varies for every cluster. The Energy-Efficient Communication (EEC) protocol transmits network data to the base station in the last phase. They compared the suggested approach to several protocols and found that it is superior in the context of depletion of energy and lifespan of the network. On a green WSN-Assisted IoT deployment, the energy-efficient consumption may be simply deployed. Furthermore, the method continues to outperform the comparable protocol as the size of the network and the number of nodes grow.

Redhu and Hegde [47] offered an effective relay node selection technique based on IoT network contact patterns. Digital traces of computer equipment give a priori connect pattern information that aided in improving the data forwarding scheme’s performance. This information was used in the approach, which combined data latency and connection dependability for reliable data forwarding over time-varying IoT systems. The technique’s performance is assessed in a variety of network topologies. The results showed how using a priori network contact patterns may reduce data latency and improve dependability. The impact of the reliability of a link and connection history duration on data latency, node density, mobility variance, and transmission range is also investigated. The technique works well while minimizing data latency and increasing connection dependability.

Finally, Alagha and Singh [24] suggested a two-stage node selection technique that employed genetic and greedy algorithms. The first step used a cluster-based methodology associated with a genetic algorithm to obtain primary data about the source. Then, the active node readings are dynamically employed in the second phase to pick the following best group of active nodes using an individual-based greedy selection process. Both steps are combined in the Data-driven Active Node Selection (DANS) framework, a dynamic framework for tackling localization issues in IoT sensing applications. In addition, a methodology for determining coverage has been devised for sensors that may not have a detecting range. Studies using real-life and synthetic datasets confirm the efficacy of the technique. The findings showed that the suggested approach, DANS, surpassed current benchmarks in terms of QoL by up to 52% on the synthetic dataset and up to 75% on the real-life dataset. Furthermore, using a simulated dataset, DANS was found to accomplish more for small groups of active nodes, outperforming benchmarks by up to four times in terms of QoL. Finally, side-by-side analyses of state-of-the-art IoT node selection methods are shown in

Table 1. A comparison of the discussed IoT methods.

Mechanism	Main Idea	Advantage	Disadvantage	Network	Strategy of Validation
Qureshi, Kumar [41]	Using the FAHP technique to assist a generic logistics benchmarking process.	-High utility	-High complexity	-	Implementation
Wudhikarn, Chakpitak [42]	Proposing an integrated strategy for developing intellectual capital performance metrics for use in a financial shared services organization.	-High performance	-High complexity	-	Implementation
Riaz, Qaisar [43]	Presenting an optimization problem including node selection based on the quality of service and utility maximization under power and workload restrictions.	-Reduce node selection time	-Poor load balancing	IoT-edge	Simulation
Redhu, Anupam [44]	Providing an optimal relay node selection method for robust data forwarding in time-varying networks.	-Low latency -Lower packet loss	-High energy consumption -Low scalability	IoT	Simulation by MATLAB
Cuka, Elmazi [45]	Proposing two Fuzzy-based systems NES and Node Selection System (NSS) for IoT.	-Low energy usage	-High complexity	IoT	Simulation
Lu and Wudhikarn [46]	Presenting an integrated methodology for producing intellectual capital performance indicators to improve the standard IC process model.	-Low latency	-Low scalability	-	Simulation
Shukla and Tripathi [27]	Using the RN selection technique, providing a hierarchical cluster architecture for network deployment.	-High network lifetime -Low energy consumption	-Low security	IoT	Simulation by MATLAB
Redhu and Hegde [47]	Proposing a technique for selecting online relay nodes based on a priori knowledge of network contact patterns.	-Low latency -High dependability	-High energy consumption	IoT	Simulation
Alagha, Singh [24]	Using selection optimization, improve the source localization process by using fewer active nodes.	-Low latency -High reliability	-Low security -Low scalability	IoT	Python

.

3. Proposed Method

However, thanks to evolving edge device technology, the combination of blockchain and edge allows for secure network and computation access and control at the edges. Furthermore, since both blockchain and edge have a distributed structure, they are better suited to each other. As a result, incorporating edge and blockchain into IoT is advantageous, given the high-security requirements and intensive computation in IoT networks. In this research, the Technique for Order Preference by Similarity to Ideal Solution (TOPSIS) is used for analyzing MCDM problems, which Lai and Liu [48] developed. This approach is constructed on the concept that the selected options must have the shortest distance to the positive ideal solution (which minimizes the criteria about cost (worst criteria) and maximizes the best measures) and the furthest distance to the negative ideal solution [49]. In TOPSIS, the weights of the measures and rankings of the options considered for the analysis are crisp numeric values. Hence, it does not consider the vagueness of human judgments.

Further, it may be noted that crisp values cannot evaluate real-life problems; therefore, using linguistic terms and further analyzing the fuzzy environment would yield better results [50]. Thus, the Fuzzy TOPSIS methodology has been employed in this research study. Moreover, the terminologies used in the TOPSIS methodology are indicated in

Table 2. Notations list.

Symbol	Description
d	Distance between 2 triangular functions
x and y	Triangular functions
w	Weight of the criteria
R = [rij]	Fuzzy normalized decision matrix for ith alternative and jth criterion
V	Fuzzy weighted normalized decision matrix
$A^{*}$	Fuzzy Positive Ideal Solution (FPIS)
$A^{-}$	Fuzzy Negative Ideal Solution (FNIS)
$d_i{}^{*}$	Distance of every option from the FPIS
$d_i{}^{-}$	Distance of each alternative from the FNIS
$C{C}_i$	closeness coefficient for each option

.

• System architecture

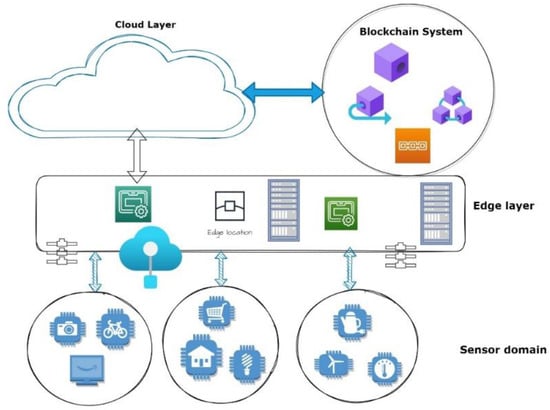

This architecture has been split into three layers after integrating the edge platform and blockchain into the IoT system: Edge in the linked IoT devices on behalf of an IoT domain at the bottom, and cloud computing at the top. Figure 1 shows the proposed architecture of the blockchain-based IoT structure.

In this architecture, the IoT area has a conforming edge gateway that becomes a peer node in the blockchain network and communicates with the cloud via WiFi. If certain conditions are met, the gateway node will also act as an orderer node in the consensus process. Due to our design, IoT devices do not join the blockchain network as peer nodes. Instead, they connect to their domain’s edge gateway and exchange access control data with it via the lightweight MQTT protocol. Edge gateways can connect to the WiFi network and communicate with the cloud in milliseconds, thanks to the WiFi base station, which connects the edge and the cloud. For example, the industrial edge gateway can swiftly and securely access storage resources in the industrial cloud and provide essential data for remote monitoring.

The manager could modify the access control policy in our platform using the chain code and send it to the blockchain. A collection of subject–object access permissions is represented by every policy. The explicit content of the access control policy is kept in the state database, and transaction details are recorded in the ledger. As a result, the access control policy may be audited and traced. For behavior-gathering and credit computation, the edge gateway will initially use MQTT to regularly gather behavior information from IoT devices inside its area. The gateway subsequently standardizes the data before writing it to the blockchain to record its behavior. Finally, the gateway frequently checks the domain credit value, guiding dynamic node selection in the following consensus procedure. The handler could seek access permission for obtaining resources using chain code for user authorization. The chain code will verify access control restrictions once the user submits a request. The chain code will return the access authorization if the access request satisfies the policy’s properties. The user might then utilize the edge gateway to connect to IoT nodes.

Algorithm 1, used to determine the rank using a fuzzy-based hybrid MCDM approach, is as follows:

Algorithm 1. Proposed method
Step 0	Determine the measures (INFBS, INRE, and INDE) and options (27) for the analysis.
Step 1	Accept inputs or assignment ratings for three criteria and alternatives from the user
Step 2	Formulate criteria and alternatives decision matrix showcasing the magnitudes of assignment ratings for INFBS, INRE, and INDE and 27 options.
Step 3	Formulate the ‘fuzzy normalized decision matrix’ for the benefit and cost criteria using Equations (2) and (3), respectively.
Step 4	Develop the ‘fuzzy weighted normalized matrix’ using step 4 of the methodology, which considers the influence of the node selection possibility.
Step 5	Compute the FPIS and FNIS using Equations (5) and (6), respectively.
Step 6	Determine the distance from every option to the FPIS and FNIS employing Equations (7) and (8), respectively.
Step 7	Determine CCi for each option employing Equation (9). The Cci weights help in identifying the ranks of the alternatives.
Step 8	Determine the rank of alternatives based on the magnitude of the Cci.
Step 9	Check if other options with high positions are feasible. If ‘No’ GOTO Step 3. If ‘Yes’ GOTO Step 10.
Step 10	Print-Optimal node selection as output
Step 11	STOP

On Hyperledger Fabric, the chain code may be thought of as a smart contract. The chain code is how the user interacts with the ledger. We may develop interfaces that fulfill specified logic functions for distinct chain codes with the aid of Fabric’s API. There are three sorts of chain codes in the proposed architecture. (1) The Policy Management Chaincode (PMC) adds and maintains access control policies based on the ABAC architecture in this work. Only policy managers, such as object owners, could perform it. The Environment Attribute (EA), Action Attribute (AA), Object Attribute (OA), and Subject Attribute (SA) are the four components of an access control policy. The subject, role, group, and domain are all part of the SA, representing the subject’s basic identity information. SubjectID distinguishes whether the topic is a user or a user’s device. As with OA, we choose two unique identifiers, ObjectID and MAC, as the object’s properties. The AA represents the permissions for a subject–object pair. We utilize an integer to signify various storage permissions (4—Read, 2—Write, 1—execute). The EA reflects the policy’s context condition. The item could only be accessed in a particular context by the subject. Each policy’s information will be kept in PMC. Given the lack of security protection, the system is exposed to infiltration. IoT devices with insufficient processing, memory, and resource availability are vulnerable to becoming tools for thieves to start nefarious conduct. This will cause the infected IoT system to behave abnormally, including deleting, changing, injecting, and retransmitting data packets, among other things. Further, the monitoring and recording of this data, linked with the access control system, for detecting harmful conduct, and its prevention from spreading as quickly as feasible may be performed.

• Suggested method

TOPSIS with extended triangular functions was proposed by Chen [25], in which the distance between 2 triangular functions was calculated using the vertex method. So, if the 2 triangular functions are x = (a₁, b₁, c₁) and y = (a₂, b₂, c₂), then

$$\mathrm{d}(\mathrm{x},\mathrm{y})=\sqrt{\frac{1}{3}[{(a_1-a_2)}^2+{(b_1-b_2)}^2+{(c_1-c_2)}^2}$$

(1)

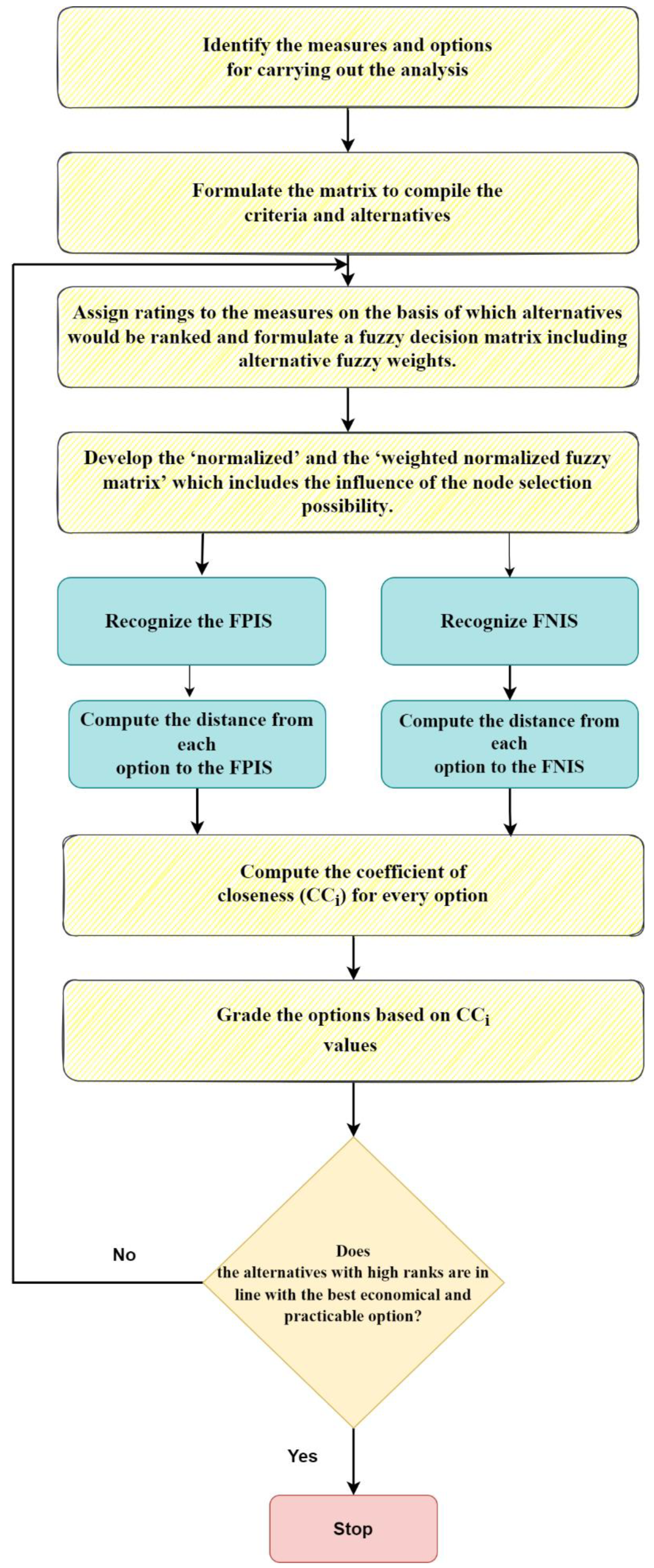

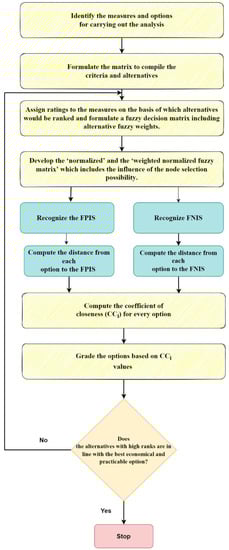

The framework used for this study is given in Figure 2. Further, the fuzzy TOPSIS methodology procedure has been detailed below, and a flowchart of the same is shown in Figure 3.

• Identify the measures and options for carrying out the analysis.
• Assign ratings to the measures based on which alternatives would be ranked.
• Formulate “R”.
  where R = [r_ij], for the ‘benefit criteria’

$${\mathrm{r}}_{\mathrm{ij}}=\left(\frac{a_{ij}}{c_j*},\frac{b_{ij}}{c_j*},\frac{c_{ij}}{c_{j*}}\right); c_j{}^{*}=\underset{i}{\max }\left\{\left.c_{ij}\right\}\right.$$

(2)

Furthermore, for the cost criteria, we have Equation (3).

$${\mathrm{r}}_{\mathrm{ij}}=\left(\frac{a^{-}{}_j}{c_{ij}*},\frac{a^{-}{}_j}{b_{ij}*},\frac{a^{-}{}_j}{a_{ij*}}\right); c_j{{}^{-}}_{}=\underset{i}{\min }\left\{\left.a_{ij}\right\}\right.$$

(3)

• Compute “V”, where v_ij = r_{ij *} weight of the criteria (w_j).

V = v_ij

(4)

2.

Using the following equations, calculate the Fuzzy Positive and Negative Ideal Solution (FPIS and FNIS).

$$A^{*} = (v_1{}^{*}, v_2{}^{*}, v_n{}^{*}),\mathrm{where}, v_j{}^{*}=\underset{i}{\max }\left\{\left.v_{ij3}\right\}\right.$$

(5)

$$A^{-}=(v_1{}^{-}, v_2{}^{-}, v_n{}^{-}),\mathrm{where}, v_j{}^{-}=\underset{i}{\min }\left\{\left.v_{ij1}\right\}\right.$$

(6)

1.

Calculate the distance of every option from ‘FPIS’ and ‘FNIS’ employing Equations (7) and (8).

$$d_i{}^{*} = {{\displaystyle \sum }}_{j=1}^{n}d\left(v_{ij}, v_j{}^{*}\right)$$

(7)

$$d_i{}^{-} = {{\displaystyle \sum }}_{j=1}^{n}d\left(v_{ij}, v_j{}^{-}\right)$$

(8)

2.

Compute $“C{C}_i”$ for each option based on Equation (9).

$$C{C}_i=\frac{d_i{}^{-}}{d_i{}^{-}+d_i{}^{*}}$$

(9)

3.

Grade the options using the $C{C}_i$ values. The higher the intensity, the better the alternative.

4. Results

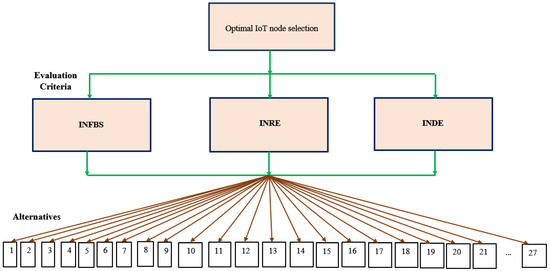

In this study, for selecting a proper IoT node, three parameters, namely INFBS, INRE, and INDE, have been considered. Furthermore, the fuzzy TOPSIS methodology has been used to rank the IoT node possibilities.

Table 3. Parameters along with their term sets and membership functions.

S. N	Parameters	Term Sets	Code	Triangular Fuzzy Membership Functions	Relative Importance of the Parameters	Triangular Fuzzy Membership Functions
1	INRE	Low	L	(1, 1, 5.5)	High	(5.5, 10, 10)
		Medium	M	(1, 5.5, 10)
		High	H	(5.5, 10, 10)
2	IoT Node’s Free Buffer Space (INFBS)	Small	S	(1, 1, 5.5)	Low	(1, 1, 5.5)
		Average	A	(1, 5.5, 10)
		Big	B	(5.5, 10, 10)
3	INDE	Near	N	(5.5, 10, 10)	Average	(1, 5.5, 10)
		Middle	Mi	(1, 5.5, 10)
		Far	F	(1, 1, 5.5)

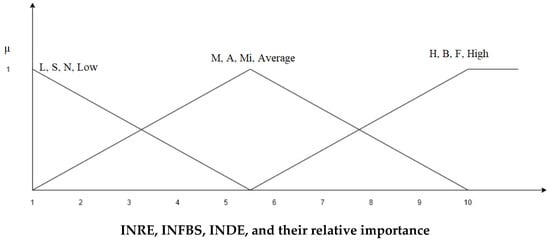

highlights the parameters, term sets, and triangular fuzzy membership functions.

As discussed earlier in the research methodology section, in the Fuzzy TOPSIS approach, the relative importance of the parameters is considered for ranking the alternatives. Hence, the linguistic terms indicating the relative importance of the parameters have been shown in Table 3, along with their membership functions. Figure 4 represents the Fuzzy triangular membership functions for INRE, INFBS, and INDE, and their relative importance.

Table 4. Term sets and membership functions for node selection possibilities.

Linguistic Terms for INSPs	Corresponding Triangular Fuzzy Membership Functions
EL	(1, 1, 2)
VL	(1, 2, 3)
Lw	(2, 3.5, 5)
Mo	(4, 5.5, 7)
Hi	(6, 7.5, 9)
VH	(8, 9, 10)
EH	(9, 10, 10)

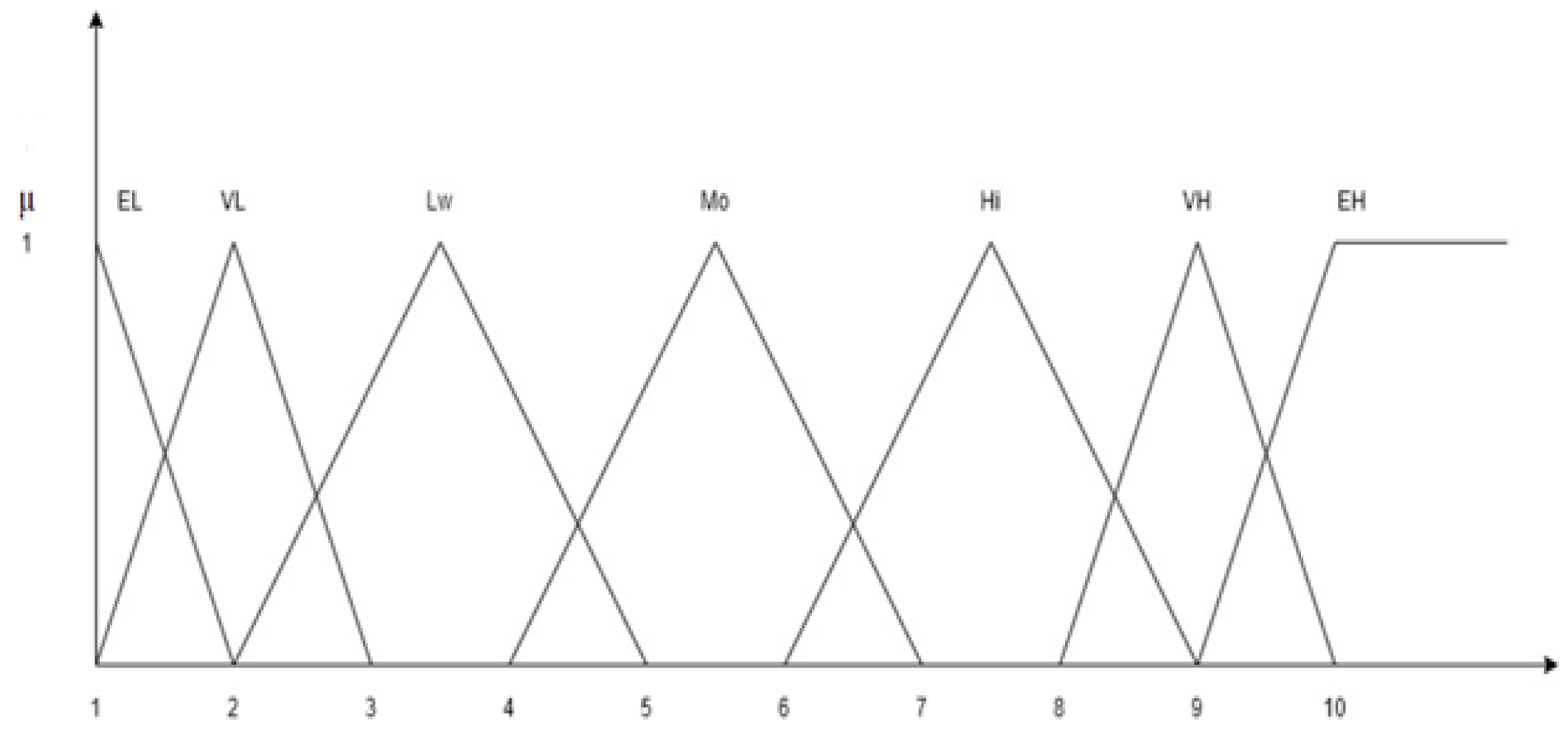

indicates the linguistic terms for the INSPs, their codes, and corresponding triangular fuzzy membership functions. For INSPs, seven levels have been considered, namely “Extremely Low: EL”, “Very Low: VL”, “Low: L”, “Moderate: M”, “High: H”, “Very High: VH”, and “Extremely High: EH”. Later, the fuzzy rule base was developed, as shown in

Table 5. Fuzzy rule base.

Weights (wj)	5.5	10	10	1	1	5	1	5.5	10
S.N.	INRE			INFBS			INDE
1	1	1	5.5	1	1	5.5	5.5	10	10
2	1	1	5.5	1	5.5	10	5.5	10	10
3	1	1	5.5	5.5	10	10	5.5	10	10
4	1	5.5	10	1	1	5.5	5.5	10	10
5	1	5.5	10	1	5.5	10	5.5	10	10
6	1	5.5	10	5.5	10	10	5.5	10	10
7	5.5	10	10	1	1	5.5	5.5	10	10
8	5.5	10	10	1	5.5	10	5.5	10	10
9	5.5	10	10	5.5	10	10	5.5	10	10
10	1	1	5.5	1	1	5.5	1	5.5	10
11	1	1	5.5	1	5.5	10	1	5.5	10
12	1	1	5.5	5.5	10	10	1	5.5	10
13	1	5.5	10	1	1	5.5	1	5.5	10
14	1	5.5	10	1	5.5	10	1	5.5	10
15	1	5.5	10	5.5	10	10	1	5.5	10
16	5.5	10	10	1	1	5.5	1	5.5	10
17	5.5	10	10	1	5.5	10	1	5.5	10
18	5.5	10	10	5.5	10	10	1	5.5	10
19	1	1	5.5	1	1	5.5	1	1	5.5
20	1	1	5.5	1	5.5	10	1	1	5.5
21	1	1	5.5	5.5	10	10	1	1	5.5
22	1	5.5	10	1	1	5.5	1	1	5.5
23	1	5.5	10	1	5.5	10	1	1	5.5
24	1	5.5	10	5.5	10	10	1	1	5.5
25	5.5	10	10	1	1	5.5	1	1	5.5
26	5.5	10	10	1	5.5	10	1	1	5.5
27	5.5	10	10	5.5	10	10	1	1	5.5

, reflecting each criterion’s nature and selection possibilities (See Figure 5). Out of three parameters, INRE and INFBS are the benefit parameters, whereas INDE is the cost criterion. It may be noted that the weights of the selection possibilities should be considered for ranking the node possibilities, along with the relative importance of the selected attributes.

Table 6. Decision matrix.

S. N	INRE (Benefit Criterion)	INFBS (Benefit Criterion)	INDE (Cost Criterion)	INSP
1	L	S	N	VL
2	L	A	N	Mo
3	L	B	N	VH
4	Me	S	N	Lw
5	Me	A	N	Hi
6	Me	B	N	EH
7	H	S	N	VH
8	H	A	N	EH
9	H	B	N	EH
10	L	S	Mi	EL
11	L	A	Mi	VL
12	L	B	Mi	Mo
13	Me	S	Mi	VL
14	Me	A	Mi	Lw
15	Me	B	Mi	Hi
16	H	S	Mi	Lw
17	H	A	Mi	Hi
18	H	B	Mi	EH
19	L	S	Fa	EL
20	L	A	Fa	EL
21	L	B	Fa	Lw
22	Me	S	Fa	EL
23	Me	A	Fa	VL
24	Me	B	Fa	Mo
25	H	S	Fa	VL
26	H	A	Fa	Mo
27	H	B	Fa	VH

shows the decision matrix with 27 selection possibilities indicating fuzzy weights of the measures chosen and the node numbers.

A fuzzy normalized decision matrix is shown in

Table 7. Normalized Fuzzy decision matrix.

Weights (wj)	5.5	10	10	1	1	5	1	5.5	10
S.N	INRE			INFBS			INDE			INSP (ws)
1	0.1	0.1	0.55	0.1	0.1	0.55	0.1	0.1	0.1818	1	2	3
2	0.1	0.1	0.55	0.1	0.55	1	0.1	0.1	0.1818	4	5.5	7
3	0.1	0.1	0.55	0.55	1	1	0.1	0.1	0.1818	8	9	10
4	0.1	0.55	1	0.1	0.1	0.55	0.1	0.1	0.1818	2	3.5	5
5	0.1	0.55	1	0.1	0.55	1	0.1	0.1	0.1818	6	7.5	9
6	0.1	0.55	1	0.55	1	1	0.1	0.1	0.1818	9	10	10
7	0.55	1	1	0.1	0.1	0.55	0.1	0.1	0.1818	8	9	10
8	0.55	1	1	0.1	0.55	1	0.1	0.1	0.1818	9	10	10
9	0.55	1	1	0.55	1	1	0.1	0.1	0.1818	9	10	10
10	0.1	0.1	0.55	0.1	0.1	0.55	0.1	0.1818	1	1	1	2
11	0.1	0.1	0.55	0.1	0.55	1	0.1	0.1818	1	1	2	3
12	0.1	0.1	0.55	0.55	1	1	0.1	0.1818	1	4	5.5	7
13	0.1	0.55	1	0.1	0.1	0.55	0.1	0.1818	1	1	2	3
14	0.1	0.55	1	0.1	0.55	1	0.1	0.1818	1	2	3.5	5
15	0.1	0.55	1	0.55	1	1	0.1	0.1818	1	6	7.5	9
16	0.55	1	1	0.1	0.1	0.55	0.1	0.1818	1	2	3.5	5
17	0.55	1	1	0.1	0.55	1	0.1	0.1818	1	6	7.5	9
18	0.55	1	1	0.55	1	1	0.1	0.1818	1	9	10	10
19	0.1	0.1	0.55	0.1	0.1	0.55	0.1818	1	1	1	1	2
20	0.1	0.1	0.55	0.1	0.55	1	0.1818	1	1	1	1	2
21	0.1	0.1	0.55	0.55	1	1	0.1818	1	1	2	3.5	5
22	0.1	0.55	1	0.1	0.1	0.55	0.1818	1	1	1	1	2
23	0.1	0.55	1	0.1	0.55	1	0.1818	1	1	1	2	3
24	0.1	0.55	1	0.55	1	1	0.1818	1	1	4	5.5	7
25	0.55	1	1	0.1	0.1	0.55	0.1818	1	1	1	2	3
26	0.55	1	1	0.1	0.55	1	0.1818	1	1	4	5.5	7
27	0.55	1	1	0.55	1	1	0.1818	1	1	8	9	10

, which was developed using Equations (2) and (3). In addition, in this table, weights of the INSP are indicated, which were taken into account for developing the fuzzy weighted normalized decision matrix shown in

Table 8. Weighted normalized Fuzzy decision matrix.

S.N	INRE			INFBS			INDE
1	0.55	2	16.5	TRUE	0.2	8.25	0.1	1.1	5.454
2	2.2	5.5	38.5	0.4	3.025	35	0.4	3.025	12.727
3	4.4	9	55	4.4	9	50	0.8	4.95	18.182
4	1.1	19.25	50	0.2	0.35	13.75	0.2	1.925	9.091
5	3.3	41.25	90	0.6	4.125	45	0.6	4.125	16.364
6	4.95	55	100	4.95	10	50	0.9	5.5	18.182
7	24.2	90	100	0.8	0.9	27.5	0.8	4.95	18.182
8	27.225	100	100	0.9	5.5	50	0.9	5.5	18.182
9	27.225	100	100	4.95	10	50	0.9	5.5	18.182
10	0.55	1	11	0.1	0.1	5.5	0.1	1	20
11	0.55	2	16.5	0.1	1.1	15	0.1	2	30
12	2.2	5.5	38.5	2.2	5.5	35	0.4	5.5	70
13	0.55	11	30	0.1	0.2	8.25	0.1	2	30
14	1.1	19.25	50	0.2	1.925	25	0.2	3.5	50
15	3.3	41.25	90	3.3	7.5	45	0.6	7.5	90
16	6.05	35	50	0.2	0.35	13.75	0.2	3.5	50
17	18.15	75	90	0.6	4.125	45	0.6	7.5	90
18	27.225	100	100	4.95	10	50	0.9	10	100
19	0.55	1	11	0.1	0.1	5.5	0.182	5.5	20
20	0.55	1	11	0.1	0.55	10	0.182	5.5	20
21	1.1	3.5	27.5	1.1	3.5	25	0.364	19.25	50
22	0.55	5.5	20	0.1	0.1	5.5	0.182	5.5	20
23	0.55	11	30	0.1	1.1	15	0.182	11	30
24	2.2	30.25	70	2.2	5.5	35	0.727273	30.25	70
25	3.025	20	30	0.1	0.2	8.25	0.182	11	30
26	12.1	55	70	0.4	3.025	35	0.727	30.25	70
27	24.2	90	100	4.4	9	50	1.454	49.5	100
$A^{*}$	27.225	100	100	4.95	10	50	1.4545	49.5	100
$A^{-}$	0.55	1	11	0.1	0.1	5.5	0.1	1	5.454

. This table considered weights of relative importance and weights of the selection possibilities, i.e., v_ij = r_ij *weight of the criteria (w_j)*weight of the selection possibility (ws). Moreover, the FPIS and FNIS values are shown in Table 8, which were calculated using Equations (5) and (6). The distance of each node from the FPIS (〖d_i〗^*) and FNIS (〖d_i〗^-) was computed by employing Equation (1), Equation (7), and Equation (8) and all the values of distances are shown in

Table 9. Distance from a positive and negative ideal solution and ranks of the node possibilities.

S. N	Distance from FPIS			${\mathit{d}}_{\mathit{i}}{}^{*}$	Distance from FNIS			${\mathit{d}}_{\mathit{i}}{}^{-}$	CCi	Ranking
1	75.912	24.864	61.328	162.104	3.227	1.672	0.058	4.957	0.029671	27
2	66.680	9.905	57.089	133.675	16.116	17.116	4.362	37.595	0.219506	17
3	60.075	0.659	53.788	114.521	25.915	26.318	7.704	59.938	0.343564	14
4	56.871	21.831	59.244	137.946	24.862	4.766	2.167	31.795	0.187314	20
5	37.076	5.113	54.938	97.128	51.214	22.925	6.558	80.697	0.453801	11
6	28.990	0.000	53.636	82.626	60.156	26.469	7.808	94.433	0.533342	10
7	6.032	14.216	53.788	74.036	73.940	12.717	7.704	94.361	0.56035	8
8	0.000	3.495	53.636	57.132	78.387	25.885	7.808	112.079	0.662365	5
9	0.000	0.000	53.636	53.636	78.387	26.469	7.808	112.663	0.677472	4
10	78.387	26.469	54.019	158.874	0.000	0.000	8.398	8.398	0.050204	26
11	75.912	21.038	48.847	145.796	3.227	5.515	14.183	22.926	0.135879	22
12	66.680	9.180	30.752	106.612	16.116	17.357	37.356	70.830	0.399171	12
13	67.163	24.917	48.847	140.927	12.396	1.589	14.183	28.168	0.166581	21
14	56.871	15.414	39.233	111.518	24.862	11.308	25.759	61.929	0.357047	13
15	37.076	3.365	24.931	65.373	51.214	23.276	48.957	123.447	0.653781	6
16	48.899	21.831	39.233	109.962	30.040	4.766	25.759	60.565	0.355162	14
17	16.405	5.113	24.931	46.450	63.316	22.925	48.957	135.199	0.744288	3
18	0.000	0.000	22.808	22.808	78.387	26.469	54.835	159.690	0.875025	2
19	78.387	26.469	52.718	157.574	0.000	0.000	8.791	8.791	0.05284	25
20	78.387	23.894	52.718	155.000	0.000	2.611	8.791	11.402	0.068519	24
21	71.300	15.078	33.745	120.124	9.640	11.443	27.793	48.876	0.28921	16
22	73.125	26.469	52.718	152.312	5.809	0.000	8.791	14.600	0.087472	23
23	67.163	21.038	46.130	134.330	12.396	5.515	15.302	33.214	0.198239	18
24	46.157	9.180	20.584	75.920	38.032	17.357	40.915	96.304	0.559177	9
25	62.943	24.917	46.130	133.991	15.579	1.589	15.302	32.470	0.195062	19
26	32.423	9.905	20.584	62.912	46.656	17.116	40.915	104.687	0.624627	7
27	6.032	0.659	0.000	6.691	73.940	26.318	61.354	161.612	0.960246	1

. These (〖d_i〗^* and 〖d_i〗^-) values help in calculating the Closeness Coefficients (CCi) using Equation (9), which helps in identifying the ranks of the 27 alternatives. The CCi of all the node numbers is given in Table 9, along with their ranks. It may be inferred from Table 9 that node numbers 27, 18, 17, 9, and 8 have the highest potential for selection as their weights (w₂₇ = 0.960246, w₁₈ = 0.875025, w₃ = 0.744288, w₉ = 0.677472, and w₈ = 0.662365, respectively) are close to the positive ideal solution. On the other hand, node numbers 22, 20, 19, 10, and 1 are the least preferred numbers as their weights, i.e., w₂₂ = 0.087472, w₂₀ = 0.068519, w₁₉ = 0.05284, w₁₀ = 0.050204, and w₁ = 0.029671, respectively, are considerably distant from the FPIS.

5. Conclusions, Limitations, and Future Directions of Research

One of the most crucial IoT problems in real-world applications is object selection based on customer demand. Effective object selection, identification, and selection of relevant nodes are required to achieve optimal performance. As a result, experts may easily comprehend diverse views on IoT object selection methods. The findings of this work will also aid academics and provide insight into future research topics in this discipline. Furthermore, the disadvantages and benefits of the suggested method were examined, paving the way for the future development of more efficient and practical processes for object selection in IoT contexts. Therefore, fuzzy TOPSIS is a powerful approach for effective decision-making; however, the findings of this study may be validated by employing other tools, namely AHP, ANP, VIKOR, and ELECTRE, in the fuzzy environment. Moreover, a hybrid approach is used to validate and improve the accuracy of the results. In addition, after integrating the edge platform and blockchain into the IoT system, we divided this architecture into three layers: Edge in the center-connected IoT devices on behalf of an IoT domain at the bottom and cloud computing at the top. However, the IoT’s deep integration of edge and blockchain technologies offers a new access control framework design approach. Therefore, this study proposes a unique node selection framework for blockchain-enabled edge IoT that implements a fast and reliable node selection technique. In addition, we developed a hybrid MCDM model mechanism that can dynamically pick select nodes to obtain a rapid and reliable result using the fuzzy approach. In this study, three evaluation criteria, namely INRE, INFBS, and INDE, have been considered, and the Fuzzy TOPSIS approach was used to rank the IoT node alternatives. The results of the experiments indicate that the suggested framework improves the parameters under evaluation.

However, the data storage optimization of blockchain nodes for IoT is not the subject of this article. Instead, we intended to investigate several optimization strategies to lessen the future framework’s expanding storage load. Furthermore, in upcoming studies, the number of criteria may increase, increasing the number of node possibilities. This would make the model more robust and reliable. Moreover, GUI-based simulations could be carried out. Finally, using machine learning techniques for defect prediction of IoT nodes will be interesting in the future [51].
