Day-Ahead Optimization of Prosumer Considering Battery Depreciation and Weather Prediction for Renewable Energy Sources

1
Energy Research Institute, University of Kashan, Kashan 8731751167, Iran
2
Department of Electrical Engineering, College of Engineering, University of Tehran, Tehran 1193653471, Iran
3
Department of Electrical Engineering, Tarbiat Modares University, Tehran 1193653471, Iran
4
School of Electrical Engineering Computing and Mathematical Sciences, Curtin University, Perth, WA 6845, Australia
5
UMR CNRS 6026 IRDL, University of Brest, 29238 Brest, France
*
Author to whom correspondence should be addressed.
Appl. Sci. 2020, 10(8), 2774; https://doi.org/10.3390/app10082774
Received: 21 March 2020 / Revised: 9 April 2020 / Accepted: 13 April 2020 / Published: 16 April 2020

Abstract

In recent years, taking advantage of renewable energy sources (RESs) has increased considerably due to their unique capabilities, such as a flexible nature and sustainable energy production. Prosumers, who are defined as proactive users of RESs and energy storage systems (ESSs), are deploying economic opportunities related to RESs in the electricity market. The prosumers are contracted to provide specific power for consumers in a neighborhood during daytime. This study presents optimal scheduling and operation of a prosumer owns RESs and two different types of ESSs, namely stationary battery (SB) and plugged-in electric vehicle (PHEV). Due to the intermittent nature of RESs and their dependency on weather conditions, this study introduces a weather prediction module in the energy management system (EMS) by the use of a feed-forward artificial neural network (FF-ANN). Linear regression results for predicted and real weather data have achieved 0.96, 0.988, and 0.230 for solar irradiance, temperature, and wind speed, respectively. Besides, this study considers the depreciation cost of ESSs in an objective function based on the depth of charge (DOD) reduction. To investigate the effectiveness of the proposed strategy, predicted output and the real power of RESs are deployed, and a mixed-integer linear programming (MILP) model is used to solve the presented day-ahead optimization problem. Based on the obtained results, the predicted output of RESs yields a desirable operation cost with a minor difference (US$0.031) compared to the operation cost of the system using real weather data, which shows the effectiveness of the proposed EMS in this study. Furthermore, optimum scheduling with regard to ESSs depreciation term has resulted in the reduction of operation cost of the prosumer and depreciation cost of ESS in the objective function has improved the daily operation cost of the prosumer by $0.8647.
Keywords: prosumer; energy management system (EMS); energy storage system (ESS); plug-in hybrid electric vehicle (PHEV); day-ahead optimization; battery depreciation; feed-forward artificial neural network (FF-ANN); weather prediction prosumer; energy management system (EMS); energy storage system (ESS); plug-in hybrid electric vehicle (PHEV); day-ahead optimization; battery depreciation; feed-forward artificial neural network (FF-ANN); weather prediction

1. Introduction

Over the last two decades, using renewable energy sources (RESs) such as wind turbines (WTs) and photovoltaic (PV) systems has increased considerably due to some environmental concerns and their unique features. From this perspective, traditional centralized power generations are replaced with modern forms of decentralized power generation, which can change consumption and production patterns pragmatically. In the modern electricity market, a new expression has been recently introduced to present a bilateral role. In fact, prosumers are regarded as an entity consumes electrical energy and reserve the capability to generate electricity in a reasonable way. It is often argued that market reform and regulatory support promote electricity market and ensure the promising profits to individual prosumers. In addition, the distribution system operator (DSO) encourages prosumers to achieve benefits and reduction in maintenance and expansion cost of equipment. In the U.S. and some European countries, the development of this kind of market has led to achieving a great balance between supplies and demand as well [1,2,3,4,5].
Recently, Iran’s electricity market has depicted some developments in the increasing use of renewable energy sources as well as cost adjustment by the integration of prosumers and consumers in a prosumer market. These electricity markets have been established for prosumer aggregators, namely smart cities, zero-carbon building, off-grid islands, or residential and commercial aggregators. It is important to note that residential buildings play an active role in this market because they can be equipped with modern energy technologies such as plug-in hybrid electric vehicles (PHEVs). Besides, they can also supply energy for consumers through the nearest aggregator [6]. In fact, among different types of electric vehicles (EVs; such as a PHEV, fuel cell electric vehicle (FCEV) [7], and fully electric vehicle (FEV)), PHEV is the most prominent EV in Iran. Therefore, we have considered PHEV in our model [8].
Moreover, there is an ability to deploy load management and minimize energy consumption in order to achieve some economic benefits. Due to the high penetration of RESs and dynamic behavior of their electricity production during different days, a variable amount of electricity can be achieved in different hours of a specific day [9]. Although solar and wind generations are highly dependent on weather conditions, there may be insufficient renewable outputs energy during adverse weather conditions. As a result, decision-makers of this residential building intend to sell extra electricity to the consumers at a reasonable price. Similarly, consumers are also mainly motivated by the prices that are more affordable than utility rates. Since the electricity prices in Iran are based on the progressive tax scheme, where prices rise with more electricity consumption rate, consumers will avoid paying extra cost by a proper interacting with the prosumers.
The presence of local energy management systems (EMSs) seems essential in order to manage some energy storage systems like stationary batteries (SBs) and PHEVs in a sensible way. Energy storage systems (ESSs), along with other applications, are deployed to increase revenues and improve the operation of RESs efficiently. The primary purpose of taking advantage of energy management systems (EMS) in the current study is to reduce the incoming power from the utility at peak hours and providing extra-generated power for contracted consumers. As a result, an advanced charge and discharge schedule appears to be necessary, particularly for residential buildings, which have been contracted to some consumers with a specific amount of power during scheduled periods like peak hours. Likewise, this is more favorable to store generated electricity from RESs to support contracted consumers instead of purchasing from the network during peak hours.
Some studies have been conducted in order to focus on the optimal scheduling and operation of these ESSs in the power systems. In [10], the authors proposed comprehensive planning of ESSs, so that ESSs can mitigate WT output power fluctuation by using variable-interval optimization along with fuzzy controlling approaches. They also considered different characteristics of ESSs, including economic costs, state-of-health, and energy capacity for effective contribution. One of the applications of ESSs is the frequency regulation owing to their fast controlling abilities [11,12,13,14]. In addition to the mentioned application of ESSs, high penetration of RESs may result in voltage instability of the grids. From this perspective, they generally can be used to moderate voltage instability [15]. In these studies, researchers have not investigated the market-based operation or control of ESSs in order to achieve the maximum monetary incomes. In comparison to [11,12,13,14], this study purposes a market-based operation of ESSs in which the ESSs minimizes day-ahead operation cost of the prosumer. A different study presented an economical approach to define a policy for electricity pricing, which leads to the optimal charge and discharge of ESSs so that a metaheuristic algorithm is used for day-ahead scheduling of multicarrier energy networks [16]. However, they have neglected weather variability in the proposed method, which may affect the optimal result of the system.
In another study [17], researchers have proposed an optimum operational strategy for ESSs in order to maximize the level of profit from the South Korean demand response (DR) program. The fact is that ESSs are deployed in order to reduce peak load demand and make a useful contribution to grid reliability and stability simultaneously. It is argued that generating profit from ESSs may be difficult with the present DR program. Nevertheless, this study does not give any strategy for considering RESs in the proposed method. In fact, integration of RESs and ESSs would increase the level of profits from DR programs. Furthermore, some authors did not consider any specific factor for ESS aging. However, they verify that the proposed methods may be feasible in the near future by changing the conditions of the current DR. In [18], a two-phase ESS scheduling model has been introduced. In the first stage of the proposed model, ESS reduces peak load, and in the second stage, electricity trading is performed, which results in a minimization of the overall operating cost of the system by the use of the remaining capacity. Besides, this paper has presented some machine learning techniques for a load prediction. However, the authors indicated that in order to have a better prediction, it is advised to consider variables related to weather, namely ambient temperature, and other environmental factors. In a recent study [19], optimal scheduling and operation of ESSs by considering the corrective operation of ESS has been outlined in prosumer energy market where the objective is to achieve maximum profits of the prosumer. It is important to note that no weather predictions have been considered for RESs productions in their work. In fact, all their assumptions are generally based on historical data. In addition, several studies in recent years have worked on the optimal operation of PHEVs in different networks and markets [20,21,22]. Due to the high capital cost of ESSs, and a limited number of charge cycles, many new types of studies have deployed battery depreciation models in their studies [21,22,23].
In this paper, enhanced scheduling of the prosumer in a day-ahead electricity market has been proposed, which can benefit from RESs and ESSs simultaneously. Due to the high dependency of RESs upon weather conditions, they are assumed as intermittent energy sources. As a result, a feed-forward artificial neural network (FF-ANN) has been introduced in order to predict day-ahead weather conditions instead of using historical data for PV and WT productions. However, considering a weather predicting module in the EMS of the prosumer was neglected in recent studies [18,19]. As a matter of fact, neglecting uncertainties of weather parameter in the day-ahead operation of the prosumer would result in the inaccurate operation cost of the prosumer. In addition, some recent studies in the field of prosumer scheduling have neglected to consider a proper depreciation cost in the optimization model [20,21,22,23]. This paper tries to fill such a knowledge gap by regarding the depreciation cost of both SB and PHEV in the optimization model based on daily depth of charge (DOD) reduction because of the limited lifetime of the batteries. In the final step, mixed-integer linear programming (MILP) has also been used to minimize the operation cost of the prosumer in a fair way.

2. Overall Description of the Model

2.1. System Architecture

The architecture of the proposed energy system has been shown in Figure 1. This layout includes RESs (e.g., PV and WT), ESSs (e.g., SB and PHEV), power conversion unit (PCU), prosumer load, and contracted power that the prosumer committed to supplying in a fair way. Electrical lines transfer electricity among the system, and RESs generate electricity and participate in the power supplying as well as possible grid sales. Nevertheless, the priority of RESs is to support load demand as much as possible. In this layout, PCU is deployed to convert power from DC/AC and AC/DC. ESSs can store additional energy as well as accumulates low-price electricity from the grid in order to inject into prosumer self-consumption with proper scheduling. Data lines are designed for data transfer between components and EMS. The EMS collects data from each system and uses all gatherings in day-ahead optimization procedures. Moreover, EMS stores collected data in data storage for pattern-analyzing, such as weather conditions, price data, prosumer load, and contracted power. Besides, EMS is able to predict the day-ahead output power of RESs based on the stored historical weather data.

2.2. The Role of Prosumer

Prosumers have an active interaction with system operation. From this view, they are able to store electrical energy during low electricity price or when surplus power is produced through RESs. Therefore, the stored energy is injected into loads during hours when the electricity price is high compared to other periods. In addition, they have to supply the contracted power to consumers during defined hours. Prosumers, unlike consumers, pay for specific contracted power. Since the electricity produced by the prosumers is lower than the utility, the consumers prefer to use electrical energy from the prosumer. For this reason, this type of energy trading between prosumers and consumers is considered an economic activity. It is worth mentioning that the prosumer benefits from minimizing imported electricity from the grid during contracted hours.
According to Figure 2, a typical prosumer market includes three sections: EMS section, system trading section, and data storage section. The EMS is utilized to monitor electricity generation and consumption continuously. This monitoring aims to achieve historical data by the examination of patterns for consumption load and electricity price. Moreover, EMS performs day-ahead prediction of RESs output power based on the recorded historical weather data. Then, the optimization is performed to reach the optimal operation of the understudy prosumer. Afterward, dispatching commands are sent to controllers related to these dispatchable sources. If islanded conditions have occurred, EMS analyzes the grid situation by simulation of frequency regulation and voltage stability and attempts to amend them by taking advantage of network optimization or any other schemes. The trading system is able to sell extra electricity to the grid and participate in the electricity market effectively. In addition, the electricity pricing of the prosumer and energy payments are estimated at this level of study. Customers should utilize an intelligent energy meter to forward the measured rates to EMS of the prosumer. Then, the incoming information to EMS is stored in data storage.

3. Methodology

Based on the previous discussions, PV and WT are the main sources for generating electrical energy in this market. In addition, ESSs are used for economic and technical purposes, including the supply of prosumer and consumer contracted loads. In the following, mathematical formulations of RESs, ESSs, and battery depreciation processes are described. Furthermore, the methods, which have been allocated to the time-series FF-ANN prediction and optimization model are provided.

3.1. Mathematical Modeling of RESs

3.1.1. PV Unit

The output power of PV, which mostly depends on the ambient temperature and solar irradiation, is formulated based on Equation (1). Furthermore, module efficiency ( η t P V ) should be considered in the output power of PV units. Equations (1) and (2) are used for calculating PV output power over operation horizon [24,25]:
P t P V = A p v × G t × N p v × η t P V
η t P V is calculated as follows:
η t P V = η p v r a t e d [ 1 α ( T t + G t × N O C T 20 800 T r e f ) ]
Since the PV system is an alternative power resource, its output power may vary from one hour to another hour through changes in solar irradiance and temperature based on the above formulations. The PV model introduced in (2) does not reflect the thermal depreciation at high temperature. The thermal loss is quite severe in some harsh environment such as Asian countries, including Iran as well [26,27]. Therefore, including a term to consider thermal loss would demonstrate an exact model of PV performance. However, this study has not considered any thermal depreciation in the PV model.

3.1.2. WT Unit

WT produces electrical energy by exploiting of the wind kinetic energy. Environmental components such as wind speed, air density, aerodynamic coefficient, and surface area are regarded as essential factors in the output power calculation of WT [28,29,30]. In this paper, the curve interpolation method is deployed to calculate WT output power. This method has been presented as an accurate solution in recent studies, which is formulated as follows [31]:
P t W T = { 0 v c < v t w i n d < v r P n o m ( v t w i n d v c i v r v c i ) 3 v c i < v t w i n d < v r P n o m v r < v t w i n d < v c

3.1.3. Energy Storage Systems

In this paper, energy storage systems include two appliances, namely stationary battery and plug-in hybrid electric vehicle. Both of them can be described with the same formulation because of their identical performance. However, different technical parameters of them have been proposed in this paper. Some restrictions related to energy storage systems are taken into account in Equations (4)–(12) [32,33]:
S O C t = S O C t 1 + η c h a r g e   × P c h a r g e   ( t ) P d i s c h a r g e   ( t ) η d i s c h a r g e
S O C t S O C m a x
S O C t S O C m i n
S O C 0 = S O C 24
P t c h a r g e P m i n c h a r g e
P t c h a r g e P m a x c h a r g e
P t d i s c h a r g e P m i n d i s c h a r g e
P t d i s c h a r g e P m a x d i s c h a r g e
U t c h a r g e + U t d i s c h a r g e 1
In Equation (4), the level of charge in each ESS is defined by the state of charge (SOC), which is constrained by upper and lower bands defined in Equations (5)–(6). According to Equation (7), it is essential for ESS to have the same initial and final levels of SOC because ESS operates every day. It is worth mentioning that the full charging/discharging of ESSs is not recommended because it results in the fast depreciation of the batteries. From this perspective, full charging/discharging of ESS is prohibited in the day-ahead optimization as described in Equations (8)–(11). Since charging and discharging of ESS cannot occur at the same time, a binary value is defined in order to indicate this constraint, as shown in Equation (12).

3.1.4. Depreciation of ESSs

According to [34], the DOD of a battery influences its lifetime to a certain extent. In addition to this, prosumers, who contracted to provide a specific amount of power to the aggregator, may face major daily discharge–charge cycles. Consequently, this repetitive process will result in the depreciation of the batteries in the future. This battery depreciation can be introduced by taking into consideration a cost on DOD parameter at the end of a day.
For both energy storage systems, decision variables of S O C d min , S B and S O C d min , P H E V are defined to determine the minimum level of SOC at the end of the operation day. By multiplying considered decision variables by the depreciation cost coefficients ( B S B , B P H E V ), the cost of depreciation of ESSs ( D d S B ,   D d P H E V ) are obtained as described in Equations (13) and (14) follows [35]:
D d S B = ( S O C d min , S B × B S B )
D d P H E V = ( S O C d min , P H E V × B P H E V )
It is assumed that the battery pack would need a replacement when its total throughput is the same throughput as its lifespan. The battery depreciation cost coefficients per kWh are characterized using the following equations:
B S B = R S B L S B × E S B
B P H E V = R P H E V L P H E V × E P H E V
For both types of ESSs, different depreciation costs have been regarded according to their characteristics. The formulation of total depreciation, including PHEV and SB, is described below:
D d T o t = ( S O C d min , P H E V × B P H E V ) + ( S O C d min , S B × B S B )
D d E S S = D d P H E V + D d S B

3.2. Predicting Weather Parameters Using Time Series FF-ANN

Some recent studies have taken advantage of ANN for predicting weather conditions [36,37,38]. In this study, a multilayer perceptron (MLP) as an FF-ANN is used for weather parameter prediction. The backpropagation (BP) algorithm is also used for training the FF-ANN [39]. In this study, feedforward expresses the transaction of data from input to output. Feedforward output is determined by passing the input through the neural network. Feedforward networks perform with supervised learning rules, which calculate the best output to minimize the error between inputs and their respective outputs by modifying the network’s weights.
Generally, the time series is a set of data points that are arranged by equal space–time. In fact, in time series prediction, a model is deployed to predict upcoming values based on recently recorded data [40]. In other words, future values are predicted by learning the previous data series. From this perspective, MLP-ANN is introduced to predict time series because this method yields more satisfactory results in some recent studies [41].
It is important to mention that MLP-ANN demands some memory for temporal information processing. Different methods are established for making this memory in ANN like time delays in this network. The fact is that these delays are used in order to adjust the parameters of ANN during the learning process. A typical modeling of time series with MLP-ANN has been shown in Figure 3. Three layers of this model include the input layer, hidden layer, and output layer. According to Figure 3, single variant inputs, which are depicted through X ( n 1 ) ,   X ( n 2 ) X ( n p ) , are the previous data samples, p is the prediction order, and y ( n ) is the output value, which indicates the prediction result.

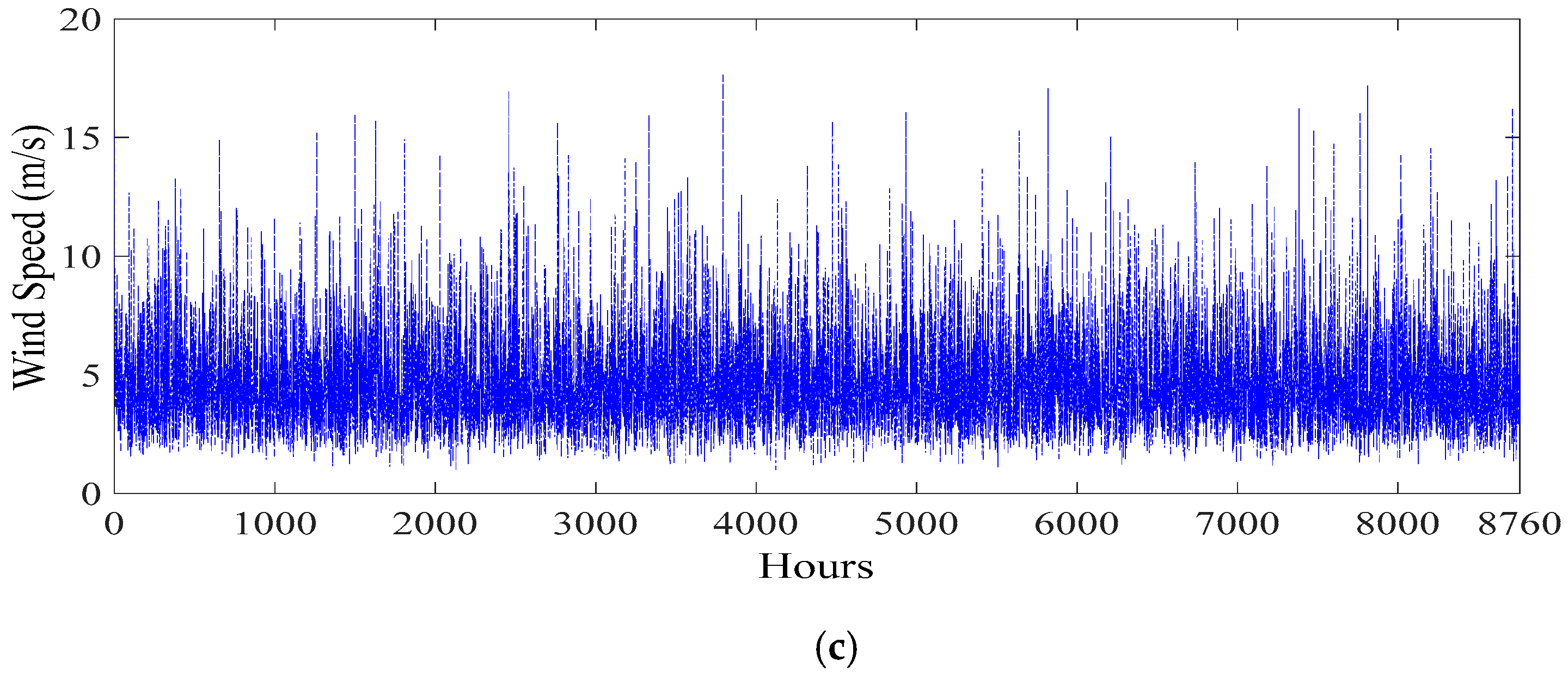

In this paper, solar irradiance, temperature, and wind speed predictions are represented based on last year’s data that were gathered from a local meteorological center located in Kerman province, Iran. Figure 4 illustrates hourly data by year from 1 January 2007 to 31 December 2007. A three distinct MLP-ANN is considered in order to forecast the solar irradiance, temperature, and wind speed. Two different data of each parameter were used for the training and testing of the MLP-ANN method. In order to have a more suitable prediction for fay-ahead optimizations, the time horizon was proposed 24 h ahead at each time series. In addition to the mentioned considerations, input and output data were normalized to [0,1] as follows:
y = y m i n + x x m i n x m i n x m i n ( y m a x y m i n )

3.3. Optimization Modeling

The main purpose of the mentioned objective function is to minimize the operation cost of the prosumer, which is mainly the electricity price that should be paid to the utility. Furthermore, it is essential to consider battery depreciation because of the high replacement cost of ESSs. As a result, battery depreciation can be included in this objective function as follows:
O . F . = M i n   ( t = 1 t n ( P t s × K t ) d = 1 d n D d t o t )
S.t
P t s + P t W T + P t P V + P t d i s c h a r g e = P t c h a r g e + P t c o n t r a c t + P t l o a d
P m i n s P t s
P m i n s P t s
Equations (4) to (16)
Optimization horizon considered one day-ahead ( t n = 24 ,   d n = 1 ). Different optimization methods can be employed in order to solve this problem effectively. In this study, mixed-integer linear programming (MILP) was introduced to overcome this objective function in a sensible way. In fact, MILP is able to carry out complicated problems with less calculation time and find optimal global solutions [42]. Furthermore, Equation (21) indicates a balance between provided and demanded power in the prosumer grid. Equations (22) and (23) describe system capacity limits, which are −500 and 500 kWh for the lower and upper bands, respectively.

4. Simulation Results and Discussion

4.1. Prediction Results

Two different data, including real and predicted data, have been shown in Figure 5 to describe an ordinary summer day during this research. Figure 6 and Table 1 show an error histogram and linear regression results for predicted weather parameters. As can be seen from the results, it was evident that predicted values for temperature and solar irradiance were predicted accurately enough. However, wind speed was not predicted precisely in comparison to the two other parameters due to its high hourly variations. It is worth noting that in this paper, the application of MLP in time series prediction was investigated. Some theoretical details of the MLP are available in [43]. Prediction values were used for calculating PV and WT output power according to the mentioned equations. In the following, a case study was defined in a further subsection (Section 4.3.3) in order to analyze the level of accuracy of these predictions.

4.2. Case Studies

In order to analyze the behavior of the prosumer, three case studies were introduced according to the system architecture, which has been shown in Figure 1. The three considered case studies are as follows.
  • Case 1: Day-ahead scheduling of the prosumer considering predicted weather data.
  • Case 2: Day-ahead scheduling of the prosumer considering ESSs depreciation cost and predicted weather data.
  • Case 3: Day-ahead scheduling of the prosumer considering real weather data.
As discussed in previous sections, no power loss was assumed in the mentioned objective function since the grid of the prosumer had relatively short lines in comparison to the transmission or distribution lines. Parameters of PV and WT are shown in Table 2, as well as technical parameters of the energy storage system are depicted in Table 3.

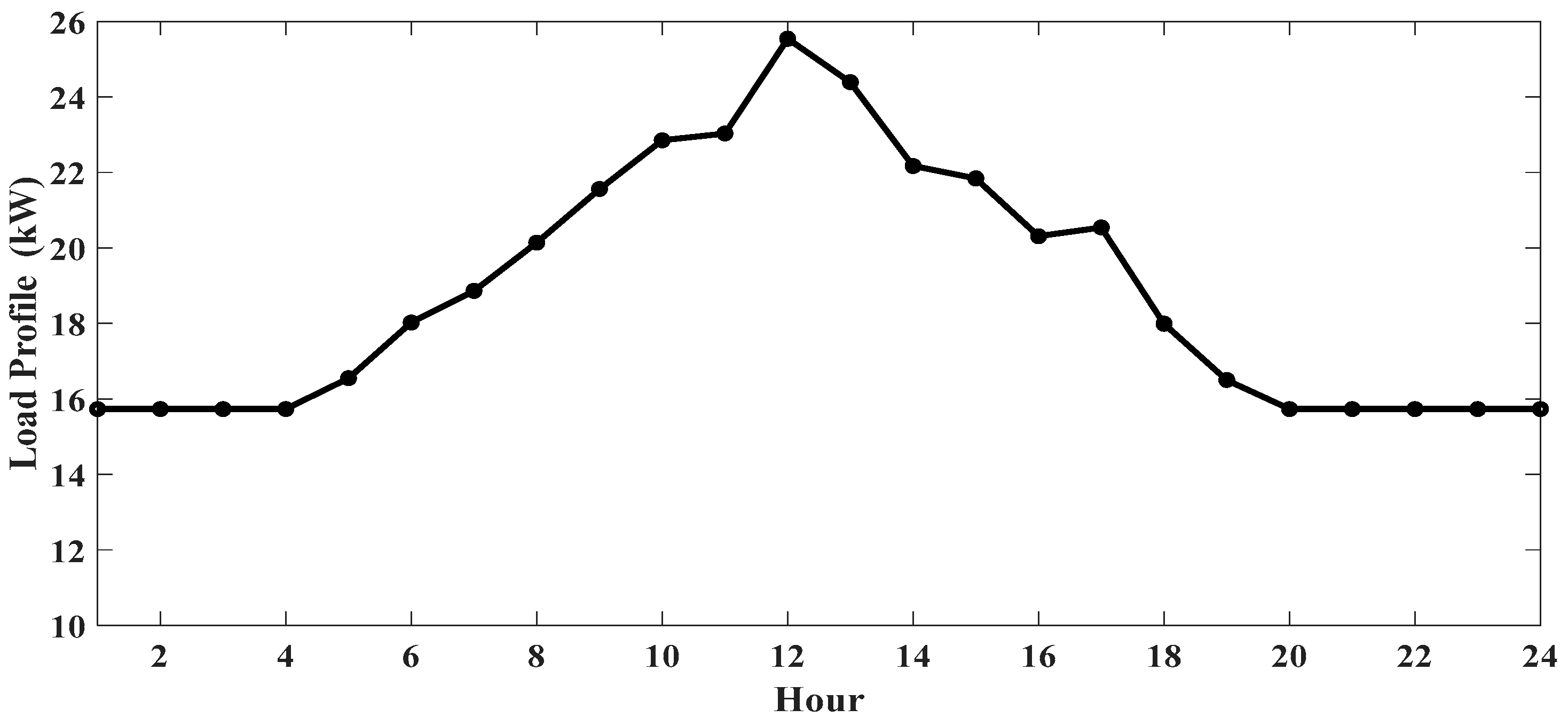

In this study, residential buildings with net metering devices were included in a time of use (TOU) pricing program with different hourly rates [45]. TOU rates were used as prosumer payments to the utility. These rates were based on real electricity prices utilized in Iran’s electricity market during the summer season. However, the rates differ from region to region depending on their varying climates. In a particular case, the city of Kerman (30°28′39″N, 57°08′34″E) was included in tropical region 2 (out of 4 tropical regions) due to its hot and dry weather during the summer season. Table 3 depicts the TOU rates utilized in all simulations [46]. According to Table 4, two mid-peak (07:00 to 13:00, 17:00 to 19:00) and peak (13:00 to 17:00, 19:00 to 23:00) time intervals and one off-peak (23:00 to 07:00) time interval occurs during a day.
Both Figure 7 and Figure 8 show the output power of PV and WT units based on predicted weather parameters. In the following, Figure 9 illustrates the prosumer consumption pattern during an ordinary day. The fact is that these values were acquired from a typical residential building that was recorded during the specific year. The load profile depicted in Figure 9 has one major peak consumption at noon (12:00). Figure 10 illustrates the contracted power that the prosumer was committed to supplying to the consumer. From this perspective, the prosumer agreed to a contract for providing a total of 16 kW of power during specific hours of the day (14:00 and 16:00) according to Figure 10.
In this paper, GAMS (GAMS Development Corporation, Washington, DC, USA) software was deployed to solve MILP problems through CPLEX (IBM ILOG CPLEX Optimization Studio, New York, USA) solver. In addition, a 64-bit personal computer with 8 GB RAM and Core i5 (Intel) CPU was used during all simulations. Predicted values of weather parameters were linked from the MATLAB (MathWorks, Massachusetts, USA) environment to GAMS through the GDXMRW interface [47].

4.3. Results of Case Studies

4.3.1. Case 1

In the first case, day-ahead optimization was conducted by taking advantage of TOU prices and real load data as well as predicted weather data according to details described in previous sections. The predicted output power of PV and WT were calculated based on the Equations (1)–(3). Optimization results are shown in Figure 11 and Figure 12. Based on the results in Figure 11a,b, SB and PHEV were charged at separate hours during mostly off-peak and mid-peak periods. SB and PHEV also discharged the stored power during peak hours when the prosumer was responsible for providing the consumer load. Based on Figure 12, the prosumer imported less power from the utility grid in the hours between 7:00 and 11:00 because of sufficient production of the PV and WT system, which reduced the operation cost of the prosumer. It is worth mentioning that according to Figure 12, a noticeable decline had occurred at 14:00 since SB was discharging its power in order to supply the consumer load in a reasonable way. Furthermore, a considerable increase had occurred at 15:00, which is ordinary since the EMS was charging SB and PHEV to supply the contracted load in the hours between 14:00 and 16:00. Therefore, SB discharged at 14:00 to support the contracted power. Although PHEV was discharged at 13:00 with a small amount of electricity (0.2163 kW), the significant injection had occurred at 16:00. Then, SB and PHEV were charged at 17:00 and 18:00, respectively, because the TOU prices were at a lower level in comparison to the peak hours. In the following, ESSs were discharged in peak periods for having a minimum operation cost. According to Figure 11b, PHEV was discharged at 19:00 and 20:00, while SB was discharged at 22:00. Finally, when the peak period ended at 22:00, EMS was making a proper plan in order to charge the ESSs after this time, which resulted in more power import from the grid by the prosumer based on the overall trend in Figure 12.
RESs are merely allocated to provide the prosumer load and consumer contracted power. The main reason is that the production of the RESs is much less than all electricity consumption, and the utility grid provides them to meet the customers’ requirements. It is important noting that RESs do not inject electricity into the utility grid, and ESSs are charged through the utility grid instead of RESs due to economic benefits. This pattern may differ from one day to another and depends on input data such as weather and load and data. In this case, the objective function value was achieved at $20.353. In addition, revenues of contracted power were not considered in the objective function due to fixed costs of payments.

4.3.2. Case 2

In order to have a better understanding of ESSs depreciation, this case study was conducted. The objective function in the previous case study was acquired by considering the depreciation cost of ESS. In this case, simulations were performed with and without considering ESSs depreciation as described in subsection (Section 3.1.4). The patterns of ESSs SOC were depicted for the understudy day (Figure 13). Some significant reductions occurred when ESSs was discharging to obtain maximum profits from the market. According to the previous description, the initial and final values of SOC should be equal in the day-ahead operation of ESSs. The minimum values of SOC for SB and PHEV on the day were achieved as 1.25 kW and 1.14 kW, respectively. These two values were regarded in the first case study and the objective function achieved as $20.353. However, if the ESSs depreciation term D d E S S has not been regarded in the mentioned objective function, the value of US$21.248751 would have been achieved, which shows an increase in the operation cost of the prosumer. The difference between the two values was US$0.8647 for a typical summer day. With regard to the ESS lifetime, a higher value will be obtained, which shows the effect of battery depreciation on the system operation cost. Moreover, the daily value of minimum SOC ( S O C d min , S B , S O C d min , P H E V ) changes based on the operational parameters, such as load data (including prosumer load data and contracted load with the consumer) and availability of RESs. As a result, long-term optimization seems necessary in order to analyze the precise value of ESSs depreciation cost.

4.3.3. Case 3

In all previous cases, the output power of PV and WT units was presented under predicting conditions. To evaluate the effect of predicted and real weather data on changes in the operation cost of prosumer, this case study was introduced. Real weather data were deployed for optimization. Figure 14 demonstrated the power flow of the system based on predicted and real data. As can be seen, both diagrams followed a similar pattern where the performance of the system was not changed significantly. However, for the case with predicted weather data, less electrical power was imported from the grid between 4:00 and 11:00. The trend was reversed from 12:00 to 18:00, where the case with real data imported more electricity. Between 18:00 and 3:00, the exchanged power was the same for both cases (real and predicted weather data) because the PV as the main source of energy had no output power in this period. It is important to say that the operation cost of the prosumer, when the real data was used, would be US$20.384, which shows a slight increase in comparison to the use of the predicted data for the understudy day. The difference between real and predicted operation cost was US$0.031, which is a desirable value. Therefore, the proposed EMS for the day-ahead operation of the prosumer, which considered intermittency of RESs and ESSs depreciation cost, was effective according to the obtained results.

5. Conclusions

In this paper, the authors introduced a day-ahead optimization for the prosumer by considering weather predictions for PV and WT output power. Linear regression results for predicted and real weather data achieved 0.96, 0.988, and 0.230 for solar irradiance, temperature, and wind speed, respectively. According to the results, solar irradiance and temperature were accurately predicted, however, due to high hourly intermittency of wind speed, it was not properly predicted. The operation cost of the prosumer by using the predicted data had shown a minor difference (US$0.031) with the operation cost of the system with real weather data. In order to investigate the performance of ESS, the depreciation cost was proposed in the optimization model, and the prosumer interaction with the market was analyzed. ESSs reduced the operation cost of the prosumer by optimal charge and discharge cycles. Moreover, the depreciation cost of ESS in the objective function improved the daily operation cost of the prosumer by US$0.8647. Due to a high variability of wind speed, MLP-ANN could not accurately predict the hourly wind speed. Therefore, it is highly suggested to implement and evaluate different predicting algorithms to validate the proposed optimization model.
Uncertainty of the load demand may affect the operation cost of the prosumer. However, this study had not considered the load prediction for the day-ahead operation of the study, hence, it could be considered alongside the weather prediction in the future works. Moreover, a comprehensive model for depreciation cost of ESSs could be considered in the future works in which the gap between the highest and lowest SOC is minimized in every day.

Author Contributions

Conceptualization, J.F.; methodology, J.F. and M.B. (Masoud Babaei); software, J.F. and M.B. (Masoud Babaei); validation, A.A., S.M.M. and M.B. (Mohamed Benbouzid); formal analysis, J.F.; investigation, J.F.; resources, A.A. and M.B. (Masoud Babaei); data curation, A.A. and M.B. (Masoud Babaei); writing—original draft preparation, J.F.; writing—review and editing, A.A., M.B. (Masoud Babaei), S.M.M. and M.B. (Mohamed Benbouzid); visualization, J.F.; supervision, S.M.M. and M.B. (Mohamed Benbouzid); project administration, S.M.M. and M.B. (Mohamed Benbouzid); All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

Parameters
S O C 0 Initial ESS SOC (kWh)
S O C 24 Final ESS SOC (kWh)
S O C max Upper band of ESS SOC (kWh)
S O C min Lower band of ESS SOC (kWh)
P c h a r g a r g e   m i n Lower band of ESS charge (kWh)
P c h a r g a r g e   m a x Upper band of ESS charge (kWh)
P d i s c h a r g a r g e   m i n Lower band of ESS discharge (kWh)
P d i s c h a r g a r g e   m a x Upper band of ESS discharge (kWh)
η c h a r g a r g e   Charge coefficient of ESS (%)
η d i s c h a r g a r g e   Charge coefficient of ESS (%)
N p v Number installed PV modules
A p v Area of the module (m2)
R S B Replacement cost of SB ($)
L S B Lifetime of the SB (year)
E S B Square root of both ways of efficiency of the SB (%)
R P H E V Replacement cost of PHEV ($)
L P H E V Lifetime of the PHEV (year)
E P H E V Square root of both ways of efficiency of the PHEV (%)
B S B SB depreciation cost coefficient per kWh
B P H E V PHEV depreciation cost coefficient per kWh
η p v r a t e d Rated efficiency of PV measured at referenced temperature (25 °C)
N O C T Normal cell operation temperature (°C)
T r e f Reference temperature (25 °C)
α Temperature coefficient for cell efficiency (0.004/°C)
V c Cut-out speed (m/s)
V c i Cut-in speed (m/s)
V r Wind speed at rated power (m/s)
P max s Upper bound of import power from grid (kWh)
P min s Power export limit to grid (kWh)
Variables
η t P V Efficiency of PV module (%)
G t Hourly solar irradiance (kW×m−2)
T t Hourly ambient temperature (°C)
V t w i n d Hourly wind speed (V)
K t Hourly electricity price ($)
P t c h a r g a r g e Charge power of ESS (kWh)
P t d i c h a r g a r g e Discharge power of ESS (kWh)
P t s Power flow from or to grid (kWh)
P t P V Output power of PV (kWh)
P t W T Output power of WT (kWh)
P t c o n t r a c t Contracted power (kWh)
P t l o a d Prosumer load profile (kWh)
S O C d min , S B Minimum SB SOC at the end of the day (kWh)
S O C d min , P H E V Minimum SOC of PHEV at the end of the day (kWh)
S O C t SOC in each hour (kWh)
D d E S S Total EES depreciation cost ($)
D d S B SB depreciation cost ($)
D d P H E V PHEV depreciation cost ($)
x Original data value
y Normalized data value
x min , x max Minimum and maximum value of x
y min , y max [0,1]
U t c h a r g e ESS charge binary variable
U t d i s c h a r g e ESS discharge binary variable
Indices
tIndex of time
dIndex of day
Abbreviations
RESRenewable Energy Source
SBStationary Battery
EVElectric Vehicle
FEVFully Electric Vehicle
FCEVFuel Cell Electric Vehicle
PHEVPlug-in Hybrid Electrical Vehicle
ESSEnergy Storage System
PVPhotovoltaic
WTWind Turbine
PCUPower Conversion Unit
EMSEnergy Management System
ANNArtificial Neural Network
FFFeedforward
MLPMultilayer Perceptron
DODDepth of Charge
SOCState of Charge
MILPMixed-Integer Linear Programming
BPBack Propagation
TOUTime of Use
DRDemand Response
DSODistribution System Operator

References

  1. IEA-RETD (2014). Residental Prosumers–Drivers and Policy Options (RE-Prosumers). 2014. Available online: https://www.osti.gov/servlets/purl/1163237 (accessed on 12 July 2019).
  2. Faraji, J.; Babaei, M.; Bayati, N.; Hejazi, M.A. A Comparative Study between Traditional Backup Generator Systems and Renewable Energy Based Microgrids for Power Resilience Enhancement of a Local Clinic. Electronics 2019, 8, 1485. [Google Scholar] [CrossRef]
  3. Hosseinnezhad, V.; Shafie-Khah, M.; Siano, P.; Catalão, J.P.S. An Optimal Home Energy Management Paradigm with an Adaptive Neuro-Fuzzy Regulation. IEEE Access 2020, 8, 19614–19628. [Google Scholar] [CrossRef]
  4. Zia, M.F.; Elbouchikhi, E.; Benbouzid, M. Optimal operational planning of scalable DC microgrid with demand response, islanding, and battery degradation cost considerations. Appl. Energy 2019, 237, 695–707. [Google Scholar] [CrossRef]
  5. Abazari, A.; Dozein, M.G.; Monsef, H.; Wu, B. Wind turbine participation in micro-grid frequency control through self-tuning, adaptive fuzzy droop in de-loaded area. Iet Smart Grid 2019, 2, 301–308. [Google Scholar] [CrossRef]
  6. Heinisch, V.; Odenberger, M.; Göransson, L.; Johnsson, F. Prosumers in the Electricity System—Household vs. System Optimization of the Operation of Residential Photovoltaic Battery Systems. Front. Energy Res. 2019, 6. [Google Scholar] [CrossRef]
  7. Bae, D. E-mobility 시대의 에너지저장매체 선택 기준. ER20-047-N2611; KOSEN Report 2020. 2020. Available online: https://www.kosen21.org/info/kosenReport/reportView.do?articleSeq=REPORT_0000000001506 (accessed on 2 April 2020).
  8. Radan, P. Mitsubishi Outlander PHEV Unveiling in Iran. Available online: http://ariancapital.ir/mitsubishi-outlander-phev-unveiling-iran/ (accessed on 4 March 2020).
  9. Abazari, A.; Dozein, M.G.; Monsef, H. An optimal fuzzy-logic based frequency control strategy in a high wind penetrated power system. J. Frankl. Inst. 2018, 355, 6262–6285. [Google Scholar] [CrossRef]
  10. Zhang, F.; Meng, K.; Xu, Z.; Dong, Z.; Zhang, L.; Wan, C.; Liang, J. Battery ESS Planning for Wind Smoothing via Variable-Interval Reference Modulation and Self-Adaptive SOC Control Strategy. IEEE Trans. Sustain. Energy 2017, 8, 695–707. [Google Scholar] [CrossRef]
  11. Shim, J.W.; Verbič, G.; An, K.; Lee, J.H.; Hur, K. Decentralized operation of multiple energy storage systems: SOC management for frequency regulation. In Proceedings of the 2016 IEEE International Conference on Power System Technology (POWERCON), Wollongong, NSW, Australia, 28 September–1 October 2016; pp. 1–5. [Google Scholar]
  12. Xin, P.; Hanchen, X.; Chao, L.; Jie, S. Energy storage system control strategy in frequency regulation. In Proceedings of the 2016 IEEE International Conference on Automation Science and Engineering (CASE), Fort Worth, TX, USA, 21–25 August 2016; pp. 664–669. [Google Scholar]
  13. Liu, J.; Wen, J.; Yao, W.; Long, Y. Solution to short-term frequency response of wind farms by using energy storage systems. Iet Renew. Power Gener. 2016, 10, 669–678. [Google Scholar] [CrossRef]
  14. Abazari, A.; Dozein, M.G.; Monsef, H. A New Load Frequency Control Strategy for an AC Micro-grid: PSO-based Fuzzy Logic Controlling Approach. In Proceedings of the 2018 Smart Grid Conference (SGC), Sanandaj, Iran, 28–29 November 2018; pp. 1–7. [Google Scholar]
  15. Wang, Y.; Tan, K.T.; Peng, X.Y.; So, P.L. Coordinated Control of Distributed Energy-Storage Systems for Voltage Regulation in Distribution Networks. IEEE Trans. Power Deliv. 2016, 31, 1132–1141. [Google Scholar] [CrossRef]
  16. Keihan Asl, D.; Hamedi, A.; Seifi, A.R. Planning, Operation and Flexibility Contribution of Multi-Carrier Energy Storage Systems in Integrated Energy Systems. Iet Renew. Power Gener. 2019. [Google Scholar] [CrossRef]
  17. Kang, B.O.; Lee, M.; Kim, Y.; Jung, J. Economic analysis of a customer-installed energy storage system for both self-saving operation and demand response program participation in South Korea. Renew. Sustain. Energy Rev. 2018, 94, 69–83. [Google Scholar] [CrossRef]
  18. Park, M.; Kim, J.; Won, D.; Kim, J. Development of a Two-Stage ESS-Scheduling Model for Cost Minimization Using Machine Learning-Based Load Prediction Techniques. Processes 2019, 7, 370. [Google Scholar] [CrossRef]
  19. Choi, S.; Min, S. Optimal Scheduling and Operation of the ESS for Prosumer Market Environment in Grid-Connected Industrial Complex. IEEE Trans. Ind. Appl. 2018, 54, 1949–1957. [Google Scholar] [CrossRef]
  20. Liu, Z.; Chen, Y.; Zhuo, R.; Jia, H. Energy storage capacity optimization for autonomy microgrid considering CHP and EV scheduling. Appl. Energy 2018, 210, 1113–1125. [Google Scholar] [CrossRef]
  21. Eldeeb, H.H.; Faddel, S.; Mohammed, O.A. Multi-Objective Optimization Technique for the Operation of Grid tied PV Powered EV Charging Station. Electr. Power Syst. Res. 2018, 164, 201–211. [Google Scholar] [CrossRef]
  22. Pirouzi, S.; Aghaei, J.; Vahidinasab, V.; Niknam, T.; Khodaei, A. Robust linear architecture for active/reactive power scheduling of EV integrated smart distribution networks. Electr. Power Syst. Res. 2018, 155, 8–20. [Google Scholar] [CrossRef]
  23. Ahmadian, A.; Sedghi, M.; Elkamel, A.; Fowler, M.; Aliakbar Golkar, M. Plug-in electric vehicle batteries degradation modeling for smart grid studies: Review, assessment and conceptual framework. Renew. Sustain. Energy Rev. 2018, 81, 2609–2624. [Google Scholar] [CrossRef]
  24. Hariri, A.-M.; Hejazi, M.A.; Hashemi-Dezaki, H. Reliability optimization of smart grid based on optimal allocation of protective devices, distributed energy resources, and electric vehicle/plug-in hybrid electric vehicle charging stations. J. Power Sources 2019, 436, 226824. [Google Scholar] [CrossRef]
  25. Hashemi-Dezaki, H.; Hariri, A.-M.; Hejazi, M.A. Impacts of load modeling on generalized analytical reliability assessment of smart grid under various penetration levels of wind/solar/non-renewable distributed generations. Sustain. Energy Grids Netw. 2019, 20, 100246. [Google Scholar] [CrossRef]
  26. Bae, D.; Faasse, G.M.; Smith, W.A. Hidden figures of photo-charging: A thermo-electrochemical approach for a solar-rechargeable redox flow cell system. Sustain. Energy Fuels 2020. [Google Scholar] [CrossRef]
  27. Van Helden, W.G.J.; van Zolingen, R.J.C.; Zondag, H.A. PV thermal systems: PV panels supplying renewable electricity and heat. Prog. Photovolt. Res. Appl. 2004, 12, 415–426. [Google Scholar] [CrossRef]
  28. Mohammadi, E.; Fadaeinedjad, R.; Naji, H.R. Flicker emission, voltage fluctuations, and mechanical loads for small-scale stall- and yaw-controlled wind turbines. Energy Convers. Manag. 2018, 165, 567–577. [Google Scholar] [CrossRef]
  29. Abazari, A.; Monsef, H.; Wu, B. Load frequency control by de-loaded wind farm using the optimal fuzzy-based PID droop controller. Iet Renew. Power Gener. 2018, 13, 180–190. [Google Scholar] [CrossRef]
  30. Abazari, A.; Monsef, H.; Wu, B. Coordination strategies of distributed energy resources including FESS, DEG, FC and WTG in load frequency control (LFC) scheme of hybrid isolated micro-grid. Int. J. Electr. Power Energy Syst. 2019, 109, 535–547. [Google Scholar] [CrossRef]
  31. Paliwal, N.K.; Singh, A.K.; Singh, N.K. A day-ahead optimal energy scheduling in a remote microgrid alongwith battery storage system via global best guided ABC algorithm. J. Energy Storage 2019, 25, 100877. [Google Scholar] [CrossRef]
  32. Grimaccia, F.; Leva, S.; Mussetta, M.; Ogliari, E. ANN sizing procedure for the day-ahead output power forecast of a PV plant. Appl. Sci. 2017, 7, 622. [Google Scholar] [CrossRef]
  33. Babaei, M.; Abazari, A.; Muyeen, S. Coordination between Demand Response Programming and Learning-Based FOPID Controller for Alleviation of Frequency Excursion of Hybrid Microgrid. Energies 2020, 13, 442. [Google Scholar] [CrossRef]
  34. Wankmüller, F.; Thimmapuram, P.R.; Gallagher, K.G.; Botterud, A. Impact of battery degradation on energy arbitrage revenue of grid-level energy storage. J. Energy Storage 2017, 10, 56–66. [Google Scholar] [CrossRef]
  35. Bordin, C.; Anuta, H.O.; Crossland, A.; Gutierrez, I.L.; Dent, C.J.; Vigo, D. A linear programming approach for battery degradation analysis and optimization in offgrid power systems with solar energy integration. Renew. Energy 2017, 101, 417–430. [Google Scholar] [CrossRef]
  36. Qing, X.; Niu, Y. Hourly day-ahead solar irradiance prediction using weather forecasts by LSTM. Energy 2018, 148, 461–468. [Google Scholar] [CrossRef]
  37. Doucoure, B.; Agbossou, K.; Cardenas, A. Time series prediction using artificial wavelet neural network and multi-resolution analysis: Application to wind speed data. Renew. Energy 2016, 92, 202–211. [Google Scholar] [CrossRef]
  38. Chu, W.; Ho, K.; Borji, A. Visual Weather Temperature Prediction. In Proceedings of the 2018 IEEE Winter Conference on Applications of Computer Vision (WACV), Lake Tahoe, NV, USA, 12–15 March 2018; pp. 234–241. [Google Scholar]
  39. Silva, I.N.; Spatti, D.H.; Flauzino, R.A.; Liboni, L.H.B.; Alves, S.F.d.R. Artificial Neural Networks; Springer International Publishing: Cham, Switzerland, 2017. [Google Scholar] [CrossRef]
  40. Weigend, A.S. Time Series Prediction (Forecasting The Future and Understanding The Past), 1st ed.; Routledge: New York, NY, USA, 1994; p. 663. [Google Scholar] [CrossRef]
  41. Khosravi, A.; Machado, L.; Nunes, R.O. Time-series prediction of wind speed using machine learning algorithms: A case study Osorio wind farm, Brazil. Appl. Energy 2018, 224, 550–566. [Google Scholar] [CrossRef]
  42. Pousinho, H.M.I.; Silva, H.; Mendes, V.M.F.; Collares-Pereira, M.; Pereira Cabrita, C. Self-scheduling for energy and spinning reserve of wind/CSP plants by a MILP approach. Energy 2014, 78, 524–534. [Google Scholar] [CrossRef]
  43. Mellit, A.; Pavan, A.M. Performance prediction of 20kWp grid-connected photovoltaic plant at Trieste (Italy) using artificial neural network. Energy Convers. Manag. 2010, 51, 2431–2441. [Google Scholar] [CrossRef]
  44. Babaei, M.; Azizi, E.; Beheshti, M.T.; Hadian, M. Data-Driven load management of stand-alone residential buildings including renewable resources, energy storage system, and electric vehicle. J. Energy Storage 2020, 28, 101221. [Google Scholar] [CrossRef]
  45. Bakhshi, R.; Sadeh, J. Economic evaluation of grid–connected photovoltaic systems viability under a new dynamic feed–in tariff scheme: A case study in Iran. Renew. Energy 2018, 119, 354–364. [Google Scholar] [CrossRef]
  46. Jung, Y.; Jung, J.; Kim, B.; Han, S. Long short-term memory recurrent neural network for modeling temporal patterns in long-term power forecasting for solar PV facilities: Case study of South Korea. J. Clean. Prod. 2019. [Google Scholar] [CrossRef]
  47. Dirkse, S.; Ferris, M.C.; Ramakrishnan, J. Interfacing GAMS and MATLAB; GAMS Development Corporation: Fairfax, VA, USA, 2014; Available online: http://citeseerx.ist.psu.edu/viewdoc/download?doi=10.1.1.590.7254&rep=rep1&type=pdf, (accessed on 12 July 2019).
Figure 1. Proposed energy system architecture.
Figure 1. Proposed energy system architecture.
Applsci 10 02774 g001
Figure 2. The typical framework of the prosumer market.
Figure 2. The typical framework of the prosumer market.
Applsci 10 02774 g002
Figure 3. A typical multilayer perceptron artificial neural network (MLP-ANN) model for time series prediction.
Figure 3. A typical multilayer perceptron artificial neural network (MLP-ANN) model for time series prediction.
Applsci 10 02774 g003
Figure 4. One-year data gathered for: (a) solar irradiance; (b) temperature; and (c) wind speed.
Figure 4. One-year data gathered for: (a) solar irradiance; (b) temperature; and (c) wind speed.
Applsci 10 02774 g004aApplsci 10 02774 g004b
Figure 5. Real and predicted data of (a) solar irradiance; (b) temperature; and (c) wind speed.
Figure 5. Real and predicted data of (a) solar irradiance; (b) temperature; and (c) wind speed.
Applsci 10 02774 g005
Figure 6. Error histograms for predicted (a) solar irradiance; (b) temperature; and (c) wind speed.
Figure 6. Error histograms for predicted (a) solar irradiance; (b) temperature; and (c) wind speed.
Applsci 10 02774 g006
Figure 7. PV output power during the understudy day.
Figure 7. PV output power during the understudy day.
Applsci 10 02774 g007
Figure 8. WT unit output power during the understudy day.
Figure 8. WT unit output power during the understudy day.
Applsci 10 02774 g008
Figure 9. Prosumer electrical load profile during the day.
Figure 9. Prosumer electrical load profile during the day.
Applsci 10 02774 g009
Figure 10. Contracted power that the prosumer is committed to providing to the consumer during the day.
Figure 10. Contracted power that the prosumer is committed to providing to the consumer during the day.
Applsci 10 02774 g010
Figure 11. Charging and discharging of a (a) stationary battery (SB) and (b) plug-in hybrid electric vehicle (PHEV).
Figure 11. Charging and discharging of a (a) stationary battery (SB) and (b) plug-in hybrid electric vehicle (PHEV).
Applsci 10 02774 g011aApplsci 10 02774 g011b
Figure 12. Import/export power from the utility grid.
Figure 12. Import/export power from the utility grid.
Applsci 10 02774 g012
Figure 13. (a) State of charge (SOC) changes of (a) SB and (b) PHEV during the understudy day.
Figure 13. (a) State of charge (SOC) changes of (a) SB and (b) PHEV during the understudy day.
Applsci 10 02774 g013
Figure 14. Exchanged power between prosumer and utility grid based on predicted and real weather data.
Figure 14. Exchanged power between prosumer and utility grid based on predicted and real weather data.
Applsci 10 02774 g014
Table 1. Linear regression results for all the predicted parameters.
Table 1. Linear regression results for all the predicted parameters.
Weather ParameterTrainingTestingValidationAll
Solar irradiance0.9570.9480.9540.956
Temperature0.9890.9880.9870.988
Wind speed0.2270.2290.2320.230
Table 2. Technical parameters photovoltaic (PV) and wind turbine (WT) units [44].
Table 2. Technical parameters photovoltaic (PV) and wind turbine (WT) units [44].
PV ParameterValueWT ParameterValue
Module Nominal Power225 W P n o m 5 kW
α −0.38% V c i 2 m/s
N O C T 45 C V r 12 m/s
T r e f 25 C V c 25 m/s
η p v r a t e d 15%
A p v 1.244
N p v 30
Table 3. Technical parameters of energy storage systems (ESSs).
Table 3. Technical parameters of energy storage systems (ESSs).
ParameterSBPHEVUnit
V n o m 1212V
S O C 0 54kW
S O C m a x 108kW
P c h a r g a r g e   m i n 00kW
P c h a r g a r g e   m a x 97kW
P d i s c h a r g a r g e   m i n 00kW
P d i s c h a r g a r g e   m a x 86kW
η c h a r g a r g e   0.930.9%
η d i s c h a r g a r g e   0.950.9%
B S B ,   B P H E V 0.60.2$
Table 4. Time of use (TOU) prices.
Table 4. Time of use (TOU) prices.
Time of Day (h)Price ($/kWh)
23:00 to 07:000.0075
07:00 to 13:000.03
13:00 to 17:000.12
17:00 to 19:000.03
19:00 to 23:000.12
Back to TopTop
