Experimental Study and Finite Element Analysis on the Bearing Capacity of a Novel Light-Steel Truss with Cap-Shaped Chords

Abstract

Aiming to address the shortcomings of traditional large-span light-steel trusses, such as low bearing capacity and inconvenient on-site assembly, this paper proposes a novel cap-shaped chord light-steel truss. It consists of top and bottom cap-shaped chords with uniformly pre-drilled pilot holes and longitudinal stiffeners on both webs, and square/rectangular tubular web members, all connected by self-tapping screws. The novelty lies in the proposed splice geometry, the pilot-hole arrangement for screw connections, and the full-scale 18 m validation. Full-scale bending tests and finite element analyses were conducted on two 18 m span cap-shaped chord light-steel truss specimens subjected to uniformly node-distributed loading. The bearing capacity, stiffness, and failure modes of two specimens were analyzed and compared. Testing results indicate that the usage of edge-curled chord members effectively enhances both the bearing capacity and stiffness of the truss. The main failure mode observed for both specimens was local buckling of the upper chord in the mid-span. No deformation or shear failure occurred for the self-tapping screws at the chord-splice joints, and none of the web members exhibited significant deformation either. This demonstrates that the load-bearing behavior of the truss specimens is primarily governed by the compressive bearing capacity of the upper chord and its splices. The proposed light-steel truss offers advantages including a high degree of standardization, improved load-bearing capacity, and convenient installation.

1. Introduction

Thin-walled steel structures are widely used in industrial and civil buildings due to their many advantages. Their connection joints are critical in design and construction, particularly for light-steel trusses, which require sufficient bearing capacity at the joints. Common connection methods include welding, bolting, and self-tapping screw connections. Welding can easily cause burn-through and deformation in thin-walled trusses; bolting requires auxiliary components such as gusset plates and high-precision pre-drilled holes. Therefore, self-tapping screw connections have been widely adopted due to their low precision requirements and simple, flexible installation.

In recent years, extensive studies have been conducted on the structural forms and connection methods of thin-walled light-steel trusses. Reda et al. [1] investigated the effects of span, web type, and cross-sectional shape on the ultimate strength of trusses through tests and finite element analysis (FEA). Bondok et al. [2] showed through quasi-static tests that truss configuration and loading type significantly affect structural performance and failure mechanisms. Dawe et al. [3] identified local buckling of the top chord near the heel plate as the primary failure mode in cold-formed steel (CFS) pitched trusses. Wang et al. [4] proposed a light-steel truss system assembled using U-shaped connectors and validated its performance through full-scale testing. Freitas et al. [5] studied a new CFS 2D truss with a stamped diagonal system and found it suitable for floor and roof slabs. Mi et al. [6] studied the stability of curved CFRP thin-walled tube trusses through full-scale tests and FEA. Shi et al. [7] investigated the hysteretic performance of glubam roof trusses with thin-walled steel tube riveted connections.

Optimizing connection performance is key to load transfer in trusses. Zaharia et al. [8] established a stiffness model for bolted connections in CFS trusses. Mathieson et al. [9,10] showed that the Howick Rivet Connector (HRC) performs similarly to heavy-duty steel bolts in failure mode and bearing capacity. Pedreschi et al. [11] found that the number of mechanical clinching connections significantly influences the strength, deformation, and failure mode of CFS trusses. Ungureanu et al. [12] found that resistance spot welding provides higher stiffness and bearing capacity than screw connections, but with lower ductility. Taranu et al. [13] revealed the main failure mechanism of self-tapping screw connections. Mahmoud et al. [14] and Li et al. [15] clarified the effects of screw number, screw diameter, and steel plate thickness on connection performance. Rezaeian et al. [16] investigated a CFS Tab connection and clarified its shear resistance and failure mechanism. Wang et al. [17] and Lukačević et al. [18] studied the mechanical performance of novel U-shaped connector joints and proposed corresponding calculation methods for their load-bearing capacity. Yang et al. [19] studied the hysteretic performance of K-shaped thin-walled CFST truss joints with spherical crown gaps. Dizdar et al. [20] pointed out that connection flexibility and local buckling of chord members reduce the stiffness and load-bearing capacity of CFS trusses, necessitating consideration of semi-rigid connections in design. Gordziej-Zagórowska et al. [21,22] studied the bearing capacity of CFS truss joints with positive eccentricity and confirmed the local stiffening effect of channel-section web members on cap-shaped chord members. Wang et al. [23] concluded that HRC and screw connections exhibit comparable performance in CFS trusses with built-up box-section chords and proposed new design methods.

Based on studies of components and joints, design methods and calculation models have been continuously innovated. Li et al. [24] conducted FEA on the web crushing of cold-formed high-strength steel tubular sections and proposed improved design equations. Cruise et al. [25] proposed a predictive model to leverage the strength enhancement in cold-formed stainless steel sections. Li et al. [26] studied the behavior of cold-formed high-strength steel SHS and RHS beams at elevated temperatures and improved the direct strength method (DSM). Fang et al. [27] established an elastoplastic FE model for cold-formed steel members with web holes and proposed web crippling criteria under different loading conditions. Dai et al. [28] used an XGBoost model for high-precision prediction and optimized design formulas for CFS members with web holes. Fang et al. [29] employed a deep belief network (DBN) to predict the axial compression capacity of CFS channel sections and proposed an improved design formula. Ma et al. [30] proposed a theoretical method for calculating the flexural stiffness of circular hollow section trusses. Sun et al. [31] proposed a recursive force transfer method for internal force analysis of continuous truss structures. Jiang et al. [32] introduced a topology optimization-based computational method for lightweight truss design. Wang et al. [33] studied the influence of span-to-height ratio and lateral support on the strength of CFS trusses. Song et al. [34] explored the effects of truss height, span, and web member arrangement on flexural performance and proposed a formula for equivalent flexural stiffness. Chen et al. [35,36,37,38] conducted a series of studies on the axial compressive performance of CFS channel sections (including back-to-back configurations) with web openings, finding that edge-stiffened openings can enhance bearing capacity, and proposed improved design formulas. Roy et al. [39] found that current design standards underestimate the flexural strength of back-to-back CFS channel section beams with gaps and noted that double web stiffeners can increase flexural capacity. Chen et al. [40,41,42] studied the effects of web openings on the performance of various sections, including the shear performance of high-strength stainless steel plate girders and the web crippling strength of cold-formed steel sigma sections, and proposed new design recommendations. Zhao et al. [43] conducted axial compression tests on CFS channels with slotted holes and proposed a new design formula to address the conservatism of the current DSM. Yuan et al. [44] studied the web crippling behavior of cold-formed stainless steel stiffened C-sections and recommended revisions to current design standards.

In addition to joint strength and stability, simple and reliable on-site connection installation is also critical for the prefabrication and rapid erection of light-steel tubular roof trusses. Hou et al. [45] verified the rationality of a rigid model for modular connections in thin-walled steel trestles through full-scale tests and FEA. Zou et al. [46] investigated the shear behavior of inter-story connections in cold-formed steel structures and proposed design improvements.

Although existing studies have achieved notable progress in the joint design and section optimization of thin-walled light-steel trusses, further exploration is still needed regarding the standardization and practicality of new types of components. This paper proposes a thin-walled light-steel truss with novel cap-shaped chord members and connection joints. The proposed truss consists of top and bottom cap-shaped chord members, square steel tube web members, and chord splice members, connected by self-tapping screws. Several rows of stiffeners and pilot holes are uniformly arranged along the longitudinal direction on both webs of the cap-shaped chord members to facilitate self-tapping screw connections with the square steel tube web members.

The proposed light-steel truss with cap-shaped chord members features high standardization, high bearing capacity, and convenient installation. The specific contributions of this work are: (1) cap-shaped chords and square steel tube web members allow direct insertion for convenient on-site assembly; (2) uniform pre-drilled pilot holes on both chord webs provide flexible self-tapping screw connections; (3) longitudinal stiffeners on chord webs enhance the local stability of cap-shaped sections. The stiffeners improve the out-of-plane resistance of the truss, and the experimental and FEA results obtained from the 18 m span configuration demonstrate good structural performance. To investigate the ultimate bearing capacity and failure mode of this novel light-steel truss with cap-shaped chord members, full-scale bending tests and finite element analyses were conducted on two 18-m-span specimens. The results can provide references for the engineering application and further research into the proposed truss.

2. Specimen Design

2.1. Specimen Composition

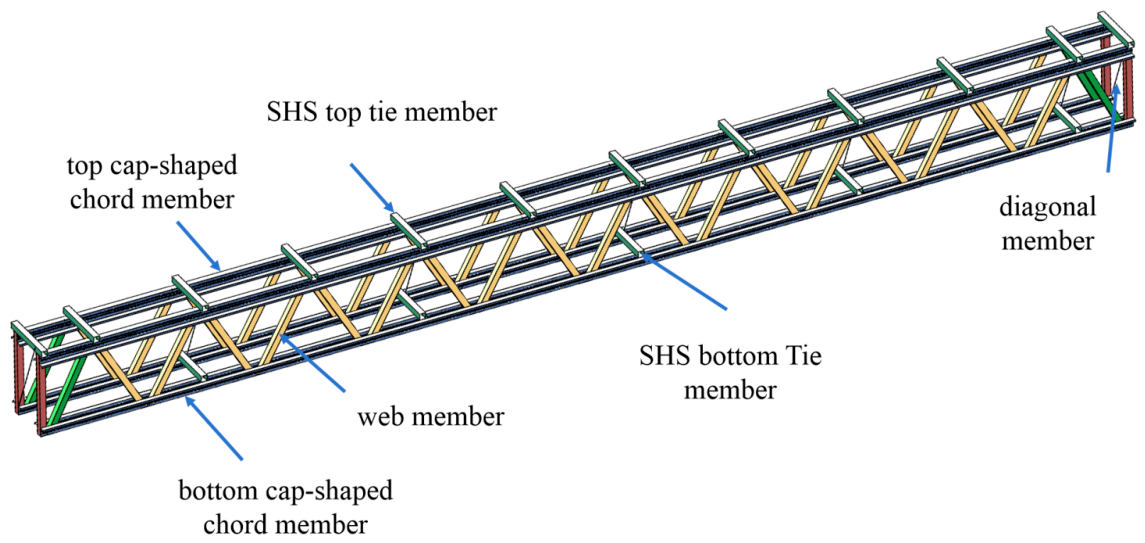

The cap-shaped light-steel trusses consisted of galvanized lipped cap-shaped chord members and square steel tube web members, which were connected using ST5.5 self-tapping screws. Both the top and bottom chords are formed by joining lipped cap-shaped sections with specialized chord splicing connectors. The web members are categorized into three distinct types: Type 1, Type 2, and Type 3, according to the length and position. Full-scale load-bearing tests were conducted on two groups of 18 m span cap-shaped chord light-steel trusses, designated as group I and II, corresponding to chord splice configurations without and with curled edge, respectively. In both specimen groups, the overall depth from the upper surface of the top chord to the lower surface of the bottom chord consisted of 1.388 m. To prevent premature out-of-plane global instability during testing, both truss tests employed a coupled load-carrying system consisting of two parallel trusses. These trusses were interconnected by upper and lower SHS100 × 1.45 square hollow section tubular braces and L50 × 1.5 angle steel diagonal bracings, arranged at a 45-degree angle. The clear spacing between the two trusses was maintained at 1.8 m. The dimensional details and configuration of the test trusses are illustrated in Figure 1 and Figure 2.

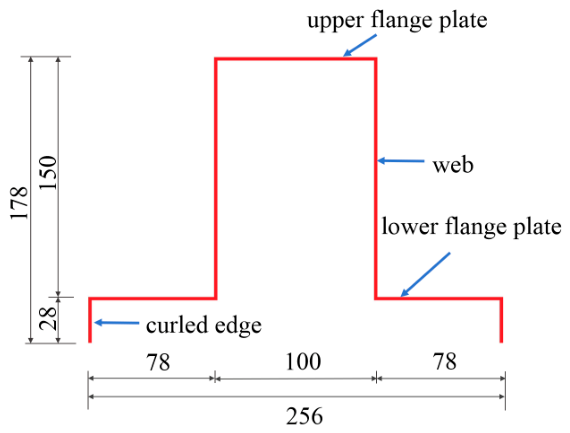

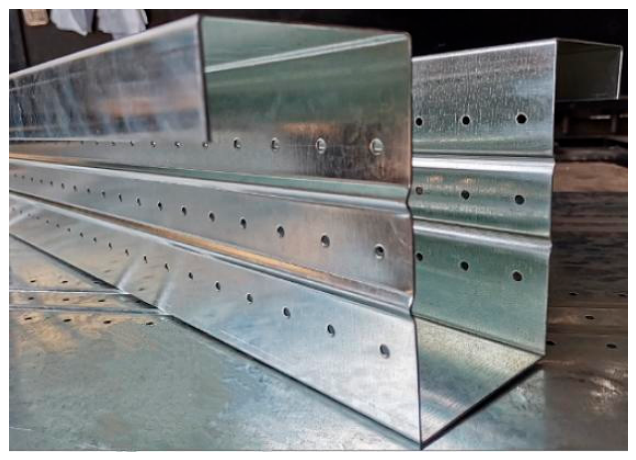

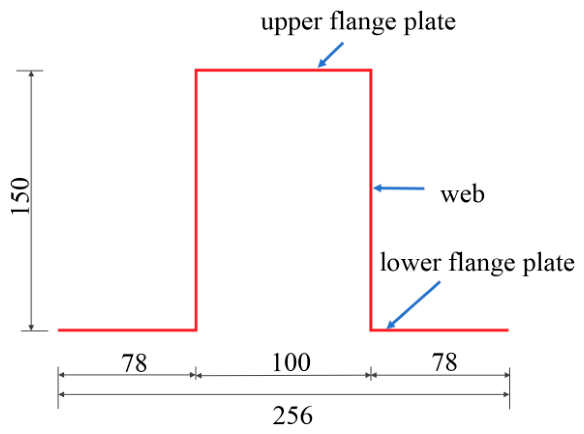

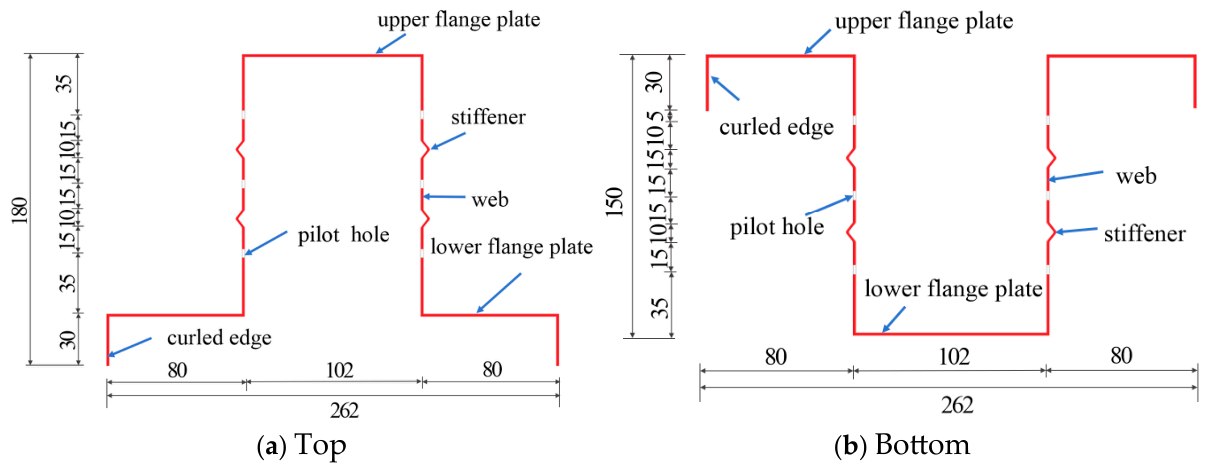

The cap-shaped chord members, as illustrated in Figure 3, were fabricated by cold-forming 1.4 mm thick Q235B galvanized steel plates. The flanges of both the top and bottom chord members are designed with downward-folded lips to facilitate the placement of purlins. In addition, their opening cross-sectional dimensions, as shown in Figure 4, can accommodate the SHS web members.

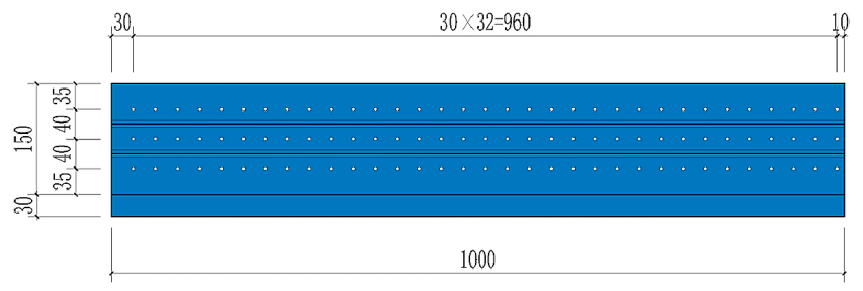

To facilitate the positioning of self-tapping screws during assembly, three rows of pilot holes are uniformly drilled along both webs of the cap-shaped chord section. These pilot holes have a diameter of 4.5 mm, with a horizontal and vertical spacing of 30 and 40 mm, respectively. In addition, as shown in Figure 4, two longitudinal stiffeners (10 mm in width and 4 mm in depth) were cold-formed on the webs of the chord members, designed to enhance the cross-sectional stiffness and the load-bearing capacity of the chord members. Detailed local dimensions of a cap-shaped chord member segment are provided in Figure 5.

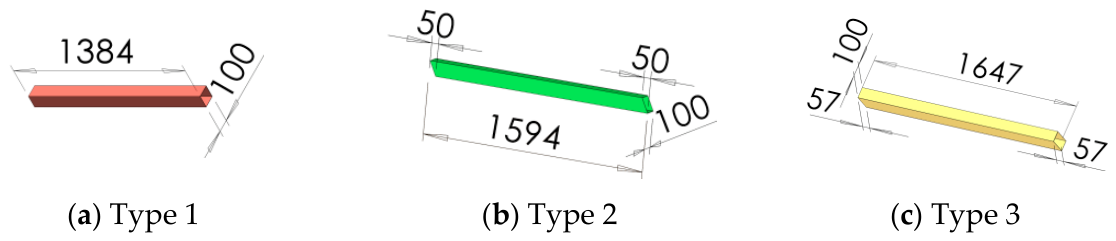

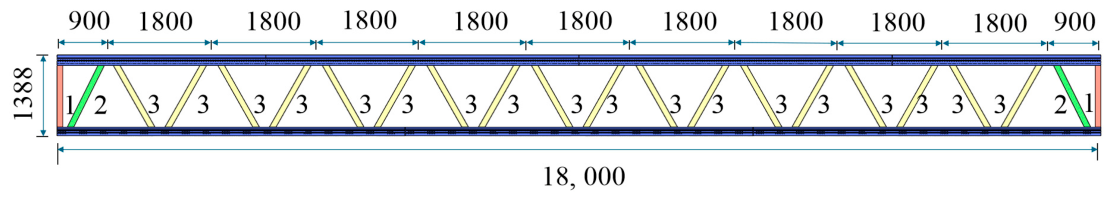

Each truss specimen has a total of 22 SHS web members, which are divided into three types, as shown in Figure 1. The design dimensions of each type of SHS web member are provided in Figure 6.

2.2. Connection Joints

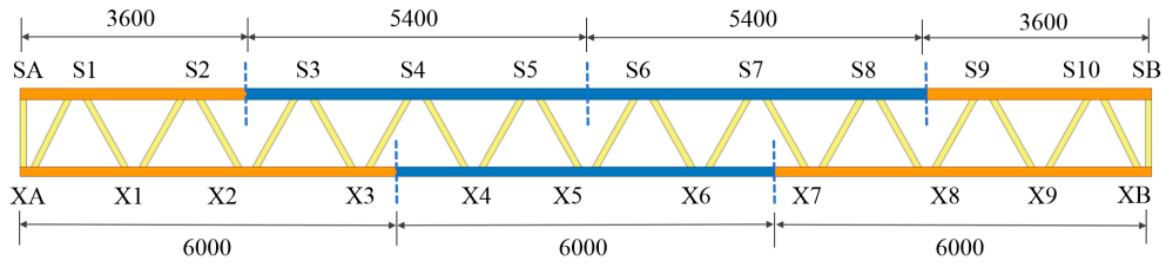

As shown in Figure 7, the top chord consists of two 3600 mm segments (in orange) positioned at the two ends and two 5400 mm segments (in blue) located in the middle portion of the truss. The bottom chord is assembled by connecting three identical cap-shaped members, which are 6000 mm in length. This segmentation strategy can effectively avoid interference between chord splices and the joints connecting the web members. Figure 7 also indicates the joint numbering scheme of the truss specimens, where nodes SA, S1–S10, and SB denote the upper chord joints, while XA, X1–X10, and XB represent the lower chord joints.

The chord splices were fabricated by cold-forming Q235B thin steel plates, and two different cross-sectional configurations were produced. The main difference between the two types of cross-sections is within the edge (curled or not). The chord splices with and without curled edge were cold formed using 1.4 mm thick steel plates. All chord splices have a uniform length of 400 mm. The detailed cross-sectional configurations and dimensions of the two chord splices are provided in Figure 8 and Figure 9, respectively.

The splicing between segmented chord members and splices, as well as between the chord and web members, were completed using ST 5.5 × 25 self-tapping screws. The quantity and arrangement of the screws are determined based on the internal force calculation results of the members and the structural requirements specified in relevant design codes [47].

The formulas for calculating the shear capacity of a single self-tapping screw are shown in Equations (1) and (2). Based on these formulas, the shear capacity of a single ST5.5 self-tapping screw is calculated to be approximately 4.7 kN.

$${\displaystyle \frac{t_1}{t}}=1, N_v^f=3.7\sqrt{t^{3}d}f$$

(1)

$${\displaystyle \frac{t_1}{t}}\ge 2.5, N_v^f=2.4tdf$$

(2)

where $N_v^f$ is the design value of shear capacity of a single self-tapping screw; d is the diameter of the self-tapping screw; t is the thickness of the thinner steel sheet; $t_1$ is the thickness of the thicker steel sheet; and f is the design value of the tensile strength of the connected steel sheet.

The number and layout of self-tapping screws at each node of the truss specimen are determined according to the internal forces of the members connected. The number of self-tapping screws at one side for the node between the web and chord members within the 3600 mm range at both ends of the truss specimen is 9 because larger internal forces in the web members are expected in this range. At other nodes, the number of self-tapping screws at one side is 7.

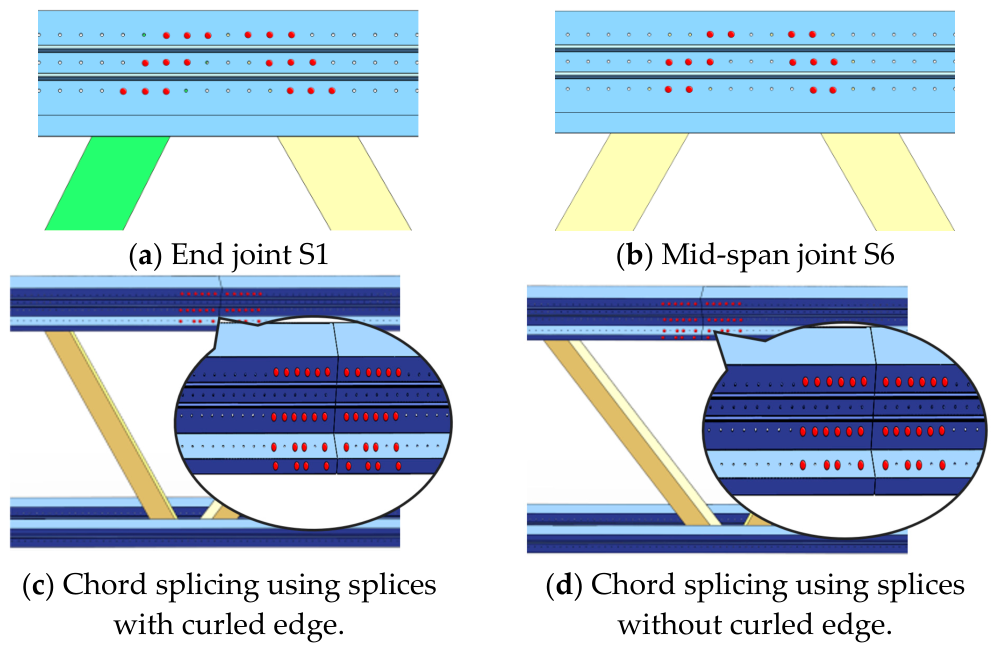

Figure 10a and Figure 10b show the arrangement schemes of self-tapping screws at the upper chord nodes S1 (9 screws at one side) and S6 (7 screws at one side), respectively. Figure 10c and Figure 10d present the arrangement schemes of self-tapping screws at the splicing nodes between the upper chord member segments and the splices with and without curled edge, respectively.

2.3. Material Mechanical Properties

Tensile tests were performed to determine the mechanical properties of the steels, which are provided in

Table 1. Test results of mechanical properties of member Materials.

Specimen Name	Thickness (mm)	Yield Strength (MPa)	Elastic Modulus (MPa)	Tensile Strength (MPa)	Elongation (%)
Chord member & splice without curled edge	1.40	323	185,301	389	15.6
web member	1.45	371	184,441	452	11.0
Splice with curled edge	1.40	306	169,809	397	16.4

Note: All values in the table are the average of 6 coupon specimens.

.

3. Testing Program

3.1. Test Setup and Loading Program

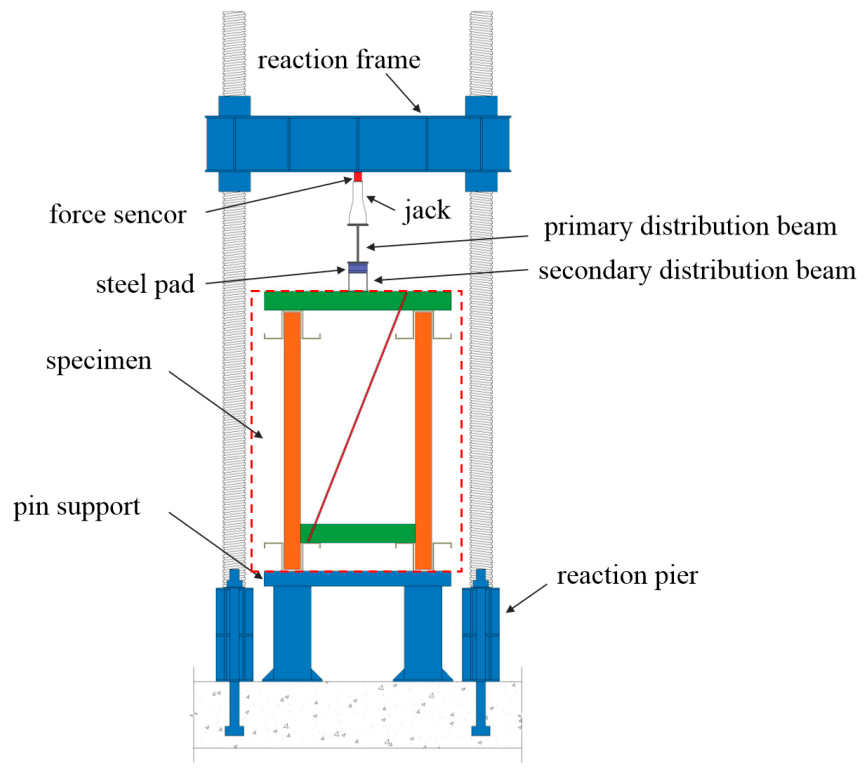

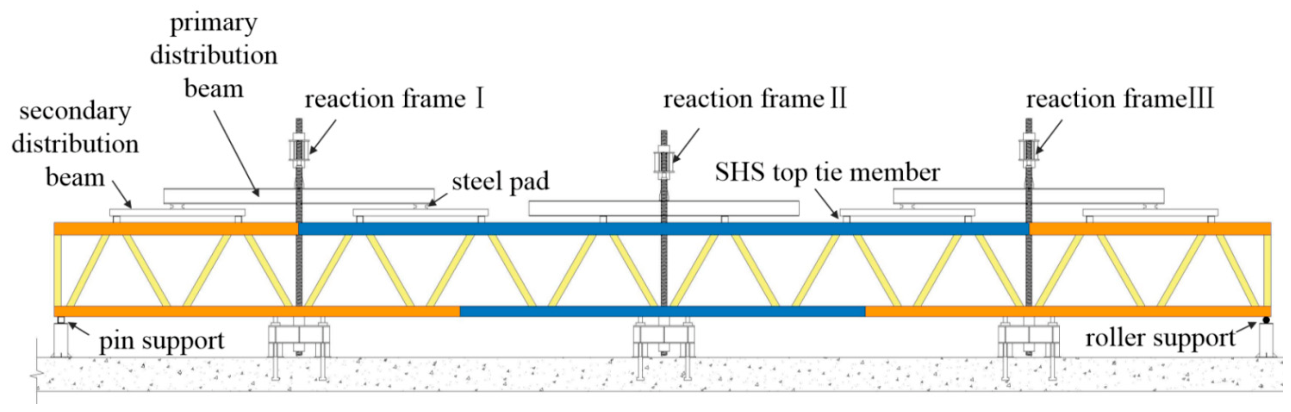

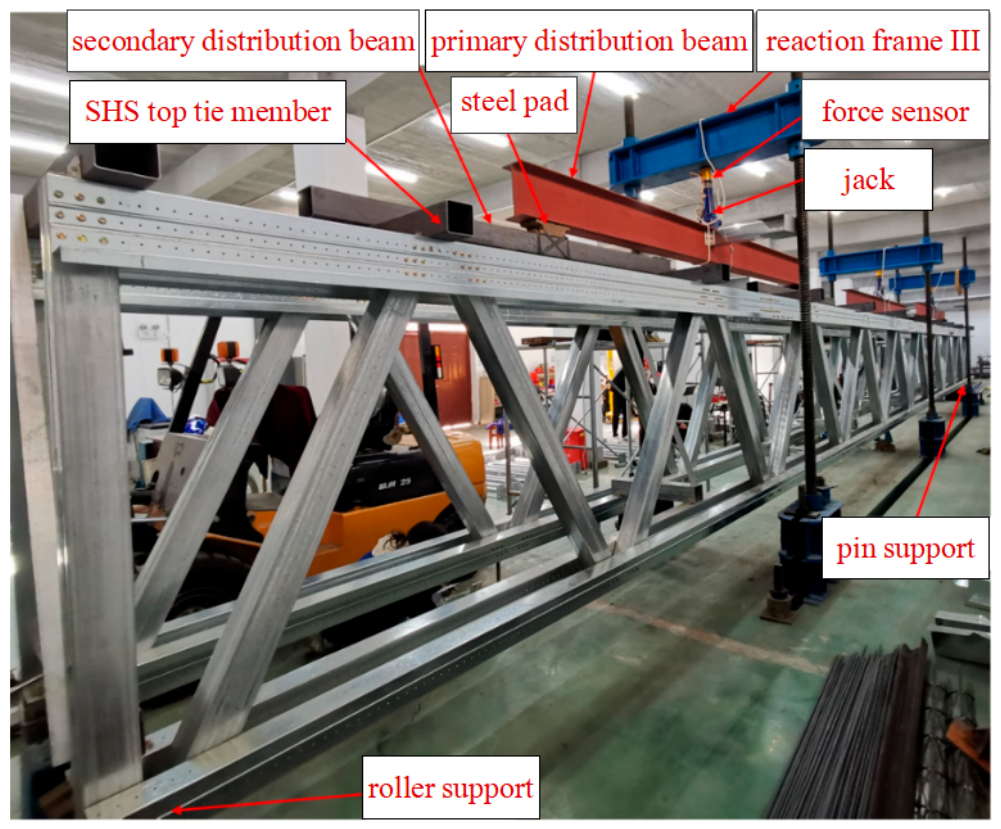

The overall testing setup is illustrated in Figure 11. The two truss specimens were lifted and positioned onto the support piers using chain hoists hung on the reaction frames. To simulate idealized support conditions, square steel tubes and circular rollers were installed on the support piers at the two ends of the trusses, representing the pinned and roller supports, respectively. To simulate the vertical uniform load carried by the truss specimen in engineering practice, concentrated loads were applied to 10 upper chord nodes (S1–S10) using a two-stage loading method.

Three reaction frames were set at positions 3600 mm from both ends of the specimen and at the middle position (Figure 11). Concentrated loads were applied to the primary distribution beams via jacks and reaction frames. Steel pads were placed under both ends of the primary distribution beams to transfer the load to the secondary distribution beams, and then the load was transmitted to the upper chord of the specimen via top tie member shown in Figure 2, and the load in the upper chord was subsequently transferred to the lower chord through web members and then to the end supports. In this study, the cumulative load on a single truss is defined as half of the resultant force from the three jacks. This assumption is reasonable for two reasons: First, the two trusses have symmetric geometry and identical boundary conditions. Second, the transverse and diagonal bracing ensures synchronized deformation. This was confirmed by displacement measurements, which showed no significant difference between the two trusses. However, the lateral restraint provided by the adjacent truss and bracing system contributes to the overall stability of each individual truss. Therefore, the reported single truss bearing capacity is applicable only to trusses interconnected with adjacent trusses via transverse and diagonal bracing. For an isolated truss without such lateral restraint, the bearing capacity may be lower, and further experimental investigation is required. Figure 12 illustrates the side view of the loading setup system, while Figure 13 shows the real loading setup.

Before the formal loading process, a preloading, with a magnitude of 20–30% of the estimated ultimate load, was applied to the specimen to check the working status of the data-log and eliminate the effect of potential assembly gaps.

The formal loading process is divided into three stages according to the applied loading magnitude. In stage 1, the loading increment is 10% of the estimated ultimate load until 50% of the estimated ultimate load is reached; in stage 2, when the load is in between 50% and 80% of the estimated ultimate load, the loading increment is reduced to 5% of the estimated ultimate load; in the last stage, when the load exceeds 80% of the estimated ultimate load, the load increment is further reduced to 2% of the estimated ultimate load. If the specimens did not fail when the estimated ultimate load was reached, loading continued with a 2% increment of the estimated ultimate load applied until final failure occurred.

3.2. Deflection Measurement

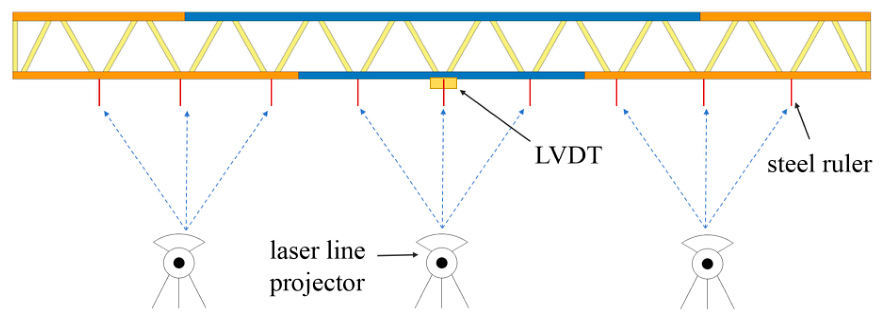

To understand the deformation characteristic of the truss under concentrated loads acting on the nodes of the top chord, vertical displacement of each node of the bottom chord was measured. Steel rulers with an accuracy of 0.5 mm were hung at nodes X1–X9. Manual step-by-step reading was performed with the assistance of a laser spirit-level. Meanwhile, a linear vertical displacement transformer (LVDT) with a sufficient measuring range was installed at the mid-span node (X5) of the truss. Displacement data measured using the LVDT is compared with the steel ruler readings for verification. Figure 14 shows the arrangement of steel rulers and the LVDT.

4. Test Phenomena and Result Analysis

4.1. Failure Mode and Bearing Capacity of Specimens

4.1.1. Group I Truss Specimen

When the cumulative load was less than 52.85 kN, the truss deformation was stable with no buckling phenomenon. When the cumulative load of the truss exceeded 52.85 kN, wavy buckling appeared on the web of the chord between nodes S5 and S6, as shown in Figure 15. As the load further increased to 56.85 kN, significant local buckling occurred on the web of the chord between nodes S5 and S6; meanwhile, local buckling was also observed at the loading point node S6 and the roller support node XA (Figure 15). When the cumulative load reached 57.85 kN, severe buckling failure occurred on the upper chord between nodes S5 and S6, as shown in Figure 16a,b; consequently, the test was terminated. In static load tests, the load level immediately preceding structural failure is taken as the ultimate load, which is defined as the ultimate bearing capacity. The Group I truss specimen was composed of two individual trusses, and the ultimate bearing capacity of a single truss was 56.85 kN, equivalent to 1.05 kN/m². The maximum load actually sustained by the specimen during the test was 57.85 kN. The corresponding mid-span deflection corresponding to the ultimate load was 53.46 mm, which was 1/337 of the truss specimen span, far below the deflection limit of L/250 (72 mm) [48].

4.1.2. Group II Truss Specimen

Before the load of the Group II truss specimen reached 50.35 kN, the deformation remained stable. When the load exceeded 50.35 kN, slight buckling occurred at upper chord nodes S4 and S5, and wavy buckling appeared at the web of the upper chord members. As the load of the truss increased to 61.85 kN, severe local buckling of the upper chord member at multiple regions was observed (Figure 17). Near node S4 of the upper chord member, concave deformation occurred at the upper flange, and convex deformation happened at the web; meanwhile, buckling of the chord member occurred at roller support node XA (Figure 17). Buckling deformation also appeared at node S6 (Figure 17). When the load was further increased to 63.85 kN, final failure occurred near node S4 (Figure 18), and the testing was subsequently terminated.

In static load tests, the load level immediately preceding structural failure is taken as the ultimate load, which is defined as the ultimate bearing capacity. The ultimate bearing capacity of the single truss of the Group II specimen was 63.35 kN, equivalent to 1.17 kN/m². The maximum load actually sustained by the specimen during the test was 63.85 kN. Compared with Group I truss specimen, the ultimate bearing capacity of the Group II truss specimen increased by 11.4%. The corresponding mid-span deflection at the same time was 57.9 mm, which was only 1/311 of the truss specimen span, also far below the deflection limit of L/250 (72 mm) [48]. The results demonstrate that the chord connection method employing edge-curled splicing members enhances the sectional stiffness at the upper chord joint connections, thereby delaying the onset of local buckling and effectively improving the bearing capacity while reducing the deflection of the truss specimens under identical loading conditions.

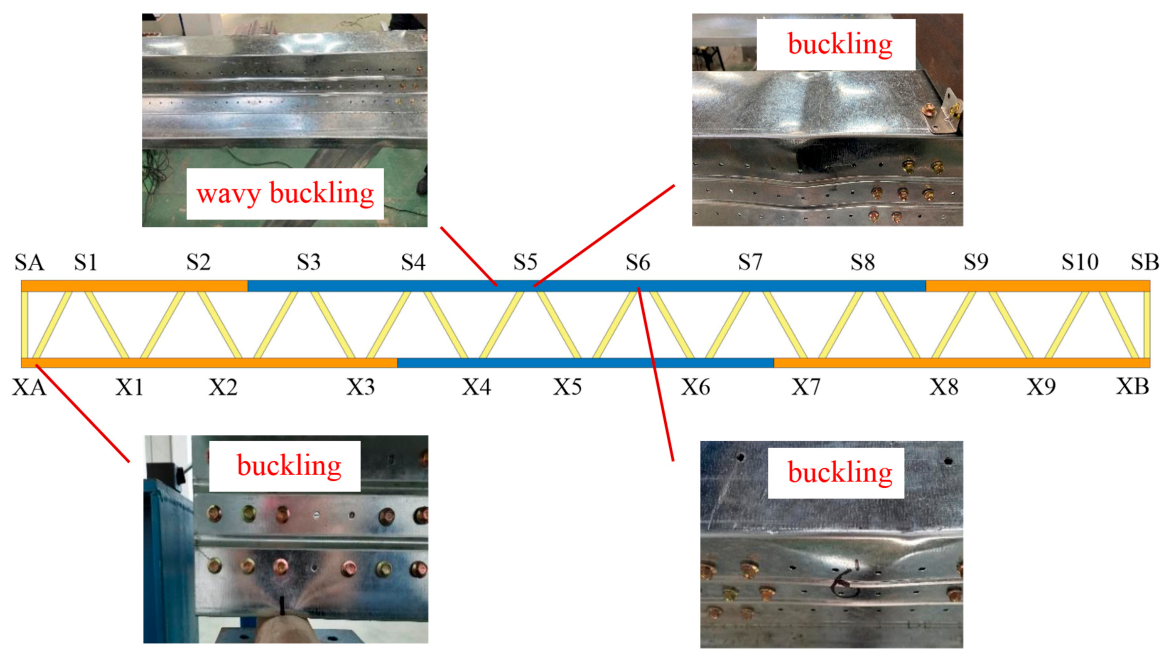

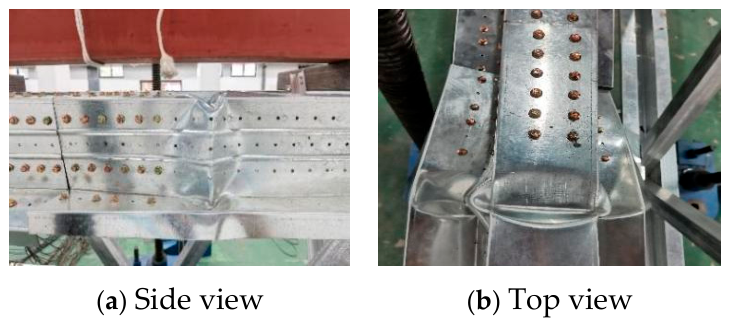

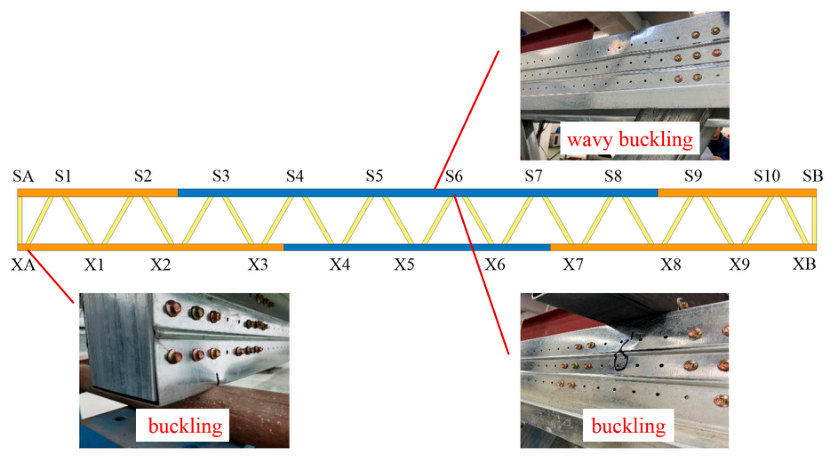

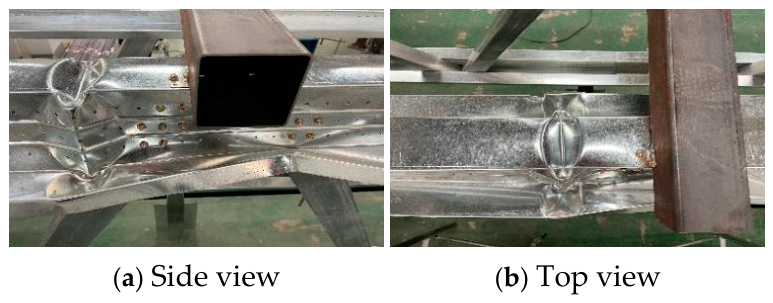

The failure of both truss specimens originated from the buckling deformation of the mid-span upper chord members or their splices. During the test, no failure occurred at the self-tapping screw connections of each node, and no buckling phenomenon was observed in the web members. This indicates that the insufficient load-bearing capacity of the upper chord members and their splices is the key factor that limits the exertion of the overall load-bearing capacity of the truss specimens.

4.2. Load-Deflection Curve

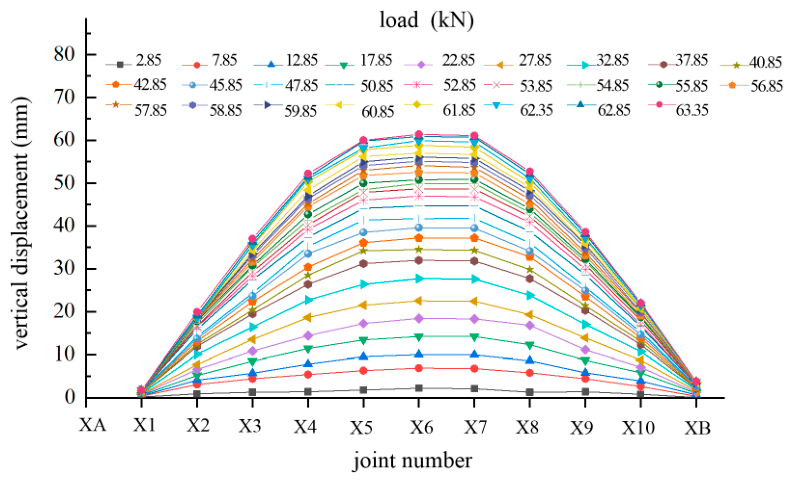

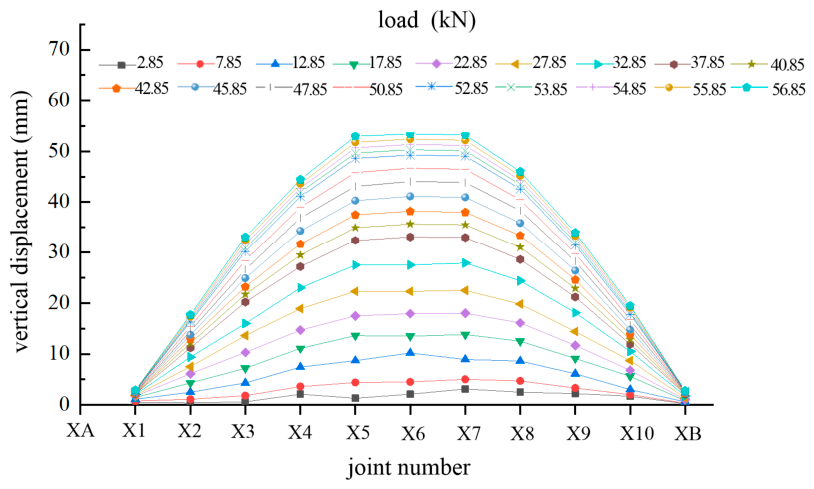

Through the comparison of load-deflection curves shown in Figure 19 and Figure 20, the deformation characteristics of the two specimens under loading can be observed. Evidently, for both specimens, the mid-span deflection is the maximum, while the deflection at the supports is the minimum. With the gradual increase of the applied load, the deflection of each node exhibits distinct growth rates, and nodes located closer to the mid-span demonstrate a higher deflection growth rate.

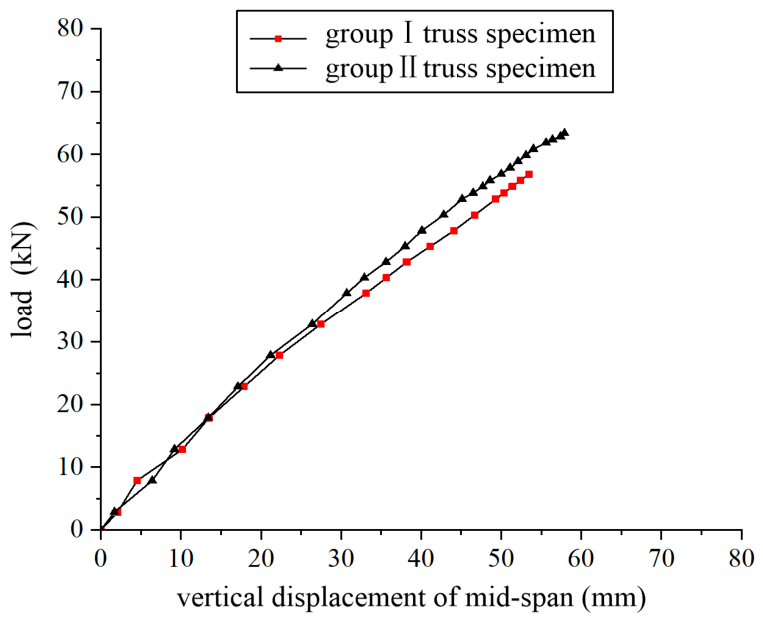

Figure 21 shows the relationship curves between the load and the mid-span deflection for the two groups of truss specimens. It can be observed from the figure that the deflection increases almost linearly with an increase in load. In the initial loading stage, in which the load of a single truss is less than 37.85 kN, the stiffness of the two trusses is similar, and their load-deflection curves nearly overlapped with each other. When the load exceeds 37.85 kN, the load-deflection curves of the two groups separate. The Group II truss specimens have greater flexural stiffness, indicating that the edge-curled design can enhance the stiffness of the truss specimens. The ultimate bearing capacities of the Group I and Group II truss specimens are 56.85 kN and 63.35 kN, respectively, with the former being 89.73% of the latter. This shows that the Group II truss specimen has a higher bearing capacity.

Test results also indicate that the failure mode of both groups of truss specimens is dominated by local buckling of upper chord members and splices under compression at the mid-span, with no plastic zone observed prior to buckling. The edge-curled design can effectively delay the occurrence of local buckling and improve the overall bearing capacity by increasing the local stability of the splices and the upper chord member. In engineering applications, the edge-curled design enhances the stability and bearing capacity of the truss with minor material consumption increment.

5. Finite Element Analysis and Comparison

5.1. Finite Element Model

Finite element models of the truss specimens were established using ABAQUS-2020 software. To simplify the calculation, only a single truss of each specimen was built.

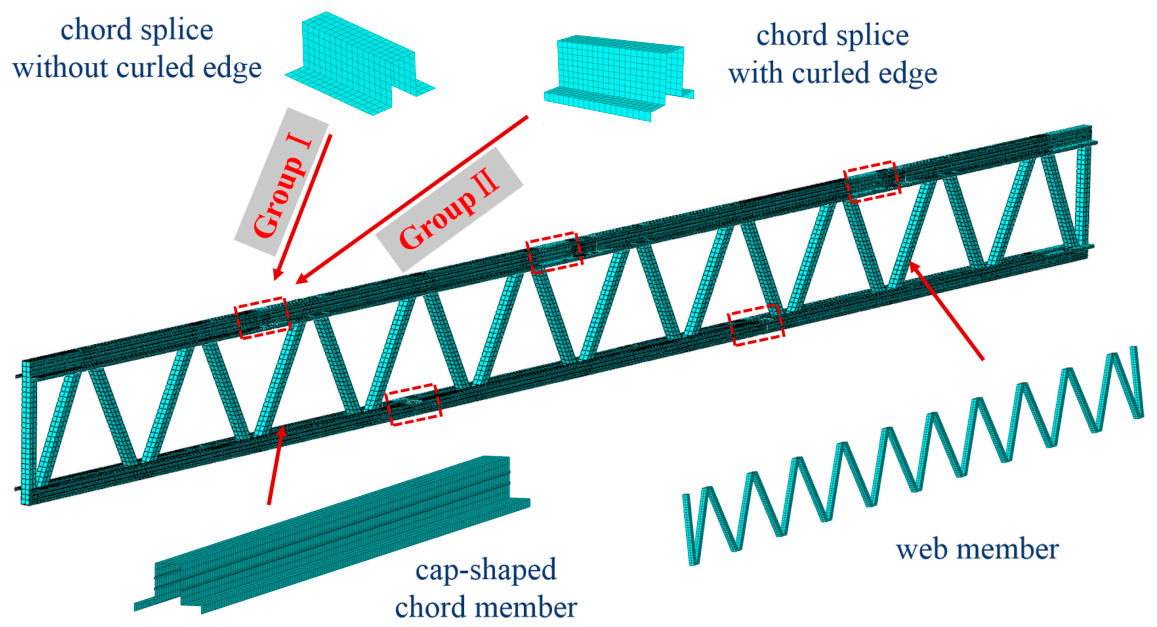

The top cap-shaped chord members, square rectangular tube web members, and chord splices of the single truss were created. Since the material thickness of each component is less than 2 mm, shell elements with four nodes were used to simulate each component, which can improve computational efficiency. Finite element models of two different trusses are shown in Figure 22.

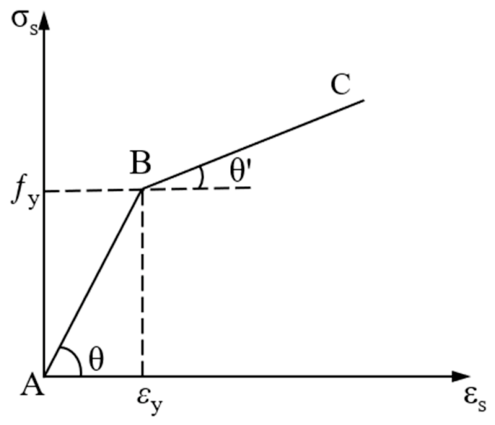

An elastoplastic hardening model was adopted for all steel components of the specimens (as shown in Figure 23: tan θ = E, E is the elastic modulus; tan θ′ = Et, Et is the tangent modulus; f_y represents the yield strength; ε_y represents the yield strain), and their material mechanical properties are detailed in Table 1. The mesh size of the upper chord members, lower chord members, and webs in the truss specimens was 25 mm, while the mesh size of the chord splices was 20 mm.

To simplify the calculation, surface-based tie constraints were used to simulate the connections of self-tapping screws at nodes instead of modelling the self-tapping screws.

To simulate the fixed pin supports and sliding roller supports at both ends of the lower chord of a single truss, the translation of the steel pad at the bottom of the left end of the bottom cap-shaped chord member was constrained in three directions, and the translation of the steel pad at the bottom of the right end was constrained in the lateral and vertical directions. In addition, to avoid out-of-plane instability of the single truss, constraints were applied at the loading positions on the upper surface of the upper chord to forbid its out-of-plane movement.

Finite element analysis of the specimens employed a “static, general procedure” incorporating geometric nonlinearity. Two analysis procedures were defined: linear perturbation buckling analysis and nonlinear analysis based on the arc-length method. Considering the existence of contact interactions, the initial arc-length increment was set to 0.1.

The specific loading process was as follows: first, eigenvalue buckling analysis was performed on the truss specimens, and the buckling modes were compared with the experimental failure modes. It was confirmed that the failure modes of the Group I and II truss specimens were most like the 10th-order and 6th-order buckling modes (Figure 24 and Figure 25), respectively. They were used as the shapes of initial geometric imperfections in the FEA of the two truss specimens. The maximum value of the geometric imperfection was set to be 1/1000 of the total span of the truss, i.e.,18 mm.

5.2. Analysis Results

5.2.1. Comparison of Ultimate Bearing Capacity

According to the characteristics of the arc-length method, after the completion of the FEA, the maximum value of the load proportional factor (LPF) in the corresponding model is taken and then multiplied by the initial load value to obtain the ultimate bearing capacity of the truss specimens.

The comparison of the ultimate bearing capacity between the FEA and the testing results for the two groups of truss specimens is shown in

Table 2. Comparison of ultimate bearing capacity for two groups of truss specimens.

Specimen Name	Testing Result Ft (kN)	FEA Result Ff (kN)	${\mathit{F}}_{\mathit{t}}/{\mathit{F}}_{\mathit{f}}$
Group I	56.85	52.80	1.077
Group II	63.35	67.20	0.943

.

It can be seen from the table that the ratios of the testing result to the FEA result of the ultimate bearing capacity for the two groups of truss specimens are 1.077 and 0.943, respectively, with errors less than 10%. For the Group II truss specimen compared with the Group I truss specimen, the ratio of the FEA results of the ultimate bearing capacity is 1.273, which again indicates that the edge-curled splices can effectively enhance the overall bearing performance of the truss. Although the specific magnitude of improvement (27.3%) differs from the experimental value (11.4%), both the tests and FEA confirm the beneficial effect of the edge-curled splice configuration on the ultimate bearing capacity.

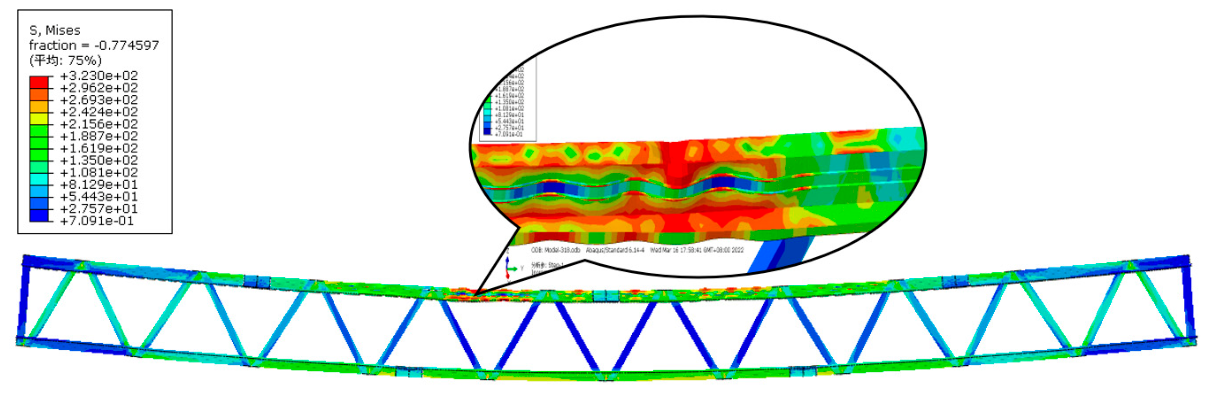

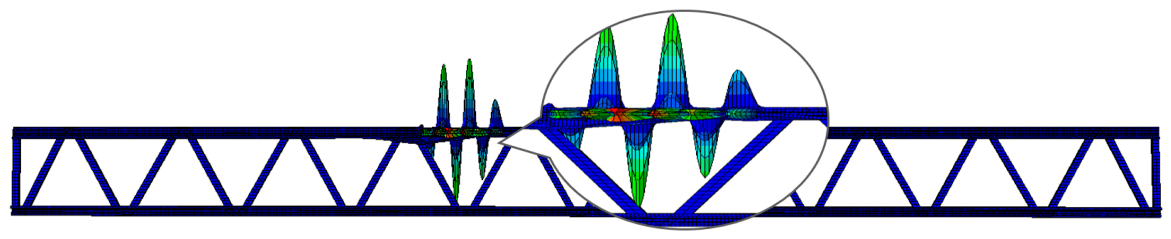

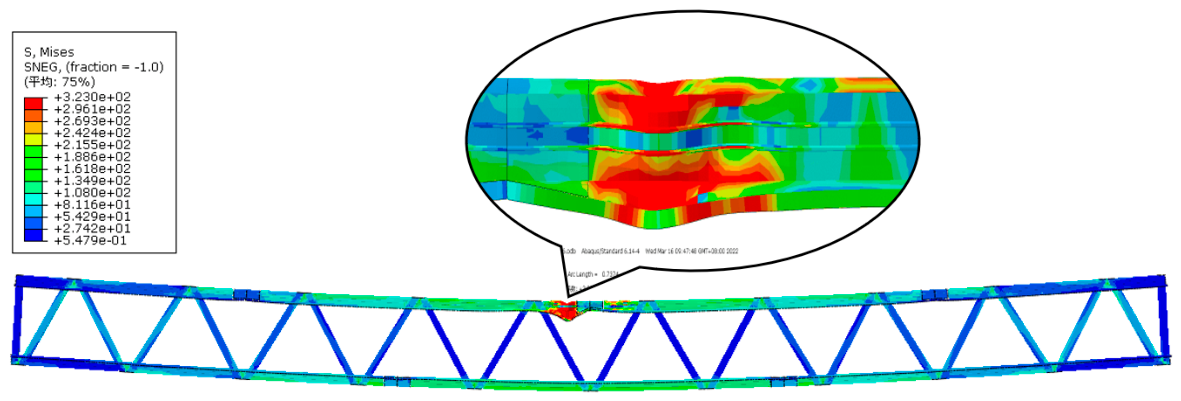

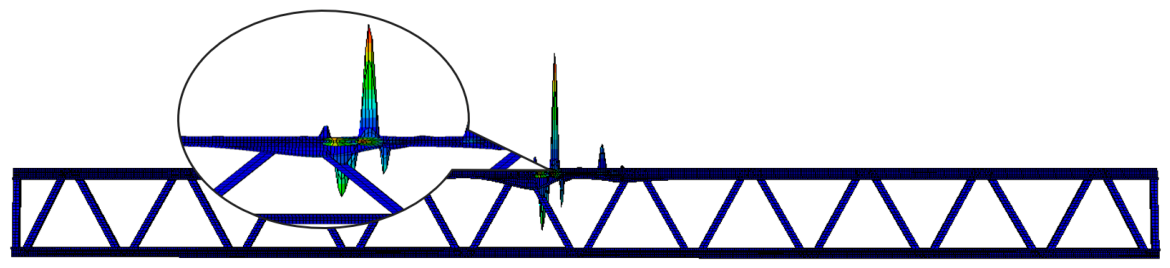

Figure 25 shows the failure location of the Group I truss specimen under the ultimate load obtained by FEA, which is located between upper chord nodes S5 and S6 of the truss, presenting local buckling failure of the non-edge-curled splices. It is consistent with the failure mode obtained in the test, as shown in Figure 16. Similarly, Figure 26 shows the failure location of the Group II truss specimen under the ultimate load, which is between upper chord nodes S4 and S5 of the truss, presenting local buckling failure of the upper chord member, which is also consistent with the failure mode observed in the test, as shown in Figure 18.

The comparison between the FEA and testing results shows that the ultimate bearing capacities and failure modes of the two groups of truss specimens are very close. By introducing initial geometric imperfections with shapes similar to the experimental failure patterns, the finite element model reasonably reproduced the buckling locations and failure modes observed in the tests, thereby supporting the validity of the finite element modeling approach.

To facilitate observing deformation, the overall deformation factor of the Group I truss specimen was magnified by 8 times, and the local deformation factor by 2 times; the overall deformation factor of the Group II truss specimen was magnified by 5 times, and the local deformation factor by 3 times. The stress distribution and deformation of the Group I and II specimens are shown in Figure 26 and Figure 27, respectively.

5.2.2. Comparison of Load-Deflection Curve

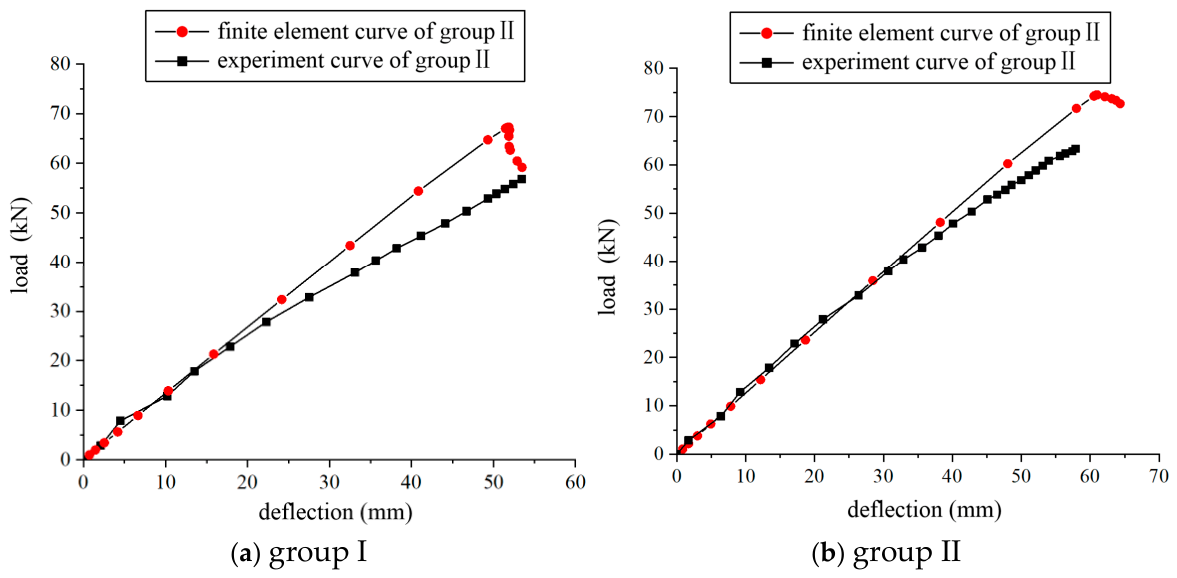

Figure 28a and Figure 28b show the comparisons of load-mid-span deflection curves obtained from tests and FEAs for the two groups of truss specimens, respectively. When the load is less than 20 kN and 35 kN for Group I and Group II truss specimens, respectively, the FEA results of the load-deflection curves are in good agreement with the testing results. This indicates that the FEA results can accurately reflect the stiffness characteristics of the specimens. However, when the load of the two groups of truss specimens exceeds the above two values, the FEA curves begin to deviate from the testing results, and the deviation gradually increases with load increases. Moreover, the stiffness obtained from the FEA is greater than the testing value. The main reason is that the self-tapping screw connection between the chord and web members was not directly simulated in the finite element model; instead, a simplified treatment was adopted. Specifically, tie constraints were used to replace the self-tapping screw connection, which could essentially increase the joint stiffness of the truss.

6. Conclusions

In this study, an improved light-steel truss incorporating cap-shaped chord members is proposed and investigated by carrying out full-scale bending tests and FEAs. The ultimate bearing capacity, failure mode, mid-span load-deflection curve, and other characteristics of the light-steel trusses with cap-shaped chord members were studied. The main conclusions are as follows:

(1)

The testing results of the two groups of trusses show that the ultimate bearing capacity of the Group I truss specimen is 56.85 kN, with a mid-span deflection of 53.46 mm; the ultimate bearing capacity of the Group II truss specimen is increased to 63.35 kN, with a mid-span deflection of 57.9 mm. Obviously, the ultimate bearing capacity of Group II is 1.114 times of Group I, but their maximum mid-span deflections are very close.

(2)

The failure mode of the Group I truss specimen is local buckling of the non-edge-curled splices used for connecting the upper chord segments, which leads to the final failure of the truss specimen. The failure mode of the Group II truss specimen is local buckling of the upper chord near the mid-span. Obviously, chord splices with different cross-sectional forms can change the final failure location of the truss specimen, and the overall bearing capacity of the truss depends on the local compressive bearing capacity of the upper chord members and their splices.

(3)

The ratios of the test results to the FEA results of the ultimate bearing capacity of Group I and Group II truss specimens are 1.077 and 0.943, respectively, with a discrepancy of less than 10%. The FEA results of the failure location and failure mode are consistent with the testing observation, which verifies the rationality and correctness of the finite element modeling method proposed in this study for the two groups of truss specimens.
