Corrosion-Induced Damage and Residual Strength of WC-Co,Ni Cemented Carbides: Influence of Microstructure and Corrosion Medium

1
CIEFMA, Departament de Ciència dels Materials i Enginyeria Metal∙lúrgica, EEBE, Universitat Politècnica de Catalunya, 08019 Barcelona, Spain
2
Barcelona Research Center in Multiscale Science and Engineering, Universitat Politècnica de Catalunya, 08019 Barcelona, Spain
3
IMEM, Departament d’Enginyeria Química, EEBE, Universitat Politècnica de Catalunya, 08019 Barcelona, Spain
4
Hyperion Materials and Technologies, 08107 Martorelles, Spain
*
Author to whom correspondence should be addressed.
This paper is an extended version of our paper published in Euro PM 2018, Bilbao, Spain, 14–18 October 2018.
Metals 2019, 9(9), 1018; https://doi.org/10.3390/met9091018
Received: 30 July 2019 / Revised: 3 September 2019 / Accepted: 17 September 2019 / Published: 19 September 2019
(This article belongs to the Special Issue Design of Cemented Carbides and Cermet)

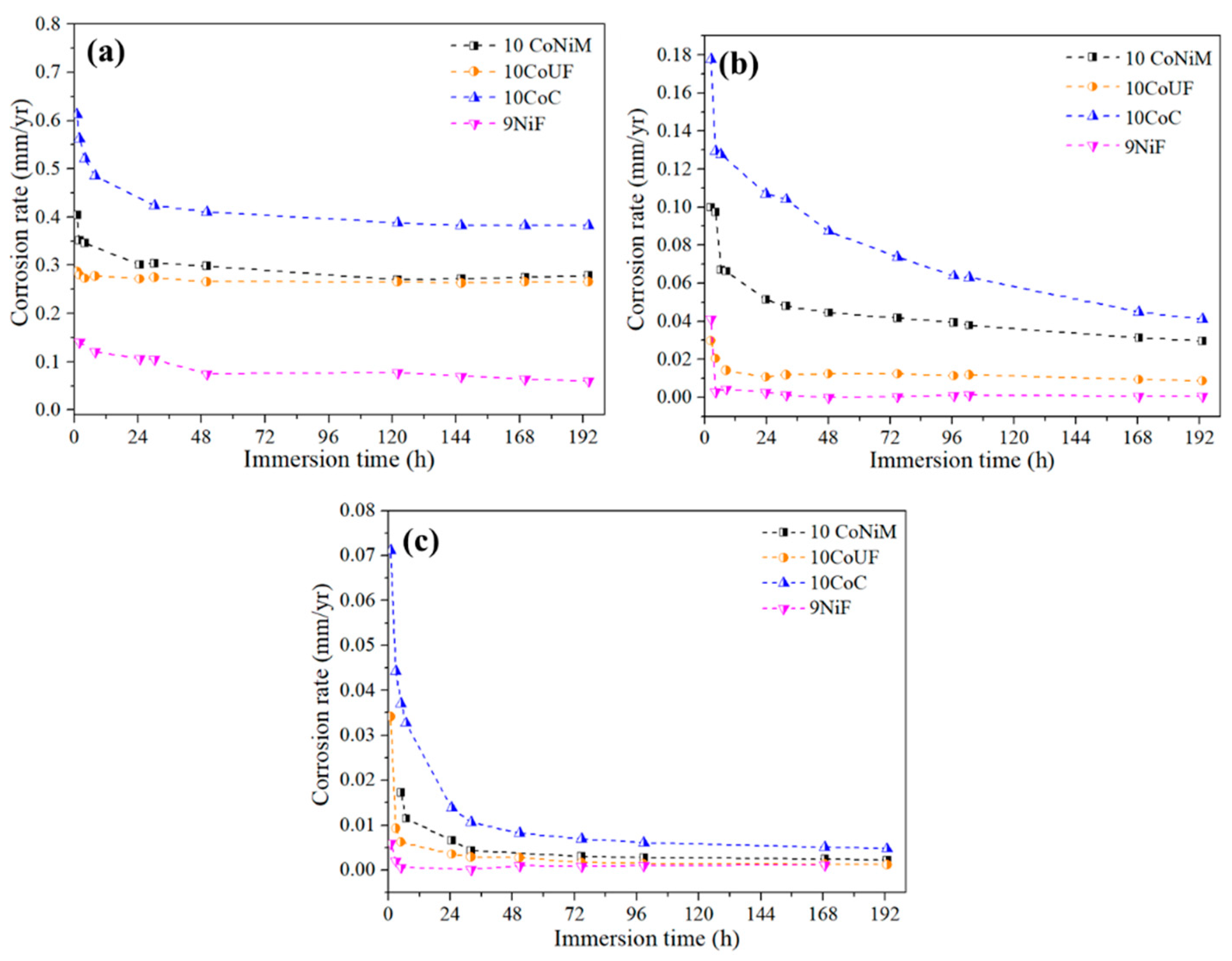

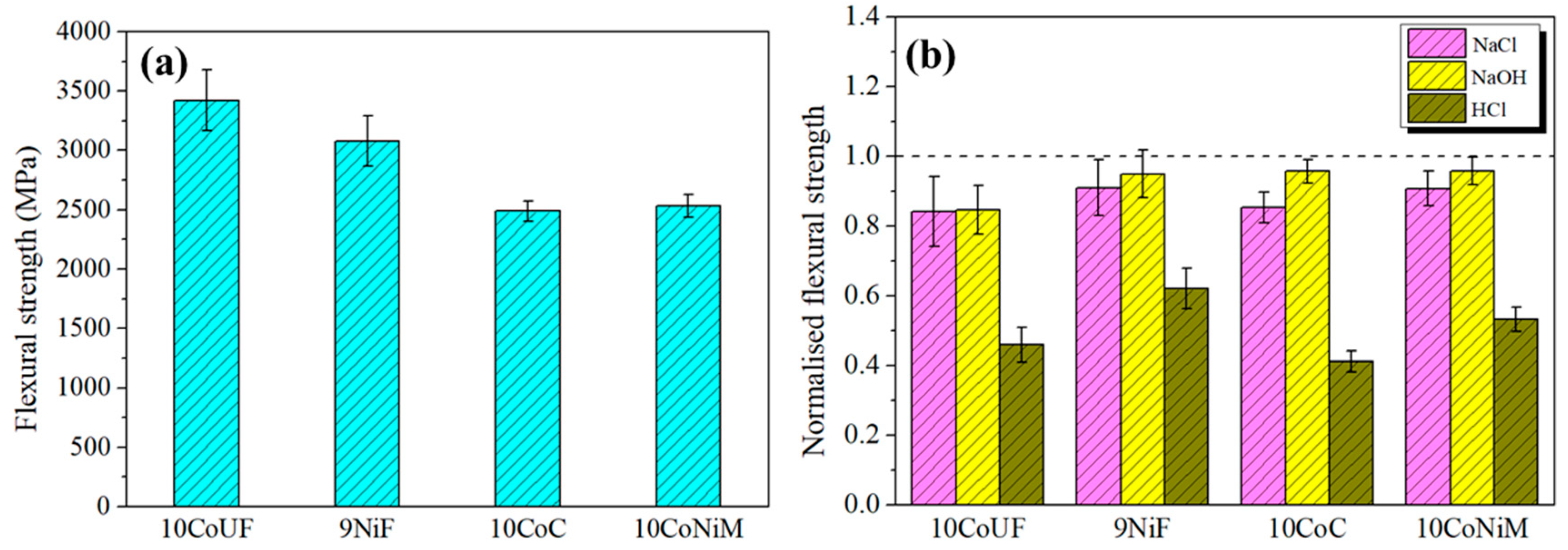

The corrosion behavior of cemented carbides with binders of different chemical nature (Co and Ni) and carbides with distinct mean grain size (ultrafine and coarse) was studied. The investigation also included corrosion media (acidic and neutral solutions containing chlorides and an alkaline solution) as experimental variables. Immersion tests were performed to induce corrosion damage in a controlled way. Electrochemical parameters were measured together with a detailed inspection of the corroded surfaces. Microstructural influence on the tolerance to corrosion damage was evaluated in terms of residual strength. Results pointed out that corrosion rates were lower in the alkaline solution. In contrast, acidic media led to higher corrosion rates, especially for cemented carbides with Co regardless the influence of carbide mean grain size. Corrosion damage resulted in strength degradation due to the formation of surface corrosion pits in acidic solution. In neutral and alkaline solutions, much less pronounced effects were determined. Focused Ion Beam (FIB)/ Field Emission Scanning Electron Microscopy (FESEM) results revealed differences in corrosion-induced damage scenario. In acidic solution, corrosion starts at binder pool centers and evolves towards binder/WC interfaces. Meanwhile, corrosion in alkaline solution is initially located at binder/WC interfaces, and subsequently expands into the ceramic particles, developing a microcrack network inside this phase. View Full-Text
Keywords: corrosion; cemented carbides; binder; grain size; damage tolerance corrosion; cemented carbides; binder; grain size; damage tolerance
Show Figures

Figure 1

MDPI and ACS Style

Zheng, Y.; Fargas, G.; Armelin, E.; Lavigne, O.; Llanes, L. Corrosion-Induced Damage and Residual Strength of WC-Co,Ni Cemented Carbides: Influence of Microstructure and Corrosion Medium. Metals 2019, 9, 1018.
