WAAM Technique: Process Parameters Affecting the Mechanical Properties and Microstructures of Low-Carbon Steel
Abstract
:1. Introduction

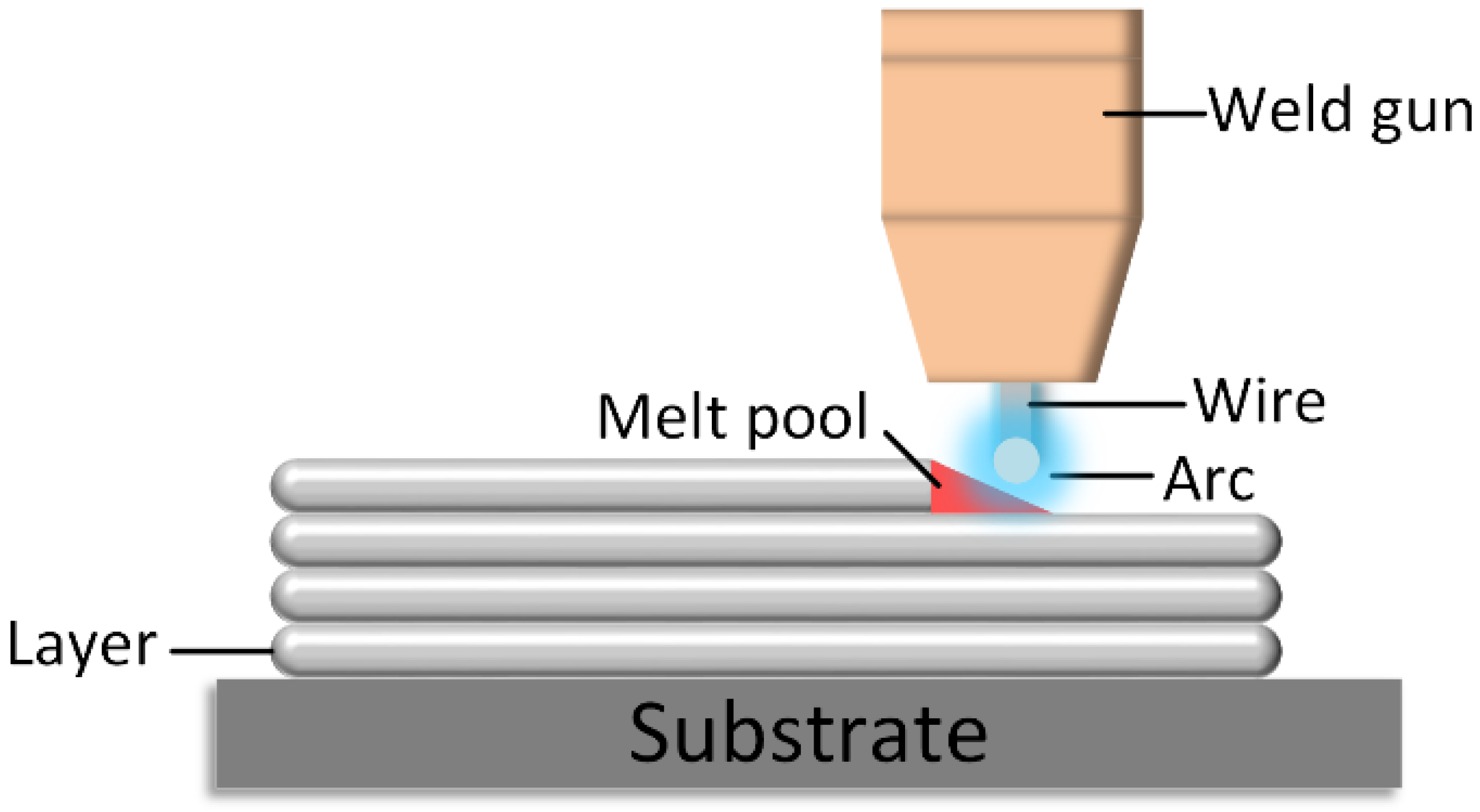

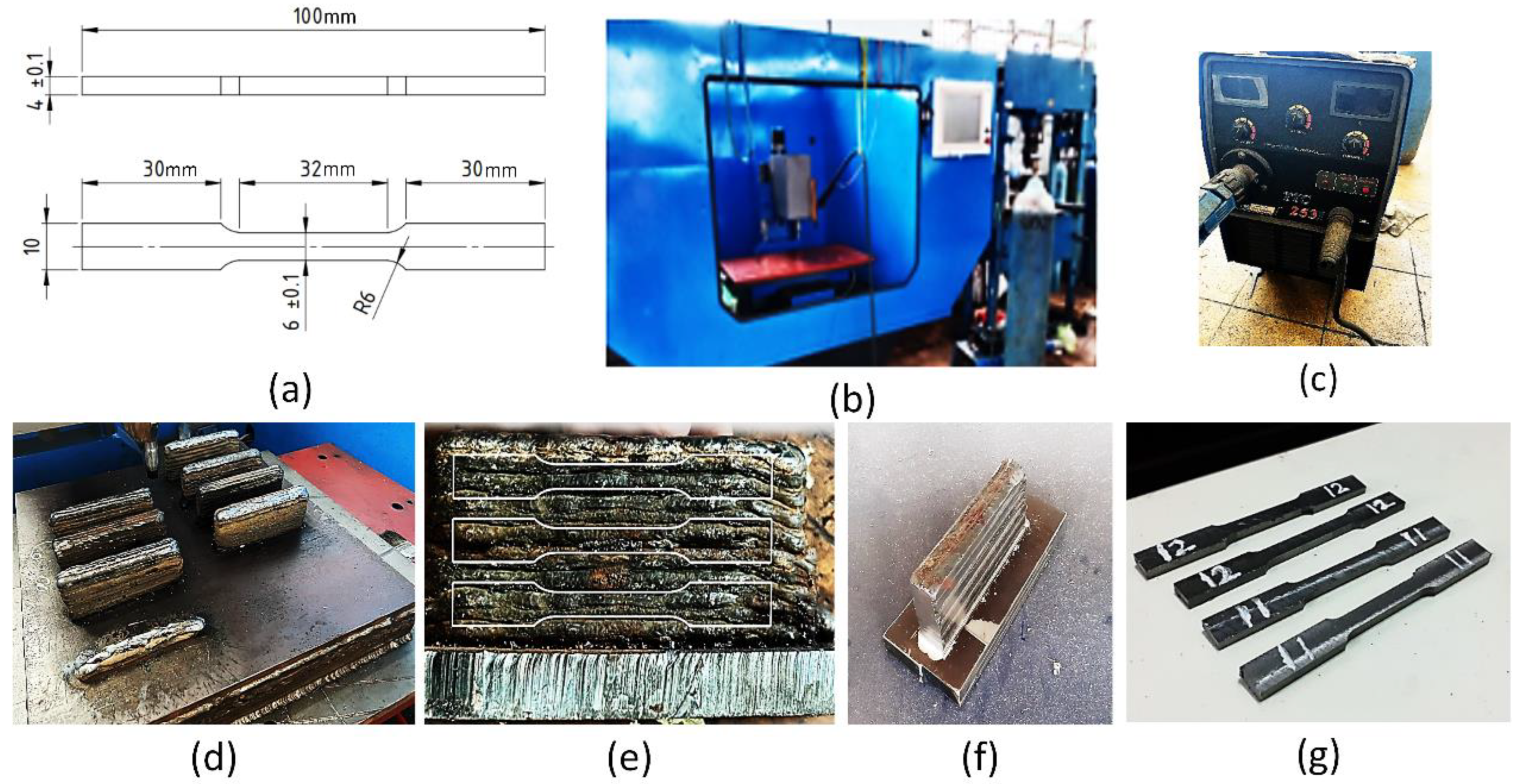

2. Experimental Methods
3. Results and Discussion

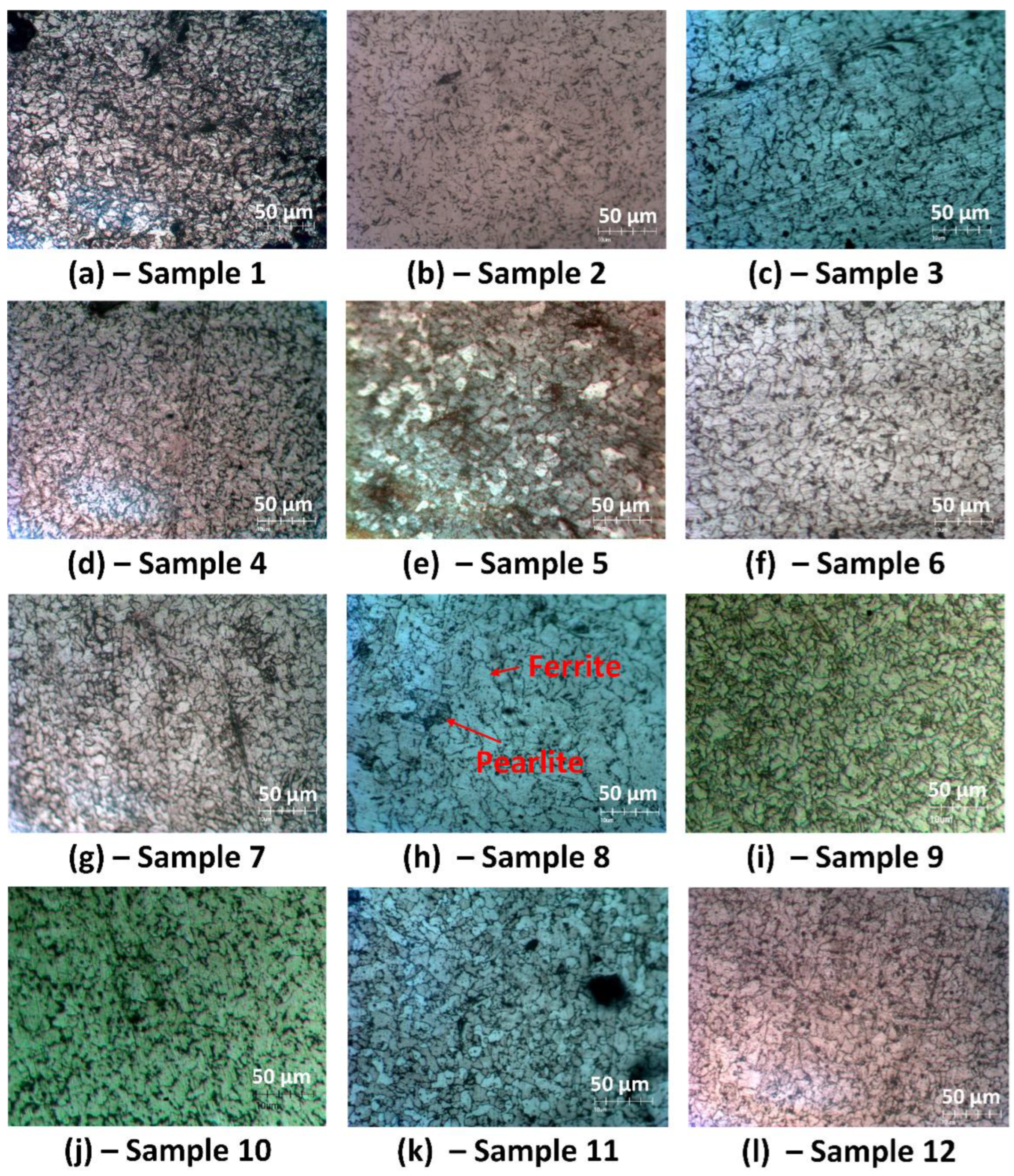

3.1. Microstructure
3.2. Tensile Strength

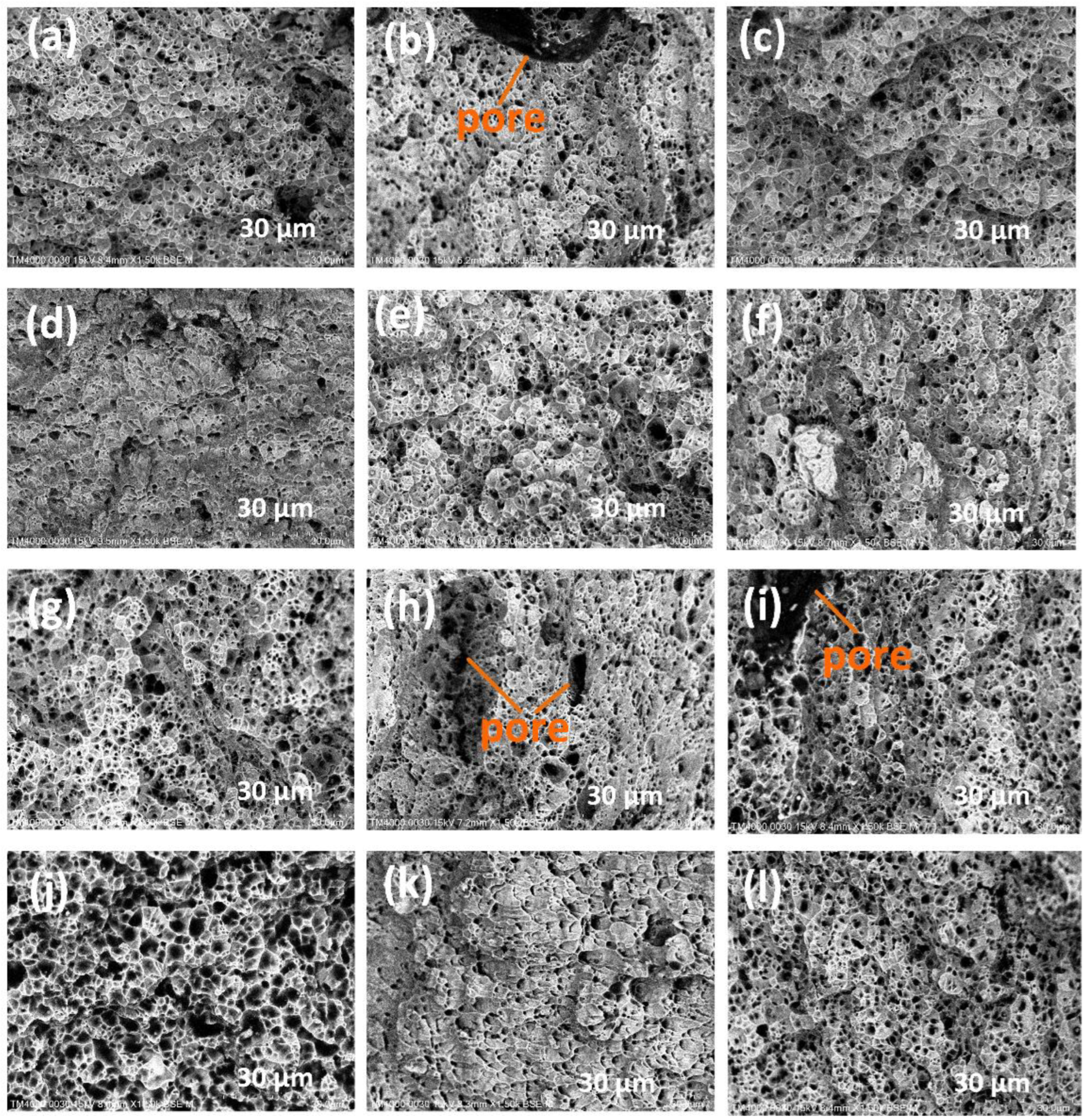

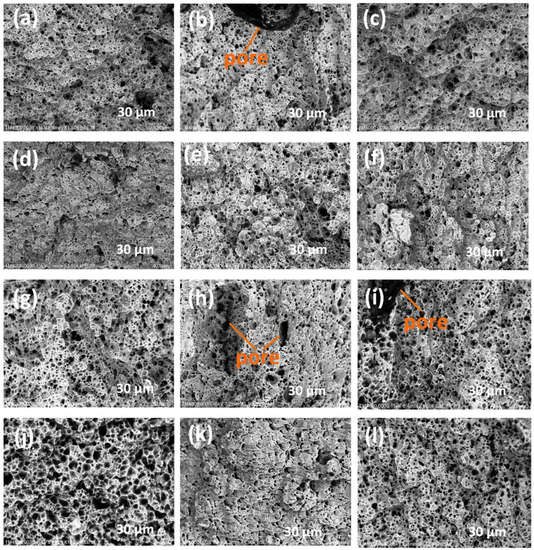

3.3. SEM Results
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Dilberoglu, U.M.; Gharehpapagh, B.; Yaman, U.; Dolen, M. The role of additive manufacturing in the era of industry 4.0. Procedia Manuf. 2017, 11, 545–554. [Google Scholar] [CrossRef]
- Gardan, J. Additive manufacturing technologies: State of the art and trends. Int. J. Prod. Res. 2016, 54, 3118–3132. [Google Scholar] [CrossRef]
- Gibson, I.; Rosen, D.; Stucker, B.; Khorasani, M.; Rosen, D.; Stucker, B.; Khorasani, M. Additive Manufacturing Technologies; Springer: Cham, Switzerland, 2021; Volume 17. [Google Scholar]
- Sing, S.L.; An, J.; Yeong, W.Y.; Wiria, F.E. Laser and electron-beam powder-bed additive manufacturing of metallic implants: A review on processes, materials and designs. J. Orthop. Res. 2016, 34, 369–385. [Google Scholar] [CrossRef]
- Murr, L.E.; Gaytan, S.M.; Ramirez, D.A.; Martinez, E.; Hernandez, J.; Amato, K.N.; Shindo, P.W.; Medina, F.R.; Wicker, R.B. Metal fabrication by additive manufacturing using laser and electron beam melting technologies. J. Mater. Sci. Technol. 2012, 28, 1–14. [Google Scholar] [CrossRef]
- Bhavar, V.; Kattire, P.; Patil, V.; Khot, S.; Gujar, K.; Singh, R. A review on powder bed fusion technology of metal additive manufacturing. In Additive Manufacturing Handbook; Taylor & Francis: Boca Raton, FL, USA, 2017; pp. 251–253. [Google Scholar]
- Singh, R.; Gupta, A.; Tripathi, O.; Srivastava, S.; Singh, B.; Awasthi, A.; Rajput, S.K.; Sonia, P.; Singhal, P.; Saxena, K.K. Powder bed fusion process in additive manufacturing: An overview. Mater. Today Proc. 2020, 26, 3058–3070. [Google Scholar] [CrossRef]
- Srivatsav, S.; Jayakumar, V.; Sathishkumar, M. Recent developments and challenges associated with wire arc additive manufacturing of Al alloy: A review. Mater. Today Proc. 2021, 46, 8561–8566. [Google Scholar] [CrossRef]
- Vishnukumar, M.; Pramod, R.; Kannan, A.R. Wire arc additive manufacturing for repairing aluminium structures in marine applications. Mater. Lett. 2021, 299, 130112. [Google Scholar] [CrossRef]
- Tomar, B.; Shiva, S.; Nath, T. A review on wire arc additive manufacturing: Processing parameters, defects, quality improvement and recent advances. Mater. Today Commun. 2022, 31, 103739. [Google Scholar] [CrossRef]
- Singh, S.R.; Khanna, P. Wire arc additive manufacturing (WAAM): A new process to shape engineering materials. Mater. Today Proc. 2021, 44, 118–128. [Google Scholar] [CrossRef]
- Treutler, K.; Wesling, V. The current state of research of wire arc additive manufacturing (WAAM): A review. Appl. Sci. 2021, 11, 8619. [Google Scholar] [CrossRef]
- Dhinakaran, V.; Ajith, J.; Fahmidha, A.F.Y.; Jagadeesha, T.; Sathish, T.; Stalin, B. Wire Arc Additive Manufacturing (WAAM) process of nickel based superalloys—A review. Mater. Today Proc. 2020, 21, 920–925. [Google Scholar] [CrossRef]
- Derekar, K.; Lawrence, J.; Melton, G.; Addison, A.; Zhang, X.; Xu, L. Influence of interpass temperature on wire arc additive manufacturing (WAAM) of aluminium alloy components. In MATEC Web of Conferences; EDP Sciences: Bali, Indonesia, 2019; Volume 269, p. 05001. [Google Scholar]
- Singh, M.; Sharma, S.; Muniappan, A.; Pimenov, D.Y.; Wojciechowski, S.; Jha, K.; Dwivedi, S.P.; Li, C.; Królczyk, J.B.; Walczak, D.; et al. In Situ Micro-Observation of Surface Roughness and Fracture Mechanism in Metal Microforming of Thin Copper Sheets with Newly Developed Compact Testing Apparatus. Materials 2022, 15, 1368. [Google Scholar] [CrossRef]
- Mehnen, J.; Ding, J.; Lockett, H.; Kazanas, P. Design study for wire and arc additive manufacture. Int. J. Prod. Dev. 2014, 20, 2–20. [Google Scholar] [CrossRef]
- Busachi, A.; Erkoyuncu, J.; Colegrove, P.; Martina, F.; Watts, C.; Drake, R. A review of Additive Manufacturing technology and Cost Estimation techniques for the defence sector. CIRP J. Manuf. Sci. Technol. 2017, 19, 117–128. [Google Scholar] [CrossRef]
- Singh, M.; Garg, H.K.; Maharana, S.; Yadav, A.; Singh, R.; Maharana, P.; Nguyen, T.V.T.; Yadav, S.; Loganathan, M.K. An Experimental Investigation on the Material Removal Rate and Surface Roughness of a Hybrid Aluminum Metal Matrix Composite (Al6061/SiC/Gr). Metals 2021, 11, 1449. [Google Scholar] [CrossRef]
- Puzatova, A.; Shakor, P.; Laghi, V.; Dmitrieva, M. Large-Scale 3D Printing for Construction Application by Means of Robotic Arm and Gantry 3D Printer: A Review. Buildings 2022, 12, 2023. [Google Scholar] [CrossRef]
- Huynh, T.T.; Nguyen, T.V.T.; Nguyen, Q.M.; Nguyen, K.T. Minimizing warpage for macro-size fused deposition modeling parts. Comput. Mater. Contin. 2021, 68, 2913–2923. [Google Scholar]
- Prado-Cerqueira, J.L.; Diéguez, J.L.; Camacho, A.M. Preliminary development of a wire and arc additive manufacturing system (WAAM). Procedia Manuf. 2017, 13, 895–902. [Google Scholar] [CrossRef]
- Wang, L.; Xue, J.; Wang, Q. Correlation between arc mode, microstructure, and mechanical properties during wire arc additive manufacturing of 316L stainless steel. Mater. Sci. Eng. A 2019, 751, 183–190. [Google Scholar] [CrossRef]
- Luo, Y.; Li, J.; Xu, J.; Zhu, L.; Han, J.; Zhang, C. Influence of pulsed arc on the metal droplet deposited by projected transfer mode in wire-arc additive manufacturing. J. Mater. Process. Technol. 2018, 259, 353–360. [Google Scholar] [CrossRef]
- Popov, V.V.; Fleisher, A. Hybrid additive manufacturing of steels and alloys. Manuf. Rev. 2020, 7, 6. [Google Scholar] [CrossRef]
- Evans, S.I.; Wang, J.; Qin, J.; He, Y.; Shepherd, P.; Ding, J. A review of WAAM for steel construction–Manufacturing, material and geometric properties, design, and future directions. In Structures; Elsevier: Amsterdam, The Netherlands, 2022; Volume 44, pp. 1506–1522. [Google Scholar]
- Martina, F.; Ding, J.; Williams, S.; Caballero, A.; Pardal, G.; Quintino, L. Tandem metal inert gas process for high productivity wire arc additive manufacturing in stainless steel. Addit. Manuf. 2019, 25, 545–550. [Google Scholar] [CrossRef]
- Takagi, H.; Sasahara, H.; Abe, T.; Sannomiya, H.; Nishiyama, S.; Ohta, S.; Nakamura, K. Material-property evaluation of magnesium alloys fabricated using wire-and-arc-based additive manufacturing. Addit. Manuf. 2018, 24, 498–507. [Google Scholar] [CrossRef]
- Shi, J.; Li, F.; Chen, S.; Zhao, Y.; Tian, H. Effect of in-process active cooling on forming quality and efficiency of tandem GMAW–based additive manufacturing. Int. J. Adv. Manuf. Technol. 2019, 101, 1349–1356. [Google Scholar] [CrossRef]
- Yildiz, A.S.; Davut, K.; Koc, B.; Yilmaz, O. Wire arc additive manufacturing of high-strength low alloy steels: Study of process parameters and their influence on the bead geometry and mechanical characteristics. Int. J. Adv. Manuf. Technol. 2020, 108, 3391–3404. [Google Scholar] [CrossRef]
- Xiong, J.; Li, Y.; Li, R.; Yin, Z. Influences of process parameters on surface roughness of multi-layer single-pass thin-walled parts in GMAW-based additive manufacturing. J. Mater. Process. Technol. 2018, 252, 128–136. [Google Scholar] [CrossRef]
- Hosseini, V.; Högström, M.; Hurtig, K.; Bermejo, M.A.V.; Stridh, L.-E.; Karlsson, L. Wire-arc additive manufacturing of a duplex stainless steel: Thermal cycle analysis and microstructure characterization. Weld. World 2019, 63, 975–987. [Google Scholar] [CrossRef]
- Feng, Y.; Zhan, B.; He, J.; Wang, K. The double-wire feed and plasma arc additive manufacturing process for deposition in Cr-Ni stainless steel. J. Mater. Process. Technol. 2018, 259, 206–215. [Google Scholar] [CrossRef]
- Tripathi, U.; Saini, N.; Mulik, R.S.; Mahapatra, M.M. Effect of build direction on the microstructure evolution and their mechanical properties using GTAW based wire arc additive manufacturing. CIRP J. Manuf. Sci. Technol. 2022, 37, 103–109. [Google Scholar] [CrossRef]
- Abd Razak, N.A.; Ng, S.S. Investigation of effects of MIG welding on corrosion behaviour of AISI 1010 carbon steel. J. Mech. Eng. Sci. 2014, 7, 1168–1178. [Google Scholar] [CrossRef]
- Sayed, A.R.; Kumar, D.; Shahare, G.M.; Nawkhare, N.N.; Bhanarkar, R.Y.; Dhande, D.R.; Ramteke, A.R.; Bharadkar, U.M. Mechanical and microstructural testing of C-45 material welded by using SMAW and GMAW process. Mater. Today Proc. 2021, 38, 223–228. [Google Scholar] [CrossRef]
- Tawfik, M.M.; Nemat-Alla, M.M.; Dewidar, M.M. Effect of travel speed on the properties of Al-Mg aluminum alloy fabricated by wire arc additive manufacturing. J. Mater. Eng. Perform. 2021, 30, 7762–7769. [Google Scholar] [CrossRef]
- Nagasai, B.P.; Malarvizhi, S.; Balasubramanian, V. Effect of welding processes on mechanical and metallurgical characteristics of carbon steel cylindrical components made by wire arc additive manufacturing (WAAM) technique. CIRP J. Manuf. Sci. Technol. 2022, 36, 100–116. [Google Scholar] [CrossRef]
- Gisario, A.; Kazarian, M.; Martina, F.; Mehrpouya, M. Metal additive manufacturing in the commercial aviation industry: A review. J. Manuf. Syst. 2019, 53, 124–149. [Google Scholar] [CrossRef]
- Minh, P.S.; Nguyen, V.-T.; Nguyen, V.T.; Uyen, T.M.T.; Do, T.T.; Nguyen, V.T.T. Study on the Fatigue Strength of Welding Line in Injection Molding Products under Different Tensile Conditions. Micromachines 2022, 13, 1890. [Google Scholar] [CrossRef] [PubMed]
- Buchanan, C.; Gardner, L. Metal 3D printing in construction: A review of methods, research, applications, opportunities and challenges. Eng. Struct. 2019, 180, 332–348. [Google Scholar] [CrossRef]
- Yousefian, P.; Tiryakioğlu, M. Pore formation during solidification of aluminum: Reconciliation of experimental observations, modeling assumptions, and classical nucleation theory. Metall. Mater. Trans. A 2018, 49, 563–575. [Google Scholar] [CrossRef]
- Gu, J.; Yang, S.; Gao, M.; Bai, J.; Zhai, Y.; Ding, J. Micropore evolution in additively manufactured aluminum alloys under heat treatment and inter-layer rolling. Mater. Des. 2020, 186, 108288. [Google Scholar] [CrossRef]
- Uyen, T.M.T.; Minh, P.S.; Nguyen, V.-T.; Do, T.T.; Nguyen, V.T.; Le, M.-T.; Nguyen, V.T.T. Trajectory Strategy Effects on the Material Characteristics in the WAAM Technique. Micromachines 2023, 14, 827. [Google Scholar] [CrossRef]
Materials | Process Parameters | Characteristics | References |
---|---|---|---|
AWS ER70S-6 steel wire | Increase travel rate | Reduce the shape accuracy and surface quality | Prado-Cerqueira et al. [21] |
6061 aluminum alloy wire | Small-power pulsed arc | Increase efficiency | Lou et al. [23] |
2325 aluminum alloy wire | Cooling rate with the active cooling system | Increase wire feeding rate and reduce dwell time | Shi et al. [28] |
H08MnSi low-carbon steel wire | Increase travel rate, wire feeding rate | Surface roughness increase | Xiong et al. [30] |
Duplex stainless steel | Deposition paths | Uniform layer shape | Hosseini et al. [31] |
316L stainless steel wire | Single-wire and double-wire feed | Better surface quality | Feng et al. [32] |
Weight % | C | Si | Mn | P | S | Ni | Cr | Cu |
---|---|---|---|---|---|---|---|---|
S20C | 0.18–0.23 | 0.15–0.35 | 0.3–0.6 | 0.03 max | 0.035 max | 0.2 max | 0.2 max | 0.3 max |
Weight % | C | Mn | Si | P | S | Ni | Cr | Mo | V | Cu |
---|---|---|---|---|---|---|---|---|---|---|
ER 70S-6 | 0.06–0.15 | 1.40–1.85 | 0.80–1.15 | 0.025 max | 0.035 max | 0.15 max | 0.15 max | 0.15 max | 0.03 max | 0.05 max |
Sample | Travel Rate (mm·min−1) | Voltage (V) | Intensity (A) | |
---|---|---|---|---|
1 | Group 1 | 300 | 22 | 170 |
2 | 350 | 22 | 170 | |
3 | 400 | 22 | 170 | |
4 | Group 2 | 300 | 24 | 170 |
5 | 350 | 24 | 170 | |
6 | 400 | 24 | 170 | |
7 | Group 3 | 300 | 24 | 120 |
8 | 350 | 24 | 120 | |
9 | 400 | 24 | 120 | |
10 | Group 4 | 300 | 22 | 120 |
11 | 350 | 22 | 120 | |
12 | 400 | 22 | 120 |

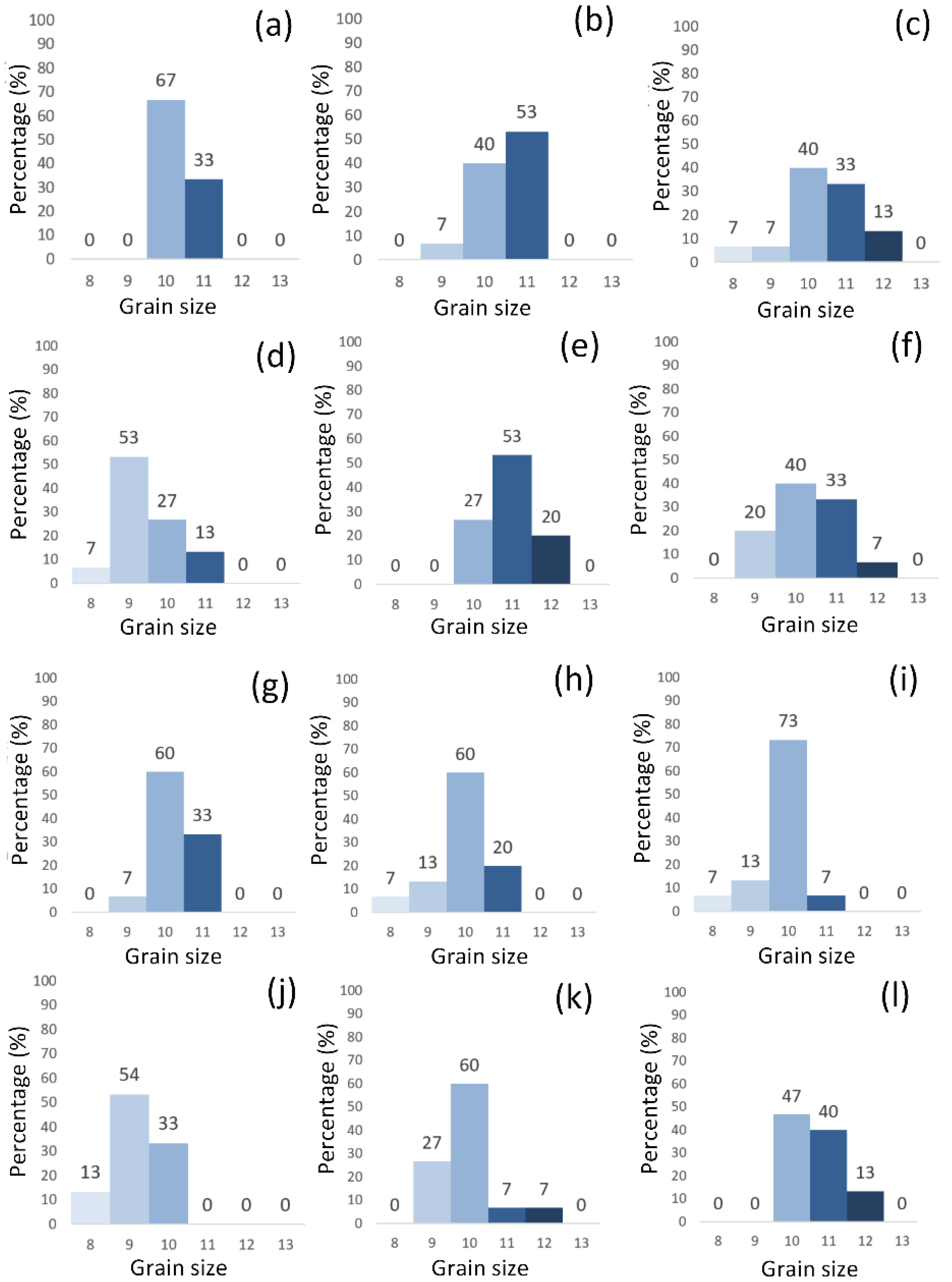

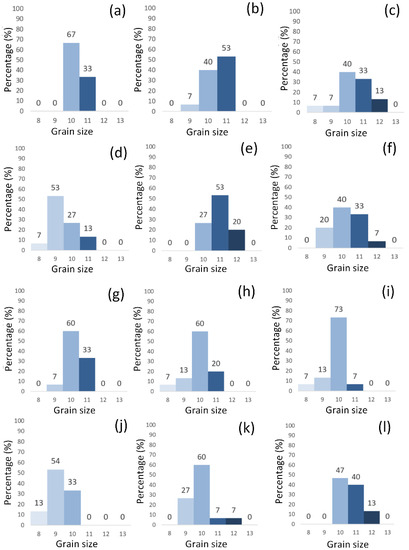

Sample | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Grain size (µm2) | 90 | 84 | 103 | 166 | 62 | 94 | 107 | 137 | 147 | 207 | 117 | 79 |

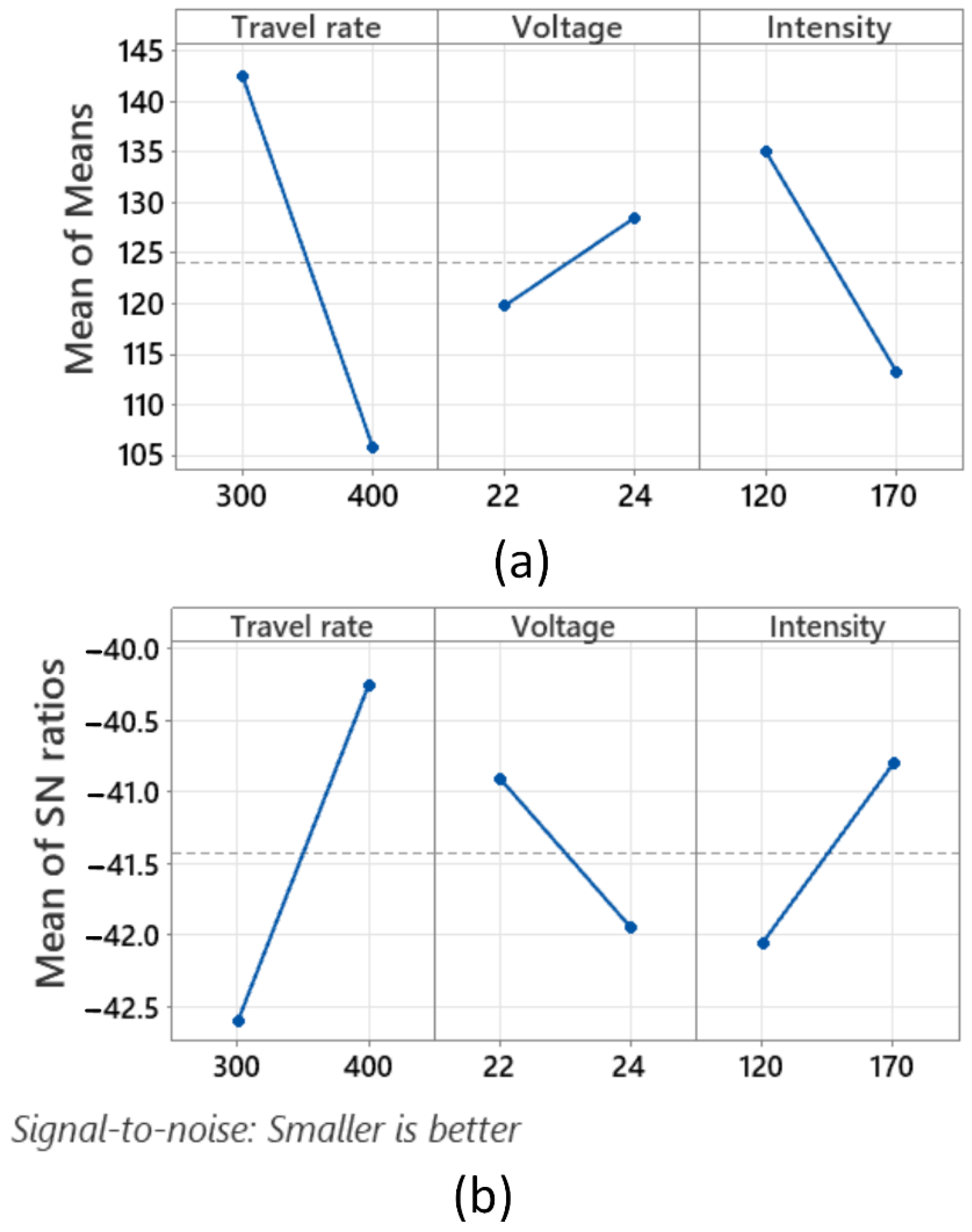

Level | Travel Rate | Voltage | Intensity |
---|---|---|---|
1 | −42.60 | −40.90 | −42.05 |
2 | −40.25 | −41.95 | −40.80 |
Delta | 2.34 | 1.05 | 1.25 |
Rank | 1 | 3 | 2 |

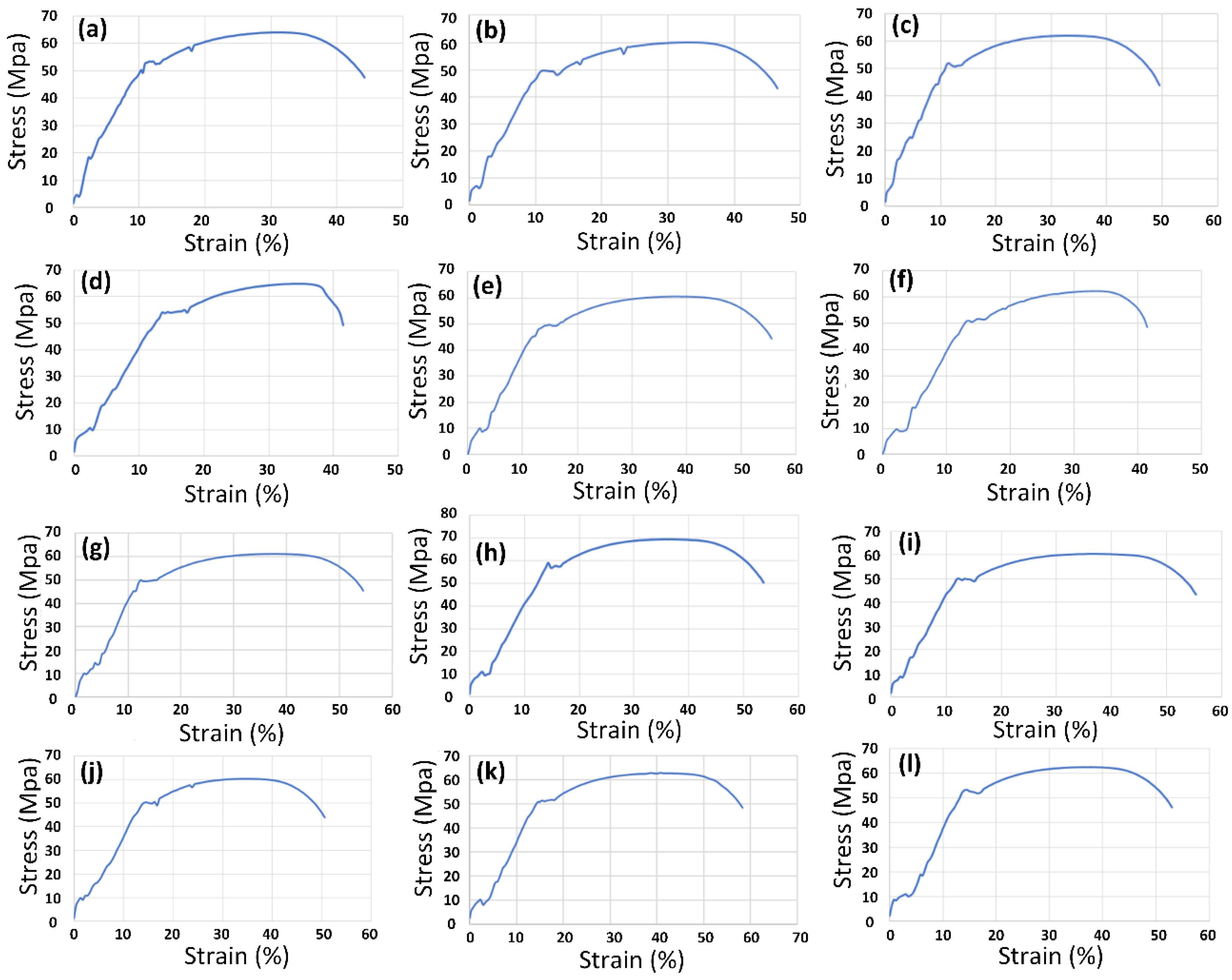

Sample | Yield Strength (MPa) | UTS (MPa) | Elongation at Break (%) |
---|---|---|---|
1 | 519 | 631 | 48 41 |
2 | 509 | 625 | 41 |
3 | 492 | 599 | 41 |
4 | 495 | 602 | 52 |
5 | 518 | 626 | 41 |
6 | 499 | 611 | 54 |
7 | 496 | 608 | 56 |
8 | 590 | 694 | 46 |
9 | 514 | 616 | 56 |
10 | 512 | 601 | 55 |
11 | 511 | 618 | 57 |
12 | 521 | 618 | 54 |

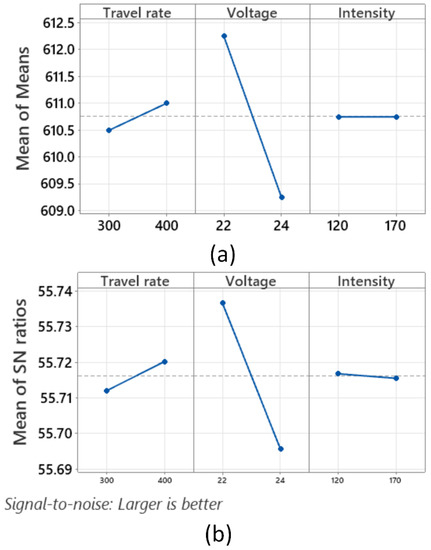

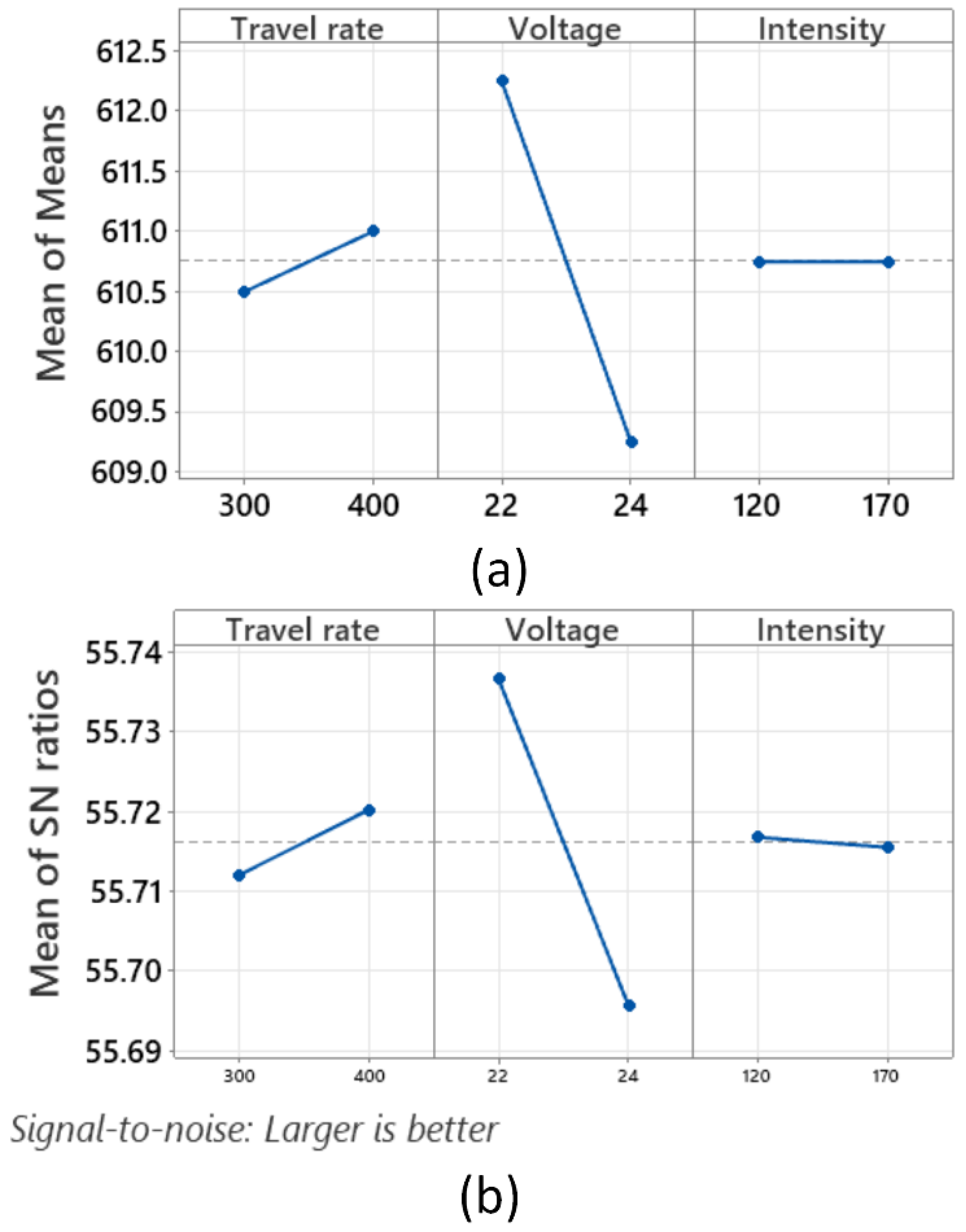

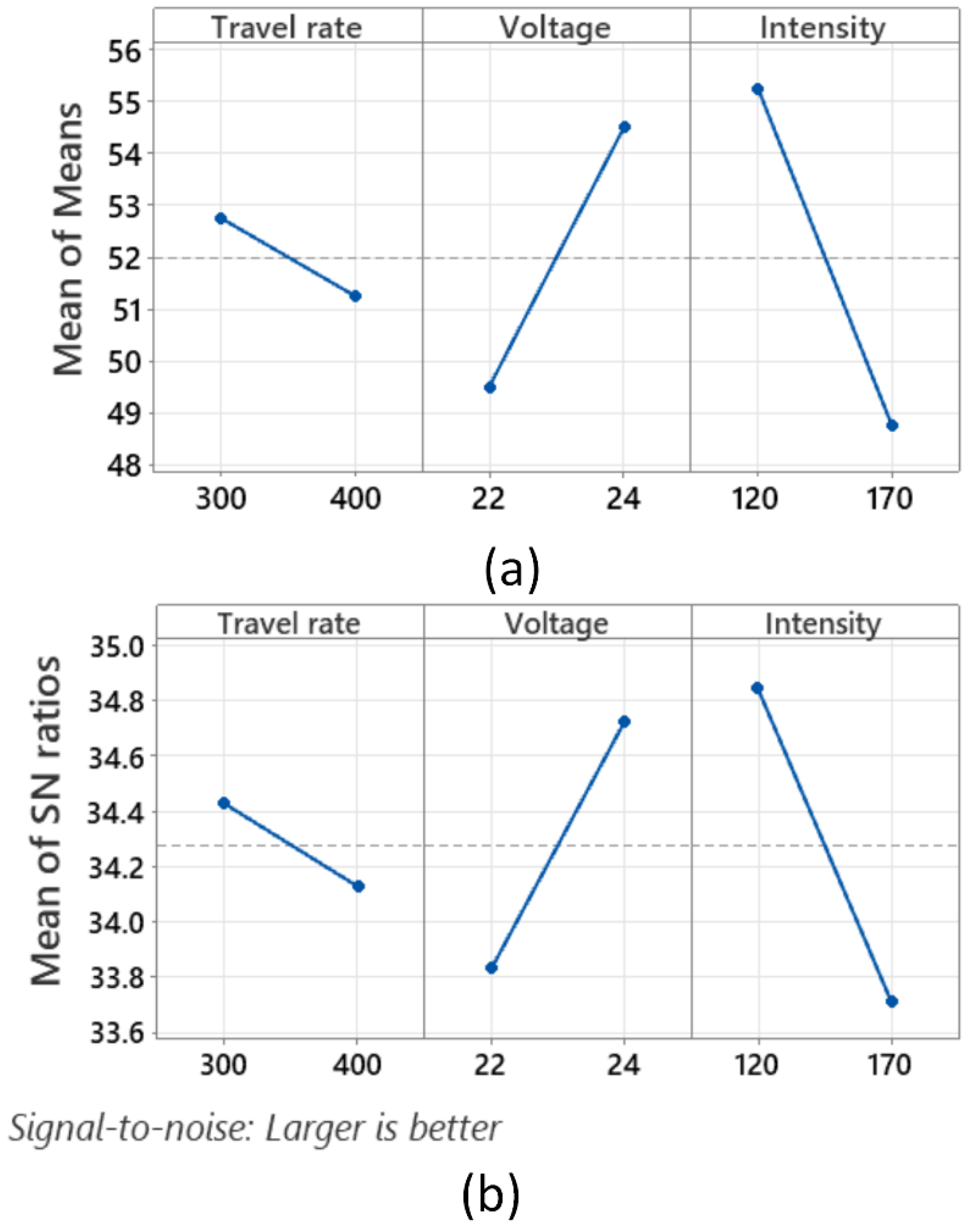

Level | Travel Rate | Voltage | Intensity |
---|---|---|---|
1 | 55.71 | 55.74 | 55.72 |
2 | 55.72 | 55.70 | 55.72 |
Delta | 0.01 | 0.04 | 0.00 |
Rank | 2 | 1 | 3 |
Level | Travel Rate | Voltage | Intensity |
---|---|---|---|
1 | 34.43 | 33.83 | 34.85 |
2 | 34.13 | 34.72 | 33.71 |
Delta | 0.30 | 0.89 | 1.13 |
Rank | 3 | 2 | 1 |
