Next Article in Journal
Simulation on the Effect of Porosity in the Elastic Modulus of SiC Particle Reinforced Al Matrix Composites
Previous Article in Journal
Development of Metal Powder Hot Embossing: A New Method for Micromanufacturing
Previous Article in Special Issue
Hot Strip Mill Processing Simulations on a Ti-Mo Microalloyed Steel Using Hot Torsion Testing
Open AccessFeature PaperArticle

The Influence of Vanadium Additions on Isothermally Formed Bainite Microstructures in Medium Carbon Steels Containing Retained Austenite

1
Canmet Materials, Natural Resources Canada, 183 Longwood Road South, Hamilton, ON L8P 0A5, Canada
2
Institut Jean Lamour, UMR CNRS-UL 7198, 54011 Nancy, France
*
Author to whom correspondence should be addressed.
Metals 2020, 10(3), 392; https://doi.org/10.3390/met10030392
Received: 25 February 2020 / Revised: 13 March 2020 / Accepted: 16 March 2020 / Published: 19 March 2020
(This article belongs to the Special Issue Thermomechanical Processing of Steels)

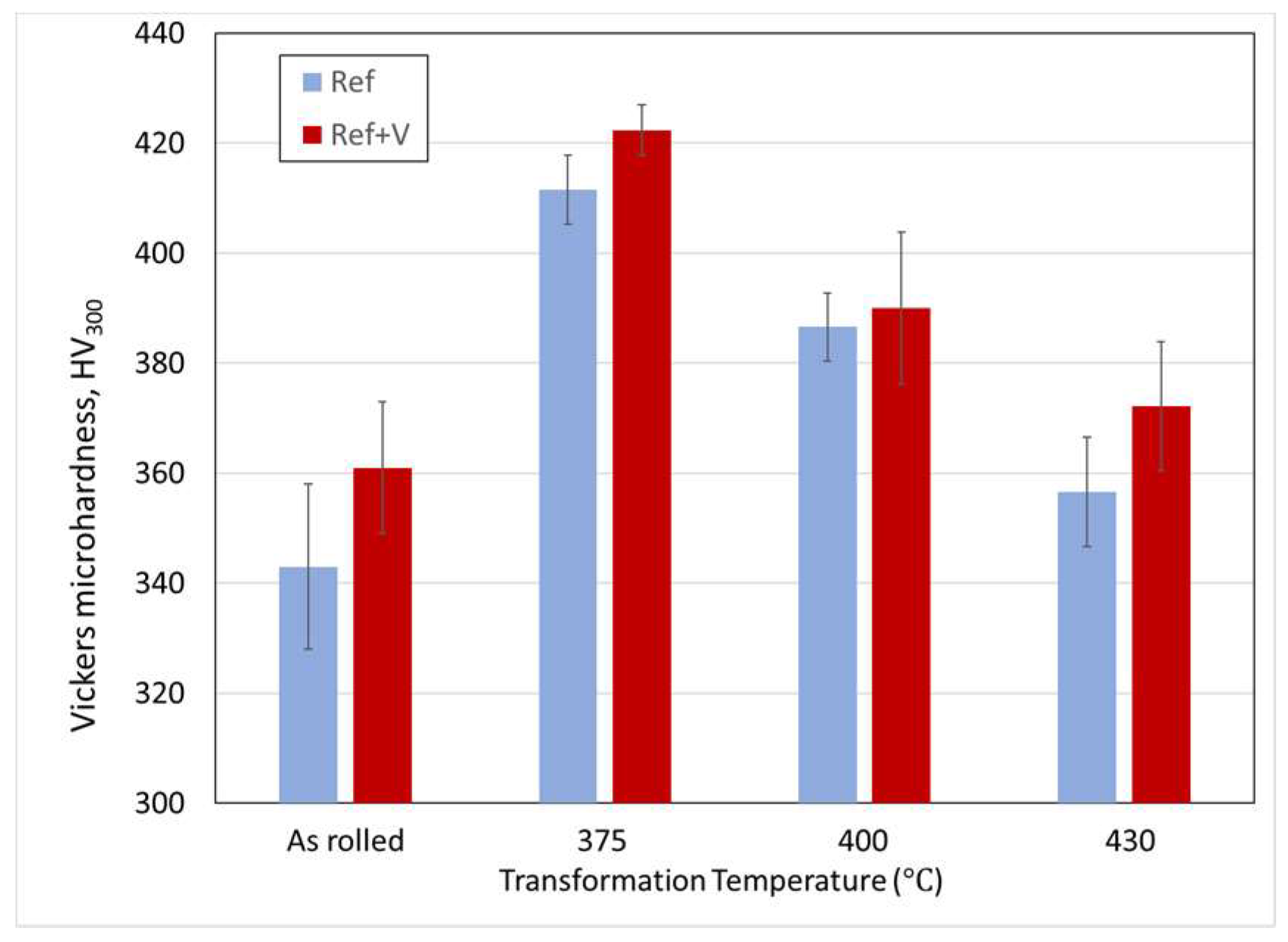

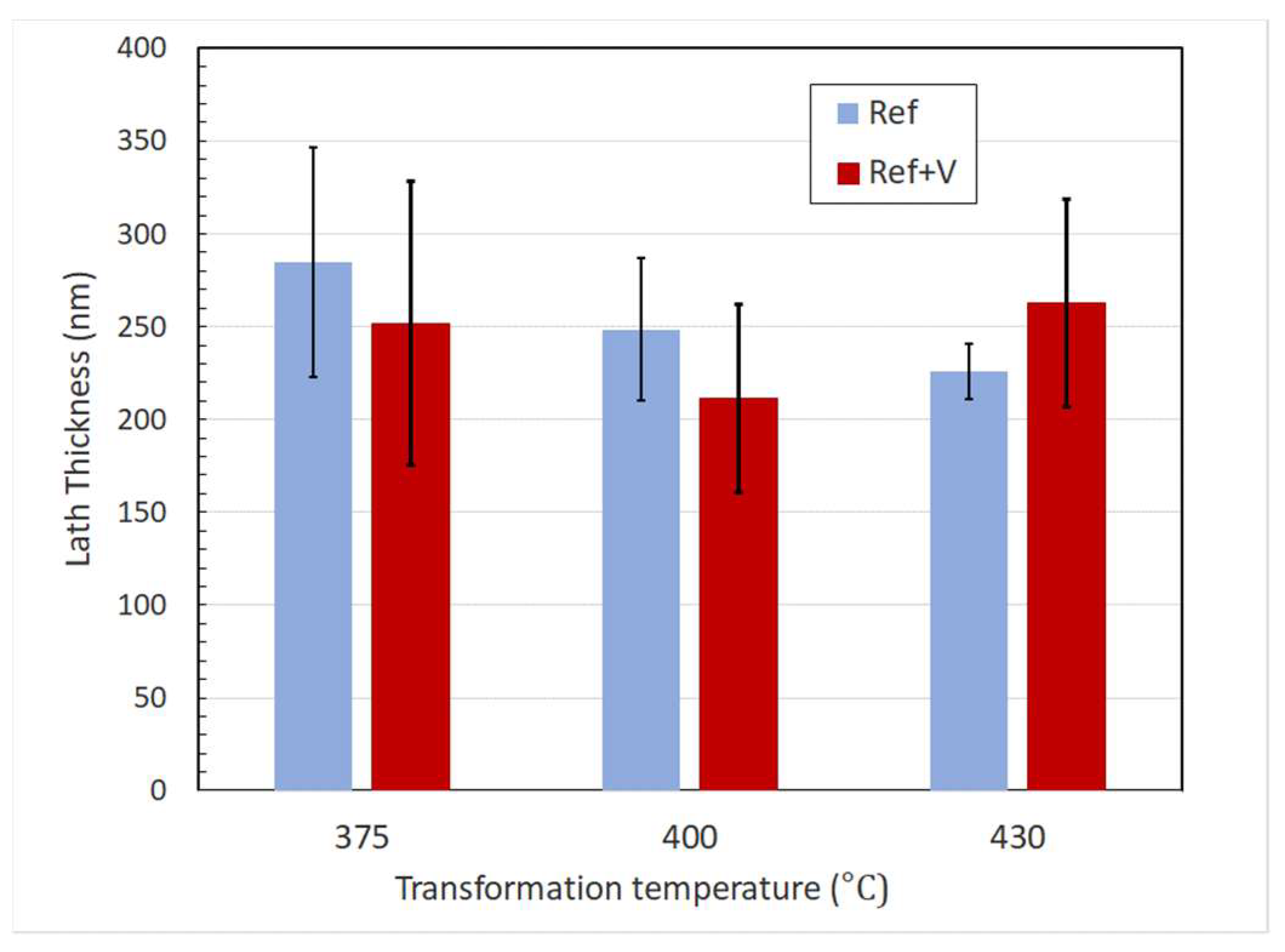

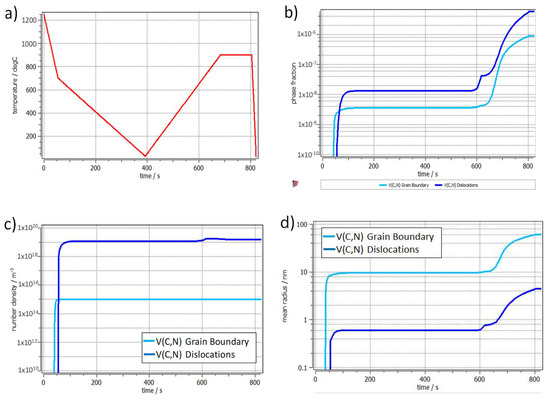

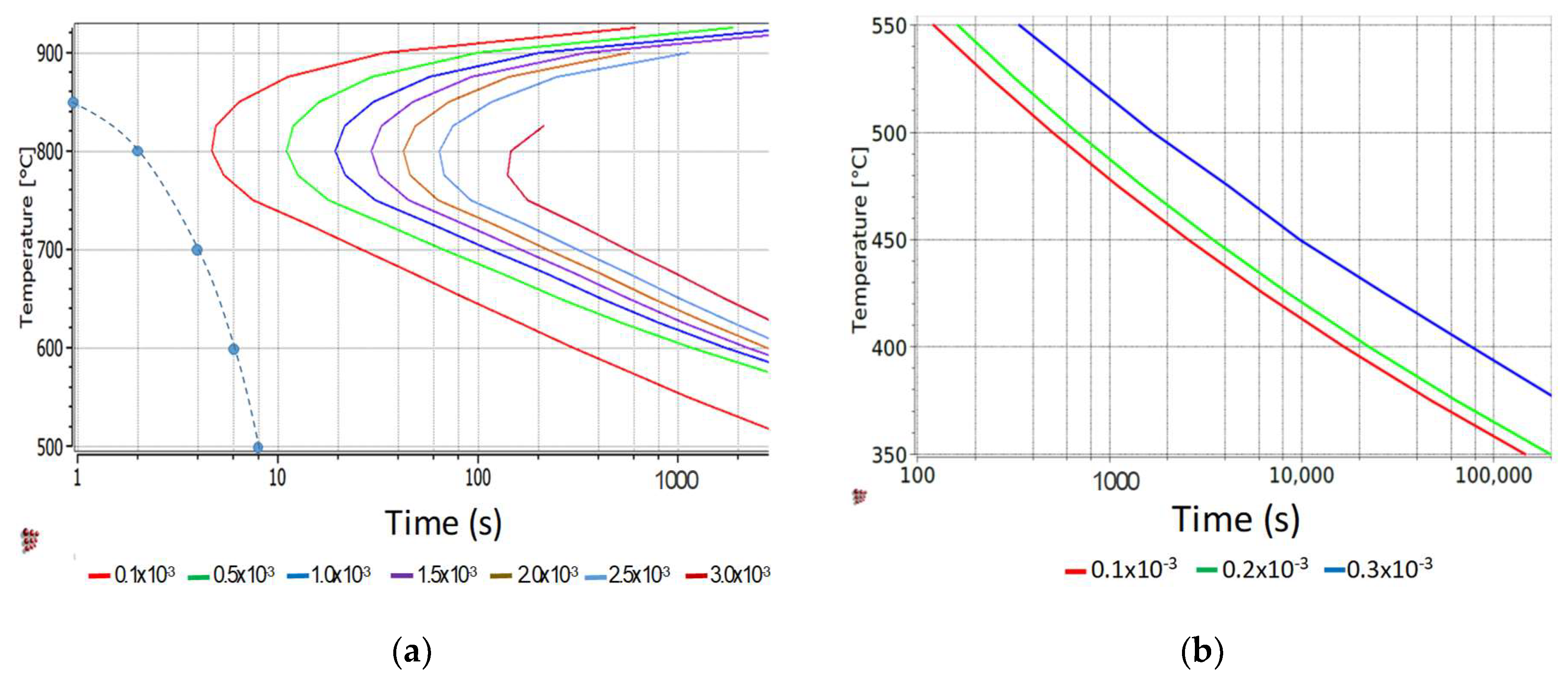

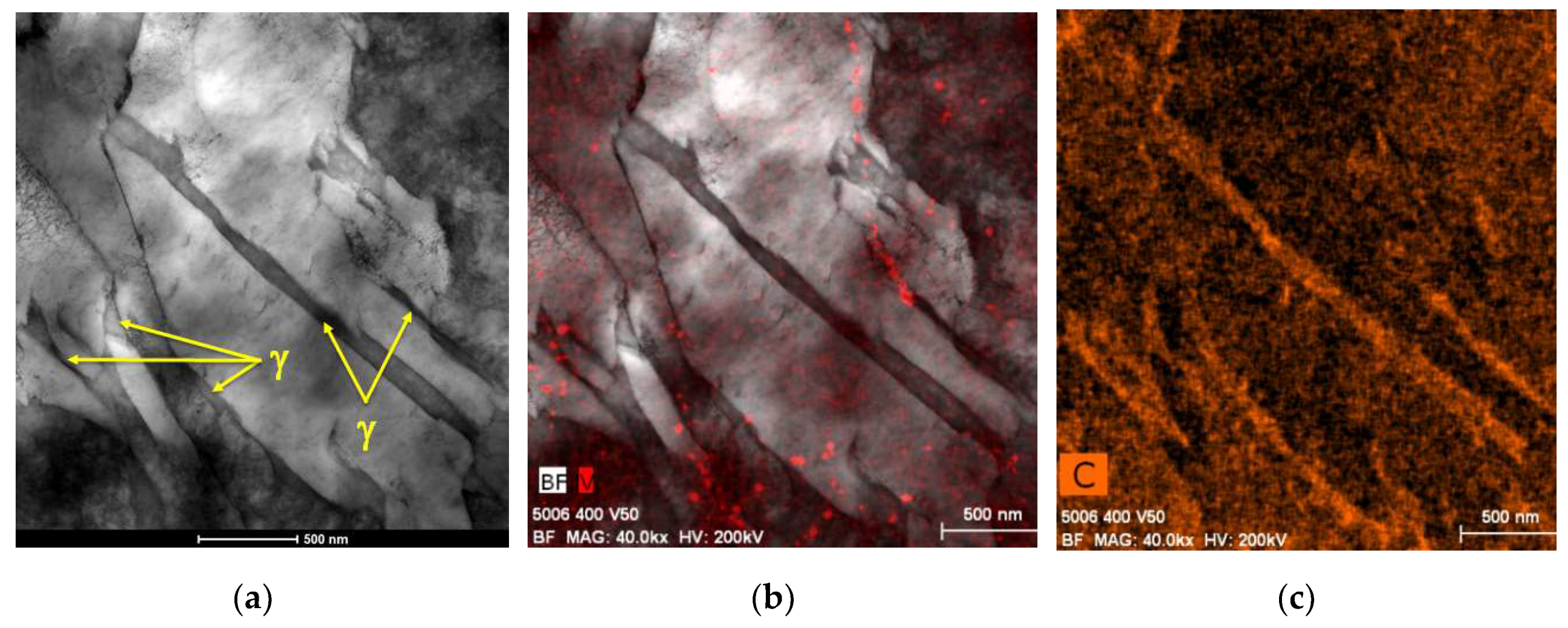

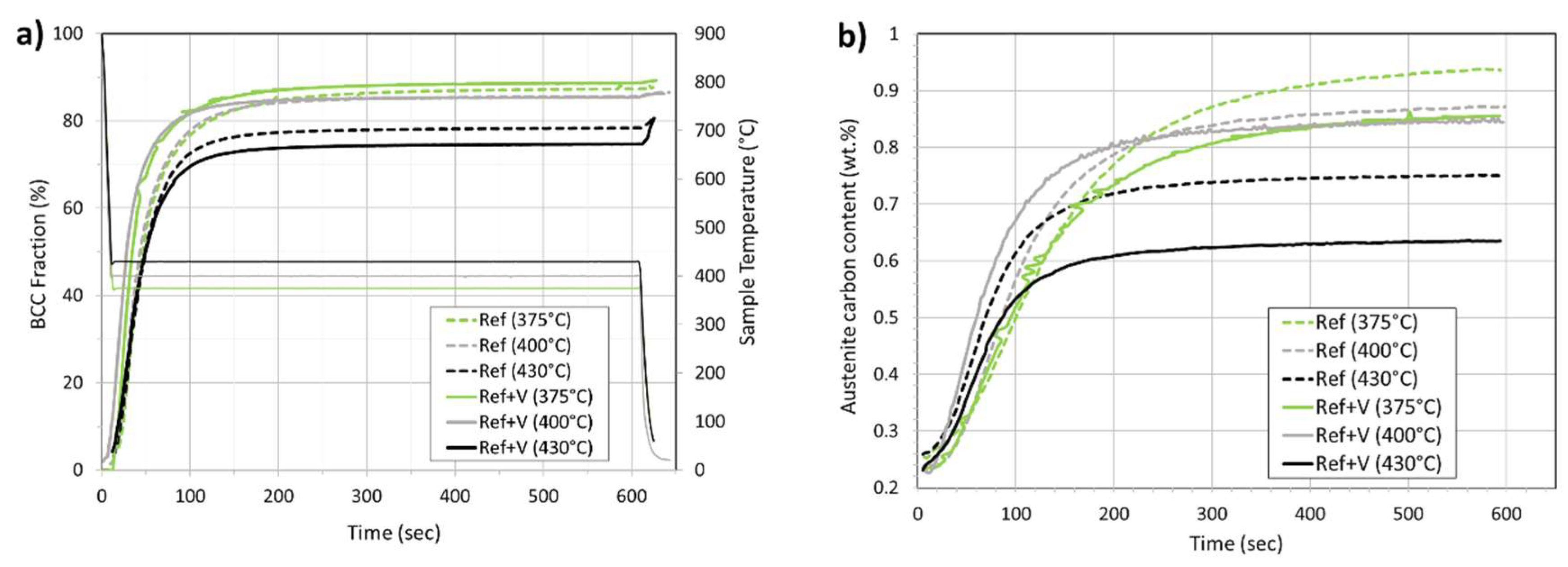

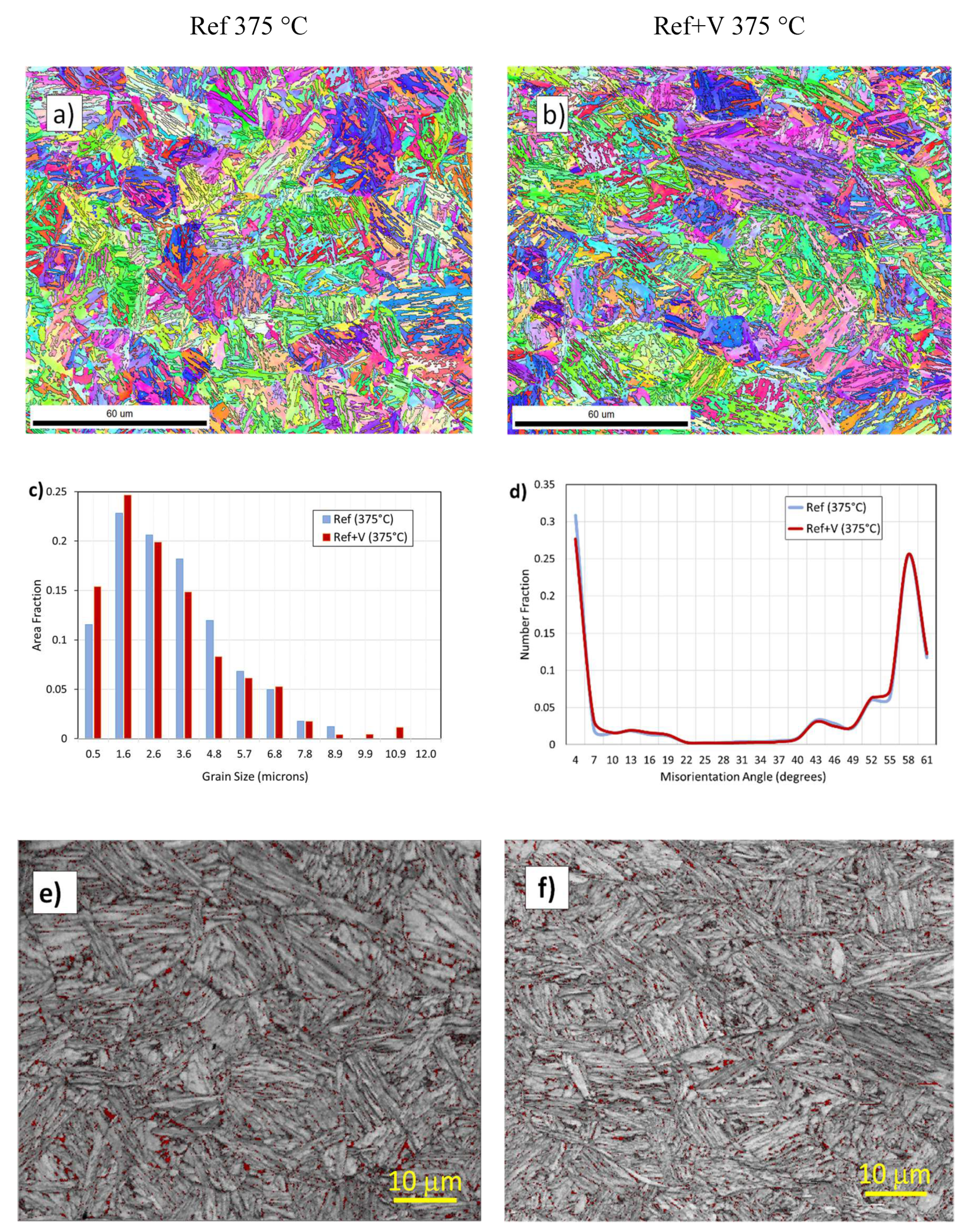

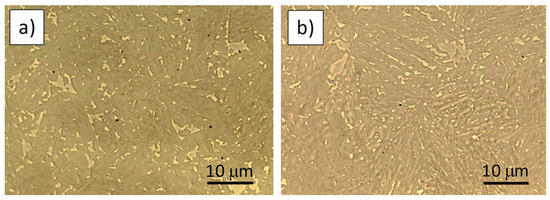

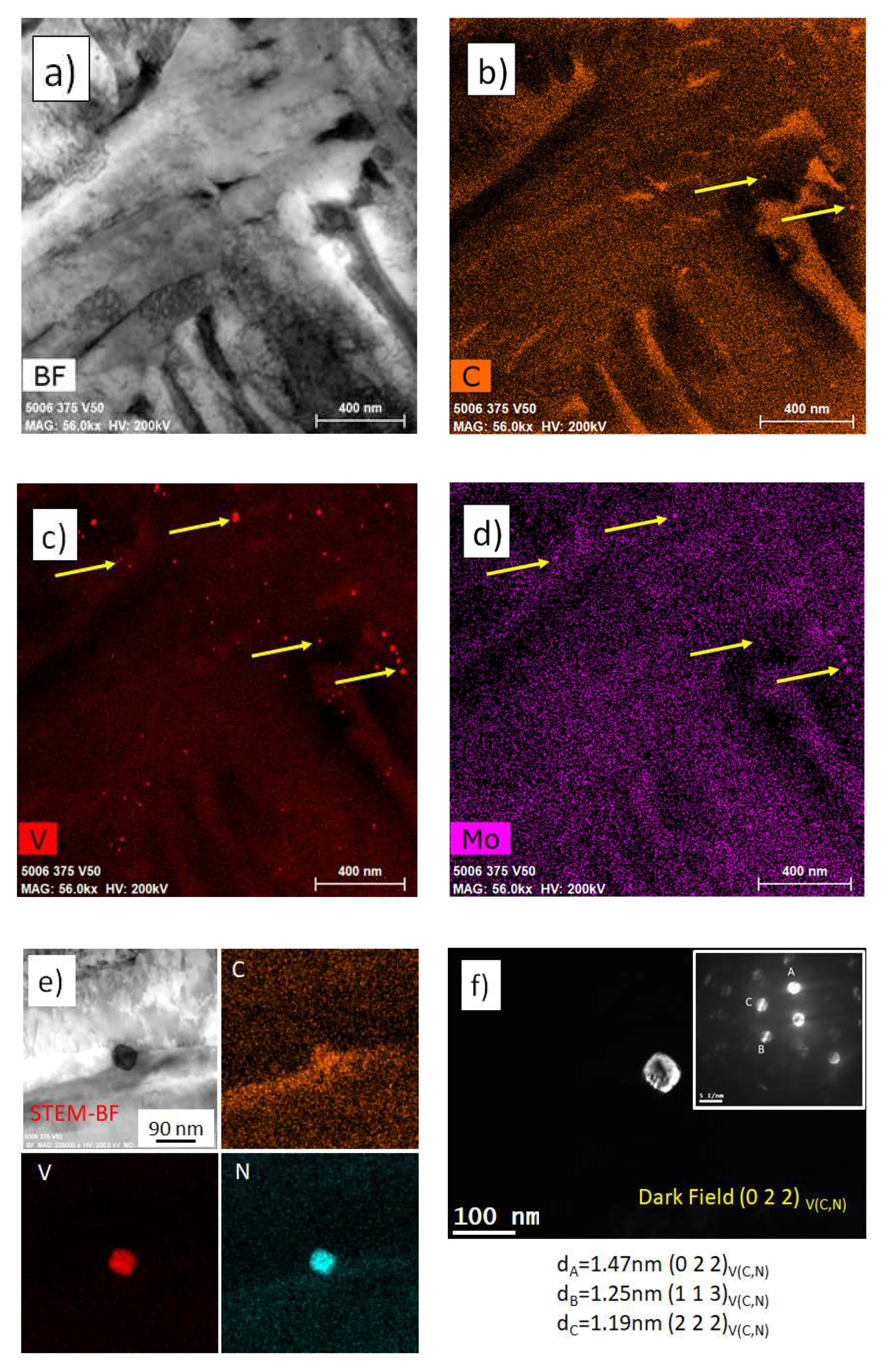

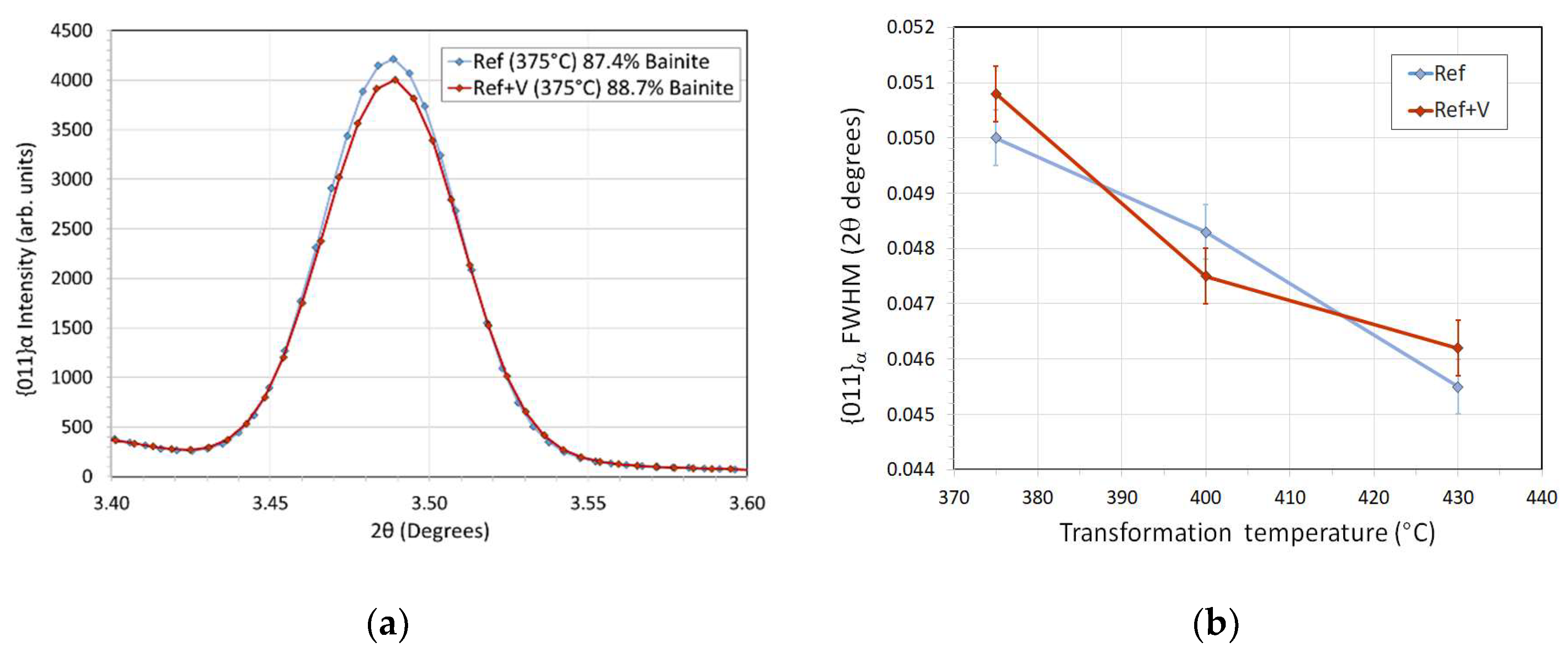

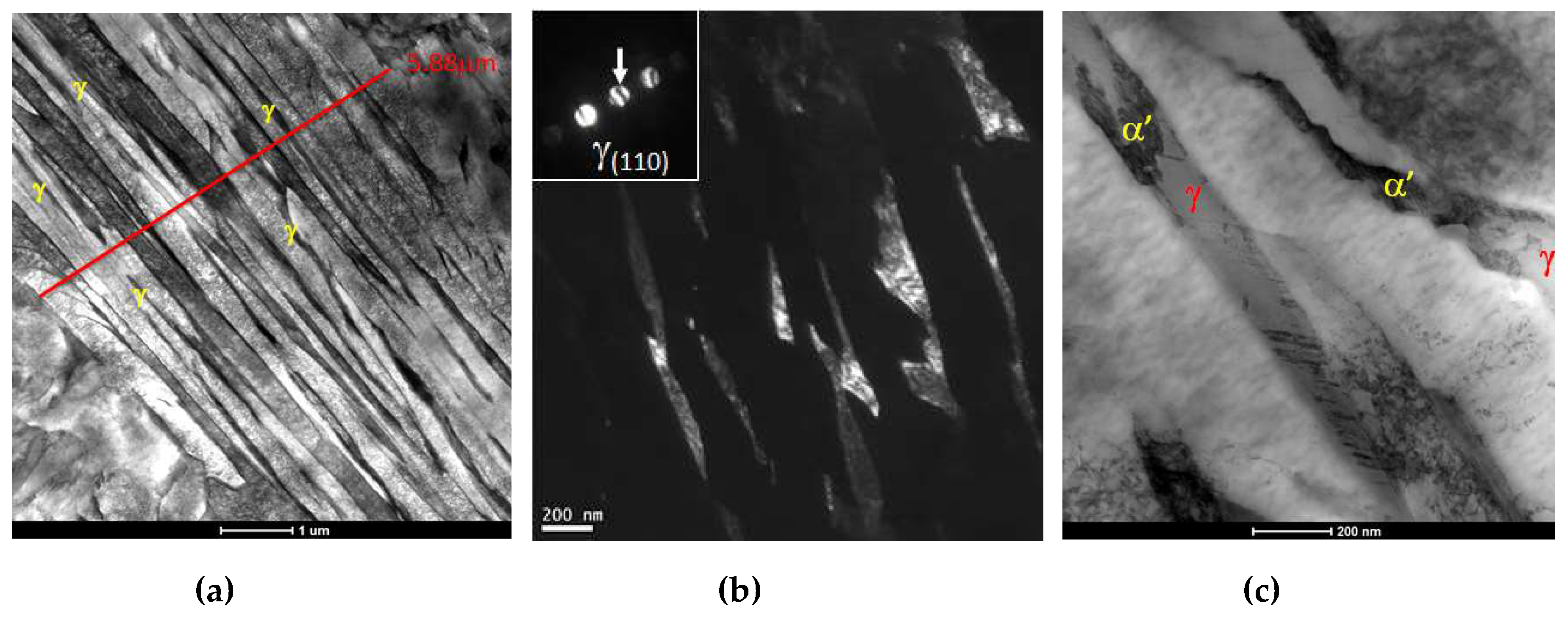

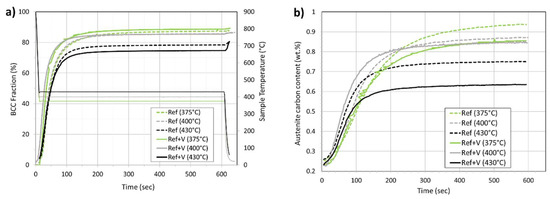

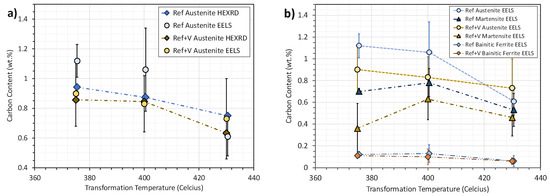

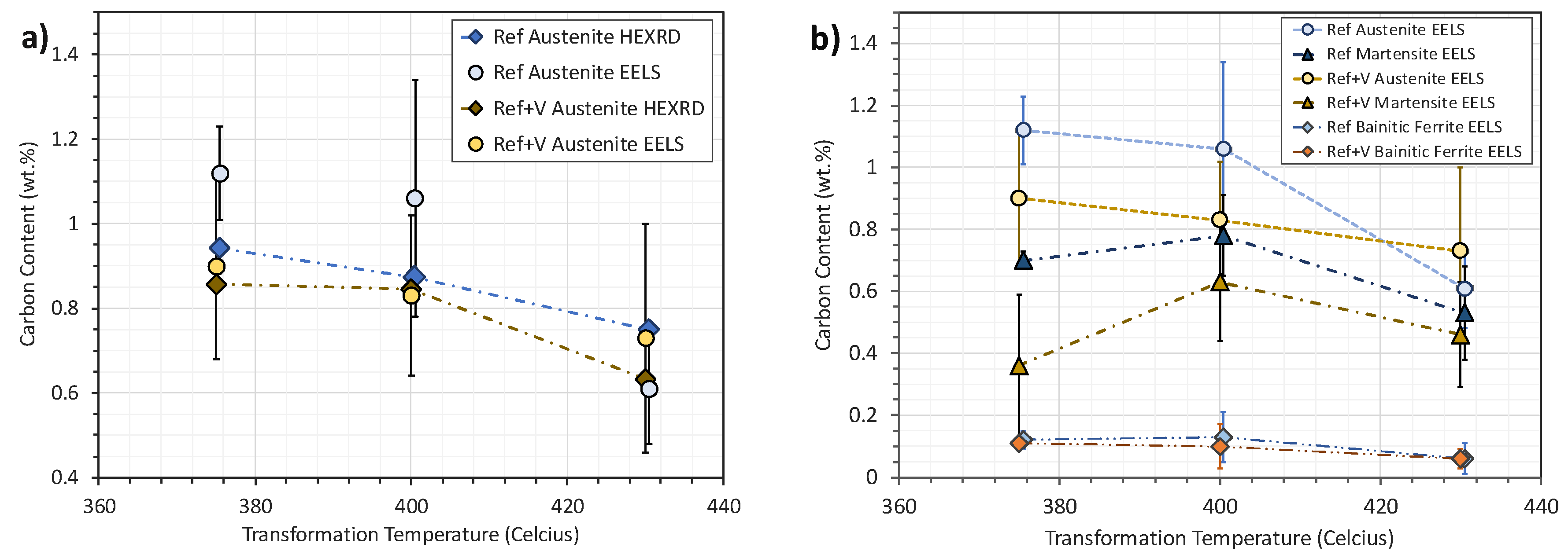

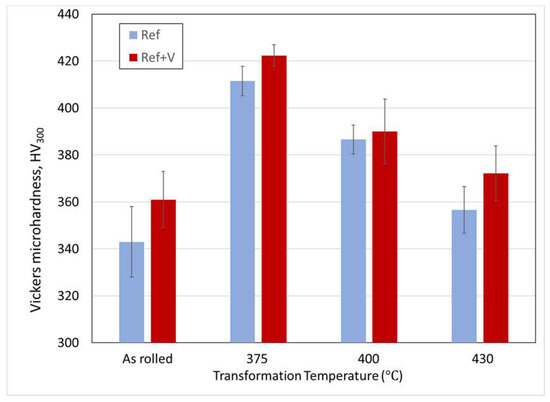

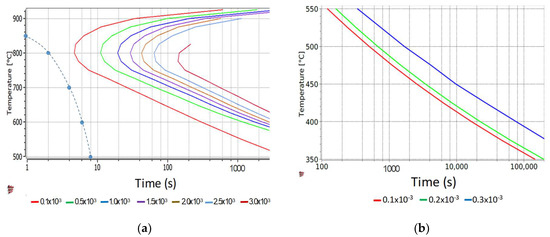

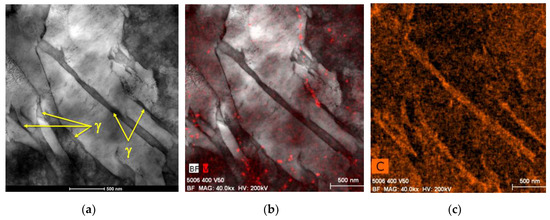

The influence of V additions on isothermally formed bainite in medium carbon steels containing retained austenite has been investigated using in-situ high energy X-ray diffraction (HEXRD) and ex-situ electron energy loss spectroscopy (EELS) and energy dispersive X-ray analysis (EDX) techniques in the transmission electron microscope (TEM). No significant impact of V in solid solution on the bainite transformation rate, final phase fractions or on the width of bainite laths was seen for transformations in the range 375–430 °C. No strong influence on the dislocation density could be detected, although quantitative analysis was impeded by ferrite tetragonality. A reduction in the carbon content of retained austenite Cγ that is not believed to be due to competition with VC or cementite precipitation was observed. No influence of V on the carbon supersaturation in bainitic ferrite Cb could be directly measured, although carbon mass balance calculations suggest Cb slightly increases. A beneficial refinement of blocky MA and a corresponding size effect induced enhancement in austenite stability were found at the lowest transformation temperature. Overall, V additions result in a slight increase in strength levels. View Full-Text
Keywords: bainite; vanadium microalloying; austenite stability; HEXRD; EELS bainite; vanadium microalloying; austenite stability; HEXRD; EELS
Show Figures

Figure 1

MDPI and ACS Style

Pushkareva, I.; Shalchi-Amirkhiz, B.; Allain, S.Y.P.; Geandier, G.; Fazeli, F.; Sztanko, M.; Scott, C. The Influence of Vanadium Additions on Isothermally Formed Bainite Microstructures in Medium Carbon Steels Containing Retained Austenite. Metals 2020, 10, 392.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
