Integrative Study of the Crane Fly Genus Brithura Edwards, 1916 (Diptera: Tipulidae) in East Asia: First Larval Descriptions of the Genus and Insights from Adult Morphology and DNA Barcoding

by
Virginija Podeniene
1,*,
Sigitas Podenas
1,2,
Dalius Butkauskas
2,
Donatas Sneideris
2,
Jin Whoa Yum
3,
Neung-Ho Ahn
3,
Soen Yi Kim
3,
Jisoo Kim
4 and
Pavel Starkevich
2
1
Institute of Biosciences, Life Sciences Centre of Vilnius University, Sauletekio Str. 7, LT-10257 Vilnius, Lithuania
2
State Scientific Research Institute Nature Research Centre, Akademijos Str. 2, LT-08412 Vilnius, Lithuania
3
Animal Resources Division, National Institute of Biological Resources, Incheon 22689, Republic of Korea
4
Biological Specimen Conservation Division, Nakdonggang National Institute of Biological Resources, Sangju 37242, Republic of Korea
*
Author to whom correspondence should be addressed.
Insects 2025, 16(9), 978; https://doi.org/10.3390/insects16090978
Submission received: 30 June 2025 / Revised: 1 August 2025 / Accepted: 6 August 2025 / Published: 18 September 2025
(This article belongs to the Special Issue Revival of a Prominent Taxonomy of Insects)
Browse Figures
Versions Notes

Simple Summary

The present study provides the first description of the final instar larva of Brithura, a genus of crane flies currently comprising 16 described species distributed across the East Palaearctic and Oriental regions. In addition, a redescription and detailed morphological documentation of the adult male and female of B. sancta are presented, alongside analysis of mitochondrial cytochrome c oxidase subunit I (COI) gene fragment sequences.

Abstract

Brithura Edwards, 1916 (Diptera: Tipulidae) is a small genus of crane flies currently comprising 16 described species distributed across the East Palaearctic and Oriental regions. Although the adults of this genus rank among the largest representatives of the family Tipulidae, their immature stages have remained undocumented until now. In this study, mitochondrial cytochrome c oxidase subunit I (COI) gene fragment sequences (DNA barcodes) of Brithura sancta Alexander, 1929 were analyzed using both recently collected adult specimens from the Republic of Korea and historical museum specimens from China (collected in 1933). These sequences were compared with COI data obtained from larvae collected in Republic of Korea. We present the first description, with detailed illustrations and ecological information, of the previously unknown final instar larva of Brithura, specifically for the East Palaearctic species B. sancta. Diagnostic larval characters for the genus are discussed. Additionally, a redescription and comprehensive morphological documentation of the adult male and female B. sancta, including habitus and genitalia, are provided. This study represents the first phylogenetic contribution to the taxonomy of Brithura larvae based on mitochondrial COI sequence data.

1. Introduction

The world fauna of the genus Brithura Edwards, 1916 currently contains 16 described species distributed throughout the East Palaearctic and Oriental regions [1]. A total of 12 species are recorded in China, and five species in India, sharing one common species, B. imperfecta (Brunetti, 1913) [1].
The genus was established by Edwards [2], with Brithura conifrons Edwards, 1916 designated as the type species by original designation. This species was later synonymized with Brithura imperfecta (Brunetti, 1913) [3].
Species of genus Brithura can be recognized by the following diagnostic characters: stout body; head with the vertex produced into a prominent tubercle; pleurotergal tubercle conspicuous, with dense pubescence on its dorsal face; dorsal sternopleurite often with hairs; costal border opposite stigma bulged in males of some species; and vein Sc1 retained in males and vein Rs short and strongly arcuated [2,4].
The family Tipulidae is the second-largest crane fly family, currently comprising 38 extant genera [1]. Larvae of this family occupy a wide range of ecological niches, including decaying wood, soil, leaf litter, organic detritus, moss, and both lentic and lotic aquatic habitats [5,6]. Despite the considerable body size of many species, some being the largest representatives of both Tipuloidea and Diptera, the larval stages of numerous taxa remain inadequately studied [7].
To date, larvae have been described for only 18 genera of Tipulidae [8] (Table 1). The state of knowledge remains markedly uneven across biogeographic regions: while larval morphology is relatively well documented for most genera occurring in Europe and North America, those from the Oriental Region, eastern Palaearctic, and especially the Southern Hemisphere remain poorly known, with many genera lacking any larval descriptions [7]. Brithura is one such genus, for which the immature stages and biological information were previously unknown.
DNA barcoding has introduced unprecedented opportunities in taxonomy, enabling the rapid and accurate association of larval stages with their corresponding adult species [21]. Recent advances in DNA extraction and PCR amplification techniques, including those applied to historical museum specimens, have further enhanced the utility of molecular tools in biodiversity research [22].
Historically, the majority of entomological studies have focused on adult insects, while larval stages have received comparatively little attention [23]. Due to the extended duration of insect life cycles, field collections often yield only a single developmental stage—most commonly adults—leaving a significant proportion of larval stages unassociated with identified adult taxa.

2. Materials and Methods

The adult material used in this paper was obtained from the United States National Museum (USNM), Smithsonian Institution, Washington DC, USA; the National Institute of Biological Resources (NIBR), Incheon; and the Korea University (KU), Seoul, Republic of Korea.
Adult crane flies were collected by insect net. Some specimens were preserved dry in envelopes in the field and later mounted in the laboratory on their side on a paper point with legs generally surrounding the insect pin. The specimens are pinned except when noted otherwise. Larvae were hand-collected by V. Podeniene in the Republic of Korea in 2022.
Adult specimens were studied with a Nikon SMZ800 stereomicroscope (Nikon, Tokyo, Japan). Photographs of adult specimens were taken with a Canon EOS 6D camera and Canon MP-E65 mm macro lens (Canon, Tokyo, Japan) using a MJKZZ automated focus stacking rail set (MJKZZ.de, Vienna, Austria). Pictures of male and female terminalia were taken with an INFINITY-1 camera (Teledyne, Thousand Oaks, CA, USA) mounted on a Nikon Eclipse Ci-L stereomicroscope (Nikon, Tokyo, Japan) and with a Canon EOS 80D camera (Canon, Tokyo, Japan) mounted on an Olympus SZX10 dissecting microscope (Olympus, Tokyo, Japan). The obtained image layers were stacked using the program ZereneStacker 1.04 and edited with Photoshop 26.5.0.
Potassium hydroxide was used to macerate dissected parts of adult insects and larvae [24]. Genitalia were studied after heating them in 10% KOH solution for 10–15 min and then preserved in microvials filled with glycerol and attached to the pin with the corresponding specimen. Redescription and illustrations are based on Korean and Chinese material.
Larvae are preserved in 70% ethanol. The larval head capsules were cleaned in a hot, 10% KOH solution for several hours, and temporary slides were made in gelatin glycerol. The spiracular fields of the larvae were excised, and temporary slides were made in gelatin glycerol. General photographs of larvae, pupae, and head capsules were made with a Canon EOS 80D digital camera using a Canon MP-E65 mm macro lens. All larval material is stored in the NIBR collection.
Molecular analysis was used to associate specimens of B. sancta from the Republic of Korea and China. A phylogenetic tree was based on molecular sequence data from cytochrome c oxidase subunit I (COI). DNA extraction was performed using GeneJet Genomic DNA Purification Kit (Thermo Fisher Scientific Baltics, Vilnius, Lithuania) according to the manufacturer’s instructions. The DNA samples were kept frozen at −20 °C. PCR amplification of COI gene sequence was performed using CLepFolF (5′-ATTCAACCAATCATAAAGATATTGG-3′) and CLepFolR (5′-TAAACTTCTGGATGTCCAAAAAATCA-3′) primer pairs [25]. PCR reactions were performed using DreamTaq PCR Master Mix (Thermo Fisher Scientific Baltics, Vilnius, Lithuania) according to the manufacturer’s instructions. The PCR cycling conditions were the following: initial denaturation for 5 min at 95 °C, 35 cycles of 45 s at 95 °C, 45 s at 54 °C, 60 s at 72 °C, and final extension for 10 min at 72 °C. PCR products were observed in agarose gel and purified using Exonuclease I and FastAP Thermosensitive Alkaline Phosphatase (Thermo Fisher Scientific Baltics). All samples were sequenced directly with the 3500 Genetic Analyzer (Applied Biosystems, Foster City, CA, USA) using the same forward and reverse primers as for PCR.
Molecular analysis was used to associate adult individuals with larvae. Total genomic DNA was extracted from the middle body segments of larva using a QIAamp DNA Micro Kit (Qiagen, Hilden, Germany). Standard PCR amplification and sequencing protocols were used to generate COI fragment sequences [9,10]. The target fragment of COI was amplified in 20 µL reactions containing AccuPower PCR PreMix (Bioneer Co., Daejeon, Republic of Korea), 1 U Top DNA polymerase, dNTPs (10 mM), Tris-HCl (pH 9.0), KCl (30 mM), MgCl2 (1.5 mM), 3 µL (5–50 ng) template DNA, and 1 µL of each primer (LCO1490 and HCO2198; 10 pM each) [11]. Amplification was performed using the following thermal cycling program: 94 °C for 4 min; 35 cycles of 94 °C for 0.5 min; 48 °C for 0.5 min; 72 °C for 1 min; and a final extension at 72 °C for 10 min. PCR products were sequenced by Macrogen Inc. (Seoul, Republic of Korea).
Brithura sancta COI sequences were submitted to GenBank (Table 2). The molecular analyses were performed using the MEGA11 program [26] to produce a maximum likelihood tree [27] and subjected to a bootstrap test with 1000 replicates. While obtaining the maximum likelihood tree, we used COI sequences of corresponding length deposited by other authors in the BOLD Systems data portal (https://portal.boldsystems.org, accessed on 11 June 2025) and GenBank (https://www.ncbi.nlm.nih.gov/genbank, accessed on 11 June 2025) (Table 2).
Descriptive terminology of adults generally follows that of Cumming and Wood [28]. The term ventral lobe of appendage of sternite 9 (=fragmentum [29], =A9s [30]) is adopted from Gelhaus [31]; the term gonocoxal fragment (=sclerites sp1 and sp2 [32], =genital bridge [33]) for inner structure covered by epandrium is adopted from Brodo [34]. Descriptive terminology of larva generally follows that of Gelhaus [35] and Neugart et al. [36].

3. Results

Brithura sancta Alexander, 1929
Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7, Figure 8, Figure 9, Figure 10, Figure 11 and Figure 12
Brithura sancta Alexander, 1929: 317 (original description) [37]; Savchenko, 1983: 524 [38]; Oosterbroek and Theowald, 1992: 58 [39]; Yi, 2024 [40]
Tipula (Brithura) sancta Edwards 1932: 240 [41]; Alexander, 1935: 88 [4].

Type of material examined. CHINA • Holotype ♂; Ton Chessu, a temple in hills west of Peking; 27 August 1921; A. P. Jacot; USNM.
Additional material examined, adult specimens. CHINA • 1 ♀; [Sichuan] Szechwan; BehLuhDin, 30 mi N. Chengtu [N. Chengdu]; alt. 6000 ft.; VIII-13 1933; D.C. Graham; Det. C.P.Alexander Metat 1934; USNM • 1 ♂ 2 ♀♀; same data as for preceding; VIII-14 1933; USNM • 1 ♂ 2 ♀♀; same data as for preceding; VIII-16 1933; USNM • 1 ♀; same data as for preceding; VIII-18 1933; USNM • 1 ♂; same data as for preceding; VIII-23-24 1933; terminalia dissected; 01843358; USNM • 1 ♂; same data as for preceding; terminalia dissected; 01843359; GenBank Accession number OQ368740; USNM • 1 ♂ 1 ♀; same data as for preceeding; VIII-24 1933; 01843360; 01843361; terminalia dissected; USNM • 1 ♂ 1 ♀; [Sichuan] Szechwan; Kuanshien; 3200 ft.; vii-18-20-1933; D.C. Graham; Det. C.P.Alexander Metat 1934; USNM • 1 ♀; [Sichuan] Szechwan; WeiChow, 65 mi N. Chengtu; 5000–8000 ft.; vii-25-1933; D.C. Graham; Det. C.P.Alexander Metat 1934; USNM. REPUBLIC OF KOREA • 1 ♂; Gyeongsangbuk-do; Yeongju, Dansan-myeon, Dangok-ri; N36.96611, E128.57195; 27 June 2013, coll. S. Kim; NIBR; • 1 ♂; Gangwon-do; Chuncheon-si, Dongsan-myeon, Bongmyeong-ri; KNU Experimental Forest; N37.78194, E127.81973; alt. 197 m; 9 July 2015, coll. S. Kim; GenBank Accession number OQ368738; NIBR • 1 ♀; same data as for preceding; NIBR • 1 ♀; same data as for preceding; GenBank Accession number OQ368739; NIBR • 1 ♀; Gangwon-do; Pyeongchang-gun; Mt. Odaesan; [37°44′25”N 128°35′02”E]; 24. VI. 1994; leg. Hyeon-Ju Oh; KU.
Additional material examined, immature stage. REPUBLIC OF KOREA • 11 larvae; Gangwon-do, Yeongwol-gun, Yeongwol-eup, Heungwol-ri; N37.1099210, E128.4658514; 17.VI.2022; leg. V. Podeniene; NIBR; one larva dissected with GenBank Accession number PV834789.
Diagnosis. Brithura sancta can be recognized by its large, stout body with a clove-brown coloration, the head bearing a prominent tubercle, and femora marked with a pale preapical ring. Males are further characterized by the hypandrium produced into distinct tubercle and a complex outer gonostylus, which posteriorly bears an elongated, curved, stick-shaped lobe. Females can be identified by the extended posterolateral angles of tergite 10.
Redescription. Adult male. Body length 27.1–32.2 mm, wing length 21.1–24.1 mm, antenna length 4.3–5.5 mm (N = 8). General body coloration dark brown (Figure 1A,B,D).
Head. Head brown, vertex with distinct, darker brown tubercle (Figure 1C,D). Rostrum brown, nasus distinct, darker brown. Palpus with basal segment dark brown, remaining segments brown. Antenna 13-segmented, when bent backward, reaching the presutural scutum. Scape brown, pedicel and flagellum brownish yellow (Figure 1C). Each flagellomere has a small basal enlargement except the first. Apical flagellomere small. Longest verticils are longer than the corresponding segments. Scutellum brown, with a darker median line.
Thorax. Pronotum brown, with anterolateral margins dark brown (Figure 1D). Prescutum and presutural scutum clove-brown with lateral margins darkened. Median pair of stripes reddish brown, indistinctly bordered by brown, fused anteriorly and posteriorly, separated in the middle. Lateral stripes indistinct. Postsutural scutum medially gray brown, each lobe with two clove-brown spots, bordered by brown. Mediotergite brown, dusted with gray, with brown median line. Pleuron clove-brown. Legs with coxae and trochanter brown. Femora brown, blackish brown tip preceded by pale subterminal ring (Figure 1A,B). Tibia basally pale, getting brown towards the dark brown tip. Tarsal segments brown. Claw with the tooth. Wing with ground color yellow (Figure 1A). Costal region opposite to the stigma dilated, dark pattern at bases of cells r, m, origin of Rs and area covering stigma and cord. Outer ends of cells from R3 to A1 clouded, each with small yellow spots. Vein Sc1 present, Rs strongly arcuate.
Abdomen. Abdominal tergites blackish brown, epandrium cinnamon brown (Figure 1A). Sternites reddish brown.
Hypopygium (Figure 2A,B and Figure 3, Figure 4 and Figure 5). Epandrium and hypandrium fused at base (Figure 2A and Figure 3A). Epandrium relatively large, in the shape of nearly rectangular plate, posterior portion covered with setae except posteromedian extension (Figure 2B, Figure 3B and Figure 4B). Posterior margin with median U-shaped emargination. Posterolateral angles darkened, produced into obtuse lobes. Posteromedian extension nearly rectangular, darkened, possesing median groove. Proctiger partly sclerotized, basally with pair of sac-shaped formations and narrow blackened sclerites, presumably representing cerci (Figure 4C). Gonocoxite narrow, apically producing into flattened, rounded lobe covered with setae and smaller, ventromedian lobe (Figure 2B, Figure 3B–D, Figure 4D and Figure 5A). Mesal surface of gonocoxite extended into additional mesal lobe (Figure 4D). Outer gonostylus complicated (Figure 3B,C and Figure 4E–G), and may be subdivided into three basic parts: the main body, caudal part, and lateral part (Figure 4E). The apical half of the main body sclerotised, keel-shaped, its basal margin slightly elevated. Basal half of the main body yellow, rounded, mesal margin laterally extended into a short, narrowed lobe. Caudal part of outer gonostylus is produced from basal half of the main body as additional fold, detached laterally by the pale suture and completely separated in the middle. The caudal part has the shape of a nearly rectangular lobe, its mesal margin is produced into a remarkable outgrowth. The outgrowth elongated and curved, with the apical part lightly swollen. The lateral part of the outer gonostylus is laterally attached to the main body. The lateral part flattened, basally dilated, distal end rounded, with an additional short ridge terminating in an obtuse denticle. Inner gonostylus with apical portion flattened, terminating in an obtuse pale beak (Figure 3B,D and Figure 4H,I) Basal portion rounded, covered with setae. Posterior condyle flattened, prominent, anterior condyle nearly rounded. Inner margin with broad round incision, its basal angle (above anterior condyle) producing into elongated extension which is fused with medially extended, mesal part of the sclerite forming closed ring (Figure 4H,I). The inner margin above the fusion creasy, covered with short setae. Gonocoxal fragment with medial sclerites fused at base, small, V-shaped (Figure 3D, Figure 4D and Figure 5A). Lateral sclerites large, hypertrophied, basally flattened, fused with gonocoxite dorsolaterally and mesoventrally. Mesoventral portion terminating into free, short, mesal and mesoventral lobes, dorsolateral portion with additional, short, dorsolateral extension (Figure 3D and Figure 4D). Hypandrium large, ventrally produced into a rounded tubercle (Figure 2A and Figure 3A,B,D). Ventral lobe of A9s in the shape of a rounded sclerite, the surface covered with setae (Figure 3D). Adminiculum flattened, covered by hypandrium and inner gonostyli (Figure 3D). Distal portion with nearly rectangular angles (Figure 5B). Sperm pump swollen, caudal part extended and narrowed (Figure 5C–E). Compressor apodeme and anterior immovable apodeme flattened, anterior apodeme flattened, laterally narrowed. Intromittent organ stout, relatively short, shorter than the sperm pump (Figure 5C,F). Apical part narrowed (Figure 5F).
Adult female. Body length 29.1–44.0 mm, wing length 24.3–29.0 mm, antenna length 4.3–5.9 mm (N = 12). Generally similar to male by body coloration (Figure 1B).
Female terminalia (Figure 2C, Figure 6 and Figure 7). Tergite 9 partly reduced (Figure 6C), lateral part distally acute (Figure 6A). Tergite 10 pale (Figure 2C and Figure 6A–C), lateral angles extended into blackened lobes (Figure 6B). Cercus nearly straight, slender, and elongated (Figure 2C and Figure 6A,B). Anal plate posteriorly and laterally bordered by elevated margins (Figure 6D). Sternite 8 with posterior half separated from the rest of the body by distinct wrinkles (Figure 2C and Figure 7A–C). Hypovalva pale yellow, nearly blade-shaped (Figure 7A–C). The base of hypovalva extended into longer, sclerotized, anteriorly flattened and dilated plate (Figure 7B). Sternite 8 forming nearly rounded concavity near the base of cerci and apex of sternite 9, its surface covered by microscopic filaments and long setae (Figure 7C). Sternite 9 apically elongated into narrow extension, lateral parts flattened, basally dilated (Figure 7E). A pair of narrow bands starts at the mesal edges of sternite 9 (Figure 7A,C). The band fused with the inner margin of sternite 8 (Figure 7C,E) and reaching the lateral end of tergite 9 (Figure 6B). Furca flattened, tongue-shaped, fused with sternite nine ventrally and laterally, about 2.6 times as long as sternite 9 (Figure 7D,E). Bursa copulatrix elongated, its aperture with rounded sclerotization (Figure 7D,E). Three spermatheca are present, spherical in shape (Figure 7F).
Last instar larva. Length 28–68 mm, width 7–9 mm (N = 11). Body light brown, covered with short light brown hairs; dorsal and ventral sides darker than lateral sides (Figure 8).
Insects 16 00978 g001
Figure 1. Habitus of adults Brithura sancta (Republic of Korea). (A) Male, dorsal view; (B) female, lateral view; (C) male head, lateral view; (D) male head and thorax, dorsal view. Scale a: (A,B); b: (C); c: (D). Abbreviation: t, tubercle.
Figure 1. Habitus of adults Brithura sancta (Republic of Korea). (A) Male, dorsal view; (B) female, lateral view; (C) male head, lateral view; (D) male head and thorax, dorsal view. Scale a: (A,B); b: (C); c: (D). Abbreviation: t, tubercle.
Insects 16 00978 g001
Insects 16 00978 g002
Figure 2. Brithura sancta, male and female terminalia (Republic of Korea). (A) Male hypopygium, lateral view; (B) male hypopygium, dorsal view; (C) female ovipositor, lateral view. Scale a: (A,B); b: (C).
Figure 2. Brithura sancta, male and female terminalia (Republic of Korea). (A) Male hypopygium, lateral view; (B) male hypopygium, dorsal view; (C) female ovipositor, lateral view. Scale a: (A,B); b: (C).
Insects 16 00978 g002
Insects 16 00978 g003

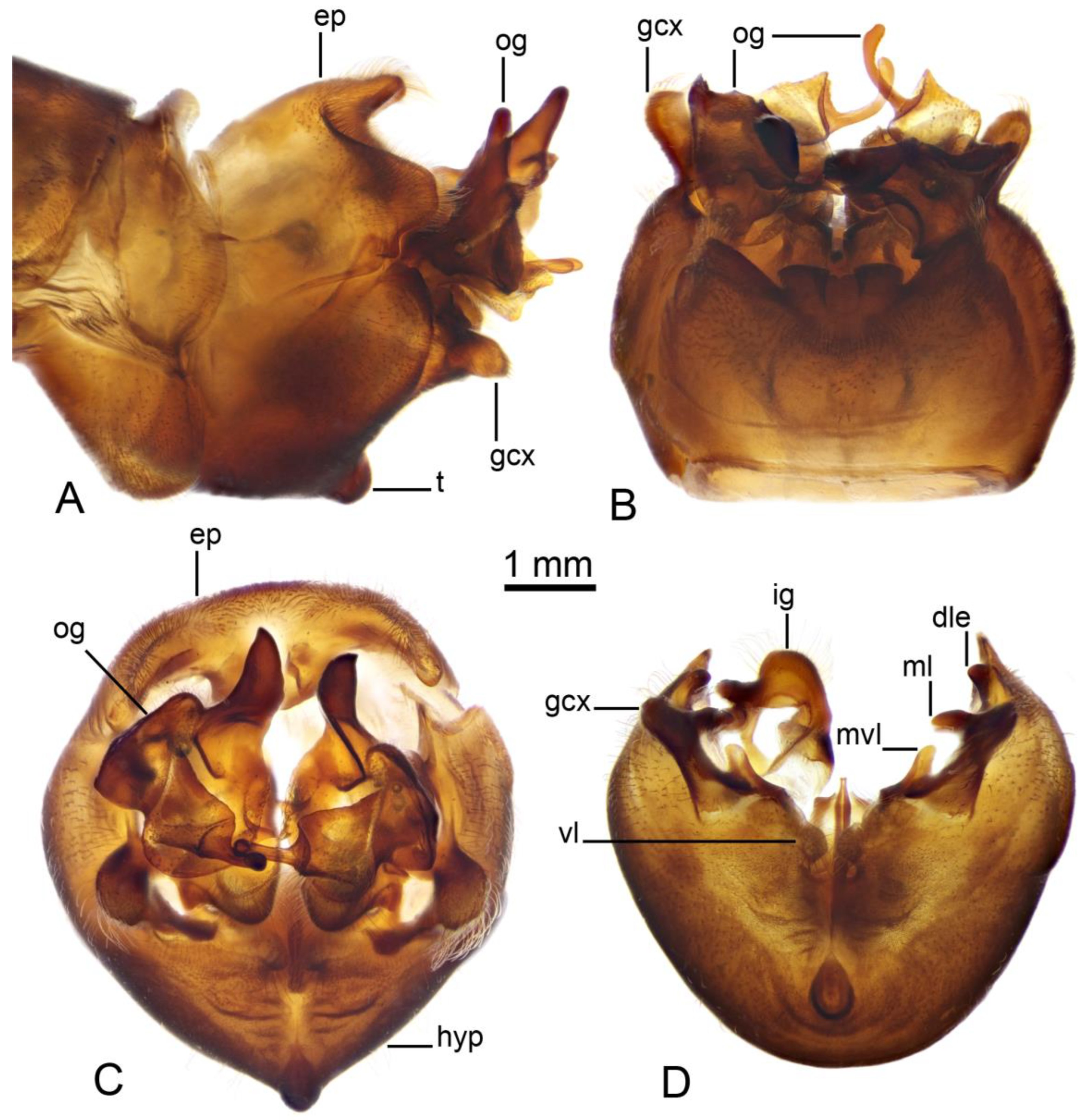

Figure 3. Male terminalia of Brithura sancta (China). (A) Hypopygium, lateral view; (B) hypopygium, dorsal view; (C) hypopygium, caudal view; (D) hypopygium, caudal view, epandrium, outer gonostyli and right inner gonostylus removed. Abbreviations: dle, dorsolateral extension of lateral sclerite of gonocoxal fragment; ep, epandrium; gcx, gonocoxite; ig, inner gonostylus; hyp, hypandrium; t, tubercle of sternite 9; ml, mesal lobe of lateral sclerite of gonocoxal fragment; mvl, mesoventral lobe of lateral sclerite of gonocoxal fragment; og, outer gonostylus; vl, ventral lobe of A9s.
Figure 3. Male terminalia of Brithura sancta (China). (A) Hypopygium, lateral view; (B) hypopygium, dorsal view; (C) hypopygium, caudal view; (D) hypopygium, caudal view, epandrium, outer gonostyli and right inner gonostylus removed. Abbreviations: dle, dorsolateral extension of lateral sclerite of gonocoxal fragment; ep, epandrium; gcx, gonocoxite; ig, inner gonostylus; hyp, hypandrium; t, tubercle of sternite 9; ml, mesal lobe of lateral sclerite of gonocoxal fragment; mvl, mesoventral lobe of lateral sclerite of gonocoxal fragment; og, outer gonostylus; vl, ventral lobe of A9s.
Insects 16 00978 g003
Insects 16 00978 g004

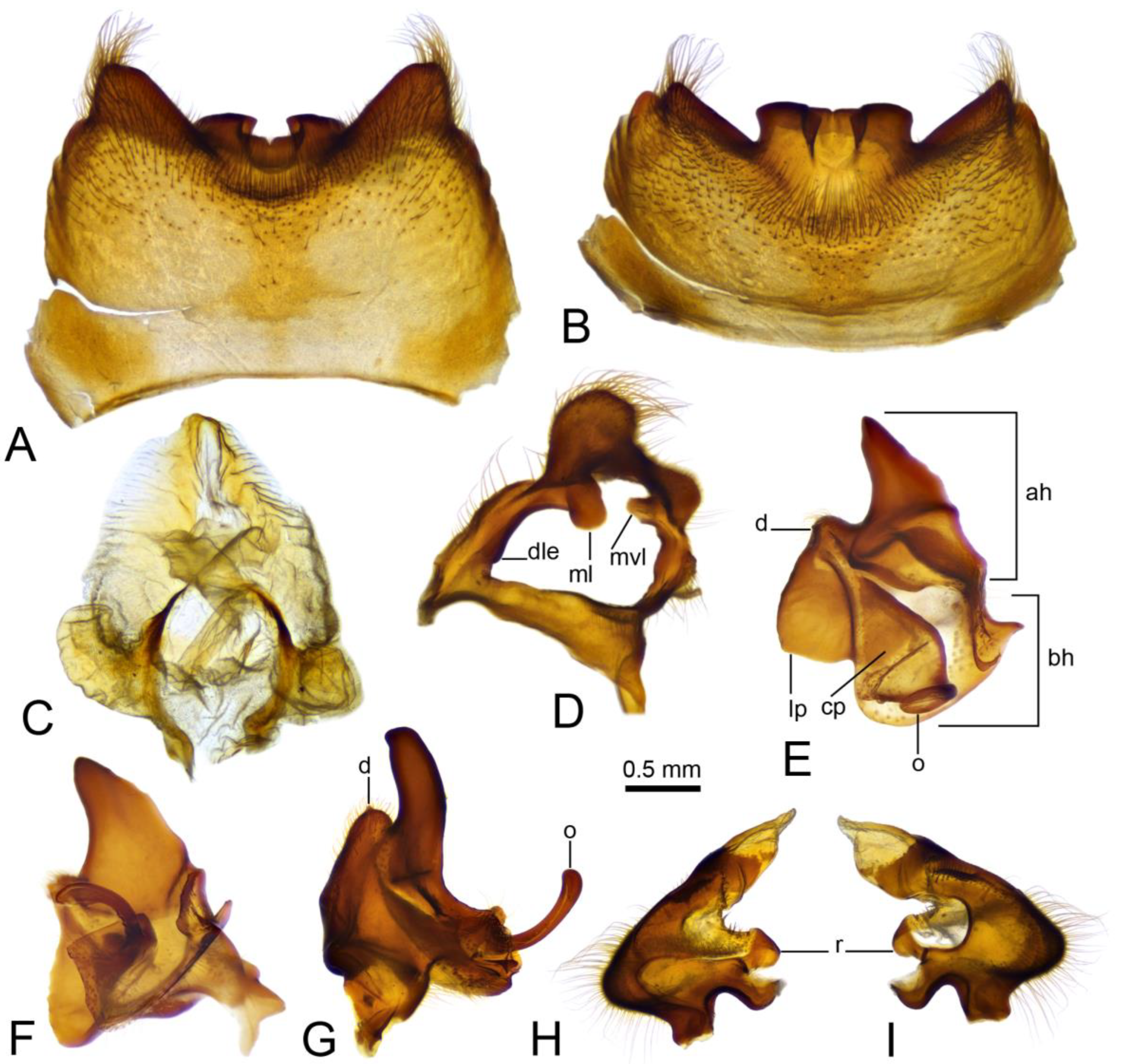

Figure 4. Male terminalia of Brithura sancta (China), epandrium, proctiger, gonocoxite, lateral sclerite of gonocoxal fragment, outer and inner gonostyli. (A) Epandrium, dorsal view; (B) epandrium, caudal view; (C) proctiger; (D) right gonocoxite and lateral sclerite of gonocoxal fragment; (E) left outer gonostylus, inner view; (F) left outer gonostylus, inner view at slightly different angle; (G) right outer gonostylus, outer view; (H) left outer gonostylus, inner view; (I) left outer gonostylus, outer view. Abbreviations: ah, apical half of the main body of outer gonostylus; bh, basal half of the main body of outer gonostylus; cp, caudal part of outer gonostylus; d, denticle; dle, dorsolateral extension of lateral sclerite of gonocoxal fragment; lp, lateral part of outer gonostylus; ml, of lateral sclerite of gonocoxal fragment; mvl, mesoventral lobe of lateral sclerite of gonocoxal fragment; o, outgrowth; r, ring.
Figure 4. Male terminalia of Brithura sancta (China), epandrium, proctiger, gonocoxite, lateral sclerite of gonocoxal fragment, outer and inner gonostyli. (A) Epandrium, dorsal view; (B) epandrium, caudal view; (C) proctiger; (D) right gonocoxite and lateral sclerite of gonocoxal fragment; (E) left outer gonostylus, inner view; (F) left outer gonostylus, inner view at slightly different angle; (G) right outer gonostylus, outer view; (H) left outer gonostylus, inner view; (I) left outer gonostylus, outer view. Abbreviations: ah, apical half of the main body of outer gonostylus; bh, basal half of the main body of outer gonostylus; cp, caudal part of outer gonostylus; d, denticle; dle, dorsolateral extension of lateral sclerite of gonocoxal fragment; lp, lateral part of outer gonostylus; ml, of lateral sclerite of gonocoxal fragment; mvl, mesoventral lobe of lateral sclerite of gonocoxal fragment; o, outgrowth; r, ring.
Insects 16 00978 g004
Insects 16 00978 g005

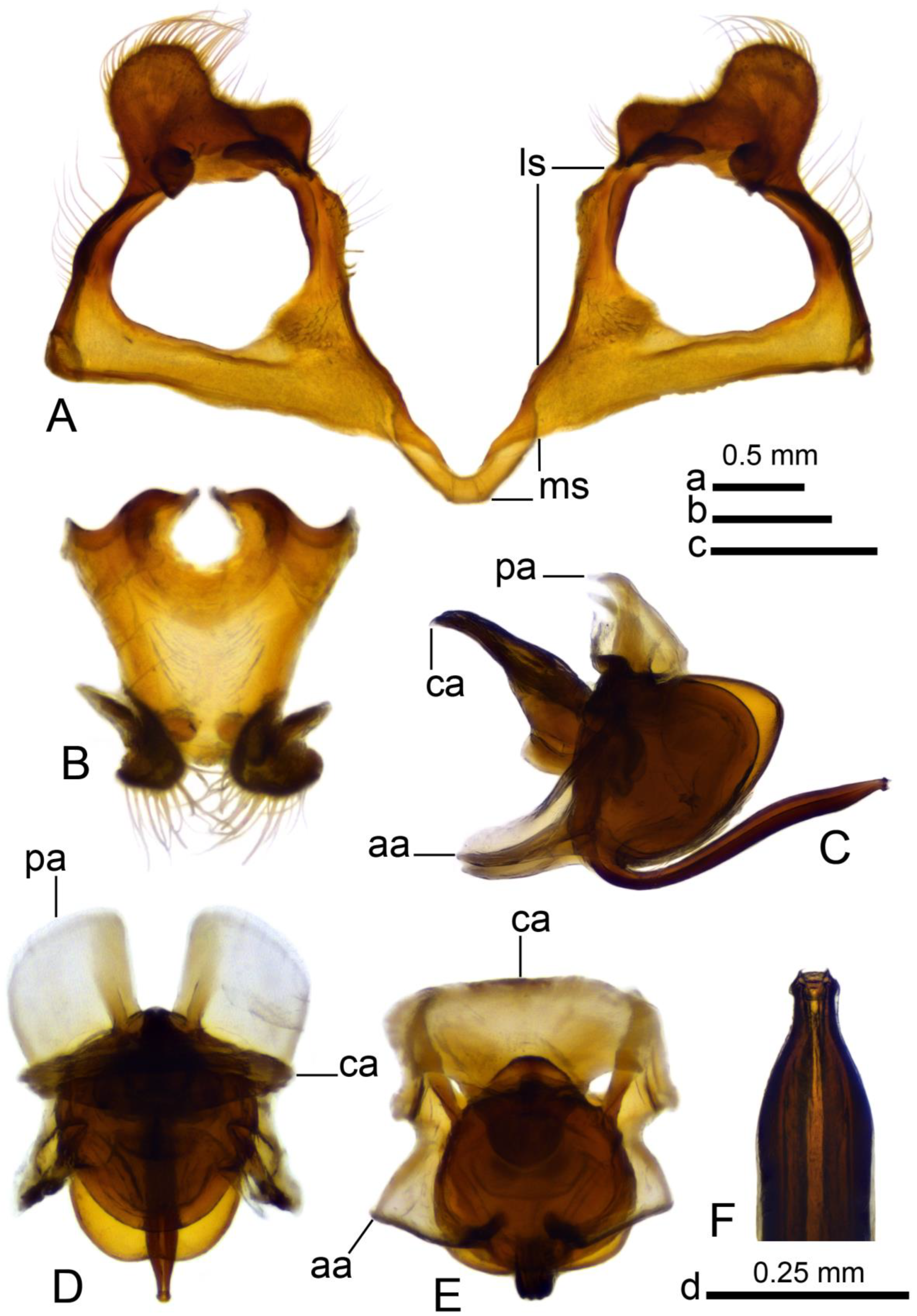

Figure 5. Male terminalia of Brithura sancta (China), gonocoxites with gonocoxal fragment, adminiculum and sperm pump (China). (A) Gonocoxites and gonocoxal fragment; (B) adminiculum, ventral view; (C) sperm pump, lateral view; (D) sperm pump, ventral view; (E) sperm pump, ventral view at different angle; (F) apical part of intromittent organ. Abbreviations: aia, anterior immovable apodeme; ca, compressor apodeme; ls, lateral sclerite of gonocoxal fragment; ms, medial sclerite of gonocoxal fragment; pia, posterior immovable apodeme. Scale a: (A); b: (C–E); c: (B); d: (F).
Figure 5. Male terminalia of Brithura sancta (China), gonocoxites with gonocoxal fragment, adminiculum and sperm pump (China). (A) Gonocoxites and gonocoxal fragment; (B) adminiculum, ventral view; (C) sperm pump, lateral view; (D) sperm pump, ventral view; (E) sperm pump, ventral view at different angle; (F) apical part of intromittent organ. Abbreviations: aia, anterior immovable apodeme; ca, compressor apodeme; ls, lateral sclerite of gonocoxal fragment; ms, medial sclerite of gonocoxal fragment; pia, posterior immovable apodeme. Scale a: (A); b: (C–E); c: (B); d: (F).
Insects 16 00978 g005
Insects 16 00978 g006
Figure 6. Female terminalia of Brithura sancta (China). (A) Ovipositor, lateral view; (B) terminal tergites and cercus, lateral view; (C) tergites 8–10, dorsal view; (D) anal plate, ventral view. Abbreviations: ap, anal plate; b, band (its fragment); c, cercus; h, hypovalva; ll, lateral lobe of t10; t10, tergite 10; t9, tergite 9. Scale a: (A); b: (B); c: (C); d: (D).
Figure 6. Female terminalia of Brithura sancta (China). (A) Ovipositor, lateral view; (B) terminal tergites and cercus, lateral view; (C) tergites 8–10, dorsal view; (D) anal plate, ventral view. Abbreviations: ap, anal plate; b, band (its fragment); c, cercus; h, hypovalva; ll, lateral lobe of t10; t10, tergite 10; t9, tergite 9. Scale a: (A); b: (B); c: (C); d: (D).
Insects 16 00978 g006
Insects 16 00978 g007

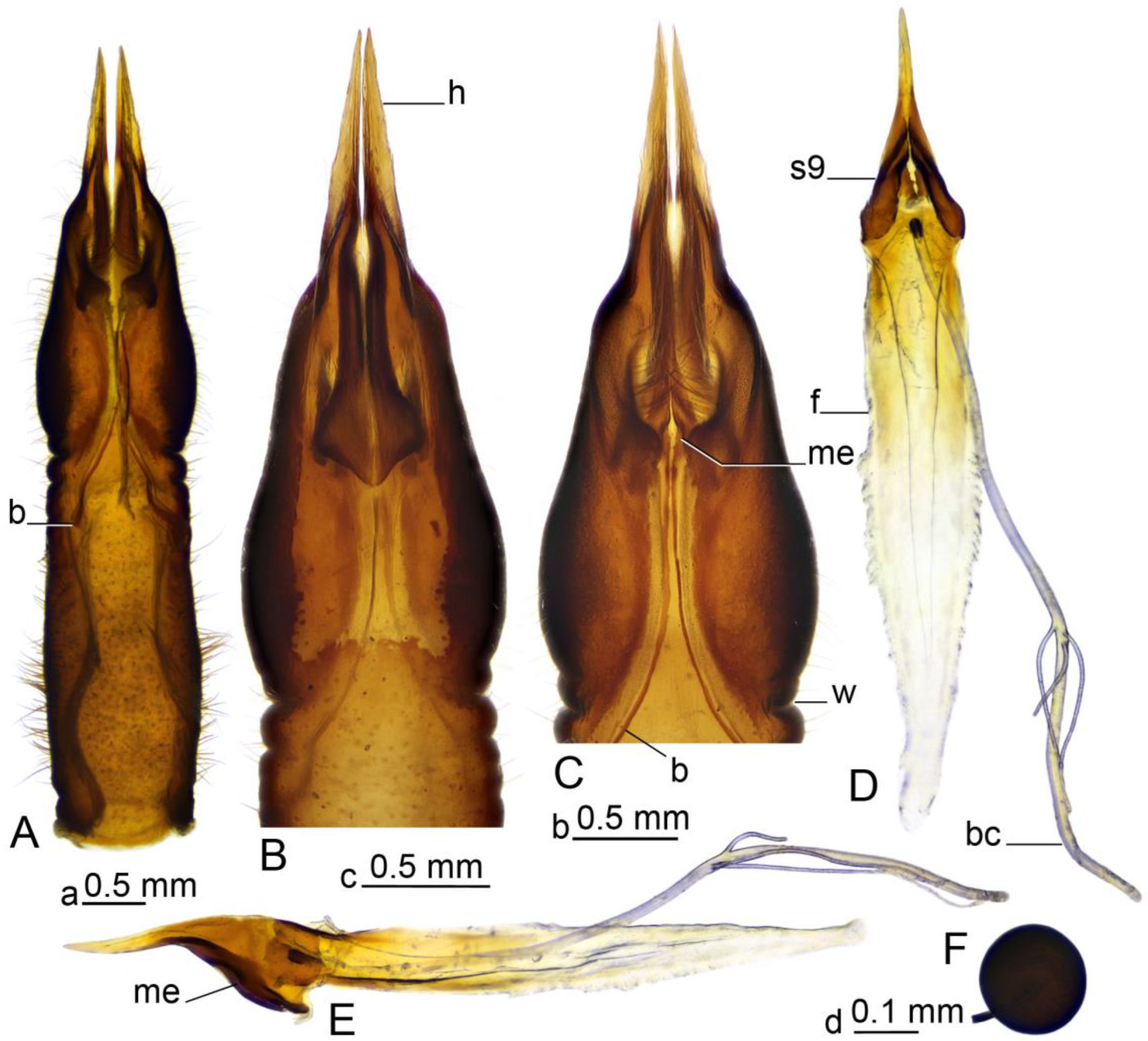

Figure 7. Female terminalia of Brithura sancta (China). (A) Sternite 8, dorsal view; (B) anterior part of sternite 8, ventral view; (B) anterior part of sternite 8, dorsal view; (D) sternite 9, furca and bursa copulatrix, dorsal view; (E) sternite 9, furca and bursa copulatrix, lateral view; (F) spermatheca. Abbreviations: b, band; bc, bursa copulatrix; f, furca; h, hypovalva; me, mesal edge of sternite 9 (band’s attachment point); s9, sternite 9; w, wrinkle. Scale a: (A); b: (B,C); c: (D,E); d: (F).
Figure 7. Female terminalia of Brithura sancta (China). (A) Sternite 8, dorsal view; (B) anterior part of sternite 8, ventral view; (B) anterior part of sternite 8, dorsal view; (D) sternite 9, furca and bursa copulatrix, dorsal view; (E) sternite 9, furca and bursa copulatrix, lateral view; (F) spermatheca. Abbreviations: b, band; bc, bursa copulatrix; f, furca; h, hypovalva; me, mesal edge of sternite 9 (band’s attachment point); s9, sternite 9; w, wrinkle. Scale a: (A); b: (B,C); c: (D,E); d: (F).
Insects 16 00978 g007
Insects 16 00978 g008

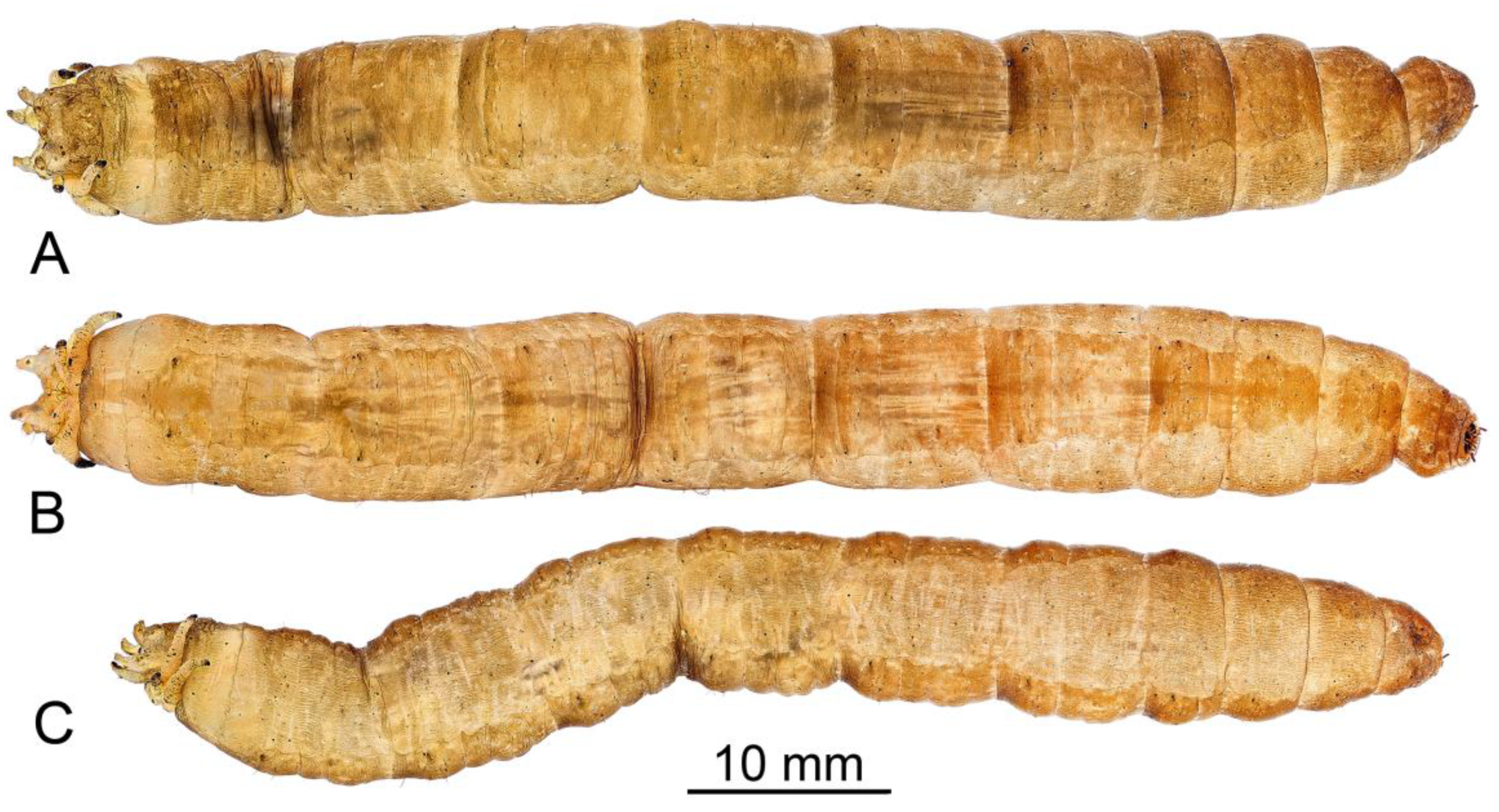

Figure 8. General view of the larva of Brithura sancta (Republic of Korea). (A) Dorsal view; (B) ventral view; (C) lateral view.
Figure 8. General view of the larva of Brithura sancta (Republic of Korea). (A) Dorsal view; (B) ventral view; (C) lateral view.
Insects 16 00978 g008
Head capsule (Figure 9 and Figure 10). Length 2.3 mm, width 1.2 mm. Head capsule prognathous, hemicephalic, oval in shape, slightly depressed dorsoventrally and heavily sclerotized (Figure 9). Internolateralia and externolateralia separated by incisions that reach about one third of head capsule length. The externolateralia widely separated ventrally (Figure 9B). Premaxillary suture separates side plate from the rest of the head capsule. Side plate wide and elongated, with two sensory pits and two long setae anteromedially, a short seta located posteromedially (Figure 9B). Hypostomium symmetrical, basally fused with the ventral margins of genae and side plates. It bears nine teeth: three prominent teeth in the middle and three much smaller teeth on both sides (Figure 10A). Prementum visible from below, it bears five small blunt teeth on the anterior margin, sides strongly sclerotized (Figure 10B). Labial area entirely covered with firm bristles and bearing a pair of cone-shaped palpes. Prementum dorsally fused with hemispherical and membranous hypopharynx which is covered with numerous short hairs. Lateral arm of hypopharynx curved and strongly sclerotized. Frontoclypeus fused with internolateralia. Clypeal part of frontoclypeus membranous, frontal part sclerotized. One long seta and a sensory pit located on the anterior part of clypeus, one long seta and four sensory pits located near the inner margin of antenna (Figure 10C). The clypeolabral suture obscure. The dorsal ecdysial sutures (frontal sutures) present, they meet each other posteriorly and form a short median coronal suture. Ecdysial sutures enclose the V-shaped frontoclypeus and extend only to the base of the clypeus anteriorly. Labrum trapezoidal in shape and composed of two triangular plates separated by membranous area (Figure 10C). Apical part of labrum and epipharynx covered with numerous short hairs. Membranous part of labrum with a pair of medium-long setae in the middle. Labral plates widely sclerotized posteriorly and bears numerous long firm spines on outer margin. Each plate bears one long and one medium length papillae on the anterior part, one long flattened seta almost in the middle, and a sensory pit on the posterolateral part (Figure 10C). Antenna elongated, cylindrical. It has just one cylindrical segment, which is almost four times as long as width at the base (Figure 10C). Apically it has one small cone-shaped and several (exact number is difficult to establish) small peg-like sensillae, dorsally it has a sensory pit near the middle. Mandible one segmented and more sclerotized than the rest of the head capsule, with two blunt inconspicuous teeth (Figure 10D). Both teeth are similar in size and shape. Prostheca or lacinia mobilis present on the dorsal side of mesal mandibular base. It is sclerotized, distinctly widening distally, and set with numerous hairs. Lateral margin of mandible has one very short seta near the base. Mandibles operate in horizontal plane. Conspicuous larval eye spot present below the base of mandible. Maxilla consists of cardo, outer and inner lobes. Cardo wedge-shaped, anterior part heavily sclerotized. It bears two long flattened setae and a sensory pit near the distal end; a long seta present close to its base (Figure 10E,F). Outer lobe (stipes) sclerotized except apex, which bears prominent cylindrical palpus with several sensory structures. Three short sensory structures and several long sclerotized spines (exact number is difficult to establish) located on inner margin of stipes. Inner lobe (galea fused with lacinia) ventrally bears elongated narrow sclerite extending around inner margin onto its dorsal surface; diamond-shaped sclerite present dorsally at the base (Figure 10E); apical part with numerous short hairs, a long setae and prominent sensory structure. Lacinia armed with several stout bristles.
Thorax. All thoracic segments wider than long (Figure 8).
Abdomen. First abdominal segment almost twice as wide as long. Abdominal segments II–VII almost as long as wide. Most of macrosetae dark brown except D6, V1, and L3. Dorsal setae D2–D4 are the longest (Figure 11A), seta D1 half length D2–D4, seta D5 very short and surrounded by longer dark hairs, two times shorter than D1. Seta D6 thin, pale, and branched; slightly shorter than D1. Setae D2 with D3 and D5 with D6 are close to each other and separate from the others. Ventral setae V3 and V4 are the longest setae (Figure 11B). V5 is half length of V3–V4. Seta V2 is very short and surrounded by long dark hairs, three times shorter than V5. Seta V1 thin, pale, and branched; half length of V5. Setae V5 with V4 and V3–V1 are close to each other and separate from the others. Lateral seta L3 thin, pale, and branched (Figure 11C). Seta L2 the longest and situated dorsolaterally to L1. L1 and L3 almost equal in length and are three times shorter than L2. L4 is half length of L2.
Terminal segment (Figure 12). All spiracular lobes conical, elongated, and narrow. Dorsal and lateral lobes almost 1.5 times as long as the width at base, ventral lobes twice as long as wide. Lateral lobes equidistant from dorsal and ventral lobes. Lateral lobes only slightly longer than dorsal lobes, ventral lobes almost twice as long as dorsal lobes. Apical half of lobes with well-developed border of setae, longest setae twice the basal width of the lobe. The basal part of the lobes and the area between the lobes not bordered with setae (Figure 12). The posterior surface of the spiracular field not covered with short microscopic hairs, and the spiracular lobes are able to close. Apical part of lateral and ventral spiracular lobes with small outgroves on the anterior surface, each outgrove bears several long setae. Dorsal lobe of spiracular field entirely covered with brown sclerite, margins of sclerite darker than the middle part. Inner margin of lateral lobe with narrow, dark, elongated sclerite from base to apex. Two small black spots near the base of each ventral lobe. Ventral lobe entirely covered with very light brown sclerite. Spiracle circular, black, distance between spiracles more than four diameters of a spiracle (Figure 12C). Six white and elongated anal papillae arranged into lateral and median pairs, lateral pair single, median papillae paired (Figure 12B). Marginal band of anal field dark brown.
Habitat. Larvae were found in sandy mud under stones and leaf litter in a shallow, steep stream together with larvae of T. (Nippotipula) Matsumura, 1916.
Distribution. China [1] and Republic of Korea [40].
Insects 16 00978 g009

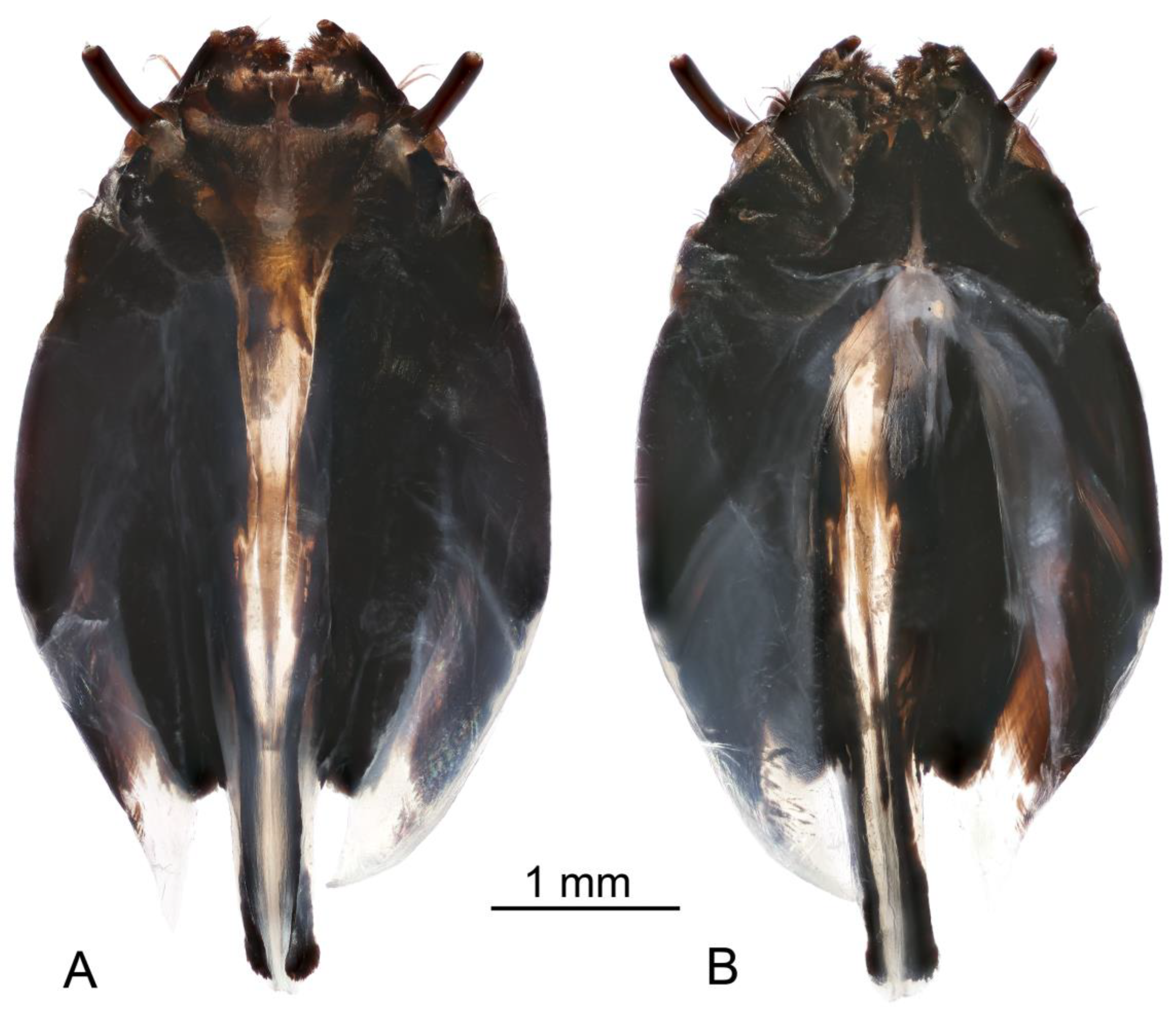

Figure 9. Larva of Brithura sancta, general view of head capsule (Republic of Korea). (A) Dorsal view, (B) ventral view.
Figure 9. Larva of Brithura sancta, general view of head capsule (Republic of Korea). (A) Dorsal view, (B) ventral view.
Insects 16 00978 g009
Insects 16 00978 g010

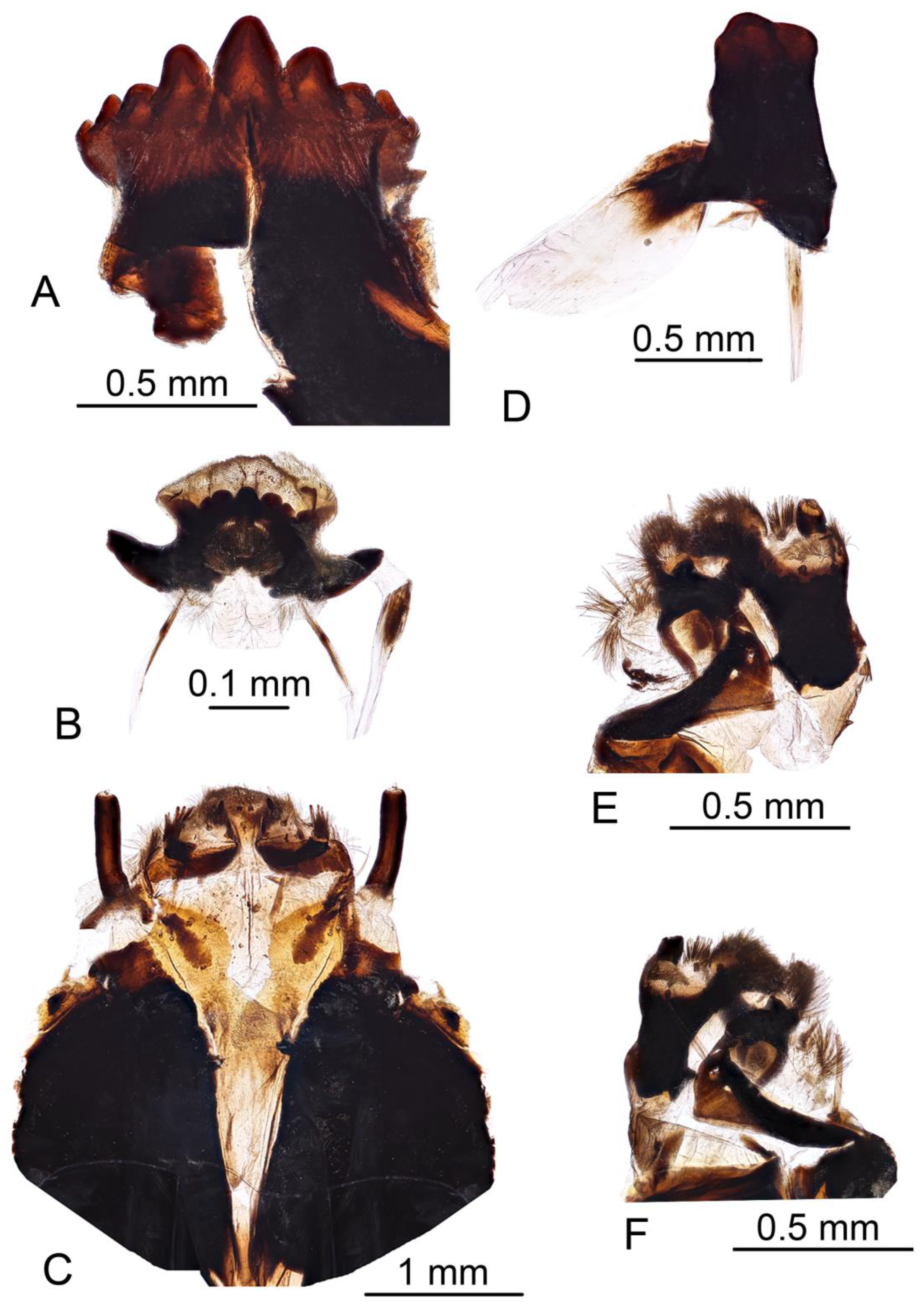

Figure 10. Larva of Brithura sancta, head capsule (Republic of Korea). (A) Hypostomium; (B) prementum; (C) frontoclypeus, labrum and antenna; (D) left mandible; (E) left maxilla, dorsal view; (F) left maxilla ventral view.
Figure 10. Larva of Brithura sancta, head capsule (Republic of Korea). (A) Hypostomium; (B) prementum; (C) frontoclypeus, labrum and antenna; (D) left mandible; (E) left maxilla, dorsal view; (F) left maxilla ventral view.
Insects 16 00978 g010
Insects 16 00978 g011
Figure 11. Abdominal setae of larva of Brithura sancta (Republic of Korea). (A) Dorsal abdominal setae; (B) ventral abdominal setae; (C) lateral abdominal setae.
Figure 11. Abdominal setae of larva of Brithura sancta (Republic of Korea). (A) Dorsal abdominal setae; (B) ventral abdominal setae; (C) lateral abdominal setae.
Insects 16 00978 g011
Insects 16 00978 g012
Figure 12. Larva of Brithura sancta (Republic of Korea). (A) Terminal segment dorsal view; (B) terminal segment ventral view; (C) spiracular field, caudal view.
Figure 12. Larva of Brithura sancta (Republic of Korea). (A) Terminal segment dorsal view; (B) terminal segment ventral view; (C) spiracular field, caudal view.
Insects 16 00978 g012
COI sequencing. The partial, 620 bp length, COI gene nucleotide sequences were obtained from three Korean (two adult (OQ368738, OQ368739) and one larva (PV834789)) and one very old Chinese adult (OQ368740) specimens. The latter was identified as B. sancta by the author who deposited it into collection of the museum in 1933. All three sequences isolated from Korean B. sancta specimens were identical and had 96.5% nucleotide sequence similarity to the old B. sancta isolate from China OQ368740. They also shared 99.2-100% identity with six isolates from S. Korea (ON732830-ON732835) and -93.3-93.6% similarity to five isolates of morphologically different Brithura species from China [Taiwan] (CMNH544017, CMNH544493, CMNH544500, CMNH551721, CMNH575752). When comparing to other genera, Korean isolates shared 91.4% identity with Tipula (Nippotipula) coquilletti (ON732843), 90.9% with Tipula (Tipula) mediterranea (MZ196738), and 89.2% with Tipula (Nobilotipula) collaris (CMNH475020).

4. Discussion

Brithura sancta is distinguished by a remarkable three-lobed outer gonostylus. The most closely related species is B. triprocessa Men and Liu, 2019 [42] in a similar shape of outer gonostylus consisting of three parts, still having different shapes (ref. [42]: Figures 13–17). The main body of the outer gonostylus in B. triprocessa terminates in an obtuse lobe, while the caudal part has the shape of a sharp process separated by a light region. The lateral part of the outer gonostylus (=inner obtuse lobe [42]) is generally similar to that of B. sancta, but lacks denticle.
Brithura sancta is also characterized by an inner gonostylus having a specific ring and a pair of long bands which are fused with the mesal edges of sternites 9, along the margin of sternite 8, and reaching the distal ends of tergite 9.
Male of B. sancta lacks the distal lobe of A9s, a structure common, e.g., in T. (Eremotipula) Alexander, 1965, T. (Lunatipula) Edwards, 1931, and T. (Vestiplex) Bezzi, 1924. The part of T. (Vestiplex) species has a small distal lobe of A9s fused with the mesoventral edge of the gonocoxite (ref. [43]: Figures 26 and 27; ref. [44]: Figure 7) with a shape similar to the mesoventral lobe of the lateral sclerite of the gonocoxal fragment. The fusion with gonocoxite, shape, and position of both sclerites attribute to possible homology. Still, additional comparative studies, including muscle morphology, are needed to prove the origin of the distal lobe of A9s.
According to Savchenko [45] the genus Brithura is closely related to T. (Nippotipula) and T. (Sinotipula) Alexander, 1935 (listed as T. (Bellardina) Edwards, 1931) based on several external features including hypertrophic. outer gonostylus. Alexander noted the complexity of the outer gonostylus in T. (Nippotipula), T. (Sinotipula) and T. (Bellardina), which is small and simple in other groups [46]. All mentioned groups, together with T. (Nobilotipula) Alexander, 1943 form a separate clade based on AHE dataset, which includes 289 taxa and 257 loci (ref. [47]: Figure 4). Based on COI sequences T. (Nippotipula) did not come out close to T. (Bellardina) or Brithura (ref. [47]: Figure 1).
Currently it is difficult to make decisive conclusions on correlations between morphological and genetic species comparisons. Unfortunately, COI gene sequences of possibly very closely related subgenera of T. (Sinotipula) and T. (Bellardina) are not available on databases. In general, depending on the genus, crane fly intraspecific genetic variability of COI sequences is somewhere above ~94% nucleotide identity, while interspecific similarities are below this mark. This was also the case with our B. sancta samples. However, usually quite a few different genera share very similar nucleotide sequence identity when comparing each one to another. This makes it difficult to distinguish their exact genetic connections and phylogeny trees are generated with low bootstrap values on branches between genera (Figure 13). Notably, a relatively short, ~650 bp size COI gene fragment is used globally for insect identification and classification, and full gene length ~1500 bp sequences are absent. While this fragment is usually used for identification of species, it alone might be not sufficient to clearly and fully distinguish genera relations and connections in such a large family as Tipulidae (over thousands [1]) and additional genetic markers might be needed for this purpose.
Larvae of the genus Brithura exhibit the greatest morphological similarity to those of Tipula from subgenera T. (Acutipula) Alexander, 1924 and T. (Tipula). These larvae are notably large and lack lobes or other projections on the abdominal segments. The body surface in Brithura, as well as in T. (Acutipula) and T. (Tipula), is covered only with fine, microscopic setae; conspicuous macrosetae forming longitudinal or transverse patterns are absent.
Like the majority of aquatic and semi-aquatic Tipulidae larvae, Brithura possesses a full complement of macrosetae (D1–D6, V1–V5, L1–L4). The size, shape, and arrangement of these macrosetae are diagnostic at the genus or subgenus level within Tipulidae [11]. Certain features—such as branched macrosetae D6, L3, V1, and the presence of particularly long setae—are shared among several aquatic and semi-aquatic groups, including Angarotipula, Tipulodina, T. (Arctotipula) Alexander, 1934, T. (Platytipula) Matsumura, 1916, T. (Bellardina), T. (Nobilotipula) Alexander, 1943, and T. (Yamatotipula) Matsumura, 1916. In Brithura, setae V2 and D5 are surrounded by clusters of longer microsetae, though these are much shorter than in T. (Yamatotipula). While the general arrangement of dorsal, lateral, and ventral setae resembles that of T. (Sinotipula), branched setae are not characteristic of the latter [35].
Insects 16 00978 g013

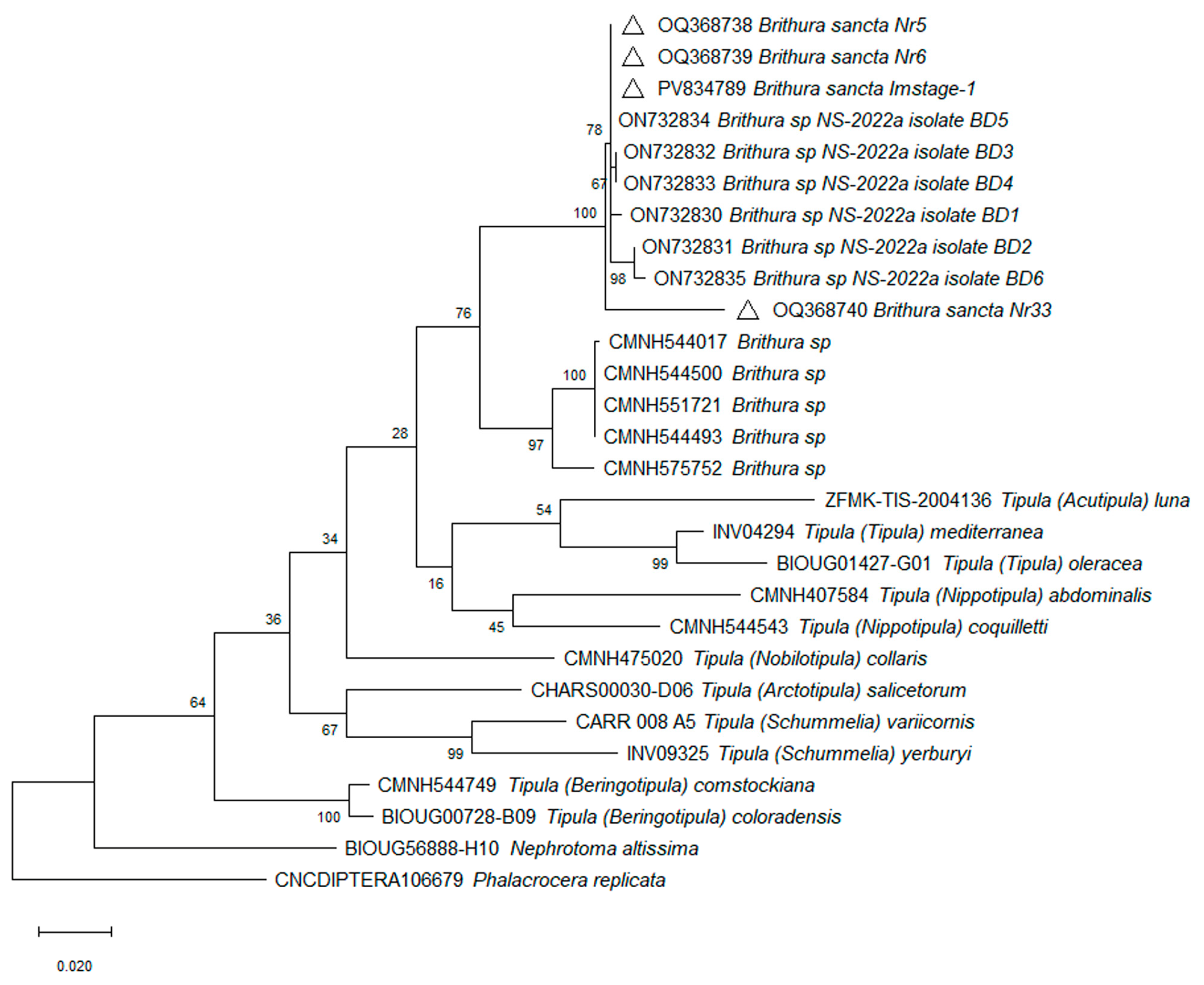

Figure 13. Phylogenetic tree based on cytochrome oxidase subunit I gene sequence. Constructed using the Maximum Likelihood method based on the Tamura–Nei model [13] and subjected to a bootstrap test with 1000 replicates. The scale bar represents the number of base substitutions per site. Triangles mark the isolates obtained in this study.
Figure 13. Phylogenetic tree based on cytochrome oxidase subunit I gene sequence. Constructed using the Maximum Likelihood method based on the Tamura–Nei model [13] and subjected to a bootstrap test with 1000 replicates. The scale bar represents the number of base substitutions per site. Triangles mark the isolates obtained in this study.
Insects 16 00978 g013
The larval head capsule is highly conserved across Tipulidae and is generally not useful for genus-level identification [36]. Moreover, descriptions of tipulid larvae often provide only superficial or incomplete accounts of head capsule morphology, complicating comparative diagnoses. In this family, the hypostomal plate bears a variable number of teeth, typically ranging from 5 to 11 [25,35]. Brithura, like Ctenophora, Phoroctenia, Tanyptera, Prionocera, Tipulodina, and the subgenera T. (Dendrotipula) Savchenko, 1964 and parts of T. (Pterelachisus) Rondani, 1842, possesses nine hypostomal teeth.
The number of anal papillae is a key taxonomic feature in Tipulidae larvae [6,35]. In Brithura, the anus is surrounded by three pairs of elongated anal papillae—a common number among aquatic and semi-aquatic genera, including Angarotipula, Prionocera, and the subgenera T. (Platytipula), T. (Nippotipula), T. (Arctotipula), T. (Sinotipula), and T. (Yamatotipula) of genus Tipula.
Among the most reliable diagnostic characters for Tipulidae larvae is the architecture of the spiracular field. All known Tipulidae larvae possess six spiracular lobes, with lobe shape varying according to habitat type and taxonomical group. Aquatic species typically have flat or conical lobes that are only weakly sclerotized. Brithura, like T. (Nippotipula) and T. (Arctotipula), exhibits long, conical spiracular lobes. However, in contrast to the latter subgenera, the lobes in Brithura are more uniform in length and less differentiated. A distinguishing feature of Brithura is the presence of relatively long setae along the margins of the spiracular lobes—a character which is absent in T. (Nippotipula) and T. (Arctotipula). Additionally, the dorsal surfaces of the ventral and lateral lobes bear weakly developed setose outgrowths. Although similar outgrowths occur in T. (Nippotipula), they are more pronounced and represent a major diagnostic feature of that subgenus. The most distinguishing character of Brithura is the unique sclerotisation of the spiracular field. The unique set of characters of the spiracular field in Brithura larvae reinforces the consensus that this structure provides the most consistent and informative characters for distinguishing genera and subgenera in Tipulidae larvae.
The larval habitat of Brithura closely resembles that of T. (Nippotipula), T. (Arctotipula), and certain species within T. (Acutipula). Larvae of all these groups develop in lotic environments, typically on the beds of small streams with sandy or stony substrates, where fine organic silt accumulates among the interstitial spaces.

Author Contributions

Conceptualization, V.P. and P.S.; Methodology, V.P., P.S. and S.P. (dissection, imaging), D.S. and D.B. (molecular analysis); Validation, V.P. and P.S.; Investigation, V.P., S.P. and J.K. (fieldwork); V.P. and P.S. (work in a laboratory); D.S. and D.B. (molecular analysis); Writing—Original Draft Preparation, V.P. (description of larva, part of discussion), P.S. (description of adult, part of discussion) and D.S. (COI analysis); Writing–Review and Editing, V.P. and P.S.; Visualization, V.P., P.S. and S.P. (work with ZereneStacker and Photoshop); Project Administration, J.W.Y., N.-H.A. and S.Y.K. Funding Acquisition, J.W.Y., N.-H.A. and S.Y.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant from the National Institute of Biological Resources (NIBR), funded by the Ministry of Environment (MOE) of the Republic of Korea (NIBR202502107).

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

We give our warmest thanks to all our Korean friends and colleagues who helped us during our visits to Republic of Korea. We are very grateful for Y.J. Bae for the specimens from the Korea University, Seoul, Republic of Korea; F. Shockley and T. Dikow (USNM) and J.K. Gelhaus (ANSP) for use of the USNM specimens. We thank D. A. Yi for the help with assisting in fieldwork in Korea.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Oosterbroek, P. Catalogue of the Craneflies of the World (CCW) 2025. Available online: https://ccw.naturalis.nl/index.php (accessed on 10 June 2025).
  2. Edwards, F.W. New and Little-Known Tipulidae, Chiefly from Formosa. Ann. Mag. Nat. Hist. 1916, 18, 245–269. [Google Scholar] [CrossRef]
  3. Edwards, F.W. Notes on the Types of Diptera Nematocera (Mycetophilidae and Tipulidae) Described by Mr. E. Brunetti. Rec. Zool. Surv. India 1924, 26, 291. [Google Scholar] [CrossRef]
  4. Alexander, C.P. New or Little-Known Tipulidae from Eastern Asia (Diptera). XXV. Philipp. J. Sci. 1935, 57, 81–148. [Google Scholar]
  5. De Jong, H.; Oosterbroek, P.; Gelhaus, J.; Reusch, H.; Young, C. Global Diversity of Craneflies (Insecta, Diptera: Tipulidea or Tipulidae Sensu Lato) in Freshwater. Hydrobiologia 2008, 595, 457–467. [Google Scholar] [CrossRef]
  6. Gelhaus, J.K.; Podeniene, V. Tipuloidea. In An Introduction to The Aquatic Insects of North America, 5th ed.; Merritt, R.W., Cummins, K.W., Berg, M.B., Eds.; Kendall and Hunt: Dubuque, IA, USA, 2019; pp. 1023–1070. ISBN 9798385133833. [Google Scholar]
  7. Petersen, M.; Gelhaus, J.; Oosterbroek, P.; Podėnas, S.; Podėnienė, V.; Ribeiro, G.; Santos, D.; Zhang, X. Crane Fly (Diptera: Tipuloidea) Systematics: Past, Present, and Future. ISD 2025, 9, 5. [Google Scholar] [CrossRef]
  8. Podeniene, V. Morphology and Ecology of the Last Instar Larvae of the Crane Flies (Diptera, Tipulomorpha) of Lithuania. Ph.D. Thesis, Vilnius University, Vilnius, Lithuania, 2003. [Google Scholar]
  9. Alexander, C.P. The Crane-Flies of New York. Part II. Biology and Phylogeny; Cornell University: Ithaca, NY, USA, 1920. [Google Scholar]
  10. Gelhaus, J.K.; Young, C.W. The Immature Instars and Biology of the Crane Fly Genus Brachypremna Osten Sacken (Diptera: Tipulidae). Proc. Entomol. Soc. Wash. 1991, 93, 613–621. [Google Scholar]
  11. Chiswell, J.R. A Taxonomic Account of the Last Instar Larvae of Some British Tipulinae (Diptera: Tipulidae). Trans. R. Entomol. Soc. Lond. 1956, 108, 409–484. [Google Scholar] [CrossRef]
  12. Young, C.W.; Chu, C.L. Larva, Pupa, and Biology of the Crane Fly Indotipula demarcata (Brunetti) from Taiwan (Insecta: Diptera: Tipulidae). Ann. Carnegie Mus. 2009, 78, 319–324. [Google Scholar] [CrossRef]
  13. Wood, H.M. The Crane-Flies of the South-West Cape (Diptera, Tipuloidea). Ann. S. Afr. Mus. 1952, 39, 1–327. [Google Scholar]
  14. Rogers, J.S. The Life History of Megistocera Longipennis (Macquart) (Tipulidae, Diptera), a Member of the Neuston Fauna. In Occasional Papers of the Museum of Zoolog; University of Michigan Press: Ann Arbor, MI, USA, 1949; pp. 1–17. [Google Scholar]
  15. Theowald, B. Familie Tipulidae (Diptera, Nematocera). Larven Und Puppen. Bestimmungsbucher Zur Bodenfauna Eur. 1967, 7, 1–100. [Google Scholar]
  16. Krivosheina, N.P. To the biology of crane flies of the genus Tipula L. (Diptera, Tipulidae), developing in rotting wood in the southern Primorye. Byulleten Mosk. Obshch. Ispyt. Prir. 1973, 78, 45–56. [Google Scholar]
  17. Young, C.W.; Hynes, C.D. Biology and Immature Stages of the Crane Fly Ptilogyna (Plusiomyia) Herroni (Alexander) from New Caledonia, with Discussion of Its Phylogenetic Placement (Diptera: Tipulidae). Proc. Entomol. Soc. Wash. 2003, 105, 452–459. [Google Scholar]
  18. Gerbig, F. Über Tipuliden-Larven Mit Besonderer Berücksichtigung Der Respirationsorgane. Zool. Jb. Syst. 1913, 35, 127–181. [Google Scholar]
  19. Young, C.W. New Species and Immature Instars of Crane Flies of Subgenus Tipulodina Enderlein from Sulawesi (Insecta: Diptera: Tipulidae: Tipula). Ann. Carnegie Mus. 1999, 68, 81–90. [Google Scholar] [CrossRef]
  20. Winterbourn, M.J.; Gregson, K.L.D.; Dolphin, C.H. Guide to the Aquatic Insects of New Zealand. Bull. Entomol. Soc. 2000, 13, 1–102. [Google Scholar]
  21. Keresztes, L.; Kolcsár, L.P.; Denes, A.L.; Torok, E. Revealing Unknown Larvae of the Maxima Species Group of the Genus Acutipula Alexander, 1924 (Tipula, Tipuloidae, Diptera) Using an Integrative Approach. North-West. J. Zool. 2018, 14, 17–24. [Google Scholar]
  22. Strutzenberger, P.; Brehm, G.; Fiedler, K. DNA Barcode Sequencing from Old Type Specimens as a Tool in Taxonomy: A Case Study in the Diverse Genus Eois (Lepidoptera: Geometridae). PLoS ONE 2012, 7, e49710. [Google Scholar] [CrossRef]
  23. Yeo, D.; Puniamoorthy, J.; Ngiam, R.W.J.; Meier, R. Towards Holomorphology in Entomology: Rapid and Cost-effective Adult–Larva Matching Using NGS Barcodes. Syst. Entomol. 2018, 43, 678–691. [Google Scholar] [CrossRef]
  24. Kirk-Spriggs, A.H. Collection and Preservation of Diptera. In Manual of Afrotropical Diptera, Volume 1: Introductory Chapters and Keys to Diptera Families; Suricata 4; Kirk-Spriggs, A.H., Sinclair, B.J., Eds.; South African National Biodiversity Institute: Pretoria, South Africa, 2017; Volume 1, pp. 69–88. ISBN 978-1-928224-11-2. [Google Scholar]
  25. Hernández-Triana, L.M.; Prosser, S.W.; Rodríguez-Perez, M.A.; Chaverri, L.G.; Hebert, P.D.N.; Ryan Gregory, T. Recovery of DNA Barcodes from Blackfly Museum Specimens (Diptera: Simuliidae) Using Primer Sets That Target a Variety of Sequence Lengths. Mol. Ecol. Resour. 2014, 14, 508–518. [Google Scholar] [CrossRef]
  26. Tamura, K.; Stecher, G.; Kumar, S. MEGA11: Molecular Evolutionary Genetics Analysis Version 11. Mol. Biol. Evol. 2021, 38, 3022–3027. [Google Scholar] [CrossRef]
  27. Tamura, K.; Nei, M. Estimation of the Number of Nucleotide Substitutions in the Control Region of Mitochondrial DNA in Humans and Chimpanzees. MBE 1993, 10, 512–526. [Google Scholar]
  28. Cumming, J.M.; Wood, D.M. Adult Morphology and Terminology. In Manual of Afrotropical Diptera, Volume 1: Introductory Chapters and Keys to Diptera Families; Suricata 4; Kirk-Spriggs, A.H., Sinclair, B.J., Eds.; South African National Biodiversity Institute: Pretoria, South Africa, 2017; Volume 1, pp. 89–133. ISBN 978-1-928224-11-2. [Google Scholar]
  29. Rees, B.E.; Feeris, G.F. The Morphology of Tipula reesi Alexander (Diptera: Tipulidae). Microentomology 1939, 4, 143–178. [Google Scholar]
  30. Mannheims, B. 15. Tipulidae. In Die Fliegen der Palaearktischen Region; Lindner, E., Ed.; E. Schweizerbart’sche Verlagsbuchhandlung: Stuttgart, Germany, 1963; Volume 238, pp. 137–176. [Google Scholar]
  31. Gelhaus, J.K. Systematics and Biogeography of the Desert Crane Fly Subgenus Tipula (Eremotipula) Alexander (Diptera: Tipulidae). Mem. Am. Entomol. Soc. 2005, 46, 1–235. [Google Scholar]
  32. Neumann, H. Der Bau Und Die Funktion Der Männlichen Genitalapparate von Trichocera annulata Meig. Und Tipula paludosa Meig. (Dipt. Nematocera). Dtsch. Entomol. Z. 1958, 5, 235–298. [Google Scholar]
  33. Dobrotworsky, N. The Tipulidae (Diptera) of Australia I. A Review of the Genera of the Subamily Tipulinae. Aust. J. Zool. 1968, 16, 459–494. [Google Scholar] [CrossRef]
  34. Brodo, F. Taxonomic Review of Angarotipula Savchenko, 1961 (Diptera: Tipulidae) in North America. Can. Entomol 2018, 150, 12–34. [Google Scholar] [CrossRef]
  35. Gelhaus, J.K. Larvae of the Crane Fly Genus Tipula in North America (Diptera: Tipulidae). Univ. Kans. Sci. Bull. 1986, 53, 121–182. [Google Scholar]
  36. Neugart, C.; Schneeberg, K.; Beutel, R.G. The Morphology of the Larval Head of Tipulidae (Diptera, Insecta)—The Dipteran Groundplan and Evolutionary Trends. Zool. Anz. 2009, 248, 213–235. [Google Scholar] [CrossRef]
  37. Alexander, C.P. New or Little-Known Tipulidae from Eastern Asia (Diptera). IV. Philipp. J. Sci. 1929, 40, 317–348. [Google Scholar]
  38. Savchenko, E.N. Crane-flies (Fam. Tipulidae), Introduction, Subfam. Dolichopezinae, subfam. Tipulinae (start). Fauna USSR N. S. 127 Insecta Diptera 1983, 2, 1–585. [Google Scholar]
  39. Oosterbroek, P.; Theowald, B. Family Tipulidae. In Catalogue of Palaearctic Diptera 1; Soós, Á., Papp, L., Eds.; Hungarian Natural History Museum: Budapest, Hyngary, 1992; pp. 56–178. [Google Scholar]
  40. Yi, D.A. New Distributional Records of the Genus Brithura Edward and Twelve Species of the Genus Tipula (Diptera: Tipulidae: Tipulinae) from South Korea. Ent. Res. Bul. 2025, 40, 38–47. [Google Scholar]
  41. Edwards, F.W. The Indian Species of Tipula (Diptera, Tipulidae). Part II. Stylops 1932, 1, 233–240. [Google Scholar] [CrossRef]
  42. Men, Q.L.; Wang, H.; Sheng, N.; Zhao, Q.; Zhang, J. A New Species of Brithura Edwards from China, with Notes on Its Internal Reproductive System (Diptera: Tipulidae). Zool. Syst. 2019, 44, 158–166. [Google Scholar]
  43. Starkevich, P.; Men, Q.L.; Saldaitis, A. Four New Crane Fly Species of Subgenus Tipula (Vestiplex) (Diptera, Tipulidae) from China. Zootaxa 2019, 4679, 69–86. [Google Scholar] [CrossRef] [PubMed]
  44. Men, Q.L.; Starkevich, P.; Sun, M.W. Two New Species of the Genus Tipula Linnaeus, 1758 (Diptera: Tipulidae) from China. Ann. Zool. 2021, 71, 243–250. [Google Scholar] [CrossRef]
  45. Savchenko, E.N. Crane-flies (Diptera, Tipulidae), Subfam. Tipulinae, Genus Tipula L., (part 1). Fauna USSR N.S. 79 Insecta Diptera 1961, 2, 1–487. [Google Scholar]
  46. Alexander, C.P. New Subgenera and Species of Crane-Flies from California (Diptera: Tipulidae). Pac. Insects 1965, 7, 333–386. [Google Scholar]
  47. Conrow, R. A Molecular Phylogeny of the Crane Fly Family Tipulidae (Diptera: Tipuloidea) and the Evolution of Their Larval Morphology and Habitats. Ph.D. Thesis, Drexel University, Philadelphia, PA, USA, 2024. [Google Scholar]
Table 1. List of genera of Tipulidae with known larvae.
Table 1. List of genera of Tipulidae with known larvae.
GenusLink to Reference Having First Illustrations
Angarotipula Savchenko, 1961[9]
Brachypremna Osten Sacken, 1887[10]
Ctenophora Meigen, 1803[11]
Dictenidia Brulle, 1833[11]
Dolichopeza Curtis, 1825[11]
Holorusia Loew, 1863[9]
Indotipula Edwards, 1931[12]
Leptotarsus Guerin-Meneville, 1831[13]
Maekistocera Wiedemann, 1820[14]
Nephrotoma Meigen, 1803[11]
Nigrotipula Hutson and Vane-Wright, 1969[15]
Phoroctenia Coquillett, 1910[16]
Prionocera Loew, 1844[11]
Ptilogyna Westwood, 1835[17]
Tanyptera Latreille, 1804[11]
Tipula Linnaeus, 1758[18]
Tipulodina Enderlein, 1912[19]
Zelandotipula Alexander, 1922[20]
Table 2. Information for voucher specimens used in COI barcode analyses.
Table 2. Information for voucher specimens used in COI barcode analyses.
Accession/Specimen NumberDatabaseSpecies
OQ368738 *GenBankBrithura sancta Alexander, 1929
OQ368739 *GenBankBrithura sancta Alexander, 1929
OQ368740 *GenBankBrithura sancta Alexander, 1929
PV834789 *GenBankBrithura sancta Alexander, 1929
ON732830GenBankBrithura sp.
ON732831GenBankBrithura sp.
ON732832GenBankBrithura sp.
ON732833GenBankBrithura sp.
ON732834GenBankBrithura sp.
ON732835GenBankBrithura sp.
CMNH544017BOLDBrithura sp.
CMNH544493BOLDBrithura sp.
CMNH544500BOLDBrithura sp.
CMNH551721BOLDBrithura sp.
CMNH575752BOLDBrithura sp.
CMNH544017BOLDBrithura sp.
ZFMK-TIS-2004136BOLDTipula (Acutipula) luna Westhoff, 1879
CHARS00030-D06BOLDTipula (Arctotipula) salicetorum Siebke, 1870
BIOUG00728-B09BOLDTipula (Beringotipula) coloradensis Doane, 1911
CMNH544749BOLDTipula (Beringotipula) comstockiana Alexander, 1947
CMNH407584BOLDTipula (Nippotipula) abdominalis (Say, 1823)
CMNH544543BOLDTipula (Nippotipula) coquilletti Enderlein, 1912
CMNH475020BOLDTipula (Nobilotipula) collaris Say, 1823
CARR008A5BOLDTipula (Schummelia) variicornis Schummel, 1833
INV09325BOLDTipula (Schummelia) yerburyi Edwards, 1924
INV04294BOLDTipula (Tipula) mediterranea Lackschewitz, 1930
BIOUG01427-G01BOLDTipula (Tipula) oleracea Linnaeus, 1758
BIOUG56888-H10BOLDNephrotoma altissima (Osten Sacken, 1877)
CNCDIPTERA106679BOLDPhalacrocera replicata (Linnaeus, 1758)
*—sequences of COI fragment obtained in this study.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Podeniene, V.; Podenas, S.; Butkauskas, D.; Sneideris, D.; Yum, J.W.; Ahn, N.-H.; Kim, S.Y.; Kim, J.; Starkevich, P. Integrative Study of the Crane Fly Genus Brithura Edwards, 1916 (Diptera: Tipulidae) in East Asia: First Larval Descriptions of the Genus and Insights from Adult Morphology and DNA Barcoding. Insects 2025, 16, 978. https://doi.org/10.3390/insects16090978

AMA Style

Podeniene V, Podenas S, Butkauskas D, Sneideris D, Yum JW, Ahn N-H, Kim SY, Kim J, Starkevich P. Integrative Study of the Crane Fly Genus Brithura Edwards, 1916 (Diptera: Tipulidae) in East Asia: First Larval Descriptions of the Genus and Insights from Adult Morphology and DNA Barcoding. Insects. 2025; 16(9):978. https://doi.org/10.3390/insects16090978

Chicago/Turabian Style

Podeniene, Virginija, Sigitas Podenas, Dalius Butkauskas, Donatas Sneideris, Jin Whoa Yum, Neung-Ho Ahn, Soen Yi Kim, Jisoo Kim, and Pavel Starkevich. 2025. "Integrative Study of the Crane Fly Genus Brithura Edwards, 1916 (Diptera: Tipulidae) in East Asia: First Larval Descriptions of the Genus and Insights from Adult Morphology and DNA Barcoding" Insects 16, no. 9: 978. https://doi.org/10.3390/insects16090978

APA Style

Podeniene, V., Podenas, S., Butkauskas, D., Sneideris, D., Yum, J. W., Ahn, N.-H., Kim, S. Y., Kim, J., & Starkevich, P. (2025). Integrative Study of the Crane Fly Genus Brithura Edwards, 1916 (Diptera: Tipulidae) in East Asia: First Larval Descriptions of the Genus and Insights from Adult Morphology and DNA Barcoding. Insects, 16(9), 978. https://doi.org/10.3390/insects16090978

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
