Substantiating and Implementing Concept of Digital Twins for Virtual Commissioning of Industrial Mechatronic Complexes Exemplified by Rolling Mill Coilers

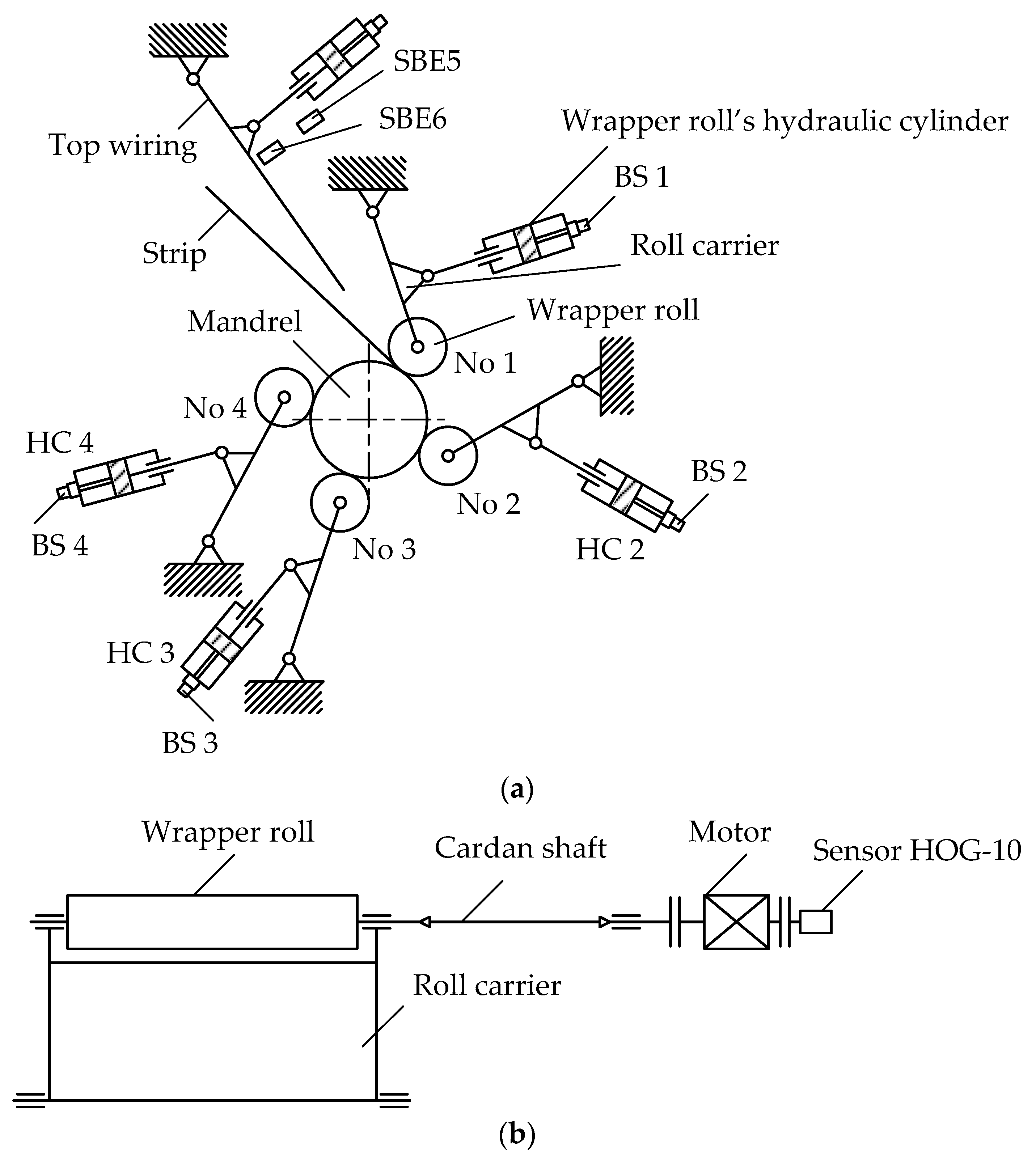

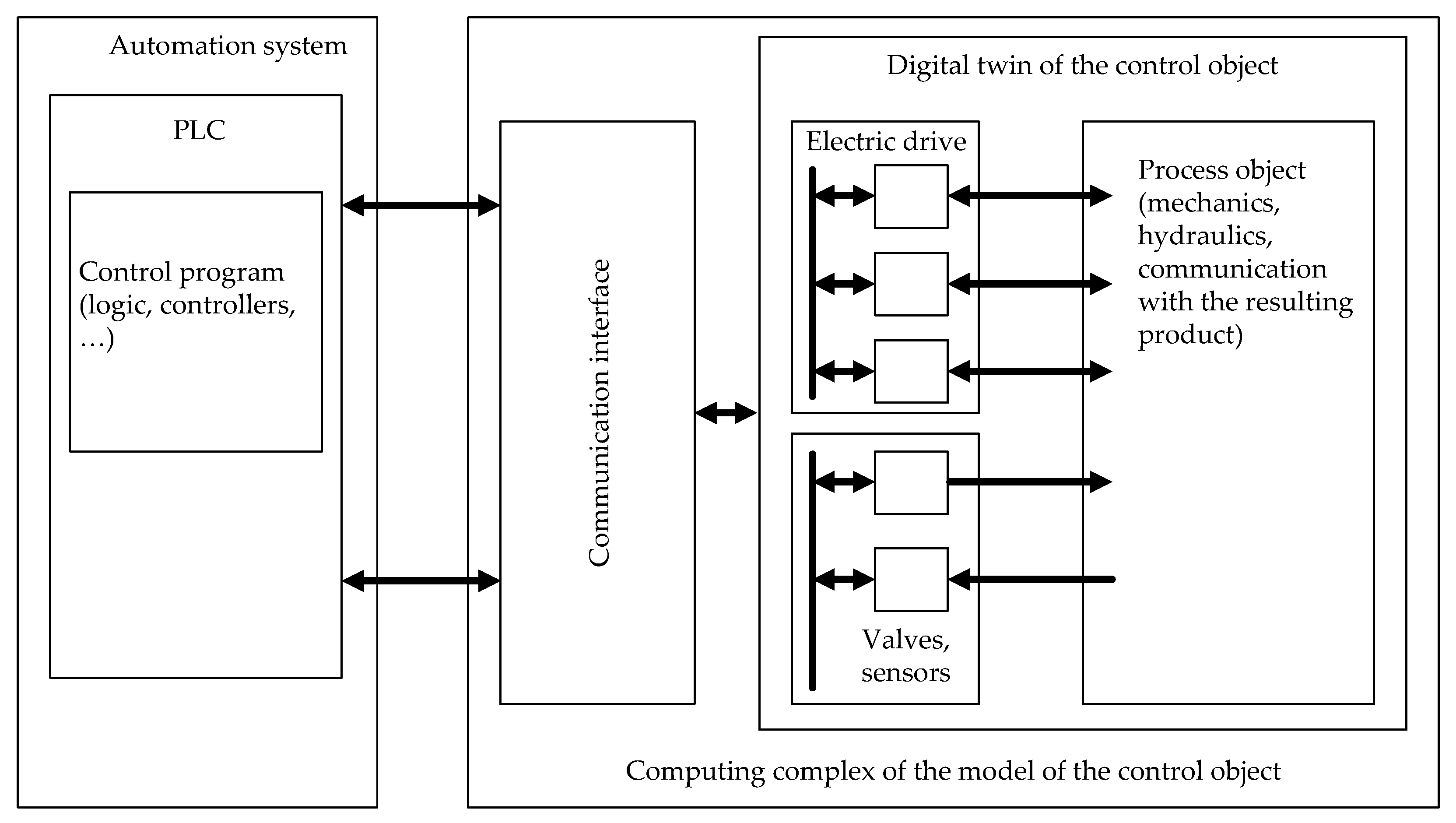

Implementing digital technologies and digital twins (DT) in operating industrial units is one of the key problems in smart production. Metallurgical plants require a solution to implement in the rolling mill retrofitting. A conceptual approach to the virtual configuration of industrial mechatronic complexes based on object-oriented digital twins-prototypes and twins-instances of electromechanical and hydraulic systems is justified. Alternative options for virtual commissioning (VC) were considered, and the Hardware-In-The-Loop (HIL) option was adopted, involving the implementation of DTs in the hardware and software of a programmable logic controller (PLC). Virtual models were built, and control algorithms were tested in the Matlab Simulink software; the prospect of using Simscape domains was noted. The paper’s contribution is the description of a methodology for the development of object-oriented DTs, interlinked in the process, exemplified by a rolling mill coiler. The results of the control over the ‘virtual reeling’ mode are provided; the adequacy of real and virtual processes is confirmed. The problem of developing DTs for a coiler group, solved herein, is a fragment of a large-scale scientific and practical problem of developing DTAs (digital twin aggregates) for interconnected mechatronic rolling mill complexes. The developed VC methodology and proposed DTs are recommended for the commercial implementation in various industrial units. Developing frameworks of mechatronic systems and multi-domain DTE (Digital Twin Environment) applications are shown as prospects for future research.
