The Effects of Soil Porosity and Mix Design of Volcanic Ash-Based Geopolymer on the Surface Strength of Highly Wind Erodible Soils
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Methods
3. Results and Discussion

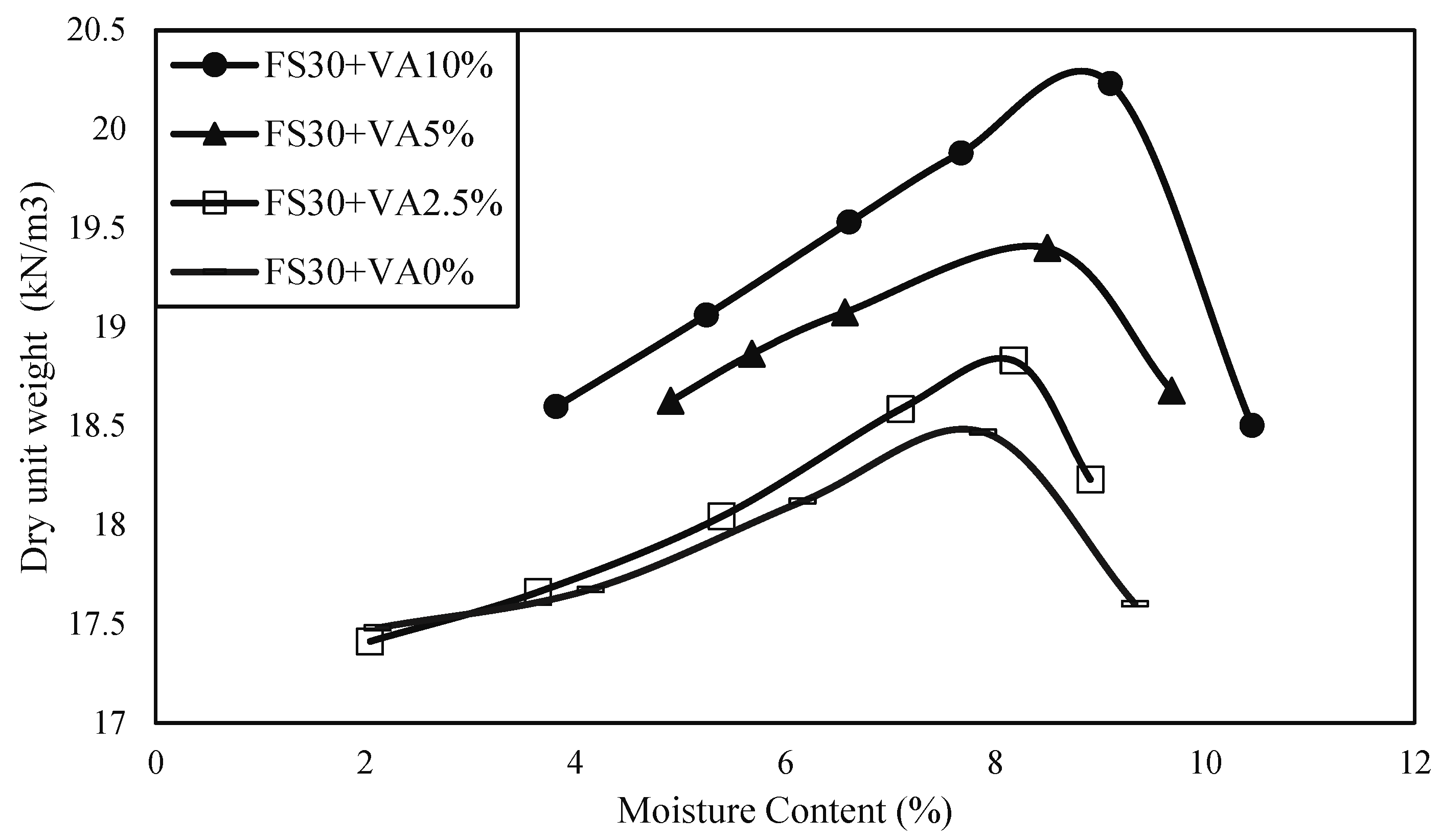

3.1. Modified Proctor Tests (Effects of Binder Addition)
3.2. Rheological Examination

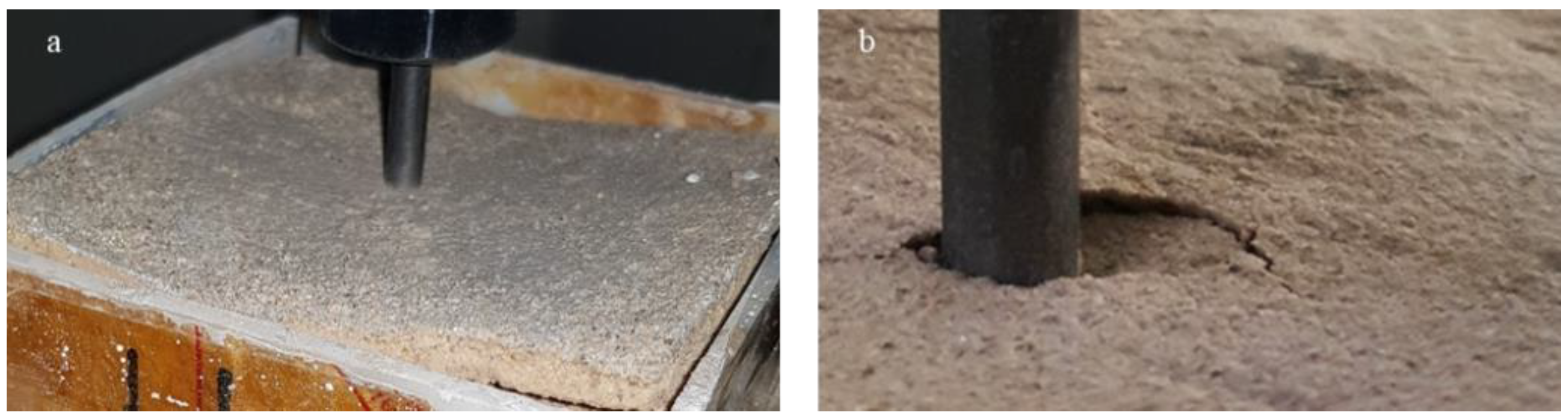

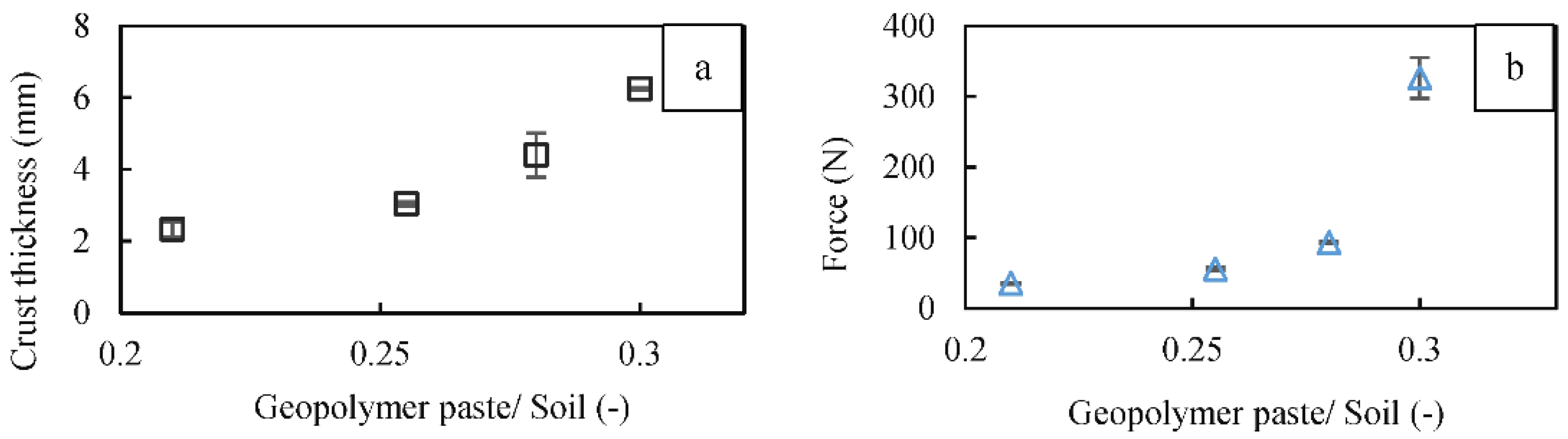

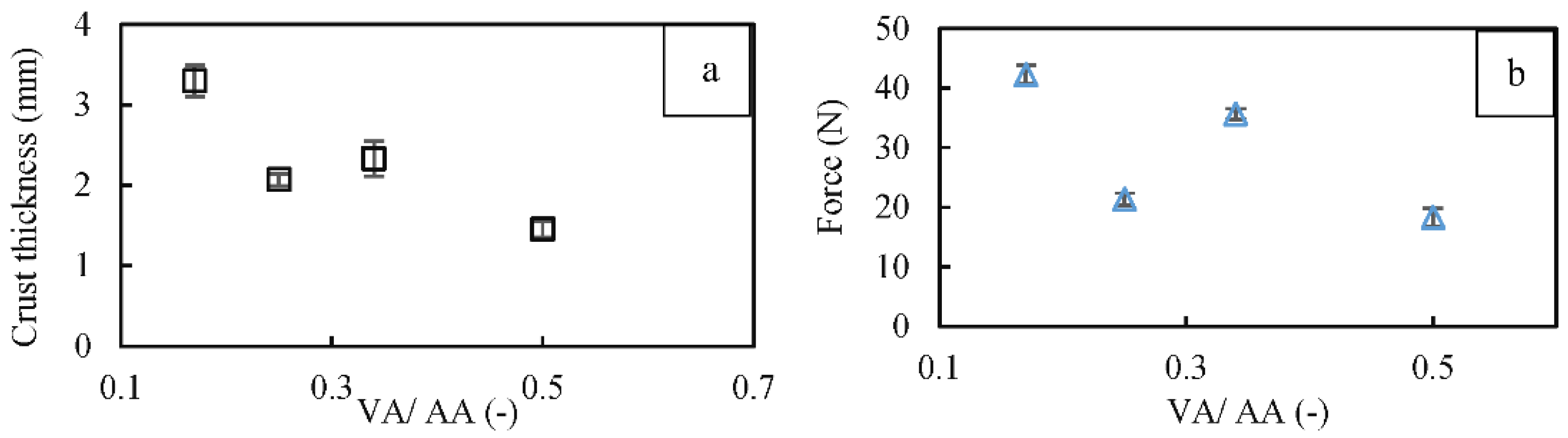

3.3. Surface Penetrometer Tests

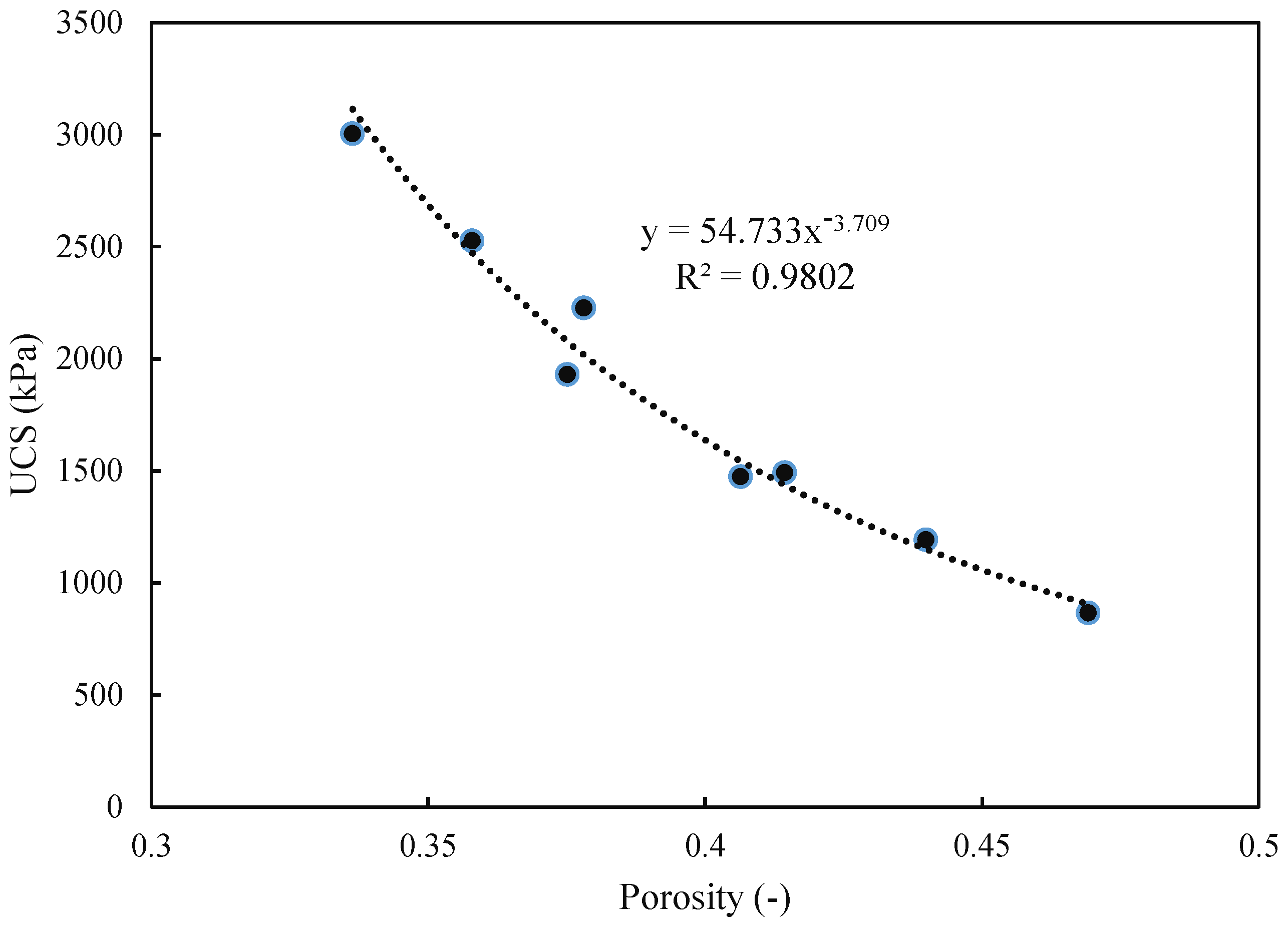

3.4. Uniaxial Compressive Strength Tests (Effects of Soil Porosity)
3.5. SEM-EDX
4. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- Liu, J.; Zhu, K.; Shen, Y.; Ren, Y.; Zuo, J.; Zhang, X. Experimental Investigation on the Deformation and Noncoaxial Characteristics of Fiber-Reinforced Aeolian Soil under Traffic Load. Int. J. Géoméch. 2022, 22, 04022054. [Google Scholar] [CrossRef]
- Dupont, S.; Rajot, J.; Labiadh, M.; Bergametti, G.; Lamaud, E.; Irvine, M.R.; Alfaro, S.C.; Bouet, C.; Fernandes, R.; Khalfallah, B.; et al. Dissimilarity Between Dust, Heat, and Momentum Turbulent Transports During Aeolian Soil Erosion. J. Geophys. Res. Atmos. 2019, 124, 1064–1089. [Google Scholar] [CrossRef]
- Zobeck, T.M.; Baddock, M.; Van Pelt, R.S.; Tatarko, J.; Acosta-Martinez, V. Soil property effects on wind erosion of organic soils. Aeolian Res. 2013, 10, 43–51. [Google Scholar] [CrossRef]
- Pye, K.; Tsoar, H. Aeolian Sand and Sand Dunes; Springer Science & Business Media: Berlin, Germany, 2008; Volume 23. [Google Scholar]
- Shariatmadari, N.; Mohebbi, H.; Javadi, A.A. Surface Stabilization of Soils Susceptible to Wind Erosion Using Volcanic Ash–Based Geopolymer. J. Mater. Civ. Eng. 2021, 33, 04021345. [Google Scholar] [CrossRef]
- Koohestani, B.; Darban, A.K.; Mokhtari, P.; Darezereshki, E.; Yilmaz, E. Geopolymerization of soil by sodium silicate as an approach to control wind erosion. Int. J. Environ. Sci. Technol. 2020, 18, 1837–1848. [Google Scholar] [CrossRef]
- Hanegbi, N.; Katra, I. A Clay-Based Geopolymer in Loess Soil Stabilization. Appl. Sci. 2020, 10, 2608. [Google Scholar] [CrossRef]
- Arnalds, O.; Thorarinsdottir, E.F.; Thorsson, J.; Waldhauserova, P.D.; Agustsdottir, A.M. An extreme wind erosion event of the fresh Eyjafjallajökull 2010 volcanic ash. Sci. Rep. 2013, 3, 1257. [Google Scholar] [CrossRef] [Green Version]
- Wilson, T.M.; Stewart, C.; Sword-Daniels, V.; Leonard, G.S.; Johnston, D.M.; Cole, J.W.; Wardman, J.; Wilson, G.; Barnard, S.T. Volcanic ash impacts on critical infrastructure. Phys. Chem. Earth Parts A/B/C 2012, 45–46, 5–23. [Google Scholar] [CrossRef]
- Zhou, S.; Lu, C.; Zhu, X.; Li, F. Upcycling of natural volcanic resources for geopolymer: Comparative study on synthesis, reaction mechanism and rheological behavior. Constr. Build. Mater. 2021, 268, 121184. [Google Scholar] [CrossRef]
- Yaghoubi, M.; Arulrajah, A.; Disfani, M.M.; Horpibulsuk, S.; Darmawan, S.; Wang, J. Impact of field conditions on the strength development of a geopolymer stabilized marine clay. Appl. Clay Sci. 2019, 167, 33–42. [Google Scholar] [CrossRef]
- Katebi, H.; Fahmi, A.; Kafil, H.S.; Bonab, M.H. Stabilization of calcareous sand dunes using phosphoric acid mulching liquid. J. Arid Environ. 2018, 148, 34–44. [Google Scholar] [CrossRef]
- Middleton, N.; Kang, U. Sand and Dust Storms: Impact Mitigation. Sustainability 2017, 9, 1053. [Google Scholar] [CrossRef] [Green Version]
- Santa, R.A.A.B.; Kessler, J.C.; Soares, C.; Riella, H.G. Microstructural evaluation of initial dissolution of aluminosilicate particles and formation of geopolymer material. Particuology 2018, 41, 101–111. [Google Scholar] [CrossRef]
- Koutník, P.; Soukup, A.; Bezucha, P.; Šafář, J.; Kohout, J. Low viscosity metakaolinite based geopolymer binders. Constr. Build. Mater. 2020, 230, 116978. [Google Scholar] [CrossRef]
- Dadsetan, S.; Siad, H.; Lachemi, M.; Sahmaran, M. Extensive evaluation on the effect of glass powder on the rheology, strength, and microstructure of metakaolin-based geopolymer binders. Constr. Build. Mater. 2021, 268, 121168. [Google Scholar] [CrossRef]
- Geng, J.; He, L.; Chen, M.; Niu, Y. Applicability of rheological properties of superabsorbent polymer cement-based materials using apparent viscosity. Mater. Struct. 2022, 55, 79. [Google Scholar] [CrossRef]
- Consoli, N.C.; Foppa, D.; Festugato, L.; Heineck, K.S. Key Parameters for Strength Control of Artificially Cemented Soils. J. Geotech. Geoenviron. Eng. 2007, 133, 197–205. [Google Scholar] [CrossRef]
- Consoli, N.; Fonseca, A.; Silva, S.; Cruz, R.; Fonini, A. Parameters controlling stiffness and strength of artificially cemented soils. Géotechnique 2012, 62, 177–183. [Google Scholar] [CrossRef] [Green Version]
- Zang, Y.-X.; Gong, W.; Xie, H.; Liu, B.-L.; Chen, H.-L. Chemical sand stabilization: A review of material, mechanism, and problems. Environ. Technol. Rev. 2015, 4, 119–132. [Google Scholar] [CrossRef]
- Turan, C.; Javadi, A.; Consoli, N.C.; Turan, C.; Vinai, R.; Cuisinier, O.; Russo, G. Mechanical Properties Of Calcareous Fly Ash Stabilized Soil. Eurocoalash 2019, 1, 184–194. [Google Scholar]
- Jafer, H.M.; Atherton, W.; Sadique, M.; Ruddock, F.; Loffill, E. Development of a new ternary blended cementitious binder produced from waste materials for use in soft soil stabilisation. J. Clean. Prod. 2018, 172, 516–528. [Google Scholar] [CrossRef]
- Rios, S.; Ramos, C.; da Fonseca, A.V.; Cruz, N.; Rodrigues, C. Mechanical and durability properties of a soil stabilised with an alkali-activated cement. Eur. J. Environ. Civ. Eng. 2019, 23, 245–267. [Google Scholar] [CrossRef]
- Hossain, K.; Mol, L. Some engineering properties of stabilized clayey soils incorporating natural pozzolans and industrial wastes. Constr. Build. Mater. 2011, 25, 3495–3501. [Google Scholar] [CrossRef]
- Mirzababaei, M.; Karimiazar, J.; Teshnizi, E.S.; Arjmandzadeh, R.; Bahmani, S.H. Effect of Nano-Additives on the Strength and Durability Characteristics of Marl. Minerals 2021, 11, 1119. [Google Scholar] [CrossRef]
- Rios, S.; Viana da Fonseca, A.; Consoli, N.C.; Floss, M.; Cristelo, N. Influence of grain size and mineralogy on the porosity/cement ratio. Géotechnique Lett. 2013, 3, 130–136. [Google Scholar] [CrossRef] [Green Version]
- Brookfield Engineering Laboratories. BROOKFIELD DV2T Viscometer Operating Instructions. Manual No. M13-167-B0614. 2015, Volume 8139. Available online: https://www.brookfieldengineering.com/-/media/ametekbrookfield/manuals/lab%20viscometers/dv2t%20instructions.pdf?la=en (accessed on 3 November 2015).
- Aboulayt, A.; Jaafri, R.; Samouh, H.; El Idrissi, A.C.; Roziere, E.; Moussa, R.; Loukili, A. Stability of a new geopolymer grout: Rheological and mechanical performances of metakaolin-fly ash binary mixtures. Constr. Build. Mater. 2018, 181, 420–436. [Google Scholar] [CrossRef]
- Pacheco-Torgal, F.; Labrincha, J.; Leonelli, C.; Palomo, A.; Chindaprasit, P. (Eds.) Handbook of Alkali-Activated Cements, Mortars and Concretes; Elsevier: Amsterdam, The Netherlands, 2015; Volume 7. [Google Scholar]
- Güllü, H.; Cevik, A.; Al-Ezzi, K.M.; Gülsan, M.E. On the rheology of using geopolymer for grouting: A comparative study with cement-based grout included fly ash and cold bonded fly ash. Constr. Build. Mater. 2019, 196, 594–610. [Google Scholar] [CrossRef]
- Nikvar-Hassani, A.; Manjarrez, L.; Zhang, L. Rheology, Setting Time, and Compressive Strength of Class F Fly Ash–Based Geopolymer Binder Containing Ordinary Portland Cement. J. Mater. Civ. Eng. 2022, 34, 04021375. [Google Scholar] [CrossRef]
- Mehdizadeh, H.; Kani, E.N. Rheology and apparent activation energy of alkali activated phosphorous slag. Constr. Build. Mater. 2018, 171, 197–204. [Google Scholar] [CrossRef]
- Abed, M.H.; Abbas, I.S.; Hamed, M.; Canakci, H. Rheological, fresh, and mechanical properties of mechanochemically activated geopolymer grout: A comparative study with conventionally activated geopolymer grout. Constr. Build. Mater. 2022, 322, 126338. [Google Scholar] [CrossRef]
- Chen, R.; Ding, X.; Ramey, D.; Lee, I.; Zhang, L. Experimental and numerical investigation into surface strength of mine tailings after biopolymer stabilization. Acta Geotech. 2016, 11, 1075–1085. [Google Scholar] [CrossRef]
- Rice, M.A.; Willetts, B.B.; Mcewan, I.K. Wind erosion of crusted soil sediments. Earth Surf. Processes Landf. 1996, 21, 279–293. [Google Scholar] [CrossRef]
- Nagajothi, S.; Elavenil, S. Effect of GGBS Addition on Reactivity and Microstructure Properties of Ambient Cured Fly Ash Based Geopolymer Concrete. Silicon 2021, 13, 507–516. [Google Scholar] [CrossRef]
- Yadollahi, M.M.; Benli, A.; Demirboğa, R. Effects of elevated temperature on pumice based geopolymer composites. Plast. Rubber Compos. 2015, 44, 226–237. [Google Scholar] [CrossRef]
- Khan, M.Z.N.; Shaikh, F.U.A.; Hao, Y.; Hao, H. Effects of Curing Conditions and Sand-to-Binder Ratios on Compressive Strength Development of Fly Ash Geopolymer. J. Mater. Civ. Eng. 2018, 30, 04017267. [Google Scholar] [CrossRef]
- Shao, Y. (Ed.) Physics and Modelling of Wind Erosion; Springer Netherlands: Dordrecht, The Netherlands, 2008; Volume 37. [Google Scholar]
- Chae, S.H.; Chung, H.; Nam, K. Evaluation of microbially Induced calcite precipitation (MICP) methods on different soil types for wind erosion control. Environ. Eng. Res. 2020, 26, 190507. [Google Scholar] [CrossRef]
Oxides Wt.% | SiO2 | CaO | Al2O3 | Fe2O3 | K2O | Na2O | MgO | TiO2 | SrO | SO3 | P2O5 | LOI |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Volcanic Ash | 53.89 | 8.97 | 20.31 | 3.45 | 1.92 | 5.15 | 1.42 | 0.51 | 0.07 | 0.26 | 0.23 | 3.80 |
Sand | 94.33 | 1.05 | 2.03 | 0.90 | 0.21 | 0.49 | - | 0.12 | - | - | - | 0.86 |

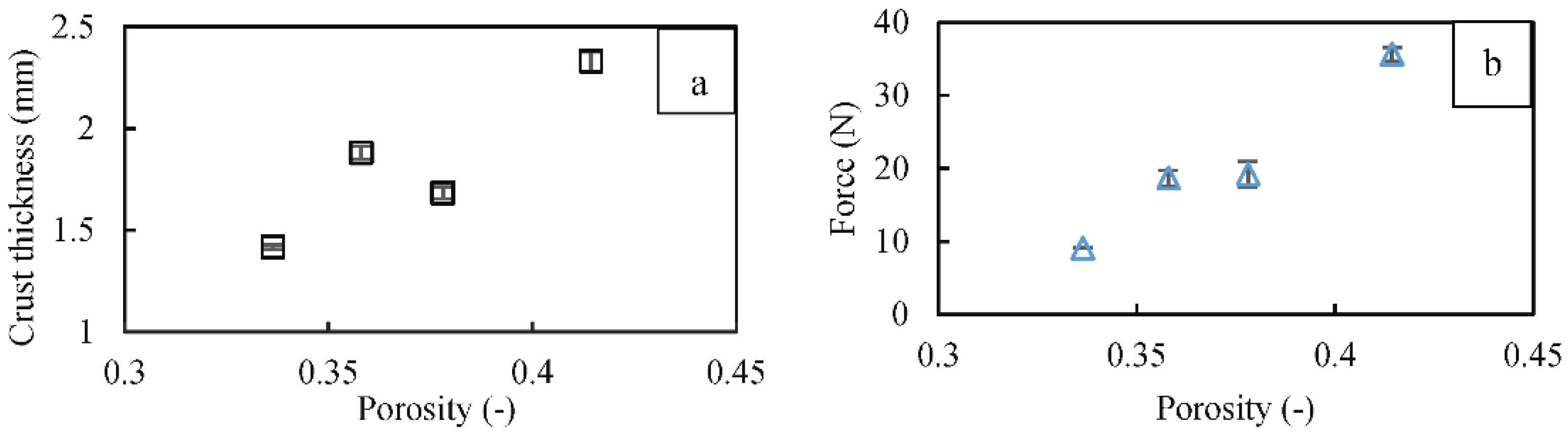

Parameter | Soil | Porosity | Number of Tests | Tests | Sample Type |
---|---|---|---|---|---|
Penetration force (N) and Crust thickness (mm) | FS30 | 0.41, 0.38, 0.37, 0.33 | 3 | Soil surface penetrometer, topsoil crust measurement | Soil trays |
FS70 | 0.38 | 3 | |||
Compressive strength (kPa) | FS30 | 0.41, 0.38, 0.37, 0.33 | 3 | Uniaxial compressive strength tests | Cylindrical specimens |
FS70 | 0.47, 0.44, 0.40, 0.38 | 3 |
VA% | AA% | VA/AA | Viscosity Tests | UCS | Surface Penetrometer Tests |
---|---|---|---|---|---|
2.5 | 15 | 0.17 | ✓ | ✓ | |
2.5 | 10 | 0.25 | ✓ | ✓ | |
5 | 15 | 0.34 | ✓ | ✓ | ✓ |
5 | 10 | 0.5 | ✓ | ✓ | |
10 | 15 | 0.67 | ✓ |

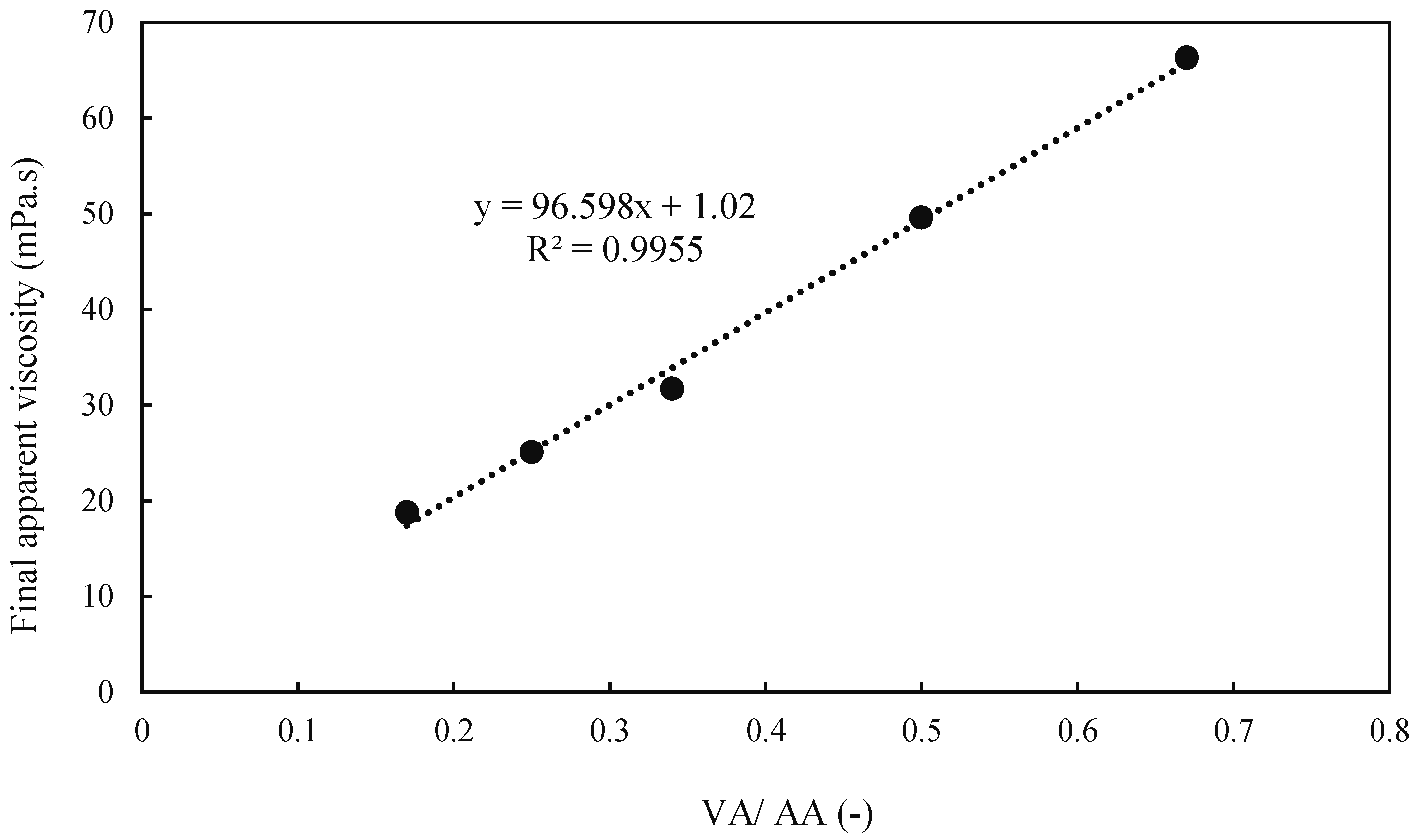

VA/AA | Correlation | COD | Plastic Viscosity (Pa.s) | Yield Stress (Pa) |
---|---|---|---|---|
0.67 | y = 0.0557x + 0.3943 | 0.9981 | 0.0557 | 0.3943 |
0.5 | y = 0.0353x + 0.1609 | 0.9833 | 0.0353 | 0.1609 |
0.34 | y = 0.0261x + 0.017 | 0.9882 | 0.0261 | 0.017 |
0.25 | y = 0.0198x + 0.0148 | 0.9938 | 0.0198 | 0.0148 |
0.17 | y = 0.0153x + 0.0039 | 0.9979 | 0.0153 | 0.0039 |

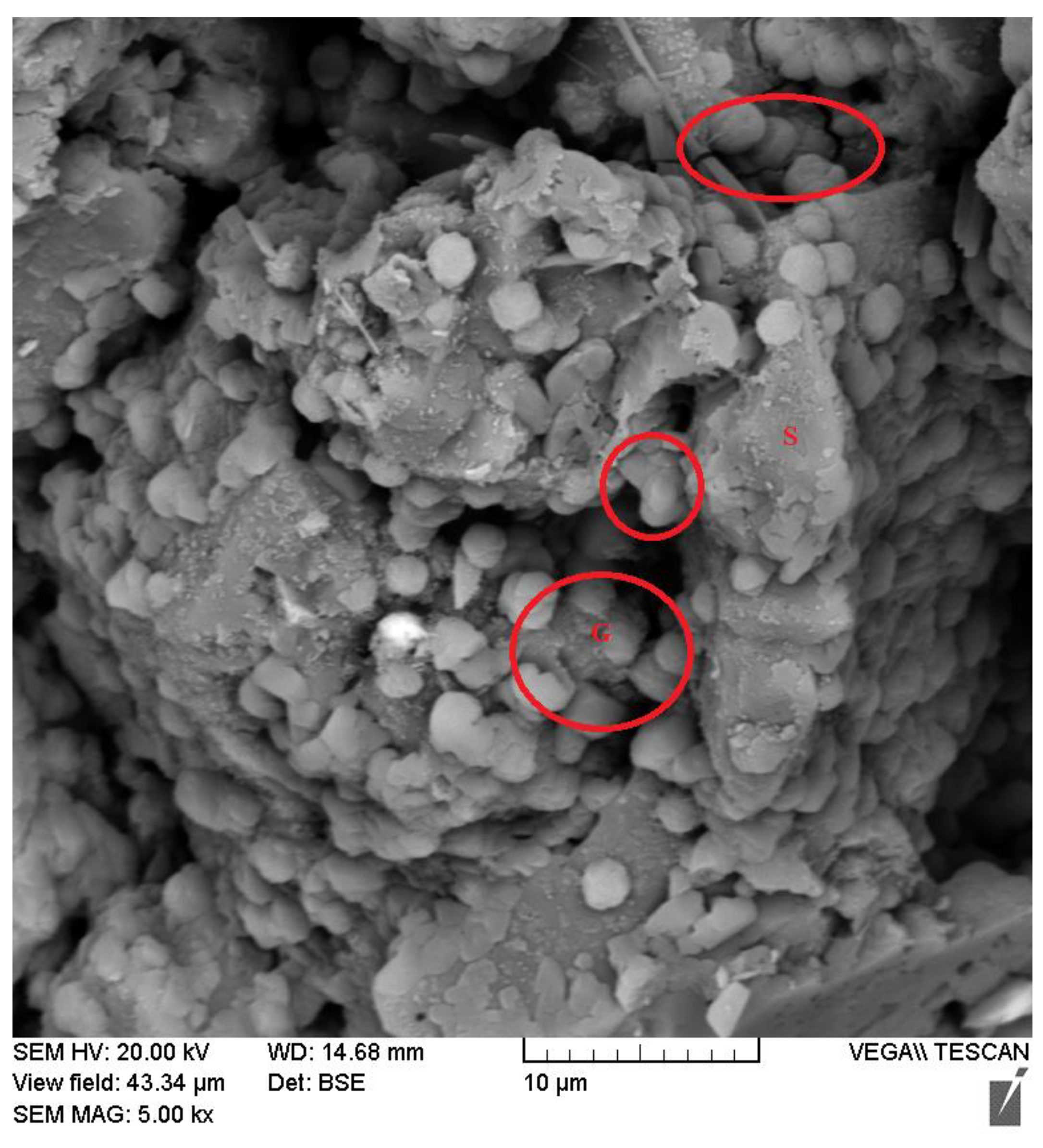

Element | G (Wt.%) | S |
---|---|---|
(Wt.%) | ||
O | 45.53 | 53.04 |
Na | 23.65 | 2.66 |
Al | 7.21 | 0.77 |
Si | 23.6 | 43.52 |
