# Numerical Analysis of Fluid Forces for Flow Past a Square Rod with Detached Dual Control Rods at Various Gap Spacing

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{*}

## Abstract

**:**

_{1}= 1–5 and g

_{2}= 0.5–5 (where g

_{1}is the gap between the upstream control rod and the main rod, and g

_{2}is the space between the main rod and the downstream control rod) at Re = 160. The simulation results were obtained in the form of vorticity contour, drag and lift coefficients, Strouhal number, and force statistics. Under the effect of gap spacing, three different flow modes were found and named according to their behavior. It was found that the mean drag coefficient showed decreasing behavior by increasing the value of g

_{2}continually at a fixed value of g

_{1}. The largest value of $Cdmean$ was found at (g

_{1}, g

_{2}) = (1, 1) and the greatest percentage reduction in $Cdmean$ was obtained at (g

_{1}, g

_{2}) = (1, 3), which is 139.72%. The effect of thrust was also noticed for all selected values of g

_{1}and g

_{2}. Furthermore, it was noticed that the Strouhal number and the root mean square values of the drag and lift coefficients smaller values than the single rod values, except for the Clrms value of (g

_{1}, g

_{2}) = (1, 3) and (1, 4).

## 1. Introduction

## 2. The Lattice Boltzmann Method

## 3. Problem Statements and Boundary Conditions

## 4. Computational Domain, Grid Independence and Code Validation Study

## 5. Results and Discussion

#### 5.1. Vorticity Contours Visualization, Time-History Analysis of Drag and Lift Coefficients, and Energy Spectra Analysis of the Lift Coefficient

#### 5.2. Physical Parameters

## 6. Conclusions

- (i)
- Three different types of flow modes were found and were named (a) shear layer reattachment (SLR), (b) steady flow mode (SF), and (c) semi-developed vortex shedding (SDVS).
- (ii)
- The $\mathit{C}\mathit{d}\mathit{m}\mathit{e}\mathit{a}\mathit{n}$ values were negative for all selected combinations of ${\mathit{g}}_{\mathbf{1}}$ and ${\mathit{g}}_{\mathbf{2}}$ due to the effect of trust.
- (iii)
- The values of $\mathit{C}\mathit{d}\mathit{m}\mathit{e}\mathit{a}\mathit{n}$ decreased by increasing the gap spacing. The maximum value of $\mathit{C}\mathit{d}\mathit{m}\mathit{e}\mathit{a}\mathit{n}$ was obtained at $\left({\mathit{g}}_{\mathbf{1}},{\mathit{g}}_{\mathbf{2}}\right)=\left(\mathbf{1},\mathbf{1}\right){i}.{e}.,-\mathbf{0.3956}.$
- (iv)
- The values of $\mathit{C}\mathit{d}\mathit{r}\mathit{m}\mathit{s}$ and $\mathit{C}\mathit{l}\mathit{r}\mathit{m}\mathit{s}$ increased by increasing the value of ${\mathit{g}}_{\mathbf{2}}$ at fixed values of ${\mathit{g}}_{\mathbf{1}}.$ The maximum values of $\mathit{C}\mathit{d}\mathit{r}\mathit{m}\mathit{s}$ and $\mathit{C}\mathit{l}\mathit{r}\mathit{m}\mathit{s}$ were obtained at 0.0084 and 0.2910, respectively.
- (v)
- The greatest reduction in $\mathit{C}\mathit{d}\mathit{m}\mathit{e}\mathit{a}\mathit{n}$ was obtained at $\left({\mathit{g}}_{\mathbf{1}},\text{}{\mathit{g}}_{\mathbf{2}}\right)=\text{}\left(\mathbf{1},\text{}\mathbf{3}\right),$ and this value was 139.72%.
- (vi)
- The minimum reduction was acquired at $\left({\mathit{g}}_{\mathbf{1}},\text{}{\mathit{g}}_{\mathbf{2}}\right)=\left(\mathbf{1},\text{}\mathbf{1}\right)$, and this value was 132.1%.

## Author Contributions

## Funding

## Conflicts of Interest

## Nomenclature

Cd | Drag |

Cl | Lift |

$Cdmean$ | Mean drag force |

$Cdrms$ | Root-mean-square value of drag force |

$Clrms$ | Root-mean-square value of lift force |

${C}_{s}$ | Speed of sound |

$h$ | Height of the control rods |

$d$ | Size of the main rod |

$l$ | Length of the control rods |

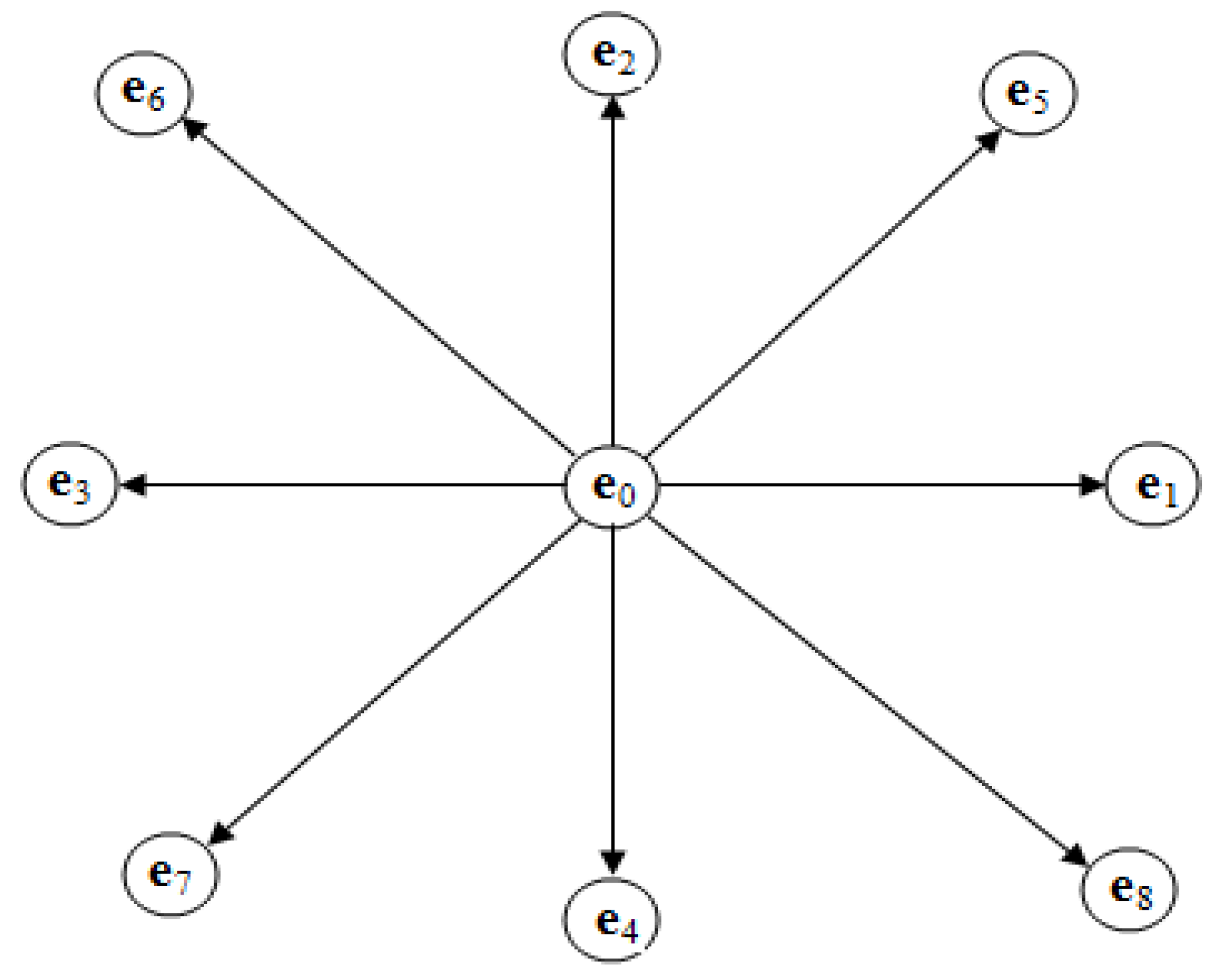

${e}_{i}$ | Velocities direction |

${F}_{d}$ | Horizontal component of force |

${F}_{1}$ | Transverse component of force |

f_{s} | Vortex shedding |

${h}_{i}$ | Density distribution function |

${h}_{i}{}^{\left(eq\right)}$ | Equilibrium distribution function |

$Lu$ | Upstream position |

$Ld$ | Downstream position |

$Q$ | Number of particles |

$Re$ | Reynolds number |

$St$ | Strouhal number |

${U}_{\infty}$ | Uniform inflow velocity |

SF | Steady flow |

SLR | Shear layer reattachment |

SDVS | Semi developed vortex shedding |

SR | Single rod |

Greek Symbols | |

$\nu \text{}$ | Kinematic viscosity |

$\rho \text{}$ | Fluid density |

$\xi $ | Weighting coefficients |

## References

- Darekar, R.M.; Sherwin, S.J. Flow past a bluff body with a wavy stagnation face. J. Fluid Struct.
**2001**, 15, 587–596. [Google Scholar] [CrossRef] - Hwang, J.; Yang, K. Drag reduction on a circular cylinder using dual detached control rods. J. Wind Eng. Ind. Aerodyn.
**2007**, 95, 551–564. [Google Scholar] [CrossRef] - Lee, S.; Lee, S.; Park, C. Reducing the drag on a circular cylinder by upstream Installation of a small control rod. Fluid Dyn. Res.
**2004**, 34, 233–250. [Google Scholar] [CrossRef] - Roshko, A. On the Drag and Shedding Frequency of 2D Bluff Bodies; Tech Rept TN 3169; NACA: Washington, DC, USA, 1954. [Google Scholar]
- Apelt, C.; West, G. The Effects of Wake Control rods on Bluff-Body Flow in the Range 104 < Re < 5 × 104. J. Fluid Mech.
**1975**, 71, 145–160. [Google Scholar] - Anderson, E.; Szewczyk, A. Effects of a Control rod on the Near Wake of a Circular Cylinder in 2D and 3D Flow Configurations. In Experimental on Fluids; Springer London: London, UK, 1997. [Google Scholar]
- Mittal, S.; Raghuvanshi, A. Control of vortex shedding behind circular cylinder for flows at low Reynolds numbers. Int. J. Numer. Methods Fluids
**2001**, 35, 421–447. [Google Scholar] [CrossRef] - Kuo, C.H.; Chen, C.C. Passive control of wake flow by two small control cylinders at Reynolds number 80. J. Fluids Struct.
**2009**, 25, 1021–1028. [Google Scholar] [CrossRef] - Alam, M.M.; Moriya, M.; Takai, K.; Sakamoto, H. Suppression of fluid forces acting on two square prisms in a tandem arrangement by passive control of flow. J. Fluids Struct.
**2002**, 16, 1073–1092. [Google Scholar] [CrossRef] - Tsutsui, T.; Igrashi, T. Drag Reduction of a Circular Cylinder in an Air-Stream. J. Wind Eng. Ind. Aerodyn.
**2002**, 4, 527–541. [Google Scholar] [CrossRef] - Turki, S. Numerical simulation of passive control on vortex shedding behind square rod using control rod. Eng. Appl. Comput. Fluid Mech.
**2008**, 2, 514–524. [Google Scholar] - Malekzadeh, S.; Sohankar, A. Reduction of fluid forces and heat transfer on a square rod in a laminar flow regime using a control rod. Int. J. Heat Fluid Flow
**2012**, 34, 15–27. [Google Scholar] [CrossRef] - Islam, S.U.; Rahman, H.; Abbasi, W.S.; Noreen, U.; Khan, A. Suppression of fluid force on flow past a square rod with a detached flat plate at low Reynolds number for various spacing ratios. J. Mech. Sci. Technol.
**2014**, 28, 4969–4978. [Google Scholar] [CrossRef] - Vamsee, G.R.; De Tena, M.L.; Tiwari, S. Effect of arrangement of inline control rod on flow past square rod. Prog. Comput. Fluid. Dyn.
**2014**, 14, 277–293. [Google Scholar] [CrossRef] - Islam, S.U.; Manzoor, R.; Tareen, A. Numerical investigation of flow around square rod with an upstream control rod at low Reynolds numbers in tandem. J. Braz. Soc. Mech. Sci. Eng.
**2017**, 39, 1201–1223. [Google Scholar] [CrossRef] - De Araujo, L.A.; Schettini, E.B.C.; Silvestrini, J.H. Direct numerical simulation of turbulent flow past a cylinder with control rod. In Proceedings of the 10th ABCM Spring School on Transition and Turbulence, São José dos Campos, Brazil, 19–23 September 2016. [Google Scholar]
- Vu, H.C.; Ahn, J.; Hwang, J.H. Numerical investigation of flow around circular cylinder with control rod. KSCE J. Civ. Eng.
**2016**, 20, 2559–2568. [Google Scholar] [CrossRef] - Yuan, M.; Rashidi, M.M.; Yang, Z.G. Numerical Simulation of Flow past a Square rod with a Circular Bar Upstream and a Control rod downstream. J. Hydrodyn.
**2018**. [Google Scholar] [CrossRef] - Gupta, A. Suppression of Vortex Shedding in Flow around Square Cylinder Using Control Cylinder; Department of Mechanical Engineering Indian Institute of Technology: Kanpur, India, 2013. [Google Scholar]
- Shadloo, M.S.; Zainali, A.; Yildziz, M.; Suleman, A. A robust weakly compressible SPH method and its comparison with an incompressible SPH. Int. J. Numer. Methods Eng.
**2012**, 89, 939–956. [Google Scholar] [CrossRef] - Shadloo, M.S.; Zainli, A.; Sadek, S.H.; Yildziz, M. Improved Incompressible Smoothed Particle Hydrodynamics method for simulating flow around bluff bodies. Comput. Methods Appl. Mech. Eng.
**2011**, 200, 1008–1020. [Google Scholar] [CrossRef] - D’Orazio, A.; Nikkah, Z.; Karimipour, A. Simulation of copper–water nano fluid in a micro channel in slip flow regime using the lattice Boltzmann method with heat flux boundary condition. J. Phys. Conf. Ser.
**2015**, 655, 012029. [Google Scholar] [CrossRef] - Goodarzi, M.; D’Orazio, A.; Keshavarzi, A.; Mousavi, S.; Karimipour, A. Develop the nano scale method of lattice Boltzmann to predict the fluid flow and heat transfer of air in the inclined lid driven cavity with a large heat source inside, Two case studies: Pure natural convection & mixed convection. Phys. A Stat. Mech. Its Appl.
**2018**, 509, 210–233. [Google Scholar] [CrossRef] - Chen, S.; Doolen, G.D. Lattice Boltzmann method for fluid flows. Ann. Rev. Fluid Mech.
**1998**, 30, 329–364. [Google Scholar] [CrossRef] [Green Version] - Mohammad, A.A. Lattice Boltzmann Method: Fundamentals and Engineering Applications with Computer Codes; Springer London: London, UK, 2011. [Google Scholar]
- Rossi, N.; Ubertini, S.; Bella, G.; Succi, S. Unstructured lattice Boltzmann method in three dimensions. Int. J. Numer. Methods Fluids
**2005**, 49, 619–633. [Google Scholar] [CrossRef] - Cornubert, R.; D’Humières, D.; Levermore, D. A Knudsen number theory for lattice gases. Physica D
**1991**, 47, 241–259. [Google Scholar] [CrossRef] - Qian, Y.; D’Humieres, D.; Lallemand, P. Lattice BGK models for Navier-Stokes Equation. Europhys. Lett.
**1992**, 17, 479–484. [Google Scholar] [CrossRef] - Succi, S. Lattice Boltzmann Method for Fluid Dynamics and Beyond; Oxford Univ. Press: Oxford, UK, 2001. [Google Scholar]
- Wolf-Gladrow, D.A. Lattice-Gas Cellular Automata and Lattice Boltzmann Models an Introduction; Springer: Berlin/Heidelberg, Germany, 2005. [Google Scholar]
- Sukop, M.C.; Thorne, D.T. Lattice Boltzmann Modeling: An Introduction for Geoscientists and Engineers; Springer: Berlin/Heidelberg, Germany, 2006. [Google Scholar]
- Guo, Z.; Liu, H.; Luo, L.S.; Xu, K. A comparative study of the LBE and GKS method for 2D near incompressible laminar flows. J. Comput. Phys.
**2008**, 22, 4955–4976. [Google Scholar] [CrossRef] - Saha, A.K.; Biswas, G.; Muralidhar, K. Three-dimensional study of flow past a square cylinder at low Reynolds numbers. Int. J. Heat Fluid Flow.
**2003**, ED-24, 54–66. [Google Scholar] [CrossRef] - Sohankar, A.; Davidson, L.; Norberg, C. Numerical simulation of unsteady flow around a square two-dimensional cylinder. In Proceedings of the Twelfth Australian Fluid Mechanics Conference, Sydney, Australia, 10–15 December 1995; pp. 517–520. [Google Scholar]
- Okajima, A. Strouhal numbers of rectangular cylinders. J. Fluid Mech Digit. Arch.
**2006**, 123, 379–398. [Google Scholar] [CrossRef] [Green Version] - Norberg, C. Flow around rectangular cylinders: Pressure forces and wake frequencies. J. Wind Eng. Ind. Aerodyn.
**1993**, 49, 187–196. [Google Scholar] [CrossRef] - Abograis, A.S.; Alshayji, A.E. Reduction of fluid forces on a square cylinder in a laminar flow using passive control methods. In Proceedings of the COMSOL Conference, Boston, MA, USA, 9–11 October 2013. [Google Scholar]

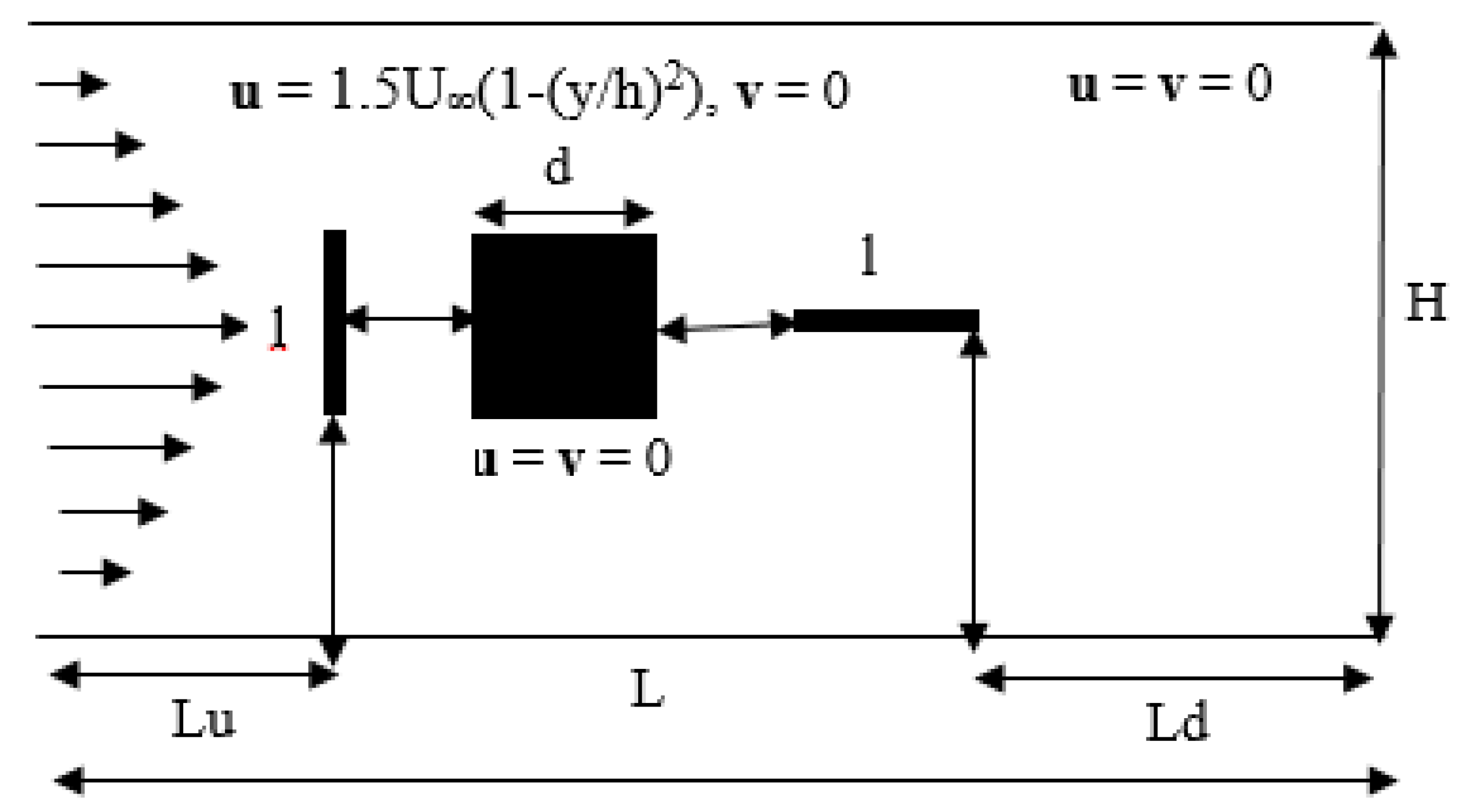

**Figure 2.**Schematic diagram for flow over a square rod with detached upstream/downstream control rods at fixed Re = 160.

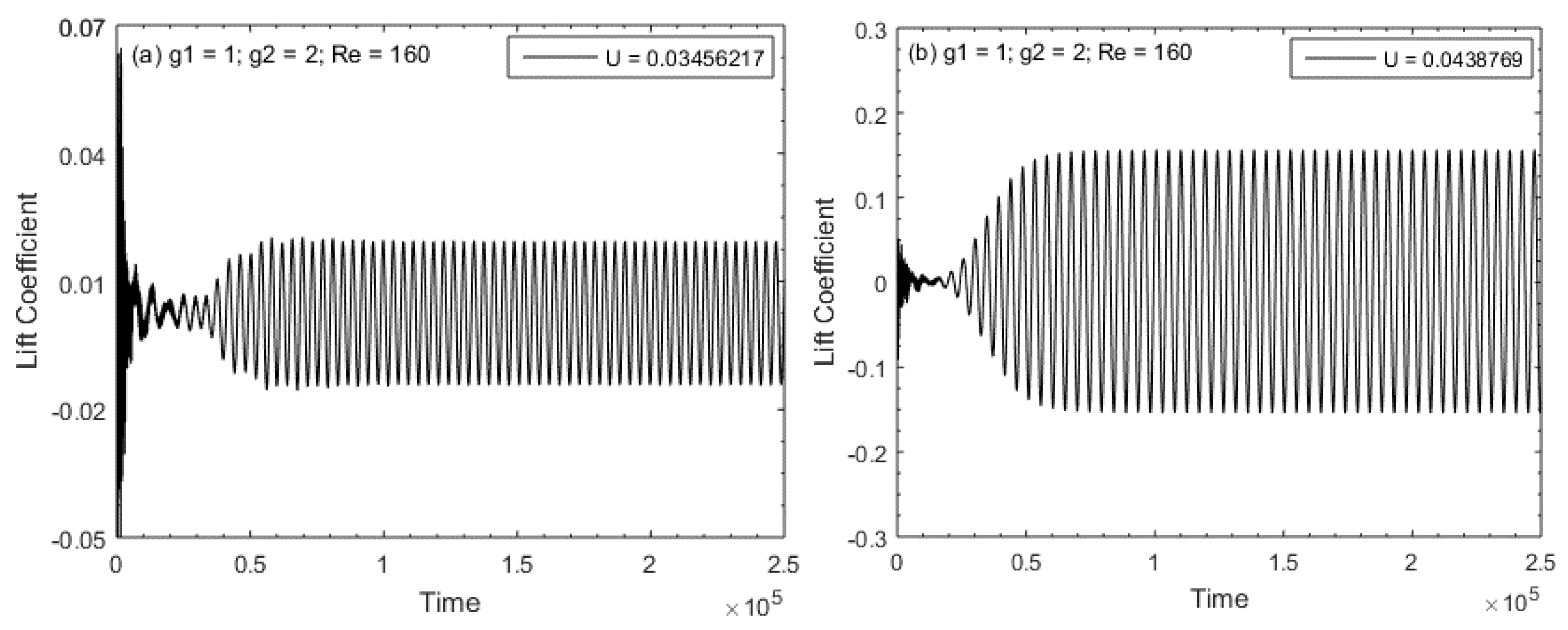

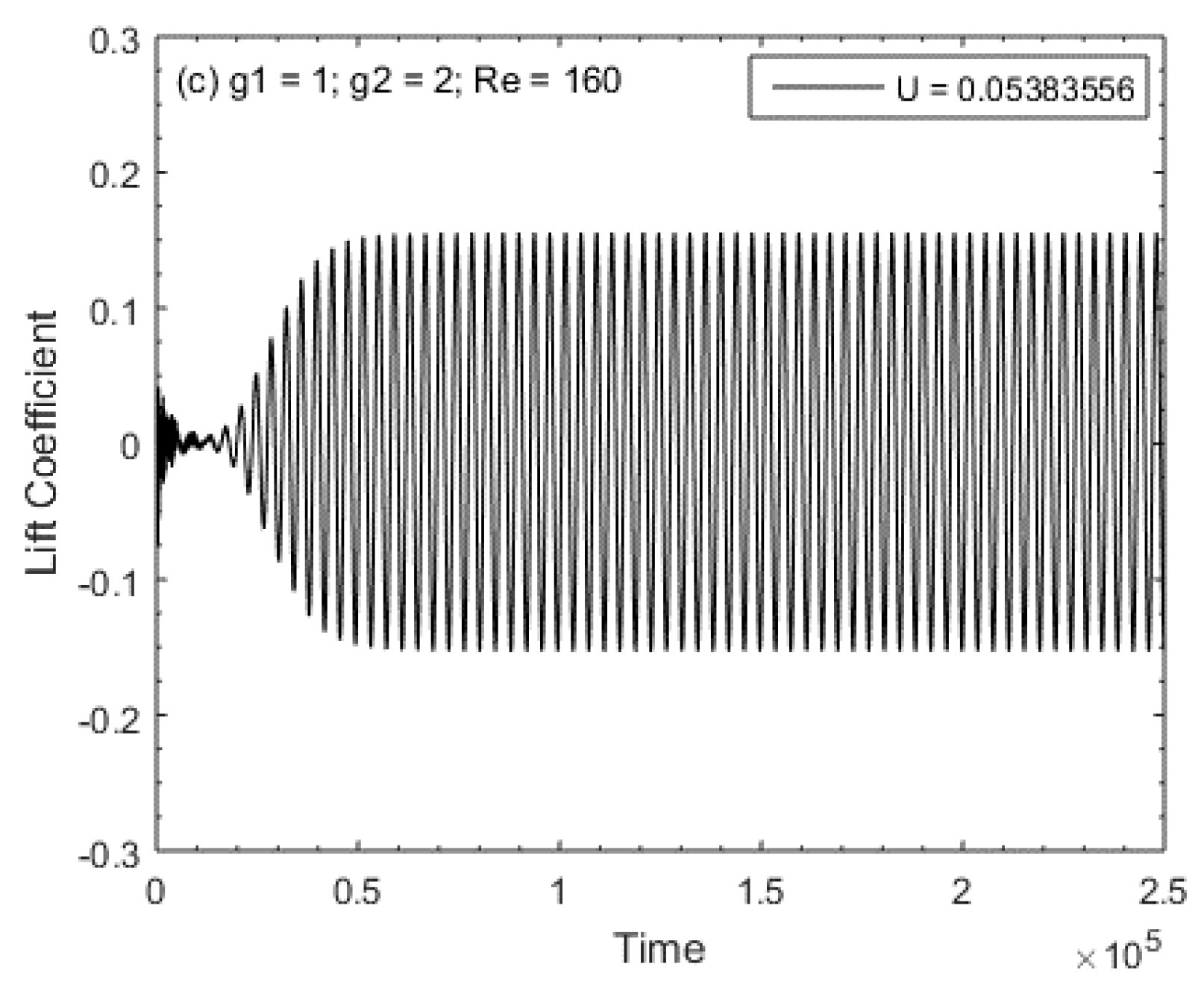

**Figure 3.**Comparison of different uniform inflow velocities at (

**a**) U

_{∞}= 0.03456217, (

**b**) 0.0438596, and (

**c**) 0.05383556.

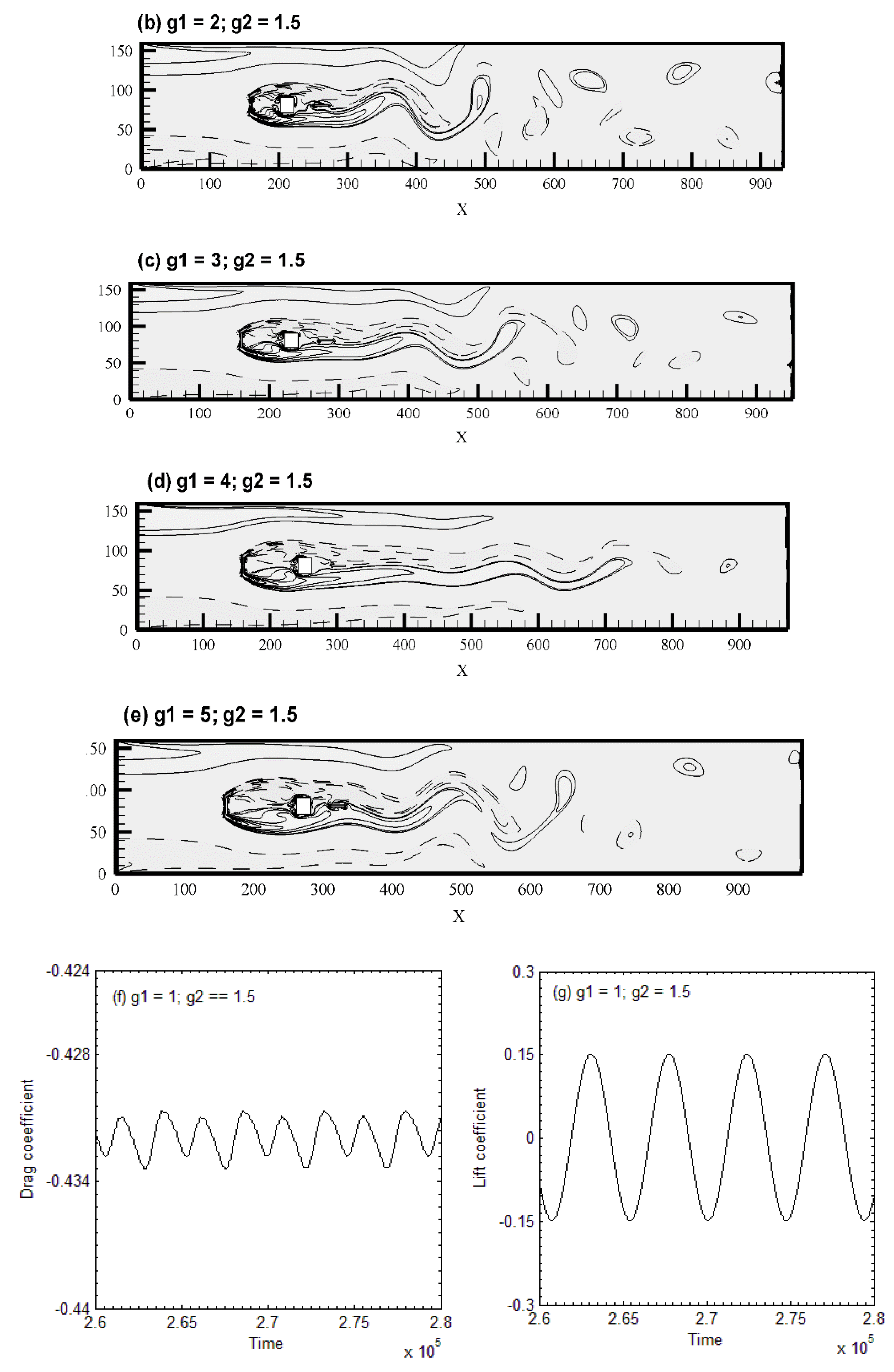

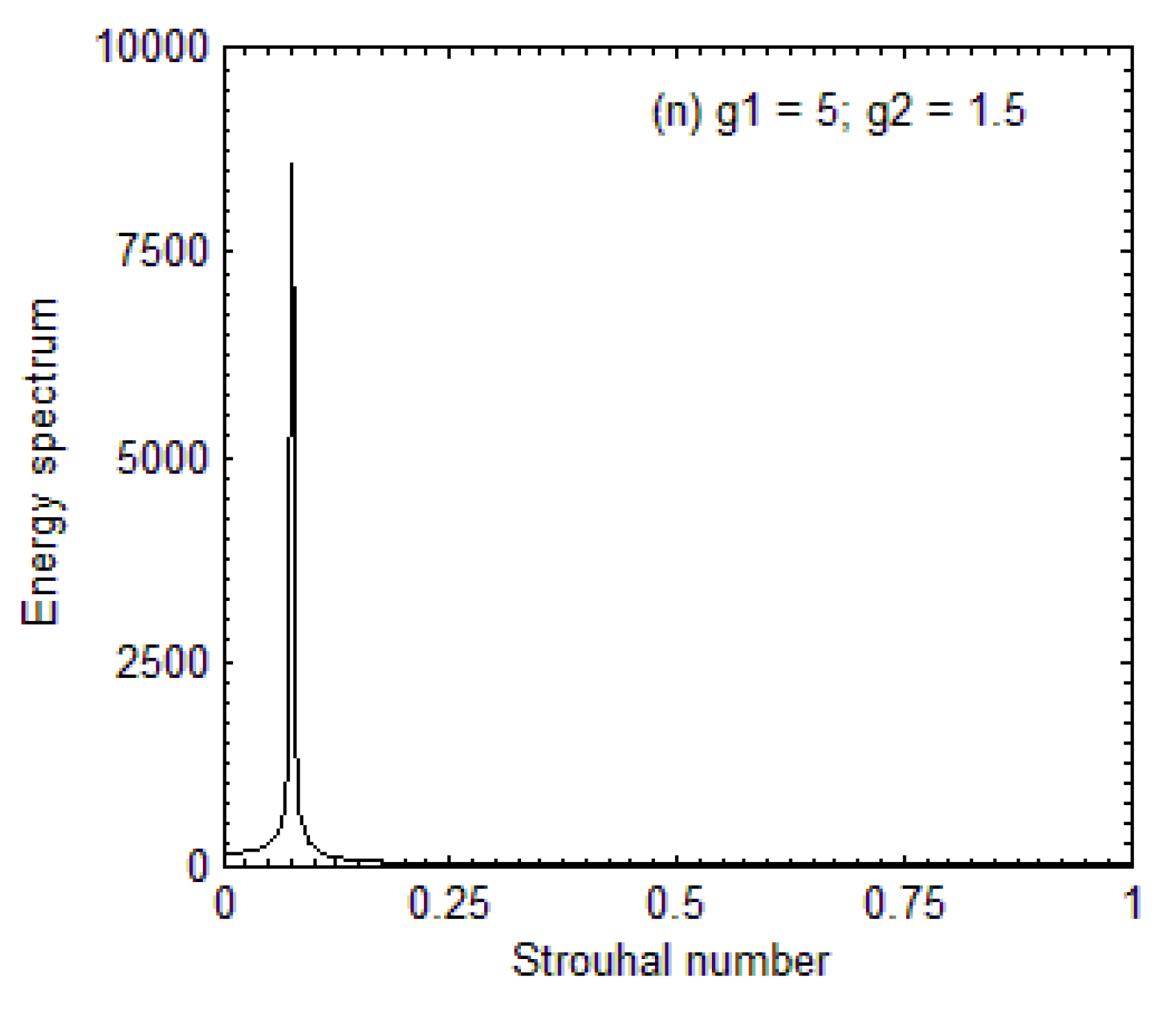

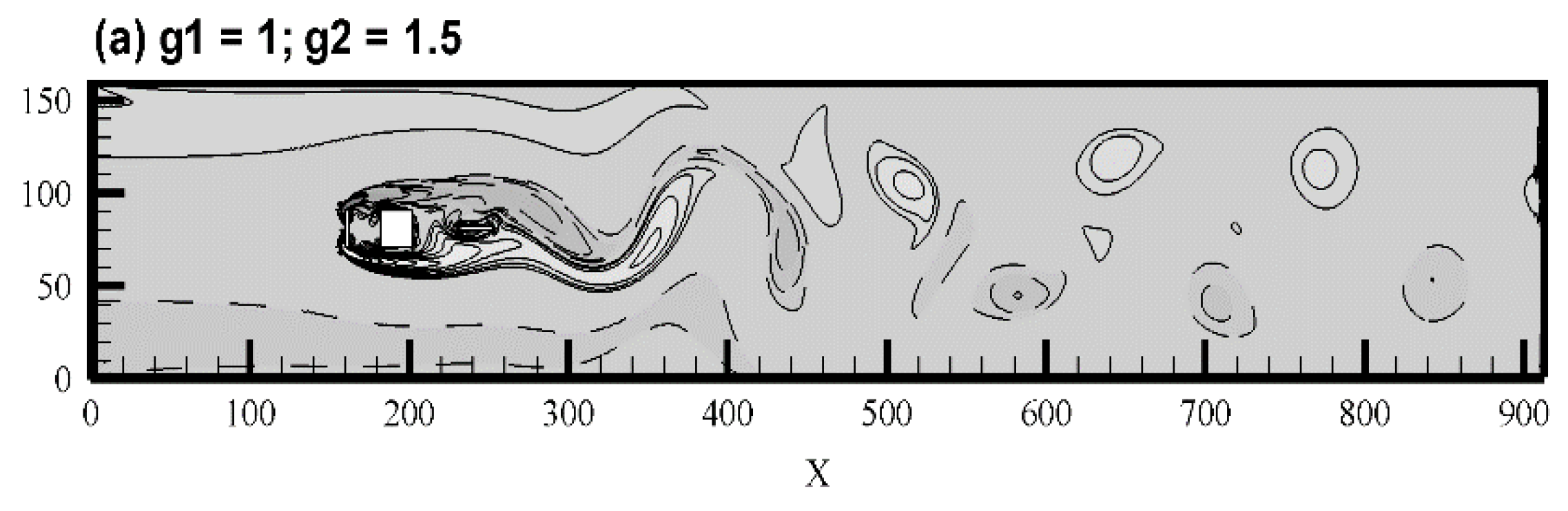

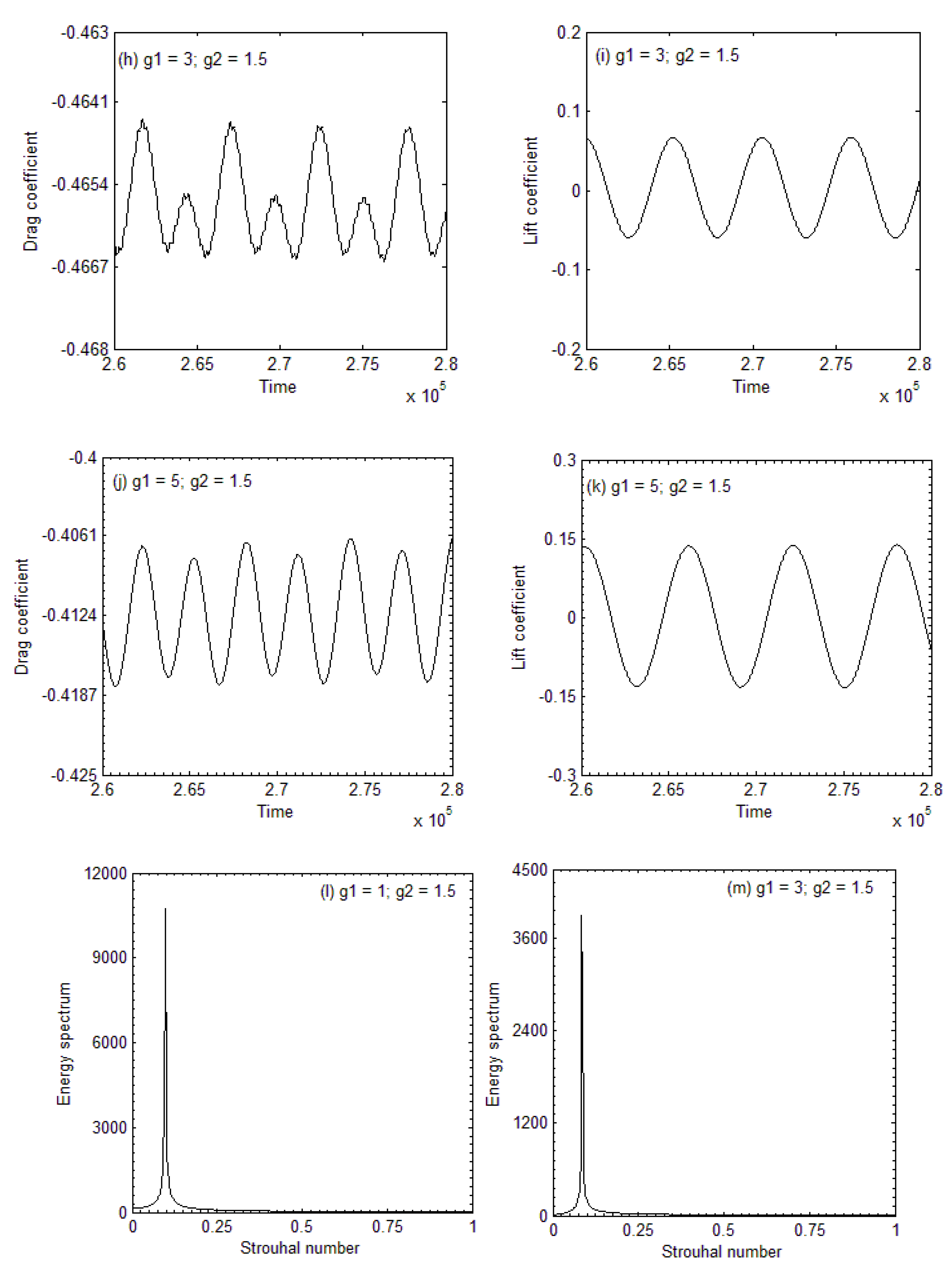

**Figure 4.**(

**a**–

**e**) Vorticity contour visualization of the shear layer reattachment (SLR) flow mode. (

**f**–

**k**) Time trace analysis of drag and lift coefficients for the SLR flow mode. (

**l**–

**n**) Energy spectrum analyses of lift coefficients for the SLR flow mode.

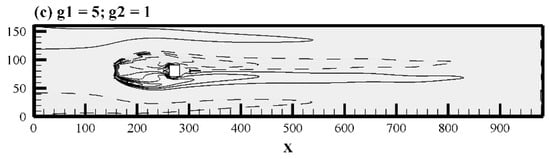

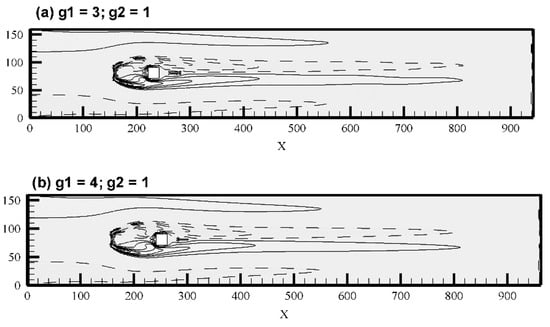

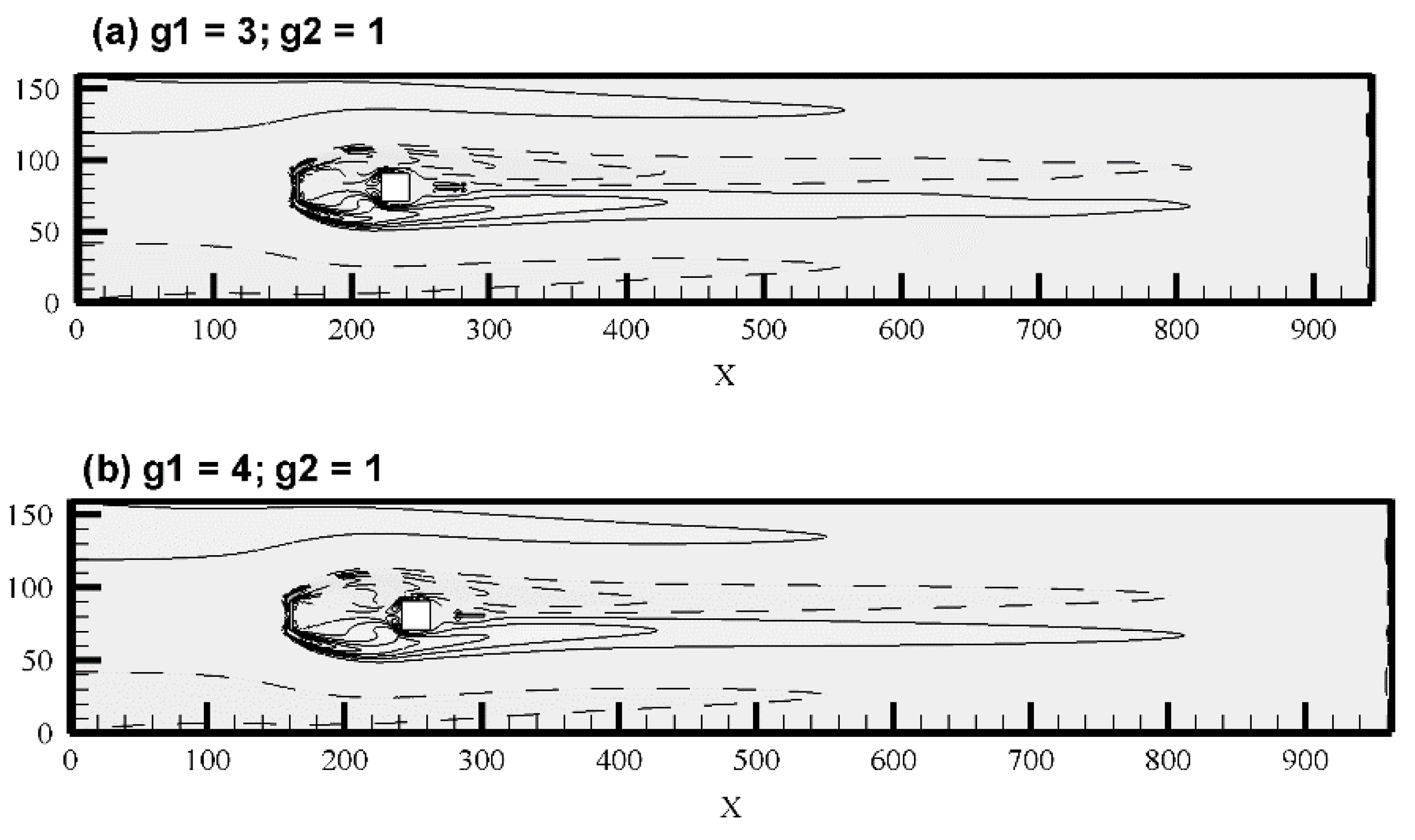

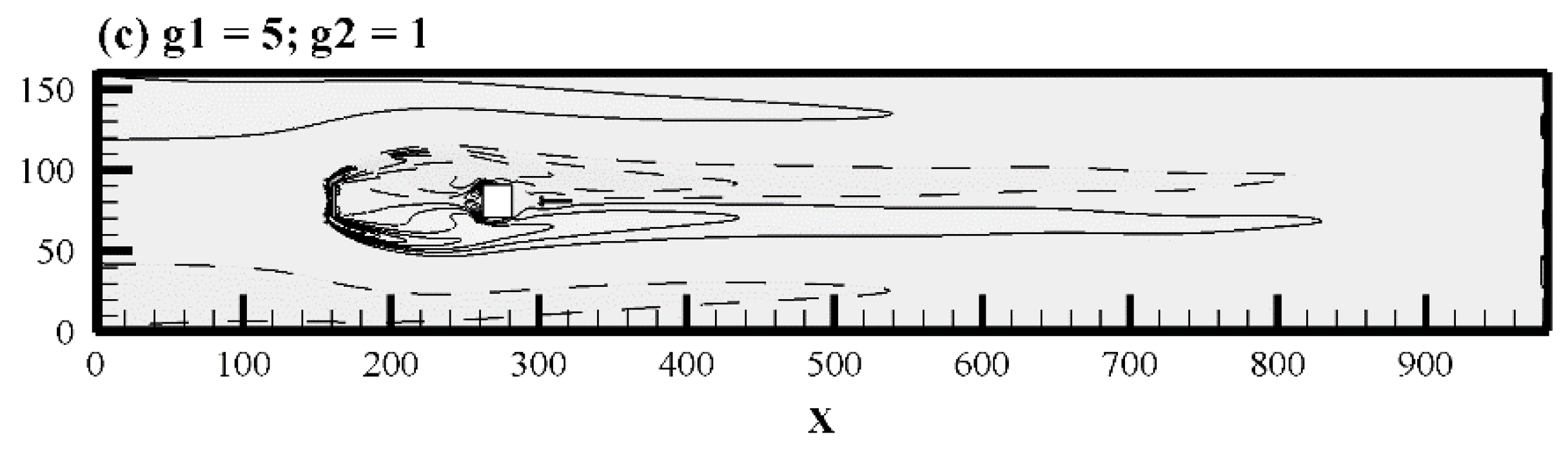

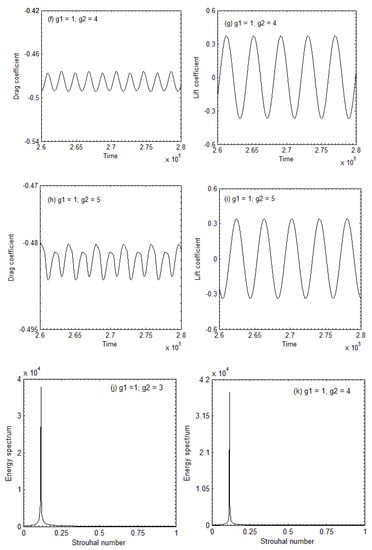

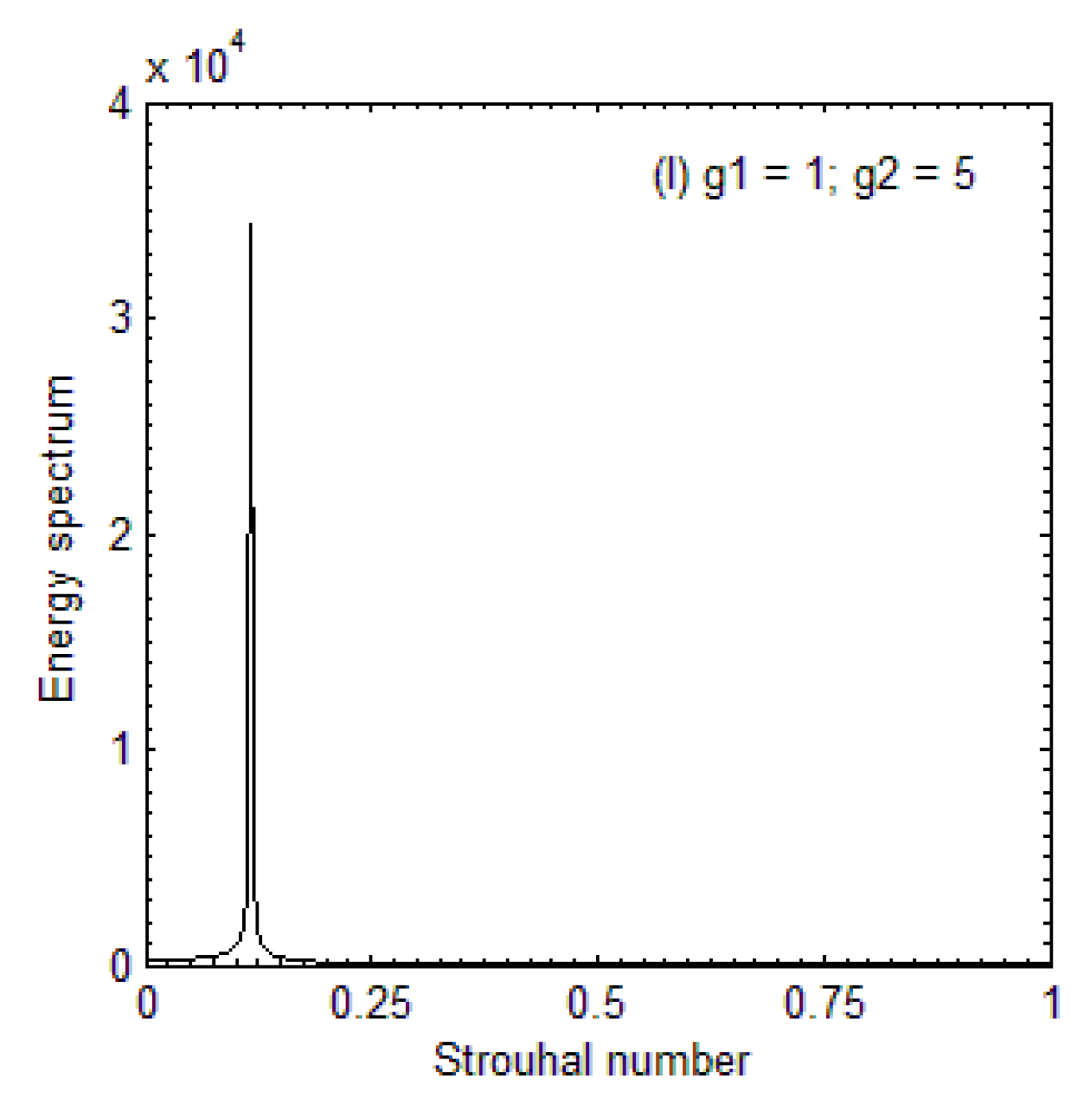

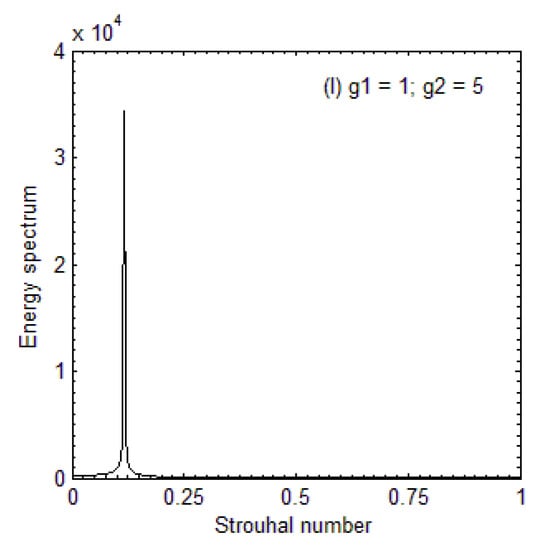

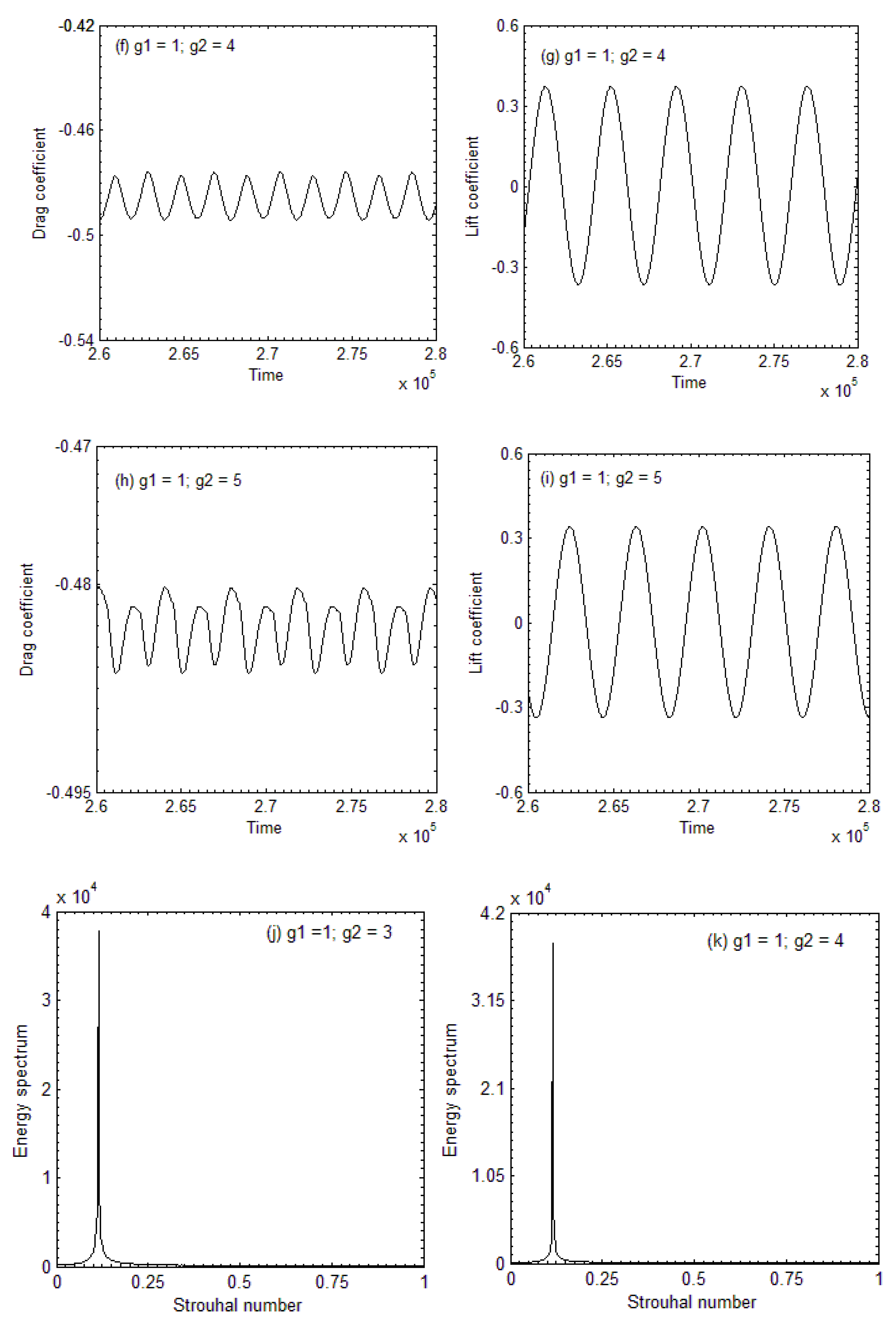

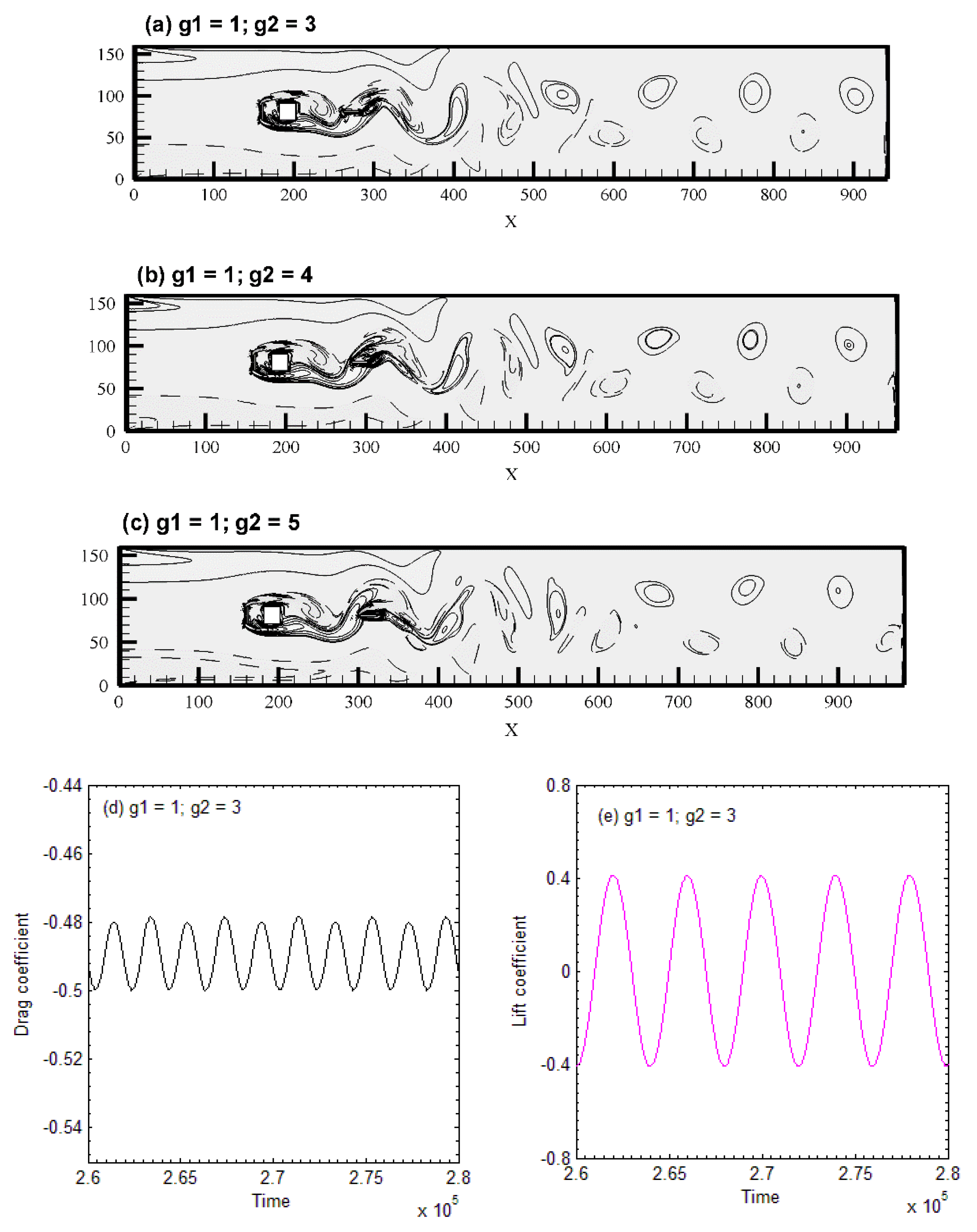

**Figure 6.**(

**a**–

**c**) Vorticity contour visualization of the SDVS flow mode. (

**d**–

**i**) Time trace analysis of drag and lift coefficients for the SDVS flow mode. (

**j**–

**l**) Energy spectrum analyses of lift coefficients for the SDVS flow mode.

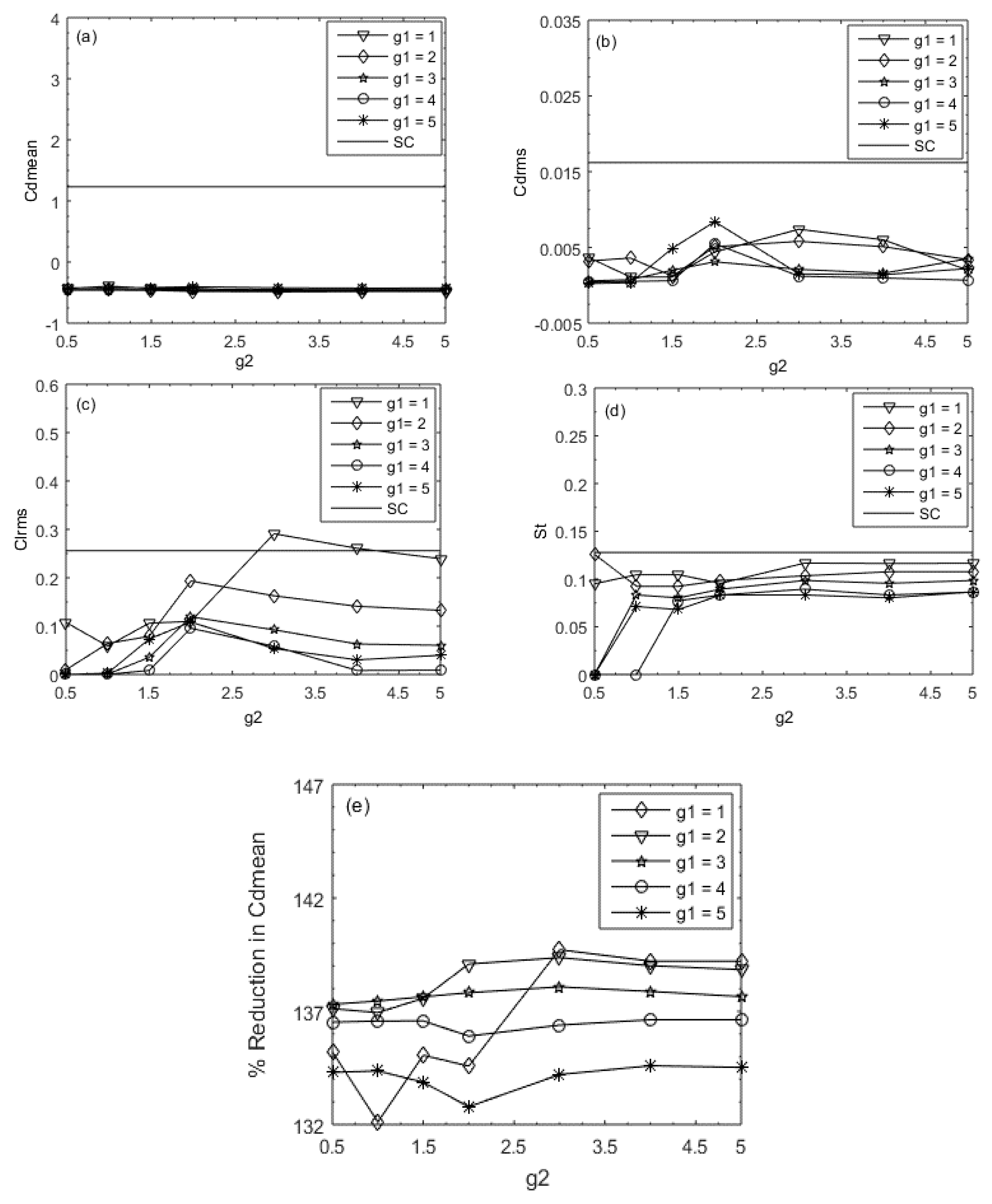

**Figure 7.**(

**a**–

**e**) The effect of the spacing ratio (g

_{1}= 1–5, g

_{2}= 0–5) of the upstream and downstream control rods to the main rod at a fixed Re = 160 in terms of statistics force and percentage reduction in Cdmean.

**Table 1.**Physical parameters for different computational domains at g

_{1}= 1, g

_{2}= 2, and Re = 160.

Cases | Cdmean | Clrms | St | |
---|---|---|---|---|

(I) | Lu = 7.0 d; Ld = 33.0 d; H = 8.0 d | −0.425 | 0.1099 | 0.102 |

(II) | Lu = 8.0 d; Ld = 33.0 d; H = 8.0 d | −0.426 | 0.1095 | 0.096 |

(III) | Lu = 9.0 d; Ld = 33.0 d; H = 11.0 d | −0.427 | 0.1091 | 0.096 |

(IV) | Lu = 8.0 d; Ld = 30.0 d; H = 8.0 d | −0.426 | 0.1097 | 0.099 |

(V) | Lu = 8.0 d; Ld = 35.0 d; H = 8.0 d | −0.426 | 0.1096 | 0.102 |

(VI) | Lu = 8.0 d; Ld = 33.0 d; H = 7.0 d | −0.422 | 0.0609 | 0.099 |

(VII) | Lu = 8.0 d; Ld = 33.0 d; H = 9.0 d | −0.492 | 0.3623 | 0.108 |

Cases | Cdmean | Cdrms | Clrms | St |
---|---|---|---|---|

d = 10.0 | 1.5932 | 0.0285 | 0.3688 | 0.3197 |

d = 20.0 | 1.5272 | 0.0229 | 0.3152 | 0.1712 |

d = 30.0 | 1.5458 | 0.0428 | 0.3033 | 0.2106 |

d = 40.0 | 1.5528 | 0.5921 | 0.3104 | 0.2193 |

**Table 3.**Comparison of Cdmean, St, Cdrms, and Clrms for flow past a single square cylinder at Re = 200.

Re = 200 | Cdmean | St |
---|---|---|

Saha et al. [33] | 1.670 | 0.163 |

Sohankar et al. [34] | 1.424 | 0.165 |

Okajima [35] | 1.480 | 0.138 |

Norberg [36] | 1.450 | 0.152 |

Abograis and Alshayji [37] | 1.488 | 0.153 |

Present | 1.519 | 0.155 |

Re = 200 | Cdrms | Clrms |

Sohankar et al. [34] | 0.012 | 0.012 |

Abograis and Alshayji [37] | 0.027 | 0.027 |

Present | 0.038 | 0.038 |

Flow Modes | (g_{1}, g_{2}) |
---|---|

Shear Layer Reattachment | (1, 0.5), (1, 1), (1, 1.5), (1, 2), (2, 0), (2, 0.5), (2, 1), (2, 1.5), (2, 2), (2, 3), (2, 4), (2, 5), (3, 0), (3, 1.5), (3, 2), (3, 3), (3, 4), (3, 5), (4, 1.5), (4, 2), (4, 3), (4, 4), (4, 5), (5, 1.5), (5, 2), (5, 3), (5, 4), (5, 5) |

Steady | (3, 0.5), (3, 1), (4, 0), (4, 0.5), (4, 1), (5, 0), (5, 0.5), (5, 1) |

Semi-Developed Vortex Shedding | (1, 3), (1, 4), (1, 5) |

% Reduction Cdmean | g_{2} = 0.5 | g_{2} = 1 | g_{2} = 1.5 | g_{2} = 2 | g_{2} = 3 | g_{2} = 4 | g_{2} = 5 |
---|---|---|---|---|---|---|---|

g_{1} = 1 | 135.21 | 132.11 | 135.06 | 134.58 | 139.72 | 139.22 | 139.22 |

g_{1} = 2 | 137.11 | 136.94 | 137.58 | 139.09 | 139.37 | 139.03 | 138.85 |

g_{1} = 3 | 137.31 | 137.45 | 137.64 | 137.82 | 138.08 | 137.88 | 137.65 |

g_{1} = 4 | 136.52 | 136.57 | 136.58 | 135.91 | 136.39 | 136.62 | 136.63 |

g_{1} = 5 | 134.30 | 134.36 | 133.87 | 132.79 | 134.21 | 134.60 | 134.53 |
