Docking Linear Ligands to Glucose Oxidase

Abstract

GOX (3QVR), glucose oxidase, is an oxidoreductase enzyme, which has found many applications in biotechnology and modern diagnostics with typical assays including biosensors useful in the determination of free glucose in body fluids. PEI (polyethylenimines) are polymer molecules made up of amine groups and two aliphatic carbons, which are cyclically repeated. PEI are transfection reagents which, using positively charged units, bind well to anionic DNA residues. During the studies on GOX, PEI were used both in their linear and branched structures. Rhombellanes, RBL, are structures decorated with rhombs/squares. The aim of the paper is to study the interactions of two kinds of linear ligands: PEIs (Polyethylenimines) and CHRs (ethers of Hexahydroxy-cyclohexane) with the glucose oxidase enzyme, GOX (3QVR). To understand the structure-activity relationship between the GOX enzyme and the linear ligands PEI and CHR, two steps of docking simulation were performed; mapping the whole area of the 3QVR enzyme and docking on the first and second surface of the enzyme, separately. The studied ligands interacted with amino acids of GOX inside the protein and on its surface, with stronger and shorter bonds inside of the protein. However, long chain ligands can only interact with amino acids on the external protein surface. After the study, two domains of the enzyme were clearly evidenced; the external surface domain more easily creates interactions with ligands, particularly with CHR ligands.

1. Introduction

GOX, glucose oxidase, is an oxidoreductase that catalyzes the oxidation of β-d-glucose to d-glucono-β-lactone, which is non-enzymatically hydrolyzed to gluconic acid [1]. In these reactions, FADH2 is formed as the reduction product of the FAD ring of GOX. FADH2 is then re-oxidized by using molecular oxygen to obtain hydrogen peroxide (H₂O₂). GOX has found many applications in biotechnology and modern diagnostics. Typical assays utilize it as a biosensor useful in determination of free glucose in body fluids.

There are several types of PEI [2]: The branched PEI (BPEI), linear PEI (LPEI), and dendrymer PEI (DPEI). Branched PEI have all types of amino groups, while linear PEI contain primary and secondary amino groups.

BPEI is liquid at room temperature, while LPEI is solid because its melting point is about 73–75 °C. It is well soluble in water (hot with low pH), methanol, ethanol, and chloroform.

PEI binds to anionic residues of DNA by its positively charged units [3]. Despite high toxicity, PEI has many applications [4] due to its polycationic character. PEI has been used in studies on GOX, both in its linear and branched structures [5,6,7,8].

Rhombellanes, RBL, are structures built of rings in the form of rhombs or squares (Figure 1, left); they have recently been proposed by Diudea [9,10].

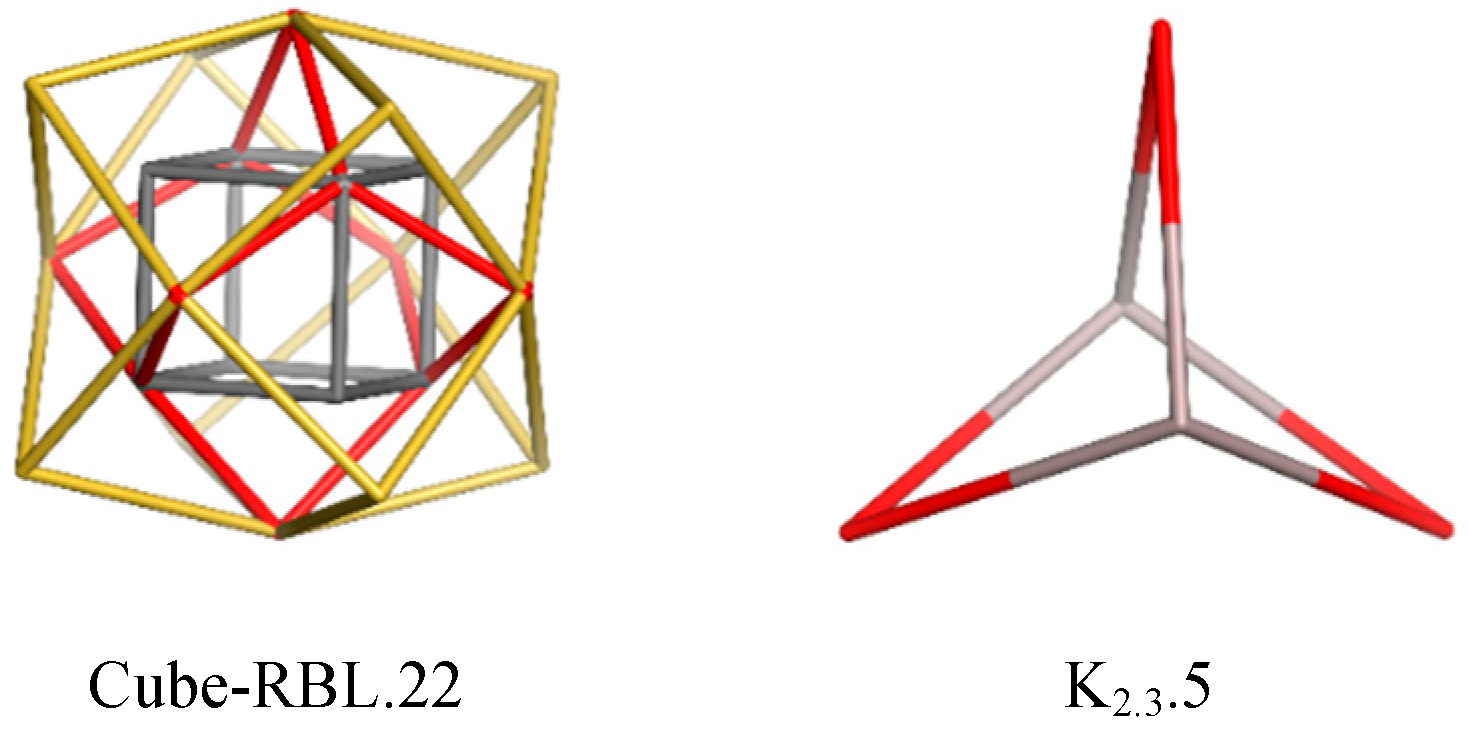

Figure 1. Rhombellane basic structures [9,10].

Rombellanes are organic molecules, C5H6, structurally related to [1,1,1] propellane, which contains only triangles [11]. Its reduced form, C5H8, is named bicyclo [1.1.1]pentane and is made of rhomb rings or square rings (Figure 1, right). [1,1,1] Propellane undergoes spontaneous polymerization to [n] staffanes (Figure 2, left) [12,13], which are rigid, linear structures. The number suffixing a molecule name stands for the number of its (heavy) atoms.

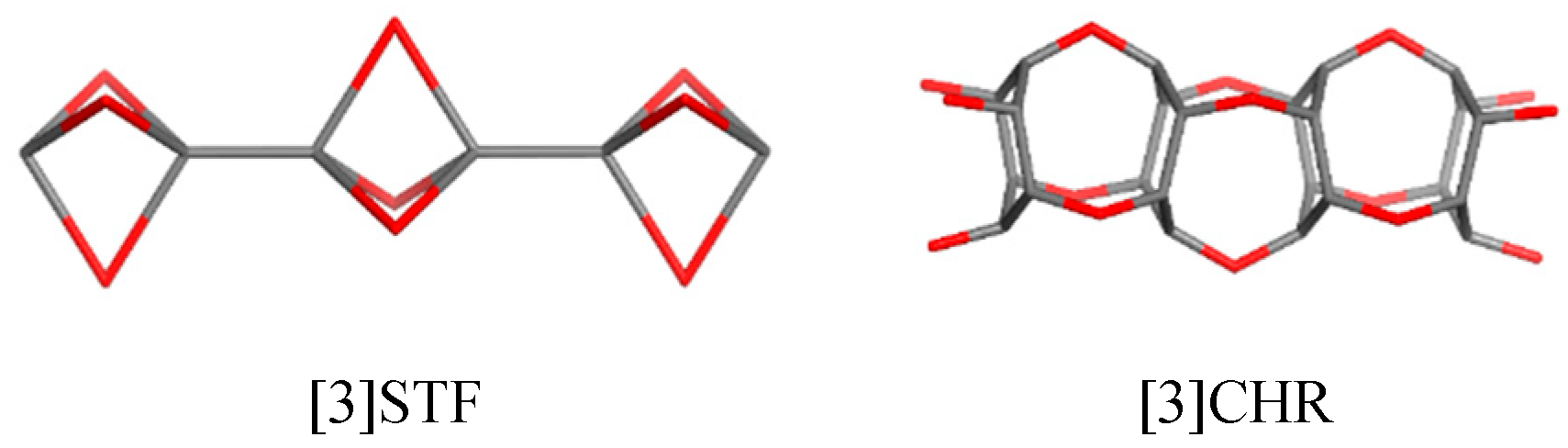

Figure 2. Linear oligomers related to rhombellanes [9,10].

Rhombellanes have five common features [14,15,16], but foremost they are structures made of rhomb rings or square rings, where vertex classes consist of all non-connected vertices. The cube-rhombellane is presented in Figure 1. Rhombellanes are, in general, designed by the “rhombellation” operation [9,10].

By analogy to staffanes [n]STF [5], (Figure 2, left), a linear rod-like polymer (a poly-ether of 1,2,3,4,5,6-hexahydroxy-cyclohexane, [n] CHR, (Figure 2, right) was proposed by Diudea [17]. This idea came from cube-rhombellane (Figure 1, right) [9,10], with vertex/atom connectivity 6 and 3, respectively. For its realization as a molecule, it was proposed [10] to use hexahydroxy-cyclohexane for connectivity 6 (connectivity 3 being more accessible).

2. Materials and Methods

In the first step of the docking simulation, the whole area of the 3QVR enzyme was mapped step by step (Figure 3). The protein was downloaded from Brookhaven Protein Database PDB [18,19].

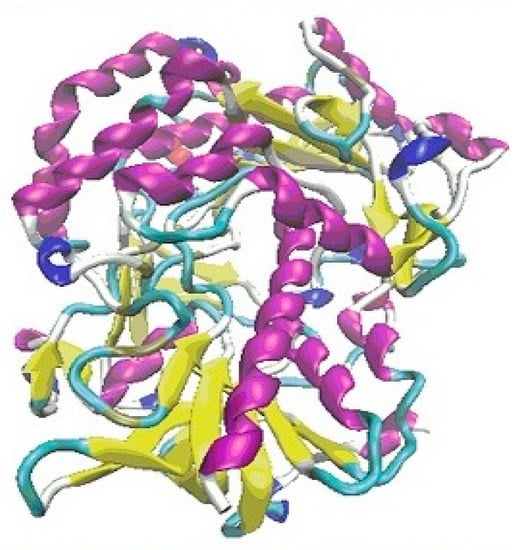

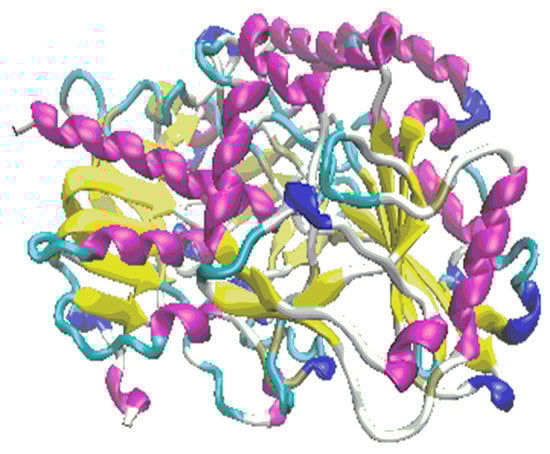

Figure 3. The protein 3QVR/GOX, with the inside pocket (top) and external binding domain (bottom) docking surface.

To understand the structure–activity relationship of the ligand–protein complex (Supplementary Tables S1 and S2), molecular docking was carried out.

Two kinds of linear structures were used as ligands: PEI.C_2+nN_2+m; n = 2, 4, 6…; m = 1, 2, 3… (Figure 4) and [n]CHR.24 + 15n; n = 0, 1, 2…, respectively (Figure 4).

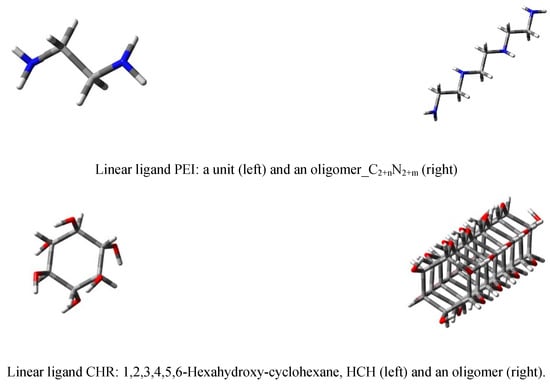

Figure 4. Linear ligands PEI (top row) and CHR (bottom row).

All structures used during the molecular docking stage, including the ligands and proteins, were created with the use of the AutoDockTools package and non-polar hydrogen atoms were removed from each molecule. The dimensions of the grid box were fitted to the size of the protein; while during modeling, all possible interactions of the ligand with the whole protein surface were evaluated. The docking procedure was realized with the use of AutoDockVina [20,21], using the Lamarckian genetic algorithm [22]. The calculations were realized with exhaustiveness parameter equal 20, with the chosen value being a compromise between good reproducibility of calculations and computation time cost. Finally, the validity of the used algorithm was verified [23,24].

3. Results

3.1. The First Step of the Study

By performing the docking procedure, it is clear that ligands can interact with amino acids of GOX both inside of protein (Figure 5, top) and on its surface (Figure 5, bottom). Selected values of the free energy of binding to the proteins active site are given in Supplementary Tables S1 and S2 for ligands PEI and CHR, respectively.

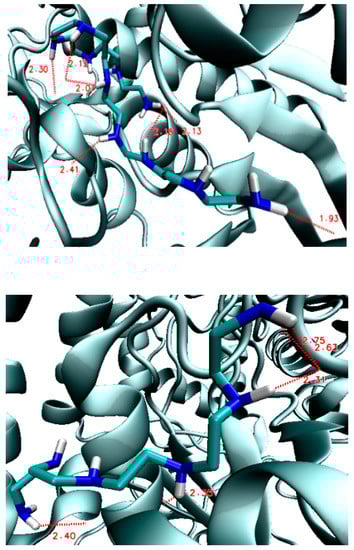

Figure 5. Hydrogen bond lengths (in Å) in the PEI–GOX complexes: Inside the protein (3QVR–PEI.C₁₈N₁₀.01.0Lin2, top) and on its surface (3QVR–PEI.C₁₀N₆.01.0Lin3, bottom).

However, the bonds created inside are stronger and shorter, compared with the bonds formed on the outside surface of enzyme, which is what could be expected (see Supplementary Tables S1 and S2; Supplementary Figures S1 and S2. The structural analysis of the formed complexes clearly shows that the ligand affinity values on the external surface are lower compared to the values of affinity inside of enzyme (see also Supplementary Figures S1–S3; Supplementary Tables S1 and S2.

With the increasing chain length of PEI and CHR ligands, the values of ligand–protein affinity also increase (Supplementary Figure S4; Supplementary Tables S1 and S2. This is caused by the fact that increasing the structural elongation of the ligand increases the number of atoms participating in the ligand–enzyme hydrogen bond formation (Figure 6).

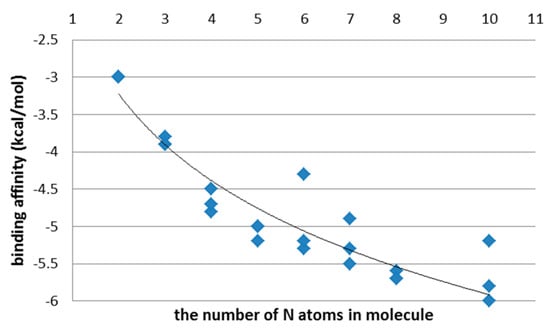

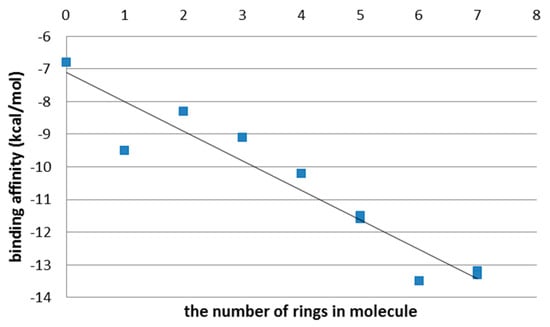

Figure 6. Binding affinity (kcal/mol) in PEI (top) and CHR (bottom) ligands, after the first step of the docking procedure.

Hydrogen bonds of ligand and protein are detailed in Supplementary Figures S1 and S2 (amino acids are hidden for the sake of image clarity).

The ligand affinity depends on the number of hydrogen bonds and the strength of the interactions between ligand and protein (Figure 7; Supplementary Table S3). It also depends on whether these interactions occur on the external surface of the enzyme or inside it.

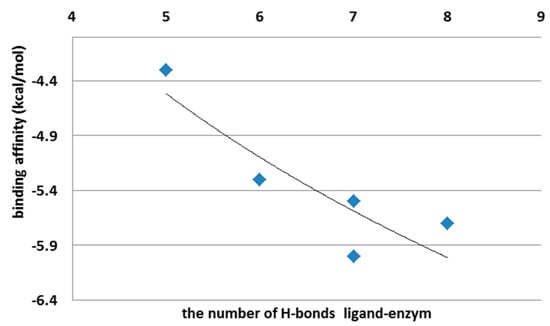

Figure 7. Binding affinity (kcal/mol) vs. the number of H-bonds created between ligand and enzyme.

Jeffrey [25] categorizes H bonds by donor–acceptor distances. Based on such categorization, H-bonds created with the protein by PEI and CHR ligands are strong and moderate (Supplementary Table S3). The number and strength of the hydrogen bonds between the ligand and protein will, finally, determine the values of binding affinity, and consequently, the ligand–protein overall distance. Thus, a high value of ligand–protein binding affinity is directly related to the formation of many strong hydrogen bonds.

In the case of PEI ligands, all the tested molecules, except for PEI.C₁₀N₆.01.0Lin3, form H-bonds inside of the protein. In the case of CHR molecules, only those with a short chain (namely [0]CHR.24 and [1]CHR.39) find room to interact with amino acids inside of the enzyme. Ligands with a longer chain ([n]CHR.24 + 15n; n = 3 to 7) can only embed on the external binding domain of the enzyme surface (Figure 3).

That is why, in the second step of this study, the docking was made on the surface of the enzyme, where the studied ligands can create H-bonds with the protein in an easy and quick way.

3.2. The Second Step of the Study

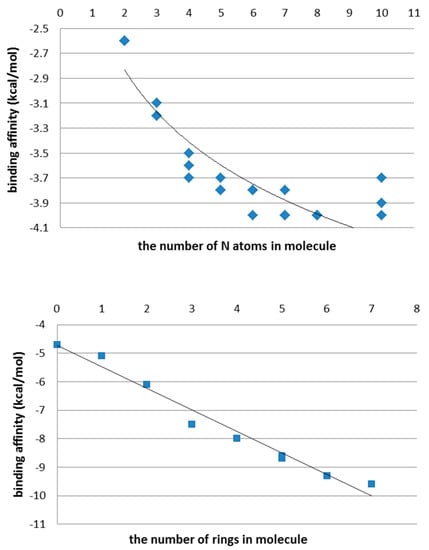

Again, with the growing chain length of PEI and CHR molecules, the values of ligand–protein affinity also increase (Figure 8), by increasing the number of hydrogen bonds created between the enzyme and ligand.

Figure 8. Binding affinity (kcal/mol) in PEI (top) and CHR molecules (bottom) after docking of ligands on the external surface of protein.

One can see that the values of ligand–enzyme affinity on the external domain (Supplementary Tables S4 and S5) are much smaller than in the inside domain (Supplementary Tables S6 and S7), which suggests the creation of longer and weaker hydrogen bonds.

4. Discussion

When comparing the energy of hydrogen bonds created between ligands and GOX enzyme, it can be found that differences were around 1% in favor of the external domain of docking (Figure 4 and Figure 9, top) for PEI ligands; while in the case of CHR ligands, the differences ranged from 40% to 70%, also in favor of the external domain (Figure 9, bottom).

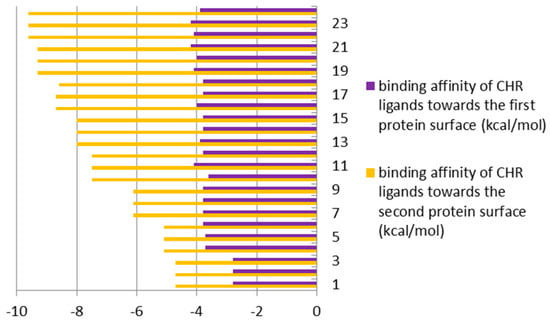

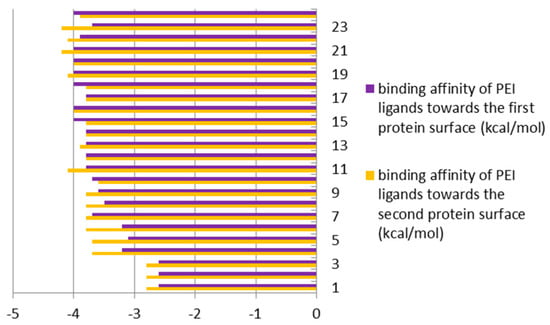

Figure 9. Binding affinities (in kcal/mol) of enzyme (GOX protein)–ligands (PEI (top) and CHR (bottom)), bound inside (first protein surface) and outside/externally (second protein surface), respectively.

All of the above means that the external surface domain of enzyme (Figure 3, bottom) interacts more easily with ligands, particularly with CHR molecules. Here, the larger differences are in the case of longer chain molecules (Figure 9, bottom).

Detailed structural analysis of the ligand-protein complexes, formed after the docking procedure, confirmed the observation regarding the existing differences in the strength of hydrogen bonds, on the inside and outside domains of GOX enzyme, in docking of the ligands PEI and CHR, respectively (Figure 9). The number and strength of hydrogen bonds created between PEI and amino acids were comparable on the two docking domains of the protein. Contrarily, in the case of CHR ligands, the external surface domain provided more room to form a large number of interactions with the protein, in comparison to the internal pocket of enzyme (Figure 3).

5. Conclusions

To understand the structure–activity relationship between the GOX (3QVR) enzyme and linear ligands PEI and CHR, in the first step of this docking study, the whole area of the enzyme was mapped. It was found that ligands can interact with amino acids of GOX in two domains, namely, the inside of the protein and on its external surface. The bonds created in the inside domain are stronger and shorter, compared with the bonds formed on the external surface of enzyme. Also, in the latter, the bonding energy values were lower compared with the values recorded for the complexes formed with the inside docking domain of enzyme. Despite this, with the increasing chain length of PEI and CHR ligands, the values of ligand–protein affinity also increased, which is what is connected to the increasing ability to create more ligand–protein hydrogen bonds. The binding affinity depends on the number and strength of interactions between ligand and protein, and also depends on whether these interactions occur on the external surface of the enzyme or inside it. The longer ligand chains can only find room for docking with the amino acids lying on the external surface of the protein.

Comparison between the two docking sites of GOX revealed differences in binding affinity in favor of the external domain of docking; around 1% in the case of PEI ligands and from 40% to 70% in the case of CHR molecules.

The number and strength of hydrogen bonds created between PEI and GOX amino acids are comparable on the two sites of protein docking; while in case of CHR ligands, the docking is favored on the external domain of the protein surface. This means that the CHR ligands act selectively on the external binding site of the GOX enzyme.
