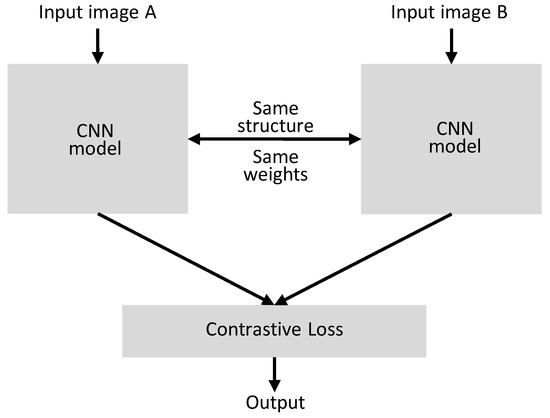

In this paper, instead of using two Siamese network-based CNN models for age comparison from two input images, we apply the contrastive loss function using the inference results for the corresponding images by selecting two images from a batch of training models in a single network.

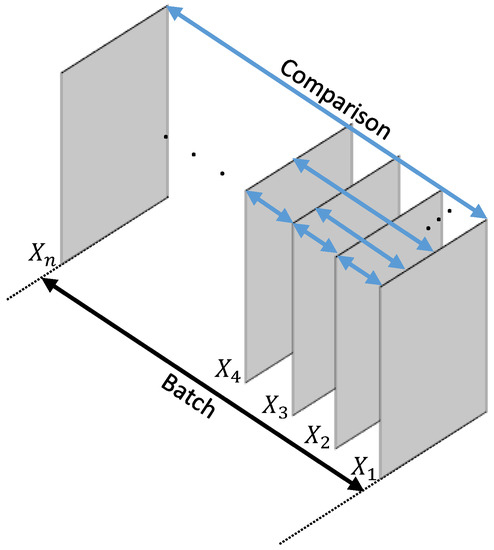

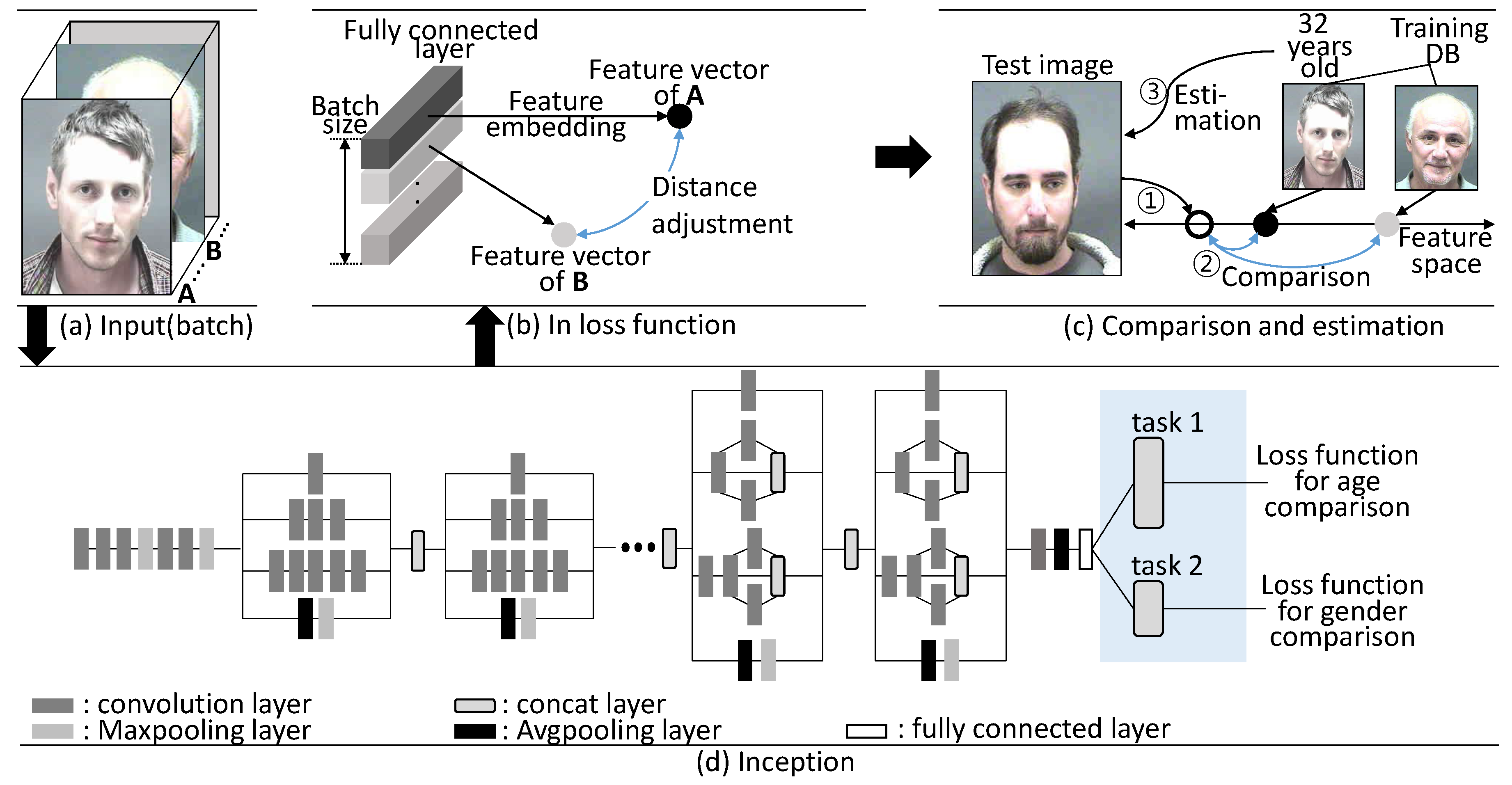

As shown in
Figure 2a, two input images are selected from the batch, by considering all selectable combinations. The selected A and B images are mapped to the feature vector which is a final output of the fully connected layers in
Figure 2d. In the proposed loss function, the gradient value is propagated into the network to decrease the distance between feature vectors when two images in batch are in same class, as well as to increase the distance between feature vectors then the two images are in different classes, as shown in
Figure 2b. Our architecture is trained using the proposed algorithm to determine the similarity between two input images.
2.3. Distance as Similarity between Two Images

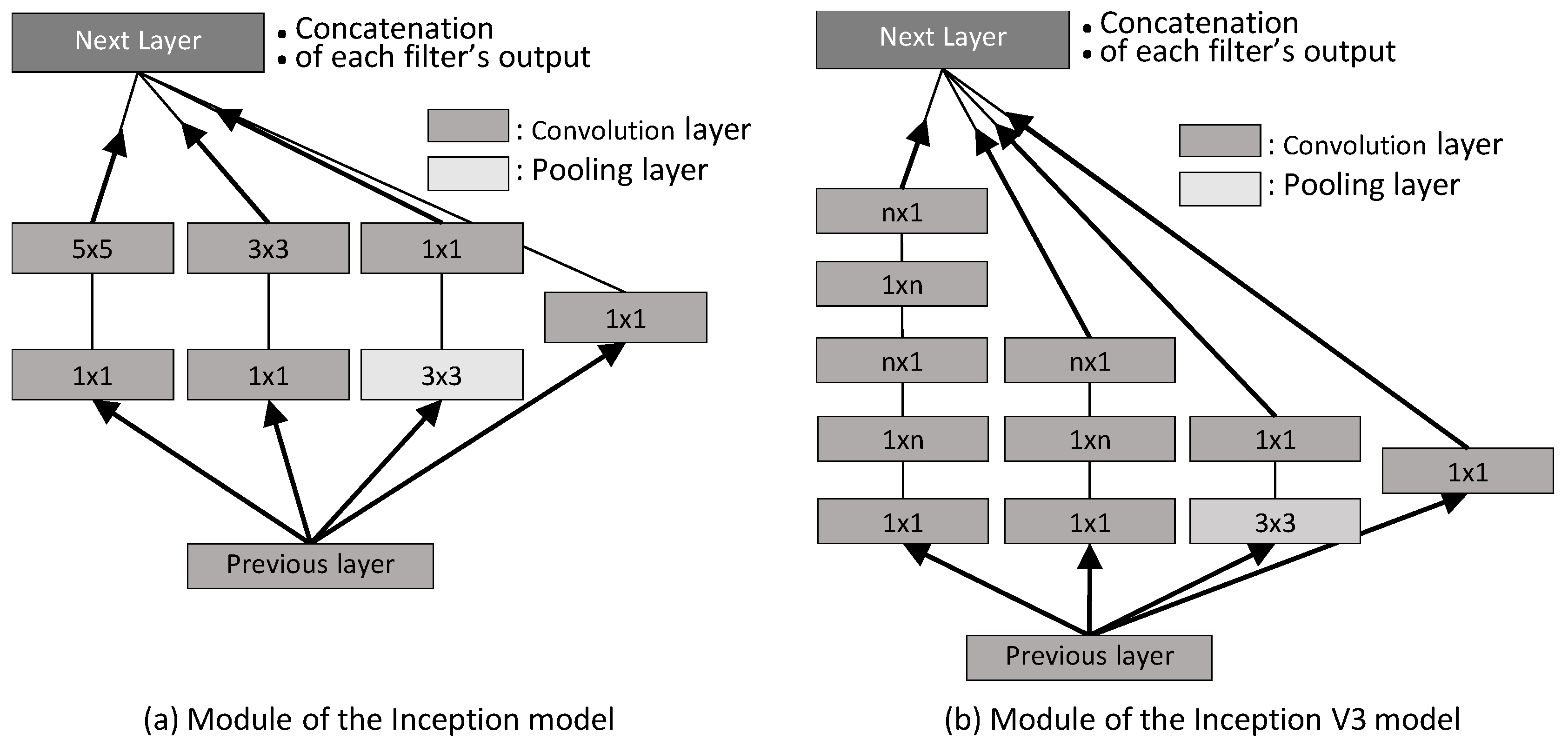

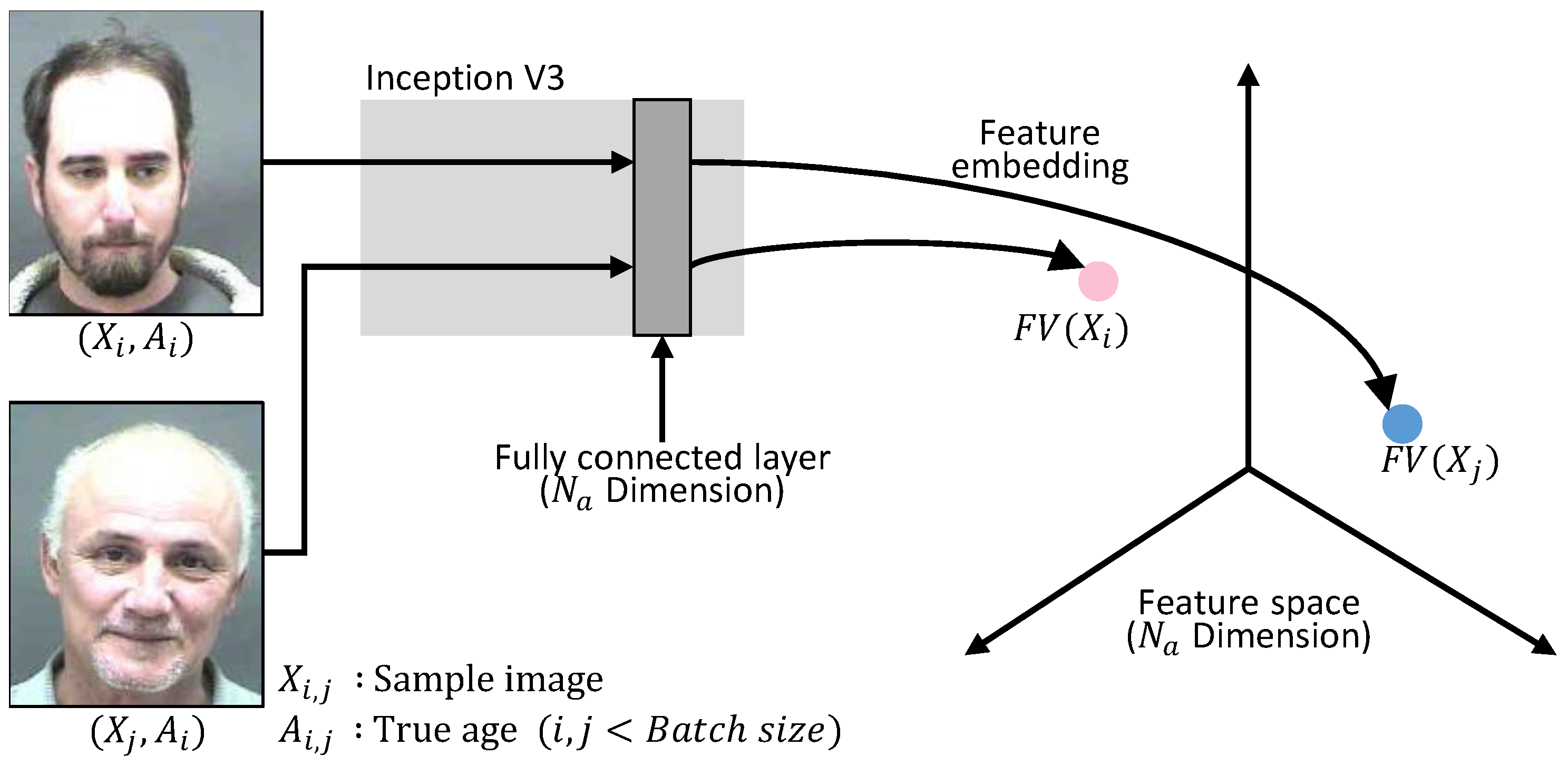

The feature vectors are extracted by the Inception V3-based feature-embedding method, as shown in
Figure 5.
The proposed algorithm aims to effectively train the model by mapping the feature vectors into feature space so that similar images are clustered with smaller distance. Therefore, similarity between two images and distance between feature vectors of two images have a reciprocal proportion relationship. The distance between the feature vectors is calculated using
, which calculates the absolute distance of the corresponding value in each dimension with the following equation in terms of the distance
D between two feature vectors.
Some previous approaches [
11,
13] use the Euclidean distance calculation method called norm2, but the preferred approach in previous studies has been to use norm1 instead of norm2 for Siamese networks [
12].
In this paper, we define the distance using and we can successfully converge the training result, as evaluated in the experiment.
2.4. Loss Function for the Training Comparison Task
Feature vector comparison, as a representative descriptor for a given image, is equivalent to comparing the image itself. Our proposed approach defines the loss function and trains the comparison task of the CNN model so that the extracted features are relatively positioned in the feature space in terms of the similarity of two feature vectors.
The loss function used in this paper is described as follows. The loss function corresponds to the contractive loss function in the Siamese network, which is introduced as a contrastive loss function [
12].
is a Boolean function that outputs 1 in the case of two similar images; otherwise, it outputs 0.
has to satisfy the condition in the manner of a decreasing function, and
of an increasing function, as shown in the following equation.
Q is a constant to determine the upper limit of dissimilarity, which is 100 in this paper.

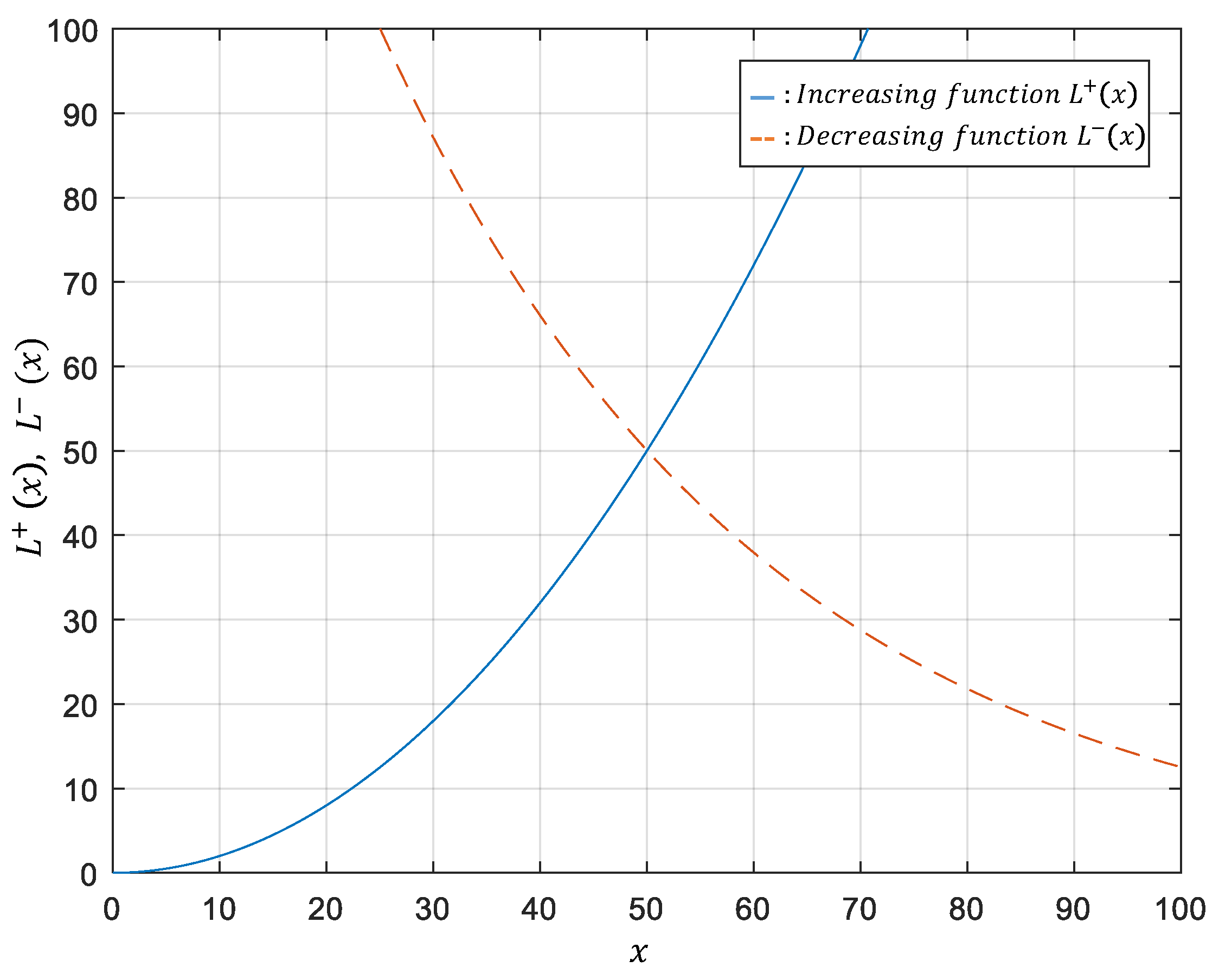

Figure 6 is a graph to describe the loss function in terms of the distance between feature vectors.
is 1 in the case of two similar images in the same class, and the
term remains. The gradient is propagated into the network so that the distance is reduced to minimize the loss in the designed loss function.
is 0 in the case of two images that are considered to be in different classes, and the
term remains. The gradient is propagated into the network so that the distance is increased for the decreased loss function. With these operations in the network, the weights for feature vector extraction is updated.

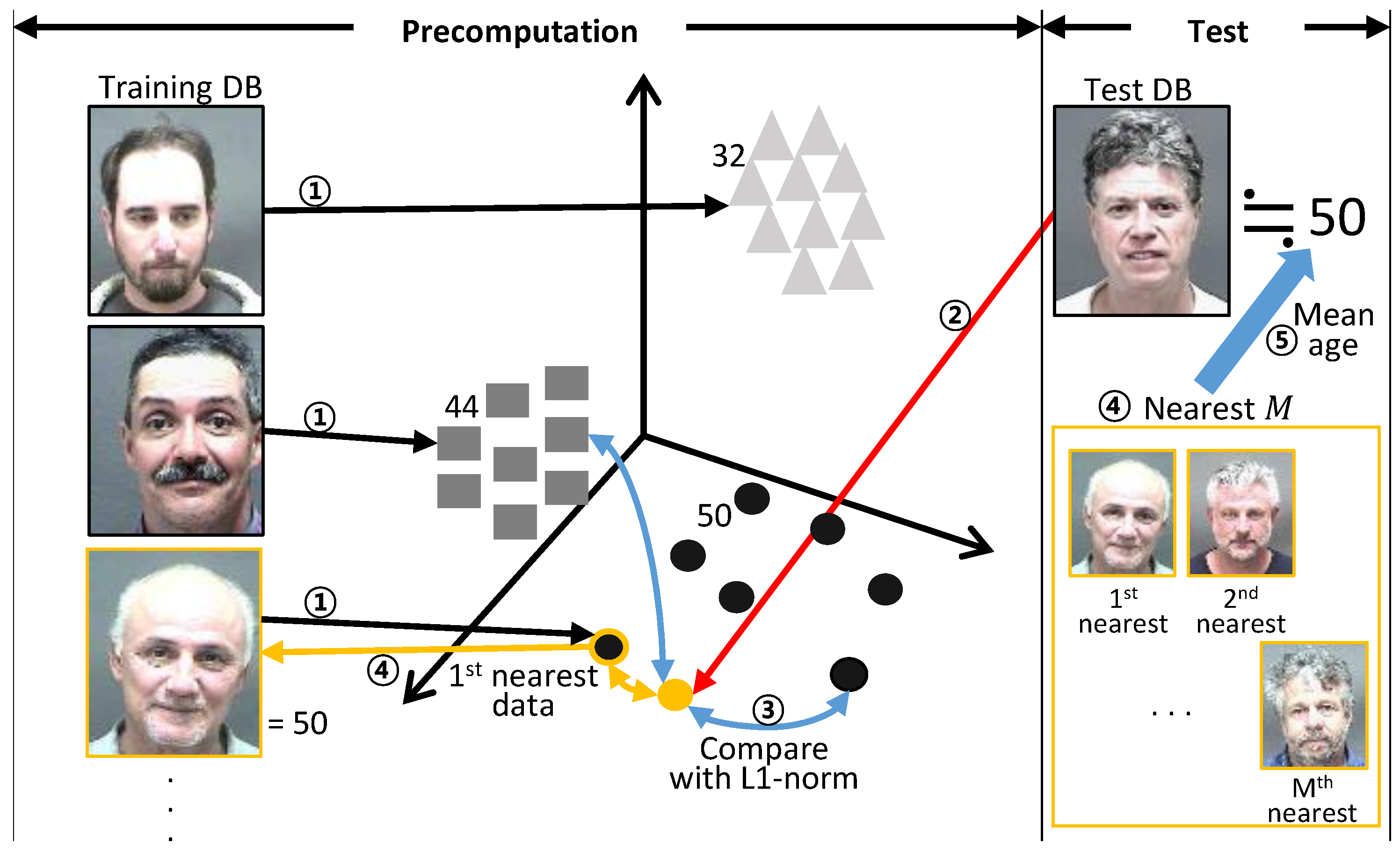

Because this designed loss function is used to train the network to determine the distance between feature vectors, there is no inefficiency limiting the basis of the mapping plane. However, unlike the trained database, the proposed method has to search and determine a nearest neighbor from feature vectors. In addition, an approach using this loss function enables the multi-class classification for age estimation of various bands to be simplified as a binary classification problem which only measures the similarity. It mitigates imbalance of the accuracy over all classes, which is caused by the biased training database. However, if this loss function is applied to the binary classifier as it is, the images in the same age class are considered positive, and all other classes are negative; as a result, the trained database becomes imbalanced due to the large number of classes, which is why Siamese networks do not easily converge the training results.
To resolve this issue, CRCNN adopts a technique to select the comparison images in advance to prevent the network from being continuously trained with the negative database. Instead of comparing the similarities in age, it redesigns the loss function to only determine whether the age is younger or older; as a result, it can converge the training results of the Siamese network.
Our approach succeeds in converging the training result by adopting a method to increase the ratio of the positive data, for which the Boolean function determining age class allows for error tolerance. For example, if three years is allowed as a margin, the loss function considers classes between and years old to be the same class. The proposed technique is helpful to increase the ratio of positive data, so the entire process of training the CNN model is not negatively influenced by the error tolerance.
In fact, while our approach loses discrimination by class in the CNN model with the margin-allowed error, it results in more accurate age estimation by enabling all comparisons for all age ranges. Even though a specific feature vector is involved with the class within a certain range of marginal error tolerance, clustering can be processed further with accuracy of the margin value, by comparing with the feature vector within (margin+1) and −(margin+1) compared to the currently clustered age. The entire clustering procedure using the proposed approach is described in
Figure 7.

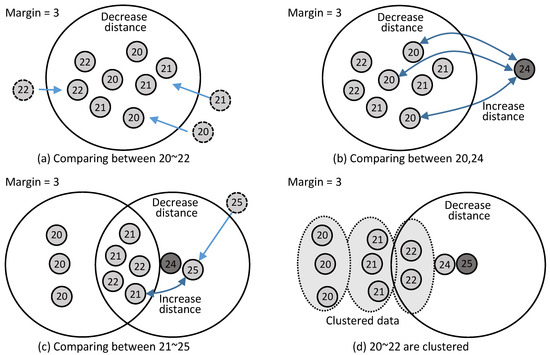

Figure 7 assumes that the margin is defined as 3; the feature vectors of the images are compared and clustered using the proposed loss function. For example, as shown in
Figure 7a, if only the feature vectors of the images that are 20–22 years old are compared, then all images are considered similar because the margin is defined as 3, so only the distance decreases, but the clustering does not proceed further. This means that the estimation accuracy is three years. However, as shown in
Figure 7b, if the feature vector for an image classified as 24 years old is compared to one classified as 20 years old, the network is trained to increase the distance, so the feature vector of age 24 is clustered to be positioned far away. As shown in
Figure 7c, the network is trained so that the feature vector for 21–22 age is clustered to be closely positioned, because ages 20–21 and 24 are within the margin, which can be considered the same class. When a feature vector with 25 is compared, 22 and 25 are considered the same class through the same process, so the network is trained to have a close distance between 22 and 25. As a result, the feature vectors of 20, 21, 22, 24, and 25 are separately clustered, so we can distinguish the age of the images with an accuracy of one year.
2.6. Multi-Task Learning for Age and Gender Estimation
The loss function for the proposed method is designed to train the CNN model with age similarity as the relation of classes. Even though the CNN model is trained to determine a similar level using the age data, it can be further trained by clustering the classes closely with similar images using detailed conditions, such as face angle, hair length, and beard. An algorithm that determines age using various conditions, in addition to the absolute age data, is more appropriate. That is why the detailed conditions are automatically configured and applied to the training model by only defining the age-based similarity.
With this concept, we first tried gender classification using the model trained with only the age data, and then we measured the accuracy of the gender-matching result. We found that our approach using only age-based estimation could classify the gender with 81.23% accuracy compared to the result of gender-based classification. The result is summarized in Table 2. The result gave us the following two insights. First, our approach internally uses gender-based conditions to perform the age estimation. Second, the gender data can be an important clue to estimate age. In fact, the 81.23% accuracy of gender classification based on age data means that the age estimation is tightly coupled with gender.
Based on this speculation, our approach adopts the multi-task learning approach so that it additionally provides gender data to the trained model when comparing age. The multi-task learning simultaneously trains the model to increase the performance in terms of accuracy of age estimation. If the individual tasks have a cross-coupled relationship, the multi-task learning approach enables the model to be trained by selecting commonly important variables in the multiple tasks. Utilizing the ability to train the model considering the relationships between tasks, we could assist the age estimation with gender data, thus training the model to consider age and gender simultaneously.

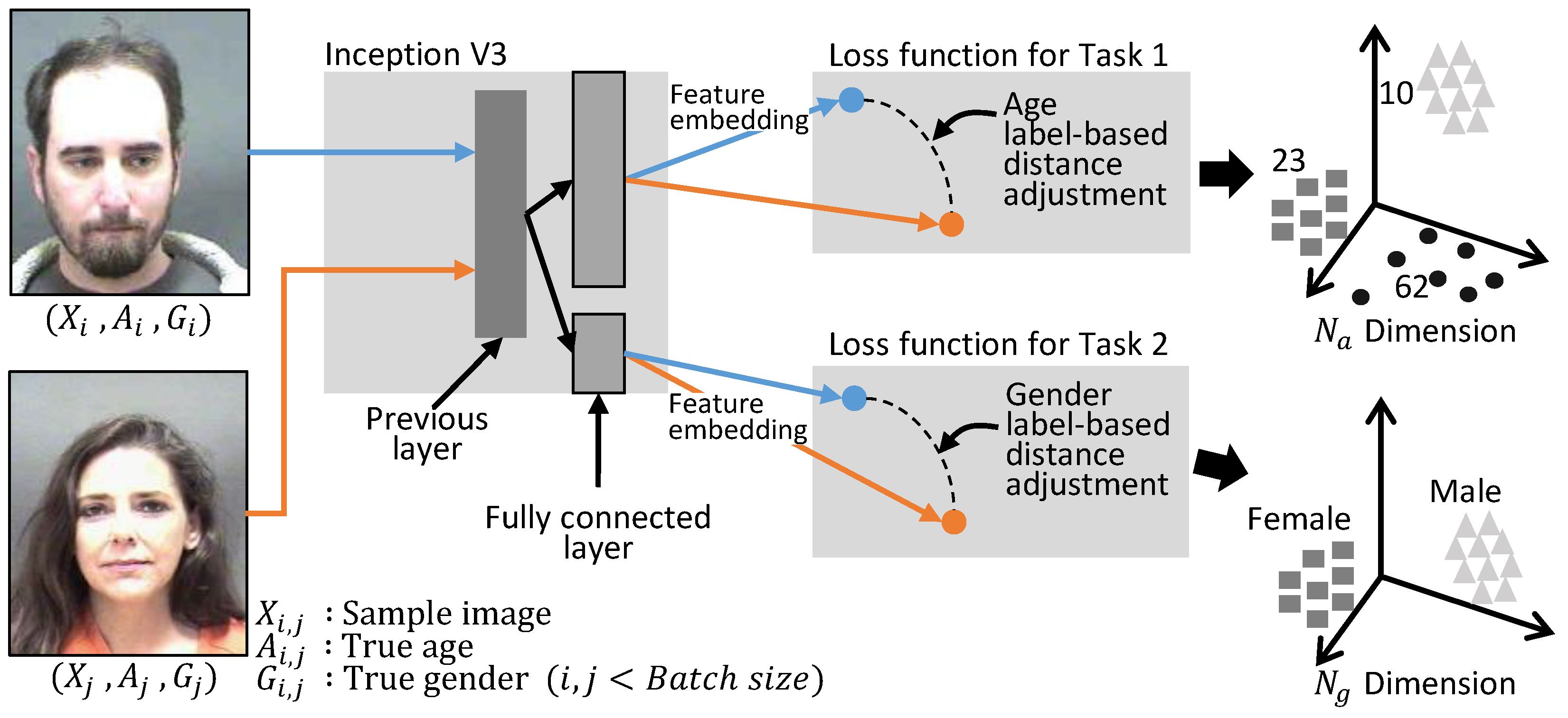

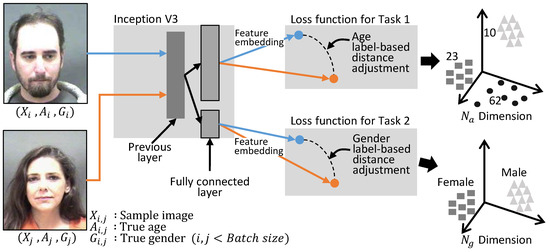

The multi-task learning technique applied in this paper is described in
Figure 9. A fully connected layer in
dimensions is added for the gender comparison used to compare age in Inception V3. We also designed a loss function to train the logic of the gender comparison so that the weights in the layer are updated in a similar way as in the age comparison algorithm. The margin of comparison in the loss function is 0, and it divides the positive and negative data on the basis of gender. This additional task for gender comparison is temporarily used to assist the data in training the age estimation logic. The finally calculated loss is the sum of the loss by the age estimation and gender classification.
